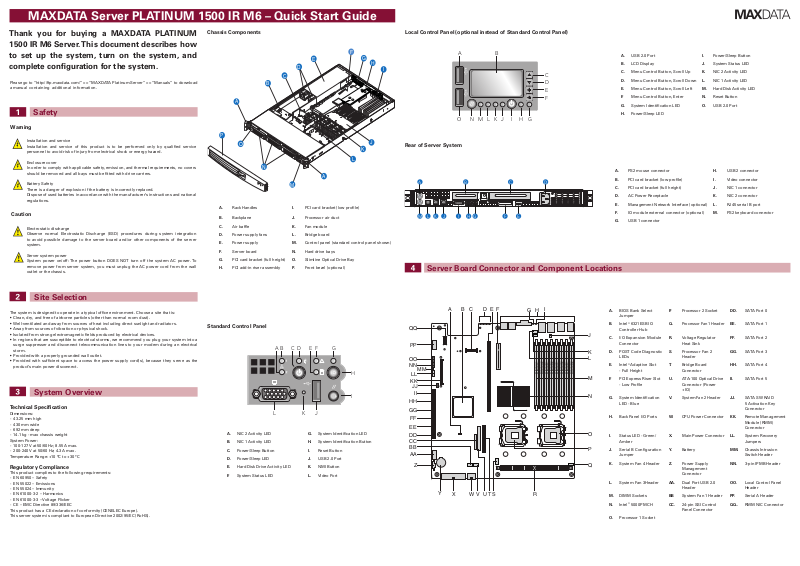

MAXDATA Server PLATINUM 1500 IR M6 – Quick Start Guide

L JK

BA F GEDC

O M L K J HIN G

C D E F

A B C

GH EF

V UST

DD CC BB

DIMM A2

DIMM A1

DIMM B1

DIMM B2

DIMM C1

DIMM C2

DIMM D1

DIMM D2

Thank you for buying a MAXDATA PLATINUM 1500 IR M6 Server. This document describes how to set up the system, turn on the system, and complete conﬁguration for the system.

Please go to “http://ftp.maxdata.com/” >> “MAXDATA Platinum Server” >> “Manuals” to download a manual containing additional information.

Safety

Warning

Installation and service Installation and service of this product is to be performed only by qualiﬁed service personnel to avoid risk of injury from electrical shock or energy hazard.

Enclosure cover In order to comply with applicable safety, emission, and thermal requirements, no covers should be removed and all bays must be ﬁtted with drive carriers.

Battery Safety There is a danger of explosion if the battery is incorrectly replaced. Dispose of used batteries in accordance with the manufacturer’s instructions and national regulations.

Caution

Electrostatic discharge Observe normal Electrostatic Discharge (ESD) procedures during system integration to avoid possible damage to the server board and/or other components of the server system.

Server system power System power on/off: The power button DOES NOT turn off the system AC power. To remove power from server system, you must unplug the AC power cord from the wall outlet or the chassis.

Chassis Components

A. Rack Handles I. PCI card bracket (low proﬁle)

B. Backplane J. Processor air duct

C. Air bafﬂe K. Fan module

D. Power supply fans L. Bridge board

E. Power supply M. Control panel (standard control panel shown)

F. Server board N. Hard drive bays

G. PCI card bracket (full height) O. Slimline Optical Drive Bay

H. PCI add-in riser assembly P. Front bezel (optional)

Local Control Panel (optional instead of Standard Control Panel)

A. USB 2.0 Port I. Power/Sleep Button

B. LCD Display J. System Status LED

C. Menu Control Button, Scroll Up K. NIC 2 Activity LED

D. Menu Control Button, Scroll Down L. NIC 1 Activity LED

E. Menu Control Button, Scroll Left M. Hard Disk Activity LED

F. Menu Control Button, Enter N. Reset Button

G. System Identiﬁcation LED O. USB 2.0 Port

H. Power/Sleep LED

Rear of Server System

A. PS2 mouse connector H. USB 2 connector

B. PCI card bracket (low proﬁle) I. Video connector

C. PCI card bracket (full height) J. NIC 1 connector

D. AC Power Receptacle K. NIC 2 connector

E. Management Network Interface (optional) L. RJ45 serial B port

F. IO module external connector (optional) M. PS2 k eyboard connector

G. USB 1 connector

Server Board Connector and Component Locations

Site Selection

The system is designed to operate in a typical ofﬁce environment. Choose a site that is:

• Clean, dry, and free of airborne particles (other than normal room dust).

• Well-ventilated and away from sources of heat including direct sunlight and radiators.

• Away from sources of vibration or physical shock.

• Isolated from strong electromagnetic ﬁelds produced by electrical devices.

• In regions that are susceptible to electrical storms, we recommend you plug your system into a surge suppresser and disconnect telecommunication lines to your modem during an electrical storm.

• Provided with a properly grounded wall outlet.

• Provided with sufﬁcient space to access the power supply cord(s), because they serve as the product’s main power disconnect.

Technical Speciﬁcation

Dimensions:

- 43.25 mm high

- 430 mm wide

- 692 mm deep

- 14.1 kg - max chassis weight

System Power:

- 100-127 V at 50/60 Hz; 8.55 A max.

- 200-240 V at 50/60 Hz; 4.3 A max.

Temperature Range: +10 °C to +30 °C

Regulatory Compliance

This product complies to the following requirements:

- EN 60950 – Safety

- EN 55022 – Emissions

- EN 55024 – Immunity

- EN 61000-3-2 – Harmonics

- EN 61000-3-3 – Voltage Flicker

- CE – EMC Directive 89/336/EEC

This product has a CE declaration of conformity (CENELEC Europe). This server system is compliant to European Directive 2002/95/EC (RoHS).

System Overview

A. BIOS Bank Select

Jumper

Standard Control Panel

B. Intel® 6321ESB IO

Controller Hub

C. I/O Expansion Module

Connector

D. POST Code Diagnostic

LEDs

E. Intel® Adaptive Slot

- Full Height

F. PCI Express Riser Slot

- Low Proﬁle

G. System Identiﬁcation

LED - Blue

H. Back Panel I/O Ports W. CPU Power Connector KK. Remote Management

A. NIC 2 Activity LED G. System Identiﬁcation LED

B. NIC 1 Activity LED H. System Identiﬁcation Button

C. Power/Sleep Button I. Reset Button

D. Power/Sleep LED J. USB 2.0 Port

E. Hard Disk Drive Activity LED K. NMI Button

F. System Status LED L. Video Port

I. Status LED - Green/

Amber

J. Serial B Conﬁguration

Jumper

K. System Fan 4 Header Z. Power Supply

L. System Fan 3Header AA. Dual Port USB 2.0

M. DIMM Sockets BB System Fan 1 Header PP. Serial A Header

N. Intel® 5000P MCH CC. 24-pin SSI Control

O. Processor 1 Socket

P. Processor 2 Socket DD. SATA Port 0

Processor Fan 1 Header

R. Voltage Regulator

Heat Sink

S. Processor Fan 2

Header

T. Bridge Board

Connector

U. ATA-100 Optical Drive

Connector (Power + IO)

System Fan 2 Header

X. Main Power Connector LL. System Recovery

Y. Battery MM. Chassis Intrusion

Management Connector

Header

Panel Connector

EE. SATA Port 1

FF. SATA Port 2

GG. SATA Port 3

HH. SATA Port 4

II. SATA Port 5

JJ. SATA SW RAID

5 Activation Key Connector

Module (RMM) Connector

Jumpers

Switch Header

NN. 3-pin IPMB Header

OO. Local Control Panel

Header

QQ.. RMM NIC Connector

Removing the Front Bezel

Unlock the bezel and pull it from the server system.

Installing the Front Bezel

Push the bezel onto the front of the server system until it clicks into place.

Installing the Server System Cover

Place the cover over the server system so that the side edges of the cover sit just inside the server system sidewalls.

Slide the cover forward until it clicks into place (see letter “A”).

Removing and Installing the Processor Air Duct

Installing the PCI Add-in Card Riser Assembly

Align the three hooks in the riser assembly with the matching slots at the back of the server system (see letter “B”).

Press down uniformly until the three hooks on the rear of the PCI riser assembly engage the server system back panel slots. The riser cards will seat into the matching sockets on the server board.

Installing a PCI Add-in Card

Open the rear retention clip by pushing the blue slide upward and rotating clip to the fully open position (see letter “A”).

Open the front retention clip by rotating 90 degrees outward (see letter “B”).

Remove the ﬁller panel from the selected add-in card slot (see letter “C”).

Insert add-in card until it seats in riser card connector (see letter “D”).

Close both retention clips.

Install the Carrier Assembly.

Note Carrier lever must be held in the FULLY OPEN position to install into chassis. Slide carrier into chassis until it stops, then rotate the lever until it snaps shut.

Hard Drive Numbering Diagram

Drive 0 Primary Drive Bay

Caution If you install less than 6 drives or devices, empty drive bays must be occupied by carriers with bafﬂes to maintain proper system cooling. To avoid possible damage to your chassis, use only carriers that came with your server system.

Removing the Server System Cover

Remove the safety screw if it is installed. See letter “A” in the ﬁgure below.

While holding in the blue button at the top of the server system in (see letter “B”), slide the top cover back until it stops (see letter “C”).

Insert your ﬁnger in the notch (see letter “D”) and lift the cover upward to remove it.

Installing Hard Drives

Remove the Plastic Air Bafﬂe.

Bafﬂe

Removing the PCI Add-in Card Riser Assembly

Grasp both riser latches with thumb and foreﬁnger (see letter “A”), and pull up to release riser assembly.

Lift riser assembly straight up (see letter “B”).

Drive Carrier

Install the Hard Disk Drive.

Attach with four screws
