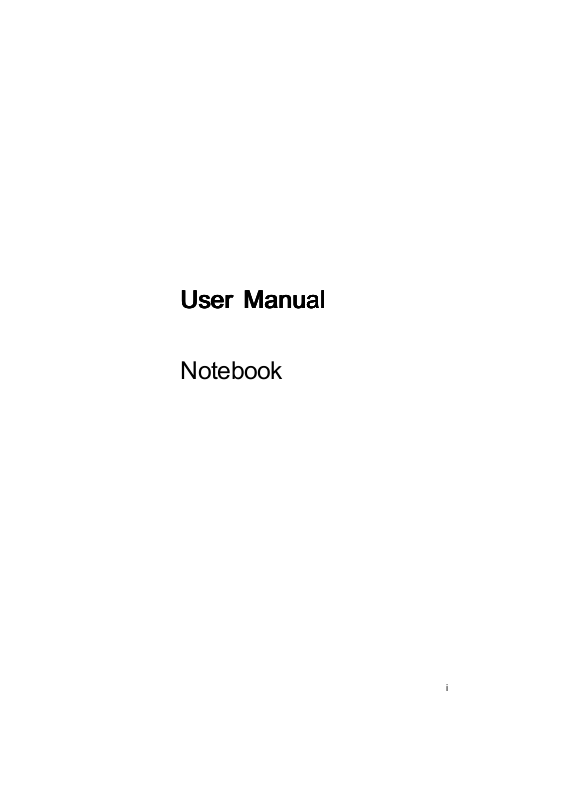

User ManualUser Manual

User Manual

User ManualUser Manual

Notebook

NoticeNotice

Notice

NoticeNotice

The information in this user`s manual is subject to change without notice.

THE MANUFACTURER OR RESELLER SHALL NOT BE LIABLE FOR ERRORS OR OMISSIONS CONTAINED IN THIS MANUAL AND SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL DAMAGES, WHICH MAY RESULT FROM THE PERFORMANCE OR USE OF THIS MANUAL.

The information in this user`s manual is protected by copyright laws. No part of this manual may be photocopied or reproduced in any form without prior written authorization from the copyright owners.

Microsoft and Windows are registered trademarks of Microsoft Corporation. DOS, Windows 95/98/ME/ 2000/NT are trademarks of Microsoft Corporation.

Product names mentioned herein may be trademarks and/or registered trademarks of their respective owners/companies.

The software described in this manual is delivered under a license agreement. The software may be used or copied only in accordance with the terms of the agreement.

Rev. 2.0

TABLE OF CONTENTS

PREFPREF

ACEACE

PREF

ACE

PREFPREF

ACEACE

Symbols and Conventions Protecting Your Notebook - Avoid Abusive Handling and Adverse Environment Section Summaries

1.1.

GETTING TO KNOW THE BASICSGETTING TO KNOW THE BASICS

GETTING TO KNOW THE BASICS

1.1.

GETTING TO KNOW THE BASICSGETTING TO KNOW THE BASICS

(1-4)(1-4)

(1-4)

(1-4)(1-4)

(1-8)(1-8)

(1-8)

(1-8)(1-8)

(2-3) (2-3)

(2-3)

(2-3) (2-3)

(1-2,3)(1-2,3)

(1-2,3)

(1-2,3)(1-2,3)

1)1)

1)1) (1-1(1-1

(1-1

(1-1(1-1

(1-13)(1-13)

(1-13)

(1-13)(1-13)

(1-15)(1-15)

(1-15)

(1-15)(1-15)

(2-4)(2-4)

(2-4)

(2-4)(2-4)

1,12)1,12)

1,12)

1,12)1,12)

(2-3)(2-3)

(2-3)

(2-3)(2-3)

(2-4)(2-4)

(2-4)

(2-4)(2-4)

(2-3)(2-3)

(2-3)

(2-3)(2-3)

(2-4,5,6)(2-4,5,6)

(2-4,5,6)

(2-4,5,6)(2-4,5,6)

(2-7, 8)(2-7, 8)

(2-7, 8)

(2-7, 8)(2-7, 8)

(2-10,1(2-10,1

(2-10,1

(2-10,1(2-10,1

(2-12)(2-12)

(2-12)

(2-12)(2-12)

(2-9,10)(2-9,10)

(2-9,10)

(2-9,10)(2-9,10)

1)1)

(2-12)(2-12)

(2-12)

(2-12)(2-12)

(2-12)

(2-12)(2-12)

(2-12)

(2-12)(2-12)

(2-12)

(2-12)(2-12)

(2-12)

(2-12)(2-12)

2.2.

BIOS SETUPBIOS SETUP

BIOS SETUP

2.2.

BIOS SETUPBIOS SETUP

Performance Features System at a Glance

Top View Rear View

Right-side View Lift-side View Bottom View LED Status Indicators LED System Indicators KeyBoard Function (Hot) Keys

Entering the BIOS Setup Screen Leaving the BIOS Setup Screen BIOS Action Keys Modifying the BIOS Settings

The Setup Main Menu

The Menu of Standard CMO Setup

The Menu of Advanced CMO Setup

The Menu of Power Management Setup

The Menu of Peripheral Setup

The Security Issue by Using Password Protection The Option of Auto Dectect Hard Disk

The Option of Auto Configuration with Optimal Settings

The Option of Auto Configuration with Fail-safe Settings

The Option of Save Settings And Exit

The Option of Exit Without Saving

(1-4,5,6)(1-4,5,6)

(1-4,5,6)

(1-4,5,6)(1-4,5,6)

(1-6,7)(1-6,7)

(1-6,7)

(1-6,7)(1-6,7)

(1-9)(1-9)

(1-9)

(1-9)(1-9) (1-10,1(1-10,1

(1-10,1

(1-10,1(1-10,1

(1-14)(1-14)

(1-14)

(1-14)(1-14)

AND SECURITYAND SECURITY

AND SECURITY

AND SECURITYAND SECURITY

3.3.

BABA

TTERTTER

BABA

TTER

TTERTTER

POWER POWER

POWER

POWER POWER

The Battery Pack

Ni-MH / Lithium-Ion Battery

Actions to Battery Warning Removing and Installing the Battery Pack

To Detach the Battery Pack

To Install the Battery Pack Charging the Battery and Charging Time Checking the Battery Level

AND POWER MANAGEMENTAND POWER MANAGEMENT

AND POWER MANAGEMENT

AND POWER MANAGEMENTAND POWER MANAGEMENT

(3-2) (3-2)

(3-2)

(3-2) (3-2)

(3-2)(3-2)

(3-2)

(3-2)(3-2)

(3-5) (3-5)

(3-5)

(3-5) (3-5)

(3-6)(3-6)

(3-6)

(3-6)(3-6)

(3-3) (3-3)

(3-3)

(3-3) (3-3)

(3-4)(3-4)

(3-4)

(3-4)(3-4)

(3-4,5)(3-4,5)

(3-4,5)

(3-4,5)(3-4,5)

(3-5)(3-5)

(3-5)

(3-5)(3-5)

iii

Prolonging the Battery’s Life and Usage Cycles Using Power Management

Suspend Mode The Suspend Button The LCD Panel Switch Power Consumption of the LCD Panel Creating Save To Disk Partition (or File) Windows 95/98 Power Management Feature

4.4.

UPGRADING YOUR NOTEBOOKUPGRADING YOUR NOTEBOOK

UPGRADING YOUR NOTEBOOK

4.4.

UPGRADING YOUR NOTEBOOKUPGRADING YOUR NOTEBOOK

Upgrading the Hard Disk Drive

Expanding the Hard Disk Drive Upgrading the System Memory

Expanding the DIMM Module in the Original Socket Installing the DIMM Module in the Expansion Socket

Removing the DIMM Module in the Expansion Socket

5.5.

TROUBLE SHOOTINGTROUBLE SHOOTING

TROUBLE SHOOTING

5.5.

TROUBLE SHOOTINGTROUBLE SHOOTING

First Step Audio Problems Hard Disk Problems CD-ROM Problems Floppy Disk Problems Display Problems Keyboard and Pointing Device Problems COMS Problems Infrared Problems Memory Problems Modem Problems Network Problems PC Card (PCMCIA) Problems Performance Problems Power, Start, and Battery Problems Printing Problems Serial, Parallel, and USB Problems

(5-2,3)(5-2,3)

(5-2,3)

(5-2,3)(5-2,3)

(3-7)(3-7)

(3-7)

(3-7)(3-7)

(5-4)(5-4)

(5-4)

(5-4)(5-4)

(5-6)(5-6)

(5-6)

(5-6)(5-6)

(5-7)(5-7)

(5-7)

(5-7)(5-7)

(5-9)(5-9)

(5-9)

(5-9)(5-9)

(5-10,1(5-10,1

(5-10,1

(5-10,1(5-10,1

(5-1 (5-1

(5-1

(5-1 (5-1 (5-12)(5-12)

(5-12)

(5-12)(5-12)

(5-13)(5-13)

(5-13)

(5-13)(5-13)

(5-16)(5-16)

(5-16)

(5-16)(5-16)

(3-8)(3-8)

(3-8)

(3-8)(3-8)

(3-8)

(3-8)(3-8)

(5-5,6)(5-5,6)

(5-5,6)

(5-5,6)(5-5,6)

(5-7)(5-7)

(5-7)

(5-7)(5-7)

1)1)

(5-14,15)(5-14,15)

(5-14,15)

(5-14,15)(5-14,15)

(3-7)(3-7)

(3-7)

(3-7)(3-7)

(4-2)(4-2)

(4-2)

(4-2)(4-2)

(4-6) (4-6)

(4-6)

(4-6) (4-6)

(5-13,14) (5-13,14)

(5-13,14)

(5-13,14) (5-13,14)

(3-9)(3-9)

(3-9)

(3-9)(3-9)

(4-3,4,5)(4-3,4,5)

(4-3,4,5)

(4-3,4,5)(4-3,4,5)

(5-8,9) (5-8,9)

(5-8,9)

(5-8,9) (5-8,9)

(5-15)(5-15)

(5-15)

(5-15)(5-15)

(5-17)(5-17)

(5-17)

(5-17)(5-17)

(3-8)(3-8)

(3-8)

(3-8)(3-8)

(3-6)(3-6)

(3-6)

(3-6)(3-6)

(3-10)(3-10)

(3-10)

(3-10)(3-10)

(4-7,8,9)(4-7,8,9)

(4-7,8,9)

(4-7,8,9)(4-7,8,9)

(4-10)(4-10)

(4-10)

(4-10)(4-10)

(4-1(4-1

1)1)

(4-1

(4-1(4-1

1)1)

Appendix Appendix

Appendix

Appendix Appendix Appendix BAppendix B

Appendix B Special VGA Functions

Appendix BAppendix B

Appendix CAppendix C

Appendix C Regulatory Notices

Appendix CAppendix C

A Product Specification

Windows 98 Display Driver Installation / Update Using the DualView Function

(B-2,3)(B-2,3)

(B-2,3)

(B-2,3)(B-2,3)

(B-2)(B-2)

(B-2)

(B-2)(B-2)

Preface

Using This ManualUsing This Manual

Using This Manual

Using This ManualUsing This Manual

This User`s Manual contains general information about your notebook, hardware and

software setup information, troubleshooting, and technical specifications.

Symbols and ConventionsSymbols and Conventions

Symbols and Conventions

Symbols and ConventionsSymbols and Conventions

The following conventions and symbols are used in this manual:

n When keys are to be pressed at the same time, a plus (+) symbol is used. For

instance, Fn+F7 means holding Fn and F7 keys at the same time.

n The file names are printed in uppercase type. For instance, WELCOME.EXE.

n When a series of clicking actions is needed in Windows O/S, [ ] and > symbols

are used. For instance, [Start > Settings > Control Panel > Multimedia] means

clicking the Start icon first, then the Settings, then the Control Panel, then the

Multimedia icon.

n When you need to make a selection with the touch pad (or mouse), you will be

asked to `select` or `click` the item.

Note: Text in this format and symbol means specific instructions, commentary, sidelights, or any additional information or notes that you should be aware of.

Warning: Text is this format and symbol means that failures to comply with the given instructions or information could result in damage to your notebook or could cause

bodily harm or loss of life.

Protecting Protecting

Protecting

Protecting Protecting mentment

ment

mentment Follow the advice below will help ensure that you get the most out of your Investment.

our computer will serve you well if you tour computer will serve you well if you t

our computer will serve you well if you t

our computer will serve you well if you tour computer will serve you well if you t

Do not expose the notebook to direct sunlight or place it near sources of heat.

Do not subject it to temperatures below 0oC (32oF) or above 50oC (122oF).

Do not expose the notebook to magnetic fields.

Do not expose the notebook to moisture or rain.

Do not spill water or liquid on the notebook.

Do not subject the computer to adverse shock and vibration.

Do not expose the notebook to dust and dirt.

Do not place objects on top of the notebook to avoid damaging the notebook.

Do not place the notebook on rocky surfaces, uneven work place, or any fabric/

our Notebook - our Notebook -

our Notebook -

our Notebook - our Notebook -

void void

void

void void

Abusive Handling and Abusive Handling and

Abusive Handling and

Abusive Handling and Abusive Handling and

ake good care of it.ake good care of it.

ake good care of it.

ake good care of it.ake good care of it.

Adverse Environ-Adverse Environ-

Adverse Environ-

Adverse Environ-Adverse Environ-

cotton materials cause bad thermal settings, for instance, bed and blanket.

Here are some ways of tHere are some ways of t

Here are some ways of t

Here are some ways of tHere are some ways of t

Do not connect the adapter to any devices other than your notebook.

Do not connect other Ac adapter to your notebook. This notebook uses exclu-

aking care of your aking care of your

aking care of your

aking care of your aking care of your

AC adapterAC adapter

AC adapter

AC adapterAC adapter

sively the Ac-adapter LSE9802A2060.

Do not step on the power cord or place heavy objects on top of it.

Carefully tuck away the power cord and any cables away from pedestrian traffic.

This notebook should be disconnected from the mains by pulling the main power cord / mains plug.

Keep the adapter away from children.

The total ampere ratings of the equipment plugged in should not exceed the ampere rating of the cord if you are using an extension cord.

The total current rating of all equipment plugged into a single wall outlet should not exceed the fuse rating.

Here are some ways of taking care of your battery pack.Here are some ways of taking care of your battery pack.

Here are some ways of taking care of your battery pack.

Here are some ways of taking care of your battery pack.Here are some ways of taking care of your battery pack.

Use only factory-original batteries of the same kind as replacements.

Turn off the power or enter suspend mode before removing or replacing batteries.

Do not tamper with the sealed battery pack.

Keep the battery pack away from children.

Dispose of used batteries according to local regulations.

Do not expose the battery pack to fire and recycle them if at all possible.

When cleaning the notebook, observe these steps:When cleaning the notebook, observe these steps:

When cleaning the notebook, observe these steps:

When cleaning the notebook, observe these steps:When cleaning the notebook, observe these steps:

1.1.

1 . Power off the notebook and remove the battery pack.

1.1.

2.2.

2 . Disconnect the AC adapter.

2.2.

3.3.

3 . Use a soft cloth dampened with water. Do not use liquid or aerosol cleaners.

3.3.

Contact your dealer or see your service technician if any of the followingContact your dealer or see your service technician if any of the following

Contact your dealer or see your service technician if any of the following

Contact your dealer or see your service technician if any of the followingContact your dealer or see your service technician if any of the following occurs:occurs:

occurs:

occurs:occurs:

Notebook has been dropped or the body has been damaged.

Liquid has been spilled into the product.

The notebook does not operate normally.

Section 1 GETTING TO KNOW THE BASICS

SECTION 1

GETTING TO KNOW THE BASICS

This section introduces the features and components of the notebook.

1-1

USER`S MANUAL

Performance Features

n High Performance Processor

n AGP Graphics

n Advanced 3D Graphics and Hardware Accelerated

MPEG2/DVD Playback

The notebook is equipped with the supreme computing

power of Intel Celeron / PIII Processor, which provides

awesome performance and data processing with 128K

/ 256K integrated Level II Cache.

By adapting an 2D/3D video processor with integrated

Super UltraAGP technology and advanced 64-bit

graphic display interface, the system delivers AGP 4x

performance, up to 2 GB/s memory bandwidth and

perform high quality graphics capabilities.

Hardware accelerated playback gives you smooth

video playback with no discernible frame drops. 3D

graphics also lets your games achieve more realism.

1-2

n Mass Storage Capability

The system offers upgradable hard drive, allowing

users to increase the storage capacity as the need

arises.

n High Flexibility Design

The notebook provides one additional expansion

compartment for the memory upgrade. User may

increase the amount of memory by adding a dual inline

memory module, and in any combination for system

memory expansion up to 512 MB.

n Large LCD Display

The active-matrix XGA 13.3-inch TFT display (or 14.1-

inch TFT XGA in some model) panel provides clear and

brilliant color text and graphics.

Section 1 GETTING TO KNOW THE BASICS

n Keyboard and Touch Pad

The full-size keyboard, supported two win98 keys, and

the build-in touch pad device, located at the center of

the ergonomic plamrest, increase the work effeciency

and productivity.

n Advanced Battery Pack

The state-of-the-art Nickel Metal Hydride battery or Li-

Ion battery enables longevity, lightweight, and fast

recharging.

n A Variety of Communications

The system provides a total communication solution for

Network connection, Internet Access, and cableless

data transmission. The built-in network adapter allows

you to access and transmit data on the Local Area

Network. The built-in 56-Kbps V.90 modem enables

fast data and fax communication, without sacrificing a

valuable PC Card slot. Your notebooks infrared

transceiver allows for wireless point-to-point communi-

cation with other systems or devices equipped with an

infrared port.

n Audio Features

The system is equipped with internal audio record and

playback functions, including 3D (three-dimensional)

audio, 64-voices DirectSound channel support, and

built-in hardware wave-table.

n Integrated I/O Ports

This notebook offers a full array of built-in I/O ports.

The system is also equipped with a Universal Serial

Bus port for a new generation of USB-compliant

peripherals.

1-3

USER`S MANUAL

System at a Glance

Top View

4 5

Warning: Do not place any heavy objects on the top of notebook when the latches are on. That may damage the display.

1-4

1. LCD Latches

The left and right LCD latches lock/unlock the LCD panel.

2. LCD Display Panel

This notebook is equipped by the liquid crystal display with

XGA.

Section 1 GETTING TO KNOW THE BASICS

3. Internet Hot Key

The `Internet Hot Key` activates the modem dial-up network-

ing process and opens the Internet browser automatically.

(See side Note.)

Note: To use the Internet Hot Key feature, you must

1. install the Windows network dialer with a valid Internet access account (from an ISP),

2. install the special Internet Hot Key application contained in the factory CDROM (d:\Driver \ Qbrowse \ Setup.exe), and

3. install Microsoft Internet Explore

4.0 or higher.

4. LED Status Indicators

The LED Status indicators reveal the locking/unlocking of

certain key functions and HDD/CD-ROM component status.

(Refer to Page 1-11,12)

5. Power/Suspend Button

The power/suspend button turns the notebook on and off and

it also acts as a system suspend key. This notebook uses a

special one-button design. Press momentarily to turn on the

system. Press and hold for at least 3~4 seconds to turn off

the system. Once the system enters DOS/Windows,

pressing the key momentarily will trigger system suspend

mode. Press the power/suspend button again to return from

the suspend mode. (See Section 3 for more details on

system suspend function.)

6. Built-in Speakers

The built-in speakers output the sound in stereo.

7. Keyboard

The enhanced 86/87-key keyboard is used to enter data,

including the Windows Start Key, Application Manu Key for

windows95/98/NT4.0, embedded numeric keypad and cursor

control keys (Refer to Page 1-14,15).

8. Fn Key

The Fn key is used with the function keys to activate the

hot-key functions. (See Page 1-15 )

9. Touch Pad

The touch pad is a built-in pointing device with functions

similar to a mouse.

1-5

USER`S MANUAL

Rear View

10. LED System Indicators

The Indicator shows the system`s power/suspend status.

(Refer to Page 1-13)

11. Built-in Microphone

The microphone built-in provides an integrated source for

adding sound to your applications or for using the speech

functions of your applications. It takes the application,

such as audio software, capable of using audio input to

make use of the microphone.

1 2

3 4

Note:

For the system running the Windows NT platform,USB function was not supported.

Warning: Do not open the CPU heatsink/fan cover. Doing so may result in permanent system electrical damage, which is not covered by the manufacturer`s warranty.

1-6

8 9 10

1. Kensington Security Anchor

This anchor can be used with a mechanical lock and Kensington-type cable. With this function, you may have the notebook locked to an appropriate location for security issue.

2. USB Port

The Universal Serial Bus (USB) port allows you to connect a wide variety of devices via the USB cable to your notebook and is also able to connect up to 128 devices through this single port, at very high data transfer rates of up to 12 Mbps (Mega-bits per second). This port conforms to USB plug-and-play standards.

3. Modem Port

This is where you plug the phone jack (RJ-11) for activating fax/modem functions.

Section 1 GETTING TO KNOW THE BASICS

4. PS/2 Port

The notebook is designed to use one pointing device at once time. This is where you connect a external PS/2-compatible

devices such as a mouse or keyboard.

5. Mono Microphone Jack

The mono microphone jack (3.5-mm diameter) is where you

connect a microphone. To avoid the malfunction, please

disable the built-in Microphone.

6. Stereo Headphone Jack

The stereo headphone jack (3.5-mm diameter) is where you

connect the headphones or external speakers. With this

function on, please disable the internal built-in speakers.

7. External VGA Port

The 15-pin VGA analog port is for connecting the external

CRT monitor or projector.

8. Serial Port

This is where you connect a serial device via a 9-pin serial

(RS-232) cable.

9. Parallel Port

The 25-hole parallel port is primarily where the printer signal

cable attached. (The FDD module with the supplied parallel-

port cable can be plugged into this port also.)

10. LAN Port

The port connects to a network hub via the RJ-45 cable and

also conforms to 10Base-T and 100Base-TX transmission

protocols.

1-7

USER`S MANUAL

Right-side View

Note:

For the system running the Windows NT platform,USB function was not supported.

1. Battery Pack

The battery pack is a built-in power source for the notebook.

2. Floppy Drive

The floppy drive was also fixed inside the system.

3. Floppy Eject Button

With this button, you may have the floppy diskette ejected.

4. Fan Grill

The fan grill is where hot air is expended. Do not block this airway completely.

5. Infrared Port

Infrared Data Association (IrDA) compliant serial infrared port

enables 4Mbps (FIR mode) cableless data transfer with IrDA

1.1-compatible external devices.

1-8

6. Power Jack ( DC-in )

This is where the DC end of the AC Adapter connected to

your machine.

Left-side View

Section 1 GETTING TO KNOW THE BASICS

1. CD-ROM

The CD-ROM device was fixed inside the notebook.

2. CD-ROM Eject Button

The eject button opens the CD-ROM tray.

3. PC Card Slot

The slot is where PC Card (PCMCIA) is inserted.

A PC Card slot with connectors for two 3.3V/5V cards, and

both of them support CardBus technology.

4. PC Card Eject Button

With this button, you may have the PCMCIA card ejected.

Note: There are two kind of types of CD-ROM might be installed as shipped. One is electrical and the other is mechnical. Basically, the mobile computor is equipped to the electrical CD-ROM. With this device, you can do the CDROM ejection only if the system is on. As for bundling the mechnical type, the ejection button works all the time, even the system is powered off. Please be also noted, the mechnical one is not avaliable to eject the CDDisk by performing Fn key under the running Windows 98 operating system.

1-9

USER`S MANUAL

Bottom View

Warning: Do not open the CPU heatsink/fan cover and do not block this airway completely. Otherwise it may result in permanent system electrical damage or cause thermal issue which is not covered by the manufacturer`s warranty.

Warning: As upgrating your CPU, please be cautioned against the heatsink/ fan. The axle of heatsink might be twisted by heavy press. It is not covered by the manufacturer`s warranty .

1-10

3 4 5

1. Fixing Screw

The fixing screw locks the hard disk drive bay cover, which prevents the hard disk drive from dust and dirt, in place.

2. Hard Disk Drive Bay

This is where the hard disk drive located. The hard disk drive stores all the system data. For the flexible design, the hard disk drive can be upgraded to a larger capacity. (Refer to Section 4 for instructions on a hard drive upgrade.)

3. CPU Heatsink/Fan Bay Cover

The CPU heatsink/fan bay is where the air is drawn into the notebook for internal thermal regulation. Do not block this

airway completely. Do not remove this cover. There is no user-serviceable parts inside.

4. Fixing Screw

The fixing screw locks the CPU heatsink/fan bay cover,

which prevents the CPU module from dust and dirt, in place.

5. CPU Heatsink/Fan Bay

The bay is where the CPU be installed.

6. Battery Latches

The battery latches locks or releases the battery pack.

7. Battery Pack

The battery pack is a built-in power source for the notebook.

LED Status Indicators

The indicators under the LCD display panel, show as follow,

inform you the current operating status of your notebook. As a

certain function is enabled, the represented indicator will illumi-

nate. The icons or symbols are captured as follow and descipted

in detail.

Section 1 GETTING TO KNOW THE BASICS

1-11

USER`S MANUAL

LED Graphic

Symbol

Indication

Green light indicates the floppy drive is being accessed.

Green light indicates the hard drive is being accessed.

Green light indicates the CD-ROM drive is being accessed

Green light indicates the numeric keypad is activated.

Green light indicates the cap-lock is activated.

Green light indicates the scroll-lock is activated.

1-12

LED System Indicators

Section 1 GETTING TO KNOW THE BASICS

Symbol Indication

Yellow light indicates the notebook is in

suspend mode. As LED is in flash, it means the notebook is in POS mode. LED would be off when it is in the STD mode.

Blinking red light indicates the battery is being charged (the system is OFF.)

Blinking orange light indicates the battery is being charged (the system is ON.)

Blinking green light indicates the battery power is currently low.

1-13

USER`S MANUAL

KeyBoard

The notebook is designed to use one keyboard at once time.

Please disable the built-in keyboard before activating the exteranl

one.

The main interface of input in the portable PC would be the

keyboard. The keyboard has all the functionality as a standard

computing 101 typing keys. It provide the alternate functions as

embedded numeric keypad, shortcut windows key, system

operation hot keys. The desciption below present all the details

you need to know.

The cursor (arrow) keys, which are located in the lower-right

corner of keyboard, and the [Pg Up], [Pg Dn], [Home] and [End]

keys, which are located along the edge of keyboard, allow you

move the active cursor to various locations on the screen or

within the document.

The [Ins] and [Del] keys at the bottom of the keyboard to the left

of the cursor keys allow you to insert and delete characters.

Your computer also has an embedded numeric keypad. Get more

detailed information at Page 1-18 Embedded Numeric Key Pad.

Your keyboard also has two Windows 95 keys:

1. Start Key with Windows logo:

This key allows you to pull up the Windows Start

Menu at the bottom of the taskbar.

2. Application Menu Key which looks like a menu

with a cursor on:

This key brings up the popup menu for the current

application that is Windows 95 compatible. This

function is similar like a click of the right mouse

botton.

1-14

Function (Hot) Keys

Section 1 GETTING TO KNOW THE BASICS

Graphic

Symbol

Action System Control

Fn + F1

Fn + F2

Fn + F3

Enters Suspend Mode.

Mute

Toggles between Battery Warning Beep on and off.

Fn + F4

Switches Display Mode: LCD-only, CRTonly and dual-display.

Fn + F5

Fn + F6

Fn + F7

Turns Speaker Volume up.

Turns Speaker Volume down.

Increases Display Brightness.

Scroll Lock

Fn + F8

Fn + F9

Fn + F10

Fn + Num Lock

Scroll Lock

Decreases Display Brightness.

Increases Display Contrast. (DSTN Only)

Decreases Display Contrast. (DSTN Only)

Enables the embedded keypad to work in numeric mode. The keys function as a calculator. Use this mode when you need to do a lot of numeric data entry. An alternative would be to connect an external keypad.

Pressing the ScrLk key allows the screen to move one line up or down when you press

or Ç respectively. Scroll Lock may not

work with some applications.

1-15

USER`S MANUAL

1-16

Section 2 BIOS SETUP & SECURITY

SECTION 2

BIOS SETUP AND SECURITY

In this section, you will learn how to enter the BIOS Setup Menu and manipulate various hardware control settings. You will also learn how to use the built-in security features.

2-1

USER`S MANUAL

The Setup Utility is a hardware configuration program built into

your notebooks BIOS (Basic Input/Ouput System). It runs and

maintains a variety of hardware functions. It is a menu-driven

software, which allows you to easily configure and change the

settings.

The BIOS contains manufactures default settings for the

notebook`s standard operations. However, there are occasions

when you may be required to modify the default settings in the

BIOS. For example, you may need to activate the BIOS setup

program when a hardware change, such as an upgrade, occurs,

or when you decide to customize the hardware settings to suite

your specific needs.

The BIOS allows you to set up passwords to limit access to

users. This is an important feature because a great deal of vital

information is carried within the notebook nowadays. Unautho-

rized access can be prevented. Later in this chapter, you will

learn how to use this security feature.

2-2

Section 2 BIOS SETUP & SECURITY

Entering the BIOS Setup Screen

First turn on the power. When the BIOS is performing the POST

(Power-On Self Test), press DEL key to activate the AMIBIOS

Setup Utility. Press DEL when you see the prompt Press DEL to enter SETUP.

Leaving the BIOS Setup Screen

When you have finished modifying the BIOS settings, exit the

BIOS. It takes a few seconds to record changes in the CMOS.

BIOS Action Keys

Function Key Command Description

ESC Exit Leaves a sub-menu to return to the

previous menu OR exits the BIOS setup while saving changes.

F2/F3 Change Color Changes the background color of the BIOS

Setting Utility.

F10 Save and Exit Saves changes and reboots the notebook.

<Tab> Select a field Selects the next field.

<Enter> Select Enters the value or selects the sub-menu.

PgUp Lower value Selects the next lower value within a field.

PgDn Higher value Selects the next higher value within a field.

Select a menu Selects the next.

Select a menu Selects the next left menu.

Select an item Selects the next upper item.

Select an item Selects the next lower item.

Note: Under certain settings, the fields are grayed out. Grayed out fields are not changeable.

2-3

USER`S MANUAL

Modifying the BIOS Settings

The AMIBIOS setup main menu is subdivided into few sub-menus

as follow. Each menu item is decribed in this section.

The Setup Main Menu

AMIBIOS HIFLEX SETUP UTILITY VERSION x.xx

STANDARD CMOS SETUP

ADVANCED CMOS SETUP

POWER MANAGEMENT SETUP

PERIPHERAL SETUP

AUTO-DETECT HARD DISKS

CHANGE USER PASSWORD

CHANGE SUPERVISOR PASSWORD

DEFAULT SETTINGS

SAVE SETTINGS AND EXIT

EXIT WITHOUT SAVING

Esc: Exit

ÆÇ

: Sel F2/F3: Color F10: Save & Exit

The Menu of Standard CMOS Setup

Standard CMOS Setup for changing time, date, hard disk drive

type and etc. All standard setup options all decribed in this

section.

2-4

Section 2 BIOS SETUP & SECURITY

Item Selections /

Description

Sub-menu

Date N/A Type in the current date.

It must be entered in MM/DD/YY format.

Time N/A Type in the current date.

It must be entered in HH:MM:SS format. Floppy Drive A:

Pri Master

Sec Master

Not installed 360 KB 5

1.2 MB 5 720 KB 3

1.44 MB 3

/4 inch

/2 inch

Not installed Auto ARMD CD-ROM 1-46 User

/2 inch

Choose one that fits your particular need.

Primary Master is where BIOS tries to boot from

first. The primary master controls the hard

drive. The drive capacity is displayed in this

field.

The secondary master controls the CD-ROM

drive.

Sec Slave

Boot Sector Virus Pro-

Disabled

Enabled

To enable or disale the boot sector protection.

BIOS would pop out a warning if any application

or virus is trying to issue a disk format

command to have boot sector written. tection

If enabled, the following appears when a write is attempted to the boot sector. You may have to type N several times to prevent the boot sector write.

Boot Sector Write!!! Possible VIRUS: Continue (Y/N)? _

The following appears after any attempt to format any cylinder, head, or sector of any hard disk drive via the BIOS Hard Disk Drive Service:

Format!!! Possible VIRUS: Continue (Y/N)? _

2-5

USER`S MANUAL

Note: AMIBIOS automatically sets IDE drive parameters. Set the setting as “USER” to enter the MFM, ESDI, or DLL drive parameters. Select “Not Installed” for SCSI Drive. Choose ”CDROM” option for AT API CDROM drive.

The Detailed Description of Hard Disk Drive Setting

Select Auto and let BIOS to configure the drive parameters

automatically. After press Enter, BIOS display the drive

parameters. If the dectected drive paramters were not correct or

youre trying to enable the enhanced IDE feature, you may still

change the value manually.

n LBA Mode: (Large Mode)

Select On if the drive has a capacity larger than 540MB.

n Blk Mode: (Block Mode)

Select On is to allow blocking data transmission.

n 32 Bit Mode:

Select On to allow data tranmission in 32 bit.

n PIO Mode:

It is suggested to select Auto to let BIOS arrange the PIO

mode setting. If the selected PIO mode is not supported by

the IDE drive, the hard disk drive wont work properly. If the

drive PIO mode is known, youre certainly may select the

appropriate PIO mode from 1 to 5.

2-6

Entering Drive Parameters

Any hard disk drive, Primary Master, Primary Slave, Secondary Master and Secondary Slave, to be configured as Hard Disk Drive

Type between 1-46, you may need to enter the correct drive

parameters.

The Decription of Drive Parameters

Parameter Description

Type

The number for a driv e with certain identification parameters.

Cyln The number of cylinders in the disk drive.

Heads The number of heads.

WPcom

The actual physical size of a sector gets progressively smaller as the track diameter diminishes. This parameter is the cylinder number on the disk surface where write precompensation begins.

Sec

The number of sectors per cylinder. MFM drives have 17 sectors per cylinder. RLL drives have 26 sectors per cylinder. ESDI drives have 34 sectors per cylinder. SCSI and IDE drives have even more sectors per cylinder.

Section 2 BIOS SETUP & SECURITY

The Menu of Advanced CMOS Setup

Advanced CMOS Setup for configuring system options.

Item Selections /

Sub-menu

1st Boot Device

Disabled IDE-0 Floppy

2nd Boot

CDROM

Device

3rd Boot Device

Boot Up NumLock

TouchPad Support

Password Check

LCD Expand

Share Memory

Off

Enabled

Disable

Setup

Always

Enabled

Disabled

8 / 16 / 32 MB (or more)

Size

Description

Set the type of device for the 1st boot drive that BIOS attempts to boot from afte BIOS POST completes.

Set the type of device for the 2nd boot drive that BIOS attempts to boot from afte BIOS POST completes.

Set the type of device for the 3rd boot drive that BIOS attempts to boot from afte BIOS POST completes.

Turn the numeric keys on or off as system boots up.

Turn on or off TouchPad support

[Setup]: To enable the password check function every time when BIOS Setup is executed.

[Always]: To enable the password check function every time the system boots.

When enabled, the displaying content is expanded to fill the entire LCD screen in DOS mode.

This option allows user to define the amount of system memory to be used as display memory or buffer. Share memory size may be set up to 50% of the total system memory size.

This notebook employs Share Memory architecture, which means the graphic engine use a portion of the system memory as display memory. The more system memory is allocated for display use, the

less memory is available for the system use.

For example, if 8MB out of total system memory of 64MB was set as VGA shared memory, the system would only show 56MB during the Power-On Self Test (POST).

2-7

USER`S MANUAL

Please refer the table below to your arbitration for proper momery sharing size of VGA graphic display in BIOS.

VESA Standard Graphic Modes

Resolution Color Depth

640 X 480 16/256/32K/64K/16M Colors

120Hz NI

800 X 600 16/256/32K/64K/16M Colors

120Hz NI

1024 X 768

1280 X 1024

1600 X 1200 256/32K/64K/16M Colors

1920 X 1200 256/32K/64K/16M Colors

256/32K/64K/16M Colors

120Hz NI

256/32K/64K/16M Colors

120Hz NI

100Hz NI

80Hz NI

Suggested

Memory Sharing

Size

2-8

Section 2 BIOS SETUP & SECURITY

The Menu of Power Management Setup

Power management setup for configuring power management featuring.

Item

Power Management

Power Switch Type

LID Switch Type

Suspend Mode

Standby Time Out

Suspend Time Out

Hard Disk Time Out

elections /

Sub-menu

Disabled Enabled

On/Off

Suspend

Screen Off

Disabled

POS (S1)

STD (S4)

Disabled 1 Min, 2 Min, 3 Min, 4 Min, 5 Min, 10 Min 15 Min

Disabled, 1 Min, 2 Min, 3 Min, 4 Min, 5 Min, 10 Min 15 Min, 20 Min, 30 Min

Disabled 1 Min, 2 Min 5 Min, 10 Min 15 Min

Description

To disable or enable the system power management function.

[On/Off]: Set the power switch type to On/Off function.

[Suspend]: Set the power switch type to Suspend function.

Select “Suspend” to put the system in suspend mode when the LCD lid is closed.

Select “Screen Off” to turn off LCD backlight.

[Disabled]: System will stay on at all times.

[POS (S1)]: Power On Suspend. The system will save its state to DRAM and enter standby mode. [STD (S4)]: Save To Disk. The system will save its state to disk and power off.

Specify the period of inactivity before entering the Standby Mode.

Specify the period of inactivity before entering the Suspend Mode.

Specify the period of inactivity before hard disk spins down.

2-9

USER`S MANUAL

Item Selections /

Sub-menu

RTC Alarm Disabled

Enabled

RTC Alarm Date*

RTC Alarm Hour*

RTC Alarm Minute*

RTC Alarm Second*

Item with *sign means: The option is only available when the “RTC Alarm” is enabled.

Every Day

1 ~ 31

00 ~ 23 Set the hour of RTC alarm.

00 ~ 59 Set the minute of RTC alarm.

00 ~ 59 Set the second of RTC alarm.

Description

[Disabled]: The system ignores the RTC alarm and remains in suspend mode.

[Enabled]: The system wakes up from the suspend mode at a time specified by the

Hour / Minute / Second

Set the date of RTC alarm.

fields.

Date /

2-10

The Menu of Peripherial Setup

Configuration for the peripherial devices and its features.

Item Selections /

Sub-menu

OnBoard FDC

OnBoard Serial Port A

OnBoard Serial Port B

Auto Disabled Enabled

Auto Disabled 3F8/COM1 2F8/COM2 3E8/COM3 2F8/COM4

Description

[Auto]: BIOS will configure the Floppy Disk Controller automatically.

[Disabled]: The FDC is disabled. [Enabled]: This FDC is enabled. [Auto]:

BIOS will configure this port automatically. [Disabled]:

This serial port will be disabled. [3F8/COM1-2F8/COM2

3E8/COM3-2F8/COM4]: User may define the I/O port address of this serial port.

Section 2 BIOS SETUP & SECURITY

Item Selections /

Sub-menu

Serial Port2 Mode

IR Duplex Mode

IR DMA Channel

OnBoard Parallel Port

Parallel Port Mode

Parallel Port IRQ

Parallel Port DMA Channel

IrDA

FIR

Half Duplex

Full Duplex

0, 1, 3 This option specifies the DMA channel used for

Disabled, Auto, 378, 278, 3BC

Normal

Bi-Dir

EPP 1.9

EPP 1.7

ECP

Disabled

IRQ 5

IRQ 7

(DMA Ch) 0

(DMA Ch) 1

(DMA Ch) 3

Description

This option specifies the type of infrared function. [IrDA]: Standard serial IR communication. [FIR]: Fast IR communication.

This option selects the infrared transmission method. [Half Duplex]: The infrared transmission method as half duplex. [Full Duplex]: The infrared transmission method as full duplex.

infrared function.

User may define the I/O port address of this parallel port, or disable this parallel port functon, or let BIOS determine this port automatically. .

[Normal]: The normal parallel port mode is used.

[Bi-Dir]: (Bi-Directional) This allows data to transfer equally in both directions on parallel port.

[EPP 1.9-EPP 1.7]: Enhanced parallel port for faster performance.

[ECP]: Faster data exchange than EPP.

This is to specify the IRQ used by parallel port.

[Disabled]: This will disable the IRQ used by parallel port.

[IRQ 5?IRQ 7]: User may define the IRQ of this parallel port.

Set the DMA Channel used by the parallel port.

[0-1-3]: User may define the DMA channel used by the parallel port.

2-11

USER`S MANUAL

The Security Issue by Using Password Protection

The Option of Auto-Detect Hard Disk

Two Levels of Password Protection

This BIOS provides both a Supervisor and a User password. If you try to activate both passwords, the Supervisor password must be set first. The passwords activate two different levels of protection security:

1. Always requesting password every single time as the system is powered on.

2. A password checking procedure pops up when BIOS utility is executed.

Have the Password Check item set in Advanced CMOS Setup Menu (refer to Page 2-10, The Menu of Advanced CMOS Setup). The passwords are encrypted and stored in NVRAM. If the password protect is activated, an input 16-character password prompt appears. Make sure you write it down. If you forget it, you must have NVRAM erased and reconfigured.

By activation of this option, AMIBIOS will automatically detect the hard disk drive parameters. The Standard CMOS Setup menu would display after configuration of the hard drives.

The Option of Defualt Settings

It will automatically set all BIOS Setup options to a complete set of default settings when you choose this option.

The Option of Save Settings And Exit

When you have completed the system configuration modification, choose this option to leave BIOS Setup with new parameters saved and to reboot the computer. So the new system configuration parameters can take effect.

2-12

Section 3 BATTERY POWER & POWER MANAGEMENT

SECTION 3

BATTERY POWER AND POWER MANAGEMENT

In this section, you will learn the fundamentals of power management and how to use it to achieve longer battery life.

3-1

USER`S MANUAL

In this section, you will learn how to operate your notebook on

battery power, how to handle and maintain the battery pack, and

learn about the system`s unique Heuristic Power Management

feature.

TFT display, central processor, hard disk drive, floppy disk drive

are the major hardware subsystems that consume the most

power. Power management deals how these key components

should behave to conserve power. For example, you can have the

system turn off its display after 2 minutes of inactivity to save

power. Efficient power management can help you work longer

sessions before having to recharge the battery.

The Battery Pack

When the notebook operates on battery power, the Battery LED

indicator will be on.

Note: Make sure the battery is fully charged before using.

Note: In the Save To Ram mode, a fully charged battery loses its power in roughly 1 day. When not being used, the battery`s power will deplete in 1-2 month.

3-2

Ni-MH / Lithium-Ion Battery

Your notebook uses an removeable ten-cell Nickel Metal Hydride

(Ni-MH) or eight-cell Lithium-Ion battery pack that provides power

when youre away from an AC outlet.

This is the main battery, you should recharge it as it is drained.

Besides the main battery, it is suggested that you should also

have a second battery pack as the backup power solution in your

traveling.

Note: Do not touch the metal ends of the battery connector to avoid rusting.

Warning: Do not expose battery packs to temperatures below 0 degree Celsius (32 degree F) or above 60 degree C (140F). This may adversely affect the battery pack.

Section 3 BATTERY POWER & POWER MANAGEMENT

Actions to Battery Warning

I. Low Battery Warning

Low battery occurs as the battery is in approximately 6% of its

power remaining. Before the Very Low Battery, the green power

LED indicator blinks at the same rate as the system beeps once

every 16 seconds.

II. Very Low Battery Warning

Very Low battery occurs as the battery is in approximately 3 % of

its power remaining. Before the dead battery, the green power

LED indicator blinks at the same rate as the system beeps once

per 4-sec increment.

The signals alert you the low battery and require the restorative

action before the hibernated system. Save your document, data,

and close all the applications straightaway, or else you might

lose all your current work. About 5-10 minutes of battery operat-

ing time remains. You may not to keep continue unless you plug

in the AC adapter or replace the charged battery.

Warning: If the “Battery Warning Beep” is disabled by the Fn + F3, the system won’t generate the beep sounds.

3-3

USER`S MANUAL

Installing and Removing the Battery Pack

Carefully observe the illustration for this operation.

To Detach the Battery Pack:

1. Position the notebook rear-side up on a flat and secured surface.

2. Locate the battery latches. Slide the locked latch toward direcrion 1 shown by the arrow in the following figure and hold.

3. Continue holding the latches in the releasing position, and pull out the batterys module hard case toward direction 2.

3-4

4. Lift the battery pack

out of the battery compartment as the right diagram.

Section 3 BATTERY POWER & POWER MANAGEMENT

To Install the Battery Pack:

1. Position the notebook rear-side up on a flat and secured

surface.

2. Sliding the latch in the releasing position and hold.

3. Carefully Insert the battery pack into the battery compart-

ment of the unit until it is even with the edge of the

notebook.

4. Release the latch to lock.

Charging the Battery and Charging Time

To charge the battery, while the battery pack is in the notebook,

plug the AC adapter into the notebook and an electrical outlet.

The charging time is approximately 2-3 hours when the notebook

is turned off and approximately 3-5 hours when the notebook is

turned on.

Note: Be sure to reserve adequate time for charging before travelling.

If your notebook is plug into an AC outlet, the battery will still be

trickle-charged even when the notebook is in operation. Charging

an empty battery pack in the trickle-charge mode will take about

3-5 hours to attain full charge.

When the battery is fully charged, the battery charge indicator

LED emits red light intermittently.

3-5

USER`S MANUAL

Checking the Battery Level

You can check the remaining battery power in the Windows

battery status indicator, which is located at the lower right-hand

corner of the task bar. The accuracy is within +/- 5-7%.

Alternatively, you can access the power meter by clicking the

Power Management icon in the Windows Control Panel.

Prolonging the Battery’s Life and Usage Cycles

There are ways you can do to prolong the use of battery.

n Use the AC adapter wherever AC wall outlet is available. This

will ensure uninterrupted computing.

n Purchase the optional second battery pack.

n Store the battery pack in room temperature. Higher tempera-

ture tends to deplete the batterys power faster.

n Make good use of the power management function. Save To

Disk saves the most energy by storing current system

contents in a hard disk space reserved for this function.

n Disable the parallel and serial ports if no devices are at-

tached to these ports. See section 2 for details of how this

is done.

n Even when PC card is not operating, it still draws a small

amount of power. Eject the PC card from the card slot when

not in use.

n The life expectancy of the battery is approximately 500

recharges.

n See the notices section in the beginning of the user manual

Note: Read Section Protecting Your Notebook in the beginning of this manual for tips about how to maintain the battery pack.

on how to care for the battery pack.

3-6

Section 3 BATTERY POWER & POWER MANAGEMENT

Using Power Management

The system uses the following methods to management the

power usage of various hardware subsystems.

Windows offers two types of power management utility:

the Advanced Power Management (APM) or Advanced

Note: When running on battery, try to refrain from opening too many applications at once.

Configuration Power Interface (ACPI). In the Windows

Power Management Properties (Start > Settings >

Control Panel > Power Management) dialogue boxes,

you may enter time-out values for monitor and hard disk

drive. Windows power manager saves power by turning

off hard drive after 1 minute of inactivities, for example.

Consult Windows manual for additional details on

Windows power management features.

Suspend Mode

Note: To learn to adjust the parameters in the BIOS Power Management, go to Section 2 BIOS Setup.

When the battery power reaches critical low (at 3% remaining),the system can be set to enter either one of the two suspend modes:

Suspend

In Suspend mode, only few hardware devices, such as display panel and hard disk, are turned off to conserve energy. The other devices are put into low-power states.

Save To Disk

In this mode, all system data are saved in the hard disk before powering down. When this mode is activated, you will see 3 graphic meters indicating the progress of saving data to the disks. Once the meters reach 100%, the system is completely shut down. No power is drawn from the battery module under this mode. Therefore, it saves the most energy. However, depending on how much RAM that have been installed on your notebook, the amount of time the system requires to restore all its previous contents can range from 15 to 30 seconds. In order to use the Save To Disk feature, a hard disk partition is required to store the system content. See the next few pages for instructions on how to create a Save To Disk partition/file.

3-7

USER`S MANUAL

The Suspend Button

Note: If your Windows98 is operating on ACPI mode, you may define how the power/suspend button functions. Click on the Power Management icon in the Control Panel or consult Windows98 manual for more information.

The LCD Panel Switch

This notebook adapts the one-button design, meaning that both

the power on/off and system suspend functions are sharing the

same physical button. The Power On/Off button also doubles as

the Suspend button. You may also active suspend function using

the Fn+F1 hot key combination.

Press the suspend/power button or hit any keys to wake the

system from the power-on Suspend mode. However, if your

notebook is in the Save-to-Disk mode, you must press the power/

suspend button to enable the resume event.

Note: If your Windows98 is operating on ACPI mode, you may define how the system functions when the LCD lid is closed. Click on the Power Management icon in the Control Panel or consult Windows98 manual for more information.

There is a small mechanical switch near the edge of the LCD

panel. Closing and opening the LCD panel activates the switch.

This switch acts similar to the suspend button. If the suspend

mode is set to Suspend, closing the LCD panel begins the

Suspend cycle.

Opening the LCD panel or pressing the suspend button wakes

the system from the power-on Suspend mode.

Power Consumption of the LCD Display

Your notebook comes with a TFT (active matrix) LCD display. The

display is one of the hardware subsystems that tends to con-

sume a lot of power. Whenever possible, you should turn down

the display brightness to a bearable level to conserve energy.

Turning down the brightness tends to prolong the working life of

the back-light lamp in the display.

To decrease the LCD brightness level, press Fn+ F8.

3-8

To turn off the LCD display, use hotkey Fn+F4.

Section 3 BATTERY POWER & POWER MANAGEMENT

Creating the Save To Disk Partition (or File)

Note: Do not install or remove the memory module when the system is in the Save To Disk suspend mode. Restart the notebook and power down before attempting to change the memory configuration.

Warning: Running the

HDPREPEZ.EXE

program in “save to partition mode” will corrupt the data in the HDD. Therefore, reinstalling the software will be necessary.

The hard drive has a default Save To Disk partition. For example,

the maximum system memory allowed is 160 MB; 16 MB is

reserved for contents of the video chip and other micro-control-

lers. Therefore, in order to use this suspend feature under maxi-

mum system memory, you would need to increase the Save To

Disk partition to 166MB.

To resize or create the Save To Disk partition, do the following:

1. Boot up your notebook to DOS.

2. In the Factory CD-ROM (or diskette) locate a utility

program called HDPREPEZ.EXE.

3. Copy all files from this directory to your harddisc.

4. Start HDPREPEZ/C and choose options (Save to disc

or Save to partition mode. Save this configuration file

5. Type HDPREPEZ at the DOS prompt and press Enter.

When using the Save to partition mode, you will need to refor-

mat the hard drive (the DOS partition) and re-install O/S and

application programs.

You may create Save To Disk file instead of partition. In this

case, you do not need to reformat the hard disk and re-install O/

S. To create a Save To Disk file, follow the above procedure and

enter HDPREPEZ .

3-9

USER`S MANUAL

About Windows 98 Power Management Feature

In addition to the notebook`s built-in power management utility,

Windows also offers a similar power management feature. To

Note: Consult Windows user guide for more information on how to use the power management functions.

access this feature, go to [My Computer > Control Panel] and

double-click on the Power Management icon.

The Windows power management allows you to enter time-out

values for the display and hard disk. You can also have your

notebook automatically enter a standby mode or shut itself down

in the envent of low or critical battery power. For more information

on the power saving features, consult Windows on-line help or

manual.

Note: The notebook`s BIOS supports Windows APM and ACPI modes. The illustration on the right shows the Windows legacy APM dialogue. Consult Windows manual on how to enable Windows ACPI mode.

3-10

Section 4 UPGRADING YOUR NOTEBOOK

SECTION 4

UPGRADING YOUR NOTEBOOK

In this section, you will learn how to upgrade the memory and hardware capacity.

4-1

USER`S MANUAL

Upgrading the Hard Disk Drive

Replacing the original drive with one of larger capacity can

increase the hard drive capacity of your notebook. The notebook

uses a 9.5 mm (hight), 2.5-inch Enhanced IDE, Ultra DMA, or

Note: Certain models that come with the IBM-brand hard drive emit a clattering sound when it is being rattled. This is a normal condition.

ATA-66 type hard disk.

Be sure to make a backup copy of all your data before attempting

this operation.

Warning: Hard drive upgrade in this notebook is a delicate

process. Please observe the following instructions carefully or

have a qualified technician install it for you. Damages due to

mishandling of this procedure is NOT covered by the

manufacture`s warranty.

4-2

Warning: Apply care when handling the hard disk.

n Do not drop or applay any shock.

n Do not press on the cover.

n Do not touch the connector with your fingertips.

n Mishandling of the hard drive can result in permanent loss of

data. Make a backup copy of the drive s content before you remove it.

Section 4 UPGRADING YOUR NOTEBOOK

Expanding the Hard Disk Drive

To replace the hard disk drive, do the following:

1. Turn OFF the computer. Unhook the AC cord and all

cables/devices attached to the notebook.

2. Place your hand on a large metal object momentarily to

discharge any static electricity.

3. Locate the hard disk drive module on the bottom of the

notebook.

4. Release the fixing screw-A locked the HDD bay cover.

5. Remove the HDD bay cover as the shown diagram.

6. Now the mental tray protected HDD module and the

fixing screws, B and C, reveal.

7. Release the two fixing screws, B and C, securing the

mental HDD tray and HDD module.

8. Release the two fixing screws, D and E, securing the

mental HDD tray and the unite.

Hard Disk Drive Module Connector

Fixing Screw-A

Fixing Screw-B

HDD Bay Cover

Fixing Screw-E

Metal Tray

Fixing Screw-D

Fixing Screw-C

4-3

USER`S MANUAL

9. Lift up the metal HDD tray til an angle of approximately

30 degrees and pull it up as the following illustration.

Fixing Screws F,G (at the side of the metal tray)

Hard Disk Drive Module

Metal HDD Tray

Flexible PCB

Hard Disk Drive Module Connecter-A

Modem Module

Inserted PCMCIA Card

4-4

Illustation 4-1

10. Note the orientation of the HDD module connector-A and

carefully remove it from the hard disk drive. (Refer to the

illustration <4-2> shown as next page)

11. Locate and remove the rest 2 fixing screws, F and G,

securing the metal HDD tray and HDD.

12. Remove the metal HDD tray from the HDD Module.

Note the green PC board of the hard disk drive is facing

down.

13. Now you may place the new drive unit on the metal tray

and replace the fixing screws, B, C, F and G.

Section 4 UPGRADING YOUR NOTEBOOK

Fixing Screws F, G

Metal HDD Tray

Illustration 4-2

14. Reinstall the connector-A on the new drive unit. Be sure

the module makes a firm connection to the base con-

nector.

15. Carefully put the metal HDD tray back to the drive bay.

16. Replace the fixing screws, D and E.

17. Replace the HDD Bay cover.

18. Turn the notebook right-side up, and power it on.

HDD Module

Connecter-A

HDD Module

You have now completed the hard drive upgrade.

Once a new hard drive is installed, you need to reformat the disk

and re-install the operating system and applications. If you would

like to have the Save To Disk suspend function, it is recom-

mended that you re-create the Save To Disk partition BEFORE

reformatting the HDD because executing the HDPREPEZ utility

program will destroy the data on the hard drive and requires you

to re-install all software. Go to Creating Save To Disk Partition,

the end of Section 3, to figure out how this is done.

4-5

USER`S MANUAL

Upgrading the System Memory

Many applications will generally run faster when the notebooks

memory capacity is increased. The notebook provides one

expansion socket, located underneath the keyboard, for the

memory upgrade. You can increase the amount of memory by

adding a dual inline memory module (commonly known as

DIMM.) The DIMM can be 16MB, 32MB, 64MB, 128MB or

256MB in capacity. The DIMM is of type Synchronous DRAM,

has 144 pins and runs on 3.3V. The speed of the DIMM may be

70ns or 60ns (the smaller number the faster.)

Warning: Memory upgrade in this notebook is a delicate process.

Please observe the following instructions carefully or have a

qualified technician install it for you. Damages due to mishandling

of this procedure is NOT covered by the manufactures warranty.

4-6

Warning: Changing memory while your computer is in suspend or

power-saving mode may cause permanent damage to the note-

book. Make sure you turn off the power and unplug the AC cord

before proceeding with a memory upgrade.

Section 4 UPGRADING YOUR NOTEBOOK

Expanding The DIMM Module In The Original Socket

To expand the DIMM, do the following:

Warning: To avoid damaging the DIMM, do not touch its metal contact edge to avid the electrostatic damage from static electricity.

Ctrl

Latch A

1. Power OFF the notebook. Unplug the AC cord and all

cables/devices attached to the notebook.

2. Place your hand on a large metal object momentarily to

discharge any static electricity.

3. Place the notebook on a flat surface and fully open the

LCD lid.

4. Find the keyboard latches A, B and C near the bottom

edge of the keyboard refering to the figure as below. The

latch is spring-loaded. It will retract when pressed and

revert back to its original position when released.

Illustration 4-3

Alt

Latch B

Latch C

Bottom Edge of Keyboard

5. Using a small blade to press the latch A downward. The

keyboard should pop up slightly over the latch. If the

keyboard does not pop up, try to gently lift it up just over

the latch. Repeat the step for the other keyboard latches.

6. Carefully lift up the bottom edge of the keyboard and the

following is revealed.

4-7

USER`S MANUAL

PCB Connector Slot

Latch A

Flexible PCB

(The bridge between

keyboard and the

mainboard.)

Keyboard

Original Memory Socket

DIMM Module

Latch B

Fixing Screws

Expansion Memory Socket

Latch C

Note: Your notebook has been tested with a wide range of DIMM on the market. However, not all memory modules are compatible. Check with your notebook vendor for a list of compatible DIMM for your notebook.

4-8

Illustration 4-4

7. The memory socket is now revealed as the shown

illustration 4-4.

8. Press out on the latches located on both edges of the

socket at the same time. The DIMM should pop up to an

angle of 30 degree.

Section 4 UPGRADING YOUR NOTEBOOK

9. Pull the DIMM module out of the memory socket. Be

sure to reserve the DIMM for the future use.

Note: Notice the notches on the DIMM. The notches should fit nicely with the socket.

10. Install the DIMM module into the memory socket. The

DIMM will only fit in one orientation. Slide the DIMM at

an angle of approximately 30 degrees into the empty

memory socket. Then press it firmly so that the contact

edge is driven into the receiving socket.

Notch

Illustration 4-6

DIMM Module

Memory Socket

11. Pivot the DIMM until the latches on both sides of the

socket snap into place. At the time, you will feel a click.

12. Put the keyboard back to its original face-up position. Be

aware of the flexible PCB connected to the keyboard.

The keyboard should now be locked by the spring-loaded

latches.

You have just completed the memory upgrade.

4-9

USER`S MANUAL

Installing the DIMM Module In The Expansion Socket

To remove the memory module, do the following:

1. Follow steps 1~7 in the above section, Installing the DIMM Module In The Memory Socket.

2. Hold the extended memory module at a 30-degree angle

and slide it into the empty momery socket.

Notch

DIMM Module

Memory Socket

3. Align the small notch in the module with the socket on

the connector and gently push it in and down until it

clicks in place.

4. Pivot the DIMM until the latches on both sides of the

socket snap into place. At the time, you will feel a click.

5. Put the keyboard back to its original face-up position. Be

aware of the flexible PCB connected to the keyboard.

The keyboard should now be locked by the spring-loaded

latches.

You have just completed the memory upgrade.

4-10

Section 4 UPGRADING YOUR NOTEBOOK

Removing the DIMM Module In The Expansion Socket

To remove the memory module, do the following:

1. Follow steps 1~7 in the above section, Installing the DIMM Module In The Memory Socket.

2. Press out on the latches located on both edges of the

expansion socket at the same time. The DIMM should

pop up to an angle of 30 degree.

Illustration 4-7

3. Remove the DIMM from the expansion socket. Be sure

to save the DIMM for future use.

4. Put the keyboard back to its original face-up position. Be

aware of the flexible PCB connected to the keyboard.

The keyboard should now be locked by the spring-loaded

latches.

5. Power on the notebook and when it starts up note if the

memory count has decreased to the original memory

capacity.

You have completed the removal of the DIMM.

4-11

USER`S MANUAL

4-12

Section 5 TROUBLE SHOOTING

SECTION 5

TROUBLE SHOOTING

In this section, you will learn how to solve common hardware and software problems.

5-1

USER`S MANUAL

Your notebook has been fully tested and complies with the

system specifications before shipping. However, incorrect opera-

tions and/or mishandling during shipment may cause problems.

This section provides a reference for identifying and correcting

common hardware and software problems that you may encoun-

ter.

When you encounter a problem, you should first try to go through

the recommendations in this section. Instead of returning the

notebook and waiting for repair, you may easily solve the prob-

lems by considering the following problems and possible solu-

tions. If the error continues, contact your reseller for service

information.

Before taking further actions, consider the following suggestions:

n Check to see if the problem persists when all the external

devices are removed.

n Check to see that the green light indicator on the AC

adapter is lit.

n Check to see the power cord is properly plugged to the wall

outlet and to the notebook.

n Check to see the power indicator of the notebook is on.

n Check the brightness control on the keyboard if the LCD

display appears dim.

n Check to see if your keyboard is operational by pressing

and holding any key. An audible beep indicates the key-

board is functioning correctly.

n Check for any incorrect or loose cable connections. Make

sure the latches on the connectors latch securely on to the

receptor end.

5-2

Section 5 TROUBLE SHOOTING

n Be sure you have not performed an incorrect setting on the

hardware devices in the BIOS Setup utility. A faulty setting

may cause the system to misbehave. If you are not sure of

the changes you made, try to restore all the settings to

factory defaults.

n Be sure all the device drivers are installed properly. For

example, without the audio driver properly installed, the

speakers and microphone will not work.

n If external devices such as USB camera, scanner, SCSI

card do not function correctly when connected to the

system, it is usually the device`s own problem. Consult the

device`s manufacturer first.

n Some software programs, which have not gone through

rigorous coding and testing, may cause problems during

your routine use. Consult the software vendor for problem

solving.

n Not all peripheral are plug-and-play capable. You need to

restart the system with these devices powered up and

connected first.

n Be sure to go to BIOS SETUP and load DEFAULT SETTING

after any BIOS updated.

5-3

USER`S MANUAL

Audio Problems

No speaker output -

n Software volume control is turned down in Microsoft Sound

System. Double-click the speaker icon on the lower right

corner of the taskbar to see if the speaker has been muted.

n Press Fn+F5 Up increase the volume.

n Most audio problems are software-related. If your notebook

worked before, chances are software may have been set

incorrectly.

n Go to [Start > Settings > Control Panel] and double-click the

Multimedia icon. In the Audio page, make sure that SiS

Audio Wave is the preferred playback device.

Sound can not be recorded -

n Double-click the speaker icon on the lower right corner of

the taskbar to see if the microphone has been muted.

1. Click Options and select Properties.

2. Select Recording and click the OK button.

3. After Click OK button, the recording volume control panel

will pop up as shown.

n Go to [Start > Settings > Control Panel] and double-click the

Multimedia icon. In the Audio page, make sure that SiS

Audio Wave is the preferred playback device.

5-4

Hard Disk Problems

The hard disk drive does not spin -

n If you had just performed a hard disk upgrade, make sure

the hard drive connector is not loose and the hard disk drive

is also correctly seated. Remove it and reinsert it firmly

(feel it clicking into a place), and restart your PC. (Read

Section 4 Upgrading Your Notebook for details.)

n Check the hard disk indicator LED. When you access a file,

the LED lamp should light up momentarily.

n The new HDD may be defective.

n If your notebook has been subjected to static electricity or

physical shock, you may need to reinstall the operating

system.

Section 5 TROUBLE SHOOTING

The hard drive is making abnormal whining noises -

n You should back up your files as soon as possible.

n Make sure the source of noise if indeed from the hard drive

and not the fan or other devices.

The hard disk drive has reached its capacity -

n Delete backup files or move them to an alternative storage

medium (floppy disk, optical disk, etc.). Many programs

save backup files. You can delete backup files from the hard

disk to create more space for new work.

n Archive files or programs that you had no longer used by

moving them to an alternative storage medium (floppy disk,

optical disk, etc.) or uninstall programs that no longer use.

n Many browsers store files in the hard drive as a cache to

speed up the performance. Check the programs Online

Help for instructions on decreasing the cache size.

n Empty the Recycle Bin to create more disk space. When

you delete files, Windows copies them to the Recycle Bin.

5-5

USER`S MANUAL

The hard disk performs pretty slow -

n If you have been using the unit for a period, the files may be

The files are corrupted -

n Run the ScanDisk surface scan to check the platter. (This

CD-ROM Problems

The CD-ROM drive does not work -

n Try rebooting the system.

n The CD-ROM driver is not loaded. Go to [Start > Settings >

n After you have inserted a CD-ROM disk, it may take a

fragmented. Go to [Start > Programs > Accessories > System Tools > Disk Defragmenter] to perform a disk defragment. This operation may take a while.

function is available in Windows 95/98, but not Windows NT). Go to [Start > Programs > Accessories > System Tools > ScanDisk] to perform a disk surface scan. This operation may take a while.

Control Panel > System] and in the Device Manager see if

the CD-ROM driver is enabled. If you see a red cross or

yellow mark, there may have been a resource conflict. See

Windows on-line help or manual for more information.

moment before you can access its content.

5-6

The CD-ROM drive dose not read any CDs -

n The CD may not be properly seated in the tray. Have CD on

the tray and press the CD firmly onto the spindle, also make

the retaining clips held the CD in place.

Note: There are two kind of types of CD-ROM might be installed as shipped. One is electrical and the other is mechnical. Basically, the mobile computor is equipped to electrical CD-ROM. With this device, you can do the CD-ROM ejection only if the system is on. As for bundling the mechnical type, the ejection button works all the time, even the system is powered off. Please be also noted, the mechnical one is not avaliable to eject the CDDisk by performing Fn key under the running Windows 98 operating system.

Floppy Disk Problems

The floppy disk does not work properly-

n Check the color indicator LED for FDD. When you access a

file, the LED lamp should light up momentarily.

n The floppy diskette may be damaged. Try a different diskette

to see if the problem persists.

n Check if the disk is fully inserted into the floppy drive.

The floppy drive does not save -

n Check if the tab of the floppy disk is on the write-protect

position.

n Have the disk formatted.

n If the disk capacity had been reached, use another disk or

remove the existing files to make room for the svaing file.

The diskette does not eject from the drive -

n The metal cover on the diskette might be bent. Contact your

local dealer for technical support.

n A label may became detached and is blocking the ejection

of the disk. Visually inspect slot to see if any obstruction occurred by the label. Contact your local dealer for techni-

cal support.

Section 5 TROUBLE SHOOTING

Display Problems

The display panel is blank when the system is turned on -

n Make sure the notebook is not in the Suspend or Save To

n Press Fn+F7 to increase the screen brightness. n Press Fn+F4 to make sure the notebook is not in the CRT-

The screen is difficult to read -

n Press Fn+F7 to increase the screen brightness. n The display resolution should be set to 1024x768 for optimal

Disk modes. The display is turned off to conserve energy in these modes.

output only mode.

viewing.

1. Go to [Start > Settings > Control Panel] and double-click on the Display icon.

2. Under the Settings page, click the Adanced icon.

3. Under the Dispaly Modes page to set the resolution to 1024x768 and choose at least 256 colors.

5-7

USER`S MANUAL

Keyboard and Pointing Device (Mouse) Problems

The built-in keyboard accepts no input -

n This notebook is designed to use only one keyboard at once

time. If you had already connected an external keyboard to the system, the built-in keyboard wont work. Disconnect

the external keyboard and try to reboot the notebook.

n If there is no external keyboard connected, still restart the

system again.

The external PS/2 or serial mouse does not work -

n Some external mouse comes with special function (such as

3 buttons). In that case you may need to disable the built-in

touch pad. Go to Section 2 BIOS Setup for instructions on

how to disable the internal pointing device.

n A special mouse may require a unique driver. Make sure the

driver is properly installed.

n A special external mouse with the thumb-wheel (scroll-

wheel) is not plug-and-playable. In order to enable this

device, you need to have the mouse connected to the P/S2

port before powering up to Windows. Also, you may need to

install the driver, which is specifically designed for this

special type of mouse, to make it work.

5-8

The built-in touch pad does not work -

n Make sure the internal PS/2 port (pointing device) is enabled

(or set to Auto Detect) in the BIOS Setup. Go to Section 2

BIOS Setup for details on how to enable the PS/2 mouse.

The built-in touch pad performs eratically -

n Make sure there is no excess perspiration or humidity on

your hand which might make the pointing device short.

Keep the surface of the touch pad clean and dry.

n Do not rest your hand or wrist on the surface of the touch

pad while typing or using the touch pad. Since the pointing

device can sense any movement of figertip, to rest your

hand on the surface would lead to the sluggish and slow-

moving performance.

CMOS Problem

Section 5 TROUBLE SHOOTING

The characters on the screen repeat while I type.

n You may be holding the keys down for long while youre

typing.

n Keep the keyboard clean. Dust and dirt under the keys

could cause them to stick.

n Configure the keyboard to wait longer before the auto repeat

feature starts. To adjust this feature, Go to [Start > Settings

> Control Panel], and double-click on the Keyboard icon. A

dialogue box shows up with the adjustable settings for the

keyboard.

A message “CMOS Checksum Failure” displays during the booting process -

n If the message CMOS Checksum Failure appears during

the booting procedure, it might indicate the shortage or the

run-down condition of the small CMOS (Complementary

Metal-Oxide Semiconductor) battery. If so, you need to

renew the CMOS battery.

In the life cycle test, it illuminates one to one and half years

as lasting operation. Since most users dont operate the

system continually in reality, the Ni-Cd CMOS battery

might run out of power after 3 or 5-year usage. In another

word, the CMOS battery replacement needs to be done

after a long operating period.

For more detail information or technical support, please constact your local dealer or distributor.

5-9

USER`S MANUAL

Infrared Problems

The infrared communication port does not work -

n If you had just compeleted Windows 98 setup process, you

need to update the loaded FIR driver. The steps listed

below will guide you through the process of renewing the

IrDA driver.

1. Go to [Start > Settings > Control Panel > System ],

click the Device Manager tab.

2. In the Device Manager, double-click the Network Adapt-

ers, select IrDA 3.0 Fast Infrared Port under Network

Adapters item and press Property button.

3. In the Network Properties page, click the Driver tab and

press Update Driver button.

4. In the Update Driver Wizard window, click Next.

5. Select Display a list of all the driver in a specific loca-

tion and click Next.

6. In the Select Device windows, select Show all devices,

National Semiconductor as manufaturer and NSC-

PC87338 Fast Infrared Prot as model. (If you can not

find National Semicondutor in the manufacturer column,

please click Have Disk button and insert the factory CD-

ROM and input the path which the driver located.)

7. Then, a updating driver warning dialog pops up, and click

OK.

8. Click Next button and Finish button in the following

Update Driver Wizard windows.

9. Restart the computer.

10. Go to [Start > Settings > Control Panel > Network ],

select NSC-PC87338 Fast Infrared Port and press the

Proprety button.

11. In the NSC-PC87338 Fast Infrared Port Properties page,

click the Advanced tab. And then, select Infrared

Transceiver A and set HP HSDL-2300 in the Value

column. Still, a warning dialog shows up and click

OK.

12. Click OK button and Yes button in the following screens.

13. Reboot the system.

5-10

Section 5 TROUBLE SHOOTING

n Windows NT 4.0 does not support infrared devices.

n Remove any objects that sit between the communicating

path.

n Make sure the communicating devices are not more than 1

meter apart and are aligned in a straight-line fashion.

n Make sure that IR device is enabled in the Control Panel. If

the infrared icon at the lower right corner of the task bar has

a red x symbol, it is being disabled. Click on the icon and in

the Option page check off the Infrared Communication item.

n Check the infrared setting in BIOS Setup utility. Go to

Section 2 BIOS Setup to find out how this is done. If you are

using Windows 95 and have enabled Fast IR option in the

BIOS Setup, you must load the vendor-specific IR driver

manually for it to work (Windows 95 comes with standard

IrDA driver only.)

Memory Problems

The POST does not show an increased memory capacity when you have already installed additional memory -

n Certain brands of memory module may not be compatible

n The memory module may not be installed properly. Go back

n The memory module may be defective.

The O/S issues an insufficient memory error message during operation -

n This is often a software or Windows-related problem.

n Close the application programs youre not using and restart

n Otherwise, you have to install additional memory module.

with your system. You should ask your vendor for a list of

compatible makers of the DIMM.

to Section 4 Upgrating Y our Notebook to review the details

of this operation.

the system.

For instructions, go to Section 4 Upgrading Y our Notebook.

5-11

USER`S MANUAL

Modem Problems

The built-in modem does not respond -

n Make sure the modem driver is loaded properly.

n Go to [Start > Settings > Control Panel > System] and in the

n Make sure the phone line the notebook connected to is valid.

The fax/modem disconnects during transmission -

n Be sure to disable the Call Waiting.

n Excessive line noise might cause the connection to be

n Make sure the correct setting of the communications soft-

Go to [Start > Settings > Control Panel > Modem] and make

sure Smart Link 56K Modem is listed in the Modems Prop-

erty page. Otherwise, click the Add button to add the modem

drive, which is located in the factory CD-ROM (or floppy

diskette).

Device Manager page check for possible resource or driver

conflict. See Windows on-line help or manual for how to

handle such problems.

dropped and maybe you had connected to a noisy line. To

check this, put the regular phone handset on the line and

placing a phone call. If you do hear an amount of abnormal

noise, try to make the modem connection with a different line

or contact your local telephony service company.

ware. Check with the manaul of the programs to customize

the modem.

5-12

The fax/modem doesn’t transmit properly -

n Make sure the RJ-11 cable (the one that goes from the

modem to the telephone line) is firmly connected to the

modem's RJ-11 jack and the telephone line socket.

n Check the serial port settings. Make sure the hardware and

software are referring to the same COM port.

n Check the communications parameters (baud rate, parity,

data length and stop bits) specified in the communications

program.

n The connecting system, such as the central side equipment,

might be busy or offline. Try to make another transmission

test to other sytem.

n Be sure the line has a dial tone.

Network Adapter Problems

The Ethernet adapter does not work –

n Go to [Start > Settings > Control Panel] and double click the

System icon. Select the Device Manager tab from the

System Properties. Double-click on Network Adapters and

check if SiS 0900 PCI Fast Ethernet Adapter appears as

one of the adapters. If it does not exist, Windows has not

detected the SiS adapter or the device driver has not been

installed. If there is a yellow mark or red cross on the SiS

network adapter, there may be a device or resource conflict.

Consult Windows manual on how to solve this problem.

n Make sure the physical connections on both ends of the

cable are good.

n The hub or concentrator may not be working properly. Check

to see if other workstations connected to the same hub or

concentrator are working.

n Try restarting Windows with the port replicator already

connected to the network.

Section 5 TROUBLE SHOOTING

The Ethernet adapter does not appear to operate in the 100Mbps transmission mode –

n Make sure the hub you are using supports 100Mbps opera-

tion.

n Make sure that your RJ-45 cable meets the 100Base-TX

requirements.

n Make sure the Ethernet cable is connected to the hubs

socket that supports 100Base-TX mode. The hub may have

both 100Base-TX and 100Base-T sockets.

PC Card (PCMCIA) Problems

PC Cards do not function-

n Make sure you have properly installed the driver for the card. n Consult the card`s manual or contact the vendor for trouble-

shooting.

5-13

USER`S MANUAL

The PC card can not be recognized-

n Windows NT4.0 does not support PCMCIA (PC Card)

function. You may need an external program for this.

n Make sure the card is fully inserted; the outer end of the

card should be even with the edge of the notebook.

n Remove and insert the PC card again. n Make sure there is no IRQ conflict with the card. See

Windows on-line help for solving IRQ conflicts.

n Reboot the notebook and see if the problem persists. n The card may be defective. Try the card on another system,

if possible.

Windows crashes or freezes when you remove the PC card-

n Make sure you have <Stop> the PC card before removing it.

Click on the PC card icon at the lower right corner of the task bar and select the card you wish to stop. When you click <OK>, in few seconds Windows will prompt you to remove the card.

Performance Problems

The notebook becomes hot -

n In a 35oC environment, the notebooks bottom case is

expected to reach 50 degrees.

n Make sure the air vents are not blocked.

n If the fan does not seem to be working at high temperature

(50 degrees Celsius and up), contact the service center.

n Certain programs that are processor-intensive may increase

the notebook temperature to a degree where the notebook

automatically slows down its CPU clock to protect itself

from thermal damage.

The program appears stopped or runs very slowly -

n Press CTRL+ALT+DEL to see if an application is still

responding.

n Restart the notebook.

n This may be normal for Windows when it is processing other

CPU-intensive programs in the background.

5-14

n You may be running too many applications. Try to close

some applications or increase system memory for higher

performance.

n You may have selected Maximum Power Savings or Idle

Mode. These power saving options slow down the CPU to

conserve power. See Section 2 BIOS Setup and Section 3 Battery Power / Power Management for more information.

Power, Start, and Battery Problems

The notebook powers down as soon as it is powered on

n Battery power may be extremely low. The circuitry prevents

a complete power drain, which is not intended for Lithium Ion

batteries. Use the adapter to charge it for several hours

before trying again.

Section 5 TROUBLE SHOOTING

The notebook beeps intermittently -

n When battery charge is critically low, an audible beep warns

you. Press Fn+F3 to turn off the warning beep.

The battery life gets shorter and shorter -

n The battery has a finite life of about 500 charge cycles. If

your battery is over one or two years old, it may be time to

have it replaced.

n Try a higher power saving setting in the BIOS or in the

Windows Power Management.

The battery does not charge -

n Make sure the AC adapter is plugged into a valid power

source.

n Check to see if the green lamp on the adapter is lit when it

is plugged in.

n The battery charge indicator LED on the notebook should be

lit when you plug in the AC adapter.

n Make sure the battery module is fully inserted in its bay;

make sure the battery latch is in locked position.

n If the battery is operating at a very high temperature, it may

not charge.

5-15

USER`S MANUAL

Printing Problems

The printer does not print -

n Make sure the cable connection is secured and the printer

n Run the printer self test to investigate any problem of the

n Check if the printer displays any error messages. A paper

n Make sure you have already installed the printer driver.

n Most printer (using parallel or serial port) problems are

n Try rebooting the system with the printer powered up and

The printer does not print what’s on the screen -

n The display information on the screen is different from what

n If the printer print the extra and strange symbols, it is the

n Make sure you install the correct printer driver.

is powered up.

hardware itself.

jam may have occurred.

software-related. Consult Windows on-line help or contact

the printer vendor for assistance.

connected first.

would print out and this happend in many software program.

Check if the preview function is in the taskbar and see if the

working document show exactly as it print. Contact the

software provider for technical support.

result of the cache (garbage) in the printer momery buffer.

Call off all the printer task and toggle off the printer switch to

refresh the momery buffer. Then, trun the printer back

online and print again.

5-16

The printer does not respond to infrared communication

n See Infrared Problems listed elsewhere in this section.

Serial, Parallel, and USB Problems

The device that attached to the serial port is not working -

n Make sure the cable is fully connected.

n Maybe you have a broken cable or a wrong type cable, try

replacing the cable.

n Check the device setting in the Windows Control Panel,

[Start > Settings > Control Panel > System > Device

Manager], and in the BIOS to be sure that the port is

enabled. If the port is disabled, the system wont communi-

cate with any external devices connected to the port.

n Make sure the port is set properly to the correct value

(COM1 or COM2) to activate the serial port. Check the

device settings in the Windows Control Panel and in the

BIOS. If it is set to another value and you have made no

change to avoid the conflict with another device, set it to the

correct COM port. (COM 1 usually is the default one.)

n The serial-port devices may not be plug-and-play capable.

Reboot the notebook with the devices powered up and

connected first.

Section 5 TROUBLE SHOOTING

The Parallel Port does not work -

n Make sure the cable is fully connected.

n Check the device settings in the Windows Control Panel and

in the BIOS.

n The parallel-port devices may not be plug-and-play capable.

Reboot the notebook with the devices powered up and

connected first.

The USB device does not work -

n Windows NT 4.0 does not support USB protocols

n Check the settings in the Windows Control Panel.

n Make sure you have installed the necessary device drivers.

n Contact the vendor for additional support.

5-17

USER`S MANUAL

5-18

Appendix A PRODUCT SPECIFICATION

APPENDIX A

PRODUCT SPECIFICATION

A-1

USER`S MANUAL

Processor and Core Logic

• Processor

Intel Celeron / PIII processor. Socket Type, FCPGA package

• L1 Cache

• L2 Cache

• Core logic

• Bus Architecture

System Memory

• Memory Type

• Defualt

• Memory Expanssion

LCD

• Display Panel

Graphics

• Graphic Controller

• Graphics Ability

• Playback

• Dual Display

• Memory Sharing

• Other Features

32KB (16KB for Code Instruction, 16KB for Data) on-die.

128KB/Celeron, 256KB/PIII Cache on-die.

SiS chipset with graphic, audio and modem controller integrated

66 /100 MHz Front Side Bus, PCI / AGP.

Synchronous DRAM system memory.

32MB, 3.3-Volt 64-bit bus

Two 144-pin SO-DIMM socket accept 64MB, 128MB, or 256MB SDRAM modules in any combination for system memory expansion up to 512MB.

14.1-inch XGA active-matrix TFT display supported resolution 1024x768 with up to 16M colors.

SiS 630S with integrated AGP bus 2D/3D graphics accelerator.

UltraAGP architecture graphics capability ( similar to 4X AGP). 3D Graphics Supported.

Direct DVD MPEG-2 Playback supported. Motion Compression and IDCT supported for DVD Playback.

Simultaneous LCD/External Monitor supported. Dual Independent LCD and External Monitor Display supported. Dual Application Capacity.

UMA architecture with 8/16/32/64 system memory sharable as display memory.

Direct3D compatible. Fully DirectX 6.0 Compliant Graphics Engine. VESA DDC1, DDC2B & DDC 3.0 supported.

A-2

Storage Capacity

• Hard Disk

• Diskette Drive

2.5-inch / 3-inch format (9.5mm height) removable drive with capacity of 6.0GB and above

3.5-inch format fixed module with accommodating 3 modes as 720KB, 1.44MB, and 1.2MB.

Audio

• Audio Chipset

• Sound Capability

SiS 630S with integrated audio controller

64-voice Polyphony Wavetable Synthesizer. DirectSound 3D accelerator for IID, IAD and Doppler effects. Full duplex, independent sample rate converter. SoundBlaster Pro/16 compliant. AC97 V2.1 interface supported. Full deplex and independent sample rate converter for audio recording and playback.

Appendix A PRODUCT SPECIFICATION

Modem

• Chipset

• Transmission Speed

LAN

• Network Adapter

• PnP Function

• Flow Control

• Speed Seletion

• Other Features

Smart Link 56K Modem

V.90 / K56flex for download data speed up to 56000bps. V.34, V.17, V.29 transmission protocol.

SiS 630S with integrated PCI Fast Ethernet function for 10Base-T and 100Base-TX network standards.

Windows 95 / 98 Plug and Play compatible

Automatic Jam and auto-negotiation for flow control.

Auto Negotiation and Parallel detection for automatic speed selection (IEEE 802.3u).

High performance 32-bit PCI bus master architecture with integrated DMA controller for low CPU and bus utilization.

Remote Wake-up Scheme supported.

Hot Insertion supported.

A-3

USER`S MANUAL

Other Standard Hardware

• CD-ROM

• DVD ROM

• Keyboard

• Pointing Device

5.25-inch format (12.7mm height) fixed module with 24X speed.

5.25-inch format (12.7mm height) fixed module. (Optional)

87-key touch-type QWERTY keyboard with embedded numeric

Keypad.

TouchPad with 2 buttons.

PC Card

• PCMCIA Controller

• Features

O2Micro OZ 6812 / 6912 controller.

Single slot for TYPE II / III PC Cards with Card Bus 1.0 interface, having hot insertion and removal supported, enabling connection to peripherals as multimedia communications.

Ports

• VGA Port

• Audio Port

• Infrared Port

• Parallel Port

• Serial Port

• USB Port

• PS/2 Port

• Modem Port

• LAN Port

• Power Port

One 15-pin CRT connector

One stereo line-out jack & One momo microphone-in jack

One FIR LED

One 25-hole parallel connector (ECP / EPP)

One 9-pin serial connector (16550A / FIFO)

One USB connector

One connector for keyboard / PS/2 mouse

One standard phone jack (RJ-11)

One standard network connector (RJ-45)

One DC-in connector

Power

• Main Battery

• AC Adapter

• Recharge

• Other Features

A-4

Li-Ion 8-cell, 47.4 Whrs (total capacity), 14.8V, 3600mAh.

100~240V, 50~60Hz, 20/60W.

System OFF: ~3 HR (100%) System ON: ~6 HR (100%)

Low Battery Warning Suspend / Resume capability

BIOS

• PnP Function

• Self Test

• Auto Detection

• Power Management

• Security

• Other Features

AMI PnP BIOS

Power On Self Test

DRAM auto-detection, auto-sizing L2 Cache auto-detection Hard disk type auto-detection

APM 1.2 (Advanced Power Management) & ACPI 1.0 (Advanced Configuration Power Interface)

Two Level Password Protection

32bit access, Ultra DMA, PIO5 Mode support

Multi-boot capability

Operating System

• O/S

Microsoft Windows 98 / ME / 2000

Microsoft NT 4.0

Appendix A PRODUCT SPECIFICATION

Phsical Specification

• Weight

• Environmental Limitations

Note: There are two kind of types of CD-ROM might be installed as shipped. One is electrical and the other is mechnical. Basically , the mobile computor is equipped to an electrical CD-ROM. With this device, you can do the CD-ROM ejection only if the

system is on. As for bundling the mechnical type, the ejection button works all the time, even the system is powered off. Please be also noted, the mechnical one is not avaliable to eject the CD-Disk by performing Fn key under the running Windows 98 operating system.

256 (D) x 315 (W) x 44 (H) mm

6.5 lbs (with CD-ROM & FDD)

Operating Temperature: 5 to 35oC (41 to 95oF)

Operating Humidity: 20 to 90 percent RH (5 to 35oC)

Storage Temperature: -20 to 50oC (-4 to 122oF)

Note: Product Specifications are subject to change without notice or obligation.n.

A-5

USER`S MANUAL

A-6

Appendix B SPECIAL VGA FUNCTIONS

APPENDIX B

SPECIAL VGA FUNCTIONS

In this section, you will learn how to take advantage of the special DualView feature via the VGA controller.

B-1

USER`S MANUAL

The VGA controller (graphics processor) on your notebook is

capable of DualView function. This unique display feature allows

you to work efficiently when you have access to an external CRT

monitor or RGB projector for a large audience presentation. With

DualView, you can access separate Windows applications on the

TFT display and on the CRT monitor simultaneously and indepen-

dently.

If the VGA driver and SIS Control Panel program have not already

installed on your notebook, use the following precedures to install

them first.

Windows Display Driver Installation / Update

To install/update the driver, do the following:

1. Insert the Driver CD

2. The drivers are located in the directory:

D:\drivers\VGA\OS (Win9x- Win Me - Win NT...)

3. Doubleklick on setup.exe. The drivers will be installed.

4. Restart the computer - the enhanced functions are

available.

Using the DualView Function

With DualView function, you have gained twice as much desktop

space without having to purchase additional graphics controller

card.

DualView allows you to run different applications independently

across two display device. (For example, the external CRT and

notebook`s LCD display).

Important:

Instructions to activate the DualView function:

1. Right-click on the SiS icon located at the lower right-hand corner of the Windows task bar.

2. Go to [Display Property > Display Setting], choose the folder >display modes.

3. Deactivate the Auto function in the primary display.

B-2

Appendix B SPECIAL VGA FUNCTIONS

4. Choose in the driver mode the multimonitor mode.

5. Click on Apply and restart the computer.

6. Now the Dual View function is available.

B-3

USER`S MANUAL

B-4

Appendix C AGENCY REGULATORY NOTICES

APPENDIX C

AGENCY REGULATORY NOTICES

C-1

USER`S MANUAL

Federal Communications Commission Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

n Reorient or relocate the receiving antenna. n Increase the separation between the equipment and the

receiver.

n Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

n Consult the dealer or an experienced radio or television

technician for help.

Modifications

The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by the Manufacture may void the users authority to operate the equipment.

Connections to Peripheral Devices

Connections to this device must be made with shielded cables with metallic RFI/EMI connector hoods to maintain compliance with FCC Rules and Regulations.

Declaration of Conformity

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

European Notice

Products with the CE Marking comply with both the EMC Directive (89/ 336/EEC) and the Low Voltage Directive (73/23/EEC) issued by the Commission of the European Community. Compliance with these directives implies conformity to the following European Norms:

n EN55022 (CISPR 22) Radio Frquency Interference n EN50082 (IEC801-2, IEC801-3, IEC801-4) Electro-magnetic

Immunity

n EN60950 (IEC950) Product Safety

C-2

Canadian Notice

This digital apparatus does not exceed the Class B limits for radio

Appendix C AGENCY REGULATORY NOTICES

noise emissions from digital apparatus as set out in the radio interference regulations of the Canadian Department of Communications.

Le present appareil numerique nemet pas de bruits radioelectriques depassant les limites applicables aux appareils numeriques de Classe B prescrites dans le reglement sur le brouillage radioelectrique edicte par le Ministere des Communications du Canada.

Power Cord Requirement

The power cord supplied with the notebook AC adapter should match the plug and voltage requirements for your local area. Regulatory approval for the AC adapter has been obtained using the power cord for the local area. However, if you travel to a different area and need to connect to a different outlet or voltage, you should use one of the power cords listed below. To purchase a power cord (including one for a country not listed below) or a replacement ac adapter, contact your local dealer.

U.S. and Canada

n The cord set must be UL-Listed and CSA-Certified. n The minimum specifications for the flexible cord are (1) No. 18

AWG, (2) Type SJ, and (3) 3-conductor.

n The cord set must have a rated current capacity of at least 10 A. n The attachment plug must be an earth-grounding type with a

NEMA 5-15P (15A, 125V) or NEMA 6-15P (15 A, 250V) configuration.

Japan

n All components of the cord set (cord, connector, and plug) must

bear a `T` mark and registration number in accordance with the Japanese Dentori Law.

n The minimum specification for the flexible cord are: (1) 0.75

mm2 conductors, (2) Type VCT or VCTF, and (3) 3-conductor.

n The cord set must have minimum rated current capacity of 7 A. n The attachment plug must be a two-pole, grounded type with a

Japanese Industrial Standard C8303 (15 A, 125 VAC) configuration.

Other Countries

n The cord set fittings must bear the certification mark of the

agency responsible for evaluation in a specific country. Acceptable agencies are:

BSI (UK) OVE (Australia) CEBEC (Belgium) SEMKO (Sweden) DEMKO (Denmark) SETI (Finland) EANSW (Australia) SEV (Switzerland)

C-3

USER`S MANUAL

IMQ (Italy) UTE (France) KEMA (The Netherlands) VDE (Germany) NEMKO (Norway)

n The flexible cord must be of a HAR (harmonized) type HO5VV-F

3-conductor cord with a minimum conductor size of 0.03 square inches.

n The cord set must have a current capacity of at least 10 A and a

nominal voltage rating of 125 / 250 VAC.

Battery Safety

n The battery pack is intended to use only with this notebook. n Do not disassemble the pack. n Do not dispose of the battery pack in fire or water. n To avoid risk of fire, burns, or damage to your battery pack, do

not allow a metal object to touch the battery contacts.

n Handle a damaged or leaking battery with extreme care. If you

come in contact with the electrolyte, wash the exposed area with soap and water. If it contacts the eye, flush the eye with water for 15 minutes and seek medical attention.

n Do not charge the battery pack if the ambient temperature

exceeds 45oC (113oF).

n To obtain a replacement battery, contact your local dealer. n Do not expose the battery pack to high storage temperatures

(above 60oC, 140oF).

n When discarding a battery pack, contact your local waste

disposal provider regarding local restrictions on the disposal or recycling of batteries.

CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer`s instructions or local laws.

C-4

VORSICHT! Explisionsgefahr bei unsachgernazen Austausch der Batterie. Ersatz nur durch denselben oder einem vom Hersteller empfohlenem ahnlichen Typ. Entsorgung gebrauchter Batterien navh Angaben des Herstellers.

CAUTION: MODEL 340 FOR USE WITH POWER SUPPLY MODEL LSE9802A2060 ATTENTION: MODEL 340, POUR UTILISER AVEC LE MODELE LSE9802A2060

Appendix C AGENCY REGULATORY NOTICES

Laser Safety

The CD-ROM drive used with this notebook are certified as a Class 1 laser device according to the U.S. Department of Health and Human Services (DHHS) Radiation Performance Standard and International Standards IEC 825 / IEC 825-1 (EN60825 / EN60825-1). The device is not considered harmful, but the following precautions are recommended:

n Do not open the unit. n Avoid direct exposure to the laser beam. n If the unit requires service, contact an authorized service center. n Ensure proper use by reading and following the instructions

carefully.

n Do not attempt to make any adjustment of the unit.

CLASS 1 LASER PRODUCT APPAREIL A LASER DE CLASSE 1 LASERSCHUTZKLASSE 1 PRODUKT

LED (Infrared) Safety

The infrared port located on the left side of this notebook is classified as a Class 1 LED (light-emitting diode) device according to International Standard IEC 825-1 (EN60825-1). This device is not considered harmful, but the following precautions are recommended: n Do not attempt to view the infrared LED beam with any type of

optical device.

n Do not attempt to make any adjustment of the unit. n If the unit requires service, contact an authorized service center. n Avoid direct eye exposure to the infrared LED beam. Be aware

that the beam is invisible light and cannot be seen.

CLASS 1 LED PRODUCT LEDSCHUTZKLASSE 1 PRODUKT

C-5

USER`S MANUAL

CD-ROM warning

Warning!

Do not attempt to disassemble the cabinet containing the laser. The laser beam used in this product is harmful to the eyes. The use of optical instruments, such as magnifying lenses, with this product increase the potential hazard to your eyes. For your safety, have this equipment serviced only by an authorized service provider.

CLASS 1 LASER PRODUCT LASER KLASSE 1 LUOKAN 1 LASERLAITE APPAReil A LASER DE CLASSE 1 EN60825-1

Lithium battery warning

This computer contains a lithium battery to power the clock and calendar circuitry.

CAUTION: Danger of explosion if battery is replaced incorrectly.

Replace only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturers instructions.

ATTENTION: Il y a danger dexplosion sil y a remplacement

incorrect de la batterie. Remplacer uniquement avcc unc batterie du méme type ou dun type recommandé par le constructer. Mettre au rébut les batteries usagées conformément aux instructions du fabricant.

C-6

VORSICHT! Explosionsgefahr bei unsachgemäßen Austausch der

Batterie Ersatz nur durch denselben oder einem vom Hersteller empfohlenem ähnlichen Typ. Entsorgung gebrauchter Batterien nach Angaben des Herstellers.

Der Arbeitsplatzbezogene Schalldruckpegel nach DIN 45 635 beträgt 70dB (A) oder weniger.

Zum Netzanschluâ dieses Gerätes ist eine geprûfte Leitung zu verwenden. Fûr einen Nennstrom bis 6A und einem Gerätegewicht größer 3kg ist eine Leitung nicht leichter als H05VV-F, 3G, 0.75mm einzusetzen.

Die Steckdose muß nahe dem Gerät angebracht und leicht zugänglich sein.
