Masterbuilt 20051316 Owner's Manual

THERMOTEMP PROPANE & XL PROPANE SMOKER

PROPANE THERMOTEMP ET XL FUMEUR DE PROPANE

THERMOTEMP PROPANO Y XL PROPANO FUMADOR

IMPORTANT! / IMPORTANTE !

Please record this information immediately and keep in a safe place for future use.

Veuillez noter cette information immédiatement et la conserver dans un endroit sûr pour une utilisation future.

Por favor, registrar esta información inmediatamente y guardar en un lugar seguro para su uso futuro.

Masterbuilt Manufacturing, LLC

1 Masterbuilt Ct.

Columbus, GA 31907

Customer Service 1-800-489-1581

Service à la clientèle 1-800-489-1581

Servicio de atención al cliente 1-800-489-1581

_________________________________________

Model number / Numéro de modèle / Número de modelo

_________________________________________

Mfg. Date - Serial Number / Date de fabrication - Numéro de série / Fecha Fabricado - Número de serie

These numbers are located on the rating label of the unit.

Le numéro de série se trouve sur la plaque signalétique de l’appareil .

El número de serie se encuentra en la etiqueta de la unidad.

Manual Code: 9805160024 170111-GB

THIS PRODUCT IS FOR OUTDOOR HOUSEHOLD USE ONLY.

ASSEMBLY, CARE & USE MANUAL WARNING & SAFETY INFORMATION

CE PRODUIT EST DESTINÉ À UN USAGE EXTÉRIEUR SEULEMENT.

MANUEL D’ASSEMBLAGE, D’ENTRETIEN ET D’UTILISATTION – AVERTISSEMENTS ET

RENSEIGNEMENTS CONCERNANT LA SÉCURITÉ

www.masterbuilt.com

ESTE PRODUCTO ES SOLAMENTE PARA USO EN EXTERIORES.

INFORMACIÓN DE ADVERTENCIAS Y SEGURIDAD DEL MANUAL DE ENSAMBLAJE, CUIDADO Y USO

Tools needed for assembly: Adjustable Wrench and Phillips Head Screwdriver

Approximate assembly time: 35 minutes *Actual product may diﬀ er from picture shown

Outils nécessaires pour l’assemblage : clé ajustable et tournevis cruciforme

Temps nécessaire pour l’assemblage : environ 35 minutes * Le produit réel peut diﬀ érer de l’illustration

Herramientas requeridas para el ensamblaje: Llave ajustable y destornillador Phillips o en cruz

Tiempo aproximado de ensamblaje: 35 minutos *El producto real puede ser distinto de la imagen mostrada

GS30_40G1M170103GB

CARBON MONOXIDE

DANGER

HAZARD

Burning wood chips gives oﬀ carbon monoxide,

which has no odor and can cause death. DO NOT burn wood chips inside homes,

vehicles, tents,

garages or any enclosed areas.

USE ONLY OUTDOORS where it is well

ventilated.

IF YOU SMELL GAS:

1. Shut oﬀ gas to the appliance.

2. Extinguish any open ﬂ ame.

3. Open/remove door.

4. If odor continues, keep away from the appliance and immediately call your Fire Department.

WARNING

This manual contains important information necessary for the proper assembly

and safe use of the appliance.

Read and follow all warnings and instructions before assembling and using the appliance.

Follow all warnings and instructions when using the appliance.

Keep this manual for future reference.

Failure to follow these instructions could result in ﬁ re, explosion or burn hazard

which could cause property damage, personal injury, or death.

INFORMACIÓN DE GARANTÍA LIMITADA

Masterbuilt garantiza que sus productos no presentan defectos de fabricación, ni de material ni de la mano de obra, si se los ensambla correctamente, se los utiliza de forma normal y se los cuida según las recomendaciones, durante un período de 90 días a partir de la fecha de compra original.

La garantía de Masterbuilt no cubre el acabado de la pintura ya que puede salirse durante el uso

normal. La garantía de Masterbuilt no cubre la oxidación de la unidad. Masterbuilt exige el comprobante razonable de la compra para realizar reclamos de la garantía y sugiere que

conserve su recibo. Después de la fecha de vencimiento de la garantía, ﬁ nalizarán todas las responsabilidades. Durante el período de vigencia establecido de la garantía, Masterbuilt, a su criterio, reemplazará o reparará los

componentes defectuosos sin costo alguno, debiendo hacerse responsable el propietario de los gastos de envío. Si Masterbuilt requiere la devolución del o los componentes en cuestión para su inspección, Masterbuilt será responsable de todos los cargos de envío para devolver el artículo solicitado.

Esta garantía excluye los daños ocasionados a la propiedad por el mal uso, el uso excesivo, los accidentes, el transporte o el uso comercial de este producto.

Esta garantía expresa es la única garantía entregada por Masterbuilt y reemplaza a todas las demás garantías, expresas o implícitas, incluidas las garantías implícitas de comercialización o idoneidad para cualquier ﬁ n en particular.

Ni Masterbuilt ni el establecimiento minorista que ofrece este producto tienen autoridad alguna para otorgar garantías adicionales o prometer otros recursos que sean inconsistentes con los establecidos previamente. La responsabilidad máxima de Masterbuilt, en todos los casos, no superará el precio de compra del producto que el cliente o comprador original pagó. Algunos estados no permiten la exclusión o limitación de daños accidentales o resultantes. En dicho caso, no se aplicarán las exclusiones o limitaciones anteriores.

DANGER

1. Never operate this appliance unattended.

2. Never operate this appliance within 10 feet (3.0m) of any structure, combustible material or other gas cylinder.

3. Never operate this appliance within 25 feet (7.5m) of any ﬂ ammable liquid.

4. If ﬁ re should occur, keep away from appliance and immediately call your ﬁ re department. Do not attempt to extinguish an oil/grease ﬁ re with water.

WARNING

CALIFORNIA PROPOSITION 65

1. Combustion by-products produced when using this product contain chemicals known to the State of California to cause cancer, birth defects, and other reproductive harm.

2. This product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.

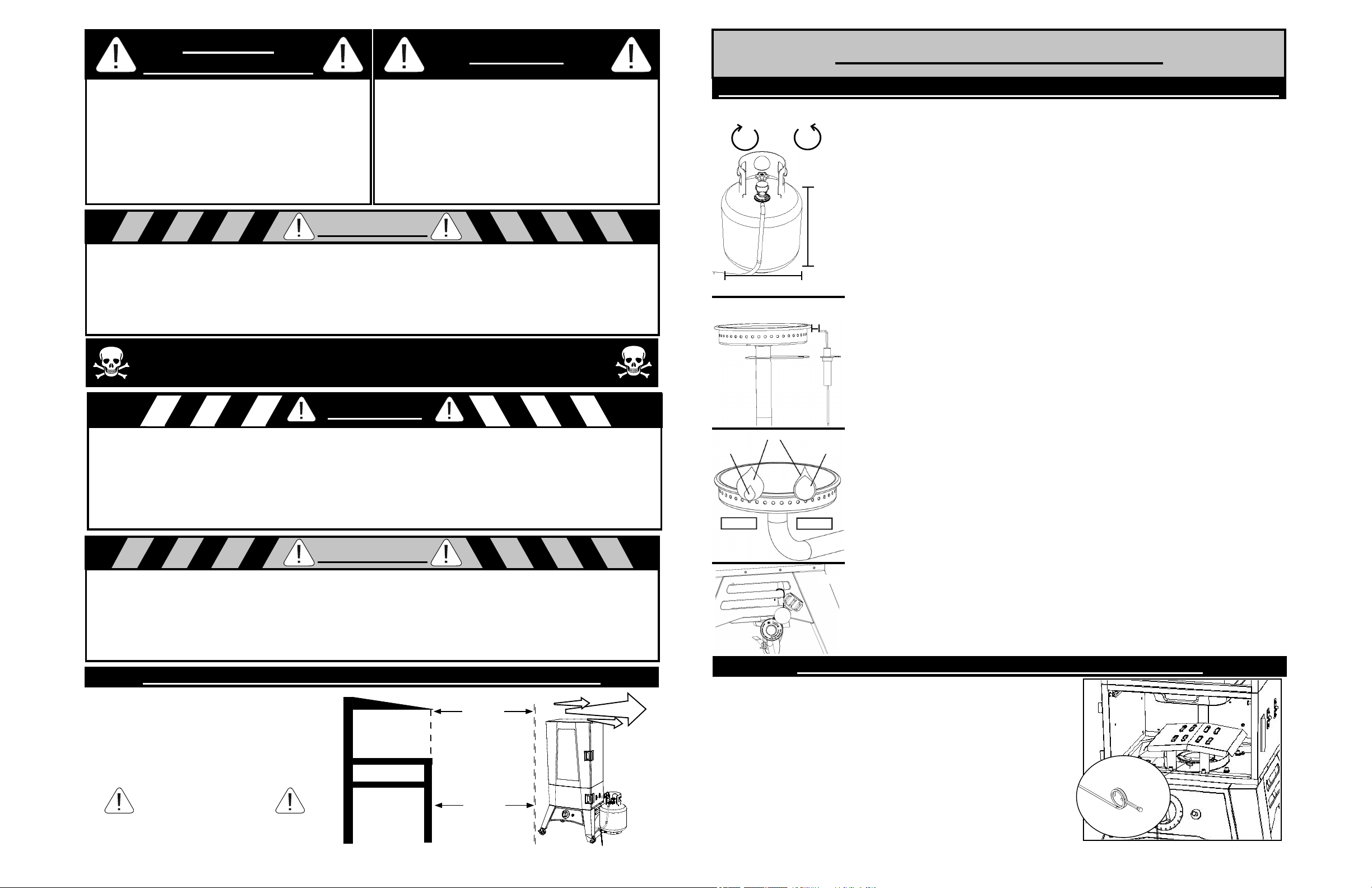

STRUCTURAL PROXIMITY AND SAFETY USAGE RECOMMENDATIONS

Before using smoker check wind direction and place cylinder DOWNWIND. This is necessary so that cylinder supply system is arranged for vapor withdrawal.

Overhead Construction

Rails

10 Feet

Wind Flow

Sólo para residentes de California: A pesar de esta limitación de garantía, se aplican las siguientes restricciones especíﬁ cas; si el mantenimiento, la reparación o el reemplazo del producto no se puede realizar comercialmente, el establecimiento minorista que ofrece el producto o Masterbuilt devolverá el monto original de la compra del producto, menos el monto directamente atribuible al uso por parte del comprador original antes de informar su disconformidad. El propietario puede llevar el producto al establecimiento minorista que lo ofrece a ﬁ n de obtener la ejecución de cualquier obligación en virtud de esta garantía.

Esta garantía expresa le otorga derechos legales especíﬁ cos, y es posible que también tenga otros derechos que varían según el estado.

Visítenos en línea en: www.masterbuilt.com

o complete este formulario y envíelo a:

A la atención de: Warranty Registration

Masterbuilt Manufacturing, LLC

1 Masterbuilt Court - Columbus, GA 31907

Nombre: _____________________________ Dirección :________________________ Ciudad:_____________

Estado/Provincia: ________ Código postal: ________________Número de teléfono: (_____) - ____________

Correo electrónico:______________________________________

*Número de modelo: ____________________ *Número de serie: ____________________

Fecha de compra: _____- ______-_______ Lugar de compra: ____________________________________

*El número de modelo y el número de serie se encuentran en la etiqueta plateada en la parte posterior de la unidad.

WARNING: HOSE IS A

TRIP HAZARD THAT

10 Feet

COULD CAUSE SUPPLY

CYLINDER TO TIP

Walls

GARANTIE LIMITÉE

Masterbuilt garantit ses produits contre tout vice de fabrication et de matériaux si leurs pièces sont assemblées comme il se doit et si l’appareil est utilisé dans des conditions normales, si son entretien est effectué selon les recommandations du fabricant, pour une période de 90 jours à partir de la date d’achat initiale. Cette garantie de Masterbuilt ne couvre pas la finition de peinture, car elle risque de brûler lors de toute utilisation normale de l’appareil. Cette garantie de Masterbuilt ne couvre pas la rouille pouvant apparaître sur l’appareil. Masterbuilt requiert une preuve d’achat raisonnable afin de bénéficier de la garantie et vous recommande de conserver votre reçu. À l’expiration de la garantie, toute responsabilité et obligation en découlant cessera. Lors de la période de garantie indiquée ci-dessus, Masterbuilt s’engage, à sa seule discrétion, à réparer ou à remplacer gratuitement les pièces défectueuses de l’appareil ou à fournir les pièces port payé par le propriétaire. Si Masterbuilt souhaite que des pièces lui soient renvoyées afin de les examiner, Masterbuilt s’engage à payer les frais d’expédition pour l’article en question.

Cette garantie ne couvre pas les dommages matériels survenant suite à une défaillance du produit ou à toute utilisation incorrecte ou négligence ainsi que tout mauvais traitement ou dommage découlant du transport ou entraîné par une utilisation commerciale de l’appareil.

Cette garantie expresse tient lieu de garantie unique offerte par Masterbuilt et remplace toute autre garantie expresse ou implicite, y compris toute garantie d’aptitude à la commercialisation ou d’adaptation à un usage particulier. Ni Masterbuilt ni le magasin vendant ce produit n’ont le droit de stipuler d’autres garanties ou de promettre des recours supplémentaires ou incompatibles avec ce qui est susmentionné. La responsabilité de Masterbuilt se limitera au prix d’achat de l’appareil payé par le consommateur/l’acheteur initial, sans que ce montant puisse être dépassé. Certains États et certaines provinces ne permettent pas l’exclusion ni la limitation de dommages directs ou indirects. Par conséquent, les exclusions ou limitations indiquées ci-dessus peuvent ne pas vous être applicables.

Résidents de la Californie uniquement : Nonobstant les limitations de cette garantie, les restrictions suivantes vous sont applicables; si réparer ou remplacer le produit en question ne s’avère pas rentable pour le revendeur, ce dernier ou Masterbuilt remboursera le prix payé d’achat du produit après dépréciation et après déduction d’une somme équivalente à la durée d’utilisation par l’acheteur initial avant la découverte du vice ou de la non-conformité. Le propriétaire peut possible de retourner le produit au magasin revendeur afin de bénéficier des services offerts par

la garantie. Cette garantie vous procure des droits juridiques spécifiques et vous pouvez également bénéficier d’autres droits en fonction de votre lieu de résidence.

Visitez en ligne www.masterbuilt.com

ou remplissez et renvoyez à Attn : Warranty Registration

Masterbuilt Manufacturing, LLC

1 Masterbuilt Court - Columbus, GA 31907

Nom : ___________________________ Adresse :_________________________ Ville :________________

État/Province : ________ Code postal : ________________ Numéro de téléphone : (_____) - ____________

Adresse de courriel :_______________________________________

*Numéro de modèle : ____________________ *Numéro de série : ____________________

Date de l’achat : _____- ______-_______ Lieu de l’achat : ____________________________________

*Les numéros de série et de modèle se trouvent sur l’étiquette argentée derrière l’appareil.

GENERAL WARNINGS AND SAFETY INFORMATION

READ ALL INSTRUCTIONS

• Always use unit in accordance with all applicable local, state and federal ﬁ re codes.

• Before each use check all nuts, screws and bolts to make sure they are tight and secure.

• Never operate unit under overhead construction such as roof coverings, carports, awnings, or overhangs.

• Unit is for OUTDOOR USE ONLY.

• Never use inside enclosed areas such as patios, garages, buildings or tents.

• Never use inside or on recreational vehicles or boats.

• Maintain a minimum distance of 10ft (3m) from overhead construction, walls, rails or other structures.

• Keep a minimum 10ft (3m) clearance of all combustible materials such as wood, dry plants, grass, brush, paper, or canvas.

• Never use unit for anything other than its intended use. This unit is NOT for commercial use.

• Accessory attachments not supplied by Masterbuilt Manufacturing, LLC are NOT recommended and may cause injury.

• Use of alcohol, prescription or non-prescription drugs may impair user’s ability to properly assemble or safely operate unit.

• Keep a ﬁ re extinguisher accessible at all times while operating unit.

• When cooking with oil or grease, have a type BC or ABC ﬁ re extinguisher readily available.

• In the event of an oil or grease ﬁ re do not attempt to extinguish with water. Immediately call the ﬁ re department. A Type BC or ABC ﬁ re extinguisher may, in some circumstances contain the ﬁ re.

• Use unit on a level, non-combustible, stable surface such as dirt, concrete, brick or rock. An asphalt surface (blacktop) may not be acceptable for this purpose.

• Unit MUST be on the ground. Do not place unit on tables or counters. Do NOT move unit across uneven surfaces.

• Do not use unit on wooden or ﬂ ammable surfaces.

• Keep unit clear and free from combustible materials such as gasoline and other ﬂ ammable vapors and liquids.

• Do not leave unit unattended.

• Keep children and pets away from unit at all times. Do NOT allow children to use unit. Close supervision is necessary should children or pets be in area where unit is being used.

• Do NOT allow anyone to conduct activities around unit during or following its use until it has cooled.

• Never use glass, plastic or ceramic cookware in unit. Never place empty cookware in unit while in use.

• Never move unit when in use. Allow unit to cool completely (below 115°F (45°C)) before moving or storing.

• Store only when ﬁ re is completely out and all surfaces are cold.

• Never use unit as a heater (READ CARBON MONOXIDE HAZARD).

• The unit is HOT while in use and will remain HOT for a period of time afterwards and during cooling process. Use CAUTION. Wear protective gloves/mitts.

• Be careful when removing food from unit. All surfaces are HOT and may cause burns. Use protective gloves/mitts or long, sturdy cooking tools for protection from hot surfaces or splatter from cooking liquids.

• DO NOT bump or impact the unit to prevent personal harm, damage to unit or spillage/splashing of hot cooking liquid.

• Do not touch HOT surfaces

• Unit is hot during use. To avoid burns, keep face and body away from door, lid and vents. Steam and hot air are expelled during use.

• Air dampers are HOT while the unit is in use and during cooling; wear protective gloves when adjusting.

• Unit has an open ﬂ ame. Keep hands, hair, and face away from burner ﬂ ame. Do NOT lean over burner when lighting. Loose hair and clothing may catch ﬁ re.

• DO NOT obstruct ﬂ ow of combustion and ventilation.

• Do not cover cooking racks with metal foil. This will trap heat and may cause damage to the unit.

• Installation of unit must conform with local codes or in the absence of local codes, with National Fuel Gas Code, ANSIZ223.1/NFPA 54, Storage and Handling of Liqueﬁ ed Petroleum Gasses, ANSI/NFPA 58 or CSA B149.1, Natural Gas Installation Code; Propane Storage and Handling, CSA B149.2; or the Standard for Recreational Vehicles, ANSI A119.2/NFPA 1192; and Recreational Vehicle Code, CSA Z240 RV Series as applicable.

• Before each use inspect gas hose for signs of damage.

• Keep fuel supply hose away from any heated surface.

WARNINGS & IMPORTANT SAFEGUARDS

CONTINUED ON PAGE 4

GENERAL WARNINGS AND SAFETY INFORMATION

WARNINGS & IMPORTANT SAFEGUARDS

CONTINUED FROM PAGE 3

• Keep fuel supply hose away from unit while in operation.

• Regulator and hose assembly supplied with unit MUST be used. For replacement parts, if needed, contact Masterbuilt Customer Service at 1-800-489-1581.

• Use 20LB (9kgs) gas cylinder that has protective collar (cylinder not included with unit).

• Keep ventilation openings of cylinder enclosure free and clear of debris.

• LP gas cylinder being used must be constructed and marked in accordance with speciﬁ cations for LP gas cylinders of the US Department of Transportation (DOT) or the Standard for Cylinders, Spheres and Tubes for the Transportation for Dangerous Goods, CAN/CSA-B339.

• Never use gas cylinder if there is evidence of dents, gouges, bulges, ﬁ re damage, erosion, leakage, excessive rust, or other forms of visible external damage. This may be hazardous and cylinder should be taken to a liquid propane supplier to be checked.

• Never attach/disconnect gas cylinder, move or alter gas ﬁ ttings when unit is in operation.

• Always disconnect gas cylinder from unit when not in use.

• Unit is designed to work with propane gas only. Only use gas cylinders marked propane with this unit.

• This product will NOT operate with natural gas.

• When use is complete, always, ﬁ rst turn the smoker control knob OFF, then turn the gas cylinder valve OFF, and ﬁ nally disconnect the cylinder.

• Gas MUST be turned oﬀ at the supply cylinder when not in use.

• Cylinder MUST be stored outdoors, out of children’s reach and must NOT be stored in a building, garage, or any other enclosed area.

• Do NOT store spare LP gas cylinder under or near unit. Gas cylinder safety relief valve may overheat allowing gas to release causing ﬁ re which may cause death or serious injury.

• Never ﬁ ll cylinder over 80% full or cylinder may release gas causing ﬁ re which may cause death or serious injury.

• Place a dust cap on cylinder valve outlet whenever cylinder is not in use. Only install dust cap provided with cylinder. Other caps or plugs may cause leaks.

• If you smell, hear or see gas escaping, immediately get away from gas cylinder and call the Fire Department. Fire may cause death or serious injury.

• Reference ignition steps before use.

• Never use lighter ﬂ uid with propane.

• Wood chips must be used in order to produce smoke and create the smoke ﬂ avor.

• Flame disk bowl/ wood chip tray/bowl is HOT when unit is in use. Use caution when adding wood.

• Check grease tray often during cooking. Empty grease tray before it gets full. Grease tray may need to be emptied periodically during cooking.

• Do not open upper smoker door(s) unless necessary. Opening smoker door(s) causes heat to escape, which may cause extended cooking time and may cause wood to ﬂ are up. Closing the door(s) will re-stabilize the temperature and stop ﬂ are up.

• This is a smoker. There will be a lot of smoke produced when using wood chips. Smoke will escape through seams and turn the inside of smoker black. This is normal. To minimize smoke loss around door(s), door latch(s) can be adjusted to further tighten door seal against body.

• To adjust door handle/latch, loosen the two screws that mount the door hook to the smoker body. Slide the door hook forward or rearward as needed to achieve the desired door seal. Then retighten the two door hook screws. Be sure not to set the door handle/latch to tight as it could cause damage to the unit and make it diﬃ cult to operate. The door should be adjusted so that it closes completely.

• When outside temperature is cooler than 65°F (18°C) and/or altitude is above 3,500 feet (1067m), additional cooking time may be required. To insure that meat is completely cooked use a meat thermometer to test internal temperature.

• Do not use wood pellets.

• Food needs to be in the center of smoking racks. This allows food drippings to go into the water bowl.

• Do not leave old wood or ashes in the ﬂ ame disk bowl/woodchip tray/bowl. Once ashes are cold, empty bowl/tray. Bowl/tray should be cleaned out prior to, and after each use to prevent ash and residue buildup.

• Dispose of cold ashes by placing them in aluminum foil, soaking with water and discarding in a noncombustible container.

• Do not store unit with HOT ashes inside unit.

LIMITED WARRANTY INFORMATION

Masterbuilt warrants its products to be free from defects in material and workmanship under proper assembly, normal use and recommended care for 90 days from the date of original retail purchase.

Masterbuilt warranty does not cover paint finish as it may burn off during normal use. Masterbuilt warranty does not cover rust of the unit. Masterbuilt requires reasonable proof of purchase for warranty claims and suggests that you keep your receipt. Upon

the expiration of such warranty, all such liability shall terminate. Within the stated warranty period, Masterbuilt, at its discretion, shall repair or replace defective components free of

charge with owner being responsible for shipping. Should Masterbuilt require return of component(s) in question for inspection Masterbuilt will be responsible for shipping charges to return requested item.

This warranty excludes property damage sustained due to misuse, abuse, accident, damage arising out of transportation, or damage incurred by commercial use of this product.

This expressed warranty is the sole warranty given by Masterbuilt and is in lieu of all other warranties, expressed or implied including implied warranty, merchantability, or fitness for a particular purpose.

Neither Masterbuilt nor the retail establishment selling this product, has authority to make any warranties or to promise remedies in addition to or inconsistent with those stated above.

Masterbuilt’s maximum liability, in any event, shall not exceed the purchase price of the product paid by the original consumer/ purchaser. Some states do not allow the exclusion or limitation of incidental or consequential damages. In such a case, the above limitations or exclusions may not be applicable.

California residents only: Not withstanding this limitation of warranty, the following specific restrictions apply; if service, repair, or replacement of the product is not commercially practical, the retailer selling the product or Masterbuilt will refund the purchase price paid for the product, less the amount directly attributable to use by the original buyer prior to the discovery of the nonconformity. Owner may take the product to the retail establishment selling this product in order to obtain performance under warranty.

This expressed warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Go online www.masterbuilt.com

or complete and return to

Attn: Warranty Registration

Masterbuilt Manufacturing, LLC

1 Masterbuilt Court - Columbus, GA 31907

Name: ___________________________ Address :_________________________ City:________________

State/Province: ________ Postal Code: ________________ Phone Number: (_____) - ____________

E-mail Address:_______________________________________

*Model Number: ____________________ *Serial Number: ____________________

Purchase Date: _____- ______-_______ Place of Purchase: ____________________________________

*Model Number and Serial Number are located on silver label on back of unit.

SAVE THESE INSTRUCTIONS

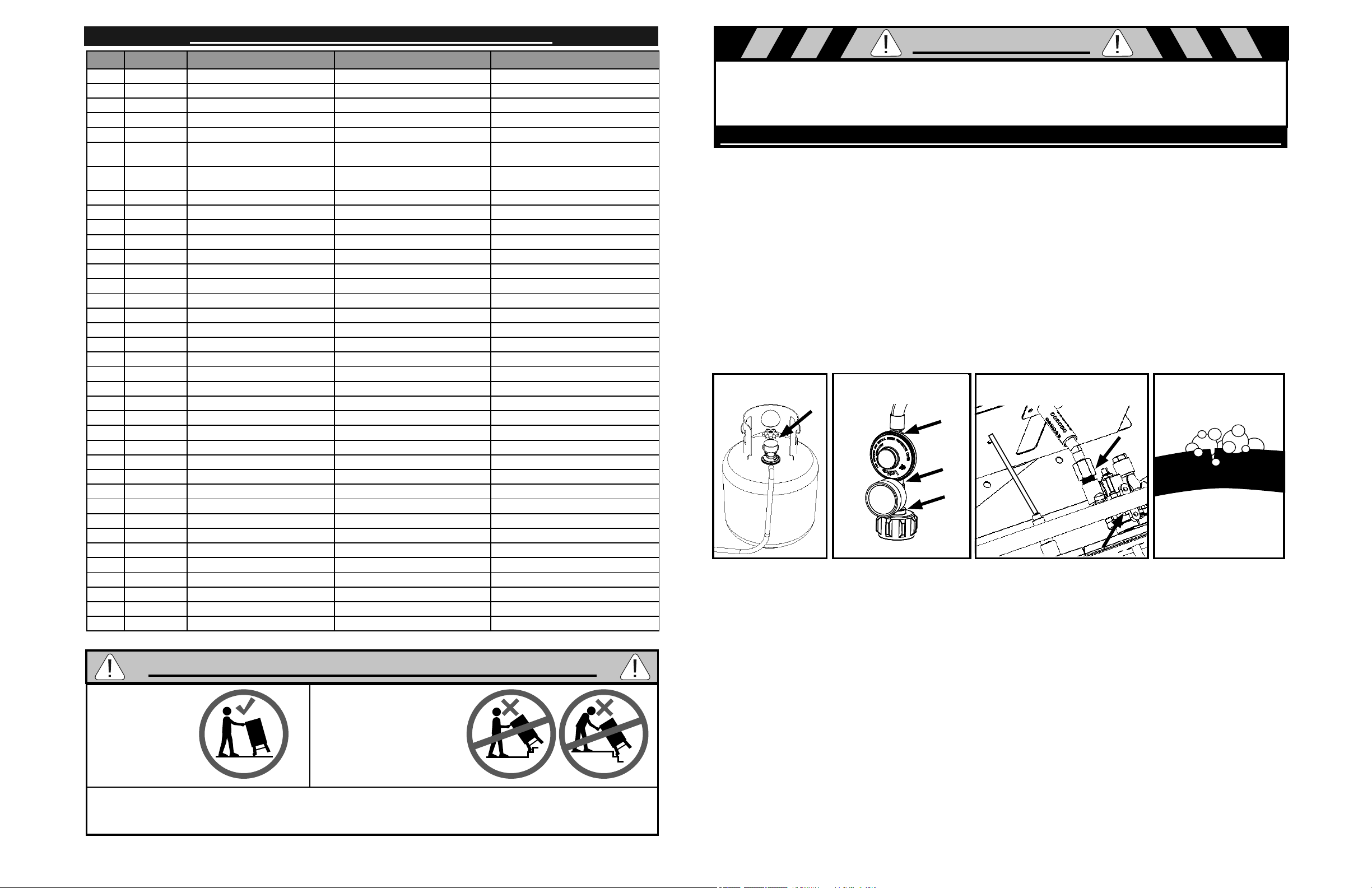

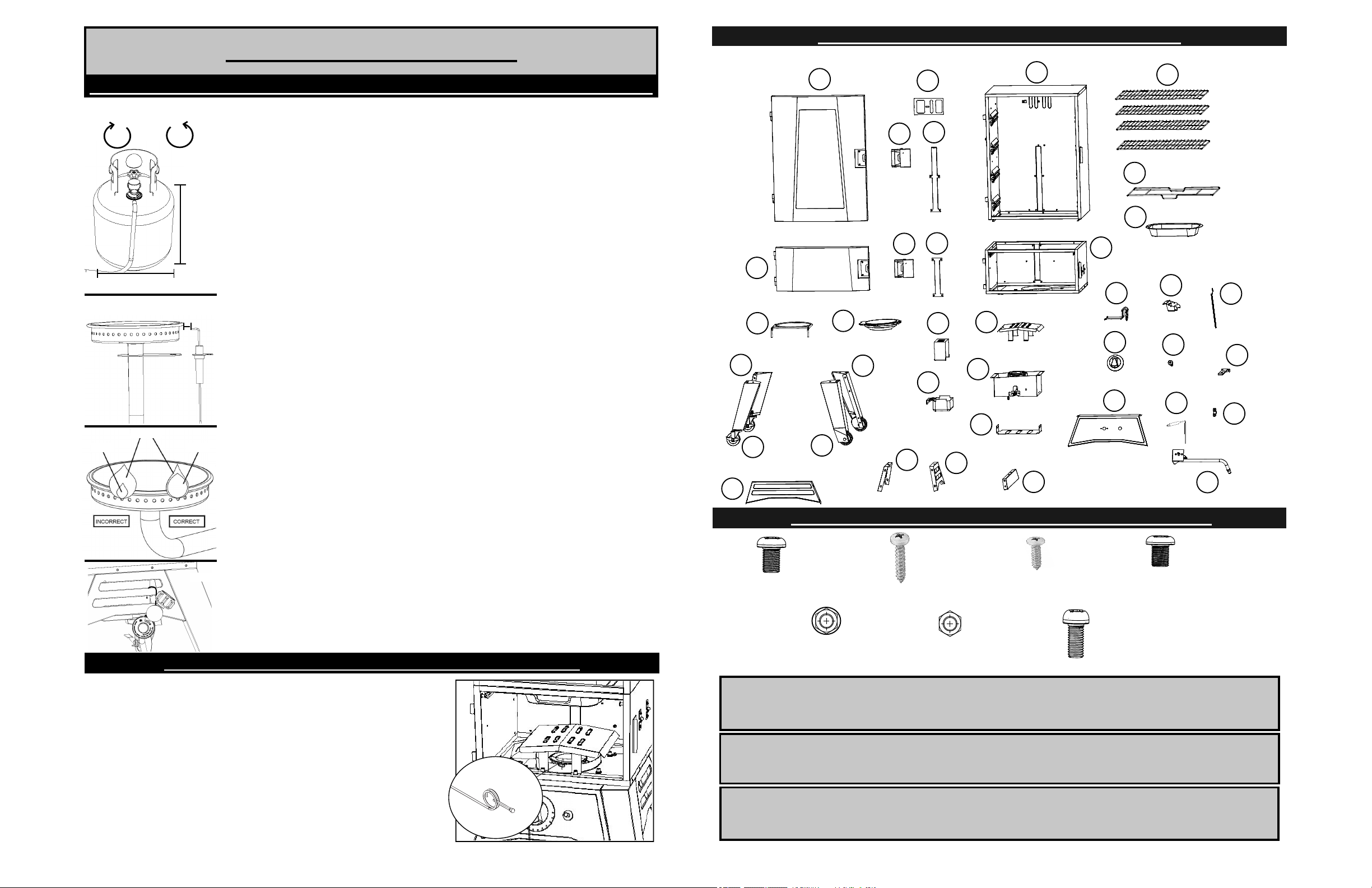

REPLACEMENT PARTS LIST, LISTE DES PIÈCES DE RECHANGE, LISTA DE PARTES DE REPUESTO

REPLACEMENT

PART

Top Smoker Body Kit Ensemble fumoir Kit del cuerpo del ahumador 9905160008 20050716, 20050816 Top Smoker Body Kit Ensemble fumoir Kit del cuerpo del ahumador 9905160038 20051316 Bottom Smoker Body Kit Ensemble fumoir Kit del cuerpo del ahumador 9905160022 20050716, 20050816 Bottom Smoker Body Kit Ensemble fumoir Kit del cuerpo del ahumador 9905160045 20051316 Top Smoker Door Kit Ensemble porte principale du fumoir Kit de la puerta grande del ahumador 9905160013 20050716 Top Smoker Door Kit Ensemble porte principale du fumoir Kit de la puerta grande del ahumador 9905160009 20050816 Top Smoker Door Kit Ensemble porte principale du fumoir Kit de la puerta grande del ahumador 9905160046 20051316 Bottom Smoker Door Kit Ensemble porte principale du fumoir Kit de la puerta grande del ahumador 9905160032 20050716, 20050816 Bottom Smoker Door Kit Ensemble porte principale du fumoir Kit de la puerta grande del ahumador 9905160047 20051316 Door Handle Kit Ensemble poignée de porte principale Kit del asa de la puerta grande 9905160024 All models, Tous les modèles, Todos los modelos Right Front Leg Kit Ensemble pied droit avant Kit de la pata frontal derecha 9905160010 20050716, 20050816 Left Front Leg Kit Ensemble pied gauche avant Kit de la pata frontal izquierda 9905160011 20050716, 20050816 Right Rear Leg Kit Ensemble pied droit arrière Kit de la pata posterior derecha 9905160012 20050716, 20050816 Left Rear Leg Kit Ensemble pied gauche arrière Kit de la pata posterior izquierda 9905160036 20050716, 20050816 Right Front Leg Kit Ensemble pied droit avant Kit de la pata frontal derecha 9905160048 20051316 Left Front Leg Kit Ensemble pied gauche avant Kit de la pata frontal izquierda 9905160049 20051316 Right Rear Leg Kit Ensemble pied droit arrière Kit de la pata posterior derecha 9905160050 20051316 Left Rear Leg Kit Ensemble pied gauche arrière Kit de la pata posterior izquierda 9905160051 20051316 Left Side Leg Brace Kit Ensemble support latéral de pied Kit de la abrazadera de la pata lateral 9905160014 20050716, 20050816 Right Side Leg Brace Kit Ensemble support latéral de pied Kit de la abrazadera de la pata lateral 9905160023 20050716, 20050816 Rear Leg Brace Kit Ensemble support arrière de pied Kit de la abrazadera de la pata posterior 9905160015 20050716, 20050816 Left Side Leg Brace Kit Ensemble support latéral de pied Kit de la abrazadera de la pata lateral 9905160052 20051316 Right Side Leg Brace Kit Ensemble support latéral de pied Kit de la abrazadera de la pata lateral 9905160053 20051316 Rear Leg Brace Kit Ensemble support arrière de pied Kit de la abrazadera de la pata posterior 9905160054 20051316 Control Panel and HVR Kit Ensemble panneau de commande Kit del panel de control 9905160025 20050716, 20050816 Control Panel and HVR Kit Ensemble panneau de commande Kit del panel de control 9905160055 20051316 Burner Box Kit Ensemble bac à combustion Kit de la caja del quemador 9905160026 20050716, 20050816 Burner Box Kit Ensemble bac à combustion Kit de la caja del quemador 9905160057 20051316 Air Damper Kit Clapet d’aération (carré) Regulador de aire (cuadrado) 9905140008 All models, Tous les modèles, Todos los modelos Push Button Ignitor Kit Ensemble assemblage du dispositif d’allumage Kit de ensamblaje del arrancador 990060328 All models, Tous les modèles, Todos los modelos Grease Tray Bracket Kit Ensemble collecteur de graisse Kit de la bandeja de grasa 9905160044 20050716, 20050816 Grease Tray Bracket Kit Ensemble collecteur de graisse Kit de la bandeja de grasa 9905160056 20051316 Tank Retainer Kit Ensemble support de rétention de bouteille de gaz Kit de la abrazadera de retención del tanque 9905160043 All models, Tous les modèles, Todos los modelos Tank Leg Brace Kit Ensemble support de rétention de bouteille de gaz Kit de la abrazadera de retención del tanque 9905160031 All models, Tous les modèles, Todos los modelos Tank Support Kit Ensemble support de réservoir Kit de soporte del tanque de 9903160002 All models, Tous les modèles, Todos los modelos 3" Wheel Kit Ensemble de 3" roues 3" Juego de Ruedas 9905160037 All models, Tous les modèles, Todos los modelos Wood Chip Tray Kit Bac à copeaux de bois avec couvercle Bandeja de trozos de madera con tapa 9005160033 All models, Tous les modèles, Todos los modelos Temp Sensor Bracket Kit Température kit de support de capteur Kit de soporte de sensor de temperatura 9905160034 All models, Tous les modèles, Todos los modelos Control Knob Kit Bouton de contrôle Perilla de control 9905160042 All models, Tous les modèles, Todos los modelos Heat Diﬀ user Kit Ensemble de diﬀ useur de chaleur Kit difusor de calor 9905160040 All models, Tous les modèles, Todos los modelos 3" Locking Swivel Caster 3" verrouillage roulette pivotante 3" de ruedecillas de bloqueo 9005160050 All models, Tous les modèles, Todos los modelos Wood Chip Tray Rack Claie de copeaux de bois Estante de madera bandeja de ﬁ chas 9005160021 All models, Tous les modèles, Todos los modelos Grease Tray Collecteur de graisse Bandeja de grasa 9005100069 20050716, 20050816 Grease Tray Collecteur de graisse Bandeja de grasa 9005140017 20051316 Flame Sensor Détecteur de ﬂ amme Sensor de llama 9005160069 All models, Tous les modèles, Tod Smoking Rack Étagère fumeurs Estante de fumadores 910050029 20050716, 20050816 Smoking Rack Étagère fumeurs Estante de fumadores 9007120012 20051316 Water Bowl Rack Support du réservoir d’eau Retenedor de la bandeja de agua 9003160002 20050716, 20050816 Water Bowl Rack Support du réservoir d’eau Retenedor de la bandeja de agua 9005160205 20051316 Water Bowl Réservoir d’eau Bandeja de agua 9005160024 20050716, 20050816 Water Bowl Réservoir d’eau Bandeja de agua 9005100009 20051316 Matchstick w/Chain Allumette avec chaîne Palillo de fósforo con cadena 908060003 All models, Tous les modèles, Todos los modelos JMSS Quick Start Guide JMSS Guide de démarrage rapide Guía de inicio rápido JMSS 9805160020 20050816 JMSS Recipe Booklet JMSS livret de recettes JMSS recetario 9807130053 20050816 Hardware Kit Ensemble pièces de quincaillerie Kit de accesorios 9903160001 All models, Tous les modèles, Todos los modelos Instruction Manual Manuel de l’utilisateur Manual de instrucciones 9805160024 All models, Tous les modèles, Todos los modelos

Replacement parts may vary by item number of model. Les pièces de rechange peuvent varier selon le numéro de l’article du modèle. Las piezas de repuesto pueden variar según el número de artículo del modelo.

STOP!

ARRÊTEZ!

¡ALTO!

PIÈCE DE RECHANGE REPUESTO NO/Nº/NOAPPLIES TO ITEM/POUR ARTICLE/ SE

APLICA AL ARTÍCULO

os los modelos

DO NOT RETURN TO RETAILER for assembly assistance, missing or damaged parts.

Please contact MASTERBUILT customer service at 1-800-489-1581 or support.masterbuilt.com. Please have the model number

and serial number available. These numbers are located on the silver rating label on the unit.

NNE PAS RETOURNER AU DÉTAILLANT pour l'assistance d'assemblage, pièces manquantes ou endommagées. S'il vous plaît

contacter le service à la clientèle au 1-800-489-1581 ou MASTERBUILT

support.masterbuilt.com

. S'il vous plaît avoir le numéro de

modèle et le numéro de série. Ces numéros se trouvent sur la plaque signalétique de l'argent sur l'unité.

NO REGRESE A DISTRIBUIDOR para ayuda con el montaje, partes faltantes o dañados. Por favor, póngase en

contacto con el servicio al cliente al 1-800-489-1581 o MASTERBUILT support.masterbuilt.com. Tenga a mano los

números de modelo y número de serie. Estos números se encuentran en la placa de plata en la unidad.

SMOKER OPERATION - READ & FOLLOW ALL INSTRUCTIONS CAREFULLY

GETTING STARTED

• Pre-season unit prior to ﬁ rst use. See PRE-SEASON INSTRUCTIONS.

• Before starting the unit, see ADDING WOOD CHIPS.

• This smoker is equipped with door stops that will hold the door open during loading and unloading of food.

• Food amount or volume and ambient temperature may aﬀ ect smoker temperature. Make adjustments as necessary to achieve desired smoking temperature.

CAUTION - All surfaces are HOT and may cause burns. Use protective gloves or long, sturdy cooking tools when loading/ unloading food or racks, and when adding wood chips or water.

PRE-SEASON INSTRUCTIONS

Curing your smoker will rid the unit of chemicals and oils left over by the manufacturing process allowing them to burn oﬀ .

PRE-SEASON SMOKER PRIOR TO FIRST USE.

1. Perform soapy water test, see SOAPY WATER TEST WARNINGS AND PROCEDURES.

2. Using a napkin or cloth, rub a light coat of cooking oil on smoking racks and inside smoker door. Make sure water pan is in place with NO WATER.

3. Fill wood chip tray with up to 1 cup (0.24l) of wood chips and light smoker. Close door.

4. Start smoker, set to 350°F (177°C) and let the smoker burn for about 1 hour.

5. Allow unit to cool COMPLETELY.

6. Reapply light coat of cooking oil on smoking racks and inside of smoker door.

7. Restart smoker and burn for 20 minutes.

• Cure your smoker periodically to prevent excessive rust.

ADDING WOOD CHIPS

1. You may use dry or pre-soaked wood chips in your smoker. Dry chips will burn faster and produce more intense smoke. Chips presoaked in water (for approximately 30 minutes) will burn slower and produce a less intense smoke.

2. Before starting unit, place up to 1 cup (0.24l) of wood chips in wood chip tray.

3. DO NOT ADD MORE THAN 1 CUP (0.24l) OF WOOD CHIPS AT A TIME. Never use wood chunks or wood pellets.

4. Place additional wood chips in smoker as needed to achieve desired smoke ﬂ avor.

• Wood chips must be used in order to produce smoke and create the smoke ﬂ avor.

OPERATING INSTRUCTIONS

1. To start smoker see IGNITION INSTRUCTIONS.

2. With protective gloves on, place water bowl in position. Pour 1 inch of water, juice, or vinegar into water bowl. This will add ﬂ avor and moisture to food and prevent it from drying out.

3 DO NOT cover racks with aluminum foil as this will not allow heat to circulate properly.

4. Pre-heat smoker to desired temperature for approximately 20 minutes.

5. Place food in the smoker, position on the center of the smoking rack.

6 DO NOT overload smoker with food. Extra large amounts of food may trap heat, extend cooking time and cause uneven cooking. Leave

space between food on racks and smoker sides to ensure proper heat circulation. If utilizing cooking pans, place pans on center of rack to ensure even cooking.

7. For best results, rotate racks between the top and bottom positions during cooking.

8. Adjust smoker settings, control knob and air damper, to desired cooking temperature.

• Close air damper on unit to retain moisture and heat. If cooking foods such as ﬁ sh or jerky, open air damper to release moisture.

9. If wood chips do not smoke on low setting, open bottom door slightly for approximately 2 minutes. This will allow the cabinet temperature to fall which will cause the burner to adjust to a larger ﬂ ame and will begin the smoking process.

10. Use caution when cooking on windy days to ensure the ﬂ ame does not blow out. If you suspect or experience a ﬂ ame blow out, ﬁ rst open the door to check the ﬂ ame and follow the IGNITION INSTRUCTIONS to re-ignite the burner if needed. Adjust the smoker control knob setting for a higher ﬂ ame to prevent further blow outs.

Never ignite smoker with the door closed.

11. Extreme cold temperatures may extend cooking times.

12. Once cooking is complete turn unit OFF, see IGNITION INSTRUCTIONS for turning oﬀ unit, remove the gas cylinder and then follow CLEANING and STORING INSTRUCTIONS. CLEAN AFTER EVERY USE. This will extend the life of your smoker and prevent mold and mildew.

CLEANING and STORING INSTRUCTIONS

• ALWAYS MAKE SURE UNIT IS COOL TO THE TOUCH BEFORE CLEANING AND STORING.

• Be sure to clean smoker after each use. Make sure the gas cylinder has been turned oﬀ and removed.

• For rack supports, racks, water bowl, and drip pan use a mild dish detergent. Rinse and dry thoroughly.

• For woodchip tray clean frequently to remove ash build up, residue and dust.

• Dispose of cold ashes by placing them in aluminum foil, soaking with water and discarding in a non-combustible container.

• For the interior, exterior and door seal of the unit simply wipe down with a damp cloth after each use to keep unit in proper working condition. Do not use a cleaning agent. Make sure to dry thoroughly.

• After cleaning, store smoker in a covered and DRY AREA.

• Store only when ﬁ re is completely out and all surfaces are cold.

• When not in frequent use and using a cover, remember to check your smoker periodically to avoid possible rust and corrosion due to moisture buildup.

CHECK OUT THE MASTERBUILT WEBSITE FOR MORE TIPS AND RECIPE VIDEOS.

WARNING

PERFORM “SOAPY WATER TEST” BEFORE EACH USE. SEE “SOAPY WATER TEST”

SECTION IN MANUAL.

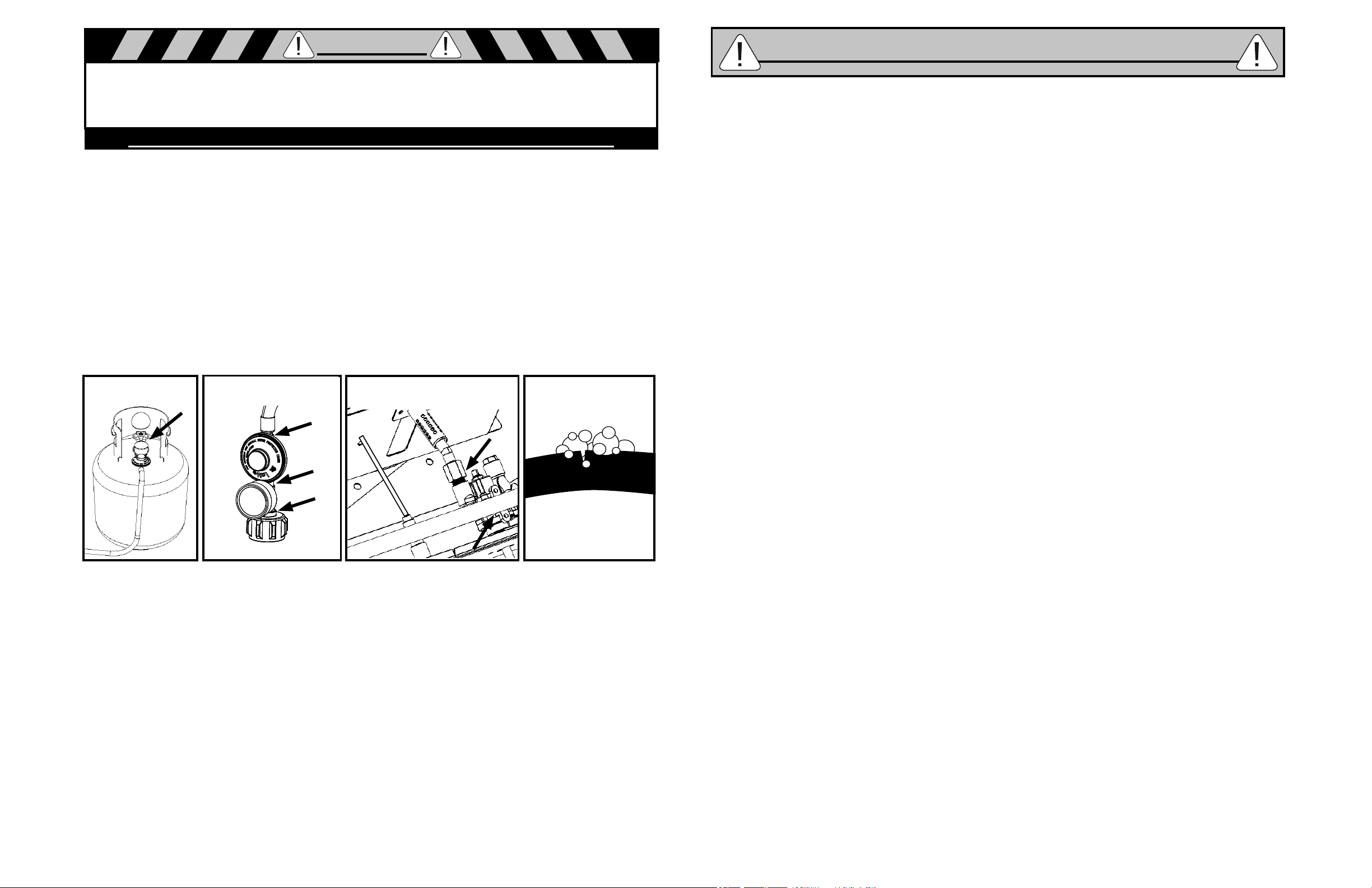

SOAPY WATER TEST WARNINGS & PROCEDURES

WARNINGS

• Soapy Water Test MUST be performed each time gas cylinder is connected to burner/hose or each time it is used.

• Soapy Water Test MUST be performed outdoors in well ventilated area.

• When performing Soapy Water Test keep unit away from open ﬂ ames, sparks or lit cigarettes.

• Never use an open ﬂ ame to test for gas leaks.

PREPARATION:

• Remove any cookware and accessories from unit.

• Make sure gas cylinder valve and control knob are turned to the OFF position.

• Prepare soapy water solution: (1) part dish washing liquid (or more if desired), (3) parts water.

• Apply soapy water solution to gas cylinder valve, regulator and hose length up to burner control valve.

EXTINGUISH ALL OPEN FLAMES BEFORE CONNECTING REGULATOR

TO GAS CYLINDER. TURN GAS OFF AFTER EACH USE.

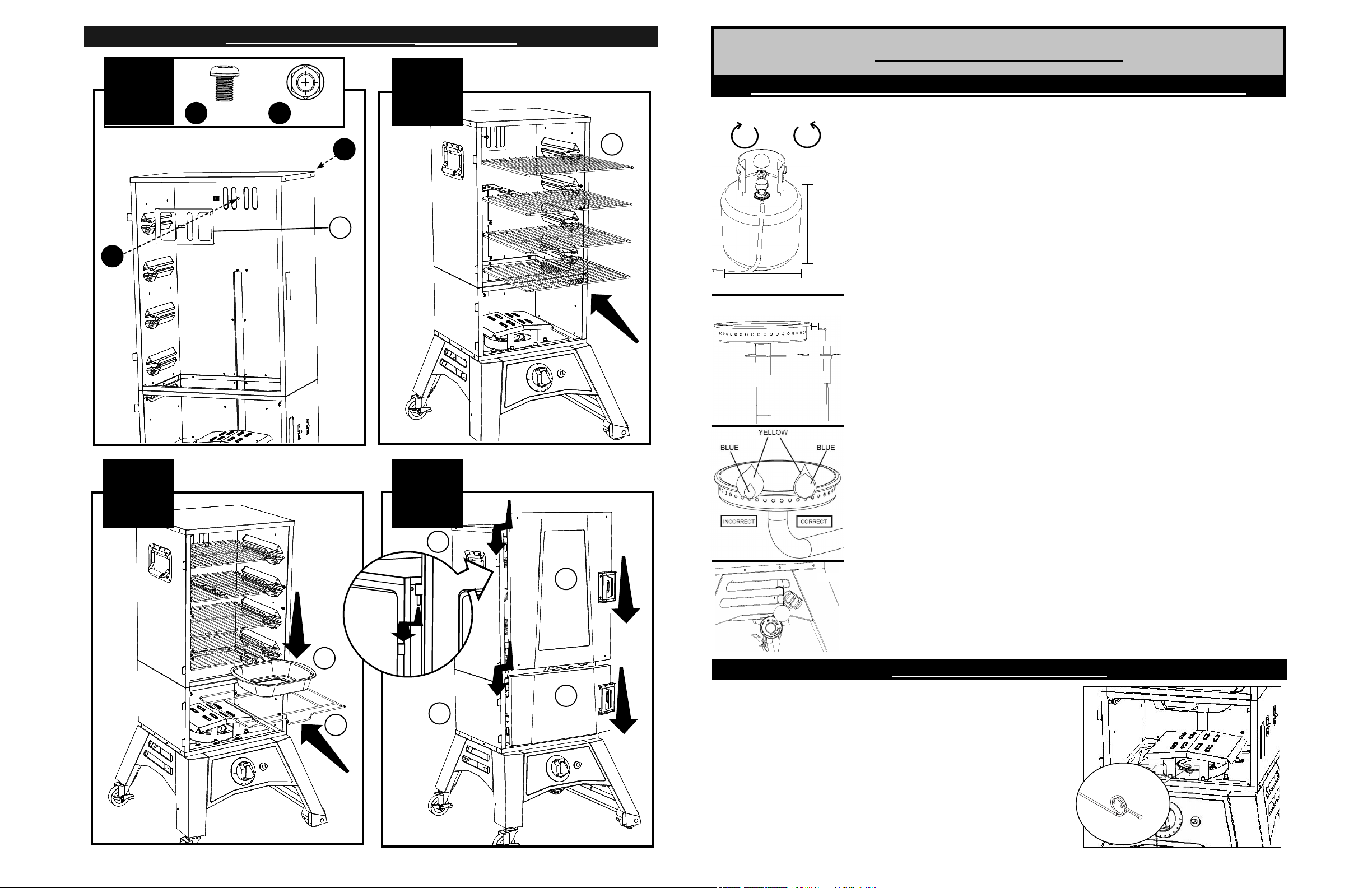

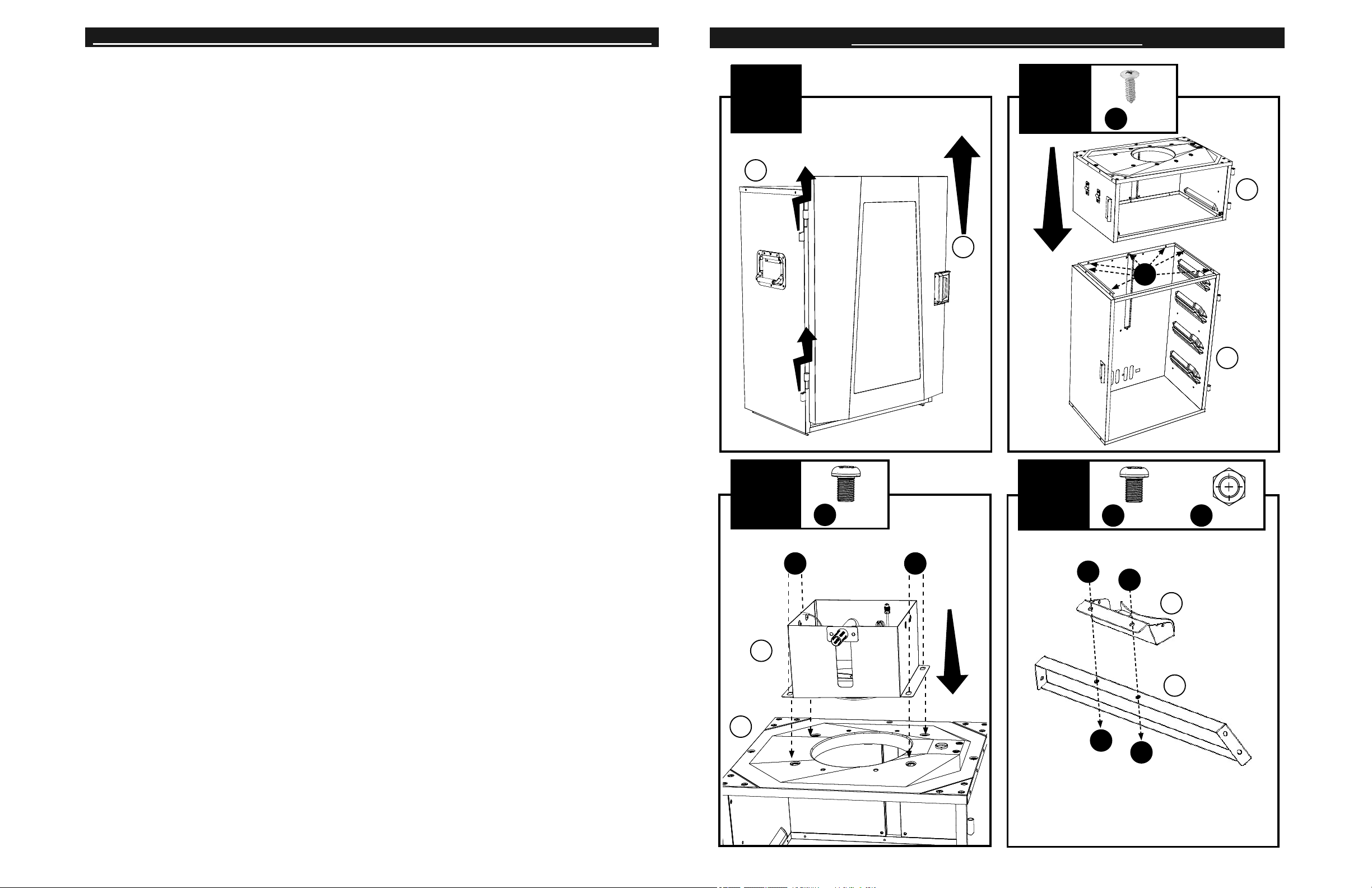

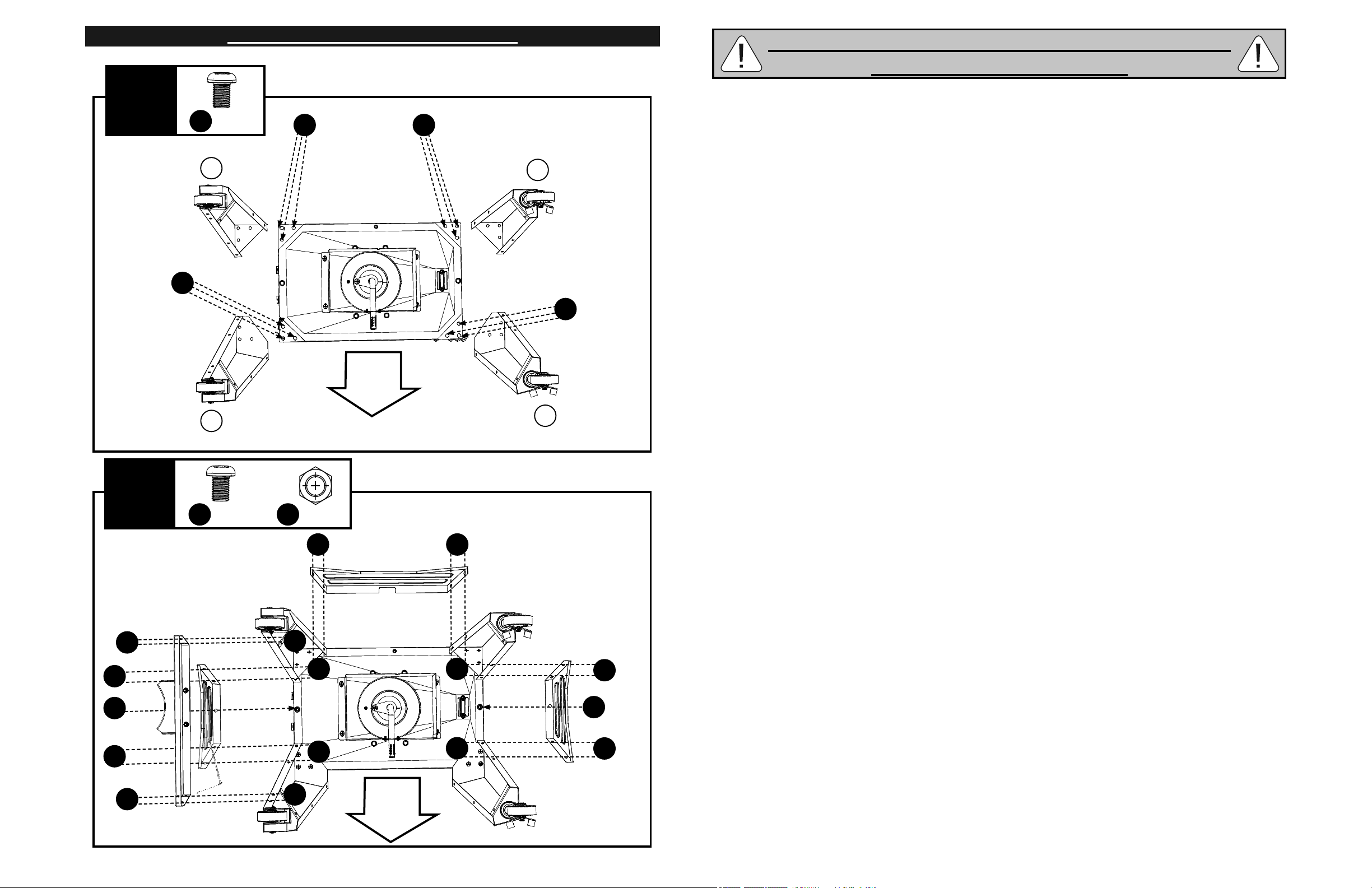

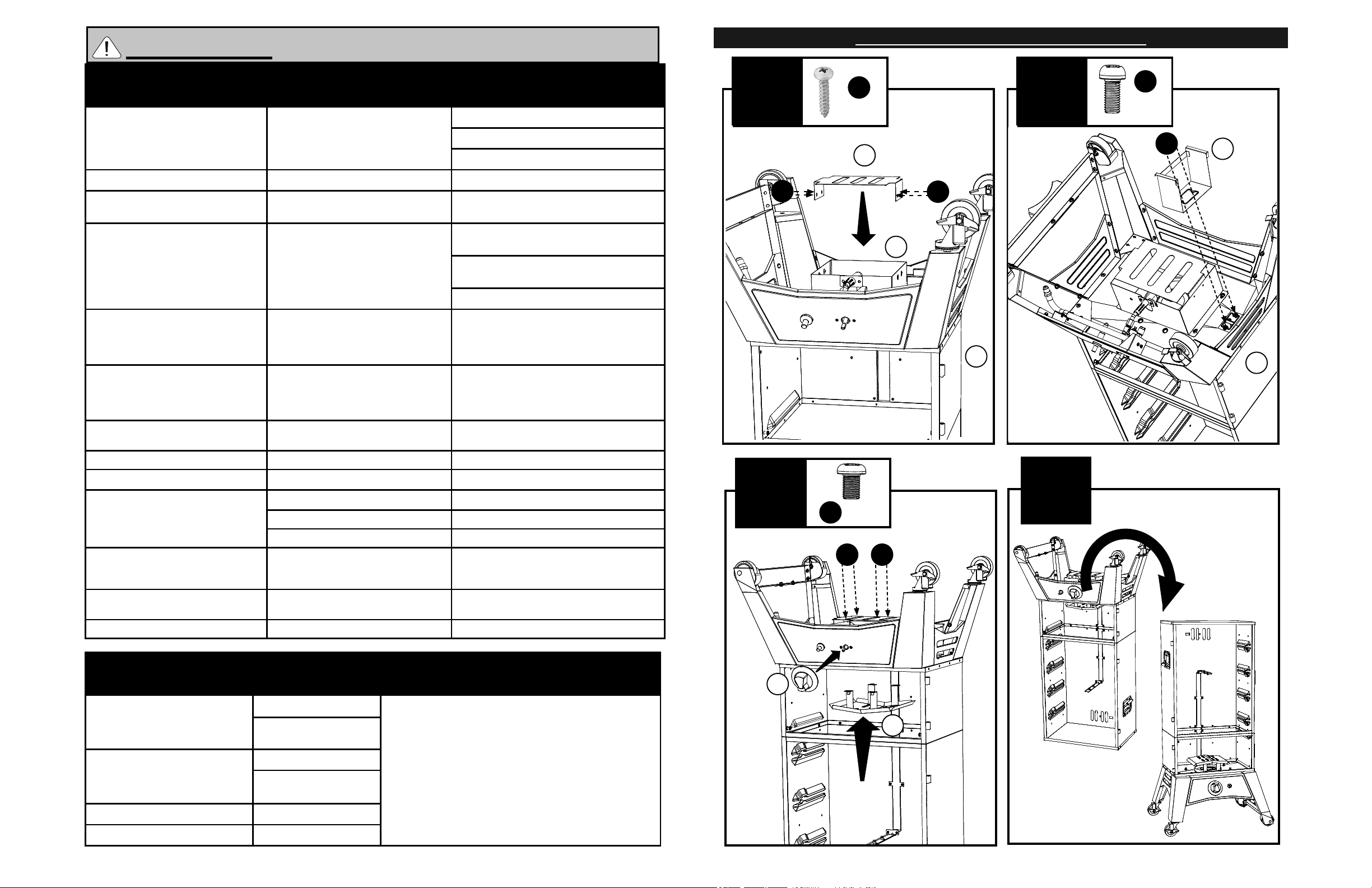

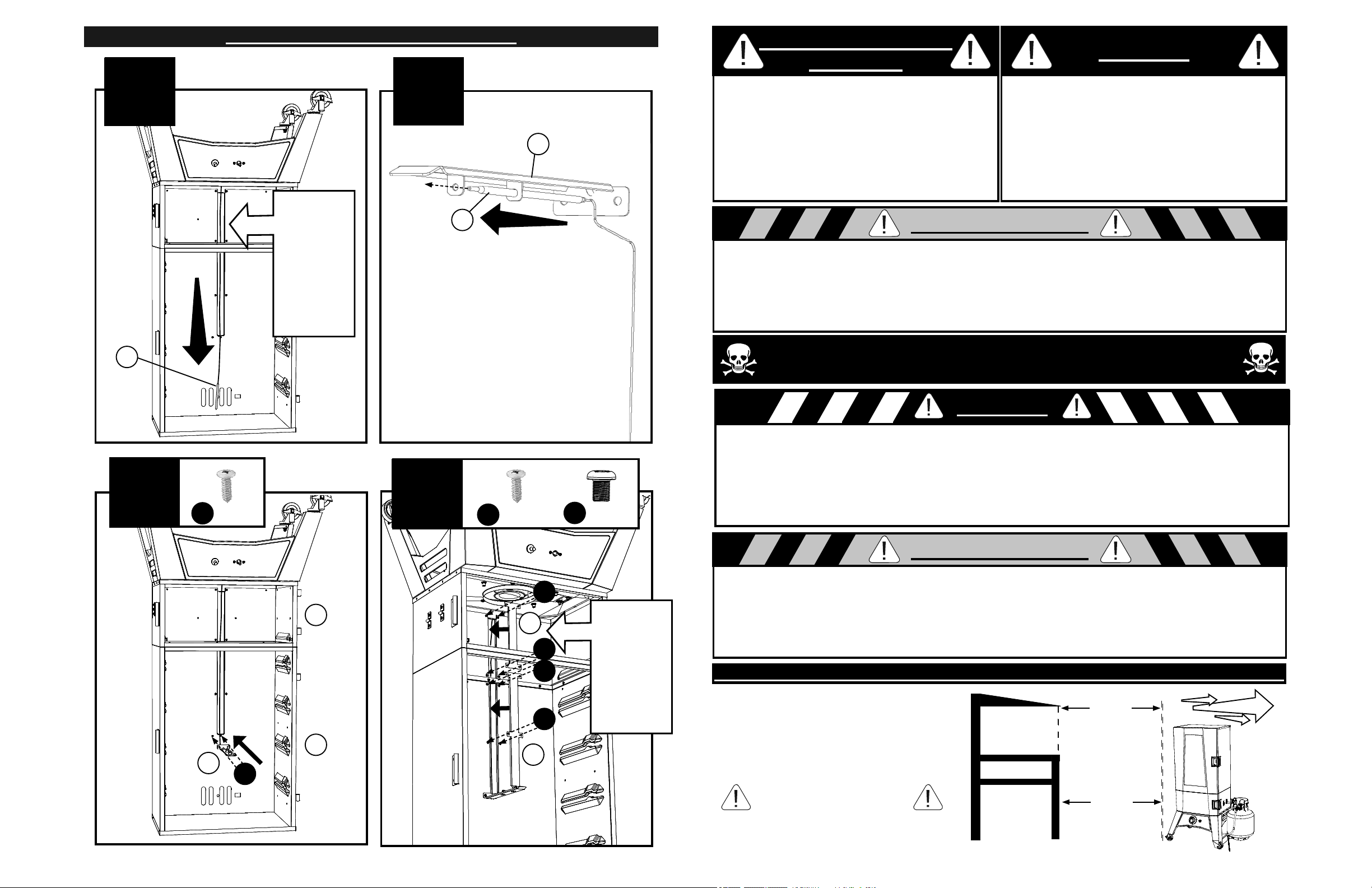

ASSEMBLY, ASSEMBLAGE, ENSAMBLAJE

Apply solution to

gas cylinder valve

TESTING GAS CYLINDER VALVE:

• Turn gas cylinder valve ON and watch for bubbles. DO NOT LEAVE GAS ON MORE THAN 12 SECONDS. If bubbles appear, stop, turn gas cylinder valve OFF and retighten ﬁ tting. Repeat test.

TESTING REGULATOR AND HOSE:

• AFTER gas cylinder valve has passed Soapy Water Test, turn gas cylinder valve ON and check for bubbles at regulator location, along full length of hose and at burner control valve. DO NOT LEAVE GAS ON MORE THAN 12 SECONDS. If bubbles appear, stop, turn gas cylinder valve OFF and retighten the connection that is leaking gas. If hose is source of leak, STOP, do not use unit. Hose must be replaced.

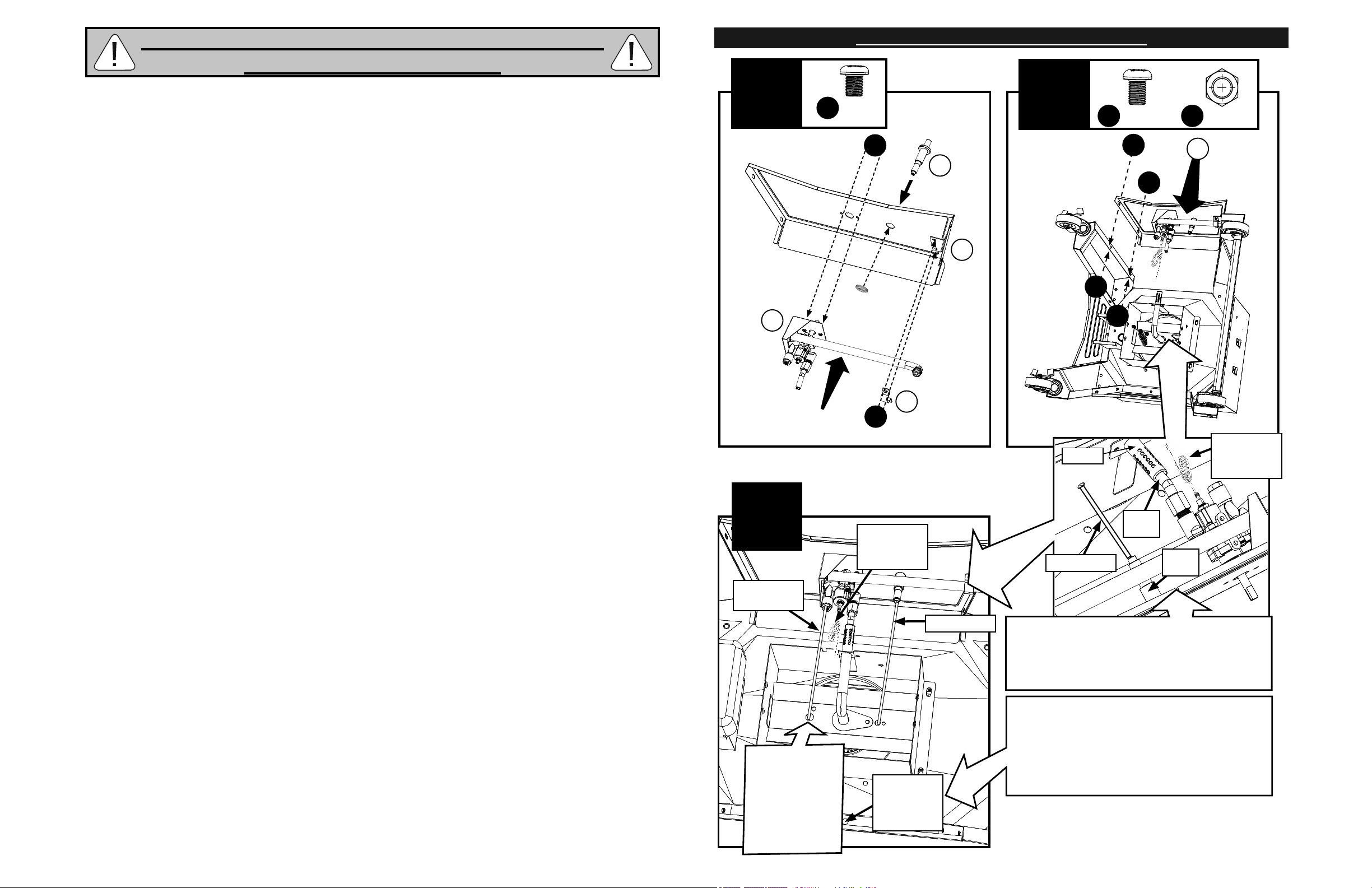

Apply solution to hose regulator

and the full length of the hose

Apply solution underneath control panel

where burner and hose are connected

Failed test will present

bubbles as shown below.

• WHEN TEST IS COMPLETE, AND THERE ARE NO LEAKS, WAIT MINIMUM OF 5 MINUTES FOR GAS FUMES TO DIMINISH BEFORE LIGHTING SMOKER.

DURING ANY PORTION OF SOAPY WATER TEST IF BUBBLES CONTINUE TO

APPEAR, STOP, DO NOT USE UNIT. CONTACT LOCAL PROPANE DEALER OR

MASTERBUILT CUSTOMER SERVICE AT 1-800-489-1581.

Note: Use 20LB (9kgs) gas cylinder that has a protective collar with this unit. Cylinder NOT included with this unit.

Assembly is complete

L'assemblage est terminé

La asamblea está completa
