Model SR5400 User Guide

AV Surround Receiver

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK)

NO USER-SERVICEABLE PARTS INSIDE

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

CAUTION:

TO WIDE SLOT, FULLY INSERT.

ATTENTION:

LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND.

NOTE TO CATV SYSTEM INSTALLER:

This reminder is provided to call the CATV (Cable-TV) system installer’s attention to Section 820-40 of the NEC which provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by tuning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG

POUR ÉVITER LES CHOC ÉLECTRIQUES, INTRODUIRE LA

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

NOTE:

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

IMPORTANT SAFETY

INSTRUCTIONS

READ BEFORE OPERATING EQUIPMENT

This product was designed and manufactured to meet strict quality and safety standards. There are, however, some installation and operation precautions which you should be particularly aware of.

1. Read Instructions – All the safety and operating instructions should be read before the product is operated.

2. Retain Instructions – The safety and operating instructions should be retained for future reference.

3. Heed Warnings – All warnings on the product and in the operating instructions should be adhered to.

4. Follow Instructions – All operating and use instructions should be followed.

5. Cleaning – Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

6. Attachments – Do not use attachments not recommended by the product manufacturer as they may cause hazards.

7. Water and Moisture – Do not use this product near water-for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like.

8. Accessories – Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer’s instructions, and should use a mounting accessory recommended by the manufacturer.

9. A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

10. Ventilation – Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.

11. Power Sources – This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.

12. Grounding or Polarization – This product may be equipped with a polarized alternatingcurrent line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

AC POLARIZED PLUG

16. Lightning – For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.

17. Power Lines – An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

d. If the product does not operate normally by

following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.

e. If the product has been dropped or damaged

in any way, and

f. When the product exhibits a distinct change in

performance – this indicates a need for service.

22. Replacement Parts – When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

23. Safety Check – Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

24. Wall or Ceiling Mounting – The product should be mounted to a wall or ceiling only as recommended by the manufacturer.

13. Power-Cord Protection – Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

14. Protective Attachment Plug – The product is equipped with an attachment plug having overload protection. This is a safety feature. See Instruction Manual for replacement or resetting of protective device. If replacement of the plug is required, be sure the service technician has used a replacement plug specified by the manufacturer that has the same overload protection as the original plug.

15. Outdoor Antenna Grounding – If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antennadischarge unit, connection to grounding electrodes, and requirements for the grounding electrode. See Figure 1.

18. Overloading – Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

19. Object and Liquid Entry – Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

20. Servicing – Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

21. Damage Requiring Service – Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power-supply cord or plug is

damaged.

b. If liquid has been spilled, or objects have

fallen into the product.

c. If the product has been exposed to rain or

water.

EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE, ANSI/NFPA 70

ELECTRIC SERVICE EQUIPMENT

GROUND CLAMPS

NEC - NATIONAL ELECTRICAL CODE

25. Heat – The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

FIGURE 1

ANTENNA LEAD IN WIRE

GROUND CLAMP

ANTENNA DISCHARGE UNIT (NEC SECTION 810-20)

GROUNDING CONDUCTORS (NEC SECTION 810-21)

POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H)

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la Classe B est conforme à la norme NMB-003 du Canada.

TABLE OF CONTENTS

INTRODUCTION.................................. 2

PRECAUTIONS ................................... 2

DESCRIPTION..................................... 2

FEATURES .......................................... 3

ACCESSORIES ................................... 3

FRONT PANEL .................................... 4

FL DISPLAY ................................................................... 5

REAR PANEL ...................................... 6

REMOTE CONTROL OPERATION ..... 7

FUNCTION AND OPERATION ...................................... 7

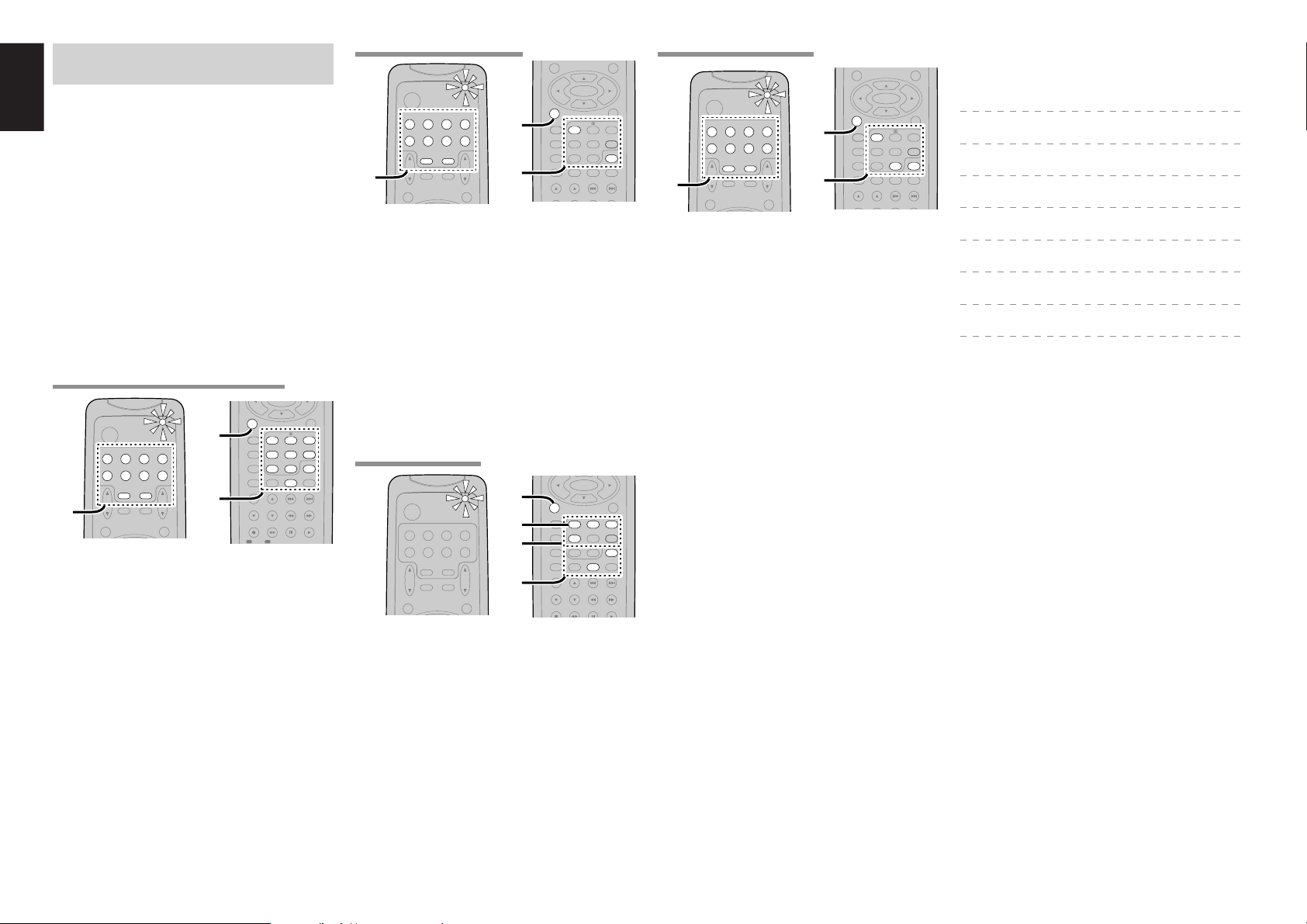

PROGRAMMING THE REMOTE CONTROLLER ......... 8

OPERATION OF REMOTE CONTROL UNIT ................ 9

GENERAL INFROMATION OF RC5400SR TO SR5400 .... 9

CONNECTIONS................................. 11

SPEAKER PLACEMENT ............................................. 11

CONNECTING SPEAKERS ......................................... 11

CONNECTING AUDIO COMPONENTS ...................... 12

CONNECTING VIDEO COMPONENTS ...................... 13

ADVANCED CONNECTING ........................................ 14

CONNECTING THE REMOTE CONTROL JACKS ..... 14

CONNECTING THE ANTENNA TERMINALS.............. 15

SETUP ............................................... 16

ON SCREEN DISPLAY MENU SYSTEM ..................... 16

1 INPUT SETUP (ASSIGNABLE DIGITAL INPUT) ......17

2 SPEAKER SETUP .................................................... 17

3 PREFERENCE .......................................................... 18

4 SURROUND ............................................................. 19

5 PL II (PRO LOGIC II) MUSIC PARAMETER .............19

6 CS II (CIRCLE SURROUND II) PARAMETER ........ 19

7 6.1 CH INPUT LEVEL ............................................... 19

BASIC OPERATION (PLAY BACK) ... 20

SELECTING AN INPUT SOURCE. .............................. 20

SELECTING THE SURROUND MODE ....................... 20

ADJUSTING THE MAIN VOLUME .............................. 20

ADJUSTING THE TONE (BASS & TREBLE) CONTROL. ..... 20

TEMPORARILY TURNING OFF THE SOUND ............ 20

USING THE SLEEP TIMER ......................................... 21

NIGHT MODE .............................................................. 21

SURROUND MODE........................... 21

OTHER FUNCTION ........................... 24

TV AUTO ON/OFF FUNCTION.................................... 24

ATTENUATION TO ANALOG INPUT SIGNAL ............. 24

LISTENING THROUGH HEADPHONES ..................... 24

VIDEO ON/OFF ........................................................... 24

DISPLAY MODE ........................................................... 24

SELECTING ANALOG AUDIO INPUT OR

DIGITAL AUDIO INPUT ................................................ 24

RECORDING AN ANALOG SOURCE ......................... 25

6.1 CH INPUT. .............................................................. 25

BASIC OPERATION (TUNER) .......... 26

LISTENING TO THE TUNER ....................................... 26

PRESET MEMORY ...................................................... 26

TROUBLESHOOTING....................... 28

TECHNICAL SPECIFICATIONS ....... 29

DIMENSIONS .................................... 29

ENGLISH

20 cm (8 ins.)

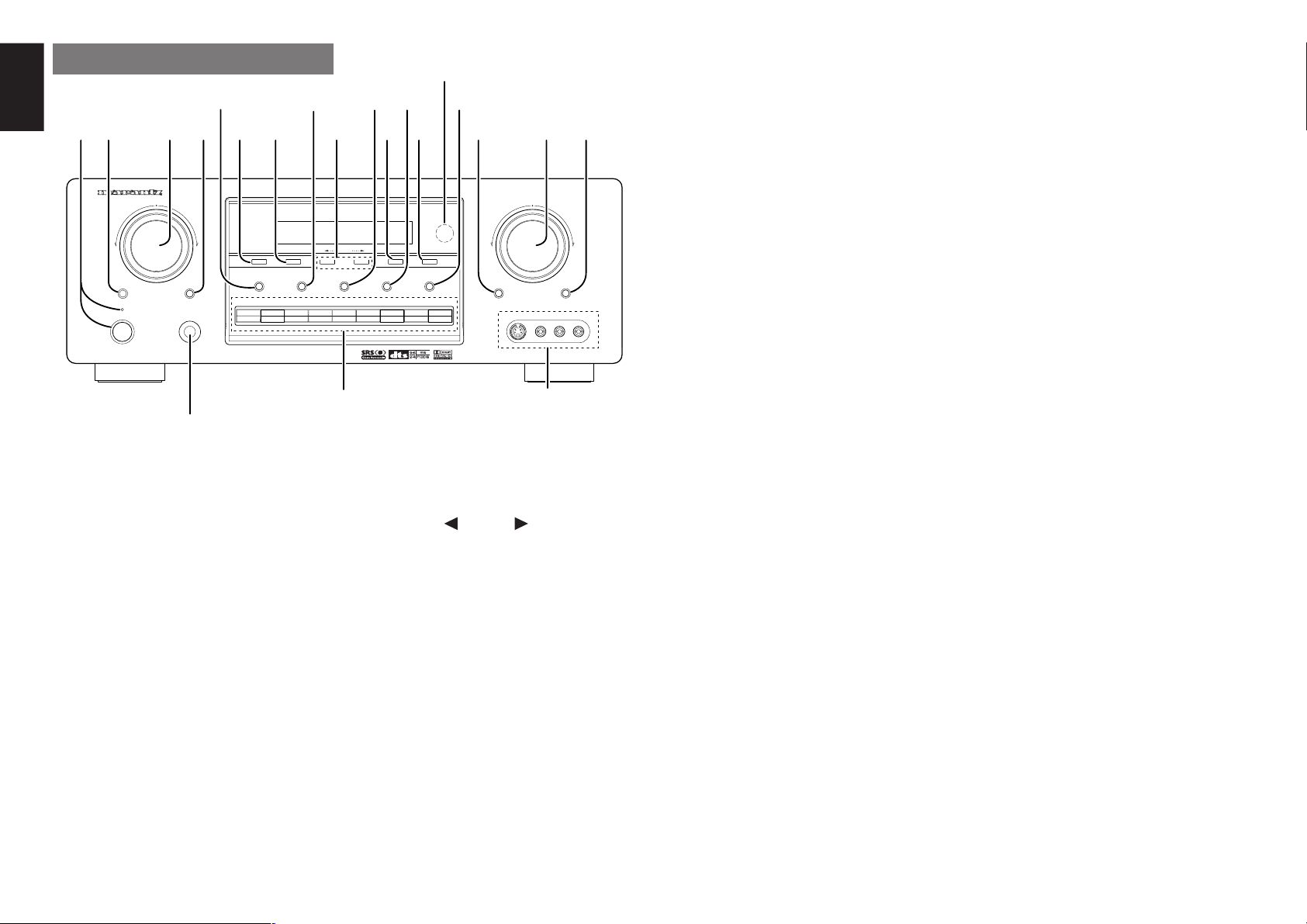

AV SURROUND RECEIVER SR6400

SELECTOR

VOLUME

DOWN

MEMORY

TUNING

MODE

F/P

CLEAR

S-DIRECT DISPLAY

MUTE

A/D6.1CH INPUTSPEAKERS A/B

POWER ON/STANDBY

PHONES

ENTER

STANDBY

AUX INPUT

S-VIDEO VIDEO LAUDIO R

DSS/VCR2

AUX

VCR1

DVD

CD-R

TAPE

TUNER

ATT

SELECT

INTRODUCTION

Thank you for purchasing the Marantz SR5400 Surround receiver. This remarkable component has been engineered to provide you with many years of home theater enjoyment. Please take a few minutes to read this manual thoroughly before you connect and operate the SR5400. As there are a number of connection and configuration options, you are encouraged to discuss your own particular home theater setup with your Marantz A/V specialist dealer.

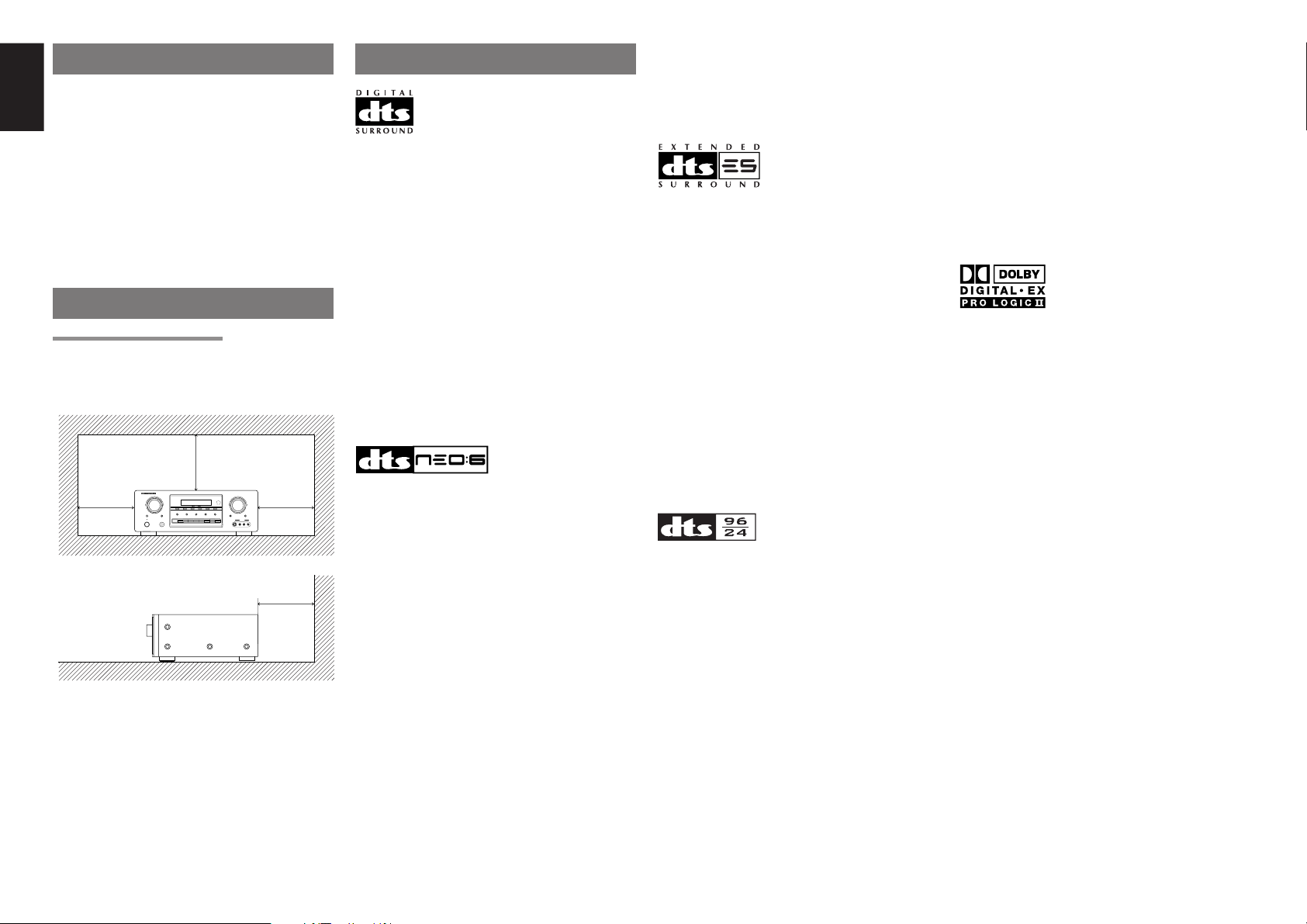

PRECAUTIONS

CAUTIONS ON INSTALLATION

For heat dispersal, leave at least 20 cm/8 inch of space between the top, back and sides of this unit and the wall or other components.

• Do not obstruct the ventilation holes.

DESCRIPTION

DTS was introduced in 1994 to provide 5.1 channels of discrete digital audio into home theater systems. DTS brings you premium quality discrete multichannel digital sound to both movies and music. DTS is a multichannel sound system designed to create full range digital sound reproduction. The no compromise DTS digital process sets the standard of quality for cinema sound by delivering an exact copy of the studio master recordings to neighborhood and home theaters. Now, every moviegoer can hear the sound exactly as the moviemaker intended. DTS can be enjoyed in the home for either movies or music on of DVD’s, LD’s, and CD’s.

“DTS” and “DTS Digital Surround” are registered trademarks of Digital Theater Systems, Inc.

The advantages of discrete multichannel systems over matrix are well known. But even in homes equipped for discrete multichannel, there remains a need for high-quality matrix decoding. This is because of the large library of matrix surround motion pictures available on disc and on VHS tape; and analog television broadcasts. The typical matrix decoder of today derives a center channel and a mono surround channel from two-channel matrix stereo material. It is better than a simple matrix in that it includes steering logic to improve separation, but because of its mono, band-limited surround it can be disappointing to users accustomed to discrete multichannel.

Neo:6 offers several important improvements as follow,

• Neo:6 provides up to six full-band channels of matrix decoding from stereo matrix material. Users with 6.1 and 5.1 systems will derive six and five separate channels, respectively, corresponding to the standard home-theater speaker layouts.

• Neo:6 technology allows various sound elements within a channel or channels to be steered separately, and in a way which follows naturally from the original presentation.

• Neo:6 offers a music mode to expand stereo nonmatrix recordings into the five- or sixchannel layout, in a way which does not diminish the subtlety and integrity of the original stereo recording.

DTS-ES Extended Surround is a new multichannel digital signal format developed by Digital Theater Systems Inc. While offering high compatibility with the conventional DTS Digital Surround format, DTS-ES Extended Surround greatly improves the 360-degree surround impression and space expression thanks to further expanded surround signals. This format has been used professionally in movie theaters since 1999. In addition to the 5.1 surround channels (FL, FR, C, SL, SR and LFE), DTS-ES Extended Surround also offers the SB (Surround Back) channel for surround playback with a total of 6.1 channels. DTS-ES Extended Surround includes two signal formats with different surround signal recording methods, as DTS-ES Discrete 6.1 and DTS-ES Matrix 6.1.

“DTS”, “DTS-ES Extended Surround” and “Neo:6” are trademarks of Digital Theater Systems, Inc.

The stereo CD is a 16-bit medium with sampling at

44.1 kHz. Professional audio has been 20- or 24-

bit for some time, and there is increasing interest in higher sampling rates both for recording and for delivery into the home. Greater bit depths provide extended dynamic range. Higher sampling rates allow wider frequency response and the use of anti-alias and reconstruction filters with more favorable aural characteristics.

DTS 96/24 allows for 5.1channel sound tracks to be encoded at a rate of 96kHz/24bits on DVDVideo titles. When DVD-video appeared, it became possible to deliver 24-bit, 96 kHz audio into the home, but only in two channels, and with serious limitations on picture. This capability has had little use. DVD-audio allows 96/24 in six channels, but a new player is needed, and only analog outputs are provided, necessitating the use of the D/A converters and analog electronics provided in the player.

DTS 96/24 offers the following:

1. Sound quality transparent to the original 96/24 master.

2.Full backward compatibility with all existing decoders. (Existing decoders will output a 48 kHz signal)

3.No new player required: DTS 96/24 can be carried on DVD-video, or in the video zone of DVD-audio, accessible to all DVD players.

4. 96/24 5.1-channel sound with full-quality fullmotion video, for music programs and motion picture soundtracks on DVD-video.

Dolby Digital identifies the use of Dolby Digital audio coding for such consumer formats as DVD and DTV. As with film sound, Dolby Digital can provide up to five full-range channels for left, center, and right screen channels, independent left and right surround channels, and a sixth ( ".1") channel for low-frequency effects.

Dolby Surround Pro Logic II is an improved matrix decoding technology that provides better spatiality and directionality on Dolby Surround program material; provides a convincing three-dimensional soundfield on conventional stereo music recordings; and is ideally suited to bring the surround experience to automotive sound. While conventional surround programming is fully compatible with Dolby Surround Pro Logic II decoders, soundtracks will be able to be encoded specifically to take full advantage of Pro Logic II playback, including separate left and right surround channels. (Such material is also compatible with conventional Pro Logic decoders.)

Dolby Digital EX creates six full-bandwidth output channels from 5.1-channel sources. This is done using a matrix decoder that derives three surround channels from the two in the original recording. For best results, Dolby Digital EX should be used with movies soundtracks recorded with Dolby Digital Surround EX.

Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic”, and the double-D symbol are trademarks of Dolby Laboratories.

Circle Surround II (CS-II) is a powerful and versatile

DISC/DECK

PTY

ATT.

–/B

/VCR

+/A

/ANT

F.DIRECT

DISP./RDS

TUNE/SEARCH

ODE

EBL

CHA

N NE

L/S

KIP

ASS

A/D

P .S

CAN

6.1CH IN

STEREO

M-CH ST

EMO

E AR

D IS

PLAY

H T

CSII

EX/ES

DSP

DTS

S-DIRECT

A U

T.TONE

MENU OFF

T UP

OSD

S L

E EP

MUT

AMP

AUX

N ER

C D

R/M

DVD

P O

CR1

DSS/VCR2

SYSTEM REMOTE CONTROLLER

RC5400SR

321

654

VOL.

MAIN

VOL.

multichannel technology. CS-II is designed to enable up to 6.1 multichannel surround sound playback from mono, stereo, CS encoded sources and other matrix encoded sources. In all cases the decoder extends it into 6 channels of surround audio and a LFE/subwoofer signal. The CS-II decoder creates a listening environment that places the listener “inside” music performances and dramatically improves both hi-fi audio conventional surround-encoded video material. CS-II provides composite stereo rear channels to greatly improve separation and image positioning – adding a heightened sense of realism to both audio and A/V productions. CS-II is packed with other useful feature like dialog clarity (SRS Dialog) for movies and cinema-like bass enrichment (TruBass). CS-II can enable the dialog to become clearer and more discernable in movies and it enables the bass frequencies contained in the original programming to more closely achieve low frequencies – overcoming the low frequency limitations of the speakers by full octave.

Circle Surround II , Dialog Clarity, TruBass, SRS and symbol are trademarks of SRS Labs, Inc. Circle Surround II, Dialog Clarity and TruBass technology are incorporated under license from SRS Labs, Inc.

FEATURES

The SR5400 incorporates the latest generation of digital surround sound decoding technology such as Dolby Digital EX, Dolby Digital, DTS ES (Discrete 6.1 and Matrix 6.1), DTS Neo:6 (Cinema, Music), Dolby Pro-Logic II (Movie and Music), Circle Surround II (Cinema and Music) . In addition, Marantz has focused on the future. By utilizing pre-out jacks, 6.1 direct inputs the SR5400 is tomorrow's technology, today!

The SR5400 features a fully discrete 6 channel amplifier section capable of delivering 90 watts of high-current amplification, for continuously clean and stable power into each of the six channels. It employs a massive EI power transformer in combination with oversized filter capacitors. This design configuration is capable of a clear and powerful reproduction of the most demanding action movie soundtracks and full range (multichannel) music discs. Through its ability to generate very high output voltages, the SR5400 can easily drive the most demanding speakers with optimum results.

The SR5400 incorporates the most advanced Digital Signal Processing circuitry, along with a Crystal® 192 kHz/24 bit D/A converter in each of the 7 channels. Independent power supply circuits are incorporated for the FL display, audio and video sections for maximum separation, clarity and dynamic range. Together with hand-selected customized components, all elements work in harmony to recreate the emotion, exactly as the artist had intended.

The SR5400 is designed and engineered with extensive feedback from dealers and consumers. It features a heavy duty speaker binding posts and an extensive array of both analog and digital inputs / outputs. With 4 assignable digital inputs, 2 component inputs, SACD Multi Channel (6.1 channel) direct inputs and OSD output versatility is taken to a stunning new level. Furthermore, the SR5400 can output the OSD information through the Y/C (S-video) and composite video outputs.

An easy-to-use universal remote control allows full access to all of the operating functions and can be used for system operation as well.

The new generation of Marantz Receivers is stylish and completely symmetrical. On the front panel of the SR5400, buttons are kept to a minimum. Source selectors and volume controls are intuitively placed. The large left dial knob on the left can be used as multi dial which allows all functions of the SR5400 to be operated via the front panel. The SR5400 is here to perform in your unrivaled home entertainment setup.

The TruSurround Headphone technology provides a surround sound listening experience over headphones. When listening to multichannel content such as DVD movies over headphones, the listening experience is fundamentally different than listening to speakers. Since the headphone speaker drivers are covering the pinna of the ear, the listening experience differs greatly from traditional speaker playback. TruSurround utilizes patented headphone perspective curves to solve this problem and provides a non-fatiguing, immersive, home theater listening experience. TruSurround Headphone also delivers exceptional 3D audio from mono and stereo material.

• Dolby Digital EX, Dolby Digital , DTS ES (Discrete 6.1, Matrix 6.1, Neo: 6)

• Dolby Pro Logic II (Movie, Music)

• Circle Surround II (Movie, Music, Mono)

• 6 x 90 Watts (8 Ohm), Discrete Amplifiers

• Massive Energy Power Supply, Huge EI

Transformer, Large ELCO's.

• 192 kHz/24 bit Crystal® DAC for all 7 Channels

• 32 bit Digital Surround Processing Chipsets

• Video Off Mode

• Large Heavy Duty Speaker Terminals for all

Channels

•

Set Up Menu via Composite, and S-Video Output

• Auto Input Signal Detection

• Improved Station Name Input Method, 50

Presets

• Auto Adjust Function for Speaker Distance Settings (Delay Time)

• Large Multi Operation Left Dial Knob

• Universal remote control

ACCESSORIES

Remote Controller RC5400SR

ENGLISH

AAA-size batteries X 2

AM Loop Antenna

FM Feeder Antenna

FM Antenna converter

Registration Card

User Guide

ENGLISH

AV SURROUND RECEIVER SR5400

SELECTOR

VOLUME

DOWN

MEMORY

TUNING

MODE

F/P

CLEAR

S-DIRECT DISPLAY

MUTE

A/D6.1CH INPUTVIDEO OFF

POWER ON/STANDBY

PHONES

ENTER

STANDBY

AUX INPUT

S-VIDEO VIDEO L AUDIO R

DSS/VCR2

AUX

VCR1

DVD

CD-R

TAPE

TUNER

ATT

SELECT

!1 !2yt

!5 !6

rew u

!7 !8

FRONT PANEL

POWER switch and STANDBY indicator

When this switch is pressed once, the unit turns ON and the display illuminates. When pressed again, the unit turns OFF and the STANDBY indicator will be illuminated.

SELECT (MULTI FUNCTION MODE SELECT) button

Press this button to change the mode of the MULTI FUNCTION control dial. l.e. Surround Sound Fields, Tone Control & Set Up Menu.

SURROUND MODE Selector & MULTI FUNCTION control dial

This dial changes surround modes & Tone Controls sequentially, and allows you to enter the OSD menu system.

ENTER (MULTI FUNCTION ENTER) button

Press this button to enter the setup, which you have chosen by the MULTI FUNCTION dial.

CLEAR button

Press this button to cancel the station-memory setting mode or preset scan tuning. (See page 26)

MEMORY button

Press this button to enter the tuner preset memory numbers or station names. (See page 26)

TUNING (Down) / (Up) buttons

Press these buttons to change the frequency or the preset number. (See page 26)

F/P (Frequency / Preset) button

During reception of AM or FM, you can change the function of the UP/DOWN buttons for scanning frequencies or selecting preset stations by pressing these buttons. (See page 26)

MODE button

Press this button to select the auto stereo mode or mono mode when the FM band is selected. The “AUTO” indicator lights in the auto stereo mode. (See page 26)

Press this button to mute the output to the speakers.

MUTE button

Press it again to return to the previous volume level.

VOLUME control knob

Adjusts the overall sound level. Turning the control clockwise increases the sound level.

ATT (Attenuate) button

If the selected analog audio input signal is greater than the capable level of internal processing, the PEAK indicator will illuminate. If this happens, you should press the ATT button. “ATT” is displayed when this function is activated. The signal-input level is reduced by about half. Attenuation will not work with the output signal of “REC OUT” (TAPE, CD-R/MD, VCR1 and VCR2 output). This function is memorized for each input function.

AUX input jacks

These auxiliary video/audio input jacks accept the connections of a camcorder, portable DVD, game etc.

INPUT FUNCTION SELECTOR buttons (AUDIO/ VIDEO)

These buttons are used to select the input sources. The video function selector, such as TV, DVD, VCR1, DSS and AUX, selects video and audio simultaneously. Audio function sources such as CD, TAPE, CDR/ MD, and TUNER may be selected in conjunction with a Video source. This feature (Sound Injection) combines a sound from one source with a picture from another. Choose the video source first, and then choose a different audio source to activate this function. Press the TUNER button to switch between FM and AM.

VIDEO OFF button

This is used when switching the video signals from the various monitor outputs to Video-Off mode. (see page 24)

6.1CH IN button

Press this button to select the output of an external multichannel decoder.

A/D (Analog/Digital) SELECTOR button

This is used to select between the analog and digital inputs.

Note:

• This button is not used for an input source, that is not set to a digital input in the system setup menu.

S- (Source) DIRECT button

When this button is pressed, the tone control circuitry is bypassed as well as Bass Management.

Notes:

• The surround mode is automatically switched to AUTO when the source direct function is turned on.

• Additionally, Speaker Configurations are fixed automatically as follows. Front SPKR = Large, Center SPKR = Large, Surround SPKR = Large, Sub woofer = On

DISPLAY button

When this button is pressed, the FL display mode is changed as Surround Mode → Auto-display Off → Display Off → Input Function and the display off indicator(DISP) lights up in condition of DISPLAY OFF.

HEADPHONE jack for stereo headphones

This jack may be used to listen to the SR5400’s output through a pair of headphones. Be certain that the headphones have a standard 1 / 4" stereo phono plug. Note that the main room speakers will automatically be turned off when the headphone jack is in use.

Notes:

• When using headphones, the surround mode will change to STEREO and TruSurround (TS) headphones by SURROUND MODE selector.

•

The surround mode returns to the previous setting

as soon as the headphone plug is removed from the jack.

INFRARED receiving sensor window

This window receives infrared signals for the remote control.

DISP AUT O TUNED ST V – OFF NIGHT PEAK ANALOG

DIGITAL

ATT

SLEEP

SURR

AUTO

DIRECT DISC 6.1 MTX 6.1 EQ

DIGITAL

SURROUND

PCM

SL S SR

LFE

¡6

¡5

¡4

g jk¡0 ¡2d

h l

¡1

¡3

FL DISPLAY

DISP (Display Off) indicator

This indicator is illuminated when the SR5400 is in the display off condition.

SLEEP timer indicator

This indicator is illuminated when the sleep timer function is in use.

AUTO SURR (Auto Surround mode) indicator

This indicator illuminates to show that the AUTO SURROUND mode is in use.

TUNER’s indicators

AUTO : This indicator illuminates when the

TUNED : This indicator illuminates when a

ST(Stereo) :

DTS-ES mode indicators (DISC6.1,

tuner’s Auto mode is in use.

station is being received with sufficient signal strength to provide acceptable listening quality. This indicator illuminates when an FM station is being tuned into stereo.

MTX6.1)

These indicators will illuminate to show the DTSES decoding mode (Discrete 6.1 or Matrix 6.1).

V (video)-OFF mode indicator

This indicator is illuminated when the Video-OFF function is active.

NIGHT mode indicator

This indicator is illuminated when the SR5400 is in the Night mode, which reduces the dynamic range of digital program material at low volume levels.

PEAK indicator

This indicator is a monitor for an analog audio input signal. If the selected analog audio input signal is greater than the capable level of internal processing, this will illuminate. If this happens, you should press the ATT button.

EQ mode indicator

This indicator is illuminated when the HT-EQ function is active.

¡0

ATT (Attenuation) indicator

This indicator is illuminated when the attenuation function is active.

¡1

DIGITAL Input Indicator

This indicator is illuminated when a digital input has been selected.

¡2

ANALOG input indicator

This indicator is illuminated when an analog input source has been selected.

¡3

SIGNAL FORMAT indicators

2 DIGITAL, EX, 2 SURROUND, dts, ES, 96/24, PCM

When the selected input is a digital source, some of these indicators will be illuminated to display the specific type of signal in use.

¡4

ENCODED CHANNEL STATUS indicators

These indicators display the channels that are encoded with a digital input signal. If the selected digital input signal is Dolby Digital 5.1ch or DTS

5.1ch, “L”, “C”, “R”, “SL”, “SR” and “LFE” will be illuminated. If the digital input signal is 2 channel PCM-audio, “L” and “R” will be displayed. If Dolby Digital 5.1ch signal with Surround EX flag or DTS-ES signal comes in, “L”, “C”, “R”, “SL”, “S” , “SR” and “LFE” will be illuminated.

¡5

Main Information Display

This display shows messages relating to the status, input source, surround mode, tuner, volume level or other aspects of unit’s operation.

¡6

DIRECT (Source direct) indicator

This indicator is illuminated when the SR5400 is in the SOURCE DIRECT mode.

ENGLISH

AUDIO

COMPONENT VIDEO

DIGITAL OUT

DIGITAL IN

OPT. COAX.

ANTENNA

SURROUND

BACK

FRONT CENTER SURROUND

LRLR

4312

6.1CH

IN OUT

TAPE CDR/MD

OUT SWOUTIN

CD CSBSLL

INOUTIN

TV DVD DSS/VCR2

RSR

VCR1

OUT

RC-5

PRE

OUT

SR SWR

LSLC

DVDTV MONI.

VIDEO

VCR1

OUTOUTIN

DSS/VCR2

OUTIN

VCR1 DSS/VCR2

DVD IN OUT

S-VIDEO

MONI.OUTTV OUTIN

DVD

MONI.OUTDSS/VCR2

FM (75

Ω

)

GND AM

MINIMUM 6 OHMS

SPEAKER SYSTEMS

AC IN

SERIAL NO.

AC OUTLETS

120V 60H

SWITCHED

1A 120W MAX

UNSWITCHED 1A 120W MAX

bnzx c m

⁄0

⁄3 ⁄2

,⁄1

REAR PANEL

VIDEO IN/OUT (TV, DVD, VCR1, DSS/ VCR2)

These are the video inputs and outputs. There are 4 video inputs and 2 video outputs and each one includes both composite video and S-video configurations. Connect VCRs, DVD players, and other video components to the video inputs. S-video sources can be viewed through the Svideo outputs, and composite sources can only be viewed through the composite output. The 2 video output channels can be used to be connected to video tape recorders for making recordings.

FM antenna terminal (75 ohms)

Connect an external FM antenna with a coaxial cable, or a cable network FM source.

AM antenna and ground terminals

Connect the supplied AM loop antenna. Use the terminals marked “AM” and “GND”. The supplied AM loop antenna will provide good AM reception in most areas. Position the loop antenna until you hear the best reception.

COMPONENT VIDEO INPUT/OUTPUT

If your DVD player or other device has component video connectors, be sure to connect them to these component video connectors on the SR5400. The SR5400 has two component video input connectors to obtain the color information (Y, CB, CR) directly from the recorded DVD signal or other video component and one component video output connector to output it directly into the matrix decoder of the display device. By sending the pure DVD component video signal directly, the DVD signal forgoes the extra processing that normally would degrade the image. The result is vastly increased image quality, with incredibly life like colors and crisp detail.

Notes:

• This component video output will not display the OSD menu system.

Preamp Outputs (L, R, SL, SR, SB, C)

Jacks for L(front left), R (front right), C (Center), SL (surround left), SR (surround right) and SB (surround back). Use these jacks for connection to external power amplifiers.

MONITOR OUT

This is a monitor output and each one includes both composite video and S-video configurations. When connecting two video monitors or televisions, be aware that the OSD interface can

⁄0

6.1 CHANNEL INPUT

By connecting a DVD Audio player, SACD multichannel player, or other components that has a multichannel port, you can playback the audio with 5.1 channel or 6.1 channel outputs.

be used with both MONITOR OUT connections.

⁄1

AC IN

Connect to an AC power outlet.

REMOTE CONT. IN/OUT terminals

Connect to a Marantz component equipped with remote control (RC-5) terminals.

SR5400 has to be powered by 120 V AC only.

⁄2

AC OUTLETS

Connect the AC power cables of components such as a DVD and CD player to these outlets. SWITCHED and UNSWITCHED outlets are provided. The one marked SWITCHED provides power only when the SR5400 is turned on and is useful for components which you use every time you play your system. The one marked UNSWITCHED is always live as long as the SR5400 is plugged into a live outlet.

AUDIO IN/OUT (CD, TAPE, CD-R, TV, DVD, VCR1, DSS/VCR2)

These are the analog audio inputs and outputs. There are 7 audio inputs (4 of which are linked to video inputs) and 4 audio outputs (2 of which are linked to video outputs). The audio jacks are nominally labeled for cassette tape decks,

compact disc players, DVD players and etc.... The

audio inputs and outputs require RCA-type connectors.

A component connected here may be left on permanently, or may be switched off with via its own power switch.

Caution:

•

In order to avoid potential turn-off thumps, anything plugged into these outlets should be powered up before the SR5400 is turned on.

•

The capacity of this AC outlet is 120W. Do not connect devices that consume electricity more than the capacity of these AC outlets. If the total power consumption of the connected devices exceeds the capacity, the protection circuit shuts down the power supply.

Speaker outputs terminals

⁄3

DIGITAL INPUT (Dig.1 - 4) / OUTPUT (coaxial, optical)

These are the digital audio inputs and outputs. There are 2 digital inputs with coaxial jacks, 2 with optical jacks. The inputs accept digital audio signals from a compact disc, LD, DVD, or other digital source component. For digital output, there is 1 coaxial output and 1 optical output. The digital outputs can be connected to MD recorders, CD recorders, DAT decks, or other similar components.

Six terminals are provided for the front left, front right, front center, surround left, surround right and surround back speakers.

Subwoofer Output

Connect this jack to the line level input of a powered subwoofer. If an external subwoofer amplifier is used, connect this jack to the subwoofer amplifier input. If you are using two subwoofers, either powered or with a 2 channel subwoofer amplifier, connect a “Y” connector to the subwoofer output jack and run one cable from it to each subwoofer amplifier.

DISC/DECK

PTY

ATT.

–/B /VCR+/A /ANT

F.DIRECT

DISP./RDS

TUNE/SEARCH

MODE

TREBLE

CHANNEL/SKIP

BASS

A/D

P.SCAN

6.1CH IN

STEREO

M-CH ST

MEMO

CLEAR

DISPLAY

NIGHT

CSII EX/ES DSP

DTS

S-DIRECT

AUTO

321

654

9807

T.TONE

MENU OFF

SETUP/

OSD

VOL.

MAIN

SLEEP

MUTE

AMPAUX

TUNER

TAPE

CDR/MD

DVD

POWER

VCR1

DSS/VCR2

SYSTEM REMOTE CONTROLLER

RC5400SR

¤4

⁄0 ⁄1

⁄2

⁄3

⁄4

¤2

¤1 ¤0 ⁄9 ⁄8

⁄7 ⁄6

⁄5

¤3

REMOTE CONTROL OPERATION

FUNCTION AND OPERATION

The provided remote control unit is a universal remote controller. The POWER button, numeric buttons and control buttons are used in common across different input source components. The input source controlled with the remote control unit changes when one of the input selector buttons is pressed.

Transmitting indicator

Lights up during a button is pressed and an infrared signal is sending.

(Main) POWER buttons

(when AMP mode is selected)

Press to switch the power of the SR5400 ON or OFF after pressing the AMP button.

Input selector buttons/ FUNCTION SELECTOR buttons (AUDIO/VIDEO INPUT)

These buttons are used to select a Audio or Video source component. Press one of these buttons once to change the function of the remote control. Press same button within 2 seconds, the input function of the SR5400 is changed.

Note:

• CDR/MD button is set CDR function at initial. To switch MD function, press and hold down CDR/ MD button and press 2 button.

• To return CDR function, press and hold down CDR/MD button and press 1 button.

MAIN VOLUME UP ( ) /DOWN ( ) buttons

Main volume control of the SR5400. The front, surround, center and subwoofer channel volumes controlled by these buttons simultaneously.

MUTE button

Muting button of the SR5400. Press this button decrease the sound temporarily . Press this button again to return to the previous sound. When this button is pressed, “MUTE” indicator lights up.

MENU button

(when AMP mode is selected)

This button is used to enter the SETUP MAIN MENU.

Cursor buttons ( , , , , OK)

Used to operate on-screen and other displays used by receivers and other components. See page 16.

MENU OFF button

(when AMP mode is selected)

This button is used to exit from the SETUP MAIN MENU.

Numeric buttons 1 to 9 / Surround mode buttons

Numeric buttons

These buttons are used to enter figures in the selection of a tuner preset station and station name preset or to set select a CD track number, etc. The functions of these buttons are dependent on the function button selected.

Surround mode buttons (when AMP mode is selected)

These buttons are used to select the surround mode.

⁄0

P.SCAN (preset scan) button

(when TUNER mode is selected)

This button is used to start preset scan when SR5400 is selected TUNER mode.

⁄1

0 / A/D button

0 button

This button is used to enter the number “0”

A/D button (when AMP mode is selected)

This is used to switch between the analog and digital inputs.

⁄2

CONTROL buttons

These buttons are used when operating the CD player, TAPE deck, etc. The function of these buttons are dependent on the function button selected. For the controllable functions of each input function, please refer to contrable function table on the page 10.

⁄3

ATT (attenuator) button

When the input signal is too high and the voice distorts even while adjusting the SR5400 VOLUME control, turn on this function. “ATT” is illuminated when this function is activated. The input level is reduced. Attenuator is invalid for the output signal of “REC OUT”.

Note:

•

This function is unavailable while the digital input is selected.

⁄4

TREBLE UP ( ) /DOWN ( ) buttons

These buttons are used to adjust the tone control of high frequency sound for left and right speaker.

⁄5

BASS UP ( ) /DOWN ( ) buttons

These buttons are used to adjust the tone control of low frequency sound for left, right and subwoofer speaker.

⁄6

MEMO button

Memory enable button for various preset functions.

⁄7

CLEAR button

This button is used to cancel for certain memory or programming operations.

⁄8

DISPLAY button

Selects the display mode for the front display of the SR5400.

⁄9

NIGHT button

Pressing this button prevents the Dolby Digital signal from playback at a loud voice. This function reduces the voice by 1/3 to 1/4 at maximum. Thus, it eliminates the occurrence of an abruptly loud voice at night. However, the function is valid only in the case when the Dolby Digital signal is entered into OPTICAL or COAXIAL and data to compress the voice exists in the signal to be played back. When this button is pressed, the “NIGHT” indicator is illuminated.

¤0

S- (Source) DIRECT button

When this button is pressed, the tone control circuit is bypassed.

¤1

SETUP / T.TONE button

(when AMP mode is selected)

Used to enter the test tone menu.

¤2

OSD button

(when AMP mode is selected)

When this button is pressed, the current setting is displayed on the TV monitor.

¤3

SLEEP (sleep timer) button

This button is used for setting the sleep timer. It can be operated the same way as the button on the unit.

¤4

TV VOLUME UP ( ) /DOWN ( ) buttons

These buttons increase or decrease TV’s volume.

ENGLISH

OSD

SLEEP

MUTE

AMPAUX

TUNERCDTAPE

CDR/MD

DVD

POWER

VCR1

DSS/VCR2

VOL.VOL.

MAIN

PTY

ATT.

F.DIRECT

DISP./RDS

TUNE/SEARCH

MODE

TREBLE

CHANNEL/SKIP

BASS

A/D

P.SCAN

6.1CH IN

STEREO

M-CH ST

MEMO

CLEAR

DISPLAY

NIGHT

CSII EX/ES DSP

DTS

S-DIRECT

AUTO

321

654

9807

T.TONE

MENU OFF

SETUP/

+/A

/VCR

/ANT

–/B

OSD

SLEEP

MUTE

AMPAUX

TUNERCDTAPE

CDR/MD

DVD

POWER

VCR1

DSS/VCR2

VOL.VOL.

MAIN

TUNE/SEARCH

TREBLE

CHANNEL/SKIP

BASS

A/D

P.SCAN

6.1CH IN

STEREO

M-CH ST

MEMO

CLEAR

DISPLAY

NIGHT

CSII EX/ES DSP

DTS

S-DIRECT

AUTO

321

654

9807

T.TONE

MENU OFF

SETUP/

OSD

SLEEP

MUTE

AMPAUX

TUNERCDTAPE

CDR/MD

DVD

POWER

VCR1

DSS/VCR2

VOL.VOL.

MAIN

TUNE/SEARCH

TREBLE

CHANNEL/SKIP

BASS

A/D

P.SCAN

6.1CH IN

STEREO

M-CH ST

MEMO

CLEAR

DISPLAY

NIGHT

CSII EX/ES DSP

DTS

S-DIRECT

AUTO

321

654

9807

T.TONE

MENU OFF

SETUP/

OSD

SLEEP

MUTE

AMPAUX

TUNERCDTAPE

CDR/MD

DVD

POWER

VCR1

DSS/VCR2

VOL.VOL.

MAIN

F.DIRECT

DISP./RDS

TUNE/SEARCH

MODE

TREBLE

CHANNEL/SKIP

BASS

A/D

P.SCAN

6.1CH IN

STEREO

M-CH ST

MEMO

CLEAR

DISPLAY

NIGHT

CSII EX/ES DSP

DTS

S-DIRECT

AUTO

321

654

9807

T.TONE

MENU OFF

SETUP/

PROGRAMMING THE REMOTE CONTROLLER

The remote controller RC5400SR must be programmed to use the codes for your appliances of different brands. This is done by keying in a 4digit code or by scanning the codes until the correct one is found. We recommend to using the 4-digit code. This mode is faster and more reliable. The code scanning method should be used only if you cannot find the code for one of your appliances. The codes are listed at the end of this book.

Important:

• Use the remote control buttons for programming, not the buttons of the receiver or other appliances.

• Some codes may be not match your equipment. In this case, your equipment cannot be controlled with this remote controller.

PROGRAMMING WITH THE 4-DIGIT CODE

SCANNING THE CODE TABLE

Switch on the appliance which should be controlled.

Press and hold down the function button for appliance which should be controlled and press SETUP until the indicator blinking twice.

Press the code 9 - 9 - 1. The indicator will blink twice.

Aim the remote control at the appliance and slowly alternate between pressing POWER and the function button for the appliance.

Stop when the appliance turns off.

Press SETUP once to lock in the code.

CHECKING THE CODE

RESETTING THE ALL CODE

Press and hold down the any function button and press SETUP until the indicator blinking twice.

Press the code 9 - 8 - 1. The indicator will blink twice. Then, RC5400SR will return to the factory preset code.

Note:

• After this procedure, the selected function button is set initial code and other function buttons are set initial code too.

Once you have found and the codes for your various appliances, you may want to write them down here.

VCR

DSS

DVD

TAPE

CDR

Press and hold down the function button for the appliance which should be controlled and press SETUP until the indicator blinks twice.

Press the 4-digit code for appliance (code table at the end of this book)

When the procedure is successful, the indicator will blink twice.

Note:

• If the indicator did not blink twice, then repeat steps 1 through 2 and try entering the same code again.

Press and hold down the function button for appliance which should be controlled and press SETUP until the indicator blinking twice.

Press the code 9 - 9 - 0. The indicator will blink twice.

To view the code for first digit, press 1 once. Wait 3 seconds, count the indicator blinks (e.g. 3 blinks = 3) and write down the number.

Note:

If a code digit is “0”, the indicator will not blink.

Repeat step 3 three more times for remaining digits. Use 2 for the second digit, 3 for the third digit, and 4 for the fourth digit.

DISC/DECK

PTY

ATT.

F.DIRECT

DISP./RDS

TUNE/SEARCH

MODE

TREBLE

CHANNEL/SKIP

BASS

A/D

P.SCAN

6.1CH IN

STEREO

M-CH ST

MEMO

CLEAR

DISPLAY

NIGHT

CSII EX/ES DSP

DTS

S-DIRECT

AUTO

321

654

9807

T.TONE

MENU OFF

SETUP/

OSD

SLEEP

MUTE

AMPAUX

TUNERCDTAPE

CDR/MD

DVD

POWER

VCR1

DSS/VCR2

SYSTEM REMOTE CONTROLLER

RC5400SR

VOL.VOL.

+/A

/VCR

/ANT

–/B

MAIN

DISC/DECK

PTY

ATT.

F.DIRECT

DISP./RDS

TUNE/SEARCH

MODE

TREBLE

CHANNEL/SKIP

BASS

A/D

P.SCAN

6.1CH IN

STEREO

M-CH ST

MEMO

CLEAR

DISPLAY

NIGHT

CSII EX/ES DSP

DTS

S-DIRECT

AUTO

321

654

9807

T.TONE

MENU OFF

SETUP/

OSD

SLEEP

MUTE

AMPAUX

TUNERCDTAPE

CDR/MD

DVD

POWER

VCR1

DSS/VCR2

SYSTEM REMOTE CONTROLLER

RC5400SR

VOL.VOL.

+/A

/VCR

/ANT

–/B

MAIN

OPERATION OF REMOTE CONTROL UNIT

REMOTE CONTROL

The distance between the transmitter of the remote control and the IR SENSOR of the SR5400 should be less than 5 meters. If the remote control is pointed in a direction other than the IR SENSOR or if there is an obstacle between them, use of the remote control may not be possible.

Remote-controllable range

Approx. 5 m

60°

Remote control unit (RC5400SR)

LOADING BATTERIES

The life of the batteries used with the remote control is about 4 months with normal use. Also be sure to replace batteries earlier when you notice that they are getting weak.

Remove the back cover.

SR5400

Insert the new batteries (AAA type) with correct

Close the cover until it clicks.

and polarity.

GENERAL INFROMATION OF RC5400SR TO SR5400

To control the SR5400 by your RC5400SR, you have to select the device AMP or TUNER by pressing the function selector button. Please refer below for the details in AMP and TUNER mode.

AMP MODE

POWER Turns the SR5400 on and off

TUNER MODE

Function selector * SLEEP * Sets the sleep timer function MUTE * Decreases the sound temporarily VOL 34 * Adjusts the over all sound level MENU Enters the SETUP MENU Cursor Moves the cursor for settings in the SETUP MENU OK • Enters the SETUP MENU

SETUP/T.TONE Enters the test tone mode for setting the Speaker Level Setup MENU OFF Exits from the SETUP MENU S-DIRECT * Selects the Source Direct mode NIGHT * Turns on or off the NIGHT mode Surround mode (1-8)

6.1CH-IN (9) Selects the 6.1CH IN A/D (0) Switches between the analog and digital inputs BASS 34 * Adjusts the tone control of low frequency sound TREBLE 34 * Adjusts the tone control of high frequency sound ATT * Reduces the input level

* These buttons are used to control SR5400 in any function mode.

TUNER Selects a frequency band 0-9 Inputs the numeric #s CLEAR Clears the inputting MEMO Enters the tuner preset memory numbers P.SCAN Starts preset scan CHANNEL/SKIP • Selects a preset station

TUNE/SEARCH Tunes a station

MODE

1 2

DISP./RDS ;Selects the display mode in RDS * F.DIRECT PTY

* : European model only

Selects a particular source component

• Confirms the settings in SETUP MENU

Selects the surround mode

• Changes a PTY type *

Selects the auto stereo mode or mono mode

Selects the “Frequency direct input” Displays the programmed information of the current station *

ENGLISH

DISC/DECK

PTYATT.

F.DIRECT

DISP./RDS

TUNE/SEARCH

MODE

TREBLE

CHANNEL/SKIP

BASS

A/D

P.SCAN

6.1CH IN

STEREO

M-CH ST

MEMO

CLEAR

DISPLAY

NIGHT

CSII EX/ES DSP

DTS

S-DIRECT

AUTO

321

654

9807

T.TONE

MENU OFF

SETUP/

OSD

SLEEP

MUTE

AMPAUX

TUNERCDTAPE

CDR/MD

DVD

POWER

VCR1

DSS/VCR2

SYSTEM REMOTE CONTROLLER

RC5400SR

VOL.VOL.

+/A

/VCR

/ANT

–/B

MAIN

THE CONTRABLE FUNCTION TABLE

POWER POWER POWER POWER POWER POWER POWER POWER POWER

MENU Cursor Cursor Cursor Cursor Cursor ––––

OK OK OK OK OK ––––

SETUP/T.TONE ––

MENU OFF –

0 - 9

CLEAR

MEMO –– CHANNEL/SKIP 4CH– PREV PREV – PREV PREV PREV PREV

CHANNEL/SKIP ¢CH+ NEXT NEXT – NEXT NEXT NEXT NEXT TUNE/SEARCH 5– REWIND REWIND – REWIND REWIND REWIND REWIND TUNE/SEARCH 6– FF FF – FF FF FF FF

(REC) – REC –––REC REC REC

MODE

1 2

DISP/RDS F.DIRECT

+/A/ANT VIDEO TV/VCR DISC+ – DISC+ DECK A –– +/B/VCR VIDEO TV/VCR DISC+ – DISC– DECK B –– PTY

TV VCR DVD DSS CD TAPE CDR MD

CALL UP CALL UP CALL UP CALL UP

MENU MENU MENU MENU

SETUP

CANCEL

MENU MENU

–

–––––

CANCEL

––––

INPUT INPUT INPUT INPUT INPUT INPUT INPUT INPUT

NUMERIC NUMERIC NUMERIC NUMERIC NUMERIC NUMERIC NUMERIC NUMERIC

INPUT TAPE INPUT

CLEAR SPEED CLEAR CLEAR CLEAR CLEAR CLEAR

CALL

PROGRAM PROGRAM PROGRAM PROGRAM

–

INPUT INPUT INPUT INPUT

CALL CALL

–––––DIRECTION ––

;

DISPLAY

PAUSE PAUSE – PAUSE PAUSE PAUSE PAUSE

– PLAY PLAY – PLAY PLAY PLAY PLAY

– STOP STOP – STOP STOP STOP STOP

–

CALL

CONNECTIONS

70cm 1m

AUDIO

COMPONENT VIDEO

DIGITAL OUT

DIGITAL IN

OPT. COAX.

ANTENNA

SURROUND

BACK

FRONT CENTER SURROUND

LRLR

4312

6.1CH

IN OUT

TAPE CDR/MD

OUT SWOUTIN

CD CSBSLL

INOUTIN

TV DVD DSS/VCR2

RSR

VCR1

OUT

RC-5

PRE

OUT

SR SWR

LSLC

DVDTV MONI.

VIDEO

VCR1

OUTOUTIN

DSS/VCR2

OUTIN

VCR1 DSS/VCR2

DVD IN OUT

S-VIDEO

MONI.OUTTV OUTIN

DVD

MONI.OUTDSS/VCR2

FM (75

Ω

)

GND AM

6 - 8 OHMS

SPEAKER SYSTEMS

SERIAL NO.

AC IN

AC OUTLET

120V 60H

SWITCHED

1A 120W MAX

UNSWITCHED 1A 120W MAX

SURROUND

BACK

CENTER SURROUND

PRE

OUT

FRONT

INVERT

OUTPUT

INPUT

LEVEL

BTL REMOTE CONT.EXT. CONT. IN

VIDEO/

+5~13V DC

SYSTEM OUT OUT

INPUT

MASTERSLAVE

MIN MAX

SPEAKER SYSTEM MINIMUM 4 OHMS

1. 2.

3. 4. 5.

SPEAKER PLACEMENT

The ideal surround speaker system for this unit is 7-speaker systems, using front left and right speakers, a center speaker, surround left and right speakers, a surround back and a subwoofer. For best results we recommend that all front speakers be of the same type, with identical or similar driver units. This will deliver smooth pans across the front sound stage as the action moves from side to side. Your center channel speaker is very important as over 80 % of the dialog from a typical motion picture emanates from the center channel. It should possess similar sonic characteristics to the main speakers. Surround channel speakers need not be identical to the front channel speakers, but they should be of high quality. The surround center speaker is useful for playback of Dolby Digital Surround EX or DTS-ES. One of the benefits of both Dolby Digital and DTS is that surround channels are discrete full range, while they were frequency limited in earlier “Pro Logic’ type systems. Bass effects are an important part of home theater. For optimal enjoyment a subwoofer should be used as it is optimized for low frequency reproduction. If you have full range front speakers, however, they may be used in place of a subwoofer with proper setting of the switches in the menu system.

Surround Left

Surround Back

Surround Right

Front left and right speakers

We recommend to set the front L and R speakers with 45-60 degrees from the listening position.

Center speaker

Align the front line of the center speaker with the front L/R speakers. Or place the center speaker a little backward from the line.

Subwoofer

Front Left

Front Center

Front Right

Surround left and right speakers

Place the speakers right beside of the listening

CONNECTING SPEAKERS

position or a little backward.

Surround back speaker

Place the speaker behind the listening position.

Subwoofer

We recommend using a sub-woofer to have maximum

PASSIVE

SUBWOOFER

POWER

AMPLIFIER

POWERED

SUBWOOFER

FRONT

RIGHT

LEFT

SURROUND

RIGHT

LEFT

ENGLISH

bass effect. Sub-woofer bears only low frequency range so you can place it any where in the room.

HEIGHT OF THE SPEAKER UNITS

Front left and right speakers, and a center speaker

Align the tweeters and mid-range drivers on the three front speakers at the same height, as best as possible.

Surround left and right speakers, and surround back speaker

Place the surround left, right and surround back speakers higher than your ears by about 70cm – 1m. Also place the speakers at the same height, as best as possible.

CENTER

SURROUND

BACK

CONNECTING SPEAKER WIRE

Strip away approx. 10 mm of wire insulation.

Twist the bared wire ends tight, to prevent short circuits.

Note;

• Use magnetically-shielded speakers for front left, right and the center speakers when the speakers are installed near the TV and the TV is a monitor type.

Loosen the knob by turning it counterclockwise.

Insert the bare part of the wire into the hole in side of each terminal.

Tighten the knob by turning it clockwise to secure the wire.

10 mm

ENGLISH

AUDIO

COMPONENT VIDEO

DIGITAL OUT

DIGITAL IN

OPT. COAX.

ANTENNA

SURROUND

BACK

FRONT CENTER SURROUND

LRLR

4312

6.1CH

IN OUT

TAPE CDR/MD

OUT SWOUTIN

CD CSBSLL

INOUTIN

TV DVD DSS/VCR2

RSR

VCR1

OUT

RC-5

PRE

OUT

SR SWR

LSLC

DVDTV MONI.

VIDEO

VCR1

OUTOUTIN

DSS/VCR2

OUTIN

VCR1 DSS/VCR2

DVD IN OUT

S-VIDEO

MONI.OUTTV OUTIN

DVD

MONI.OUTDSS/VCR2

FM (75

Ω

)

GND AM

AC IN

SERIAL NO.

100W MAX.

AC OUTLETS

230V 50H

UNSWITCHED

6 - 8 OHMS

SPEAKER SYSTEMS

AUDIO

DIGITAL OUT

DIGITAL IN

OPT.

TAPE CDR/MD

OUTOUTINCDIN

OUT IN

LRL

OUT

L R

RL RL RL

OUT IN

LRL

DIGITAL

INPUT

DIGITAL

OUTPUT

DIGITAL OUTPUT

R L

R L R L

L R

Caution:

•

Be sure to use speakers with the specified impedance as shown on the rear panel of this unit.

•

To prevent damage to circuitry, do not let the bare speaker wires touch each other and do not let them touch any metal part of this unit.

•

Do not touch the speaker terminals when the power is on. It may cause you to receive an electric shocks.

• Do not connect more than one speaker cable to one speaker terminal. Doing so may damage this unit.

Note:

• Be sure to connect the positive and negative cables for the speaker properly. If they are missconnected, the signal phase will be reversed and the signal quality will be corrupted.

CONNECTING A SUBWOOFER

Use the PRE OUT SUBWOOFER jack to connect a powered subwoofer (power amplifier built in ). If your subwoofer is a passive type (power amplifier is not built in), connect a monaural power amplifier to the PRE OUT SUBWOOFER jack and connect the subwoofer to the amplifier.

CONNECTING AUDIO COMPONENTS

CD RECORDER / MD DECK

CD PLAYER

TAPE DECK

ANALOG AUDIO

DIGITAL AUDIO (COAXIAL)

DIGITAL AUDIO (OPTICAL)

The output audio signal from the TAPE OUT jack and the CD-R/MD OUT jack is the same signal which is currently selected.

Caution:

• Do not connect this unit and other components to mains power until all connections between components have been completed.

Notes:

• Insert all plugs and connectors securely. Incomplete connections may make noise.

• Be sure to connect the left and right channels properly.

Red connectors are for the R (right) channel, and white connectors are for the L (left) channel.

• Be sure to connect input and output properly.

• Refer to the instructions for each component that

is connected to this unit.

• Do not bind audio/video connection cables with power cords and speaker cables this will result in generating a hum or other noise.

CONNECTING DIGITAL AUDIO COMPONENTS

• There are 4 digital inputs, 2 coaxial jacks and 2 optical jacks, on the rear panel. You can use these jacks to input PCM, Dolby Digital and DTS bitstream signals from a CD, DVD, or other digital source components.

•

There is one digital output coaxial jack and one optical output jack on the rear panel. These jacks can be connected to a CD recorder-, or a MD deck inputs, respectively.

•

Refer to the instructions for each component. setup the digital audio format of DVD player, or other digital source’s connected to digital input jacks.

Notes:

• There is no Dolby Digital RF input jack. Please use an external RF demodulator Dolby Digital decoder when connecting the Dolby Digital RF output jack of the video disc player to the digital input jack.

• The digital signal jacks on this unit conform to the EIA standard. If you use a cable that does not conform to this standard, this unit may not function properly.

• Each type of audio jack works independently. Signals input through the digital and analog jacks are output through the corresponding digital and analog jacks, respectively.

• Use fiber optical cables (optical) for DIG-1,2 input jacks. Use 75 ohms coaxial cables (for digital audio or video) for DIG-3, 4 input jacks.

• You can designate the input for each digital input/output jacks according to your component. See page 17.

AUDIO

COMPONENT VIDEO

DIGITAL OUT

DIGITAL IN

OPT. COAX.

ANTENNA

4312

6.1CH

IN OUT

TAPE CDR/MD

OUT SWOUTIN

CD CSBSLL

INOUTIN

TV DVD DSS/VCR2

RSR

VCR1

OUT

RC-5

PRE

OUT

SR SWR

LSLC

DVDTV MONI.

VIDEO

VCR1

OUTOUTIN

DSS/VCR2

OUTIN

VCR1 DSS/VCR2

DVD IN OUT

S-VIDEO

MONI.OUTTV OUTIN

DVD

MONI.OUTDSS/VCR2

FM (75

Ω

)

GND AM

AUDIO

COMPONENT VIDEO

DIGITAL IN

OUTIN

DVDLVCR1

DVD

VIDEO

VCR1

OUTIN

VCR1

DVD

S-VIDEO

MONI.OUTOUTIN

DVD

MONI.OUT

AUDIO

OUT

DIGITAL

OUT

VIDEO

OUT

S-VIDEO

OUT

S-VIDEO

AUDIO

OUT

AUDIO

VIDEO

OUT IN

S-VIDEO OUT IN

L R L R LR

/ PBCR

/ PR

COMPONENT

VIDEO OUT

/ PBCR

/ PR

COMPONENT

VIDEO IN

L R L R

L R

AUDIO

COMPONENT VIDEO

DIGITAL OUT

DIGITAL IN

OPT. COAX.

ANTENNA

4312

6.1CH

IN OUT

TAPE CDR/MD

OUT SWOUTIN

CD CSBSLL

INOUTIN

TV DVD DSS/VCR2

RSR

VCR1

OUT

RC-5

PRE

OUT

SR SWR

LSLC

DVDTV MONI.

VIDEO

VCR1

OUTOUTIN

DSS/VCR2

OUTIN

VCR1 DSS/VCR2

DVD IN OUT

S-VIDEO

MONI.OUTTV OUTIN

DVD

MONI.OUTDSS/VCR2

FM (75

Ω

)

GND AM

AUDIO

DIGITAL IN

TV DSS/VCR2

TV MONI.

VIDEO

OUTIN

DSS/VCR2

S-VIDEO

MONI.OUT

AUDIO

OUT

DIGITAL

OUT

VIDEO

OUT

S-VIDEO

OUT

AUDIO

OUT

VIDEO

OUT

S-VIDEO

VIDEO

L R

CONNECTING VIDEO COMPONENTS

DVD PLAYER VIDEO PROJECTOR

SATELLITE TUNER

VIDEO

S-VIDEO

ANALOG AUDIO

DIGITAL AUDIO (COAXIAL)

DIGITAL AUDIO (OPTICAL)

VIDEO, S-VIDEO , COMPONENT JACKS

There are 3 types of video jacks on the rear panel.

VIDEO jack

The video signal for the VIDEO jacks is the conventional composite video signal.

S-VIDEO jack

The video signal is separated into luminance (Y) and color (C) signals for the S-VIDEO jack. The SVIDEO signals enables high-quality color reproduction. If your video component has an SVIDEO output, we recommend to use it. Connect the S-VIDEO output jack on your video component to the S-VIDEO input jack on this unit.

Component jack

Make component video connections to a TV or monitor with component inputs to produce higher quality video images. Use a component video cable or 3 video cords to connect the component video out jacks on the SR5400 to the monitor.

Notes:

•

Be sure to connect the left and right audio channels properly.

Red connectors are for the R (right) channel, and white connectors are the for L (left) channel.

• Be sure to connect the inputs and outputs of the video signals properly.

• If you connect the S-VIDEO or component signal to the S-VIDEO or component jack on this unit, it is not necessary to connect the conventional video signal to the VIDEO (composite) jack. If you use both video inputs, this unit gives priority to the SVIDEO signal.

• Each type of video jack works independently. Signals input to the VIDEO (composite) and SVIDEO jacks or component are output to the corresponding VIDEO (composite) and S-VIDEO or component jacks, respectively.

•

This unit has the “TV-AUTO ON/OFF” function to turn the TV ON or OFF automatically, by sensing the incoming video signal from the VIDEO jacks.

• You may need to setup the digital audio output format of your DVD player, or other digital source components. Refer to the instructions of the each component connected to the digital input jacks.

• There is no Dolby Digital RF input jack. Please use an external RF demodulator with a Dolby Digital decoder to connect a video disc player which has a Dolby Digital RF output jack to the digital input jack on this unit.

ENGLISH

VCR

ENGLISH

AUDIO

COMPONENT VIDEO

DIGITAL OUT

DIGITAL IN

OPT. COAX.

ANTENNA

SURROUND

BACK

FRONT CENTER SURROUND

LRLR

4312

6.1CH

IN OUT

TAPE CDR/MD

OUT SWOUTIN

CD CSBSLL

INOUTIN

TV DVD DSS/VCR2

RSR

VCR1

OUT

RC-5

PRE

OUT

SR SWR

LSLC

DVDTV MONI.

VIDEO

VCR1

OUTOUTIN

DSS/VCR2

OUTIN

VCR1 DSS/VCR2

DVD IN OUT

S-VIDEO

MONI.OUTTV OUTIN

DVD

MONI.OUTDSS/VCR2

FM (75

Ω

)

GND AM

AC IN

SERIAL NO.

100W MAX.

AC OUTLETS

230V 50H

UNSWITCHED

6 - 8 OHMS

SPEAKER SYSTEMS

6.1CH

SWCSB

SLL

RSR

PRE

OUT

SR SWR

LSLC

FRONT SURR.

SURR. BACK

SUB

WOOFER

CENTER

FRONT SURR.

SURR.

BACK

SUB

WOOFER

CENTER

RL RL

R LLRR L

RL RL

AUDIO

COMPONENT VIDEO

DIGITAL OUT

DIGITAL IN

OPT. COAX.

ANTENNA

SURROUND

BACK

FRONT CENTER SURROUND

LRLR

4312

6.1CH

IN OUT

TAPE CDR/MD

OUT SWOUTIN

CD CSBSLL

INOUTIN

TV DVD DSS/VCR2

RSR

VCR1

OUT

RC-5

PRE

OUT

SR SWR

LSLC

DVDTV MONI.

VIDEO

VCR1

OUTOUTIN

DSS/VCR2

OUTIN

VCR1 DSS/VCR2

DVD IN OUT

S-VIDEO

MONI.OUTTV OUTIN

DVD

MONI.OUTDSS/VCR2

FM (75

Ω

)

GND AM

AC IN

SERIAL NO.

100W MAX.

AC OUTLETS

230V 50H

UNSWITCHED

6 - 8 OHMS

SPEAKER SYSTEMS

OUT

RC-5

REMOTE

CONTROL

REMOTE

CONTROL

REMOTE

CONTROL

OUT

EXTERNAL INTERNAL

RC OUT

ADVANCED CONNECTING

CONNECTING THE REMOTE CONTROL JACKS

DVD AUDIO PLAYER

SACD MULTI CHANNEL PLAYER

CONNECTING MULTI CHANNEL AUDIO SOURCE

The 6.1CH INPUT jacks are for multichannel audio source such as a SACD multichannel player, DVD audio player or external decoder. If you use these jacks, switch on the 6.1CH INPUT and set the 6.1CH INPUT level by using the SETUP MAIN MENU. See page 19.

OPTION

POWER

AMPLIFER

Subwoofer

Front Left

Surround Left

Center

Front Right

Surround

Right

CD RECORDER

MD DECK

CD PLAYER

Surround Back

CONNECTING AN EXTERNAL POWER AMPLIFIER

The PREOUT jacks are for connecting external power amplifiers. Be sure to connect each speaker to the corresponding external power amplifier.

You can control other Marantz products through this unit with the remote control by connecting the REMOTE CONTROL terminals on each unit. The signal transmitted from the remote control is received by the remote sensor on this unit. Then the signal is sent to the connected device through this terminal. Therefore you only need to aim the remote at one unit. Also, if a Marantz power amplifier (some models excluded) is connected to one of these terminals, the power amplifier’s, power switch is synchronized with this unit’s power switch.

Set the REMOTE CONTROL SWITCH on the units, other than the main unit to EXT.(EXTERNAL) for this feature.

Whenever external infrared sensors or similar devices are connected to RC-5 IN of the SR5400, be sure to always disable operation of the infrared sensor on the main unit by using the following procedure.

Hold down the SELECT button and TV button on the front panel at the same time for five seconds.

The setting “IR=ENABLE” is shown on the FL DISPLAY.

Press the SELECT button to change this to

“IR=DISABLE”.

Press the ENTER button. Once this setting is made, the infrared sensor on the main unit is disabled.

Note:

Be sure to set to “IR=ENABLE” when external infrared sensors or similar devices are not connected. Otherwise, the main unit will be unable to receive remote control commands.

To restore the original setting, perform steps 1 to 4 to set to “IR=ENABLE”.

CONNECTING THE ANTENNA TERMINALS

AUDIO

COMPONENT VIDEO

DIGITAL OUT

DIGITAL IN

OPT. COAX.

ANTENNA

SURROUND

BACK

FRONT CENTER SURROUND

LRLR

4312

6.1CH

IN OUT

TAPE CDR/MD

OUT SWOUTIN

CD CSBSLL

INOUTIN

TV DVD DSS/VCR2

RSR

VCR1

OUT

RC-5

PRE

OUT

SR SWR

LSLC

DVDTV MONI.

VIDEO

VCR1

OUTOUTIN

DSS/VCR2

OUTIN

VCR1 DSS/VCR2

DVD IN OUT

S-VIDEO

MONI.OUTTV OUTIN

DVD

MONI.OUTDSS/VCR2

FM (75

Ω

)

GND AM

6 - 8 OHMS

SPEAKER SYSTEMS

SERIAL NO.

AC IN

AC OUTLET

120V 60H

SWITCHED

1A 120W MAX

UNSWITCHED 1A 120W MAX

ANTENNA

FM (75

Ω

)

GND AM

FM FEEDER

ANTENNA

ASSEMBLING THE AM LOOP ANTENNA

Release the vinyl tie and take out the connection line.

FM EXTERNAL

ANTENNA

AM LOOP

ANTENNA

Place the antenna on stable surface.

AM EXTERNAL

ANTENNA

CONNECTING THE SUPPLIED ANTENNAS

Connecting the supplied FM feeder antenna

The supplied FM feeder antenna is for indoor use only. During use, extend the antenna and move it in various directions until the clearest signal is received. Fix it with push pins or similar implements in the position that will cause the least amount of distortion. If you experience poor reception quality, an outdoor antenna may improve the quality.

Connecting the supplied AM loop antenna

The supplied AM loop antenna is for indoor use only. Set it in the direction and position it to where you receive the clearest sound. Put it as far away as possible from the unit, televisions, speaker cables, and power cords. If you experience poor reception quality, an outdoor antenna may improve the quality.

Press and hold down the lever of the AM antenna terminal.

Insert the bare wire into the antenna terminal.

Release the lever.

CONNECTING AN FM OUTDOOR ANTENNA

Notes:

• Keep the antenna away from noise sources (neon signs, busy roads, etc.).

• Do not put the antenna close to power lines. Keep it well away from power lines, transformers, etc.

• To avoid the risk of lightning and electrical shock, grounding is necessary.

ENGLISH

Bend the base part in the reverse direction.

Insert the hook at the bottom of the loop part into the slot at the base part.

CONNECTING THE ANTENNA WIRE TO THE ANTENNA CONVERTER

Loosen the screws and fix the terminals of wire. Then tighten the screws with a screwdriver.

CONNECTING AN AM OUTDOOR ANTENNA

An outdoor antenna will be more effective if it is stretched horizontally above a window or outside.

Notes:

• Do not remove the AM loop antenna.

• To avoid the risk of lightning and electrical shock,

grounding is necessary.

ENGLISH

SETUP MA I N MENU

1.INPUT SETUP :UNLOCK 2 . SPEAKER SETUP : UNLOCK 3 . PREF ERENCE : UN LOCK 4 . SURROUND : UNLOCK

5.PRO LOGIC

II :UNLOCK

6.CS

II :UNLOCK

7 . 6 . 1 CH I N : UNLOCK

EX I T

1INPUTSETUP

CD : D 3 - A T T V : ANA T AP E : ANA DVD : D4 - AT CD-R :D1-AT VCR1 :ANA

DSS :D 2 - A T

MA I N E X I T

2-1 SPEAKERS SIZE

SUBWOOFER : YES FRONT L / R : LARGE CENTER : SMALL SURROUND L / R : SMALL SURR . BACK : SMAL L LPF/HPF : 100 HZ BASS M I X : BOTH

MA I N NEXT EX I T

2 - 2 S P EAKE RS D I STANCE

FRONT L : 10 f t 3 . 0 m FRONT R : 10 f t 3 . 0 m CENTER : 1 0 f t 3 . 0 m SURR . L : 10 f t 3 . 0 m SURR . R : 1 0 f t 3 . 0 m SUB W : 1 0 f t 3 . 0 m SURR . BACK : 1 0 f t 3 . 0 m

MA I N RETURN NEXT EX I T

2-3 SPEAKERS LEVEL T E S T MODE : MANUAL FRONT L : 0 dB CENTER : 0 dB FRONT R : 0 dB SURR . R : 0 dB SURR . BACK : 0 dB SURR . L : 0 d B SUB W : 0 dB

MA I N RE T URN E X I T

3PREFERENCE

S T ANDBY MODE : E CONOMY TV-AUTO :

∗∗∗ ∗∗∗

∗∗∗

OSD I NFO : ENABL E

MA I N E X I T

4 S URROUND SURR .MODE : AUTO HT - EQ : OFF LFE LEVEL : 0 dB CENTER : 0 dB SURR L : 0 dB SURR R : 0 dB SURR BACK : 0 d B SUB W : 0 dB

MA I N E X I T

5PL II MU S I C PA RAME TER

PARAMETER : DEFAUL T

PANORAMA : OF F DIMENSION : 3 CENTER W I DTH : 3

MA I N E X I T

7 6 . 1 CH I NPUT LEVEL

FRONT L : 0 dB CENTER : 0 dB FRONT R : 0 dB SURR . R : 0 dB SURR .BACK : 0 dB SURR . L : 0 d B SUB W : 0 dB

MA I N E X I T

6CSII PARAMETER

TRUBASS : 0

SRS D I ALOG : 0

MA I N E X I T

SETUP

After all components are connected, initial setup must be performed.

ON SCREEN DISPLAY MENU SYSTEM

The SR5400 incorporates an on-screen menu system, which makes various operations possible by using the cursor ( , , , ) and OK buttons on the remote control or MULTI FUNCTION dial, TUNING

/ button and ENTER button on the front panel. Use the MULTI FUNCTION dial the same as the Up/ Down button on the remote, TUNING / button the same as the Left/Right button on the remote, the ENTER button the same as the OK button on the remote.

Notes:

• To view the on-screen displays, make certain you have made a connection from the Monitor Out jack (VIDEO or S-VIDEO ) on the rear panel to the composite, S-Video input of your TV or projector. (see 13 page)

Select the AMP mode on the remote control.

Press the SETUP button on the remote control to display the “SETUP MAIN MENU” of the OSD menu system. There are 7 items in the SETUP MAIN MENU. If you enter this menu from the MULTI dial on the front panel. Press SELECT to show the “SETUP MENU” in the FL display and press the ENTER button.

Select a desired sub-menu with or cursor buttons, and press the OK button to enter. The display will change to the selected submenu. You can lock the condition of setup to each sub-menu with or cursor buttons. Notes: If you desire to adjust any sub-menu, you need to set it to UNLOCKED.

If you desire to exit from this menu system, press the EXIT button (or SELECT button on the front panel), or move the cursor to EXIT and press the OK button.

1 INPUT SETUP (ASSIGNABLE DIGITAL

1INPUTSETUP

CD : D3 - A T T V : ANA T AP E : ANA DVD : D4 - AT CD-R :D1-AT VCR1 :ANA

DSS : D2 - AT

MA I N E X I T

2-1 SPEAKERS SIZE

SUBWOOFER : YES FRONT L / R : LARGE CENTER : SMALL SURROUND L / R : SMALL SURR . B ACK : SMALL LPF/HPF : 100 HZ BASS M I X : BOTH

MA I N NE X T E X I T

INPUT)

Four digital inputs can be assigned to a desired source. Use this menu to select the digital input jack to be assigned to the input source.

Select “INPUT SETUP” in SETUP MAIN MENU with or cursor button, and press the OK button.

To select the input source, press or cursor buttons.

To select the digital input jack , press the or

cursor buttons. Select “Dx-AT” for input sources, for automatic detection of the digital input signal condition. If there is not a digital signal present, but there is an analog signal present, the analog signal will be played. Select “Dig x”, when only a digital signal will be used. Select “ANA” for input sources for which no digital input jacks are used.

After you complete this portion of the set up, move the cursor to MAIN with or cursor buttons and press the OK button.

Notes:

• The TUNER and AUX are fixed to the analog input, and cannot be selected for any digital input.

• When a DTS-LD or DTS-CD is playing, this setup is not available. This is to avoid noise being generated from the analog input.

• If “Dx-AT” is selected and a DVD, compact disc or LD is fast-forwarded during playback, decoded signals may produce a skipping sound. In such cases, change the setting to DIGITAL.

2 SPEAKER SETUP

After you have installed the SR5400, connected all the components, and determined the speaker layout, it is now time to perform the settings in the Speaker Setup menu for the optimum sound acoustics for your environment and speaker layout. Before you perform the following settings, it is important that you first determine the following characteristics:

2-1 SPEAKERS SIZE

When setting the speaker size in the SPEAKER SIZE sub-menu, use the guidelines given below.

LARGE:

The complete frequency range for the channel you are setting will be output from the speaker.

SMALL:

Frequencies of the channel you are setting lower than approx. 100 Hz will be output from the subwoofer. If the Subwoofer is set to “NONE” and the front speakers are set to “Large,” then the sound will be output from both the left and right speakers.

Select “SPEAKER SETUP” in MAIN SETUP MENU with the or cursor buttons, and press the OK button.

To select the each speaker , press the or cursor buttons.

To select the setting of each speaker size, press the or cursor buttons.

After you complete this portion of the set up, move the cursor to “NEXT” with the or cursor buttons and then press the OK button to go to the next page.

SUBWOOFER:

YES:

Select when a subwoofer is connected.

NONE:

Select when a subwoofer is not connected.

FRONT L/R

LARGE:

Select if the front speakers are large.

SMALL:

Select if the front speakers are small.

• If “NONE” is selected for the Subwoofer setting, then this setting is fixed to “Large.”

CENTER

NONE:

Select if no center speaker is connected.

LARGE:

Select if the center speaker is large.

SMALL:

Select if the center speaker is small.

SURROUND L/R

NONE:

Select if no surround left and right speakers are connected.

LARGE:

Select if the surround left and right speakers are large.

SMALL:

Select if the surround left and right speakers are small.

SURR. BACK

LARGE:

Select if the surround back speaker is large.

SMALL:

Select if the surround back speaker is small.

NONE:

Select if no surround back speaker is connected.

• If “None” is selected for the Surround L/R setting, then this setting is not available.

LPF/HPF

When you use a subwoofer, you can select the cutoff frequency for the small speakers used. Select one of the crossover frequency levels according to the size of the small speaker connected.

80Hz :

Select this when the bass speaker is about 12 cm (4 3/4 inches).

100Hz :

Select this when the bass speaker is about 10 cm (3 15/16 inches).

120Hz :

Select this when the bass speaker is about 8 cm (3 3/16 inches).

Notes:

•

Use the above comments as reference when adjusting.

• If S- Direct mode , 6.1CH Input is in use, this function does not take effect.

BASS MIX

• The bass mix setting is only valid when “LARGE” is set for the front speakers and “YES” is set for the subwoofer during stereo playback .

• When “BOTH” is selected, the low frequencies will be played through the main L&R, as well as the sub woofer.

In this playback mode, the low frequency range expand more uniformly through the room, but depending on the size and shape of the room, interference may result in a decrease of the actual volume of the low frequency range.

• By selecting “MIX”, the low frequencies will play through the main L&R ONLY.

Note:

LFE signals during playback of Dolby Digital or DTS, will be played through the sub woofer.

ENGLISH

2 - 2 S P EAKE RS D I STANCE

FRONT L : 10 f t 3 . 0 m FRONT R : 10 f t 3 . 0 m CENTER : 1 0 f t 3 . 0 m SURR . L : 10 f t 3 . 0 m SURR . R : 1 0 f t 3 . 0 m SUB W : 1 0 f t 3 . 0 m SURR . BACK : 1 0 f t 3 . 0 m

MA I N RETURN NEXT EX I T

2 - 3 SPEAKERS LEVEL

T EST MODE : MANUAL FRONT L : 0 dB CENTER : 0 dB FRONT R : 0 dB SURR . R : 0 d B SURR . BACK : 0 d B SURR . L : 0 dB SUB W : 0 dB MA I N RE T URN E X I T

3 PRE FERENCE

S TANDBY MODE : E CONOMY TV-AUTO :

∗∗∗ ∗∗∗

∗∗∗

OSD I NFO : ENABL E

MA I N EX I T

2-2 SPEAKERS DISTANCE

Use this parameter to specify the distance of each speaker’s position from the listening position. The delay time is automatically calculated according to these distances. Begin by determining the ideal or most commonly used seating position in the room. This is important for the timing of the acoustics to create the proper sound space that the SR5400 and today’s sound systems are able to produce. Note: For speakers that you have selected “None” the Speaker Configuration sub-menu will not appear here. (There are several useful books and special DVD and LD’s available to guide you through proper home theater configuration. If you are unsure, have your Marantz dealer perform the installation for you. They are trained professionals familiar with even the most sophisticated custom installations. Marantz recommends the WWW.CEDIA.ORG website for further information about this).

To select each speaker, press the or cursor buttons.

To set the distance for each speaker, press the or cursor buttons.

After you complete this portion of the set up, move the cursor to “NEXT” with the or cursor buttons and then press the OK button to go to the next page.

SURR. L:

Set the distance from the surround left speaker to your normal listening position between 1 and 30 feet in 1.0 foot intervals (0.3 to 9 meters in

0.3-meter intervals).

SURR. R :

Set the distance from the surround right speaker to your normal listening position between 1 and 30 feet in 1.0 foot intervals (0.3 to 9 meters in

0.3-meter intervals).

SUB W :

Set the distance from the subwoofer to your normal listening position between 1 and 30 feet in 1.0-foot intervals (0.3 to 9 meters in 0.3-meter intervals).

SURR. BACK:

Set the distance from a surround back speaker to your normal listening position between 1 and 30 feet in 1.0-foot intervals (0.3 to 9 meters in

0.3-meter intervals).

Notes

• For the speakers that you have selected "None" the Speaker Size menu will not appear.

2-3 SPEAKERS LEVEL

Here you will set the volume for each speaker so that they are all heard by the listener at the same level. We recommend using a SPL (Sound Pressure Level) meter, when available.

Note:

• The speaker level settings are not available in 6.1 channel input mode and S-Direct mode.

If you select “MANUAL”, adjust the output level of each speaker as listed below.

When you move the cursor to FRONT L by pressing the cursor button, the SR5400 will emit a pink noise from the front left speaker. Remember the level of this noise and then press the cursor button. (Note that this can be adjusted to any level between -10 and +10 dB in 1 dB intervals except the subwoofer setting. The subwoofer can be adjusted to any level between -15 and +10 dB in 1 dB intervals.) The SR5400 will now emit the pink noise from the center speaker.

Using the and cursor buttons, adjust the volume level of the noise from the center speaker so that it is the same level as the front left speaker.

Press the cursor button again. The SR5400 will now emit the pink noise from the front right speaker.

Repeat steps 2 and 3 above for the front right and other speakers until all speakers are adjusted to the same volume level.

After you complete this portion of the set up, press the OK button, the cursor will move to “MAIN” and then press the OK button to go to SETUP MAIN MENU.

Notes:

• Speakers that you selected “None” for in the Speaker Size menu will not appear.

• To adjust the speaker levels for 6.1-channel input sources, you will need to use the 6.1CH-INPUT sub menu. (See page 19).

3 PREFERENCE

Select “PREFERENCE” in the SETUP MAIN MENU with the or cursor buttons, and press the OK button.

To select a desired content, press the or cursor buttons.

STANDBY MODE:

When this function is set to “ECONOMY”, you can reduce the power consumption when the unit is in the standby mode.

Note:

•

TV-AUTO is disabled in the “ECONOMY” setting.

TV AUTO:

Select the TV AUTO ON/OFF function to enable or disable with the or cursor buttons. (refer to page 24)

OSD Info:

Select the OSD information function to enable or disable with the or cursor buttons. If you select “ENABLE”, the SR5400 will display the status of the feature (Volume up/down, input select, etc..) on the TV monitor. But if you do not desire this information, select “DISABLE ”.

After you complete this portion of the set up, move the cursor to “MAIN” with the or cursor buttons and press the OK button.

FRONT L :

Set the distance from the front left speaker to your normal listening position between 1 and 30 feet in 1.0 foot intervals (0.3 to 9 meters in 0.3meter intervals).

FRONT R :

Set the distance from the front right speaker to your normal listening position between 1 and 30 feet in 1.0 foot intervals (0.3 to 9 meters in 0.3-

meter intervals).

CENTER :

Set the distance from the center speaker to your normal listening position between 1 and 30 feet in 1.0 foot intervals (0.3 to 9 meters in 0.3-meter intervals).

TEST MODE :

Selects “MANUAL” or “AUTO” for generating the mode of the test tone with the or cursor buttons.

If you select “AUTO” , the test tone will be cycled through in a circular pattern which is Left →Center → Right → Surround Right → Surround Back → Surround Left → Subwoofer → Left →.. increments of 3 seconds for each channel. Using the or cursor buttons, adjust the volume level of the noise from the speaker so that it is the same level for all the speakers.

4 SURROUND

4 S URROUND

SURR . MODE : AU TO HT - EQ : OFF L FE LEVEL : 0 dB CENTER : 0 dB SURR L : 0 d B SURR R : 0 dB SURR BACK : 0 d B SUB W : 0 dB MA I N EX I T

5PL II MUS I C PARAMETER

PARAMETER : DEFAUL T

PANORAMA : OF F DIMENSION : 3 CENTER WI DTH : 3

MA I N E X I T

6CSII PARAME T ER

TRUBASS : 0

SRS D I A LOG : 0

MA I N E X I T

7 6 . 1 CH I NPUT LEVEL

FRONT L : 0 dB CENTER : 0 dB FRONT R : 0 dB SURR . R : 0 dB S U R R .BACK : 0 d B SURR . L : 0 d B SUB W : 0 dB

MA I N E X I T

Select “SURROUND” in the SETUP MAIN MENU with the or cursor buttons, and press the OK button.

To select a desired content , press the or cursor buttons.

SURR.MODE :

Select the desired surround mode with the or

cursor buttons.

HT-EQ :

Select to active the HT-EQ with the or cursor buttons. The tonal balance of a film soundtrack will be excessively bright and harsh when played back over audio equipment in the home. This is because film soundtracks were designed to be played back in large movie theater environments. Activating the HT-EQ feature when watching a film made for movie theaters corrects this and restores the correct tonal balance. The HT-EQ feature can be activated only while in Dolby Pro Logic Mode, or while decoding Dolby Digital or DTS encoded material.

LFE LEVEL :

Select the output level of the LFE signal included in the Dolby Digital signal or the DTS signal. Select 0 dB, -10 dB or OFF with the or cursor buttons.

CHANNEL LEVEL

CENTER LEVEL:

Set the effect level of the center speaker between –10 and +10 dB level in 1 dB level intervals.

• If “None” was selected for the Center speaker setting, in the Speaker size set up menu, then this setting will not appear.

SURR L LEVEL:

Set the level of the Surround left speaker between –10 and +10 dB level in 1 dB level intervals.

• If “None” was selected for the Surround left speaker setting, in the Speaker size set up menu, then this setting will not appear.

SURR R LEVEL:

Set the level of the Surround right speaker between –10 and +10 dB level in 1dB level intervals.

• If “None” was selected for the Surround right speaker setting, in the Speaker size set up menu, then this setting will not appear.

SURR BACK LEVEL:

Set the effect level of the Surround Back speaker between –10 and +10 dB level in 1 dB level intervals.

• If “None” was selected for the Surround back speakers setting, in the Speaker size set up menu, then this setting will not appear.

SUB W LEVEL:

Set the effect level of the subwoofer speaker between –15 and +10 dB level in 1 dB level intervals.

• If “None” was selected for the Subwoofer speaker setting, in the Speaker size set up menu, then this setting will not appear.

After you complete this portion of the set up, move the cursor to “MAIN” with the or cursor buttons and press the OK button.

5 PL II (PRO LOGIC II) MUSIC PARAMETER

Pro Logic II -Music mode creates a rich and enveloping surround ambience from stereo sources such as CDs. In this mode, SR5400 includes three controls to fine-tune the soundfield as follows.

Select “PRO LOGIC II ” in the SETUP MAIN MENU with the or cursor buttons, and press the OK button.

PARAMETER:

Select “DEFAULT” or “CUSTOM” with the or cursor buttons. If you select “CUSTOM”, you can adjust three parameters as listed below.

PANORAMA:

Select the Panorama mode On or Off with the or cursor buttons. Panorama wraps the sound of the front left and right speakers around you, for an exciting perspective.

DIMENSION:

Set the Dimension level between 0 and 6 level in 1 level intervals with the or cursor buttons. Adjust the soundfield either towards the front or towards the rear. This can be useful to help achieve a more suitable balance from all the speakers with certain recordings.

CENTER WIDTH:

Set the Center width level between 0 and 7 in 1 level intervals with the or cursor buttons. Center Width allows you to gradually spread the center channel sound into the front left and right speakers. At its widest setting, all the sound from the center is mixed into the left and right. This control may help achieve a more spacious sound or a better blend for the front image. If “None” was selected for the Center speaker setting, in the Speaker size set up menu, then this setting will not appear.

After you complete this portion of the set up, move the cursor to “MAIN” with the or cursor buttons and press the OK button.

6 CS II (CIRCLE SURROUND II) PARAMETER

Select “CS II” in the SETUP MAIN MENU with the or cursor buttons, and press the OK button.

To Select desired contents as below, press the or cursor buttons.

TRUBASS:

Set the TRUBASS level between 0 and 6 level in 1 level interval with the or cursor buttons. TRUBASS produced by the speakers are an octave below the actual physical capabilities of the speakers adding exciting, deeper bass effects.

SRS DIALOG:

Set the SRS DIALOG level between 0 and 6 in 1 level intervals with the or cursor buttons. This can be popped out of the surround audio effects, allowing the listener to easily discern what the actors say. If “NONE” was selected for the Center speaker setting, in the Speaker size set up menu, then this setting will not appear.

After you complete this portion of the set up, move the cursor to “MAIN” with the or cursor buttons and press the OK button.

7 6.1 CH INPUT LEVEL

This sub-menu is to adjust the speaker levels for

6.1-channel input sources. Here you will adjust the volume for each channel so that they are all heard by the listener at the same level.

Select “6.1CH IN” in the MAIN SETUP MENU with the or cursor buttons, and press the

OK button.

To Select desired channel, press the or cursor buttons.

Using the or cursor buttons, adjust the volume level of each channel.

After you complete this portion of the set up, move the cursor to “MAIN” with the or cursor buttons and press the OK button.

Note:

•

These settings will be memorized to 6.1CH INPUT source.

ENGLISH

ER SR5400

MEMORY

TUNING

MODE

CLEAR

DSS/VCR2

AUX

VCR1

DVD

CD-R

TAPE

TUNER

S-DIRECT DISPLAYA/D6.1CH INPUTVIDEO OFF

F/P

AV SURROUND RECEIVER SR5400

SELECTOR

MEMORY

CLEAR

POWER ON/STANDBY

PHONES

ENTER

STANDBY

SELECT

DSS/V

VCR1

DVD

6.1CH INPUTVIDEO OFF

VOLUME

DOWN

MODE

MUTE

AUX INPUT

S-VIDEO VIDEO L AUDIO R

ATT

CD-R

TAPE

TUNER

S-DIRECT DISPLAY

F/P

AV SURROUND RECEIVER SR5400

SELECTOR

MEMORY

CLEAR

POWER ON/STANDBY

PHONES

ENTER

STANDBY

SELECT

DSS/VC

VCR1

DVD

6.1CH INPUTVIDEO OFF

VOLUME

DOWN

MODE

MUTE

AUX INPUT

S-VIDEO VIDEO L AUDIO R

ATT

TAPE

TUNER

S-DIRECT DISPLAY

F/P

SLEEP

MUTE

AMPAUX

TUNERCDTAPE

CDR/MD

DVD

POWER

VCR1

DSS/VCR2

VOL.VOL.

MAIN

TUNE/SEARCH

TREBLE

CHANNEL/SKIP

BASS

A/D

P.SCAN

6.1CH IN

STEREO

M-CH ST

MEMO

CLEAR

DISPLAY

NIGHT

CSII EX/ES DSP

DTS

S-DIRECT

AUTO

T.TONE

MENU OFF

SETUP/

321

654

OSD

SLEEP

MUTE

AMPAUX

TUNERCDTAPE

CDR/MD

DVD

VCR1

DSS/VCR2

VOL.

MAIN

VOL.

DISC/DECK

PTY

ATT.

F.DIRECT

DISP./RDS

TUNE/SEARCH

MODE

CHANNEL/SKIP

A/D

P.SCAN

6.1CH IN

STEREO

M-CH ST

MEMO

CLEAR

DISPLAY

NIGHT

CSII EX/ES DSP

DTS

S-DIRECT

AUTO

321

654

9807

+/A

/VCR

/ANT

–/B

TREBLE

BASS

OSD

SLEEP

MUTE

AMPAUX

TUNERCDTAPE

CDR/MD

DVD

VCR1

DSS/VCR2

VOL.

MAIN

VOL.

BASIC OPERATION

(PLAY BACK)

SELECTING AN INPUT SOURCE.

Before you can listen to any input media, you must first select the input source on the SR5400.

Example : DVD

SELECTING THE SURROUND MODE

Example : AUTO SURROUND

ADJUSTING THE TONE (BASS & TREBLE) CONTROL.

TEMPORARILY TURNING OFF THE SOUND

To select DVD, simply press the DVD button on the front panel or press the DVD button on the remote. After you have selected DVD, simply turn on the DVD player and play the DVD.

•

As the input source is changed, the new input name will appear momentarily as OSD information on the video display. The input name will also appear in the display, on the front-panel.

•

As the input is changed, the SR5400 will automatically switch to the digital input, surround mode, attenuation, and night mode status which were entered during the configuration process for that source.

• When an audio source is selected, the last video input used remains routed to the VCR1 & DSS/ VCR2 Outputs and Monitor Outputs. This permits simultaneous viewing and listening to different sources.

• When a Video source is selected, the video signal for that input will be routed to the Monitor Outputs jacks and will be viewable on a TV monitor connected to the SR5400. If a component video input is connected to the DVD or DSS component inputs, it will be routed to the Component Video Output. Make certain that your TV is set to the proper input to view the signal.

To select the surround mode during playback, turn the SELECT knob on the front panel or press the surround mode button on the remote .

ADJUSTING THE MAIN VOLUME

Adjust the volume to a comfortable level using the

VOLUME control knob on the front panel or VOL / buttons on the remote.

To increase the volume, turn the VOLUME knob clockwise or press VOL button on the remote, to decrease the volume, turn counterclockwise or press

VOL button on the remote.

Notes:

•

The volume can be adjusted within the range of – ∞ to 18 dB, in steps of 1 dB.

•

However, when the channel level is set as described on page 18, if the volume for any channel is set at +1 dB or greater, the volume cannot be adjusted up to 18 dB.

(In this case the maximum volume adjustment range is “18 dB - Maximum value of channel level)

During a listening session you may wish to adjust the Bass and Treble Control to suit your listening tastes or room acoustics.

(Using the SR5400)

To change the selector mode , press the SELECT button, until "BASS" or "TREBLE" is shown on the front display. Turn the SELECTOR knob to the desired level of tone control.

(Using the remote control unit)

To adjust the bass effect, press BASS or BASS on the remote. To adjust the treble effect, press TREBLE or

TREBLE on the remote.

Notes :

• The tone control function can work in the AUTO Surround, Stereo, Dolby PL2, DTS, DTS-ES, and Multi Ch. Stereo mode.

To temporarily silence all speaker outputs such as when interrupted by a phone call, press the MUTE button on the front panel or MUTE button on the remote. This will interrupt the output to all speakers and the head-phone jack, but it will not affect any recording or dubbing that may be in progress. When the system is muted, the display will show “MUTE” . Press the MUTE button again to return to normal operation.

USING THE SLEEP TIMER

OFF 10 20 30 40

90 80 70 60 50

OSD

SLEEP

MUTE

AMPAUX

TUNERCDTAPE

CDR/MD

DVD

VCR1

DSS/VCR2

VOL.

MAIN

VOL.

TUNE/SEARCH

TREBLE

CHANNEL/SKIP

BASS

A/D

P.SCAN

6.1CH IN

STEREO

M-CH ST

MEMO

CLEAR

DISPLAY

NIGHT

CSII EX/ES DSP

DTS

S-DIRECT

AUTO

321

654

9807

T.TONE

MENU OFF

SETUP/

OSD

To program the SR5400 for automatic standby, press the SLEEP button on the remote. Each press of the button will increase the time before shut down in the following sequence.

The sleep time will be shown for a few seconds in the display on the front panel, and it will count down until the time has elapsed. When the programmed sleep time has elapsed, the unit will automatically turn off. Note that the SLEEP indicator on the display will illuminate when the Sleep function is programmed. To cancel the Sleep function, press the SLEEP button until the display shows “SLEEP OFF” and the SLEEP indicator will disappear.

NIGHT MODE

Press the NIGHT button on the remote to turn on the NIGHT mode. Selecting the Night Mode ON is effective in Dolby Digital only, and it compresses the dynamic range. This softens loud passages such as sudden explosions, to help prevent disturbing others late at night. To turn off the Night mode, press the NIGHT button again.

SURROUND MODE

The SR5400 is equipped with many surround modes. These are provided to reproduce a variety of surround sound effects, according to the content of the source to be played. The available surround modes may be restricted depending on the input signal and speaker setup.

AUTO

When this mode is selected, the receiver determines whether the digital input signal is Dolby Digital, Dolby Digital Surround EX, DTS, DTS-ES, DTS 96/24 or PCM-audio. Surround EX & DTS-ES will operate for multichannel source that has a Dolby Digital Surround EX or DTS-ES auto trigger flag in the digital signal. When a Dolby Digital or DTS signal is input, the number of channels for which the corresponding signal is encoded will be played. Inputting a Dolby Digital two channel signal with Dolby surround status automatically subjects that signal to Pro Logic II movie processing before play. PCM 96 kHz source material can be played in this mode.

Notes:

• When you use this mode with certain DVD and CD players, performing operations such as “Skip” or “Stop” may momentarily interrupt the output.

• When the signal is not decoded, the mode is changed to AUTO mode automatically. Refer to page 23 to confirm the available decoding mode.

MODE

(Dolby Digital, Pro Logic II MOVIE, Pro Logic MUSIC, Pro Logic)

This mode is used with source materials encoded in Dolby Digital and Dolby Surround.

DOLBY DIGITAL

This mode is enabled when playing source materials encoded in Dolby Digital. Playing multi-channel encoded 5.1-channel Dolby Digital sources provides five main audio channels (left, center, right, surround left and surround right) and Low Frequency Effect channel. Dolby Digital EX decoding is not available in this mode.

Dolby Pro Logic II brings the excitement of surround sound to any stereo mix, while making existing Dolby Surround mixes sound more like discrete 5.1 channels Surround sound. Dolby Pro Logic II has 3 modes. Please see below.

Pro Logic II MOVIE

This mode provides 5.1 channel surround sound from Dolby Surround encoded stereo movie sound tracks.

Pro Logic II MUSIC

This mode provides 5.1 channel surround sound from conventional stereo sources, analog or digital, such as CD, Tape, FM, TV, Stereo VCR, etc.

Pro Logic

This mode emulated original Dolby Pro Logic decoding (3/1 surround) suit for Dolby Surround encoded stereo movie soundtracks.

Notes:

•

Pro Logic II mode is available for a 2ch input signal which is encoded in Dolby Digital or PCM format.

• PCM-audio signals can be subjected to Pro Logic processing when the sampling frequency is 32 kHz, 44.1 kHz or 48 kHz.

EX/ES

This mode provides 6.1 channel surround for DOLBY DIGITAL EX, DTS-ES encoded source material such as DVD. This mode cannot be used when an analog input has been selected.

Dolby Digital EX

In a movie theater, film soundtracks that have been encoded with Dolby Digital surround EX technology are able to reproduce an extra channel which has been added during the mixing of the program. This channel, called Surround Back, places

sounds behind the listener in addition to the currently available front left, front center, front right, surround right, surround left and subwoofer channels. This additional channel provides the opportunity for more detailed imaging behind the listener and brings more depth, spacious ambience and sound localization than ever before. Dolby Digital EX is not available in the system without surround back speaker(s).

DTS-ES (Discrete 6.1, Matrix 6.1)

DTS-ES adds the surround center channel audio to the DTS 5.1-channel format to improve the acoustic positioning and makes acoustic image movement more natural with the 6.1-channel reproduction. This receiver incorporates a DTS-ES decoder, which can handle DTS-ES Discrete-encoded and DTS-ES Matrix-encoded program sources from DVD, etc.. DTS-ES Discrete 6.1 features digital discrete recording of all channels including the surround back channel(s) and higher quality of audio reproduction. DTS-ES is not available in the system without a surround back speaker.

dts MODE

(dts, Neo:6 Cinema, Neo:6 Music)

This mode is for DTS encoded source materials such as LASER DISC, CD, and DVD. Neo:6 is for some 2 channel sources.

dts : This mode is enabled when playing source materials encoded in dts multichannel. Playing multi-channel encoded 5.1-channel dts sources provides five main audio channels (left, center, right, surround left and surround right) and Low Frequency Effect channel. dts-ES decoding is not available in this mode. The DTS mode cannot be used when an analog input has been selected.

Neo:6 Cinema, Neo:6 Music

This mode decodes 2-channel signals into 6channel signals using high-accuracy digital matrix technology. The DTS NEO:6 decoder has near-discrete properties in the frequency characteristics of the channels as well as in channel separation. According to the signals to be played back, DTS NEO:6 uses either the NEO:6 CINEMA mode optimized for movie playback or the NEO:6 MUSIC mode optimized for music playback.

Note:

•

Neo:6 mode is available to 2ch input signals which are encoded in Dolby Digital or PCM format.

• PCM-audio signals can be subjected to Pro Logic processing when the sampling frequency is 32 kHz, 44.1 kHz or 48 kHz.

ENGLISH

MULTI CH. ST

This mode is used to create a wider, deeper and more natural soundstage from two channel source material. This is done by feeding the left channel signal to both left front and left surround speaker and the right channel signal to both right front and right surround speaker. Additionally, the center channel reproduces a mix of the right and left channel.

CIRCLE SURROUND II (CSII-CINEMA, CSII-MUSIC, CSII-MONO)

Circle Surround is designed to enable multichannel surround sound playback of non-encoded and multi-channel encoded material. B

ackward compatibility provides listeners with up to

6.1 channels of surround performance from your entire collection of music and film, including broadcast, videotape and stereo recorded music. Depending on source material, you can select CSII - Cinema mode, CSII -Music mode or CSII -Mono mode.

Note:

•

CS II mode is available for 2ch input signals which are encoded in Dolby Digital or PCM format.

• PCM-audio signals can be subjected to Pro Logic processing when the sampling frequency is 32 kHz, 44.1 kHz or 48 kHz.

VIRTUAL

This mode creates a virtualized surround sound experience from a two-speaker (front L and R) playback system playing any multi-channel audio source (such as found on DVDs and digital broadcasts), including Dolby Digital, Dolby Pro Logic or DTS.

STEREO

This mode bypasses all surround processing. In stereo program sources, the left and right channels play normally when PCM-audio or analog stereo is input. With Dolby Digital and DTS sources, the 5.1 multichannels are converted to two channel stereo. 96 kHz PCM source material can be played back in stereo mode.

S (SOURCE ) - DIRECT

In the source direct mode, the tone control circuit and bass management configuration are bypassed for full range frequency response and the purist audio reproduction. 96 kHz PCM source material can be played back in this mode.

Notes:

• Internal speaker size is setup to front L/R = Large, Center = Large, Surround L/R = Large and Subwoofer = Yes automatically. Tone controls and additional processing are also defeated.

• When you use this mode with certain DVD and CD players, performing operations such as “Skip” or “Stop” may momentarily interrupt the output.

CAUTION

NOTE for DTS signal

* Connected DVD-player, laser-disc player or CD-

player needs to support DTS-digital output. You may not be able to play some DTS source signals from certain CD players and LD players even if you connect the player to the SR5400 digitally. This is because the digital signal has been processed (such as the output level, sampling frequency, or frequency response) and the SR5400 cannot recognize the signal as DTS data.

* Depending on the player used, DTS play may

produce a short noise. This is not a malfunction.

* While signals from DTS-laser disc or CD are

playing in another Surround mode, you cannot switch to digital input or from digital input to analog input by INPUT SETUP in SETUP MAIN MENU or the A/D button.

* The outputs for the VCR 1 OUT, DSS/VCR 2

OUT, TAPE OUT, and CD-R OUT output analog audio signals. Do not record from CDs or LDs that support DTS using these outputs. If you do, the DTS-encoded signal will be recorded as noise.

NOTE for Dolby Digital Surround EX signal

* When playing Dolby Digital Surround EX-

encoded software in 6.1 channels, it is required to set the EX/ES mode.

* Note that some of Dolby Digital Surround EX-

encoded software does not contain the identification signal. In this case, set the EX/ES mode manually.

NOTE for 96kHz PCM audio

* AUTO, Source- DIRECT, and STEREO modes

can be used when playing PCM signals with a sampling frequency of 96 kHz (such as from DVD-Video discs that contain 24 bit, 96 kHz audio). If such signals are input during playback in one of the other surround modes, output from SR5400 will be muted.

* Certain DVD player models inhibit digital output.

For details, refer to the player’s operation manual.

* Some DVD formatted discs feature copy

protection. When using such discs, 96 kHz PCM signal is not outputted from the DVD player. For details, refer to the player's operation manual.

The relation between the selected surround mode and the input signal

The surround mode is selected with the surround mode selector on SR5400 or the remote control unit. However, the sound you hear is subject to the relationship between the selected surround mode and input signal. That relationship is as follows;

Note:

• Dolby Digital (2 ch: Lt/Rt): signal with Dolby Surround flag Speakers are full set.

• No sound outputs from the surround speaker, center speaker and subwoofer if the DVD disc has no surround data.

Abbrevations

L/R : Front speakers

C : Center speaker

SL/SR : Surround speakers

SB : Surround Back speaker

SubW : Sub woofer speaker

Surround Mode Input Signal Decoding

AUTO Dolby Surr. EX Dolby Digital EX

S-DIRECT Dolby D Surr. EX Dolby Digital EX

EX/ES Dolby D Surr. EX Dolby Digital EX

DOLBY Dolby D Surr. EX Dolby Digital 5.1 (PL

movie) Dolby D (5.1ch) Dolby Digital 5.1

(PL

music) Dolby D (2ch) Pro Logic

(Pro Logic) Dolby D (2ch Surr) Pro Logic

DTS DTS-ES DTS 5.1 (Neo:6 Cinema) DTS 96/24 DTS 96/24 (Neo:6 Music) DTS (5.1ch) DTS 5.1

CS II Cinema PCM (Audio) CS CS II Music Analog CS CS

Mono Dolby D (2ch) CS

STEREO Dolby Surr. EX Stereo

Virtual Dolby Surr. EX Virtual

Multi Ch. Dolby Surr. EX Dolby Digital EX Stereo Dolby D (5.1ch) Dolby Digital 5.1

Dolby D (5.1ch) Dolby Digital 5.1 Dolby D(2ch) Dolby Digital 2.0 Dolby D (2ch Surr) Pro Logic II movie DTS-ES DTS-ES DTS 96/24 DTS 96/24 DTS (5.1ch) DTS 5.1 PCM(Audio) PCM (Stereo) PCM 96kHz PCM (96kHz Stereo)O-- --PCM L, R Analog Stereo

Dolby D (5.1ch) Dolby Digital 5.1 Dolby D (2ch) Dolby Digital 2.0 Dolby D (2ch Surr) Pro Logic DTS-ES DTS-ES DTS 96/24 DTS 96/24 DTS (5.1ch) DTS 5.1 PCM (Audio) PCM (Stereo) PCM 96kHz PCM (96kHz Stereo)O-- --PCM L, R Analog Stereo

Dolby D (5.1ch) Dolby Digital EX DTS-ES DTS-ES DTS(5.1ch) DTS-ES

PCM (Audio) Pro Logic Analog Pro Logic

PCM (Audio) Neo:6 Analog Neo:6 Dolby D (2ch) Neo:6 Dolby D (2ch Surr) Neo:6

Dolby D (2ch Surr) CS

Dolby D (5.1ch) Stereo Dolby D (2ch) Stereo Dolby D (2ch Surr) Stereo DTS-ES Stereo DTS 96/24 Stereo DTS (5.1ch) Stereo PCM (Audio) Stereo PCM 96kHz Stereo Analog Stereo

Dolby D (5.1ch) Virtual Dolby D (2ch) Virtual Dolby D (2ch Surr) Virtual DTS-ES Virtual DTS (5.1ch) Virtual PCM (Audio) Virtual Analog Virtual

Dolby D (2ch) Multi Channel Stereo Dolby D (2ch Surr) Multi Channel Stereo DTS-ES DTS-ES DTS (5.1ch) DTS 5.1 PCM (Audio) Multi Channel Stereo Analog Multi Channel Stereo

movie

II II II II

Output Channel Front information display

SubW

L/R CSLSB

SR OOOOO2 DIGITAL L, C, R, SL, SR, S, LFE OOO-O2 DIGITAL L, C, R, SL,S R, LFE O

-- --2 DIGITAL L, R OOO OOOOO OOO-O OOO-O O

-- --PCM L, R

- - - - ANALOG OOOOO2 DIGITAL L, C, R, SL, SR, S, LFE OOO-O2 DIGITAL L, C, R, SL, SR, LFE O

-- --2 DIGITAL L, R OOO OOOOO OOO-O OOO-O O

-- --PCM L, R

- - - - ANALOG OOOOO2 DIGITAL L, C, R, SL, SR, S, LFE OOOOO2 DIGITAL L, C, R, SL, SR, LFE OOOOO OOOOO OOO-O2 DIGITAL L, C, R, SL, SR, S, LFE OOO-O2 DIGITAL L, C, R, SL, SR, LFE OOO OOO OOO OOO OOO-O OOO-O OOO-O OOOO OOOO OOOO-2 OOOO-2 OOOOO OOOOO OOOOO2 DIGITAL L, R OOOOO2 DIGITAL , 2 SURROUND L, R, S O

-- -O2 O

-- --2 DIGITAL L, R O

-- --2DIGITAL , 2 SURROUND L, R, S O

-- -Odts , ES L, C, R, SL, SR, S, LFE O

-- -Odts 96/24 L, C, R, SL, SR, LFE O

-- -Odts L, C, R, SL, SR, LFE O

-- --PCM L, R O

- - - - ANALOG O

-- --2 DIGITAL L, C, R, SL, SR, S, LFE O

-- --2 DIGITAL L, C, R, SL, SR, LFE O

-- --2 DIGITAL L, R O

-- --2 DIGITAL , 2 SURROUND L, R, S O

- - - - dts , ES L, C, R, SL, SR, S, LFE O

- - - - dts L, C, R, SL, SR, LFE O

-- --PCM L, R O

- - - - ANALOG OOOOO2 DIGITAL L, C, R, SL, SR, S, LFE OOO-O2 DIGITAL L, C, R, SL, SR, LFE OOOO-2 OOOO-2 OOOOO OOO-O OOOO OOOO

Signal format indicators Channel status

--2 DIGITAL , 2 SURROUND L, R, S dts , ES L, C, R, SL, SR, S, LFE dts 96/24 L, C, R, SL, SR, LFE dts L, C, R, SL, SR, LFE

--2 DIGITAL , 2 SURROUND L, , R, S dts , ES L, C, R, SL, SR, S, LFE dts 96/24 L, C, R, SL, SR, LFE dts L, C, R, SL, SR, LFE

dts , ES L, C, R, SL, SR, S, LFE dts L, C, R, SL, SR, LFE

--2 DIGITAL L, R

--2 DIGITAL , 2 SURROUND L, R, S

- - PCM L, R

- - ANALOG dts , ES L, C, R, SL, SR, S, LFE dts 96/24 L, C, R, SL, SR, LFE dts L, C, R, SL, SR, LFE

- PCM L, R

- ANALOG DIGITAL L, R DIGITAL , 2 SURROUND L, R, S

PCM L, R ANALOG -

DIGITAL L, C, R, SL, SR, S, LFE DIGITAL L, C, R, SL, SR, LFE

DIGITAL L, R DIGITAL , 2 SURROUND L, R, S

dts , ES L, C, R, SL, SR, S, LFE dts L, C, R, SL, SR, LFE

- PCM L, R

- ANALOG -

ENGLISH

AV SURROUND RECEIVER SR5400

SELECTOR

MEMORY

TUNINGCLEAR

POWER ON/STANDBY

PHONES

ENTER

STANDBY

SELECT

DSS/VCR2

AUX

VCR1

DVD

A/D6.1CH INPUTVIDEO OFF

VOLUME

DOWN

MODE

MUTE

AUX INPUT

S-VIDEO VIDEO L AUDIO R

ATT

CD-R

TAPE

TUNER

S-DIRECT DISPLAY

F/P

AV SURROUND RECEIVER SR5400

DOWN

MEMORY

TUNING

MODE

CLEAR

MUTE

PHONES

ENTER

S-VIDE

DSS/VCR2

AUX

VCR1

DVD

CD-R

TAPE

TUNER

S-DIRECT DISPLAY

A/D6.1CH INPUTVIDEO OFF

F/P

DISP MULTI AUTO TUNED ST V – OFF NIGHT PEAK ANALOG

DIGITAL

ATT

SLEEP

SURR

AUTO

DIRECT DISC 6.1 MTX 6.1 SPKR AB EQ

DIGITAL

SURROUND

PCM

LCR

SL S SR

LFE

AV SURROUND RECEIVER SR5400

MEMORY

TUNINGCLEAR

PHONES

ENTER

DSS/VCR2

AUX

VCR1

DVD

CD-R

TAPE

S-DIRECT

A/D6.1CH INPUTVIDEO OFF

F/P

DISP MULTI AUTO TUNED ST V – OFF NIGHT PEAK ANALOG

DIGITAL

ATT

SLEEP

SURR

AUTO

DIRECT DISC 6.1 MTX 6.1 SPKR AB EQ

DIGITAL

SURROUND

PCM

LCR

SL S SR

LFE

ROUND RECEIVER SR5400

MEMORY

TUNING

MODE

CLEAR

PHONES

ENTER

DSS/VCR2

AUX

VCR1

DVD

CD-R

TAPE

TUNER

S-DIRECT DISPLAY

A/D6.1CH INPUTVIDEO OFF

F/P

DISC/DECK

PTY

ATT.

F.DIRECT

DISP./RDS

TUNE/SEARCH

MODE

TREBLE

BASS

SYSTEM REMOTE CONTROLLER

RC5400SR

+/A

/VCR

/ANT

–/B

F.DIRECT

DISP./RDS

TUNE/SEARCH

MODE

TREBLE

CHANNEL/SKIP

BASS

A/D

P.SCAN

6.1CH IN

STEREO

M-CH ST

MEMO

CLEAR

DISPLAY

NIGHT

CSII EX/ES DSP

DTS

S-DIRECT

AUTO

321

654

9807

T.TONE

MENU OFF

SETUP/

F.DIRECT

DISP./RDS

TUNE/SEARCH

MODE

TREBLE

CHANNEL/SKIP

BASS

A/D

P.SCAN

6.1CH IN

STEREO

M-CH ST

MEMO

CLEAR

DISPLAY

NIGHT

CSII EX/ES DSP

DTS

S-DIRECT

AUTO

321

654

9807

T.TONE

MENU OFF

SETUP/

OTHER FUNCTION

TV AUTO ON/OFF FUNCTION

This function allows the component connected to the TV-VIDEO in jack to control the power (ON/ OFF) to the SR5400.

AUTO POWER ON

Be sure the TV auto mode is ENABLED. (Refer page 18 : System Setup)

Connect your TV TUNER (etc) to the TVVIDEO in terminal. Be sure to connect the VIDEO input.

Turn OFF the power to the TV TUNER and the SR5400.

Turn ON the TV TUNER and tune in a receivable station.

When the station is received, the SR5400 turns ON and TV is selected automatically.

AUTO POWER OFF

In the above situation, turn the TV TUNER OFF or select a channel that does not contain any broadcast.

The power to the SR5400 switches to STANDBY after approx. 5 minutes.

Notes:

• AUTO POWER OFF is canceled if the SR5400 is set to a source other than TV.

The function reactivates when TV is selected again.

• Some TV broadcasts may cause the TV AUTO FUNCTION to turn ON.

• The S-Video terminal does not support “TV AUTO ON/OFF” function.

ATTENUATION TO ANALOG INPUT SIGNAL

If the selected analog audio input signal is greater than the capable level of internal processing, the “PEAK” indicator will light up on the front display. If this happens, you should press the ATT button on the front panel or on the remote. “ATT” indicator will be illuminated when this function is activated. The signal-input level is reduced by about half. Attenuation will not work with the output signal of TAPE-OUT, CD-R/MD-OUT, VCR1-OUT and DSS/VCR2-OUT. This function is memorized for each individual input source.

LISTENING THROUGH HEADPHONES

This jack may be used to listen to the SR5400’s output through a pair of headphones. Be certain that the headphones have a standard 1/4" stereo phono plug. (Note that the speakers will automatically be turned off when the headphone jack is in use.)

Notes:

• When using headphones, the surround mode will change to STEREO and TruSurround (TS) headphones by SURROUND MODE selector.

• The surround mode returns to the previous setting as soon as the plug is removed from the jack.

VIDEO ON/OFF

When no video signal is connected to the SR5400 or a DVD, etc., is connected directly to your TV, the unnecessary video circuit can be turned off by selecting the “VIDEO OFF” setting. To select video off, press the VIDEO OFF button on the front panel.

DISPLAY MODE

You can select the display mode for the front display of the SR5400. To select this mode, press the DISPLAY on the remote control. When this button is pressed, the display mode is switched in the following sequence. → Surround Mode → Auto-display Off → Display

Off → Input Function → Surround Mode....

In Auto display off mode, the display is off. But, if you make a change to the unit such as input or surround mode, the display will show that change, then go back to off after about 3 seconds. When changing the volume, it is not displayed. In Display off mode, the display is off completely.

Notes:

• Only the DISP indicator will be illuminated on the front display, in display off condition

SELECTING ANALOG AUDIO INPUT OR DIGITAL AUDIO INPUT

If you have already assigned the digital inputs, you can temporarily select the audio input mode for each input source with the A/D button on the remote controller or front panel. When this button is pressed, the input mode is switched in the following sequence.

→ Digital Auto → Digital → Analog → Digital Auto....

In Digital Auto mode, the types of signals being input to the digital and analog input jacks for the selected input source are detected automatically. If no digital signal is being input, the analog input jacks are selected automatically. In Digital mode, input is fixed to an assigned digital input terminal. In analog mode, the analog input jacks are selected. This selecting is temporary, so the result will not be stored in memory. If you need to change the input mode completely, use SYSTEM SETUP in OSD menu system. (see page 17)

400

MEMORY

TUNING

MODE

CLEAR

DSS/VCR2

AUX

VCR1

DVD

CD-R

TAPE

TUNER

S-DIRECT DISPLAY

A/D6.1CH INPUTVIDEO OFF

F/P

1. 2.

V SURROUND RECEIVER SR5400

MEMORY

TUNINGCLEAR

PHONES

ENTER

DSS/VCR2

AUX

VCR1

DVD

CD-R

TAPE

S-DIRECT

A/D6.1CH INPUTVIDEO OFF

F/P

OUND RECEIVER SR5400

MEMORY

TUNING

MODE

CLEAR

HONES

NTER

DSS/VCR2

AUX

VCR1

DVD

CD-R

TAPE

TUNER

S-DIRECT DISPLAY

A/D6.1CH INPUTVIDEO OFF

F/P

OSD

SLEEP

MUTE

AMPAUX

TUNERCDTAPE

CDR/MD

DVD

POWER

VCR1

DSS/VCR2

VOL.VOL.

MAIN

OSD

SLEEP

MUTE

AMPAUX

TUNERCDTAPE

CDR/MD

DVD

VCR1

DSS/VCR2

VOL.VOL.

TV MAIN

F.DIRECT

DISP./RDS

TUNE/SEARCH

MODE

TREBLE

CHANNEL/SKIP

BASS

A/D

P.SCAN

6.1CH IN

STEREO

M-CH ST

MEMO

CLEAR

DISPLAY

NIGHT

CSII EX/ES DSP

DTS

S-DIRECT

AUTO

321

654

9807

T.TONE

MENU OFF

SETUP/

RECORDING AN ANALOG SOURCE

In normal operation, the audio or video source selected for listening through the SR5400 is sent to the record outputs. This means that any program you are watching or listening to may be recorded simply by placing machines connected to the outputs for TAPE OUT,

CD-R/MD OUT, VCR1 OUT, and DSS/VCR2 OUT

in the record mode.

To record the input source signal you are currently watching or listening to

Select the input source to record by pressing the corresponding input selector button. The input source is now selected and you may watch or listen to it as desired.

The currently selected input source signal is output to the TAPE OUT , CD-R/MD OUT, VCR1 OUT, and DSS/VCR2 OUT outputs for recording.

Start recording to the recording component as desired.

Recording the video from one source and the audio from another

You can add the sound from one source to the video of another source to make your own video recordings. Below is an example of recording the sound from a compact disc player connected to CD IN and the video from a video camera connected to AUX IN to video cassette recorder connected to the VCR1 OUT jack.

Press the AUX input source button to set video output.

Press the CD input source button to set audio output.

Now “CD” has been selected as the audio input source and “AUX” as the video input source.

Notes:

• If you change the input source during recording, you will record the signals from the newly selected input source.

• You cannot record the surround effects.

• Digital input signals are only output to the digital

outputs. There is no conversion from digital to analog .

When connecting CD players and other digital components, do not connect only the digital terminals, but the analog ones as well.

6.1 CH INPUT.

The SR5400 is equipped for future expansion through the use of Multi channel SACD multichannel player or DVD-Audio player. When this is selected, the input signals connected to the L(front left), R (front right), CENTER, SL (surround left), SR (surround right) and SB (surround back) channels of the 6.1 CH. In jacks are output directly to the front (left and right), center, surround (left and right) and surround back speaker systems as well as the pre-out jacks without passing through the surround circuitry. In addition, the signal input to the SW (subwoofer) jack is output to the PRE OUT SW (subwoofer) jack. When 6.1 CH. INPUT is selected, the last video input used remains routed to the Monitor Outputs. This permits simultaneous viewing with video sources.

Select a desired Video source to decide the routed video signal to the Monitor Outputs .

Press the 6.1 CH INPUT button on the front panel or press 6.1 CH IN on the remote to switch the 6.1 channel input.

If it is necessary to adjust the output level of each channel, use “6.1 Ch. INPUT LEVEL” in the OSD menu system as desired. Adjust the speaker output levels so that you can hear the same sound level from each speaker at the listening position. For the front left, front right, center, surround left, surround right and surround back speakers, the output levels can be adjusted between –10 to +10 dB. The subwoofer can be adjusted between –15 and +10 dB. These adjustments result will be stored to 6.1 Ch. INPUT memory. (see to page 19)

Adjust the main volume with the MAIN VOLUME knob or the VOL buttons on the remote.

To cancel the 6.1 Ch. INPUT setting, press the 6.1

CH INPUT button on the front panel or press 6.1 CH IN on the remote.

Notes:

• When the 6.1 Ch. Input is in use, you may not select a surround mode, as the external decoder determines processing.

• In addition, there is no signal at the record outputs when the 6.1 Ch. Input is in use.

ENGLISH

DOWN

MEMORY

TUNING

MODE

MUTE

S-VID

DSS/VCR2

AUX

VCR1

DVD

CD-R

TAPE

TUNER

S-DIRECT DISPLAY

A/D6.1CH INPUTFF

F/P

3. 2. 1.

DOWN

MEMORY

TUNING

MODE

MUTE

S-VI

DSS/VCR2

AUX

VCR1

DVD

CD-R

TAPE

TUNER

S-DIRECT DISPLAY

A/D6.1CH INPUTFF

F/P

3. 2. 1.

VOLUME

DOWN

MODE

MUTE

AUX INPUT

S-VIDEO VIDEO L AUDIO R

ATT

CD-R

TAPE

TUNER

S-DIRECT DISPLAY

F/P

AV SURROUND RECEIVER SR5400

SELECTOR

VOLUME

DOWN

MEMORY

TUNING

MODE

CLEAR

MUTE

POWER ON/STANDBY

PHONES

ENTER

STANDBY

AUX INPUT

S-VIDEO VIDEO L AUDIO R

ATT

SELECT

DSS/VCR2

AUX

VCR1

DVD

CD-R

TAPE

TUNER

S-DIRECT DISPLAY

A/D6.1CH INPUTVIDEO OFF

F/P

2.4.2.5. 1. 3.

RECEIVER SR5400

MEMORY

TUNING

CLEAR

DSS/VCR2

AUX

VCR1

DVD

CD-R

TAPE

S-DIRECT D

A/D6.1CH INPUTVIDEO OFF

F/P

2. 4. 3.

PTY

ATT.

F.DIRECT

DISP./RDS

TUNE/SEARCH

MODE

TREBLE

CHANNEL/SKIP

BASS

A/D

P.SCAN

MEMO

CLEAR

+/A

/VCR

/ANT

–/B

SLEEP

MUTE

AMPAUX

TUNERCDTAPE

CDR/MD

DVD

VCR1

DSS/VCR2

VOL.VOL.

TV MAIN

PTY

ATT.

F.DIRECT

DISP./RDS

TUNE/SEARCH

MODE

TREBLE

CHANNEL/SKIP

BASS

A/D

P.SCAN

MEMO

CLEAR

+/A

/VCR

/ANT

–/B

SLEEP

MUTE

AMPAUX

TUNERCDTAPE

CDR/MD

DVD

VCR1

DSS/VCR2

VOL.VOL.

TV MAIN

OSD

SLEEP

MUTE

AMPAUX

TUNERCDTAPE

CDR/MD

DVD

POWER

VCR1

DSS/VCR2

VOL.VOL.

DISC/DECK

PTY

ATT.

F.DIRECT

DISP./RDS

TUNE/SEARCH

MODE

TREBLE

CHANNEL/SKIP

BASS

A/D

P.SCAN

6.1CH IN

STEREO

M-CH ST

MEMO

CLEAR

DISPLAY

NIGHT

CSII EX/ES DSP

DTS

S-DIRECT

AUTO

321

654

9807

SYSTEM REMOTE CONTROLLER

+/A

/VCR

/ANT

–/B

DISC/DECK

PTY

ATT.

F.DIRECT

DISP./RDS

MODE

SYSTEM REMOTE CONTROLLER

RC5400SR

+/A

/VCR

/ANT

–/B

F.DIRECT

DISP./RDS

TUNE/SEARCH

MODE

TREBLE

CHANNEL/SKIP

BASS

A/D

P.SCAN

6.1CH IN

STEREO

M-CH ST

MEMO

CLEAR

DISPLAY

NIGHT

CSII EX/ES DSP

DTS

S-DIRECT

AUTO

321

654

9807

T.TONE

MENU OFF

SETUP/

BASIC OPERATION (TUNER)

LISTENING TO THE TUNER

Frequency scan step for AM is selectable. Default setup is 10 kHz step, if your country’s standard is 9 kHz step, Press TUNER button on the remote more than 6 seconds. Scan step will change.

Note:

•

Preset memory for the tuner will clear by changing this setup.

AUTO TUNING

(Using the SR5400)

(Using the remote control unit)

If tuning does not stop at the desired station, use to the “Manual tuning” operation.

To select tuner and desired band (FM or AM), press the TUNER button on the front panel. F/P button on the front panel to display the frequency. Press the TUNING or button on the front panel for more than 1 second to start the Auto tuning function. Automatic searching begins then stops when a station is tuned in.

To select tuner and desired band (FM or AM), press the TUNER button twice within in two seconds on the remote.

Press the

5 or

for more than 1 second on

the remote. Automatic searching begins then stops when a station is tuned in.

MANUAL TUNING

(Using the SR5400)

To select tuner and desired band (FM or AM), press the TUNER button on the front panel

Press the F/P (Frequency/Preset) button on front panel, to have the frequency appear on the display.

Press the TUNING or buttons.

(Using the remote control unit)

To select tuner and desired band (FM or AM), press the TUNER button twice within in two seconds on the remote.

Press the

5 or

6 on the remote to tune in the

desired station.

DIRECT FREQUENCY CALL

To select tuner and desired band (FM or AM), press the TUNER button twice within two seconds on the remote.

Press the F.DIR on the remote, display will show “FREQ - - - -”.

Input your desired station’s frequency with the ten numbered keypad on the remote.

The desired station will automatically be tuned.

(FM) TUNING MODE (AUTO STEREO OR MONO)

When in the auto stereo mode, AUTO indicator will be illuminated on the display.

The “ST” indicator is illuminated when a stereo broadcast is tuned in. At open frequencies, the noise is muted and the “TUNED” and “ST” indicators are not illuminated. If the signal is weak, it may be difficult to tune into the station in stereo. In such a case, press the

MODE button on the front panel or press the MODE

button on the remote. “AUTO” indicator is not illuminated, if FM stereo broadcasts are received in monaural and the “ST” indicator is not illuminated. To return to auto stereo mode, press the MODE button or press MODE button on the remote again. AUTO indicator is illuminated on the display.

MANUAL PRESET MEMORY

PRESET MEMORY

With this unit you can preset up to 50 FM/AM stations in any order. For each station, you can memorize the frequency and reception mode if desired.

AUTO PRESET MEMORY

This function automatically scans the FM and AM band and enters all stations with proper signal strength into the memory.

(Using the SR5400)

To select FM , press the TUNER button on the front panel. While pressing the MEMORY button, press the TUNING button up. “AUTO PRESET” will appear on the display, and scanning starts from the lowest frequency. Each time the tuner finds a station, scanning will pause and the station will be played for five seconds. During this time, the following operations are possible. The band can be changed by the TUNER button. If no button is pressed during this period, the current station is memorized in location Preset

02. If you wish to skip the current station, press the TUNING button during this period, this station is skipped and auto presetting continues. Operation stops automatically when all 50 preset memory positions are filled or when auto scanning attains the highest end of all bands. If you desire to stop the auto preset memory at anytime, press the CLEAR button.

Tune into the radio station you desire (Refer to the “MANUAL TUNING” or “AUTO TUNING” section). Press the MEMORY button on the front panel. “– –“ (preset number) starts blinking on the display. Select the preset number by pressing the TUNING or button, while this is still blinking (approx. 5 seconds) Press the MEMORY button again to enter. The display stops blinking. The station is now stored in the specified preset memory location.

EIVER SR5400

MEMORY

TUNING

MODE

CLEAR

DSS/VCR2

AUX

VCR1

DVD

CD-R

TAPE

TUNER

S-DIRECT DISPLAY

A/D6.1CH INPUTVIDEO OFF

F/P

2. 1.

V SURROUND RECEIVER SR5400

MEMORY

TUNINGCLEAR

PHONES

ENTER

DSS/VCR2

AUX

VCR1

DVD

CD-R

S-DIR

A/D6.1CH INPUTVIDEO OFF

2. 3.

AV SURROUND RECEIVER SR5400

SELECTOR

VOLUME

DOWN

MEMORY

TUNING

MODE

CLEAR

MUTE

POWER ON/STANDBY

PHONES

ENTER

STANDBY

AUX INPUT

S-VIDEO VIDEO L AUDIO R

ATT

SELECT

DSS/VCR2

AUX

VCR1

DVD

CD-R

TAPE

TUNER

S-DIRECT DISPLAY

A/D6.1CH INPUTVIDEO OFF

F/P

AV SURROUND RECEIVER SR5400

SELECTOR

VOLUME

DOWN

MEMORY

TUNING

MODE

CLEAR

MUTE

POWER ON/STANDBY

PHONES

ENTER

STANDBY

AUX INPUT

S-VIDEO VIDEO L AUDIO R

ATT

SELECT

DSS/VCR2

AUX

VCR1

DVD

CD-R

TAPE

TUNER

S-DIRECT DISPLAY

A/D6.1CH INPUTVIDEO OFF

F/P

2. 5. 6.5. 6. 4.4.

F.DIRECT

DISP./RDS

TUNE/SEARCH

MODE

TREBLE

CHANNEL/SKIP

BASS

A/D

P.SCAN

6.1CH IN

STEREO

M-CH ST

MEMO

CLEAR

DISPLAY

NIGHT

CSII EX/ES DSP

DTS

S-DIRECT

AUTO

321

654

9807

T.TONE

MENU OFF

SETUP/

PTY

ATT.

F.DIRECT

DISP./RDS

TUNE/SEARCH

MODE

TREBLE

CHANNEL/SKIP

BASS

A/D

P.SCAN

6.1CH IN

STEREO

M-CH ST

MEMO

CLEAR

DISPLAY

NIGHT

CSII EX/ES DSP

DTS

S-DIRECT

AUTO

321

654

9807

T.TONE

MENU OFF

SETUP/

+/A

/VCR

/ANT

–/B

DISC/DECK

PTY

ATT.

F.DIRECT

DISP./RDS

TUNE/SEARCH

MODE

TREBLE

CHANNEL/SKIP

BASS

A/D

P.SCAN

6.1CH IN

STEREO

M-CH ST

MEMO

CLEAR

DISPLAY

NIGHT

CSII EX/ES DSP

DTS

S-DIRECT

AUTO

321

654

9807

T.TONE

MENU OFF

SETUP/

+/A

/VCR

/ANT

–/B

DISC/DECK

PTY

ATT.

F.DIRECT

DISP./RDS

TUNE/SEARCH

MODE

TREBLE

CHANNEL/SKIP

BASS

A/D

P.SCAN

6.1CH IN

STEREO

M-CH ST

MEMO

CLEAR

DISPLAY

NIGHT

CSII EX/ES DSP

654

9807

SYSTEM REMOTE CONTROLLER

RC5400SR

+/A

/VCR

/ANT

–/B

2. 5. 6.

(Using the remote control unit)

Tune into the radio station you desire (Refer to the “MANUAL TUNING” or “AUTO TUNING” section).

Press the MEMO button on the remote. “– –“ (preset number) starts blinking on the display.

Enter the desired preset number by pressing the numeric buttons.

Note:

• When entering a single digit number (2 for example), either input “02” or just input “2” and wait for a few seconds.

RECALLING A PRESET STATION

(Using the SR5400)

Press the F/P button to show the preset station on the display.

Select the desired preset station by pressing the TUNING or buttons on the front panel

(Using the remote control unit)

Press the 4 or ¢ buttons to select the desired preset station, or input your desired preset channel with the numeric buttons on the remote.

PRESET SCAN

(Using the remote control unit)

Press the P.SCAN on the remote.

“PRESET SCAN” appears on the display and then the preset station with the lowest preset number is recalled first.

Preset stations are recalled in sequence (No.1 → No.2 → etc.) for 5 seconds each. No stored preset number will be skipped.

You can fast forward the preset stations by pressing the ¢ continuously. When the desired preset station is received, cancel the preset scan operation by pressing the CL button or P.SCAN on the remote.

CLEARING STORED PRESET STATIONS

You can remove preset stations from the memory using the following procedure.

Recall the preset number to be cleared with the method described in “Recalling” a preset station.

Press the MEMORY button on the front panel or press the MEMO button on the remote.

The stored preset number blinks in the display for 5 seconds. While blinking, press the

CLEAR button on the front panel or press the CL button on the remote.

“xx CLEAR” appears on the display to indicate that the specified preset number has been cleared.

Notes:

• To clear all stored preset stations, press and hold

the CLEAR and the F/P buttons for two seconds.

SORTING PRESET STATIONS

If you have stations memorized, and there is a gap in the sequential order: I.e. the stations are stored as follows

1) 87.1 MHz

2) 93.1 MHz

3) 94.7 MHz

10) 105.9 MHz (notice there is no stations programmed for pre sets for 4-9), you can have pre set 10 become pre set 5: To sort the numbers, press and hold the MEMORY and the F/P buttons. “PRESET SORT” will appear on the display and sorting will be done.

NAME INPUT OF THE PRESET STATION.

This function allows the name of each preset channel to be entered using alphanumeric characters. Before name inputting, you need to store preset stations with the preset memory operation.

Recall the preset number to be inputted name with the method described in “Recalling” a preset station.

Press the MEMORY button on the front panel or press the MEMO button on the remote for more than 3 seconds.

The left most column of the station name indicator flashes, indicating the character entry ready status.

When the SELECT knob is turned or you press

the

5 /

6 buttons on the remote, alphabetic

and numeric characters will be displayed in the following order:

A → B → C ... Z → 1 → 2 → 3 ..... 0 → – → +

→ / → (Blank) → A

UP →

← DOWN

After selecting the first character to be entered, press the MEMORY or ENTER buttons, press the MEMO button on the remote. The entry in this column is fixed and the next column starts to flash. Fill the next column the same way. To move back and forth between the characters, press the TUNING / buttons or press 4 or

buttons on the remote.

Note:

• Unused columns should be filled by entering blanks.

To save the name, press the MEMORY or the ENTER button, press the MEMO button on

the remote for more than 2 seconds.

Ten keypad Press, press again, press again, etc.

1A 2D 3G 4J 5M 6P 7S 8V 9Y 0 –

→ B → C → 1 →

→ E → F → 2 →

→ H → I → 3 →

→ K → L → 4 →

→ N → O → 5 →

→ Q → R → 6 →

→ T → U → 7 →

→ W → X → 8 →

→ Z →

space → 9 → Y

→ + → / →

D G J

ENGLISH

TROUBLESHOOTING

In case of trouble, check the following before calling for service:

1. Are the connections made properly ?

2. Are you operating the unit properly following the user’s guide ?

3. Are the power amplifiers and speaker working properly ?

If the unit does not operate properly, check items shown in the following table. If your trouble cannot be recovered with the remedy actions listed in the following table, malfunction of the internal circuitry is suspected; immediately unplug the power cable and contact your dealer, nearest Marantz authorized dealer or the Marantz Service Center in your country.

SYMPTOM

SR5400 cannot be turned up. No sound and picture are

output even when power is on.

No speaker output.

Incorrect Audio or Video for selected source.

Incorrect Audio from a channel.

No Audio output from the center channel speaker.

No Audio output from the surround speakers.

No Audio output from the surround back speakers.

The power plug is not connected. Mute is on. The input cable is not connected correctly.

The master volume control is turned all the way down.

The function selector position is wrong. The headphones are connected to the

headphone jack. Input cable connected incorrectly.

Speaker cable connected incorrectly.

The center speaker cable connection is incomplete.

STEREO has been selected for Surround mode.

Center = NONE has been selected in SETUP mode.

The surround speaker cable connection is incomplete.

STEREO has been selected for Surround mode.

Surround = NONE has been selected in SETUP mode.

The surround back speaker cable connection is incomplete.

Surround mode is not EX/ES mode. Surround back = NONE has been

selected in SPEAKERS SIZE SETUP

CAUSE

REMEDY

Connect the power plug to the outlet. Cancel mute using the remote control unit. See the connection diagram and connect the

cables correctly. Adjust the master volume.

Select correct position. Disconnect the headphones. (Speakers will not

output sound when headphones are connected.) Connect the cable correctly by referring to the

connection diagram.

Connect the cable correctly by referring to the connection diagram.

Connect the cable correctly.

When STEREO is selected for Surround mode, no sound will be output from the center speaker. Set another Surround mode.

Make the correct setting.

Connect the cable correctly.

When STEREO has been selected for Surround mode, no sound will be output from the surround speaker. Set another Surround mode.

Make the correct setting.

Connect the cable correctly.

Set surround mode EX/ES. Make the correct setting.

SYMPTOM

Can not select EX/ES mode.

Can not select Pro Logic mode.

Can not select Neo:6 mode.

Can not select CSII mode.

No output to Sub Woofer Out.

Noise is produced during DTSencoded CD or laser disc play.

A specific channel does not produce output.

FM or AM reception fails.

Noise is heard during AM reception.

Noise is heard during FM reception.

Cannot get programmed station when the PRESET button is pressed.

Control with the remote control unit fails.

Surround center= NONE has been selected in SPEAKERS SIZE SETUP

Input signal is incompatible.

Sub-woofer = NONE has been selected in SETUP mode.

Analog has been selected for input.

Nothing recorded on source.

Antenna connection is incomplete.

Reception is affected by other electrical fields.

The radio waves from the broadcasting station are weak.

Preset data has been erased.

Batteries are consumed. Remote controller's function-key

setting is wrong. The distance between this SR5400 and

the remote commander is too far. Something is blocking SR5400 and the

remote commander.

CAUSE

REMEDY

Make the correct setting.

Use 5.1channel source. Use 2 channel Dolby Digital input signal, PCM input

signal or analog input signal. Use 2 channel Dolby Digital input signal, PCM input

signal or analog input signal. Select Sub-woofer = YES.

Be sure to perform digital connection, select digital input, then play.

Check the encoded channel on the source side.

Correctly connect the indoor FM and AM antennas to FM and AM antenna outlets.

Try changing location where the AM indoor antenna is set up.

Install an FM outdoor antenna.

Disconnecting power plug for long periods of time will erase preset data. If that happens, input the preset data again.

Replace all the batteries with new ones. Select different position from which equipment will

be controlled. Move closer to this SR5400.

Remove offending object.

AV SURROUND RECEIVER SR5400

SELECTOR

VOLUME

DOWN

MEMORY

TUNING

MODE

CLEAR

MUTE

POWER ON/STANDBY

PHONES

ENTER

STANDBY

AUX INPUT

S-VIDEO VIDEO L AUDIO R

ATT

SELECT

DSS/VCR2

AUX

VCR1

DVD

CD-R

TAPE

TUNER

S-DIRECT DISPLAY

A/D6.1CH INPUTVIDEO OFF

F/P

162.3 mm

16.3 mm 146 mm

17-5/16 ins. (440 mm)

20 mm

5/8 ins. 5-3/4 ins. 1 in.

6-3/8 ins.

13/16 ins. 16-7/16 ins.

18-1/4 ins.

25 mm

418 mm

463 mm

GENERAL MALFUNCTION

AV SURROUND RECEIVER SR5400

SELECTOR

VOLUME

DOWN

MEMORY

TUNING

MODE

CLEAR

MUTE

POWER ON/STANDBY

PHONES

ENTER

STANDBY

AUX INPUT

S-VIDEO VIDEO L AUDIO R

ATT

SELECT

DSS/VCR2

AUX

VCR1

DVD

CD-R

TAPE

TUNER

S-DIRECT DISPLAY

A/D6.1CH INPUTVIDEO OFF

F/P

If the equipment malfunctions, this may be because an electrostatic discharge or AC line interference has corrupted the information in the equipment memory circuits. Therefore:

- disconnect the plug from the AC line supply

- after waiting at least three minutes, reconnect the plug to the AC line supply

- re-attempt to operate the equipment

Memory backup

• In case a power outage occurs or the power cord is accidentally unplugged, the SR5400 is equipped with a backup function to prevent memory data such as the preset memory from being erased.

HOW TO RESET THE UNIT

Should the operation or display seem to be abnormal, reset the unit with the following procedure. The SR5400 is turned on, press and hold the SELECT and ATT buttons simultaneously for 3 seconds or more. Remember that the procedure will reset the settings of the function selector, Surround mode, delay time, TUNER PRESET etc., to their initial settings.

TECHNICAL SPECIFICATIONS

FM TUNER SECTION

Frequency Range ................................ 87.5 - 108.0 MHz

Usable Sensitivity ............................ IHF 1.8 µV/16.4 dBf

Signal to Noise Ratio ................... Mono/Stereo 75/70 dB

Distortion .................................... Mono/Stereo 0.2/0.3 %

Stereo Separation ....................................... 1 kHz 45 dB

Alternate Channel Selectivity ...............± 300 kHz 60 dB

Image Rejection ....................................... 98 MHz 70 dB

Tuner Output Level ........... 1 kHz, ± 75 kHz Dev 800 mV

AM TUNER SECTION

Frequency Range .................................... 520 - 1710 kHz

Signal to Noise Ratio .............................................. 50 dB

Usable Sensitivity .........................................Loop 400µV

Distortion ................................. 400Hz, 30 % Mod. 0.5 %

Selectivity ...............................................± 20 kHz 70 dB

AUDIO SECTION

Power Output (20 Hz - 20 kHz/THD=0.08%)

Front L&R ........................................... 8 ohms 90 W / Ch

Center ................................................ 8 ohms 90 W / Ch

Surround L&R .................................... 8 ohms 90 W / Ch

Surround Back ................................... 8 ohms 90 W / Ch

Front L&R ......................................... 6 ohms 110 W / Ch

Center .............................................. 6 ohms 110 W / Ch

Surround L&R .................................. 6 ohms 110 W / Ch

Surround Back ................................. 6 ohms 110 W / Ch

Input Sensitivity/Impedance .............. 168mV/ 47 Kohms

Signal to Noise Ratio(Analog Input / Source Direct) ... 105 dB Frequency Response

(Analog Input / Source Direct)

VIDEO

GENERAL

ACCESSORIES

Specifications subject to change without prior notice.

.......................................... 8 Hz - 100 kHz (± 3 dB)

(Digital Input / 96 kHz PCM) ... 8 Hz - 45 kHz (± 3 dB)

Television Format .................................................. NTSC

Input Level/Impedance ...........................1 Vp-p/75 ohms

Output Level/Impedance ........................ 1 Vp-p/75 ohms

Video Frequency Response ....... 5 Hz to 8 MHz (– 1 dB)

Video Frequency (Component)

... 5 Hz to 80 MHz (– 1 dB)

S/N ......................................................................... 60 dB

Power Requirement .............................. AC 120 V 60 Hz

Power Consumption ..............................................400 W

Weight ................................................. 27.6 lbs (12.5 Kg)

Remote Control Unit RC5400SR .................................. 1

AAA-size batteries ........................................................ 2

FM Feeder Antenna ...................................................... 1

FM Antenna Converter .................................................. 1

AM Loop Antenna ......................................................... 1

DIMENSIONS

ENGLISH

SETUP CODES

Aiwa ............................................ 0151, 0184

Burmester.............................................. 0447

California Audio Labs .................. 0056, 0330

Carver ..................... 0184, 0206, 0326, 0464

DKK ....................................................... 0027

Denon.................................................... 0030

Emerson ............................................... 0332

Fisher .......................................... 0201, 0206

Garrard ........................................ 0420, 0447

Genexxa ...................................... 0059, 0332

Harman/Kardon ........................... 0184, 0200

Hitachi ................................................... 0059

JVC ....................................................... 0099

Kenwood ........................... 0055, 0064, 0217

Krell ....................................................... 0184

LXI ......................................................... 0332

Linn ....................................................... 0184

Luxman ........ 0062, 0120, 0293, 0354, 0355,

0457, 0459, 0510, 0516

MCS ..................................................... 0056

MTC ...................................................... 0447

Magnavox................................... 0184, 0332

Marantz ........ 0056, 0184, 0207, 1207, 0999,

Mission .................................................. 0184

NAD............... 0046, 0326, 0343, 0747, 0748

NSM ...................................................... 0184

Nakamichi ..... 0106, 0174, 0466, 0471, 0691

Nikko ..................................................... 0201

Onkyo .................................................... 0128

Optimus ........ 0027, 0059, 0064, 0172, 0206,

0332, 0447, 0464, 0495

Panasonic ................................... 0056, 0330

Parasound ............................................. 0447

Philips.................................................... 0184

Pioneer .................... 0059, 0271, 0332, 0495

Polk Audio ............................................. 0184

Proton.................................................... 0184

QED ...................................................... 0184

Quasar .................................................. 0056

RCA..... 0059, 0080, 0206, 0332, 0495, 0791

Realistic............................. 0206, 0207, 0447

Rotel ............................................ 0184, 0447

SAE ....................................................... 0184

Sansui ......................................... 0184, 0332

Sanyo .................................................... 0206

Scott ...................................................... 0332

Sears ..................................................... 0332

Sharp........................................... 0064, 0207

Sherwood .............................................. 0207

Sonic Frontiers ...................................... 0184

Sony ............................................ 0027, 0212

Soundesign ........................................... 0172

Tascam ................................................. 0447

Teac ........................ 0201, 0207, 0420, 0447

Technics ...................................... 0056, 0330

Toshiba ....................................... 0046, 0326

Victor ..................................................... 0099

Wards .......................................... 0080, 0184

Yamaha ....................................... 0063, 0214

Yorx ....................................................... 0488

MD PLAYERS

Denon.................................................... 1900

Kenwood ..................................... 1708, 1853

Marantz ................................................. 1207

Onkyo .................................................... 1895

Optimus ................................................. 1090

Pioneer .................................................. 1090

Sharp..................................................... 1888

Sherwood .............................................. 1094

Sony ...................................................... 1517

Yamaha ................................................. 1915

CDR

Marantz ................................................. 0999

TAPE

Aiwa ............................................ 0056, 0224

Carver ................................................... 0056

Denon.................................................... 0103

Garrard ........................................ 0335, 0336

Harman/Kardon ........................... 0056, 0209

JVC ............................................. 0271, 0300

Kenwood ............................................... 0097

Magnavox.............................................. 0056

Marantz ................................................. 0056

NAD....................................................... 0171

Onkyo .......................................... 0162, 0309

Optimus ....................................... 0054, 0247

Panasonic ............................................. 0256

Philips.................................................... 0056

Pioneer .............................. 0054, 0126, 0247

Polk Audio ............................................. 0056

RCA............................................. 0054, 0247

Samsung ..................................... 0418, 0419

Sansui ................................................... 0056

Sony .................................. 0197, 0270, 0318

Teac .............. 0307, 0335, 0336, 0418, 0419

Technics ................................................ 0256

Victor ..................................................... 0300

Wards .................................................... 0054

Yamaha ....................................... 0121, 0124

SAT (DSS)

AlphaStar .............................................. 0799

Echostar ...................................... 0802, 1032

Expressvu ............................................. 0802

General Instrument ........... 0388, 0654, 0896

HTS ....................................................... 0802

Hitachi ................................................... 0846

Hughes Network Systems ..................... 0776

JVC ....................................................... 0802

Jerrold ......................................... 0388, 0654

Magnavox.................................... 0749, 0751

Memorex ............................................... 0751

Next Level ............................................. 0896

Panasonic ............................................. 0728

Philips................................ 0749, 0751, 1103

Primestar ..................................... 0388, 0654

RCA......................... 0170, 0419, 0593, 0882

Radio Shack .......................................... 0896

Sony ...................................................... 0666

Star Choice ........................................... 0896

Toshiba ....................................... 0776, 0817

Uniden ......................................... 0749, 0751

Zenith .................................................... 0883

AOC ............................................ 0046, 0057

Admiral ........................................ 0120, 0490

Aiko ....................................................... 0119

Akai ....................................................... 0057

Alaron .................................................... 0206

Ambassador .......................................... 0204

America Action ...................................... 0207

Anam ..................................................... 0207

Audiovox ................. 0119, 0207, 0478, 0650

Baysonic................................................ 0207

Belcor .................................................... 0046

Bell & Howell ............................... 0043, 0181

Bradford ................................................ 0207

Brockwood ............................................ 0046

Broksonic .................................... 0263, 0490

CXC....................................................... 0207

Candle ......................................... 0057, 0083

Carnivale ............................................... 0057

Carver ................................................... 0081

Celebrity ................................................ 0027

Cineral ......................................... 0119, 0478

Citizen ..................... 0057, 0083, 0087, 0119

Concerto................................................ 0083

Contec ................................................... 0207

Craig...................................................... 0207

Crosley .................................................. 0081

Crown .................................................... 0207

Curtis Mathes ......... 0043, 0057, 0074, 0078,

0081, 0083, 0087, 0120, 0172,

0181, 0193, 0478, 1174, 1374

Daewoo ......... 0046, 0119, 0478, 0650, 0651

Daytron.................................................. 0046

Denon.................................................... 0172

Dumont........................................ 0044, 0046

Dwin ............................................ 0747, 0801

Electroband ........................................... 0027

Emerson ....... 0046, 0181, 0204, 0205, 0206,

0207, 0263, 0490, 0650, 0651

Envision................................................. 0057

Fisher .................................................... 0181

Fujitsu.......................................... 0206, 0710

Funai ........................................... 0206, 0207

Futuretech ............................................. 0207

GE ...... 0074, 0078, 0120, 0205, 0478, 1174,

1374

Gibralter ............................ 0044, 0046, 0057

GoldStar .................. 0046, 0057, 0083, 0205

Gradiente .................................... 0080, 0083

Grunpy ........................................ 0206, 0207

Hallmark ................................................ 0205

Harley Davidson .................................... 0206

Harman/Kardon ..................................... 0081

Harvard ................................................. 0207

Hitachi ............................... 0043, 0083, 0172

Infinity .................................................... 0081

Inteq ...................................................... 0044

JBL ........................................................ 0081

JCB ....................................................... 0027

JVC ....................................................... 0080

KEC ....................................................... 0207

KTV ............................................. 0057, 0207

Kenwood ..................................... 0046, 0057

LG ......................................................... 0083

LXI ................. 0074, 0081, 0181, 0183, 0205

Logik...................................................... 0043

Luxman ................................................. 0083

MGA ........................ 0046, 0057, 0177, 0205

MTC ........................ 0046, 0057, 0083, 0087

Magnavox................ 0057, 0081, 0206, 1281

Majestic ................................................. 0043

Marantz ............................. 0057, 0081, 1581

Matsushita ............................................. 0277

Megatron ..................................... 0172, 0205

Memorex ...... 0043, 0083, 0177, 0181, 0205,

......................................... 0206, 0277, 0490

Midland.............................. 0044, 0074, 0078

Mitsubishi ................ 0046, 0120, 0177, 0205

Motorola ................................................ 0120

Multitech ................................................ 0207

NAD................................... 0183, 0193, 0205

NEC................................... 0046, 0057, 0083

NTC ....................................................... 0119

Nikko ................................. 0057, 0119, 0205

Onwa ..................................................... 0207

Optimus ............................. 0181, 0193, 0277

Optonica ...................................... 0120, 0192

Orion ................................. 0206, 0263, 0490

Panasonic ................................... 0078, 0277

Penney ......... 0046, 0057, 0074, 0078, 0083,

0087, 0183, 0205, 1374

Philco ............ 0046, 0057, 0081, 0172, 0490

Philips.................................................... 0081

Pilot ............................................. 0046, 0057

Pioneer ........................................ 0193, 0706

Portland ....................................... 0046, 0119

Prism ..................................................... 0078

Proscan ................................................. 0074

Proton.................................................... 0205

Pulsar .......................................... 0044, 0046

Quasar .............................. 0078, 0192, 0277

RCA.... 0046, 0074, 0078, 0117, 0120, 0706,

1074, 1174, 1274, 1374, 1474

Radio Shack ........... 0046, 0057, 0074, 0083,

0181, 0192, 0205, 0207

Realistic........ 0046, 0057, 0083, 0181, 0192,

0205, 0207

Runco ................................ 0044, 0057, 0630

SSS ............................................. 0046, 0207

Sampo ................................................... 0057

Samsung ....... 0046, 0057, 0083, 0087, 0205

Sansei ................................................... 0478

Sansui ................................................... 0490

Sanyo .................................................... 0181

Scimitsu................................................. 0046

Scotch ................................................... 0205

Scott .............. 0046, 0205, 0206, 0207, 0263

Sears ............ 0074, 0081, 0083, 0181, 0183,

.................................................... 0205, 0206

Semivox ................................................ 0207

Semp ..................................................... 0183

Sharp................................. 0120, 0192, 0715

Shogun .................................................. 0046

Signature ............................................... 0043

Sony ...................................................... 0027

Soundesign ....................... 0205, 0206, 0207

Starlite ................................................... 0207

Supreme................................................ 0027

Sylvania....................................... 0057, 0081

TMK................................... 0083, 0204, 0205

TNCi ..................................................... 0 044

Tandy .................................................... 0120

Technics ...................................... 0078, 0277

Technol Ace .......................................... 0206

Techwood.................................... 0078, 0083

Teknika.....

................................................. 0177, 0206, 0207

Telefunken ............................................ 0083

Toshiba ................... 0087, 0181, 0183, 1283

Vector Research ................................... 0057

Victor ..................................................... 0080

Vidikron ................................................. 0081

Vidtech ........................................ 0046, 0205

Wards ........... 0043, 0046, 0057, 0081, 0083,

.......................................... 0192, 0205, 0206

White Westinghouse ......... 0490, 0650, 0651

Yamaha ....................................... 0046, 0057

Zenith ............ 0043, 0044, 0119, 0490, 0651

0043, 0046, 0081, 0083, 0087, 0119,

VCR

Admiral ........................................ 0075, 0236

Adventura .............................................. 0027

Aiko ....................................................... 0305

Aiwa ............................................ 0027, 0064

America Action ...................................... 0305

American High....................................... 0062

Asha ...................................................... 0267

Audiovox ............................................... 0064

Beaumark .............................................. 0267

Bell & Howell ......................................... 0131

Broksonic ................ 0148, 0211, 0236, 0506

CCE............................................. 0099, 0305

Calix ...................................................... 0064

Canon.................................................... 0062

Carver ................................................... 0108

Cineral ................................................... 0305

Citizen ......................................... 0064, 0305

Colt ........................................................ 0099

Craig........................ 0064, 0074, 0099, 0267

Curtis Mathes .................... 0062, 0087, 0189

Cybernex ............................................... 0267

Daewoo ....................................... 0072, 0305

Denon.................................................... 0069

Dynatech ............................................... 0027

Electrohome .......................................... 0064

Electrophonic ........................................ 0064

Emerex .................................................. 0059

Emerson ...... 0027, 0064, 0070, 0148, 0211,

0236, 0305, 0506

Fisher .......................................... 0074, 0131

Fuji ........................................................ 0062

Funai ..................................................... 0027

GE ........................... 0062, 0075, 0087, 0267

Garrard .................................................. 0027

Go Video ............................................... 0459

GoldStar ................................................ 0064

Gradiente .............................................. 0027

HI-Q....................................................... 0074

Harley Davidson .................................... 0027

Harman/Kardon ..................................... 0108

Harwood ................................................ 0099

Hitachi ......................................... 0027, 0069

Hughes Network Systems ..................... 0069

JVC ....................................................... 0094

KEC ............................................. 0064, 0305

KLH ....................................................... 0099

Kenwood ............................................... 0094

Kodak .......................................... 0062, 0064

LXI ......................................................... 0064

Lloyd’s ................................................... 0027

Logik...................................................... 0099

MEI ........................................................ 0062

MGA ............................................ 0070, 0267

MGN Technology .................................. 0267

MTC ............................................ 0027, 0267

Magnasonic ........................................... 0305

Magnavox................ 0027, 0062, 0066, 0108

Magnin .................................................. 0267

Marantz ............................. 0062, 0108, 1408

Marta ..................................................... 0064

Matsushita ................................... 0062, 0189

Memorex ...... 0027, 0062, 0064, 0066, 0074,

0075, 0131, 0189, 0236, 0267,

0506, 1064, 1189, 1289

Minolta................................................... 0069

Mitsubishi .......................... 0070, 0075, 0094

Motorola ...................................... 0062, 0075

Multitech ...................................... 0027, 0099

NAD....................................................... 0085

NEC............................................. 0094, 0131

Nikko ..................................................... 0064

Noblex ................................................... 0267

Olympus ................................................ 0062

Optimus ........ 0064, 0075, 0085, 0131, 0189,

0459, 1075, 1089, 1189, 1289

Orion ................................. 0211, 0236, 0506

Panasonic .... 0062, 0189, 0252, 0643, 1089,

1189, 1289

Penney .................... 0062, 0064, 0069, 0267

Pentax ................................................... 0069

Philco ................................ 0062, 0236, 0506

Philips............ 0062, 0108, 0645, 1108, 1208

Pilot ....................................................... 0064

Pioneer ....................................... 0085, 0094

Polk Audio ............................................. 0108

Profitronic .............................................. 0267

Proscan ................................................. 0087

Protec .................................................... 0099

Pulsar .................................................... 0066

Quasar .............................. 0062, 0189, 1189

RCA..... 0062, 0069, 0075, 0085, 0087, 0267

Radio Shack ................................ 0027, 1064

Radix ..................................................... 0064

Randex .................................................. 0064

Realistic0027, 0062, 0064, 0074, 0075, 0131

ReplayTV .................................... 0641, 0643

Runco .................................................... 0066

STS ....................................................... 0069

Samsung ..................................... 0072, 0267

Sanky .......................................... 0066, 0075

Sansui ..................... 0027, 0094, 0236, 0506

Sanyo ................................ 0074, 0131, 0267

Scott ........................ 0070, 0072, 0148, 0211

Sears ... 0027, 0062, 0064, 0069, 0074, 0131

Semp ..................................................... 0072

Sharp..................................................... 0075

Shintom ................................................. 0099

Shogun .................................................. 0267

Singer .................................................... 0099

Sony ........................ 0027, 0059, 0062, 1059

Sylvania................... 0027, 0062, 0070, 0108

Symphonic ............................................ 0027

TMK....................................................... 0267

Teac ...................................................... 0027

Technics ...................................... 0062, 0189

Teknika.............................. 0027, 0062, 0064

Thomas ................................................. 0027

Tivo ....................................................... 0645

Toshiba ....................................... 0070, 0072

Totevision .................................... 0064, 0267

Unitech .................................................. 0267

Vector .................................................... 0072

Video Concepts ..................................... 0072

Videosonic............................................. 0267

Wards ........... 0027, 0062, 0069, 0074, 0075,

0087, 0099, 0108, 0267

White Westinghouse ......... 0099, 0236, 0305

XR-1000 ............................ 0027, 0062, 0099

Zenith ...................... 0027, 0066, 0236, 0506

DVD

Aiwa ...................................................... 0668

Apex ...................................................... 0699

Denon.......................................... 0517, 0661

Fisher .................................................... 0697

GE ......................................................... 0549

Harman/Kardon ..................................... 0609

Hitachi ................................................... 0691

Hiteker ................................................... 0699

JVC ............................................. 0585, 0650

Kenwood ..................................... 0561, 0709

Magnavox.................................... 0530, 0702

Marantz ................................................. 0566

Mitsubishi .............................................. 0548

Onkyo .......................................... 0530, 0654

Optimus ................................................. 0598

Oritron ................................................... 0678

Panasonic ................................... 0517, 0659

Philips.......................................... 0530, 0566

Pioneer .............................. 0552, 0598, 0659

Proscan ................................................. 0549

RCA............................................. 0549, 0598

Samsung ............................................... 0600

Sharp..................................................... 0657

Sony ...................................................... 0560

Technics ................................................ 0517

Theta Digital .......................................... 0598

Toshiba ................................................. 0530

Yamaha ....................................... 0517, 0572

Zenith .......................................... 0530, 0618

iii

www.marantz.com

You can find your nearest authorized distributor or dealer on our website.

JAPAN Marantz Japan, Inc. 35-1 Sagami Ohno 7-Chome, Sagamihara-shi, Kanagawa 228-8505, Japan U.S.A. Marantz America, Inc. 1100 Maplewood Drive, Itasca, IL 60143, U.S.A. EUROPE Marantz Europe B.V. P.O. Box 8744, 5605 LS Eindhoven, The Netherlands

Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic” and the double-D symbol are trademarks of Dolby Laboratories. Confidential Unpublished Works. © 1992-1997 Dolby Laboratories, Inc. All rights reserved.

Manufactured under license from Digital Theater Systems, Inc. US Pat. No. 5,451,942 and other worldwide patents issues and pending. “DTS” and “DTS Digital Surround” are trademarks of Digital Theater Systems, Inc. © 1996 Digital Theater Systems, Inc. All rights reserved.

is a registered trademark.

2003/07 ECMf 27AW851250Printed in China

Marantz SR5400U User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
