Marantz SR5013 User Manual

Contents Connections Playback Settings Tips Appendix

AV Surround Receiver

SR5013

Front panel Display Rear panel Remote Index

Owner’s Manual

Contents Connections Playback Settings Tips Appendix

Accessories

Inserting the batteries Operating range of the remote control unit

Features

High quality sound High performance Easy operation

Part names and functions

Front panel Display Rear panel Remote control unit

Connections

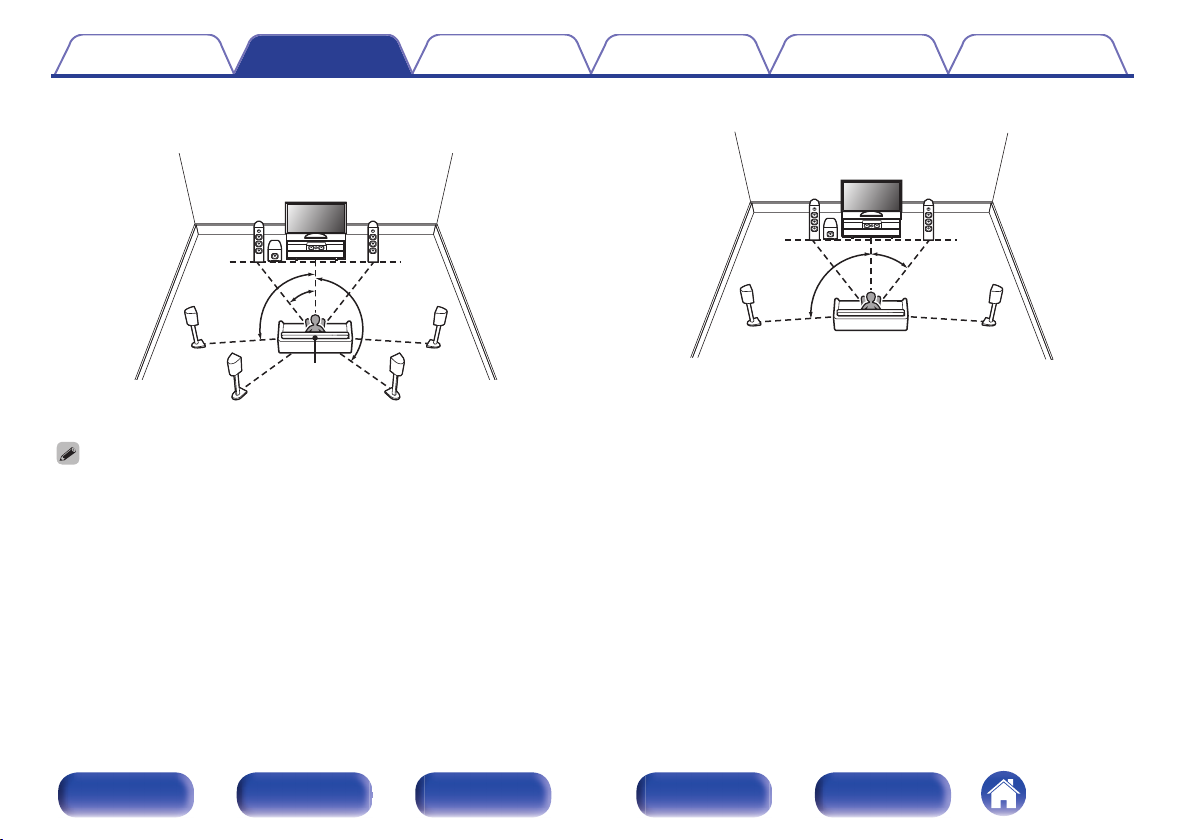

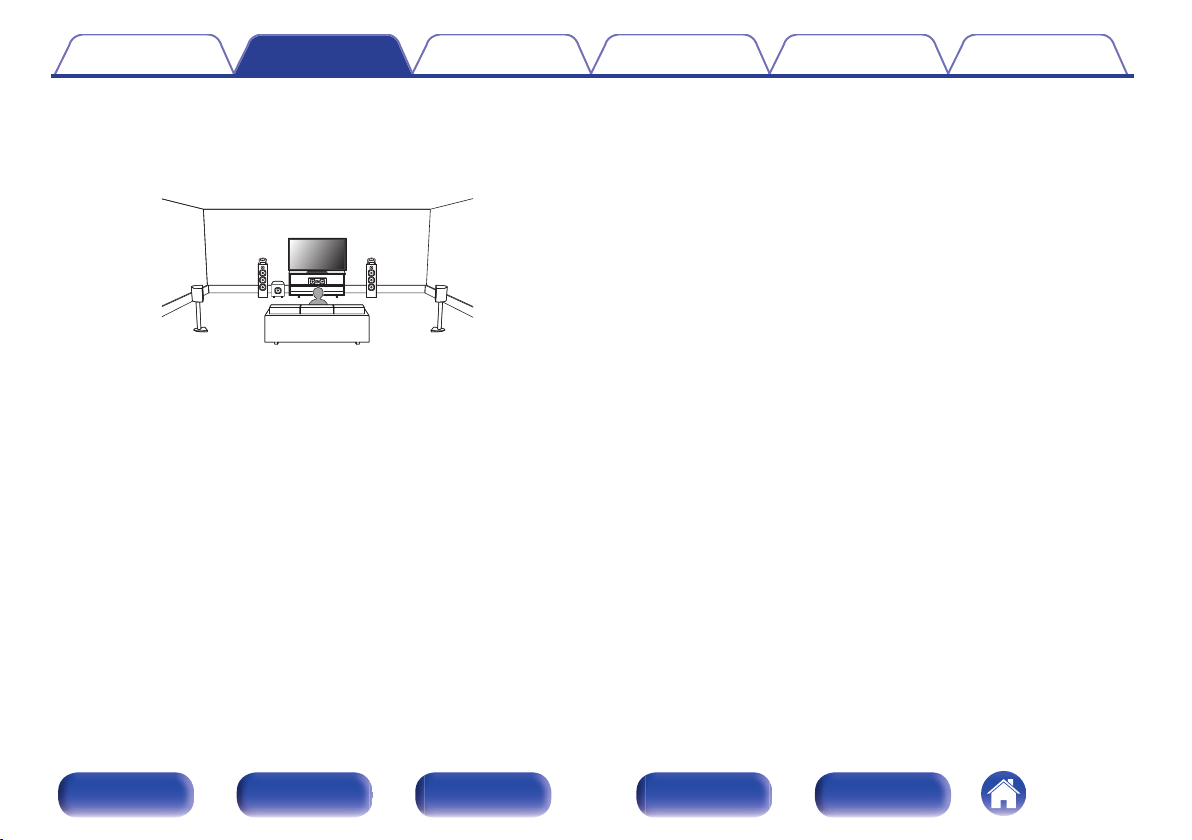

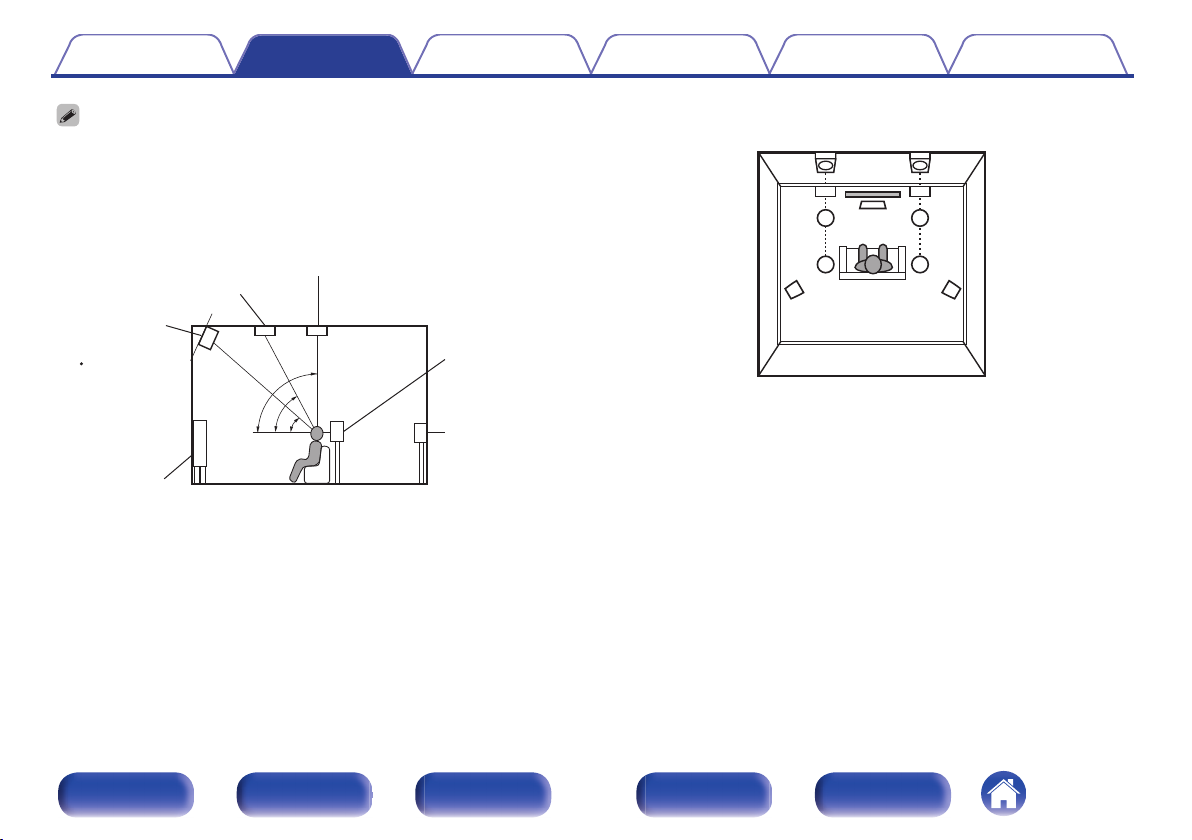

Speaker installation Connecting speakers

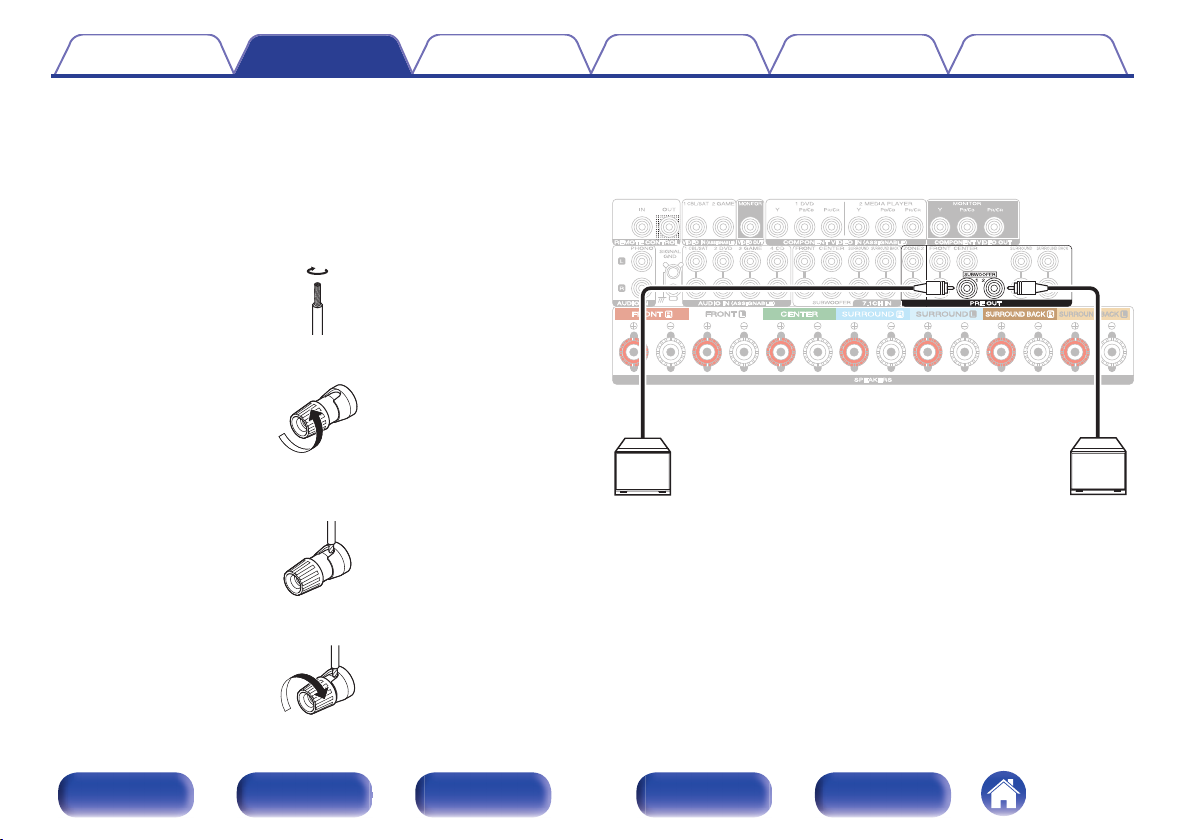

Before connecting speakers Speaker configuration and “Amp Assign” settings Connecting 5.1-channel speakers Connecting 7.1-channel speakers Connecting 5.1-channel speakers: Bi-amp connection of front

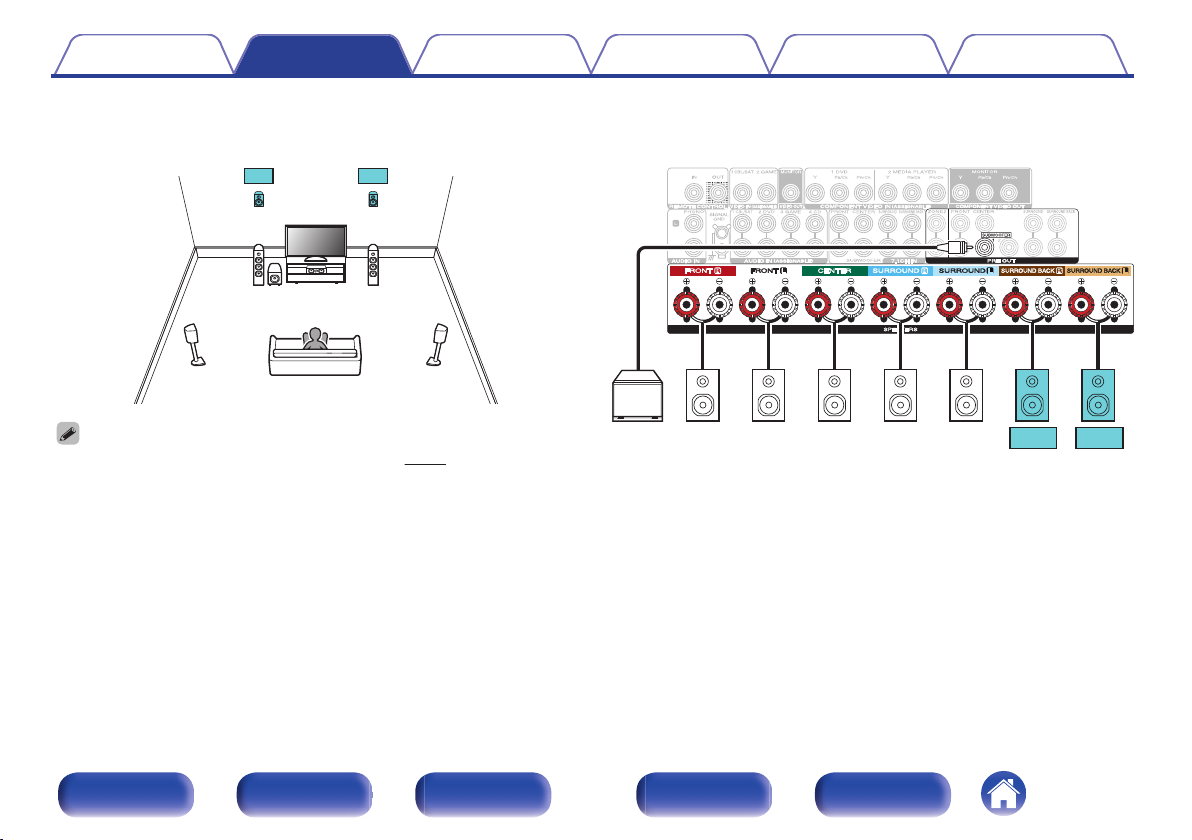

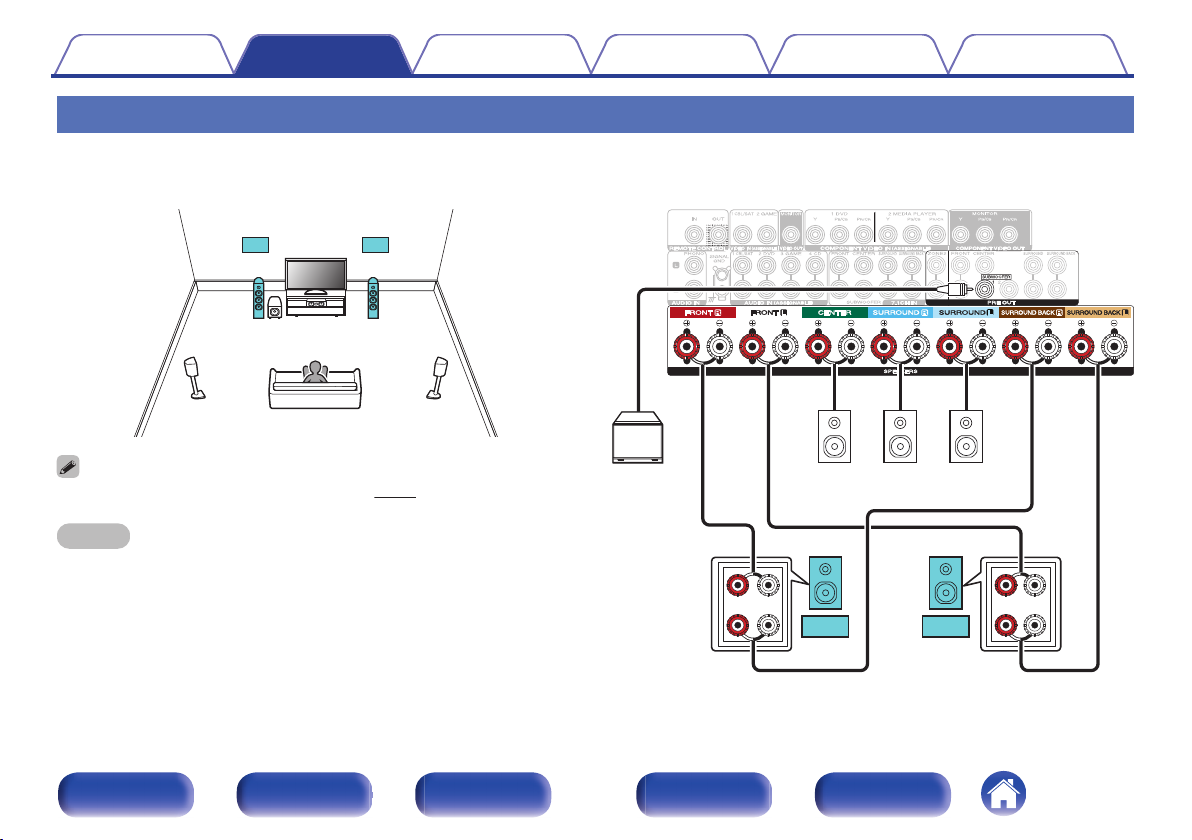

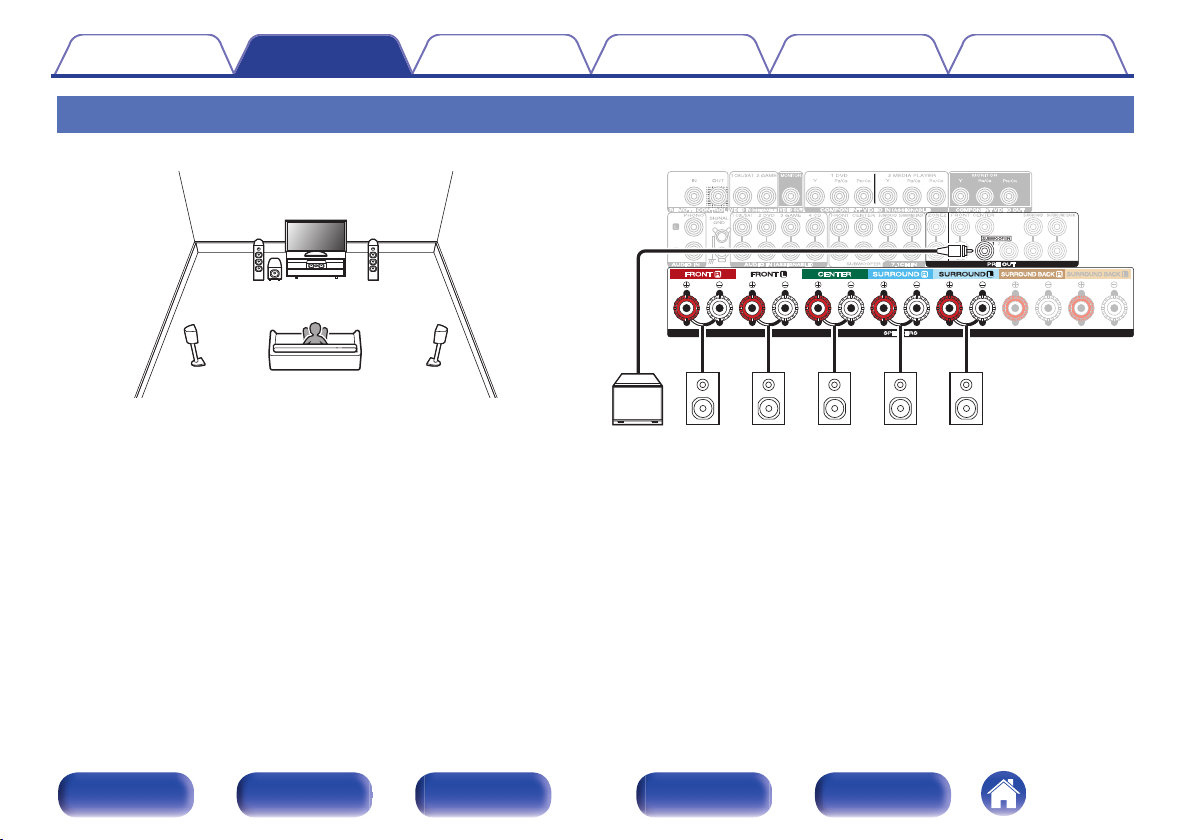

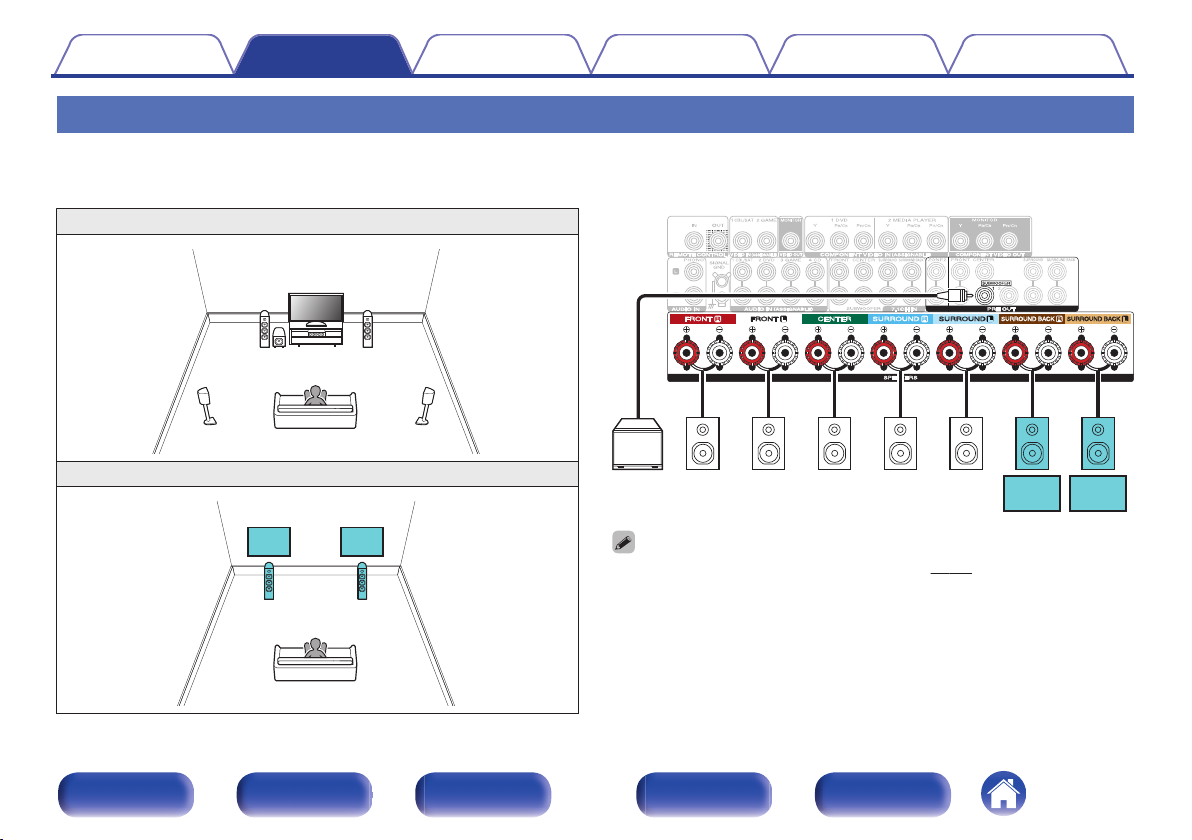

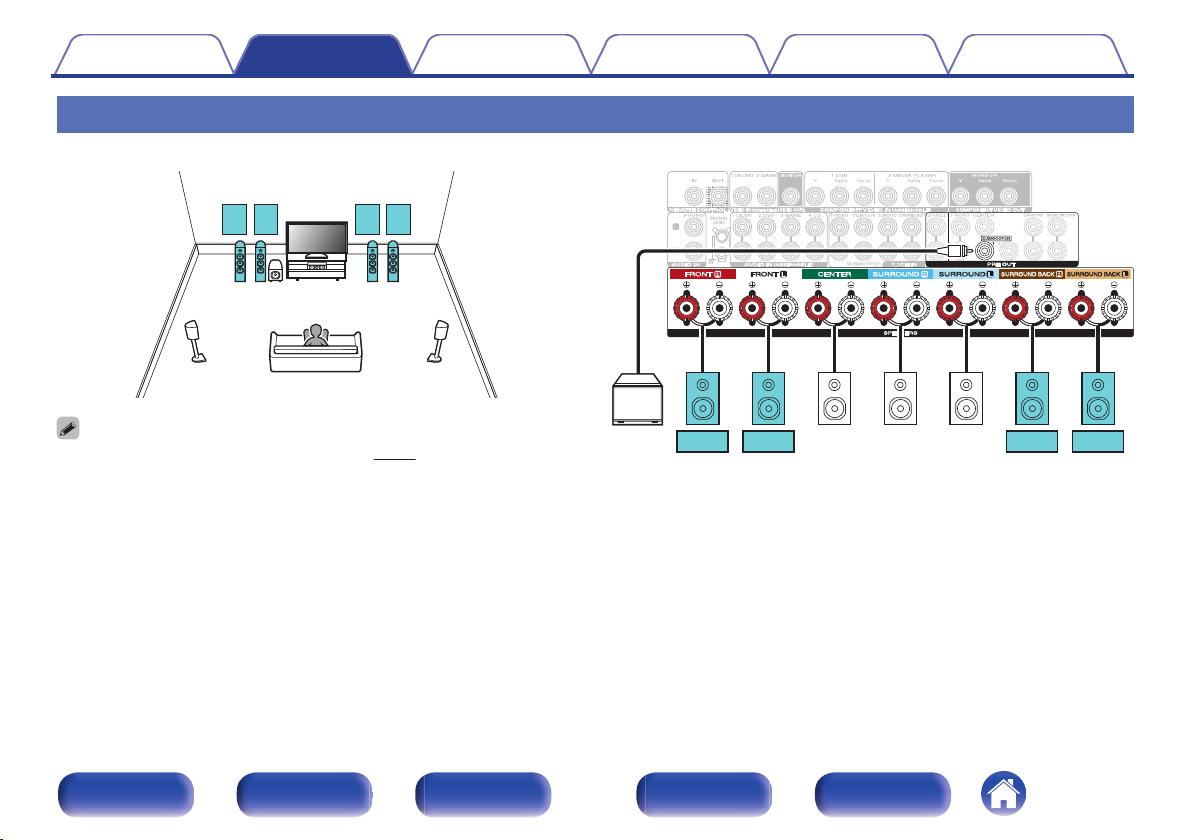

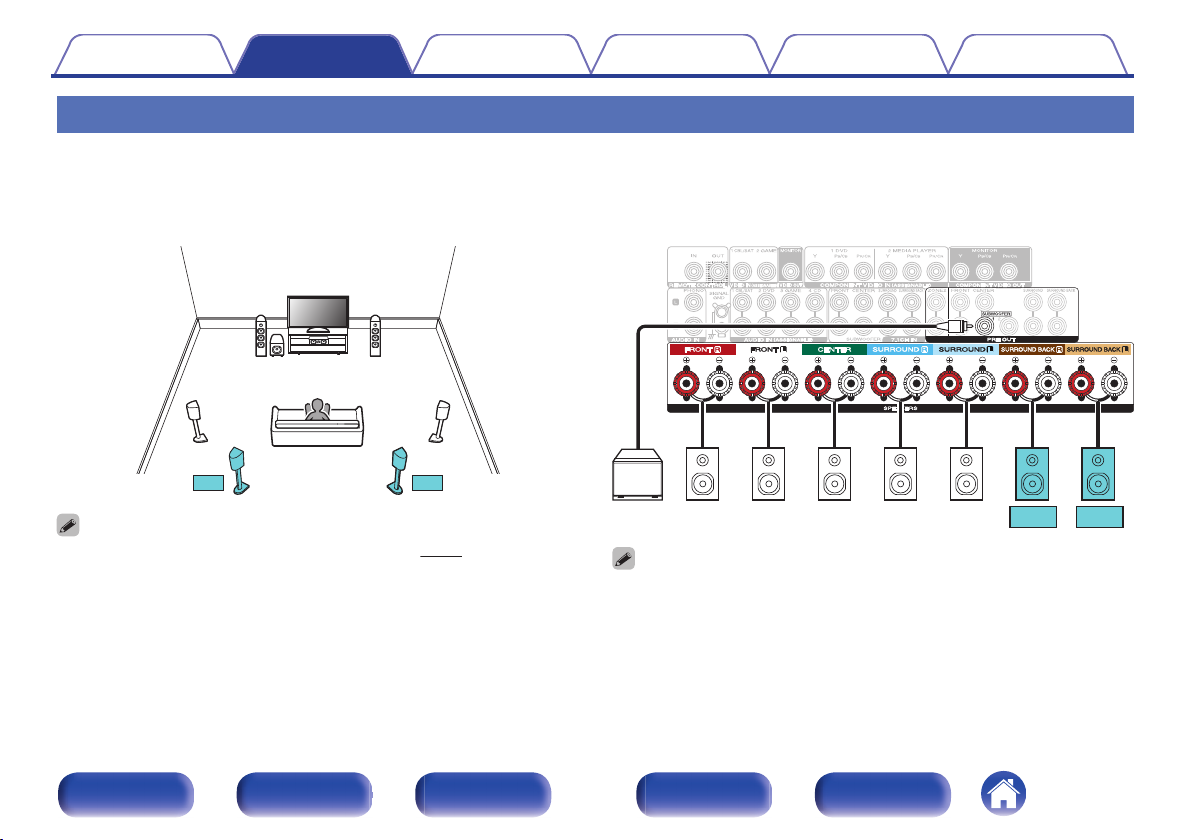

speaker Connecting 5.1-channel speakers: Second pair of front speaker Connecting multi-zone speakers

Connecting a TV

Connection 1 : TV equipped with an HDMI connector and

compatible with the ARC (Audio Return Channel)

10 11 15

16 19 21 25

29 36

36 40 41 42

48 49 50

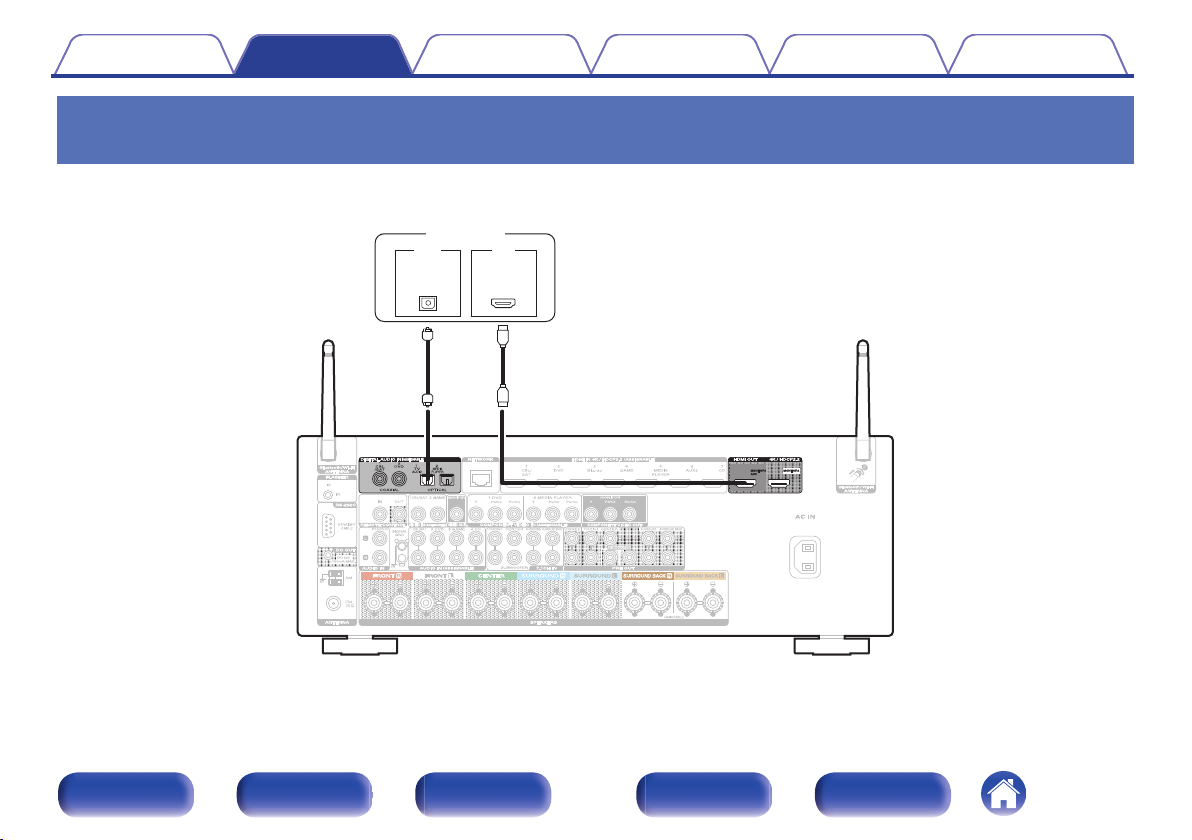

Connection 2 : TV equipped with an HDMI connector and incompatible with the ARC (Audio Return Channel)

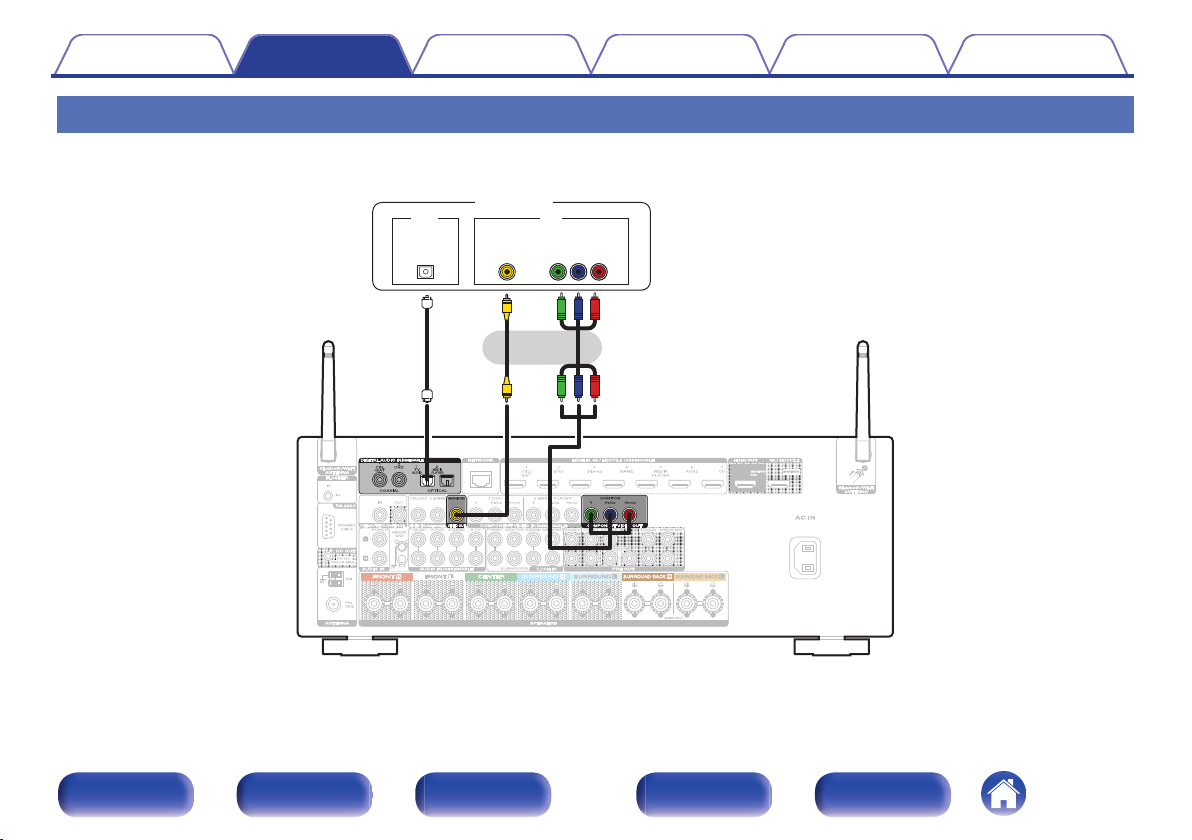

Connection 3 : TV equipped without an HDMI connector

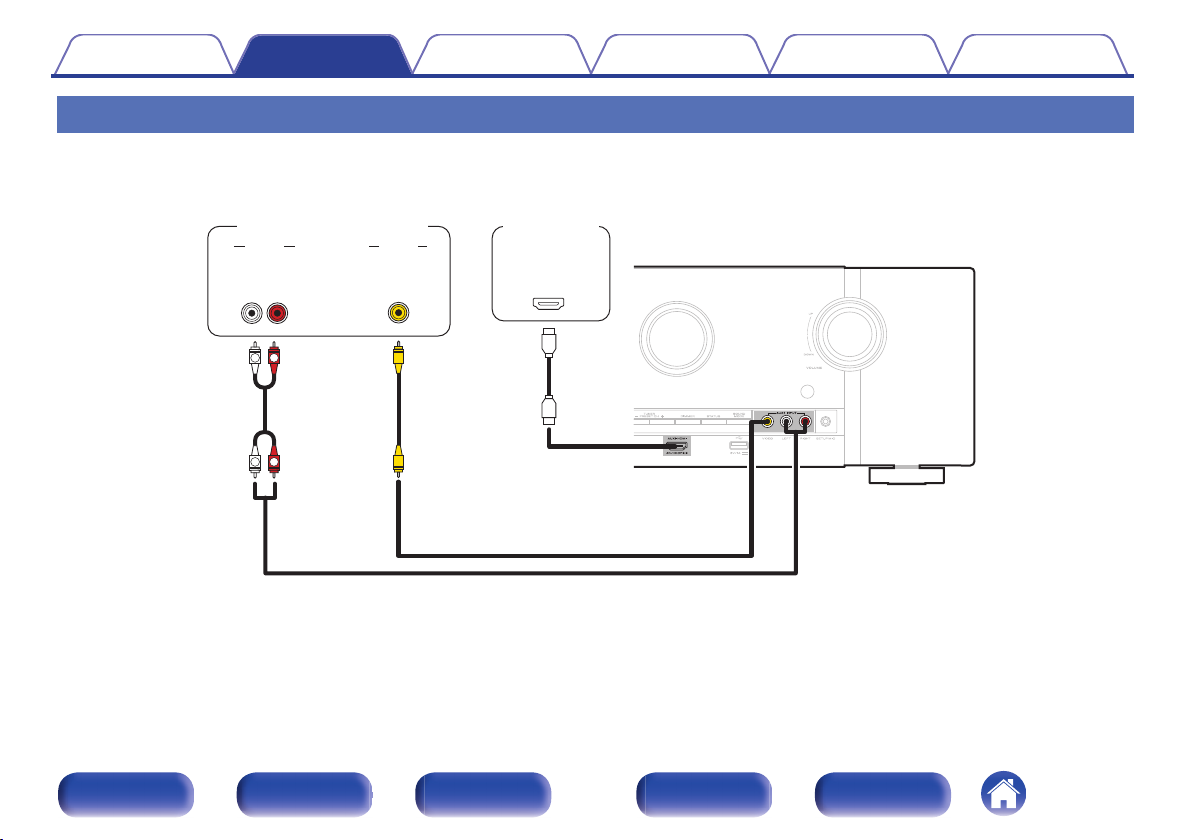

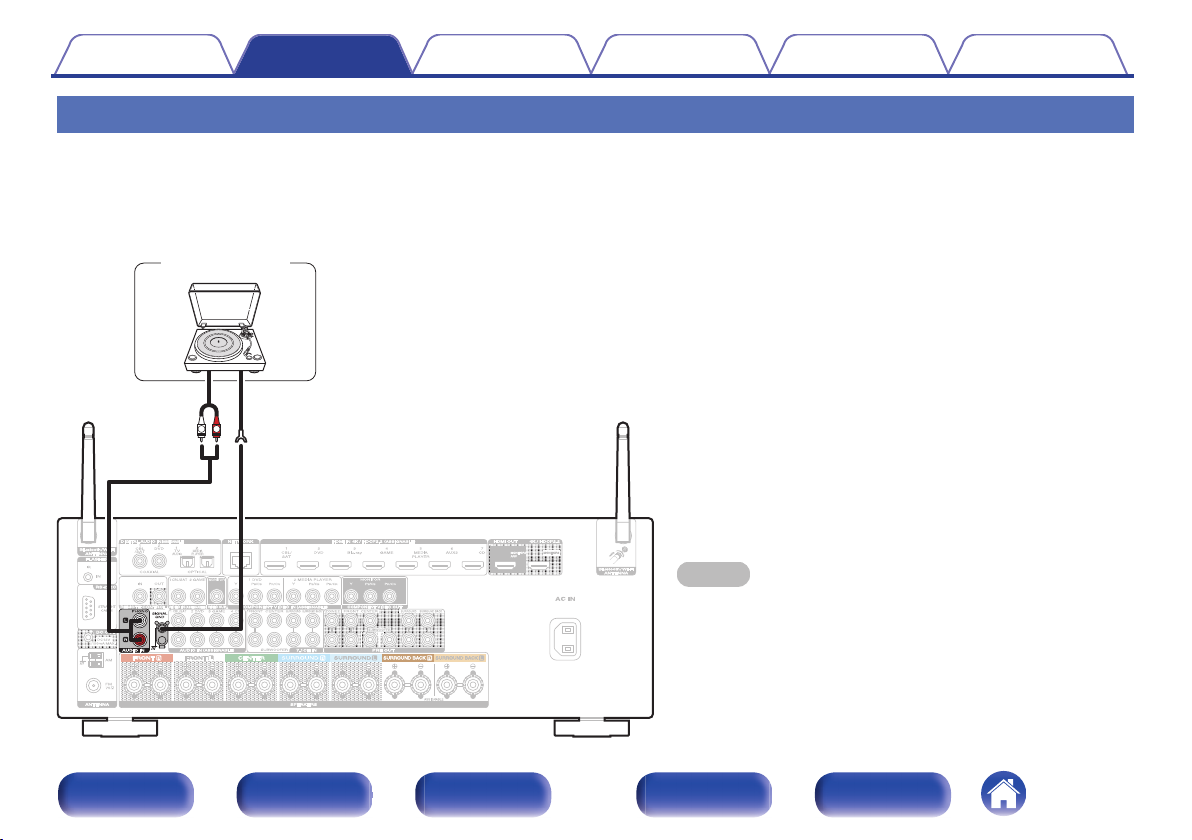

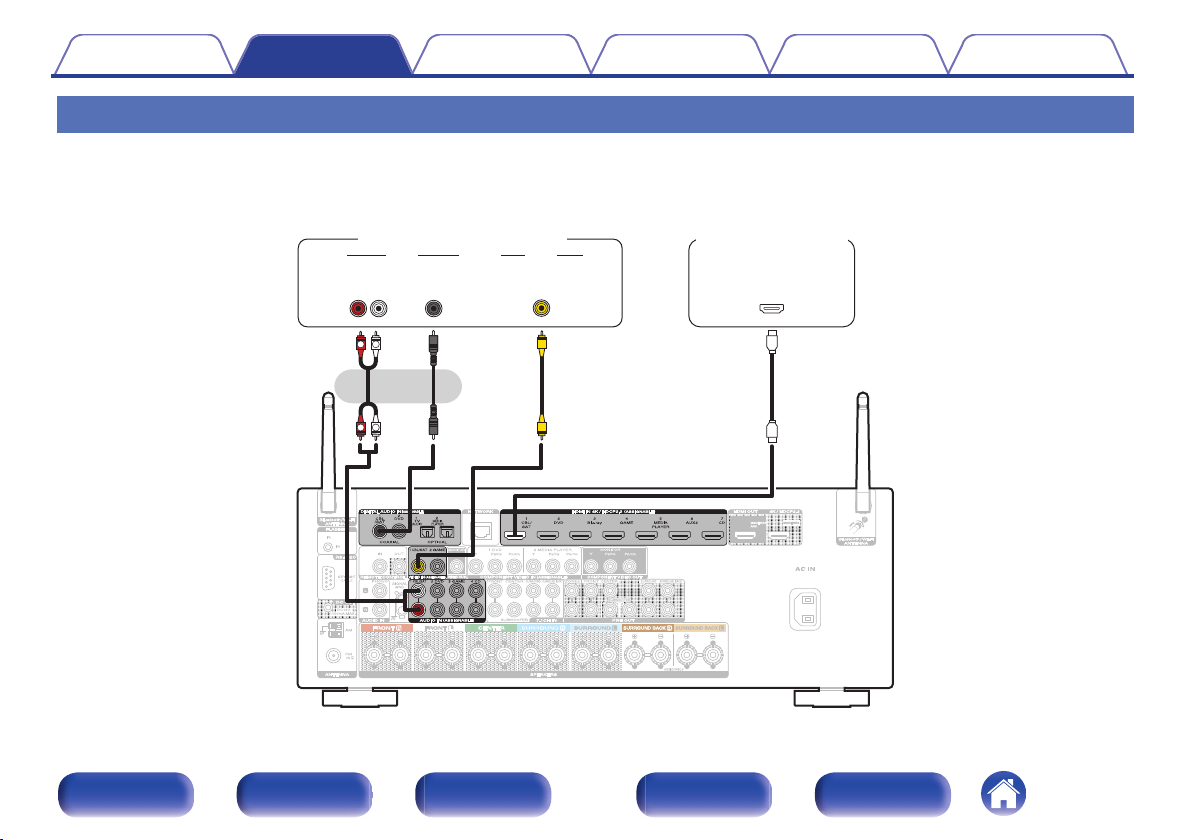

Connecting a playback device

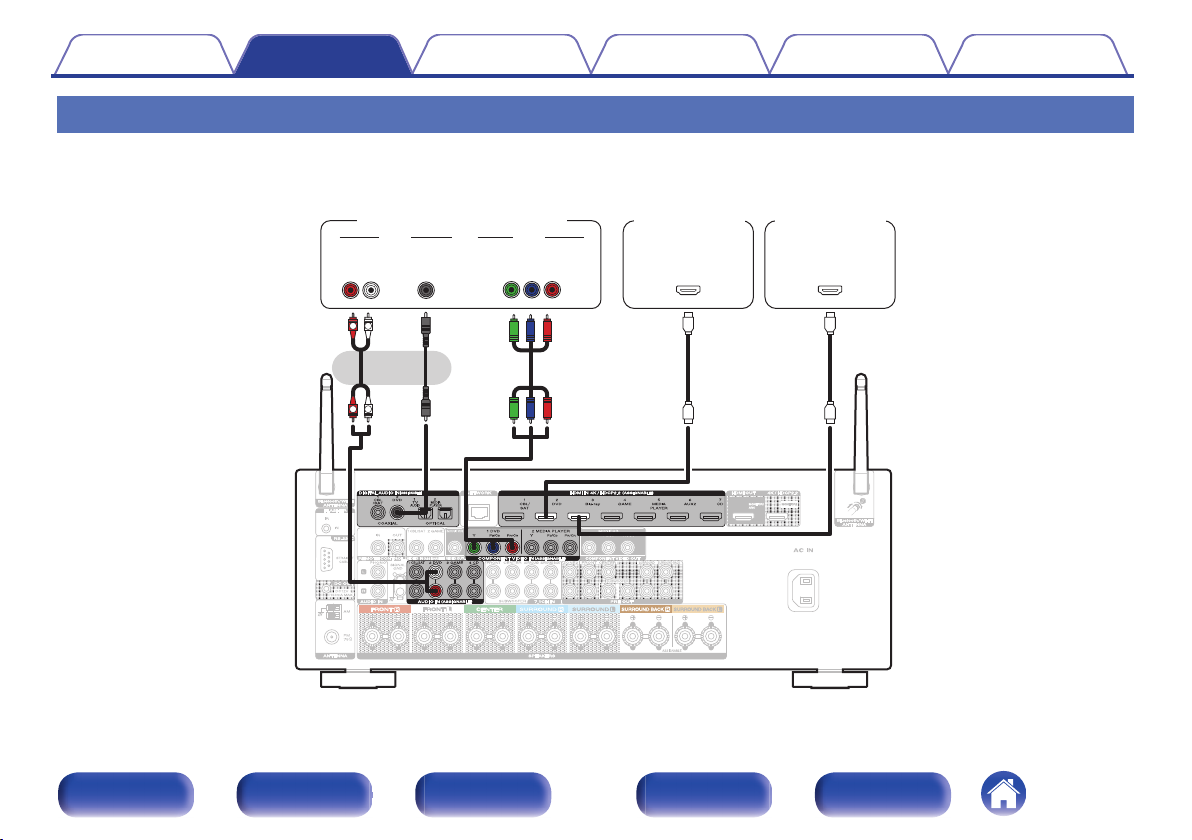

Connecting a set-top box (Satellite tuner/cable TV) Connecting a DVD player or Blu-ray Disc player Connecting a video camcorder or game console Connecting a turntable Connecting a device with a multi-channel output connector

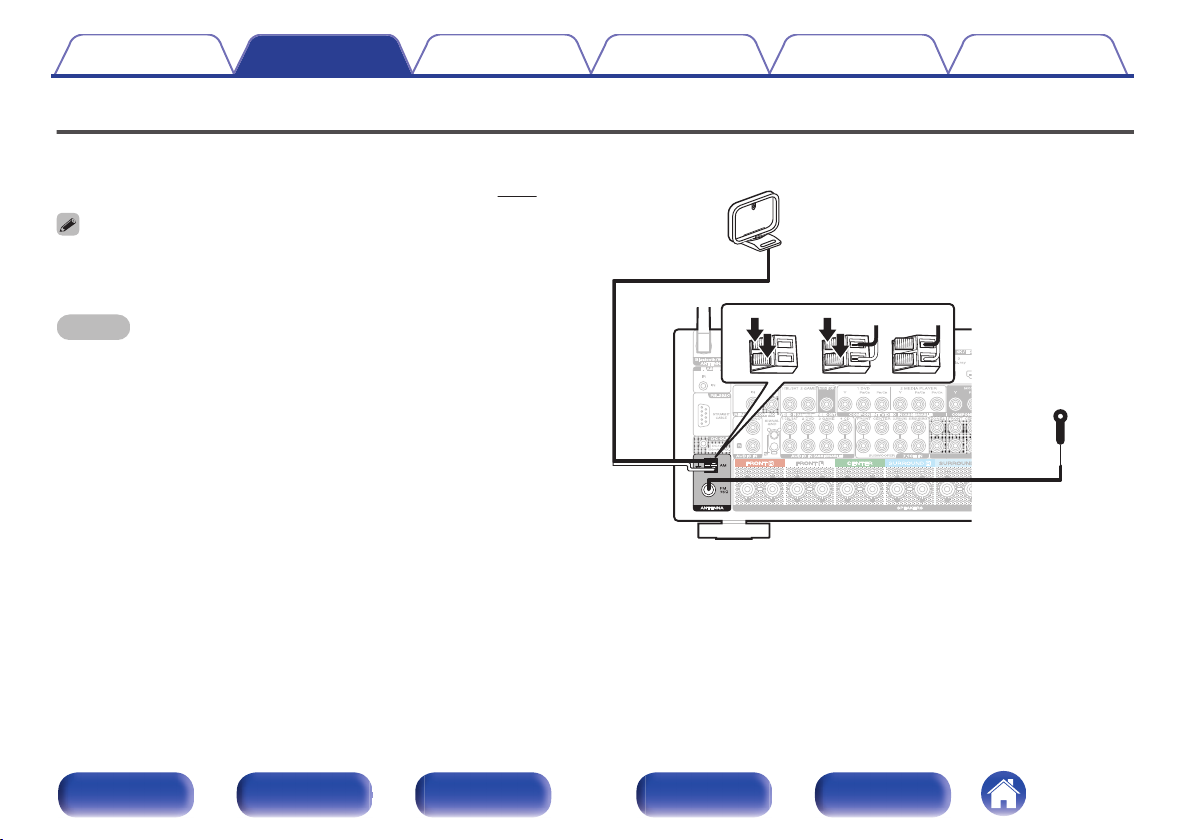

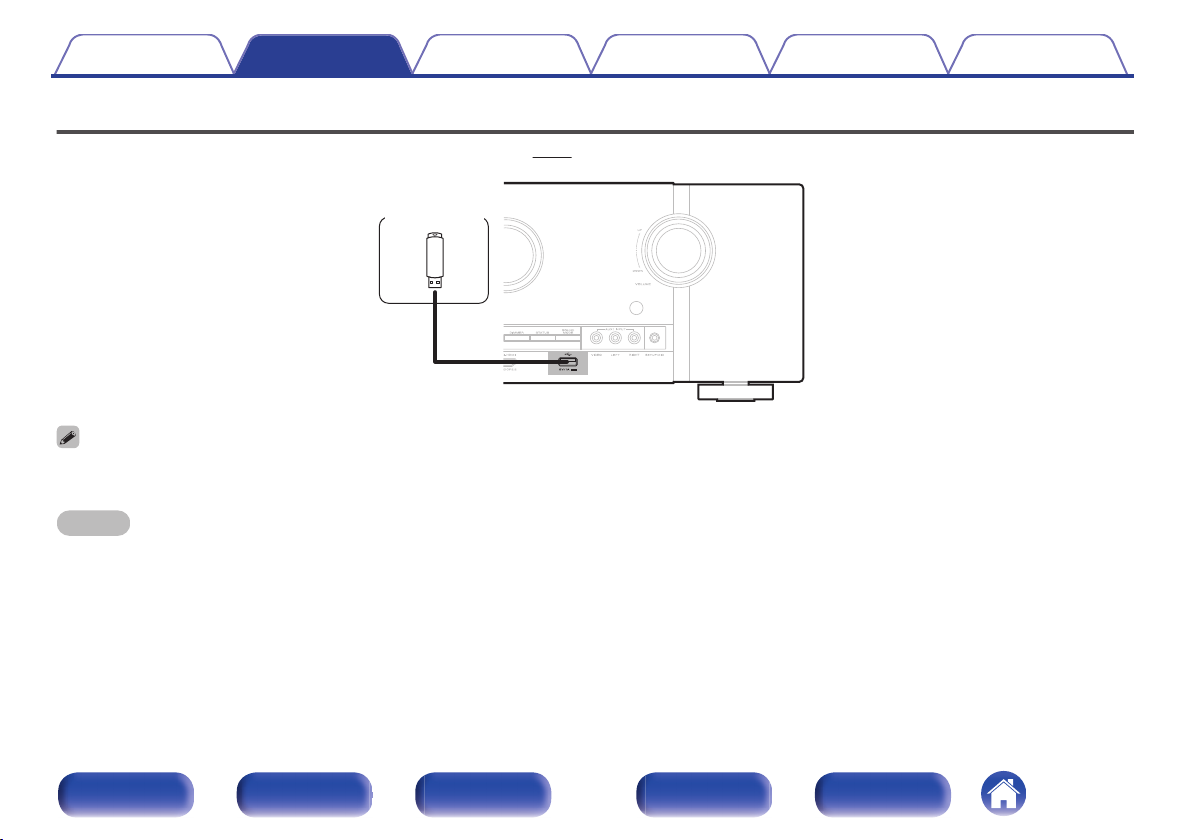

Connecting a USB memory device to the USB port Connecting an FM/AM antenna Connecting to a home network (LAN)

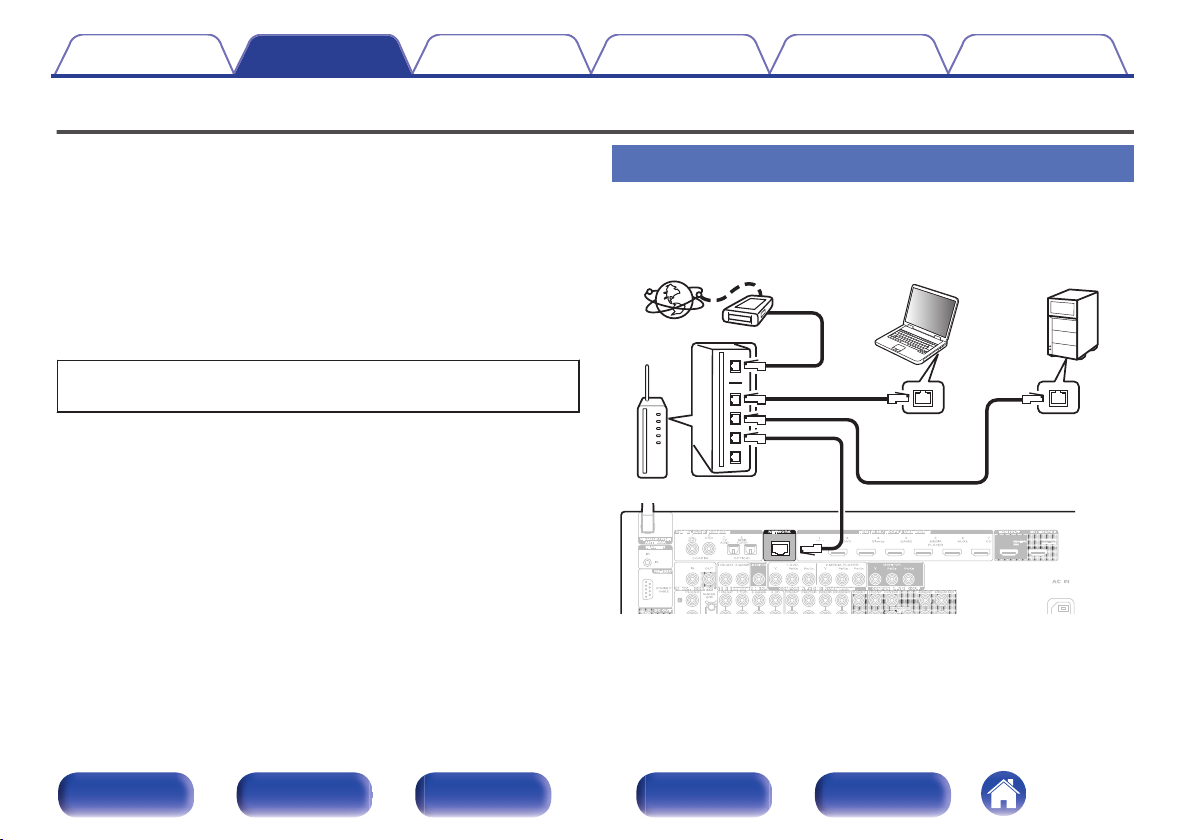

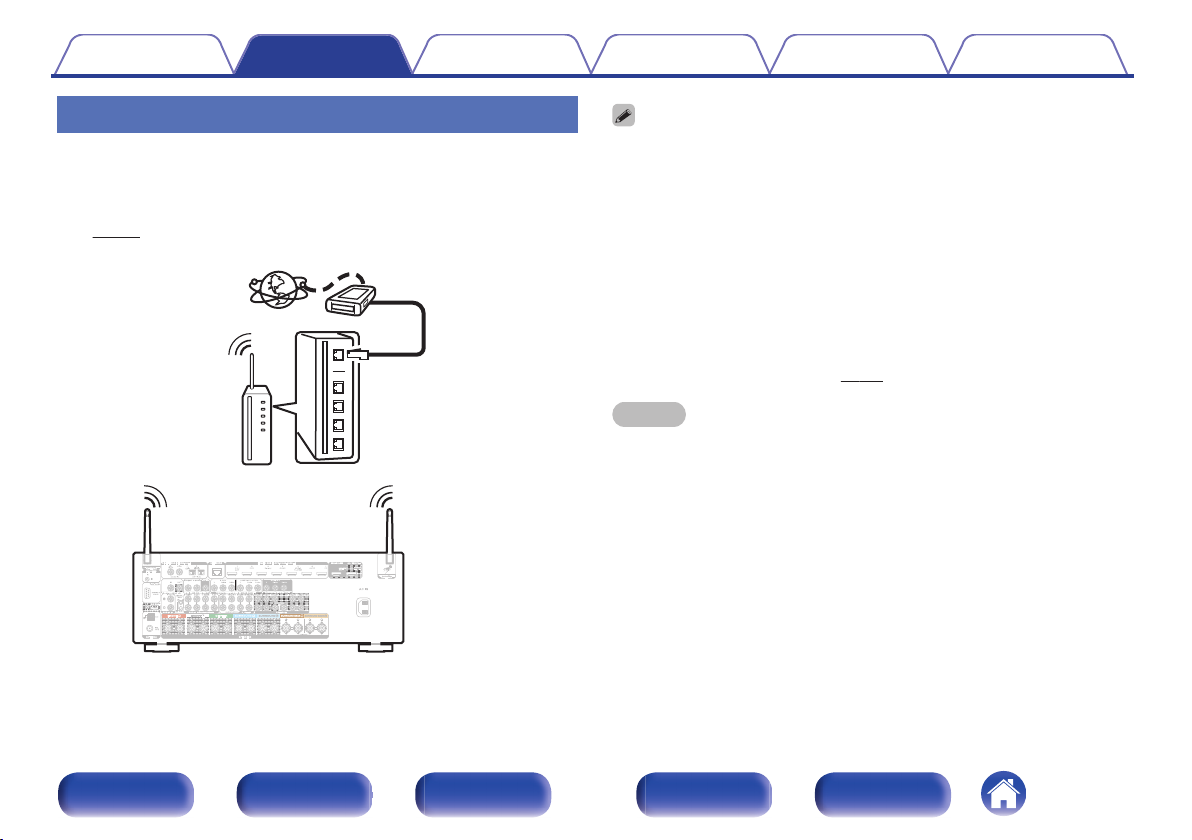

Wired LAN Wireless LAN

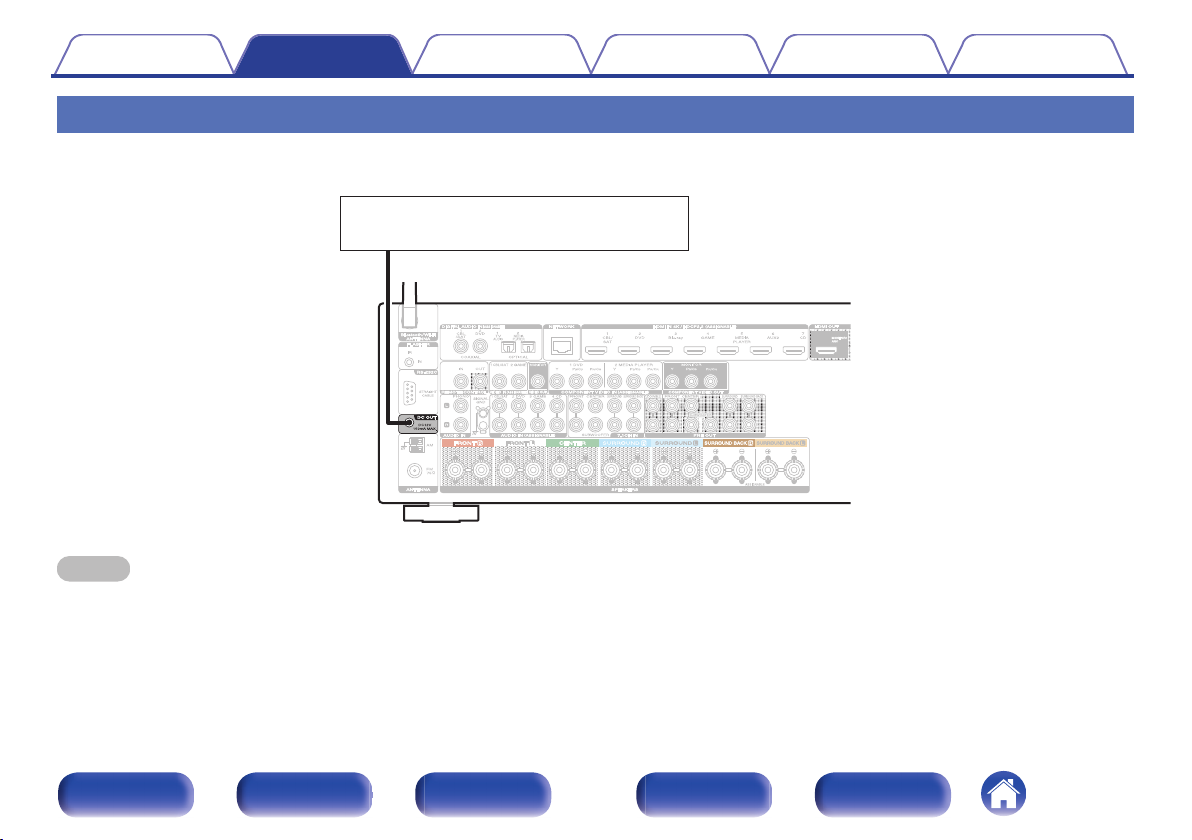

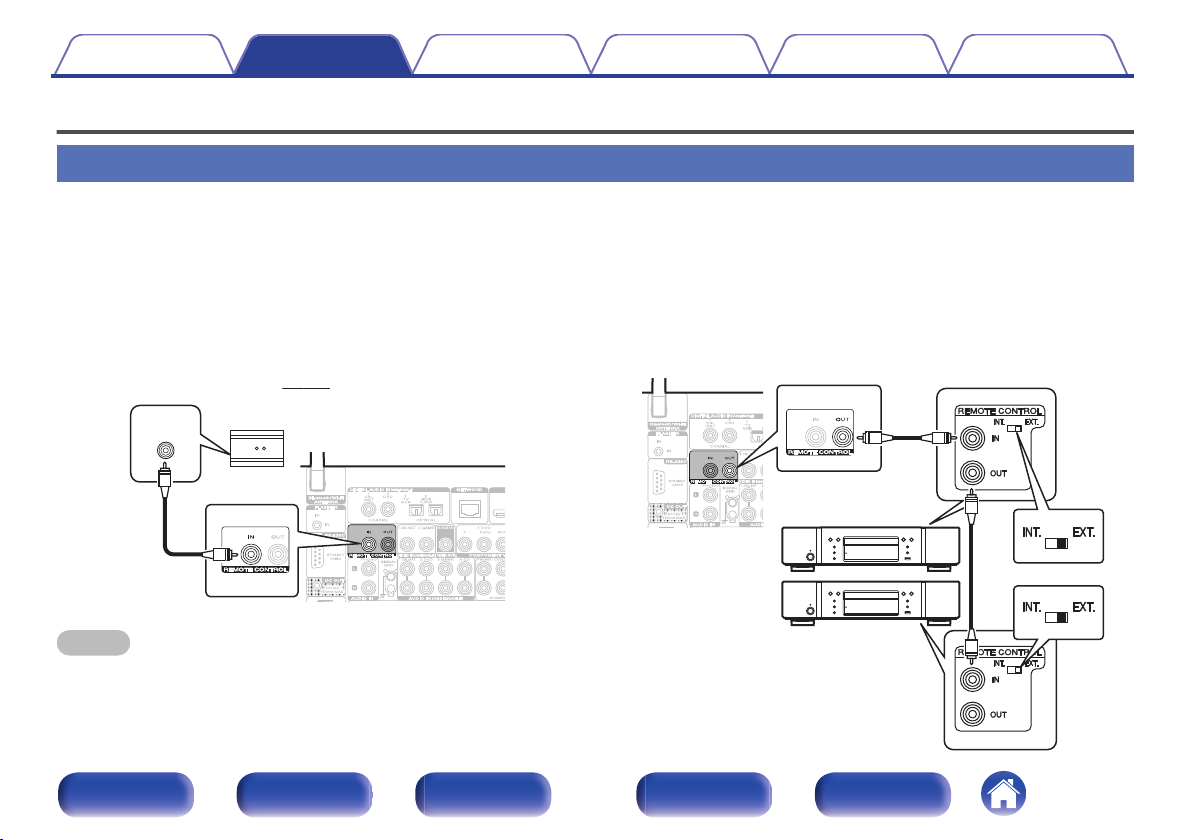

Connecting an external control device

REMOTE CONTROL jacks DC OUT jack

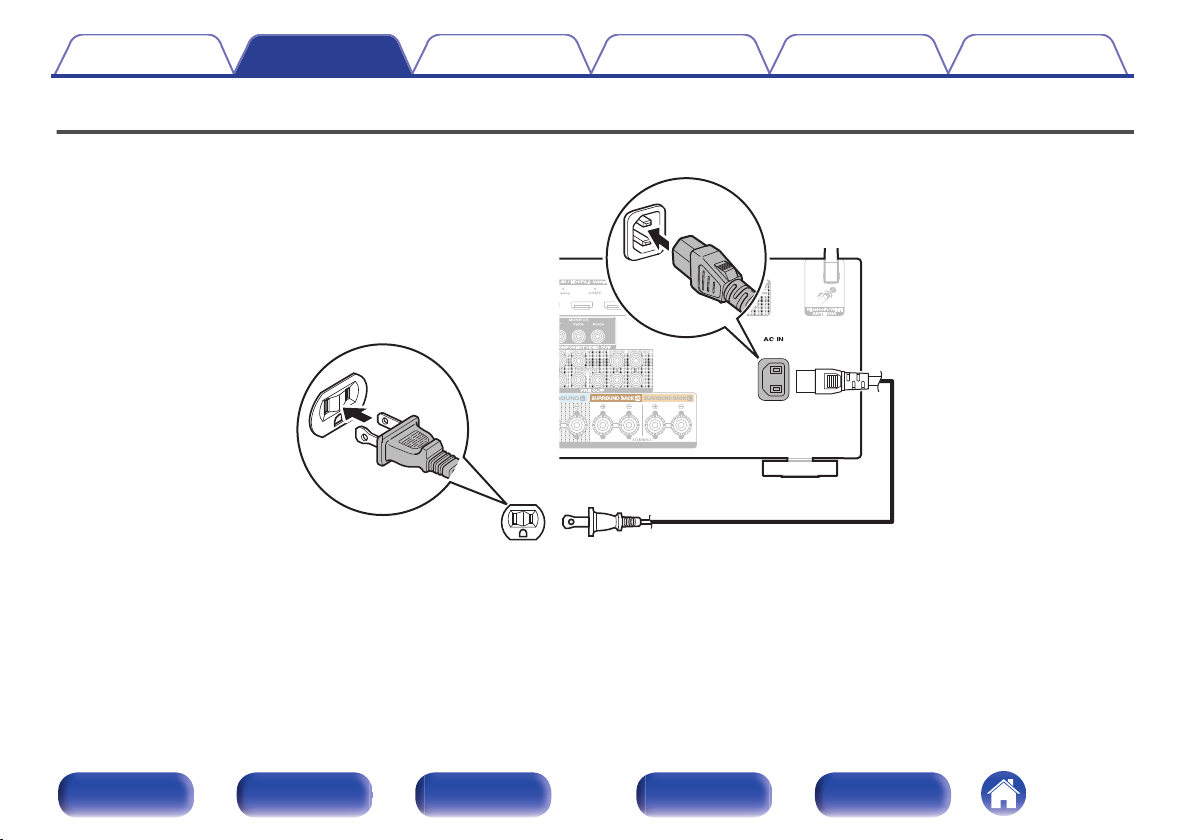

Connecting the power cord

54 55

57 58 59 60 61

62 63 65

65 66

67 68

Front panel Display Rear panel Remote Index

Contents Connections Playback Settings Tips Appendix

Playback

Basic operation

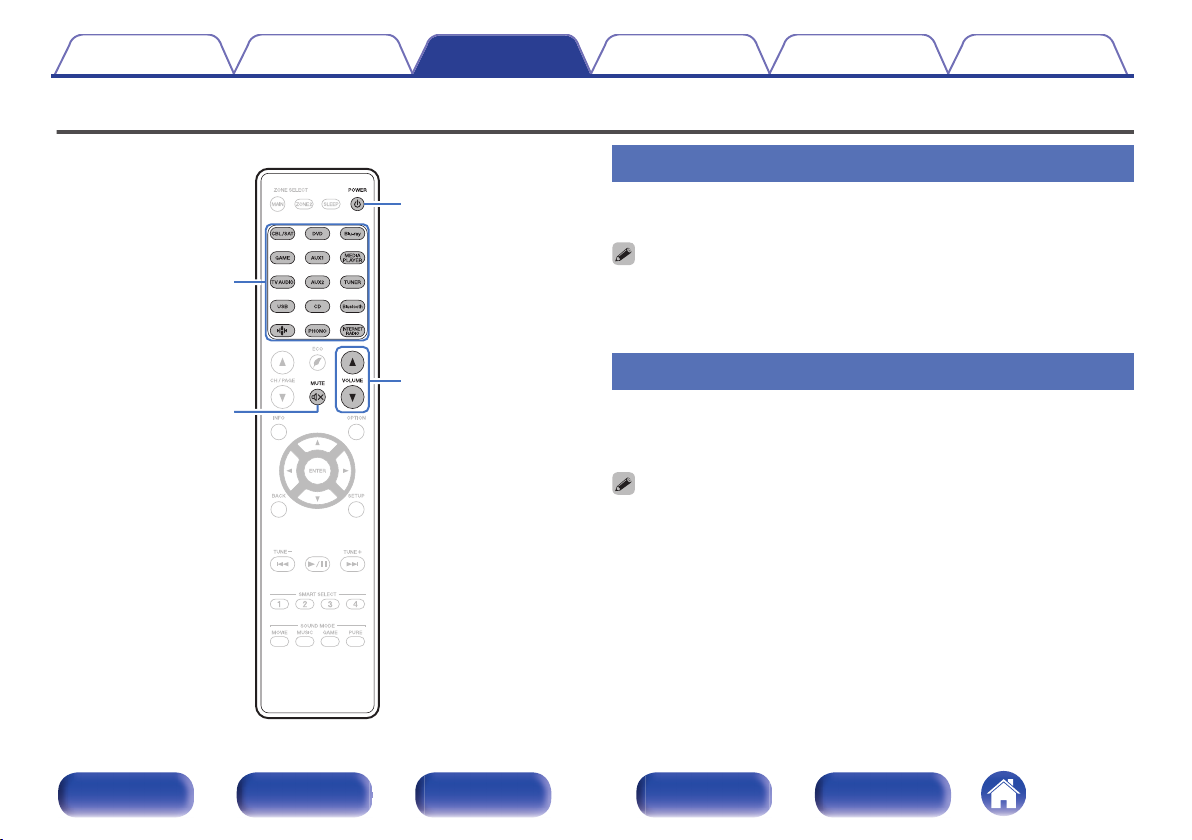

Turning the power on Selecting the input source Adjusting the volume Turning off the sound temporarily (Muting) Playback a DVD player/Blu-ray Disc player

Playing a USB memory device

Playing files stored on USB memory devices

Listening to music on a Bluetooth device

Playing music from Bluetooth device Pairing with other Bluetooth devices Reconnecting to this unit from a Bluetooth device

Listening to FM/AM broadcasts

Listening to FM/AM broadcasts Tuning in by entering the frequency (Direct Tune) Changing the tune mode (Tune Mode) Tuning in to stations and presetting them automatically (Auto

Preset Memory) Presetting the current broadcast station (Preset Memory) Listening to preset stations Specify a name for the preset broadcast station (Preset Name) Skipping preset broadcast stations (Preset Skip) Cancelling Preset Skip

Listening to Internet Radio

71 71 72 72 72

78 79 80

82 83 84

84 85 85 86 87 88

Listening to Internet Radio

Playing back files stored on a PC or NAS

Getting the HEOS App

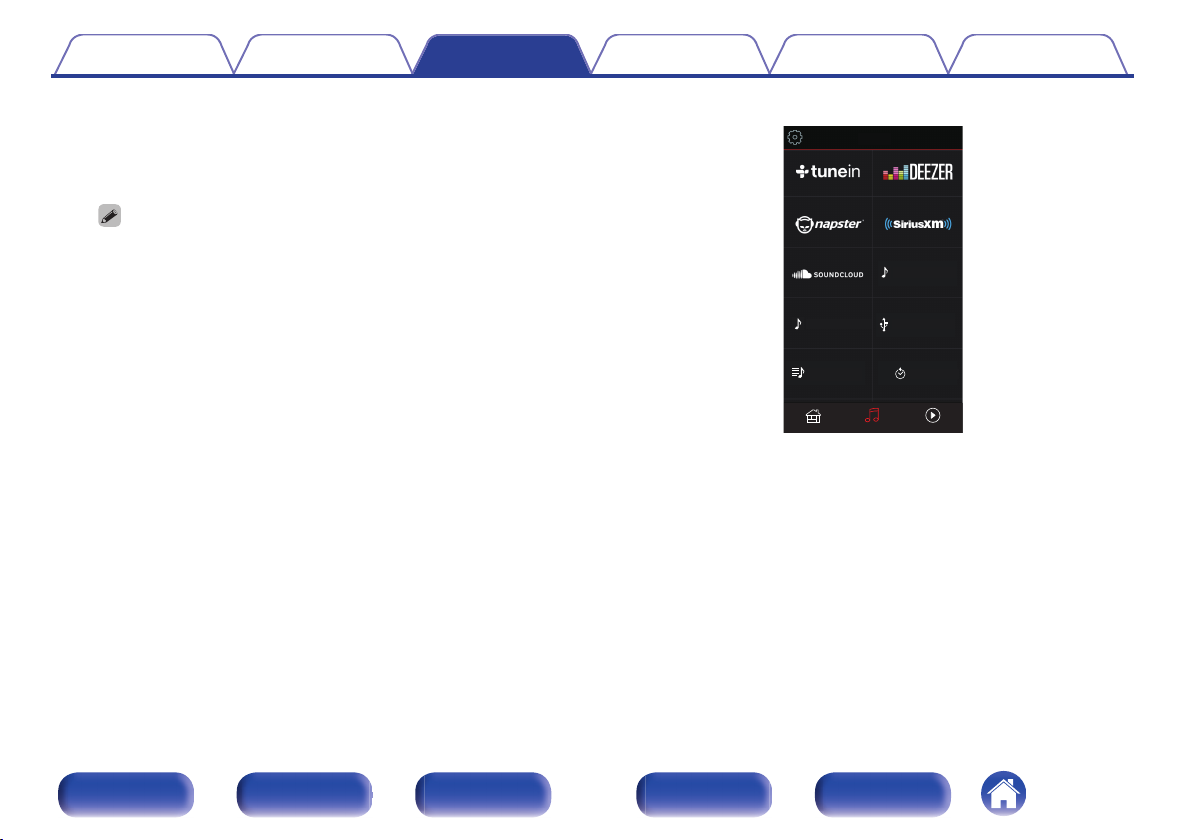

HEOS Account Playing from streaming music services Listening to the same music in multiple rooms

AirPlay function

Playing songs from your iPhone, iPod touch or iPad Playing iTunes music with this unit Perform iTunes playback operations with the remote control unit

of this unit

Spotify Connect function

Playing Spotify music with this unit

96 97

100

104

105 105

106

107

Front panel Display Rear panel Remote Index

Contents Connections Playback Settings Tips Appendix

Convenience functions

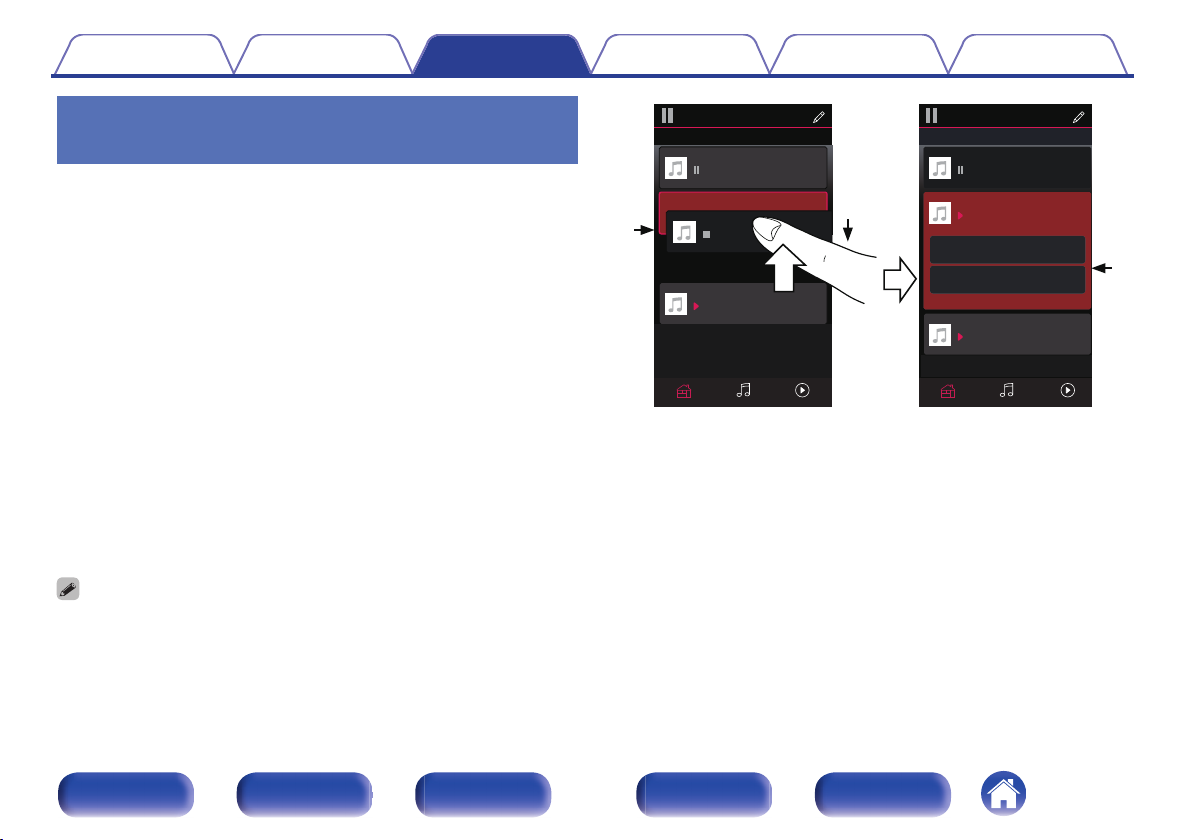

Adding to HEOS Favorites Playing back HEOS Favorites Deleting a HEOS Favorites Adjusting the volume of each channel to match the input source

(Channel Level Adjust) Adjusting the tone (Tone) Displaying your desired video during audio playback (Video

Select) Adjusting the picture quality for your viewing environment (Picture

Mode) Playing the same music in all zones (All Zone Stereo)

Selecting a sound mode

Selecting a sound mode Direct playback Pure Direct playback Auto surround playback Description of sound mode types Sound mode that can be selected for each input signal

HDMI Control function

Setting procedure

Smart Menu function Sleep timer function

Using the sleep timer

108

109 109 110

111 112

113

114 115

116

117 118 118 119 120 124

128

129 131

132

Smart select function

Calling up the settings Changing the settings

Panel lock function

Disabling all key button operations Disabling all button operations except VOLUME Canceling the Panel lock function

Remote lock function

Disabling the sensor function of the remote control unit Enabling the remote sensor function

Web control function

Controlling the unit from a web control

Playback in ZONE2 (Another room)

Connecting ZONE2 Playback in ZONE2

Settings

Menu map

Menu operations

Audio

Center Level Adjust Subwoofer Level Adjust Surround Parameter M-DAX Audio Delay Volume Audyssey Graphic EQ

133

134 135

136

136 136 137

138

138 138

139

141

141 143

145

149

150

150 150 151 154 155 156 157 159

Front panel Display Rear panel Remote Index

Contents Connections Playback Settings Tips Appendix

Video

Picture Adjust HDMI Setup Output Settings On Screen Display 4K Signal Format TV Format

Inputs

Input Assign Source Rename Hide Sources Source Level Input Select

Speakers Audyssey® Setup

Procedure for speaker settings (Audyssey® Setup) Error messages Retrieving Audyssey® Setup settings

161

161 163 168 172 173 174

175

175 177 177 177 178

179 179

181 187 188

Manual Setup

Amp Assign Speaker Config. Distances Levels Crossovers Bass Front Speaker

Network

Information Connection Wi-Fi Setup Settings Network Control Friendly Name Diagnostics

189

189 190 195 196 197 198 199

200

200 200 201 203 205 205 206

Front panel Display Rear panel Remote Index

Contents Connections Playback Settings Tips Appendix

HEOS Account

You have not signed in You have already signed in

General

Language ECO ZONE2 Setup Zone Rename Smart Select Names Trigger Out Front Display Firmware Information Usage Data Save & Load Setup Lock Reset

Limiting the operating zone with the remote control

207

207 207

208

208 208 212 213 213 214 214 215 218 219 220 220 221

222

Tips

Tips Troubleshooting

Power does not turn on / Power is turned off Operations cannot be performed through the remote control unit Display on this unit shows nothing No sound comes out Desired sound does not come out Sound is interrupted or noise occurs No video is shown on the TV The menu screen is not displayed on the TV The color of the menu screen and operations content displayed

on the television is different from normal AirPlay cannot be played back USB memory devices cannot be played back Bluetooth cannot be played back The Internet radio cannot be played back Music files on PC or NAS cannot be played back Various online services cannot be played The HDMI Control function does not work Cannot connect to a wireless LAN network Update/upgrade error messages

Resetting factory settings Resetting network settings

224 226

227 228 228 229 230 232 233 235

235 236 237 238 239 240 241 241 242 243

244 245

Front panel Display Rear panel Remote Index

Contents Connections Playback Settings Tips Appendix

Appendix

About HDMI Video conversion function Playing back a USB memory devices Playing back a Bluetooth device Playing back a file saved on a PC or NAS Playing back Internet Radio Personal memory plus function Last function memory Sound modes and channel output Sound modes and surround parameters Types of input signals, and corresponding sound modes Explanation of terms Trademark information Specifications Index License

246 249 251 252 253 254 254 254 255 257 260 263 272 274 279 282

Front panel Display Rear panel Remote Index

Quick Start Guide Safety Instructions Notes on radio Warranty

(for USA/for CANADA)

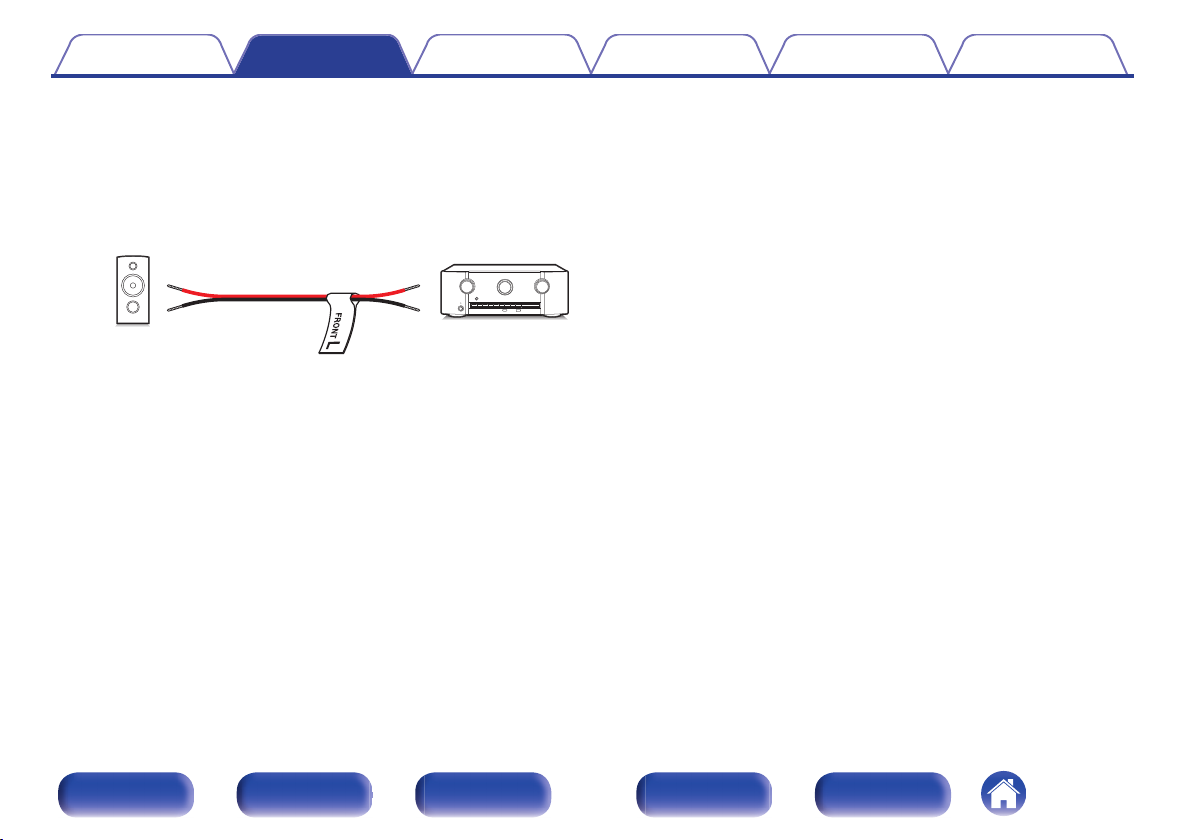

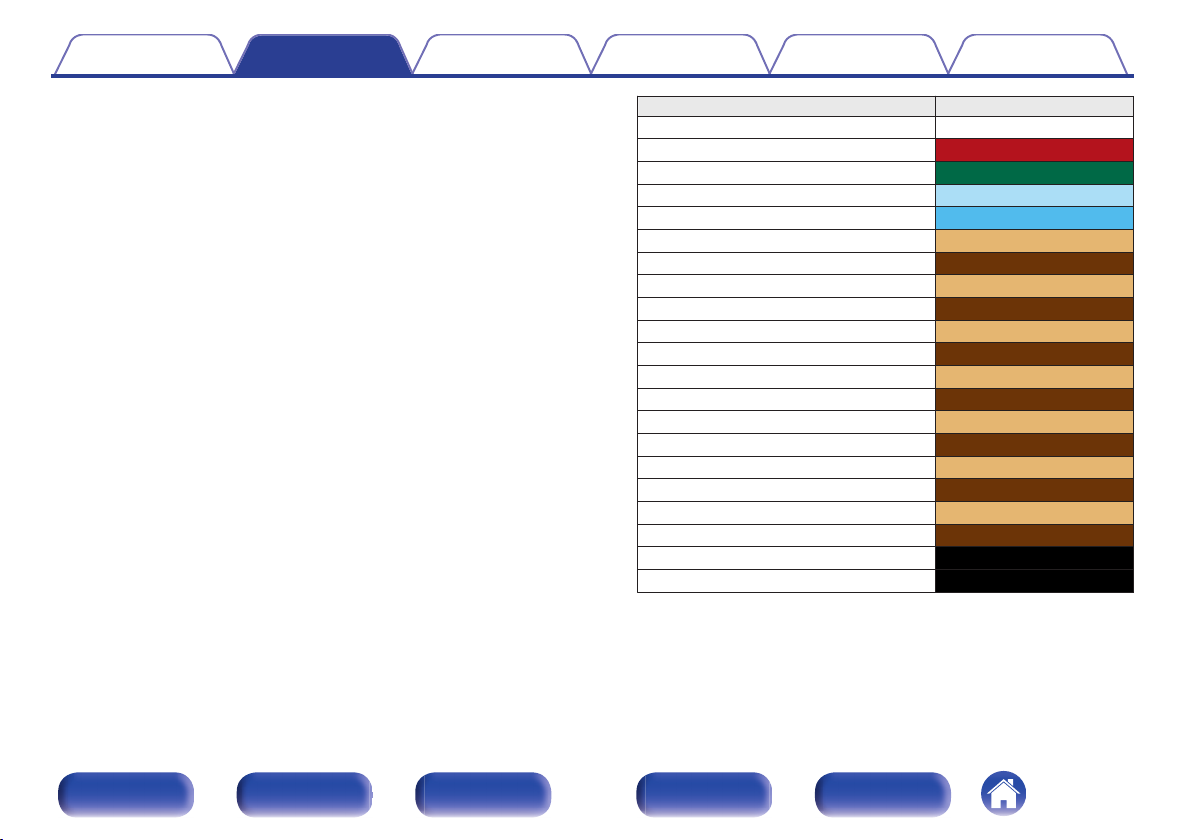

Cable labels

Power cord FM indoor antenna

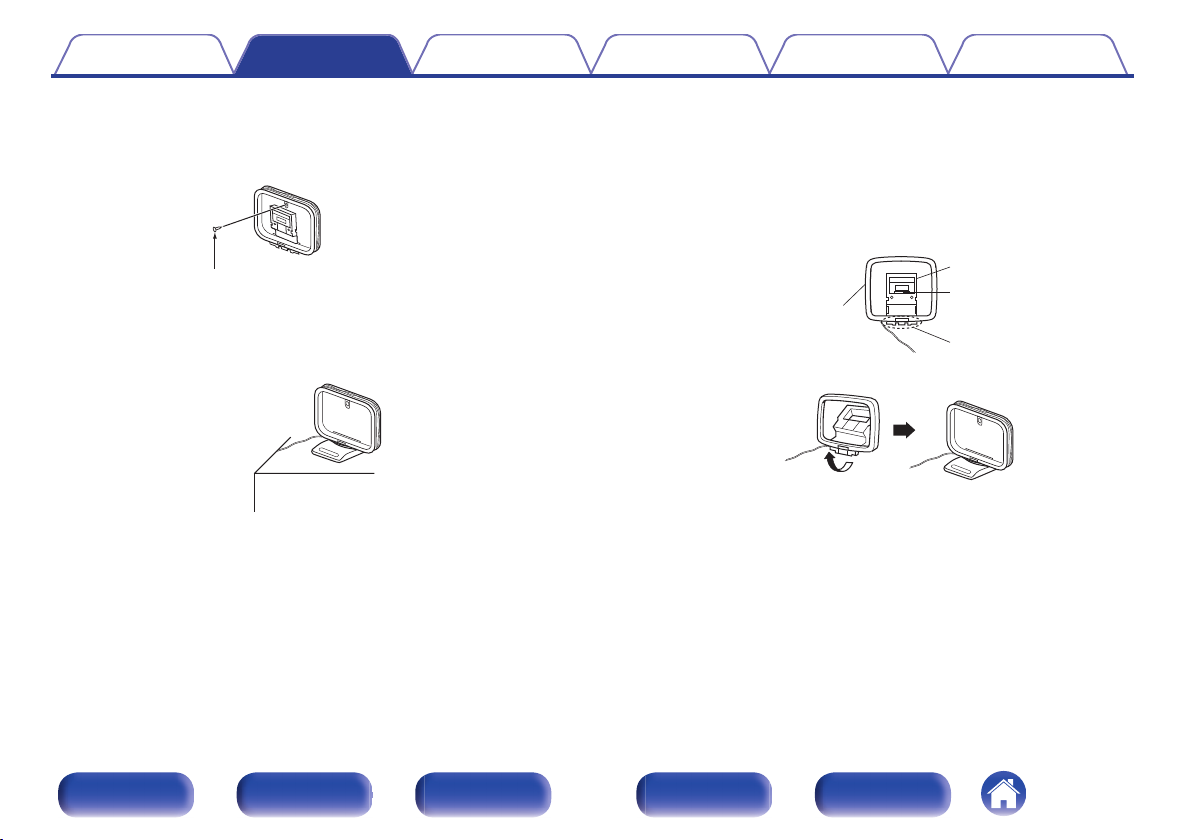

AM loop antenna

Sound calibration

microphone

Sound calibration

microphone stand

R03/AAA batteries

Remote control unit

(RC035SR)

External antennas for

Bluetooth/wireless

connectivity

Contents Connections Playback Settings Tips Appendix

Thank you for purchasing this Marantz product. To ensure proper operation, please read this owner’s manual carefully before using the product. After reading this manual, be sure to keep it for future reference.

Accessories

Check that the following parts are supplied with the product.

Front panel Display Rear panel Remote Index

Batteries

30°

Approx. 23 ft/7 m

Contents

Connections Playback Settings Tips Appendix

Inserting the batteries

Remove the rear lid in the direction of the arrow and

remove it.

Insert two batteries correctly into the battery

compartment as indicated.

Put the rear cover back on.

NOTE

To prevent damage or leakage of battery fluid:

Do not use a new battery together with an old one.

Do not use two different types of batteries.

Remove the batteries from the remote control unit if it will not be in use for long

periods. If the battery fluid should leak, carefully wipe the fluid off the inside of the battery

compartment and insert new batteries.

Operating range of the remote control unit

Point the remote control unit at the remote sensor when operating it.

Front panel Display Rear panel Remote Index

Contents Connections Playback Settings Tips Appendix

Features

DTS:X (v p. 266)

High quality sound

With discrete circuit technology, the power amplifier provides

identical quality for all 7-channels (140 Watts x 7-channels)

For optimum realism and stunning dynamic range, the power amplifier section features discrete power devices (not integrated circuitry). By using high current, high power discrete power devices, the amplifier is able to easily drive high quality speakers.

Current feedback amplifier

This unit uses a high-speed current feedback amplifier circuit for its preamplifier so that signals from a Blu-ray Disc player and other equipment that support high-definition audio formats can be amplified with high fidelity. The high-speed current feedback amplifier also reproduces a natural sound space.

Dolby Atmos (v

This unit is equipped with a decoder that supports Dolby Atmos audio format. The placement or movement of sound is accurately reproduced by the addition of overhead speakers, enabling you to experience an incredibly natural and realistic surround sound field.

p. 264)

This unit is equipped with the DTS:X decoder technology. DTS:X brings the home theater experience to new heights with its immersive object based audio technology which removes the bounds of channels. The flexibility of objects allows for sound to be scaled large or small and moved around the room with greater accuracy than ever before leading to a richer immersive audio experience.

DTS Virtual:X (v p. 267)

DTS Virtual:X technology features DTS’s proprietary virtual height and virtual surround processing to deliver an immersive sound experience from any type of input source (stereo to 7.1.4 channel) and speaker configuration.

DTS Virtual:X is not for use when Height speakers are connected.

Front panel Display Rear panel Remote Index

Up scaling

Up to 1080p

Contents

Connections Playback Settings Tips Appendix

High performance

4K 60Hz input/output supported

Digital video processor upscales analog video signals (SD

resolution) to HD (720p/1080p) and 4K (v

p. 170)

When 4K Ultra HD (High Definition) is used, an input/output speed of 60 frames per second (60p) is achieved for video signals. When connected to 4K Ultra HD and 60p video signal input compatible TV, you can enjoy the sense of realism only available from high-definition images, even when viewing fast-moving video.

This unit is equipped with a 4K video upscaling function that allows analog video or SD (Standard Definition) video to be output via HDMI at 4K (3840 × 2160 pixels) resolution. This function enables the device to be connected to a TV using a single HDMI cable, and produces high definition images for any video source.

This unit also supports image processing for 4K 60p, 4:4:4 and 24-bit videos. By processing the video at the original resolution, this unit lets you enjoy flawless, high-definition picture quality.

This unit also supports HDR (High Dynamic Range) and BT.2020 wide color gamut.

HDCP 2.2

This unit is compatible with HDCP 2.2 copyright protection standard.

Front panel Display Rear panel Remote Index

OutIn

Contents

Connections Playback Settings Tips Appendix

HDMI connections enable connection to various digital AV

devices (8 inputs, 2 outputs)

This unit is equipped with 8 HDMI inputs and 2 HDMI outputs enabling connection to various HDMI compatible devices such as Blu-ray Disc players, game consoles and HD video camcorders. This unit is equipped with 2 monitor outputs, enabling you to project the same image at the same time using this unit.

The device is equipped with a AirPlay® function in addition to network functions such as Internet radio etc. (v

p. 104)

You can enjoy a wide variety of content, including listening to Internet Radio, playing audio files stored on your PC.

This unit also supports Apple AirPlay which lets you stream your music library from an iPhone®, iPad®, iPod touch® or iTunes®.

Playback of DSD and FLAC files via USB and networks

This unit supports the playback of high resolution audio formats such as DSD (5.6 MHz) and FLAC 192 kHz files. It provides high quality playback of high resolution files.

Front panel Display Rear panel Remote Index

GMAIN ZONEHGZONE2H

Contents

Connections Playback Settings Tips Appendix

Wireless connection with Bluetooth devices can be carried out

easily (v p. 77)

You can enjoy music simply by connecting wirelessly with your smartphone, tablet, PC, etc.

Multi-Room audio (v p. 115)

You can select and play back the respective inputs in MAIN ZONE and ZONE2. In addition, when the All Zone Stereo function is used, the music being played back in MAIN ZONE can be enjoyed in all the zones at the same time. This is useful when you want to let the BGM propagate throughout the whole house.

Energy-saving design

This unit is equipped with an ECO Mode function that allows you to enjoy music and movies while reducing the power consumption during use, and also an auto-standby function that automatically turns off the power supply when the unit is not in use. This helps reduce unnecessary power use.

Front panel Display Rear panel Remote Index

Contents

Compatible with the “Marantz 2016 AVR Remote” Appz for

Connections Playback Settings Tips Appendix

performing basic operations of the unit with an iPad, iPhone or Android™ devices (Google, Amazon Kindle Fire)

Along with many new features, the graphics and user interface have been completely overhauled. The new app gives you full control of the AVR as well as access to its setup menu for detailed adjustments from your phones or tablets. “Marantz 2016 AVR Remote” App also gives you quick access to the receiver's status display, option menus, Marantz Blu-ray Disc player control, and online owner's manual for your convenience.

Download the appropriate “Marantz 2016 AVR Remote” App for your iOS or

Android devices. This unit needs to be connected to the same LAN or Wi-Fi (wireless LAN) network that the iPhone or iPod touch is connected to.

HEOS provides streaming music from your favorite online music

sources

HEOS wireless multi-room sound system that enables you to enjoy your favorite music anywhere and everywhere around your home. By utilizing your existing home network and the HEOS App (available for iOS, Android and Amazon devices), you can explore, browse, and play music from your own music library or from many online streaming music services.

When multiple HEOS devices are connected to the same network, HEOS devices can be grouped to play back the same music on all devices simultaneously, or different music can be played on each separate HEOS device.

Front panel Display Rear panel Remote Index

Contents Connections Playback Settings Tips Appendix

Easy operation

“Setup Assistant” provides easy-to-follow setup instructions

First select the language when prompted. Then simply follow the instructions displayed on the TV screen to set up the speakers, network, etc.

Easy to use Graphical User Interface

This unit is equipped with a Graphical User Interface for improved operability.

Front panel Display Rear panel Remote Index

ewq

Q9W

Q3Q4Q

Q0Q

Q6Q7Q

Contents

Connections Playback Settings Tips Appendix

Part names and functions

Front panel

For details, see the next page.

Front panel Display Rear panel Remote Index

qwe r t y u i

Contents Connections Playback Settings Tips Appendix

Power operation button (X)

Used to turn the power of the MAIN ZONE (room where this unit is located) on/off (standby). (v

Power indicator

This is lit as follows according to the power status:

Off: Power on

Red: Normal standby

Orange:

When “HDMI Pass Through” is set to “On” (v

When “HDMI Control” is set to “On” (v

When “Network Control” is set to “Always On” (v p. 205)

p. 71)

p. 165)

p. 163)

INPUT SELECTOR knob

This selects the input source. (v

PURE DIRECT indicator

p. 71)

This lights when the “Pure Direct” mode is selected as the sound mode. (v

p. 118)

M-DAX indicator

This lights when the M-DAX mode is selected. (v

Display

This displays various pieces of information. (v

Remote control sensor

p. 154)

p. 19)

This receives signals from the remote control unit. (v p. 9)

VOLUME knob

This adjusts the volume level. (v p. 72)

Headphones jack (PHONES)

This is used to connect headphones. When the headphones are plugged into this jack, audio will no longer be output from the connected speakers or from the PRE OUT connectors.

NOTE

To prevent hearing loss, do not raise the volume level excessively when using

headphones.

Front panel Display Rear panel Remote Index

W1Q9Q8 W0Q2 Q3 Q4Q5Q0 Q1 Q6Q7

Contents

PURE DIRECT button

Connections Playback Settings Tips Appendix

This switches the sound mode between Direct, Pure Direct and Auto surround.

“Direct playback” (v

“Pure Direct playback” (v p. 118)

“Auto surround playback” (v

M-DAX button

p. 118)

p. 119)

This switches the M-DAX mode. (v p. 154)

ZONE2 ON/OFF button

This turns the power of ZONE2 (another room) on/off. (v

ZONE2 SOURCE button

p. 143)

This selects the input source for ZONE2. (v p. 143)

Tuner preset channel buttons

(TUNER PRESET CH +, –)

These select preset broadcast stations. (v

AUX1-HDMI connector

p. 85)

This is used to connect HDMI output compatible devices such as video camcorders and game consoles. (v p. 59)

DIMMER button

Each press of this switches the brightness of the display. (v p. 214)

STATUS button

Each press of this switches the status information that is shown on the display.

SOUND MODE button

Switching the sound mode. (v

USB port (T)

p. 116)

This is used to connect USB storages (such as USB memory devices). (v p. 62)

AUX1 INPUT connectors

Used to connect analog output compatible devices such as video camcorders and game consoles. (v

SETUP MIC jack

p. 59)

This is used to connect the supplied Sound calibration microphone. (v

p. 182)

Front panel Display Rear panel Remote Index

q w

Contents Connections Playback Settings Tips Appendix

Display

The input source name, sound mode, setting values and other information are displayed here.

Standard display

Volume indicator

Input source indicator

The currently selected input source name is displayed. If the input source name has been changed using “Source Rename” in

the menu, the input source name after the change is displayed. (v p. 177)

Tuner display

These light up according to the reception conditions when the input source is set to “Tuner”.

Lights up when the broadcast is properly tuned in.

In the FM mode, this lights up when receiving stereo broadcasts.

Front panel Display Rear panel Remote Index

Contents Connections Playback Settings Tips Appendix

Sleep timer indicator

This lights when the sleep mode is selected. (v p. 131)

ZONE2 power on display

This lights up when ZONE2 (another room) power is turned on.

(v p. 143)

Front panel Display Rear panel Remote Index

q qu

rew

Contents

Rear panel

Connections Playback Settings Tips Appendix

For details, see the next page.

Front panel Display Rear panel Remote Index

rew

qwe

Contents

Bluetooth/wireless LAN antenna connectors

Connections Playback Settings Tips Appendix

Used to connect the included external antennas for Bluetooth/wireless connectivity when connecting to a network via wireless LAN, or when connecting to a handheld device via Bluetooth. (v p. 66)

Place the external antennas for Bluetooth/wireless connectivity

evenly over the screw terminal of rear. Turn clockwise until the antennas is fully connected.

Rotate the antenna upwards for best reception.

FLASHER IN jack

Used when using a control BOX or other such control devices to control this unit.

REMOTE CONTROL jacks

Used to connect infrared receivers/transmitters in order to operate this unit and external devices from a different room. (v p. 67)

Digital audio connectors (DIGITAL AUDIO)

Used to connect devices equipped with digital audio connectors.

“Connection 2 : TV equipped with an HDMI connector and

incompatible with the ARC (Audio Return Channel)” (v “Connection 3 : TV equipped without an HDMI

connector” (v “Connecting a set-top box (Satellite tuner/cable TV)” (v

“Connecting a DVD player or Blu-ray Disc player” (v

Video connectors (VIDEO)

p. 55)

p. 54)

p. 57)

p. 58)

Used to connect devices equipped with video connectors.

“Connection 3 : TV equipped without an HDMI

connector” (v “Connecting a set-top box (Satellite tuner/cable TV)” (v

“Connecting a DVD player or Blu-ray Disc player” (v p. 58)

p. 55)

p. 57)

Front panel Display Rear panel Remote Index

Q0 Q1

Contents

NETWORK connector

Connections Playback Settings Tips Appendix

Used to connect to a LAN cable when connecting to a wired LAN network. (v p. 65)

HDMI connectors

Used to connect devices equipped with HDMI connectors.

“Connection 1 : TV equipped with an HDMI connector and

compatible with the ARC (Audio Return Channel)” (v “Connection 2 : TV equipped with an HDMI connector and

incompatible with the ARC (Audio Return Channel)” (v p. 54) “Connecting a set-top box (Satellite tuner/cable TV)” (v

“Connecting a DVD player or Blu-ray Disc player” (v p. 58)

p. 53)

p. 57)

RS-232C connector

Used to connect home automation controller devices fitted with RS-232C connectors. Consult the owner’s manual of the home automation controller for more information about serial control of this unit.

Perform the operation below beforehand.

Turn on the power of this unit.

Turn off the power of this unit from the external controller.

Check that the unit is in the standby mode.

DC OUT jack

Used to connect devices equipped with the trigger function.

p. 68)

FM/AM antenna terminals (ANTENNA)

Used to connect FM antennas and AM loop antennas. (v

SIGNAL GND terminal

p. 63)

Used to connect a ground wire for the turntable. (v p. 60)

Front panel Display Rear panel Remote Index

Q4Q2 Q3 Q6 Q7

Contents Connections Playback Settings Tips Appendix

Speaker terminals (SPEAKERS)

p. 36)

p. 37)

Analog audio connectors (AUDIO)

Used to connect devices equipped with analog audio connectors.

“Connecting a set-top box (Satellite tuner/cable TV)” (v

“Connecting a DVD player or Blu-ray Disc player” (v p. 58)

“Connecting a turntable” (v

7.1-channel input connectors (7.1CH IN)

p. 60)

Used to connect to a device that has multi-channel audio output connectors. (v

p. 61)

p. 57)

Used to connect speakers. (v

PRE OUT connectors

Used to connect a subwoofer with built-in amplifier or an external power amplifier.

“Connecting the subwoofer” (v

“Connection 2 : Connection using an external amplifier

(ZONE2)” (v p. 142)

Component video connectors (COMPONENT VIDEO)

Used to connect devices equipped with component video connectors.

“Connection 3 : TV equipped without an HDMI

connector” (v “Connecting a set-top box (Satellite tuner/cable TV)” (v

“Connecting a DVD player or Blu-ray Disc player” (v

AC inlet (AC IN)

p. 55)

Used to connect the power cord. (v p. 69)

NOTE

Do not touch the inner pins of the connectors on the rear panel. Electrostatic

discharge may cause permanent damage to the unit.

p. 57)

p. 58)

Front panel Display Rear panel Remote Index

Contents

Connections Playback Settings Tips Appendix

Remote control unit

ZONE SELECT buttons

These switch the zone (MAIN ZONE, ZONE2) that is operated through the remote control unit.

“Playback in ZONE2” (v

“Menu operations” (v p. 149)

Input source select buttons

These selects the input source.

“Selecting the input source” (v

“Playback in ZONE2” (v p. 143)

Channel/page search buttons (CH/PAGE df)

These select radio stations registered to presets or switch pages.

p. 85)

MUTE button (:)

This mutes the output audio.

“Turning off the sound temporarily (Muting)” (v

“Turning off the sound temporarily (Muting) (ZONE2)” (v

Information button (INFO)

This displays the status information on the TV screen. (v p. 219)

Cursor buttons (uio p)

These select items.

p. 143)

p. 71)

p. 72)

p. 144)

Front panel Display Rear panel Remote Index

Contents

Connections Playback Settings Tips Appendix

BACK button

This returns to the previous screen.

System buttons

These perform playback related operations.

Tuning up / Tuning down buttons (TUNE +, –)

These select either FM broadcast or AM broadcast. (v p. 82)

SMART SELECT buttons (1 – 4)

These call up settings registered to each button, such as input source, volume level and sound mode settings. (v

SOUND MODE buttons

These select the sound mode. (v

Remote control signal transmitter

This transmits signals from the remote control unit. (v p. 9)

SLEEP button

This sets the sleep timer. (v p. 131)

p. 116)

p. 133)

Front panel Display Rear panel Remote Index

Q6 Q7

Contents

Connections Playback Settings Tips Appendix

POWER button (X)

This turns the power on/off.

“Turning the power on” (v p. 71)

“Playback in ZONE2” (v

ECO Mode button (G)

This switches to ECO Mode. (v

VOLUME buttons (df)

These adjusts the volume level.

“Adjusting the volume” (v

“Adjusting the volume (ZONE2)” (v p. 144)

OPTION button

This displays the option menu on the TV screen.

ENTER button

This determines the selection.

SETUP button

This displays the menu on the TV screen. (v p. 149)

p. 143)

p. 208)

p. 72)

Front panel Display Rear panel Remote Index

Contents Connections Playback Settings Tips Appendix

Contents

Speaker installation 29

Connecting speakers 36

Connecting a TV 52

Connecting a playback device 56

Connecting a USB memory device to the USB port 62

Connecting an FM/AM antenna 63

Connecting to a home network (LAN) 65

Connecting an external control device 67

Connecting the power cord 69

NOTE

Do not plug in the power cord until all connections have been completed.

However, when the “Setup Assistant” is running, follow the instructions in the “Setup Assistant” (page 9 in the separate “Quick Start Guide”) screen for making connections. (During “Setup Assistant” operation, the input/output connectors do not conduct current.)

Do not bundle power cords together with connection cables. Doing so can result in

noise.

Cables used for connections

Provide necessary cables according to the devices you want to connect.

Speaker cable

Subwoofer cable

HDMI cable

Component video cable

Video cable

Coaxial digital cable

Optical cable

Audio cable

LAN cable

Front panel Display Rear panel Remote Index

FL FR

SBL

SBR

SW1

SW2

SL SR

Contents Connections Playback Settings Tips Appendix

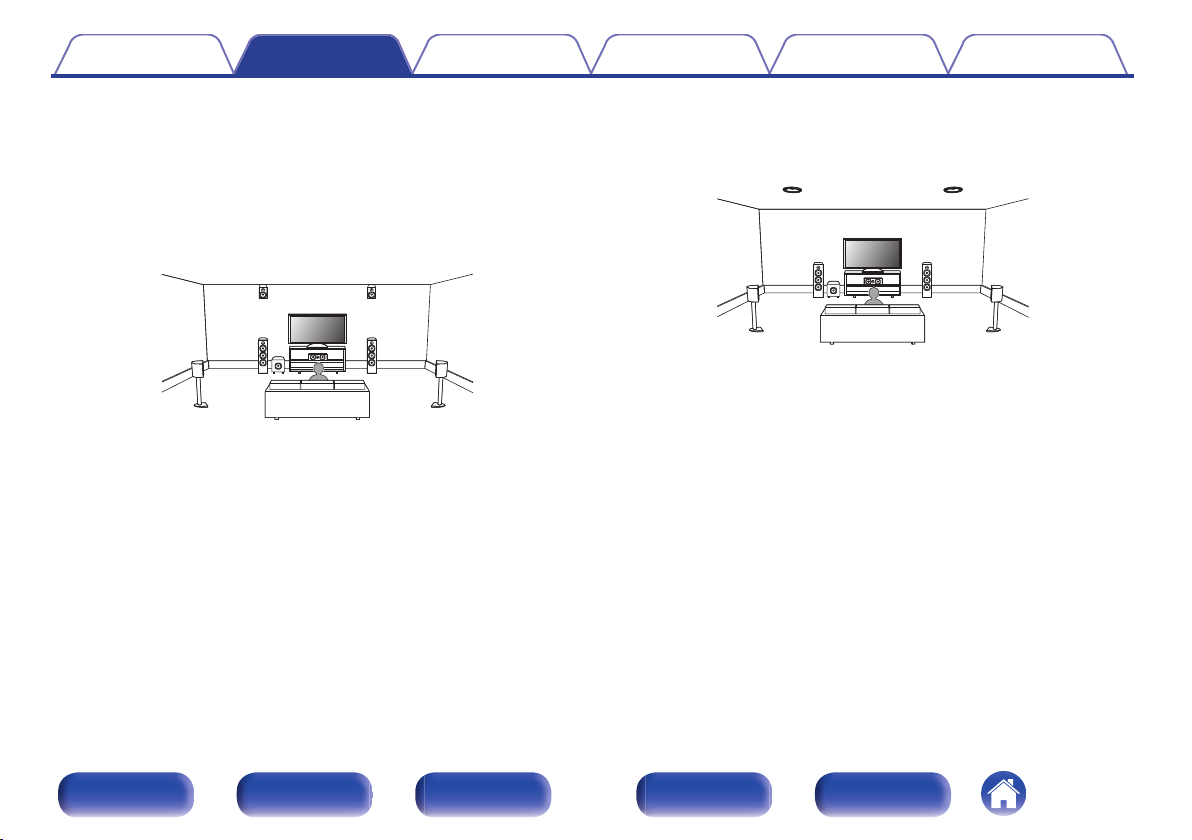

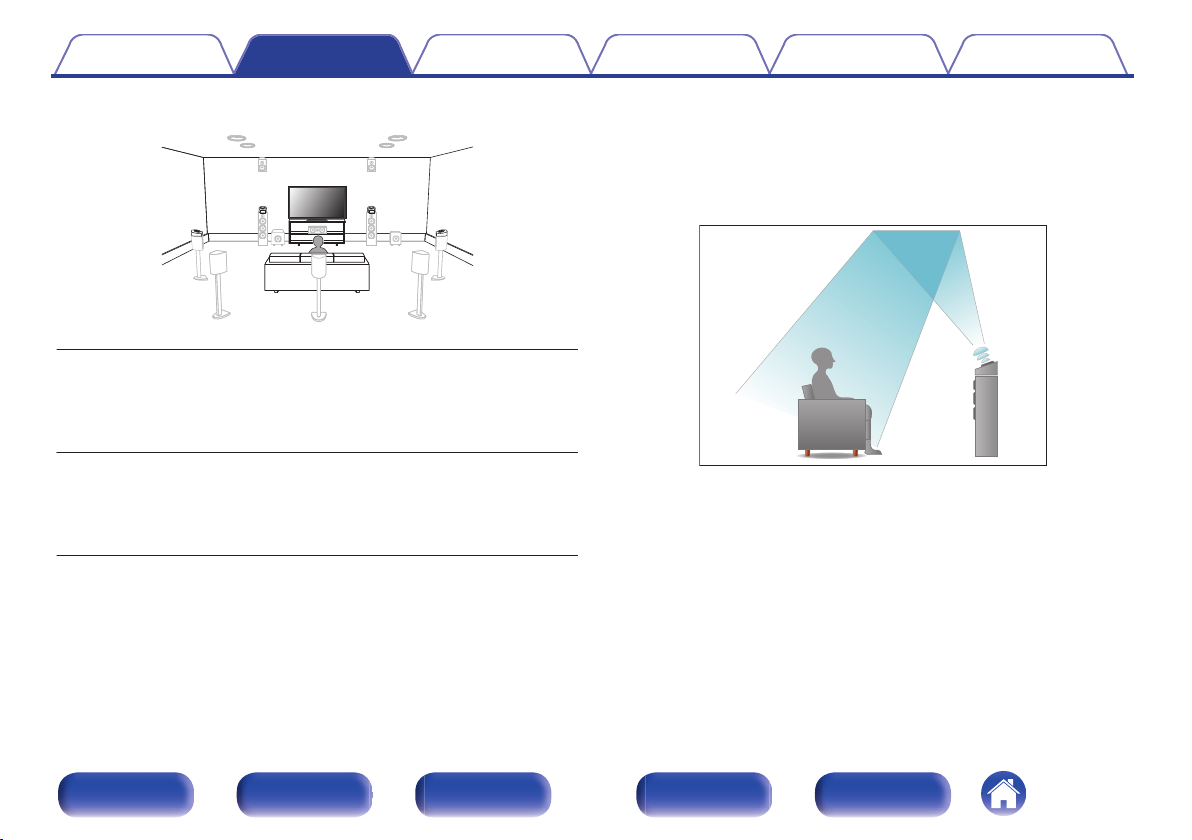

Speaker installation

Determine the speaker system depending on the number of speakers you are using and install each speaker and subwoofer in the room. Speaker installation is explained using this example of a typical installation.

FL/FR

(Front speaker left/ right):

C (Center speaker):

SL/SR

(Surround speaker left/ right):

SBL/SBR

(Surround back speaker left/right):

SW 1/2 (Subwoofer):

Front panel Display Rear panel Remote Index

Place the FRONT left and right speakers an equal distance from the main listening position. The distance between each speaker and your TV should also be the same.

Place the CENTER speaker in between the front speakers and above or below your TV.

Place the SURROUND left and right speakers an equal distance to the left and right sides of the main listening position. If you don’t have surround back speakers, move the surround speakers slightly behind your listening position.

Place the SURROUND BACK left and right speakers an equal distance from the main listening position and directly behind the main listening position. When using a single surround back speaker (SB), place it directly behind the listening position.

Place the SUBWOOFER at a convenient location near the front speakers. If you have two subwoofers, place them asymmetrically across the front of your room.

FHL FHR

TFR

TFL

TMR

TML

Contents Connections Playback Settings Tips Appendix

FHL/FHR

(Front height speaker left/right):

TFL/TFR

(Top front speaker left/right):

TML/TMR

(Top middle speaker

left/right):

Place the FRONT HEIGHT left and right speakers directly above the front speakers. Mount them as close to the ceiling as possible and aim them towards the main listening position.

Mount the TOP FRONT left and right speakers on the ceiling slightly in front of your main listening position and aligned with the left and right front speakers.

Mount the TOP MIDDLE left and right speakers directly above the main listening position and aligned with the left and right front speakers.

Front panel Display Rear panel Remote Index

+ 263 hidden pages

Marantz SR5013 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
