AV Surround Receiver

SR5005

SAFETY PRECAUTIONS

IMPORTANT SAFETY

ENGLISHFRANÇAISESPAÑOL

FCC INFORMATION (For US customers)

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning ﬂash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufﬁcient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliﬁers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not ﬁt into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories speciﬁed by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table speciﬁed by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualiﬁed service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. Batteries shall not be exposed to excessive heat such as sunshine, ﬁre or the like.

CAUTION:

To completely disconnect this product from the mains, disconnect the plug from the wall socket outlet. The mains plug is used to completely interrupt the power supply to the unit and must be within easy access by the user.

PRECAUTION:

Pour déconnecter complètement ce produit du courant secteur, débranchez la prise de la prise murale. La prise secteur est utilisée pour couper complètement l’alimentation de l’appareil et l’utilisateur doit pouvoir y accéder facilement.

PRECAUCIÓN:

Para desconectar completamente este producto de la alimentación eléctrica, desconecte el enchufe del enchufe de la pared. El enchufe de la alimentación eléctrica se utiliza para interrumpir por completo el suministro de alimentación eléctrica a la unidad y debe de encontrarse en un lugar al que el usuario tenga fácil acceso.

1. PRODUCT

This product complies with Part 15 of the FCC Rules. Operation is subject

to the following two conditions: (1) this product may not cause harmful interference, and (2) this product must accept any interference received, including interference that may cause undesired operation.

2. IMPORTANT NOTICE: DO NOT MODIFY THIS PRODUCT

This product, when installed as indicated in the instructions contained

in this manual, meets FCC requirements. Modiﬁcation not expressly approved by Marantz may void your authority, granted by the FCC, to use the product.

3. NOTE

This product has been tested and found to comply with the limits for

a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This product generates, uses and can radiate radio frequency energy and,

if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the product OFF and ON, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the product into an outlet on a circuit different from that to which the receiver is connected.

• Consult the local retailer authorized to distribute this type of product or an experienced radio/TV technician for help.

For Canadian customers:

This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

ENGLISH FRANÇAIS ESPAÑOL

NOTES ON USE / OBSERVATIONS RELATIVES A L’UTILISATION / NOTAS SOBRE EL USO

WARNINGS AVERTISSEMENTS ADVERTENCIAS

• Avoid high temperatures. Allow for sufﬁcient heat dispersion when installed in a rack.

• Handle the power cord carefully. Hold the plug when unplugging the cord.

• Keep the unit free from moisture, water, and dust.

• Unplug the power cord when not using the unit for long periods of time.

• Do not obstruct the ventilation holes.

• Do not let foreign objects into the unit.

• Do not let insecticides, benzene, and thinner come in contact with the unit.

• Never disassemble or modify the unit in any way.

• Ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, tablecloths or curtains.

• Naked ﬂame sources such as lighted candles should not be placed on the unit.

• Observe and follow local regulations regarding battery disposal.

• Do not expose the unit to dripping or splashing ﬂuids.

• Do not place objects ﬁlled with liquids, such as vases, on the unit.

• Do not handle the mains cord with wet hands.

• When the switch is in the OFF position, the equipment is not completely switched off from MAINS.

• The equipment shall be installed near the power supply so that the power supply is easily accessible.

• Eviter des températures élevées. Tenir compte d’une dispersion de chaleur sufﬁsante lors de l’installation sur une étagère.

• Manipuler le cordon d’alimentation avec précaution. Tenir la prise lors du débranchement du cordon.

• Protéger l’appareil contre l’humidité, l’eau et la poussière.

• Débrancher le cordon d’alimentation lorsque l’appareil n’est pas utilisé pendant de longues périodes.

• Ne pas obstruer les trous d’aération.

• Ne pas laisser des objets étrangers dans l’appareil.

• Ne pas mettre en contact des insecticides, du benzène et un diluant avec l’appareil.

• Ne jamais démonter ou modiﬁer l’appareil d’une manière ou d’une autre.

• Ne pas recouvrir les oriﬁces de ventilation avec des objets tels que des journaux, nappes ou rideaux. Cela entraverait la ventilation.

• Ne jamais placer de ﬂamme nue sur l’appareil, notamment des bougies allumées.

• Veillez à respecter les lois en vigueur lorsque vous jetez les piles usagées.

• L’appareil ne doit pas être exposé à l’eau ou à l’humidité.

• Ne pas poser d’objet contenant du liquide, par exemple un vase, sur l’appareil.

• Ne pas manipuler le cordon d’alimentation avec les mains mouillées.

• Lorsque l’interrupteur est sur la position OFF, l’appareil n’est pas complètement déconnecté du SECTEUR (MAINS).

• L’appareil sera installé près de la source d’alimentation, de sorte que cette dernière soit facilement accessible.

• Evite altas temperaturas. Permite la suﬁciente dispersión del calor cuando está instalado en la consola.

• Maneje el cordón de energía con cuidado. Sostenga el enchufe cuando desconecte el cordón de energía.

• Mantenga el equipo libre de humedad, agua y polvo.

• Desconecte el cordón de energía cuando no utilice el equipo por mucho tiempo.

• No obstruya los oriﬁcios de ventilación.

• No deje objetos extraños dentro del equipo.

• No permita el contacto de insecticidas, gasolina y diluyentes con el equipo.

• Nunca desarme o modiﬁque el equipo de ninguna manera.

• La ventilación no debe quedar obstruida por haberse cubierto las aperturas con objetos como periódicos, manteles o cortinas.

• No deberán colocarse sobre el aparato fuentes inﬂamables sin protección, como velas encendidas.

• A la hora de deshacerse de las pilas, respete la normativa para el cuidado del medio ambiente.

• No exponer el aparato al goteo o salpicaduras cuando se utilice.

• No colocar sobre el aparato objetos llenos de líquido, como jarros.

• No maneje el cable de alimentación con las manos mojadas.

• Cuando el interruptor está en la posición OFF, el equipo no está completamente desconectado de la alimentación MAINS.

• El equipo se instalará cerca de la fuente de alimentación de manera que resulte fácil acceder a ella.

n CAUTIONS ON INSTALLATION PRÉCAUTIONS D’INSTALLATION EMPLAZAMIENTO DE LA INSTALACIÓN

z z

Wall Paroi Pared

zFor proper heat dispersal, do not install this unit in a conﬁned

space, such as a bookcase or similar enclosure.

• More than 0.3 m (12 in.) is recommended.

• Do not place any other equipment on this unit.

zPour permettre la dissipation de chaleur requise, n’installez

pas cette unité dans un espace conﬁné tel qu’une bibliothèque ou un endroit similaire.

• Une distance de plus de 0,3 m (12 po) est recommandée.

• Ne placez aucun matériel sur cet appareil.

zPara la dispersión del calor adecuadamente, no instale este

equipo en un lugar conﬁnado tal como una librería o unidad similar.

• Se recomienda dejar más de 0,3 m (12 pulg.) alrededor.

• No coloque ningún otro equipo sobre la unidad.

Getting started

ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA

Thank you for purchasing this Marantz product. To ensure proper operation, please read this user guide carefully before using the product. After reading them, be sure to keep them for future reference.

Contents

Getting started ··············································································1

Accessories ··················································································1 About this manual ········································································· 1 Features ························································································ 2 Cautions on handling ····································································2

Simple version (Simple setup guide) ··························3

Basic version ··········································································12

Connections ·················································································13

Important information ·································································13 Connecting an HDMI-compatible device ····································14 Connecting a TV··········································································16 Connecting a Blu-ray Disc player / DVD player ···························16 Connecting a set-top box (Satellite tuner/cable TV) ····················17 Connecting a video cassette recorder ········································17 Connecting a digital camcorder ··················································18 Connecting a CD player ······························································18 Connecting a wireless receiver (RX101) ·····································18 Connecting an iPod or USB memory device to the USB Port ····19 Connecting an antenna ·······························································20 Connect a device that has a multichannel output terminal ········· 21 Connecting a external power ampliﬁer ·······································21

Playback (Basic operation) ·························································22

Important information ·································································22 Playing a Blu-ray Disc player/DVD player ····································23 Playing a CD player ·····································································23 Playing an iPod® ········································································· 23 Playing a USB memory device ····················································24 Tuning in radio stations ······························································· 25

Selecting a listening mode (Surround mode) ··························29

Multi-channel playback ·······························································29 Stereo playback ··········································································31 Direct playback ···········································································31 Dolby Virtual Speaker/Dolby Headphone playback ·····················31

Advanced version ·······························································32

Speaker installation/connection (Other than

7.1-channel system with surround back speakers)··················33

Install ··························································································33 Connect ······················································································34 Set up speakers ·········································································37

Connections (Advanced connection)·········································38

REMOTE CONTROL jacks ·························································· 38 RS-232C connector ····································································· 38 DC OUT (TRIGGER OUT) jacks ··················································· 38

Playback (Advanced operation) ·················································39

Convenient functions ·································································· 39

Playback in ZONE2 (Separate room) ········································41

q ZONE2 playback by speaker output ·······································41 w ZONE2 playback by audio output ···········································41

Playback ······················································································ 42

How to make detailed settings ·················································· 43

Menu map ··················································································43 Examples of on-screen display and front display ························ 44 Inputting characters ···································································45 Input Setup ·················································································46 Audio Adjust ···············································································52 Manual Setup··············································································56 Information ·················································································61

Other settings ·············································································· 62

Remote control settings ·····························································62 Switching the on-screen display output mode ···························62

Operating the connected devices by remote control unit ······63

Operating AV equipment ····························································63 Registering preset codes ···························································· 63 Operating components ·······························································65 Operating learn mode ·································································66 Setting the back light ··································································67

Information ·············································································68

Part names and functions···························································69

Front panel ·················································································· 69 Display ························································································69 Rear panel ··················································································· 70 Remote control unit ····································································71

Other information ·······································································73

Trademark information ································································73 Surround ·····················································································74 Explanation of terms ··································································· 78

Troubleshooting ··········································································80

Resetting the microprocessor ····················································82

Speciﬁcations ··············································································83

List of preset codes ··································End of this manual

Accessories

Check that the following parts are supplied with the product.

q User guide ............................................................................... 1

w Warranty card (for USA) .......................................................... 1

e Warranty card (for CANADA) ...................................................1

r Power cord .............................................................................. 1

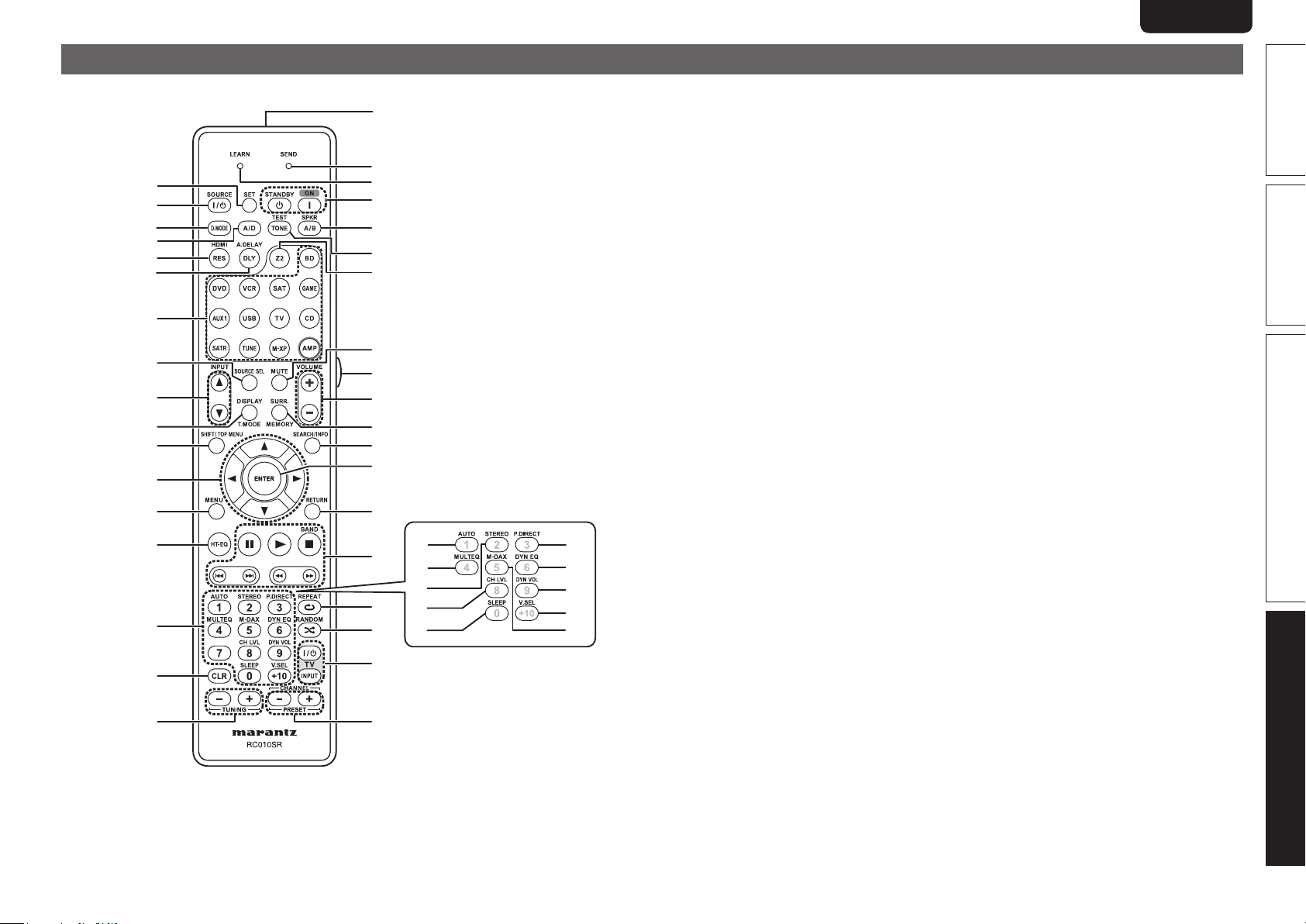

t Remote control unit (RC010SR) ..............................................1

y R03/AAA batteries ...................................................................2

u Setup microphone (ACM1H) ...................................................1

i AM loop antenna ..................................................................... 1

o FM indoor antenna ..................................................................1

r t i ou

About this manual

n Operation buttons

The operations described in this manual are based mainly on remote control operation.

n Symbols

NOTE

n Illustrations

Note that the illustrations in these instructions are for explanation purposes and may differ from the actual unit.

This symbol indicates a reference page on which related information is described.

This symbol indicates a supplementary information and tips for operations.

This symbol indicates points to remember operations or function limitations.

Basic version Advanced versionSimple version Information

ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA

Features

Fully Discrete, identical quality and power for all 7 channels (100 W x 7ch, 8Ω)

The unit is equipped with a power ampliﬁer that plays back highﬁdelity sound in surround mode with equal quality and power for all channels, true to the original sound. The power ampliﬁer circuit adopts a discrete-circuit conﬁguration that achieves high-quality surround sound play back.

Supports HDMI 1.4a with 3D, ARC, Deep Color, x.v.Color , Auto Lipsync and HDMI control function

This unit can output 3D video signals input from a Blu-ray Disc player to a TV that supports a 3D system. This unit also supports the ARC (Audio Return Channel) function, which plays back TV sound with this unit via an HDMI cable used for connecting the unit and a TVz.

zThe TV should support the ARC function.

4-HDMI inputs and 1-output

The unit is equipped with 4 HDMI input connectors for connecting devices with HDMI connectors, such as a Blu-ray Disc player, game machine, HD video camera, etc.

High Deﬁnition Audio Support

The unit is equipped with a decoder which supports high-quality digital audio format for Blu-ray Disc players such as Dolby TrueHD, DTS-HD Master Audio, etc.

Dolby Pro Logic gz

The unit is provided with a Dolby Pro Logic gz decoder. When you play back the sound in Dolby Pro Logic gz playback with front height speakers connected to the unit, you can enjoy playback sound with rich spacial expression.

Easy to use, On-Screen Display

Simple settings are enabled with the setting menus displayed on the TV screen. When you control the sound volume, the volume level is displayed on the screen, and when you switch the input source, the name of the input source is displayed.

Auto setup function

The unit is provided with an “Auto setup function” which automatically makes speaker settings best suited for the listening environment. The sound from the speakers is picked up with the supplied microphone. Reﬂecting sound and audio characteristics of speakers are measured, and settings for an optimum sound ﬁeld are automatically made.

All sources are up-scaled to 1080p

The unit is provided with an HDMI video upscaling function that converts an analog video signal input to the unit to a 1080p (HD resolution) signal and supplies it to a TV via the HDMI connector. This enables the unit and a TV connected with a single HDMI cable and any video source to be reproduced precisely with HD level of quality.

Direct Play for iPod® and iPhone® via USB

Music data from an iPod can be played back if you connect the USB cable supplied with the iPod via the USB port of this unit, and also an iPod can be controlled with the remote control unit for this unit.

M-XPort (Marantz-eXtension Port)

This unit is equipped with the M-Xport, a Marantz original innovation that provides outstanding expandability. You can connect the Wireless Receiver RX101 (sold separately) to this port.

Speaker terminal for front height channel

The unit is equipped with dedicated front height channel speaker terminals on the rear panel. You can enjoy 7.1-channel playback using the front height channel and 7.1-channel playback using the surround back channel, without having to reconnect the speakers.

Other features

• Dolby Virtual Speaker (vpage31)

• Dolby Headphone vpage31)

• DTS Neural Surround (vpage29)

Cautions on handling

• Before turning the power switch on

Check once again that all connections are correct and that there are no problems with the connection cables.

• Power is supplied to some of the circuitry even when the unit is set to the standby mode. When going on vacation or leaving home for long periods of time, be sure to unplug the power cord from the power outlet.

• About Condensation If there is a major difference in temperature between the inside of the unit and the surroundings, condensation (dew) may form on the operating parts inside the unit, causing the unit not to operate properly. If this happens, let the unit sit for an hour or two with the power turned off and wait until there is little difference in temperature before using the unit.

• Cautions on using mobile phones Using a mobile phone near this unit may result in noise. If that occurs, move the mobile phone away from this unit when it is in use.

• Moving the unit Turn off the power and unplug the power cord from the power outlet. Next, disconnect the connection cables to other system units before moving the unit.

• About Care

• Wipe the cabinet and control panel clean with a soft cloth.

• Follow the instructions when using a chemical cleaner.

• Benzene, paint thinner or other organic solvents as well as

insecticide may cause material changes and discoloration if brought into contact with the unit, and should therefore not be used.

ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA

Simple version

Here, we explain the entire setup procedure, from unboxing the unit to using it in a home theater. The “Simple version” section provides the speaker installation, connection, and setup methods for the 7.1-channel system with surround back speakers. For the installing, connecting, and setup methods of speakers other than the 7.1-channel system (with surround back speakers), see page 33.

n Before connecting the unit, turn off the power to all devices. n For operation of the connected devices, refer to the user manuals for each device.

Install

Simple version (Simple setup guide)

Set up speakers

(vpage4)

Connect

(vpage4)

Turn on power

(vpage6)

Play back disc

(vpage11)

Simple version

Basic version Advanced version Information

Enjoy better audio, using the correct install method.

Set up speakers (Audyssey® Auto Setup)

Step 1

Preparation

Speaker Detection

Connect 7.1-channel speakers, a TV and Bluray Disc player equipped with an HDMI connector.

Step 2

Measurement

Step 3

Calculating

Use the setup microphone (ACM1H) included with the product, for automatic setup.

Step 4

Check

Step 5

Store

Enjoy Blu-ray Disc and DVD in surround sound.

Finish

ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA

Install

1 2 4 53

This unit can perform 2.0/2.1 to 7.1-channel surround playback. This page provides the speaker installation procedure for the

7.1-channel playback using surround back speakers as an example.

The default setting is 7.1-channel. You can also perform 5.1-channel playback. To perform 5.1-channel playback, connect 5.1-channel speakers only. Use the Audyssey Auto Setup function of this unit to automatically detect the number of connected speakers and perform optimal settings for the speakers to be used.

FL FR

90 – 110˚

22 – 30˚

135 – 150˚

Connect

Speakers

Carefully check the left (L) and right (R) channels and + (red) and – (black) polarities on the speakers being connected to the this unit, and be sure to interconnect the channels and polarities correctly.

Connecting the speaker cables

Peel off about 0.03 ft/10 mm of sheathing from the tip of the speaker cable, then either twist the core wire tightly or terminate it.

1 2 4 53

NOTE

• Connect so that the speaker cable core wires do not protrude from the speaker terminal. The protection circuit may be activated if the core wires touch the rear panel or if the + and – sides touch each other (vpage79 “Protection Circuit”).

• Never touch the speaker terminals while the power supply is connected. Doing so could result in electric shock.

• Use speakers with the speaker impedances shown below.

Speaker terminals

FRONT A CENTER SURROUND SURR. BACK/AMP ASSIGN FRONT B/HEIGHT FRONT A + FRONT B 8 Ω

Speaker

impedance

6 − 8 Ω

Listening

position

SBL SBR

FL Front speaker (L) • Install the surround speakers in a position 2 to FR Front speaker (R) C Center speaker SW Subwoofer SL Surround speaker (L) SR Surround speaker (R) SBL Surround back speaker (L) SBR Surround back speaker (R)

The “Simple version” section provides the speaker installation, connection, and setup methods for the 7.1-channel system with surround back speakers.

3 ft (60 to 90 cm) higher than ear level.

Surround

Front speaker

speaker

2 – 3 ft / 60 – 90 cm

GViewed from the sideH

For the installing, connecting, and setup methods of speakers other than the 7.1-channel system (with surround back speakers), see page 33.

Surround back speaker

• Point slightly downwards

Audio cable (sold separately)

ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA

Connect

Blu-ray Disc player and TV

Use only an HDMI (High-Deﬁnition Multimedia Interface) cable that bears the HDMI logo (a certiﬁed HDMI product). Using a cable without the HDMI logo (an uncertiﬁed HDMI product) may result in abnormal playback. When outputting Deep Color or 1080p, etc., we recommend you use a “High Speed HDMI cable” or a “High Speed HDMI cable with Ethernet” for enhanced high-quality playback.

Blu-ray Disc player

Simple version

Basic version Advanced version Information

HDMI

OUT

FL FR

HDMI cable

(sold separately)

HDMI cable

(sold separately)

Subwoofer with built-in ampliﬁer

SBL SBR

Speaker cables

(sold separately)

Power cord

To household power outlet

(AC 120 V, 60 Hz)

(supplied)

NOTE

• Do not plug in the power cord until all connections have been completed.

• Do not bundle power cords together with connection cables. Doing so can result in humming or noise.

The “Simple version” section provides the speaker installation, connection, and setup methods for the 7.1-channel system with surround back speakers.

For the installing, connecting, and setup methods of speakers other than the 7.1-channel system (with surround back speakers), see page 33.

HDMI

ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA

Turn on power

Turn on the TV and subwoofer power.

Power on

Change the TV input to the input of

this unit.

Press ON to turn on power to the unit.

The power indicator switches off, and power is supplied to the unit.

Power on

1 2 4 53

The acoustic characteristics of the connected speakers and listening room are measured and the optimum settings are made automatically. This is called “Audyssey Auto Setup”. To perform measurement, place the setup microphone in multiple locations all around the listening area. For best results, we recommend you measure in six positions, as shown in the illustration (up to six positions).

• When performing Audyssey Auto Setup, MultEQ®/Dynamic EQ®/Dynamic

Volume® functions become active (vpage53, 54).

• To set up the speakers manually, use “Speaker Setup” (vpage56) on the menu.

NOTE

• Make the room as quiet as possible. Background noise can disrupt the room measurements. Close windows, silence cell phones, televisions, radios, air conditioners, ﬂuorescent lights, home appliances, light dimmers, or other devices as measurements may be affected by these sounds.

• Cell phones should be placed away from all audio electronics during the measurement process as Radio Frequency Interference (RFI) may cause measurement disruptions (even if the cell phone is not in use).

• Do not unplug the setup microphone from the main unit until Audyssey Auto Setup is completed.

• Do not stand between the speakers and setup microphone or allow obstacles in the path while the measurements are being made. This will cause inaccurate readings.

• Loud test sounds may be played during Audyssey Auto setup. This is part of normal operation. If there is background noise in room, these test signals will increase in volume.

• Operating

• Measurement cannot be performed when headphones are connected.

Set up speakers (Audyssey® Auto Setup)

VOLUME + – during the measurements will cancel the measurements.

1 2 4 53

Power on

The “Simple version” section provides the speaker installation, connection, and setup methods for the 7.1-channel system with surround back speakers.

For the installing, connecting, and setup methods of speakers other than the 7.1-channel system (with surround back speakers), see page 33.

ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA

About setup microphone placement

• Measurements are performed by placing the setup microphone successively at multiple positions throughout the entire listening area, as shown in GExample qH. For best results, we recommend you measure in six positions, as shown in the illustration (up to six positions).

• Even if the listening environment is small as shown in GExample wH, measuring at multiple points throughout the listening environment results in more effective correction.

GExample qH GExample wH

FL SW C FR

( : Measuring positions)

FL Front speaker (L) SL Surround speaker (L) FR Front speaker (R) SR Surround speaker (R) C Center speaker SBL Surround back speaker (L) SW Subwoofer SBR Surround back speaker (R)

SBL SBR

FL SW C FR

( : Measuring positions)

SBL SBR

Set up the microphone

Mount the setup microphone on a tripod or stand and place it in the main listening position.

When placing the setup microphone, adjust the height of the sound receptor to the level of the listener’s ear.

Sound receptor

NOTE

• Do not hold the setup microphone in your hand during measurements.

• Avoid placing the setup microphone close to a seat back or wall as sound reﬂections may give inaccurate results.

Setup microphone

Set up speakers (Audyssey® Auto Setup)

n Set up the operation mode

Press AMP to set the remote control unit to amplier operation mode.

Set up the remote control unit

Press AMP

Simple version

Basic version Advanced version Information

About the main listening position (*M)

The main listening position is the position where listeners would normally sit or where one would normally sit alone within the listening environment. Before starting Audyssey Auto Setup, place the setup microphone in the main listening position. Audyssey MultEQ® uses the measurements from this position to calculate speaker distance, level, polarity, and the optimum crossover value for the subwoofer.

The “Simple version” section provides the speaker installation, connection, and setup methods for the 7.1-channel system with surround back speakers.

For the installing, connecting, and setup methods of speakers other than the 7.1-channel system (with surround back speakers), see page 33.

Set up the subwoofer

If using a subwoofer capable of the following adjustments, set up the subwoofer as shown below.

n When using a subwoofer with a direct mode

Set the direct mode to “On” and disable the volume adjustment and crossover frequency setting.

n When using a subwoofer without a direct mode

Make the following settings:

• Volume : “12 o’clock position”

• Crossover frequency :

“Maximum/Highest Frequency”

• Low pass ﬁlter : “Off”

• Standby mode : “Off”

ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA

Set up speakers (Audyssey® Auto Setup)

Preparation

Connect the setup microphone to the

SETUP MIC jack of this unit.

When the setup microphone is connected, the following screen is displayed.

3-1.Audyssey Auto Setup MultEQ

Please place microphone at ear height at main listening position.

F.Height : Measure Front Sp. : A Amp Assign: Normal

Start

Cancel [ENT]:Select [RTN]:Back

The setting method for 7.1-channel playback using the surround back speakers is described here. For the method of setting up speakers other than the 7.1-channel system, select “Amp Assign” and perform steps 3 and 4 of “Set up speakers” (vpage37).

Use ui to select “Start” and then

press ENTER.

When measuring begins, a test tone is output from each speaker.

• Measurement requires several minutes.

If “Cancel” is selected

“Cancel Auto Setup?” is displayed on the TV screen. If “Yes” is selected, “Audyssey Auto Setup” closes.

Step 1

Speaker Detection

• In step 1, you will perform measurements at the main listening position.

• This step automatically checks the speaker conﬁguration and speaker size, and calculates the channel level, distance, and crossover frequency. It also corrects distortion in the listening area.

The detected speakers are displayed.

Step1:Speaker Detection MultEQ Front Sp. :Yes F.Height Sp. :No Center Sp. :Yes Surround Sp. :Yes S.Back Sp. :Yes 2ch Subwoofer :Yes

Retry [ENT]:Next

NOTE

If a connected speaker is not displayed, the speaker may not be connected correctly. Check the speaker connection.

Use ui to select “Next” and then

press ENTER.

NOTE

If “Caution” is displayed:

Go to “Error messages” (vpage 10), check any related items, and perform the necessary procedures. If the problem is resolved, return and restart “Audyssey Auto Setup”.

When performing Audyssey Auto Setup over again

Press ui to select “Retry”, and then press

ENTER.

When measuring has stopped

Press ui to select “Cancel”, then press ENTER. Press o p to select “Yes”, then press ENTER.

Setting up the speakers again

Repeat the operation from step 4 of

Preparation

Step 2

Measurement

• In step 2, you will perform measurements at multiple positions (two to six positions) other than the main listening position.

• You can achieve a more effective correction of distortion within the listening area by performing measurements at multiple positions.

Move the setup microphone to

position 2, use ui to select “Next”, and then press ENTER.

The measurement of the second position starts. Measurements can be made in up to six positions.

Step2:Measurement MultEQ

Please place microphone at ear height at 2nd listening position.

Calculate Cancel

[ENT]:Next

If you want to omit measurements from the next position onward, select “Calculate”. (Go to

Step 3 Calculating

Repeat step 8, measuring positions 3

to 6.

When measurement of position 6 is completed, a “All the measurements were ﬁnished.” message is displayed.

Step2:Measurement MultEQ

All the measurements were finished.

Calculate

Retry Cancel

[ENT]:Calculate

)

Remote control operation

buttons

Move the cursor (Up/Down/Left/Right)

Conﬁrm the setting Return to previous menu

ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA

Step 3

Calculating

On the

to select “Calculate”, and then press

ENTER.

Measuring results are analyzed, and the frequency response of each speaker in the listening room is determined.

• Analysis takes several minutes to complete. The time required for this analysis depends on the number of speakers connected. The more connected speakers there are, the longer it takes to perform analysis.

Step 2

Step3:Calculating MultEQ

Calculating Please wait...

[----------]

screen, use ui

Step 4

Check

Use ui to select the item you want

to check, and then press ENTER.

Step4:Check MultEQ

Please check the results of the measured item.

Speaker Config.Check

Distance Check Channel Level Check Crossover Freq.Check Next [ENT]:Select

• Subwoofers may measure a greater reported distance than the actual distance due to added electrical delay common in subwoofers.

• If you want to check another item, press

RETURN.

Use ui to select “Next” and then

press ENTER.

NOTE

• If the result differs from the actual connection status, or if “Caution!” is displayed, see “Error messages” (vpage10). Then carry out Audyssey Auto Setup again.

• If the result still differs from the actual connection status after remeasurement or the error message still appears, it is possible that the speakers are not connected properly. Turn this unit off, check the speaker connections and repeat the measurement process from the beginning.

• If you change speaker positions or orientation, perform Audyssey Auto Setup again to ﬁnd the optimal equalizer settings.

Step 5

Store

Use ui to select “Store” and then

press ENTER.

Save the measurement results.

Step5:Store MultEQ

Please select “Store” to store measurement values.

Store

Cancel

[ENT]:Store

Step5:Store MultEQ

Storing Please wait...

[----------]

• Saving the results requires about 10 seconds.

• If you do not want to save the measurement

results, use ui to select “Cancel”, then select “Yes” using o p. All the measured Audyssey Auto Setup data will be erased.

NOTE

During saving of measurement results, be sure not to turn off the power.

Set up speakers (Audyssey® Auto Setup)

Finish

Unplug the setup microphone from

the unit’s SETUP MIC jack.

Set Dynamic Volume®.

Finish MultEQ

Storing complete. Auto Setup is now finished.

Turn on Dynamic Volume?

Yes : No

[ ]:Select [ENT]:Exit

• For details of Dynamic Volume settings, see page 54.

n When turning Dynamic Volume on

• Use o to select “Yes”, and then press ENTER.

The unit automatically enters “Evening” mode.

n When turning Dynamic Volume off

• Use p to select “No”, and then press ENTER.

NOTE

After performing Audyssey Auto Setup, do not change the speaker connections or subwoofer volume. In event of a change, perform Audyssey Auto Setup again.

Simple version

Basic version Advanced version Information

Remote control operation

buttons

Move the cursor (Up/Down/Left/Right)

Conﬁrm the setting Return to previous menu

ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA

too high or

Retry Cancel

[ENT]:Retry

Ambient noise is

Level is too low.

Caution MultEQ

Error messages

An error message is displayed if Audyssey® Auto Setup could not be completed due to speaker placement, the measurement environment, etc. If this happens, check the relevant items, be sure to take the necessary measures, then perform Audyssey Auto Setup over again.

NOTE

Be sure to turn off the power before checking speaker connections.

Examples Error details Measures

Caution

MultEQ

Microphone:None or Speaker :None

Retry Cancel

[ENT]:Retry

Caution MultEQ

Front

R :None

Retry Cancel

[ ]:Up/Down [ ]:CH

Caution MultEQ

[ ]:Up/Down [ ]:CH

Skip

Front

L :Phase

Retry Cancel Skip

• The connected setup microphone is broken, or a device other than the supplied setup microphone is connected.

• Not all speakers could be detected.

• The front L speaker was not properly detected.

• There is too much noise in the room for accurate measurements to be made.

• Speaker or subwoofer sound is too low for accurate measurements to be made.

• The displayed speaker could not be detected. • Check the connections of the displayed speaker.

• The displayed is connected with the polarities reversed.

• Connect the included setup microphone to the SETUP MIC jack of this unit.

• Check the speaker connections.

• Either turn off any device generating noise or move it away.

• Perform again when the surroundings are quieter.

• Check the speaker installation and the direction in which the speakers are facing.

• Adjust the subwoofer’s volume.

• Check the polarities of the displayed speaker.

• For some speakers, this error message may be displayed even if the speaker is properly connected. If you are sure the connection is correct, press ui to select “Skip”, then press

ENTER.

Parameter Check

This function enables you to check the measurement results and equalizer characteristics after Audyssey Auto Setup.

Use ui to select “Parameter Check” and then

press ENTER.

Use ui to select the item you want to check, then

press ENTER.

3-2.Parameter Check

Speaker Config.Check

Distance Chenck Channel Level Check Crossover Freq.Check EQ Check

Restore

[ENT]:Select [RTN]:Back

Speaker Conﬁg. Check

Distance Check

Channel Level Check

Crossover Freq. Check

EQ Check

• If “EQ Check” is selected, press (“Audyssey” or “Audyssey Flat”) to be checked. Use o p to switch the display between the different speakers.

Press RETURN.

The conﬁrmation screen reappears. Repeat step 2.

Retrieving Audyssey Auto Setup settings

If you set “Restore” to “Yes”, you can return to Audyssey Auto Setup measurement result (value calculated at the start by MultEQ®) even when you have changed each setting manually.

Check the speaker conﬁguration.

Check the distance.

Check the channel level.

Check the crossover frequency.

Check the equalizer.

ui to select equalizing curve

Remote control operation

buttons

Move the cursor (Up/Down/Left/Right)

Conﬁrm the setting Return to previous menu

ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA

Play back disc

Press BD two times in a row to switch an input source for a player used for playback.

Play the component connected to this unit.

Make the necessary settings on the player (language setting, subtitles setting, etc.) beforehand.

Adjust the sound volume.

VOLUME + ····································· Volume up VOLUME – ································ Volume down MUTE ·················································· Muting

Set the listening mode.

Set the listening mode according to the playback contents

(cinema, music, etc.) or according to your liking (vpage 29 “Selecting a listening mode (Surround mode)”).

1 2 4 53

When power is switched to standby

Press STANDBY.

GPower indicator status in standby modeH

• Normal standby : Red

• When “HDMI Control” is set to “ON” : Orange

You can also switch the power to standby by pressing ON/STANDBY on the main unit.

NOTE

During power standby, a minimal amount of power is consumed. To totally cut off the power, remove the power cord from the power outlet.

Simple version

Basic version Advanced version Information

Remote control operation

buttons

Move the cursor (Up/Down/Left/Right)

Conﬁrm the setting Return to previous menu

ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA

Basic version

Here, we explain the connections and basic operation methods for this unit.

F Connections vpage13 F Playback (Basic operation) vpage22 F Selecting a listening mode (Surround mode) vpage29

n Refer to the pages indicated below for information on connecting and playing back the various

media and external devices.

Audio and video

TV Blu-ray Disc player DVD player Set-top box (Satellite tuner or cable TV) Game console Video cassette recorder Digital camcorder

Audio

iPod® USB memory device CD player

SIRIUS satellite radio

FM/AM Wireless receiver (RX101)

For speaker connections, see page 4.

radio

PlaybackConnection

vpage15, 16 vpage15, 16 vpage23 vpage15, 16 vpage23 vpage15, 17

vpage15 vpage17 vpage18

vpage19 vpage23 vpage19 vpage24 vpage18 vpage23 vpage20 vpage25 vpage20 vpage27 vpage18

–

– – – –

PlaybackConnection

–

Connections

Important information

• Make connections as follows before using this unit. Select an appropriate connection type according to the components to be connected.

• You may need to make some settings on this unit depending on the connection method. Refer to each description for more information.

• Select the cables (sold separately) according to the components being connected.

Converting input video signals for output (Video conversion function)

This unit is equipped with three types of video input connector (HDMI, Component video and video) and three types of video output connector (HDMI, Component video and video). Use the connectors corresponding to the components to be connected. This function automatically converts various formats of video signals input to this unit into the formats used to output the video signals from this unit to a monitor.

GFlow of video signalsH

Video device

This unit

Monitor

ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA

NOTE

• Do not plug in the power cord until all connections have been completed.

• When making connections, also refer to the operating instructions of the other components being connected.

• Be sure to connect the left and right channels properly (left with left, right with right).

• Do not bundle power cords together with connection cables. Doing so can result in noise.

• The video conversion function supports the NTSC, PAL, SECAM, NTSC 4.43, PAL-N, PAL-M and PAL-60 formats.

• Resolutions of HDMI-compatible TVs can be checked at “HDMI Monitor Information” (vpage61).

NOTE

• HDMI signals cannot be converted into analog signals.

• When a non-standard video signal from a game machine or some other source is input, the video conversion function might not operate.

• Component video input signals cannot be converted into Video format.

Basic version

Advanced versionSimple version Information

Output

HDMI connector

Component video

connectors

Video connector

Input

(IN)

HDMI connector

Component video

connectors

Video connector

Output

(MONITOR OUT)

HDMI

connector

Component video

connectors

Video connector

Input

HDMI connector

Component video

connectors

Video connector

ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA

Important information

How the on-screen display appears in accordance with the video input signal

The way the on-screen display of the menus, status, etc., is displayed differs according to the type of video signal input to this unit.

n When video signals are input from the HDMI or component video

connector

• Menu: Switches to a screen with a black background and the menu is superimposedz.

• Status display: Not displayed.

z If you want to display the menus superimposed on the background image, input the same video signals

to the video connectors. When a menu is displayed, the picture switches to the one being input from the video connectors and the menu is displayed superimposed over this picture.

NOTE

The menus and status display screen will not be superimposed on the video output from the component video connector.

n When video signals are input from the video connector

• Menu: Menus are displayed superimposed over the background image.

• Status display: Displayed.

NOTE

When you use the component video output connector, the on-screen display is not displayed. If you want to display the on-screen display, connect a TV to the HDMI connector or video output connector.

Examples of on-screen display

• Menu screen • Status display screen

[ENT]:Select

When the input source is switched

[Auto] IN :DVD

MODE:STEREO

Status display: The operating status appears brieﬂy on the screen

when the input source is switched or the volume is changed.

When the volume is adjusted

Master Volume -80.0dB

Connecting an HDMI-compatible device

You can connect up to four HDMI-compatible devices to the unit.

HDMI function

This unit supports the following HDMI functions:

• 3D

• Deep Color (vpage78)

• Auto Lip Sync (vpage58)

• x.v.Color, sYCC601 color, Adobe RGB color, Adobe YCC601color (vpage78, 79)

• High deﬁnition digital audio format

• ARC (Audio Return Channel)

• Content Type

• CEC (HDMI control)

In order to play back digital video and audio such as BD-Video or DVD-Video via HDMI connection, both this unit and TV or the player need to support the copyright protection system known as HDCP (Highbandwidth Digital Content Protection System). HDCP is copyright protection technology comprised of data encryption and authentication of the connected AV device. This unit supports HDCP.

• If a device that does not support HDCP is connected, video and audio are not output correctly. Read

the owner’s manual of your television or player for more information.

About HDMI cables

• When a device supporting Deep Color signal transfer is connected, use a cable compatible “High Speed HDMI cable” or “High Speed HDMI cable with Ethernet”

• When the ARC function is used, connect a device with a ”Standard HDMI cable with Ethernet” or “High Speed HDMI cable with Ethernet” for HDMI 1.4a.

HDMI control function (vpage39)

This function allows you to operate external devices from the receiver and operate the receiver from external devices.

NOTE

• The HDMI control function may not work depending on the device it is connected to and its settings.

• You cannot operate a TV or Blu-ray Disc player / DVD player that is not compatible with the HDMI control function.

About 3D function

This unit supports input and output of 3D (3 dimensional) video signals of the HDMI 1.4a standards. For playing the 3D video content, a player, and a TV that support the 3D function of the HDMI 1.4a standards are required in addition to this unit.

NOTE

When you connect a TV to this unit using the video connector, the on-screen display may not be displayed on a TV in some cases. If the on-screen display is not displayed on your TV, set the on-screen display output mode to "Video" mode in accordance with “Switching the on-screen display output mode” (vpage62).

About ARC (Audio return channel) function

The Audio Return Channel in HDMI 1.4a enables a TV, via a single HDMI cable, to send audio data “upstream” to this unit.

NOTE

• To enable the ARC function,set “HDMI Control” to “ON” (vpage58).

• When connecting a TV that does not support the ARC function, a separate connection using an audio

cable is required. In this case, refer to “Connecting a TV” (vpage16) for the connection method.

About Content Type

The HDMI Speciﬁcation Version 1.4a enables simple, automated picture setting selection with no user intervention.

NOTE

To enable the Content type, set “Video Mode” to “Auto” (vpage49).

Cables used for connections

Audio and video cable (sold separately)

HDMI cable

• This interface allows transfer of digital video signals and digital audio signals over a single HDMI cable.

Blu-ray Disc

player

DVD playerTVSet-top box

Game

console

ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA

Connecting an HDMI-compatible device

• When this unit is connected to other devices with HDMI cables, connect this unit and TV also with an HDMI cable.

• When connecting a device that supports Deep Color transmission, please use a “High Speed HDMI cable” or “High Speed HDMI cable with Ethernet”.

• Video signals are not output if the input video signals do not match the monitor’s resolution. In this case, switch the Blu-ray Disc/DVD player’s resolution to a resolution with which the monitor is compatible.

• When this unit and monitor are connected with an HDMI cable, if the monitor is not compatible with HDMI audio signal playback, only the video signals are output to the monitor.

NOTE

The audio signal from the HDMI output connector (sampling frequency, number of channels, etc.) may be limited by the HDMI audio speciﬁcations of the connected device regarding permissible inputs.

Connecting to a device equipped with a DVI-D connector

When an HDMI/DVI conversion cable (sold separately) is used, the HDMI video signals are converted to DVI signals, allowing connection to a device equipped with a DVI-D connector.

NOTE

• No sound is output when connected to a device equipped with a DVI-D connector. Make separate audio connections.

• Signals cannot be output to DVI-D devices that do not support HDCP.

• Depending on the combination of devices, the video signals may not be output.

Basic version

Advanced versionSimple version Information

HDMI

OUT

HDMI

OUT

HDMI OUT

HDMI

OUT

HDMI

n Settings related to HDMI connections

Set as necessary. For details, see the respective reference pages.

Input Assign (vpage48)

Set this to change the HDMI input connector to which the input source is assigned.

HDMI Setup (vpage58)

Make settings for HDMI video/audio output.

• Auto Lip Sync

• HDMI Audio Out

• HDMI Control

• Standby Source

• Power Off Control

NOTE

The audio signals output from the HDMI connectors are only the HDMI input signals.

ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA

Connecting a TV

• Select the connector to use and connect the device.

• For video connections, see “Converting input video signals for output (Video conversion function)”

(vpage13).

• For instructions on HDMI connections, see “Connecting an HDMI-compatible device” (vpage14).

To listen to TV audio through this device, use the optical digital connection.

NOTE

This connection is not required when a TV compatible with the ARC function (Audio Return Channel (HDMI

1.4a standard function)) is connected to this unit via an HDMI connection. For details, see “About ARC (Audio return channel) function” (vpage15) or refer to the instruction manual for your TV.

Cables used for connections

Video cable (sold separately)

Video cable

Component video cable

Optical cable

Y P

B PR

VIDEO

COMPONENT VIDEO

(Yellow)

(Green)

(Blue)

(Red)

Audio cable (sold separately)

AUDIO

VIDEO

OPTICAL

OUT

Connecting a Blu-ray Disc player / DVD player

• You can enjoy video and audio from a Blu-ray Disc or DVD.

• Select the connector to use and connect the device.

• For instructions on HDMI connections, see “Connecting an HDMI-compatible device” (vpage14).

Cables used for connections

Video cable (sold separately)

Video cable

Component video cable

Audio cable

Coaxial digital cable

Blu-ray Disc player

AUDIO

OUT

(Yellow)

(Green)

(Blue)

(Red)

Audio cable (sold separately)

B PR

VIDEO

OUT

(White)

(Red)

(Black)

VIDEO

COMPONENT VIDEO

OUT

Y P

DVD player

COAXIAL

OUT

AUDIO

OUT

Y P

OUT

VIDEO

B PR

COMPONENT VIDEO

VIDEO

OUT

in Set as Necessary

Set this to change the digital input connector or component video input connector to which the input source is assigned. “Input Assign” (vpage48)

in Set as Necessary

Set this to change the digital input connector or component video input connector to which the input source is assigned. “Input Assign” (vpage48)

For HD audio (Dolby TrueHD, DTS-HD, Dolby Digital Plus and DTS Express) playback, connect with HDMI (vpage14 “Connecting an HDMI-compatible device”).

ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA

Connecting a set-top box (Satellite tuner/cable TV)

• You can watch satellite or cable TV.

• Select the connector to use and connect the device.

• For instructions on HDMI connections, see “Connecting an HDMI-compatible device” (vpage14).

Cables used for connections

Video cable (sold separately)

Video cable

Component video cable

Audio cable

Coaxial digital cable

Satellite Tuner/Cable TV

COMPONENT VIDEO

Y P

(Yellow)

(Green)

(Blue)

(Red)

Audio cables (sold separately)

COAXIAL

OUT

B PR

VIDEO

(White)

(Red)

(Black)

VIDEO

OUT

AUDIO

OUT

Connecting a video cassette recorder

• You can record video onto a video cassette tape.

• Select the connector to use and connect the device.

Cables used for connections

Video cable (sold separately)

Video cable

Audio cable

Video cassette recorder

(Yellow)

Audio cable (sold separately)

(White)

(Red)

VIDEO VIDEO

RL RL

OUT

AUDIOAUDIO VIDEOVIDEO

AUDIOAUDIO

OUT

Basic version

Advanced versionSimple version Information

in Set as Necessary

Set this to change the digital input connector or component video input connector to which the input source is assigned.

“Input Assign” (vpage48)

in Set as Necessary

Set this to change the digital input connector or component video input connector to which the input source is assigned.

“Input Assign” (vpage48)

NOTE

To record video signals through this unit, use the same type of video cable for connection between this unit and the player as used for connection between this unit and the recorder.

ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA

Connecting a digital camcorder

• You can enjoy video and audio from a digital comcorder.

• You can enjoy games by connecting a game machine via the AUX1 input connector. In this case, select the input source to “AUX1”.

• For instructions on HDMI connections, see “Connecting an HDMIcompatible device” (vpage14).

Cables used for connections

Video cable (sold separately)

Video cable

Audio cable

Optical cable

Digital camcorder

VIDEO

OUT

(Yellow)

Audio cable (sold separately)

AUDIO

OUT

(White)

(Red)

OPTICAL

OUT

AUDIOVIDEO

Connecting a CD player

• You can enjoy CD sound.

• Select the connector to use and connect the device.

Cables used for connections

Audio cable (sold separately)

Audio cable

Optical cable

CD player

OPTICAL

OUT

AUDIO

(White)

AUDIO

OUT

(Red)

Connecting a wireless receiver (RX101)

By connecting a wireless receiver RX101 (sold separately) to this unit, you can receive and playback audio signals from other devices using the Bluetooth Communication Function.

• Use a Bluetooth device that is A2DP compatible (vpage78 “A2DP”).

• You can also use wireless receiver RX101 as an external IR receiver.

• For instructions on the wireless receiver settings, refer to the RX101’s operating instructions.

Wireless receiver RX101

Bluetooth device

(A2DP Compatibility)

NOTE

When a non-standard video signal from a game machine or some other source is input, the video conversion function might not operate. In this case, use the monitor output of the same connector as the input.

in Set as Necessary

Set this to change the digital input connector to which the input source is assigned. “Input Assign” (vpage48)

Remote control unit

You can enjoy listening to music by connecting a wireless receiver via the M-XPort input connector. In this case, set the input source to “M-XPort”.

NOTE

To use wireless receiver RX101 as external IR receiver, set the remote sensor function of this unit to “DISABLE” (vpage62 “Remote control settings”).

Connecting an iPod or USB memory device to the USB Port

You can enjoy music, stored on an iPod or USB memory device.

ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA

Cables used for connections

To connect an iPod to this unit, use the USB cable supplied with the iPod.

iPod

USB memory

device

Marantz does not guarantee that all USB memory devices will operate or receive power. When using a portable USB connection type HDD of the kind to which an AC adapter can be connected to supply power, use the AC adapter.

NOTE

• USB memory devices will not work via a USB hub.

• Do not use an extension cable when connecting a USB memory device. This may cause radio interference with other devices.

Supported iPod Models

Made for

• iPod touch (2nd generation)

• iPod touch (1st generation)

• iPod classic

• iPod with video

• iPod nano (5th generation)

• iPod nano (4th generation)

• iPod nano (3rd generation)

• iPod nano (2nd generation)

• iPod nano (1st generation)

• iPhone

• iPhone 3G

• iPhone 3GS

Basic version

Advanced versionSimple version Information

ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA

Connecting an antenna

Connecting an FM/AM antenna

• Connect the FM antenna or AM loop antenna supplied with the unit to enjoy listening to radio broadcasts.

• After connecting the antenna and receiving a broadcast signal (vpage27 “Listening to FM/AM broadcasts”), ﬁx the antenna with tape in a position where the noise level becomes minimal.

Direction of broadcasting station

AM loop antenna FM outdoor antenna

75 Ω Coaxial

cable

FM indoor

antenna

(supplied)

Ground

n AM loop antenna assembly

Put the stand section

through the bottom of the loop antenna from the rear and bend it forward.

Insert the projecting part

into the square hole in the stand.

AM outdoor

Loop

antenna

w eq

Stand

Square hole

Projecting part

n Using the AM loop antenna

Suspending on a wall

Suspend directly on a wall without assembling.

Standing alone

Use the procedure shown left to assemble.

NOTE

• Do not connect two FM antennas simultaneously.

• Even if an external AM antenna is used, do not disconnect the AM loop antenna.

• Make sure the AM loop antenna lead terminals do not touch metal parts of the panel.

• If the signal has noise interference, connect the ground terminal (GND) to reduce noise.

• If you are unable to receive a good broadcast signal, we recommend installing an outdoor antenna. For details, inquire at the retail store where you purchased the unit.

(supplied)

Black White

Nail, tack, etc.

Connecting a SIRIUS connector

• This unit is a SIRIUS Satellite Radio Ready® receiver. You can receive SIRIUS® Satellite Radio by connecting to the SiriusConnect Home Tuner and subscribing to the SIRIUS service.

• Plug the SIRIUS connector on the SIRIUS service.

• Position the Home Tuner antenna near a south-facing window to receive the best signal. For details, see “Listening to SIRIUS satellite radio” (vpage 25). When making connections, also refer to the operating instructions of the SiriusConnect Home Tuner.

SiriusConnect Home Tuner

When connecting digital audio

in Set as Necessary

When connecting digital of the SiriusConnect Home Tuner, perform the setting “Digital”. “Input Assign” (vpage48)

ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA

Connecting an antenna

NOTE

Keep the power cord unplugged until the SiriusConnect Home Tuner connection have been completed.

n Positioning the antenna

For a consistent satellite signal, the antenna must be positioned correctly. Use the following map to determine which area you are in and position the antenna accordingly.

SKY

NORTH

WEST

SOUTH

Area 1 Point the antenna toward the sky in the east, northeast, or

southeast, either through a window or outside.

Area 2 Point the antenna toward the sky in the north or northeast,

either through a window or outside.

Area 3 Point the antenna toward the sky in the north or northwest,

either through a window or outside.

Area 4 Point the antenna toward the sky in the west, northwest, or

southwest, either through a window or outside.

Area 5 Put the antenna outside and point it straight up. The antenna

cannot be used indoors.

EAST

HORIZON

Connect a device that has a multichannel output terminal

• You can connect this unit to an external device ﬁtted with multichannel sound audio output jacks to enjoy music and video.

• The video signal can be connected in the same way as a Blu-ray Disc player / DVD player (vpage16 “Connecting a Blu-ray Disc player / DVD player”).

Cables used for connections

Audio cable (sold separately)

Audio cable

(White)

(Red)

Blu-ray Disc player / DVD player / External decoder

SUB-

WOOFER

FRONT

AUDIO

CENTER SURROUND

SURROUND

BACK

Connecting a external power ampliﬁer

• You can use this unit as a pre-amp by connecting a commercially available power amp to the PRE OUT connector. Adding a power amp to each of the channels provides an even greater sound presence.

• Select the connector to use and connect the device.

Cables used for connections

Audio cable (sold separately)

Audio cable

(White)

(Red)

Power ampliﬁer

SUB-

WOOFER

FRONT

AUDIO

CENTER SURROUND

SURROUND

BACK

Basic version

Advanced versionSimple version Information

in Set as Necessary

To play analog signals input from 7.1CH INPUT terminals, set “Input Mode” (vpage50) to “7.1CH INPUT”. “7.1CH INPUT” can also be selected with control unit.

When a device is connected to the SBL/SBR terminal of 7.1CH INPUT terminals, set “Amp Assign” (vpage56) to “Normal”.

A/D on the remote

• When using just one surround back speaker, connect it to the left channel (L) terminal.

• Use the volume control on the subwoofer to control subwoofer volume.

• If the subwoofer volume sounds low, use the volume control provided on the subwoofer to adjust the volume.

NOTE

• When speakers have been connected to PRE OUT terminals, do not connect the speakers to the speaker terminals.

• The output channels for the PRE OUT connector change to SBL and SBR in the “Amp Assign” (vpage56) settings in the menu.

ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA

Playback (Basic operation)

n Selecting the input source (vpage22) n Adjusting the master volume (vpage22) n Turning off the sound temporarily (vpage22)

n Playing a Blu-ray Disc player/DVD player

(vpage23)

n Playing a CD player (vpage23) n Playing an iPod® (vpage23) n Playing a USB memory device (vpage24) n Tuning in radio stations (vpage25)

Selecting a listening mode (Surround mode)

(vpage29)

Playback (Advanced operation) (vpage39)

Important information

Before starting playback, make the connections between the different components and the settings on the receiver.

NOTE

Also refer to the operating instructions of the connected components when playing them.

Selecting the input source

Press the input source select button (BD, DVD, VCR, SAT, GAME, AUX1,

USB, TV, CD, SATR, TUNE, M-XP)

twice to play back that source.

The desired input source can be selected directly.

You can also use the following operation to select an input source.

n Using the “Source Select” menu

q Press AMP and then press SOURCE SEL.

Display the “Source Select” menu.

Source Select

DVD VCR SAT GAME

AUX1 [ ]:Source [ENT]:Select

w Use uio p to select the input source,

then press ENTER.

The input source is set and the source

selection menu is turned off.

• When using with an iPod connected directly to the USB port of this unit, select “USB” for the input source.

• Input sources that are not going to be used can be set ahead of time. Make this setting at “Source Delete” (vpage60).

• To turn off the source selection menu without selecting an input source, press SOURCE SEL again.

USB TV CD SIRIUS TUNER M-XPort

The currently selected input source is highlighted.

n Operating the remote control unit

Press INPUT d f.

• When INPUT d f is pressed, the

input source is switched in the order shown below.

BD DVD SATVCR GAME

SIRIUS

CD TV USBM-XPort TUNER

AUX1

n Operating the main unit

Turn INPUT SELECTOR.

• Turning INPUT SELECTOR switches the input

source, as shown below.

BD DVD SATVCR GAME

SIRIUS

CD TV USBM-XPort TUNER

AUX1

Adjusting the master volume

Use VOLUME + – to adjust the volume.

n When the “Volume Display” setting

(vpage60) is “Relative”

GAdjustable rangeH

– – –

–80.5dB – 18.0dB

n When the “Volume Display” setting (vpage60) is

“Absolute”

GAdjustable rangeH

• The adjustable range may vary depending on input signal and channel level settings.

You can also operate via the main unit. In this case, perform the following operations. Turn VOLUME to adjust the volume.

0.0 – 99.0

Turning off the sound temporarily

Press MUTE.

• The sound is reduced to the level set at “Mute Level” (vpage60).

• To cancel, press MUTE again. Muting can also be canceled by

adjusting the master volume.

ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA

Playing a Blu-ray Disc player/DVD player

The following describes the procedure for playing Blu-ray Disc player/ DVD player.

Prepare for playback.

q Turn on the power of the TV,

2 3

subwoofer and player.

w Change the TV input to the input of

this unit.

e Load the disc in the player.

Press ON to turn on power to the unit.

Press BD or DVD twice to switch the input source for the player used for playback.

Play the component connected to this unit.

Make the necessary settings on the player (language setting, subtitles setting, etc.) beforehand.

Playing a CD player

The following describes the procedure for playing CD player.

Prepare for playback.

q Turn on the power of the

2 3

subwoofer and player.

w Load the disc in the player.

Press ON to turn on power to the unit.

Press CD twice to switch the input source to the CD player.

Play the component connected to this unit.

Playing an iPod

You can play back both video, photo and audio.

Listening to music on an iPod

Connect the iPod® to the USB

port (vpage 19 “Connecting an iPod or USB memory device to the USB Port”)

Press ON to turn on power to the

unit.

Press USB twice to switch the

input source to “USB”.

NOTE

If the connections screen is not displayed, the iPod may not be properly connected. Reconnect it.

Press SEARCH and hold it down for 2 seconds or

more to select the display mode.

• There are two modes for displaying the contents recorded on the iPod.

Remote mode

• English letters, numbers and certain symbols are displayed. Incompatible characters are displayed as “.” (period).

• In “Remote mode”, the iPod display is as shown at right.

Direct mode

• “Direct iPod” is displayed on the display of this unit.

Display mode

Playable ﬁles

Active buttons

z Only the sound is played.

Use ui to select the item, then press ENTER or p to

select the le to be played.

Display iPod information on the TV screen.

Display iPod information on the iPod screen.

Music ﬁle Video ﬁle Remote

control unit (This unit)

iPod

OK to disconnect.

Remote mode Direct mode

P P

Press ENTER, p or 1.

Playback starts.

• You can specify the duration of the on-screen display to be

displayed (default: 30 sec) at menu “USB” (vpage60). Press

uio p to return to the original screen.

• To play back compressed audio with extended bass or treble reproduction, we recommend playback in M-DAX mode (vpage 55). The default setting is “OFF”.

• In Remote mode, press STATUS during playback to check the title name, artist name, and album name.

iPod operation

Operation buttons Function

uio p

ENTER Enter

(Press and release)

(Press and hold)

RETURN Return

6 7

(Press and hold)

8 9

3 2

REPEAT Repeat playback

RANDOM Shufﬂe playback

TV POWER

TV INPUT

Repeat playback and shufﬂe playback can also be set from “Input Setup” – “Playback Mode” (vpage51) in the menu.

NOTE

• Depending on the type of iPod and the software version, some functions may not operate.

• Note that Marantz will accept no responsibility whatsoever for any problems arising with the data on an iPod when using this unit in conjunction with the iPod.

Cursor operation

Page search mode

Direct/Remote mode switching

Manual search

(fast-reverse/fast-forward)

Playback / Pause

Auto search (cue)

Pause

Stop

TV power on/standby

(Default : Marantz)

Switch TV input

(Default : Marantz)

Basic version

Advanced versionSimple version Information

ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA

Playing a USB memory device

Playing back music ﬁles recorded on a USB memory device.

Important information

n USB memory devices

A USB memory device can be connected to the USB port of this unit to play music ﬁles stored on the USB memory device.

• Only USB memory devices conforming to mass storage class can be played on this unit.

• This unit is compatible with USB memory devices in “FAT16” or “FAT32” format.

GCompatible formatsH

USB memory devices

P P

WMA (Windows Media Audio) MP3 (MPEG-1 Audio Layer-3) MPEG-4 AAC WAV

z1 USB

• This unit is compatible with MP3 ID3-Tag (Ver. 2) standards.

• This unit is compatible with WMA META tags.

z2 Copyright-protected ﬁles can not be played. z3 Only ﬁles that are not protected by copyright can be played on

this unit. Also, ﬁles encoded in WMA format when ripped from a CD, etc. on a computer may be copyright protected, depending on the computer’s settings.

GCompatible formatsH

Sampling frequency

WMA (Windows

Media Audio) MP3 (MPEG-1

Audio Layer-3)

MPEG-4 AAC 32/44.1/48 kHz 16 – 320 kbps .m4a WAV 32/44.1/48 kHz 16 bit .wav

32/44.1/48 kHz 48 – 192 kbps .wma

32/44.1/48 kHz 32 – 320 kbps .mp3

Bit rate

Bit length

Extension

Playing ﬁles stored on USB memory devices

Connect the USB memory

device to the USB port (vpage 19 “Connecting an iPod or USB memory device to the USB Port”).

Press USB twice to switch the

input source to “USB”.

Press ui to select the search

item or folder, then press ENTER or p.

Press ui to select the le, then

press ENTER, p or 1.

Playback starts.

• You can specify the duration of the on-screen display to be displayed

(default: 30 sec) at menu “USB” (vpage60). Press uio p to return to the original screen.

• To play back compressed audio with extended bass or treble reproduction, we recommend playback in M-DAX mode (vpage55).

• If the USB memory device is divided into multiple partitions, only the top partition can be selected.

• This unit is compatible with MP3 ﬁles conforming to “MPEG-1 Audio Layer-3” standards.

NOTE

• Note that Marantz will accept no responsibility whatsoever for any problems arising with the data on a USB memory device when using this unit in conjunction with the USB memory device.

• USB memory devices will not work via a USB hub.

• Marantz does not guarantee that all USB memory devices will operate or be supplied power. When using a USB portable hard disk that can draw power from an AC adapter, we recommend using the AC adapter.

• It is not possible to connect and use a computer via the USB port of this unit using a USB cable.

The default setting is “High”.

n USB operation

Operation buttons Function

uio p

ENTER Enter SEARCH Page search RETURN Return

6 7

(Press and hold)

8 9

3 2

REPEAT Repeat playback

RANDOM Shufﬂe playback

TV POWER

TV INPUT

Cursor operation

Manual search

(fast-reverse/fast-forward)

Playback/Pause

Auto search (cue)

Pause

Stop

TV power on/standby

(Default : Marantz)

Switch TV input

(Default : Marantz)

Repeat playback and shufﬂe playback can also be set from “Input Setup” – “Playback Mode” (vpage51) in the menu.

Tuning in radio stations

ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA

Important information

n About SIRIUS XM radio

To listen to Satellite Radio, you’ll need to connect either a SIRIUS or XM Satellite Radio tuner (sold separately) to your satellite-ready receiver. Satellite Radio is available to residents of the US (except Alaska and Hawaii) and Canada.

Satellite Radio delivers a variety of commercial-free music from categories ranging from Pop, Rock, Country, R&B, Dance, Jazz, Classical and many more plus coverage of all the top professional and college sports including play by play games from select leagues and teams. Additional programming includes expert sports talk, uncensored entertainment, comedy, family programming, local trafﬁc and weather and news from your most trusted sources.

Whether you purchase a SIRIUS or XM tuner, you’ll need to activate and subscribe to begin enjoying the service. Easy to follow installation and setup instructions are provided with the satellite tuners. Whichever service you choose, there are a variety of programming packages available, including the option of adding “The Best of SIRIUS” programming to your XM tuner or “The Best of XM” programming to your SIRIUS tuner, enabling you to enjoy the most popular programming among both services. The “Best of” packages are not available to SIRIUS or XM Canada subscribers at this time.

Family friendly packages are also available to restrict channels featuring content that may be inappropriate for children.

To subscribe to XM, U.S. customers should visit xmradio.com or call 1-800-XMRADIO (1-800-967-2346); Canadian customers should visit xmradio.ca or call XM Listener Care at 1-877-GETXMSR (1-877-438- 9677).

To subscribe to SIRIUS, U.S. and Canadian customers can call 1-888-539-SIRI (1-888-539-7474) or visit sirius.com (US) or siriuscanada.ca (Canada).

n SIRIUS XM radio legal

SIRIUS, XM and all related marks and logos are trademarks of Sirius XM Radio Inc. and its subsidiaries. All other marks and logos are the property of their respective owners. All rights reserved. SIRIUS and XM subscriptions sold separately. Taxes and a one-time activation fee may apply. XM tuners and home docks or SIRIUS tuners (each sold separately) are required to receive the SIRIUS or XM satellite radio service. All programming and fees subject to change. It is prohibited to copy, decompile, disassemble, reverse engineer, hack, manipulate or otherwise make available any technology or software incorporated in receivers compatible with the SIRIUS or XM Satellite Radio Systems. Service not available in Alaska and

Hawaii.

Listening to SIRIUS satellite radio

Press SATR twice to switch the

input source to “SIRIUS”.

Use TUNING + or TUNING – to

select the channel.

When the channel is tuned in, the name of the song and artist are displayed.

• The channel switches continuously when TUNING + or TUNING – is

pressed and held.

• You can specify the duration of the on-screen display to be displayed

(default: 30 sec) at menu “TUNER” (vpage60). Press uio p to return to the original screen.

• The song title, artist name, composer name, category and reception level can be checked by pressing

STATUS.

n Checking the SIRIUS signal strength and radio

Press STATUS until

“SIGNAL” appears on the display.

The display will switch as shown below, depending on the reception conditions.

Display Status EXCELLENT Signal strength is excellent GOOD Signal strength is good WEAK Signal strength is weak NO SIGNAL No signal

Adjust the position of the antenna until “SIGNAL:

EXCELLENT” is shown on the display.

Press STATUS until the channel (example: “SR001”)

is displayed.

Press TUNING + or TUNING –

and select channel 0 (SR000).

Channel No. and Sirius ID are alternately

shown on the display.

Sirius ID

• Write your own SIRIUS ID for storage use.

Sirius ID :

The strength of both the SIRIUS satellite and terrestrial signals can be checked “Antenna Aiming” (vpage47).

Basic version

Advanced versionSimple version Information

ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA

n Presetting radio channels (Preset memory)

Your favorite broadcast channels can be preset so that you can tune them in easily. Up to 56 channels can be preset.

n Searching categories

Press o p.

Tune in the broadcast channel

you want to preset.

Press MEMORY.

Channel category

Press SHIFT to select the block

(A to G) in which to preset the channel (1 to 8 per block), then press PRESET +, PRESET – or 1 –

to select the preset number.

Press MEMORY again to complete

the setting.

• To preset other stations, repeat steps 1 to

NOTE

Preset channels are erased by overwriting them.

n Listening to preset channels

Press PRESET +, PRESET – to select the desired preset channel, then press

ENTER.

• Preset channels can also be selected by

pressing SHIFT/TOP MENU (Block) and 1 –

(Channel).

Use o p to select the category, to use ui to select

the desired channel.

ChannelChannel category

n Accessing SIRIUS satellite radio channels

directly

Press SEARCH/INFO.

Press 0 – 9 to input the channel.

Example: Accessing channel “SR123”: Press 1, 2 and 3.

• If no button is pressed within several seconds, the channel automatically switches to the one whose number has been input.

Press ENTER to set that channel.

Reception switches to the selected channel.

Tuning in radio stations

n Parental Lock

Tune to the channel you want to

lock.

Press ENTER for at least 3

seconds.

“Enter Lock Code” is displayed.

Enter the 4-digit lock code using

uio p or 0 – 9.

When you enter the correct code, the corresponding channel is locked.

Press ENTER.

• Channels under Parental Lock cannot be tuned in by performing channel up/down or by category search.

• Channels stored in preset memory can be tuned in by the preset channel select operation, even if Parental Lock is applied.

• When a channel to which Parental Lock is applied is being played, Parental Lock for that channel is cancelled by performing step 2.

• See “Edit Lock Cord” (vpage 47) for the method of changing Parental Lock Cord.

• You can also set “Parental Lock” (vpage47) from the menu.

• “UPDATING” is displayed while the encording code is being updated.

• “SIRIUS UPDATING” is displayed when updating SIRIUS tuner ﬁrmware.

• Refer to “Troubleshooting” – “SIRIUS Satellite Radio” (vpage81) regarding other messages.

n SIRIUS operation

Operation buttons Function

PRESET +, – Preset channel selection

uio p

ENTER

(Press and hold)

SEARCH Direct search RETURN Return

TUNING +, – Channel selection

0 – 9

SHIFT Preset channel block selection

MEMORY Preset memory registration

TV POWER

TV INPUT

Cursor operation / Category search

To parental lock password check screen

Preset channel selection (1 – 8) /

Channel direct call

TV power on/standby

(Default : Marantz)

Switch TV input

(Default : Marantz)

Listening to FM/AM broadcasts

Press TUNE twice to switch the

input source to “TUNER”. Press BAND to select “FM” or

“AM”.

When listening to an FM broadcast.

When listening to an AM broadcast.

Tune in the desired broadcast

station.

q To tune in automatically (Auto tuning)

Press T.MODE to light the “AUTO” indicator on the display, then use TUNING + or TUNING – to select the station you want to hear.

w To tune in manually (Manual tuning)

Press T.MODE to turn off the display’s “AUTO” indicator, then use

TUNING

or TUNING – to select the station you want to hear.

ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA

Tuning in radio stations

n Presetting radio stations (Manual preset)

Your favorite broadcast stations can be preset so that you can tune them in easily. Up to 56 stations can be preset.

• Stations can be preset automatically at “Auto Preset” (vpage47). If “Auto Preset” is performed after performing

“Manual Preset”, the “Manual Preset” settings will be overwritten.

Tune in the broadcast station you

want to preset.

Press MEMORY.

Press SHIFT/TOP MENU to select

the block (A to G) in which to preset the channel (1 to 8 per block), then press PRESET +,

PRESET – or 1 – 8 to select the

preset number.

Press MEMORY again to complete

the setting.

• To preset other stations, repeat steps 1 to 4.

Basic version

Advanced versionSimple version Information

• If the desired station cannot be tuned in with auto tuning, tune it in manually.

• When tuning in stations manually, press and hold TUNING + or

TUNING – to change frequencies continuously.

• You can specify the duration of the on-screen display to be displayed (default: 30 sec) at menu “TUNER” (vpage60). Press uio p to return to the original screen.

Default settings

Block (A – G)

and

Channel (1 – 8)

A1 – A8

B1 – B8

C1 – C8 90.1 MHz D1 – D8 90.1 MHz E1 – E8 90.1 MHz

F1 – F8 90.1 MHz

G1 – G8 90.1 MHz

87.5 / 89.1 / 98.1 / 107.9 / 90.1 / 90.1 / 90.1 /

90.1 MHz 520 / 600 / 1000 / 1400 / 1710 kHz,

90.1 / 90.1 / 90.1 MHz

Default Settings

Specify a name for the preset broadcast station (Preset Name) (vpage48)

ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA

n Listening to preset stations

Press SHIFT/TOP MENU to select

the memory block (A to G).

Press PRESET +, PRESET – or

1 – 8 to select the desired preset

channel.

You can also operate via the main unit. In this case, perform the following operations. Press o p to select the preset radio station.

n Tuner (FM/AM) operation

Operation buttons Function

PRESET +, – Preset channel selection

uio p

ENTER Enter

SEARCH Direct frequency tuning

BAND FM/AM switching

T.MODE Switch search modes

TUNING +, – Tuning (up/down)

0 – 9

SHIFT Preset channel block selection

MEMORY Preset memory registration

TV POWER

TV INPUT

Cursor operation

Preset channel selection (1 – 8) /

Direct frequency tuning (0 – 9)

TV power on/standby

(Default : Marantz)

Switch TV input

(Default : Marantz)

Tuning in radio stations

Switching the tuning increment

The tuning increment factory settings are 9kHz for AM, and 0.05 MHz for FM.

DISPLAYAUTOON/STANDBY

o p

While pressing down AUTO and DISPLAY, press ON/

STANDBY

“Step 0 AM9/FM50 1” appears on the display.

Press o p.

“Step 0 AM10/FM200 1” appears on the display, and the tuning increment is switched to AM and FM are 10 kHz and

0.2 MHz.

to turn on the power.

n Direct frequency tuning

You can enter the receiving frequency directly to tune in.

Press SEARCH/INFO.

Input frequencies using the 0 – 9.

• If o is pressed, the immediately preceding

input is cancelled.

When setting is completed, press

ENTER.

The preset frequency is tuned in.

Press ON/STANDBY.

• The tuner preset memory will be cleared if this operation is performed.

• This setting will not revert to the default values even when the microprocessor is reset.

Selecting a listening mode (Surround mode)

This unit can play input audio signals in multi-channel surround mode or in stereo mode. Select a listening mode suitable for the playback contents (cinema, music, etc.) or according to your liking.

Multi-channel playback

ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA

Listening mode

Input audio signal Playback Listening mode

For 2-channel signal input:

• Surround-channel signals are created and played with surround

2-channel

Surround

Multi channel

2-channel

Stereo

Multi channel

2-channel

Multi channel

2-channel

Multi channel

• Some listening modes cannot be selected, depending on the audio format or number of channels of the input

signal. For details, see “Types of input signals, and corresponding surround modes” (vpage76).

• Adjust the sound ﬁeld effect with the menu “Surround Parameter” (vpage52) to enjoy your favorite sound mode.

• You can select the listening mode by pressing SURROUND MODE on the main unit. Press SURROUND MODE and the modes are switched as shown below.

AUTO*(STEREO) STEREO

DOLBY VIRTUAL

zFor “AUTO”, press AUTO on the ampliﬁer or remote control.

Stereo

Surround

Virtual

Surround

NEURAL

Multi-channel playback

(vpage29)

Stereo playback

(vpage31)

Direct playback

(vpage31)

Dolby Virtual Speaker/

Dolby Headphone

playback (vpage31)

DOLBY PLgz DOLBY PLg(x) Movie

MULTI CH STEREO DTS NEO:6 cinema

playback.

For multichannel signal input:

• The surround signal recorded in source is played as surround playback. (The sound is played according to the settings of the speaker size in “Speaker Conﬁg.” (vpage56).)

• Surround-back-channel or front-height-channel signals that are not recorded in source can be created.

• If multichannel signals are input, they are mixed down to 2-channel audio and are played.

• Subwoofer signal is also output.

Sound recorded in source is played as is.

• Surround back signals or front height signals are not created.

• In this mode, the following items cannot be adjusted.

• Tone (vpage53) • MultEQ® (vpage53)

• Dynamic EQ® (vpage54) • Dynamic Volume® (vpage54)

• M-DAX (vpage55)

Virtual Surround processing is performed on 2-channel or multichannel input signals that are played back.

DOLBY PLg(x) Music

DTS NEO:6 music

DOLBY PLg(x) Game

n Surround playback of 2-channel sources

Playing the source (vpage 23 – 27).

Press SURR. to select the surround

decoder to play back multichannel sound.

• Each time SURR. is pressed, the surround mode is switched.

Which decoder can be selected depends on the settings of “Amp Assign” (vpage56) or “Speaker Conﬁg.” (vpage56).

DOLBY PLgz

DOLBY PLgx

DOLBY PLg

DTS NEO:6

MULTI CH

STEREO

NEURAL

z1 This can be selected when the “Amp Assign” (vpage56) setting

in the menu is set to “Normal”, and the “Front Speaker Setup” setting (vpage58) is set to “A”.

This cannot be selected when the “Speaker Conﬁg.” – “Front

Height” is set to “None”.

z2 This can be selected when “Amp Assign” is set to “Normal” or

“Speaker Conﬁg.” – “S.Back” is not set to “None”.

z3 This mode supports analog 2-channel audio, and linear PCM 2

channel (44.1 kHz, 48 kHz) audio.

This mode is for 7.1-channel surround playback using the front height speakers.

• “PLgz Height” is displayed.

This mode is for 7.1-channel or 6.1-channel surround playback using the surround back speakers.

• “PLgx Movie”, “PLgx Music”or “PLgx Game” is

displayed.

This mode is for 5.1-channel surround playback. Select this mode if no front height speaker nor surround back speaker is to be used.

• “PLg Movie”, “PLg Music”or “PLg Game” is

displayed.

This mode is for 7.1-channel, 6.1-channel or

5.1-channel surround playback using the surround back speakers.

• “DTS NEO:6 Cinema” or “DTS NEO:6 Music” is displayed.

This mode is for enjoying stereo sound from all speakers.

This mode is for 7.1-channel, 6.1-channel or

5.1-channel surround playback using the surround

back speakers.

• “NEURAL” is displayed.

Basic version

Advanced versionSimple version Information

ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA

n Surround playback of multi-channel sources

(Dolby Digital, DTS etc.)

Playing the source (vpage 23 –

27).

Press SURR. to select the

surround decoder to play back multichannel sound.

Select the surround mode while viewing the display on the screen (v“Displaying the currently playing surround mode” at right).

• Which decoder can be selected depends on the input signal,

the settings of “Amp Assign” (vpage56) or “Speaker Conﬁg.” (vpage56).

Displaying the currently playing surround mode

Input signal Surround mode Display

DOLBY DIGITAL (2ch)

DOLBY DIGITAL (other than 2ch) / DOLBY DIGITAL EX

DOLBY DIGITAL Plus

DOLBY TrueHD

DTS (5.1ch) / DTS-ES Discrete 6.1 / DTS-ES Matrix 6.1 / DTS 96/24

DTS-HD

PCM (multi ch)

All Input signal Dolby VIRTUAL SPEAKER

z1 This is displayed when the input signal is “DTS-ES Matrix 6.1”. z2 This is displayed when the input signal is “DTS-ES Discrete 6.1”. z3 This is displayed when the input signal is “DTS 96/24”.

NEURAL

DOLBY DIGITAL DOLBY DIGITAL EX DOLBY DIGITAL + PLgx Movie DOLBY DIGITAL + PLgx Music DOLBY DIGITAL + PLgz DOLBY DIGITAL Plus DOLBY DIGITAL Plus + EX DOLBY DIGITAL Plus + PLgx Movie

DOLBY DIGITAL Plus + PLgx Music DOLBY DIGITAL Plus + PLgz DOLBY TrueHD DOLBY TrueHD + EX DOLBY TrueHD + PLgx Movie DOLBY TrueHD + PLgx Music DOLBY TrueHD + PLgz DTS SURROUND DTS + PLgx Movie DTS + PLgx Music DTS + PLgz DTS + NEO:6 DTS ES MTRX6.1 DTS ES DSCRT6.1 DTS 96/24 DTS-HD HI RES DTS-HD MSTR DTS-HD + NEO:6 DTS-HD + PLgx Movie DTS-HD + PLgx Music DTS-HD + PLgz DTS Express MULTI CH IN MULTI IN + Dolby EX MULTI IN + PLgx Movie MULTI IN + PLgx Music MULTI IN + PLgz MULTI CH IN 7.1

NEURAL

DOLBY DIGITAL DOLBY DIGITAL EX

D+ PL x Movie

D+ PL x Music DOLBY D PL z DOLBY DIGITAL + DOLBY D + EX

D + + PL x Mv

D + + PL x Ms

DOLBY D + PL z DOLBY TrueHD DOLBY HD EX

HD +PL x Mv

HD +PL x Ms DOLBY HD PL z DTS SURROUND DTS PL x Mv DTS PL x Ms DTS PL z DTS NEO:6 DTS ES MTRX6.1 DTS ES DSCRT6.1 DTS 96/24 DTS-HD HI RES DTS-HD MSTR DTS-HD NEO:6 DTS-HD PL x Mv DTS-HD PL x Ms DTS-HD PL z DTS Express MULTI CH IN MULTI Dolby EX MULTI IN PL x Mv MULTI IN PL x Ms MULTI IN PL z MULTI CH IN 7.1 DOLBY VS

Multi-channel playback

GViews on the displayH

q w

q Shows a decoder to be used.

• A DOLBY DIGITAL Plus decoder is displayed as “DOLBY D +”.

w Shows a decoder that creates sound output

from the surround back speakers.

• “+ PLgz” indicates the front height sound from front height speakers.

For an input signal that can be reproduced in each surround mode, see “Surround modes and surround parameters” (vpage74).

ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA

Stereo playback

This is the mode for playing in stereo. The tone can be adjusted.

• Sound is output from the front left and right speakers and subwoofer.

• If multichannel signals are input, they are mixed down to 2-channel audio and are played.

Playing the source (vpage 23 –

27).

Press STEREO.

Stereo playback begins.

Direct playback

Sound recorded in source is played as is.

• Surround back signals or front height signals are not created.

• In this mode, the following items cannot be adjusted.

• Tone (vpage53) • MultEQ® (vpage53)

• Dynamic EQ® (vpage54) • Dynamic Volume® (vpage54)

• M-DAX (vpage55)

Playing the source (vpage 23

– 27).

Press P.DIRECT to select the

direct mode.

• If PURE DIRECT on the main unit is

pressed, the same function as with the remote control unit can be obtained.

• Each time P.DIRECT is pressed, the direct mode is switched.

Source Direct

Pure Direct

Auto

zThe following circuits that affect sound quality are set to off.

• Main unit’s display circuit (The display is turned off.)

• Analog video input/output circuit

• To cancel, press P. DIRECT again.

• Video signals are only output when HDMI signals are played in the

PURE DIRECT mode.

NOTE

When in the PURE DIRECT mode, the menu screen is not displayed.

This mode plays back tracks at high sound quality without passing through the sound quality adjustment circuits.

This mode plays back tracks at the closest to the original sound quality.

This mode detects the type of input digital signal, and automatically selects the corresponding mode for playback.

Dolby Virtual Speaker/Dolby Headphone playback

Dolby Virtual Speaker mode

This delivers a full surround sound experience from two stereo speakers.

• Sound is output from the front left and right speakers.

• If multichannel signals are input, they are mixed down to 2-channnel audio.

Playing the source (vpage 23 –

27).

Press SURR. to select “DOLBY

VS”.

Dolby Headphone mode

You can enjoy listening to multi-channel surround sound through headphones using this mode.

Press SURR. to select the Dolby Headphone mode.

• Each time SURR. is pressed, the Dolby Headphone mode is

switched.

DOLBY

HEADPHONE

DOLBY HP

BYPASS

DOLBY HP

PLg Movie

DOLBY HP

PLg Music

NOTE

• The surround mode returns to the previous setting as soon as the plug is removed from the jack.

• In headphone mode, Tone Control is not available.

• You can select Dolby HP PLⅡ Movie or Dolby HP PLⅡ Music when a 2-channel source is played back.

This is the surround mode for listening with headphones.

The surround sound ﬁeld is played through regular headphones.

The sound is played in the normal stereo mode rather than the surround mode when listening with headphones.

This mode is best suited for movie sources.

This mode is best suited for music sources.

Basic version

Advanced versionSimple version Information

ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA

Advanced version

Here, we explain functions and operations that let you make better use of this unit.

F Speaker installation/connection (Other than 7.1-channel system with surround

back speakers) vpage33

F Connections (Advanced connection) vpage38 F Playback (Advanced operation) vpage39 F How to make detailed settings vpage43 F Other settings vpage62 F Operating the connected devices by remote control unit vpage63

ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA

Speaker installation/connection (Other than 7.1-channel system with surround back speakers)

This section explains a wide range of speaker installation/connection/setting procedures. For details on installing/connecting/setting 7.1 channel audio that uses surround back speakers, see “Simple version (Simple setup guide)” (vpage3). Use the Audyssey® Auto Setup function of this unit to automatically detect the number of connected speakers and perform optimal settings for the speakers to be used.

Procedure for speaker settings

Install

When 7.1ch (Front height speaker) installed

FHRFHL

When 5.1ch installed

Basic versionSimple version Information

Connect (vpage34)

Set up speakers (vpage37)

Install

This unit is compatible with Dolby Pro Logic gz (vpage 78),

which offers an even wider and deeper surround sensation. When using Dolby Pro Logic gz, install front height speakers.

Install the surround back speakers in a position 2 to 3 ft (60 to 90 cm) higher than ear level.

Front height speaker

• Point slightly downwards

At least

3.3 ft / 1 m

z Recommended for Dolby Pro Logic gz

Front speaker

GViewed from the sideH

NOTE

It is not possible to use the surround back speakers and front height speakers simultaneously.

Surround speaker

2 – 3 ft / 60 – 90 cm

Surround back speaker

• Point slightly downwards

Listening position

z1 22˚ – 30˚ z2 22˚ – 45˚ z3 90˚ – 110˚

When 6.1ch (Surround back speaker) installed

FL FR

Listening position

z1 22˚ – 30˚ z2 90˚ – 110˚

FL FR

Listening

position

z1 22˚ – 30˚ z2 120˚

When 2.1ch installed

FL Front speaker (L) SB Surround back speaker FR Front speaker (R) FHL Front height speaker (L) C Center speaker FHR Front height speaker (R) SW Subwoofer SL Surround speaker (L) SR Surround speaker (R)

Listening position

Advanced version

ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA

Connect

• For the method of connecting the 7.1-channel system with surround back speakers, see page 4.

• For the method of connecting the TV, see page 5.

7.1-channel (Front height speaker) connection

For 7.1-channel (Front height speaker) playback, set “Amp Assign” in “Set up speakers” (vpage37) to “Normal”.

6.1-channel (Surround back speaker) connection

If a single surround back speaker is to be used (with a 6.1-channel connection), connect it to the “L” terminals of the SURR. BACK/AMP ASSIGN terminal. For speaker settings in this case, see “When 6.1ch (Surround back speaker) installed” (vpage33). For 6.1-channel (Surround back speaker) playback, set “Amp Assign” in “Set up speakers” (vpage37) to “Normal”.

FL FR

FHRFHL

For speaker impedance and speaker cable connections, see page 4.

5.1-channel connection

For 5.1-channel playback, set “Amp Assign” in “Set up speakers” (vpage37) to “Normal”.

Front A/B connection

The second set of front speakers can be connected to the FRONT B/HEIGHT terminals. In this case, set “Front Speaker Setup” (vpage58) of “Speaker Setup” to “B” or “A+B”.

ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA

Connect

Basic versionSimple version Information

Advanced version

FL FR

For speaker impedance and speaker cable connections, see page 4.

FL(A)FL(B) FR(B)FR(A)

For surround playback of a multichannel source, if you connect the center speaker, surround speakers, surround back speakers and subwoofers, 7.1-channel playback is available. Front speakers can be used separately, depending on the speaker’s speciﬁcations or playback source such as front speakers (A) for multichannel playback and front speakers (B) for 2-channel playback (vpage58 “Front Speaker Setup”).

NOTE

When using speakers A and B at the same time, check the impedance of the connected speakers (vpage4).

ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA

2.1-channel/2-channel connection

FL FR

Bi-amp connection

A bi-amp connection is to connect separate ampliﬁers to the tweeter terminals and woofer terminals of speakers compatible with the bi-amp function. This prevents the back electromotive force (returned force without output) of the woofer sent to the tweeter, which affects the sound quality of the tweeter, and you can enjoy playback with higher-quality sound. In this case, set “Amp Assign” of “Set up speakers” (vpage37) to “SPKR-C”.

Connect

wq wq

FL FR

2-channel connection

For 2-channel playback, disconnect the subwoofers.

When making a bi-amp connection, the same signal is output from the FRONT A terminal and the SURR. BACK/AMP ASSIGN terminal. For surround playback of a multichannel source, if you connect the center speaker, surround speakers and subwoofers, 5.1-channel playback is available.

NOTE

• Use speakers compatible with bi-amp connections.

• When making bi-amp connections, be sure to remove the short-circuiting plate or wire between the speaker’s woofer and tweeter

terminals.

For speaker impedance and speaker cable connections, see page 4.

(R) (L)

ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA

Set up speakers

This section provides the setup methods of speaker systems other than the 7.1-channel system (with surround back speakers). For the setup methods of the 7.1-channel system with surround back speakers, see “Set up speakers (Audyssey® Auto Setup)” (vpage6) of “Simple version”.

First install and connect the speakers to this unit.

Set up

the remote control unit

n Set up the operation mode

Press AMP to set the remote control unit to amplier operation mode.

Press AMP

Connect the setup microphone.

When the setup microphone is connected, the following screen is displayed.

3-1.Audyssey Auto Setup MultEQ

Please place microphone at ear height at main listening position.

F.Height : Measure Front Sp. : A Amp Assign: Normal

Start

Cancel [ENT]:Select [RTN]:Back

Set up “Amp Assign”

Use ui to select “Amp Assign”.

3-1.Audyssey Auto Setup MultEQ

Please place microphone at ear height at main listening position.

F.Height : Measure Front Sp. : A

Amp Assign: Normal

Start Cancel

[RTN]:Back

Use o p to select the conguration of the connected speakers.

Normal

ZONE2

SPKR-C

Set when using 7.1-channel (Front/Center/Surround/Surround Back or Front height/Subwoofer) speakers.

Set for connecting the speakers for ZONE2 to the SURR. BACK/ AMP ASSIGN terminals.

Set for connecting a tweeter of a front speaker to the SURR. BACK/AMP ASSIGN terminals and a woofer of the front speaker to the FRONT A terminals.

Set up “F. Height”

Press u to select “F. Height”.

Measure

Skip

Set to measure the front height speakers.

Set not to measure the front height speakers.

A+B

NOTE

If “Mesure” is selected in step 5, select “A”. If “B” is selected, the “F.Height” measurement cannot be performed.

NOTE

After performing Audyssey Auto Setup, do not change the speaker connections or subwoofer volume. In event of a change, perform Audyssey Auto Setup again.

around items indicate the settings.

Set up “Front.Sp.”

Use ui to select “Front Sp.” and then press o p to select a speaker.

Select this to use front speaker A.

Select this to use front speaker B.

Select this to use front speakers A and B simultaneously.

Proceed to page 8 “

Preparation

” step 5.

Basic versionSimple version Information

Advanced version

Remote control operation

buttons

Move the cursor (Up/Down/Left/Right)

Conﬁrm the setting Return to previous menu

ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA

Connections (Advanced connection)

REMOTE CONTROL jacks

When you use this unit connected to Marantz audio components, it sends operation signals to operate each component.

n Connection

Use the remote connection cable (supplied with a Marantz audio component you want to connect) to connect the REMOTE CONTROL OUT terminal of this unit to the REMOTE CONTROL IN terminal of the component to be connected.

n Setting

Set the remote control switch located on the rear panel of the connected audio component to “EXTERNAL” or “EXT.” to use this feature.

• This setting will disable remote sensor reception of the connected audio component.

• To operate the connected audio component, point the remote control at the remote sensor of this unit.

Wireless receiver

RX101 (vpage18)

REMOTE

CONTROL

OUTIN

REMOTE

CONTROL

OUTIN

REMOTE

CONTROL

OUTIN

RS-232C connector

By connecting an external serial controller, you can control all sorts of household electrical devices (including lights, electric curtains, and air conditioning units) in addition to your audio and video devices.

External serial controller

DC OUT (TRIGGER OUT) jacks

When a device with DC IN jack is connected, the connected device’s power on/standby can be controlled through linked operation to this unit. The DC OUT (TRIGGER OUT) jack outputs a maximum 12 V/150 mA electrical signal.

12 V/150 mA trigger-compatible device

in Set as Necessary

Set to change the conditions for linked operation via the DC OUT (TRIGGER OUT) jack.

“DC Trigger” (vpage61)

NOTE

If the permissible trigger input level for the connected device is larger than 12V/150mA, or has shorted, the DC OUT (TRIGGER OUT) jack cannot be used. In this case, turn off the power to the unit, and disconnect it.

CD Recorder CD PlayerDVD Player

EXTERNAL INTERNAL EXTERNAL INTERNAL EXTERNAL INTERNAL

Remote control unit

NOTE

To use wireless receiver RX101 as external IR receiver, set the remote sensor function of this unit to “DISABLE” (vpage62 “Remote control settings”).

Playback (Advanced operation)

ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA

Playback (Basic operation) (vpage22)

Selecting a listening mode (Surround mode)

(vpage29)

n HDMI control function (vpage39) n Sleep timer function (vpage40) n Adjusting the volume of the speakers (vpage40) n Panel lock function (vpage41)

Convenient functions

HDMI control function

When you make an HDMI connection with a TV or player compatible with this unit and HDMI control functions, you can perform the following operations by setting the HDMI control function of each device.

n This unit power off can be linked to the TV power off

step.

n You can switch audio output devices with a TV

operation.

When you set “Output audio from amp” in the TV audio output setup operation, you can switch the amp power on.

n You can adjust this unit volume in the TV volume

adjustment operation.

n You can switch this unit input sources through

linkage to TV input switching.

n When playing the player, this unit input source

switches to the source for that player.

NOTE

• When “HDMI Control” is set to “ON”, it consumes more standby power.

• The HDMI control function controls operations of a TV that is compatible with the HDMI control function. Make sure that the TV and HDMI are connected when you perform HDMI control.

• Some functions may not operate depending on the connected TV or player. Check the owner’s manual of each device for details beforehand.

• When “Power Off Control” on the menu is set to “OFF” (vpage59), this unit is not set to standby even if the connected device is in the standby mode.

• When connection changes are implemented, such as adding connections to HDMI devices, linked operations may be initialized. In this case, you will need to reconﬁgure the settings.

• When “HDMI Control” is set to “ON”, it is not possible to assign an HDMI connector to “TV” at “Input Assign” (vpage48).

Enable the HDMI control function of this unit.

Set “HDMI Control” (vpage58) to “ON“.

Turn the power on for all the equipment connected

by HDMI cable.

Set the HDMI control function for all equipment

connected by HDMI cable.

• Please consult the operating instructions for the connected equipment to check the settings.

• Carry out steps 1 and 2 should any of the equipment be unplugged.

Switch the television input to the HDMI input

connected to this unit.

Switch this unit input to the HDMI input source and

check if the picture from the player is ok.

When you turn the TV’s power to standby, check

that the power of this unit also goes to standby.

If the HDMI control function does not operate properly, check the following points.

• Is the TV or player compatible with the HDMI control function?

• Is “HDMI Control” (vpage58) set to “ON”?

• Is “Power Off Control” (vpage59) set to “All” or “Video”?

• Are the HDMI control function settings of all equipment correct?

NOTE

Should any of the operations below be performed, the interlocking function may be reset, in which case, repeat steps 2 and 3.

• “Input Assign” – “HDMI” (vpage48) setting has changed.

• There is a change to the connection between the equipment and the HDMI, or an increase in equipment.

Basic versionSimple version Information

Advanced version

ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA

OFF 10 min 20 30 40 50

Sleep timer function

The power automatically goes into standby once the set time has elapsed. This is convenient for playing sources while going to sleep.

Press SLEEP and display the time you want to set.

The “SLEEP” indicator on the display lights.

• The time switches as shown below each

time SLEEP is pressed.

120

110

6080 7090100

Adjusting the volume of the speakers

You can adjust the channel level either according to the playback sources or to your taste, as described below.

n Adjusting the volume of the different speakers

Press AMP to set the remote

control unit to amplier operation mode.

Press CH LVL.

Channel Level

FL 0.0dB SR 0.0dB

C 0.0dB SBR 0.0dB FR 0.0dB SBL 0.0dB SW 0.0dB SL 0.0dB

To cancel the sleep timer

Press SLEEP to set “OFF”. The “SLEEP” indicator on the display turns off.

The sleep timer setting is canceled if this unit’s power is set to standby or turned off.

Fader FRONT : REAR [ ]:CH Sel.

Use ui to select the speaker.

The speaker that can be set switches

each time one of the buttons is pressed.

Use o p to adjust the volume.

• In the case of a subwoofer, pressing o when it is at “–12 dB” will

change the setting to “OFF”.

Convenient functions

n Adjusting the volume of groups of speakers

(Fader function)

This function lets you adjust (fade) the sound all at once from the front (front speaker / front height speaker / center speaker) or rear (surround speaker / surround back speaker).

Press AMP to set the remote

control unit to amplier operation mode.

Press CH LVL.

Channel Level

FL 0.0dB SR 0.0dB C 0.0dB SBR 0.0dB FR 0.0dB SBL 0.0dB SW 0.0dB SL 0.0dB

Fader

FRONT : REAR [ ]:CH Sel.

Use i to select “Fader”, then

select the item to be adjusting using o p.

Use o p to adjust the volume of the speakers.

(o : front, p: rear)

• The fader function does not affect the subwoofer.

• The fader can be adjusted until the volume of the speaker is adjusted to the lowest value of –12 dB.

When a headphone jack is inserted, the headphone channel level can be adjusted.

Convenient functions

Panel lock function

To prevent accidental operation of this unit, you can disable operation of the buttons on the front panel.

AUTO VOLUMEON/STANDBY

RETURN

Playback in ZONE2 (Separate room)

• You can operate this unit so as to enjoy audio in a room (ZONE2) other than the MAIN ZONE (room where the unit is located).

• You can simultaneously play back the same source in both the MAIN ZONE and ZONE2. You can also play back separate sources in the MAIN ZONE and ZONE2.

• There are two methods to do this, as described below. Choose one of the methods.

q ZONE2 playback by speaker output w ZONE2 playback by audio output (PRE OUT)

(using an external ampliﬁer)

w ZONE2 playback by audio output

The audio signals connected to this unit’s ZONE2 output terminals (ZONE2 OUT) are output to the ZONE2’s ampliﬁer and played with that ampliﬁer.

Connection (ZONE2)

MAIN ZONE

ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA

Basic versionSimple version Information

ENTER

n Disabling all key button operations

Press ON/STANDBY while you press and hold AUTO and

ENTER with the unit in standby mode.

“Panel Lock:ON” appears on the display and all button operations except ON/STANDBY are disabled.

n Disabling all button operations except VOLUME

Press ON/STANDBY while you press and hold AUTO and

p with the unit in standby mode.

“Panel Lock:ON” appears on the display and all button operations except ON/STANDBY and VOLUME are disabled.

n Canceling the Panel lock function

Press ON/STANDBY while you press and hold AUTO and

RETURN with the unit in standby mode.

The Panel lock function is canceled.

Even when the Panel lock function is set, you can operate the unit using the remote control unit.

q ZONE2 playback by speaker

output

The ZONE2 audio signals are output from this unit’s SURR.BACK/AMP ASSIGN speaker terminals using the ampliﬁer assignment function.

Connecting and setting the speakers

“Amp Assign” setting (vpage 56) and audio signals output

ZONE2

Output signal : Stereo (L / R)

Connecting the speakers

MAIN ZONE

This unit

ZONE2

This unit

ZONE2

AUX

• We recommend using high quality pin-plug cables for audio connections in order to prevent noise.

• Also be sure to read the operating instructions of the connected devices.

NOTE

It is not possible to play the digital audio signals input from the HDMI, COAXIAL or OPTICAL terminals in ZONE2. Play using analog connections (in stereo).

Advanced version

ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA

Playback

Press Z2 to switch the remote

control operating mode.

The remote control unit switches to the operating mode for ZONE2.

Press ON to turn on the ZONE2

power.

The indicator on the display lights.

• When

• Power in ZONE2 can be turned on or off by

STANDBY is pressed, ZONE2 turns

off.

pressing ZONE2 ON/OFF on the main unit.

Press INPUT df.

The audio signal of the selected source is output to ZONE2.

• Turn

INPUT SELECTOR after

pressing ZONE SELECT on the main unit to select an input source.

Adjusting the volume

Use VOLUME + – to adjust the volume.

GAdjustable rangeH (When the “Volume Display” (vpage60) setting is “Relative”)

GAdjustable rangeH (When the “Volume Display” (vpage60) setting is “Absolute”)

• At time of purchase, “Volume Limit” (vpage59) is set to “–10dB

(71)”.

Turn MASTER VOLUME after pressing ZONE2 SELECT on the main unit to adjust the sound volume.

– – – –80dB – –40dB – 18dB

0 – 41 – 99

Turning off the sound temporarily

Press MUTE. The sound is reduced to the level set at “Mute Level” (vpage60) in the menu.

• To cancel, either adjust the volume or press MUTE again.

• The setting is canceled when the zone’s power is turned off.

When power for both MAIN ZONE and ZONE2 is set to ON, power of the MAIN ZONE only can be turned off. Press STANDBY.

How to make detailed settings

ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA

Menu map

For menu operation, connect a TV to this unit and display the menu on the TV screen. For menu operations, see the following page.

1.Audio Adjust

2.Information

3.Auto Setup

4.Manual Setup

5.Input Setup

[ENT]:Select

Items that only need to be set

once

Set these for example upon purchase. Once these items are set, there is no need to set them again unless the speaker layout or the connected speakers have been changed.

Setting items Number Detailed items Description Page

1. Audio Adjust

1.Audio Adjust

1.Surround Parameter

2.Tone

3.Audyssey Settings

4.Manual EQ

5.M-DAX

6.Audio Delay

2. Information

2.Information

1.Status

2.Audio Input Signal

3.HDMI Information

4.Preset Channel

3. Auto Setup

3.Auto Setup

1.Audyssey Auto Setup

2.Parameter Check

4. Manual Setup

4.Manual Setup

1.Speaker Setup

2.HDMI Setup

3.Audio Setup

4.ZONE2 Setup

5.Option Setup

1-1 Surround Parameter Adjuts surround sound parameters. 52 1-2 Tone Adjuts the tonal quality of the sound. 53 1-3 Audyssey Settings Makes MultEQ®, Dynamic EQ® and Dynamic Volume® settings. 53 1-4 Manual EQ Uses the graphic equalizer to adjust the tone of each speaker. 55 1-5 M-DAX Uncompresses compressed sources and apply bass boost for richer

sound.

1-6 Audio Delay Compensates for incorrect timing between video and audio. 55 2-1 Status Shows information about current settings. 61 2-2 Audio Input Signal Shows information about audio input signals. 61 2-3 HDMI Information Displays the HDMI input/output signals and HDMI monitor

information.

2-4 Preset Channel Shows information about tuner preset channels. 61

3-1 Audyssey Auto Setup Makes the optimum settings for the speakers being used

automatically.

3-2 Parameter Check Checks Audyssey® Auto Setup measurement results.

10 This item is only displayed after Audyssey Auto Setup procedure has been performed.

4-1 Speaker Setup Sets the speaker size and distance, the channel level, etc. 56 4-2 HDMI Setup Makes settings for HDMI video/audio output. 58 4-3 Audio Setup Makes settings for audio playback. 59 4-4 ZONE2 Setup Makes settings for audio playback in a ZONE2 system. 59 4-5 Option Setup Makes various other settings. 60

Basic versionSimple version Information

Advanced version

5. Input Setup

(Example: BD)

5.Input Setup

1.Input Assign

2.Video

3.Input Mode

4.Rename

5.Source Level

Displayed items of the “Input Setup” menu differs, depending on the selected input source.

Auto Preset Uses the auto preset function to program radio stations. 47 Preset Skip Sets the preset memories that you do not want to display when

tuning.

Parental Lock Sets the Parental Lock. 47 Antenna Aiming Adjusts the SIRIUS reception sensitivity. 47 Preset Name Assigns name to a preset memory. 48

–

Input Assign Changes input connector assignment. 48 Video Makes the video settings. 49 Input Mode Sets the audio input mode and decode mode. 50 Rename Changes the display name for this source. 51 Source Level Adjuts the playback level of the audio input. 51 Playback Mode Makes settings for iPod and USB memory device playback. 51

ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA

DVD 2 C2 2 2

SAT 3 C1 3

Examples of on-screen display and front display

Below we describe typical examples of displays on the TV screen and on the set’s display window.

On-screen Display Front Display Description

Top menu display

1.Audio Adjust

2.Information

3.Auto Setup

4.Manual Setup

5.Input Setup

[ENT]:Select

A u di o A d j u s t

q The menu items are displayed here. w The selected line is displayed here.

The currently selected item is displayed on the display. Use ui to move to the item you want to set.

e The number of the current selected setting menu is displayed.

Display when changing settings

Display when inputting characters

5-1.Input Assign

Default HDMI Digi Comp

BD 1 1

VCR

GAME 4 AUX1 F

[ENT]:Select [RTN]:Back

5-1.Input Assign Default HDMI Digi Comp

BD 1 1

DVD 2 C2 2 VCR

GAME 4 AUX1 F

[ENT]:Select [RTN]:Back

5-4.Rename

DVD DVD

Default

[SFT]:a/A [SRCH]:KeyBD [ENT]:OK [RTN]:Cancel

Press ENTER.

B D [ H D M I 1 ]

B D • H D M I 1 –

D V D • D V D –

Press ENTER.

q The number of the current selected setting menu is displayed.

uio p to move to the item you want to set.

w Use e Press ENTER to set to the mode in which the setting can be made.

r 0 1 is displayed at the sides of item whose setting can be changed.

Use o p to change to the desired setting.

q When o p is pressed, the cursor moves to the left or right. w When ui is pressed at the position where you want to input the

character, the character is input.

e The number of the current selected setting menu is displayed.

For inputting characters on a keyboard screen or with the number buttons on the remote control unit, see page 45.

Display when resetting

5-4.Rename

DVD [DVD ]

Default

[ ]:Up/Down [ENT]:Select [RTN]:Back

D e fa u l t

D ef a u l t ? : • N o

Press ENTER.

q Press w The number of the current selected setting menu is displayed.

i to select “Default”, then press ENTER to set.

Inputting characters

“Preset Name” (vpage48) and “Rename” (vpage 51) can be changed as desired. For inputting characters, there are three methods, as shown below.

Method for inputting characters

Method Operations

• Operating with the remote control unit

Using the cursor buttons

(normal screen)

Using the keyboard

screen

Normal screen

n Display of a normal input screen

5-4.Rename

DVD : DVD

Default

[SFT]:a/A [SRCH]:KeyBD

[ENT]:OK [RTN]:Cancel

or the main unit.

uio p and ENTER to input

• Use characters.

• Operating with the remote control unit.

• Select a character on the TV screen to input characters.

Using the cursor buttons

Display the screen for inputting characters.

(vpage 43 “Menu map”)

Use o p to set the cursor to the

character you want to change.

Use ui to change the character,

then press ENTER.

• The types of characters that can be input are as shown below.

GUpper case charactersH ABCDEFGHIJKLMNOPQRSTUVWXYZ

GLower case charactersH abcdefghijklmnopqrstuvwxyz

GSymbolsH GNumbersH

• The input character type can be switched by pressing

while the display name is being changed.

Repeat steps 2 and 3 to rename then press ENTER to

+ – . / : ; < = > ? [ ]

’ ( )

0123456789 (Space)

SHIFT/TOP

ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA

Keyboard screen

n Display of a keyboard input screen

5-4.Rename

[DVD ]

ABCDEFGHIJKLMNOPQRST UVWXYZ’()*+-./:;<=>?

t u

[a/A] [SP] [ ] [ ] [OK]

[SFT]:a/A [SRCH]:Normal [ENT]:Input [RTN]:Cancel

q Cursor w Character input section e Cursor r Keyboard section t Upper (Symbols)- / lower (Numbers)-case character switching key y Space key u OK key i Cursor keys o Guide for operation buttons

•

[SFT] SHIFT [SRCH] SEARCH

•

[ENT] ENTER [RTN] RETURN

•

Switching upper- and lower-case characters For switching to the normal screen input method For inputting a selected character Canceling an input character

i o

Basic versionSimple version Information

Advanced version

q Cursor w Character input section e Guide for operation buttons

•

[SFT] SHIFT [SRCH] SEARCH

•

[ENT] ENTER [RTN] RETURN

•

Switching upper- and lower-case characters Switching to the keyboard screen input method Registering an input character Canceling an input character

ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA

GAME 4

Inputting characters

Display the screen for inputting characters (vpage 43

“Menu map”).

Press SEARCH/INFO while a normal screen is

displayed.

A keyboard screen is displayed.

Select a character to be changed.

q Press uio p to select “[ ]” or “[ ]”. w Press ENTER to place the cursor at the character

to be changed.

Each time ENTER is pressed, the cursor moves by one character.

Select a character to be input with

uio p then press ENTER.

• The types of characters that can be input are as shown below.

GUpper case characters/SymbolsH ABCDEFGHIJKLMNOPQRST UVWXYZ ’ ( )

GLower case characters/NumbersH abcdefghijklmnopqrst uvwxyz[ ]0123456789

+ - . / : ; < = > ?

Repeat steps 3 and 4 to rename.

Use uio p to select “[OK]”, then press ENTER.

Input Setup

Perform settings related to input source playback.

• You do not have to change the settings to use the unit. Make settings when needed.

Menu operation

Press AMP to set the remote control unit to amplier operation mode.

Press MENU.

The menu is displayed on the TV screen.

Press ui to select the menu to be set or operated.

Press ENTER to enter the setting.

• To return to the previous item, press RETURN.

• Exiting the Menu, press MENU while the menu is displayed.

The menu display disappears.

Items that can be set with the Input Setup procedure

Auto Preset (vpage47) Parental Lock (vpage47)

5-1.Auto Preset

Auto Tuning Preset Station Memory Storing Preset Memory

Start

[ENT]:Start [RTN]:Back

Preset Name (vpage48)

5-3.Preset Name

Block: A

A1FM 87.50MHz: A2FM 89.10MHz: A3FM 98.10MHz: A4FM107.90MHz: A5FM 90.10MHz: A6FM 90.10MHz: A7FM 90.10MHz: A8FM 90.10MHz: [ENT]:Select [RTN]:Back

Rename (vpage51)

5-4.Rename

BD : BD

Preset Skip (vpage47) Antenna Aiming (vpage47)

5-2.Preset Skip

Block : A

A Block Presets: ON A1 FM 87.50MHz : ON A2 FM 89.10MHz : ON A3 FM 98.10MHz : ON A4 FM107.90MHz : ON A5 FM 90.10MHz : ON A6 FM 90.10MHz : ON A7 FM 90.10MHz : ON A8 FM 90.10MHz : ON

Input Assign (vpage48)

5-1.Input Assign Default HDMI Digi Comp

BD 1

DVD 2 C2 2 VCR SAT 3 C1 3

AUX1 F

[ENT]:Select [RTN]:Back

Source Level (vpage51)

5-5.Source Level

Source Level(A): 0dB

Source Level(D): 0dB

5-2.Parental Lock

1.Lock Setting

2.Edit Lock Code

[ENT]:Select [RTN]:Back

Video (vpage49)

5-2.Video

Video Select: Source

Video Mode : Auto

i/p Scaler : OFF

[RTN]:Back

Playback Mode (vpage51)

5-4.Playback Mode

Repeat Mode : OFF Shuffle Mode : OFF

5-3.Antenna Aiming

Satellite : 0 MIN MAX

Terrestrial : 0 MIN MAX

Input Mode (vpage50)

5-3.Input Mode

Input Mode : Auto Decode Mode : Auto

[RTN]:Back

Remote control operation

buttons

Default

[ ]:Up/Down [ ]:Rename [RTN]:Back

Move the cursor (Up/Down/Left/Right)

[RTN]:Back

Conﬁrm the setting Return to previous menu

[RTN]:Back

ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA

Input Setup

Important information

n About the display of input sources

In this section, the conﬁgurable input sources for each item are shown as follows.

BD DVD VCR SAT GAME AUX1 USB TV CD SIRIUS TUNER M-XPort

NOTE

Input sources that have been set to “Delete” at “Source Delete” (vpage60) cannot be selected.

Auto Preset

Use the auto preset function to program radio stations.

Setting items Setting details

Start

Start the auto preset process.

TUNER

Preset Skip

Set preset ch to be skipped when selecting.

Setting items Setting details

A – G

Set the preset channels you do not want to display. You can set by preset memory block (A to G) or by preset channel (1 to 8).

TUNER SIRIUS

If an FM station cannot be preset automatically, select the desired

station by tuning it in manually, then preset it manually.

Default settings are underlined.

1 – 8 : Set by individual preset channels in the currently selected preset

memory block.

• ON : Display the selected preset channel.

• Skip : Do not display the selected preset channel.

If you set “Block Presets” to “Skip”, you can skip the preset memory

blocks (A to G).

Parental Lock Default settings are underlined.

For any channel, set the radio reception limits.

Setting items Setting details

Lock Setting

Set the channel radio reception limits.

SIRIUS

Edit Lock Code

Change the password.

SIRIUS

1. Press ui to select “Lock Setting”, and then press p or ENTER.

2. Pressing uio p, input the password (4 digits number) and press

ENTER.

3. Select channel by pressing ui, and set the lock by pressing o p.

Unlock : Do not lock selected channel(s). Lock : Lock selected channel(s). When a Parental Locked channel is

tuned, “Enter Lock Code” is displayed, then input the password.

• The default password is “0000”.

• If the password is wrong, “Lock Code is incorrect” is displayed. Input the correct password.

• While listening to the channel being played, you can also set parental lock (vpage26).

1. Press ui to select “Edit Lock Code”, and then press p or ENTER.

2. Input current lock code (4 digits) using uio p, and press ENTER.

3. Input new lock code (4 digits) using uio p, and press ENTER.

4. Input new lock code (4 digits) again using uio p, and press ENTER.

5. Press ui to select “Execute”, and then press ENTER.

If the correct password is input, “Completed” is displayed, and the new password is modiﬁed.

• If the old password is incorrectly input, “Current Lock Code is incorrect” is displayed, and proceed again from step 1.

• If the password input is 3 digits or less, “Enter 4 digits number” is displayed, and input again with a 4 digit password.

• If the new password is not correctly input, “New Lock Codes do not Match” is displayed and the password does not change.

Antenna Aiming

Basic versionSimple version Information

Advanced version

Remote control operation

buttons

Move the cursor (Up/Down/Left/Right)

Install the antenna with radio reception sensitivity set to maximum.

Setting items Setting details

Satellite

Indicate satellite signal strength.

SIRIUS

Terrestrial

Indicate terrestrial signal strength.

SIRIUS

Conﬁrm the setting Return to previous menu

Display Condition

3 MIN–––MAX 2 MIN–– MAX 1 MIN– MAX 0 MIN MAX

Signal strength is excellent Signal strength is good Signal strength is weak No signal

ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA

GAME 4

Input Setup

Preset Name

Assign a name to a preset memory.

Setting items Setting details

A1 – G8

Select the preset channel.

TUNER

Default

The changed preset name is returned to the default setting.

• Up to eight characters can be input.

• For character input, see page 45.

Yes : Reset to the defaults. No : Do not reset to the defaults.

Input Assign

Examples of input assign menu screen displays

5-1.Input Assign

Default HDMI Digi Comp

BD 1

DVD 2 C2 2

VCR

SAT 3 C1 3

AUX1 F

[ENT]:Select [RTN]:Back

Input assignments menu operations

ew r

q Input Source w HDMI input e Digital audio input r Component video input

Setting items Setting details

HDMI

Set this to change the HDMI input connectors assigned to the input sources.

BD DVD VCR

SAT GAME AUX1

Digital

Set this to change the digital input connectors assigned to the input sources.

BD DVD VCR

SAT GAME TV

CD SIRIUS

HDMI 1 / HDMI 2 / HDMI 3 / HDMI 4 None : Do not assign an HDMI input connector to the selected input

source.

• At time of purchase, the settings of the different input sources are as shown below.

Input source

Default setting

• An input source to which an HDMI input connector cannot be assigned is displayed as “–”.

• To play the video signal assigned at “HDMI” combined with the audio signal assigned at “Input Assign“ – “Digital”, select “Digital” at “Input Mode” (vpage50).

• The audio signals input from the analog and digital connectors are not output to the monitor.

• When “HDMI Control” (vpage58) is set to “ON”, HDMI input connector cannot be assigned to “TV”.

C1, C2 (COAXIAL) / O1, O2 (OPTICAL) None : Do not assign a digital input connector to the selected input source.

• At time of purchase, the settings of the different input sources are as shown below.

Input source BD DVD VCR SAT

Default setting

BD DVD VCR SAT GAME AUX1

HDMI 1HDMI

None

COAXIAL

HDMI 3HDMI

None

COAXIAL

None None

GAME

None

Use uio p to move the highlight to the item you want to set.

Press ENTER, then use o p to select the input connector to be

assigned.

Press ENTER to enter the setting.

NOTE

If all “HDMI”, “Digital” and “Component” assignment of the Game source are set to “None”, Game source cannot be selected with the input source selection.

Remote control operation

buttons

Move the cursor (Up/Down/Left/Right)

Input source TV

Default setting

OPTICAL 1OPTICAL

SIRIUS

None

NOTE

The OPTICAL input connectors in the front panel accept only digital input signals from AUX1. Input connector assignments cannot be changed.

Conﬁrm the setting Return to previous menu

ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA

Input Setup

Setting items Setting details

Component

Set this to change the component video input connectors assigned to the input sources.

BD DVD VCR

SAT GAME AUX1

Default

The “Input Assign” settings are returned to the default settings.

Video

Set the source video.

z“TV” or “GAME” can be set when “HDMI” (vpage48) or “Component” (vpage49) has been assigned.

Setting items Setting details

Video Select

Video of another input source is played back combined with the playing audio.

Comp1/Comp2/Comp3 (Component video) None : Do not assign a component video input connector to the selected

input source.

• At time of purchase, the settings of the different input sources are as shown below.

Input source

Default setting

An input source to which an component video input connector cannot

be assigned is displayed as “–”.

Yes : Reset to the defaults. No : Do not reset to the defaults.

If you select “Default” and press ENTER, the message “Default

Setting?” is displayed. Select “Yes” or “No”, and then press ENTER.

Source : Play the picture and sound of the input source. BD / DVD / VCR / SAT / GAME / AUX1 / TV : Select video input source to

view. This can be set for individual input sources.

“TV” and “GAME” can be selected only when a component video

connector is assigned as an input source.

BD DVD VCR SAT GAME AUX1

Component 1Component

Component

None

Default settings are underlined.

None None None

NOTE

• It is not possible to select HDMI input signals.

• Input sources for which “Delete” is selected at “Source Delete” (vpage60) cannot be selected.

Buttons on the remote control unit can be used

for operations.

Press V.SEL until the desired picture appears.

• To cancel, press V.SEL to select “Source”.

Setting items Setting details

Video Mode

Make settings for video processing.

SAT GAMEzAUX1

i/p Scaler

Convert the input source’s resolution to the resolution set at “Resolution”.

SAT GAMEzAUX1

Resolution

Set the output resolution. Resolution A : Analog Video Resolution H : HDMI

SAT GAMEzAUX1

DVD

VCR

Auto : Process video automatically based on the HDMI content information.

Movie : Process video normally. Game : Always process video appropriate for game content.

• This can be assigned to HDMI terminal in “Input Assign” in the menu.

• If “Video Mode” is set to “Auto”, the mode is switched according to the input contents.

• If a source is played in both MAIN ZONE (audio and video) and ZONE2 (audio only) modes in the same room, audio in MAIN ZONE and ZONE2 modes may sound out of synchronization, but this is not malfunction. In this case, setting to “Game” mode may improve audio synchronization.

Analog : Use i/p scaler function for analog video signal. Analog & HDMI : Use i/p scaler function for analog and HDMI video signal. HDMI : Use i/p scaler function for HDMI video signal. OFF : Do not use i/p scaler function.

• “Analog & HDMI” and “HDMI” can be set for input sources for which an HDMI input connector is assigned.

• Which items can be set depend on the input source assigned to each input connector.

• This function is not effective when the input signal is x.v.Color, 3D, sYCC601 color, Adobe RGB color, Adobe YCC601 color or computer resolution.

Auto : The number of pixels the TV connected to the HDMI output connector supports is detected automatically and the appropriate output resolution is set. 480p / 576p / 1080i / 720p / 1080p : Set the output resolution.

• This item can be set when “i/p Scaler” is set to anything other than “OFF”.

• When “i/p Scaler” is set to “Analog & HDMI”, the resolution of both the analog video input signal and HDMI input signal can be set.

• This can also be set by pressing remote control unit. Each time RES is pressed, the setting is changed as shown below.

Auto 480p/576p 1080i

Basic versionSimple version Information

Advanced version

RES on the

720p1080p

Remote control operation

buttons

Move the cursor (Up/Down/Left/Right)

Conﬁrm the setting Return to previous menu

ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA

Input Setup

Setting items Setting details

Progressive Mode

Set an appropriate progressive conversion mode for the source video signal.

BD DVD

SAT GAMEzAUX1

Aspect

Set the aspect ratio for the video signals output to the HDMI.

BD DVD

SAT GAMEzAUX1

VCR

Auto : The video signal is automatically detected and the appropriate mode is set.

Video1 : Select mode suitable for video playback Video2 : Select mode suitable for video and 30-frame ﬁlm material

playback.

This item can be set when “i/p Scaler” is set to anything other than

“OFF”.

Full : Output at 16:9 aspect ratio. Normal : Output at 4:3 aspect ratio.

“Aspect” can be set when “i/p Scaler” is set to anything other than

“OFF”.

Input Mode

The input modes available for selection may vary depending on the input source.

Setting items Setting details

Input Mode

Set the audio input modes for the different input sources.

Auto : Automatically detect input signal and perform playback. HDMI : Play only signals from HDMI input. Digital : Play only signals from digital input. Analog : Play only signals from analog input.

7.1CH INPUT : Only signals input from the 7.1CH INPUT terminal will be

played back.

• “HDMI” can be set for input sources for which “HDMI” is assigned at “Input Assign” (vpage48).

• “Digital” can be set for input sources for which “Digital” is assigned at “Input Assign” (vpage48).

• If the input source is set to “TV” or “Game”, it cannot be set to “Analog”.

• When digital signals are properly input, the indicator lights on the display. If the indicator does not light, check the digital input connector assignment and the connections.

• If “HDMI Control” is set to “ON” and a TV compatible with the ARC is connected via the HDMI MONITOR connectors, the input mode whose input source is “TV” is ﬁxed to ARC.

This can also be set by pressing A/D on the

remote control unit. Each time A/D is pressed, the setting is changed as shown below.

Default settings are underlined.

Remote control operation

buttons

Move the cursor (Up/Down/Left/Right)

Decode Mode

Set the decode mode for input source.

BD DVD VCR

SAT GAME AUX1

CD SIRIUS

Conﬁrm the setting Return to previous menu

Auto HDMI Digital Analog

7.1CH INPUT

Auto : Detect type of digital input signal and decode and play automatically. PCM : Decode and play only PCM input signals. DTS : Decode and play only DTS input signals.

• This item can be set for input sources for which “HDMI” or “Digital” is assigned at “Input Assign” (vpage48).

• Normally set this mode to “Auto”. Set “PCM” and “DTS” when inputting the corresponding input signal.

• This can also be set by pressing D.MODE on the remote control unit.

Rename

Change the display name of the selected input source.

Setting items Setting details

Rename

Change the display name of the selected input source.

Default

The input source name is returned to the default setting.

• Up to eight characters can be input.

• For character input, see page 45.

Yes : Reset to the defaults. No : Do not reset to the defaults.

Input Setup

ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA

Basic versionSimple version Information

Source Level

• This function corrects the playback level of the selected input source’s audio input.

• Make this setting if there are differences in the input volume levels between the different sources.

Setting details

–12dB – +12dB (0dB)

The analog input level and digital input level can be adjusted independently for input sources for

which “HDMI” or “Digital” is assigned at “Input Assign“ (vpage48).

Default settings are underlined.

Playback Mode

Setting items Setting details

Repeat

Make settings for repeat mode.

USB

Shufﬂe

Make settings for shufﬂe mode.

USB

n For iPod playback

All : All ﬁles are played repeatedly. One : A ﬁle being played is played repeatedly. OFF : Repeat playback mode is canceled.

n For USB memory device playback

All : All ﬁles are played repeatedly. One : A ﬁle being played is played repeatedly. Folder : A ﬁle in the folder being played is played repeatedly.

n For iPod playback

Songs : Shufﬂe songs. Albums : Shufﬂe albums. OFF : Shufﬂe playback mode is canceled.

n For USB memory device playback

ON : Shufﬂe playback mode is enabled. OFF : Shufﬂe playback mode is canceled.

Advanced version

Remote control operation

buttons

Move the cursor (Up/Down/Left/Right)

Conﬁrm the setting Return to previous menu

ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA

Audio Adjust

The sound being played in the surround mode can be adjusted to your liking. The items (parameters) that can be adjusted depend on the signal being input and the currently set surround mode. For details on the adjustable parameters, see “Surround modes and surround parameters” (vpage74).

Menu operation

Press AMP to set the remote control unit to amplier operation

mode.

Press MENU.

The menu is displayed on the TV screen.

Press ui to select the menu to be set or operated.

Press ENTER to enter the setting.

• To return to the previous item, press RETURN.

• Exiting the Menu, press MENU while the menu is displayed.

The menu display disappears.

Items that can be set with the Audio Adjust procedure

Surround Parameter (vpage52)

Tone (vpage53)

Audyssey Settings (vpage53)

Manual EQ (vpage55)

M-DAX (vpage55)

Audio Delay (vpage55)

Surround Parameter

Adjust surround sound parameters. It may not be possible to set this item depending on the input signal.

Setting items Setting details

HT-EQ

Soften the treble range of movie soundtracks for better understanding.

D.Comp

Compress dynamic range (difference between loud and soft sounds).

DRC

Compress dynamic range (difference between loud and soft sounds).

LFE

Adjust the low-frequency effects level (LFE).

Center Image

Assign center channel signal to front left and right channels for wider sound.

Panorama

Assign front L/R signal also to surround channels for wider sound.

Dimension

Shift sound image center to front or rear to adjust playback balance.

Center Width

Assign center channel signal to front left and right channels for wider sound.

ON : “HT-EQ” is used. OFF : “HT-EQ” is not used.

This can also be set by pressing HT-EQ on the

remote control unit.

Low / Mid / High : These set the compression level. OFF : Turn dynamic range compression off.

Auto : Automatic dynamic range compression on/off control according to

the source. This can be set in the Dolby TrueHD mode.

Low / Mid / High : These set the compression level. OFF : Dynamic range compression is always off.

–10dB – 0dB

For proper playback of the different sources, we recommend setting

to the values below.

• Dolby Digital sources : “0dB”

• DTS movie sources : “0dB”

• DTS music sources : “–10dB”

0.0 – 1.0 (0.3)

ON : Set. OFF : Do not set.

0 – 6 (3)

0 – 7 (3)

Default settings are underlined.

Remote control operation

buttons

Move the cursor (Up/Down/Left/Right)

Conﬁrm the setting Return to previous menu

ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA

Audio Adjust

Setting items Setting details

Height Gain

Control the front height channel volume.

Low : Reduce the front height channel volume. Mid : Front height channel sound is output with standard sound volume. High : Increase the front height channel volume.

NOTE

“Height Gain” is displayed for the following settings.

• When “Amp Assign” (vpage56) is set to “Normal”.

• When the “Speaker Conﬁg.” – “Front Height” setting (vpage57) is set

to other than “None”.

• When surround mode is “PLgz” or the PLgz decoder is used.

Default

The “Surround Parameter” settings are returned to the default settings.

Yes : Reset to the defaults. No : Do not reset to the defaults.

Tone

Adjust the tonal quality of the sound.

Setting items Setting details

Tone Control

Set the tone control function to ON and OFF.

Bass

Adjust low frequency range (bass).

Treble

Adjust high frequency range (treble).

ON : Allow tone adjustment (bass, treble). OFF : Playback without tone adjustment.

“Tone Control” can be set when “Dynamic EQ” (vpage54) is set to

“OFF”.

NOTE

The tone cannot be adjusted in the direct mode.

–6dB – +6dB (0dB)

“Bass” can be set when “Tone Control” is set to “ON”.

–6dB – +6dB (0dB)

“Treble” can be set when “Tone Control” is set to “ON”.

Default settings are underlined.

Audyssey Settings

Set MultEQ®, Dynamic EQ® and Dynamic Volume®. These can be selected after Audyssey® Auto Setup has been performed. For additional information on Audyssey technology, please see page 78.

Default settings are underlined.

NOTE

If you have not performed Auto Setup, or if you change the speaker settings after performing Auto Setup, you may not be able to select Dynamic EQ/Dynamic Volume, and “Run Audyssey” may be displayed. In this case, either perform Audyssey Auto Setup over again or perform “Restore” (vpage10) to return to the settings after Audyssey Auto Setup was run.

Setting items Setting details

MultEQ

Select one equalizer from three modes. MultEQ corrects both time and frequency response problems in the listening area based on Audyssey Auto Setup calibration. We recommend “Audyssey”. MultEQ is the prerequisite function for Dynamic EQ and Dynamic Volume.

Audyssey : Optimize the frequency response of all speakers. Audyssey Byp.L/R : Optimize frequency response of speakers except

front L and R speakers. Audyssey Flat : Optimize frequency response of all speakers to ﬂat response.

Manual : Apply frequency response set with “Manual EQ” (vpage55). OFF : Turn “MultEQ” equalizer off.

• “Audyssey”, “Audyssey Byp. L/R” and “Audyssey Flat” can be selected after Audyssey Auto Setup has been performed. “Audyssey” is automatically selected after performing Audyssey Auto Setup. When “Audyssey”, “Audyssey Byp. L/R” or “Audyssey Flat” is selected,

illuminates.

• After running Audyssey Auto Setup, if the Speaker Conﬁguration, Distance, Channel Level, and Crossover Freq. have changed without increasing the number of speakers measured, only illuminates.

• Press

MULTEQ on the remote control unit to

set this setting.

NOTE

• “MultEQ” and “Manual” cannot be selected when “EQ Customize” is set to “Not Used” (vpage59).

• When using headphones, “MultEQ” is automatically set to “OFF”.

Basic versionSimple version Information

Advanced version

Remote control operation

buttons

Move the cursor (Up/Down/Left/Right)

Conﬁrm the setting Return to previous menu

ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA

Audio Adjust

Setting items Setting details

Dynamic EQ

Solve the problem of deteriorating sound quality as volume is decreased by taking into account human perception and room acoustics. Works with MultEQ.

Reference Level Offset

Audyssey Dynamic EQ is referenced to the standard ﬁlm mix level. It makes adjustments to maintain the reference response and surround envelopment when the volume is turned down from 0 dB. However, ﬁlm reference level is not always used in music or other non-ﬁlm content. Dynamic EQ Reference Level Offset provides three offsets from the ﬁlm level reference (5 dB, 10 dB, and 15 dB) that can be selected when the mix level of the content is not within the standard.

ON : Use Dynamic EQ. OFF : Do not use Dynamic EQ.

• is displayed when set to “ON”.

• This can also be set by pressing DYN EQ on the

remote control unit. Each time DYN EQ is pressed, the setting is changed as shown below.

Dynamic EQ : ON Dynamic EQ : OFF

0dB (Film Ref) : This is the default setting and should be used when listening to movies. 5dB : Select this setting for content that has a very wide dynamic range, such as classical music. 10dB : Select this setting for jazz or other music that has a wider dynamic range. This setting should also be selected for TV content as that is usually mixed at 10 dB below ﬁlm reference. 15dB : Select this setting for pop/rock music or other program material that is mixed at very high listening levels and has a compressed dynamic range.

Setting is enabled when “Dynamic EQ” is “ON” (vpage54).

Setting items Setting details

Dynamic Volume

Solve the problem of large variations in volume level between TV, movies and other content (between quiet passages and loud passages, etc.) by automatically adjusting to the user’s preferred volume setting.

Heavy : Most adjustment to softest and loudest sounds. Medium : Medium adjustment to loudest and softest sound. Light : Least adjustment to loudest and softest sounds. OFF : Do not use the “Dynamic Volume”.

• is displayed when set to “ON”.

• If “Dynamic Volume” is set to “Yes” in Auto Setup (vpage 9), the setting is automatically changed to “Heavy”.

• This can also be set by pressing DYN VOL on the remote control unit.

Each time DYN VOL is pressed, the setting is changed as shown below.

Dynamic Volume : OFF

Dynamic Volume : Light

Dynamic Volume : Heavy

Dynamic Volume : Medium

Remote control operation

buttons

Move the cursor (Up/Down/Left/Right)

Conﬁrm the setting Return to previous menu

ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA

Audio Adjust

Manual EQ

Use the graphic equalizer to adjust the tone of each speaker. “Manual EQ” can be set when “MultEQ®” setting (vpage53) is “Manual”.

Setting items Setting details

Adjust CH

Correct the tone of each speaker.

Base Curve Copy

Copy “Audyssey Flat” curve from MultEQ.

Default

The “Manual EQ” settings are returned to the default settings.

q Select the speaker tone adjustment method.

All CH : Adjust the tone of all speakers together. L/R CH : Adjust the tone of left and right speakers together. Each CH : Adjust the tone of each speaker.

w Select the speaker. e Select the adjustment frequency band.

63Hz / 125Hz / 250Hz / 500Hz / 1kHz / 2kHz / 4kHz / 8kHz / 16kHz

• Select the speakers you want to adjust when “L/R” or “Each” is selected.

r Adjust the level.

–20.0dB – +6.0dB (0.0dB)

Yes : Copy. No : Do not copy.

“Base Curve Copy” is displayed after Audyssey Auto Setup has been

performed.

Yes : Reset to the defaults. No : Do not reset to the defaults.

Default settings are underlined.

M-DAX

Compressed audio formats such as MP3, WAV, WMA (Windows Media Audio) and MPEG-4 AAC reduce the amount of data by eliminating signal components that are hard for the human ear to hear. The M-DAX function generates the signals eliminated upon compression, restoring the sound to conditions near those of the original sound before compression. It also corrects the sense of volume of the bass to obtain richer sound with compressed audio signals.

Setting details

OFF : Do not use M-DAX. Low : Optimized mode for compressed sources with normal highs. Mid : Apply suitable bass and treble boost for all compressed sources. High : Optimized mode for compressed sources with very weak highs.

• This item can be set with analog signals or when a PCM signal (fs = 44.1/48 kHz) is input.

• This cannot be set when the surround mode is set to “DIRECT” or “PURE DIRECT”.

• When set to “OFF”, the M-DAX indicator on the front panel switches off.

• This can also be set by pressing M-DAX on the remote control unit. Each time M-DAX is pressed, the setting is changed as shown below.

OFF LOW MID

HIGH

Audio Delay

While viewing video, manually adjust the time to delay audio output.

Setting details

0ms – 200ms

Default settings are underlined.

Basic versionSimple version Information

Advanced version

Remote control operation

buttons

Move the cursor (Up/Down/Left/Right)

• This item can be set within the range of 0 to 200 ms when “Auto Lip Sync” is set to “ON” and when a TV compatible with Auto Lip Sync is connected.

• Store “Audio Delay” for each input source.

• Audio Delay for game mode can be set when “Video Mode” (vpage49) is set to “Game”.

• You can also adjust the time to delay audio output after pressing DLY followed by the o p on the remote control, instead of using the menu operation.

Conﬁrm the setting Return to previous menu

ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA

Manual Setup

Set when changing Audyssey® Auto Setup settings, or when changing the audio, video, display or other settings.

• If you change the speaker settings after performing Audyssey Auto Setup, it will not be possible to set MultEQ®, Dynamic EQ® and Dynamic Volume® (vpage53, 54).

• Can be used without changing the settings. Please set if necessary.

Menu operation

Press AMP to set the remote control unit to amplier operation

mode.

Press MENU.

The menu is displayed on the TV screen.

Press ui to select the menu to be set or operated.

Press ENTER to enter the setting.

• To return to the previous item, press RETURN.

• Exiting the Menu, press MENU while the menu is displayed.

The menu display disappears.

Items that can be set with the Manual Setup procedure

Speaker Setup (vpage56)

4-1.Speaker Setup

1.Amp Assign

2.Speaker Config.

3.Bass Setting

4.Distance

5.Channel Level

6.Crossover Freq.

7.Front Sp Setup

[ENT]:Select [RTN]:Back

ZONE2 Setup (vpage59) Option Setup (vpage60)

4-4.ZONE2 Setup

Bass : 0dB Treble : 0dB HPF : OFF

Level Lch : 0dB Level Rch : 0dB Channel : Stereo

[RTN]:Back

HDMI Setup (vpage58) Audio Setup (vpage59)

4-2.HDMI Setup

Auto Lipsync : ON HDMI Audio Out : Amp HDMI Control : OFF

[RTN]:Back

4-5.Option Setup

1.Volume Control

2.Source Delete

3.On-Screen Display

4.Zone Rename

5.DC Trigger

6.Display

7.Setup Lock

[ENT]:Select [RTN]:Back

4-3.Audio Setup

1.EQ Customize

[ENT]:Select [RTN]:Back

Speaker Setup

Perform when setting the speakers manually or when changing settings made in Audyssey Auto Setup.

• If you change the speaker settings after performing Audyssey Auto Setup, it will not be possible to select

MultEQ, Dynamic EQ and Dynamic Volume (vpage53, 54).

• Manual Setup can be used without changing the settings. Please set if necessary.

Setting items Setting details

Amp Assign

Set the speakers connected to this unit.

Speaker Conﬁg.

Select speaker conﬁguration and size (bass reproduction capability).

NOTE

Do not use the outward shape of the speaker to determine selection of a “Large” or “Small” speaker. Instead, use the frequencies set in “Crossover Freq.” (vpage58) as the standard for determining bass reproduction capability.

Normal : Set when using 7.1-channel (Front/Center/Surround/Surround Back or Front Height/Subwoofer) speakers. ZONE2 : Set for connecting the speakers for ZONE2 to the SURR. BACK/ AMP ASSIGN terminals. SPKR-C : Set for connecting a tweeter of a front speaker to the SURR. BACK/ AMP ASSIGN terminals and a woofer of the front speaker to the FRONT A terminals.

Front : Set the front speaker size.

• Large : Use a large speaker that can adequately play back low

frequencies.

• Small : Use a small speaker that has inadequate playback capacity for

low frequencies.

• When “Subwoofer” is set to “No”, “Front” is automatically set to “Large”.

• When “Front” is set to “Small”, “Center”, “Surround“, “Surround Back” and “Front Height” can not be set to “Large”.

Center : Set the presence and size of the center speaker.

• Large : Use a large speaker that can adequately play back low frequencies.

• Small : Use a small speaker that has inadequate playback capacity for low frequencies.

• None : Select when a center speaker is not connected.

“Large” is not displayed when “Front” is set to “Small”.

Subwoofer : Set the presence of a subwoofer.

• Yes : Use a subwoofer.

• No : Select when a subwoofer is not connected.

When “Front” is set to “Small”, “Subwoofer” is automatically set to

“Yes”.

Default settings are underlined.

Remote control operation

buttons

Move the cursor (Up/Down/Left/Right)

Conﬁrm the setting Return to previous menu

ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA

Manual Setup

Setting items Setting details

Speaker Conﬁg.

(Continued)

Surround : Set the presence and size of the surround speakers.

• Large : Use a large speaker that can adequately play back low

frequencies.

• Small : Use a small speaker that has inadequate playback capacity for

low frequencies.

• None : Select when the surround speakers are not connected.

• When “Surround” is set to “Large”, “Surround Back” and “Front Height” can be set to “Large”.

• When “Surround” is set to “None”, “Surround Back” and “Front Height” can automatically set to “None”.

S.Back : Set the presence, size and number of surround back speakers.

• Large : Use a large speaker that can adequately play back low frequencies.

• Small : Use a small speaker that has inadequate playback capacity for low frequencies.

• None : Select when the surround back speakers are not connected.

• 2sp : Use two surround back speakers.

• 1sp : Use only one surround back speaker. When you select this setting, connect the surround back speaker to the left (L) channel.

NOTE

When the “Amp Assign” setting (vpage56) is other than “Normal”, you cannot make the “S.Back” setting.

Front Height : Set the presence and size of the front height speakers.

• Large : Use a large speaker that can adequately play back low frequencies.

• Small : Use a small speaker that has inadequate playback capacity for low frequencies.

• None : Select when the front height speakers are not connected.

NOTE

When the “Amp Assign” setting (vpage56) is other than “Normal”, you cannot make the “Front Height” setting.

Setting items Setting details

Bass Setting

Set subwoofer and LFE signal range playback.

Subwoofer Mode : Select low range signals to be reproduced by subwoofer.

• LFE : The low range signal of the channel set to “Small” speaker size is

added to the LFE signal output from the subwoofer.

• LFE+Main : The low range signal of all channels is added to the LFE

signal output from the subwoofer.

• “Subwoofer Mode” can be set when “Speaker Conﬁg.” – “Subwoofer”

(vpage56) is set to “Yes”.

• Play music or a movie source and select the mode offering the strongest bass.

• Select “LFE+Main” if you want the bass signals to always be produced from the subwoofer.

NOTE

If “Front” and “Center” for “Speaker Conﬁg.” are set to “Large”, and “Subwoofer Mode” is set to “LFE”, no sound may be output from the subwoofers, depending on the input signal or selected surround mode.

LPF for LFE : Set LFE signal playback range.

• 80Hz / 90Hz / 100Hz / 110Hz / 120Hz / 150Hz / 200Hz / 250Hz

Distance

Set distance from listening position to speakers. Measure beforehand the distance from the listening position to each speaker.

Unit : Set the unit of distance.

• Feet / Meters

Step : Set the minimum variable width of the distance.

• 1ft / 0.1ft

• 0.1m / 0.01m

FL / FR / C / SW / SL / SR / SBLz / SBRz / FHL / FHR : Select the speaker.

z When the “Speaker Conﬁg.” – “S.Back” setting (vpage57) is set to

“1sp”, “S.Back” is displayed.

• 0.0ft – 60.0ft / 0.00m – 18.00m : Set the distance.

• The speakers that can be selected differ depending on the “Amp Assign” (vpage56) and “Speaker Conﬁg.” (vpage56) settings.

• Default settings : FL / FR / C / SW / FHL / FHR : 12.0 ft (3.6 m) SL / SR / SBL / SBR : 10.0 ft (3.0 m)

• Set the difference in the distance between the speakers to less than 20 ft (6.0 m).

NOTE

Speakers set to “None” in “Speaker Conﬁg.” (vpage56) are not displayed. Default : The “Distance” settings are returned to the default settings.

• Yes : Reset to the defaults.

• No : Do not reset to the defaults.

When you select “Default” and press ENTER, the “Default Setting?”

prompt is displayed. Select either “Yes” or “No”, and press ENTER.

Basic versionSimple version Information

Advanced version

Remote control operation

buttons

Move the cursor (Up/Down/Left/Right)

Conﬁrm the setting Return to previous menu

ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA

Manual Setup

Setting items Setting details

Channel Level

Set the volume of the test tone to be the same when it is output from each speaker.

Test Tone Start : Output test tone.

• FL / C / FR / SR / SBRz / SBLz / SL / FHL / FHR / SW : Select the

speaker.

z When the “Speaker Conﬁg.” – “S.Back” setting (vpage57) is set to

“1sp”, “S.Back” is displayed.

• –12.0dB – +12.0dB (0.0dB) : Adjust the volume.

• When o is pressed while the subwoofer volume is set to “–12 dB”, the

“Subwoofer” setting switches to “OFF”.

• When “Channel Level” is adjusted, the adjusted values are set for all the surround modes. To adjust the channel level separately for the different surround modes, use the operation see page 40.

• When you press setting item immediately.

TEST TONE on the remote control, you can enter this

NOTE

• Speakers set to “None” in the “Speaker Conﬁg.” (vpage56) settings are not displayed.

• When a headphones jack is inserted in the PHONES jack of this unit, the “Channel Level” is not displayed.

Default : The “Channel Level” settings are returned to the default settings.

• Yes : Reset to the defaults.

• No : Do not reset to the defaults.

Crossover Freq.

Set the maximum frequency of the bass signal output from each channel to the subwoofer. Set the Crossover Freq. to suit the bass reproduction capability of the speaker being used.

Crossover : Set the crossover frequency.

• 40Hz / 60Hz / 80Hz / 90Hz / 100Hz / 110Hz / 120Hz / 150Hz / 200Hz /

250Hz

Advanced : Specify crossover frequency for each speaker.

• Front / Center / Surround / S.Back / Front Height : Select the speaker.

• 40Hz / 60Hz / 80Hz / 90Hz / 100Hz / 110Hz / 120Hz / 150Hz / 200Hz / 250Hz : Set the crossover frequency.

• “Crossover Freq.” can be set when the “Bass Setting” – “Subwoofer Mode” (vpage57) setting is “LFE+Main”, or when you have a speaker that is set to “Small”.

• Always set the crossover frequency to “80Hz”. When using small speakers, however, we recommend setting the crossover frequency to a higher frequency.

• For speakers set to “Small”, sound below the crossover frequency is cut from the sound output. The cut bass sound is output from the subwoofer or front speakers.

• The speakers that can be set when “Advanced” is selected differ depending on the “Subwoofer Mode” setting (vpage57).

• When “LFE” is selected, speakers set to “Small” at “Speaker Conﬁg.”

can be set. If the speakers are set to “Large”, “Full Band” is displayed and the setting cannot be made.

• If set to “LFE+Main”, this setting can be made regardless of the

speaker size.

Setting items Setting details

Front Speaker Setup

Set the front speakers to use for every surround mode.

• A：Front speaker A is used.

• B：Front speaker B is used.

• A+B：Both front speakers A and B are used.

You can switch speakers by pressing SPKR

A/B on the remote control.

HDMI Setup

Make settings for HDMI video/audio output.

Setting items Setting details

Auto Lip Sync

Make automatic compensation for timing shift in audio and video output.

HDMI Audio Out

Select HDMI audio output device.

HDMI Control

You can link operations with devices connected to HDMI and compatible with HDMI Control.

ON : Compensated. OFF : Not compensated.

Amp : Play back through speakers connected to the receiver. TV : Play back through TV connected to the receiver.

When the HDMI control function is activated, priority is given to the TV

audio setting (vpage39 “HDMI control function”).

ON : Use HDMI control function. OFF : Do not use HDMI control function.

• When a device that is not compatible with the HDMI control function is connected, set “HDMI Control” to “OFF”.

• Please consult the operating instructions for each connected component to check the settings.

• Refer to “HDMI control function” (vpage39) for more information about the HDMI control function.

NOTE

• When “HDMI Control” is set to “ON”, it consumes more standby power. If you are not using this unit for an extended period, it is

recommended that you unplug the power cord from the power outlet.

• “HDMI Control” does not work when the power to the equipment is off. Either turn power on or set to standby.

• The HDMI control function controls operations of a TV that is compatible with the HDMI control function. Make sure that the TV and HDMI are connected when you perform HDMI control.

• If the “HDMI Control” settings have been changed, always reset the power to connected devices after the change.

Default settings are underlined.

Remote control operation

buttons

Move the cursor (Up/Down/Left/Right)

Conﬁrm the setting Return to previous menu

ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA

Manual Setup

Setting items Setting details

Standby Source

Sets the HDMI input source to put into standby when the power is on.

Power Off Control

Links the power standby of this unit to external equipment.

Last : This item is set at the last-used input source. HDMI1 / HDMI2 / HDMI3 / HDMI4 : Put the respective input source into

standby.

“Standby Source” can be set when “HDMI Control” is set to “ON”.

All : If power to a connected TV is turned off independently of the input source, power to this unit is automatically set to standby. Video : If power to a connected TV is turned off when the input source is BD / DVD / VCR / SAT / GAME / AUX1 / TV, power to this unit is automatically set to standby. OFF : This unit does not link with power to a TV.

“Power Off Control” can be set when “HDMI Control” is set to “ON”.

Audio Setup

Make settings for audio playback.

Setting items Setting details

EQ Customize

Set so that unused equalizer settings are not displayed when

MULTEQ is pressed.

Audyssey Byp. L/R : Set when not using “Audyssey Byp. L/R” equalizer.

• Used : Use.

• Not Used : Do not use.

Set so that “Audyssey Byp. L/R” settings can be made when

Audyssey Auto Setup is performed.

Audyssey Flat : Set when not using “Audyssey Flat” equalizer.

• Used : Use.

• Not Used : Do not use.

Set so that “Audyssey Flat” settings can be made when Audyssey

Auto Setup is performed.

Manual : Set when not using the “Manual” equalizer.

• Used : Use.

• Not Used : Do not use.

Default settings are underlined.

ZONE2 Setup

Set the audio to play back with ZONE2.

Setting items Setting details

Bass

Adjust low frequency range (bass).

Treble

Adjust high frequency range (treble).

HPF

Make settings for cutting the low range to reduce distortion in the bass.

Level Lch

Adjust the left channel output level.

Level Rch

Adjust the right channel output level.

Channel

Set the signal output from ZONE2.

Volume Level

Set the volume output level.

Volume Limit

Make a setting for maximum volume.

–10dB – +10dB (0dB)

ON : The low range is attenuated. OFF : The low range is not attenuated.

–12dB – +12dB (0dB)

The “Level Lch” can be set when “Channel“ (vpage 59) is set to

“Stereo“.

–12dB – +12dB (0dB)

The “Level Rch” can be set when “Channel“ (vpage59) is set to

“Stereo“.

Stereo : Select stereo output. Mono : Select mono output.

Variable : Volume adjustment is enabled by main unit and remote control

unit. –40dB (41) : Fix volume at –40 dB. Set when adjusting volume by external ampliﬁer. 0dB (81) : Fix volume at 0 dB. Set when adjusting volume by external ampliﬁer.

When “Amp Assign” (vpage56) is set to “ZONE2”, the “Volume

Level” setting is automatically set to “Variable”.

OFF : Do not set a maximum volume. –20dB (61) / –10dB (71) / 0dB (81)

• This can be set when the ZONE2 “Volume Level” setting (vpage59) is “Variable”.

• This is displayed from 0 to 99 when “Volume Display” (vpage60) is set to “Absolute”.

Default settings are underlined.

Basic versionSimple version Information

Advanced version

Remote control operation

buttons

Move the cursor (Up/Down/Left/Right)

Conﬁrm the setting Return to previous menu

ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA

Manual Setup

Setting items Setting details

Power On Level

Deﬁne the volume setting that is active when the power is turned on.

Mute Level

Set the amount of attenuation when muting is on.

Last : Use the memorized setting from the last session. – – – (0) : Always mute when power is turned on. –80dB – 18dB (1 – 99) : The volume is adjusted to the set level.

• This can be set when the ZONE2 “Volume Level” setting (vpage59) is

“Variable”.

• This is displayed from 0 to 99 when “Volume Display” (vpage60) is set

to “Absolute”.

Full : The sound is muted entirely. –40dB : The sound is attenuated by 40 dB down. –20dB : The sound is attenuated by 20 dB down.

Option Setup

Make various other settings.

Setting items Setting details

Volume Control

Set the volume setting.

Source Delete

Remove from the display input sources that are not used.

Volume Display : Set how volume is displayed.

• Relative : Display - - -dB (Min), in the range –80.5 dB – 18 dB.

• Absolute : Display in the range 0 (Min) – 99.

The “Volume Display” setting is applied also to the “Volume Limit”

and “Power On Level” display method.

Volume Limit : Make a setting for maximum volume.

• OFF : Do not set a maximum volume.

• –20dB (61) / –10dB (71) / 0dB (81) Power On Level : Deﬁne the volume setting that is active when the

power is turned on.

• Last : Use the memorized setting from the last session.

• – – – (0) : Always use the muting on condition when power is turned on.

• –80dB – +18dB (1 – 99) : The volume is adjusted to the set level. Mute Level : Set the amount of attenuation when muting is on.

• Full : The sound is muted entirely.

• –40dB : The sound is attenuated by 40 dB down.

• –20dB : The sound is attenuated by 20 dB down. BD / DVD / VCR / SAT / GAME / AUX1 / USB / TV / CD / SIRIUS / TUNER

/ M-XPort : Select input source that is not used.

• ON : Use this source.

• Delete : Do not use this source.

NOTE

Input sources set to “Delete” cannot be selected using SOURCE SELECT.

Default settings are underlined.

Setting items Setting details

On-Screen Display

Make the settings related to displays on the TV screen.

Zone Rename

Change the display title of each zone to one you prefer.

Screensaver : Make screensaver settings.

• ON : The screen saver is activated during menu display, iPod or TUNER screen display if no operation is performed for an approximately 3-minute continuous period. When you press uio p, the screensaver is cancelled and the screen before that screen saver started is displayed.

• OFF : Screensaver is not activated.

Text : Display the details of operation when switching surround mode, input mode, etc.

• ON : Turn display on.

• OFF : Turn display off.

Master Volume : Display the master volume during adjustment.

• Bottom : Display at the bottom.

• Top : Display at the top.

• OFF : Turn display off.

When the master volume display is hard to see when superimposed

on movie subtitles, set to “Top”.

USB : Set the USB screen display time when the input source is “USB”.

• Always : Show display continuously.

• 30sec : Show display for 30 seconds after operation.

• 10sec : Show display for 10 seconds after operation.

• OFF : Turn display off.

TUNER : Set the tuner screen display time when the input source is “TUNER” or “SIRIUS”.

• Always : Show display continuously.

• 30sec : Show display for 30 seconds after operation.

• 10sec : Show display for 10 seconds after operation.

• OFF : Turn display off.

• Up to 10 characters can be input.

• For character input, see page 45.

Default : The changed display names are reset to the defaults.

• Yes : Reset to the defaults.

• No : Do not reset to the defaults.

Remote control operation

buttons

Move the cursor (Up/Down/Left/Right)

Conﬁrm the setting Return to previous menu

ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA

Setting items Setting details

DC Trigger

Select the condition for activating Trigger Out for the input source, surround mode, etc. See “DC OUT (TRIGGER OUT) jacks” (vpage38) for more information on trigger out.

Display

Set the display on/off setting.

Setup Lock

Protect settings from inadvertent change.

Trigger Out

n When setting for zone (MAIN ZONE / ZONE2)

Trigger out is activated through linkage to the power of the zone set to “ON”.

n When setting for input source

Activate trigger out when the input source set to “ON” is selected.

Active for the zone set to “ON” with “When Setting for Zone”.

n When setting for surround mode

Activate trigger out when the surround mode set to “ON” is selected.

Active when the “MAIN ZONE” set to “ON” with “When Setting

for Zone” is selected, and when the input source set to “ON” with “When Setting for Input Source” is selected.

• ON : Activate trigger on this mode.

• – – – : Do not activate trigger on this mode. Default : The “Trigger Out” settings are returned to the default settings.

• Yes : Reset to the defaults.

• No : Do not reset to the defaults.

ON : Display is always on. Display Auto OFF : Display is off except when

showing the status display. Display OFF : Display is always off.

This can also be set by pressing DISPLAY on

the remote control unit or main unit. Each time DISPLAY is pressed, the setting is changed as shown below.

ON Display Auto Off

Display OFF

ON : Turn protection on. OFF : Turn protection off.

When canceling the setting, set “Setup Lock” to “OFF”.

NOTE

When “Setup Lock” is set to “ON”, the settings listed below can no longer be changed. Also, “SETUP LOCKED!” is displayed if you attempt to operate related settings.

· Menu operations · Dynamic EQ

· M-DAX · Dynamic Volume

· MultEQ

· Channel Level

Manual Setup

Information

Show information about receiver settings, input signals, etc.

Items Setting details

Status

Show information about current settings.

NOTE

The information displayed differs according to the input source.

Audio Input Signal

Show information about audio input signals.

HDMI Information

Show information about HDMI input/output signals and monitor.

Preset Channel

Show information about preset channels.

TUNER

n MAIN ZONE

This item shows information about settings for MAIN ZONE.

Select Source / Name / Surround Mode / Input Mode / Decode Mode / Video Select / Video Mode / Content Type / i/p Scaler / Resolution / Progressive Mode / Aspect etc.

n ZONE2

This item shows information about settings for ZONE2. Power / Select Source / Volume Level

“Status” for ZONE2 is displayed when “Amp Assign” is set to

“ZONE2”.

Surround Mode : The currently set surround mode. Signal : The input signal type. fs : The input signal’s sampling frequency. Format : The number of channels in the input signal (front, surround, LFE). Offset : The dialogue normalization correction value. Flag : This is displayed when inputting signals including a surround back

channel. “MATRIX” is displayed with Dolby Digital EX and DTS-ES Matrix signals, “DISCRETE” with DTS-ES Discrete signals.

Dialogue normalization function

This function is automatically activated when playing Dolby Digital sources. It automatically corrects the standard signal level for individual program sources. The correction value can be checked using

HDMI Signal Information

• Resolution / Color Space / Pixel Depth

HDMI Monitor Information

• Interface / Suport Resolution

A / B / C / D / E / F / G A1 – A8 / B1 – B8 / C1 – C8 / D1 – D8 / E1 – E8 / F1 – F8 / G1 – G8

Basic versionSimple version Information

Advanced version

STATUS.

The ﬁgure is the corrected value. This cannot be changed.

Remote control operation

buttons

Move the cursor (Up/Down/Left/Right)

Conﬁrm the setting Return to previous menu

ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA

ENTER

Other settings

Remote control settings

• When you connect a remote control receiver unit (purchased separately) to the REMOTE CONTROL IN terminal of this unit, use the following procedure to disable the remote sensor function of this unit.

• The remote sensor function of remote control signals is enabled by default.

o p

ENTER

RETURN

ZONE2 ON/OFF

n Disabling the sensor function of the remote control

To enable the remote signal sensor function, press

and hold ZONE2 ON/OFF and RETURN for 3 seconds.

“IR:< ENABLE >” is displayed.

Press o p to select “DISABLE”.

Press ENTER.

The sensor function of the remote control signal of this unit is disabled.

NOTE

If a remote control receiver unit (purchased separately) is not connected, do not perform this setting. If you do, you will not be able to operate this unit using the remote control.

n Enabling the remote sensor function

To disable the remote signal sensor function, press

and hold ZONE2 ON/OFF and RETURN for 3 seconds.

“IR:< DISABLE >” is displayed.

Press o p to select “ENABLE”.

Switching the on-screen display output mode

Set whether the menu is operated by the monitor connected to the VIDEO OUT terminal or the monitor connected to the COMPONENT VIDEO MONITOR OUT terminal.

• The factory setting is “Comp”.

RETURN PURE DIRECT

o p

Press and hold RETURN and PURE DIRECT for 3

seconds.

Corresponding to the video signal format settings, “OSD Out: 0 Comp 1” or “OSD Out: 0 Video 1” is shown in the display.

Press o p to change the settings according to the

connection method.

Comp

Video

Press ENTER to enter the setting.

Set when the COMPONENT VIDEO MONITOR OUT connector is connected to a TV.

Set when the VIDEO OUT connector is connected to a TV.

NOTE

When operating the on-screen display menu using the monitor connected to the HDMI OUT terminal, either setting may be used without problem.

Press ENTER.

The sensor function of the remote control signal of this unit is enabled.

Operating the connected devices by remote control unit

ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA

Registering the supplied preset codes in the remote control unit enables you to operate devices made by other manufacturers.

Operating AV equipment

Press the input source select

button (vpage 22).

The operation mode of the remote control unit is switched as shown in the table.

NOTE

Press the input source select buttons once to switch the operation mode of the remote control unit supplied with this unit. Press the input source select buttons twice consecutively to switch the operation mode of the remote control unit and input source of this unit.

Input

source

select

buttons

z If a preset code is registered for this button, the remote control

Input source

of this unit

unit of this unit can control another devices.

DVD

VCR

SAT

GAME

AUX1

USB Device registered on the USB button

CD Device registered on the CD button

SIRIUS SIRIUS Satellite Radio

TUNER Radio of this unit

M-XPort Device registered on the M-XP button

Devices controllable with the remote

control unit

(Operation mode)

Device registered on the

Device registered on the VCR button

Device registered on the SAT button

Device registered on the

BD button

DVD button

GAME button

AUX1 button

TV button

NOTE

If the mode of the remote control unit is set to other than ampoperation mode, press AMP to switch the remote control unit to the amp-operation mode to perform the following operations:

• For menu operation by pressing MENU

• For setting the channel level of the unit by pressing CH LVL

• For performing direct playback

• For switching the MultEQ, Dynamic EQ, and Dynamic Volume settings.

• For using the Video Select function.

• For using the sleep timer function.

• For displaying the Source Select screen.

• For switching the M-DAX function.

• For directly selecting “AUTO” and “STEREO” of the listening modes.

Operate this unit or the device whose input source is

switched.

• For details, refer to the operating instructions for each device. For operations of iPod, SIRIUS and TUNER, see the following pages.

• iPod (vpage23)

• SIRIUS (vpage27)

• TUNER (vpage28)

Registering preset codes

When preset codes are registered in the included remote control unit, it can then be used to operate any devices you have, such as DVD players or TVs made by different manufacturers.

NOTE

• No preset codes other than BD, DVD, TV, SAT and CD can be

registered.

• In the factory settings, remote control codes for all Marantz products are registered.

n Buttons used for operating the devices

q SOURCE ON/OFF

For switching power of each device on or off.

w uio p, ENTER

For menu operation of each device.

e MENU, SETUP, TOP MENU

For displaying the menu of each device.

r 1, 2, 3, 6, 7, 8, 9 t Number button (0 – 9, +10) y PRESET +, PRESET – u TV POWER, TV INPUT

For operating a TV This button is enabled in any mode.

For details on operation with the remote control unit, see pages 23 to 24, 27, 28, and 65.

Basic versionSimple version Information

Advanced version

ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA

n Programming with the 4-digit code

Press and hold down the input

source select buttons for the appliance to control, and press

SET until the SEND indicator

blinks twice.

The back light ﬂashes.

Press the 4-digit code for the

appliance using the numeric buttons (code table at the end of this book).

When the procedure is successful, the SEND indicator blinks twice.

NOTE

If the indicator did not blink twice, then repeat steps 1 and 2 and try entering the same code again.

n Scanning the code table

Switch on the appliance to

control.

Press and hold down the input

source select buttons for the appliance to control, and press

SET until the SEND indicator

blinks twice.

The back light ﬂashes.

n Checking the code

Press and hold down the

input source select buttons for appliance to control, and press

SET until the SEND indicator

blinks twice and back light ashes.

The back light ﬂashes.

Press SEARCH/INFO.

The SEND indicator blinks twice.

To view the code for rst digit,

press 1 once.

Count the number of times the SEND indicator blinks (e.g. 3 blinks = 3) and write down the number.

Then press 2 to check the second

digit of the code. Now press 3 and 4 to check the third and fourth digits of the code.

NOTE

If a code digit is “0”, the SEND indicator does not blink.

Registering preset codes

n Resetting the code

The devices shown below are registered for each input source button as default. Settings can be changed according to the devices to be used.

Press and hold down the

input source select buttons for appliance to control and press

SET until the SEND indicator

blinks twice.

The back light ﬂashes.

Press the codes below to reset the

code.

The indicator will blink twice.

Input source select

buttons

NOTE

After this procedure, the selected source reset to its initial code.

Category Preset code

Blu-ray Disc player 5000

DVD player 2000

Television 1000

Satellite set top box 4000

CD player 3000

Aim the remote control at the

appliance and slowly alternate between pressing INPUT d and SOURCE ON/OFF for the appliance.

Stop when the appliance turns

off.

Press ENTER once to lock in the

code.

Operating components

The supplied remote control unit can control a component other than this unit.

Switch the input source

(vpage 22).

Operate the component.

• For details, refer to the component’s operating instructions.

n Blu-ray Disc player / HD-DVD player /

DVD player / DVD recorder operation

Operation buttons Function

SOURCE ON/OFF Power on/standby

MENU (Popup) Menu

TOP MENU Top menu

uio p

ENTER Enter

6 7

8 9

3 2

0 – 9

CLR Clear the inputting

TV POWER

TV INPUT

Cursor operation

Manual search

(fast-reverse/fast-forward)

Playback

Auto search (cue)

Pause

Stop

Select title, chapter or channel

selection

TV power on/standby

(Default : Marantz)

Switch TV input

(Default : Marantz)

n CD player / CD recorder operation

Operation buttons Function

SOURCE ON/OFF Power on/off

6 7

8 9

3 2

CLR Clear the inputting

TV POWER

TV INPUT

Manual search

(fast-reverse/fast-forward)

Auto search (cue)

TV power on/standby

(Default : Marantz)

Switch TV input

(Default : Marantz)

n TV operation

Operation buttons Function

SOURCE ON/OFF

PRESET +, – Switch channels (up/down)

CLR Clear the inputting

TV POWER

TV INPUT

TV power on/standby

(Default : Marantz)

TV power on/standby

(Default : Marantz)

Switch TV input

(Default : Marantz)

Playback

Pause

Stop

n Set top box for satellite (SAT) operation

Operation buttons Function

SOURCE ON/OFF Power on/standby

PRESET +, – Switch channels (up/down)

uio p

ENTER Enter

0 – 9 Channel selection

CLR Clear the inputting

TV POWER

TV INPUT

Cursor operation

TV power on/standby

(Default : Marantz)

Switch TV input

(Default : Marantz)

ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA

Basic versionSimple version Information

Advanced version

ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA

Operating learn mode

This remote control unit is capable of learning and storing codes used by other remote controls that you already own. For codes which are not learned, the remote control unit will transmit either the Marantz preset codes from the initial settings, or remote codes from another manufacturer’s AV equipment which is set by the customer. The receiver sensor for the remote control unit signals is located at the top of the remote control unit.

This remote control unit is capable of learning around 160 codes.

NOTE

The learning procedure does not operate correctly if the batteries have become worn.

n Learning procedure

Place the Marantz remote control and remote

control from the other device approximately 5 cm apart, with the remote control signal transmission sections facing each other.

Select the button to be learned.

LEARN indicator lights up.

NOTE

• The learning function is unavailable for all SOURCE and D.MODE in

any mode.

• The learning function is unavailable for all buttons in TUNER mode and AMP mode.

Press and hold the button of the original remote

control unit to be learned until the SEND indicator blinks twice.

NOTE

• If the SEND indicator blinks once, repeat this step.

• If the LEARN indicator ﬂashes when the SEND indicator is lit, then the button cannot be learned.

• When the memory of the remote control unit is full, the LEARN and SEND indicators blink once. If you want to learn the code, you need to erase a different learned button.

Repeat steps 4 and 5 to learn other buttons for the

same input source.

n Erasing programmed codes

Codes can be erased in three ways: by buttons, sources, and by all memory contents.

Erasing the code by buttons

Press and hold down SET and

SOURCE SEL until the LEARN

indicator blinks.

Press input source select buttons

to select the input source you want to delete.

Press and hold down D.MODE

and press the learned button to be erased twice.

SEND indicator blinks twice and the mode returns to LEARN mode.

To return the normal mode, press SET.

5 cm

Press and hold down SET and

SOURCE SEL until the LEARN

indicator blinks.

Press input source select

buttons to select the input source.

Repeat steps 3 to 6 to learn other input sources.

When programming of the remote control unit is

completed, press SET.

The LEARN display disappears, and the remote control unit exits learn mode.

NOTE

• When the SEND indicator blinks once again, the transmitting code is unavailable for remote control unit, or the transmitting signal has been interrupted by noise.

• If no buttons are pressed for approximately 1 minutes while in the LEARN mode, the remote control unit automatically exits from the LEARN mode.

Erasing the code by SOURCE

Press and hold down SET and

SOURCE SEL until the LEARN

indicator blinks.

Press and hold down D.MODE

and press the learned input source select buttons to be erased

twice.

LEARN indicator lights.

Press ENTER to continue erasing.

• The SEND indicator blinks twice and the mode returns to LEARN mode.

• To cancel the erasing operation, do not press ENTER, and simply press any other button.

To return the normal mode,

press SET.

ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA

Operating learn mode

Erasing the all sources

Press and hold down SET and

SOURCE SEL until the LEARN

indicator blinks.

Press and hold down D.MODE

and press ON and STANDBY .

LEARN indicator lights.

Press ENTER to continue erasing.

• The SEND indicator blinks twice and the mode returns to LEARN mode.

• To cancel the erasing operation, do not press ENTER and simply press any other button.

To return the normal mode, press SET.

NOTE

Erasing codes will return to the factory preset code, or there will leave empty if the button has no factory preset code.

Setting the back light

Press the Light button on the side of the remote control, and the buttons on the remote control light for 2 seconds. If the Light button is pressed while the buttons are lit, the buttons remain lit for another 2 seconds.

• Backlight is set on in the factory settings.

n Disabling the backlight

Press and hold both SET and

STANDBY until the SEND indicator

ashes twice.

n Turning the backlight on

Press and hold both SET and ON until the SEND indicator ashes twice.

Basic versionSimple version Information

Advanced version

ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA

Information

Here, we list various information related to this unit. Please refer to this information as needed.

F Part names and functions vpage69 F Other information vpage73 F Troubleshooting vpage80 F Speciﬁcations vpage83 F Index vpage83

Part names and functions

ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA

Front panel

For buttons not explained here, see the page indicated in parentheses ( ).

q e r t oy iw u

q Power indicator ··········································(11) w Power operation button

(ON/STANDBY) ······································ (6, 11) Turns power to this unit on and off (standby).

e Headphones jack (PHONES)

When the headphones are plugged into this jack, audio will no longer be output from the connected speakers or from the PRE OUT connectors.

NOTE

To prevent hearing loss, do not raise the volume level excessively when using headphones.

r SETUP MIC jack ······································ (8, 37) t iPod/USB port ············································ (19) y DIGITAL connector ····································· (18) u Cursor buttons (uio p) ·················· (44 – 46) i ENTER button ····································· (44 – 46) o AUX1 INPUT connector ·····························(18)

Q8Q7 Q9

Q3Q4

W3 W4 W5 W6

Q0 VOLUME control knob ·······························(22) Q1 Remote control sensor ······························ (72) Q2 M-DAX indicator ·········································(55) Q3 Master volume indicator Q4 Display ·························································(69) Q5 PURE DIRECT indicator ······························(31) Q6 INPUT SELECTOR knob ·····························(22) Q7 SURROUND MODE button ························(29) Q8 AUTO buton ················································(29) Q9 DISPLAY button ·········································· (61) W0 STATUS button ······························(23, 25, 61) W1 MENU button ·············································· (46) W2 RETURN button ·································· (44 – 46) W3 BAND button ········································ (27, 82) W4 ZONE SELECT button ································ (42) W5 ZONE2 ON/OFF button ······························(42) W6 PURE DIRECT button ··························· (31, 62)

Display

wq e

q Decoder indicators

These light when the respective decoders are operating.

w Input signal indicators e Information display

The input source name, surround mode, setting values and other information are displayed here.

r Front speaker indicator

This lights when audio signals are being output from the speakers.

t ZONE2 indicator

This lights when ZONE2 (separate room) power is turned on (vpage42).

y Master volume indicator

When performing setting operations, displays the menu number.

u Sleep timer indicator

This lights when the sleep mode is selected (vpage40).

i MUTE indicator

This lights when the mute mode is selected (vpage22).

i uoQ0Q1Q2Q3

o Audyssey

Lighting is as follows, depending on the setting of “Dynamic EQ” (vpage 54) and “Dynamic Volume” (vpage54).

indicators

When “Dynamic EQ” and “Dynamic Volume” are “ON”.

When “Dynamic EQ” is “ON” and “Dynamic Volume” is “OFF”.

When “Dynamic EQ” and “Dynamic Volume” are “OFF”.

Q0 Surround back indicator

This lights when audio signals are being output from the surround back speakers (vpage57).

Q1 Input mode indicators

Set the audio input modes for the different input sources (vpage50).

Q2 HDMI indicator

This lights when playing using HDMI connections.

Q3 Tuner reception mode indicators

These light according to the reception conditions when the input source is set to “TUNER”. STEREO: In the FM mode, this light when receiving analog stereo broadcasts. TUNED: Lights when the broadcast is properly tuned in. AUTO: This light when in the auto tuning mode.

Basic version Advanced versionSimple version

Information

ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA

Rear panel

See the page indicated in parentheses ( ).

oQ0Q2 Q1Q3Q4Q6 Q5 i

q w e r t y

q FM/AM antenna terminals ····················································· (20) w Analog audio connectors ···········································(16 – 18, 21) e PRE OUT connector ················································(5, 21, 34 – 36) r 7.1CH INPUT connectors ························································ (21) t Speaker terminals ·······················································(5, 34 – 36) y AC inlet (AC IN) ·········································································· (5) u COMPONENT VIDEO connectors ····································· (16, 17) i HDMI connectors ····································································· (15) o Digital audio connectors ··················································(16 – 18)

Q0 FLASHER IN jack

Used when using a control BOX or other such control devices to control this unit.

Q1 VIDEO connectors ····························································(16 – 18) Q2 REMOTE CONTROL connectors ············································· (38) Q3 M-XPort connector ···························································· (18, 38) Q4 SIRIUS connector ···································································· (20) Q5 DC OUT jack ············································································· (38) Q6 RS-232C connector ·································································· (38)

NOTE

Do not touch the inner pins of the connectors on the rear panel. Electrostatic discharge may cause permanent damage to the unit.

Remote control unit

For buttons not explained here, see the page indicated in parentheses ( ).

Q9 q w

e r t y

Q0 Q1

E3 E8

E4 E5

E9 R0 R1

q SET button ······································ (64, 66, 67) w SOURCE power button ······················ (63 – 65) e Decode mode button (D.MODE) ···············(50) r Input mode button (A/D) ···························(50) t Resolution button (HDMI/RES) ·················(49) y Audio delay button (DLY) ·························· (55) u Input source select buttons ··········· (22, 63, 65) i Source select button

(SOURCE SEL) ············································ (22)

o INPUT buttons ······································ (22, 42) Q0 DISPLAY/Tuner mode

(T.MODE) button ··································(27, 61)

Q1 SHIFT/TOP MENU button ·············· (26, 27, 45) Q2 Cursor buttons (uio p) ·················· (44 – 46) Q3 MENU button ·············································· (46) Q4 HT-EQ button ··············································(52) Q5 Number buttons ··································· (26, 65) Q6 Clear button (CLR) ······································(65) Q7 TUNING buttons (+, –) ························ (25, 27) Q8 Remote control signal transmitter ···········(72) Q9 SEND indicator ···········································(67) W0 LEARN indicator ·········································(66) W1 Power buttons (ON, STANDBY) ············ (6, 11) W2 Speaker A/B button (SPKR A/B) ···············(58) W3 TEST TONE button ·····································(58) W4 ZONE2 button (Z2) ·····································(42) W5 Muting button (MUTE) ························ (11, 22) W6 Light button ················································ (67) W7 Master volume control buttons

(VOLUME +, –) ······································(11, 22)

W8 Surround mode (SURR.)/MEMORY button

················································· (26, 27, 29 – 31)

ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA

W9 SEARCH/Information (INFO) button

····································· (23, 24, 26 – 28, 46, 64)

E0 ENTER button ····································· (44 – 46) E1 RETURN button ·································· (44 – 46) E2 System buttons ······························ (23, 24, 65)

• Pause button (3)

• Play button (1)

• Stop button (2)

• Skip button (8, 9)

• Search button (6, 7)

FM/AM band switching button

(BAND) ··················································· (27, 28)

E3 AUTO button ·············································· (29) E4 MULTEQ

button ································· (53, 59)

E5 STEREO button ··········································· (31) E6 Channel level button (CH LVL) ··················(40) E7 SLEEP button ··············································(40) E8 Pure direct button (P.DIRECT) ···················(31) E9 Dynamic EQ R0 Dynamic Volume

button (DYN EQ) ················ (54)

button (DYN VOL) ····· (54)

R1 Video select button (V.SEL) ······················(49) R2 M-DAX button ············································ (55) R3 REPEAT button ····································· (23, 24) R4 RANDOM button ··································(23, 24) R5 TV operation buttons

(TV POWER / INPUT) ································· (65)

R6 CHANNEL/PRESET buttons (+, –)

······················································· (26 – 28, 65)

Basic version Advanced versionSimple version

Information

ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA

Remote control unit

Inserting the batteries

q Remove the rear lid in the

direction of the arrow and remove it.

e Put the rear cover back on.

NOTE

• Insert the speciﬁed batteries in the remote control unit.

• Replace the batteries with new ones if the set does not operate even when the remote control unit is operated close to the unit. (The supplied batteries are only for verifying operation.)

• When inserting the batteries, be sure to do so in the proper direction, following the q and w marks in the battery compartment.

• To prevent damage or leakage of battery ﬂuid:

• Do not use a new battery together with an old one.

• Do not use two different types of batteries.

• Do not attempt to charge dry batteries.

• Do not short-circuit, disassemble, heat or dispose of batteries in

ﬂames.

• Do not keep the battery in a place exposed to direct sunlight or in

places with extremely high temperatures, such as near a heater.

• If the battery ﬂuid should leak, carefully wipe the ﬂuid off the inside of the battery compartment and insert new batteries.

• Remove the batteries from the remote control unit if it will not be in use for long periods.

• Used batteries should be disposed of in accordance with the local regulations regarding battery disposal.

w Load the two batteries

properly as indicated by the marks in the battery compartment.

R03/AAA

Operating range of the remote control unit

Point the remote control unit at the remote sensor when operating it.

30°

Approx. 23 ft/7 m

NOTE

The set may function improperly or the remote control unit may not operate if the remote control sensor is exposed to direct sunlight, strong artiﬁcial light from an inverter type ﬂuorescent lamp or infrared light.

Other information

ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA

n Trademark information (vpage73) n Surround (vpage74) n Explanation of terms (vpage78)

Trademark information

This product uses the following technologies:

Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic” and the double-D symbol are trademarks of Dolby Laboratories.

Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,226,616; 6,487,535; 7,212,872; 7,333,929; 7,392,195; 7,272,567 & other U.S. and worldwide patents issued & pending. DTS and the Symbol are registered trademarks, & DTS-HD, DTS-HD Master Audio, and the DTS logos are trademarks of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.

Manufactured under license from DTS Licensing Limited. DTS and the Symbol are registered trademarks, & DTS Neural Surround and the DTS logos are trademark of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.

HDMI, the HDMI Logo and HighDeﬁnition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Manufactured under license from Audyssey Laboratories™. U.S. and foreign patents pending. Audyssey MultEQ® is a registered trademark of Audyssey Laboratories. Audyssey Dynamic EQ® is a registered trademark of Audyssey Laboratories. Audyssey Dynamic Volume® is a trademark of Audyssey Laboratories.

“Made for iPod” and “Made for iPhone” mean that an electronic accessory has been designed to connect speciﬁcally to iPod or iPhone, respectively, and has been certiﬁed by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. iPhone, iPod, iPod classic, iPod nano, iPod shufﬂe, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.

• Individual users are permitted to use iPhone, iPod, iPod classic, iPod nano, iPod shufﬂe, and iPod touch for private copy and playback of non-copyrighted contents and contents whose copy and playback is permitted by law. Copyright infringement is prohibited by law.

Basic version Advanced versionSimple version

Information

ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA

Surround

This unit is equipped with a digital signal processing circuit that lets you play program sources in the surround mode to achieve the same sense of presence as in a movie theater.

Surround modes and surround parameters

This table shows the speakers that can be used in each surround mode and the surround parameters adjustable in each surround mode.

Symbols in the table

S This indicates the audio output channels or surround parameters that can be set. D This indicates the audio output channels. The output channels depend on the settings of “Speaker Conﬁg.” (vpage56).

Channel output

Surround mode (vpage29)

PURE DIRECT (2channel)

PURE DIRECT (Multi-channel)

DIRECT (2channel)

DIRECT (Multi-channel)

STEREO

MULTI CH IN DOLBY PRO LOGIC gz S D D D D S S S DOLBY PRO LOGIC gx S D D D D S S S DOLBY PRO LOGIC g S D D D S S S

DTS NEO:6

DOLBY DIGITAL

DOLBY DIGITAL Plus

DOLBY TrueHD

DTS SURROUND

DTS 96/24

DTS-HD

DTS Express

MULTI CH STEREO

DOLBY VIRTUAL SPEAKR

Neural

Dolby Headphone

Front

L/R

S D S D D D S D S D D D S D S S S S S D D D D S S

S D D D D S S S S D D D D D S S S S D D D D D S S S S D D D D D S S S S D D D D D S S S S D D D D D S S S S D D D D D S S S S D D D D D S S S S D D D D S S S D S D D D D S S

z1 A signal for each channel contained in an input signal is output as audio. z2 Only when “Subwoofer Mode” is set to “LFE+Main” (vpage57), sound is output from the subwoofer. z3 For HD Audio whose sampling frequency of an input signal is more than 96kHz, this sound parameter cannot be set. z4 This item can be selected when a Dolby TrueHD signal is played. z5 This item can be selected when a Dolby Digital or DTS signal is played. z6 This item can be selected when a Dolby Digital or DTS signal or DVD-Audio is played.

Center

Surround

L/R

Surround Back

L/R

Front Height L/R Subwoofer

D S S S

HT-EQ.

(vpage52)

Surround Parameter (vpage52)

DRC z4

(vpage52)

S S

S S S

D. Comp

(vpage52)

LFE

Surround Parameter (vpage52)

PRO LOGIC g/gx Music mode only

Surround mode (vpage29)

PURE DIRECT (2 channel)

PURE DIRECT (Multi-channel)

DIRECT (2 channel)

DIRECT (Multi-channel)

STEREO

MULTI CH IN DOLBY PRO LOGIC gz S S S S S S DOLBY PRO LOGIC gx S S S S S S S S DOLBY PRO LOGIC g S S S S S S S S

DTS NEO:6

DOLBY DIGITAL

DOLBY DIGITAL Plus

DOLBY TrueHD

DTS SURROUND

DTS 96/24

DTS-HD

DTS Express

MULTI CH STEREO

DOLBY VIRTUAL SPEAKER

Neural

Dolby Headphone

Height Gain

(vpage53)

z7 This item cannot be set when “Dynamic EQ” (vpage54) is set to “ON”. z8 This item cannot be set when “MultEQ” (vpage53) is set to “OFF” or “Manual”. z9 This item cannot be set when “Dynamic EQ” (vpage54) is set to “OFF”. z10 This item can be set when the input signal is analog, PCM 48 kHz or 44.1 kHz. z11 For HD Audio whose sampling frequency of an input signal is more than 96 kHz, this sound parameter cannot be set.

Panorama

(vpage52)

Dimension

(vpage52)

Center Width

(vpage52)

NEO:6 Music

mode only

Center Image

(vpage52)

S S S S S S

Tonez7

(vpage53)

S S S S S S S S S

S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S

Audyssey Settings

MultEQ®

(vpage53)

z11

Dynamic

EQ®z8

(vpage54)

(vpage53)

Dynamic

Volume

(vpage54)

M-DAX

z10

(vpage55)

ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA

Surround

Basic version Advanced versionSimple version

Information

ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA

n Types of input signals, and corresponding surround modes

This table shows the input signal that can be played in each surround mode. Check the audio signal of the input source then select the surround mode.

Symbols in the table

S This indicates the selectable surround mode.

Input signal types and formats

PCM DTS-HD DTS DOLBY DOLBY DIGITAL

Surround mode (vpage29)

DTS SURROUND

DTS-HD MSTR DTS-HD HI RES DTS ES DSCRT6.1 DTS ES MTRX6.1 DTS SURROUND DTS 96/24 DTS (–HD) + PLgx MOVIE z2z4 S S S S S S S DTS (–HD) + PLgx MUSIC z1z4 S S S S S S S DTS (–HD) + PLgz z3 S S S S S S S DTS EXPRESS DTS (–HD) + NEO:6 DTS NEO:6 CINEMA DTS NEO:6 MUSIC

DOLBY SURROUND

DOLBY TrueHD DOLBY DIGITAL+ DOLBY DIGITAL EX DOLBY (D+) (HD) +EX DOLBY DIGITAL DOLBY (D) (D+) (HD) +PLgx MOVIE z2z4 S S S S S DOLBY (D) (D+) (HD) +PLgx MUSIC z1z4 S S S S S DOLBY (D) (D+) (HD) +PLgz z3 S S S S S DOLBY PRO LOGIC gx MOVIE z1z4 S S S DOLBY PRO LOGIC gx MUSIC z1z4 S S S DOLBY PRO LOGIC gx GAME z1z4 S S S DOLBY PRO LOGIC gz z3 S S S DOLBY PRO LOGIC g MOVIE S S S DOLBY PRO LOGIC g MUSIC S S S DOLBY PRO LOGIC g GAME S S S DOLBY VIRTUAL SPEAKER DOLBY HEADPHONE

NOTE

z1z4 S z1z4 S

z1z4 S S S S S S

z1z4 S S S z1z4 S S

z1 If “Speaker Conﬁg.“ – “S.Back“ (vpage57) is set to “None”, this surround mode cannot be selected. z2 If “Speaker Conﬁg.“ – “S.Back“ (vpage57) is set to “1sp” or “None”, this surround mode cannot be selected. z3 If “Speaker Conﬁg.“ – “Front Height“ (vpage57) is set to “None”, this surround mode cannot be selected. z4 This surround mode can be selected when “Amp Assign” (vpage56) is set to “Normal”.

ANALOG

LINEAR PCM

(multi ch)

S S S S S S

S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S

LINEAR PCM

(2ch)

DTS-HD

Master

Audio

DTS-HD

High

Resolution

Audio

DTS

EXPRESS

DTS ES DSCRT

(With Flag)

DTS ES

MTRX

(With Flag)

S S S

DTS

(5.1ch)

DTS 96/24

DOLBY TrueHD

DOLBY

DIGITAL Plus

DOLBY

DIGITAL EX

(With Flag)

DOLBY

DIGITAL EX

(With no

Flag)

S S S

DOLBY

DIGITAL

(5.1/5/4ch)

Surround

DOLBY

DIGITAL

(2ch)

Surround mode (vpage29)

MULTI CH IN

MULTI CH IN MULTI CH IN + PLgx MOVIE z2z4 S MULTI CH IN + PLgx MUSIC z1z4 S MULTI CH IN + PLgz z3 S MULTI CH IN + Dolby EX

MULTI CH IN 7.1 DIRECT

PURE DIRECT MULTI CH STEREO STEREO NEURAL AUTO

NOTE

z1z4 S z1z4 S

ANALOG

S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S

Input signal types and formats

PCM DTS-HD DTS DOLBY DOLBY DIGITAL

LINEAR PCM

(multi ch)

LINEAR PCM

(2ch)

DTS-HD

Master

Audio

DTS-HD

High

Resolution

Audio

DTS

EXPRESS

DTS ES DSCRT

(With Flag)

DTS ES

MTRX

(With Flag)

DTS

(5.1ch)

DTS 96/24

DOLBY TrueHD

DOLBY

DIGITAL Plus

DOLBY

DIGITAL EX

(With Flag)

DOLBY

DIGITAL EX

(With no

Flag)

DOLBY

DIGITAL

(5.1/5/4ch)

ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA

DOLBY

DIGITAL

(2ch)

Surround

Basic version Advanced versionSimple version

Information

ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA

Explanation of terms

A2DP

A2DP is one proﬁle of Bluetooth deﬁnded for in-car devices or AV devices that use wireless communication instead of a cable.

Adobe RGB color / Adobe YCC601 color

Like x.v.Color, each of these color spaces deﬁnes a palette of available colors that is larger than the traditional RGB color model.

Audyssey Dynamic EQ

Audyssey Dynamic EQ solves the problem of deteriorating sound quality as volume is decreased by taking into account human perception and room acoustics. Audyssey Dynamic EQ works in tandem with Audyssey MultEQ® to provide well-balanced sound for every listener at any volume level.

Audyssey Dynamic Volume

Audyssey Dynamic Volume solves the problem of large variations in volume level between television programs, commercials, and between the soft and loud passages of movies. Audyssey Dynamic EQ is integrated into Dynamic Volume so that as the playback volume is adjusted automatically, the perceived bass response, tonal balance, surround impression, and dialog clarity remain the same.

Audyssey MultEQ

Audyssey MultEQ is a room equalization solution that calibrates any audio system so that it can achieve optimum performance for every listener in a large listening area. Based on several room measurements, MultEQ calculates an equalization solution that corrects for both time and frequency response problems in the listening area and also performs a fully automated surround system setup.

Auto Lip Sync

If you connect the receiver to a TV that supports the Auto Lip Sync function, it can automatically correct delay between the audio and video.

Bluetooth

Bluetooth is a short-distance wireless communication technology used for connecting handheld devices several meters apart. This enables notebook computers, PDA s, mobile phones, etc. to connect without a cable for transmitting audio and data.

Deep Color

This technology allows expression of more number of colors than the conventional 8 bits and can reproduce colors close to natural ones without color streak.

Dolby Digital

Dolby Digital is a multi-channel digital signal format developed by Dolby Laboratories. A total of 5.1 channels are played: 3 front channels (“FL”, “FR” and “C”), 2 surround channels (“SL” and “SR”) and the “LFE” channel for low frequencies. Because of this, there is no crosstalk between channels and a realistic sound ﬁeld with a “threedimensional” feeling (sense of distance, movement and positioning) is achieved. A realistic, powerful sense of presence is achieved when playing movie sources in AV rooms as well.

Dolby Digital EX

Dolby Digital EX is a 6.1-channel surround format proposed by Dolby Laboratories that allows users to enjoy in their homes the “DOLBY DIGITAL SURROUND EX” audio format jointly developed by Dolby Laboratories and Lucas Films. The 6.1 channels of sound, including surround back channels, provide improved sound positioning and expression of space.

Dolby Digital Plus

Dolby Digital Plus is an improved Dolby Digital signal format that is compatible with up to 7.1 channels of discrete digital sound and also improves sound quality thanks to extra data bit rate performance. It is upwardly compatible with conventional Dolby Digital, so it offers greater ﬂexibility in response to the source signal and the conditions of the playback equipment.

Dolby Headphone

The Dolby Headphone technology provides a surround sound listening experience over headphones. When listening to multichannel content such as DVD movies over headphones, the listening experience is fundamentally different than listening to speakers. Since the headphone speaker drivers are covering the pinna of the ear, the listening experience differs greatly from traditional speaker playback. Dolby utilizes patented headphone perspective curves to solve this problem and provides a non-fatiguing, immersive, home theater listening experience. Dolby Headphone also delivers exceptional 3D audio from stereo material.

Dolby TrueHD

Dolby TrueHD is a high deﬁnition audio technology developed by Dolby Laboratories, using lossless coding technology to faithfully reproduce the sound of the studio master. This format provides the facility to support up to 8 audio channels with a sampling frequency of 96kHz/24bit resolution and up to 6 audio channels with a sampling frequency of 192kHz/24bit resolution. Dolby TrueHD is adopted for applications that put very high importance on sound quality.

Dolby Pro Logic g

Dolby Pro Logic g is a matrix decoding technology developed by Dolby Laboratories. Regular music such as that on CDs is encoded into 5 channels to achieve an excellent surround effect. The surround channel signals are converted into stereo and full band signals (with a frequency response of 20 Hz to 20 kHz or greater) to create a “three-dimensional” sound image offering a rich sense of presence for all stereo sources.

Dolby Pro Logic gx

Dolby Pro Logic gx is a further improved version of the Dolby Pro Logic g matrix decoding technology. Audio signals recorded in 2 channels are decoded to achieve a natural sound with up to 7.1 channels. There are three modes: “Music” suited for playing music, “Movie” suited for playing movies, and “Game” which is optimized for playing games.

Dolby Pro Logic gz

Dolby Pro Logic gz introduces a new dimension to Home Entertainment through the addition of a pair of front height channels. Compatible with stereo,

5.1-channel and 7.1-channel content, Dolby Pro Logic gz provides enhanced spaciousness, depth and dimension to movies, concert video and video game playback while maintaining the full integrity of the source mix. Dolby Pro Logic gz identiﬁes and decodes spatial cues that occur naturally in all content, directing this information to the front height channels, complementing the performance of left and right surround sound speakers. Content that is encoded with Dolby Pro Logic gz height channel information can be even more revealing, with perceptually discrete height channel information bringing an exciting new dimension to home entertainment. Dolby Pro Logic gz, with front height channels is also an ideal alternative for households that cannot support the placement of back surround speakers of a typical 7.1-channel system but may have bookshelf space available to support the addition of height speakers.

Dolby Virtual Speaker

Dolby Virtual Speaker is a technology certiﬁed by Dolby Laboratories that creates a virtualized surround sound experience from two speakers using a multichannel Dolby Digital source. Additionally, Dolby Virtual Speaker can simulate the surround sound effect produced by Dolby Pro Logic or Dolby Pro Logic g. Dolby Virtual Speaker retains all the original Multichannel audio information and provides the listener with the sensation of being surrounded by additional speakers.

Downmix

This function converts the number of channels of surround audio to less number of channels and plays back.

DTS

This is an abbreviation of Digital Theater System, which is a digital audio system developed by DTS. When playing back audio by connecting this system with a device such as DTS ampliﬁer, accurate sound ﬁeld position and realistic sound effect as if you are in a movie theater can be obtained.

DTS 96/24

DTS 96/24 is a digital audio format enabling high sound quality playback in 5.1 channels with a sampling frequency of 96 kHz and 24 bit quantization on DVD-Video.

DTS Digital Surround

DTS Digital Surround is the standard digital surround format of DTS, Inc., compatible with a sampling frequency of 44.1 or 48 kHz and up to 5.1 channels of digital discrete surround sound.

DTS-ES™ Discrete 6.1

DTS-ES™ Discrete 6.1 is a 6.1-channel discrete digital audio format adding a surround back (SB) channel to the DTS digital surround sound. Decoding of conventional 5.1-channel audio signals is also possible according to the decoder.

DTS-ES™ Matrix 6.1

DTS-ES™ Matrix 6.1 is a 6.1-channel discrete digital audio format inserting a surround back (SB) channel to the DTS digital surround sound through matrix encoding. Decoding of conventional 5.1-channel audio signals is also possible according to the decoder.

DTS Express

DTS Express is an audio format supporting low bit rates (max. 5.1 channels, 24 to 256 kbps).

DTS-HD

This audio technology provides higher sound quality and enhanced functionality than the conventional DTS and is adopted as an optional audio for Blu-ray Disc. This technology supports multi-channel, high data transfer speed, high sampling frequency, and lossless audio playback. Maximum 7.1-channels are supported in Blu-ray Disc.

DTS-HD High Resolution Audio

DTS-HD High Resolution Audio is an improved version of the conventional DTS, DTS-ES and DTS 96/24 signals formats, compatible with sampling frequencies of 96 or 48 kHz and up to

7.1 channels of discrete digital sound. High data bit rate performance provides high quality sound. This format is fully compatible with conventional products, including conventional DTS digital surround 5.1-channel data.

DTS-HD Master Audio

DTS-HD Master Audio is a lossless audio format created by Digital Theater System (DTS). This format provides the facility to support up to 8 audio channels with a sampling frequency of 96kHz/24bit resolution and up to 6 audio channels with a sampling frequency of 192kHz/24bit resolution. It is fully compatible with conventional products, including conventional DTS digital surround

5.1-channel data.

DTS Neural Surround

DTS Neural Surround has been chosen as the surround sound format for XM Satellite Radio’s “XM HD Surround”, TV sports broadcasting, 7.1 games, Music Direct Internet streaming as well as leading FM/HD radio stations. It delivers the rich envelopment and discrete image detail of surround sound by unmasking the audio details, typically lost by other playback modes. Audiences will experience the deep ambience and subtle details of movies, music and games.

DTS NEO:6™ Surround

DTS NEO:6™ is a matrix decoding technology for achieving 6.1-channel surround playback with 2-channel sources. It includes “DTS NEO:6 Cinema” suited for playing movies and “DTS NEO:6 Music” suited for playing music.

Dynamic range

The difference between the maximum undistorted sound level and the minimum discernible level above the noise emitted by the device.

HDCP

When transmitting digital signals between devices, this copyright protection technology encrypts the signals to prevent content from being copied without authorization.

HDMI

This is an abbreviation of High-Deﬁnition Multimedia Interface, which is an AV digital interface that can be connected to a TV or ampliﬁer. Video signal and audio signal can be connected using 1 cable.

LFE

This is an abbreviation of Low Frequency Effect, which is an output channel that emphasizes low frequency effect sound. Surround audio is intensiﬁed by outputting 20 Hz to 120 Hz deep bass.

MAIN ZONE

The room where this unit is placed is called the MAIN ZONE.

MP3 (MPEG Audio Layer-3)

This is an internationally standardized audio data compression scheme, using the “MPEG-1” video compression standard. It compresses the data volume to about one eleventh its original size while maintaining sound quality equivalent to a music CD.

MPEG (Moving Picture Experts Group), MPEG-2, MPEG-4

These are the names for digital compression format standards used for the encoding of video and audio. Video standards include “MPEG-1 Video”, “MPEG2 Video”, “MPEG-4 Visual”, “MPEG-4 AVC”. Audio standards include “MPEG-1 Audio”, “MPEG-2 Audio”, “MPEG-4 AAC”.

Pairing

Pairing is an operation required for settings to connect two Bluetooth devices. Pairing enables Bluetooth devices to access each other.

Protection Circuit

This is a function to prevent damage to components within the power supply when an abnormality such as an overload, excess voltage occurs or temperature for any reason. In this unit, the power indicator blinks and the unit enters standby mode when an abnormality occurs.

Sampling frequency

Sampling involves taking a reading of a sound wave (analog signal) at regular intervals and expressing the height of the wave at each reading in digitized format (producing a digital signal). The number of readings taken in one second is called the “sampling frequency”. The larger the value, the closer the reproduced sound is to the original.

Speaker impedance

This is an AC resistance value, indicated in Ω (ohms). Greater power can be obtained with this value smaller.

sYCC601 color

Like x.v.Color, each of these color spaces deﬁnes a palette of available colors that is larger than the traditional RGB color model.

ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA

Explanation of terms

WAV (Wave)

WAV is a standard audio format of Windows. The ﬁle size tends to increase, but sound near the original sound can be maintained.

WMA (Windows Media Audio)

This is audio compression technology developed by Microsoft Corporation. WMA data can be encoded using Windows Media® Player Ver.7, 7.1, Windows Media®Player for Windows® XP and Windows Media® Player 9 Series. To encode WMA ﬁles, only use applications authorized by Microsoft Corporation. If you use an unauthorized application, the ﬁle may not work properly.

x.v.Color

This function lets HDTVs display colors more accurately. It enables display with natural, vivid colors. “x.v.Color” is a Sony registered trademark.

ZONE2

This unit can operate in a room other than the room where this unit is placed (MAIN ZONE) (ZONE2 playback). The room for ZONE2 playback is called ZONE2.

Basic version Advanced versionSimple version

Information

ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA

Troubleshooting

If a problem should arise, ﬁrst check the following:

1. Are the connections correct?

2. Is the set being operated as described in the user guide?

3. Are the other components operating properly?

If this unit does not operate properly, check the items listed in the table below. Should the problem persist, there may be a malfunction. In this case, disconnect the power immediately and contact your store of purchase.

GGeneralH

Symptom Cause/Solution Page

Power does not turn on.

Display is off. • Set “Display” on the menu to something other than “OFF”. 61

The power indicator is blinking red in intervals of approximately 2 seconds.

The power indicator is blinking red in intervals of approximately 0.5 seconds.

After turning on the power, the power indicator is blinking red in intervals of approximately 0.5 seconds.

Set does not operate properly.

GVideoH

Symptom Cause/Solution Page

No picture appears. • Check the TV connection.

The on-screen display is not shown. Or noise occurs.

• Check whether the power plug is correctly inserted into the power outlet.

• The protection circuit is active. Disconnect the power plug from the electric outlet, wait 5 to 10 seconds and then insert it back into the outlet.

• The temperature inside the unit has risen. Please turn off power once, and re-apply the power after the temperature has fallen sufﬁciently.

• Please re-install this unit in a place having good ventilation.

• Please use speakers which have the speciﬁed impedance.

• The speaker cable has shorted (is touching). Firmly twist the core wire in the speaker cable, and then re-connect it to the speaker terminal.

• This unit ampliﬁer circuit has failed. Turn off the power and please contact the Marantz service adviser.

• Reset the microprocessor. 82

• Set the TV input correctly.

• Set the on-screen display output mode to match your TV and connection method.

4, 79

4 4

–

5 6

GAudioH

Symptom Cause/Solution Page

Audio is not output. • Check the connections for all devices.

• Check the speaker connections.

• Check whether the audio device power is turned on.

• Adjust the master volume.

• Cancel the mute mode.

• Select a suitable input source.

• Select a suitable input mode.

• Disconnect the headphones. No sound is output from the speakers or the PRE OUT connectors when headphones are connected.

No sound is produced from surround speaker.

No sound is produced from surround back speaker.

No sound is produced from front height speaker.

No sound is produced from subwoofer.

DTS sound is not output.

Dolby TrueHD, DTSHD, Dolby Digital Plus audio is not output.

• Check if the surround speakers are connected to the SURROUND terminals.

• Set “Amp Assign” on the menu to “Normal”.

• Set “Speaker Conﬁg.” – “S.Back” on the menu to something other than “None”.

• Set the surround mode to something other than “STEREO”.

• Set “Amp Assign” on the menu to “Normal”.

• Set “Speaker Conﬁg.” – “Surround” on the menu to something other than “None”.

• Check the subwoofer connections.

• Turn on the subwoofer’s power.

• Set “Speaker Conﬁg.” – “Subwoofer” on the menu to “Yes”.

• If “Front” and “Center” for “Speaker Conﬁg.” are set to “Large”, and “Subwoofer Mode” is set to “LFE”, no sound may be output from the subwoofers, depending on the input signal or selected surround mode.

• Set “Decode Mode” on the menu to “Auto” or “DTS”. 50

• Make HDMI connections. 15

5, 14 – 21 5, 34 – 36

– 22, 42 22, 42 22, 42

50 69

–

56 57

5, 34 – 36

56, 57

ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA

GHDMIH

Symptom Cause/Solution Page

No audio is output with HDMI connection.

No video is output with HDMI connection.

When the following operations are performed on devices compatible with HDMI control, the same operations occur on this unit.

• Power ON/OFF

• Switching audio output devices

• Adjust volume

• Switch input source

GSIRIUS Satellite RadioH

Symptom Cause/Solution Page

“CHECK SR TUNER” is displayed.

”ANTENNA ERROR” is displayed.

”INVALID CHANNEL” is displayed.

”ACQUIRING SIGNAL” is displayed.

”Call SIRIUS” displayed.

”SUBSCRIPTION UPDATED” is displayed.

”Enter Lock Code [ ]” is displayed.

z After scroll displays “Call 888-539-....” twice, displays “Call SIRIUS”.

• Check the connection of the HDMI connectors.

• When outputting HDMI audio from the speakers, set “HDMI Audio Out” on the menu to “Amp”.

• When outputting HDMI audio from a TV, set “HDMI Audio Out” on the menu to “TV”.

• Check the connection of the HDMI connectors.

• Set the input source to match the connected HDMI connector.

• Check whether the TV is compatible with copyright protection (HDCP). If connected to a device not compatible with HDCP, video will not be output correctly.

• Set “HDMI Control” on the menu to “OFF”. To operate power only for each device, set “Power Off Control” to “OFF”.

• The SiriusConnect Home Tuner unit is not connected. Check that the connections are correct.

• The antenna is not connected. Check that the connections are correct.

• Channel is not present. Select another channel. –

• The signal cannot be received. Reposition your SiriusConnect Home Tuner and Home Dock antenna.

• Displays while SiriusConnect Home Tuner is connected. Reposition your SiriusConnect Home Tuner and Home Dock antenna.

• Channels are not subscribed to. If you subscribe to the channel, you can receive the channel.

• While updating contract information. –

• Selected channels are locked. Please insert pass word (4 digits) into “[ ]”

15 58

15, 22, 48

39, 58

–

GFM/AM radioH

Symptom Cause/Solution Page

Reception fails, or there is a lot of noise or distortion.

GUSB memory deviceH

Symptom Cause/Solution Page

When a USB memory device is connected, “USB” is not displayed on the menu.

Files on a USB memory device cannot be played.

The ﬁle names are not displayed properly (“...”, etc.).

The sound quality is poor or there is noise during playback.

“Connection Error” is displayed.

“Overcurrent” is displayed.

• Change the antenna orientation or position.

• Separate the AM loop antenna from the unit.

• Use an FM outdoor antenna.

• Separate the antenna from other connection cables.

• The set cannot recognize a USB memory device. Check the connection.

• A USB memory device not conforming to mass storage class is connected. Connect a USB memory device conforming to mass storage class.

• A USB memory device cannot be connected via a USB hub.

• Set the USB memory device format to “FAT16” or “FAT32”. For details, refer to the USB memory device’s operating instructions.

• If the USB memory device is divided into multiple partitions, only ﬁles stored in the top partition can be played.

• The ﬁle is recorded in an incompatible format. Please record it in a compatible format.

• This unit cannot play back ﬁles covered by copyright protection.

• Characters that cannot be displayed on this unit are replaced by “.” (period).

• The ﬁle being played back has a low bit rate. –

• Unable to communicate properly. Turn off the power to this unit, unplug the USB memory device and then plug it back in.

• The USB memory device is not responding. Turn off the power to this unit, unplug the USB memory device and then plug it back in.

• The USB memory device is consuming too much power. When using a USB portable hard disk that can be powered by an AC adapter, connect its AC adapter.

20 20 20 20

Basic version Advanced versionSimple version

–

Information

ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA

GiPodH

Symptom Cause/Solution Page

iPod cannot be played.

“Connection Error” is displayed.

“Not Support” is displayed.

“Connection Error” is displayed.

When an iPod is connected, “No Connection” is displayed.

GM-XPortH

Symptom Cause/Solution Page

Audio is not output when a wireless receiver (RX101 is connected).

GRemote control unitH

Symptom Cause/Solution Page

The set cannot be operated with the remote control unit.

• Check the iPod connections.

• Switch the input source to “USB”.

• Incompatible iPod types cannot be played back.

• Unable to communicate properly. Turn off the power to this unit, disconnect the iPod and then reconnect it.

• The iPod connected to the unit is not compatible. Please make sure the iPod you are connecting is compatible.

• The software version of the connected iPod is an old one. Please update to the latest version.

• The iPod is not responding. Turn off the power to this unit, disconnect the iPod and then reconnect it.

• “No Connection” may display if you connect an iPod that has only a small amount of charge remaining in its battery to this unit. Should this occur, charge the iPod before connecting it to this unit.

• Check that the Bluetooth device and Wireless receiver (RX101) are correctly paired.

• Batteries are worn out. Replace with new batteries.

• Operate the remote control unit within a distance of about 23 ft/7 m from this unit and at an angle of within 30°.

• Remove any obstacle between this unit and the remote control unit.

• Insert the batteries in the proper direction, checking the q and w marks.

• The set’s remote control sensor is exposed to strong light (direct sunlight, inverter type ﬂuorescent bulb light, etc.). Move the set to a place in which the remote control sensor will not be exposed to strong light.

19 22 19

72 72

Resetting the microprocessor

Perform this procedure if the display is abnormal or if operations cannot be performed. When the microprocessor is reset, all the settings are reset to their default values. Various setting details can be saved and reset on this device. If setting details are saved before returning

–

to the default values, after returning to the default settings, setting details can be returned to the same values as before returning to the defaults.

To return all of the settings to the default values, perform steps 2 to 4 without performing step 1.

ON/STANDBY

AUTO MENU BAND

SURR.

o p

ENTER

MODE

When the power is ON, press and hold BAND and ENTER for more than 3 seconds.

After “MEMORY SAVING” is shown on the display, “COMPLETE”is shown to inform you that the settings have been saved.

Turn off the power using ON/STANDBY.

Press ON/STANDBY while simultaneously pressing SURR. MODE and AUTO.

Once the display starts ashing at intervals of about 1 second, release the two

buttons.

Press and hold MENU and BAND for more than 3 seconds.

After “MEMORY LOAD” is shown on the display, “COMPLETE” is shown to inform you that the settings have returned to those saved in step 1.

If in step 4 the display does not ﬂash at intervals of about 1 second, start over from step 2.

ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA

Speciﬁcations

n Audio section

• Power ampliﬁer Rated output: Front:

Output connectors: 6 – 8 Ω (SPEAKER A + B : 8 Ω)

• Analog Input sensitivity/Input impedance: 165 mV/50 kΩ Frequency response: 10 Hz – 100 kHz — ±3 dB (Source Direct mode) S/N: 98 dB (IHF–A weighted, Source Direct mode)

n Video section

• Standard video connectors Input/output level and impedance: 1 Vp-p, 75 Ω Frequency response: 5 Hz – 10 MHz — +1, –3 dB

• Color component video connector Input/output level and impedance: Y (brightness) signal — 1 Vp-p, 75 Ω

Frequency response: 5 Hz – 60 MHz — +0, –3 dB

n Tuner section [FM] [AM]

Receiving Range: 87.5 MHz – 107.9 MHz 520 kHz – 1710 kHz Usable Sensitivity: 1.2 μV (12.8 dBf) 18 μV 50 dB Quieting Sensitivity: MONO 2.8 μV (20.2 dBf) S/N (IHF-A): MONO 70 dB

Total harmonic Distortion (at 1 kHz): MONO 0.7 %

n General

Power supply: AC 120 V, 60 Hz Power consumption: 650 W

Maximum external dimensions: 440 (W) x 161 (H) x 389 (D) mm Weight: 11.6 kg

n Remote control unit (RC010SR)

Batteries: R03/AAA Type (two batteries)

For purposes of improvement, speciﬁcations and design are subject to change without notice.

100 W + 100 W (8 Ω, 20 Hz – 20 kHz with 0.08 % T.H.D.) 180 W + 180 W (6 Ω, 1 kHz with 10 % T.H.D.)

Center:

100 W (8 Ω, 20 Hz – 20 kHz with 0.08 % T.H.D.) 180 W (6 Ω, 1 kHz with 10 % T.H.D.)

Surround:

100 W + 100 W (8 Ω, 20 Hz – 20 kHz with 0.08 % T.H.D.) 180 W + 180 W (6 Ω, 1 kHz with 10 % T.H.D.)

Surround Back:

100 W + 100 W (8 Ω, 20 Hz – 20 kHz with 0.08 % T.H.D.) 180 W + 180 W (6 Ω, 1 kHz with 10 % T.H.D.)

B / CB signal — 0.7 Vp-p, 75 Ω

R / CR signal — 0.7 Vp-p, 75 Ω

(Note: μV at 75 Ω, 0 dBf = 1 x 10

STEREO 67 dB

STEREO 1.0 %

0.2 W (Standby) 3 W (CEC standby)

–15

Index

v Numerics

2.1-channel ···················································33, 36 3D ······································································· 14

5.1-channel ···················································33, 35

6.1-channel ···················································33, 34

7.1-channel ···············································4, 33, 34

v A

A2DP ···························································· 18, 78 Accessories ··························································1 Adjust CH ··························································· 55 Adobe RGB color / Adobe YCC601 color ··········· 78 AM loop antenna ················································20 Amp Assign ························································56 Antenna Aiming ·················································· 47 ARC ···································································· 15 Aspect ································································ 50 Audio Adjust ·······················································52 Audio cable ··································· 5, 16, 17, 18, 21 Audio Delay ························································ 55 Audio Setup ························································ 59 Audyssey Auto Setup ····································· 6, 37 Audyssey Dynamic EQ ································· 54, 78 Audyssey Dynamic Volume ························· 54, 78 Audyssey MultEQ ··································53, 69, 78 Audyssey Settings ············································· 53 Auto Lip Sync ··············································· 58, 78 Auto Preset ························································47 Auto Setup ·····················································6, 37

v B

Base Curve Copy ················································ 55 Bass ····························································· 53, 59 Bass Setting ······················································· 57 Bi-amp ································································ 36 Bluetooth ······················································ 18, 78

v C

Cable

Audio cable ································· 5, 16, 17, 18, 21 Coaxial digital cable ····································16, 17 Component video cable ······························16, 17 HDMI cable ·················································· 5, 15 Optical cable ·············································· 16, 18 Speaker cable ····················································5

Video cable ··········································· 16, 17, 18 Center Image ····················································· 52 Center Width ······················································52 Channel ······························································59

Channel Level ····················································· 58 Characters ·························································· 45 Coaxial digital cable ······································ 16, 17 Component video cable ······························· 16, 17 Condensation ·······················································2 Connection

7.1CH INPUT ····················································21 Antenna ···························································20 Blu-ray Disc player ································· 5, 15, 16 Cable TV ··························································· 17 CD player ························································· 18 DC OUT (TRIGGER OUT) ································· 38 Digital camcorder ············································· 18 DVD player ················································· 15, 16 External power ampliﬁer ·································· 21 Game console ·················································· 15 HDMI ······························································· 14 iPod ·································································· 19 Power cord ························································· 5 REMOTE CONTROL ········································ 38 RS-232C ··························································· 38 Satellite tuner ··················································· 17 Set-top box ·················································15, 17 SIRIUS ·····························································20 Speaker ························································ 4, 34 TV··························································· 5, 15, 16 USB memory device ········································ 19 Video cassette recorder ··································· 17 Wireless receiver ············································· 18

Crossover Freq. ··················································58

v D

D.Comp ······························································ 52 DC Trigger ·························································· 61 Decode Mode ···················································· 50 Deep Color ···················································14, 78 Dimension ·························································· 52 Direct mode ······················································· 23 Display ·························································· 61, 69 Distance ·····························································57 Dolby

Dolby Digital··············································· 30, 78 Dolby Digital EX ········································· 30, 78 Dolby Digital Plus ······································· 30, 78 Dolby Headphone ······································ 31, 78 Dolby Pro Logic II ············································· 78 Dolby Pro Logic IIx ··········································· 78 Dolby Pro Logic IIz ·····································33, 78 Dolby TrueHD ············································· 30, 78

Dolby Virtual Speaker ································· 31, 78 Downmix ····························································78 DRC ····································································52

Basic version Advanced versionSimple version

Information

ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA

DTS ······························································ 30, 78

DTS 96/24 ··················································30, 79 DTS-ES Discrete 6.1 ·································· 30, 79 DTS-ES Matrix 6.1 ·····································30, 79 DTS-HD ······················································ 30, 79 DTS-HD High Resolution Audio ······················· 79 DTS-HD Master Audio ····································· 79 DTS Digital Surround ·······································79 DTS Express ···················································· 79 DTS NEO:6™ Surround ·····························29, 79

DTS Neural Surround ·································29, 79 Dynamic EQ ·······················································54 Dynamic range ···················································79 Dynamic Volume ················································ 54

v E

EQ Customize ····················································59 Error messages (Auto Setup) ····························· 10

v F

FM indoor antenna ············································· 20 Front A/B (connection) ······································· 35 Front Height ·······················································57 Front height speaker ····································33, 34 Front Panel ························································· 69 Front Speaker Setup ·········································· 58

v H

HDCP ··························································· 14, 79 HDMI ···························································· 14, 79 HDMI 1.4a ····················································14, 15 HDMI Audio Out ················································ 58 HDMI cable ····················································5, 15 HDMI Control ··············································· 39, 58 HDMI Setup ·······················································58 Headphones ······················································· 69 Height Gain ························································ 53 HPF ···································································· 59 HT-EQ ································································· 52

v I

Information ·························································61

Audio Input Signal ············································ 61

HDMI Information ············································ 61

Preset Channel ················································61

Status ······························································· 61 Input Assign ·······················································48 Input Mode ························································· 50 Input Setup ························································· 46 Input signal ···················································30, 76 i/p Scaler ····························································· 49

v L

Learn mode ························································ 66 Level Lch ····························································59 Level Rch ··························································· 59 LFE ······························································· 52, 79 Listening mode ·················································· 29 Listening position ················································· 7

v M

MAIN ZONE ·················································41, 79 Manual EQ ························································· 55 Manual Setup ····················································· 56 Master volume display ······································· 60 M-DAX ································································ 55 Menu map ··························································43 MP3 ···································································· 79 MPEG ·································································79 MPEG-4 AAC ······················································ 79 MultEQ ·······························································53 Mute Level ························································· 60 M-XPort ······························································ 18

v O

On-Screen Display ·············································· 60

Output mode ···················································62 Optical cable ················································· 16, 18 Option Setup ······················································ 60

DC Trigger ························································ 61

Display ····························································· 61

On-Screen Display ··········································· 60

Setup Lock ······················································· 61

Source Delete ··················································60

Volume Control ················································60

Zone Rename ··················································60

v P

Pairing ································································ 79 Panel lock function ············································· 41 Panorama ···························································52 Parameter Check ················································ 10 Parental Lock ······················································ 47 Playback

Blu-ray Disc player ··········································· 23

CD player ························································· 23

Direct ······························································· 31

DVD player ······················································· 23

FM/AM broadcasts ·········································· 25

iPod ·································································· 23

MP3 ································································· 24

MPEG-4 AAC ··················································· 24

Multi-channel ··················································· 29

SIRIUS ·····························································25

Stereo ······························································ 31 USB memory device ········································ 24 WMA ·······························································24

ZONE2 ····························································· 42 Playback Mode ···················································51 Power Off Control ·············································· 59 Power On Level ················································· 60 Preset codes ······················································63 Preset Name ······················································48 Preset Skip ························································· 47 Presetting radio stations ···································· 27 Progressive Mode ·············································· 50 Protection circuit ················································79

v R

Rear panel ··························································70 Reference Level Offset ······································54 Remote control unit ····································· 63, 71

Inserting the batteries ······································ 72

Operating components ····································65

Registering Preset Codes ································63 Remote mode ····················································23 Rename ······························································51 Repeat ································································51 Resetting the microprocessor ····························82 Resolution ··························································49

v S

Sampling frequency ··········································· 79 S.Back ································································57 Screensaver ······················································· 60 Selecting the input source ································· 22 Setup Lock ·························································61 Shufﬂe ································································51 SIRIUS ··························································20, 25 Sleep timer ·························································40 Source Delete ···················································· 60 Source Level ······················································ 51 Speaker

Connect ·······················································4, 34

Install ···························································4, 33

Set up ··························································6, 37 Speaker cable ·······················································5 Speaker Conﬁg. ··················································56 Speaker impedance ········································ 4, 79 Speaker Setup ····················································56 Standby Source ·················································· 59 Subwoofer setting ················································ 7 Surround back speaker ····························· 4, 33, 34 Surround Mode ············································29, 74 Surround Parameter ··········································· 52 sYCC601 color ···················································· 79

v T

Tone ···································································53 Tone Control ······················································· 53 Trademark ··························································73 Treble ···························································53, 59 Turn off power (standby) ····································11 Turn on power ······················································6

v V

Video ··································································49 Video cable ·············································16, 17, 18 Video conversion ················································13 Video Mode ························································49 Video Select ·······················································49 Volume Control ·················································· 60 Volume Level ····················································· 59 Volume Limit ················································ 59, 60

v W

WAV ··································································· 79 WMA ··································································79

v X

x.v.Color ·····························································79

v Z

ZONE2 ·························································· 41, 79 ZONE2 Setup ·····················································59 Zone Rename ·····················································60

List of preset codes / Liste de codes préréglés / Lista de códigos pre-ajustados

Device select : BD

Blu-ray Disc Player

Denon 5034, 5035, 5036

Hitachi 5031, 5032, 5033

Integra 5013

JWC

LG 5010, 5011

Marantz 5000, 5026, 5027

Mitsubishi 5024, 5025 Onkyo 5013

Panasonic 5001, 5002, 5003

Philips 5004 Pioneer 5005 RCA 5012

Samsung 5005

Sharp 5028, 5029, 5030 Sony 5007, 5008, 5009, 5016 Toshiba 5012

Yamaha 5021, 5022, 5023

5014, 5015, 5017, 5018, 5019, 5020

Device select : DVD

DVD Player

Aiwa 2036, 2037

Apex

BOSE 2038, 2039, 2063

Denon 2047, 2048

Funai 2049

GE 2009, 2020, 2029, 2033

Harman Kardon 2061

Hitachi 2008, 2012, 2031

JVC

Kenwood 2053, 2054

Koss 2058 Magnavox 2007, 2011, 2023, 2025

Marantz 2025, 2065 Marantz (Blu-ray) 2064 Mitsubishi 2011, 0215 Onkyo 2062

Oritron 2009, 2030 Panasonic 2003, 2015, 2016, 2055

Philips 2007, 2011, 2058 Pioneer 2002, 2014, 2056 Proscan 2009, 2020, 2032

RCA

Sampo 2041

2012, 2017, 2018, 2019, 2021, 2034

2006, 2010, 2040, 2041, 2042, 2043

2005, 2009, 2020, 2035, 2057

Samsung

Sanyo 2050, 2052 Sharp 2044, 2045 Sherwood 2051 Sony 2001, 2013, 2059 Toshiba 2004, 2008, 2026, 2028

Yamaha 2046, 2060

Zenith 2010

2008, 2012, 2022, 2024, 2027

Device select : SAT

Satellite Receiver

Alphastar 4027

Amstrad 4046, 4047, 4050 Atsky 4048 B Sky B 4021, 4045, 4046

Chaparral 4039

DIRECTV 4001, 4016, 4044

DISH Network 4030 Drake 4026

Echostar

Eurosky 4047, 4056 Express Vu 4017 Foxtel 4051

Freesat 4056 Fujitsu 4025 GE 4002, 4008, 4009

General Instruments 4036, 4037 Gradiente 4044, 4057 Hitachi 4001, 4015

Hughes 4001, 4016

Humax

Janeil 4025

JVC 4017 Mitsubishi 4001

Nokia 4058, 4059, 4060, 4061

Optima 4048

Panasonic 4004, 4010

Philips 4031, 4035, 4044, 4057 Proscan 4002, 4008, 4009, 4011 Radio Shack 4036, 4037

RCA 4002, 4008, 4009, 4029 Realistic 4040 Rural Cable 4036

Samsung

Schneider 4041, 4043 SKY 4044, 4045, 4057 Skyplus 4048 Skysat 4041, 4047, 4056

4007, 4017, 4018, 4019, 4020, 4062, 4063, 4064

4049, 4050, 4051, 4052, 4053

4022, 4027, 4042, 4043, 4050, 4054, 4055

Sony

Star Choice 4032 Star Trak 4024 STS 4038 SuperDish 4028 Teac 4049

Thomson 4046, 4056 Toshiba 4001, 4034 Uniden 4005, 4006, 4013

Universum 4056 Video Pall 4025

Zenith 4023, 4025, 4033

4003, 4012, 4014, 4065, 4066, 4067

Device select : TV

Television

Acer 1141

Admiral 1002, 1009, 1089 Aiko 1059 Aiwa 1117, 1118 Akai 1001 Amtron 1023 Anam 1113 Anam National 1023, 1069, 1092 AOC 1003, 1024, 1049, 1127 Audiovox 1023 Bell & Howell 1009, 1025

Benq 1104, 1142 Broksonic 1003, 1097, 1098, 1113 Celebrity 1001

Citizen

Colortyme 1003, 1043 Contec 1113 Contec/Cony 1023, 1045, 1047 Craig 1020, 1022, 1023, 1113 Crown 1023, 1067

Curtis Mathes

Daewoo

Daytron 1003, 1013, 1016 Dimensia 1103, 1110 Dumont 1003, 1010, 1153 Electroband 1001

Electrohome 1001, 1003, 1069, 1133

Emerson

Envision 1003 Fisher 1025, 1051, 1091, 1160

1003, 1013, 1023, 1026, 1059, 1063

1003, 1013, 1025, 1026, 1062, 1103, 1110 1003, 1013, 1024, 1035, 1036, 1059, 1084, 1101

1003, 1013, 1015, 1020, 1021, 1022, 1023, 1025, 1038, 1044, 1045, 1048, 1055, 1061, 1094, 1096, 1099, 1101, 1113

Fujitsu 1038, 1124, 1125, 1155 Funai 1023, 1038, 1113 Gateway 1150

Goldstar

Hallmark 1003

Hisense 1116

Hitachi

Inﬁ nity 1067

Janeil 1134

JBL 1067

JC Penney

Jensen 1003

JVC

Kawasho 1001, 1003

Kenwood 1003 Kloss Novabeam 1023, 1056, 1057, 1134

KTV

LG 1024, 1030

M.Wards 1002, 1009, 1038

Magnavox

Marantz 1003, 1031, 1067, 1122

Mitsubishi

Motorola 1014, 1069

NEC

NET-TV 1137, 1150 Orion 1020, 1096

Panasonic

Philips

Pioneer

Plasmsync 1135 Portland 1003, 1013, 1024, 1059 Price Club 1026 Prism 1018

Proscan

Proton 1003, 1045

Quasar

1003, 1018, 1022, 1046, 1054, 1069, 1085, 1103, 1110, 1113, 1133, 1136, 1153 1003, 1013, 1024, 1030, 1045, 1080, 1100 1112, 1154

1003, 1012, 1031, 1032, 1037, 1041, 1045, 1047, 1065, 1068, 1082, 1088, 1094, 1139, 1140, 1145, 1159

1003, 1013, 1018, 1019, 1024, 1026, 1046, 1047, 1054, 1063, 1083, 1085, 1100, 1103, 1110, 1112, 1133, 1154

1028, 1029, 1045, 1047, 1050, 1060, 1065

1013, 1023, 1033, 1034, 1073, 1099, 1113

1003, 1052, 1053, 1056, 1057, 1063, 1067, 1081, 1106

1003, 1024, 1051, 1115, 1122, 1133

1003, 1012, 1024, 1043, 1069

1017, 1067, 1069, 1095, 1111 1003, 1011, 1045, 1052, 1054, 1056, 1057, 1058, 1063, 1067, 1069, 1106 1003, 1018, 1037, 1070, 1071, 1094, 1145, 1147, 1149

1004, 1005, 1006, 1007, 1008, 1085, 1103, 1110

1010, 1069, 1073, 1111, 1153

Radio Shack

RCA

Realistic

Runco 1010, 1153 Sampo 1150

Samsung

Sansui 1119

Sanyo

Sharp

Signature 1009 Sony 1001, 1102, 1108

Soundesign

Starlite 1023 Supre-Macy 1134

Sylvania

Symphonic 1023, 1039, 1044 Tandy 1014

Tatung 1069 Technics 1018 Techwood 1003, 1018

Teknika

Telecaption 1074

Toshiba

Totevision 1013 Universal 1046, 1054

Video Concepts 1113

Viewsonic

Wards

White Westinghouse

Yamaha 1003, 1024

Zenith

1003, 1013, 1015, 1023, 1024, 1025, 1045, 1100, 1103, 1110, 1113 1003, 1004, 1005, 1006, 1007, 1008, 1014, 1024, 1049, 1069, 1075, 1079, 1085, 1087, 1088, 1093, 1094, 1101, 1103, 1110, 1113, 1153 1013, 1015, 1023, 1025, 1045, 1100, 1103, 1110

1003, 1013, 1024, 1026, 1040, 1045, 1062, 1078, 1083, 1090, 1100, 1105, 1114, 1120, 1121, 1146, 1148, 1157

1003, 1025, 1051, 1072, 1077, 1091, 1156, 1157, 1158 1003, 1013, 1014, 1015, 1045, 1055, 1064, 1066, 1076, 1089, 1123

1003, 1023, 1038, 1063, 1113

1003, 1039, 1042, 1052, 1053, 1056, 1057, 1063, 1067, 1089, 1151

1003, 1009, 1013, 1023, 1024, 1026, 1038, 1045, 1047, 1059, 1063, 1111, 1113

1003, 1019, 1025, 1026, 1042, 1074, 1098, 1107, 1111, 1135, 1136

1006, 1022, 1109, 1128, 1129, 1130, 1131, 1138, 1143, 1145, 1150 1003, 1009, 1015, 1024, 1038, 1044, 1046, 1052, 1054, 1056, 1057, 1067, 1086, 1103, 1110

1001, 1101

1003, 1009, 1010, 1132, 1144, 1153

PRESET CODE

Device select : CD

CD Player

AIWA 3001, 3002, 3003

AKAI 3004, 3005, 3006 AUDIO 3007 AUDIO LABS 3008 CALIFORNIA 3008

CARVER 3010, 3011, 3009 CASIO 3012, 3020 CURTIS 3020, 3012 DENON 3013

EMERSON 3014

FISHER

GE 3019

GENEXXA 3014, 3021, 3020 HARMON 3022, 3023, 3051

HITACHI 3020 INKEL 3024

JC PENNEY 3012, 3020, 3025

JVC 3026, 3027 KARDON 3022, 3051, 3023

KRELL 3010 LUXMAN 3035, 3036, 3037, 3038

LX I 3012, 3020, 3014 MAGNAVOX 3010, 3039, 3040

MARANTZ 3010, 3041, 3042, 3043 MATHES 3012, 3020 MCS 3012, 3020 MGA 3023 MISSION 3010 MITSUBISHI 3023, 3044 NAD 3034, 3045

NAKAMICHI 3046, 3047, 3048 NEC MCS 3025 NIKKO 3007, 3016

ONKYO

OPTIMUS

PANASONIC 3008, 3060, 3061

PHILIPS 3009, 3010, 3010, 3040

PIONEER

QUASAR 3008

RCA

REALISTIC

ROTEL 3010 RS ORIGINAL 3070 SAE 3010, 3083

3011, 3015, 3016, 3017, 3018

3049, 3050, 3051, 3052, 3055, 3102, 3103 3011, 3014, 3020, 3028, 3053, 3054, 3056, 3057, 3058, 3059

3020, 3021, 3062, 3063, 3064

3011, 3014, 3065, 3066, 3067, 3068, 3069 3011, 3014, 3020, 3042, 3054, 3057

SAMSUNG 3071 SANSUI 3014, 3068, 3072, 3073

SANYO

SCOTT 3014

SEARS

SHARP 3028, 3042, 3077

SHERWOOD

SHURE 3025

SONY

SYLVANIA 3010 SYMPHONIC 3083

TEAC

TECHNICA

THETA DIGITAL 3040 TOSHIBA 3045 VICTOR 3026

YAMAHA

ZENITH

3011, 3018, 3074, 3075, 3076

3012, 3014, 3020, 3028, 3042

3042, 3056, 3070, 3078, 3024

3039, 3079, 3080, 3081, 3082, 3097, 3098, 3099, 3100, 3101

3016, 3042, 3057, 3083, 3084, 3085, 3086 3007, 3008, 3061, 3087, 3088

3007, 3089, 3090, 3091, 3092 3016, 3093, 3094, 3095, 3096

PRESET CODE

Dimensions / Dimensions / Dimensions

Unit : mm (in)

22.5 (15/16)

389.0 (15 3/8)

348.5 (13 11/16)

440.0 (17 3/8)

17.5 (11/16)

146.5 (5 3/4)

14.5

(5/8)

161.0 (6 3/8)

Printed in China 5411 10481 021M

D&M Holdings Inc.

Marantz SR5005 User Guide

Specifications and Main Features

Frequently Asked Questions

User Manual
