marantz PD5040D User Guide

Model PD5040D User Guide
Plasma Monitor
Introduction
Introduction to the Plasma Monitor
Marantz’s Plasma Monitor is a seamless blend of cutting­edge visual technology and sophisticated design. At each inch, with a 16:9 aspect ratio, the Plasma Monitor certainly makes a big impression. However, the monitor’s sleek techno-art lines blend in well with your environment. Marantz Plasma Monitor’s crisp, vivid image quality will transform data from any graphic medium from PCs to DVD players- into art. Marantz has made sure that a host of multimedia resources can be easily connected and displayed as brilliantly as intended on the Plasma Monitor.
The features you’ll enjoy include:
• Color Filter and black matrix
• The enhanced display in red uses a two-stage filtering system.
• Flicker - and warp - free display provides excellent image geometry even in screen corners
• Not affected by magnetic fields, no color drift or edge distortion.
• VGA, SVGA, XGA, SXGA, UXGA computer signal compatibility
• NTSC, PAL, SECAM, composite and S-Video signal compatibility
• 480P, 1080I, 720P and HDTV signal compatibility
• PCs, VCRs, Laser Disc and DVD player source compatibility
• AccuBlend scan conversion automatically converts VGA, SVGA, XGA, SXGA and UXGA signals to the panel’s native resolution.
• Advanced Mass Area Sampling Progressive Scan method is employed.
• RGB (3*), Video (3), DVD/HD (2*), Audio input (3), External Control input (1)
• AccuColor control system provides user selectable on­screen color temperature settings
• New Drive Technology
• Component video input terminal for DVD, 15.75kHz (Y, C
B, CR )
• Digital broadcasting source compatibility
• OSM menu-driven on screen control system that makes image adjustments a snap
• Seven languages (English, German, French, Italian, Spanish, Swedish, and Chinese)
Contents of the Package
Plasma monitor Power cord Remote control with two AAA Batteries Manuals Safety metal fitting parts* Ferrite cores, bands Cable clamps
* Contents will differ according to the model. * These are fittings for fastening the unit to a wall to prevent tipping
due to external shock when using the stand (optional). Fasten the safety fittings to the holes in the back of the monitor using the safety fitting mount screws (see page 1).
Options
• Wall mount unit
• Stand
* Y ou can set the 5BNC input to be used as an RGB or component
input. When the 5BNC input is set for RGB, there are a total of three RGB inputs; when the 5BNC input is set for component there are a total of two DVD/HD inputs (see page 24).
Important Information
Precautions
Please read this manual carefully before using your plasma monitor and keep the manual handy for future reference.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:
TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO DO NOT USE THIS UNIT’S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS, UNLESS THE PRONGS CAN BE FULLY INSERTED. REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH-VOLTAGE COMPONENTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This symbol warns the user that uninsulated voltage within the unit may have sufficient magnitude to cause electric shock. Therefore, it is dangerous to make any kind of contact with any part inside of this unit.
This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been included. Therefore, it should be read carefully in order to avoid any problems.
WARNING
Warnings and Safety Precaution
This plasma monitor is designed and manufactured to provide long, trouble-free service. No maintenance other than cleaning is required. Please see the section “Plasma monitor cleaning procedure” on the next page. The plasma display panel consists of fine picture elements (cells) with more than 99.99 percent active cells. There may be some cells that do not produce light or remain lit. For operating safety and to avoid damage to the unit, read carefully and observe the following instructions. To avoid shock and fire hazards:
1. Provide adequate space for ventilation to avoid internal heat build-up. Do not cover rear vents or install the unit in a closed cabinet or shelves. If you install the unit in an enclosure, make sure there is adequate space at the top of the unit to allow hot air to rise and escape. If the monitor becomes too hot, the overheat protector will be activated and the monitor will be turned off. If this happens, turn off the power to the monitor and unplug the power cord. If the room where the monitor is installed is particularly hot, move the monitor to a cooler location, and wait for 60 minutes to cool the monitor. If the problem persists, contact your Marantz dealer for service.
2. Do not use this units polarized plug with extension cords or outlets unless the prongs can be completely inserted.
3. Do not expose the unit to water or moisture.
4. Avoid damage to the power cord, and do not attempt to modify the power cord.
5. Unplug the power cord during electrical storms or if the unit will not be used over a long period.
6. Do not open the cabinet which has potentially dangerous high voltage components inside. If the unit is damaged in this way the warranty will be void. Moreover, there is a serious risk of electric shock.
7. Do not attempt to service or repair the unit. The manufacturer is not liable for any bodily harm or damage caused if unqualified persons attempt service or open the back cover. Refer all service to authorized Marantz Service Centers.
To avoid damage and prolong operating life:
1. Use only with 120V 50/60Hz AC power supply. Continued operation at line voltages greater than 120 V olts AC will shorten the life of the unit, and might even cause a fire hazard.
2. Handle the unit carefully when installing it and do not drop.
3. Set the unit away from heat, excessive dust, and direct sunlight.
4. Protect the inside of the unit from liquids and small metal objects. In case of accident, unplug the power cord and have it serviced by an authorized Service Center.
5. Do not hit or scratch the panel surface as this causes flaws on the surface of the screen.
6. For correct installation and mounting it is strongly recommended to use a trained, authorized dealer.
7. As is the case with any phosphor-based display (like a CRT monitor, for example) light output will gradually decrease over the life of a Plasma Display Panel.
8. To avoid sulfurization it is strongly recommended not to place the unit in a dressing room in a public bath or hot spring bath.
Plasma monitor cleaning procedure:
1. Use a soft dry cloth to clean the front panel and bezel area. Never use solvents such as alcohol or thinner to clean these surfaces.
2. Clean plasma ventilation areas with a vacuum cleaner with a soft brush nozzle attachment.
3. To ensure proper ventilation, cleaning of the ventilation areas must be carried out monthly. More frequent cleaning may be necessary depending on the environment in which the plasma monitor is installed.
Recommendations to avoid or minimize phosphor burn-in:
Like all phosphor-based display devices and all other gas plasma displays, plasma monitors can be susceptible to phosphor burn under certain circumstances. Certain operating conditions, such as the continuous display of a static image over a prolonged period of time, can result in phosphor burn if proper precautions are not taken. T o protect your investment in this plasma monitor, please adhere to the following guidelines and recommendations for minimizing the occurrence of image burn:
* Always enable and use your computers screen saver
function during use with a computer input source. * Display a moving image whenever possible. * Change the position of the menu display from time to time. * Always power down the monitor when you are finished
using it.
If the plasma monitor is in long term use or continuous operation take the following measures to reduce the likelihood of phosphor burn:
* Lower the Brightness and Contrast levels as much as
possible without impairing image readability . * Display an image with many colors and color gradations
(i.e. photographic or photo-realistic images). * Create image content with minimal contrast between light
and dark areas, for example white characters on black
backgrounds. Use complementary or pastel color whenever
possible. * Avoid displaying images with few colors and distinct,
sharply defined borders between colors.
Note:
*
Burn-in is not covered by the warranty.
Contact Marantz Service Center for other recommended procedures that will best suit your particular application needs.
Recommandations importantes
Précautions
Veuillez lire avec attention ce manuel avant dutiliser le moniteur à plasma et le conserver accessible pour s’y référer ultérieurement.
ATTENTION
RISQUE DELECTROCUTION
NE P AS OUVRIR
MISE EN GARDE: AFIN DE REDUIRE LES RISQUES
D’ELECTRO-CUTION, NE PAS DEPOSER LE COUVERCLE, IL N’Y A AUCUNE PIECE UTILISABLE A L’INTERIEUR DE CET APPAREIL. NE CONFIER LES TRAVAUX D’ENTRETIEN QU’A UN PERSONNEL QUALIFIE.
Ce symbole a pour but de prévenir lutilisateur de la présence dune tension dangereuse, non isolée se trouvant à l’intérieur de l’appareil. Elle est dune intensité suffisante pour constituer un risque d’électrocution. Eviter le contact avec les pièces à l’intérieur de cet appareil.
Ce symbole a pour but de prévenir lutilisateur de la présence dimportantes instructions concernant lentretien et le fonctionnement de cet appareil. Par conséquent, elles doivent être lues attentivement afin d’éviter des problèmes.
A VERTISSEMENT
AFIN DE REDUIRE LES RISQUES DINCENDIE OU DELECTROCUTION, NE P AS EXPOSER CET APP AREIL A LA PLUIE OU A L’HUMIDITE. AUSSI, NE P AS UTILISER LA FICHE POLARISEE AVEC UN PROLONGATEUR OU UNE AUTRE PRISE DE COURANT SAUF SI CES LAMES PEUVENT ETRE INSEREES A FOND. NE PAS OUVRIR LE COFFRET , DES COMPOSANTS HAUTE TENSION SE TROUVENT A L’INTERIEUR. LAISSER A UN PERSONNEL QUALIFIE LE SOIN DE REPARER CET
APP AREIL.
Mises en garde et précautions de sécurité
Ce moniteur à plasma a été conçu et fabriqué pour une utilisation fiable et durable. Il ne nécessite aucun entretien en dehors du nettoyage. Voir la section Méthode de nettoyage du moniteur à plasma plus loin. Le panneau à affichage plasma est constitué de fines particules dimages (cellules) dont plus de 99,99%sont actives. Certaines dentre elles ne produisent pas de lumière ou restent allumées. Pour des raisons de sécurité et pour éviter dendommager lappareil, lire attentivement les instructions suivantes. Pour éviter les risques d’éléctrocution et dincendie:
1. Laisser suffisament despace autour de lappareil pour
la ventilation et éviter toute augmentation excessive de la température interne. Ne pas couvrir les évents ou linstaller dans un endroit trop exigu. Si vous installez lappareil dans un espace clos, assurezvous quil y ait suffisamment despace au dessus pour permettre à l’air chaud de s’élever et de s’évacuer. Si la température du moniteur devient excessive, la protection contre les surchauffes entrera en action et coupera lalimentation. Dans ce cas, éteindre lappareil et débrancher le câble dalimentation. Si la température de la pièce dans laquelle se trouve le moniteur est particulièrement élevée, déplacer celui-ci dans un endroit plus frais et attendre environ 60 minutes quil refroidisse. Si le problème persiste, prendre contact avec le revendeur Marantz pour le service après-vente.
2. Ne pas raccorder la prise dalimentation polarisée de ce
périphérique à une rallonge ou une prise murale si les fiches ne peuvent pas être complètement insérées.
3. Ne pas exposer à L ’eau ou à l’humidité.
4. Eviter dendommager le cordon dalimentation, et ne pas
modifier le cordon dalimentation.
5. Débrancher le câble dalimentation électrique pendant les
orages ou les longues périodes dinactivité.
6. Ne pas ouvrir le coffret. Des composants de haute
tension se trouvent à l’intérieur. Si lappareil est endommagé de cette manière, la garantie devient caduque. De plus, il y a risque d’électrocution.
7. Ne pas essayer dintervenir ou de réparer lappareil. Le
fabricant décline toute responsabilité en cas de blessure corporelle ou de dégâts matériels résultant dune opération dentretien quelconque effectuée par des personnes non qualifiées ou résultant de louverture du couvercle arrière. Confier toute réparation à un centre de service agréé Marantz.
Pour éviter des dommages et prolonger la durée de service de lappareil:
1. Nutiliser quune source dalimentation de 120 V 50/ 60 Hz CA. Le fait dutiliser lappareil en continu à des tensions de ligne supérieures à 120 Volts CA réduit sa durée de vie et risque de provoquer un incendie.
2. Manipuler lappareil avec soin pendant son déplacement et ne pas le faire tomber.
3. Eloigner lappareil des endroits chauds, très poussiéreux et exposés en plein soleil.
4. Eviter que des liquides et des petits objets métalliques pénètrent à lintérieur de lappareil. En cas dincident de ce genre, débrancher le câble dalimentation électrique et confier le moniteur à un service après-vente agréé.
5. Ne pas frapper ou rayer la surface de la écran plasma, car des défauts risquent de se produire sur la surface de la écran plasma.
6. Pour un montage et une installation correcte, il est fortement recommandé de faire appel à un revendeur agréé et qualifié.
7. Comme cest le cas pour tout affichage à base de phosphore (comme un moniteur CRT, par exemple), la puissance de lumière baisse graduellement au cours de la vie du Panneau dAffichage à Plasma.
8. Pour éviter tout risque de sulfuration, il est fortement conseillé de ne pas installer lappareil dans un vestiaire, un bain public ou un bain de source thermale.
Méthode de nettoyage du moniteur à plasma:
1. Nettoyer le panneau avant et le cadre en procédant à laide dun chiffon doux et sec. Ne jamais utiliser de solvents du type alcool ou diluant pour le nettoyage de ces surfaces.
2. Nettoyer les prises d’aération du plasma en procédant à laide dune brosse à poils doux fixée à un aspirateur.
3. Pour garantir la bonne ventilation du moniteur, nettoyer les prises dair tous les mois. Un nettoyage plus fréquent peut savérer nécessaire selon les conditions environnantes dans lesquelles le moniteur à plasma est utilisé.
Pour éviter les risques de brûlage du luminophore, les mesures suivantes sont recommandées:
Comme tous les périphériques d’affichage à base luminophore et tous les autres affichages gaz plasma, les moniteurs plasma peuvent être sujets au brûlage du luminophore dans certaines circonstances. Certaines conditions dutilisation, telles que laffichage continu dune image statique pour une durée prolongée, peuvent causer le brûlage du luminophore si aucune précaution nest prise. Pour protéger votre investissement dans ce moniteur à plasma, veuillez suivre les directives et les conseils suivantes pour minimiser loccurence le marquage de l’écran:
Assurez-vous de mettre en marche et dutliser
l’économisateur d’écran chaque fois que c’est possible lorsque vous lutilisez avec une source dentrée dordinateur.
Affichez une image en mouvement aussi souvent que
possible.
Changer la position de laffichage de menu de temps à autre.
Coupez toujours lalimentation lorsque vous avez terminé
dutiliser la moniteur.
Si le moniteur est en usage continu ou longue durée, prenez les mesures suivantes afin d’éviter loccurence le brûlage du luminophore:
Abaissez le niveau de limage (contraste, luminosité)
autant que possible, sans faire perdre la lisibilité de limage.
Affichez une image avec de nombreuses couleurs et
graduations de couleur (par ex. des images photographiques ou photo-réalistes).
Créez un contenu dimage avec un contraste minimal
entre les zones sombres et les zones claires, par exemple, des caractères blancs sur un fond noir. Utilisez des couleurs complémentaires ou pastels le plus souvent possible.
•Évitez dafficher des images avec peu de couleurs et des
limites nettes et clairement définies entre les couleurs.
*
Remarque:
par la garantie.
Contactez Marantz Service Center pour dautres procédures recommandées qui conviendront le mieux au besoin de votre appareil.
Le brûlage de l’écran nest pas couvert
Contents
How to Attach Options to the Plasma Monitor .... 1
Ventilation Requirements for enclosure mounting .......... 1
How to use the safety metal fittings and the screws for
safety metal fittings ................................................. 1
Part Names and Function .................................. 2
Front View .............................................................. 2
Rear View / Terminal Board ...................................... 3
Remote Control ........................................................ 4
Battery Installation and Replacement ........................... 5
Using the wired remote control mode ..........................6
Operating Range .......................................................... 6
Handling the remote control......................................... 6
Installation ...................................................... 7
Connecting Your PC or Macintosh Computer ............... 8
Connections with Equipment that have a Digital Interface ......
Connecting Your Document Camera ........................... 8
Connecting Your VCR or Laser Disc Player.................. 8
Connecting Your DVD Player ..................................... 8
Pin Assignments and Signal Levels
for 15 pin RGB (Analog) ......................................... 9
Pin Configuration and Signal Levels
of the RGB 3 Connector (DVI Connector) ................... 9
Creating a video wall ............................................. 10
Cable Management................................................ 10
Basic Operations ............................................. 11
POWER ................................................................ 11
To turn the unit ON and OFF: .................................... 11
VOLUME .............................................................. 11
To adjust the sound volume:...................................... 11
MUTE ................................................................... 11
To cancel the sound:.................................................. 11
DISPLAY ................................................................ 11
To check the settings:................................................. 11
DIGITAL ZOOM ..................................................... 11
AUTO ADJUST ...................................................... 11
To adjust the size or quality of the picture automatically
OFF TIMER ........................................................... 12
To set the of f timer:................................................... 12
To check the remaining time: ..................................... 12
To cancel the off timer: ..............................................12
.... 11
Image Adjust Settings Menu .................................... 22
Adjusting the Position, Size, Fine Picture, Picture Adj
Option1 Settings Menu ........................................... 23
Setting the on-screen menu ........................................ 23
Setting the BNC connectors ....................................... 24
Checking the signal being transmitted to RGB1 terminal ....
Setting a computer image to the correct RGB
select screen ............................................................. 24
Setting high definition images to the suitable
screen size................................................................ 25
Setting the Input Skip................................................. 25
Resetting to the default values.................................... 26
Option2 Settings Menu ........................................... 26
Setting the power management for computer images ..........
POWER/ST ANDBY indicator ................................... 27
Setting the picture to suit the movie ........................... 27
8
Reducing burn-in of the screen .................................. 27
Setting the gray level for the sides of the screen ......... 30
Setting the screen size for S1/S2 video input .............. 30
Setting the picture size for RGB input signals ............ 31
Setting the signal and black level for DVI signal........ 31
Option3 Settings Menu ........................................... 32
Using the timer .......................................................... 32
Setting the power on mode........................................ 33
Enabling/disabling the front panel controls ................ 34
Enabling/disabling remote control wireless
transmission ............................................................. 34
Loop Out setting ........................................................ 35
ID number setting ...................................................... 35

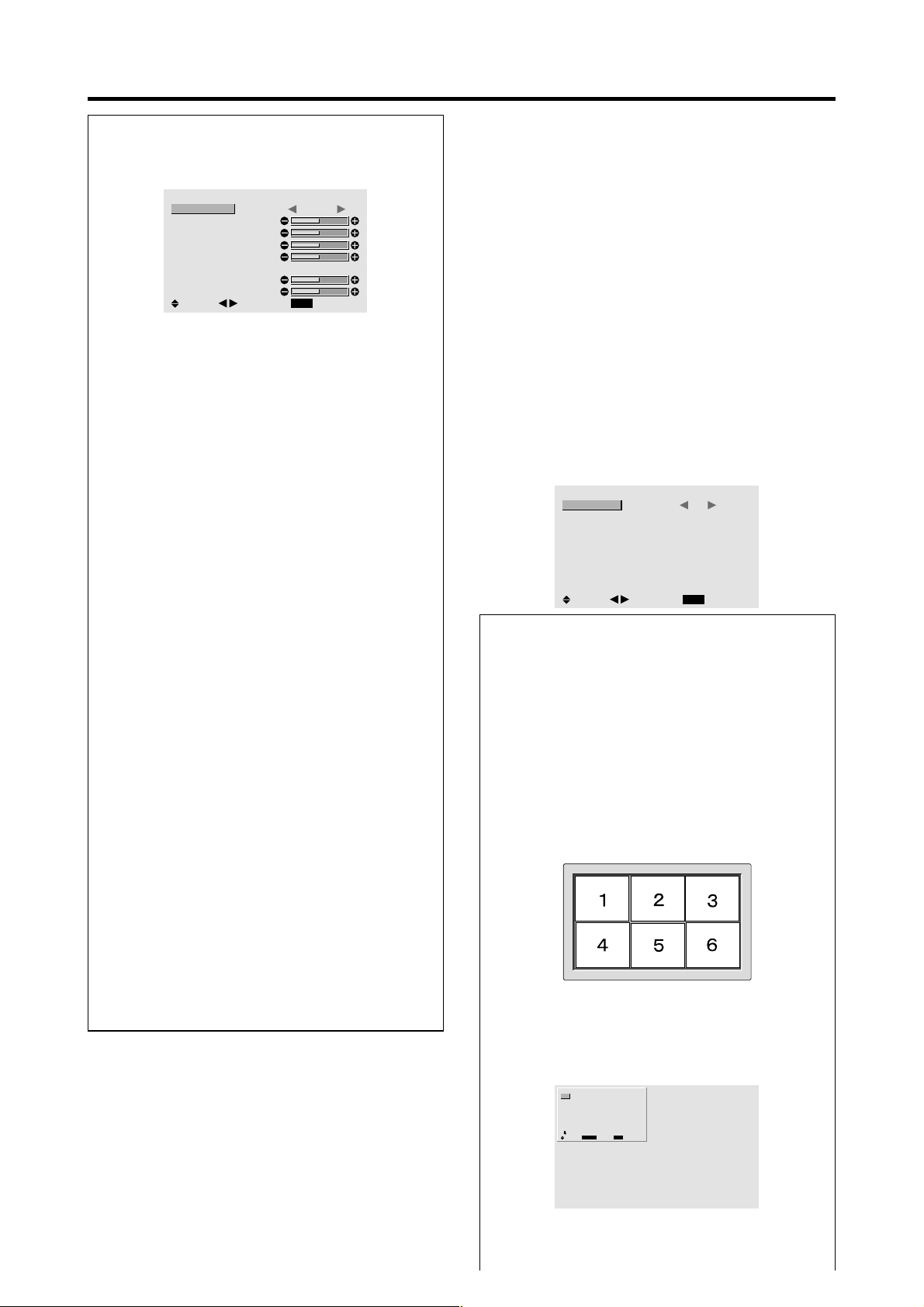

Video Wall setting ...................................................... 36
Advanced OSM Settings Menu ................................ 39
Setting the menu mode .............................................. 39

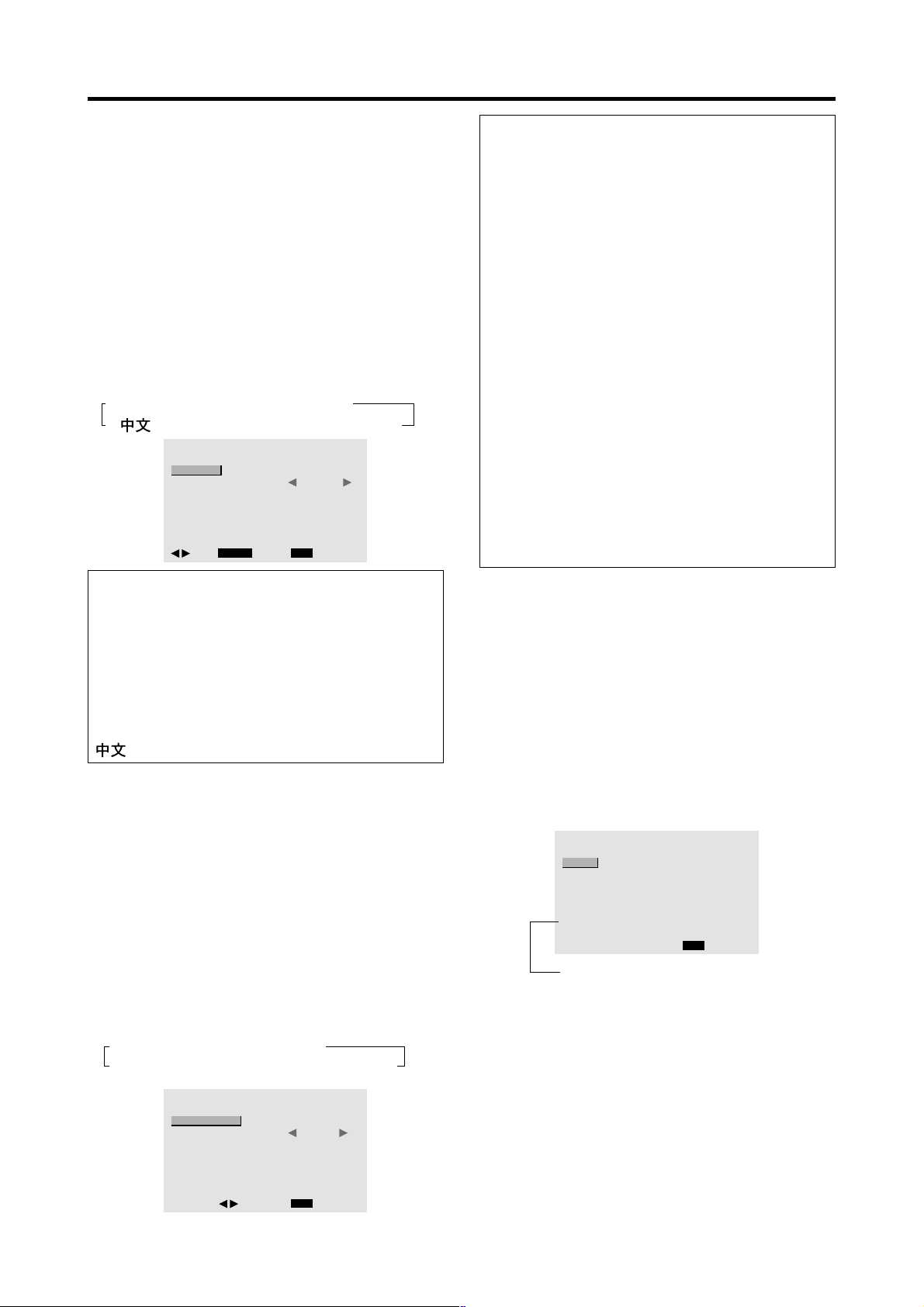

Language Settings Menu ......................................... 40
Setting the language for the menus............................. 40
Color System Settings Menu .................................... 40
Setting the video signal format................................... 40
Source Information Menu ........................................ 40
Checking the frequencies, polarities of input signals,
and resolution .......................................................... 40
....... 22
24
26

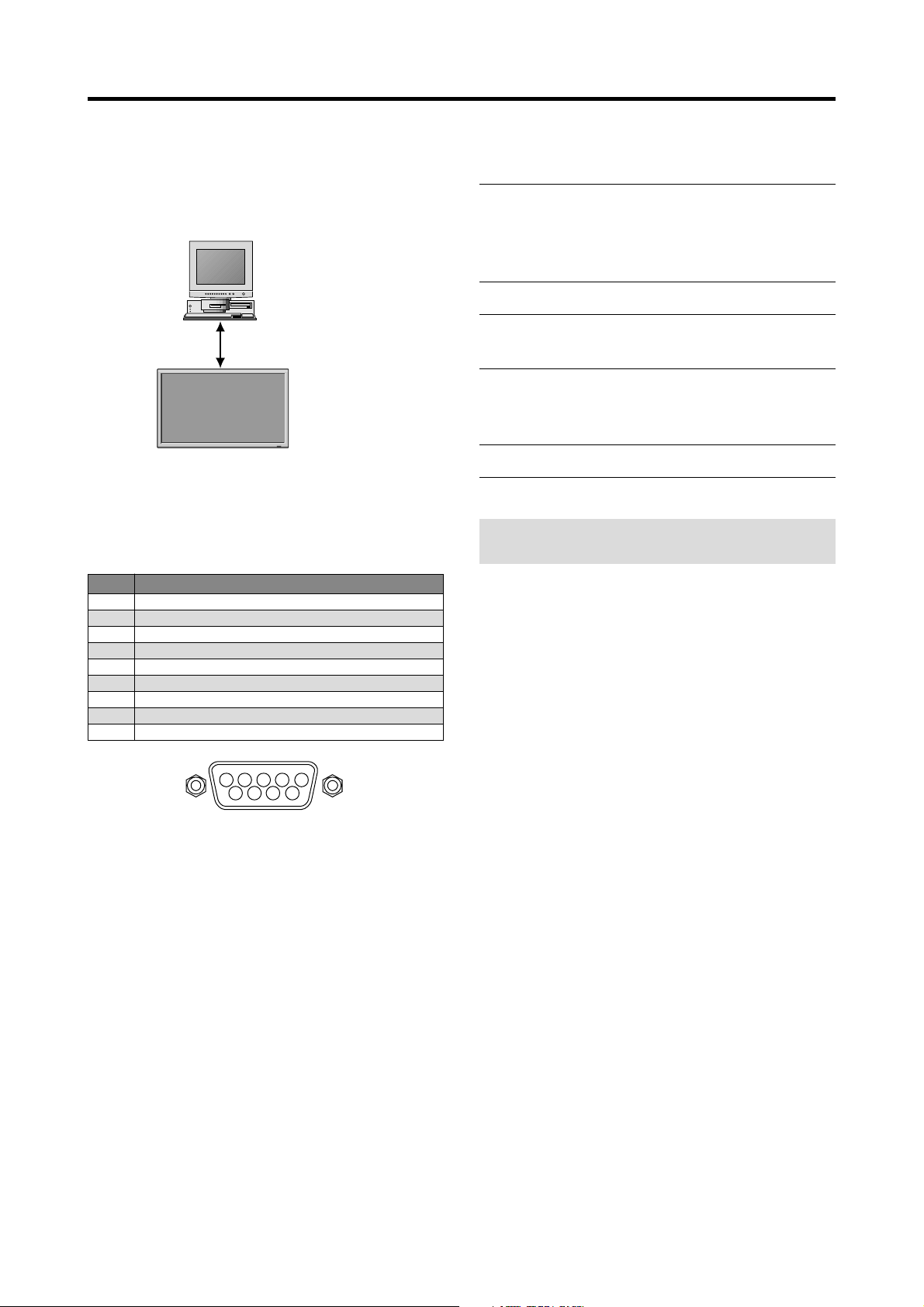

External Control ............................................. 41
Troubleshooting ............................................. 42

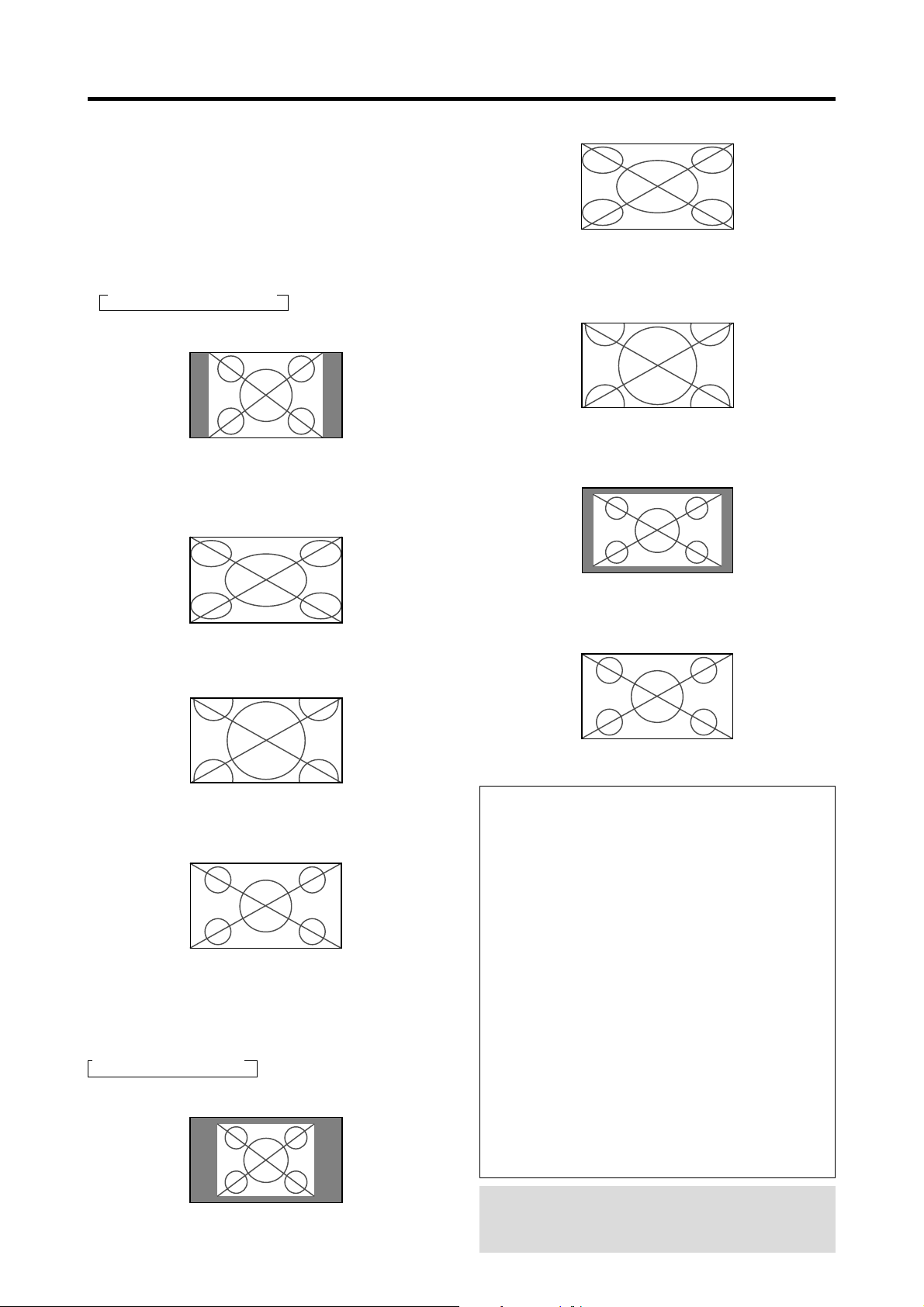

WIDE Operations ............................................. 13

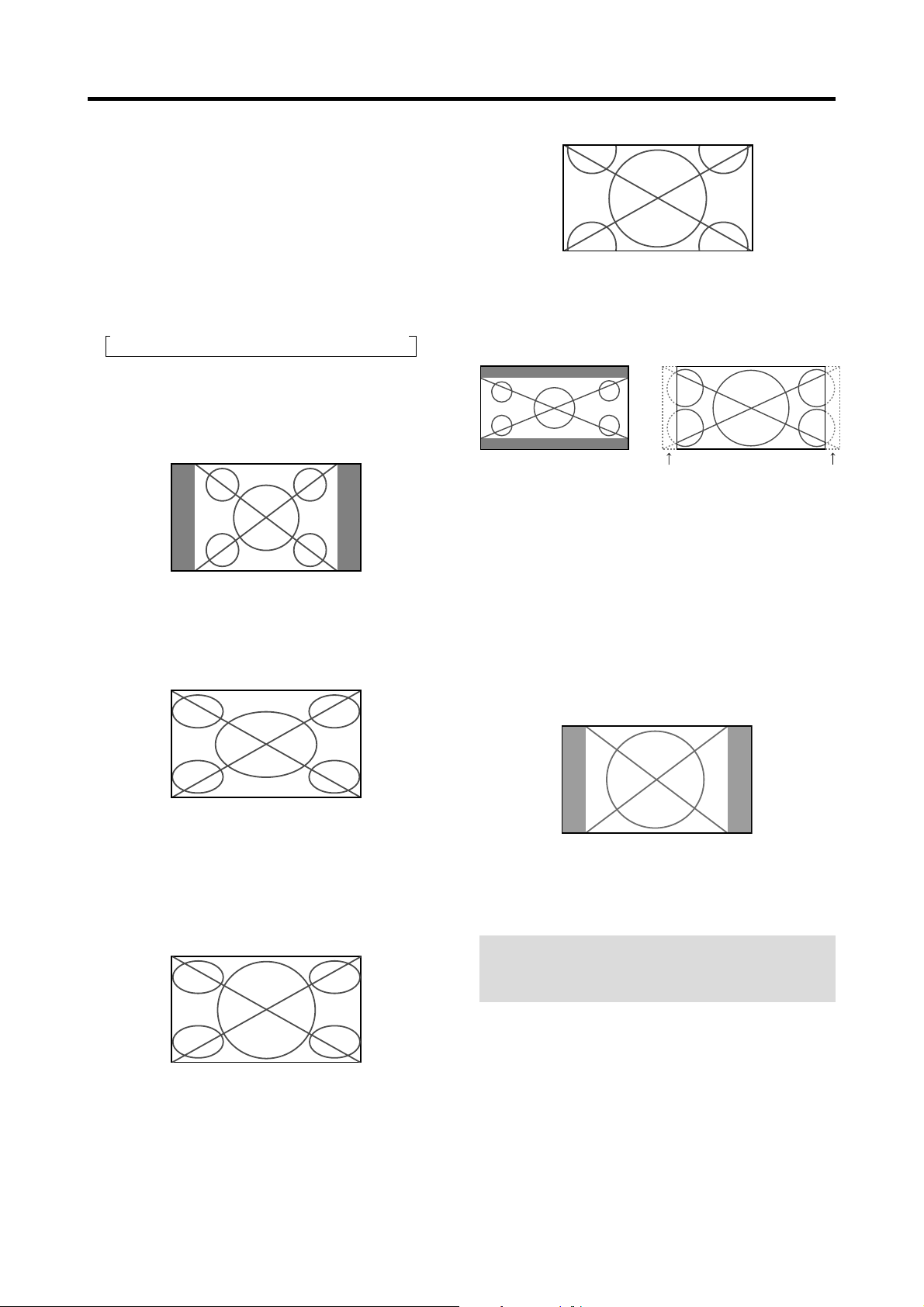

Wide Screen Operation (manual) ........................... 13
When viewing videos or digital video discs .............. 13
Wide Screen Operation with Computer Signals ......... 14
When PICTURE SIZE is set to OFF”.................. 14
OSM Controls .................................................. 15

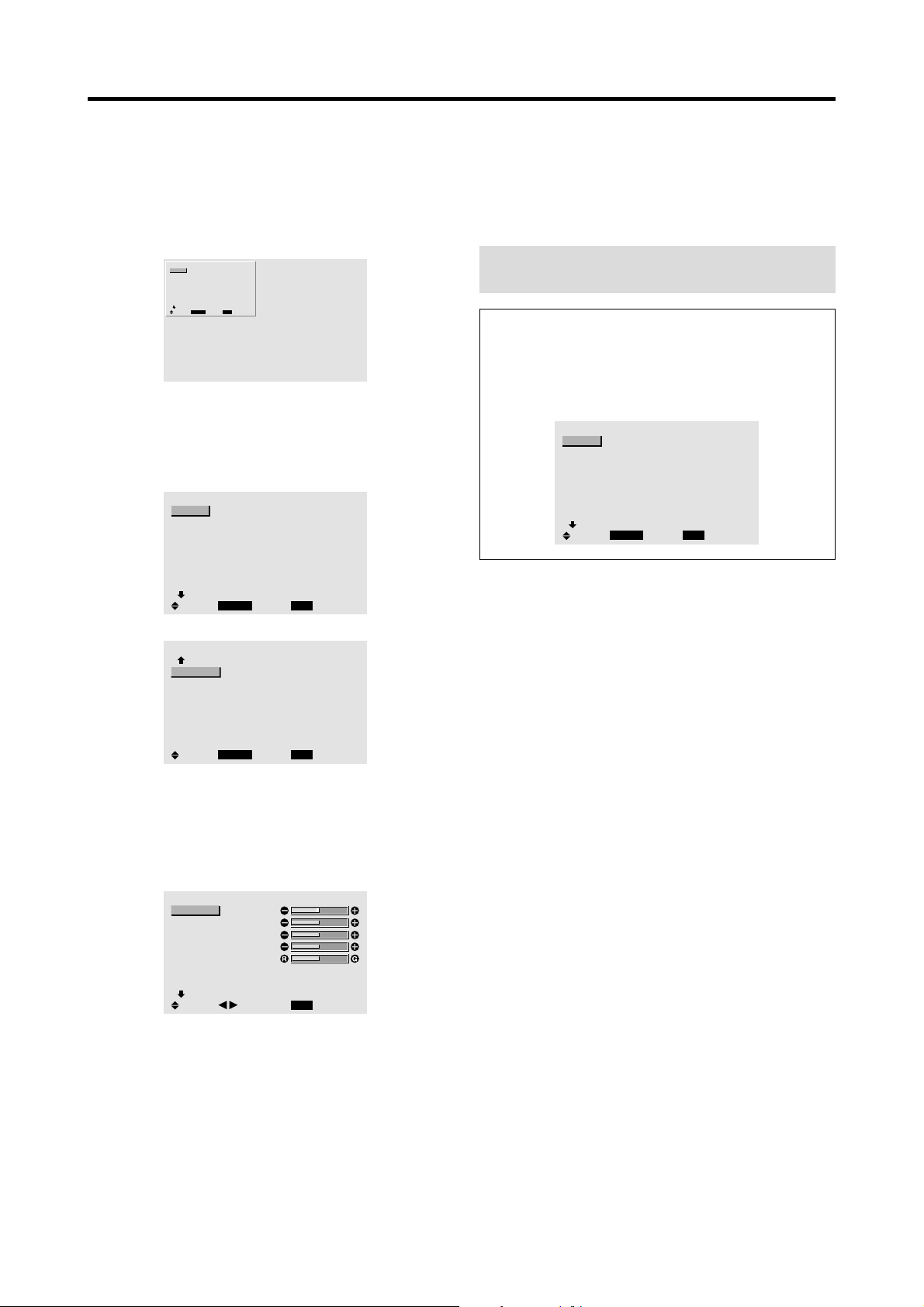

Menu Operations ................................................... 15
Menu Tree ............................................................. 16
Picture Settings Menu.............................................. 18
Adjusting the picture.................................................. 18
Setting the picture mode according to the brightness
of the room ..............................................................18
Reducing noise in the picture ..................................... 19
Setting the color temperature .....................................19
Adjusting the color to the desired level ......................19
Changing the Gamma Curve ...................................... 20
Making the Low T one adjustments ............................ 20

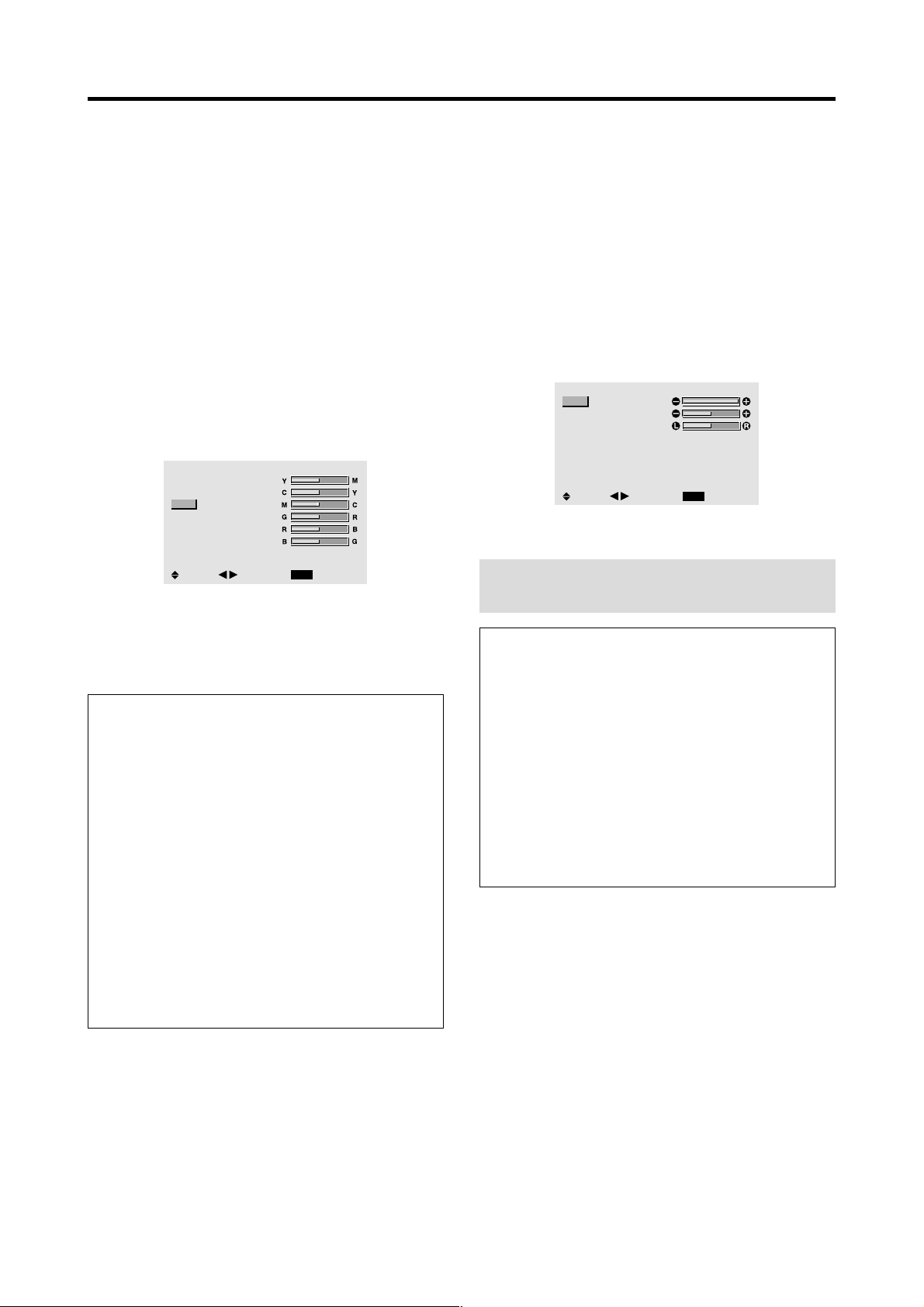

Adjusting the colors ................................................... 21
Audio Settings Menu .............................................. 21
Adjusting the treble, bass and left/right balance
and audio input select............................................... 21
Setting the allocation of the audio connectors ............22
How to Attach Options to the Plasma Monitor
You can attach your optional mounts or stand to the plasma monitor in one of the following two ways: * While it is upright. (See Drawing A) * As it is laid down with the screen face down (See Drawing B). Lay the protective sheet, which was wrapped around the
monitor when it was packaged, beneath the screen surface so as not to scratch the screen face.
* Do not touch or hold the screen face when carrying the unit.
• This device cannot be installed on its own. Be sure to use a stand or original mounting unit. (Wall mount unit, Stand, etc.)
* See the inside of the cover page.
• For correct installation and mounting it is strongly recommended to use a trained, authorized dealer.
Failure to follow correct mounting procedures could result in damage to the equipment or injury to the installer.
Product warranty does not cover damage caused by improper installation.
* Use only the mounting kit or stand provided by manufacturer and listed under Options.
Drawing A
Drawing B
Ventilation Requirements for enclosure mounting
T o allow heat to disperse, leave space between surrounding objects as shown on the diagram below when installing.
Wall
50mm (2")
50mm (2")
(2")
mm
Wall
Some models are equipped with handles. When installing or carrying, use the handles attached to the upper back of the display.
How to use the safety metal fittings and the screws for safety metal fittings
These are fittings for fastening the unit to a wall to prevent tipping due to external shock when using the stand (optional). Fasten the safety fittings to the holes in the back of the monitor using the safety fitting mount screws. * Safety metal fittings will differ according to the model.
Screw hole
Screw or Hook etc. (Not supplied)
Safty metal fittings
50mm (2")
(2") 50
mm
50
Screw for Safty metal
fittings
Metal chain
(Not supplied)
Table Top
Wall
1
Part Names and Function
Front View
INPUT SELECT
VOLUME
MENU/ENTER
DOWN UP LEFT/-RIGHT/+/EXIT
POWER/STANDBY
MENU/ENTER
7
VOLUME
DOWN UP LEFT/-RIGHT/
6
5
q Power
Turns the monitor’s power on and off.
w Remote sensor window
Receives the signals from the remote control.
e POWER/STANDBY indicator
When the power is on ............................. Lights green.
When the power is in the standby mode ... Lights red.
r INPUT SELECT / EXIT
Switches the input, in the following order. The available inputs depend on the setting of “BNC INPUT”. RGB:
COMP.:
VIDEO1 VIDEO2 VIDEO3 HD/DVD/DTV RGB/PC3 RGB/PC2 RGB/PC1
VIDEO1 VIDEO2 VIDEO3 HD1/DVD1/DTV1 RGB/PC2 RGB/PC1 HD2/DVD2/DTV2
INPUT SELECT
+
/EXIT
4
1
t LEFT/– and RIGHT/+
Enlarges or reduces the image. Functions as the
CURSOR (
/ ) buttons in the On-Screen Menu
(OSM) mode.
y VOLUME DOWN and UP
Adjusts the volume. Functions as the CURSOR (/) buttons in the On-Screen Menu (OSM) mode.
u MENU/ENTER
Sets the On-Screen Menu (OSM) mode and displays the main menu.
POWER/STANDBY
2
3
Functions as the EXIT buttons in the On-Screen Menu (OSM) mode.
2
Rear View/ Terminal Board
VIDEO
VIDEO
(
IN/OUT
1
)
VIDEO
VIDEO
C
E
F
G
H
I
J
3
(
MONO
)
(
MONO
)
(
MONO
)
L
L
L
External Control
REMOTE
Y Cb/ Pb Cr/ Pr
Cr/Pr Y Cb/ Pb
HD
VD
(
IN/OUT
)
DVI
( Digital RGB
)
IN OUT
2
AUDIO
R
1
DVD
1
/ HD
1
AUDIO
R
2
R/
G/ B/
RGB
2
/ DVD
2
/ HD
2
RGB
1
AUDIO
R
3
RGB
3
D
K
AB
A AC IN
Connect the included power cord here.
B EXT SPEAKER L and R
Connect speakers (optional) here. Maintain the correct polarity. Connect the
(positive) speaker wire to the
EXT SPEAKER terminal and the (negative)
speaker wire to the
EXT SPEAKER terminal on both LEFT and RIGHT channels. Please refer to your speakers owners manual.
C VIDEO1, 2, 3 (BNC, RCA, S-Video)
Connect VCRs, DVD’s or Video Cameras, etc. here. VIDEO1 can be used for Input or Output (see page
10).
D AUDIO1, AUDIO2, AUDIO3
These are audio input terminals. The input is selectable. Set which video image to allot them from the audio menu screen.
E DVD1 / HD1
Connect DVDs, High Definition or Laser Discs, etc. here.
F RGB2/ DVD2/ HD2
RGB2: Y ou can connect an analog RGB signal
and the syncronization signal.
DVD2/ HD2: You can connect DVDs, High
Definition sources, Laser Discs, etc. here. This input can be set for use with an RGB or component source. (see page
24)
G RGB1 (mini D-Sub 15pin)
Connect an analog RGB signal from a computer, etc. here. This input can be used for Input or Output. (see page 10)
H RGB3
(DVI 24pin)
Connect a digital signal (TMDS) from a source with a DVI output. (see page 8)
I EXTERNAL CONTROL
This terminal is used when operating and controlling the monitor externally (by external control).
J REMOTE IN
Connect the remote cable* to the remote control’s remote jack to obtain wired remote control.
K REMOTE OUT
Connect the remote cable* to the REMOTE IN jack of the other display monitor to obtain wired remote control.
* The 1/8 Stereo Mini cable must be purchased separately.
3
Remote Control
w RGB/PC
Press this button to select RGB/PC as the source. The available sources depend on the setting of BNC INPUT”. RGB:
RGB/PC1 → RGB/PC2 → RGB/PC3
POWER
STANDBY
RGB/PC DVD/HD
VIDEO
POSITION / CONTROL
POINTER
ZOOM
MUTE
WIDE DISPLAY
OFF TIMER
ON
MENU/ENTER
EXIT
VOLUME
COMP. :
RGB/PC1 RGB/PC3
RGB/PC can also be selected using the INPUT SELECT button on the monitor.
e DVD / HD
Press this button to select DVD/HD as the source. The available sources depend on the setting of BNC INPUT”. RGB:
COMP.:
HD/DVD/DTV
HD1/DVD1/DTV1 HD2/DVD2/DTV2
DVD/HD can also be selected using the INPUT SELECT button on the monitor.
r VIDEO
Press this button to select VIDEO as the source.
VIDEO1 VIDEO2 VIDEO3
VIDEO can also be selected using the INPUT SELECT button on the monitor.
t MENU/ENTER
Press this button to access the OSM controls. Press this button during the display of the main menu to go to the sub menu.
MULTI SELECT
AUTO ADJUST
ID SELECT CLEAR
q POWER ON/STANDBY
Switches the power on/standby. (This does not operate when POWER/STANDBY indicator of the main unit is off.)
y CURSOR ( / /
/ )
Use these buttons to select items or settings and to adjust settings or switch the display patterns.
u EXIT
Press this button to exit the OSM controls in the main menu. Press this button during the display of the sub menu to return to the previous menu.
i POINTER
Press this button to display the pointer.
o ZOOM (+ /–)
Enlarges or reduces the image.
!0 VOLUME (+ /–)
Adjusts the audio volume.
!1 MUTE
Mutes the sound.
!2 WIDE
Automatically detects the signal and sets the aspect ratio. Wide button is not active for all signals.
!3 DISPLAY
Displays the source settings on the screen.
!4 OFF TIMER
Activates the off timer for the unit.
4
!5 MULTI
Not functional for the models covered in this manual.
!6 SELECT
Not functional for the models covered in this manual.
!7 AUTO ADJUST
Press this button to adjust Fine Picture, Picture ADJ, Position, and Contrast automatically, or to switch the screen size to ZOOM mode automatically with the superimposed caption displayed fully only when the picture contains dark areas above and below the picture.
!8 ID SELECT
Set the ID number in the remote control. The remote control can then be used only for a display with the same ID number. When several displays are used together they can be controlled individually.
!9 CLEAR
Clears the number set by the ID SELECT button.
@0 Remote control signal transmitter
Transmits the remote control signals.
@1 Remote Jack
Insert the plug of the remote cable (The 1/8 Stereo Mini cable) here when using the supplied remote control in the wired condition.
Battery Installation and Replacement
Insert the 2 AAA batteries, making sure to set them in with the proper polarity.
1.Press and open the cover.
2.Align the batteries according to the (+) and (–) indication inside the case.
3.Replace the cover.
5
Using the wired remote control mode
External Control
IN OUT
REMOTE
Connect the remote cable* to the remote controls remote jack and the REMOTE IN terminal on the monitor. When the cable is connected, the mode automatically switches to wired remote control. When the wired remote control mode is used, the remote control can be operated even if no batteries are loaded.
AUDIO
(
MONO
)
R
L
2
Cr/Pr Y Cb/Pb
R/
G/ B/
RGB
2
/ DVD
2
/ HD
2
HD
VD
( IN/ OUT
RGB
1
)
AUDIO
(
MONO
)
R
L
3
DVI
(
RGB
Digital RGB
3
)
External Control
IN OUT
REMOTE
Operating Range
* Use the remote control within a distance of about 7 m/
23ft. from the front of the monitors remote control sensor and at horizontal and vertical angles of up to approximately 30°.
* The remote control operation may not function if the
monitors remote control sensor is exposed to direct sunlight or strong artificial light, or if there is an obstacle between the sensor and the remote control.
POWER/STANDBY
Remote Control Cable*
To Remote Jack
* The 1/8 Stereo Mini cable must be purchased separately.
Approx.
7m/23ft
Handling the remote control
Do not drop or mishandle the remote control.
Do not get the remote control wet. If the remote control
gets wet, wipe it dry immediately.
Avoid heat and humidity.
When not using the remote control for a long period,
remove the batteries.
Do not use new and old batteries together, or use dif ferent types together.
Do not take apart the batteries, heat them, or throw them into a fire.
When using the remote control in the wireless condition, be sure to unplug the remote cable from the REMOTE IN terminal on the monitor.
6
Installation
VIDEO
VIDEO
( IN/OUT
VIDEO 1-3
1
)
VIDEO
VIDEO
2
3
AUDIO
( MONO
)
R
L
1
Y Cb/Pb Cr/Pr
DVD
1
/ HD
1
AUDIO
( MONO
)
R
L
2
Cr/Pr Y Cb/Pb
R/
G/ B/
RGB
2
/ DVD
2
/ HD
2
HD
VD
To video inputs on the plasma monitor
VCR or Laser Disc Player
Document Camera
DVD Player
IBM VGA or
Compatibles
( MONO
)
L
DVI
(
Digital RGB
)
External Control
REMOTE
(
IN /OUT
RGB
1
)
AUDIO
R
3
RGB
3
Macintosh or Compatibles
(Desk top type)
Monitor adapter for Macintosh
IN OUT
To Mini D-Sub 15 pin connector on the plasma monitor
Personal computer with a digital signal output
7
Connecting Your PC or Macintosh Computer
Connecting your PC or Macintosh computer to your plasma monitor will enable you to display your computers screen image for an impressive presentation. The plasma monitor supports the signals described on page 7 of Model Information. T o connect a PC, Macintosh or compatible graphics adapter, simply:
1. Turn off the power to your plasma monitor and computer .
Connecting Your Document Camera
You can connect your plasma monitor to a document camera. To do so, simply:
1. Turn off the power to your plasma monitor and
document camera.
2. Use a standard video cable to connect your document
camera to the Video input on your plasma monitor.
3. Turn on the plasma monitor and the document camera.
2. If your PC does not support SXGA/XGA/SVGA/VGA you will need to install an SXGA/XGA/SVGA/VGA graphics board. Consult your computers owner’s manual for your SXGA/XGA/SVGA/VGA configuration. If you need to install a new board, see the manual that comes with your new graphics board for installation instructions.
3. This plasma monitor provides signal compatibility up to VESA 16001200 (UXGA). However, it is not recommended to use this resolution due to image readability on the monitors native pixel resolution panel.
4. Use the signal cable to connect your PC or Macintosh computer to the plasma monitor. For Macintosh, use the monitor adapter to connect to your computers video port, if necessary.
5. Turn on the plasma monitor and the computer.
6. If the plasma monitor goes blank after a period of inactivity, it may be caused by a screen saver installed on the computer youve connected to the plasma monitor .
When using a Macintosh with the plasma monitor, the following four display standards are supported using the Macintosh adapter :
13" fixed mode 16" fixed mode 19" fixed mode 21" fixed mode
The 19" fixed mode is recommended for your monitor.
Note:
for more information about your camera’s video output requir ements.
Refer to your document camera owner’ s manual
Connecting Your VCR or Laser Disc Player
Use common RCA cables (not provided) to connect your VCR or laser disc player to your plasma monitor. T o make these connections, simply:
1. Turn off the power to your plasma monitor and VCR or laser disc player.
2. Connect one end of your RCA cable to the video output connector on the back of your VCR or laser disc player, connect the other end to the V ideo input on your plasma monitor. Use standard RCA audio patch cords to connect the audio from your VCR or laser disc player to your plasma monitor (if your VCR or laser disc player has this capability). Be careful to keep your right and left channel connections correct for stereo sound.
3. Turn on the plasma monitor and the VCR or laser disc player.
Note:
manual for more information about your equipment’s video output requir ements.
Refer to your VCR or laser disc player owner’s
Connections with Equipment that have a Digital Interface
Connections can be made with equipment that is equipped with a digital interface compliant with the DVI (Digital Visual Interface) standard. * Use a DVI 24-pin signal cable and the ferrite cores
(supplied) when making connections to the RGB3 (DVI) connector of the main unit. Note that the RGB3 (DVI) terminal does not support analog RGB input source.
Note:
1. Input TMDS signals conforming to DVI standards. The TMDS input corresponds to 1 link.
2. To maintain display quality, use a cable with a quality
prescribed by DVI standar ds that is within 5 meters in length.
Connecting Your DVD Player
You can connect your plasma monitor to a DVD player. To do so, simply:
1. Turn off the power to your plasma monitor and DVD player.
2. Use a component video cable to connect your DVD player to the Y, Cb, and Cr inputs on your plasma monitor. Or use the DVD-players S-Video output. Use a standard S-Video cable to connect to the S-Video input on the plasma monitor.
3. Turn on the plasma monitor and the DVD player.
8
Pin Assignments and Signal Levels for 15 pin RGB (Analog)
5 4 3 2 1
10 9 8 7 6
15 14 13 12 11
Pin Configuration and Signal of the RGB 3 Connector (DVI Connector)
The unit is equipped with a type of connector commonly used for digital. (This cannot be used for an analog input.) (TMDS can be used for one link only.)
Pin No.
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15
Signal (Analog)
Red Green or sync-on-green Blue No connection Ground Red ground Green ground Blue ground No connection Sync signal ground No connection Bi-directional DATA (SDA) Horizontal sync or Composite sync Vertical sync Data clock
Pin No.
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
RGB 3
12345678 910111213141516
20191817 21 22 23 24
Signal (Digital)
T.M.D.S Data 2 ­T.M.D.S Data 2 + T.M.D.S Data 2 Shield No connection No connection DDC Clock DDC Data No connection T.M.D.S Data 1 ­T.M.D.S Data 1 + T.M.D.S Data 1 Shield No connection No connection +5V Power Ground Hot Plug Detect T.M.D.S Data 0 ­T.M.D.S Data 0 + T.M.D.S Data 0 Shield No connection No connection T.M.D.S Clock Shield T.M.D.S Clock + T.M.D.S Clock -
9
Creating a video wall
RGB
2
/ DVD
2
/ HD
2
RGB
1
R/
VD
G/ B/
HD
( IN/OUT
)
Cr/Pr Y Cb/Pb
IN OUT
REMOTE
BNC connector
RGB signal/ DVD/HD signal
IN
OUT
IN
OUT
Remote control
RGB signal/ DVD/HD signal
Remote control
With buit-in matrix display capability, you can create a 2×2 or 3×3 video wall.
Connect signal cables and remote cables as shown below. Video signal RGB/DVD/HD signal
VIDEO
BNC connector
VIDEO
(
IN/OUT
1
)
VIDEO 2VIDEO
VIDEO Signal
Remote control
RCA phono plug
IN
IN
3
AUDIO
(
MONO
)
R
L
1
Y
DVD
1
IN OUT
REMOTE
Note:
1. The VIDEO1 and RGB1 terminals can be used for either INPUT or OUTPUT. When LOOP OUT is ON, do not connect an OUTPUT signal fr om another unit, that will place an extraor dinary load on the other unit and may damage it.
2. LOOP OUT can not be turned ON while signals are input to RGB1 terminal.
3. LOOP OUT can be turned ON while signals are input to RGB1 terminal if the POWER is switched ON.
Information
To loop signals out to another plasma display, set the LOOP OUT to ON.
To create a video wall, set the VIDEO WALL menu items properly.
To connect monitors, please use a 1~2m (3.3~6.6 feet) BNC cable (any commercially available cable).
If the image quality is poor, do not use the monitors out terminal. Use a distribution amplifier (any commercially
available distribution amplifier) to connect the split signals to the respective monitor INPUT terminals.
Being used as a video wall function, maximaly 4-screen is rough-standard with lower than 1024768, 60Hz signal.
A distribution amplifier is particularly recommended when using a 9-screen video wall.
From the second monitor onward, connections require a BNC-RCA conversion cable or connector, a mini D-Sub
15 pin cable-BNC (5) cable or a conversion connector.
OUT
OUT
VIDEO Signal
Remote control
Cable Management
Using the cable clamps provided with the plasma display, bundle at the back of the unit the signal and audio cables connected to the display. * The cable clamp will differ according to the model.
To attach To detach
1. 2.
clamp
mounting hook
cables
To attach To detach
1. 2.
mounting hole
clamp
cables
Back of the unit
mounting hooks/mounting holes
10
Basic Operations
POWER
To turn the unit ON and OFF:
1. Plug the power cord into an active AC power outlet.
2. Press the Power button (on the unit). The monitor’s POWER/ST ANDBY indicator turns red and the standby mode is set.
3. Press the POWER ON button (on the remote control) to turn on the unit. The monitor’s POWER/ST ANDBY indicator will light up (green) when the unit is on.
4. Press the POWER STANDBY button (on the remote control) or the Power button (on the unit) to turn off the unit. The monitor’s POWER/ST ANDBY indicator turns red and the standby mode is set (only when turning off the unit with the remote control).
VOLUME
To adjust the sound volume:
1. Press and hold the VOLUME button (on the remote control or the unit) to increase to the desired level.
2. Press and hold the VOLUME control or the unit) to decrease to the desired level.
button (on the remote
MUTE
To cancel the sound:
Press the MUTE button on the remote control to cancel the sound; press again to restore.
DISPLAY
To check the settings:
1. The screen changes each time the DISPLAY button is pressed.
2. If the button is not pressed for approximately three seconds, the menu turns off.
DIGITAL ZOOM
Digital zoom specifies the picture position and enlarges the picture.
1. Press the POINTER button to display the pointer. (
To change the size of the picture:
Press the ZOOM+ button and enlarge the picture. The pointer will change to resemble a magnifying glass. ( A press of the ZOOM- button will reduce the picture and return it to its original size.
To change the picture position:
Select the position with the ▲▼
2. Press the POINTER button to delete the pointer.
)
 
buttons.
AUTO ADJUST
To adjust the size or quality of the picture automatically:
Press the AUTO ADJUST button.
Information
AUTO ADJUST ON setting
When RGB (still picture) input
is selected......Fine Picture, Picture ADJ, Position,
and Contrast will be adjusted automatically.
When RGB (motion picture), VIDEO, or Y/Pb/Pr (component) input
is selected......The screen size switches to ZOOM
mode automatically with the superimposed caption displayed fully only when the picture contains dark areas above and below the picture.
)
11
