Marantz PD5010D User Manual

832.71 Kb

R

Model PD5010D User Guide

Plasma Monitor

Important Information

Precautions

Please read this manual carefully before using your Marantz plasma monitor and keep the manual handy for future reference.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol warns the user that uninsulated voltage within the unit may have sufficient magnitude to cause electric shock. Therefore, it is dangerous to make any kind of contact with any part inside of this unit.

This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been included. Therefore, it should be read carefully in order to avoid any problems.

WARNING

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO DO NOT USE THIS UNIT’S POLARIZED PLUG WITHAN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS, UNLESS THE PRONGS CAN BE FULLY INSERTED. REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH-VOLTAGE COMPONENTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

WARNING

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Warnings and Safety Precaution

The Marantz plasma monitor is designed and manufactured to provide long, trouble-free service. No maintenance other than cleaning is required. Use a soft dry cloth to clean the panel. Never use solvents such as alcohol or thinner to clean the panel surface.

The plasma display panel consists of fine picture elements (cells). Although Marantz produces the plasma display panels with more than 99.99 percent active cells, there may be some cells that do not produce light or remain lit.

For operating safety and to avoid damage to the unit, read carefully and observe the following instructions. To avoid shock and fire hazards:

1.Provide adequate space for ventilation to avoid internal heat build-up. Do not cover rear vents or install the unit in a closed cabinet or shelves.

The unit is equipped with cooling fans. If you install the unit in an enclosure, make sure there is adequate space at the top of the unit to allow hot air to rise and escape. If the monitor becomes too hot, the overheat protector will be activated and the monitor will be turned off. If this happens, turn off the power to the monitor and unplug the power cord. If the room where the monitor is installed is particularly hot, move the monitor to a cooler location, and wait for the monitor to cool for 60 minutes. If the problem persists, contact your Marantz dealer for service.

2.Do not use the power cord polarized plug with extension cords or outlets unless the prongs can be completely inserted.

3.Do not expose the unit to water or moisture.

4.Avoid damage to the power cord, and do not attempt to modify the power cord.

5.Unplug the unit during electrical storms or if the unit will not be used over a long period.

6.Do not open the cabinet which has potentially dangerous high voltage components inside. If the unit is damaged in this way the warranty will be void. Moreover, there is a serious risk of electric shock.

7.Do not attempt to service or repair the unit. Marantz is not liable for any bodily harm or damage caused if unqualified persons attempt service or open the back cover. Refer all service to authorized Marantz Service Centers.

NOTE:

When you connect a computer to this monitor, attach the supplied ferrite cores. If you do not do this, this monitor will not comform to mandatory FCC standards. Attaching the ferrite cores:

Set the ferrite cores on both ends of the DVI cable (not supplied), and one end of the power cable (supplied). Close the lid tightly until the clamps click.

Use the band to secure the ferrite core (supplied).

DVI cable (not supplied)

















band

band

Connector



























































































core (small)

core

(small)

Power cable (supplied)

core (large)

band

Set side



(Plasma Monitor side)

To avoid damage and prolong operating life:

1.Use only with 120V 50/60Hz AC power supply. Continued operation at line voltages greater than 120Volts AC will shorten the life of the unit, and might even cause a fire hazard.

2.Handle the unit carefully when installing it and do not drop.

3.Set the unit away from heat, excessive dust, and direct sunlight.

4.Protect the inside of the unit from liquids and small metal objects. In case of accident, unplug the unit and have it serviced by an authorized Marantz Service Center.

5.Do not hit or scratch the panel surface as this causes flaws on the surface of the screen.

6.For correct installation and mounting it is strongly recommended to use a trained,authorized Marantz dealer.

7.As is the case with any phosphor-based display (like a CRT monitor, for example) light output will gradually decrease over the life of a Plasma Display Panel.

Recommendations to avoid or minimize phosphor burn-in

Like all phosphor-based display devices and all other gas plasma displays, plasma monitors can be susceptible to phosphor burn under certain circumstances. Certain operating conditions, such as the continuous display of a static image over a prolonged period of time, can result in phosphor burn if proper precautions are not taken. To protect your investment in this Marantz plasma monitor, please adhere to the following guidelines and recommendations for minimizing the occurrence of image burn:

*Always enable and use your computer’s screen saver function during use with a computer input source.

*Display a moving image whenever possible.

*Change the position of the menu display from time to time.

*Always power down the monitor when you are finished using it.

If the plasma monitor is in long term use or continuous operation take the following measures to reduce the likelihood of phosphor burn:

*Lower the Brightness and Contrast levels as much as possible without impairing image readability.

*Display an image with many colors and color gradations (i.e. photographic or photo-realistic images).

*Create image content with minimal contrast between light and dark areas, for example white characters on black backgrounds. Use complementary or pastel color whenever possible.

*Avoid displaying images with few colors and distinct, sharply defined borders between colors.

Contact Marantz Service Center at 1-800-270-4533 for other recommended procedures that will best suit your particular application needs.

Précautions

Veuillez lire ce manuel avec attention avant d’utiliser votre moniteur Plasma Monitor Marantz et conserver ce manuel à portée de la main pour une consultation ultérieure.

ATTENTION

RISQUE D’ELECTROCUTION

NE PAS OUVRIR

MISE EN GARDE: AFIN DE REDUIRE LES RISQUES D’ELECTROCUTION, NE PAS DEPOSER LE COUVERCLE, IL N’Y A AUCUNE PIECE UTILISABLE A L’INTERIEUR DE CET APPAREIL. NE CONFIER LES TRAVAUX D’ENTRETIEN QU’A UN PERSONNEL QUALIFIE.

Ce symbole a pour but de prévenir l’utilisateur de la présence d’une tension dangereuse, non isolée se trouvant à l’intérieur de l’appareil. Elle est d’une intensité suffisante pour constituer un risque d’électrocution. Eviter le contact avec les pièces à l’intérieur de cet appareil.

Ce symbole a pour but de prévenir l’utilisateur de la présence d’importantes instructions concernant l’entretien et le fonctionnement de cet appareil. Par conséquent, elles doivent être lues attentivement afin d’éviter des problèmes.

AVERTISSEMENT

AFIN DE REDUIRE LES RISQUES D’INCENDIE OU D’ELECTROCUTION, NE PAS EXPOSER CETAPPAREIL A LA PLUIE OU A L’HUMIDITE. AUSSI, NE PAS UTILISER LA FICHE POLARISEE AVEC UN PROLONGATEUR OU UNEAUTRE PRISE DE COURANT SAUF SI CES LAMES PEUVENT ETRE INSEREES A FOND. NE PAS OUVRIR LE COFFRET, DES COMPOSANTS HAUTE TENSION SE TROUVENT A L’INTERIEUR. LAISSER A UN PERSONNEL QUALIFIE LE SOIN DE REPARER CET APPAREIL.

DOC avis de conformation

Cet appareil numérigue de la classe A respecte toutes les exigences du Réglement sur le Matériel Brouilleur du Canada.

Mises en garde et précautions de sécurité

Le moniteur Plasma Monitor Marantz a été conçu et fabriqué pour une utilisation fiable et durable. Il ne nécessite aucun entretien en dehors du nettoyage. Utiliser un chiffon doux et sec pour nettoyer la surface de l’é cran. Ne jamais utiliser de solvant comme l’alcool ou le diluant. Le panneau à affichage plasma est constitué de fines particules d’images ou pixels (cellules). Bien que Marantz produise des panneaux à affichage plasma avec plus de 99,99 % de cellules actives, il peut y avoir des cellules qui ne produisent pas de lumière

ou qui restent allumées.

Pour des raisons de sé curité et pour é viter d’endommager l’appareil, lire attentivement les instructions suivantes.

Pour éviter les risques d’éléctrocution et d’incendie:

1.Laisser suffisament d’espace autour de l’appareil pour la ventilation et éviter toute augmentation excessive de la température interne. Ne pas couvrir les évents ou l’installer dans un endroit trop exigu.

L’appareil est équipé de ventilateurs de refroidissement. Si vous installez l’appareil dans un espace clos, assurezvous qu’il y ait suffisamment d’espace au dessus pour permettre à l’air chaud de s’élever et de s’évacuer. Si la température du moniteur devient excessive, la protection contre les surchauffes entrera en action et coupera l’alimentation. Dans ce cas, éteindre l’appareil et débrancher le câble d’alimentation. Si la température de la pièce dans laquelle le moniteur est installé est particulièrement excessive, déplacer l’appareil dans un endroit plus frais et le laisser refroidir 60 minutes. Si le problème persiste, prendre contact avec le revendeur Marantz pour le service après-vente.

2.Ne pas utiliser la fiche polarisée du cordon d’alimentation avec des prolongateurs ou des prises de courant, sauf si les lames peuvent être insérées à fond.

3.Ne pas exposer à L’eau ou à l’humidité.

4.Eviter d’endommager le cordon d’alimentation, et ne pas modifier le cordon d’alimentation.

5.Débrancher l’appareil pendant les tempêtes ou si l’appareil n’est pas utilisé pendant une longue période.

6.Ne pas ouvrir le coffret. Des composants de haute tension se trouvent à l’intérieur. Si l’appareil est endommagé de cette manière, la garantie devient caduque. De plus, il y a risque d’électrocution.

7.Ne pas essayer de réparer ou entretenir l’appareil soimême. Marantz ne saura être tenu pour responsable pour toute blessure ou dommage causé par des personnes non qualifiées qui essayent de réparer ou d’ouvrir le couvercle arrière. Confier toute réparation à un centre de service agréé M arantz.

REMARQUE:

Lorsque vous branchez un micro-ordinateur sur ce moniteur, fixez les noyaux en ferrites fournis. Si vous ne le faîtes, le moniteur ne sera pas en conformité avec les exigences des standards FCC.

Fixation des noyaux en ferrite.

Installez les noyaux en ferrite sur chaque bout du câble DVI (non fourni), ainsi que sur un cô té du câble d’alimentation électrique (founi).

Fermez doucement le couvercle jusqu’à ce que les crans se clipsent.

Utiliser les colliers pour fixer la tore en ferrite (fourni)

Câble DVI (non fourni)









Connecteur







Collier

Collier



































































































































noyau (petit)

noyau (petit)

Câble d'alimentation

noyau (large)

électrique (fourni)





































































































































Collier











Côté de l'appareil











(côté du moniteur à plasma)

Pour éviter des dommages et prolonger la durée de service de l’appareil:

1.N’utiliser qu’une source d’alimentation de 120 V 50/ 60 Hz CA. Le fait d’utiliser l’appareil en continu à des tensions de ligne supérieures à 120 Volts CA réduit sa durée de vie et risque de provoquer un incendie.

2.Manipuler l’appareil avec soin pendant son déplacement et ne pas le faire tomber.

3.Eloigner l’appareil des endroits chauds, très poussiéreux et exposés en plein soleil.

4.Eviter que des liquides et des petits objets métalliques pénètrent à l’intérieur de l’appareil. En cas d’accident, débrancher l’appareil et le confier à un centre de service agréé Marantz.

5.Ne pas frapper ou rayer la surface de la écran plasma, car des défauts risquent de se produire sur la surface de la écran plasma.

6.Pour effectuer une installation et un montage corrects, il est recommandé de faire appel au concessionnaire Marantz autorisé et spécialisé.

7.Comme c’est le cas pour tout affichage à base de phosphore (comme un moniteur CRT, par exemple), la puissance de lumière baisse graduellement au cours de la vie du Panneau d’Affichage à Plasma.

Pour éviter le risque de combustion au phosphore, les mesures suivantes sont recommandées :

Comme tous les appareils d’affichage à base de phosphore et tous les autres affichages à gaz plasma, les moniteurs Plasmasync peuvent être sujets à la combustion au phosphore dans certaines circonsatnces. Certaines conditions d’utilisation, telles que l’affichage continu d’une image statique pour une durée prolongée, peuvent causer des brûlures au phophore si aucune précaution n’est prise. Pour protéger votre investissement dans ce moniteur PlasmaSync Marantz, veuillez suivre les directives et les recommandations suivantes pour minimiser l’occurence de brûlure d’image :

Assurez-vous de mettre en marche et d’utliser l’économisateur d’écran chaque fois que c’est possible lorsque vous l’utilisez avec une source d’entré e d’ordinateur.

Affichez une image en mouvement aussi souvent que possible.

Changer la position de l’affichage de menu de temps à autre.

Coupez toujours l’alimentation lorsque vous avez terminé d’utiliser la moniteur.

Si le moniteur est en usage continu ou longue durée, prenez les mesures suivantes afin d’é viter l’occurence de combustion au phosphore :

Abaissez le niveau de l’image (contraste, luminosité) autant que possible, sans faire perdre la lisibilité de l’image.

Affichez une image avec de nombreuses couleurs et graduations de couleur (par ex. des images photographiques ou photo-réalistes).

Créez un contenu d’image avec un contraste minimal entre les zones sombres et les zones claires, par exemple, des caractères blancs sur un fond noir. Utilisez des couleurs complémentaires ou pastels le plus souvent possible.

É vitez d’afficher des images avec peu de couleurs et des limites nettes et clairement définies entre les couleurs.

Contactez Marantz Service Center au 1-800-270-4533 pour d’autres procédures recommandées qui conviendront le mieux au besoin de votre appareil.

R

Limited Warranty for the Marantz SLIM SERIES PLASMA MONITOR

Who is covered?

You must have proof of purchase to receive warranty service.

What is covered?

1)Warranty coverage begins the day you purchase your Plasma Television, and continues for a period of one year.

2)Marantz America will provide in-home warranty repair.

3)Marantz America will incur all labor charges for repairs during the warranty period.

4)Marantz America will incur all freight charges for warranty repairs, both to Marantz and the return to the customer.

We suggest keeping all packing materials for any shipping that might be required.

5)All parts, including repaired and replaced parts are

covered only for the original warranty period.

When the warranty on the product expires, the warranty on all replaced and repaired parts also expires.

What is excluded?

Your warranty does not cover:

1)Labor charges for installation or setup of the product, cleaning, adjustment of customer controls on the product, and installation or repair of antenna systems outside of the product.

2)Improper installation, removal or maintenance, or failure to follow instructions supplied with the product.

3)Reception problems caused by signal conditions from cable or antenna systems outside the product.

4)Repair, attempted repair or modification performed by anyone other than an authorized Marantz America service center.

5)Any product, on which the serial number has been defaced, modified or removed.

6)Warranty is void if purchase was made from anyone other than an authorized Marantz dealer.

7)Warranty is void if purchased from outside The United States of America.

8)Warranty only valid in the United States of America.

9)Damage due to lightning or power line surges, spikes and brown outs, damages that occur during shipping or transit, or damage which is attributed to acts of God.

10)Incidental or consequential damages resulting from the product. (Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary from state to state.)

11)Commercial or institutional use.

12)Any other cause which does not relate to product defect.

13)Burns or residual images upon the phosphor of the tubes.

Note: Pixel defect

Plasma is one of the most advanced technologies for consumer products. The panel is made by high precision technology, however some pixel defects may be found on the Plasma display panel. We are trying our best to control the quality in order to reduce the number of defective pixels.

It is almost impossible to have zero pixel defects, even using the most advanced technology. This is not a problem only for Marantz, but all Plasma manufacturers. Therefore we have to note that the warranty does not cover the Plasma display panel for pixel defects. We appreciate your understanding.

Before requesting service:

Please check your owner's manual before requesting service. Adjustments of the controls and hook up guidelines discussed there may save you a service call.

To get warranty service:

Repair must be performed by an authorized service center. If you do not know of a Marantz authorized Plasma Television service center, contact your dealer. If your dealer is an authorized service center, they will arrange for repair. If your dealer is not a Marantz authorized Plasma Television service center,they will direct you to an authorized service center. You can also call 1-800-270-4533 for an authorized Marantz service center in your area.

Optimum performance:

For optimum performance and picture quality, the Plasma monitor is only guaranteed up to 6,230 feet above see level.

Marantz America, Inc.

440 Medinah Road

Roselle, IL 60172-2330

Tel. 630-307-3100 Fax. 630-307-2687

Contents

How to Attach Options to the Plasma Monitor ....

1

Introduction .....................................................

2

Introduction to the Plasma Monitor PD5010D ..............

2

The features you’ll enjoy include: ...............................

2

Contents of the Package ...........................................

2

Options ..................................................................

2

Part Names and Function ..................................

3

Front View ...............................................................

3

Rear View / Terminal Board ......................................

4

Remote Control Unit .................................................

5

Battery Installation and Replacement ..........................

6

Using the wired remote control mode .........................

7

Operating Range .....................................................

7

Handling the remote control unit ................................

7

Installation ......................................................

8

Connecting Your PC or Macintosh Computer ...............

9

Connections with Equipment that has a Digital Interface ...

9

Connecting Your Document Camera ...........................

9

Connecting Your VCR or Laser Disc Player ..................

9

Connecting Your DVD Player .....................................

9

External Speaker Connections ..................................

10

Pin Assignments and Signal Levels



for 15 pin RGB (Analog) .........................................

11

Pin Configuration and Signal



of the RGB 3 IN Connector (DVI Connector) ..............

11

Basic Operations .............................................

12

POWER ................................................................

12

To turn the unit ON and OFF: ....................................

12

VOLUME ..............................................................

12

To adjust the volume: ................................................

12

MUTE ...................................................................

12

To cancel the sound: ..................................................

12

DISPLAY ................................................................

12

To check the settings: .................................................

12

DIGITAL ZOOM .....................................................

12

AUTO ADJUST ......................................................

12

To adjust the size or quality of the picture



automatically: ............................................................

12

OFF TIMER ...........................................................

13

To set the off timer: ...................................................

13

To check the remaining time: .....................................

13

To cancel the off timer ...............................................

13

WIDE Operations .............................................

14

Watching with a wide screen (manual) ....................

14

When watching videos or digital video discs .............

14

When watching high definition video source ..............

14

Watching computer images with a wide screen .........

15

When “PICTURE SIZE” is set to “OFF” ...................

15

MULTI SCREEN Operations ...............................

16

Showing a couple of pictures on the screen



at the same time ...................................................

16

Selecting the input signals to be displayed .................

16

Adjusting the OSM controls ......................................

16

OSM Controls .................................................

17

Menu Operations ...................................................

17

Picture Settings Menu .............................................

19

Adjusting the picture .................................................

19

Setting the picture mode according to the



brightness of the room ...............................................

20

Setting the color temperature ....................................

21

Adjusting the color to the desired quality ...................

22

Reducting noise in the picture ....................................

23

Sound Settings Menu ..............................................

24

Adjusting the treble, bass and left/right balance ........

24

Screen Settings Menu .............................................

25

Adjusting the Position, Size, Fine Picture,



Picture Adj ................................................................

25

Function Settings Menu ..........................................

26

Setting the on-screen display .....................................

26

Adjusting the position of the menu display ................

27

Setting the power management for computer images . 28

POWER/STANDBY indicator ...................................

29

Setting the gray level for the sides of the screen .........

30

Setting the picture to suit the movie ...........................

30

Setting RGB3 ADJ. ....................................................

31

Reducing burn-in of the screen ...................................

31

Resetting to the default values ....................................

32

Option Settings Menu .............................................

33

Setting the allocation of the audio connectors ...........

33

Setting the BNC connectors ......................................

33

Setting a computer image to the correct RGB



select screen .............................................................

34

Setting high definition images to the suitable



screen size ...............................................................

35

Setting the picture size for RGB input signals ............

36

Information Menu .................................................

36

Checking the frequencies, polarities of input signals,



and resolution ...........................................................

36

Setting the language for the menus .............................

37

Setting the video signal format ..................................

37

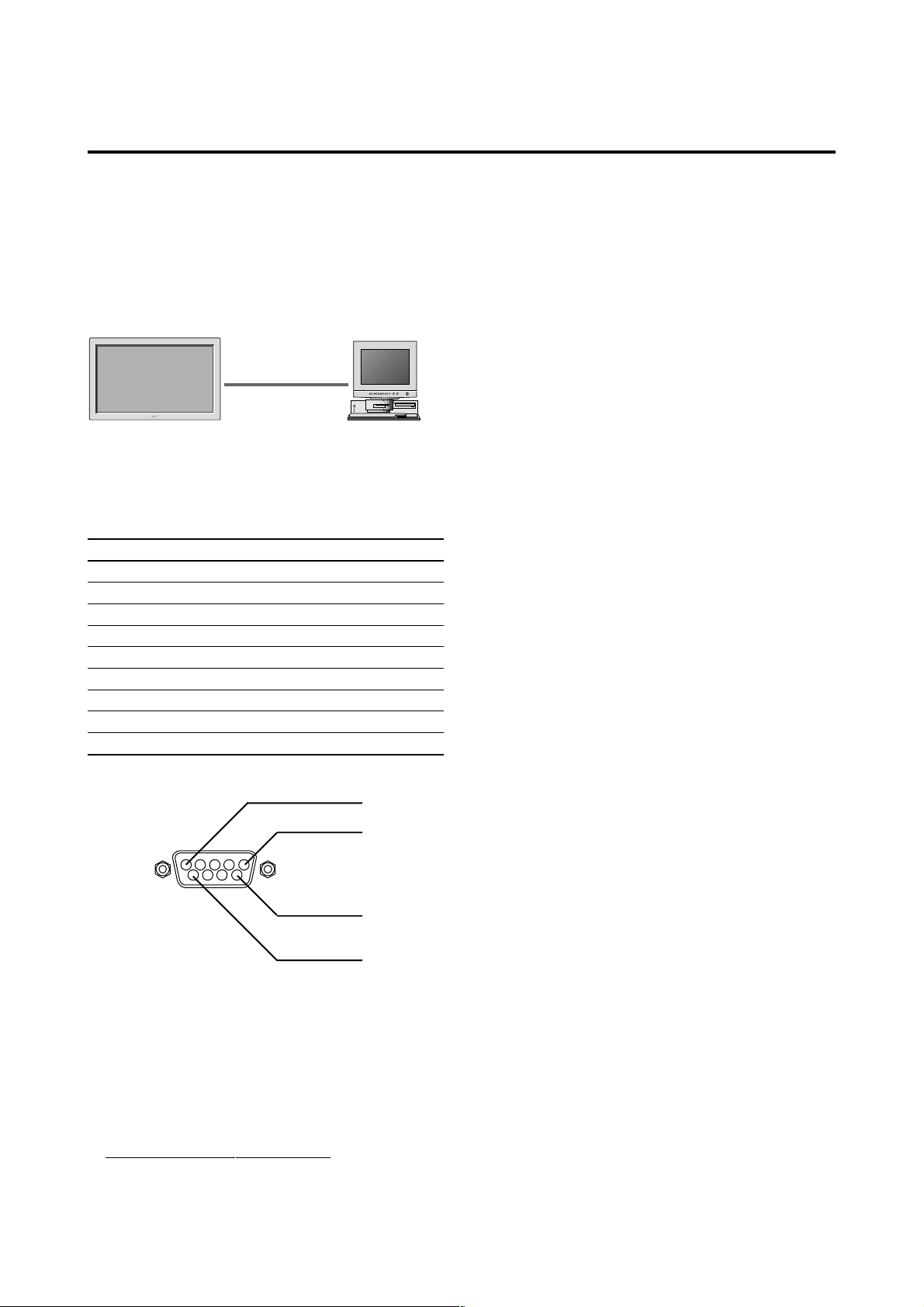

External Control .............................................

39

Table of Signals Supported ..............................

47

Supported resolution ..............................................

47

Troubleshooting .............................................

49

Specifications .................................................

50

How to Attach Options to the Plasma Monitor

You can attach your optional mounts or stand to the plasma monitor in one of the following two ways:

*While it is upright. (See Drawing A)

*As it is laid down with the screen face down (See Drawing B). Lay the protective sheet, which was wrapped around the monitor when it was packaged, beneath the screen surface so as not to scratch the screen face.

This device cannot be installed on its own.

Be sure to use a stand or original mounting unit. (Wall mount unit, Stand, etc.)

* See page 2.

For correct installation and mounting it is strongly recommended to use a trained, authorized Marantz dealer.

Failure to follow correct mounting procedures could result in damage to the equipment or injury to the installer.

Product warranty does not cover damage caused by improper installation.

Drawing A

Drawing B

Ventilation Requirements for enclosure mounting

To allow heat to disperse, leave space between surrounding objects as shown on the diagram below when installing.



Wall







50mm (2")



50mm (2")

(2")





1240mm (48.8")









mm









Wall







50















766mm (30.2")









50mm (2")

50mm (2")









1









Introduction

Introduction to the Plasma Monitor PD5010D

PD5010D is a seamless blend of cutting-edge visual technology and sophisticated design. At 50-inches, with a 16:9 aspect ratio, the PD5010D certainly makes a big impression. However, at a mere 4.2 inches/107 mm thin, the monitor’s sleek techno-art lines blend in

well with your environment. Plasma monitor’s crisp, vivid image quality will transform data from any graphic medium from PCs to DVD playersinto art. And weighing only 101.3 lbs/ 46 kg, it actually can be hung almost anywhere. Marantz has made sure that a host of multimedia resources can be easily connected and displayed as brilliantly as intended on the SLIM SERIES PLASMA monitor.

The features you’ll enjoy include:

50-inch screen

16:9 aspect ratio

Capsulated Color Filter (CCF) and black matrix

4.2 inch / 107 mm thin

101.3 lbs/ 46 kg light

High-resolution screen: 1365 768 pixels

160-degrees of off-axis viewing, horizontally and vertically.

Flicker - and warp - free display provides excellent image geometry even in screen corners

Not affected by magnetic fields, no color drift or edge distortion.

VGA, SVGA, XGA, SXGA, computer signal compatibility

NTSC, PAL, SECAM, composite and S-Video signal compatibility

480P, 1080I, 720P and HDTV signal compatibility

PCs, VCRs, Laser Disc and DVD player source compatibility

AccuBlend™ scan conversion automatically converts VGA, SVGA and SXGA signals to the panel’s native resolution

RGB input (3*), Video input (3), DVD/HD input (2*), Audio input (3), External Control input (1)

AccuColor control system provides user selectable onscreen color temperature settings

New Drive Technology

Component video input terminal for DVD, 15.75kHz (Y, CB, CR )

Digital broadcasting source compatibitly

Marantz’s OSM™ menu-driven on screen control system that makes image adjustments a snap

Seven languages (English, German, French, Italian, Spanish, Swedish, and Japanese)

*You can select RGB source or Component source for the 5BNC terminal. When selecting an RGB input, the source is switched to the RGB input (3); when selecting a component input, the source is switched to the DVD/ HD input (2).

Contents of the Package

PD5010D plasma monitor

Power cord

Remote control unit with two AAA Batteries

User’s manual

Safety metal fittings*

Screws for safety metal fitting*

Ferrite core (small 2, large 1), band

*These are fittings for fastening the unit to a wall to prevent tipping due to external shock when using the stand (option). Fasten the safety fittings to the holes in the back of the monitor using the safety fitting mount screws.

Options

Wall mount unit

Tabletop stand

2

Part Names and Function

Front View

POWER/STANDBY

INPUT SELECT

VOLUME









VOLUME









INPUT SELECT



POWER/STANDBY





































PROCEED

























DOWN



UP

LEFT/– RIGHT/+

/EXIT





































































































































q





w



e

r



t

y u

qPROCEED



















t POWER/STANDBY indicator









Sets the On-Screen Menu (OSM) mode and displays the main menu.

wVOLUME DOWN and UP

Adjusts the volume. Functions as the CURSOR (/ ) buttons in the On-Screen Menu (OSM) mode.

eLEFT/– and RIGHT/+

Enlarges or reduces the image. Functions as the CURSOR ( / ) buttons in the On-Screen Menu (OSM) mode.

rINPUT SELECT / EXIT

Switches the input, in the following order:

VIDEO1 → VIDEO2 → VIDEO3→ DVD/HD RGB/PC3 ← RGB/PC2 ← RGB/PC1←

Functions as the EXIT buttons in the On-Screen Menu (OSM) mode.

When the power is on .............................

Lights green.

When the power is in the standby mode

... Lights red.

y Power



Turns the monitor’s power on and off.



uRemote sensor window

Receives the signals from the remote control unit.

3

Rear View/ Terminal Board





VIDEO

1





VIDEO

2





VIDEO

3



1

L(MONO)



AUDIO



R







DVD1/HD1

Y







CB/PB





CR/PR



2

L(MONO)



AUDIO



R









RGB

1





R/CR/PR



HD2

G/Y







DVD2/

B/CB/PB



RGB2/

HD









VD







3

L(MONO)



AUDIO



R









RGB

3

SPEAKERS MUST







HAVE MORE THAN

CONTROL

7WATT RATING

IMPEDANCE 6 OHM

LOCK

/OFF





ON

RIGHT

LEFT

REMOTE





CONTROL





EXTERNAL





CONTROL

AC IN









K









SPEAKERS MUST

HAVE MORE THAN J 7WATT RATING

IMPEDANCE 6 OHM

RIGHT LEFT

A

A EXT SPEAKER L and R

G

Connect speakers here.



B VIDEO1, 2, 3



Connect VCR’s, DVD’s or Laser Discs, etc. here.

H

C DVD1 / HD1



Connect DVD’s, High Definition or Laser Discs, etc.

I

here.



DRGB1

Inputs the analog RGB signal of personal computer, etc.

J

E RGB2/ DVD2/ HD2

RGB2: Inputs the analog RGB signal. DVD2/ HD2: Connect DVD’s, High Definition or

Laser Discs, etc. here.

K

FRGB3 (DVI 29pin)

Inputs a digital RGB signal (TMDS).

VIDEO 1







VIDEO

2









B























VIDEO

3











1





























L(MONO)







AUDIO















R









































DVD1/HD1





Y













C





















CB/PB





























2





CR/PR









































L(MONO)







AUDIO















R







































D







RGB

1



























































































HD2





R/CR/PR













G/Y

































DVD2/





B/CB/PB











E

RGB2/





















HD

































3





VD





























































L(MONO)







AUDIO















R













F































RGB

3















(Digital

RGB)











































CONTROL











G





LOCK

















ON



/OFF

















REMOTE





H

















CONTROL











EXTERNAL





I







CONTROL























































CONTROL LOCK

When “CONTROL LOCK” is set “ON”, the buttons on the set’s control panel do not function.

REMOTE CONTROL

Connect the supplied remote cable here.

EXTERNAL CONTROL

This terminal is used when power ON/OFF, input selection and AUDIO MUTE and other controls are operated externally (by external control). See also page 39 for external control.

AUDIO1, AUDIO2, AUDIO3

These are audio input terminals.

The input is selectable. Set which video image to allot them to on the menu screen.

AC IN

Connect the included power cord here.

4

Remote Control Unit

qPOWER ON/OFF

Switches Power ON/OFF.

(This does not operate when POWER/STANDBY indicator of the main unit is off.)

wRGB/PC

Press this button to select RGB/PC as the source.

→ RGB/PC1 → RGB/PC2 → RGB/PC3

RGB/PC can also be selected using the INPUT SELECT button on the monitor. The input switches as follows each time the button is pressed:

VIDEO1 → VIDEO2→ VIDEO3→ DVD/HD RGB/PC3 ← RGB/PC2 ← RGB/PC1 ←

eDVD / HD

Press this button to select DVD/HD as the source. DVD/HD can also be selected using the INPUT SELECT button on the monitor. The input switches as follows each time the button is pressed:

VIDEO1 → VIDEO2→ VIDEO3→ DVD/HD RGB/PC3 ← RGB/PC2 ← RGB/PC1 ←

rVIDEO

Press this button to select VIDEO as the source.

→ VIDEO1 → VIDEO2 → VIDEO3

VIDEO can also be selected using the INPUT SELECT button on the monitor. The input switches as follows each time the button is pressed:

VIDEO1 → VIDEO2→ VIDEO3→ DVD/HD RGB/PC3 ← RGB/PC2 ← RGB/PC1 ←

tPROCEED

Press this button to access the OSM controls.

Press this button during the display of the main menu to go to the sub menu.

yCURSOR (/ / / )

Use these buttons to select items or settings and to adjust settings or switch the display patterns.

uEXIT

Press this button to exit the OSM controls in the main menu. Press this button during the display of the sub menu to return to the main menu.

iPOINTER

Press this button to display the pointer.

oZOOM (+ /–)

Enlarges or reduces the image.

!0VOLUME (+ /–)

Adjusts the volume.

!1MUTE

Mutes the sound.

!2WIDE

The type of broadcast is detected automatically, and the recommended wide screen is set.

5

!3DISPLAY

Displays the source settings on the screen.

!4OFF TIMER

Activates the off timer for the unit.

!5MULTI

Press this button to select a screen mode from among single mode, side by side, and picture in picture.

!6SELECT

Press this button to select the active picture in a multi screen mode.

!7AUTO ADJUST

Press this button to adjust Fine Picture, Picture ADJ, Position, and Contrast automatically, or to switch the screen size to ZOOM mode automatically with the superimposed caption displayed fully only when the picture contains dark areas above and below the picture.

!8Remote control signal transmitter

Transmits the remote control signals.

!9Remote Jack

Insert the plug of the supplied remote cable here when using the supplied remote control unit in the wired condition.

Battery Installation and Replacement

Insert the 2 “AAA” batteries, making sure to set them in with the proper polarity.

1.Press and open the cover.

2.Align the batteries according to the (+) and (–) indication inside the case.

3.Replace the cover.

6

Operating Range

*Use the remote control unit within a distance of about 7 m/ 23ft. from the front of the monitor’s remote control sensor and at a horizontal angle of within 30°.

*The remote control operation may not function if the monitor’s remote control sensor is exposed to direct sunlight or strong artificial light, or if there is an obstacle between the sensor and the remote control unit.

LUME





INPUT SELECT

UP

LEFT/–

RIGHT/+

/EXIT



POWER/STANDBY



Approx.





7m/ 23ft

30˚

30˚



Handling the remote control unit

Do not drop or mishandle the remote control unit.

Do not get the remote control unit wet. If the remote control unit gets wet, wipe it dry immediately.

Avoid heat and humidity.

When not using the remote control unit for a long period, remove the batteries.

Do not use new and old batteries together, or use different types together.

Do not take apart the batteries, heat them, or throw them into a fire.

When using the remote control unit in the wireless condition, be sure to unplug the remote cable from the REMOTE CONTROL terminal on the monitor.

7

Installation

VCR or Laser Disc Player

AUDIO 3 RGB2/ DVD2/ HD2 AUDIO 2 DVD1/HD1 AUDIO 1

VIDEO

1

VIDEO

2

VIDEO

3

L(MONO)

R



Y

CB/PB

CR/PR

L(MONO)

R

RGB 1

R/CR/PR

G/Y

B/CB/PB

HD

VD

L(MONO)

R

RGB 3

(Digital RGB)

CONTROL

LOCK

ON /OFF

REMOTE

CONTROL

EXTERNAL

CONTROL

To video inputs on the plasma monitor

Document Camera

IBM VGA or Compatibles

Macintosh or Compatibles

(Desk top type)

Monitor adapter for

Macintosh

Signal cable

To Mini D-Sub 15 pin connector on the plasma monitor

DVD Player

Personal computer with a digital RGB output

8

Connecting Your PC or Macintosh Computer

Connecting your PC or Macintosh computer to your plasma monitor will enable you to display your computer’s screen image for an impressive presentation. The plasma monitor supports the signals described on page 47.

To connect a PC, Macintosh or compatible graphics adapter, simply:

1.Turn off the power to your plasma monitor and computer.

2.If your PC does not support XGA/SVGA/VGA you will need to install an XGA/SVGA/VGA graphics board. Consult your computer’s owner’s manual for your XGA/ SVGA/VGA configuration. If you need to install a new board, see the manual that comes with your new graphics board for installation instructions.

3.The plasma monitor provides signal compatibility up to VESA 1600 1200 (UXGA). However, it is not recommended to use this resolution due to image readability on the monitors 1365 768 native pixel resolution panel.

4.Use the signal cable that’s supplied to connect your PC or Macintosh computer to the plasma monitor. For Macintosh, use the supplied monitor adapter to connect to your computer’s video port.

5.Turn on the plasma monitor and the computer.

6.If the plasma monitor goes blank after a period of inactivity, it may be caused by a screen saver installed on the computer you’ve connected to the plasma monitor.

When using a Macintosh with the plasma monitor, the following four display standards are supported using the included Macintosh adapter :

13" fixed mode 16" fixed mode 19" fixed mode 21" fixed mode

The 19" fixed mode is recommended for the plasma monitor.

Connections with Equipment that has a Digital Interface

Connections can be made with equipment that is equipped with a digital interface compliant with the DVI (Digital Visual Interface) standard.

*Use a DVI 29-pin signal cable and the ferrite cores (supplied) when making connections to the RGB3 IN (DVI) connector of the main unit.

Note that the RGB3 IN(DVI) terminal does not support analog RGB input source.

Note:

1.Input TMDS signals conforming to DVI standards. The TMDS input corresponds to 1 link.

2.To maintain display quality, use a cable with a quality prescribedbyDVIstandardsthatiswithin5metersinlength.

Connecting Your Document Camera

You can connect your plasma monitor to a document camera. To do so, simply:

1.Turn off the power to your plasma monitor and document camera.

2.Use a standard video cable to connect your document camera to the Video input on your plasma monitor.

3.Turn on the plasma monitor and the document camera.

Note: Refer to your document camera owner’s manual for more information about your camera’s video output requirements.

Connecting Your VCR or Laser Disc Player

Use common RCA cables (not provided) to connect your VCR or laser disc player to your plasma monitor. To make these connections, simply:

1.Turn off the power to your plasma monitor and VCR or laser disc player.

2.Connect one end of your RCA cable to the video output connector on the back of your VCR or laser disc player, connect the other end to the Video input on your plasma monitor. Use standard RCA audio patch cords to connect the audio from your VCR or laser disc player to your plasma monitor (if your VCR or laser disc player has this capability). Be careful to keep your right and left channel connections correct for stereo sound.

3.Turn on the plasma monitor and the VCR or laser disc player.

Note: Refer to your VCR or laser disc player owner’s manual for more information about your equipment’s video output requirements.

Connecting Your DVD Player

You can connect your plasma monitor to a DVD player. To do so, simply:

1.Turn off the power to your plasma monitor and DVD player.

2.Use a standard video cable to connect your DVD player to the Y, Cb, and Cr inputs on your plasma monitor. Or use the DVD-player’s S-Video output. Use a standard S-Video cable to connect to the S-Video input on the plasma monitor.

3.Turn on the plasma monitor and the DVD player.

9

External Speaker Connections







VIDEO

1







VIDEO

2







VIDEO

3





1

L(MONO)





AUDIO





R











DVD1/HD1

Y











CB/PB







CR/PR







2

L(MONO)





AUDIO





R













RGB

1



RIGHT

LEFT



R/CR/PR

HD2













G/Y











DVD2/

B/CB/PB







RGB2/

HD













VD











3

L(MONO)





AUDIO





R













RGB

3









(Digital

RGB)





SPEAKERS MUST











HAVE MORE THAN

CONTROL





7WATT RATING





IMPEDANCE 5 OHM

LOCK

/OFF









ON





RIGHT

LEFT

REMOTE







CONTROL







EXTERNAL







CONTROL

AC IN













External speakers may be connected to the plasma monitor to reproduce sound from VIDEO, DVD or RGB signal sources.

External speakers may be connected directly to the SPEAKERS terminals or indirectly by connecting a stereo system amplifier to the audio outputs.

CAUTION: Unplug the plasma monitor and all connected components before connecting external speakers. Use only speakers with 6-ohm impedance and a power input rating of 7 watts or more.

To connect external speakers directly to the plasma monitor:

1.Strip the ends of the speaker wires.

2.Press down the tabs below the SPEAKERS terminals, insert the speaker wire and release the tab to secure the speaker wire connection:

[a]Connect the right speaker (located at right side of the monitor when viewed from the front) positive (+) wire to RIGHT +.

[b]Connect the right speaker negative (–) wire to RIGHT –.

[c]Connect the left speaker negative (–) wire to LEFT–.

[d]Connect the left speaker positive (+) wire to LEFT+.

10

Pin Assignments and Signal Levels for 15 pin RGB (Analog)













Pin No.

Signal (Analog)

5



4

3

2

1

1

Red

10

9

8

7

6

2

Green or sync-on-green

15

14

13

12

11

3

Blue

























4

No connection













5

Ground













6

Red ground













7

Green ground













8

Blue ground













9

No connection













10

Sync signal ground













11

No connection













12

Bi-directional DATA (SDA)













13

Horizontal sync or Composite sync













14

Vertical sync













15

Data clock

Pin Configuration and Signal of the RGB 3 IN Connector (DVI Connector)

The unit is equipped with a type of connector commonly used for both analog and digital.

(Functionally, this cannot be used for an analog input.)

(TMDS can be used for one link only.)

RGB 3

1



2



3



4



5

6



7



8





25





26













































9

10

11

12

13

14

15

16









































17



18



19



20



21

22



23



24





27





28







































29





Pin No.

Signal (Digital)

1

T.M.D.S Data 2 -

2

T.M.D.S Data 2 +

3

T.M.D.S Data 2 Shield

4

No connection

5

No connection

6

DDC Clock

7

DDC Data

8

No connection

9

T.M.D.S Data 1 -





10

T.M.D.S Data 1 +

11

T.M.D.S Data 1 Shield





12

No connection

13

No connection





14

+5V Power

15

Ground

16

Hot Plug Detect

17

T.M.D.S Data 0 -

18

T.M.D.S Data 0 +

19

T.M.D.S Data 0 Shield

20

No connection

21

No connection

22

T.M.D.S Clock Shield

23

T.M.D.S Clock +





24

T.M.D.S Clock -

25

No connection

26

No connection

27

No connection

28

No connection

29

No connection

11

Basic Operations

POWER

To turn the unit ON and OFF:

1.Plug the power cord into an active AC power outlet.

2.Press the POWER ON button (on the remote control unit) to turn on the unit.

The monitor’s POWER/STANDBY indicator will light up (green) when the unit is on.

3.Press the POWER OFF button (on the remote control unit or the unit) to turn off the unit.

The monitor’s POWER/STANDBY indicator turns red and the standby mode is set (only when turning off the unit with the remote control unit).

VOLUME

To adjust the volume:

1.Press and hold the VOLUMEbutton (on the remote control unit or the unit) to increase to the desired level.

2.Press and hold the VOLUMEbutton (on the remote control unit or the unit) to decrease to the desired level.

DIGITAL ZOOM

Digital zoom specifies the picture position and enlarges the picture.

1. Press the POINTER button to display the pointer. ( )

To change the size of the picture:

Press the ZOOM+ button and enlarge the picture. The pointer will change to resemble a magnifying glass. ()

A press of the ZOOMbutton will reduce the picture and return it to its original size.

To change the picture position:

Select the position with the ▲▼ buttons.

2. Press the POINTER button to delete the pointer.

AUTO ADJUST

To adjust the size or quality of the picture automatically:

Press the AUTO ADJUST button.

MUTE

To cancel the sound:

Press the MUTE button on the remote control unit to cancel the sound; press again to restore.

DISPLAY

To check the settings:

1.The screen changes each time the DISPLAY button is pressed.

2.If the button is not pressed for approximately three seconds, the menu turns off.

Information

AUTO ADJUST ON setting

When RGB (still picture) input

is selected ...... Fine Picture, Picture ADJ, Position, and Contrast will be adjusted automatically.

When RGB (motion picture),

VIDEO, or Y/Pb/Pr (component) input

is selected ...... The screen size switches to ZOOM mode automatically with the superimposed caption displayed fully only when the picture contains dark areas above and below the picture.

12

OFF TIMER

To set the off timer:

The off timer can be set to turn the power off after 30, 60, 90 or 120 minutes.

1.Press the OFF TIMER button to start the timer at 30 minutes.

2.Press the OFF TIMER button to the desired time.

3.The timer starts when the menu turns off.

30 60 90 120 0

OFF TIMER30

To check the remaining time:

1.Once the off timer has been set, press the OFF TIMER button once.

2.The remaining time is displayed, then turns off after a few seconds.

3.When five minutes remain the remaining time appears until it reaches zero.

OFF TIMER28

To cancel the off timer:

1.Press the OFF TIMER button twice in a row.

2.The off timer is canceled.

OFF TIMER0

Note:

After the power is turned off with the off timer ...

A slight current is still supplied to the monitor. When you are leaving the room or do not plan to use the system for a long period of time, turn off the power of the monitor.

13

WIDE Operations

Watching with a wide screen (manual)

With this function, you can select one of four screen sizes.

When watching videos or digital video discs

1.Press the WIDE button on the remote control unit.

2.Within 3 seconds ...

Press the WIDE button again.

The screen size switches as follows:

ZOOM NORMAL FULL STADIUM

ZOOM size screen

The picture is expanded in the horizontal and vertical direction, maintaining the original proportions.

* Use this for theater size (wide) movies, etc.

NORMAL size screen (4:3)

The normal size screen is displayed.

*The picture has the same size as video pictures with a 4 : 3 aspect ratio.

FULL size screen

The image is expanded in the horizontal direction.

*Images compressed in the horizontal direction (“squeezed images”) are expanded in the horizontal direction and displayed on the entire screen. (Normal images are expanded in the horizontal direction.)

STADIUM size screen

The picture is expanded in the horizontal and vertical directions at different ratios.

*Use this for watching normal video programs (4:3) with a wide screen.

When watching high definition video source

1. Press the WIDE button on the remote control unit.

FULL size screen (16 : 9)

The full size screen is displayed.

* The picture has the same size as video pictures (16 : 9).

14

Watching computer images with a wide screen

Switch to the wide screen mode to expand the 4 : 3 image to fill the entire screen.

1.Press the WIDE button on the remote control unit.

2.Within 3 seconds ...

Press the WIDE button again.

The screen size switches as follows:

NORMAL FULL

NORMAL size screen (4:3 or SXGA 5:4)

The picture has the same size as the normal computer image.

FULL size screen

The image is expanded in the horizontal direction.

When wide signals are input.

FULL size screen

When “PICTURE SIZE” is set to “OFF”

The screen size switches as follows:

TRUE FULL

TRUE size screen (VGA, SVGA 4:3)

The image is true resolution.

FULL size screen

The image is expanded in the horizontal and vertical direction.

When wide signals are input.

TRUE

The image is true resolution.

FULL

Information

Supported resolution

See page 47 for details on the display output of the various VESA signal standards supported by the monitor.

“PICTURE SIZE” setting

When the setting of “PICTURE SIZE” is OFF, the size of RGB-input pictures will be TRUE in place of NORMAL.

When 852 (848) dot 480 line wide VGA* signals with a vertical frequency of 60 Hz and horizontal frequency of 31.7 (31.0) kHz are input

Select an appropriate setting for RGB SELECT mode referring to the“Table for Signals Supported” on page 47.

*“ IBM PC/AT” and “VGA” are registered trademarks of IBM, Inc. of the United States.

15

MULTI SCREEN Operations

Showing a couple of pictures on the screen at the same time

*An RGB-input picture may not be displayed in these modes, depending on the input signal specifications.

1.Press the MULTI button to select a screen mode from among single mode, side by side, and picture in picture.

Side by side 1

VIDEO1 RGB/PC1

A B

VIDEO1 RGB/PC1

A B

VIDEO1 RGB/PC1

A B

Selecting the input signals to be displayed

Press the cursor buttons on the remote control unit to switch either side by side 1 (with ) or side by side 2 (with ).

Note:

Picture A and B on the above screen are not always of the same height.

Side by side 2

















VIDEO1







RGB/PC1

















Sub screen





Main screen





























1.Press the SELECT button to make the desired picture active.

2.Press the RGB/PC, VIDEO, or DVD/HD button. Each press of the button changes the selection of the input signal.

The INPUT SELECT button on the monitor can also be used to change the selection.

Adjusting the OSM controls

1.Press the PROCEED button to display the MAIN MENU.

2.Adjust the setting to your preference.

For details, see “OSM (On Screen Menu) Controls” on page 17.

Picture in picture

VIDEO1





RGB/PC1









Main screen

Sub screen

Press the cursor buttons on the remote control unit to switch the position of the sub screen.

VIDEO1





RGB/PC1









Main screen

Sub screen

2.If you wish to switch the setting of the picture, press the SELECT button to make the desired picture active. Each press of the SELECT button changes the selection

of the active picture.

16



Note:

During multi mode, Auto Adjust does not affect the screen.

Information

Positioning on the screen (for side by side)

Depending on the input-signal selection, positioning of the picture is settled as follows. Pictures displayed

on the left ........ VIDEO1, VIDEO2, VIDEO3, HD1/ DVD1/DTV1, or HD2/DVD2/ DTV2

Pictures displayed

on the right ...... RGB/PC1, RGB/PC2, RGB/PC3

Positioning on the screen (for picture in picture)

Pictures displayed

Main screen .... RGB/PC1, RGB/PC2, RGB/PC3 Sub screen ...... VIDEO1, VIDEO 2, VIDEO 3,

HD 1/DVD 1/DTV 1, or HD 2/ DVD 2/DTV 2

Multi screen operations may not function depending on the type of the RGB signals.

OSM(On Screen Menu) Controls

Menu Operations

The OSM window is displayed with respect to the screen as shown on the diagram.

*Depending on the screen’s mode, the OSM may be displayed slightly differently.

In the explanation, the OSM section is shown close up.

M A I N M E N U


SOUND

SCREEN

FUNCTION

OPTIONS

INFORMATION

SEL.

PROCEED

OK

EXIT

EXIT

The following describes how to use the menus and the selected items.

1.Press the PROCEED button on the remote control unit to display the MAIN MENU.

M A I N M E N U


SOUND

SCREEN

FUNCTION

OPTIONS

INFORMATION

SEL.

PROCEED

OK



EXIT

EXIT

2. Press the cursor buttons

on the remote control

unit to highlight the menu you wish to enter.

3.Press the PROCEED button on the remote control unit to select a submenu or item.

P I C T U R E

CONTRAST





































BRIGHTNESS

















SHARPNESS

















































COLOR

















































TINT



R











G





































PICTURE MODE

:

MEMORY

COLOR TEMP.

:

2











NR



: OFF

SEL.

ADJ.







RETURN





EXIT

4.Adjust the level or change the setting of the selected item by using the cursor buttons on the remote control unit.

5.The change is stored until you adjust it again.

6.Repeat steps 2 – 5 to adjust an additional item, or press the EXIT button on the remote control unit to return to the main menu.

Note: The main menu disappears by pressing the EXIT button.

17

Main menu

Sub menu

Functions

Default

Reset


CONTRAST

Adjusts the contrast.

Center

Yes



BRIGHTNESS

Adjusts the brightness.

Center

Yes



SHARPNESS

Adjusts the sharpness.

Center

Yes



COLOR

Adjusts the color.

Center

Yes



TINT

Adjusts the tint.

Center

Yes



PICTURE MODE

Sets the picture mode according to the VIDEO environment and

MEMORY

Yes





image software.



Yes



COLOR TEMP

Adjusts the color temperature and white balance.

2*1



NR

Reduces noise visible in image.

OFF

Yes

Main menu

Sub menu

Functions

Default

Reset

SOUND

BASS

Sets the bass.

Center

Yes



TREBLE

Sets the treble.

Center

Yes



BALANCE

Sets the left/right balance.

Center

Yes

Main menu

Sub menu

Functions

Default

Reset

SCREEN

V-POSITION

Adjusts the vertical position.

Center

Yes



H-POSITION

Adjusts the horizontal position.

Center

Yes



V-HEIGHT

Adjusts the vertical size.

Min

Yes



H-WIDTH

Adjusts the horizontal size.

Min

Yes



AUTO PICTURE

Turn this on to have the monitor automatically adjust “FINE PICTURE”

OFF*1

No





and “PICTURE ADJ”.







FINE PICTURE

Adjusts for flickering on the computer image.

Min*1

Yes



PICTURE ADJ.

Adjusts for striped patterns on the computer image.

Center*1

Yes

Main menu

Sub menu

Functions

Default

Reset

FUNCTION

OSM

Turns the on-screen display (screen mode, etc.) off (when set to “OFF”).

ON

Yes





When set to “ON”, the on-screen display is displayed.







OSM ADJ.

Adjusts the vertical and horizontal positions of the menu display.

1

Yes



POWER MGT

Sets the monitor for use as an energy-saving display when used with a

OFF

Yes





computer.







GRAY LEVEL

In case of 4 : 3, sets the luminance of both sides.

3

Yes



CINEMA MODE

Sets the picture to suit the movie.

ON

Yes



RGB3 ADJ.

Adjusts the picture when the picture input from the RGB3 input

1

Yes





terminal is distorted.



Yes



LONG LIFE

Sets the picture to reduce burn-in of the display.

*2



RESET

Resets all the settings (PICTURE, SOUND, SCREEN, FUNCTION,





etc.) to the factory default values.





Main menu

Sub menu

Functions

Default

Reset

OPTION

AUDIO INPUT

Sets the allocation of the audio connectors.

*3

Yes



BNC SELECT

Sets the BNC connectors.

RGB

Yes



RGB SELECT

Sets the appropriate mode for the computer image.

AUTO

Yes





RGB (VGA signals), VIDEO (Moving picture), WIDE (WIDE VGA) DTV.







HD SELECT

Sets the digital broadcasting (1080A,1080B) or the High Vision (1035I).

1080B

No



PICTURE SIZE

Sets the picture size for RGB input.

ON

Yes

Main menu

Sub menu

Functions

Default

Reset

INFORMATION

FREQUENCY

Used to check the frequency and synchronizing polarities of the signal





currently being inputted.







LANGUAGE

Sets the language of the menus (Japanese, English, German, French,

English

No





Swedish, Italian or Spanish).







COLOR SYSTEM

Sets the VIDEO format (AUTO1, AUTO2, PAL, PAL-M, PAL-N, PAL60,

AUTO1

No





SECAM, 4.43 NTSC or 3.58 NTSC).





*1 RGB/PC only.

*2 PLE: AUTO ORBITER: OFF INVERSE: OFF

*3 AUDIO1: VIDEO1 AUDIO2: HD/DVD1 AUDIO3: RGB1

18

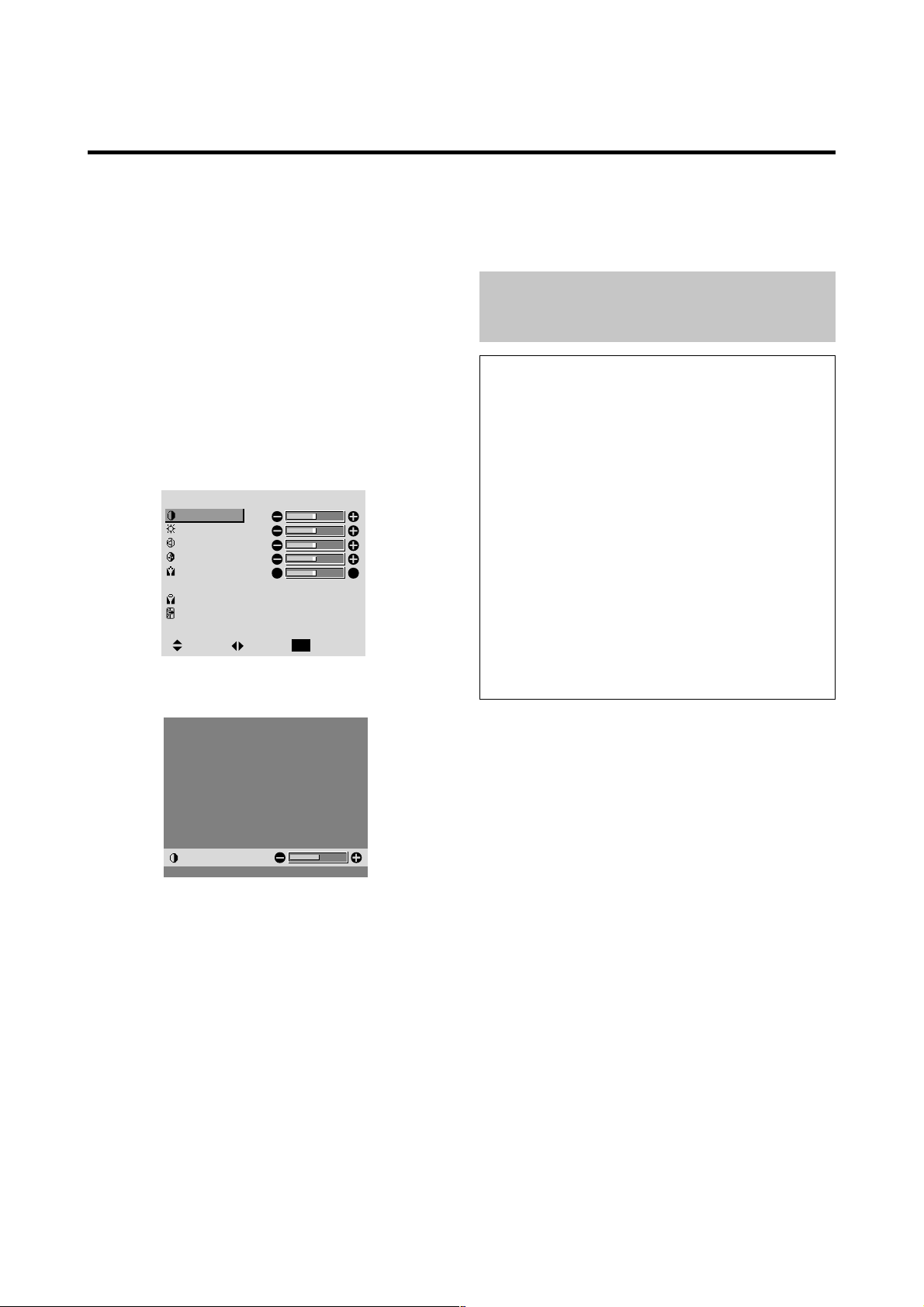

Picture Settings Menu

Adjusting the picture

The contrast, brightness, sharpness, color and tint can be adjusted as desired.

Example: Adjusting the contrast

Press the PROCEED button on the remote control unit to

display the MAIN MENU on the screen, then...

1.Use the and buttons to select “PICTURE”, then press the PROCEED button. The “PICTURE” screen appears.

2.Use the and buttons to select “CONTRAST”.

P I C T U R E

CONTRAST

































BRIGHTNESS

























SHARPNESS





























COLOR











































TINT



R









G





















PICTURE MODE

:

MEMORY

COLOR TEMP.

:

2









NR



: OFF

SEL.

ADJ.







RETURN





EXIT

3. Use the and buttons to adjust the contrast.

CONTRAST

*If neither the or button is pressed within 5 seconds, the current setting is set and the previous screen reappears.

4.Once the adjustment is completed ...

Press the EXIT button to return to the main menu.

To delete the main menu, press the EXIT button once more.

Note: If “CAN NOT ADJUST” appears ...

When trying to enter the PICTURE submenu, make sure PICTURE MODE is set to MEMORY.

Information

Picture adjustment screen

CONTRAST ....

Changes the picture’s contrast.

BRIGHTNESS . Changes the picture’s brightness.

SHARPNESS ..

Changes the picture’s sharpness.



Adjusts picture detail of VIDEO



display.

COLOR ...........

Changes the color density.

TINT ................

Changes the picture’s tint. Adjust for



natural colored skin, background, etc.

Adjusting the computer image

Only the contrast and brightness can be adjusted when a computer signal is connected.

Restoring the factory default settings

Select “RESET” under the “PICTURE MODE” settings.

19

Setting the picture mode according to the brightness of the room

There are four picture modes that can be used effectively according to the environment in which you are viewing the display.

Example: Setting the “THEATER” mode

Press the PROCEED button on the remote control unit to

display the MAIN MENU on the screen, then...

1.Use the and buttons to select “PICTURE”, then press the PROCEED button.

The “PICTURE” screen appears.

2.Use the and buttons to select “PICTURE MODE”.

P I C T U R E

CONTRAST

















BRIGHTNESS













SHARPNESS

































COLOR

































TINT





R









G

























PICTURE MODE



:



MEMORY

COLOR TEMP.



:

2









NR





: OFF

SEL.

ADJ.







RETURN





EXIT

3.To set to “THEATER” ...

Use the and buttons to select “THEATER”.

The mode switches as follows when the and buttons are pressed:

MEMORY THEATER NORMAL RESET

PICTURE MODE : THEATER

*If neither the or button is pressed within 5 seconds, the current selection is set and the previous screen reappears.

4.Once the adjustment is completed ...

Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once more.

Information

Types of picture modes

MEMORY ........ The last picture adjustments are stored here.

THEATER ........ Set this mode when watching video in a dark room.

This mode provides darker, finer pictures, like the screen in movie theaters.

CONTRAST = 80% for RESET mode BRIGHTNESS = 95% for RESET mode

NORMAL ......... Set this mode when watching video in a bright room.

This mode provides dynamic pictures with distinct differences between light and dark sections.

CONTRAST = 96% for RESET mode RESET ............ Use this to reset the picture to the

factory default settings.

20

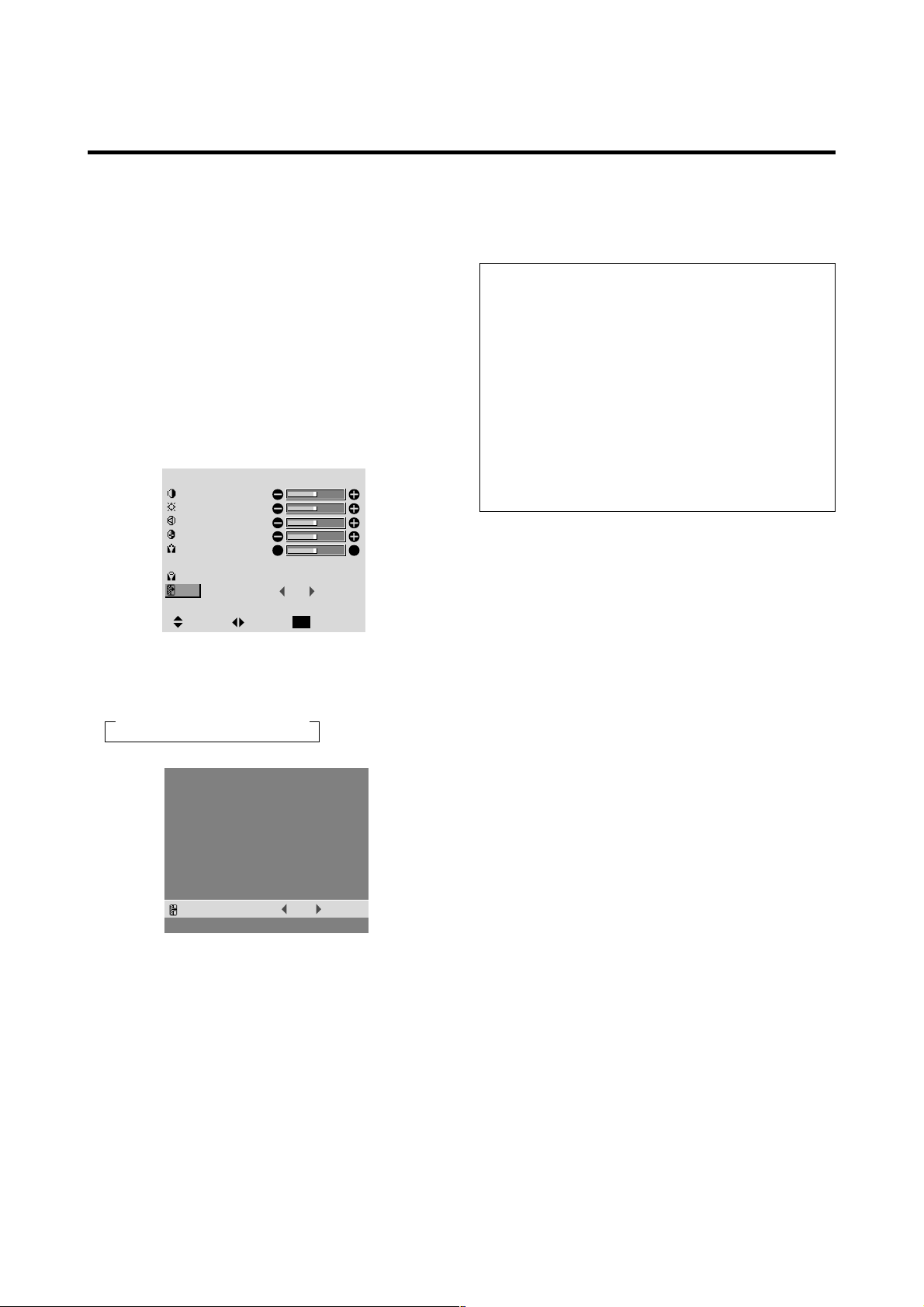

Setting the color temperature

Use this procedure to set color tone produced by the plasma display.

Example: Setting “1”

Press the PROCEED button on the remote control unit to

display the MAIN MENU on the screen, then...

1.Use the and buttons to select “PICTURE”, then press the PROCEED button.

The “PICTURE” screen appears.

2.Use the and buttons to select “COLOR TEMP.”.

P I C T U R E

CONTRAST

















BRIGHTNESS

























SHARPNESS

































































COLOR

































TINT





R









G

























PICTURE MODE

:



MEMORY

COLOR TEMP.



:

2









NR





: OFF

SEL.

ADJ.







RETURN





EXIT

3. Use the and buttons to select “1”.

The mode switches as follows when the and buttons are pressed:

1 2 3 PRO

* See page 22 to set “PRO”.

4.Once the setting is completed...

Press the EXIT button to return to the main menu.

To delete the main menu, press the EXIT button once more.

Information

Setting the color temperature

1 ......................

High (bluer)

2 .........................

Middle (Standard)

3 ......................

Low (redder)

Restoring the factory default settings

Select “RESET” under the function menu. Note that this also restores other settings to the factory defaults.

COLOR TEMP. : 1

*If neither the or button is pressed within 5 seconds, the current selection is set and the previous screen reappears.

21

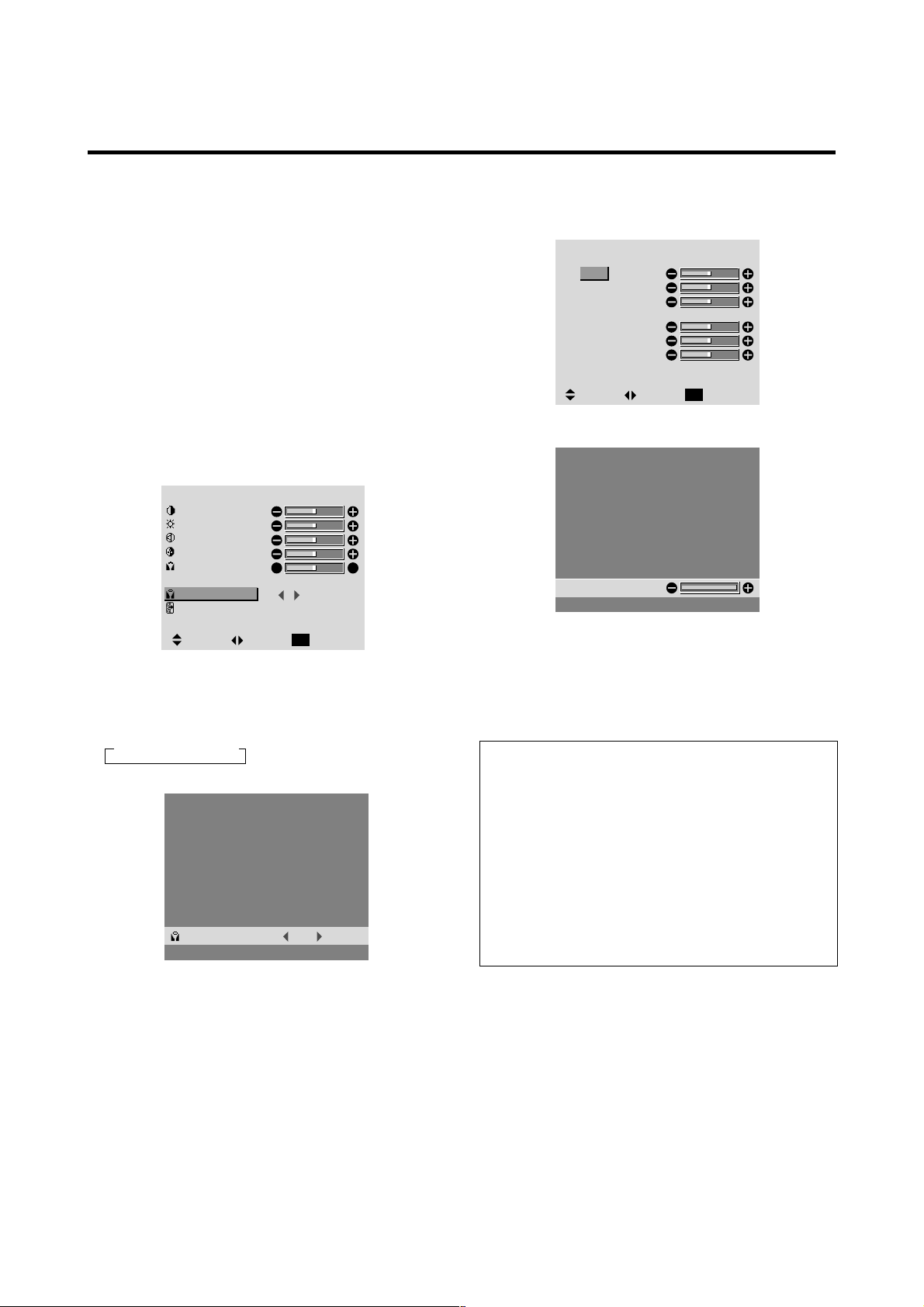

Adjusting the color to the desired quality

Use this procedure to adjust the white balance for bright pictures and dark pictures to achieve the desired color quality.

Example: Adjusting the “WHITE BALANCE”

Press the PROCEED button on the remote control unit to

display the MAIN MENU on the screen, then...

1.Use the and buttons to select “PICTURE”, then press the PROCEED button.

The “PICTURE” screen appears.

2.Use the and buttons to select “COLOR TEMP.”.

P I C T U R E

CONTRAST

































BRIGHTNESS

























SHARPNESS

































COLOR

















































TINT





R









G

























PICTURE MODE

:

MEMORY

COLOR TEMP.



:

2









NR





: OFF

SEL.

ADJ.







RETURN





EXIT

3. Use the and buttons to select “PRO”.

The mode switches as follows when the and buttons are pressed:

1 2 3 PRO

COLOR TEMP. :PRO

* If neither the or button is pressed within 5 seconds, the current selection is set and the previous screen reappears.

4.Press the PROCEED button.

The “WHITE BALANCE” screen appears.

5.Use the and buttons to select “RED-GAIN”.

W H I T E B A L A N C E

GAIN

RED

GREEN

BLUE

BIAS

RED

GREEN

BLUE

SEL.

ADJ.

EXIT

RETURN

6. Adjust the white balance using the and buttons.

R-GAIN

* If neither the or button is pressed within 5 seconds, the current setting is set and the previous screen reappears.

7.Once the adjustment is completed...

Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once more.

Information

Adjusting the white balance

RGB-GAIN ....... White balance adjustment for signal level

RGB-BIAS ....... White balance adjustment for black level

Restoring the factory default settings

Select “RESET” under the function menu. Note that this also restores other settings to the factory defaults.

22

Reducing noise in the picture

Use these settings if the picture has noise due to poor reception or when playing video tapes on which the picture quality is poor.

Example: Setting “NR-3”

Press the PROCEED button on the remote control unit to

display the MAIN MENU on the screen, then...

1.Use the and buttons to select “PICTURE”, then press the PROCEED button.

The “PICTURE” screen appears.

2.Use the and buttons to select “NR”.

P I C T U R E

CONTRAST





























BRIGHTNESS

























SHARPNESS















COLOR





























TINT



R









G











PICTURE MODE













:

MEMORY

COLOR TEMP.

:

2









NR





: OFF

SEL.

ADJ.







RETURN





EXIT

3.Use the and buttons to select “NR-3”. The mode switches as follows when the and buttons are pressed:

OFF NR-1 NR-2 NR-3

4. Once the setting is completed ...

Press the EXIT button to return to the main menu.

To delete the main menu, press the EXIT button once more.

Information

NR

*“NR” stands for Noise Reduction.

*This function reduces noise in the picture.

Types of noise reduction

There are three types of noise reduction. Each has a different level of noise reduction.

The effect becomes stronger as the number increases (in the order NR-1NR-2NR-3).

OFF ............... Turns the noise reduction function off.





NR

: NR-3





*If neither the or button is pressed within 5 seconds, the current selection is set and the previous screen reappears.

23

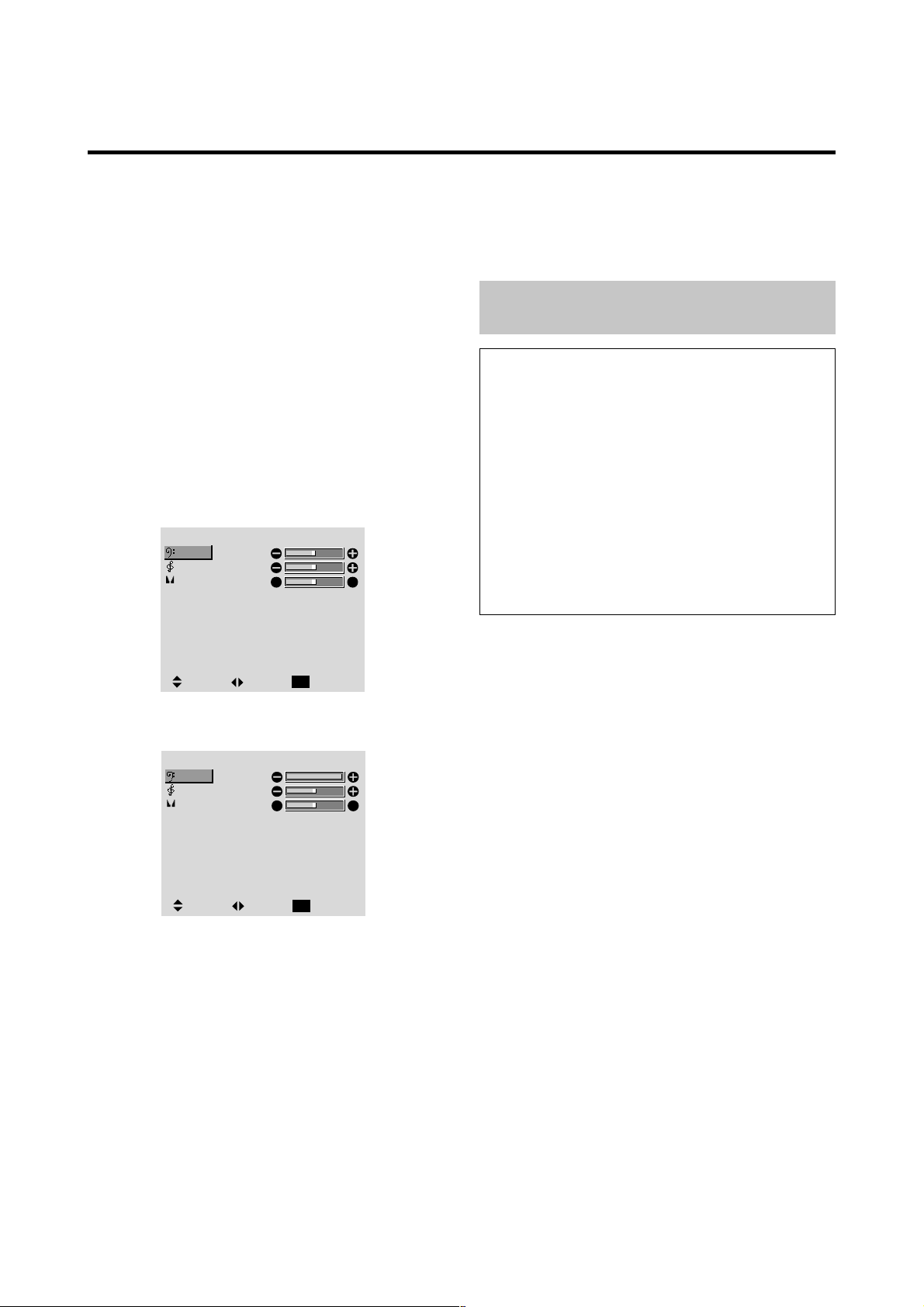

Sound Settings Menu

Adjusting the treble, bass and left/right balance

The treble, bass and left/right balance can be adjusted to suit your tastes.

Example: Adjusting the bass

Press the PROCEED button on the remote control unit to

display the MAIN MENU on the screen, then...

1.Use the and buttons to select “SOUND”, then press the PROCEED button.

The “SOUND” screen appears.

2.To adjust the bass ...

Use the and buttons to select “BASS”.



S O U N D



BASS





TREBLE





BALANCE

L

R

SEL.

ADJ.

EXIT

RETURN

3. Adjust the bass using the and buttons.



S O U N D



BASS





TREBLE





BALANCE

L

R

SEL.

ADJ.

EXIT

RETURN

* If neither the or button is pressed within 5 seconds, the current selection is set and the previous screen reappears.

To continue adjusting the sound ...

Repeat from step 2.

4.Once the adjustment is completed ...

Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once more.

Note : If “CAN NOT ADJUST” appears...

Set “AUDIO INPUT” on the OPTION menu correctly.

Information

Sound settings menu

BASS ..............

Changes the level of low frequency



sound.

TREBLE ..........

Changes the level of high frequency



sound.

BALANCE .......

Changes the balance of the left and



right channels.

Restoring the factory default settings

Select “RESET” under the function menu. Note that this also restores other settings to the factory defaults.

24

Screen Settings Menu

Adjusting the Position,Size,Fine Picture,Picture Adj

The position of the image can be adjusted and flickering of the image can be corrected.

Example: Adjusting the vertical position in the normal mode

Press the PROCEED button on the remote control unit to

display the MAIN MENU on the screen, then...

1.Use the and buttons to select “SCREEN”, then press the PROCEED button. The “SCREEN” menu appears.

Default settings (when RGB/PC is selected)



S C R E E N

MODE

: NORMAL

V–POSITION

H–POSITION

V–HEIGHT

H–WIDTH

AUTO PICTURE : OFF

FINE PICTURE

PICTURE ADJ.

SEL. ADJ. EXIT RETURN

*The settings on the SCREEN menu are not preset at the factory.

To select a mode ...

Use the and buttons to select a mode.

The mode switches as follows when the and buttons are pressed:

NORMAL FULL

*The mode can also be switched by pressing the “WIDE” button on the remote control unit.

2.To adjust the vertical position ...

Use the and buttons to select “V-POSITION”.



S C R E E N

MODE

: NORMAL

V–POSITION

H–POSITION

V–HEIGHT

H–WIDTH

AUTO PICTURE : OFF

FINE PICTURE

PICTURE ADJ.

SEL. ADJ. EXIT RETURN

3. Adjust using the and buttons.

V–POSITION

*If neither the or button is pressed within 5 seconds, the current setting is set and the previous screen reappears.

To continue making other computer image adjustments ...

Repeat from step 2.

4.Once all adjustments are completed ...

Press the EXIT button to return to the main menu.

To delete the main menu, press the EXIT button once more.

Information

When “AUTO PICTURE” is “OFF”



S C R E E N









: FULL





MODE







V–POSITION

























H–POSITION

























V–HEIGHT

























H–WIDTH

























AUTO PICTURE : OFF

FINE PICTURE

PICTURE ADJ.

SEL. ADJ. EXIT RETURN

When Auto Picture is off, the Fine Picture and the Picture ADJ items are displayed so that you can adjust them.

25

Information

Adjusting the Auto Picture

ON ...................

The Picture ADJ and Fine Picture



adjustments are made automatically.

OFF .................

The Picture ADJ and Fine Picture



adjustments are made manually.

Adjusting the position of the image

V-POSITION ...

Adjusts the vertical position of the



image.

H-POSITION ... Adjusts the horizontal position of the



image.

V-HEIGHT .......

Adjusts the vertical size of the image.



(Except for STADIUM mode)

H-WIDTH .........

Adjusts the horizontal size of the



image. (Except for STADIUM mode)

FINE PICTURE* ..

Adjusts for flickering.

PICTURE ADJ* ....

Adjusts for striped patterns on the



image.

*The Picture ADJ and Fine Picture features are available only when the “Auto Picture” is off.

*The AUTO PICTURE, FINE PICTURE and PICTURE ADJ. are not available for VIDEO and HD/ DVD source.

Restoring the factory default settings

Select “RESET” under the function menu. Note that this also restores other settings to the factory defaults except for Auto Picture.

Function Settings Menu

Setting the on-screen display

When using the monitor for presentations, etc., the monitor can be set so that the input source, screen mode, etc., do not appear.

Example: Turning the on-screen display mode off

Press the PROCEED button on the remote control unit to

display the MAIN MENU on the screen, then...

1.Use the and buttons to select “FUNCTION”, then press the PROCEED button.

The “FUNCTION” screen appears.

2.Use the and buttons to select “OSM”.

F U N C T I O N

OSM



: ON

OSM ADJ.



:

1

POWER MGT



:

OFF

GRAY LEVEL



:

3

CINEMA MODE

:

ON

RGB3 ADJ.



:

1

LONG LIFE







RESET







SEL.

ADJ.



EXIT RETURN

3.To turn the on-screen display mode off ...

Use the and buttons to select “OFF”.

The mode switches as follows each time the or button is pressed:

ON OFF

F U N C T I O N

OSM

: OFF

OSM ADJ.

:

1

POWER MGT

:

OFF

GRAY LEVEL

:

3

CINEMA MODE

:

ON

RGB3 ADJ.

:

1





LONG LIFE









RESET









SEL.

ADJ.





RETURN



EXIT

4.Once the setting is completed ...

Press the EXIT button to return to the main menu.

To delete the main menu, press the EXIT button once more.

Information

OSM modes



ON ...................

The on-screen display appears.

OFF .................

The on-screen display does not appear.

Restoring the factory default settings

Select “RESET” under the function menu. Note that this also restores other settings to the factory defaults.

26

Adjusting the position of the menu display

Use these operations to adjust the position of the menus that appear on the screen.

Example: Adjusting the position of the menu display

Press the PROCEED button on the remote control unit to

display the MAIN MENU on the screen, then...

1.Use the and buttons to select “FUNCTION”, then press the PROCEED button.

The “FUNCTION” menu appears.

2.Use the and buttons to select “OSM ADJ.”

F U N C T I O N

OSM

:

ON

OSM ADJ.



:

1

POWER MGT

:

OFF

GRAY LEVEL

:

3

CINEMA MODE

:

ON

RGB3 ADJ.

:

1

LONG LIFE

RESET

SEL. ADJ. EXIT RETURN

F U N C T I O N

OSM





:

ON

OSM ADJ.



:

1





POWER MGT



:

OFF

GRAY LEVEL

:

3





CINEMA MODE

:

ON

RGB3 ADJ.



:

1





LONG LIFE











RESET











SEL.

ADJ.







RETURN





EXIT

3.To adjust the position...

Adjust using the and buttons.

F U N C T I O N

OSM

:

ON

OSM ADJ.



:

2

POWER MGT

:

OFF

GRAY LEVEL

:

3

CINEMA MODE

:

ON

RGB3 ADJ.

:

1

LONG LIFE

RESET

SEL. ADJ. EXIT RETURN

F U N C T I O N

OSM





:

ON

OSM ADJ.



:

1





POWER MGT



:

OFF

GRAY LEVEL

:

3





CINEMA MODE

:

ON

RGB3 ADJ.



:

1





LONG LIFE











RESET





















SEL.

ADJ.





EXIT

RETURN

4.Once all adjustments are completed ...

Press the EXIT button to return to the main menu.

To delete the main menu, press the EXIT button once more.

Information

Adjusting the position of the menu display

1

2

3

The position can be set

between 1 and 9.

4

5

6



7 8 9

Restoring the factory default settings

Select “RESET” under the function menu. Note that this also restores other settings to the factory defaults.

27

Setting the power management for computer images

This energy-saving (power management) function automatically reduces the monitor’s power consumption if no operation is performed for a certain amount of time.

Example: Turning the power management function on

Press the PROCEED button on the remote control unit to

display the MAIN MENU on the screen, then...

1.Use the and buttons to select “FUNCTION”, then press the PROCEED button.

The “FUNCTION” screen appears.

2.Use the and buttons to select “POWER MGT”.

F U N C T I O N

OSM

:

ON

OSM ADJ.

:

1

POWER MGT



:

OFF

GRAY LEVEL

:

3

CINEMA MODE

:

ON

RGB3 ADJ.

:

1

LONG LIFE

RESET

SEL. ADJ. EXIT RETURN

3.To turn the power management function on ...

Use the and buttons to select “ON”.

The mode switches as follows each time the or button is pressed:

ON OFF

F U N C T I O N

OSM

:

ON

OSM ADJ.

:

1

POWER MGT



:

ON

GRAY LEVEL

:

3

CINEMA MODE

:

ON

RGB3 ADJ.

:

1

LONG LIFE

RESET

SEL. ADJ. EXIT RETURN

4.Once the setting is completed ...

Press the EXIT button to return to the main menu.

To delete the main menu, press the EXIT button once more.

Information

Power management function

*The power management function automatically reduces the monitor’s power consumption if the computer’s keyboard or mouse is not operated for a certain amount of time. This function can be used when using the monitor with a computer conforming to the VESA DPMS format.

*If the computer’s power is not turned on or if the computer and selector tuner are not properly connected, the system is set to the off state.

*For instructions on using the computer’s power management function, refer to the computer’s operating instructions.

Power management settings

ON ...................

In this mode the power management



function is turned on.

OFF .................

In this mode the power management



function is turned off.

Power management function and POWER/

STANDBY indicator

The POWER/STANDBY indicator indicates the status of the power management function. See page 29 for indicator status and description.

Restoring the factory default settings

Select “RESET” under the function menu. Note that this also restores other settings to the factory defaults.

28

POWER/STANDBY indicator

Power management

POWER/STANDBY

Power management

Description

Turning the picture back on

mode

indicator

operating status















On

Green

Not activated.

Horizontal and vertical synchronizing

Picture already on.







signals are present from the computer.













Standby

Orange

Activated.

No horizontal synchronizing signals

Operate the keyboard or mouse. The

are sent from the computer.

picture reappears immediately.























No vertical synchronizing signals are

Operate the keyboard or mouse. The

Suspend

Red

Activated.

sent from the computer.

picture reappears, but more time is



required than from the standby

















mode.

















No horizontal or vertical synchronizing

Operate the keyboard or mouse. The

Off

Red

Activated.

signals are sent from the computer.

picture reappears, but more time is



required than from the standby mode

















or suspend mode.











29

Setting the gray level for the sides of the screen

Use this procedure to set the gray level for the parts on the screen on which nothing is displayed when the screen is set to the 4:3 size.

Example: Adjusting the “GRAY LEVEL”

Press the PROCEED button on the remote control unit to

display the MAIN MENU on the screen, then...

1.Use the and buttons to select “FUNCTION”, then press the PROCEED button.

The “FUNCTION” screen appears.

2. Use the and buttons to select “GRAY LEVEL”.

F U N C T I O N

OSM

:

ON

OSM ADJ.

:

1

POWER MGT

:

OFF





:

3

GRAY LEVEL



CINEMA MODE



:

ON

RGB3 ADJ.

:

1

LONG LIFE

RESET

SEL. ADJ. EXIT RETURN

3.To adjust the “GRAY LEVEL”...

Use the and buttons to adjust the GRAY LEVEL.

F U N C T I O N

OSM

:

ON

OSM ADJ.

:

1

POWER MGT

:

OFF





:

9

GRAY LEVEL



CINEMA MODE



:

ON

RGB3 ADJ.

:

1

LONG LIFE

RESET

SEL. ADJ. EXIT RETURN

5.Once the setting is completed ...

Press the EXIT button to return to the main menu.

To delete the main menu, press the EXIT button once more.

Information

GRAY LEVEL

This adjusts the brightness of the black (the gray level) for the sides of the screen.

The standard is 0 (black). The level can be adjusted from 0 to 15. The factory setting is 3 (dark gray).

Restoring the factory default settings

Select “RESET” under the function menu. Note that this also restores other settings to the factory defaults.

Setting the picture to suit the movie

The film image is automatically discriminated and projected in an image mode suited to the picture. [NTSC, PAL60, 480I(60Hz) only]

Example: Setting the “CINEMA MODE” to “OFF”

Press the PROCEED button on the remote control unit to

display the MAIN MENU on the screen, then...

1.Use the and buttons to select “FUNCTION”, then press the PROCEED button.

The “FUNCTION” screen appears.

2.Use the and buttons to select “CINEMA MODE”.

F U N C T I O N

OSM

:

ON

OSM ADJ.

:

1

POWER MGT

:

OFF

GRAY LEVEL

:

3

CINEMA MODE

:

ON

RGB3 ADJ.

:

1

LONG LIFE

RESET

SEL. ADJ. EXIT RETURN

3.To set the CINEMA MODE to “OFF” ...

Use the and buttons to select “OFF”.

The mode switches as follows each time the or button is pressed:

ON OFF

F U N C T I O N

OSM

:

ON

OSM ADJ.

:

1

POWER MGT

:

OFF

GRAY LEVEL

:

3

CINEMA MODE

:

OFF

RGB3 ADJ.

:

1

LONG LIFE

RESET

SEL. ADJ. EXIT RETURN

4.Once the setting is completed ...

Press the EXIT button to return to the main menu.

To delete the main menu, press the EXIT button once more.

Information

CINEMA MODE

ON ...................

Automatic discrimination of the



image and projection in cinema mode.

OFF ...................

Cinema mode does not function.

Restoring the factory default settings

Select “RESET” under the function menu. Note that this also restores other settings to the factory defaults.

30

Setting RGB3 ADJ.

When the picture input from the RGB3 input terminal is distorted, select the most appropriate setting from among “1”, “2”, and “3”.

Example: Setting “2”

Press the PROCEED button on the remote control unit to

display MAIN MENU on the screen, then...

1.Use the and buttons to select “FUNCTION”, then press the PROCEED button.

The “FUNCTION” screen appears.

2.Use the and buttons to select “RGB3 ADJ.”.

F U N C T I O N

OSM

:

ON

OSM ADJ.

:

1

POWER MGT

:

OFF

GRAY LEVEL

:

3

CINEMA MODE

:

ON

RGB3 ADJ.



:

1

LONG LIFE

RESET

SEL. ADJ. EXIT RETURN

3.To select “2”...

Use the and buttons to select “2”.

The mode switches as follows each time the or buton is pressed:

1 2 3

F U N C T I O N

OSM

:

ON

OSM ADJ.

:

1

POWER MGT

:

OFF

GRAY LEVEL

:

3

CINEMA MODE

:

ON

RGB3 ADJ.



:

2

LONG LIFE

RESET

SEL. ADJ. EXIT RETURN

4.Once the setting is completed...

Press the EXIT button to return to the main menu.

To delete the main menu, press the EXIT button once more.

Information

When you adjust the RGB3 ADJ.

The position of the menu display will change. In such a case, be sure to adjust the position.

Restoring the factory default settings

Select “RESET” under the function menu. Note that this also restores other settings to the factory defaults.

Reducing burn-in of the screen

The brightness of the screen, the position of the picture, and positive/negative mode are adjusted to reduce burnin of the screen.

Example: Setting “PLE” to “LOCK”

Press the PROCEED button on the remote control unit to display the MAIN MENU on the screen, then proceed as follows.

1.Use the and buttons to select “FUNCTION”, then press the PROCEED button.

The “FUNCTION” screen appears.

2.Use the and buttons to select “LONG LIFE”, then press the PROCEED button.

F U N C T I O N

OSM

:

ON

OSM ADJ.

:

1





POWER MGT

:

OFF

GRAY LEVEL

:

3





CINEMA MODE

:

ON

RGB3 ADJ.

:

1





LONG LIFE













RESET











SEL.







OK







PROCEED



EXIT

RETURN

The “LONG LIFE” screen appears.

3.Use the and buttons to select “PLE”, then use theand buttons to select “LOCK”.

The mode switch changes as follows each time the or button is pressed:

AUTO LOCK





L O N G L I F E





: LOCK

PLE



ORBITER

: OFF

INVERSE

: OFF

SEL.

ADJ.

EXIT

RETURN

4.Once the setting is completed...

Press the EXIT button to return to the FUNCTION menu.

To exit the main menu, press the EXIT button twice.

31

Information



PLE



AUTO ..............

The brightness of the screen is



adjusted automatically to suit the



picture quality.

LOCK ..............

The brightness level is set to



minimum.

ORBITER



ON ...................

The picture moves around the screen



intermittently.

OFF .................

Orbiter mode does not function.

INVERSE



ON .....................

The picture is displayed alternately



between positive image and negative



image.

OFF .................

Inverse mode does not function.

WT ..................

The entire screen turns white.

Restoring the factory default settings

Select “RESET” from the function menu. Note that this also restores other settings to the factory defaults.

Resetting to the default values

Use these operations to restore all the picture adjustments, audio settings, to the factory default values.

Refer to page 18 for items to be reset.

Press the PROCEED button on the remote control unit to

display the MAIN MENU on the screen, then...

1.Use the and buttons to select “FUNCTION”, then press the PROCEED button.

The “FUNCTION” screen appears.

2.Use the and buttons to select “RESET”, then press the PROCEED button.

F U N C T I O N

OSM

:

ON

OSM ADJ.

:

1

POWER MGT

:

OFF

GRAY LEVEL

:

3

CINEMA MODE

:

ON

RGB3 ADJ.

:

1

LONG LIFE

RESET

SEL. PROCEED OK EXIT RETURN

The “RESET” screen appears.

3.Use the and buttons to select “RESET”, then press the PROCEED button.

R E S E T

RESET

RETURN

PROCEED OK EXIT RETURN

R E S E T

SETTING NOW

When the “SETTING NOW” screen disappears, the screen will be restored to the previous “RESET” mode, then all the settings are restored to the default values.

4.Once the setting is completed ...

Press the EXIT button.

To delete the main menu, press the EXIT button once more.

32

Option Settings Menu

Setting the allocation of the audio connectors

Setting the AUDIO 1, 2, and 3 connectors to the desired input.

Example: Setting “AUDIO 1” to “VIDEO 2”

Press the PROCEED button on the remote control unit to

display the MAIN MENU on the screen, then...

1.Use the and buttons to select “OPTION”, then press the PROCEED button.

The “OPTION” screen appears.

2.Use the and buttons to select “AUDIO 1”.





O P T I O N

AUDIO INPUT









AUDIO1



: VIDEO1



AUDIO2



: HD/DVD1



AUDIO3



: RGB1

BNC SELECT

: RGB

RGB SELECT

: AUTO

HD SELECT

: 1080B

PICTURE SIZE

: ON



SEL.

ADJ.





RETURN





EXIT

3.To set the AUDIO1 to “VIDEO2”...

Use the and buttons to select “VIDEO2”.

The mode switches as follows each time the or button is pressed:

VIDEO1 VIDEO2 VIDEO3 HD/DVD1 RGB/PC1 RGB/PC2 RGB/PC3



O P T I O N

AUDIO INPUT



AUDIO1



: VIDEO2

AUDIO2



: HD/DVD1

AUDIO3



: RGB1

BNC SELECT

: RGB

RGB SELECT

: AUTO

HD SELECT

: 1080B

PICTURE SIZE

: ON

SEL.

ADJ.

EXIT RETURN

4.Once the setting is completed...

Press the EXIT button to return to the main menu.

To delete the main menu, press the EXIT button once more.

Information

AUDIO INPUT

A single audio input cannot be selected as the audio channel for more than one input terminal.

Restoring the factory default settings

Select “RESET” under the function menu. Note that this also restores other settings to the factory defaults.

Setting the BNC connectors

Select whether to set the input of the 5 BNC connectors to RGB or component.

Example: Set the BNC SELECT mode to “COMP.”

Press the PROCEED button on the remote control unit to

display the MAIN MENU on the screen, then...

1.Use the and buttons to select “OPTION”, then press the PROCEED button.

The “OPTION” screen appears.

2.Use the and buttons to select “BNC SELECT”.





O P T I O N



AUDIO INPUT









AUDIO1





: VIDEO1



AUDIO2





: HD/DVD1



AUDIO3





: RGB1



BNC SELECT



: RGB



RGB SELECT

: AUTO



HD SELECT

: 1080B



PICTURE SIZE

: ON



SEL.

ADJ.





RETURN





EXIT

3.To set the BNC SELECT mode to “COMP.”...

Use the and buttons to select “COMP.”.

The mode switches as follows each time the or button is pressed:

RGB COMP.





O P T I O N



AUDIO INPUT









AUDIO1





: VIDEO1



AUDIO2





: HD/DVD1



AUDIO3





: RGB1



BNC SELECT



: COMP.



RGB SELECT

: AUTO



HD SELECT

: 1080B



PICTURE SIZE

: ON



SEL.

ADJ.





RETURN





EXIT

4.Once the setting is completed...

Press the EXIT button to return to the main menu.

To delete the main menu, press the EXIT button once more.

33

Information

BNC SELECT

RGB ................

Uses the 5BNC terminal for RGB



input.

COMP. .............

Use the 3BNC terminal for component



input.

Restoring the factory default settings

Select “RESET” under the function menu. Note that this also restores other settings to the factory defaults.

Setting a computer image to the correct RGB select screen

With the computer image, select the RGB Select mode for a moving image such as (video) mode, wide mode or digital broadcast.

Example: Setting the “RGB SELECT” mode to “MOTION ”

Press the PROCEED button on the remote control unit to

display the MAIN MENU on the screen, then...

1.Use the and buttons to select “OPTION”, then press the PROCEED button.

The “OPTION” screen appears.

2.Use the and buttons to select “RGB SELECT”.

O P T I O N

AUDIO INPUT







AUDIO1





: VIDEO1

AUDIO2





: HD/DVD1

AUDIO3





: RGB1

BNC SELECT

: RGB

RGB SELECT



: AUTO

HD SELECT





: 1080B

PICTURE SIZE

: ON

SEL.

ADJ.





RETURN



EXIT

3.To set the RGB select mode to “MOTION” ...

Use the and buttons to select “MOTION”.

The mode switches as follows each time the or button is pressed:

AUTO STILL

MOTION WIDE1 WIDE2 DTV





















































O P T I O N











AUDIO INPUT

















AUDIO1

: VIDEO1











AUDIO2

: HD/DVD1











AUDIO3

: RGB1











BNC SELECT

: RGB











RGB SELECT



: MOTION











HD SELECT

: 1080B











PICTURE SIZE

: ON











SEL.

ADJ.





RETURN













EXIT





4.Once the setting is completed ...

Press the EXIT button to return to the main menu.

To delete the main menu, press the EXIT button once more.

34

Information

RGB SELECT modes

One of these 6 modes must be selected in order to display the following signals correctly.

AUTO .............. Select the suitable mode for the specifications of input signals as listed in the table “Computer input signals supported by this system” on page 47.

STILL .............. To display VESA standard signals. (Use this mode for a still image from a computer.)

MOTION .......... The video signal (from a scan converter) will be converted to RGB signals to make the picture more easily viewable. (Use this mode for a motion image from a computer.)

WIDE1 ............. When an 852 dot 480 line signal with a horizontal frequency of 31.7kHz is input, the image may be compressed horizontally. To prevent this, set RGB SELECT to WIDE1.

WIDE2 ............. When an 848 dot 480 line signal with a horizontal frequency of 31.0 kHz is input, the image may be compressed horizontally. To prevent this, set RGB SELECT to WIDE2.

DTV ................. Set this mode when watching digital broadcasting (480P).

See page 47 for the details of the above settings.

Restoring the factory default settings

Select “RESET” under the function menu. Note that this also restores other settings to the factory defaults.

Setting high definition images to the suitable screen size

Use this procedure to set whether the number of vertical lines of the input high definition image is 1035 or 1080.

Example: Setting the “1080B” mode to “1035I”

Press the PROCEED button on the remote control unit to

display the MAIN MENU on the screen, then...

1.Use the and buttons to select “OPTION”, then press the PROCEED button.

The “OPTION” screen appears.

2.Use the and buttons to select “HD SELECT”.





O P T I O N



AUDIO INPUT











AUDIO1





:

VIDEO1



AUDIO2





:

HD/DVD1



AUDIO3





:

RGB1



BNC SELECT

:

RGB



RGB SELECT

:

AUTO



HD SELECT



:

1080B



PICTURE SIZE

: ON



SEL.



ADJ.







RETURN









EXIT

3.To set the HD SELECT mode to “1035I” ...

Use the and buttons to select “1035I”.

The mode switches as follows each time the or button is pressed:

1080A 1080B

1035I

















































O P T I O N







AUDIO INPUT















AUDIO1





:

VIDEO1







AUDIO2





:

HD/DVD1







AUDIO3





:

RGB1







BNC SELECT

:

RGB







RGB SELECT

:

AUTO







HD SELECT



:

1035I







PICTURE SIZE

:

ON







SEL.



ADJ.







RETURN













EXIT

4.Once the setting is completed ...

Press the EXIT button to return to the main menu.

To delete the main menu, press the EXIT button once more.

Information

HD SELECT modes

These 3 modes are not displayed in correct image automatically.

1080A ...............

Special Digital broadcasts (for



example : DTC100)

1080B ...............

Standard digital broadcasts

1035I ...............

Japanese “High Vision” signal format

35

Setting the picture size for RGB input signals

Use this procedure to switch the setting to “ON” or “OFF”.

Example: Setting the “ON” mode to “OFF”

Press the PROCEED button on the remote control unit to

display the MAIN MENU on the screen, then...

1.Use the and buttons to select “OPTION”, then press the PROCEED button.

The “OPTION” screen appears.

2.Use the and buttons to select “PICTURE SIZE”.





O P T I O N



AUDIO INPUT









AUDIO1





: VIDEO1



AUDIO2





: HD/DVD1



AUDIO3





: RGB1



BNC SELECT

: RGB



RGB SELECT

: AUTO



HD SELECT

: 1080B



PICTURE SIZE



: ON



SEL.

ADJ.





RETURN





EXIT

3.To set PICTURE SIZE mode to “OFF”...

Use the and buttons to select “OFF”.

The mode switches as follows when the or buttons are pressed:

ON OFF





O P T I O N



AUDIO INPUT









AUDIO1





: VIDEO1



AUDIO2





: HD/DVD1



AUDIO3





: RGB1



BNC SELECT

: RGB



RGB SELECT

: AUTO



HD SELECT

: 1080B



PICTURE SIZE



: OFF



SEL.

ADJ.





RETURN





EXIT

4.Once the setting is completed ...

Press the EXIT button to return to the main menu.

To delete the main menu, press the EXIT button once more.

Information

PICTURE SIZE

ON .....................

For RGB Input: “NORMAL” and



“FULL” can be selected for Wide-



Screen switching.

OFF ...................

For RGB Input: “TRUE” and



“FULL” can be selected for Wide-



Screen switching.

Restoring the factory default settings

Select “RESET” under the function menu. Note that this also restores other settings to the factory defaults.

Information Menu

Checking the frequencies, polarities of input signals, and resolution

Use this function to check the frequencies and polarities of the signals currently being input from a computer, etc.

Press the PROCEED button on the remote control unit to

display the MAIN MENU on the screen, then...

1.Use the and buttons to select “INFORMATION”, then press the PROCEED button.

The “INFORMATION” screen appears.

2.Use the and buttons to select “FREQUENCY”, then press the PROCEED button.

I N F O R M AT I O N

FREQUENCY

LANGUAGE

COLOR SYSTEM

SEL. PROCEED OK EXIT RETURN

3. The frequency is displayed.

F R E Q U E N C Y

H . FREQ

: 37

. 5KHz

V. FREQ

: 75

. 0Hz

H . POL

: NEG .

V. POL

: NEG .

MODE

: 8



RESOLUTION : 640 480

EXIT RETURN

*Press the EXIT button to return to the previous screen.

4.Once you have checked the frequency ...

Press the EXIT button to return to the main menu.

To delete the main menu, press the EXIT button once more.

36

Setting the language for the menus

The menu display can be set to one of seven languages: Japanese, English, German, French, Swedish, Italian or Spanish.

Example: Setting the menu display to “DEUTSCH”

Press the PROCEED button on the remote control unit to

display the MAIN MENU on the screen, then...

1.Use the and buttons to select “INFORMATION”, then press the PROCEED button. The “INFORMATION” screen appears.

2.Use the and buttons to select “LANGUAGE”, then press the PROCEED button.

I N F O R M AT I O N

FREQUENCY

LANGUAGE

COLOR SYSTEM

SEL. PROCEED OK EXIT RETURN

The “LANGUAGE” screen appears.

3.To select “ DEUTSCH ” ...

Use the and buttons to select “ DEUTSCH ”. The mode switches as follows when the and buttons are pressed:















ENGLISH

DEUTSCH

FRANÇ AIS





















SVENSKA

ITALIANO ESPAÑ OL







L A N G UAG E

LANGUAGE

: DEUTSCH

ADJ. PROCEED OK EXIT RETURN

4.Press the PROCEED button.

The display language is switched to Deutsch.

5.Once the setting is completed ...

Press the EXIT button to return to the main menu.

To delete the main menu, press the EXIT button once more.

Information

Language settings

ENGLISH ........

English

DEUTSCH .......

German

FRANÇAIS ......

French

ESPAÑOL .......

Spanish

ITALIANO ........

Italian

SVENSKA .......

Swedish

..............

Japanese

37

Setting the video signal format

Use these operations to set the video signal format.

Example: Setting the video signal format to “3.58 NTSC”

Press the PROCEED button on the remote control unit to

display the MAIN MENU on the screen, then...

1.Use the and buttons to select “INFORMATION”, then press the PROCEED button.

The “INFORMATION” screen appears.

2.Use the and buttons to select “COLOR SYSTEM”, then press the PROCEED button.

I N F O R M AT I O N

FREQUENCY

LANGUAGE

COLOR SYSTEM

SEL. PROCEED OK EXIT RETURN

The “COLOR SYSTEM” screen appears.

C O L O R S Y S T E M

COLOR SYSTEM

: AUTO1

ADJ. EXIT RETURN

3.To select “3.58 NTSC” ...

Use the and buttons to select “3.58 NTSC”.

The mode switches as follows when the and buttons are pressed:





AUTO1

AUTO2

3.58NTSC 4.43NTSC





SECAM

PAL-M

PAL-N PAL60 PAL



C O L O R S Y S T E M

COLOR SYSTEM

: 3.58NTSC

ADJ. EXIT RETURN

4. Once the setting is completed ...

Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once more.

The color system is set to “3.58 NTSC”.

Information

Video signal formats

Different countries use different formats for video signals. Set to the format used in your current country. AUTO1/2 ......... The video signals are automatically detected and the format is set

accordingly.

AUTO1: 3.58NTSC, 4.43NTSC, PAL, SECAM, PAL60

AUTO2: PAL-M, PAL-N, 3.58NTSC

PAL (B, G) ....... This is the standard format used mainly in the United Kingdom and Germany.

SECAM ............. This is the standard format used mainly in France and Russia.

4.43 NTSC,

PAL60 .............. This format is used for videos in countries using PAL and SECAM video signals.

3.58 NTSC ...... This is the standard format used mainly in Japan and the United States.

PAL-M ............. This is the standard format used mainly in Brazil.

PAL-N .............. This is the standard format used mainly in Argentina.

38

External Control

Application



















Communication Parameters

These specifications cover the communications control of

(1)

Communication system

Asynchronous

the plasma monitor by external equipment.

(2)

Interface

RS-232C

Connections



















(3)

Baud rate

9600 bps



















(4)

Data length

8 bits

Connections are made as described below.

(5)

Parity

Odd

(6)

Stop bit

1 bit

























plasma monitor



External equipment

(7)

Communication code

Hex





e.g., Personal computer























































































































































































































1)Connector on the plasma monitor side: EXTERNAL CONTROL connector.

Type of connector: D-Sub 9-pin male

No. Pin Name

1No Connection

2RXD (Receive data)

3TXD (Transmit data)

4DTR (DTE side ready)

5GND

6DSR (DCE side ready)

7RTS (Ready to send)

8CTS (Clear to send)

9No Connection

1

5

9

6

2)Connector on the external equipment side: Serial port (RS-232C) connector.

See the specifications of the equipment that is to be connected for the type of connector and the pin assignment.

3)Wiring

Use a crossed (reverse) cable.

Wire the cable so that each pair of data lines cross between the two devices. These data line pairs are RXD (Receive data) and TXD (Transmit data), DTR (DTE side ready) and DSR (DCE side ready), and RTS (Ready to send) and CTS (Clear to send).

39

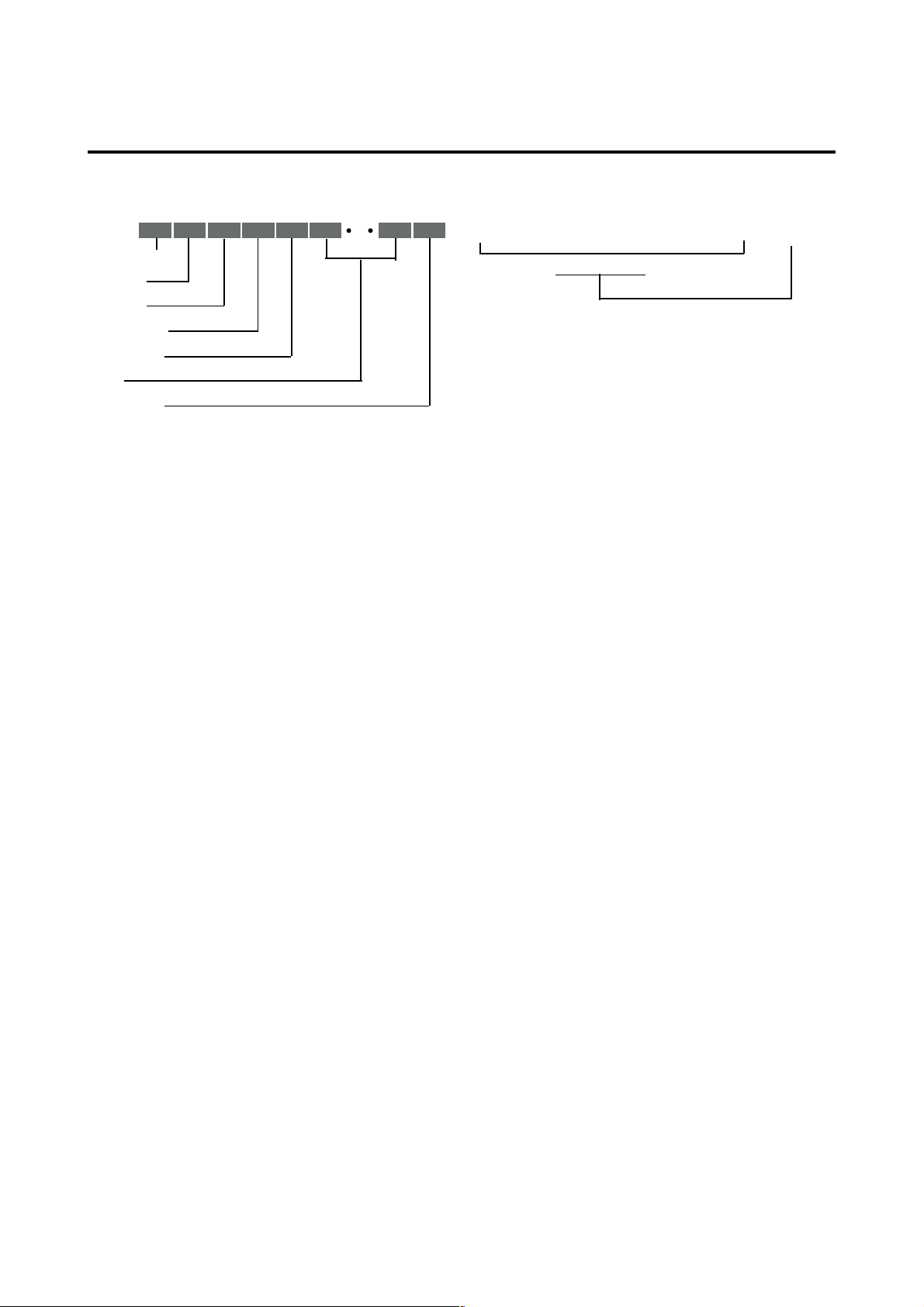

Communication Format

8 bit



8 bit



8 bit



8 bit

8 bit

8 bit



8 bit



8 bit

Command 1

Unit ID 1

Unit ID 2

Command 2

Data length

Data

Check sum

Command 1

Command 1, along with command 2, is a number used to distinguish each command.

In the case of ACK, when the lower order 4 bits is FH (as in 3FH and 7FH), this indicates that the commands and data of the supported equipment have been received. When the lower order 4 bits is BH (as in 3BH and 7BH), this indicates that unsupported commands and data have been received.

Unit ID 1 and Unit ID 2

Unit ID 1 and unit ID 2 are numbers used to identify the equipment that is to be connected.

60H is used for the plasma monitor and 80H is used for external control equipment such as a personal computer.

1)Unit ID 1: Indicates the equipment sending the signal

2)Unit ID 2: Indicates the equipment receiving the signal

Command 2

Command 2, along with command 1, is a number used to distinguish each command.

Check Sum (CKS), Error Processing, and ACK

1)The check sum described below and RS-232C odd parity are used together for a check of the received data. The check sum is the lower order 8 bits of one frame of sent or received data comprising the sum total of Command 1, Unit ID 1 and 2, Command 2, Data Length, and Data.

Check Sum Example

DFH

80H

60H

47H

01H

01H

08H

Command 1

Unit ID 1

Unit ID 2

Command

2 Data Length

Data

Check Sum

























Total 208H

2)Error Processing

When the communication interval is vacant for more than 4 ms, thereafter a received Command 1 will be recognized. If, at this time, meaningful data cannot be recognized, that data will not be recognized (as valid data).

An ACK will not be returned unless the receive data error, the check sum error, and the receive data are all taken in.

40

Command Reference List





CMD1

CMD2

LEN

01. Power ON

9FH

4EH

00H











02.

Power OFF

9FH

4FH

00H











03.

Input Switch Change

DFH

47H

01H

04.

VOLUME Gain Data

DFH

7FH

03H











05.

SCREEN MODE Select

DFH

51H

01H











06.

AUDIO Mute On

9FH

3EH

00H

07.

AUDIO Mute Off

9FH

3FH

00H











08.

OSM Select

DFH

58H

01H











09.

Color Gain Data

DFH

7FH

03H











10.

TINT Gain Data

DFH

7FH

03H











11.

SHARPNESS Gain Data

DFH

7FH

03H











12.

CONTRAST Gain Data

DFH

7FH

03H











13.

BRIGHT Gain Data

DFH

7FH

03H











14.

Input MODE Request

1FH

41H

00H











15.

RESET

1FH

54H

00H











16.

COLOR TEMP SELECT

DFH

00H

01H











17.

RED Gain Data

DFH

7FH

04H











18.

GREEN Gain Data

DFH

7FH

04H

19.

BLUE Gain Data

DFH

7FH

04H











20.

VIDEO ADJ Request

1FH

45H

00H











21.

Audio Select Set

DFH

70H

02H











22.

Audio Select Request

1FH

6FH

00H











23.

LONG LIFE Set

DFH

6BH

03H











24.

Failure Mode Request

1FH

3FH

00H











01. Power ON

Function

The external control equipment switches on the power of the plasma monitor.

Transmission Data

9FH 80H 60H 4EH 00H CKS

ACK

The plasma monitor returns the following ACK when the power is switched on. 3FH 60H 80H 4EH 00H CKS

03. Input Switch Change

Function

The external control equipment switches the input of the plasma monitor.

Transmission Data

DFH

80H 60H 47H

01H DATA00

CKS

DATA00

: Input Select

01H: Video1







02H: Video2







03H: Video3







05H: HD (HD1 or DTV or DTV1)

06H: HD2 (DTV2)

07H: RGB1/PC1

08H: RGB2/PC2

0CH: RGB3/PC3

ACK

The plasma monitor returns the following ACK when the input is switched.

3FH 60H 80H 47H 00H CKS

04. VOLUME Gain Data

Function

The external control equipment changes the VOLUME gain data of the plasma monitor.

Transmission Data





DFH 80H 60H 7FH 03H

DATA00 DATA01 DATA02 CKS

DATA00

USER SOUND Gain Flag

05H

DATA01

VOLUME Gain Flag

01H

DATA02

VOLUME Gain

00H: Step 0













0AH: Step 10 (Default)













2AH: Step 42

ACK











7FH 60H 80H 7FH 02H

DATA00 DATA01 CKS

DATA00 USER SOUND Gain Flag

05H

DATA01 VOLUME Gain Flag

01H

NOTE: Do not set the Power ON or Power OFF command continuously.

02. Power OFF

Function

The external control equipment switches off the power of the plasma monitor.

Transmission Data

9FH 80H 60H 4FH 00H CKS

ACK

The plasma monitor returns the following ACK when the power is switched off. 3FH 60H 80H 4FH 00H CKS

NOTE: Do not set the Power ON or Power OFF command continuously.

05. SCREEN MODE Select

Function

The external control equipment switches the screen mode of the plasma monitor.

Transmission Data



DFH

80H

60H

51H

01H

DATA00

CKS



DATA00

02H : STADIUM











03H

: ZOOM













04H

: NORMAL











05H

: FULL













06H

: TRUE (REAL)









ACK































7FH

60H

80H

51H

01H

DATA00

CKS



DATA00

02H : STADIUM











03H

: ZOOM













04H

: NORMAL











05H

: FULL









41



06H

: TRUE (REAL)





















06. AUDIO Mute On

Function

The external control equipment switches on AUDIO Mute of the plasma monitor.

Transmission Data

9FH 80H 60H 3EH 00H CKS

ACK

3FH 60H 80H 3EH 00H CKS

07. AUDIO Mute Off

Function

The external control equipment switches off AUDIO Mute of the plasma monitor.

Transmission Data

9FH 80H 60H 3FH 00H CKS

ACK

3FH 60H 80H 3FH 00H CKS

08. OSM Select

Function

The external control equipment switches on or off the on-screen display (OSM) of the plasma monitor.

Transmission Data

DFH

80H

60H

58H

01H

DATA00

CKS

DATA00

01H : Screen display On







02H : Screen display Off





ACK



























7FH

60H

80H

58H

01H

DATA00

CKS

DATA00

01H : Screen display On







02H : Screen display Off





Screen display On/Off is equivalent to the screen display On/Off

function of the convenient function settings.

*Operation is as described in the table below.

09. COLOR Gain Data

Function

The external control equipment changes the COLOR gain data of the plasma monitor.

Transmission Data





DFH 80H 60H 7FH 03H

DATA00 DATA01 DATA02 CKS

DATA00:

USER PICTURE Gain Flag

01H

DATA01:

COLOR Gain Flag

04H

DATA02:

COLOR Gain

E0H: -32

* COLOR Gain is from -22 (EAH) to





+22 (16H) only during video.

FFH: -01





00H: 0





01H: +01













20H: +32

ACK











7FH 60H 80H 7FH 02H

DATA00 DATA01 CKS

DATA00: USER PICTURE Gain Flag

01H

DATA01: COLOR Gain Flag

04H

10.TINT Gain Data

Function

The external control equipment changes the TINT gain data of the plasma monitor.

Transmission Data





DFH 80H 60H 7FH 03H

DATA00 DATA01 DATA02 CKS

DATA00:

USER PICTURE Gain Flag

01H

DATA01:

TINT Gain Flag

05H

DATA02:

TINT Gain

E0H: -32

* TINT Gain is from -22 (EAH) to





+22 (16H) only during video.

FFH: -01





00H: 0





01H: +01













20H: +32

ACK











7FH 60H 80H 7FH 02H

DATA00 DATA01 CKS

DATA00:

USER PICTURE Gain Flag

01H

DATA01:

TINT Gain Flag

05H





On-Screen Display (OSD)



Operation









Display of items and adjustments on the menu

Volume display, input display, and screen size display













When screen display is ON

When screen display is OFF

When screen display is ON

When screen display is OFF











Remote control operation

Yes

Yes

Yes

No











Personal computer control operation

No

No

Yes

No











42

11. SHARPNESS Gain Data

Function

The external control equipment changes the SHARPNESS gain data of the plasma monitor.

Transmission Data





DFH 80H 60H 7FH 03H

DATA00 DATA01 DATA02 CKS

DATA00:

USER PICTURE Gain Flag

01H

DATA01:

SHARPNESS Gain Flag

06H

DATA02:

SHARPNESS Gain

F0H: -16













FFH: -01





00H: 0





01H: +01













10H:+16

ACK













7FH 60H 80H 7FH 02H

DATA00 DATA01 CKS

DATA00:

USER PICTURE Gain Flag

01H

DATA01:

SHARPNESS Gain Flag

06H

ACK





7FH 60H 80H 7FH 02H

DATA00 DATA01 CKS

DATA00:

USER PICTURE Gain Flag

01H

DATA01:

BRIGHT Gain Flag

08H

14. Input MODE Request

Function

The display returns the current input information by the external control equipment’ s request.

Transmission Data

1FH

80H

60H

41H

00H

CKS



ACK



























7FH

60H

80H

41H

01H

DATA00

CKS

DATA00:

Input Select











01H: Video1





02H: Video2





03H: Video3





04H: HD (HD1 or DTV or DTV1)



05H: RGB1/PC1



06H: RGB2/PC2





0AH:DVD (DVD1)



0CH:HD2 (DTV2)



0DH:DVD2





0EH:RGB3/PC3



12. CONTRAST Gain Data

Function

The external control equipment changes the CONTRAST gain data of the plasma monitor.

Transmission Data





DFH 80H 60H 7FH 03H

DATA00 DATA01 DATA02 CKS

DATA00:

USER PICTURE Gain Flag

01H

DATA01:

CONTRAST Gain Flag

07H

DATA02:

CONTRAST Gain

CCH: -52













FFH: -01





00H: 0





01H: +01













14H: +20

ACK













7FH 60H 80H 7FH 02H

DATA00 DATA01 CKS

DATA00:

USER PICTURE Gain Flag

01H

DATA01:

CONTRAST Gain Flag

07H

13. BRIGHT Gain Data

Function

The external control equipment changes the BRIGHT gain data of the plasma monitor.

Transmission Data







DFH 80H 60H 7FH 03H

DATA00 DATA01 DATA02 CKS



DATA00:

USER PICTURE Gain Flag

01H



DATA01:

BRIGHT Gain Flag

08H



DATA02:

BRIGHT Gain

E0H: -32

















FFH: -01







00H: 0







01H: +01









43













20H: +32

15. RESET

Function

The external control equipment resets the user adjustment of the plasma monitor.

Transmission Data

1FH 80H 60H 54H 00H CKS

ACK

3FH 60H 80H 54H 00H CKS

16. COLOR TEMP SELECT

Function

The external control equipment changes the COLOR TEMP of the plasma monitor.

Transmission Data

DFH 80H 60H 00H 01H DATA00

CKS

DATA00

00H: 1 01H: 2 02H: 3 03H: PRO

ACK

7FH 60H 80H 00H 01H DATA00

CKS

DATA00:

00H: 1 01H: 2 02H: 3 03H: PRO

NOTE: Set so that at the selection of 1, 2, or 3 of COLOR TEMP change of the following R/G/B GAIN data cannot be accepted. (This must be operated in the same way as OSD menu.)

17. RED Gain Data

Function

The external control equipment changes the RED Gain Data of the plasma monitor.

Transmission Data





DFH 80H 60H 7FH 04H

DATA00 to DATA03 CKS

DATA00:

USER PICTURE Gain Flag

01H

DATA01:

RED Gain Flag

01H

DATA02:

RED Gain 1 (Bias)

D8H: -40













FFH: -1





00H: 0













IEH: +30

DATA03:

RED Gain 2 (Drive)

D8H: -40













FFH: -1





00H: 0













IEH: +30

ACK













7FH 60H 80H 7FH 02H

DATA00 DATA01 CKS

DATA00:

USER PICTURE Gain Flag

01H

DATA01:

RED Gain Flag

01H

18. GREEN Gain Data

Function

The external control equipment changes the GREEN Gain Data of the plasma monitor.

Transmission Data

DFH 80H 60H 7FH 04H

DATA00 to DATA03 CKS

DATA00:

USER PICTURE Gain Flag

01H

DATA01:

GREEN Gain Flag

02H

DATA02:

GREEN Gain 1 (Bias)

D8H: -40













FFH: -1





00H: 0













IEH: +30

DATA03:

GREEN Gain2 (Drive)

D8H: -40













FFH: -1





00H: 0













IEH: +30

ACK













7FH 60H 80H 7FH 02H

DATA00 DATA01 CKS

DATA00:

USER PICTURE Gain Flag

01H

DATA01:

GREEN Gain Flag

02H

19. BLUE Gain Data

Function

The external control equipment changes the BLUE Gain Data of the plasma monitor.

Transmission Data

DFH 80H 60H 7FH 04H

DATA00 to DATA03 CKS

DATA00:

USER PICTURE Gain Flag

01H

DATA01:

BLUE Gain Flag

03H

DATA02:

BLUE Gain1(Bias)

D8H:-40













FFH:-1





00H: 0













IEH: +30

DATA03:

BLUE Gain2(Drive)

D8H: -40













FFH:-1





00H: 0













IEH:+30

ACK













7FH 60H 80H 7FH 02H

DATA00 DATA01 CKS

DATA00:

USER PICTURE Gain Flag

01H

DATA01:

BLUE Gain Flag

03H

44

20. VIDEO ADJ Request

Function

The display returns the video adjustments information by the external control equipment’s request.

Transmission Data

1FH

80H 60H 45H 00H

CKS

ACK













7FH 60H 80H 45H 0CH

DATA00 to DATA0B CKS

DATA00:

RED Gain(Bias)

D8H: -40













FFH: -1





00H: 0













IEH: +30

DATA01:

GREEN Gain(Bias)

D8H: -40













FFH: -1





00H: 0













IEH: +30

DATA02:

BLUE Gain(Bias)

D8H: -40













FFH: -1





00H: 0













IEH: +30

DATA03:

COLOR Gain

E0H: -32







* COLOR Gain is from -22 (EAH) to

FFH: -01

+22 (16H) only during video.

00H: 0





01H: +01













20H: +32

DATA04:

TINT Gain

E0H: -32







* TINT Gain is from -22 (EAH) to

FFH: -01

+22 (16H) only during video.

00H: 0





01H: +01













20H: +32

DATA05:

SHARPNESS Gain

F0H: -16













FFH: -01





00H: 0





01H: +01













10H: +16

DATA06:

CONTRAST Gain

CCH: -52













FFH: -01





00H: 0





01H: +01













14H: +20

DATA07:

BRIGHT Gain

E0H: -32













FFH: -01





00H: 0





01H: +01













20H: +32

DATA08:

RED Gain(Drive)

D8H: -40













FFH: -1





00H: 0













IEH: +30

DATA09:

GREEN Gain(Drive)

D8H: -40













FFH: -1





00H: 0













IEH: +30

DATA0A:

BLUE Gain(Drive)

D8H: -40













FFH: -1





00H: 0













IEH: +30

DATA0B:

COLOR TEMP

00H: 1





01H: 2





02H: 3





03H: PRO

45

21. Audio Select Set

Function

The external control equipment sets combinations of audio and video inputs for the plasma monitor.

Transmission Data

DFH 80H 60H 70H 02H DATA00 DATA01 CKS

DATA00:

AUDIO INPUT



01H:

AUDIO 1



02H:

AUDIO 2



03H:

AUDIO 3

DATA01:

VISUAL INPUT



01H:

Video 1



02H:

Video 2



03H:

Video 3



05H:

HD (HD1 or DTV or DTV1)



06H:

HD2 (DTV2)



07H:

RGB 1/ PC 1



08H:

RGB 2/ PC 2



0CH:

RGB 3/ PC 3

ACK

The plasma monitor returns the following ACK when the input is switched.

3FH 60H 80H 70H 00H CKS

* The plasma monitor returns “Not Available” when selecting the video input same as the one set at one of the AUDIO 01 to 3.

Example:

The plasma monitor returns “Not Available” when selecting the VIDEO1 for AUDIO2 or VIDEO3 after VIDEO1 has been set to AUDIO1.

22. Audio Select Request

Function

The external control equipment inquires the current combinations of audio and video inputs for the plasma monitor.

Transmission Data

1FH 80H 60H 6FH 00H CKS

ACK

The plasma monitor returns the following ACK:

7FH 60H 80H 6FH 03H DATA00 DATA01 DATA02 CKS

DATA00:

AUDIO 1



DATA01:

AUDIO 2



DATA02:

AUDIO 3





VISUAL INPUT DATA



01H:

Video 1



02H:

Video 2



03H:

Video 3



05H:

HD (HD1 or DTV or DTV 1)



06H:

HD2 (DTV2)



07H:

RGB 1 /PC 1



08H:

RGB 2 /PC 2



0CH:

RGB 3 /PC 3

23. LONG LIFE Set

Function

The external control equipment sets the PLE, ORBITER, and INVERSE (inverse of image brightness) of the plasma monitor.

Transmission Data

DFH 80H

60H 6BH 03H DATA00 DATA01 DATA02 CKS

DATA00 : PLE



01H:

AUTO

02H:

LOCK

DATA01 : INVERSE

01H:

ON

02H:

OFF

03H:

WHITE

DATA02 : ORBITER (PICTURE SHIFT)

01H:

ON

02H:

OFF

ACK

The plasma monitor returns the following ACK when setting the PLE, ORBITER, and INVERSE (inverse of image brightness):

3FH 60H 80H 6BH 00H CKS

24. Failure Mode Request

Function

The external control equipment inquires the detection of failures of the plasma monitor.

Transmission Data

1FH 80H 60H 3FH 00H CKS

ACK

The plasma monitor returns the following ACK:

7FH 60H 80H 3FH 02H DATA00 DATA01 CKS

DATA00: FAILURE MODE 1

Bit 0 : PDP MODULE

0:Abnormal

1:Normal

Bit 1 : 1: fixed (backup)

Bit 2 : TEMPERATURE

0:Abnormal

1:Normal Bit 3 : FAN

0:Abnormal

1:Normal

Bit 4 : 1: fixed (backup) Bit 5 : 1: fixed (backup) Bit 6 : 1: fixed (backup) Bit 7 : 1: fixed (backup)

DATA00:FILURE MODE 2

Bit 0–7 : 1: fixed (backup)

46

Table of Signals Supported

Supported resolution

• When the screen mode is NORMAL, each signal is converted to a 1024 dots 768 lines signal. (Except for *2, 3, 4)

When the screen mode is TRUE, the picture is displayed in the original resolution.

When the screen mode is FULL, each signal is converted to a 1364 dots 768 lines signal. (Except for *3)

Computer input signals supported by this system



Model

Dots lines

Vertical

Horizontal

Sync Polarity

Presence

Screen mode



RGB



frequency

frequency

Horizontal

Vertical

Horizontal

Vertical

NORMAL

TRUE

FULL

select*5







Signal Type



(Hz)

(kHz)









(4:3)



(16:9)









640 400

70.1

31.5

NEG

NEG

YES

YES

YES*2

YES

YES



– –





640 480

59.9

31.5

NEG

NEG

YES

YES

YES

YES

YES



STILL







72.8

37.9

NEG

NEG

YES

YES

YES

YES

YES



– –







75.0

37.5

NEG

NEG

YES

YES

YES

YES

YES



STILL







85.0

43.3

NEG

NEG

YES

YES

YES

YES

YES



– –







100.4

51.1

NEG

NEG

YES

YES

YES

YES

YES



– –







120.4

61.3

NEG

NEG

YES

YES

YES

YES

YES



– –





848 480

60.0

31.0

POS

POS

YES

YES

– –

YES

YES



WIDE2





852 480*1

60.0

31.7

NEG

NEG

YES

YES

– –

YES

YES



WIDE1





800 600

56.3

35.2

POS

POS

YES

YES

YES

YES

YES



STILL







60.3

37.9

POS

POS

YES

YES

YES

YES

YES



STILL







72.2

48.1

POS

POS

YES

YES

YES

YES

YES



– –







75.0

46.9

POS

POS

YES

YES

YES

YES

YES



– –







85.1

53.7

POS

POS

YES

YES

YES

YES

YES



– –

*IBM PC/AT



99.8

63.0

POS

POS

YES

YES

YES

YES

YES



– –

compatible



120.0

75.7

POS

POS

YES

YES

YES

YES

YES



– –

computers

1024 768

60.0

48.4

NEG

NEG

YES

YES

YES*3

– –

YES



STILL







70.1

56.5

NEG

NEG

YES

YES

YES*3

– –

YES



– –







75.0

60.0

POS

POS

YES

YES

YES*3

– –

YES



STILL







85.0

68.7

POS

POS

YES

YES

YES*3

– –

YES



– –







100.6

80.5

NEG

NEG

YES

YES

YES*3

– –

YES



– –





1152 864

75.0

67.5

POS

POS

YES

YES

YES

– –

YES



STILL





1280 768

56.2

45.1

POS

POS

YES

YES

– –

– –

YES



WIDE1





1360 765

60.0

47.7

POS

POS

YES

YES

– –

– –

YES*3



WIDE1





1376 768

59.9

48.3

NEG

POS

YES

YES

– –

– –

YES



WIDE2





1280 1024

60.0

64.0

POS

POS

YES

YES

YES*4

– –

YES



STILL







75.0

80.0

POS

POS

YES

YES

YES*4

– –

YES



– –







85.0

91.1

POS

POS

YES

YES

YES*4

– –

YES



– –





1600 1200

60.0

75.0

POS

POS

YES

YES

YES

– –

YES



– –







65.0

81.3

POS

POS

YES

YES

YES

– –

YES



– –







70.0

87.5

POS

POS

YES

YES

YES

– –

YES



– –







75.0

93.8

POS

POS

YES

YES

YES

– –

YES



– –

*Apple

640 480

66.7

35.0

Sync on G

Sync on G

– –

– –

YES

YES

YES



– –

Macintosh*6

832 624

74.6

49.7

Sync on G

Sync on G

– –

– –

YES

YES

YES



– –





1024 768

74.9

60.2

Sync on G

Sync on G

– –

– –

YES*3

– –

YES



– –





1152 870

75.1

68.7

Sync on G

Sync on G

– –

– –

YES

– –

YES



– –

Work Station

1280 1024

60.0

64.6

NEG

NEG

YES

YES

YES*4

– –

YES



– –

(EWS4800)



71.2

75.1

NEG

NEG

YES

YES

YES*4

– –

YES



– –

Work Station

1280 1024

72.0

78.1

– –

– –

– –

– –

YES*4

– –

YES



– –

(HP)











– –

– –











Work Station

1152 900

66.0

61.8

C Sync

C Sync

– –

– –

YES

– –

YES



– –

(SUN)



76.0

71.7

C Sync

C Sync

– –

– –

YES

– –

YES



– –





1280 1024

76.1

81.1

C Sync

C Sync

– –

– –

YES*4

– –

YES



– –

Work Station

1024 768

60.0

49.7

– –

– –

– –

– –

YES*3

– –

YES



– –

(SGI)

1280 1024

60.0

63.9

– –

– –

– –

– –

YES*4

– –

YES



– –

IDC-3000G



























PAL625P

768 576

50.0

31.4

NEG

NEG

YES

YES

YES*7

– –

YES*7



– –



NTSC525P

640 480

59.9

31.5

NEG

NEG

YES

YES

YES*7

– –

YES*7



MOTION

47

*1 Only when using a graphic accelerator board that is capable of displaying 852 480. *2 This signal is converted to a 1228 dots 768 lines signal.

*3 The picture is displayed in the original resolution.

*4 The aspect ratio is 5:4. This signal is converted to a 960 dot 768 line signal.

*5 Normally the RGB select mode suite for the input signals is set automatically. If the picture is not displayed properly, set the RGB mode prepared for the input signals listed in the table above.

*6 To connect the monitor to Macintosh computer, use the supplied monitor adapter (D-Sub 15-pin) to your computer's video port. If your computer has a mini D-Sub 15-pin connector, you may have to use the supplied RGB cable.

*7 Other screen modes (ZOOM and STADIUM) are available as well.

NOTE:

While the input signals comply with the resolution listed in the table above, you may have to adjust the position and size of the picture or the fine picture because of errors in synchronization of your computer.

When a 1280 dot 1024 line signal or 1600 dot 1200 line signal is input to the monitor, the picture will be compressed.

This monitor has a resolution of 1365 dot 768 line. It is recommended that the input signal should be XGA, wide XGA, or equivalent.

With digital input some signals are not accepted.

The sync may be disturbed when a nonstandard signal other than the aforementioned is input.

If you are connecting a composite sync signal, use the HD terminal.

*“IBM PC/AT” and “VGA” are registered trademarks of IBM, Inc. of the United States.

*“Apple Macintosh” is a registered trademark of Apple Computer, Inc. of the United States.

48

Troubleshooting

If the picture quality is poor or there is some other problem, check the adjustments, operations, etc., before requesting service.

Symptom

Checks

Remedy



Picture is disturbed.

• Is a connected component set directly in

• Leave some space between the display and



Sound is noisy.

front or at the side of the display?

the connected components.



Remote control unit operates







erroneously.















The remote control unit does not work.

• Are the remote control unit’s batteries

• Replace both batteries with new ones.



worn out?













Monitor’s power does not turn on

• Is the monitor’s power cord plugged into

• Plug the monitor’s power cord into a power

when the remote control unit’s power

a power outlet?

outlet.



button is pressed.







• Are all the monitor’s indicators off?

• Press the power button on the monitor to







turn on the power.













• Are the remote control unit’s batteries

• Replace both batteries with new ones.





worn out?













Monitor does not operate when the

• Is the remote control unit pointed at the

• Point the remote control unit at the

remote control unit’s buttons are

monitor, or is there an obstacle between

monitor’s remote control sensor when



pressed.

the remote control unit and the monitor?

pressing buttons, or remove the obstacle.













• Is direct sunlight or strong artificial light

• Eliminate the light by closing curtains,





shining on the monitor’s remote control

pointing the light in a different direction, etc.





sensor?















• Are the remote control unit’s batteries

• Replace both batteries with new ones.





worn out?















• The remote cable is plugged into the

• Unplung the remote cable from the monitor.





REMOTE IN terminal (Wired).















• The front panel buttons of the main unit

• The front panel buttons do not function





do not function.

during Control Lock.











No sound or picture is produced.

• Is the monitor’s power cord plugged into

• Plug the monitor’s power cord into a power



a power outlet?

outlet.











Picture appears but no sound is

• Is the volume set at the minimum?

• Increase the volume.

produced.







• Is the mute mode set?

• Press the remote control unit’s MUTE button.





• Are the speakers properly connected?

• Connect the speakers properly.













• Is AUDIO INPUT set correctly?

• Set AUDIO INPUT on the OPTION menu







correctly.











Poor picture with VIDEO signal input.

• Improper control setting.

• Adjust picture control as needed.



Local interference.

Try another location for the monitor.





Cable interconnections.

Be sure all connections are secure.





Input impedance is not correct level.



















Poor picture with RGB signal input.

• Improper control setting.

• Adjust picture controls as needed.





Incorrect 15 PIN connector pin

Check pin assignments and connections.





connections.













Tint is poor or colors are weak.

• Are the tint and colors properly adjusted?

• Adjust the tint and color (under “PICTURE”)

.









Nothing appears on screen.

• Is the computer’s power turned on?

• Turn on the computer’s power.











• Is a source connected?

• Connect source to the monitor.













• Is the power management function in the

• Operate the computer (move the mouse,





standby or off mode?

etc.).











Part of picture is cut off or picture is

• Is the position adjustment appropriate?

• Adjust the “SCREEN” properly.

not centered.















Image is too large or too small.

• Is the screen size adjustment

• Press the “WIDE” button on the remote



appropriate?

control unit and adjust properly.











Picture is unstable.

• Is the computer’s resolution setting

• Set to the proper resolution.





appropriate?













POWER/STANDBY indicator is

• Horizontal and / or vertical sync signal is

• Check the input signal.

lighted in orange or red.

not present when the Intelligent Power







Manager control is on.













POWER/STANDBY indicator is

• The temperature inside the main unit has

• Promptly switch off the power of the main

blinking in red.

become too high and has activated the

unit and wait until the internal temperature





protector.

drops. See*1.











POWER/STANDBY indicator is

— — — — — —

• Prompty switch off the power of the main

blinking in green.

unit. See *2.















*1 Overheat protector

If the monitor becomes too hot, the overheat protector will be activated and the monitor will be turned off. If this happens., turn off the power to the monitor and unplug the power cord. If the room where the monitor is installed is particularly hot, move the monitor to a cooler location and wait for the monitor to cool for 60 minutes. If the problem persists, contact your Marantz dealer for service.

*2 In the following case, power off the monitor immediately and contact your dealer.

The monitor turns off 5 seconds after powering on and then the POWER/STANDBY indicator blinks. It indicates that the power supply circuit or, one or

more fans have been damaged.Specifications

49

Specifications

Product Name

SLIM SERIES PLASMA MONITOR

Product Code

PD5010D

Screen Size

43.5"(H) 24.5"(V) inches





1106(H) 622(V) mm





diagonal 50"







Aspect Ratio

16 : 9







Resolution

1365(H) 768(V) pixels

Pixel Pitch

0.032"(H) 0.032"(V) inches





0.81(H) 0.81(V) mm







Color Reproduction

256 levels, 16,770,000 colors

Signals





Synchronization Range

Horizontal : 15.5 to 93.8 kHz





(automatic : step scan)





Vertical : 50.0 to 120 Hz





(automatic : step scan)









Input Signals

RGB, NTSC (3.58/4.43), PAL (B,G,M,N),





PAL60, SECAM, HD*1 , DVD*1 , DTV*1





Input Terminals











RGB





Visual 1 (Analog)

mini D-sub 15-pin 1



Visual 2 (Analog)

BNC (R, G, B, H/CS, V) 1



Visual 3 (Digital)

DVI-I 29-pin 1*2





(Not compatible with analog input)









Video





Visual 1

RCA-pin 1



Visual 2

BNC 1



Visual 3

S2-Video: DIN 4-pin 1



DVD/HD/DTV





Visual

RCA-pin (Y, PB[CB], PR[CR])



Audio

Stereo RCA 3



External Control

D-sub 9-pin 1(RS-232C)

Sound output

7W+7W at 6 ohm

Power Supply

AC120V 50/60Hz





Current Rating

5.9A (maximum)

Power Consumption

595W (typical)

Dimensions

48.8 (W) 30.2 (H) 4.2 (D) inches





1240 (W) 766 (H) 107(D) mm





Weight

101.3 lbs / 46.0 kg

Environmental Considerations





Operating Temperature

0°C to 35°C / 32°F to 95°F



Humidity

20 to 80%



Storage Temperature

-10°C to 50°C / 14°F to 122°F



Humidity

10 to 90%

Front Panel User Controls

Power on/off, Input source select,





Volume up/down/ OSM control





Remote Control Functions

Power on/off, Input source select, OSM





control,Volume up/down, Cursor (UP,





DOWN,LEFT, RIGHT), Pointer, Zoom up/





down, Off timer, Wireless/ Wired remote





control





OSM Functions

Picture (Contrast / Brightness / Sharpness/





Color / Tint / Picture mode / Color





temperature/ Noise reductions), Sound (Bass





/ Treble/ Balance),Screen (V-Position / H-





Position/ V-Height / H-Width /Auto Picture /





Fine picture/ Picture adjustment), Function





(OSM/ OSM adjustment/ Power





management/ Gray level/ Cinema mode/





RGB3 Adjustment, Long Life (PLE, Orbiter,





Inverse)/ Reset)/Option (Audio input/ BNC





select/ RGBselect/ HD select/ Picture Size),





Information (Frequency / Language / Color





system)







48.8" (1240)

1.89"

4.21"

(48)

(107)

43.5" (1106)





24.5" (622)

30.2" (766)





4.2"





(107)





Units are in inch





(mm)

The features and specifications may be subject to change without notice.

*1HD/DVD/DTV input signals supported on this system

480P (60 Hz) 480I (60 Hz)

525P (60 Hz) 525I (60 Hz)

625P (50 Hz) 625I (50 Hz)

720P (60 Hz) 1035I (60 Hz)

1080I (60 Hz)

*2 It doesn’t cope with copy protection.

Other Features

Power management, plug and play (DDC1,



DDC2b, RGB3: DDC2b only), Control



lock, MULTI SCREEN operations





Accessories

Remote control unit with two AAA



batteries. Power cord, User’s Manual,



Safety metal fittings, Screws for safety



metal fittings,



Ferrite cores, Bands





Regulations

UL Approved (UL 1950/ CSA 950)



DOC Canada requirements



Meets FCC class A requirements

50

COUNTRY

COMPANY

ADDRESS



ALGERIE

Azur 2000

8, Lotissement Ben Hatadi, Alger, Algerie



ARMENIA

NGYIG Ltd.

47 A/75 St. Lalaiants, 375000 Yerevan, Armenia



AUSTRALIA

Jamo Australia Pty. Ltd.,

24 Lionel Road, Mt. Waverley, VIC 3149, Australia



AUSTRIA

Huber & Prohaska GmbH

Taborstraß e 95 / Ladestraß e 1, Gebäude Hangartner, A-1200 Wien, Austria



BAHREIN

Ambassador Stores

P.O. Box 237,141, Government Avenue, Manama,Bahrein



BANGLADESH

Target

1078, Ramjoy Mohanja Lane Asadgonj, Chittagong 4000, Bangladesh



BELGIUM

Van der Heyden Audio N.V.

Brusselbaan 278, 9320 Erembodegem, Belgium



BULGARIA

Ariescommerce GmbH

Makedonia Blvd. 16, 1606 Sofia, Bulgaria



CANADA

Lenbrook Industries Limited

633 Granite Court, Pickering, Ontario



CHINA

Guang Chang Audio International Co., Ltd. No.38 Yushan Road, ShiQiao, Pan Yu, Guang Dong, China



CYPRUS

Empire Hifi systems Ltd.

P.O. Box 5604, Nicosia, Cyprus



CZECH REPUBLIC

Audio International

Sokolska 41, 67902 Rajecko, OKR,Blansko, Czech Republic



DENMARK

Audio Nord

Dali Allé 1, 9610 Noerager, Denmark



DUBAI

V.V.& SONS

P.O. Box 105, Dubai, U.A.E.



EGYPT

Solimco

9, El Attibaa St. Doki, Cairo, Egypt



ESTONIA

HiFi Club Estonia

Ehte 4, 90503 Haapsalu, Estonia



F.Y.R.O.M.

T.P. KODI

ul.Cedomir Kantargiev 21a, Skopje, Former Yugoslavian Republic of Macedonija



FINLAND

Audio Nord

Uudenmaankatu 4-6, Helsinki SF-00120, Finland



FRANCE

Marantz France

A division of Marantz Europe B.V., P.O. Box 301, 92 156 Suresnes Cedex, France



GERMANY

Marantz Deutschland

Hakenbusch 3, 49078 Osnabrück, Germany



GREECE

Adamco S.A.

188, Hippocratous Street, 11471 Athens, Greece



HEADQUARTERS EUROPE:

Marantz Europe B.V.

Building SFF-2, P.O. Box 80002, 5600 JB Eindhoven, The Netherlands



HONG KONG

Marantz Asia Ltd.

Unit 1706, Metroplaza II, 223 Hing Fong Road, Kwai Fong, N.T., Kowloon, Hong Kong



HUNGARY

Infovox Ltd.

Terez Krt.31, 1067 Budapest, Hungary



ICELAND

ID Electronics Ltd.

Armula 38, 108 Reykjavik, Iceland



INDIA

NOVA Audio Private

8,Punam Co-op.Society 29/30 Road#5, Union Park MUMBAI 400052, India



IRAN

Home Co.

5th floor no 878 Philips Building Enghelab ave, P.O. 11365/7844 Tehran, Iran



IRELAND

Marantz Ireland

Clonskeagh, Dublin 14, Ireland



ISRAEL

Elmor Ltd.

52 Heh Beiyar Street, Kikar Hamedina, Tel Aviv, Israel



ITALY

Marantz Italy

Via Casati 23, 20052 Monza (Milano), Italy, Servizio Consumatori 1678-20026, Numero Verde



IVORY COAST

Hifivoir

B.P. 2428, Abidjan 01, Ivory Coast



JAPAN

Marantz Japan Inc.

35-1 Sagami Ohno 7-Chome, Sagamihara-shi, Kanagawa 228-8505, Japan



KOREA

Mk Enterprises Ltd.

121-210, 2F Shinhan Bldg., 247-17 Seokyo-dong, Mapo-ku, Seoul, Korea



KUWAIT

alAlamiah Electronics Intl.

P.O. Box 8196, Salmiah 22052, Kuwait



LATVIA

Ace Ltd.

61, LacPlesa Str., Riga LV 1011, Latvia



LEBANON

AZ Electronics S.A., 1,

P.O. Box 11 2833, Beirut, Lebanon



LITHUANIA

Accapella Ltd.

Ausros, Vartu G/5, Pasazo SKG., 2001 Vilnius, Lithuania



MALAYSIA

Wo Kee Hong Electronics Sdn. Bhd.

102 Jalan SS 21/35, Damansara Utama, 47400 Petaling Jaya, Selangordarul Ehsan, Malaysia



MALTA

Doneo Co Ltd.

78 The Strand, Sliema SLM07, Malta



MAURITIUS

SKR Electronics Ltd.

P.O. Box 685, Bell Village, Port Louis, Mauritius



MILITARY MARKET EUROPE

PASCO GmbH

PO BOX 1280, Sandhausen 69200, Germany



NETHERLANDS

Marantz Domestic Sales

A division of Marantz Europe B.V., Building SFF2, P.O. Box 80002, 5600 JB Eindhoven, The Netherlands

NEW ZEALAND

Wildash Audio Systems

14 Malvern Road, Mt. Albert, Auckland, New Zealand



NORWAY

Audio Nord

Sandkerveien 64, Oslo 0483, Norway



OMAN

Mustafa & Jawad Trading CO.

P.O. Box 1918, Ruwi, Oman



POLAND

Philips Polska Sp. z.o.o.

Al.Jerozolimskie 195b, 02 222 Warszawa, Poland



PORTUGAL

Corel2

Comércio de Electrónica Lda., Av. Luís Bívar, No 85 A, 1050 Lisboa, Portugal



PROFESSIONAL EUROPE

Marantz Professional Products
