Model PD4250D User Guide

Plasma Monitor

IMPORTANT SAFETY INSTRUCTIONS Read before operating equipment

1.Read these instructions.

2.Keep these instructions.

3.Heed all warnings.

4.Follow all instructions.

5.Do not use this apparatus near water.

6.Clean only with a dry cloth.

7.Do not block any of the ventilation openings. Install in accordance with the manufacturers instructions.

8.Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9.Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and third grounding prong.The wide blade or third prong are provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10.Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11.Only use attachments/accessories specified by the manufacturer.

12.Use only with a cart, stand, tripod, bracket,

or table specified by the manufacturer, or sold with the apparatus.When a cart is used, use caution when moving the cart/apparatus

combination to avoid injury from tip-over.

13.Unplug this apparatus during lightning storms or when unused for long periods of time.

14.Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15.This product may contain lead or mercury. Disposal of these materials may be regulated due to environmental considerations.

For disposal or recycling information, please contact your local authorities or the Electronic Industries Alliance: www.eiae.org.

16.Damage Requiring Service - The appliance should be serviced by qualified service personnel when:

A. The power supply cord or the plug has been damaged; or

B. Objects have fallen, or liquid has been spilled into the appliance; or

C. The appliance has been exposed to rain; or

D. The appliance does not appear to operate normally or exhibits a marked change in performance; or

E. The appliance has been dropped, or the enclosure damaged.

17.Tilt/Stability - All televisions must comply with recommended international global safety standards for tilt and stability properties of its cabinets design.

Do not compromise these design standards by applying excessive pull force to the front, or top, of the cabinet which could ultimately overturn the product.

Also, do not endanger yourself, or children, by placing electronic equipment/toys on the top of the cabinet. Such items could unsuspectingly fall from the top of the set and cause product damage and/or personal injury.

18.Wall Mounting - The appliance should be mounted to a wall only as recommended by the manufacturer.

19.Power Lines - An outdoor antenna should be located away from power lines.

20.Outdoor Antenna Grounding - If an outside antenna is connected to the receiver, be sure the antenna system is grounded so as to provide some protection against voltage surges and built up static charges.

Section 810 of the National Electric Code, ANSI/NFPA No. 701984, provides information with respect to proper grounding of the mats and supporting structure grounding of the lead-in wire to an antenna-discharge unit, size of grounding connectors, location of antennadischarge unit, connection to grounding electrodes and requirements for the grounding electrode.

21.Objects and Liquid Entry - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.

Apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on apparatus.

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

1

PRÉCAUTIONS IMPORTANTES DE SÉCURITÉ A lire avant de faire fonctionner l’appareil

1.Lire ces instructions.

2.Garder ces instructions.

3.Respecter tous les avertissements.

4.Suivre toutes les instructions.

5.Ne pas utiliser cet appareil près de l’eau.

6.Nettoyer seulement avec un chiffon sec.

7.Ne pas boucher les ouvertures d’aération. Installer selon les instructions du fabricant

8.Ne pas installer près d’une source de chaleur telle qu’un radiateur, une bouche de chauffage, une cuisinière ou d’autre matériel (y compris des amplificateurs) qui produit de la chaleur.

9.Ne pas contourner la sécurité fournie par la fiche polarisée ou la fiche de mise à la terre. Une fiche polarisée possède deux lames dont une plus large que l’autre. Une fiche de mise à la terre possède deux lames et une broche de mise à la terre. La lame large ou la broche est fournie pour votre sécurité. Lorsque la fiche fournie ne va pas dans la prise, demander à un électricien de remplacer la prise démodée.

10.Protéger le cordon d’alimentation en ne pas marchant dessous ni le coinçant, en particulier près des fiches, des prises et de l’endroit où le cordon rejoint de l’appareil.

11.N’utiliser que des accessoires préconisés par le fabricant.

12.Utiliser seulement avec un chariot, meuble,

trépied, support ou table spécifié par le fabricant ou vendu avec l’appareil. En utilisant un chariot, au moment de déplacer le chariot/

téléviseur, bien faire attention pour éviter des blessures dues au renversement éventuel.

13.Débrancher cet appareil pendant des orages ou lorsqu’il ne sera pas utilisé pendant longtemps.

14.Consulter un technicien agréé de service après vente pour toute réparation. Le service après vente est nécessaire lorsque l’appareil a été endommagé de quelque façon que ce soit, telle que lorsque le cordon d’alimentation ou la fiche est endommagé, du liquide renversé, un objet tombé dans l’appareil, l’exposition de l’appareil à la pluie ou l’humidité, lorsque l’appareil ne fonc-tionne pas normalement ou lorsqu’on a laissé tomber l’appareil.

15.Ce produit peut contenir un plomb ou du mercure. La mise à rebut de ces matières pourrait être réglementée pour des raisons de protection de l’environnement. Pour s’informer sur la mise à rebut ou le recyclage, veuillez se mettre en contact avec les autorités locales ou l’Electronic Industries Alliance: www.eiae.org.

16.Dommages qu’il faut faire réparer - Il faut faire réparer l’appareil par un technicien qualifié lorsque:

A. Le cordon d’alimentation en électricité ou la fiche a été endommagé; ou

B. On a laissé tomber des objets ou du liquide dans l’appareil;

C. On a exposé l’appareil a la pluie; ou

D. L’appareil ne paraît pas marcher normalement ou présente de grands changements d’opération; ou

E. On a laissé tomber l’appareil ou endommager le coffret.

17.Tous les téléviseurs doivent être conformes aux normes inter-nationales de sécurité préconisées pour les propriétés de sta-bilité et d’inclinaison dans la conception des meubles.

Ne pas compromettre ces normes de conception en tirant excessivement sur le devant ou le haut du meuble, ce qui risque éventuellement de renverser le produit.

De plus, ne pas se mettre en danger, ni mettre les enfants en danger en plaçant du matériel électronique ou des jouets sur le meuble. De tels articles pourraient tomber malencon-treusement du haut du téléviseur et endommager le produit et/ou blesser des gens.

18.Montage au mur ou au plafond - Il faut monter l’appareil

à un mur ou plafond uniquement en suivant les recommandations du fabricant.

19.Lignes de transmission - Il faut situer une antenne extérieure à l’écart des lignes de transmission d’électricité.

20.Mise à terre de l’antenne extérieure - Si une antenne extérieure est reliée au récepteur, assurez-vous que le système d’antenne est bien mis à la terre pour protéger contre les sauts de tension et l’accumulation des charges d’électricité statique.

La section 810 du National Electric Code, ANSI/NFPA No. 70-1984, fournit des renseignements sur la mise à la terre du mât et de sa structure de soutient, du fil d’entrée à un appareil de décharge/antenne, sur la grosseur des

conducteurs de mise à terre, sur l’emplacement d’un appareil de décharge/antenne, sur la mise à la terre vers l e s é l e c t r o d e s d e t e r r e , a i n s i q u e s u r l e s recommandations sur les électrodes de terre.

21.Entrée des objets et des liquides - Evitez de laisser tomber des objets ou des liquides par les ouverture de l’enclos.

Ne pas exposer l’appareil aux projections ou aux écoulement d’eau et ne jamais poser un récipient contenant du liquide, un vase par exemple, sur l’appareil.

AVERTISSMENT

Pour réduire les risques d’incendie ou d’électrocution, ne jamais exposer cet appareil à la pluie ou à l’humidité.

2

Limited Warranty for the Marantz SLIM SERIES PLASMA MONITOR

Who is covered?

You must have proof of purchase to receive warranty service.

What is covered?

1.Warranty coverage begins the day you purchase your Plasma Television, and continues for a period of one year.

2.Marantz America will provide in-home warranty repair.

3.Marantz America will incur all labor charges for repairs during the warranty period.

4.Marantz America will incur all freight charges for warranty repairs, both to Marantz and the return to the customer.

We suggest keeping all packing materials for any shipping that might be required.

5.All parts, including repaired and replaced parts are covered only for the original warranty period.

When the warranty on the product expires, the warranty on all replaced and repaired parts also expires.

What is excluded?

Your warranty does not cover:

1.Labor charges for installation or setup of the product, cleaning, adjustment of customer controls on the product, and installation or repair of antenna systems outside of the product.

2.Improper installation, removal or maintenance, or failure to follow instructions supplied with the product.

3.Reception problems caused by signal conditions from cable or antenna systems outside the product.

4.Repair, attempted repair or modification performed by anyone other than an authorized Marantz America service center.

5.Any product, on which the serial number has been defaced, modified or removed.

6.Warranty is void if purchase was made from anyone other than an authorized Marantz dealer.

7.Warranty is void if purchased from outside The United States of America.

8.Warranty only valid in the United States of America.

9.Damage due to lightning or power line surges, spikes and brown outs, damages that occur during shipping or transit, or damage which is attributed to acts of God.

10.Incidental or consequential damages resulting from the product. (Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary from state to state.)

11.Commercial or institutional use.

12.Any other cause which does not relate to product defect.

13.Burns or residual images upon the phosphor of the tubes.

NOTE: Pixel defect

Plasma is one of the most advanced technologies for consumer products. The panel is made by high precision technology, however some pixel defects may be found on the Plasma display panel. We are trying our best to control the quality in order to reduce the number of defective pixels. It is almost impossible to have zero pixel defects, even using the most advanced technology. This is not a problem only for Marantz, but all Plasma manufacturers. Therefore we have to note that the warranty does not cover the Plasma display panel for pixel defects. We appreciate your understanding.

Before requesting service:

Please check your User Guide before requesting service. Adjustments of the controls and hook up guidelines discussed there may save you a service call.

To get warranty service:

Repair must be performed by an authorized service center. If you do not know of a Marantz authorized Plasma Television service center, contact your dealer. If your dealer is an authorized service center, they will arrange for repair.

If your dealer is not a Marantz authorized Plasma Television service center, they will direct you to an authorized service center.

Optimum performance:

For optimum performance and picture quality, the Plasma monitor is only guaranteed up to 6,230 feet above see level.

3

Important Information

Warning

Not for use in a computer room as defined in the Standard for the Protection of Electronic Computer/ Data Processing Equipment ANSI/NFPA 75.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio / TV technician for help.

NOTE:

When you connect a computer to this monitor, use an RGB cable including the ferrite core on both ends of the cable. And regarding HDMI and power cable, attach the supplied ferrite cores. If you do not do this, this monitor will not conform to mandatory FCC standards.

Attaching the ferrite cores:

Set the ferrite cores on both ends of the HDMI cable (not supplied), and both ends of the power cable (supplied).

Close the lid tightly until the clamps click.

Use the band to fasten the ferrite core (supplied) to the HDMI cable.

HDMI cable (not supplied)

















band

band

Connector









































































core (small)

core

(small)

Power cable (supplied)

core (large)































































core (large)

Caution

This model is for use with the following optional accessories. Use with other optional accessories is capable of resulting in instability causing possible injury.

Manufacturer’s name: Marantz Japan, Inc.

Stand: AS4250 for PD4230V, PD4250D and PD5050D AS6150 for PD6150D

Please contact Marantz America, Inc. for approved optional accessories.

4

Recommandations importantes

Avertissement

Ne pas utiliser dans une salle d’ordinateurs telle que définie dans la Norme pour la protection des ordinateurs électroniques/appareils de traitement des données ANSI/ NFPA75.

DOC avis de conformation

Cet appareil numérigue de la Classe B respecte toutes les exigences du Réglement sur le Matériel Brouilleur du Canada.

REMARQUE:

Pour raccorder un ordinateur à ce moniteur, procéder à l’aide d’un câble RGB à âme de ferrite aux deux extrémités. Sur les câbles HDMI et les câbles d’alimentation électrique, fixer les âmes de ferrite fournies aux extrémités. Si vous ne le faîtes, le moniteur ne sera pas en conformité avec les exigences des standards FCC.

Fixation des noyaux en ferrite.

Monter les tores en ferrite aux deux extrêmités du câble HDMI (non fourni) et aux deux extrêmités du câble d’alimentation électrique (fourni).

Fermez doucement le couvercle jusqu’à ce que les crans se clipsent.

Fixer le tore en ferrite (fourni) au câble HDMI à l’aide d’un collier.

Câble HDMI (non fourni)





Connecteur





Collier

Collier















































































































































noyau (petit)

noyau (petit)

Câble d'alimentation

noyau (grande)

électrique (fourni)





















































































noyau



(grande)

























Attention

Cet modèle est fait pour être utilisé avec les accessoires optionnels suivants. Toute utilisation avec d’autres accessoires optionnels peut entraîner une instabilité pouvant causer des blessures.

Nom du fabricant: Marantz Japan, Inc.

Support: AS4250 para PD4230U, PD4250D, y PD6150D AS6150 para PD6150D

Veuillez contacter Marantz America, Inc. pour connaître les accessoires optionnels approuvés.

5

Important Information

Precautions

Please read this User Guide carefully before using your plasma monitor and keep the User Guide handy for future reference.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol warns the user that uninsulated voltage within the unit may have sufficient magnitude to cause electric shock. Therefore, it is dangerous to make any kind of contact with any part inside of this unit.

This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been included. Therefore, it should be read carefully in order to avoid any problems.

WARNING

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO DO NOT USE THIS UNIT’S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS, UNLESS THE PRONGS CAN BE FULLY INSERTED. REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH-VOLTAGE COMPONENTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Warnings and Safety Precaution

T h i s p l a s m a m o n i t o r i s d e s i g n e d a n d manufactured to provide long, trouble-free service. No maintenance other than cleaning is required. Please see the section “Plasma monitor cleaning procedure” on the next page.

The plasma display panel consists of fine picture elements (cells) with more than 99.99 percent active cells. There may be some cells that do not produce light or remain lit.

For operating safety and to avoid damage to the unit, read carefully and observe the following instructions. To avoid shock and fire hazards:

1.Provide adequate space for ventilation to avoid internal heat build-up. Do not cover rear vents or install the unit in a closed cabinet or shelves.

If you install the unit in an enclosure, make sure there is adequate space at the top of the unit to allow hot air to rise and escape. If the monitor becomes too hot, the overheat protector will be activated and the monitor will be turned off. If this happens, turn off the power to the monitor and unplug the power cord. If the room where the monitor is installed is particularly hot, move the monitor to a cooler location, and wait for 60 minutes to cool the monitor. If the problem persists, contact your dealer for service.

2.Do not use this unit’s polarized plug with extension cords or outlets unless the prongs can be completely inserted.

3.Do not expose the unit to water or moisture.

4.Avoid damage to the power cord, and do not attempt to modify the power cord.

5.Unplug the power cord during electrical storms or if the unit will not be used over a long period.

6.Do not open the cabinet which has potentially dangerous high voltage components inside. If the unit is damaged in this way the warranty will be void. Moreover, there is a serious risk of electric shock.

7.Do not attempt to service or repair the unit. The manufacturer is not liable for any bodily harm or damage caused if unqualified persons attempt service or open the back cover. Refer all service to authorized Service Centers.

To avoid damage and prolong operating life:

1.Use only with 100-240V 50/60Hz AC power supply. Continued operation at line voltages greater than 100240 Volts AC will shorten the life of the unit, and might even cause a fire hazard.

2.Handle the unit carefully when installing it and do not drop.

3.Set the unit away from heat, excessive dust, and direct sunlight.

4.Protect the inside of the unit from liquids and small metal objects. In case of accident, unplug the power cord and have it serviced by an authorized Service Center.

5.Do not hit or scratch the panel surface as this causes flaws on the surface of the screen.

6.For correct installation and mounting it is strongly recommended to use a trained, authorized dealer.

7.As is the case with any phosphor-based display (like a CRT monitor, for example) light output will gradually decrease over the life of a Plasma Display Panel.

8.To avoid sulfurization it is strongly recommended not to place the unit in a dressing room in a public bath or hot spring bath.

9.Do not use in a moving vehicle, as the unit could drop or topple over and cause injuries.

10.Do not place the unit on its side, upside-down or with the screen facing up or down, to avoid combustion or electric shock.

Plasma monitor cleaning procedure:

1.Use a soft dry cloth to clean the front panel and bezel area. Never use solvents such as alcohol or thinner to clean these surfaces.

2.Clean plasma ventilation areas with a vacuum cleaner with a soft brush nozzle attachment.

3.To ensure proper ventilation, cleaning of the ventilation areas must be carried out monthly. More frequent cleaning may be necessary depending on the environment in which the plasma monitor is installed.

Recommendations to avoid or minimize phosphor burn-in:

Like all phosphor-based display devices and all other gas plasma displays, plasma monitors can be susceptible to phosphor burn under certain circumstances. Certain operating conditions, such as the continuous display of a static image over a prolonged period of time, can result in phosphor burn if proper precautions are not taken. To protect your investment in this plasma monitor, please adhere to the following guidelines and recommendations for minimizing the occurrence of image burn:

6

*Always enable and use your computer’s screen saver function during use with a computer input source.

*Display a moving image whenever possible.

*Change the position of the menu display from time to time.

*Always power down the monitor when you are finished using it.

If the plasma monitor is in long term use or continuous operation take the following measures to reduce the likelihood of phosphor burn:

*Lower the Brightness and Contrast levels as much as possible without impairing image readability.

*Display an image with many colors and color gradations (i.e. photographic or photo-realistic images).

*Create image content with minimal contrast between light and dark areas, for example white characters on black backgrounds. Use complementary or pastel color whenever possible.

*Avoid displaying images with few colors and distinct, sharply defined borders between colors.

* Note: Burn-in is not covered by the warranty.

Contact your dealer for other recommended procedures that will best suit your particular application needs.

Recommandations importantes

Précautions

Veuillez lire avec attention ce manuel avant d’utiliser le moniteur à plasma et le conserver accessible pour s’y référer ultérieurement.

ATTENTION

RISQUE D’ELECTROCUTION

NE PAS OUVRIR

MISE EN GARDE: AFIN DE REDUIRE LES RISQUES D’ELECTRO - CUTION, NE PAS DEPOSER LE COUVERCLE, IL N’Y A AUCUNE PIECE UTILISABLE A L’INTERIEUR DE CET APPAREIL. NE CONFIER LES TRAVAUX D’ENTRETIEN QU’A UN PERSONNEL QUALIFIE.

Ce symbole a pour but de prévenir l’utilisateur de la présence d’une tension dangereuse, non isolée se trouvant à l’intérieur de l’appareil. Elle est d’une intensité suffisante pour constituer un risque d’électrocution. Eviter le contact avec les pièces à l’intérieur de cet appareil.

Ce symbole a pour but de prévenir l’utilisateur de la présence d’importantes instructions concernant l’entretien et le fonctionnement de cet appareil. Par conséquent, elles doivent être lues attentivement afin d’éviter des problèmes.

AVERTISSEMENT

AFIN DE REDUIRE LES RISQUES D’INCENDIE OU D’ELECTROCUTION, NE PAS EXPOSER CET APPAREIL A LA PLUIE OU A L’HUMIDITE. AUSSI, NE PAS UTILISER LA FICHE POLARISEE AVEC UN PROLONGATEUR OU UNE AUTRE PRISE DE COURANT SAUF SI CES LAMES PEUVENT ETRE INSEREES A FOND. NE PAS OUVRIR LE COFFRET, DES COMPOSANTS HAUTE TENSION SE TROUVENTA L’INTERIEUR. LAISSER A UN PERSONNEL QUALIFIE LE SOIN DE REPARER CET APPAREIL.

Mises en garde et précautions de sécurité

Ce moniteur à plasma a été conçu et fabriqué pour une utilisation fiable et durable. Il ne nécessite aucun entretien en dehors du nettoyage. Voir la section “Méthode de nettoyage du moniteur à plasma” plus loin. Le panneau à affichage plasma est constitué de fines particules d’images (cellules) dont plus de 99,99%sont actives. Certaines d’entre elles ne produisent pas de lumière ou restent allumées.

Pour des raisons de sécurité et pour éviter d’endommager l’appareil, lire attentivement les instructions suivantes.

Pour éviter les risques d’éléctrocution et d’incendie:

1.Laisser suffisament d’espace autour de l’appareil pour la ventilation et éviter toute augmentation excessive de la température interne. Ne pas couvrir les évents ou l’installer dans un endroit trop exigu.

Si vous installez l’appareil dans un espace clos, assurezvous qu’il y ait suffisamment d’espace au dessus pour permettre à l’air chaud de s’élever et de s’évacuer. Si la température du moniteur devient excessive, la protection contre les surchauffes entrera en action et coupera l’alimentation. Dans ce cas, éteindre l’appareil et débrancher le câble d’alimentation. Si la température de la pièce dans laquelle se trouve le moniteur est particulièrement élevée, déplacer celui-ci dans un endroit plus frais et attendre environ 60 minutes qu’il refroidisse. Si le problème persiste, prendre contact avec votre revendeur.

2.Ne pas raccorder la prise d’alimentation polarisée de ce périphérique à une rallonge ou une prise murale si les fiches ne peuvent pas être complètement insérées.

3.Ne pas exposer à L’eau ou à l’humidité.

4.Eviter d’endommager le cordon d’alimentation, et ne pas modifier le cordon d’alimentation.

5.Débrancher le câble d’alimentation électrique pendant les orages ou les longues périodes d’inactivité.

6.Ne pas ouvrir le coffret. Des composants de haute tension se trouvent à l’intérieur. Si l’appareil est endommagé de cette manière, la garantie devient caduque. De plus, il y a risque d’électrocution.

7

7.Ne pas essayer d’intervenir ou de réparer l’appareil. Le fabricant décline toute responsabilité en cas de blessure corporelle ou de dégâts matériels résultant d’une opération d’entretien quelconque effectuée par des personnes non qualifiées ou résultant de l’ouverture du couvercle arrière. S’adresser aux services après-vente autorisés.

Pour éviter des dommages et prolonger la durée de service de l’appareil:

1.N’utiliser qu’une source d’alimentation de 100-240 V 50/60 Hz CA. Le fait d’utiliser l’appareil en continu à des tensions de ligne supérieures à 100-240 Volts CA réduit sa durée de vie et risque de provoquer un incendie.

2.Manipuler l’appareil avec soin pendant son déplacement et ne pas le faire tomber.

3.Eloigner l’appareil des endroits chauds, très poussiéreux et exposés en plein soleil.

4.Eviter que des liquides et des petits objets métalliques pénètrent à l’intérieur de l’appareil. En cas d’incident de ce genre, débrancher le câble d’alimentation électrique et confier le moniteur à un service après-vente agréé.

5.Ne pas frapper ou rayer la surface de la écran plasma, car des défauts risquent de se produire sur la surface de la écran plasma.

6.Pour un montage et une installation correcte, il est fortement recommandé de faire appel à un revendeur agréé et qualifié.

7.Comme c’est le cas pour tout affichage à base de phosphore (comme un moniteur CRT, par exemple), la puissance de lumière baisse graduellement au cours de la vie du Panneau d’Affichage à Plasma.

8.Pour éviter tout risque de sulfuration, il est fortement conseillé de ne pas installer l’appareil dans un vestiaire, un bain public ou un bain de source thermale.

9.Ne pas utiliser dans un véhicule en marche car l’unité pourrait tomber ou glisser et provoquer des blessures.

10.Pour éviter l ‘inflammation ou les chocs électriques, ne pas placer l’unité sur la tranche, à l’envers ou avec l’écran vers le bas ou vers le haut.

Méthode de nettoyage du moniteur à plasma:

1.Nettoyer le panneau avant et le cadre en procédant à l’aide d’un chiffon doux et sec. Ne jamais utiliser de solvents du type alcool ou diluant pour le nettoyage de ces surfaces.

2.Nettoyer les prises d’aération du plasma en procédant à l’aide d’une brosse à poils doux fixée à un aspirateur.

3.Pour garantir la bonne ventilation du moniteur, nettoyer les prises d’air tous les mois. Un nettoyage plus fréquent peut s’avérer nécessaire selon les conditions environnantes dans lesquelles le moniteur à plasma est utilisé.

Pour éviter les risques de brûlage du luminophore, les mesures suivantes sont recommandées:

Comme tous les périphériques d’affichage à base luminophore et tous les autres affichages gaz plasma, les moniteurs plasma peuvent être sujets au brûlage du luminophore dans certaines circonstances. Certaines conditions d’utilisation, telles que l’affichage continu d’une image statique pour une durée prolongée, peuvent causer le brûlage du luminophore si aucune précaution n’est prise. Pour protéger votre investissement dans ce moniteur à plasma, veuillez suivre les directives et les conseils suivantes pour minimiser

l’occurence le marquage de l’écran:

8

Assurez-vous de mettre en marche et d’utliser l’économisateur d’écran chaque fois que c’est possible lorsque vous l’utilisez avec une source d’entrée d’ordinateur.

Affichez une image en mouvement aussi souvent que possible.

Changer la position de l’affichage de menu de temps à autre.

Coupez toujours l’alimentation lorsque vous avez terminé d’utiliser la moniteur.

Si le moniteur est en usage continu ou longue durée, prenez les mesures suivantes afin d’éviter l’occurence le brûlage du luminophore:

Abaissez le niveau de l’image (contraste, luminosité) autant que possible, sans faire perdre la lisibilité de l’image.

Affichez une image avec de nombreuses couleurs et graduations de couleur (par ex . des images photographiques ou photo-réalistes).

Créez un contenu d’image avec un contraste minimal entre les zones sombres et les zones claires, par exemple, des caractères blancs sur un fond noir. Utilisez des couleurs complémentaires ou pastels le plus souvent possible.

Évitez d’afficher des images avec peu de couleurs et des limites nettes et clairement définies entre les couleurs.

*Remarque: Le brûlage de l’écran n’est pas couvert par la garantie.

Contactez un revendeur agréé ou un revendeur de marque pour d'autres procédures qui conviendront le mieux à vos besoins particuliers.

Contents

Installation ....................................................

10

Ventilation Requirements for enclosure mounting ........

10

How to use the safety metal fittings and the screws



for safety metal fittings .........................................

10

Cable Management ................................................

11

How to use the remote control ..................................

11

Battery Installation and Replacement .........................

11

Operating Range ........................................................

11

Handling the remote control .......................................

11

Part Names and Function ................................

12

Front View ............................................................

12

Rear View/ Terminal Board .....................................

13

Remote Control ......................................................

14

Basic Operations .............................................

15

POWER ................................................................

15

To turn the unit ON and OFF: ....................................

15

VOLUME ..............................................................

15

To adjust the sound volume: .......................................

15

MUTE ...................................................................

15

To mute the audio: .....................................................

15

DISPLAY ................................................................

15

To check the settings: .................................................

15

DIGITAL ZOOM .....................................................

15

OFF TIMER ............................................................

15

To set the off timer: ....................................................

15

To check the remaining time: .....................................

15

To cancel the off timer: ..............................................

15

WIDE Operations .............................................

16

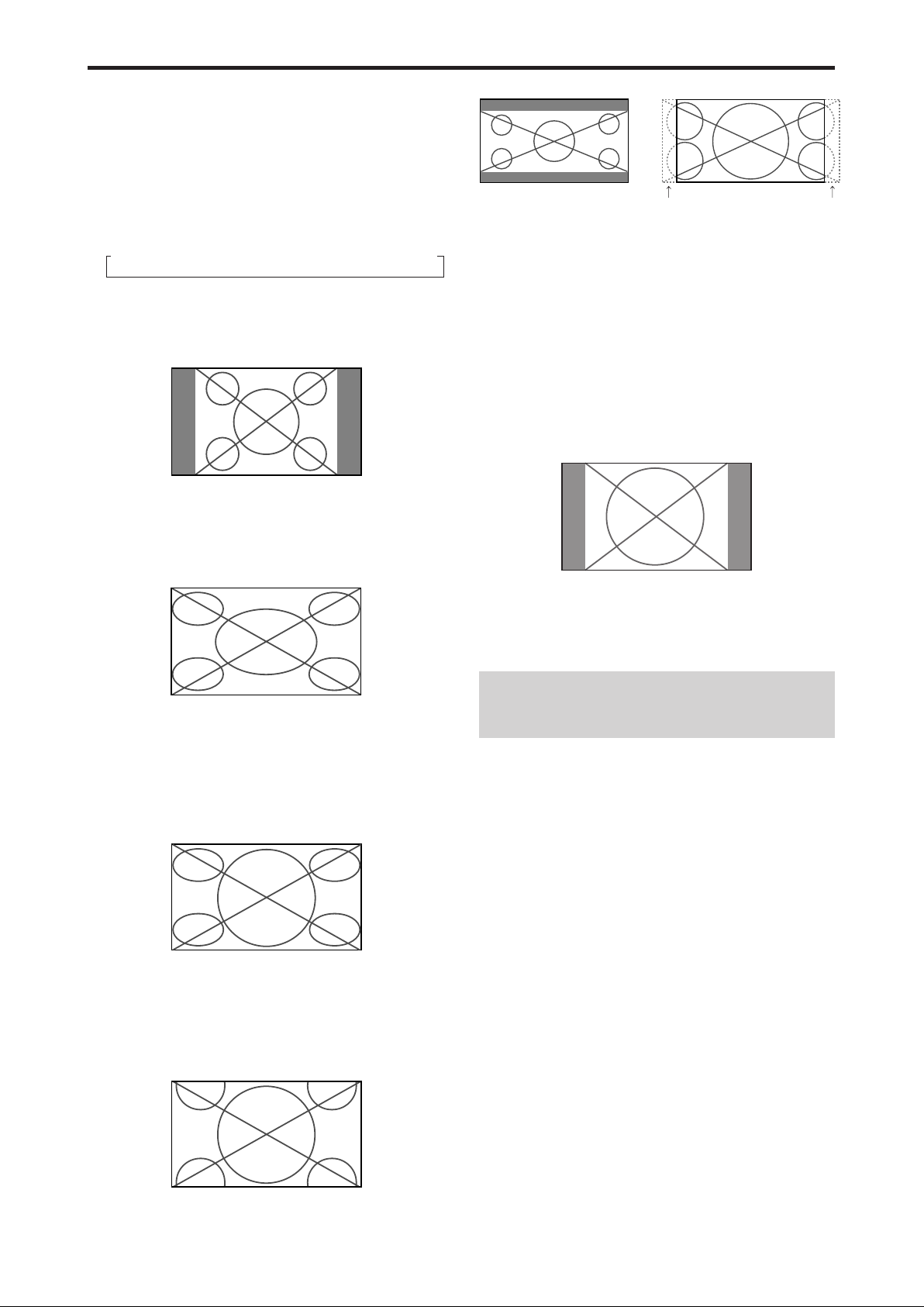

Wide Screen Operation (manual) ............................

16

When viewing videos or digital video discs ...............

16

Wide Screen Operation with Computer Signals .........

17

OSM (On Screen Menu) Controls .......................

18

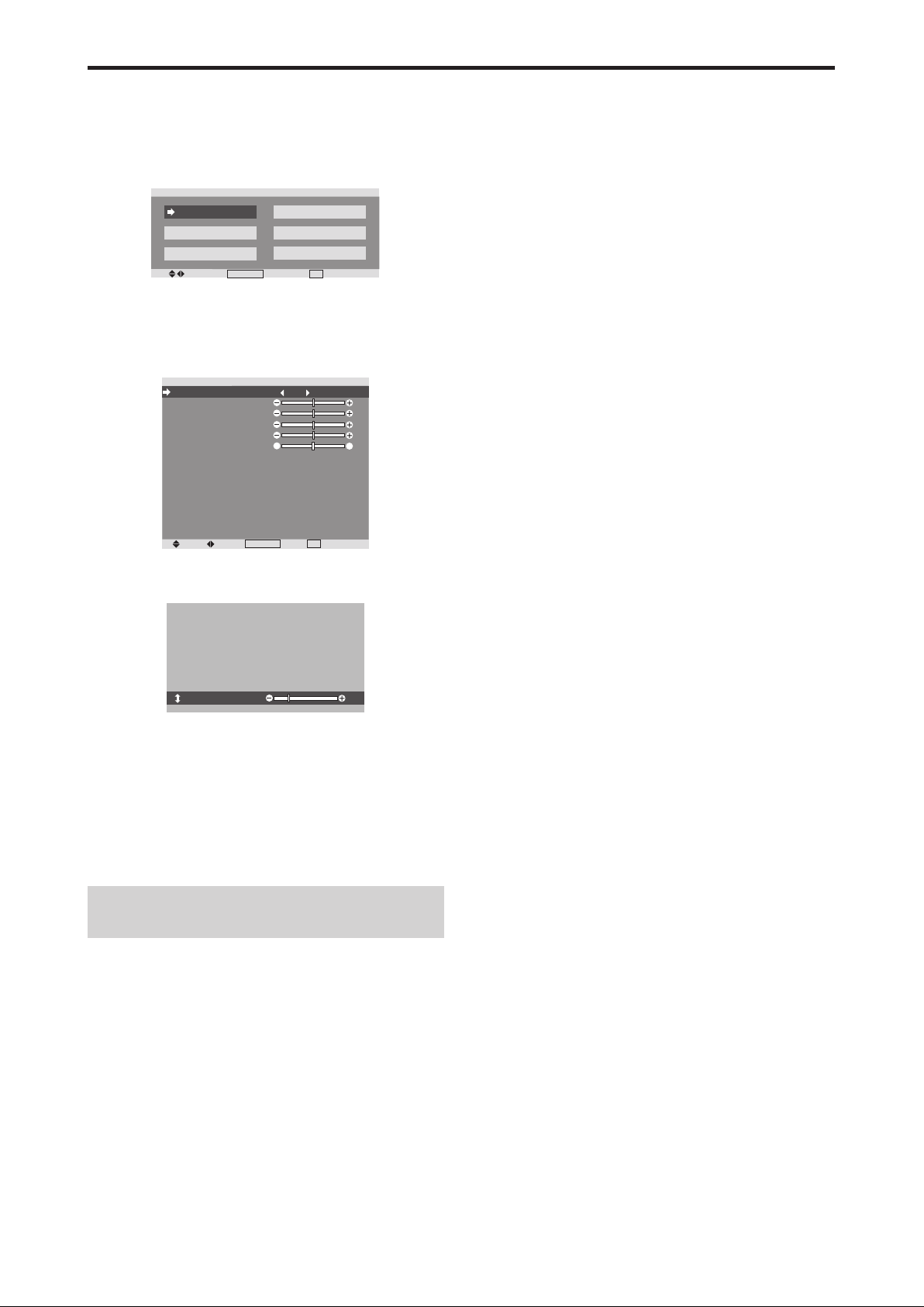

Menu Operations ...................................................

18

Menu Tree .............................................................

19

Picture Settings Menu ..............................................

21

Storing picture settings ...............................................

21

Adjusting the picture ..................................................

21

Reducing noise in the picture .....................................

21

Setting the color temperature .....................................

22

Adjusting the color to the desired level ......................

22

Changing the Gamma Curve ......................................

22

Making the Low Tone adjustments ............................

22

Adjusting the pedestal level (black level) ...................

23

Adjusting the colors ...................................................

23

Setting the picture to suit the movie ...........................

23

Setting the picture mode according



to the brightness of the room ...................................

23

Audio Settings Menu ..............................................

24

Adjusting the treble, bass and left/right balance



and audio input select ..............................................

24

Setting the allocation of the audio connectors ............

24

Image Adjust Settings Menu ....................................

24

Adjusting the Position, Size, Fine Picture, Picture ADJ. ...

24

SET UP Settings Menu .............................................

25

Setting the language for the menus .............................

25

Setting the BNC connectors .......................................

25

Checking the signal being transmitted to



RGB1 terminal ........................................................

25

Setting high definition images to the suitable



screen size ...............................................................

25

Setting a computer image to the correct RGB select



screen ......................................................................

25

Setting the signal and black level for HDMI signal ....

26

Setting the video signal format ...................................

26

Setting the background color when no signal is



being input ..............................................................

26

Setting the gray level for the sides of the screen .........

27

Setting the screen size for S1/S2 video input ..............

27

Turning on/off the menu display ................................

27

Setting the position of the menu .................................

27

Resetting to the default values ....................................

27

Function Settings Menu ...........................................

28

Setting the power management for computer images ...

28

POWER/STANDBY indicator ...................................

28

Setting the Input Skip .................................................

28

Reducing burn-in of the screen ..................................

28

Setting Closed Caption ..............................................

30

Reducing the brightness of Closed Caption ................

30

Signal Information Menu .........................................

30

Checking the frequencies, polarities of input signals,



and resolution ..........................................................

30

External Control .............................................

31

Application ...........................................................

31

Connections ..........................................................

31

Type of connector: D-Sub 9-pin male ........................

31

Communication Parameters .....................................

31

External Control Codes (Reference) ..........................

31

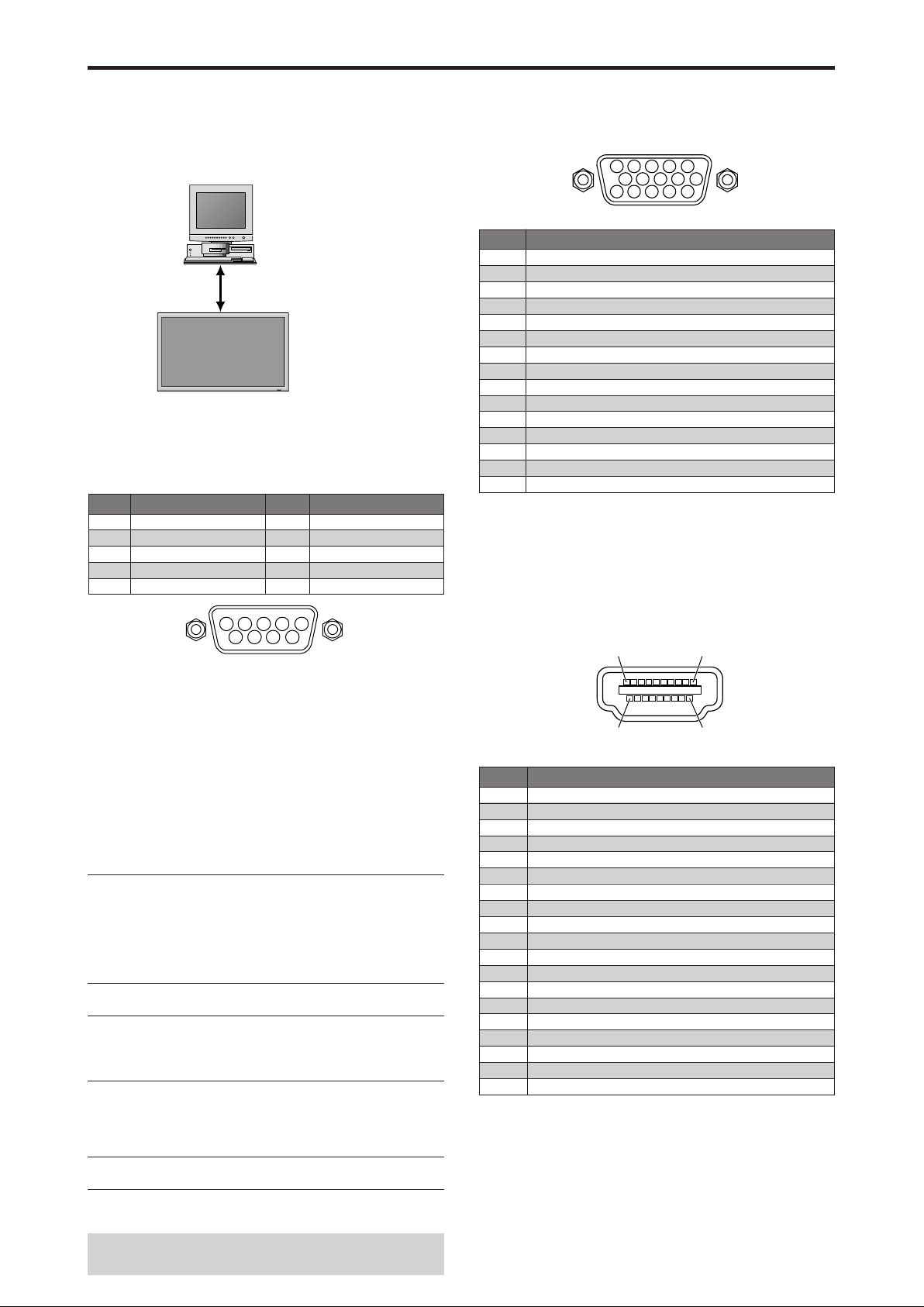

Pin Assignments .............................................

31

mini D-Sub 15-pin connector (Analog) .....................

31

HDMI connector (Digital) .........................................

31

Troubleshooting ..............................................

32

Specifications : PD4230V .................................

33

Specifications : PD4250D .................................

34

Specifications : PD5050D .................................

35

Specifications : PD6150D .................................

36

Table of Signals Supported ..............................

37

PD4230V Supported resolution ............................

37

Computer input signals supported by this system .......

37

Table of Signals Supported ..............................

38

PD4250D Supported resolution ...........................

38

Computer input signals supported by this system .......

38

Table of Signals Supported ..............................

39

PD5050D/PD6150D Supported resolution ............

39

Computer input signals supported by this system .......

39

Contents of the Package

Plasma monitor

Power cord

Remote control with two AAA Batteries

User Guide

Safety metal fittings

Ferrite cores, bands

Cable clamps

* These are fittings for fastening the unit to a wall to prevent tipping due to external shock when using the stand (optional). Fasten the safety fittings to the holes in the back of the monitor using the safety fitting mount screws (see page 10).

Options

Wall mount unit

Ceiling mount unit

Tilt mount unit

Stand

9

Installation

You can attach your optional mounts or stand to the plasma monitor in one of the following two ways:

*While it is upright. (See Drawing A)

*As it is laid down with the screen face down (See Drawing B). Lay the protective sheet, which was wrapped around the monitor when it was packaged, beneath the screen surface so as not to scratch the screen face.

*Do not touch or hold the screen face when carrying the unit.

This device cannot be installed on its own. Be sure to use a stand or original mounting unit. (Wall mount unit, Stand, etc.)

* See page 9.

For correct installation and mounting it is strongly recommended to use a trained, authorized dealer.

Failure to follow correct mounting procedures could result in damage to the equipment or injury to the installer.

Product warranty does not cover damage caused by improper installation.

* Use only the mounting kit or stand provided by manufacturer and listed under Options.

Drawing A

Drawing B

Ventilation Requirements for enclosure mounting

To allow heat to disperse, leave space between surrounding objects as shown on the diagram below when installing.



Wall



50mm (2")

50mm (2")

(2")











50mm





Wall

















































































































































50mm (2") (2")mm 50

How to use the safety metal fittings and the screws for safety metal fittings

These are fittings for fastening the unit to a wall to prevent tipping due to external shock when using the stand (optional). Fasten the safety fittings to the holes in the back of the monitor using the safety fitting mount screws.

Screw hole

Screw or Hook etc. (Not supplied)

Safty metal fittings

Screw for Safty metal fittings

Metal chain (Not supplied)

Wall

Table Top

10

Cable Management

Using the cable clamps provided with the plasma display, bundle at the back of the unit the signal and audio cables connected to the display.

Back of the unit

mounting hooks

To attach

1. 2. clamp

mounting hook

cables

To detach

How to use the remote control

Battery Installation and Replacement

Insert the 2 “AAA” batteries, making sure to set them in with the proper polarity.

1.Press and open the cover.

2.Align the batteries according to the (+) and (–) indication inside the case.

3.Replace the cover.

Operating Range

*Use the remote control within a distance of about 7 m/ 23ft. from the front of the monitor’s remote control sensor

and at horizontal and vertical angles of up to approximately 30°.

*The remote control operation may not function if the monitor’s remote control sensor is exposed to direct sunlight or strong artificial light, or if there is an obstacle between the sensor and the remote control.

Approx.

7m/23ft

Handling the remote control

Do not drop or mishandle the remote control.

Do not get the remote control wet. If the remote control gets wet, wipe it dry immediately.

Avoid heat and humidity.

When not using the remote control for a long period, remove the batteries.

Do not use new and old batteries together, or use different types together.

Do not take apart the batteries, heat them, or throw them into a fire.

11

Part Names and Function

Front View





















VOLUME



LEFT/-

RIGHT/ +

INPUTSELECT





MENU/ ENTER DOWN

UP

/EXIT







7

6

5

4

1

3

2

qPower

Turns the monitor’s power on and off.

wRemote sensor window

Receives the signals from the remote control.

ePOWER/STANDBY indicator

When the power is on ............................. Lights green. When the power is in the standby mode ... Lights red.

rINPUT SELECT / EXIT

Switches the input.

The available inputs depend on the setting of “BNC INPUT”, “RGB SELECT” and “HDMI SET UP”. Functions as the EXIT buttons in the On-Screen Menu (OSM) mode.

tLEFT/– and RIGHT/+

Enlarges or reduces the image. Functions as the CURSOR ( / ) buttons in the On-Screen Menu (OSM) mode.

yVOLUME DOWN and UP

Adjusts the volume. Functions as the CURSOR (/ ) buttons in the On-Screen Menu (OSM) mode.

uMENU/ENTER

Sets the On-Screen Menu (OSM) mode and displays the main menu.

WARNING

The Power on/off switch does not disconnect the plasma display completely from the supply mains.

12

Rear View/ Terminal Board

C

D

E

F

G



H

HDMI

I

A B

A AC IN





F DVD2/ HD2, RGB2

Connect the included power cord here.



DVD2/ HD2:

You can connect DVDs, High Definition

B EXT SPEAKER L and R





sources, Laser Discs, etc. here.





This input can be set for use with an

Connect speakers (optional) here. Maintain the correct





RGB or component source.

polarity. Connect the

(positive) speaker wire to the





(see page 25)

EXT SPEAKER terminal and the

(negative)



RGB2:

You can connect an analog RGB signal

speaker wire to the

EXT SPEAKER terminal on



and the syncronization signal.

both LEFT and RIGHT channels.











Please refer to your speaker’s User Guide.



G RGB1 (D-Sub)

Connect an analog RGB signal from a computer, etc.

C VIDEO1, 2, 3 (BNC, RCA, S-Video)

here.

Connect VCR’s, DVD’s or Video Cameras, etc. here.



D AUDIO1, AUDIO2, AUDIO3

H DVD3/HD3, RGB3 (HDMI)

Connect a digital signal (TMDS) from a source with a

These are audio input terminals.

HDMI output.

The input is selectable. Set which video image to allot

This input can be set for use with an RGB3 or DVD3/

them from the audio menu screen.

HD3 source. (see page 26)



E DVD1 / HD1

I EXTERNAL CONTROL (D-Sub)



Connect DVD’s, High Definition or Laser Discs, etc.

This terminal is used when operating and controlling

here.

the monitor externally (by external control).



13

Remote Control

qPOWER ON/STANDBY

Switches the power on/standby.

(This does not operate when POWER/STANDBY indicator of the main unit is off.)

wOFF TIMER

Activates the off timer for the unit.

eDISPLAY

Displays the source settings on the screen.

rWIDE

Automatically detects the signal and sets the aspect ratio.

Wide button is not active for all signals.

tMENU/ENTER

Press this button to access the OSM controls.

Press this button during the display of the main menu to go to the sub menu.

yCURSOR (/ / / )

Use these buttons to select items or settings and to adjust settings or switch the display patterns.

uEXIT

Press this button to exit the OSM controls in the main menu. Press this button during the display of the sub

menu to return to the previous menu.

14



iMUTE

Mutes the audio.

oVOLUME (+ /–)

Adjusts the audio volume.

!0ZOOM (+ /–)

Enlarges or reduces the image.

!1CONTRAST

Press this button to adjust contrast directly.

!2BRIGHTNESS

Press this button to adjust brightness directly.

!3PICTURE MODE

Press this button to adjust picture mode directly.

!4COLOR TEMP

Press this button to adjust color tone directly.

!5VIDEO1, 2, 3

Press this button to select VIDEO as the source. VIDEO can also be selected using the INPUT SELECT button on the monitor.

!6DVD/HD1, 2, 3

Press this button to select DVD/HD as the source. DVD/HD can also be selected using the INPUT SELECT button on the monitor.

!7PC/RGB

Press this button to select PC/RGB as the source. PC/RGB can also be selected using the INPUT SELECT button on the monitor.

!8PICTURE MEMORY

Switches sequentially between picture memory settings 1 to 6.

!9Remote control signal transmitter

Transmits the remote control signals.

Basic Operations

POWER

To turn the unit ON and OFF:

1.Plug the power cord into an active AC power outlet.

2.Press the Power button (on the unit).

The monitor’s POWER/STANDBY indicator turns red and the standby mode is set.

3.Press the POWER ON button (on the remote control) to turn on the unit.

The monitor’s POWER/STANDBY indicator will light up (green) when the unit is on.

4.Press the POWER STANDBY button (on the remote control) or the Power button (on the unit) to turn off the unit.

The monitor’s POWER/STANDBY indicator turns red and the standby mode is set (only when turning off the unit with the remote control).

VOLUME

To adjust the sound volume:

1.Press and hold the VOLUMEbutton (on the remote control or the unit) to increase to the desired level.

2.Press and hold the VOLUMEbutton (on the remote control or the unit) to decrease to the desired level.

MUTE

To mute the audio:

Press the MUTE button on the remote control to mute the audio; press again to restore.

DISPLAY

To check the settings:

1.The screen changes each time the DISPLAY button is pressed.

2.If the button is not pressed for approximately three seconds, the menu turns off.

DIGITAL ZOOM

Digital zoom specifies the picture position and enlarges the picture.

1.Press the ZOOM (+ or -) button to display magnifying glass. ()

To change the size of the picture:

Press the ZOOM+ button and enlarge the picture.

A press of the ZOOMbutton will reduce the picture and return it to its original size.

To change the picture position:

Select the position with the ▲▼ buttons.

2.Press the EXIT button to delete the pointer.

OFF TIMER

To set the off timer:

The off timer can be set to turn the power off after 30, 60, 90 or 120 minutes.

1.Press the OFF TIMER button to start the timer at 30 minutes.

2.Press the OFF TIMER button to the desired time.

3.The timer starts when the menu turns off.

30 60 90 120 0

OFF TIMER 30

To check the remaining time:

1.Once the off timer has been set, press the OFF TIMER button once.

2.The remaining time is displayed, then turns off after a few seconds.

3.When five minutes remain the remaining time appears until it reaches zero.

OFF TIMER 28

To cancel the off timer:

1.Press the OFF TIMER button twice in a row.

2.The off timer is canceled.

OFF TIMER 0

Note:

After the power is turned off with the off timer ...

A slight current is still supplied to the monitor. When you are leaving the room or do not plan to use the system for a long period of time, turn off the power of the monitor.

15

WIDE Operations

Wide Screen Operation (manual)

With this function, you can select one of six screen sizes.

When viewing videos or digital video discs

1.Press the WIDE button on the remote control.

2.Within 3 seconds ...

Press the WIDE button again.

The screen size switches as follows:

NORMAL ANAMORPHIC STADIUM ZOOM 2.35:1 14:9

When a 720P or 1080I signal is input:

ANAMORPHIC 2.35:1

NORMAL size screen (4:3)

The normal size screen is displayed.

*The picture has the same size as video pictures with a 4 : 3 aspect ratio.

ANAMORPHIC size screen

The image is expanded in the horizontal direction.

*Images compressed in the horizontal direction (“squeezed images”) are expanded in the horizontal direction and displayed on the entire screen with correct linearity. (Normal images are expanded in the horizontal direction.)

STADIUM size screen

The picture is expanded in the horizontal and vertical directions at different ratios.

*Use this for watching normal video programs (4:3) with a wide screen.

ZOOM size screen

The picture is expanded in the horizontal and vertical direction, maintaining the original proportions.

* Use this for theater size (wide) movies, etc.

2.35:1 size screen

Original image Information is lost on both sides.

The squeezed film image is expanded to fulfill the entire screen at a ratio of 2.35:1. Black bands do not appear at the top and bottom but information is lost on the left and right margins.

This feature is available when the input signal is video, component (480I, 480P, 576I, 576P, 720P, 1080I) or RGB (525P or 625P signal from a scan converter).

*If black bands appear on the top and bottom in the full size screen, select the 2.35:1 size screen to avoid phosphor burnin.

14:9 size screen

The image is displayed at a 14:9 aspect ratio.

*This feature is available when the input signal is video, component (480I, 480P, 576I, 576P) or RGB (525P or 625P signal from a scan converter).

Note:

Do not allow the displayed in 4:3 mode for an extended period. This can cause a phosphor burn-in.

16

Wide Screen Operation with Computer Signals

Switch to the wide screen mode to expand the 4 : 3 image to fill the entire screen.

1.Press the WIDE button on the remote control.

2.Within 3 seconds ...

Press the WIDE button again.

The screen size switches as follows:

NORMAL ANAMORPHIC ZOOM

NORMAL size screen (4:3 or SXGA 5:4)

The picture has the same size as the normal computer image.

ANAMORPHIC size screen

The image is expanded in the horizontal direction.

ZOOM size screen

When wide signals are input.

ANAMORPHIC size screen

Information

Supported resolution

See page 37-39 for details on the display output of the various VESA signal standards supported by the monitor.

When 852 (848) dot 480 line wide VGA* signals with a vertical frequency of 60 Hz and horizontal frequency of 31.7 (31.0) kHz are input

Select an appropriate setting for RGB SELECT mode referring to the“Table of Signals Supported” on page 37-39.

*“VGA”, “SVGA” and “SXGA” are registered trademarks of IBM, Inc. of the United States.

Note:

Do not allow the displayed in 4:3 mode for an extended period. This can cause a phosphor burn-in.

17

OSM (On Screen Menu) Controls

Menu Operations

The following describes how to use the menus and the selected items.

1. Press the MENU/ENTER button on the remote control to display the MAIN MENU.





MAIN MENU








SET UP





AUDIO







FUNCTION





IMAGE ADJ.





SIGNAL INFO.





SEL.





OK

EXIT EXIT

MENU/ENTER

2.Press the cursor buttons ▲ ▼ on the remote control to highlight the menu you wish to enter.

3.Press the MENU/ENTER button on the remote control to select a sub menu or item.




PICTURE MEMORY

: OFF

CONTRAST











BRIGHTNESS





















SHARPNESS











COLOR















TINT





R







G

NR





:

OFF

COLOR TEMP.

:

MIDDLE

GAMMA





:

2.2







LOW TONE

:

AUTO

SET UP LEVEL

:

0%







COLOR TUNE











CINEMA MODE

: ON

PICTURE MODE

: NORMAL

SEL.

ADJ.

MENU/ENTER

OK EXIT RETURN

4. Adjust the level or change the setting of the selected item by using the cursor buttons on the remote control.













CONTRAST









10













5.The adjustments or the settings that are stored in memory. The change is stored until you change it again.

6.Repeat steps 2 – 5 to adjust an additional item, or press the EXIT button on the remote control to return to the main menu.

*When adjusting using the bar at the bottom of the screen, press the or button within 5 seconds. If not, the current setting is set and the previous screen appears.

Note: The main menu disappears by pressing the EXIT button.

18

Menu Tree

:Shaded areas indicate the default value.

←→ : Press the or button to adjust. The default value is at the center.

Main menu

Sub menu

Sub menu 2







Sub menu 3 Sub menu 4

RESET

REFERENCE


PICTURE MEMORY







OFF/MEMORY1-6





















YES

21





























CONTRAST

←→ 0←







→72

YES

21



52



BRIGHTNESS

←→ 0←







→64

YES

21



32





SHARPNESS

←→ 0←







→32

YES

21



16





COLOR

←→ 0←

32



→64

YES

21



TINT

R←→G 0←







→64

YES

21



32



NR

OFF/NR-1/NR-2/NR-3

YES

21



COLOR TEMP.

LOW/MIDDLE LOW/MIDDLE/HIGH

YES

22



WHITE BALANCE

GAIN RED







←→

0

←→70

YES

22







GAIN GREEN







←→

0

←→70

YES

22







GAIN BLUE







←→

0

←→70

YES

22







BIAS RED







←→

0

←→70

YES

22







BIAS GREEN







←→

0

←→70

YES

22







BIAS BLUE







←→

0

←→70

YES

22







RESET









←→ON

YES

22













OFF



GAMMA

2.1←





←2.3→2.4

YES

22



2.2



LOW TONE







←→1←→3

YES

22



AUTO





SET UP LEVEL





←→3.75%←→7.5%

YES

23





0%



COLOR TUNE

RED







Y←→M

0

←→64

YES

23







GREEN







C←→Y

0

←→64

YES

23







BLUE







M←→C

0

←→64

YES

23







YELLOW







G←→R

0

←→64

YES

23







MAGENTA







R←→B

0

←→64

YES

23







CYAN







B←→G

0

←→64

YES

23







RESET









←→ON

YES

23













OFF



CINEMA MODE



←→OFF





















YES

23



ON























PICTURE MODE

DEFAULT/THEATER1/THEATER2/NORMAL/BRIGHT

YES

23

Main menu

Sub menu

Sub menu 2







Sub menu 3

Sub menu 4

RESET

REFERENCE

AUDIO

BASS

←→

0←







→26



YES

24

13





TREBLE

←→

0←







→26



YES

24



13







BALANCE

L←→R

-22←







→+22



YES

24



0





AUDIO INPUT1



-3 / HD/DVD 1-3 / RGB 1-3



YES

24



VIDEO 1





AUDIO INPUT2

VIDEO 1-3 /















-3 / RGB 1-3



YES

24



HD/DVD 1





AUDIO INPUT3

VIDEO 1-3 / HD/DVD 1-3 /



-3



YES

24



RGB 1



Main menu

Sub menu

Sub menu 2







Sub menu 3 Sub menu 4

RESET

REFERENCE

IMAGE ADJUST

ASPECT MODE

ZOOM/NORMAL/ANAMORPHIC/STADIUM/14:9/2.35:1

NO

24



V-POSITION

←→ -64←





→+64

YES

24



0



H-POSITION

←→ -128←





→+127

YES

24



0



V-HEIGHT

←→





←→64

YES

24



0



H-WIDTH

←→

0

←→64

YES

24



AUTO PICTURE

ON←→

OFF*

2

NO

24



FINE PICTURE*1

←→ *2

0←→64

YES

24



PICTURE ADJ.*1

←→ *2

0

←→128

YES

24

Main menu

Sub menu

Sub menu 2

Sub menu 3

Sub menu 4



RESET

REFERENCE

SET UP

LANGUAGE



















ENGLISH/DEUTSCH/FRANÇAIS/ESPAÑOL/ITALIANO/SVENSKA/

/кмллдав

NO

25







BNC INPUT

RGB←→





















YES

25



COMPONENT







D-SUB INPUT



RGB





















YES

25



HD SELECT



1080I

/1035I/540P















NO

25



RGB SELECT









AUTO/STILL/MOTION/WIDE1/WIDE2/WIDE3/DTV



YES

25













HDMI SET UP

PLUG/PLAY

PC←→











NO

26



STB/DVD













BLACK LEVEL

LOW←→









NO

26









HIGH







COLOR SYSTEM





AUTO/PAL/PAL-M/PAL-N/PAL 60/SECAM/4.43 NTSC/3.58NTSC



NO

26



BACK GROUND

BLACK/GRAY

















YES

26



GRAY LEVEL

0←









→15





YES

27



3







S1/S2

AUTO←→





















YES

27



OFF

















DISPLAY OSM



←→OFF















YES

27



ON

















OSM ADJ.

TOP LEFT

←→TOP CENTER←→TOP RIGHT←→BTM LEFT←→BTM CENTER←→BTM RIGHT

YES

27



ALL RESET

ON←→































27



OFF















19

Main menu

Sub menu

Sub menu 2

Sub menu 3

Sub menu 4

RESET

REFERENCE

FUNCTION

POWER MGT.

ON←→















YES

28

OFF











INPUT SKIP

ON←→













YES

28



OFF











PDP SAVER

MANUAL/AUTO









YES

28





PEAK BRIGHT

100%/75%/50%/25%

YES

29





ORBITER



OFF/AUTO1/AUTO2



YES

29





INVERSE/WHITE







OFF/INVERSE/WHITE

YES

29















SCREEN WIPER

ON/OFF



YES

29





SOFT FOCUS

OFF/LEVEL1-4



YES

29





OSM ORBITER

ON/OFF



YES

30





OSM CONTRAST

LOW/NORMAL



YES

30



CLOSED CAPTION



OFF/CAPTION1-4/TEXT1-4



YES

30









CAPTION CONT

LOW/NORMAL









YES

30

Main menu

Sub menu

Sub menu 2

Sub menu 3

Sub menu 4

RESET

REFERENCE

SIGNAL INFO.









30

*1 Only when AUTO PICTURE is OFF.

*2 RGB/PC only

Information

Restoring the factory default settings

Select “ALL RESET” under the SET UP menu. Note that this also restores other settings to the factory defaults.

20

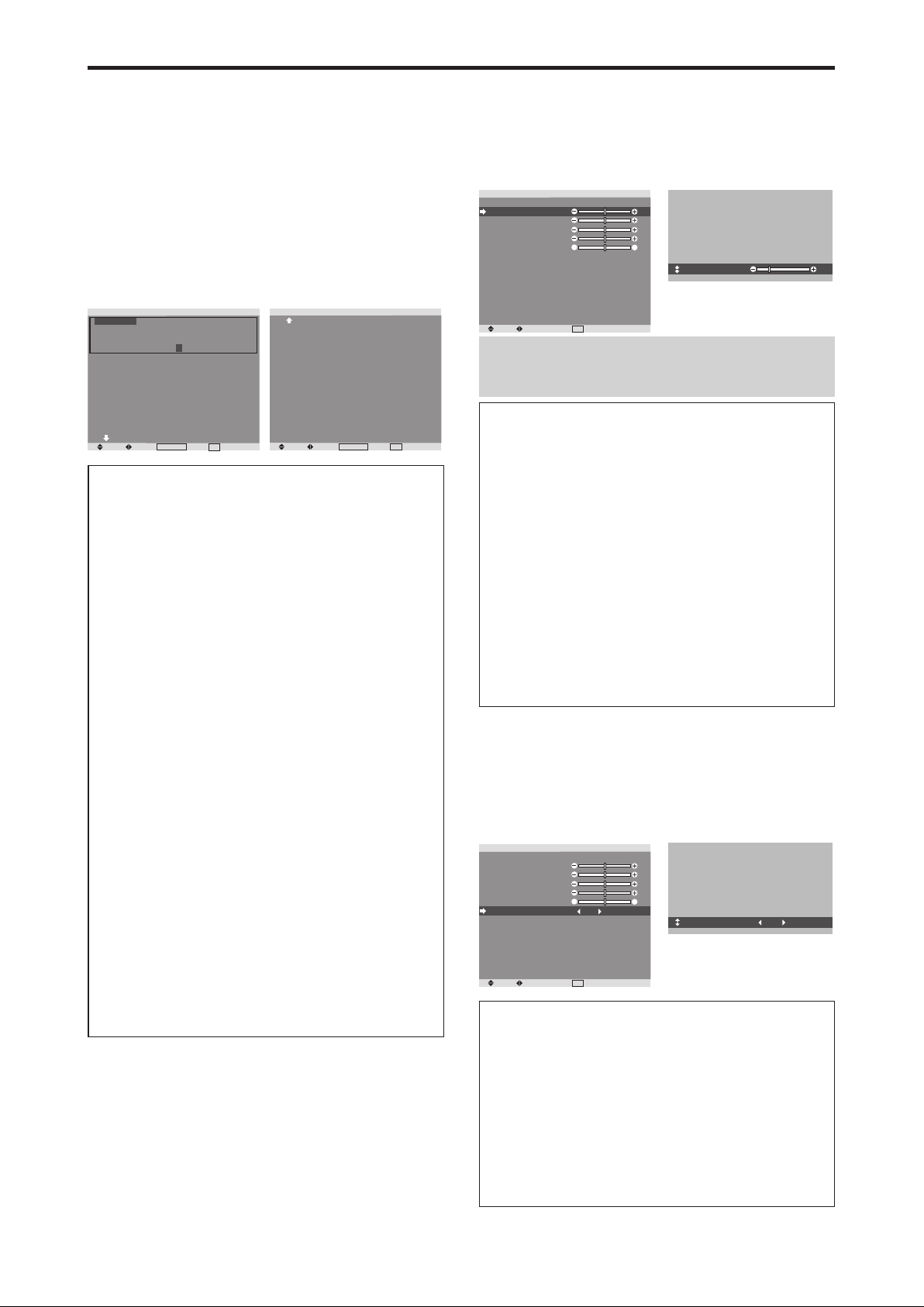

Picture Settings Menu

Storing picture settings

This function allows you to store in memory the current input signal and PICTURE menu settings and to recall these settings when necessary.

There are six picture memories, and notes of up to 15 characters can be added to each.

Example: Storing picture settings at MEMORY1

On “PICTURE MEMORY” of “PICTURE” menu, select “MEMORY1”, then press the MENU/ENTER button.

The “PICTURE MEMORY” screen appears.







PICTURE MEMORY

1/2





PICTURE MEMORY

2/2



MEMORY1



SET

RESET



PREVIOUS PAGE







INPUT : DVD/HD1





MEMORY4

SET

RESET





SIGNAL : 480P





INPUT : —











NOTE : DVD/STAR



WARS





SIGNAL : —











MEMORY2













NOTE : —











INPUT : —













MEMORY5











SIGNAL : —













INPUT : —











NOTE : —













SIGNAL : —











MEMORY3













NOTE : —











INPUT : —













MEMORY6











SIGNAL : —













INPUT : —











NOTE : —













SIGNAL : —





























NOTE : —











NEXT PAGE



























SEL.

ADJ.

MENU/ENTER

OK EXIT RETURN



SEL.

ADJ.

MENU/ENTER

OK

EXIT RETURN



Information

PICTURE MEMORY Settings

OFF: Picture memory not used.

MEMORY1 to 6: Picture memory with the specified number used. Maximum memories are 6, not depending on inputs.

Setting the memory

Use the and button to select the desired memory place, MEMORY1 to MEMORY6.

Use the and buttons to select “SET”, then press the MENU/ENTER button.

If necessary, input a note.

Resetting the memory

Use the and button to select the desired memory place, MEMORY1 to MEMORY6, then use the andbuttons to select “RESET”, and finally press the MENU/ENTER button.

The memory is cleared, and “—” is displayed in the “INPUT”, “SIGNAL” and “NOTE” columns.

Inputting notes

Use the and buttons to select “NOTE”, then press the MENU/ENTER button.

Input the note.

Use the and button to select the character. Use the and buttons to move the cursor.

Use the EXIT button to delete the character at the cursor position.

When you have finished inputting the note, press the MENU/ENTER button.

Adjusting the picture

The contrast, brightness, sharpness, color and tint can be adjusted as desired.

Example: Adjusting the contrast

On “CONTRAST” of “PICTURE” menu, adjust the contrast.


















PICTURE MEMORY

: OFF















CONTRAST























BRIGHTNESS























SHARPNESS























COLOR

























TINT



R







G













NR



: OFF















COLOR TEMP.

: MIDDLE





CONTRAST







10

GAMMA



:

2.2



















LOW TONE

:

AUTO















SET UP LEVEL

:

0%



















COLOR TUNE























CINEMA MODE

: ON















PICTURE MODE

: NORMAL















SEL.

ADJ.

EXIT RETURN















Note: If “CAN NOT ADJUST” appears ...

When trying to enter the PICTURE submenu, make sure PICTURE MODE is not set to DEFAULT.

Information

Picture adjustment screen

CONTRAST: Changes the picture’s white level. BRIGHTNESS: Changes the picture’s black level. SHARPNESS: Changes the picture’s sharpness. Adjusts picture detail of VIDEO display.

COLOR: Changes the color density.

TINT: Changes the picture’s tint. Adjust for natural colored skin, background, etc.

Adjusting the computer image

Only the contrast and brightness can be adjusted when a computer signal is connected.

Restoring the factory default settings

Select “DEFAULT” under the “PICTURE MODE” settings.

Reducing noise in the picture

Use these settings if the picture has noise due to poor reception or when playing video tapes on which the picture quality is poor.

Example: Setting “NR-3”

On “NR” of “PICTURE” menu, select “NR-3”.












PICTURE MEMORY

: OFF









CONTRAST

































BRIGHTNESS

















SHARPNESS

















COLOR



















TINT



R







G







NR



: OFF









COLOR TEMP.

: MIDDLE





NR

: NR-3

GAMMA



:

2.2























LOW TONE

:

AUTO









SET UP LEVEL

:

0%













COLOR TUNE

















CINEMA MODE

: ON









PICTURE MODE

: NORMAL









SEL.

ADJ.

EXIT RETURN









Information

NR

*“NR” stands for Noise Reduction.

*This function reduces noise in the picture.

Types of noise reduction

There are three types of noise reduction. Each has a different level of noise reduction.

The effect becomes stronger as the number increases (in the order NR-1NR-2NR-3).

OFF: Turns the noise reduction function off.

21

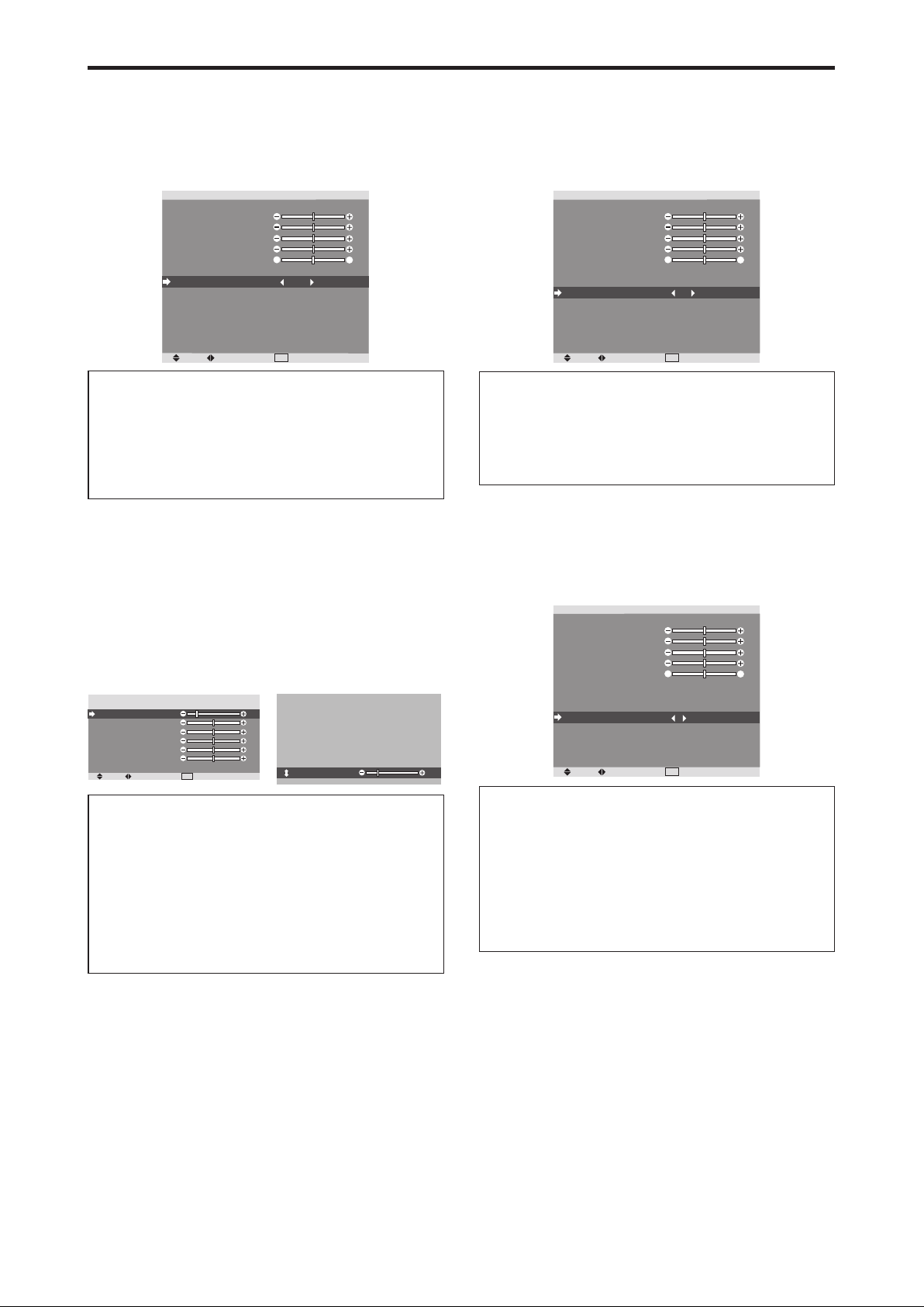

Setting the color temperature

Use this procedure to set color tone produced by the plasma display.

Example: Setting “HIGH”

On “COLOR TEMP.” of “PICTURE” menu, select “HIGH”.




PICTURE MEMORY

: OFF

CONTRAST









BRIGHTNESS

















SHARPNESS









COLOR











TINT



R





G

NR



:

OFF

COLOR TEMP.

:

HIGH

GAMMA



:

2.2





LOW TONE

:

AUTO

SET UP LEVEL

:

0%





COLOR TUNE









CINEMA MODE

: ON

PICTURE MODE

: NORMAL

SEL.

ADJ.

EXIT RETURN

Information

Setting the color temperature

LOW: Redder

MIDDLE LOW: Slightly red MIDDLE: Standard (slightly bluer)

HIGH: Bluer

Adjusting the color to the desired level

Use this procedure to adjust the white balance for each color temperature to achieve the desired color quality.

Example: Adjusting the “GAIN RED” of “HIGH” color temperature

On “COLOR TEMP.” of “PICTURE” menu, select “HIGH”, then press the MENU/ENTER button.

The “WHITE BALANCE” screen appears. On “GAIN RED”, adjust the white balance.

WHITE BALANCE

COLOR TEMP. HIGH

GAIN RED







GAIN GREEN







GAIN BLUE







BIAS RED







BIAS GREEN







BIAS BLUE







RESET



: OFF

GAIN RED

20

SEL.

ADJ.

EXIT RETURN





Information

Adjusting the white balance

GAIN R/G/B: White balance adjustment for white level BIAS R/G/B: White balance adjustment for black level RESET: Resets settings to the factory default values. Use and buttons to select “ON”, then press the MENU/ENTER button.

Restoring the factory default settings

Select “RESET” under the WHITE BALANCE menu.

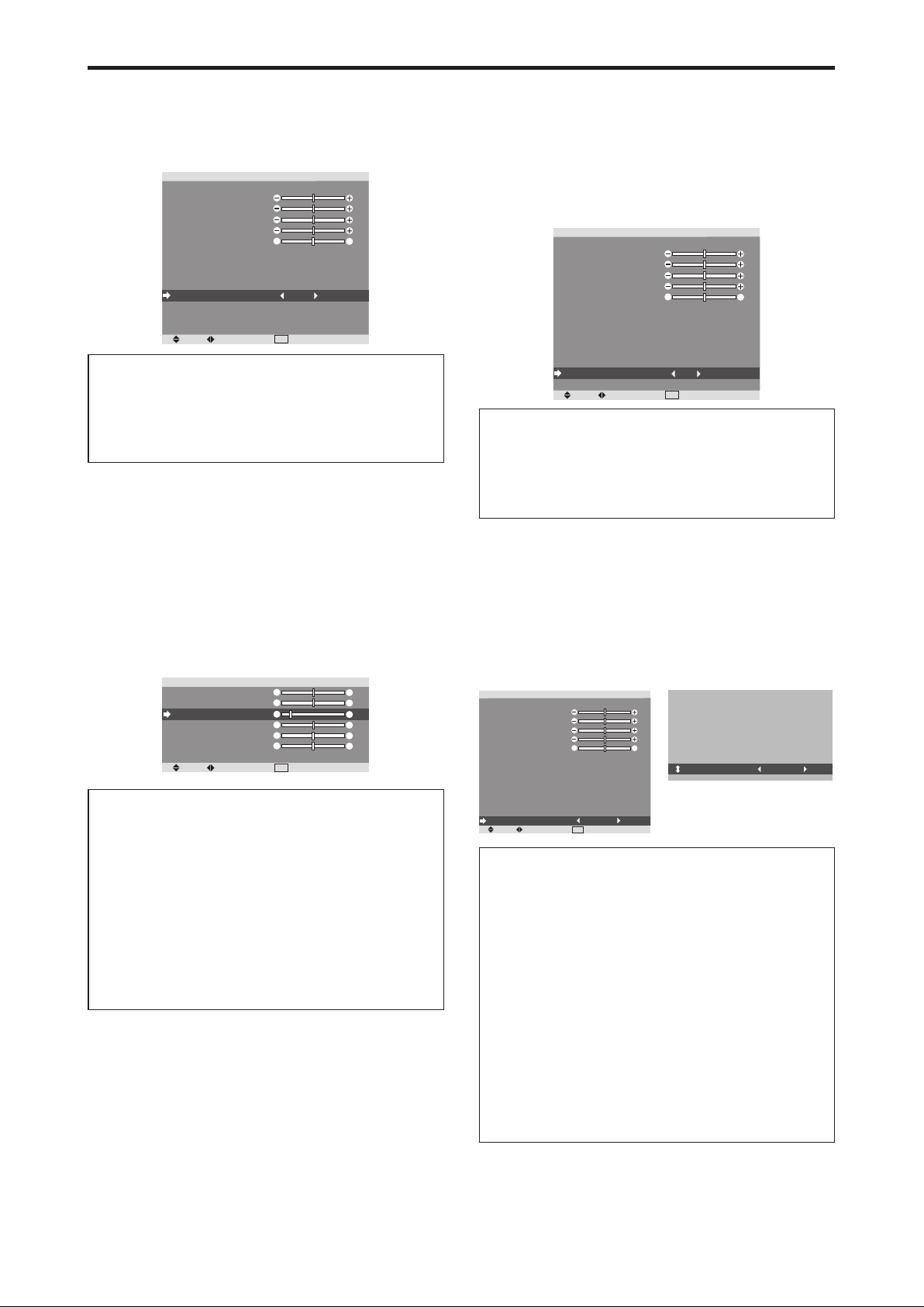

Changing the Gamma Curve

This feature adjusts the brightness of the midtone areas while keeping shadows and highlights unchanged.

Example: Setting “2.3”

On “GAMMA” of “PICTURE” menu, select “2.3”.




PICTURE MEMORY

: OFF

CONTRAST









BRIGHTNESS

















SHARPNESS









COLOR











TINT



R





G

NR



:

OFF

COLOR TEMP.

:

MIDDLE

GAMMA



:

2.3





LOW TONE

:

AUTO

SET UP LEVEL

:

0%





COLOR TUNE









CINEMA MODE

: ON

PICTURE MODE

: NORMAL

SEL.

ADJ.

EXIT RETURN

Information

GAMMA settings

The picture becomes darker as the number increases (in the sequence of 2.1, 2.2, 2.3, 2.4).

* These values are approximate.

Making the Low Tone adjustments

This feature allows more detailed tone to be reproduced especially in the dark area.

Example: Setting “2”

On “LOW TONE” of “PICTURE” menu, select “2”.




PICTURE MEMORY

: OFF

CONTRAST









BRIGHTNESS

















SHARPNESS

















COLOR











TINT



R





G

NR



:

OFF

COLOR TEMP.

:

MIDDLE

GAMMA



:

2.2





LOW TONE

:

2





SET UP LEVEL

:

0%





COLOR TUNE









CINEMA MODE

: ON

PICTURE MODE

: NORMAL

SEL.

ADJ.

EXIT RETURN

Information

LOW TONE settings

AUTO: Will automatically appraise the picture and make adjustments.

1:Will apply the dither method suitable for still pictures.

2:Will apply the dither method suitable for motion pictures.

3:Will apply the error diffusion method.

22

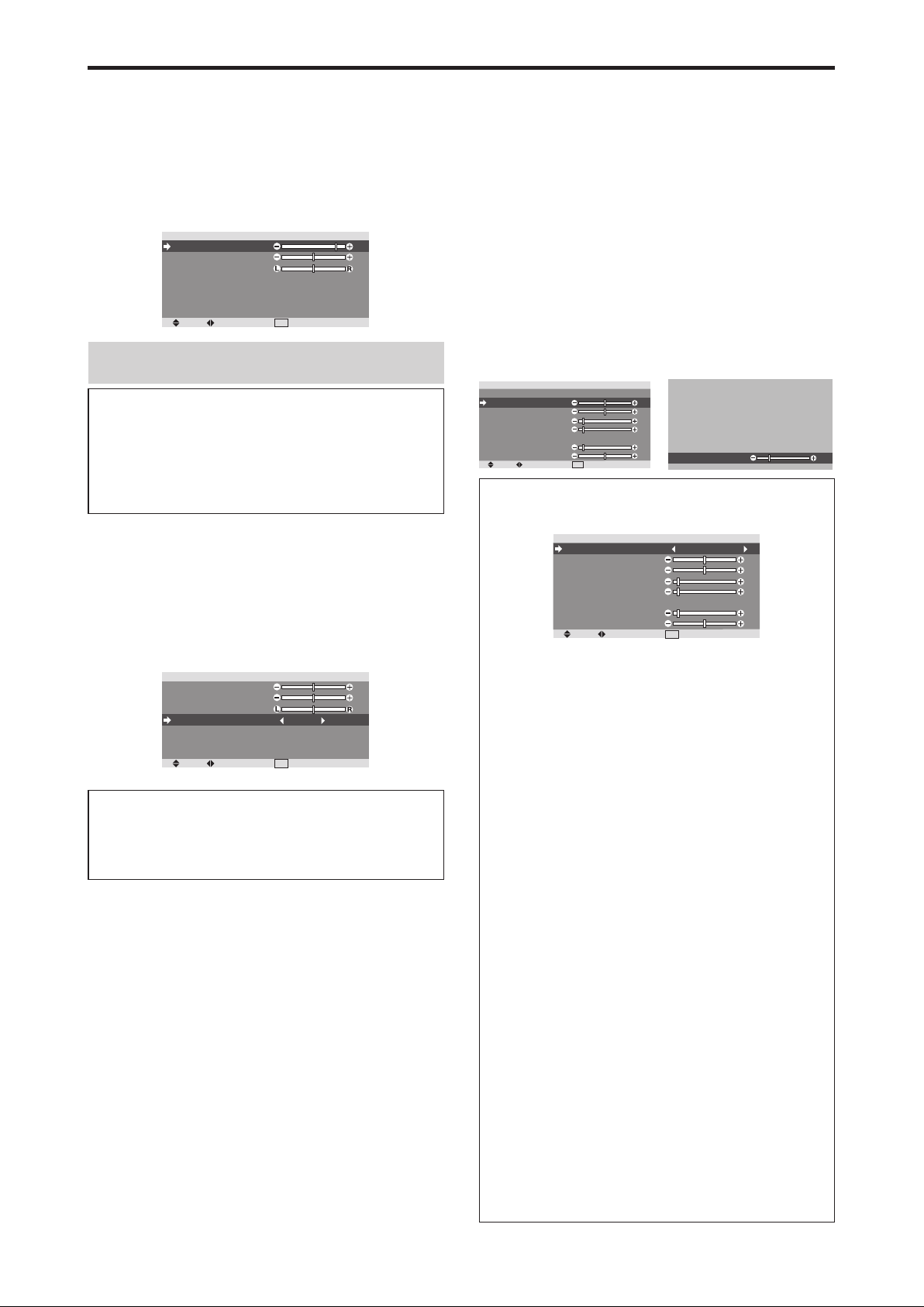

Adjusting the pedestal level (black level)

This feature adjusts the video black level in a video image.

Example: Setting “3.75%”

On “SET UP LEVEL” of “PICTURE” menu, select “3.75%”.




PICTURE MEMORY

: OFF

CONTRAST









BRIGHTNESS

















SHARPNESS









COLOR











TINT



R





G

NR



:

OFF

COLOR TEMP.

:

MIDDLE

GAMMA



:

2.2





LOW TONE

:

AUTO

SET UP LEVEL

:

3.75%





COLOR TUNE









CINEMA MODE

: ON

PICTURE MODE

: NORMAL

SEL.

ADJ.

EXIT RETURN

Information

SET UP LEVEL settings

0%: Normal status

3.75%: 3.5% lower than normal 7.5%: 7.5% lower than normal

Adjusting the colors

Use this procedure to adjust hue and color density for red, green, blue, yellow, magenta and cyan.

You can accentuate the green color of trees, the blue of the sky, etc.

Example: Adjusting the color tune for blue

On “PICTURE” menu, select “COLOR TUNE”, then press the MENU/ENTER button.

The “COLOR TUNE” screen appears.

On “BLUE” of “COLOR TUNE”, adjust the color tune.

COLOR TUNE

RED



Y











M













GREEN



C











Y

BLUE



M











C













YELLOW



G











R













MAGENTA

R











B











CYAN



B











G













RESET



: OFF





SEL.

ADJ.

EXIT RETURN





Information

COLOR TUNE settings

RED: Makes red’s adjustment GREEN: Makes green’s adjustment BLUE: Makes blue’s adjustment YELLOW: Makes yellow’s adjustment

MAGENTA: Makes magenta’s adjustment CYAN: Makes cyan’s adjustment

RESET: Resets settings to the factory default value. Use and buttons to select “ON”, then press the MENU/ENTER button.

Setting the picture to suit the movie

The film image is automatically discriminated and projected in an image mode suited to the picture. [NTSC, PAL, PAL60, 480I (60Hz), 525I (60Hz), 576I (50Hz), 625I (50Hz), 1035I (60Hz), 1080I (60Hz) only]

Example: Setting the “CINEMA MODE” to “OFF”

On “CINEMA MODE” of “PICTURE” menu, select “OFF”.




PICTURE MEMORY

: OFF

CONTRAST









BRIGHTNESS

















SHARPNESS









COLOR











TINT



R





G

NR



:

OFF

COLOR TEMP.

:

MIDDLE

GAMMA



:

2.2





LOW TONE

:

AUTO

SET UP LEVEL

:

0%





COLOR TUNE









CINEMA MODE

: OFF

PICTURE MODE

: NORMAL

SEL.

ADJ.

EXIT RETURN

Information

CINEMA MODE

ON: Automatic discrimination of the image and projection in cinema mode.

OFF: Cinema mode does not function.

Setting the picture mode according to the brightness of the room

There are four picture modes that can be used effectively according to the environment in which you are viewing the display.

Example: Setting the “THEATER1” mode

On “PICTURE MODE” of “PICTURE” menu, select “THEATER1”.












PICTURE MEMORY

: OFF









CONTRAST

































BRIGHTNESS

















SHARPNESS

















COLOR



















TINT



R







G







NR



: OFF









COLOR TEMP.

: MIDDLE





PICTURE MODE

: THEATER1

GAMMA



:

2.2























LOW TONE

:

AUTO









SET UP LEVEL

:

0%













COLOR TUNE

















CINEMA MODE

: ON









PICTURE MODE

: NORMAL









SEL.

ADJ.

EXIT RETURN









Information

Types of picture modes

THEATER1, 2: Set this mode when watching video in a dark room.

This mode provides darker, finer pictures, like the screen in movie theaters.

For a darker image, select THEATER2.

NORMAL: Set this mode when watching video in a bright room.

This mode provides dynamic pictures with distinct differences between light and dark sections.

BRIGHT: This mode provides brighter pictures than NORMAL.

DEFAULT: Use this to reset the picture to the factory default settings.

23

Audio Settings Menu

Adjusting the treble, bass and left/right balance and audio input select

The treble, bass and left/right balance can be adjusted to suit your tastes.

Example: Adjusting the bass

On “BASS” of “AUDIO” menu, adjust the bass.





AUDIO

BASS





































TREBLE



















BALANCE

































AUDIO INPUT1



: VIDEO1

AUDIO INPUT2



: HD/DVD1

AUDIO INPUT3



: RGB1





















SEL.

ADJ.



EXIT RETURN

Note : If “CAN NOT ADJUST” appears...

Set “AUDIO INPUT” on the AUDIO menu correctly.

Information

Audio settings menu

BASS: Controls the level of low frequency sound. TREBLE: Controls the level of high frequency sound. BALANCE: Controls the balance of the left and right channels.

Setting the allocation of the audio connectors

Setting the AUDIO 1, 2, and 3 connectors to the desired input.

Example: Setting “AUDIO INPUT1” to “VIDEO 2”

On “AUDIO INPUT1” of “AUDIO” menu, select “VIDEO2”.

The available sources depend on the settings of input.





AUDIO

BASS















TREBLE















BALANCE













AUDIO INPUT1



: VIDEO2

AUDIO INPUT2



: HD/DVD1

AUDIO INPUT3



: RGB1

















SEL.

ADJ.



EXIT RETURN

Information

AUDIO INPUT

A single audio input cannot be selected as the audio channel for more than one input terminal.

Image Adjust Settings Menu

Adjusting the Position, Size, Fine Picture, Picture ADJ.

The position of the image can be adjusted and flickering of the image can be corrected.

Example: Adjusting the vertical position in the normal mode

On “V-POSITION” of “IMAGE ADJUST” menu, adjust the position.

The mode switches as follows each time the or button is pressed:

NORMAL ANAMORPHIC

*The mode can also be switched by pressing the WIDE button on the remote control.

*The settings on the IMAGE ADJUST menu are not preset

at the factory.



IMAGE ADJUST













ASPECT MODE

: NORMAL













V-POSITION























H-POSITION























V-HEIGHT























H-WIDTH

























AUTO PICTURE

: OFF













FINE PICTURE























PICTURE ADJ.













V-POSITION







-30

















SEL.

ADJ.

EXIT RETURN







































Information

When “AUTO PICTURE” is “OFF”



IMAGE ADJUST

ASPECT MODE

: ANAMORPHIC

V-POSITION

















H-POSITION

















V-HEIGHT









H-WIDTH











AUTO PICTURE

: OFF

FINE PICTURE









PICTURE ADJ.

















SEL.

ADJ.

EXIT RETURN

When Auto Picture is off, the Fine Picture and the Picture ADJ. items are displayed so that you can adjust them.

Adjusting the Auto Picture

ON: The Picture ADJ., Fine Picture and Position adjustments are made automatically.

Not available for digital ZOOM.

OFF: The Picture ADJ., Fine Picture and Position adjustments are made manually.

*If FINE PICTURE can’t be adjusted, set Auto Picture to OFF and adjust manually.

Adjusting the position of the image

V-POSITION: Adjusts the vertical position of the image.

H-POSITION: Adjusts the horizontal position of the image.

V-HEIGHT: Adjusts the vertical size of the image. (Except for STADIUM mode)

H-WIDTH: Adjusts the horizontal size of the image. (Except for STADIUM mode)

FINE PICTURE*: Adjusts for flickering. PICTURE ADJ.*: Adjusts for striped patterns on the image.

*The Picture ADJ. and Fine Picture features are available only when the “Auto Picture” is off.

*The AUTO PICTURE, FINE PICTURE and PICTURE ADJ. are available only for RGB signals.

But, these features are not available for moving pictures on VIDEO, HD/DVD or RGB.

24

SET UP Settings Menu

Setting the language for the menus

The menu display can be set to one of eight languages.

Example: Setting the menu display to “DEUTSCH”

On “LANGUAGE” of “SET UP” menu, select “DEUTSCH”.





SET UP





LANGUAGE

: DEUTSCH





BNC INPUT

: COMPONENT





D-SUB INPUT

: RGB





HD SELECT

: 1080I





RGB SELECT

: PC AUTO





HDMI SET UP







COLOR SYSTEM

: AUTO





BACK GROUND

: GRAY





GRAY LEVEL

: 3





S1/S2



: OFF





DISPLAY OSM

: ON





OSM ADJ.

: TOP LEFT





ALL RESET

: OFF





SEL.

ADJ.

EXIT RETURN













Information







Language settings





ENGLISH .........

English

ITALIANO ........

Italian

DEUTSCH .......

German

SVENSKA ........

Swedish

FRANÇAIS ......

French

...................

Chinese

ESPAÑOL ........

Spanish

.......

Russian











Setting the BNC connectors

Select whether to set the input of the 5 BNC connectors to RGB and component.

Example: Set the BNC INPUT mode to “RGB”

On “BNC INPUT” of “SET UP” menu, select “RGB”.



SET UP

LANGUAGE

: ENGLISH

BNC INPUT

: RGB

D-SUB INPUT

: RGB

HD SELECT

: 1080I

RGB SELECT

: PC AUTO

HDMI SET UP



COLOR SYSTEM

: AUTO

BACK GROUND

: GRAY

GRAY LEVEL

: 3

S1/S2



: OFF

DISPLAY OSM

: ON

OSM ADJ.

: TOP LEFT

ALL RESET

: OFF

SEL.

ADJ.

EXIT RETURN

Information

BNC INPUT Settings

RGB: Use the 5BNC terminals for RGB input. COMPONENT: Use the 3BNC terminals for component input.

Checking the signal being transmitted to RGB1 terminal

Use this to confirm the signal being transmitted to the RGB1 terminal.

It is set to RGB and can not be adjusted.

SET UP

LANGUAGE

: ENGLISH

BNC INPUT

: COMPONENT

D-SUB INPUT

: RGB

HD SELECT

: 1080I

RGB SELECT

: PC AUTO

HDMI SET UP



COLOR SYSTEM

: AUTO

BACK GROUND

: GRAY

GRAY LEVEL

: 3

S1/S2

: OFF

DISPLAY OSM

: ON

OSM ADJ.

: TOP LEFT

ALL RESET

: OFF

CAN NOT ADJUST



Setting high definition images to the suitable screen size

Use this procedure to set whether the number of vertical lines of the input high definition image is 1080I or 1035I or 540P.

Example: Setting the “HD SELECT” mode to “1035I”

On “HD SELECT” of “SET UP” menu, select “1035I”.



SET UP

LANGUAGE

: ENGLISH

BNC INPUT

: COMPONENT

D-SUB INPUT

: RGB

HD SELECT

: 1035I

RGB SELECT

: PC AUTO

HDMI SET UP



COLOR SYSTEM

: AUTO

BACK GROUND

: GRAY

GRAY LEVEL

: 3

S1/S2



: OFF

DISPLAY OSM

: ON

OSM ADJ.

: TOP LEFT

ALL RESET

: OFF

SEL.

ADJ.

EXIT RETURN

Information

HD SELECT modes

These 3 modes are not displayed in correct image automatically.

1080I: Standard digital broadcasts

1035I: Japanese “High Vision” signal format

540P: Special Digital broadcasts (for example : DTC100)

Setting a computer image to the correct RGB select screen

With the computer image, select the RGB Select mode for a moving image such as (video) mode, wide mode or digital broadcast.

Example: Setting the “RGB SELECT” mode to “MOTION ”

On “RGB SELECT” of “SET UP” menu, select “MOTION”.



SET UP

LANGUAGE

: ENGLISH

BNC INPUT

: COMPONENT

D-SUB INPUT

: RGB

HD SELECT

: 1080I

RGB SELECT

: MOTION

HDMI SET UP

1024 768

COLOR SYSTEM

: AUTO

BACK GROUND

: GRAY

GRAY LEVEL

: 3

S1/S2



: OFF

DISPLAY OSM

: ON

OSM ADJ.

: TOP LEFT

ALL RESET

: OFF

SEL.

ADJ.

EXIT RETURN

25

Information

RGB SELECT modes

One of these 7 modes must be selected in order to display the following signals correctly.

PC AUTO: Select the suitable mode for the specifications of input signals as listed in the table “Computer input signals supported by this system” on page 38-40.

STILL: To display VESA standard signals. (Use this mode for a still image from a computer.)

MOTION: The video signal (from a scan converter) will be converted to RGB signals to make the picture more easily viewable. (Use this mode for a motion image from a computer.)

WIDE1: When an 852 dot 480 line signal with a horizontal frequency of 31.7kHz is input, the image may be compressed horizontally. To prevent this, set RGB SELECT to WIDE1.

WIDE2: When an 848 dot 480 line signal with a horizontal frequency of 31.0 kHz is input, the image may be compressed horizontally. To prevent this, set RGB SELECT to WIDE2.

WIDE3: When an 1920 dot 1200 line signal with a horizontal frequency of 74.0 kHz is input, the image may be compressed horizontally. To prevent this, set RGB SELECT to WIDE3.

DTV: Set this mode when watching digital broadcasting (480P/720P/1080I/576P).

See page 38-40 for the details of the above settings.

Setting the signal and black level for HDMI signal

Choose the signal for the HDMI connector (PC or STB/ DVD) and set the black level.

Example: Setting the “PLUG/PLAY” mode to “STB/ DVD”

On “SET UP” menu, select “HDMI SET UP”, then press the MENU/ENTER button.

The “HDMI SET UP” screen appears.

On “PLUG/PLAY” of “HDMI SET UP” menu, select “STB/ DVD”.

HDMI SET UP

PLUG/PLAY

: STB/DVD

BLACK LEVEL

: HIGH

SEL.

ADJ.

EXIT RETURN

Information

PLUG/PLAY settings

PC: When connected to the PC signal.

BLACK LEVEL is set to “LOW” automatically. STB/DVD: When connected to the SET TOP BOX, DVD etc.

BLACK LEVEL is set to “HIGH” automatically.

BLACK LEVEL settings

LOW: When connected to the PC signal.

HIGH: When connected to the SET TOP BOX, DVD etc. Change “HIGH” into “LOW” if the black level appears gray.

Setting the video signal format

Use these operations to set the color systems of composite video signals or Y/C input signals.

Example: Setting the color system to “3.58 NTSC”

On “COLOR SYSTEM” of “SET UP” menu, select “3.58NTSC”.



SET UP

LANGUAGE

: ENGLISH

BNC INPUT

: COMPONENT

D-SUB INPUT

: RGB

HD SELECT

: 1080I

RGB SELECT

: PC AUTO

HDMI SET UP



COLOR SYSTEM

: 3.58NTSC

BACK GROUND

: GRAY

GRAY LEVEL

: 3

S1/S2



: OFF

DISPLAY OSM

: ON

OSM ADJ.

: TOP LEFT

ALL RESET

: OFF

SEL.

ADJ.

EXIT RETURN

Information

Video signal formats

Different countries use different formats for video signals. Set to the color system used in your current country. AUTO: The color systems are automatically identified and the format is set accordingly.

PAL: This is the standard format used mainly in the United Kingdom and Germany.

SECAM: This is the standard format used mainly in France and Russia.

4.43 NTSC, PAL60: This format is used for videos in countries using PAL and SECAM video signals. 3.58 NTSC: This is the standard format used mainly in the United States and Japan.

PAL-M: This is the standard format used mainly in Brazil.

PAL-N: This is the standard format used mainly in Argentina.

Setting the background color when no signal is being input

The color displayed on the background when there is no signal can be set to gray.

Example: Setting “BACK GROUND” to “BLACK”

On “BACK GROUND” of “SET UP” menu, select “BLACK”.



SET UP

LANGUAGE

: ENGLISH

BNC INPUT

: COMPONENT

D-SUB INPUT

: RGB

HD SELECT

: 1080I

RGB SELECT

: PC AUTO

HDMI SET UP



COLOR SYSTEM

: AUTO

BACK GROUND

: BLACK

GRAY LEVEL

: 3

S1/S2



: OFF

DISPLAY OSM

: ON

OSM ADJ.

: TOP LEFT

ALL RESET

: OFF

SEL.

ADJ.

EXIT RETURN

Information

BACK GROUND Settings

BLACK: Sets the background color to black. GRAY: Sets the background color to gray.

Setting this makes it easier to see that there is no signal.

26

Setting the gray level for the sides of the screen

Use this procedure to set the gray level for the parts on the screen on which nothing is displayed when the screen is set to the 4:3 size.

Example: Setting “GRAY LEVEL” to “5”

On “GRAY LEVEL” of “SET UP” menu, select “5”.



SET UP

LANGUAGE

: ENGLISH

BNC INPUT

: COMPONENT

D-SUB INPUT

: RGB

HD SELECT

: 1080I

RGB SELECT

: PC AUTO

HDMI SET UP



COLOR SYSTEM

: AUTO

BACK GROUND

: GRAY

GRAY LEVEL

: 5

S1/S2



: OFF

DISPLAY OSM

: ON

OSM ADJ.

: TOP LEFT

ALL RESET

: OFF

SEL.

ADJ.

EXIT RETURN

Information

GRAY LEVEL settings

This adjusts the brightness of the black (the gray level) for the sides of the screen.

The standard is 0 (black). The level can be adjusted from 0 to 15. The factory setting is 3 (dark gray).

Setting the screen size for S1/S2 video input

If the S-video signal contains screen size information, the image will be automatically adjusted to fit the screen when this S1/S2 is set to AUTO.

This feature is available only when an S-video signal is input via the VIDEO3 terminal.

Example: Setting “S1/S2” to “AUTO”

On “S1/S2” of “SET UP” menu, select “AUTO”.



SET UP

LANGUAGE



: ENGLISH

BNC INPUT



: COMPONENT

D-SUB INPUT

: RGB

HD SELECT

: 1080I

RGB SELECT

: PC AUTO

HDMI SET UP



COLOR SYSTEM

: AUTO

BACK GROUND

: GRAY

GRAY LEVEL

: 3

S1/S2



: AUTO

DISPLAY OSM

: ON

OSM ADJ.



: TOP LEFT

ALL RESET



: OFF

SEL.

.

EXIT RETURN

Information

S1/S2 settings

AUTO: Adjusts the screen size automatically according to the S1/S2 video signal.

OFF: Turns the S1/S2 function off.

Turning on/off the menu display

When this is set to OFF, the menu will not displayed even if you press the MENU/ENTER button.

Example: Turning the DISPLAY OSM off

On “DISPLAY OSM” of “SET UP” menu, select “OFF”.



SET UP

LANGUAGE

: ENGLISH

BNC INPUT

: COMPONENT

D-SUB INPUT

: RGB

HD SELECT

: 1080I

RGB SELECT

: PC AUTO

HDMI SET UP



COLOR SYSTEM

: AUTO

BACK GROUND

: GRAY

GRAY LEVEL

: 3

S1/S2



: OFF

DISPLAY OSM

: OFF

OSM ADJ.

: TOP LEFT

ALL RESET

: OFF

SEL.

ADJ.

EXIT RETURN

Information

DISPLAY OSM settings

ON: The on-screen menu appears.

OFF: The on-screen menu does not appear.

If you press the DISPLAY button on the remote control for more than 3 seconds the main menu will appear and can be set (although it is not ON).

Setting the position of the menu

Adjusts the position of the menu when it appears on the screen.

Example: Set the position to “TOP CENTER”

On “OSMADJ.” of “SET UP” menu, select “TOP CENTER”.



SET UP

LANGUAGE

: ENGLISH

BNC INPUT

: COMPONENT

D-SUB INPUT

: RGB

HD SELECT

: 1080I

RGB SELECT

: PC AUTO

HDMI SET UP



COLOR SYSTEM

: AUTO

BACK GROUND

: GRAY

GRAY LEVEL

: 3

S1/S2



: OFF

DISPLAY OSM

: ON

OSM ADJ.

: TOP CENTER

ALL RESET

: OFF

SEL.

ADJ.

EXIT RETURN

Information

OSM ADJUST settings

TOP

TOP

TOP

LEFT

CENTER

RIGHT







BTM

BTM

BTM

LEFT

CENTER

RIGHT













Resetting to the default values

Use these operations to restore all the settings (PICTURE, AUDIO, IMAGE ADJUST, SET UP, etc) to the factory default values.

Refer to page 19 for items to be reset.

On “ALL RESET” of “SET UP” menu, select “ON”, then press the MENU/ENTER button.



SET UP





ALL RESET

LANGUAGE

: ENGLISH





BNC INPUT

: COMPONENT





D-SUB INPUT

: RGB



SETTING NOW

HD SELECT

:

1080I







RGB SELECT

: PC AUTO





HDMI SET UP









COLOR SYSTEM

: AUTO





BACK GROUND

: GRAY





GRAY LEVEL

:

3





S1/S2



: OFF





DISPLAY OSM

: ON





OSM ADJ.

: TOP LEFT





ALL RESET

: ON





SEL.

ADJ.

EXIT RETURN





When the “SETTING NOW” screen disappears, then all the settings are restored to the default values.

27

Function Settings Menu

Setting the power management for computer images

This energy-saving (power management) function automatically reduces the monitor’s power consumption if no operation is performed for a certain amount of time.

Example: Turning the power management function on

On “POWER MGT.” of “FUNCTION” menu, select “ON”.



FUNCTION

POWER MGT.

: ON

INPUT SKIP

: OFF

PDP SAVER

: MANUAL

CLOSED CAPTION

: OFF

CAPTION CONT

: LOW

SEL.

ADJ.

EXIT RETURN

Information

Power management function

*The power management function automatically reduces the monitor’s power consumption if the computer’s keyboard or mouse is not operated for a certain amount of time. This function can be used when using the monitor with a computer.

*If the computer’s power is not turned on or if the computer and selector tuner are not properly connected, the system is set to the off state.

*For instructions on using the computer’s power management function, refer to the computer’s operating instructions.

Power management settings

ON: In this mode the power management function is turned on.

OFF: In this mode the power management function is turned off.

Power management function and POWER/

STANDBY indicator

The POWER/STANDBY indicator indicates the status of the power management function. See below for indicator status and description.

POWER/STANDBY indicator

Power

POWER/

Power

Description

Turning the picture

management

STANDBY

management



back on

mode

indicator

operating status















On

Green

Not activated.

Horizontal and vertical

Picture already on.







synchronizing signals









are present from the









computer.













Off

Red

Activated.

Horizontal and/or

Operate the keyboard or







vertical synchronizing

m o u s e . T h e p i c t u r e







signals are not sent

reappears.







from the computer.













Setting the Input Skip

When this is ON, signals which are not present will be skipped over and only pictures whose signals are being transmitted will be displayed.

This setting is valid only for the INPUT SELECT button on the unit.

Example: Set to “ON”

On “INPUT SKIP” of “FUNCTION” menu, select “ON”.



FUNCTION

POWER MGT.

: OFF

INPUT SKIP

: ON

PDP SAVER

: MANUAL

CLOSED CAPTION

: OFF

CAPTION CONT

: LOW

SEL.

ADJ.

EXIT RETURN

Information

INPUT SKIP settings

OFF: Regardless of the presence of the signal, scan and display all signals.

ON: If no input signal is present, skip that signal.

* “SETTING NOW” will appear during the input search.

Reducing burn-in of the screen

The brightness of the screen, the position of the picture, positive/negative mode and screen wiper are adjusted to reduce burn-in of the screen.

On “PDP SAVER” of “FUNCTION” menu, select “MANUAL”, then press the MENU/ENTER button.

The “PDP SAVER” screen appears.



PDP SAVER

PEAK BRIGHT

: 100%

ORBITER



: OFF

INVERSE/WHITE

: OFF

SCREEN WIPER

: OFF

SOFT FOCUS

: OFF

OSM ORBITER

: ON

OSM CONTRAST

: LOW

SEL.

ADJ.

EXIT RETURN

Information

When set to AUTO

Set automatically, as described below.

PEAK BRIGHT: 100% ORBITER: ON INVERSE/WHITE: OFF SCREEN WIPER: OFF SOFT FOCUS: OFF OSD ORBITER: ON OSD CONTRAST: LOW

28

PEAK BRIGHT

Use this to activate the brightness limiter.

Example: Setting “PEAK BRIGHT” to “75%”

On “PEAK BRIGHT” of “PDP SAVER” menu, select “75%”.









PDP SAVER



PEAK BRIGHT

: 75%





ORBITER

: OFF





INVERSE/WHITE

: OFF





SCREEN WIPER

: OFF





SOFT FOCUS

: OFF





OSM ORBITER

: ON





OSM CONTRAST

: LOW





SEL. ADJ.

EXIT RETURN



Information

PEAK BRIGHT settings

100%: The brightness of the screen is adjusted automatically to suit the picture quality.

75%, 50%, 25%: Sets maximum brightness.

The brightness level decreases in the order of 75%, 50%, 25%. 25% provides minimum brightness.

* These values are approximate.

ORBITER

Use this to set the picture shift.

Example: Setting “ORBITER” to “AUTO1”

On “ORBITER” of “PDP SAVER” menu, select “AUTO1”.









PDP SAVER



PEAK BRIGHT

: 100%





ORBITER

: AUTO1





INVERSE/WHITE

: OFF





SCREEN WIPER

: OFF





SOFT FOCUS

: OFF





OSM ORBITER

: ON





OSM CONTRAST

: LOW





SEL. ADJ.

EXIT RETURN



Information

ORBITER settings

OFF: Orbiter mode does not function.

This is the default setting when RGB is input. AUTO1: The picture moves around the screen intermittently, making the picture smaller. This is the default setting when a Video or a DVD/HD/DTV signal is input. Set to “OFF” when these signals are not used. AUTO2: The picture moves around the screen intermittently, making the picture bigger.

*When a Video or a DVD/HD/DTV signal is input, the AUTO1 and 2 functions will affect only the moving picture and will not make the screen smaller or bigger.

INVERSE/WHITE

Use this to set the inverse mode or to display a white screen.

Example: Setting “INVERSE/WHITE” to “WHITE”

On “INVERSE/WHITE” of “PDP SAVER” menu, select “WHITE”.



PDP SAVER

PEAK BRIGHT

: 100%

ORBITER



: OFF

INVERSE/WHITE

: WHITE

SCREEN WIPER

: OFF

SOFT FOCUS

: OFF

OSM ORBITER

: ON

OSM CONTRAST

: LOW

SEL.

ADJ.

EXIT RETURN

Information

INVERSE/WHITE Settings

OFF: Inverse/white mode does not function. INVERSE: The picture is displayed alternately between positive image and negative image.

WHITE: The entire screen turns white.

SCREEN WIPER

When this is set to ON, a white vertical bar moves repeatedly from the left and of the screen to the right end at a constant speed.

Example: Setting “SCREEN WIPER” to “ON”

On “SCREEN WIPER” of “PDP SAVER” menu, select “ON”.



PDP SAVER

PEAK BRIGHT

: 100%

ORBITER



: OFF

INVERSE/WHITE

: OFF

SCREEN WIPER

: ON

SOFT FOCUS

: OFF

OSM ORBITER

: ON

OSM CONTRAST

: LOW

SEL.

ADJ.

EXIT RETURN

Information

SCREEN WIPER

ON: The white vertical bar appears.

OFF: Screen wiper mode does not function.

SOFT FOCUS

Reduces edges and softens the image.

Example: Setting “SOFT FOCUS” to “LEVEL2”

On “SOFT FOCUS” of “PDP SAVER” menu, select “LEVEL2”.



PDP SAVER

PEAK BRIGHT

: 100%

ORBITER



: OFF

INVERSE/WHITE

: OFF

SCREEN WIPER

: OFF

SOFT FOCUS

: LEVEL2

OSM ORBITER

: ON

OSM CONTRAST

: LOW

SEL.

ADJ.

EXIT RETURN

Information

SOFT FOCUS settings

OFF: Turns the SOFT FOCUS function off. LEVEL1, 2, 3, 4: Activates the SOFT FOCUS setting. The higher numbers create a softer image.

“SHARPNESS” can not be adjusted on the “PICTURE” menu.

29

OSM ORBITER

Use this to set OSM menu shift.

Example: Setting “OSM ORBITER” to “OFF”

On “OSM ORBITER” of “PDP SAVER” menu, select “OFF”.



PDP SAVER

PEAK BRIGHT

: 100%

ORBITER



: OFF

INVERSE/WHITE

: OFF

SCREEN WIPER

: OFF

SOFT FOCUS

: OFF

OSM ORBITER

: OFF

OSM CONTRAST

: LOW

SEL.

ADJ.

EXIT RETURN

Information

OSM ORBITER settings

ON: The position of the menu will be shifted by eight dots each time OSM is displayed.

OFF: OSM will be displayed at the same position.

OSM CONTRAST

Use this to reduce the brightness of OSM menu.

Example: Setting “OSM CONTRAST” to “NORMAL”

On “OSM CONTRAST” of “PDP SAVER” menu, select “NORMAL”.



PDP SAVER

PEAK BRIGHT

: 100%

ORBITER



: OFF

INVERSE/WHITE

: OFF

SCREEN WIPER

: OFF

SOFT FOCUS

: OFF

OSM ORBITER

: ON

OSM CONTRAST

: NORMAL

SEL.

ADJ.

EXIT RETURN

Information

OSM CONTRAST settings

NORMAL: OSM brightness is set to normal. LOW: OSM brightness is set to lower.

Setting Closed Caption

This function sets several closed caption modes that allows text to be superimposed on display.

Example: Setting “CAPTION2”

On “CLOSED CAPTION” of “FUNCTION” menu, select “CAPTION2”.



FUNCTION

POWER MGT.

: OFF

INPUT SKIP

: OFF

PDP SAVER

: MANUAL

CLOSED CAPTION

: CAPTION2

CAPTION CONT

: LOW

SEL.

ADJ.

EXIT RETURN

Information

CLOSED CAPTION settings

OFF: This exits the closed caption mode. CAPTION1~4: Text is superimposed. TEXT1~4: Text is displayed in full screen.

A closed caption signal may not be decoded in the following signature;

1.when a video tape has been dubbed.

2.when the signal reception is weak.

3.when the signal reception is nonstandard.

When using closed captioned channel or the text mode, the text screen always appears.

When there is no signal, however, the text screen will not display text characters.

Reducing the brightness of Closed Caption

Use this to reduce the brightness of Closed Caption.

Example: Setting “NORMAL”

On “CAPTION CONT” of “FUNCTION” menu, select “NORMAL”.



FUNCTION

POWER MGT.

: OFF

INPUT SKIP

: OFF

PDP SAVER

: MANUAL

CLOSED CAPTION

: OFF

CAPTION CONT

: NORMAL

SEL.

ADJ.

EXIT RETURN

Information

CAPTION CONT settings

NORMAL: Closed Caption brightness is set to normal. LOW: Closed Caption brightness is set to lower.

Signal Information Menu

Checking the frequencies, polarities of input signals, and resolution

Use this function to check the frequencies and polarities of the signals currently being input from a computer, etc. On “MAIN MENU”, select “SIGNAL INFO.”, then press the MENU/ENTER button.

The “SIGNAL INFORMATION” is displayed.







SIGNAL INFORMATION







H. FREQUENCY

:

48

.4KHz







V. FREQUENCY

:

60

.0Hz







H. POLARITY

:

NEGATIVE







V. POLARITY

:

NEGATIVE







MEMORY

:

24









RESOLUTION

:

1024 768







SEL.

ADJ.

EXIT RETURN







PC:

MEMORY will be displayed.





Others: MODE will be displayed.

30

External Control

Application

These specifications cover the communications control of the plasma monitor by external equipment.

Connections

Connections are made as described below.

External equipment e.g., Personal computer

Display

Connector on the plasma monitor side: EXTERNAL CONTROL connector.

Use a crossed (reverse) cable.

Type of connector: D-Sub 9-pin male

Pin No.

Pin Name

Pin No.

Pin Name

1

No Connection

6

DSR (DCE side ready)

2

RXD (Receive data)

7

RTS (Ready to send)

3

TXD (Transmit data)

8

CTS (Clear to send)

4

DTR (DTE side ready)

9

No connection

5

GND





1 2 3 4 5

6 7 8 9

Communication Parameters

(1)

Communication system

Asynchronous

(2)

Interface

RS-232C

(3)

Baud rate

9600 bps

(4)

Data length

8 bits

(5)

Parity

Odd

(6)

Stop bit

1 bit

(7)

Communication code

Hex

External Control Codes (Reference)

FUNCTION



CODE DATA















Power ON



9FH

80H

60H

4EH

00H

CDH







OFF



9FH 80H 60H 4FH 00H

CEH





















Input Switch

Video1 (BNC)

DFH 80H 60H 47H 01H

01H

08H







Video2 (RCA)

DFH 80H 60H 47H 01H

02H

09H







Video3 (S-Video)

DFH 80H 60H 47H 01H

03H

0AH







DVD1/HD1 (RCA)

DFH 80H 60H 47H 01H

05H

0CH







DVD2/HD2 (BNC)

DFH 80H 60H 47H 01H

06H

0DH







DVD3/HD3 (HDMI)

DFH 80H 60H 47H 01H

0EH

15H







RGB1 (mini D-sub 15-pin)

DFH 80H 60H 47H 01H

07H

0EH







RGB2 (5BNC)

DFH 80H 60H 47H 01H

08H

0FH







RGB3 (HDMI)

DFH

80H

60H

47H 01H

0CH

13H



























Audio Mute

ON

9FH

80H

60H

3EH

00H

BDH









OFF

9FH 80H 60H 3FH 00H

BEH





















Picture Mode

NORMAL

DFH 80H 60H OAH 01H

01H

CBH







THEATER 1

DFH 80H 60H OAH 01H

02H

CCH







THEATER 2

DFH 80H 60H OAH 01H

03H

CDH







DEFAULT

DFH 80H 60H OAH 01H

04H

CEH







BRIGHT

DFH

80H

60H

OAH

01H

05H

CFH



















Screen Mode

STADIUM

DFH 80H 60H 51H 01H

02H

13H







ZOOM

DFH 80H 60H 51H 01H

03H

14H







NORMAL

DFH 80H 60H 51H 01H

04H

15H







ANAMORPHIC

DFH 80H 60H 51H 01H

05H

16H







14 : 9

DFH 80H 60H 51H 01H

09H

1AH







2.35 : 1

DFH 80H 60H 51H 01H

0AH

1BH



















Auto Picture

ON

DFH 80H 60H 7FH 03H

03H

09H

00H

4DH



OFF

DFH 80H 60H 7FH 03H

03H

09H

01H

4EH













Cinema Mode ON

DFH 80H 60H C1H 01H

01H

82H







OFF

DFH

80H

60H

C1H

01H

02H

83H





Pin Assignments

mini D-Sub 15-pin connector (Analog)





RGB 1





5



4

3

2

1



10

9

8

7

6



15

14

13

12

11

Pin No.





Signal (Analog)

1

Red











2

Green or sync-on-green



3

Blue











4

No connection











5

Ground











6

Red ground











7

Green ground











8

Blue ground











9

No connection











10

Sync signal ground





11

No connection











12

Bi-directional DATA (SDA)

13

Horizontal sync or Composite sync

14

Vertical sync











15

Data clock











HDMI connector (Digital)

The unit is equipped with a type of connector commonly used for digital.

(This cannot be used for an analog input.) (TMDS can be used for one link only.)

No.19

No.1

















No.18 No.2

Pin No.

Signal (Digital)

1

TMDS Data 2+

2

TMDS Data 2 Shield

3

TMDS Data 2-

4

TMDS Data 1+

5

TMDS Data 1 Shield

6

TMDS Data 1-

7

TMDS Data 0+





8

TMDS Data 0 Shield

9

TMDS Data 0-

10

TMDS Clock+

11

TMDS Clock Shield

12

TMDS Clock-

13

CEC

14

Reserved (in cable but N.C. on device)

15

SCL

16

SDA

17

DDC/CEC Ground

18

+5V Power

19

Hot Plug Detect

Note: Contact your local dealer for a full list of the



External Control Codes if needed.

31



Troubleshooting

If the picture quality is poor or there is some other problem, check the adjustments, operations, etc., before requesting service.

Symptom

Checks

Remedy

Mechanical sound is heard.

• Maybe the sound from the cooling fans used to prevent over heating.

The unit emits a crackling sound.

• Are the image and sound normal?

• If there are no abnormalities in the image and sound,





the noise is caused by the cabinet reacting to





changes in temperature. This will not affect





performance.

Picture is disturbed.

• Is a connected component set directly in front or at

• Leave some space between the display and the

Sound is noisy.

the side of the display?

connected components.

Remote control operates erroneously.





The remote control does not work.

• Are the remote control’s batteries worn out?

• Replace both batteries with new ones.







Monitor’s power does not turn on when the

• Is the monitor’s power cord plugged into a power

• Plug the monitor’s power cord into a power outlet.

remote control’s power button is pressed.

outlet?





• Are all the monitor’s indicators off?

• Press the power button on the monitor to turn on the





power.









• Are the remote control’s batteries worn out?

• Replace both batteries with new ones.







Monitor does not operate when the remote

• Is the remote control pointed at the monitor, or is

• Point the remote control at the monitor’s remote

control’s buttons are pressed.

there an obstacle between the remote control and

control sensor when pressing buttons, or remove the



the monitor?

obstacle.



• Is direct sunlight or strong artificial light shining on

• Eliminate the light by closing curtains, pointing the



the monitor’s remote control sensor?

light in a different direction, etc.









• Are the remote control’s batteries worn out?

• Replace both batteries with new ones.

No sound or picture is produced.

• Is the monitor’s power cord plugged into a power

• Plug the monitor’s power cord into a power outlet.



outlet?









Picture appears but no sound is produced.

• Is the volume set at the minimum?

• Increase the volume.



• Is the mute mode set?

• Press the remote control’s MUTE button.



• Are the speakers properly connected?

• Connect the speakers properly.









• Is AUDIO INPUT set correctly?

• Set AUDIO INPUT on the AUDIO menu correctly.







Poor picture with VIDEO signal input.

• Improper control setting.

• Adjust picture control as needed.



Local interference.

Try another location for the monitor.



Cable interconnections.

Be sure all connections are secure.



Input impedance is not correct level.



Poor picture with RGB signal input.

• Improper control setting.

• Adjust picture controls as needed.



Incorrect 15 PIN connector pin connections.

Check pin assignments and connections.







Tint is poor or colors are weak.

• Are the tint and colors properly adjusted?

• Adjust the tint and color (under PICTURE).







Nothing appears on screen.

• Is the computer’s power turned on?

• Turn on the computer’s power.



• Is a source connected?

• Connect source to the monitor.









• Is the power management function in the standby

• Operate the computer (move the mouse, etc.).



or off mode?



Part of picture is cut off or picture is not

• Is the position adjustment appropriate?

• Adjust the IMAGE ADJUST properly.

centered.











Image is too large or too small.

• Is the screen size adjustment appropriate?

• Press the WIDE button on the remote control and





adjust properly.

Picture is unstable.

• Is the computer’s resolution setting appropriate?

• Set to the proper resolution.







POWER/STANDBY indicator is lighted in red.

• Horizontal and / or vertical sync signal is not

• Check the input signal.



present when the Intelligent Power Manager





control is on.









POWER/STANDBY indicator is blinking in

• The temperature inside the main unit has become

• Promptly switch off the power of the main unit and

red.

too high and has activated the protector.

wait until the internal temperature drops. See*1.

POWER/STANDBY indicator is blinking in

——————

• Prompty switch off the power of the main unit. See

green and red, or green.

*2.









*1 Overheat protector

If the monitor becomes too hot, the overheat protector will be activated and the monitor will be turned off. If this happens, turn off the power to the monitor and unplug the power cord. If the room where the monitor is installed is particularly hot, move the monitor to a cooler location and wait for the monitor to cool for 60 minutes. If the problem persists, contact your dealer.

*2 In the following case, power off the monitor immediately and contact your dealer or authorized Service Center.

The monitor turns off 5 seconds after powering on and then the POWER/STANDBY indicator blinks. It indicates that the power supply circuit, plasma display panel, temperature sensor, or one or more fans have been damaged.

32

Specifications : PD4250D







Screen Size

36.1"(H) 20.4"(V) inches











918(H) 518(V) mm





1.38"





diagonal 42"





2.13"



40" (1018)



(35)

Aspect Ratio

16 : 9



(54)















Resolution

1024(H) 768(V) pixels









Pixel Pitch

0.036"(H) 0.027"(V) inches

36.1" (918)









0.897(H) 0.675(V) mm









Color Processing

4,096 steps, 68.7 billion colors









Signals

(automatic : step scan)



(518)20.4"

(610)24"



Synchronization Range





Horizontal : 15.5 to 110 kHz











Vertical : 50.0 to 120.0 Hz











(automatic : step scan)







3.5"

Input Signals

RGB, NTSC (3.58/4.43), PAL (B,G,M,N),

Bezel color is silver.





(89)



PAL60, SECAM, HD*1 , DVD*1 , DTV*1



Units are in inch

Input Terminals









(mm)



RGB





Visual 1 (Analog)

mini D-sub 15-pin 1



Visual 2 (Analog)

BNC (R, G, B, H/CS, V) 1*2



Visual 3 (Digital)

HDMI 1*3



Video





Visual 1

BNC 1*2



Visual 2

RCA-pin 1



Visual 3

S-Video: DIN 4-pin 1



DVD/HD/DTV





Visual 1

RCA-pin (Y, PB[CB], PR[CR]) 1*1



Visual 2

BNC (Y, PB[CB], PR[CR]) 1*1, *2



Visual 3

HDMI 1*3



Audio

Stereo RCA 3(Selectable)



External Control

D-sub 9-pin 1(RS-232C)

Sound output

8W+8W at 6 ohm

Power Supply

AC100-240V 50/60Hz

Current Rating

5.2A (maximum)

Power Consumption

305W (typical)

Dimensions

40 (W) 24 (H) 3.5 (D) inches





1018 (W) 610 (H) 89(D) mm





Weight

65.0 lbs / 29.5 kg (without stand)

Environmental Considerations

0°C to 40°C / 32°F to 104°F



Operating Temperature



Humidity

20 to 80% (no condensation)



Altitude

0 to 9180 feet / 0 to 2800 m



Storage Temperature

-10°C to 50°C / 14°F to 122°F



Humidity

10 to 90% (no condensation)



Altitude

0 to 9840 feet / 0 to 3000 m





Front Panel User Controls

Power on/off, Input source select,





Volume up/down, OSM control





Remote Control Functions

Power on/off, Input source select, OSM





control,Volume up/down, Cursor (UP,





DOWN,LEFT, RIGHT), Zoom up/down,





Picture control buttons

OSM Functions PICTURE (PICTURE MEMORY/CONTRAST/ BRIGHTNESS/SHARPNESS/COLOR/TINT/ NR/COLOR TEMP./WHITE BALANCE/ GAMMA/LOW TONE/SET UP LEVEL/COLOR TUNE/CINEMA MODE/PICTURE MODE), AUDIO (BASS/TREBLE/BALANCE/AUDIO INPUT1/AUDIO INPUT2/AUDIO INPUT3), I M A G E A D J U S T ( A S P E C T M O D E / V- POSITION/H - POSITION/V- HEIGHT/H - WIDTH/AUTO PICTURE/FINE PICTURE/ PICTURE ADJ.),

SET UP (LANGUAGE*/BNC INPUT/D-SUB

INPUT/HD SELECT/RGB SELECT/HDMI SET

UP/COLOR SYSTEM/BACK GROUND/GRAY

LEVEL/S1/S2/DISPLAY OSM/OSM ADJ./ALL

RESET), FUNCTION (POWER MGT./INPUT

SKIP/PDP SAVER [PEAK BRIGHT / ORBITER

/ INVERSE/WHITE / SCREEN WIPER / SOFT

FOCUS / OSM ORBITER / OSM CONTRAST]/

CLOSED CAPTION/CAPTION CONT), SIGNAL INFO.

The features and specifications may be subject to change without notice.

*1 HD/DVD/DTV input signals supported on this system

480P (60 Hz)

480I (60 Hz)

525P (60 Hz)

525I (60 Hz)

576P (50 Hz)

576I (50 Hz)

625P (50 Hz)

625I (50 Hz)

720P (60 Hz)

1035I (60 Hz)

1080I (50 Hz)

1080I (60 Hz)

*2 The 5-BNC connectors are used as RGB/PC2 and HD/DVD2 input. Select one of them under “BNC INPUT”.

*3 Compatible with HDCP. Supported Signals

• 640 480P @ 59.94/60Hz

• 1920 1080I @ 50Hz

• 1280 720P @ 59.94/60Hz

• 720 576P @ 50Hz

• 1920 1080I @ 59.94/60Hz

• 1440 (720) 576P @ 50Hz

720 480P @ 59.94/60Hz

1440 (720) 480I @ 59.94/60Hz

Note: In some cases a signal on the plasma monitor may not be displayed properly. The problem may be an inconsistency with standards from the source equipment (DVD, Set-top box, etc...). If you do experience such a problem please contact your authorized Marantz dealer and also the manufacturer of the source equipment.

*English, German, French, Italian, Spanish, Swedish,

Chinese, Russian

Other Features Motion compensated 3D Scan Converter (NTSC, PAL, 480I, 576I, 525I, 625I, 1035I, 1080I), 2-3 pull down Converter (NTSC, 480I, 525I, 1035I, 1080I (60Hz)), 2-2 pull down Converter (PAL, 576I, 625I, NTSC, 480I, 525I), Digital Zoom Function (100-900% Selectable), Self Diagnosis, Image Burn reduction tools (PEAK BRIGHT, INVERSE, WHITE, ORBITER, SCREEN WIPER), Color Temperature select (high/middle/ middle low/low, user has 4 memories), Auto Picture, Input Skip, Color Tune, Low Tone (3 mode), Gamma Correction (4 mode), Plug and play (DDC1, DDC2b, RGB3: DDC2b only)

Accessories Remote control with two AAA batteries, Power cord, User Guide, Safety metal fittings, Ferrite cores, Bands, Cable clamps

Regulations UL approved (UL60950, UL6500, CSA C22.2 No.60950-00, CAN/CSA-E60065-00) SEMKO Approved (EN60950, EN60065, IEC60950, IEC60065)

Meets FCC Part 15 Class B DOC Canada requirements

Meets AS/NZS CISPR 22:2002 Class B

OPTION STAND AS5400

34

Table of Signals Supported

PD4250D Supported resolution

When the screen mode is NORMAL, each signal is converted to a 768 dots 768 lines signal. (Except for *2, *4)

When the screen mode is FULL, each signal is converted to a 1024 dots 768 lines signal.

Computer input signals supported by this system



Model

Dots lines

Vertical

Horizontal

Sync Polarity

Presence

Screen mode

RGB







frequency

frequency

Horizontal

Vertical

Horizontal

Vertical

NORMAL

FULL

select*5

HDMI

Memory



Signal Type



(Hz)

(kHz)









(4:3)

(16:9)











640 400

70.1

31.5

NEG

NEG

YES

YES

YES*2

YES

– –

NO

4





640 480

59.9

31.5

NEG

NEG

YES

YES

YES

YES

STILL

YES

5







72.8

37.9

NEG

NEG

YES

YES

YES

YES

– –

YES

7







75.0

37.5

NEG

NEG

YES

YES

YES

YES

STILL

YES

8







85.0

43.3

NEG

NEG

YES

YES

YES

YES

– –

YES

9







100.4

51.1

NEG

NEG

YES

YES

YES

YES

– –

YES

41







120.4

61.3

NEG

NEG

YES

YES

YES

YES

– –

YES

42





848 480

60.0

31.0

POS

POS

YES

YES

– –

YES

WIDE2

YES

19





852 480*1

60.0

31.7

NEG

NEG

YES

YES

– –

YES

WIDE1

YES

17





800 600

56.3

35.2

POS

POS

YES

YES

YES

YES

STILL

YES

11







60.3

37.9

POS

POS

YES

YES

YES

YES

STILL

YES

12







72.2

48.1

POS

POS

YES

YES

YES

YES

– –

YES

13







75.0

46.9

POS

POS

YES

YES

YES

YES

– –

YES

14







85.1

53.7

POS

POS

YES

YES

YES

YES

– –

YES

15







99.8

63.0

POS

POS

YES

YES

YES

YES

– –

YES

43







120.0

75.7

POS

POS

YES

YES

YES

YES

– –

YES

44

IBM PC/AT*8

1024 768

60.0

48.4

NEG

NEG

YES

YES

YES

YES*3

STILL

YES

24

compatible



70.1

56.5

NEG

NEG

YES

YES

YES

YES*3

– –

YES

25

computers



75.0

60.0

POS

POS

YES

YES

YES

YES*3

STILL

YES

26













85.0

68.7

POS

POS

YES

YES

YES

YES*3

– –

YES

27







100.6

80.5

NEG

NEG

YES

YES

YES

YES*3

– –

YES

45





1152 864

75.0

67.5

POS

POS

YES

YES

YES

YES

STILL

YES

51





1280 768

56.2

45.1

POS

POS

YES

YES

– –

YES

WIDE1

NO

52







59.8

48.0

POS

NEG

YES

YES

– –

YES

WIDE3

YES

80





1280 768*9

69.8

56.0

NEG

POS

YES

YES

– –

YES

WIDE1

YES

66





1280 800*9

60.0

49.7

NEG

NEG

YES

YES

– –

YES

WIDE1

YES

21





1280 854*9

60.0

53.1

NEG

NEG

YES

YES

– –

YES

WIDE2

YES

37





1360 765

60.0

47.7

POS

POS

YES

YES

– –

YES

WIDE1

NO

22





1360 768

60.0

47.7

POS

POS

YES

YES

– –

YES

WIDE1

YES

22





1376 768

59.9

48.3

NEG

POS

YES

YES

– –

YES

WIDE2

YES

53





1280 1024

60.0

64.0

POS

POS

YES

YES

YES*4

YES

STILL

YES

29







75.0

80.0

POS

POS

YES

YES

YES*4

YES

– –

YES

30







85.0

91.1

POS

POS

YES

YES

YES*4

YES

– –

YES

40







100.1

108.5

POS

POS

YES

YES

YES*4

YES

– –

NO

47





1680 1050*9

60.0

65.3

NEG

NEG

YES

YES

– –

YES

WIDE4

YES

38





1600 1200

60.0

75.0

POS

POS

YES

YES

YES

YES

– –

YES

54







65.0

81.3

POS

POS

YES

YES

YES

YES

– –

NO

55







70.0

87.5

POS

POS

YES

YES

YES

YES

– –

NO

56







75.0

93.8

POS

POS

YES

YES

YES

YES

– –

NO

57







85.0

106.3

POS

POS

YES

YES

– –

YES

– –

NO

58





1920 1200*9

60.0

74.6

NEG

NEG

YES

YES

– –

YES

WIDE2

– –

81





1920 1200RB*9

60.0

74.0

NEG

NEG

YES

YES

– –

YES

WIDE3

YES

88

Apple

640 480

66.7

35.0

Sync on G

Sync on G

– –

– –

YES

YES

– –

NO

6

Macintosh*6 *8

832 624

74.6

49.7

Sync on G

Sync on G

– –

– –

YES

YES

– –

NO

16





1024 768

74.9

60.2

Sync on G

Sync on G

– –

– –

YES

YES*3

WIDE1

NO

28





1152 870

75.1

68.7

Sync on G

Sync on G

– –

– –

YES

YES

WIDE1

NO

39





1440 900*9

60.0

56.0

NEG

NEG

YES

YES

– –

YES

– –

YES

89

Work Station

1280 1024

60.0

64.6

NEG

NEG

YES

YES

YES*4

YES

– –

YES

29

(EWS4800)*8



71.2

75.1

NEG

NEG

YES

YES

YES*4

YES

– –

YES

48

Work Station (HP)*8

1280 1024

72.0

78.1

– –

– –

– –

– –

YES*4

YES

– –

YES

59

Work Station

1152 900

66.0

61.8

C Sync

C Sync

– –

– –

YES

YES

– –

YES

60

(SUN)*8



76.0

71.7

C Sync

C Sync

– –

– –

YES

YES

– –

YES

61





1280 1024

76.1

81.1

C Sync

C Sync

– –

– –

YES*4

YES

– –

YES

30

Work Station

1024 768

60.0

49.7

– –

– –

– –

– –

YES

YES*3

– –

YES

62

(SGI)

1280 1024

60.0

63.9

– –

– –

– –

– –

YES*4

YES

– –

YES

29

IDC-3000G























































PAL625P

768 576

50.0

31.4

NEG

NEG

YES

YES

YES*7

YES*7

– –

NO

31



NTSC525P

640 480

59.9

31.5

NEG

NEG

YES

YES

YES*7

YES*7

MOTION

NO

32

38

*1 Only when using a graphic accelerator board that is capable of displaying 852 480.

*2 PD4230V : Display only 400 lines with the screen center of the vertical orientation located at the center. PD4250D : Display only 640 lines with the screen center of the vertical orientation located at the center. PD5050D : This signal is converted to a 1024 dots 640 lines signal.

*3 The picture is displayed in the original resolution. The picture will be compressed for other signals (PD4230V/PD4250D). *4 PD4230V : Aspect ratio is 5:4. This signal is converted to a 600 dots 480 lines signal.

PD4250D : Aspect ratio is 5:4. This signal is converted to a 720 dots 768 lines signal. PD5050D : The aspect ratio is 5:4. This signal is converted to a 960 dots 768 lines signal.

*5 Normally the RGB select mode suite for the input signals is set automatically. If the picture is not displayed properly, set the RGB mode prepared for the input signals listed in the table above.

*6 To connect the monitor to Macintosh computer, use the monitor adapter (D-Sub 15-pin) to your computer's video port. *7 Other screen modes (ZOOM and STADIUM) are available as well.

*8 When viewing a moving picture at a vertical frequency greater than 65Hz, the picture may sometimes be unstable (jumpy). If this occurs, please set the refresh rate of the external equipment to 60Hz.

To view 480I@60Hz (480 interlaced lines, 60Hz refresh rate) or 576I@50Hz (567 interlaced lines, 50Hz refresh rate) when sync polarity is “Sync on Green”, set “RGB SELECT” to “MOTION”.

*9 CVT standard compliant.

NOTE:

While the input signals comply with the resolution listed in the table above, you may have to adjust the position and size of the picture or the fine picture because of errors in synchronization of your computer.

When a 1280 dots 1024 lines signal or 1600 dots 1200 lines signal is input to the monitor, the picture will be compressed (PD5050D).

PD4230V : This monitor has a resolution of 853 dots 480 lines. It is recommended that the input signal should be VGA, wide VGA, or equivalent. PD4250D : This monitor has a resolution of 1024 dots 768 lines. It is recommended that the input signal should be XGA, wide XGA, or equivalent. PD5050D : This monitor has a resolution of 1365 dots 768 lines. It is recommended that the input signal should be XGA,

wide XGA, or equivalent.

With digital input some signals are not accepted.

The sync may be disturbed when a nonstandard signal other than the aforementioned is input.

If you are connecting a composite sync signal, use the HD terminal.

“IBM PC/AT” and “VGA” are registered trademarks of International Business Machines, Inc. of the United States.

“Apple Macintosh” is a registered trademark of Apple Computer, Inc. of the United States.

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDM2 licensing LLC.

DECLARATION OF CONFORMITY

This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions. (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

U.S. Responsible Party:

Marantz America, Inc.



Address:

1100 Maplewood Drive,





Itasca, IL 60143, U.S.A.



Tel. No.:

630-741-0300









Type of Product:

Plasma Display

Equipment Classification:

Class B Peripheral

Models:

PD4230V/UIB, PD4250D/UIB, PD5050D/UIB, PD6150D/UIB

We hereby declare that the equipment specified above conforms to the technical standards as specified in the FCC Rules.

40
