Marantz CC-4000-OSE, CC-4000-F, CC-4000, CC-3000 Service Manual

Service

CC3000 /N1B, /U1B, /K1B, /N2B, /U2B, /K2B

CC4000 /U1B, /K1B, /F1B, /U2B, /K2B, /F2B

Manual

CC4000F /U1B, /K1B, /U2B, /K2B

5Disc CD Changer

COMPACT

DIGITAL AUDIO

CC3000/4000

TABLE OF CONTENTS

Variation Table.............................................................................................................. 1-1

Location of pc boards & Technical Specifications ........................................................ 1-2

Service Aids, Chip Handling ........................................................................................ 1-3

ESD, Safety Instruction, etc.......................................................................................... 1-4

Disassembly Instructions & Service positions.............................................................. 3-1

Service Test Programs ................................................................................................. 3-3

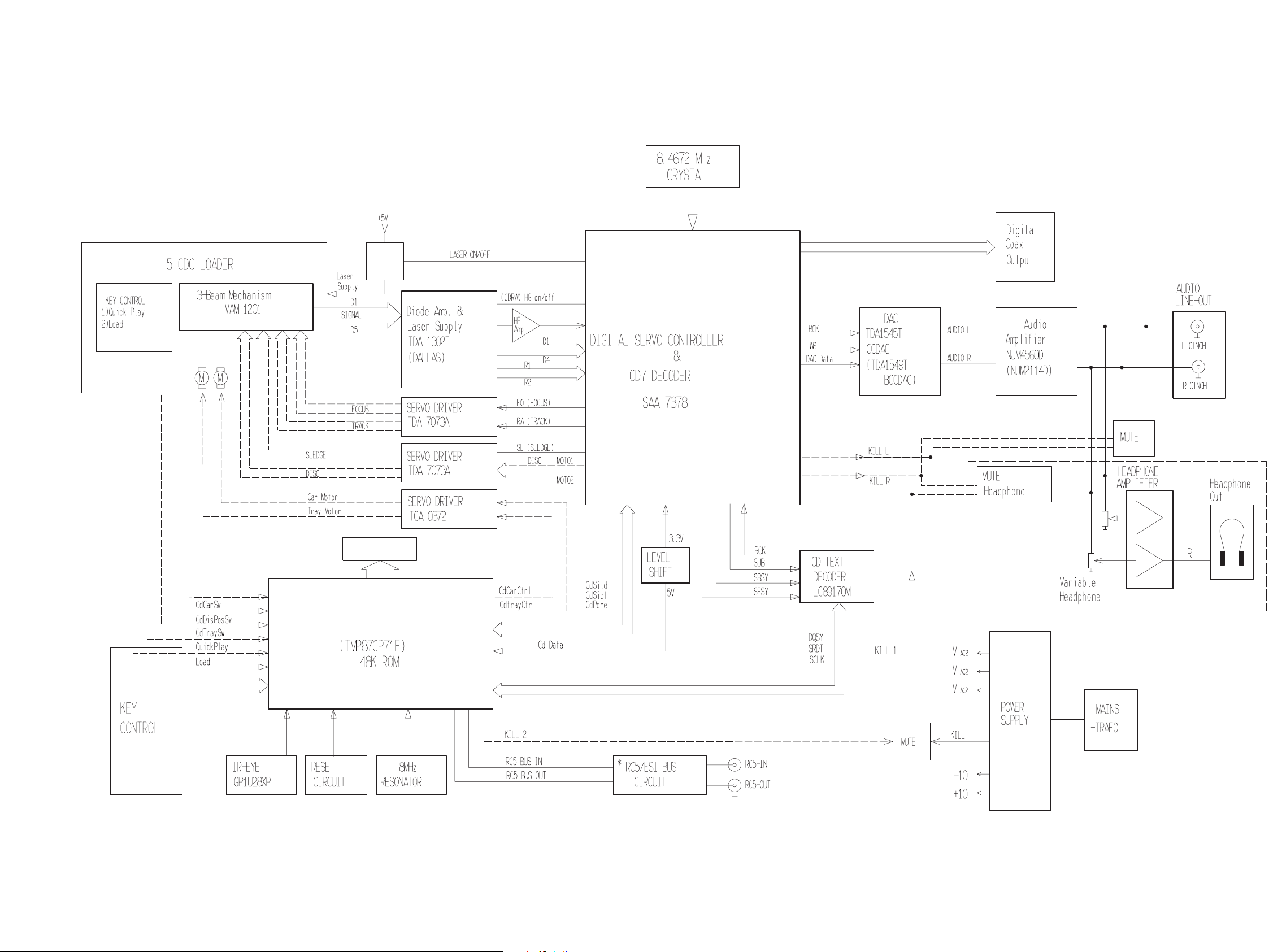

Set Block diagram ............................................................................................................4

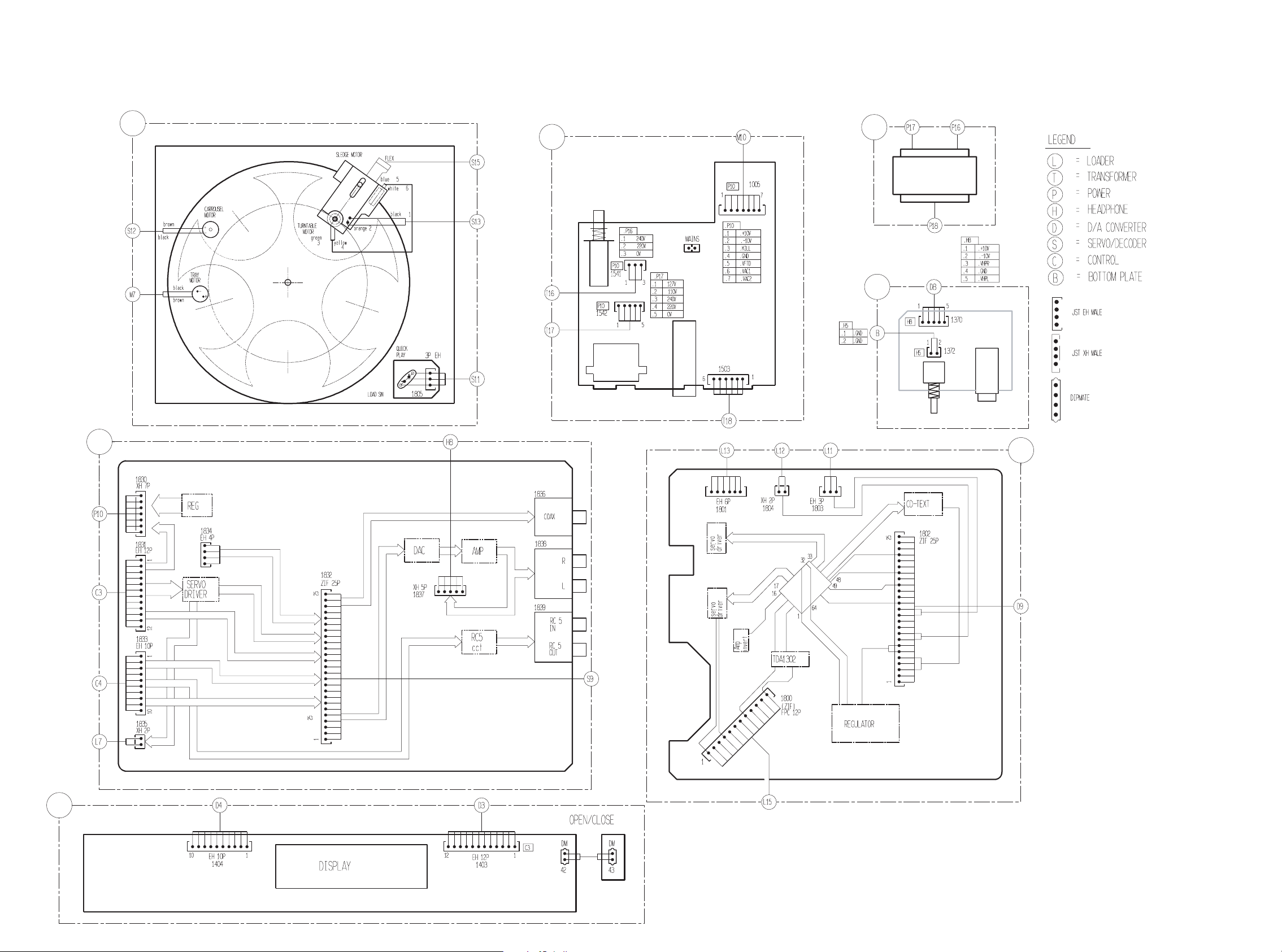

Set Wiring diagram...........................................................................................................5

Supply & Headphone Boards...........................................................................................6

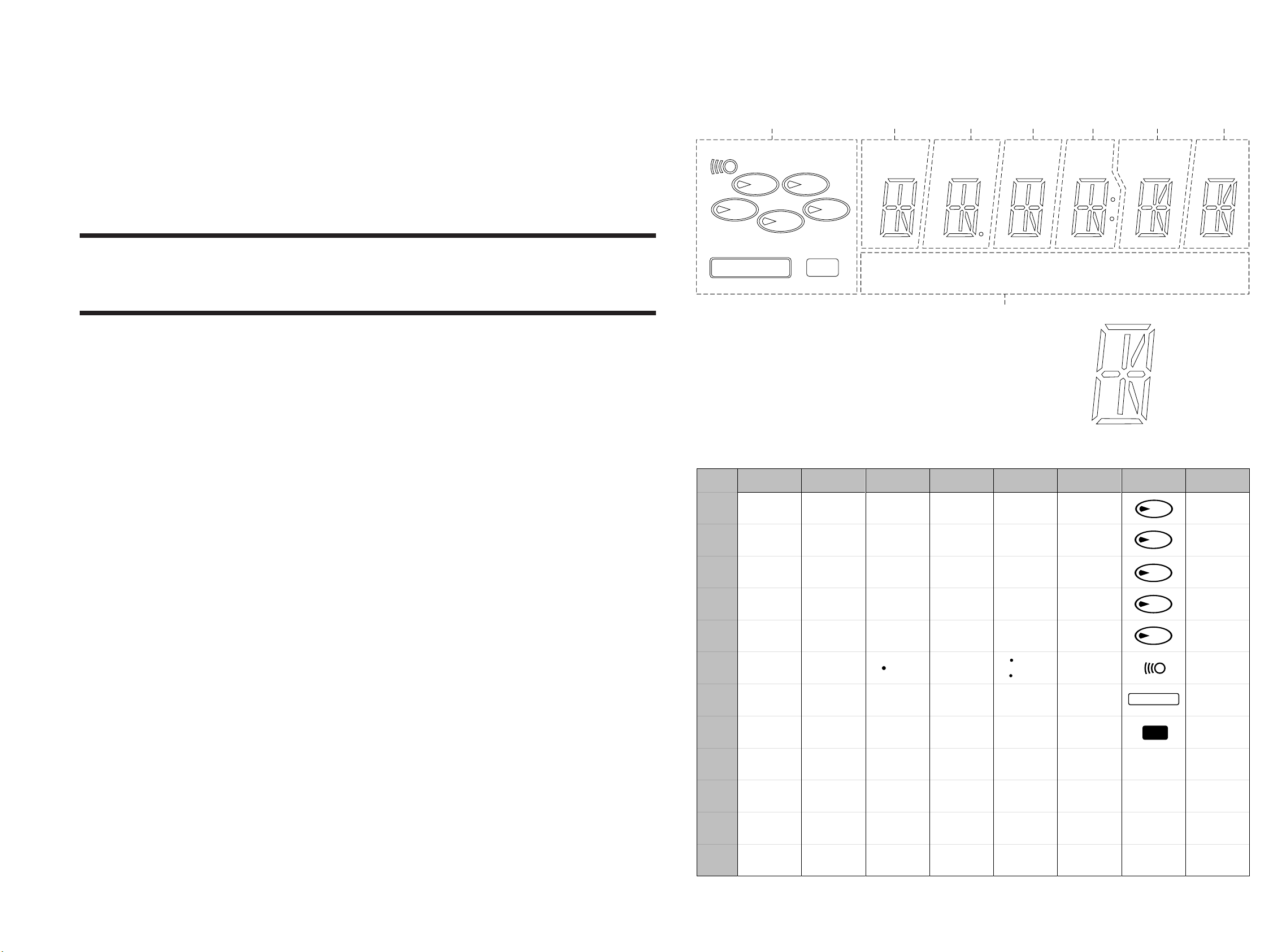

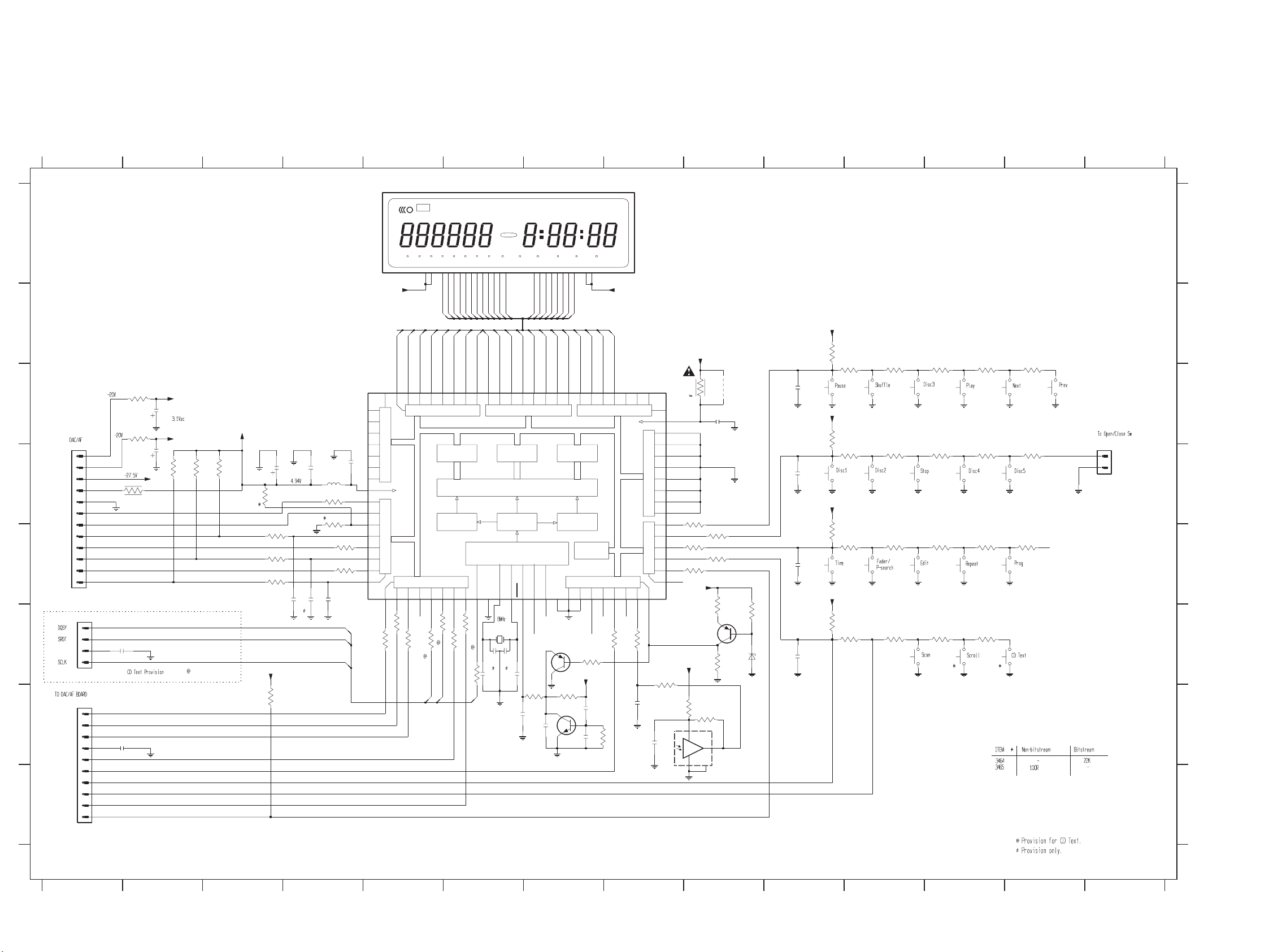

Front Board ......................................................................................................................7

Servo/Decoder Board ......................................................................................................8

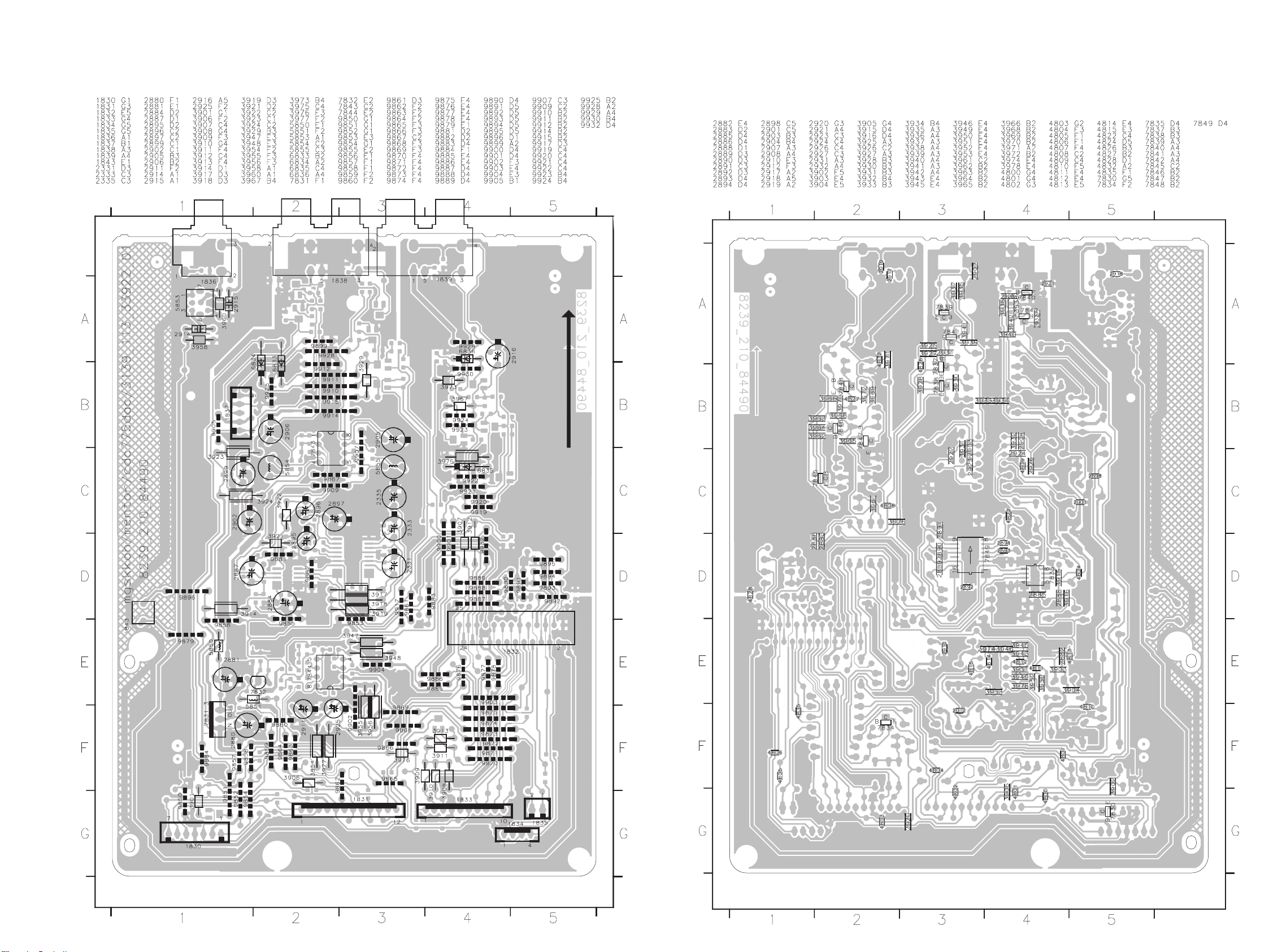

DAC/AF Board..................................................................................................................9

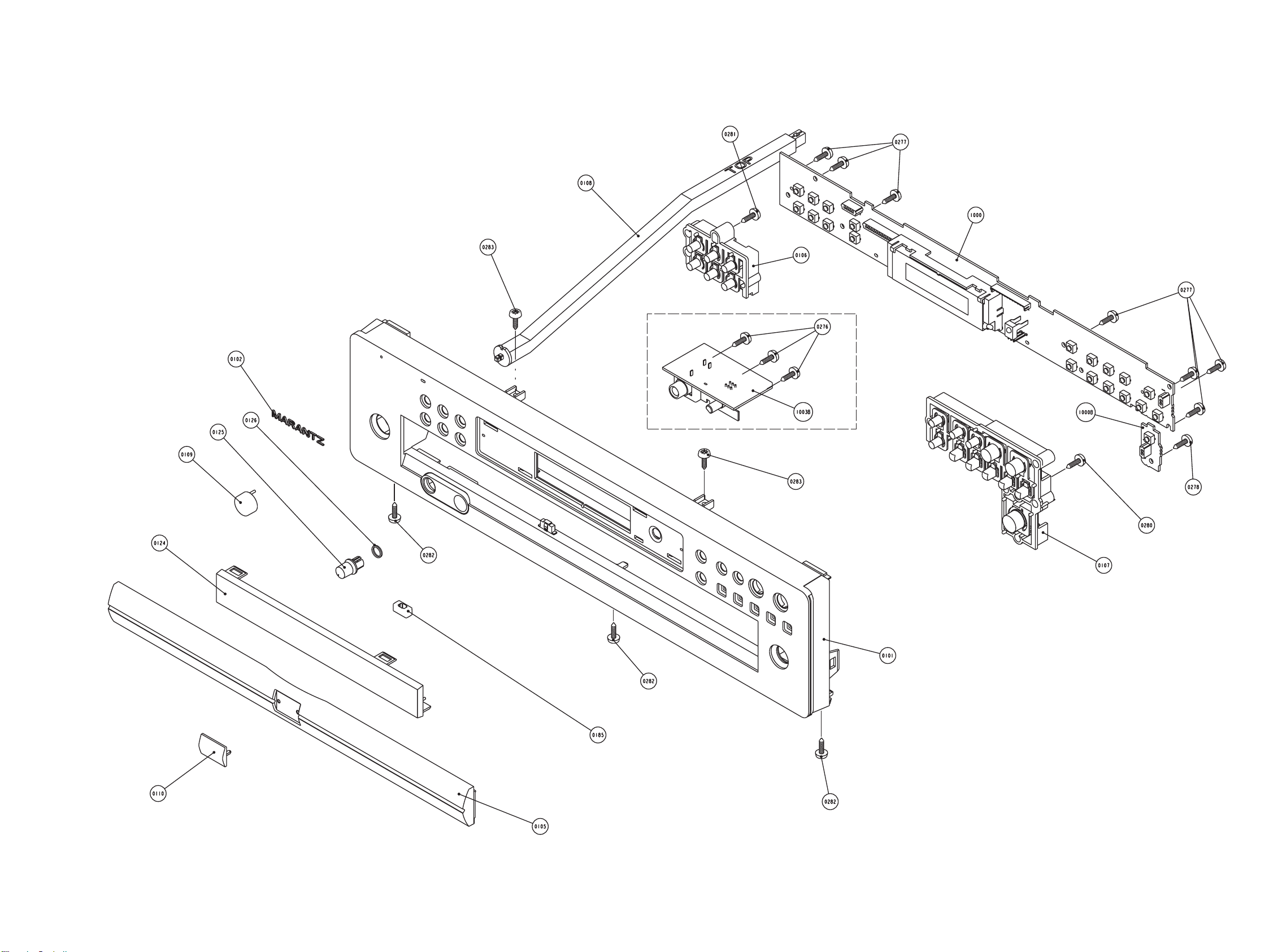

Mechanical Exploded views & parts list .........................................................................10

Please use this service manual with referring to the user guide (D.F.U) without fail.

- CC3000 / CC4000 / CC4000OSE -

278W855010 ACT
3120 785 22010
First Issue:1999.08

R

MARANTZ DESIGN AND SERVICE

Using superior design and selected high grade components, MARANTZ company has created the ultimate in stereo sound.
Only original
it is famous.
Parts for your

ORDERING PARTS :

Parts can be ordered either by mail or by Fax.. In both cases, the correct part number has to be specified.
The following information must be supplied to eliminate delays in processing your order :

1. Complete address

2. Complete part numbers and quantities required

3. Description of parts

4. Model number for which part is required

5. Way of shipment

6. Signature : any order form or Fax. must be signed, otherwise such part order will be considered as null and void.

MARANTZ parts can insure that your MARANTZ product will continue to perform to the specifications for which

MARANTZ equipment are generally available to our National Marantz Subsidiary or Agent.

USA

MARANTZ AMERICA, INCMARANTZ AMERICA, INC.
440 MEDINAH ROAD
ROSELLE, ILLINOIS 60172
USA
PHONE : 630 - 307 - 3100
FAX : 630 - 307 - 2687

AMERICAS

SUPERSCOPE TECHNOLOGIES, INC.
MARANTZ PROFESSIONAL PRODUCTS
2640 WHITE OAK CIRCLE, SUITE A
AURORA, ILLINOIS 60504 USA
PHONE : 630 - 820 - 4800
FAX : 630 - 820 - 8103

AUSTRALIA

JAMO AUSTRALIA PTY LTD
1 EXPO COURT, P.O. BOX 350
MT. WAVERLEY VIC 3149
AUSTRALIA
PHONE : +61 - 3 - 9543 - 1522
FAX : +61 - 3 - 9543 - 3677

EUROPE / TRADING

MARANTZ EUROPE B.V.
P.O.BOX 80002, BUILDING SFF2
5600 JB EINDHOVEN
THE NETHERLANDS
PHONE : +31 - 40 - 2732241
FAX : +31 - 40 - 2735578

CANADA

LENBROOK INDUSTRIES LIMITED
633 GRANITE COURT,
PICKERING, ONTARIO L1W 3K1
CANADA
PHONE : 905 - 831 - 6333
FAX : 905 - 831 - 6936

THAILAND

MRZ STANDARD CO.,LTD
746 - 754 MAHACHAI ROAD.,
WANGBURAPAPIROM, PHRANAKORN,
BANGKOK, 10200 THAILAND
PHONE : +66 - 2 - 222 9181
FAX : +66 - 2 - 224 6795

TAIWAN

PAI- YUING CO., LTD.
6 TH FL NO, 148 SUNG KIANG ROAD,
TAIPEI, 10429, TAIWAN R.O.C.
PHONE : +886 - 2 - 25221304
FAX : +886 - 2 - 25630415

BRAZIL

MARANTZ BRAZIL
CAIXA POSTAL 21462
CEP 04698-970
SAO PAULO, SP, BRAZIL
PHONE : 0800 - 123123
FAX : [phone]

(Discagem Direta Gratuita)

SINGAPORE

WO KEE HONG (S) PTE LTD
WO KEE HONG CENTRE
NO.23, LORONG 8, TOA PAYOH
SINGAPORE 319257
PHONE : [phone]
FAX : [phone]

MALAYSIA

WO KEE HONG ELECTRONICS SDN. BHD.
NO. 102 JALAN SS 21/35, DAMANSARA
UTAMA, 47400 PETALING JAYA
SELANGOR DARUL EHSAN, MALAYSIA
PHONE : +60 3 - 7184666
FAX : +60 3 - 7173828

JAPAN

Technical

MARANTZ JAPAN, INC.
35- 1, 7- CHOME, SAGAMIONO
SAGAMIHARA - SHI, KANAGAWA
JAPAN 228-8505
PHONE : [phone]
FAX : [phone]

KOREA

MK ENTERPRISES LTD.
ROOM 604/605, ELECTRO-OFFICETEL, 16-58,
3GA, HANGANG-RO, YONGSAN-KU, SEOUL
KOREA
PHONE : +822 - 3232 - 155
FAX : +822 - 3232 - 154

SHOCK, FIRE HAZARD SERVICE TEST :

CAUTION : After servicing this appliance and prior to returning to customer, measure the resistance between either primary AC

cord connector pins ( with unit NOT connected to AC mains and its Power switch ON ), and the face or Front Panel of product and
controls and chassis bottom.
Any resistance measurement less than 1 Megohms should cause unit to be repaired or corrected before AC power is applied, and
verified before it is return to the user/customer.
Ref. UL Standard No. 1492.

In case of difficulties, do not hesitate to contact the Technical
Department at above mentioned address.

990805ACT

1-1

V ARIA TION TABLE

Type: CC3000 CC4000 CC4000F
Features: (CC4000OSE)
Headphone - X X

CC-DAC(Non-bitstream) X - ­TDA1545A T/N2
BCC-DAC(Bitstream) - X X
TDA1549T/N1
OP-AMP NJM4560D NJM21 14D NJM21 14D
for LPF
Mains Transformer Type EI-48 EI-54 EI-54

(Except /K)
Special ELE.CAP. - - *1
for DAC/AF BOARD
Special ELE.CAP. - - *2
for SUPPLY BOARD
Additional Bottom Plate - - X

Remote Control (RC4000CC) X X X

RC5 In/Out X X X

Digital Out (COAX) X X X

CD Text - - -

CDRW(Play Rewritable Disc) X X X

*1

(1) Item2895/2896 Elcap R20 50V S 10uF PM20 A (2020 012 93203)
(2) Item2897 Elcap ROA 50V S 47uF PM20 A (2020 012 93432)
(3) Item2899 Elcap ARS 25V S 47uF PM20 A (4822 124 12023)
(4) Item2902 Elcap ARS 25V S 47uF PM20 A (4822 124 12023)
(5) Item2905/2906 Elcap S 47uF 6V3 BIP (ELNA) A (4822 124 80954)

*2

Item2510 Elcap R20 16V S 2200uF PM20 (4822 124 40723)

LOCATION OF PC BOARDS

1-2

SUPPLY BOARD

DAC / AF

BOARD

SERVO /

DECODER BOARD

H/P BOARD

FRONT BOARD

SPECIFICATIONS

GENERAL:

Mains voltage : 100V for /F

110-127V/220-240V Switchable for /K
120V for /U

220-230V for /N
Mains frequency : 50/60Hz
Power consumption : < 12W at Play mode
Dimension (WxDxH) : 435 x 380 x 119mm

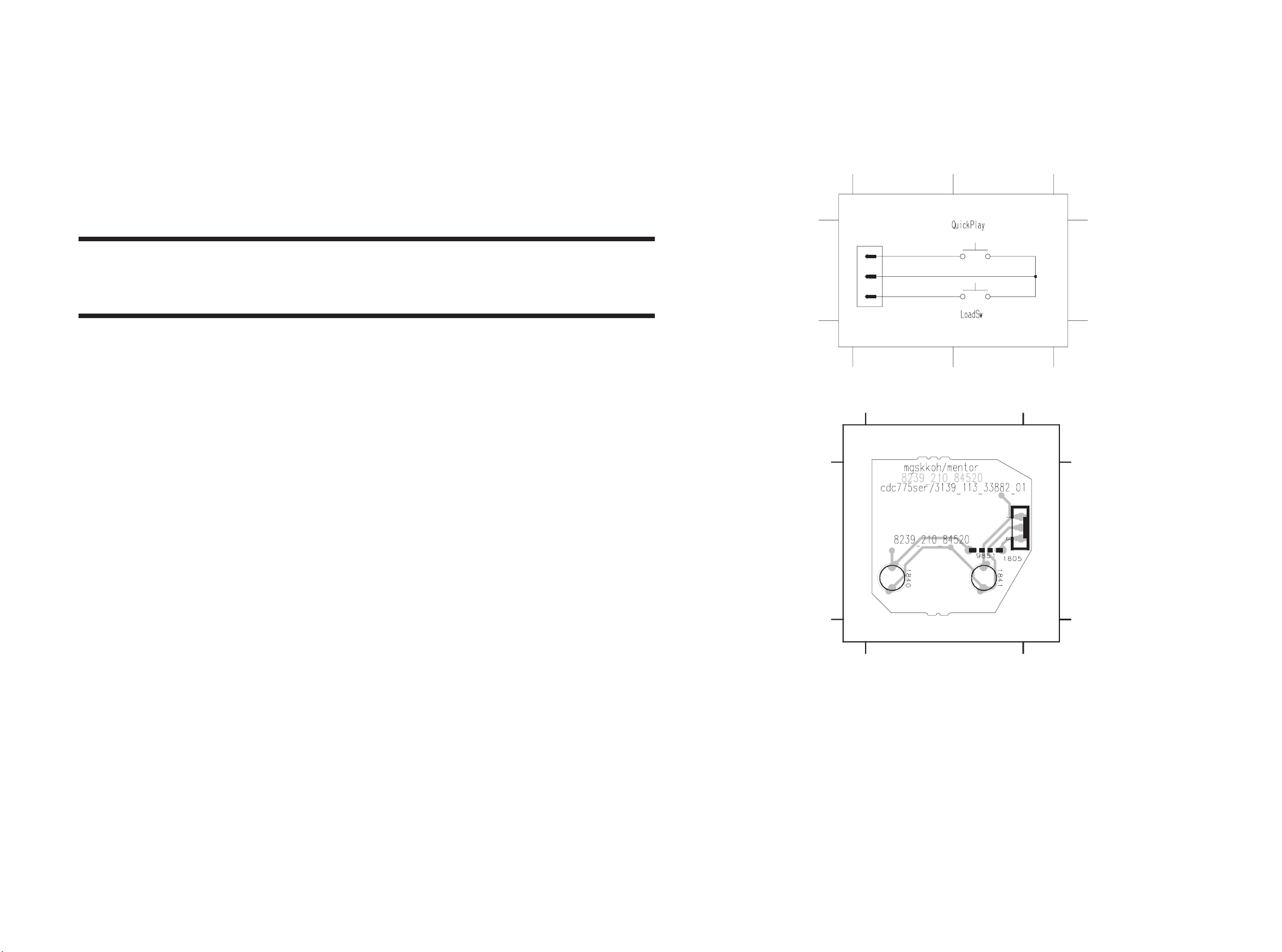

Load/QP Board

Open/close Board

AUDIO PERFORMANCE:

Output level : 2Vrms ± 2dB @ 47kohm
Frequency response within ± 0.4dB: 20Hz - 20kHz
Dynamic range at 1kHz : > 90dB
Signal/Noise ratio at 1kHz : > 98dB
Total Harmonic Distortion at 1kHz : < 0.004%
Channel unbalance at 1kHz : < 1dB
Channel separation at 1kHz : > 95dB
Headphone impedance : 30 - 600 ohm
Headphone output (e.m.f.) : 4.5Vrms ± 2dB
Digital Output at 75ohm : 0.5V

1)

with 13th order Filter eg. 4822 395 30204

1)

1)

1)

SERVICE AIDS

1-3

Service Tools:

Universal Torx driver holder .................................. 4822 395 91019

Torx bit T10 150mm ............................................. 4822 395 50456

Torx driver set T6 - T20......................................... 4822 395 50145

Torx driver T10 extended ...................................... 4822 395 50423

Compact Disc:

SBC426/426A Test disc 5 + 5A ............................ 4822 397 30096

SBC442 Audio Burn-in Test disc 1kHz ................. 4822 397 30155

SBC429 Audio Signals disc .................................. 4822 397 30184

Dolby Pro-logic Test Disc...................................... 4822 395 10216

Eccentricity Disc, 150µm....................................... 4822 397 30279

Others:

13th Order Filter .................................................... 4822 395 30204

ESD Equipment:

Anti-static table mat - large 1200x650x1.25mm ... 4822 466 10953

Anti-static table mat - small 600x650x1.25mm..... 4822 466 10958

Anti-static wristband .............................................. 4822 395 10223

Connector box (1MΩ) ............................................ 4822 320 11307

Extension cable

(to connect wristband to conn. box).................. 4822 320 11305

Connecting cable

(to connect table mat to conn. box) .................. 4822 320 11306

Earth cable (to connect product to mat or box) .... 4822 320 11308

Complete kit ESD3

(combining all above products) ......................... 4822 320 10671

Wristband tester .................................................... 4822 344 13999

HANDLING CHIP COMPONENTS

PCS 101 006

WARNING

GB

All ICs and many other semi-conductors are
susceptible to electrostatic discharges (ESD).
Careless handling during repair can reduce life
drastically.
When repairing, make sure that you are
connected with the same potential as the mass
of the set via a wrist wrap with resistance.
Keep components and tools also at this
potential.

F

ATTENTION

Tous les IC et beaucoup d’autres
semi-conducteurs sont sensibles aux
décharges statiques (ESD).
Leur longévité pourrait être considérablement
écourtée par le fait qu’aucune précaution n’est
prise à leur manipulation.
Lors de réparations, s’assurer de bien être relié
au même potentiel que la masse de l’appareil et
enfiler le bracelet serti d’une résistance de
sécurité.
Veiller à ce que les composants ainsi que les
outils que l’on utilise soient également à ce
potentiel.

1-4

ESD

D

WARNUNG

Alle ICs und viele andere Halbleiter sind
empfindlich gegenüber elektrostatischen
Entladungen (ESD).
Unsorgfältige Behandlung im Reparaturfall kan
die Lebensdauer drastisch reduzieren.
Veranlassen Sie, dass Sie im Reparaturfall über
ein Pulsarmband mit Widerstand verbunden
sind mit dem gleichen Potential wie die Masse
des Gerätes.
Bauteile und Hilfsmittel auch auf dieses gleiche
Potential halten.

WAARSCHUWING

NL

Alle IC’s en vele andere halfgeleiders zijn
gevoelig voor electrostatische ontladingen
(ESD).
Onzorgvuldig behandelen tijdens reparatie kan
de levensduur drastisch doen verminderen.
Zorg ervoor dat u tijdens reparatie via een
polsband met weerstand verbonden bent met
hetzelfde potentiaal als de massa van het
apparaat.
Houd componenten en hulpmiddelen ook op
ditzelfde potentiaal.

I

AVVERTIMENTO

Tutti IC e parecchi semi-conduttori sono
sensibili alle scariche statiche (ESD).
La loro longevità potrebbe essere fortemente
ridatta in caso di non osservazione della più
grande cauzione alla loro manipolazione.
Durante le riparazioni occorre quindi essere
collegato allo stesso potenziale che quello della
massa dell’apparecchio tramite un braccialetto
a resistenza.
Assicurarsi che i componenti e anche gli utensili
con quali si lavora siano anche a questo
potenziale.

GB

Safety regulations require that the set be restored to its original
condition and that parts which are identical with those specified,
be used.

NL

Veiligheidsbepalingen vereisen, dat het apparaat bij reparatie in
zijn oorspronkelijke toestand wordt teruggebracht en dat onderdelen,
identiek aan de gespecificeerde, worden toegepast.

F

Les normes de sécurité exigent que l’appareil soit remis à l’état
d’origine et que soient utiliséés les piéces de rechange identiques
à celles spécifiées.

D

Bei jeder Reparatur sind die geltenden Sicherheitsvorschriften zu
beachten. Der Original zustand des Geräts darf nicht verändert werden;
für Reparaturen sind Original-Ersatzteile zu verwenden.

“Pour votre sécurité, ces documents
doivent être utilisés par des spécia­listes agréés, seuls habilités à réparer
votre appareil en panne”.

CLASS 1

LASER PRODUCT

GB

Invisible laser radiation when open.
Avoid direct exposure to beam.

Osynlig laserstrålning när apparaten är öppnad och spärren
är urkopplad. Betrakta ej strålen.

Warning !

S

Varning !

3122 110 03420

I

Le norme di sicurezza esigono che l’apparecchio venga rimesso
nelle condizioni originali e che siano utilizzati i pezzi di ricambio
identici a quelli specificati.

"After servicing and before returning set to customer perform a
leakage current measurement test from all exposed metal parts to
earth ground to assure no shock hazard exist. The leakage current
must not exceed 0.5mA."

PCS 101 007

Varoitus !

SF

Avatussa laitteessa ja suojalukituksen ohitettaessa olet alttiina
näkymättömälle laserisäteilylle. Älä katso säteeseen!

DK Advarse !

Usynlig laserstråling ved åbning når sikkerhedsafbrydere er
ude af funktion. Undgå udsaettelse for stråling.

DISMANTLING INSTRUCTIONS

3-1 3-1

Dismantling of the DAC/AF board, Supply board and Front Panel Assembly

1) Remove the Top Cover (pos 151) by 8 screws.

- 2 screws on each side

4) Turn the crank CDC5 (pos 96) clockwise to slide out the
tray assembly.

- 4 screws from the rear

2) Remove the DAC/AF board by 5 screws A. Be careful not
to damage flex cable.

5) With the set upside-down, release the 2 catches C1 and
remove the tray cover as indicated.

6) Loosen the Front Panel assembly from the bottom bracket
(pos 181) by 5 screws C and 4 catches C2 as indicated.

- 2 screws on top

3) Remove the Supply board by 3 screws B and disconnect

- 3 screws from the bottom side

the Lever Power button (pos 6) as indicated.

Tray moves out

Turn

Dismantling of the Tray Assembly and Servo board

1) Remove the Metal rod (pos 152) as indicated.

2) Loosen the Crank CDC5 (pos 96) with screw D and lift the
crank arm out of the groove on the tray assembly. The
complete tray assembly can be pulled out of the Frame
(pos93).

3) Remove the Servo board by 2 screws E.

4) Protect the CD mechanism's Laser against ESD by short­circuiting the flexfoil with a paper clip immediately upon
disconnection from the flexfoil connector.
(See Warning for more details)

Dismantling of the CD Mechanism

1) Loosen the Pressure ring holder (pos 90) by relasing catch
C3 as indicated.

2) Remove the Pressure plate (pos 89) and Rotary disc
assembly (pos 100) by 1 screw F.

3) Turn the Tray assembly upside-down and remove the
CDM Lock (pos 99) by using a "minus" screw-driver to
release 2 catches C4 as indicated.

4) With the Tray assembly facing up again, turn the cam
wheel (pos 116) to bring the CD mechanism (pos 98) to the
down position. Remove the CD mechanism by sliding out
the 4 rubber suspension (pos 104 to 107).

PCS 101 015

3-2 3-2

Assembly of the CD mechanism and Rotary disc CDC5

1) Remove the 4 rubber suspension (pos 104-107) from the
Support bracket (pos 114) and attached them on to the
CD mechanism.

2) Place the CD mechanism with the rubber suspension
above the mounting 4 holes.

3) Hold the CD mechanism in position and pull the tips of the
rubber suspension through the holes in the Support
bracket.

Warning
Charged capacitors on the Servo board may damage the
CD drive electronics when connecting a new CD mecha­nism. That's why, besides the safety measures like

* Switch off power supply

* ESD protection
Additional actions must be taken by the repair techni­cian.

The following steps have to be done when replacing the CD
Mechanism:

1) Disconnect the old CD mechanism flexfoil from printed

board.

2) Connect paperclip to CD mechanism flexfoil to short-

circuit flexfoil (fig.1).

3) Short-circuit printed board with brass-sheet (4822 321

11197) plugged into the flexfoil connector (fig. 2).

4) Remove the old CD mechanism.

5) Assemble the new CD mechanism into position.

5) Remove short-circuit from printed board connector.

6) Remove short-circuit from flexfoil of new CD mechanism.

7) Connect new flexfoil to print connector (fig. 3).

SERVICE POSITION 1

4) After assembly of the CD Mechanism, the Cam wheel (pos

116) and the Rotary disc (pos 100) must be re-aligned.
This is done by positioning the Bearing (pos 101), pin on
the Cam wheel and CD Mechanism in a straight line as
indicated.

5) Assemble the Rotary disc onto the Bearing with the "1"
printing mark facing the CD Mechanism.

Figure 1

SERVICE POSITION 2

Figure 2

PCS 101 016

Figure 3

3-3 3-3

SERVICE TEST PROGRAM I

MAIN MENU

DISPLAY
TEST

TIME

Button pressed?

Y

Display shows

Figure 1

TIME

Button pressed?

Y

Display shows

Figure 2

STOP

Button pressed?

Y

TRACK PEAK TOT REM TRACK TIME

54

13

2

PROGRAM

FTS

SHUFFLE

Figure 1

TRACK TOT TRACK

SHUFFLE REPEAT DISC

Figure 2

VIDEO CD -I

CD

+

PAUSE

G

+

G

N

N

N

1

REPEAT DISC

Keys

activated

No Key pressed

Any Remote control key

Program

Scan

Repeat

Edit

Time

Fader

To start service test program

hold STOP & PLAY

depressed while

plugging in the mains cord

Display shows the

ROM version *

"S V yy"

(Main menu)

QUARTZ
TEST

PROGRAM

Button pressed?

Y

Display shows

8M

Output at (Front Board)

pin 80 of uP = 1,953.125Hz

STOP

Button pressed?

Y

Display

shows

--

RC

1
2
3
4
5
6

S refers to Service Mode.
V refers to Version.
yy refers to Software version number of ∝Processor.

(Counting up from 01 to 99)

KEY TEST

N

N

Keys

activated

Pause

Previous

Next
Stop

Play

Shuffle

Disc 1
Disc 2

Table 1

Display

shows

7
8
9

Exit

11
12
13
14

Button pressed?

Display shows "--"

Display according

Button pressed?

SHUFFLE

Y

Any Button

pressed?

Y

to Table 1

STOP

Y

Keys

activated

Disc 3
Disc 4
Disc 5

Open/Close

Quick Play

Load

CD
TEST

N

N

NEXT Button

pressed?

Y

FOR CD Test
see page 3-4

Error code

E1000

N

E1001

Type

W

W

N

Button pressed?

Set is in Service PLAY Mode.

This mode is intended for

- CD PLAY Test

The CD PLAY is intended to
detect intermittent or not reproducible failures.
This is done by continuously playing a disc.

In case of failures, error codes according
to table 2 will be displayed.

Error Description
Focus Error

Triggered when the focus lost for a certain time during play.
Radial Error

Triggered when the radial servo is not on track for a certain time during play.

PLAY

Y

SERVICE
PLAY MODE

N

Sledge In Error
The sledge did not reach its inner position (inner-switch is still close) before approximately 6 Sec. have

E1002

W

passed by. Inner-switch or sledge motor problem.
Sledge Out Error

The sledge did not come out of its inner position (inner-switch is still open) before approximately 250 mSec.

E1003

W

have passed by. Inner-switch or sledge motor problem.
Jump error

Triggered in normal play when the jump destination could not be found within a certain time.

E1005

W

Subcode Error
Triggered when a no valid subcode for a certain time during play.

Display

shows

15
16
17
18
19
20

E1006

E1007

E1008

E1020

E1070

E1071

W

PLL Error
The Phase Lock Loop could not lock within a certain time.

W

Turntable Motor Error
Generated when the CD could not reached 75% of speed during startup within a certain time. Discmotor problem.

W

Focus Search Error
The focus point has not been found within a certain time.

F

The carousel switch is not open within certain time. This can happen when either the switch is defective and
closed all the time, or when the carousel is blocked in between two disc positions.

W

The time-out is approximately 5 seconds.
The carousel position switch did not close within a certain time. This can happen when the switch is defective

W

and never closes electrically, or when the carousel is blocked in between two disc positions. The time-out is
approximately 5 Sec.

The drawer could not enter the inside position and is opening again. This can be caused because the drawer is

E1079

W

blocked by something and cannot go fully inside, or the drawer switch is defective and does not close.

F = Fatal error & the set stop play function W = Warning

Table 2

PCS 101 017

3-4 3-4

SERVICE TEST PROGRAM II

CD Menu

Tray

Motor Test

Changer

Mech. Test

Disc

Motor Test

Sledge

Motor Test

To start service test program

hold STOP & PLAY

depressed while

plugging in the mains cord

Display shows the

ROM version

"S V yy"

(Main menu)

N

NEXT

Button pressed?

Y

Display shows

"CD"

PLAY

Button pressed?

Y

Is FOCUS found?

Y

S refers to Service Mode.

V refers to Version.

yy refers to Software version
number of ∝Processor.
(Counting up from 01 to 99)

N

N

Button pressed?

N

Focus Servo Test

STOP

Tray Motor
Test

OPEN/CLOSE

Button pressed?

Is tray

closed?

Y

Y

Y

N

N

Changer
Mechanism
Test

CD_X #

Button pressed?

Y

Change to

selected disc

# CD_X refers to CD1, CD2 or CD3

N

Tray

Motor Test

Changer

Mech. Test

NEXT

Button pressed?

Y

Sledge jumps outward in

steps of 16-tracks

Disc

Motor Test

Sledge

Motor Test

N

Jump tracks Test

Sledge jumps inward in

Sledge

Motor Test

PREVIOUS

Button pressed?

Y

steps of 16-tracks

N

Button pressed?

Disc starts turning,

Display becomes

N

Button pressed?

Radial Servo Test

Button pressed?

Display shows

"FOC OK"

PLAY

Y

Display shows

"DISC"

is speed ok?

Y

"DISC OK"

PLAY

Y

Display shows

"RDL"

STOP

Y

Display shows

"FOC ERR"

STOP

Button pressed?

Y

N

Disc Servo Test

N

N

N

Display remains as

"DISC ERR"

STOP

Button pressed?

Y

Open Tray

Close Tray

Sledge Motor
Test

NEXT

Button pressed?

Y

Sledge moves outside

Display shows

"SLD 0"

In software version 15 and below there are some slight problems in the

Note:

Service Program for the CD Test which will be resolved by running change.
The problems are:

1) If the Tray Motor test is done with the Tray in the open position, the tray
will close only after the pressing the Open/Close button twice.

2) If this test is performed after the Tray Motor Test, the tray may not change
as selected. The test will resumed correctly if CD test is quit and restarted.

3) After performing the Sledge Motor Test or Disc Motor Test the set will
return automatically to the "CD Menu".

N

PREVIOUS

Button pressed?

Y

Sledge moves inside

Display shows

"SLD I"

Disc Motor
Test

SHUFFLE

Button pressed?

Y

Disc Motor turns Counter

Clockwise & Display shows

"CCW"

N

N

Button pressed?

Disc Motor turns

Clockwise & Display shows

PROGRAM

Y

"CW"

PCS 101 018

SET BLOCK DIAGRAM

4-1 4-1

FTD

µP

CC4000
CC4000F
only

SET WIRING DIAGRAM

5-1 5-1

L

T

P

TRAY LOADER

TRANSFORMER

H

POWER SUPPLY

HP PANEL

CC4000 / CC4000F only

D

S

DAC/AF

C

CONTROL & DISPLAY PANEL

SERVO/DECODER

3139 119 30820 dd wk 852

6-1 6-1

SUPPLY & HEADPHONE

BOARD

TABLE OF CONTENTS

Headphone part - Circuit ................................................. 6-1

Supply part - Circuit ......................................................... 6-2

Supply & Heaphone layout.............................................. 6-2

Electrical parts list............................................................ 6-3

HEADPHONE CIRCUIT DIAGRAM

1370 2

+10V

A

-10V

VHP R

B

GND

C

VHP L

D

CONN. 1370 TO CONN. 1301 ON DAC CIRCUIT

-

1370 1

-

1370 3

-

1370 4

-

1370 5

-

3380

3380

2380

22n

10k

10k

+10V

-10V

10k

10k

3384

15k

3382

3383

3381

15k

5

CC4000/CC4000F ONLY

45 6123

11372

-

21372

2383
100n

3386

2
3

6

+10V

-10V

NJM4556

8

4

NJM4556

1

7380

(A)

7

7380

(B)

120R

2381

10n

3385

120R

2382
10n

45 6123

L
R

* For Testing only

-

1371

2

3

1

3999*

3086_0283_2

1370 A 1
1370 A 1
1370 B 1
1370 C 1
1370 C 1
1371 B 6
1372 A 6

A

1372 A 6
2380 A 1
2381 B 5
2382 D 5
2383 A 6
3380 B 1
3380 D 1
3381 D 3
3382 B 3
3383 C 3
3384 A 3
3385 D 4

B

3386 B 4
3999 D 6
7380 B 4
7380 D 4

C

D

6-2 6-2

POWER SUPPLY CIRCUIT DIAGRAM

A

9501

MAINS

1540 1

9502

-

B

3

9504

1

C

1543

4

9505

1502

/K

-

T100mA

­x
x

-

­x
x

­x

2544

3n3 400V

1500

/U, /F

T200mA

­x

-

-

­x

-

­x

-

D

1540 2

-

MAINS

E

F

G

1501

9506

VERSION VARIATIONS
XXX

/N

1501

T80mA

1502

-

1541

x

1542

-

1543

-

9501

-

9502

x

9503

-

9504

-

9505

x

9506

-

x - Item in used

1542-3
1541-1

1541-2

1542-4

2

5

1542-1

1542-2

1542-5

9503

1541-3

451 6789 1023

5500 (Mains Transformer)

0V

451 6789 1023

1503 2

1503 1

1503 3

28V

1503 6

8.6V

1503

1503 4

8.6V

HEADPHONE & SUPPLY BOARD LAYOUT

1005 D10
1005 E10

VAC2

VAC1

VFTD

GND

+10

-10

KILL

A

B

C

D

E

F

1005 F10
1005 C10
1005 B10
1005 B10
1005 A10
1500 D 2
1501 D 1
1502 E 2
1503 B 6
1503 A 6
1503 B 6
1503 E 6
1503 D 6
1503 D 6
1540 B 1
1540 D 1
1541 A 3
1541 B 3
1541 E 3
1542 A 3
1542 B 3
1542 C 3
1542 C 3
1542 D 3
1543 C 2
2500 D 7
2501 D 7
2502 D 9
2503 D 9
2504 B 6
2505 B 7
2506 D 9
2507 G 9
2508 C 8
2509 C 9
2510 E 7
2544 D 2
2560 F 9
3560 F 9
6500 D 7
6501 D 7
6502 D 8
6503 D 8
6504 B 7
6505 C 9
6506 B 9
6507 D 8
6508 D 8
6560 F 8
6561 F 8
6562 F 9
7500 B 8
9501 A 2
9502 B 2
9503 D 3
9504 C 2

9505 D 2
9506 E 1

A

B

C

D

04-22

4

3104 113 3086.

4

9

3381

1500

CONN.1005 TO CONN.1008

-

4.8V

-

2505

2504

22n

22n

-

6504

-36V

7500
MC7924

2

1N4003G

-3.9V

2508
220u
50V

­2500

22n

6500

2501

22n

1N4003G

6501

1N4003G

5

­0V

-

6507

1N4003G

6508

1N4003G

6502

1N4003G

6503

1N4003G

ON DECODER CIRCUIT

-19.5V

3

1

6505

BZX79C3V9

1

2502

22n

2503

22n

2

6506
BZV85-C7V5

-27V

2509
22u

50V

+10V

2506
6800u

16V

-10V

1005 7

1005 6

1005 5

1005 4

1005 1

1005 2

-

-

-

-

-

-

2510
2200uF

16V

6560

1

1N4003G

6561

2

1N4003G

2560

330u 16V

3560

1k

+3.9V

6562

BZX79C3V9

1005 3

-

2507

100n

G

Date: wk853.1

This assembly drawing shows a summary of all possible versions. For components
used in a specific version see schematic diagram and respective parts list.

123

CC4000 / CC4000F only

2560

2460

4

9
4

04-22

1005

1

3560

6508

6507

2510

2503

6503

6506

2509

1503

1

1540

3086.

4

3460

7460

T80mA

240V

1408

T80mA

T200mA

230V

117V

2506

2507

1370

1

2383

1372

2380

3380

2544

1542

7380

1

6

3

9000

9501

1

1541

9503

1

1543

3

1

4

5

2

3385
3383

3384

R

1371

9502

3386
2381

3382

GND

9504

1502

9505

L

1501

9506

2382

3999

1

1

6561

6502
2502

2504
6504

6560

9001

6562

2501

2500

2508

6501
6500

6505

3104 113 3086.

2505

7500

CBE

A

B

C

D

1005 A 3
1370 A 1
1371 A 2
1372 A 1
1408 A 3
1500 B 1
1501 B 2
1502 C 2
1503 D 3
1540 B 2
1541 B 1
1542 C 1
1543 D 1
2380 A 1
2381 A 2
2382 A 2
2383 A 1
2460 A 3
2500 C 3
2501 C 3
2502 C 3
2503 C 3
2504 C 3
2505 C 3
2506 C 3
2507 D 3
2508 D 3
2509 D 3
2510 C 3
2544 C 1
2560 B 3
3380 A 1
3381 A 1
3382 A 2
3383 A 1
3384 A 1
3385 A 1
3386 A 2
3460 A 2
3560 B 3
3999 A 2
6500 C 3
6501 C 3
6502 C 3
6503 C 3
6504 C 3
6505 D 3
6506 D 3
6507 B 3
6508 B 3
6560 B 3
6561 B 3
6562 B 3
7380 A 1
7460 A 2
7500 C 3
9000 A 1
9001 B 3

9501 B 1
9502 B 2
9503 C 1
9504 C 2
9505 C 2
9506 B 2

123

TRANSFORMER CONNECTIONS

/N VERSION

240V

220V-230V

0V

NOT SERVICEABLE

BLACK

BLUE

o

130 C

BROWN

THERMAL FUSE

RED

RED

BLUE

WHITE

GREEN

WHITE

ACF1

ACF2

VFTD

AC1

GND

AC2

BLUE

RED

RED

/U VERSION

BLUE

117V

BLACKBLUEBROWN

o

130 C

BROWN

0V

THERMAL FUSE

NOT SERVICEABLE

WHITEWHITE GREEN

RED

RED

BLUE

WHITE

GREEN

WHITE

ACF1

ACF2

VFTD

AC1

GND

AC2

BLUE BROWN

BLUE REDRED

WHITEWHITE GREEN

/K VERSION

240V

220V-230V

127V

110V

0V

NOT SERVICEABLE

BLACK

BLUE

RED

ORANGE

o

130 C

BROWN

THERMAL FUSE

RED

RED

BLUE

WHITE

GREEN

WHITE

ACF1

ACF2

VFTD

AC1

GND

AC2

ORANGE

BLUE

RED

BLUE

RED

BLACK

BROWN

RED

/F VERSION

BLUE

100V

o

130 C

BROWN

0V

THERMAL FUSE

NOT SERVICEABLE

WHITEWHITE GREEN

RED

RED

BLUE

WHITE

GREEN

WHITE

ACF1

ACF2

VFTD

AC1

GND

AC2

BLUE BROWN

BLUE REDRED

WHITEWHITE GREEN

6-3

ELECTRICAL PARTS LIST - SUPPLY & HEADPHONE BOARD

MISCELLANEOUS
1371 482 2267 31453 Headphone Socket

for CC4000, CC4000F
1500 482 2276 13224 Power Switch
1501 482 2252 51167 FUSE T200mA 250V for /U
1501 482 2071 58009 FUSE T80mA 250V for /N
1501 482 2071 52001 FUSE T200mA 250V for /F
1502 482 2070 31001 FUSE T100mA 250V for /K
1540 482 2265 20723 Socket. Primary Winding
1543 482 2277 11237 Voltage Selector for /K

!

!

!

!

!

!

!

6503 482 2130 31878 1N4003G
6504 482 2130 31878 1N4003G
6505 482 2130 31981 BZX79-B3V9
6506 532 2130 32586 BZV85-C7V5
6507 482 2130 31878 1N4003G
6508 482 2130 31878 1N4003G
6560 482 2130 31878 1N4003G
6561 482 2130 31878 1N4003G
6562 482 2130 31981 BZX79-B3V9

CAPACITORS
2380 482 2126 11585 22nF+80-20% 25V

for CC4000, CC4000F
2381 482 2121 51387
2382 482 2121 51387

10nF20% 16V for CC4000, CC4000F

10nF20% 16V for CC4000, CC4000F
2383 482 2126 12882 100nF+80-20% 50V

for CC4000, CC4000F
2500 482 2126 11585 22nF+80-20% 25V
2501 482 2126 11585 22nF+80-20% 25V
2502 482 2126 11585 22nF+80-20% 25V
2503 482 2126 11585 22nF+80-20% 25V
2504 482 2126 11585 22nF+80-20% 25V
2505 482 2126 11585 22nF+80-20% 25V
2506 482 2124 12328 6800µF 16V
2507 482 2126 12882 100nF+80-20% 50V
2508 482 2124 11769 220µF 20% 50V
2509 482 2124 81151 22µF 50V
2510 482 2123 14025 2200U 20% 16V for CC4000
2510 482 2124 40723 2200µF 20% 16V

for CC3000, CC4000F
2544 482 2126 14504 3.3nF 20% 250V

!

2560 482 2124 40849 330µF 20% 16V

TRANSISTORS & INTEGRATED CIRCUITS
7380 482 2209 82362

NJM4556D for CC4000, CC4000F

7500 482 2209 31257 MC79L24ACP

Note: Only the parts mentioned in this list are normal

service spare parts.

RESISTORS
3380 482 2101 21199 10kX2 20%

for CC4000, CC4000F
3381 482 2116 83864
3382 482 2116 83864
3383 482 2116 52244
3384 482 2116 52244
3385 482 2116 52206
3386 482 2116 52206

10k 5% 0.5W for CC4000, CC4000F

10k 5% 0.5W for CC4000, CC4000F

15k 5% 0.5W for CC4000, CC4000F

15k 5% 0.5W for CC4000, CC4000F

120R 5% 0.5W for CC4000, CC4000F

120R 5% 0.5W for CC4000, CC4000F
3560 482 2050 11002 1k 1% 0.4W
3999 482 2116 52303 8k2 5% 0.5W for /U, /F
3999 482 2116 52297 68k 5% 0.5W for /N
3999 482 2116 52228 680R 5% 0.5W for /K

DIODES
6500 482 2130 31878 1N4003G

6501 482 2130 31878 1N4003G
6502 482 2130 31878 1N4003G

7-1 7-1

LCD DISPLAY PIN CONNECTIONS

FRONT BOARD

TABLE OF CONTENTS

7G

2

PROGRAM

54

FTS

3G4G5G6G

2G

1G

TRACK PEAK TOT REM TRACK TIME

13

SHUFFLE

VIDEO CD -I

8G

+

G

PAUSE

f

g

e

( 6G - 1G )

REPEAT DISC

a

k

j

b

g

p

c

n

d

1

LCD Pin connections ....................................................... 7-1

Circuit diagram - Main part .............................................. 7-2

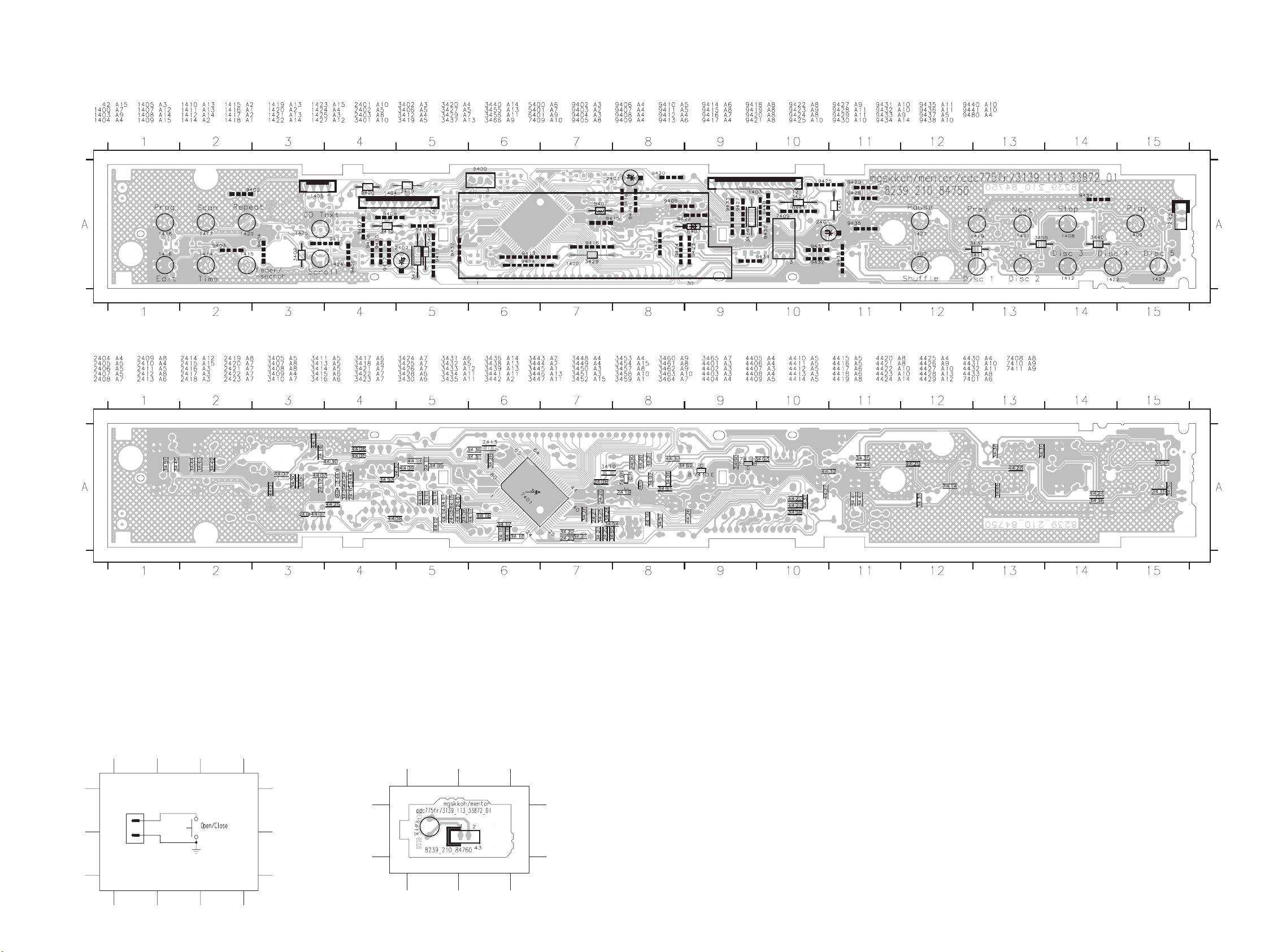

Component & Chip layouts - Main part ........................... 7-3

Circuit diagram & layout - Open/Close part .................... 7-3

Electrical parts list............................................................ 7-4

P1

P2

P3

P4

P5

P6

P7

P8

P9

P10

1G 3G

TIME

a

b

f

j

k

g

c

e

p

2G 5G4G 6G 7G 8G

TRACK

a

b

f

j

k

g

c

e

p

REM

a

b

f

j

Dp

g

c

e

p

TOT

a

b

f

j

-

g

c

e

p

PEAK

a

b

f

j

Col

g

c

e

p

TRACK

a

b

f

j

-

g

c

e

p

1
2

3
4
5

PROGRAM

FTS

-

-

SHUFFLE

VIDEO

CD

-

I

+

G

PAUSE

REPEAT

1

DISC

-

P11

P12

n

d

n

d

n

d

n

d

n

d

n

d

-

-

-

-

PCS 101 024

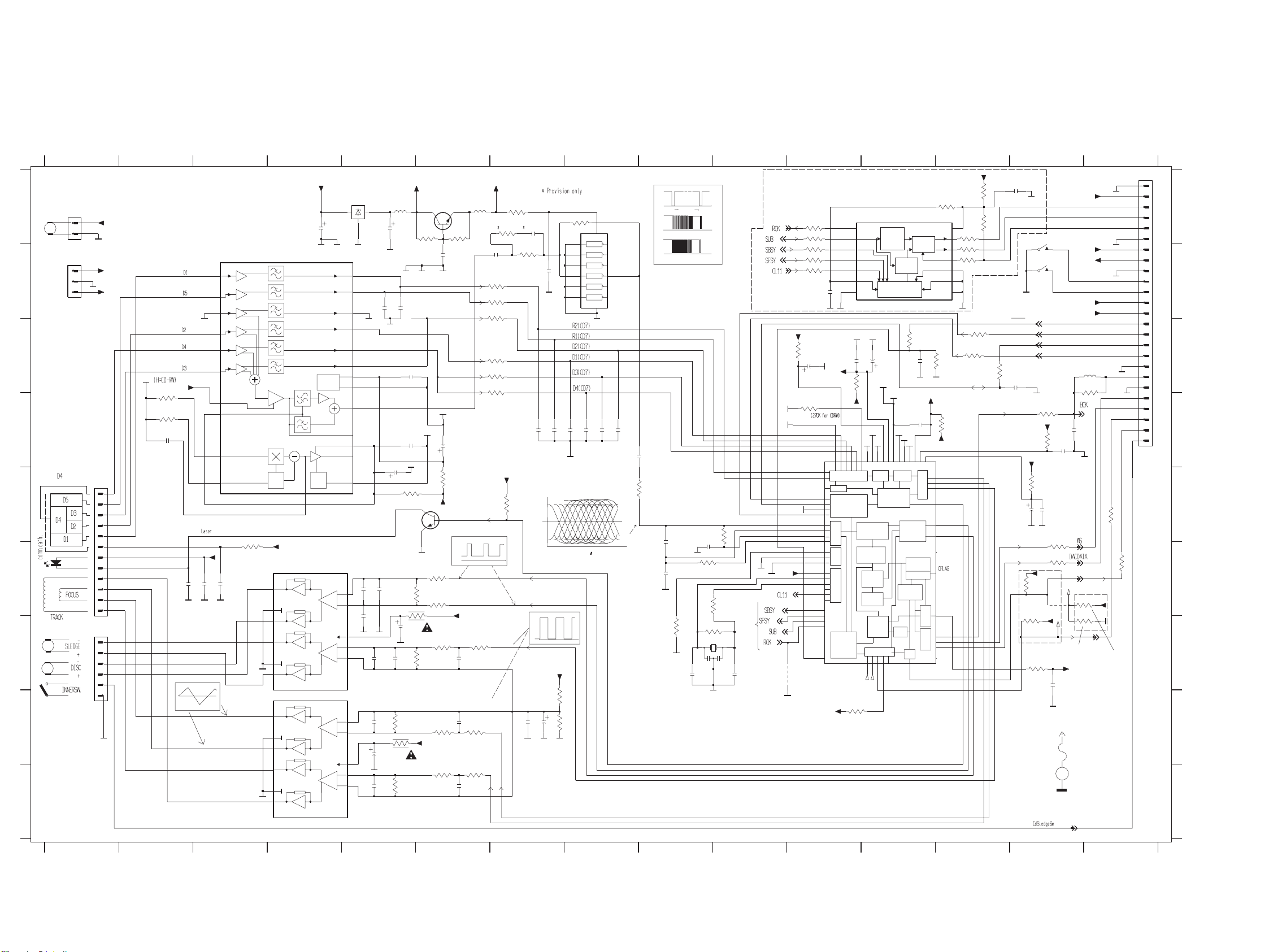

CIRCUIT DIAGRAM - MAIN PART

7-2 7-2

42 D14
1400 A5
1403 D1
1404 G1

1405 F1
1407 C11
1408 D11
1409 C12

1410 D10
1411 D11
1412 C11
1414 E10

1415 E11
1416 E11
1417 F11
1418 E12

1419 C13
1420 E12
1421 C12
1422 D12

1423 D12
1424 F12
1425 F12
1427 C10

2401 C2
2402 D2
2403 D3
2404 G1

2405 F6
2406 F6
2407 G6
2408 G7

2409 G7
2410 G7
2411 G8
2412 G8

2413 C9
2414 C10
2415 D10
2416 E10

2417 F10
2418 F1
2419 D4
2420 D4

2421 E4
2422 E4
2423 E4
3401 C2

3402 C2
3405 F8
3406 F8
3407 G9

3408 G9
3409 G7
3410 G7
3411 G7

3412 F8
3413 F6
3414 F6
3415 F6

3416 F5
3417 F5
3418 F5
3419 F5

3420 F5
3421 E3
3422 E4
3423 E3

3424 E4
3425 E3
3426 D4
3427 C9

3428 D9
3429 E9
3430 E9
3431 E9

3432 E9
3433 B10
3434 C11
3435 C11

3436 C12
3437 C10
3438 D11
3439 D11

3440 D12
3441 E10
3442 E11
3443 E11

3444 E12
3445 E12
3446 C13
3447 F10

3448 F11
3449 F11
3450 F12
3451 F12

3452 D13
3453 G3
3454 D12
3455 C12

3456 D2
3457 D2
3458 D3
3459 E13

3460 F9
3461 F9
3462 F9
3463 F7

3464 D3
3465 D4
3466 D2
5400 F6

5401 D4
6401 F9
7401 E4
7408 G7

7409 H9
7410 F9
7411 F7
9480 C9

1234567891011121314

1400

8-BT-213GK

A

B

3401

C

4R7

3402

1403

EH-B

1

VAC1

2

VAC2

3

D

E

F

-VFTD
+5B

D_GND

CdCarCtrl

CdDisDetect

CdDisPosSw

CdTrayCtrl

CdSledgeSw

CdTraySw

CdCarSw

4
5
6
7
8

9
10
11
12

1405

1

2

3

4

4R7

3466

3R3

2418

22n

EH-B

1404

CdData

1

CdSild

G

H

CdSicl

D_GND

CdPore

QuickPlay

Laod

RC5BusIn

RC5BusOut

2

3

4

5

Kill2

6

7

8

9

10

2404

22n

EH-B

2401

2402

-Vkk

F1

1u

3458

47K

CdCarCtrl

CdDisDetect

CdDisPosSw

CdTrayCtrl

CdSledgeSw

CdTraySw

CdCarSw

+5V

2419

1u

5401 2u2

3464

2403

22K

100u

3465

3425

100R

1K

3423

1K

3421

F2

1u

47K

47K

3457

3456

1K3426

3424

1K

3422

1K

2420

P6640

P6539

P6438

P6337

P6236

1u

P6135

P6034

VDD33

P0732

P0631

P0530

P0429

P0328

P0227

P0126

P0025

1K

2423

cdTxtIn

cdTxtClk

100n

cdTxD

7401

TMP87CN71

470R

3420

CdData

+5V

3453

22K

2421

100n

2422

10n

FTS TRACKTITLECHAPTERREPEATA-BSCANPAUSESHUFFLE

123456789

F2

P12

P11

P10

P09

G08

G07

G06

G05

G04

G03

44

P6741P7042P7143P72

I/O PORT 0 I/O PORT 6

24

470R

3419

CdSild

P7345P7446P7547P7648P7749P8050P8151P8252P8353P8454P85

I/O PORT 7 I/O PORT 9

DATA MEMORY

(RAM)

1024X8 BIT

VDD

16 BIT

TIMER/COUNTER

I/O PORT 3

P30

P3118P3219P3320P3421P3522P3623P37

17

1K

1K

1K

1K

3414

CdSicl

330R

3417

cdTxtIn

3416

cdTxtClk

3415

CdPore

3418

DVD
VCD

P08

P07

P06

P05

P04

P03

P01

P02

G02

G01

PROGR MEMORY

CONTROLLER

CLOCK/TIMING CONTROLLER

(I/O PORT 2)

VSS

XOUT

P20
16

15

14

CST
5400

3413
1K

33p

2405

RC5Bus

cdTxD

10 11 12 13 14

22 23 24 25 26 27 29 304567891 101112131415 1617 181922021

G01

G02

G03

G04

G05

G06

G07

P02

P01

P03

I/O PORT 8

(ROM)

48KX8 BIT

C P U

INTERRUPT

RESET

XIN

12

13

33p

2406

2407

P04

P05

11

3411

1K

100n

G08

P06

P07

P08

P09

55

P8656P8757P9058P9159P9260P9361P9462P9563P96

PROGRAM
COUNTER

8 BIT

TIMER/COUNTER

6 BIT A/D-

CONVERTER

P2110P22

TEST

8

9

BC857B

7411

+5V

3410

47K

BC847B

100n

2408

7408

3463

4K7

2409

2410

TIMEREMTOTALTRACK TRACKCHAPTERTITLE

15

P10

P11

I/O PORT 1

100n

10n

3409

F1

1K

100K

+

P12

KILL2

3412

VKK

1K

2411

P112P123P134P145P156P167P17

64

I/O PORT 4I/O PORT 5

P10
1

3405

2n2

P97 65

VKK 66

P40 67

P41 68

P42 69

P43

P44 71

P45 72

P46 73

P47 74

P50 75

P51 76

P52 77

P53 78

P54 79

P55 80

3406

1K

47n

70

3407

2

2412

34

-Vkk

1R

3428

1K

3430

1K

3432

1K

+5V

7410
BC857B

+5V

V

SUPPLY

GND

47R

3408
10K

OUT

3427

9480

2413
100n

3429

1K

3431

1K

1K

3461

22K

3460

1

7409
GP1U28XP

KeySet1

KeySet2

KeySet3

KeySet4

RC5BusOut

3462

6401

RC5BusOut

150R

BZX79-F3V3

220p

220p

220p

220p

2414

2415

2416

2417

QuickPlay

1427

1410

1414

3K9

+5V

3K9

+5V

3K9

+5V

3K9

A

+5V

3433

3434

680R

T

3435
820R

1407

1412

3436

1K2

1409

3455

2K2

1421

3446

4K7

1419

B

C

3437

3438

680R

3441

3442

680R

3447

3448

680R

T

3439

1411

T

3443
820R

1415

T

3449
820R

3440

1K2

1408

3444

1K2

1416

3450

1K2

1417

3454

2K2820R

1422

3445

2K2

1420

3451

2K2

1424

3452

4K7

1423

3459

4K7

1418

1425

42

1

2

DIPMATE

D

E

F

G

Load

H

123456789

10 11 12 13 14

7-3 7-3

COMPONENT & CHIP LAYOUTS - MAIN PART

This assembly drawing shows a summary of all possible versions. For components used in a specific version see schematic diagram and respective parts list.

This assembly drawing shows a summary of all possible versions. For components used in a specific version see schematic diagram and respective parts list.

3387p2

3387p2

CIRCUIT & LAYOUT - OPEN/CLOSE PART

A

B

123

43

1

2

DIPMATE

1413

A

B

43 A1
1413 A

2

123

12

43 A2
1413 A

1

AA

12

ELECTRICAL PARTS LIST - FRONT BOARD

MISCELLANEOUS
1400 3139 110 51990 FTD Display
1407 4822 276 13775 Tact Switch
1408 4822 276 13775 Tact Switch
1409 4822 276 13775 Tact Switch
1410 4822 276 13775 Tact Switch
1411 4822 276 13775 Tact Switch
1412 4822 276 13775 Tact Switch
1413 4822 276 13775 Tact Switch
1414 4822 276 13775 Tact Switch
1415 4822 276 13775 Tact Switch
1416 4822 276 13775 Tact Switch
1417 4822 276 13775 Tact Switch
1418 4822 276 13775 Tact Switch
1419 4822 276 13775 Tact Switch
1420 4822 276 13775 Tact Switch
1421 4822 276 13775 Tact Switch
1422 4822 276 13775 Tact Switch
1423 4822 276 13775 Tact Switch
1427 4822 276 13775 Tact Switch

CAPACITORS
2401 4822 124 22651 1µF 20% 50V
2402 4822 124 22651 1µF 20% 50V
2403 4822 124 42234 100µF 20% 6,3V
2404 5322 122 32654 22nF 10% 63V
2407 4822 126 14585 100nF 10% 50V
2408 4822 126 13838 100nF 20% 50V
2409 4822 126 13838 100nF 20% 50V
2410 4822 122 33177 10nF 20% 50V
2411 4822 122 33127 2,2nF 10% 50V
2412 4822 126 13751 47nF 10% 50V
2413 4822 126 13838 100nF 20% 50V
2414 4822 122 33575 220pF 5% 50V
2415 4822 122 33575 220pF 5% 50V
2416 4822 122 33575 220pF 5% 50V
2417 4822 122 33575 220pF 5% 50V
2418 5322 122 32654 22nF 10% 63V
2419 4822 126 14043 1µF 16V

RESISTORS
3401 4822 050 24708 4R7 1% 0,6W
3402 4822 050 24708 4R7 1% 0,6W
3405 4822 051 10102 1k 2% 0,25W
3406 4822 050 11002 1k 1% 0,4W
3407 4822 051 20479 47R 5% 0,1W
3408 4822 117 10833 10k 1% 0,1W
3409 4822 117 10837 100k 1% 0,1W
3410 4822 117 10834 47k 1% 0,1W
3411 4822 051 10102 1k 2% 0,25W
3412 4822 050 11002 1k 1% 0,4W
3413 4822 051 10102 1k 2% 0,25W
3414 4822 051 10102 1k 2% 0,25W

7-4 7-4

3415 4822 051 10102 1k 2% 0,25W
3416 4822 051 10102 1k 2% 0,25W
3417 4822 051 10102 1k 2% 0,25W
3418 4822 117 13577 330R 1% 0,25W
3419 4822 116 83883 470R 5% 0,5W
3420 4822 116 83883 470R 5% 0,5W
3421 4822 051 10102 1k 2% 0,25W
3422 4822 051 10102 1k 2% 0,25W
3423 4822 051 10102 1k 2% 0,25W
3424 4822 051 10102 1k 2% 0,25W
3425 4822 051 10102 1k 2% 0,25W
3426 4822 051 10102 1k 2% 0,25W
3428 4822 051 10102 1k 2% 0,25W
3429 4822 050 11002 1k 1% 0,4W
3430 4822 051 10102 1k 2% 0,25W
3431 4822 051 10102 1k 2% 0,25W
3432 4822 051 10102 1k 2% 0,25W
3433 4822 051 20392 3k9 5% 0,1W
3434 4822 117 10361 680R 1% 0,1W
3435 4822 117 11454 820R 1% 0,1W
3436 4822 051 20122 1k2 5% 0,1W
3437 4822 116 52276 3k9 5% 0,5W
3438 4822 117 10361 680R 1% 0,1W
3439 4822 117 11454 820R 1% 0,1W
3440 4822 116 52207 1k2 5% 0,5W
3441 4822 051 20392 3k9 5% 0,1W
3442 4822 117 10361 680R 1% 0,1W
3443 4822 117 11454 820R 1% 0,1W
3444 4822 051 20122 1k2 5% 0,1W
3445 4822 117 11449 2k2 1% 0,1W
3446 4822 051 20472 4k7 5% 0,1W
3447 4822 051 20392 3k9 5% 0,1W
3448 4822 117 10361 680R 1% 0,1W
3449 4822 117 11454 820R 1% 0,1W
3450 4822 051 20122 1k2 5% 0,1W
3451 4822 117 11449 2k2 1% 0,1W
3452 4822 051 20472 4k7 5% 0,1W
3453 4822 051 20223 22k 5% 0,1W
3454 4822 117 11449 2k2 1% 0,1W
3455 4822 116 52256 2k2 5% 0,5W
3456 4822 116 83884 47k 5% 0,5W
3457 4822 117 10834 47k 5% 0,1W
3458 4822 117 10834 47k 5% 0,1W
3459 4822 051 20472 4k7 5% 0,1W
3460 4822 051 20223 22k 5% 0,1W
3461 4822 051 10102 1k 2% 0,25W
3462 4822 117 10353 150R 1% 0,1W
3463 4822 051 20472 4k7 5% 0,1W
3464 4822 051 20223
3465 4822 051 20101 100R 5% 0,1W for CC3000
3466 4822 052 10338 3R3 5% 0,33W
4401 4822 051 20008 0R Jumper 0805

22k 5% 0,1W for CC4000, CC4000F

4402 4822 051 20008 0R Jumper 0805
4403 4822 051 20008 0R Jumper 0805
4404 4822 051 20008 0R Jumper 0805
4405 4822 051 20008 0R Jumper 0805
4406 4822 051 20008 0R Jumper 0805
4407 4822 051 20008 0R Jumper 0805
4408 4822 051 20008 0R Jumper 0805
4409 4822 051 20008 0R Jumper 0805
4410 4822 051 20008 0R Jumper 0805
4411 4822 051 20008 0R Jumper 0805
4412 4822 051 20008 0R Jumper 0805
4413 4822 051 20008 0R Jumper 0805
4414 4822 051 20008 0R Jumper 0805
4415 4822 051 20008 0R Jumper 0805
4416 4822 051 20008 0R Jumper 0805
4417 4822 051 20008 0R Jumper 0805
4418 4822 051 20008 0R Jumper 0805
4419 4822 051 20008 0R Jumper 0805
4420 4822 051 20008 0R Jumper 0805
4421 4822 051 20008 0R Jumper 0805
4422 4822 051 20008 0R Jumper 0805
4423 4822 051 20008 0R Jumper 0805
4424 4822 051 20008 0R Jumper 0805
4425 4822 051 20008 0R Jumper 0805
4426 4822 051 20008 0R Jumper 0805
4427 4822 051 20008 0R Jumper 0805
4428 4822 051 20008 0R Jumper 0805
4429 4822 051 20008 0R Jumper 0805
4430 4822 051 20008 0R Jumper 0805
4431 4822 051 20008 0R Jumper 0805
4432 4822 051 20008 0R Jumper 0805
4433 4822 051 20008 0R Jumper 0805

COILS & FILTERS
5400 4822 242 72066 Ceram Resonator 8MHz
5401 4822 157 11477 Coil 2,2µH 5%

DIODES
6401 4822 130 31981 BZX79-B3V9

TRANSISTORS & INTEGRATED CIRCUITS
7401 3139 110 52000 TMP87CP71F
7408 5322 130 60159 BC846B
7409 4822 130 10165 GP1U28XP
7410 4822 130 60373 BC856B
7411 4822 130 60373 BC856B

Note: Only the parts mentioned in this list are normal

service spare parts.

8-1 8-1

CIRCUIT DIAGRAM & LAYOUT - LOAD/QP PART

SERVO/DECODER BOARD

TABLE OF CONTENTS

Circuit diagram & layout - Load/Quick Play part ............. 8-1

Circuit diagram - Main part .............................................. 8-2

Component & Chip layouts - Main part ........................... 8-3

Electrical parts list............................................................ 8-4

A

A

1805

1

2

3

EH-B

12

1841

A

1840

12

1

A

1805 A1
1840 A2
1841 A2

1805 A1
1840 A1
1841 A1

9851 A1

3388p2

1

CIRCUIT DIAGRAM - MAIN PART

8-2 8-2

1800 E1
1801 G1
1802 D15
1803 B1
1804 A1

1810 G10
1820 B14
1821 A14
2802 D6
2804 D2

2807 B5
2808 D8
2809 G5
2810 B5
2812 C5

2813 D5
2814 F2
2815 F3
2816 F3
2817 A4

2818 A5
2819 B6
2820 B7
2821 B7
2823 F9

2824 F9
2825 F9
2826 E14
2827 D14
2828 D12

2829 D8
2830 D8
2831 C12
2832 C11
2833 G10

2834 G9
2835 H7
2836 H7
2837 G5
2838 F5

2839 F5
2840 F5
2841 I6
2842 I5
2843 H5

2844 H6
2845 H5
2846 G6
2847 G5
2848 D8

2849 D7
2850 C12
2851 D7
2852 D8
2853 B11

2854 D14
2855 C11
2856 D14
2859 E14
2860 A14

2861 G14
2862 E5
2863 A7
3801 C7
3802 E6

3803 C7
3804 E5
3805 B7
3806 C7
3807 B7

3808 B7
3809 D2
3810 D2
3812 F3
3813 E7

3814 B7
3815 A8
3816 A6
3817 A6
3818 A7

3820 A11
3821 A11
3822 B11
3823 B11
3824 B11

3825 E8
3829 A13
3832 B13
3834 B13
3835 A13

3836 A13
3837 H7
3838 H7
3839 F6
3840 F6

3841 F6
3842 I6
3843 I6
3844 I5
3845 H6

3846 H6
3847 H5
3848 G6
3849 G6
3850 G6

3851 C11
3852 F6
3853 H5
3854 E14
3855 C12

3857 C12
3858 C13
3859 C13
3860 C13
3861 D14

3864 D14
3865 F14
3866 F14
3868 F14
3869 F15

3870 G15
3871 G14
3872 H11
3873 D13
3874 F9

3875 G10
3876 G9
3877 C11
3878 F9
3879 E10

3880 D11
3881 A13
3882 E15
3883 F15
3884 G14

3885 A7
3886 D15
5801 A5
5802 A6
5803 C15

7801 B4
7802 A8
7803 D11
7805 A12
7806 H5

7807 F4
7808 E5
7810 A6
7811 A5
9812 G11

9815 F14

123456789101112131415

S

M

D

D

3882

470R

3883

D

not for
opt_out version

5597-NAPB

25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10

9
8
7
6
5
4
3

2
1

1802

470R

A

B

C

D

E

F

G

H

I

3881

4K7

14

VDD

13
12
11
10

SW2

9

SW1

8

TEST

22K

to servo drivers
(7806,7807)

at 3837

33R

3873

+4V

+4V

3.8V

3829 470R

470R3832

3834 470R

D

3859
470R

3858

470R

2860

47R

3836

10K

3835

D

47n

1821

1820

D

EBU

+10V

CarMotor

CdCarSw
CdDisPosSw

EBU_GND

Load

PORE

*

QuickPlay

SILD
SDA

SCL

+4V

9815

100R

3865

470R
3866

470R

100n

2854

2827

V1

only for
opt_out version

EBU

47p

5803

2u2

470R
3886

100p

D

KILLL

+4V

10K

3869

10K

3870

KILLR

to
dig. out circuitry

3860

470R

47p

2856

8.46MHz

3.8V

3.8V
+4V

47u

2826

176.4kHz

+4V

3868

kill circuitry

3871

D

3861

100R

3864

10R

3854

100n

2859

D

D

22K

+4V

22K

V2

3884
100R

2861

EBU_GND

DC voltages

V

measured in

play mode

+10V

2846

2844

2841

3845

3842

+4V

2820

3808

10K
3807

10K

3801
10K

3806
10K

3803

47n

3805

10K

10K

4V

3885

15K

560R

3818

3814

2.6V

2821

2851

L

220p

100n

PC74HCU04D

2849

220p

3815

22K

7802

14

VCC

1A

1Y

1

3

5

9

11

13

2848

220p

2

2A

2Y

4

3A

3Y

6

4A

4Y

8

5A

5Y

10

6A

6Y

12

GND

7

L

2830

2829

2808

220p

220p

2863

18p

10K

220p

5802

2u2

DA

+5V

EYE-PATTERN

4K7

3813

800mVpp

TB = 0.5us/div

LaserOn

4V

3848

8K2

0V

+4servo

1K

100n

3837

1K

47u

3838

2835

2836

D

D

D

1.9V

10K

10K

2852

3825

2n2

1K

CD-TEXT INFO

3.3ms

47p

2823

22n

2824

L

3876

D

L

10K

2834

4V

DQSY

SCLK

SRDT

2825

47n

3878 100K

3874

3875 1M

1810

CST 8M467

22p

D

only during
TOC-reading

22K

3879

To

330R

CD TEXT
DECODER

2833

Provision For CD Text

7805

470R3820

3821 470R

470R3822

3823 470R

3824

470R

11.29MHz

+4V

3851

33R

2832

4u7

3.8V

3880

DA

330K

DA

7803

SAA7378

D

D

SelPLL

D

22p

9812

For Non-CD Text Version

D

LC89170M

1
2
3
4
5
6
7

47n

2853

D

D

L

DA

2855

SelPLL

3877

+4V

457

10

3

63239495611216
8
9

ADC

11

VREF

GENERATOR

52

MICRO

51

PROCESSOR

53

INTERFACE

54

15
17
14
18

FRONT END

20
23

TEST

29

13
21
22
24

TIMING

25
50

35
36
38
37
58

DECODER

MICRO-

PROCESSOR

INTERFACE

57

to Kill circuitry

3872

V4

4K7

EXCK
SBSO

SCOR
WFCK
MCK
XMODE

GND

L

100n

2831

100R

L

DA

DIGITAL

PLL

EFM

DEMODULATOR

SRAM

RAM

ADDRESSER

SUBCODE

PROCESSOR

VERSATILE PINS

INTERFACE

6263 42 4140

V2

V1

32 x 8
2 PORT

RAM

TIMING & SYNC

PROTECTION

4u7

EBU_GND

D

L

19

PRE-

PROC.

CONTROL

PART

CRC

CHECK

D

CONTROL

FUNCTION

PROCESSOR

PEAK

DETECT

470R

D

D

MOTOR

CONTROL

CORRECTOR

AUDIO

KILL

D

2828

100n

3047 592

ERROR

FLAGS

43

CPU

INTERF

3855

2850

+4servo

3.8V

OUTPUT STAGES

EBU

DQSY
SRDT
SCLK

1n

3857

D

26
27
28

64

33

34

55

61

60

31

INTERFACE

48
46
45

INTERFACE

SERIAL DATA

44

10V

2807

2809

2845

2842

+5V

5801

2u2

47u

2818

L

1n5

2810

7810

5V

BC547B

3816

3817

4.7V

100R

560R

10n

2819

D

DA

L

560p

DA

47n

2812

L

47n

L

4u7

7808

47R

2802

L

3802

100R

0V

+5V

2813

4u7

2862

3804

BC337-40

4V
0V

L

0V

3840

2847

3847

3844

150K

6K8

3841

3839

3852

150K

3R3

47u

3849

8K2

22n

3850

470R

1n

3846

8K2

+10V

3843

8K2

1n

100n

10V

2837

S

100n

680R

3853

3R3

47u

TRACK

560R

C

7807

TDA7073

ON/
OFF

13

A

+10V

10V 5V

47u

2817

S

SUPPLY

VDD

VDD

L

7801

VDD
GND

VDDL

LDON

­+

+

-

­+

+

-

7811
L7805

O6

O5

O4

O3

O2

O1

RFE

RF

LO

TURNTABLE

1

2

3

4
5

6

7

8

TDA7073

1

2

3

4
5

6

7

8

2

L

2

5

1

3

6

4
18
15

9

10

8

16

7

100n

100n

S

SLIDE

1.9V

7806

FOCUS

1.9V

1.9V

1.9V

1.9V

1.9V

S

28402838

S

100n

A

10n

2843

10n

L

2839

5CDC-MG-RW SERVO/DECODER

A

Carousel

1804

Motor

To DM81

B

C

D

E

F

G

H

I

XH-B

1

2

1803

1

2

3

EH-B

D

CarMotor

M

QuickPlay

Load

TDA1302T

23

I6

6

20

I5

5

24

I4

L

L

4K7

V4

3810
120K

4

22

I3

3

I2

19

2

I1

21

1

HG

11

LS

12

3809

10n

1800

5597-NAPB

1801

EH-B

2804

12

11

10

9

8

7

6

5

4

3

2

1

1

2

3

4

5

6

2814

L

D

100n

+5V

2815

L

MI

17

ADJ

14

5V

2816

100n

100n

L

during Focus search

3812

IREF

VGAP

1K

+5V

16

15
14

13

OUT1-

12

11
10

S

9

16

15
14

13

OUT1-

12

11
10

S

9

PCS 101 029

1234567891011121314

15

8-3 8-3

COMPONENT & CHIP LAYOUTS - MAIN PART

This assembly drawing shows a summary of all possible versions. For components
used in a specific version see schematic diagram and respective parts list.

This assembly drawing shows a summary of all possible versions. For components
used in a specific version see schematic diagram and respective parts list.

PCS 101 030

ELECTRICAL PARTS LIST - SERVO/DECODER BOARD

MISCELLANEOUS
1800 4822 267 51453 Flex Socket 12Pin Hort.
1802 4822 265 11556 Flex Socket 25Pin Hort.
1810 4822 242 10566 X’tal Resonator 8.4672MHz
1820 4822 276 13106 Tact Switch
1821 4822 276 13106 Tact Switch
1840 4822 276 13775 Tact Switch
1841 4822 276 13775 Tact Switch

CAPACITORS
2802 4822 124 40769 4,7µF 20% 100V
2804 4822 122 33177 10nF 20% 50V
2807 5322 122 31865 1,5nF 10% 63V
2808 4822 122 33575 220pF 5% 50V
2809 4822 126 13296 100nF 10% 16V
2810 5322 116 80853 560pF 5% 63V
2812 4822 126 13751 47nF 10% 63V
2813 4822 126 13751 47nF 10% 63V
2814 4822 126 13296 100nF 10% 16V
2815 4822 126 13296 100nF 10% 16V
2816 4822 126 13296 100nF 10% 16V
2817 4822 124 80231 47µF 20% 16V
2818 4822 124 80231 47µF 20% 16V
2819 4822 122 33177 10nF 20% 50V
2820 4822 126 13751 47nF 10% 63V
2821 4822 126 13296 100nF 10% 16V
2823 4822 126 13692 47pF 1% 63V
2824 5322 122 32654 22nF 10% 63V
2825 4822 126 13751 47nF 10% 63V
2826 4822 124 80231 47µF 20% 16V
2827 4822 126 13296 100nF 10% 16V
2828 4822 126 13296 100nF 10% 16V
2829 4822 122 33575 220pF 5% 50V
2830 4822 122 33575 220pF 5% 50V
2831 4822 124 40769 4,7µF 20% 100V
2832 4822 124 40769 4,7µF 20% 100V
2833 5322 122 32658 22pF 5% 50V
2834 5322 122 32658 22pF 5% 50V
2835 4822 126 13296 100nF 10% 16V
2836 4822 124 80231 47µF 20% 16V
2837 4822 124 80231 47µF 20% 16V
2838 4822 126 13296 100nF 10% 16V
2839 4822 126 13296 100nF 10% 16V
2840 4822 126 13296 100nF 10% 16V
2841 5322 126 10511 1nF 5% 50V
2842 4822 122 33177 10nF 20% 50V
2843 4822 124 80231 47µF 20% 16V
2844 5322 126 10511 1nF 5% 50V
2845 4822 122 33177 10nF 20% 50V
2846 5322 122 32654 22nF 10% 63V
2847 4822 126 13296 100nF 10% 16V
2848 4822 122 33575 220pF 5% 50V
2849 4822 122 33575 220pF 5% 50V

8-4 8-4

2850 5322 122 34123 1nF 10% 50V
2851 4822 122 33575 220pF 5% 50V
2852 4822 122 33175 2,2nF 20% 50V
2854 5322 122 32531 100pF 5% 50V
2855 4822 126 13196 100nF 10% 25V
2856 4822 126 13692 47pF 1% 63V
2859 4822 126 13296 100nF 10% 16V
2861 4822 126 13692 47pF 1% 63V
2862 4822 124 40769 4,7µF 20% 100V
2863 4822 126 13689 18pF 1% 63V

3860 4822 051 20471 470R 5% 0,1W
3861 4822 051 20101 100R 5% 0,1W
3864 4822 051 20101 100R 5% 0,1W
3865 4822 051 20471 470R 5% 0,1W
3866 4822 051 20471 470R 5% 0,1W
3868 4822 116 52257 22k 5% 0,5W
3869 4822 116 83864 10k 5% 0,5W
3871 4822 116 52257 22k 5% 0,5W
3872 4822 116 52283 4k7 5% 0,5W
3873 4822 116 52191 33R 5% 0,5W
3874 4822 051 20331 330R 5% 0,1W

RESISTORS
3801 4822 116 83864 10k 5% 0,5W
3802 4822 051 20101 100R 5% 0,1W
3803 4822 116 83864 10k 5% 0,5W
3804 4822 051 20479 47R 5% 0,1W
3805 4822 117 10833 10k 1% 0,1W
3806 4822 117 10833 10k 1% 0,1W
3807 4822 116 83864 10k 5% 0,5W
3808 4822 116 83864 10k 5% 0,5W
3809 4822 051 20124 120k 5% 0,1W
3810 4822 051 20472 4k7 5% 0,1W
3812 4822 051 10102 1k 2% 0,25W
3813 4822 051 20472 4k7 5% 0,1W
3814 4822 116 83864 10k 5% 0,5W
3815 4822 051 20223 22k 5% 0,1W
3816 4822 051 20101 100R 5% 0,1W
3817 4822 051 20561 560R 5% 0,1W
3818 4822 116 52226 560R 5% 0,5W
3825 4822 050 11002 1k 1% 0,4W
3837 4822 051 10102 1k 2% 0,25W
3838 4822 051 10102 1k 2% 0,25W
3839 4822 051 20154 150k 5% 0,1W

3875 4822 051 20105 1M 5% 0,1W
3876 4822 117 10833 10k 1% 0,1W
3877 4822 051 20101 100R 5% 0,1W
3878 4822 051 20104 100k 5% 0,1W
3879 4822 051 20223 22k 5% 0,1W
3880 4822 051 20274 270k 5% 0,1W
3882 4822 051 20471 470R 5% 0,1W
3883 4822 051 20471 470R 5% 0,1W
3884 4822 051 20101 100R 5% 0,1W
3885 4822 051 20153 15k 5% 0,1W
3886 4822 051 20453 470R 5% 0,1W
4801 4822 051 20008 0R Jumper 0805
4802 4822 051 20008 0R Jumper 0805
4803 4822 051 20008 0R Jumper 0805
4805 4822 051 20008 0R Jumper 0805
4806 4822 051 20008 0R Jumper 0805
4809 4822 051 20008 0R Jumper 0805
4810 4822 051 20008 0R Jumper 0805
4813 4822 051 20008 0R Jumper 0805
4814 4822 051 20008 0R Jumper 0805
4815 4822 051 20008 0R Jumper 0805
4816 4822 051 20008 0R Jumper 0805

3840 4822 051 20154 150k 5% 0,1W
3841 4822 117 11507 6k8 1% 0,1W
3842 4822 117 10833 10k 1% 0,1W
3843 4822 051 20822 8k2 5% 0,1W
3844 4822 051 20561 560R 5% 0,1W

COILS & FILTERS
5801 4822 157 11477 Coil 2,2µH 5%
5802 4822 157 11477 Coil 2,2µH 5%

5803 4822 157 10586 Coil 2,2µH 10% 0805
3845 4822 117 10833 10k 1% 0,1W
3846 4822 051 20822 8k2 5% 0,1W
3847 4822 051 20681 680R 5% 0,1W
3848 4822 051 20822 8k2 5% 0,1W
3849 4822 051 20822 8k2 5% 0,1W
3850 4822 051 20471 470R 5% 0,1W
3851 4822 116 52191 33R 5% 0,5W
3852 4822 052 10338!3R3 5% 0,33W

!

3853 4822 052 10338

3R3 5% 0,33W

3854 4822 051 20109 10R 5% 0,1W

TRANSISTORS & INTEGRATED CIRCUITS

7801 4822 209 12636 TDA1302T/N1

7802 5322 209 11517 PC74HCU04T

7803 4822 209 12752 SAA7378GP/M1

7806 4822 209 32852 TDA7073A/N2

7807 4822 209 32852 TDA7073A/N2

7808 4822 130 41344 BC337-40

7810 4822 130 40959 BC547B

7811 4822 209 80817 L7805CV
3855 4822 051 20471 470R 5% 0,1W
3857 4822 051 20223 22k 5% 0,1W
3858 4822 116 83883 470R 5% 0,5W

Note: Only the parts mentioned in this list are normal

service spare parts.

3859 4822 116 83883 470R 5% 0,5W

9-1 9-1

DAC/AF BOARD

Notes:

TABLE OF CONTENTS

Notes................................................................................ 9-1

Circuit diagram................................................................. 9-2

Component & Chip layouts.............................................. 9-3

Electrical parts list............................................................ 9-4

PCS 101 032

CIRCUIT DIAGRAM

9-2 9-2

1830 A1
1831 B1
1832 H1
1833 H1
1834 G2
1835 A13
1836 C13

1837 D15
1838-A E15
1838-B E15
1839-A H15
1839-B H15
1843 D2
2331 C7

2333 C7
2335 C8
2880 A3
2881 A4
2882 B5
2883 D3
2884 F6

2885 F7
2886 G8
2887 G8
2888 D4
2889 C7
2890 C8
2891 C8

2892 C4
2893 E6
2894 E8
2895 E5
2896 E8
2897 E6
2898 E10

2899 E11
2901 E11
2902 E11
2903 D12
2904 F12
2905 E13
2906 F13

2907 E14
2908 F14
2910 B8
2911 A10
2912 B11
2914 B12
2915 C12

2916 H15
2917 I15
2918 B14
2919 I13
2920 I3
2921 B14
2923 E12

2924 F12
2925 B10
2926 G12
2927 D12
2931 D14
2932 D14
3901 B2

3902 B2
3903 B5
3904 B5
3905 C2
3906 D2
3907 D2
3908 H3

3909 H3
3910 H3
3911 H3
3912 D2
3913 I3
3914 F6
3915 F8

3916 F8
3917 C6
3918 C7
3919 C7
3921 E5
3922 E8
3923 E10

3924 E10
3925 D11
3926 G11
3927 C11
3928 F11
3929 D11
3930 G11

3931 D12
3932 G12
3933 E13
3934 F13
3935 E13
3936 F13
3937 E13

3938 F13
3939 C13
3940 D13
3941 D13
3942 D13
3943 A6
3945 A7

3946 B7
3947 A8
3948 A8
3949 A9
3950 B9
3951 A9
3952 B9

3953 B10
3954 A10
3955 A11
3956 A11
3958 C11
3960 B12
3961 H10

3962 H11
3963 I11
3964 H11
3965 H12
3966 H12
3967 H13
3968 I13

3969 H13
3970 H13
3971 H14
3972 H14
3973 G14
3974 B7
3975 I13

3976 H3
3977 B10
3978 B7
4828 H2
5850 A4
5851 A6
5853 B12

5854 G12
5855 D12
6833 D11
6834 G11
6835 I13
6836 H14
7830 A2

7831 A4
7832 A5
7834 H3
7835 G6
7837 D11
7838 G11
7839 E14

7840 F14
7841 D14
7842 D14
7843-A F12
7843-B E12
7844-A A10
7844-B A7

7845 H11
7846 H12
7847 H13
7848 H14
7849 D6
9893 G2
9894 G2

9895 G2
9902 A11
9904 A8
9907 E12
9919 H11
9920 H11
9923 H12

9924 G13
9930 H13

123456789101112131415

+10V

2889

3919

3R3

100n

6

5

3978

2331

15

VDDD

VREF

GND

GNDA

+S

-S

4K7

47u

14

VDDA

VSSD

VSSA

VDDO

VSSO

FILTCR

VOR

IREF

4

2

4

3974
12K

NC

7844-B
TCA0372

2333

11
12
10
9

6

7
13

7

3915

18K

6IOL

8IOR

9904

3948

3

3947

2910

100n

S

22R

CarMotor

1R

+5V

3950

+5V

12K

3952

3949

12K

3951

+S

7

8

12K

S

-S

1K

3954

3977

-10V

2

4

2911

2R2

7844-A
TCA0372

3953

12K

2925

47u

2R2

47u

M

S

1

3955

2912

M

S

S

22R

100n

+5V

9902

3956

1R

3958

EBU_GND

560R

2914

100n

KILL1

M

5853
7CHA

34
2

6

1

78

2915

22n

EBU_GND

1835

1

Tray Motor

2

XH-B

3960

10R

digital out circuitry

2

3

YKC21-3416
1836

2918
100n

1

3939

22K

22K

18K

22n

3970

47K

3969
47K

3975
D

10R

1K

3941
2K2

3942
2K2

3940

1K

3935

1K

3937
2K2

3938
2K2

3936

1K

9930

D

47u

2890

100n

2335

47u

GNDA

2891

100n

KILL_L

3925

47K

3927

10K

BC857B
7837

6833

3929

1N4148

220K

5855
10m

2927
150p

3K9
3931
220p

2894

GNDA

2886

GNDA

470p

2896

47u

100n

2887

GNDA

47u

3916

15K

3922

10K

+5V

+10V

-10V

2898

GNDA

22n

KILL_R

ESIOUT

ESIIN

3923

3924

3961

4R7

4R7

3926

47K

10K

7845

BC847B

9919
9920

GNDA

3928

+5V

3963

2899

2902

GNDA

10K

1K8

47u

47u

+5V

3962

2901

GNDA

BC857B
7838

47K

3964

47K

-10V

22n

9907

Bitstream

KILL1

6834

3930

-10V

+10

-10

1N4148

220K

3965
47K

7846

BC847B

2923

2924

3966

2903

-10

4

6

47p

8

5

+10

+10

3

8

47p

2

4

-10

5854
10m

7

NJM4560D

7843-B

7843-A
NJM4560D

1

2904
220p

3932

3K9

2926
150p

2905
100u

3933

GNDA

2906

100u

3934

GNDA

9924

3967

47K

7847
BC847B

47K

9923

D

3968

6835

1N4148

2919

D

+4V

5851

2u2

BCC-DAC
(BITSTREAM)

GNDA

2895

2893

47u

10K

2897

GNDA

+5V

CC3000

CC-DAC
(NON-BITSTREAM)

7849
TDA1549T

16

1
2
3

5

470p

4

8

47u

1 BCK
2WS
3 DATA

+5V

+5V

DATA
WS
BCK

TEST
FILTCL

VOL

VREF

3914

3R3

7835
TDA1545A

3943

12K

+5V

3917

3R3

CONTROL

AND

TIMING

OVERSAMPLING
NOISE SHAPERS

DATA ENCODERS

OUTPUT SWITCHES

CURRENT SINKS/

2884

GNDA

FREQUENCY

DIVIDER

CONTROL

AND

TIMMING

47u

VDD

FILTER

2885

GNDA

5

FIR

12K

3945

S

3946
12K

3918

3R3

DD

SOURCES

100n

LEFT
CHANNEL
REGISTER

RIGHT
CHANNEL
REGISTER

2892
22n

2888

+5B

+5V

7832

5850

BC547B

2u2

2

L

2881

100u

L

DD

GNDA

3903
100R

3904
560R

10n

2882

L

CC4000

GNDA

KILL_L

KILL_R

/CC4000OSE

470p

D

3921

KILL1

+4V

10K

3908

100p

3909

+10V

7831
L7805

100u

2880

SL

S

L

DD

470p

2883

D

10K

10K

10K

3911

3910

7834

BC847B

3913

+4V

10K

5CDC-MG-RW DAC/AF

SXXB-XH

A

B

C

CdDisDetect
CdDisPosSw

CdTrayCtrl

CdSledgeSw

D

CdSledgeSw

E

F

CdDisPosSw

(SCLK)

G

(DQSY)

H

I

RC5BusOut

+10V

-10V

KILL

GND

VFTD
VAC1

VAC2

VAC2
VAC1
VFTD

+5B

D_GND

CdCarCtrl

CdTraySw

CdCarSw

KILL L
KILL R

DACData

D_GND

BCK

D_GND

CdSicl

CdData

CdSild

CdPore

QuickPlay

Load

CdCarSw

M_GND

CarMotor

+10V
S_GND
S_GND

D_GND(SRDT)
D_GND

EBU

EBU_GND

CdData

CdSild

CdSicl

D_GND

CdPore

Kill2

QuickPlay

Load

RC5BusIn

1830

1

2

3

4

5

6

7

EH-B

1831

1
2
3
4
5
6
7
8

+10V

-10V

EBU_GND

SL

D

7830

BC857B

4K7

3901

KILL2

22K

3902

D

+5B

D

3905

22K

9
10
11
12

25
24
23

WS

22

3906

3907
470R

1843

+5V

EVQ21

22K

D

3912
470R

21

D

20
19

D

18
17
16
15
14
13
12
11
10

M

9

CarMotor

8

+10V

7

6

9895

5

4

9894

3

9893

2

1

1832

1833

1

2

3

4

5

6

7

8

9

10

EBU_GND

EH-B

D

4828

CD TEXT

1834

S

D

KILL2

EH-B

1

2

3

4

D

+5V

D

10K

3976

2920

D

EBU_GND

Digital Out

BC857B
7848

6836

BAT85

CC3000

2921

22n

7841
BC817-25

BC817-25

7842

7839
BC817-25

BC817-25
7840

3971

GNDA

GNDA

10K

GNDA

+5V

3973

3972

2932

2931

GNDA

2907

GNDA

GNDA

220p

2908

100R

100R

+10V

-10V

CC4000
/CC4000OSE

220p

220p

220p

2916

D

47u

5

4

3

2

1

1838-A

YKC21-3440

4

3

1838-B

YKC21-3440

2

1

1839-A

YKC21-3616

4

3

1839-B

YKC21-3616

2

1

2917
100n

1837

XH-B

HP_L

A_GND

HP_R
+10V

-10V

5

5

5

5

A

B

C

D

E

F

G

H

I

123

456

7 8 9 101112131415

COMPONENT & CHIP LAYOUTS

9-3 9-3

This assembly drawing shows a summary of all possible versions. For components
used in a specific version see schematic diagram and respective parts list.

3392p2

This assembly drawing shows a summary of all possible versions. For components
used in a specific version see schematic diagram and respective parts list.

3392p2

ELECTRICAL PARTS LIST - DAC/AF BOARD

MISCELLANEOUS
1832 4822 265 11556 Flex Socket 25Pin Hort.

1836 4822 267 31729 Digital-Out Socket
1838 4822 267 20452 Analog-Out Socket

for CC3000, CC4000

1838 4822 267 41064 Analog-Out Socket

for CC4000F
1839 4822 267 31817 Remot Socket
1843 4822 276 13106 Tact Switch

CAPACITORS
2331 4822 124 40433 47µF 20% 25V

for CC4000, CC4000F
2333 4822 124 40433 47µF 20% 25V

for CC4000, CC4000F
2335 4822 124 40433 47µF 20% 25V

for CC4000, CC4000F
2880 4822 124 40207 100µF 20% 25V
2881 4822 124 40207 100µF 20% 25V
2882 4822 122 33177 10nF 20% X7R 50V
2883 5322 122 32268 470pF 10% 50V
2884 4822 124 40433 47µF 20% 25V for CC3000
2885 4822 126 14585 100nF 10% X7R 0805 50V

for CC3000
2886 4822 126 14585 100nF 10% X7R 0805 50V

for CC3000
2887 4822 124 40433 47µF 20% 25V for CC3000
2888 5322 122 32268 470pF 10% 50V
2889 4822 126 14585 100nF 10% X7R 0805 50V

for CC4000, CC4000F
2890 4822 126 14585 100nF 10% X7R 0805 50V

for CC4000, CC4000F
2891 4822 126 14585 100nF 10% X7R 0805 50V

for CC4000, CC4000F
2892 5322 122 32654 22nF 10%X7R 63V
2893 5322 122 32268 470pF 10% 50V

for CC4000, CC4000F
2894 5322 122 32268 470pF 10% 50V

for CC4000, CC4000F
2895 4822 124 40433 47µF 20% 25V for CC4000
2895 2020 012 93203 10µF 20% 50V for CC4000F
2896 4822 124 40433 47µF 20% 25V for CC4000
2896 2020 012 93203 10µF 20% 50V for CC4000F
2897 4822 124 40433 47µF 20% 25V for CC4000
2897 2020 012 93432 47µF 20% 50V for CC4000F
2898 5322 122 32654 22nF 10%X7R 63V
2899 4822 124 40433 47µF 20% 25V

for CC3000, CC4000
2899 4822 124 12023 47µF 20% 25V for CC4000F
2901 5322 122 32654 22nF 10%X7R 63V
2902 4822 124 40433 47µF 20% 25V

for CC3000, CC4000
2902 4822 124 12023 47µF 20% 25V for CC4000F
2903 4822 122 33575 220pF 5% NP0 63V CASE

0805 for CC3000
2903 4822 126 13693 56pF 1% NP0 63V

for CC4000, CC4000F
2904 4822 122 33575 220pF 5% NP0 63V CASE 0805

for CC3000

9-4 9-4

2904 4822 126 13693 56pF 1% NP0 63V

for CC4000, CC4000F
2905 4822 124 80865 10µF 20% 25V for CC3000
2905 4822 124 40433 47µF 20% 25V for CC4000
2905 4822 124 80954 47µF 6.3V for CC4000F
2906 4822 124 80865 10µF 20% 25V for CC3000
2906 4822 124 40433 47µF 20% 25V for CC4000
2906 4822 124 80954 47µF 6.3V for CC4000F
2907 4822 122 33575 220pF 5% NP0 63V CASE 0805
2908 4822 122 33575 220pF 5% NP0 63V CASE 0805
2910 4822 126 14585 100nF 10% X7R 0805 50V
2911 4822 124 80231 47µF 20% 16V
2912 4822 126 14585 100nF 10% X7R 0805 50V
2914 4822 126 12882 100nF+80-20% 50V
2915 4822 126 11585 22nF+80-20% Y5V 25V
2916 4822 124 80231 47µF 20% 16V
2917 4822 126 14585 100nF 10% X7R 0805 50V
2918 4822 126 14585 100nF 10% X7R 0805 50V
2919 5322 122 32654 22nF10%X7R 63V
2920 5322 122 32531 100pF 5%NP0 50V
2921 5322 122 32654 22nF 10%X7R 63V
2925 4822 124 80231 47µF 20% 16V
2926 5322 122 33538 150pF 2%NP0 63V for CC3000
2926 5322 122 32531 100pF 5%NP0 50V

for CC4000, CC4000F
2927 5322 122 33538 150pF 2%NP0 63V for CC3000
2927 5322 122 32531 100pF 5%NP0 50V

for CC4000, CC4000F
2931 4822 122 33575 220pF 5% NP0 63V CASE 0805
2932 4822 122 33575 220pF 5% NP0 63V CASE 0805

RESISTORS
3901 4822 116 52283 4k7 5% 0.5W

3902 4822 051 20223 22k 5% 0.1W
3903 4822 051 20101 100R 5% 0.1W
3904 4822 051 20561 560R 5% 0.1W
3905 4822 051 20223 22k 5% 0.1W
3906 4822 116 52257 22k 5% 0.5W
3907 4822 116 83883 470R 5% 0.5W
3908 4822 050 21003 10k 1% 0.6W
3909 4822 050 21003 10k 1% 0.6W
3910 4822 050 21003 10k 1% 0.6W
3911 4822 050 21003 10k 1% 0.6W
3912 4822 116 83883 470R 5% 0.5W
3913 4822 050 21003 10k 1% 0.6W
3914 4822 052 10338 3R3 5% 0.33W for CC3000

!

3915 4822 117 10965 18k 1% 0.1W for CC3000
3916 4822 116 83933 15k 1% 0.1W for CC3000
3917 4822 052 10338 3R3 5% 0.33W

!

for CC4000, CC4000F
3918 4822 052 10338 3R3 5% 0.33W

!

for CC4000, CC4000F
3919 4822 052 10338 3R3 5% 0.33W

!

for CC4000, CC4000F
3921 4822 116 83961 6k8 5% for CC4000, CC4000F
3922 4822 116 83961 6k8 5% for CC4000, CC4000F
3923 4822 052 10478 4R7 5% 0.33W
3924 4822 052 10478 4R7 5% 0.33W

!

!

3925 4822 117 10834 47k 1% 0.1W
3926 4822 117 10834 47k 1% 0.1W
3927 4822 117 10833 10k 1% 0.1W
3928 4822 117 10833 10k 1% 0.1W
3929 4822 116 83874 220k 5% 0.5W
3930 4822 117 13579 220k 1% 0.1W RC12H 0805
3931 4822 051 20392 3k9 5% 0.1W for CC3000
3931 4822 117 10833 10k 1% 0.1W

for CC4000, CC4000F
3932 4822 051 20392 3k9 5% 0.1W for CC3000
3932 4822 117 10833 10k 1% 0.1W

for CC4000, CC4000F
3933 4822 051 20223 22k 5% 0.1W
3934 4822 051 20223 22k 5% 0.1W
3935 4822 051 10102 1k 2% 0.25W
3936 4822 051 10102 1k 2% 0.25W
3937 4822 117 11449 2k2 1% 0.1W
3938 4822 117 11449 2k2 1% 0.1W
3939 4822 051 10102 1k 2% 0.25W

for CC4000, CC4000F
3940 4822 051 10102 1k 2% 0.25W

for CC4000, CC4000F
3941 4822 117 11449 2k2 1% 0.1W

for CC4000, CC4000F
3942 4822 117 11449 2k2 1% 0.1W

for CC4000, CC4000F
3943 4822 117 11383 12k 1% 0.1W
3945 4822 117 11383 12k 1% 0.1W
3946 4822 117 11383 2k 1% 0.1W
3947 4822 052 10229 22R 5% 0.33W
3948 4822 052 10108 1R 5% 0.33W

!

!

3949 4822 117 11383 12k 1% 0.1W
3950 4822 117 11383 12k 1% 0.1W
3951 4822 117 11383 12k 1% 0.1W
3952 4822 051 10102 1k 2% 0.25W
3953 4822 117 11383 2k 1% 0.1W
3954 4822 052 10228 2R2 5% 0.33W
3955 4822 052 10229 22R 5% 0.33W
3956 4822 052 10108 1R 5% 0.33W

!

!

!

3958 4822 116 52226 560R 5% 0.5W
3960 4822 116 52176 10R 5% 0.5W
3965 4822 117 10834 47k 1% 0.1W
3966 4822 117 10834 47k 1% 0.1W
3967 4822 116 83884 47k 5% 0.5W
3968 4822 117 10965 18k 1% 0.1W
3969 4822 117 10834 47k 1% 0.1W
3970 4822 117 10834 47k 1% 0.1W
3973 4822 116 52175 100R 5% 0.5W
3974 4822 117 11383 12k 1% 0.1W
3975 4822 052 10109 10R 5% 0.33W

!

3976 4822 050 21003 10k 1% 0.6W
3977 4822 052 10228 2R2 5% 0.33W

!

3978 4822 051 20472 4k7 5% 0.1W
4800 4822 051 20008 0R00 JUMP. (0805)
4801 4822 051 20008 0R00 JUMP. (0805)
4802 4822 051 20008 0R00 JUMP. (0805)
4803 4822 051 20008 0R00 JUMP. (0805)
4804 4822 051 20008 0R00 JUMP. (0805)
4805 4822 051 20008 0R00 JUMP. (0805)

4806 4822 051 20008 0R00 JUMP. (0805)
4807 4822 051 20008 0R00 JUMP. (0805)
4808 4822 051 20008 0R00 JUMP. (0805)
4809 4822 051 20008 0R00 JUMP. (0805)
4810 4822 051 20008 0R00 JUMP. (0805)
4811 4822 051 20008 0R00 JUMP. (0805)
4812 4822 051 20008 0R00 JUMP. (0805)
4813 4822 051 20008 0R00 JUMP. (0805)
4814 4822 051 20008 0R00 JUMP. (0805)
4815 4822 051 20008 0R00 JUMP. (0805)
4822 4822 051 20008 0R00 JUMP. (0805)
4824 4822 051 20008 0R00 JUMP. (0805)
4826 4822 051 20008 0R00 JUMP. (0805)
4827 4822 051 20008 0R00 JUMP. (0805)
4832 4822 051 20008 0R00 JUMP. (0805)
4835 4822 051 20008 0R00 JUMP. (0805)

COILS & FILTERS
5850 4822 157 11477 Coil 2,2µH 5%

5851 4822 157 11477 Coil 2,2µH 5%
5853 4822 157 70601 Coil 100µH 10%
5854 4822 157 71086 Coil 4700µH 5%
5855 4822 157 71086 Coil 4700µH 5%

DIODES
6833 4822 130 30621 1N4148

6834 4822 130 30621 1N4148
6836 4822 130 31983 BAT85

TRANSISTOR & INTEGRATED CIRCUITS
7830 4822 130 60373 BC856B

7831 4822 209 80817 L7805CV
7832 4822 130 40959 BC547B
7834 5322 130 60159 BC846B
7835 4822 209 33164 TDA1545AT/N2 for CC3000
7837 4822 130 60373 BC856B
7838 4822 130 60373 BC856B
7839 4822 130 42804 BC817-25
7840 4822 130 42804 BC817-25
7841 4822 130 42804 BC817-25 for CC4000,

CC4000F

7842 4822 130 42804 BC817-25 for CC4000,

CC4000F
7843 4822 209 83274 NJM4560D for CC3000
7843 4822 209 31153 NJM2114D for CC4000,

CC4000F
7844 4822 209 62059 TCA0372DP1
7846 5322 130 60159 BC846B
7847 5322 130 60159 BC846B
7848 4822 130 60373 BC856B
7849 4822 209 33252 TDA1549T/N1

for CC4000, CC4000F

Note: Only the parts mentioned in this list are normal

service spare parts.

EXPLODED VIEW - FRONT PART

10-1 10-1

CC4000/CC4000F only

3139 119 31850 sh110-1

EXPLODED VIEW - REAR PART

10-2 10-2

3139 119 31850 sh110-2

EXPLODED VIEW - CDC5 LOADER

10-3 10-3

PCS 101 038

10-4 10-4

EXPLODED VIEW - CDC5 LOADER

89 4822 466 93131 Pressure Plate
90 4822 256 91912 Pressure Ring Holder
91 4822 401 11708 Clamper Assembly
93 4822 426 90109 Frame Assembly
93-128 4822 466 93132 Guide

93-129 4822 466 93132 Guide
93-141 4822 466 93132 Guide
93-142 4822 466 93132 Guide
93-144 4822 528 50334 Pulley
95 4822 522 33255 Gearwheel

96 4822 402 11241 Crank CDC5
98 4822 691 10615 CD Mechanism VAM1201
99 4822 403 70598 CDM Lock
100 4822 466 93129 Rotary Disc Assembly
101 4822 520 20758 Bearing

103 4822 401 11447 Tray Tumbler
104 4822 404 10986 Suspension, Rubber
105 4822 404 10986 Suspension, Rubber
106 4822 404 10986 Suspension, Rubber
107 4822 404 10986 Suspension, Rubber

1054 4822 323 10461 Flex Cable 25 Pin 19cm
M 4822 390 10136 Grease Polylub. GlY801

Note: Only the parts mentioned in this list are normal

service spare parts.

EXPLODED VIEW - FRONT & REAR PART

101 3139 117 87670 CABINET FRONT for CC3000
101 3139 117 87660 CABINET FRONT for CC4000
101 3139 117 87650 CABINET FRONT for CC4000F
102 4822 454 11825 PLATE, INDICATION, PLASTIC
105 3139 114 66830 COVER TRAY

106 3139 114 66840 BUTTON SET LEFT
107 3139 117 87700 BUTTON SET PRINT RIGHT
108 3139 114 66860 LEVER POWER
109 4822 410 12499 BUTTON POWER
110 3139 117 87710 BADGE

124 3139 114 66870 WINDOW DISPLAY
125 3139 114 66880

KNOB HEADPHONE for CC4000, CC4000F
185 4822 466 93132 GUIDE, PLASTIC
253 4822 462 42129 FOOT GOLD FRONT
254 4822 462 42129 FOOT GOLD FRONT

256 4822 532 60948 BUSH, PLASTIC
261 4822 321 11464 MAINS CORD SET for /U
261 4822 321 11139 POWER CORD for /N, /K
261 4822 321 11349 MAINS CORD 125V 12A for /F
327 4822 321 22832 SBC1072 2XRCA-2XRCA

109 4822 532 51756 Damping Grommet
113 4822 492 52313 Tension Spring
114 4822 256 91915 Support
115 4822 466 93134 Slide Strip
116 4822 522 33256 Cam Wheel

119 4822 361 21562 Motor Assembly
120 4822 361 21562 Motor Assembly
122 4822 358 10115 Belt
124 4822 402 61489 Bracket
127 4822 444 50685 Tray Assembly

127-110 4822 401 11444 Switch Bracket
127-121 4822 528 50334 Pulley
127-131 4822 466 93132 Guide
127-136 4822 528 70646 Pinch Roller Assembly
127-137 4822 528 70646 Pinch Roller Assembly

127-138 4822 528 70646 Pinch Roller Assembly
127-139 4822 528 70646 Pinch Roller Assembly
127-140 4822 528 70646 Pinch Roller Assembly
132 4822 403 70599 Button Load/Quick Play
145 4822 358 10115 Belt

329 4822 320 11642

ASSY CINCH/CINCH 1.7M YE B
384 3139 228 82580 RC07113/02
387 3139 116 18840

DOC DIRECTIONS FOR USE for /U
387 3139 116 18870 DOC DIRECTIONS FOR USE

for CC3000/N, CC3000/K

387 3139 116 18850 DOC DIRECTIONS FOR USE

for CC4000/K, CC4000F/K
387 3139 116 18860

DOC DIRECTIONS FOR USE for /F
389 4822 263 21092 ADAPTER PLUG for /K
5500 4822 146 31374 TRANSFORMER for CC3000/U

5500 4822 146 31373 TRANSFORMER for /N
5500 4822 146 31196 TRANSFORMER for /K
5500 4822 146 31405
5500 4822 146 10512 TRANSFORMER for /F

!

!

!

!

TRANSFORMER for CC4000/U, CC4000F/U

!

Note: Only the parts mentioned in this list are normal

service spare parts.

146 4822 402 50291 Lift Tumbler
147 4822 402 50291 Lift Tumbler
148 4822 492 52123 Compression Spring
149 4822 492 52123 Compression Spring
150 4822 492 52123 Compression Spring
