AV Pre Tuner
AV8805
ENGLISH
FRANÇAIS
ESPAÑOL
Quick Start Guide
Guide de démarrage rapide /
Guía de inicio rápido
Read Me First....
Lisez-moi en premier.... /
Lea esto primero....
Please do not
return this unit to
the store.
If you need help…
Check our AVR setup tips online
Us.Marantz.com/SetupTips
Ca.Marantz.com/SetupTips
Call for Assistance
1-855-ONE-Marantz (USA)
1-855-663-6272
1-800-668-0652 (Canada)
Monday – Friday 10:00AM to 10:00PM E.S.T
Saturday 12:00PM to 8:00PM E.S.T
Welcome Before You Begin
Thank you for choosing a Marantz Pre
Tuner.
This guide provides step-by-step
instructions for setting up your Pre
Tuner.
Required for Setup
or
TV RCA cables XLR cables
HDMI cable Power amplifier Speakers /
Speaker cables
Optional
or
LAN cable Wi-Fi router
• When connecting this unit to a device that is compatible with the Deep Color, 4K and ARC
functions, use a “High Speed HDMI cable with Ethernet” that displays the HDMI logo.
• These drawings are for illustrative purposes only and may not represent the actual product(s).
1
What’s In the Box
Quick Start Guide FM indoor antenna
Safety Instructions AM loop antenna
Notes on radio Sound calibration
microphone
Warranty (for USA /
for CANADA)
Sound calibration
microphone stand
Cable labels Remote control unit
(RC039SR)
Pre Tuner R03/AAA batteries
Power cord External antennas
for Bluetooth/
wireless connectivity
• The included sound calibration microphone stand is convenient for use
when performing Speaker Calibration. Using your own tripod or the supplied
Sound calibration microphone stand enables settings to be automatically
configured to the optimum listening environment, providing exceptionally
high performance.
2
Important: External Antennas
The removable external antennas are required for both
Bluetooth and Wireless network connectivity. Please make
sure to connect the antennas before attempting to use the
Bluetooth or Wi-Fi features of the AV8805.
n Connecting the external antennas for
Bluetooth/Wireless connectivity
For each of the two antennas:
q Place the antenna evenly over the antenna terminal
located at the upper left or right corner of the rear panel.
w Turn the antenna clockwise until it is fully connected. Do
not over tighten.
e Rotate the antenna upwards for the best possible
reception.
q w e
(ASSIGNABLE)
Bluetooth/Wi-Fi
ANTENNA
FM
AM
ANTENNA
POWER SUPPLY
5V/1.5A
SIGNAL
GND
CONNECTION
GND
PHONO
HOT(+)
COLD(-)
AUDIO IN BALANCED XLR IN
FRONT
1 CBL/SAT
2 DVD
3 Blu-ray 6 CD
NETWORK
AUDIO IN
CENTER
HDMI IN 4K / HDCP2.2 HDMI OUT 4K / HDCP2.2
5 MEDIA PLAYER
3 Blu-ray 6 AUX2
2 DVD
4 GAME
1 CBL/SAT
FRONTFRONT
SURROUND BACK
4 GAME
SURROUND
5 MEDIA PLAYER
(ASSIGNABLE)
(ASSIGNABLE)
SURROUND
CENTER
1 2
SURROUND
CENTER
SUBWOOFER
HEIGHT1
7.1CH IN
ZONE3
SURROUND BACK
ZONE2
IR
FLASHER DIGITAL AUDIO IN
HEIGHT2
UNBALANCED PRE OUT
COAXIAL
1 TV
IN
OUT
IN
2 DVD
1 CBL/SAT
AUDIO
(ASSIGNABLE)
REMOTE CONTROL
SURROUND BACK
ASSIGNABLE ASSIGNABLE ASSIGNABLE ASSIGNABLE ASSIGNABLE
BALANCED XLR PRE OUT
SUBWOOFER
MONITOR/ZONE3
2 DVD
HEIGHT3
ZONE2
3 Blu-ray
HEIGHT4/FRONT WIDE
VIDEOINCOMPONENT VIDEOINVIDEO
OUT
(ASSIGNABLE)
(ASSIGNABLE) (ASSIGNABLE)
OPTICAL
DC12V 150mA MAX.
STRAIGHT CABLE
2 CD
1 2
RS-232C
DC OUT
HEIGHT1
HEIGHT2
AC IN
Y
PB/
C
B
PR/
C
R
COMPONENT
VIDEO OUT
SUBWOOFER1
SUBWOOFER2
HEIGHT4/FRONT WIDE
HEIGHT3
MONITOR1
ZONE2
MONITOR2
7 CD
ARC
Bluetooth/Wi-Fi
ANTENNA
MONITOR
1 CBL/SAT
1 CBL/SAT
2 DVD
3 Blu-ray
4 GAME
3
Setup
There are four steps to the setup
process.
Installing batteries in the remote control unit
1
Connecting the Pre Tuner, Power Amplifi er
2
and your TV
Following the On-Screen Setup Assistant
3
Downloading the Mobile Apps
4
Installing batteries in the
1
remote control unit
Batteries
4
2
Connecting the Pre Tuner, Power Amplifi er and your TV
1) Place the Pre Tuner and Power
Amplifi er near your TV and connect
the power cord
TV
Pre Tuner
TV
Pre Tuner
Power cord
(supplied)
Connect to household
power outlet
(AC 120 V, 60 Hz)
Power Amplifi er
5

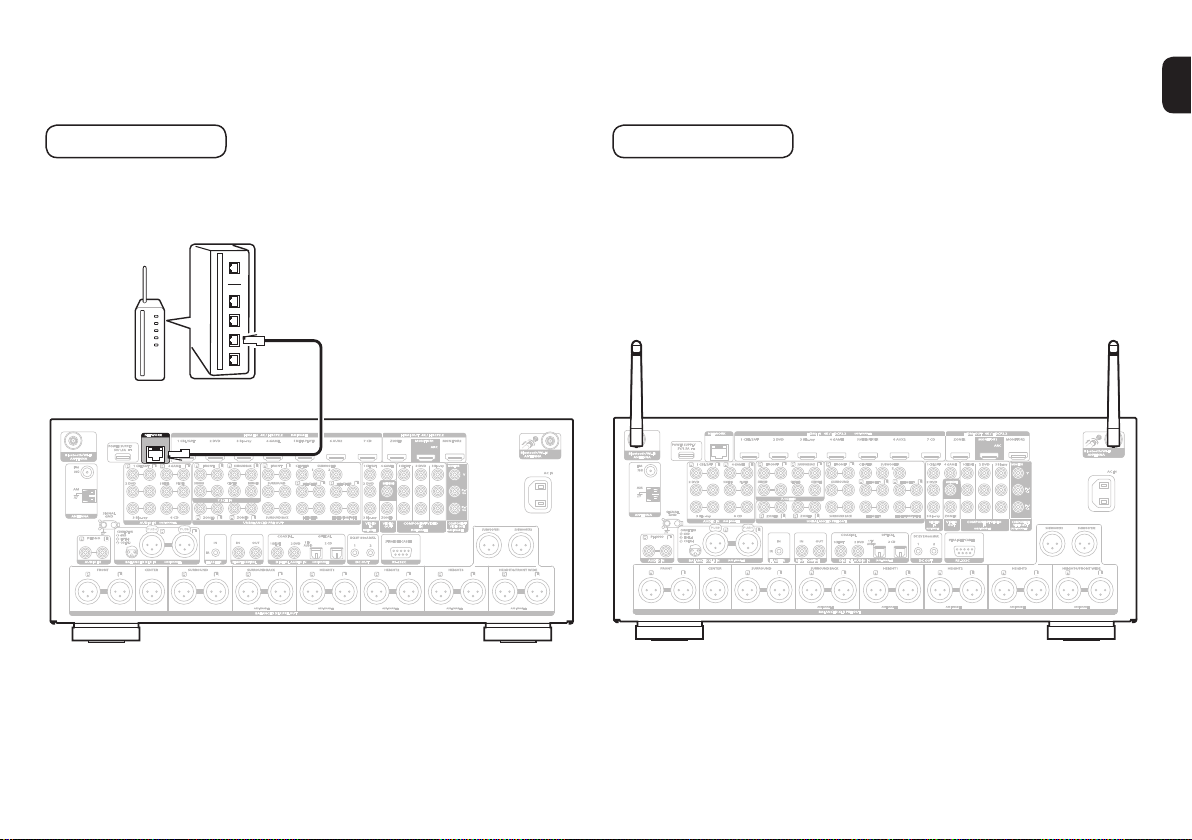

2) Connect the Pre Tuner to your home network
Wired LAN
Connect an Ethernet cable (not included) between your Pre
Tuner and your network router.
To LAN port
Router
Wireless LAN
When connecting to wireless LAN (Wi-Fi), follow the
instructions in “Connecting the external antennas for
Bluetooth/Wireless connectivity” and connect the antennas.
6
3) Connect the Pre Tuner to your TV
with an HDMI cable
HDMI IN
(ARC)
HDMI cable
4) Turn on the TV
MONITOR1
MONITOR1
(ARC)
HDMI OUT
ARC
Pre Tuner (Rear panel)
ARC (Audio Return Channel) :
If your TV supports ARC, your TV can send audio back to the Pre Tuner
when you are using your TV’s built-in video sources (TV tuner, Smart TV
streaming services, etc…) ARC requires that you enable HDMI CEC on
your TV. Please refer to your TV’s Owner’s Manual for instructions on how
to setup HDMI CEC. Note that some TV manufacturers use other names
for the HDMI CEC function.
7
TV remote control unit
5) Select the appropriate HDMI input on
your TV
HDMI
TV/
INPUT
TV remote control unit
or
VIDEO
6) Turn on the Pre Tuner
7) Verify the connection
• Press X to turn on the Pre Tuner.
• Verify that you can see this screen on your TV.
AV Preamp Setup Assistant
Please select a language...
English
Français
Español
If this screen is not displayed, please go back and retry
the steps again in the recommended sequence.
8
3
Following the On-Screen Setup Assistant
The Setup Assistant will walk you through connecting and
confi guring your Power Amplifi er and components to your
Marantz Pre Tuner. Please use the remote control and
follow the on-screen instructions.
AV Preamp Setup Assistant
Please select a language...
Français
Español
English
9
4
Download both the “HEOS” App and the “Marantz 2016 AVR Remote” App for the full home entertainment experience.
The HEOS App is required to access online music through your Pre Tuner.
Downloading the Mobile Apps
HEOS
The HEOS App allows you to explore,
browse, and play music from many online
streaming services or from your own music
library.
Marantz 2016 AVR Remote
Control your new Pre Tuner with the
latest Marantz 2016 AVR Remote App.
Volume control, sound mode selection and
advanced settings are always only a tap
away.
10
Owner’s Manual
• For more information, visit www.marantz.com
• Refer to the Online Manual for other functions
information and operation procedure details.
manuals.marantz.com/AV8805/NA/EN/
Online Manual
11
