LE-802
6955 VALJEAN AVE, VAN NUYS, CA 91406
PH: (818)994-6498 / FAX: (818)994-6458
/ www.louroe.comtechsupport@louroe.com
DESCRIPTION
The LE-802 is an intelligent Audio Analytics System offering a robust,
easy to use and easy to install application for unattended audio
monitoring on specific events such as aggressive speech, glass
breaking, car alarms and gunshots. The system is a complete hardware
and software solution that is housed in a weather and vandal resistant
enclosure for outdoor applications. It provides for constant 360 audio
monitoring over large areas and is designed for easy installation on
most city utility poles or walls. The LE-802 seamlessly integrates with
most Video Management and Monitoring Systems and can also work as
a stand-alone edge solution analyzing sound in real-time.
APPLICATIONS
<Safe Cities/ City Surveillance
<Indoor/Outdoor Parking Lots
<Commercial Properties: Factory Floors/Warehouses/Banking Institutions
<Schools/ Universities
<Sensitive Installations: Defense/Medical Research
FEATURES
<
PoE powered
<
Seamless integration with most Video Management Systems
<
Programmable to activate output ports
<
Sends notifications to network devices
<
Plays a pre-recorded message to a connected speaker
<
Stores/sends audio recordings of the event
DETECTION RANGE
Sound
Gunshot
Breaking Glass
Car Alarm
Aggression
Distance (Feet)
Normal Environment
1600’
50’
160’
50’
INTELLIGENT AUDIO ANALYTICS SYSTEM™

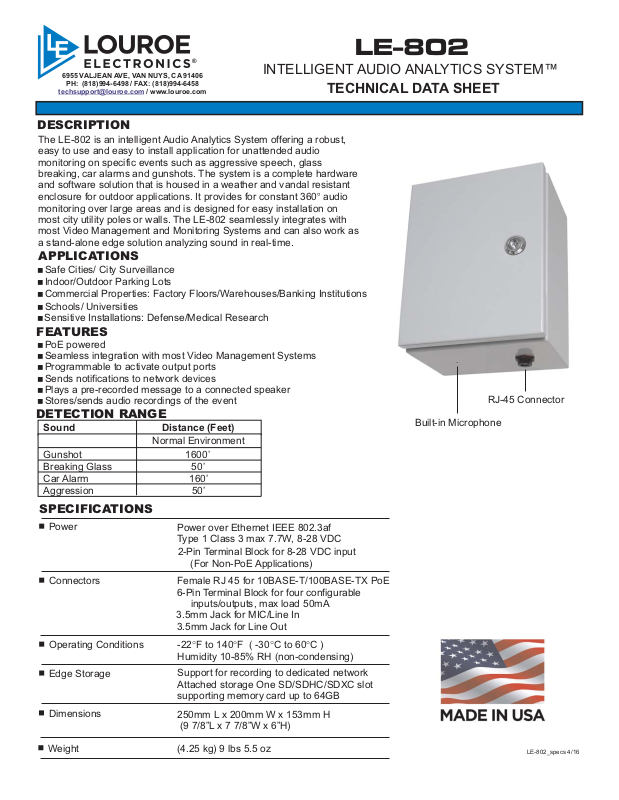

TECHNICAL DATA SHEET
°
RJ-45 Connector
Built-in Microphone
SPECIFICATIONS
Power
Connectors
Operating Conditions
Edge Storage
Dimensions
Weight
Power over Ethernet IEEE 802.3af
Type 1 Class 3 max 7.7W, 8-28 VDC
2-Pin Terminal Block for 8-28 VDC input
(For Non-PoE Applications)
Female RJ 45 for 10BASE-T/100BASE-TX PoE
6-Pin Terminal Block for four configurable
inputs/outputs, max load 50mA
3.5mm Jack for MIC/Line In
3.5mm Jack for Line Out
-22 F to 140 F (
°°-30 C to 60 C )°°
Humidity 10-85% RH (non-condensing)
Support for recording to dedicated network
Attached storage One SD/SDHC/SDXC slot
supporting memory card up to 64GB
250mm L x 200mm W x 153mm H
(9 7/8”L x 7 7/8”W x 6”H)
(4.25 kg) 9 lbs 5.5 oz
LE-802_specs 4/16
