Louroe Electronics IF-PX User Manual

IF-PX

®

6955 VALJEAN AVE, VAN NUYS, CA 91406

PH: [phone] / FAX: [phone]

/ [e-mail]

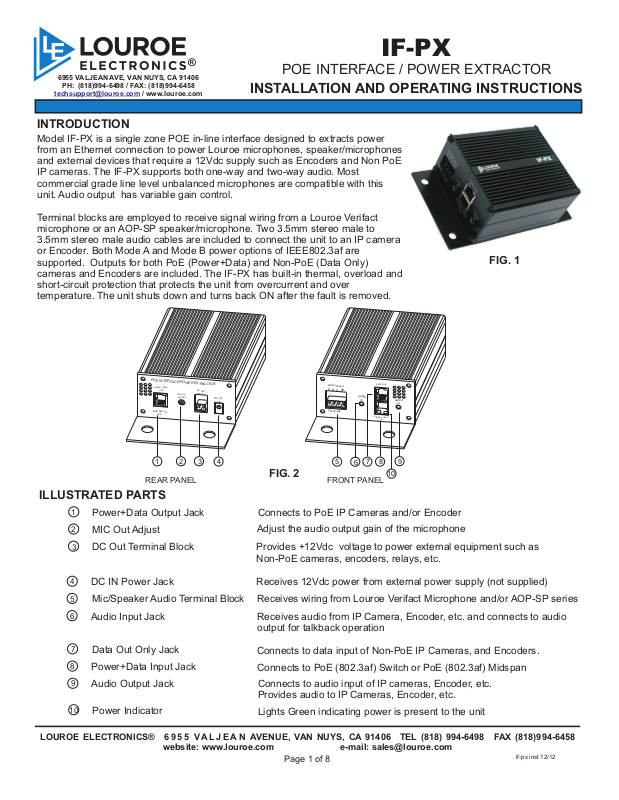

INSTALLATION AND OPERATING INSTRUCTIONS

INTRODUCTION

Model IF-PX is a single zone POE in-line interface designed to extracts power
from an Ethernet connection to power Louroe microphones, speaker/microphones
and external devices that require a 12Vdc supply such as Encoders and Non PoE
IP cameras. The IF-PX supports both one-way and two-way audio. Most
commercial grade line level unbalanced microphones are compatible with this
unit. Audio output has variable gain control.

Terminal blocks are employed to receive signal wiring from a Louroe Verifact
microphone or an AOP-SP speaker/microphone. Two 3.5mm stereo male to

3.5mm stereo male audio cables are included to connect the unit to an IP camera
or Encoder. Both Mode A and Mode B power options of IEEE802.3af are
supported. Outputs for both PoE (Power+Data) and Non-PoE (Data Only)
cameras and Encoders are included. The IF-PX has built-in thermal, overload and
short-circuit protection that protects the unit from overcurrent and over
temperature. The unit shuts down and turns back ON after the fault is removed.

POE INTERFACE / POWER EXTRACTOR

FIG. 1

POE INTERF

POWER + DATA

IEEE 802.3af

POE

1

REAR PANEL

ILLUSTRATED PARTS

1

Power+Data Output Jack

2

MIC Out Adjust

3

DC Out Terminal Block

4

DC IN Power Jack

5

Mic/Speaker Audio Terminal Block

6

Audio Input Jack

7

Data Out Only Jack

8

Power+Data Input Jack

9

Audio Output Jack

10

Power Indicator

ACE/POWER EXTRACTOR

OUT

MIC OUT

ADJUST

2

DC OUT

GND + 12V

DATA

MIC/SPEAKER

A

B

C

DC IN

+12V

4

3

FIG. 2

SP

P/N:LE-520

5

FRONT PANEL

OUT

AUDIO

IN

6

AUDIO

OUT

POWER + DAT

A

IN

9

8

7

10

Connects to PoE IP Cameras and/or Encoder

Adjust the audio output gain of the microphone

Provides +12Vdc voltage to power external equipment such as
Non-PoE cameras, encoders, relays, etc.

Receives 12Vdc power from external power supply (not supplied)

Receives wiring from Louroe Verifact Microphone and/or AOP-SP series

Receives audio from IP Camera, Encoder, etc. and connects to audio
output for talkback operation

Connects to data input of Non-PoE IP Cameras, and Encoders.

Connects to PoE (802.3af) Switch or PoE (802.3af) Midspan

Connects to audio input of IP cameras, Encoder, etc.
Provides audio to IP Cameras, Encoder, etc.

Lights Green indicating power is present to the unit

LOUROE ELECTRONICS® 6 9 5 5 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]

(818)

website: www.louroe.com e-mail: [e-mail]

Page 1 of 8

if-px inst 12/12

INSTALLATION AND OPERATING INSTRUCTIONS

CAUTION

1. Do not connect non-PoE complaint devices to Power+Data Output Jack . Failure to do so may damage the
powered equipment.

2. Do not connect wiring from external microphone or AOP-SP to the Mic/Speaker Audio Terminal Block until
all the ethernet cables (RJ45) are connected and power is present to the camera. Failure to do so in sequence,
the camera may not receive power.

NOTES

Plan ahead where to install before making any connections.The IF-PX is supplied with 6’ audio cables for connections

between the IF-PX and camera. The maximum distance between the IP camera and PSE is 100m or 328’.

CONNECTIONS AND OPERATIONS

CONNECTING PoE SWITCH TO PoE IP CAMERA OR ENCODER (See Fig. 3 and 4)

1

5

1. Connect Ethernet cable from PSE (Power Source Equipment) to the Power+Data Input Jack of the IF-PX.

2. Connect Ethernet cable from camera to Power+Data Output Jack of the IF-PX. Camera should now have power
and data running through it. Power Indicator lights up.

3. Microphone Connection :

(one-way listen)

10

1

8

a) Connect a 2 cond. shielded cable to the terminal block of Louroe’s Verifact microphone. Connect the other end to

the pluggable header (Mic/Speaker Audio Terminal Block ) of the IF-PX. Connect terminal A of microphone to

5

terminal A of IF-PX; terminal B of microphone to terminal B of IF-PX; terminal C of microphone to terminal C of IF­PX. Terminal SP of IF-PX is not used when connecting microphone only (one-way listen).

b) Using the patch cable (stereo plug to stereo plug), connect the Audio Output Jack of the IF-PX to the audio input

9

of the camera.

c) Adjust the Mic Out Adjust potentiometer (as needed) by rotating it clockwise to increase the microphone output to

the camera, or counterclockwise to decrease. This potentiometer is factory set for a gain of 0dB output.

2

See

interconnection diagram(Fig 3) on page 4.

4. AOP-SP Connection (two-way audio): Before connecting the AOP-SP series, make sure that the Ethernet

cables between the PSE, IF-PX and Camera are all connected.

a) Connect

Block) of the IF-PX. Connect terminal A of the AOP-SP to terminal A of IF-PX; connect terminal B of AOP-SP to

a 3 cond shielded cable between the AOP-SP and the pluggable header (Mic/Speaker Audio Terminal

5

terminal B of IF-PX; terminal C of AOP-SP to terminal C of IF-PX and terminal SP of AOP-SP to terminal SP of IF­PX.

b) Using the patch cable (stereo plug to stereo plug), connect the Audio Output Jack of the IF-PX to the audio input

of the camera or encoder. Connect the Audio Input Jack of IF-PX to audio output of the camera or encoder. See

6

9

interconnection diagram on page 5.

c) See installation instructions of AOP-SP for setting up and operation of the unit.

5. Setup camera for video and audio monitoring. Use an amplified speaker and a microphone to test the audio. A push

to talk microphone is recommended to minimize the echo when doing two-way audio. See camera user manual for
setting up the camera to the network.

The IF-PX can power most IP cameras and Encoders, check that the power requirements of the equipment does
not go beyond the IF-PX power output. See IF-PX power output below.
Power output of IF-PX:
12Vdc, 650mA with AOP-SP connected
12Vdc, 850mA with a Louroe microphone only connected

CONNECTING PoE SWITCH TO NON-PoE IP CAMERA OR ENCODER (See Fig 5)

1. Connect Ethernet cable from PSE (Power Source Equipment) to the Power+Data Input Jack of the IF-PX.

2. Connect Ethernet cable from camera to Data Out Only Jack of the IF-PX.

LOUROE ELECTRONICS® 6 9 5 5 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]

website: www.louroe.com e-mail: [e-mail]

Page 2 of 8

7

(818)

8

if-px inst 12/12

INSTALLATION AND OPERATING INSTRUCTIONS

3. Connect 2 wires to the DC Out Terminal Block . At least 20 AWG wires should be used between the IF-PX and the

3

encoder or camera. Positive 12Vdc connects to terminal marked “+12Vdc” of IF-PX. Negative 12Vdc or ground
connects to terminal marked “GND” of IF-PX. Connect the other end of the 2 wires to the power jack or terminal block
of the encoder or camera. If the encoder or camera has a 2.1mm power jack, an adapter (2-pin terminal block to

2.1mm male plug) can be used. Connect the wires to the 2-pin terminal block (observe polarity) of the adapter. Plug
the adapter to the 2.1mm power jack of the encoder or camera.

4. Repeat same procedure when connecting Louroe Verifact microphone or AOP-SP (steps 3 thru 5 from the previous
page - Connections and Operations).

CONNECTING NON-PoE SWITCH TO NON-PoE CAMERA OR ENCODER (See Fig. 6 - Encoder shown)

1. Connect Ethernet cable from Non-PoE Switch to the Power+Data Input Jack of the IF-PX.

2. Connect Ethernet cable from Encoder or Camera to Data Out Only Jack of the IF-PX.

3. Connect DC Out Terminal Block to the power input jack of the encoder or camera. This Terminal block supplies

3

8

7

12Vdc power to the camera or encoder. It can also provide power to other external equipment such relays, etc. that
require a 12Vdc power. Connect 2 wires to the DC Out Terminal Block . At least 20 AWG wires can be use between

3

the IF-PX and the encoder or camera. Positive 12Vdc connects to terminal marked “+12Vdc” of IF-PX. Negative 12Vdc
or ground connects to terminal marked “GND”of IF-PX. Connect the other end of the 2 wires to the power jack or
terminal block of the encoder or camera. If the encoder or camera has a 2.1mm power jack, an adapter (2-pin terminal
block to 2.1mm male plug) can be used. Connect the wires to the 2-pin terminal block (observe polarity) of the
adapter. Plug the adapter to the 2.1mm power jack of the encoder or camera.

4. Connect an external power supply (not included) to the DC In Jack to power the IF-PX and the encoder or camera.

4

We recommend using a 12Vdc, 2A power supply.

5. Repeat same procedure when connecting Louroe Verifact microphone or AOP-SP (steps 3 thru 5 from the previous
page - Connections and Operations).

SPECIFICATIONS

Ethernet Connectors
Voltage Input

DC Output

Optional Power Supply

Operating Temperature

Connectors

Audio Output/Input

Audio Output Gain

Material

Dimensions
Weight

RJ45 CAT 5 Input and Output Jacks
36V - 57V

12Vdc, 800mA
12Vdc, 2A, Ext. Power Supply
(Not Supplied)

-20°C to +65°C

RJ-45, DC Jack,
Terminal Block for Microphone/Speaker

3.5mm Stereo Jacks for Audio IN/OUT

Line level

up to +15dB
Black Anodized Al 14 Ga

6”L x 3 1/2”W x 2 1/8”H

13oz.

LOUROE ELECTRONICS® 6 9 5 5 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]

website: www.louroe.com e-mail: [e-mail]

Page 3 of 8

(818)

if-px inst 12/12

INSTALLATION AND OPERATING INSTRUCTIONS

INTERCONNECTION DIAGRAM BETWEEN A PoE SWITCH, IF-PX, IP CAMERA

AND VERIFACT A MICROPHONE FOR ADDING ONE-WAY AUDIO

FIG. 3

POWER+DATA OUT

PoE (802.3af) SWITCH

IF-PX

POWER+DATA IN

AUDIO OUT

3.5MM STEREO PATCH CABLE

PoE IP CAMERA

AUDIO IN

C

B

A

VERIFACT A MICROPHONE

2 COND SHIELDED 22AWG
WITH 24AWG DRAIN WIRE

C

B

A

LOUROE ELECTRONICS® 6 9 5 5 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]

(818)

website: www.louroe.com e-mail: [e-mail]

Page 4 of 8

if-px inst 12/12

INSTALLATION AND OPERATING INSTRUCTIONS

INTERCONNECTION DIAGRAM BETWEEN A PoE SWITCH, IF-PX, IP CAMERA

AND AOP-SP SPEAKER/MICROPHONE UNIT FOR ADDING TWO-WAY AUDIO

FIG. 4

POWER+DATA OUT

PoE IP CAMERA

PoE (802.3af) SWITCH

IF-PX

3.5MM STEREO PATCH CABLES

AUDIO OUT

AUDIO IN

POWER+DATA IN

AUDIO OUT

AUDIO IN

3 COND SHIELDED 20AWG
WITH 22AWG DRAIN WIRE

AOP-SP-W

LOUROE ELECTRONICS® 6 9 5 5 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]

(818)

website: www.louroe.com e-mail: [e-mail]

Page 5 of 8

if-px inst 12/12

INSTALLATION AND OPERATING INSTRUCTIONS

INTERCONNECTION DIAGRAM BETWEEN A PoE SWITCH, IF-PX, NON-PoE ENCODER

AND AOP-SP SPEAKER/MICROPHONE UNIT FOR ADDING TWO-WAY AUDIO

(WHEN USING LOUROE MICROPHONE FOR ONE-WAY LISTEN, JUST CONNECT ONLY
THE AUDIO OUTPUT OF THE IF-PX TO THE AUDIO INPUT OF CAMERA OR ENCODER)

FIG. 5

12VDC INPUT

NON PoE ENCODER
OR
CAMERA

12VDC OUTPUT
(OBSERVE POLARITY)

REAR OF IF-PX

20AWG 2 COND CABLE

POWER CONNECTIONS:
+12Vdc connects to +12VDC of Camera/Encoder
GND connects to negative or Ground of Camera/Encoder

DC OUT

GND +12VDC

PoE (802.3af) SWITCH

AUDIO

OUT

IN

LAN

DC IN

AUDIO IN

VIDEO IN

AUDIO OUT

DATA ONLY OUT

DAT

OUT

A

POWER+DATA IN

FRONT OF IF-PX

AUDIO OUT

AUDIO IN

3.5MM STEREO PATCH CABLES

ANALOG CAMERA

3 COND SHIELDED 20GA WITH 22GA DRAIN WIRE

( FOR ONE-WAY LISTEN MICROPHONE ONLY, USE
2 COND SHIELDED 22GA WITH 24GA DRAIN WIRE)

AOP-SP

LOUROE ELECTRONICS® 6 9 5 5 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]

(818)

website: www.louroe.com e-mail: [e-mail]

Page 6 of 8

if-px inst 12/12

INSTALLATION AND OPERATING INSTRUCTIONS

INTERCONNECTION DIAGRAM BETWEEN A NON-PoE SWITCH, IF-PX, NON-PoE ENCODER

AND AOP-SP SPEAKER/MICROPHONE UNIT FOR ADDING TWO-WAY AUDIO

(WHEN USING LOUROE MICROPHONE FOR ONE-WAY LISTEN, JUST CONNECT ONLY
THE AUDIO OUTPUT OF THE IF-PX TO THE AUDIO INPUT OF CAMERA OR ENCODER)

FIG. 6

NOTE:
POWER TO THE ENCODER IS SUPPLIED
BY THE IF-PX THRU AN EXTERNAL
POWER SUPPLY SHOWN

NON PoE ENCODER
OR
CAMERA

REAR OF IF-PX

12VDC OUTPUT
(OBSERVE POLARITY)

12VDC INPUT

DC OUT

GND +12VDC

DC IN

NON-PoE SWITCH

AUDIO

OUT

IN

LAN

DC IN

AUDIO IN

VIDEO IN

AUDIO OUT

DATA OUT ONLY

DAT

OUT

A

DATA IN ONLY

FRONT OF IF-PX

AUDIO OUT

AUDIO IN

3.5MM STEREO PATCH CABLES

12VDC, 2A EXTERNAL
POWER SUPPLY
(NOT SUPPLIED)

ANALOG CAMERA

POWER CONNECTIONS:
+12Vdc connects to +12VDC of Camera/Encoder
GND connects to negative or Ground of Camera/Encoder

3 COND SHIELDED 20GA WITH 22GA DRAIN WIRE

( FOR ONE-WAY LISTEN MICROPHONE ONLY, USE
2 COND SHIELDED 22GA WITH 24GA DRAIN WIRE)

AOP-SP

LOUROE ELECTRONICS® 6 9 5 5 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]

(818)

website: www.louroe.com e-mail: [e-mail]

Page 7 of 8

if-px inst 12/12

INSTALLATION AND OPERATING INSTRUCTIONS

MANUFACTURED

IN THE

When this equipment is used as part of an audio
monitoring system, the law requires that the public be
given notice of AUDIO MONITORING ON THE
PREMISES. A decal notice is included with each
microphone shipped.

Federal Law References:
Federal Regulations, US Code, Title 18. Crime and
Criminal Procedure, Sec 2510.

LOUROE ELECTRONICS® warrants that at the time of shipment products manufactured by LOUROE ELECTRONICS® to be free of defects in material and workmanship.
Should a defect appear within one year (12 months) from date of shipment, LOUROE ELECTRONICS® will, at its sole discretion, repair or replace the defective equipment.
This equipment shall not be accepted for repair or return without prior notification by LOUROE ELECTRONICS®.

This warranty does not extend to any Louroe product that has been subjected to improper or incorrect installation, misuse, accident, or in violation of installation
instructions provided by LOUROE ELECTRONICS®.

Returned shipments to LOUROE ELECTRONICS® shall be at customer’s expense. LOUROE ELECTRONICS® will return the equipment prepaid via best way.

LOUROE ELECTRONICS® 6 9 5 5 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]

IMPORTANT NOTICE

AUDIO

MONITORING

These Premises

WARRANTY

On

TM

(818)

website: www.louroe.com e-mail: [e-mail]

Page 8 of 8

if-px inst 12/12
