Louroe Electronics IF-1 User Manual

IF-1

®

6955 VALJEAN AVE, VAN NUYS, CA 91406

PH: [phone] / FAX: [phone]

/ [e-mail]

INSTALLATION AND OPERATING INSTRUCTIONS

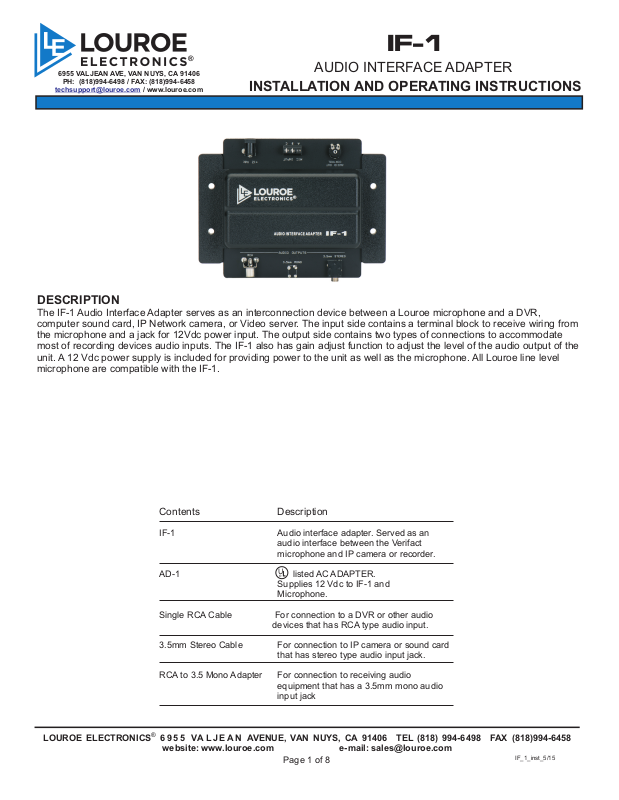

DESCRIPTION

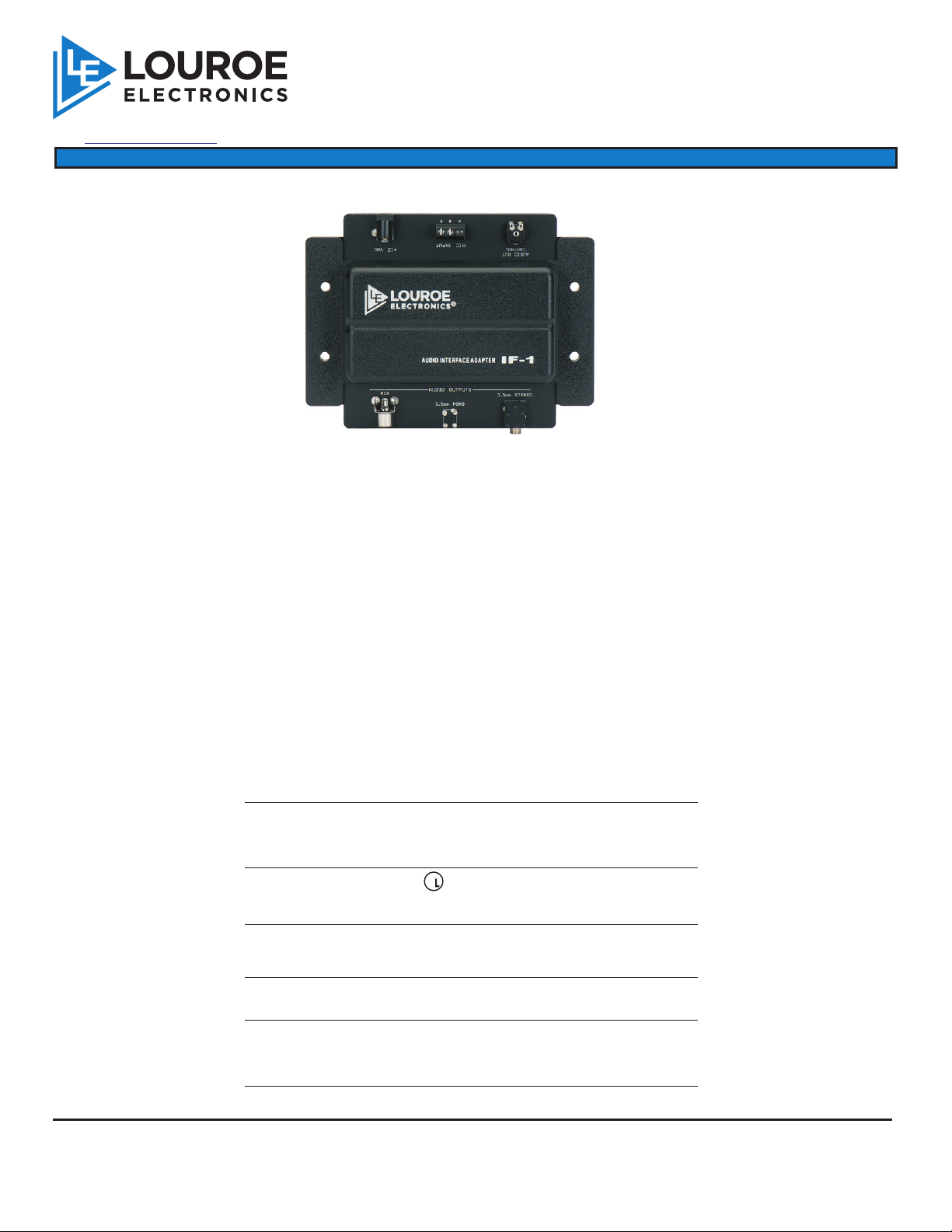

The IF-1 Audio Interface Adapter serves as an interconnection device between a Louroe microphone and a DVR,
computer sound card, IP Network camera, or Video server. The input side contains a terminal block to receive wiring from
the microphone and a jack for 12Vdc power input. The output side contains two types of connections to accommodate
most of recording devices audio inputs. The IF-1 also has gain adjust function to adjust the level of the audio output of the
unit. A 12 Vdc power supply is included for providing power to the unit as well as the microphone. All Louroe line level
microphone are compatible with the IF-1.

AUDIO INTERFACE ADAPTER

Contents Description

IF-1 Audio interface adapter. Served as an

audio interface between the Verifact
microphone and IP camera or recorder.

AD-1 listed AC ADAPTER.

Single RCA Cable For connection to a DVR or other audio

3.5mm Stereo Cable For connection to IP camera or sound card

RCA to 3.5 Mono Adapter For connection to receiving audio

LOUROE ELECTRONICS 6 9 5 5 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]

®

website: www.louroe.com e-mail: [e-mail]

U

®

Supplies 12 Vdc to IF-1 and
Microphone.

devices that has RCA type audio input.

that has stereo type audio input jack.

equipment that has a 3.5mm mono audio
input jack

(818)

Page 1 of 8

IF_1_inst_5/15

INSTALLATION AND OPERATING INSTRUCTIONS

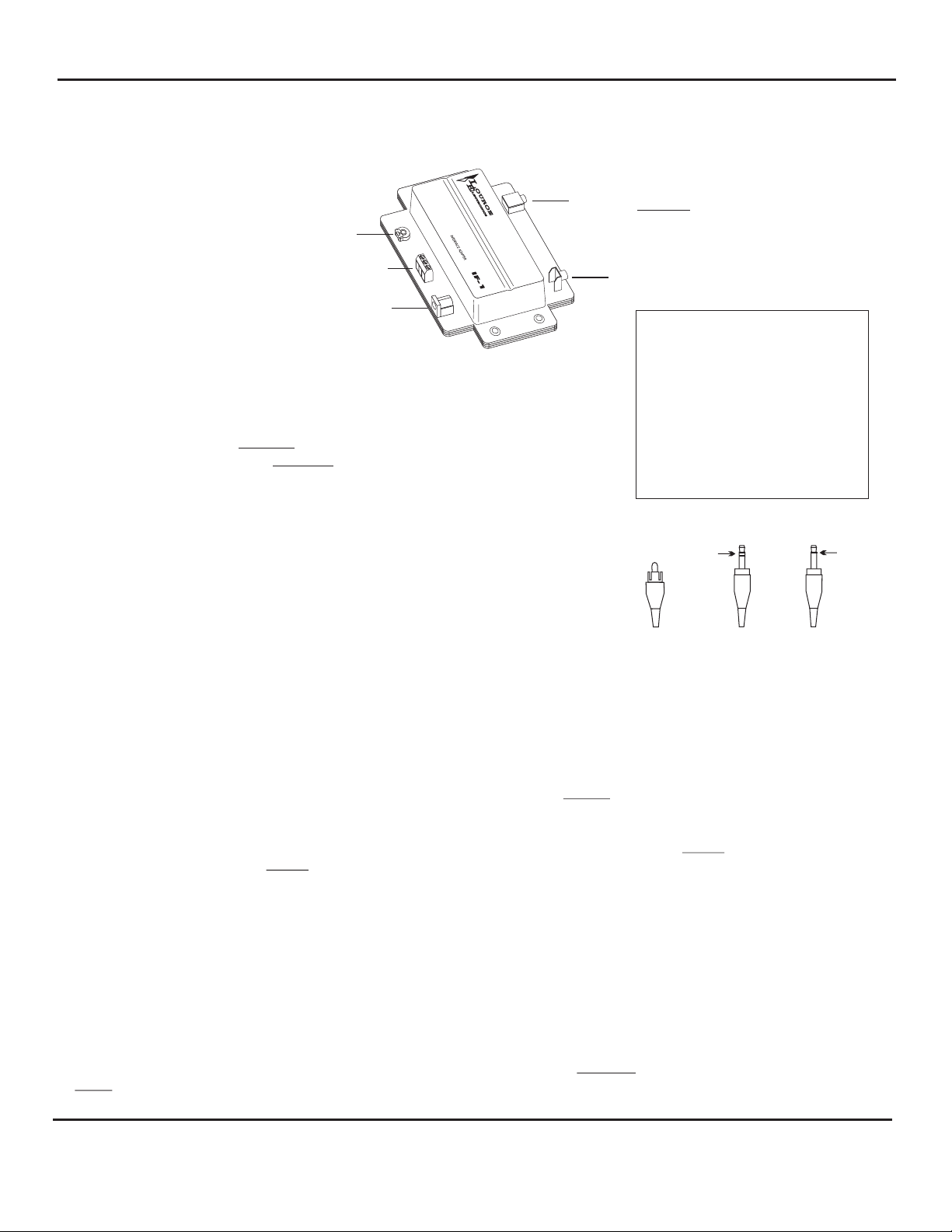

“Audio Out” Control

(Gain Adjustment)

Microphone Input Terminal Block

12 Vdc Power Jack

Model IF-1

CONNECTIONS

MICROPHONE TO INPUT SIDE OF IF-1

Wiring: 2 conductor Shielded 22 gauge with 24 gauge drain wire

West Penn 452 or equivalent

All Louroe microphones contain a terminal block or terminal strip
marked A, B, C.

A = 12 Vdc power (+)
B = Audio
C = Ground (-)

3.5mm Stereo Audio Out Jack

RCA Audio Out Jack

Color Code for West
Penn 452

Red - 12Vdc
Black - Audio Output
Bare - Ground

If using cable from other
manufacturers, color code
may vary.

Plug Identification

two bands

stereo

one band

mono

If using recommended wiring:

Connect red wire to terminal A of microphone
Connect black wire to terminal B of microphone
Connect bare wire to terminal C of microphone

RCA PLUG

3.5mm

STEREO

Types of plugs used with applications
in this instruction manual

3.5mm
MONO

OUTPUT SIDE OF IF-1 TO AUDIO RECEIVER (DVR, IP Network Camera, etc.)

(A) If audio receiver is a DVR or VCR that has RCA input, use the single RCA cable to connect RCA output

of IF-1 to “Audio In” of DVR/VCR.

(B) If the audio receiver (DVR, Soundcard, etc.) has a 3.5mm stereo input, use the 3.5mm stereo cable

and connect to the 3.5mm stereo jack of the IF-1 before connecting to the “Audio In” or “Line In” of the
DVR or soundcard. NOTE: DO NOT connect to “Mic In” of soundcard.

© If audio receiver (IP Network camera, DVR, Video Server, etc.) has a 3.5mm mono input, connect the

RCA to 3.5mm mono cable to the RCA audio out of IF-1 to the “Audio In” or “Line In” of IP Network
camera, etc.

APPLYING POWER TO IF-1

A 12 Vdc AC Adapter is included with the IF-1. First connect small plug into 12 Vdc power jack on input side of IF-1.

Connect other end (power block) to standard 110V/120 Vac electronic outlet or power strip.

“AUDIO OUT” CONTROL OF POTENTIOMETER

Located on the IF-1 input side (next to 3-pin microphone terminal block) is a potentiometer for audio gain
adjustment. Occasionally, though rare, the microphone may overdrive (or underdrive) the audio signal into the IF-1.
Should this occur, use a small screw driver and move arrow clockwise to increase gain. Move counterclockwise to
lower gain. The potentiometer is positioned straight up at the factory.

LOUROE ELECTRONICS 6 9 5 5 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]

®

website: www.louroe.com e-mail: [e-mail]

Page 2 of 8

(818)

IF_1_inst_5/15

INSTALLATION AND OPERATING INSTRUCTIONS

INTERCONNECTION DIAGRAM

A LOUROE MICROPHONE

AND IF-1 INTERFACE ADAPTER

FOR CONNECTION TO A DVR/VCR, ETC.

WITH RCA INPUT

WIRING REQUIREMENTS

2 Conductor shielded cable, 22
gauge with a 24 gauge drain wire

NOTE: Unshielded cable is not

satisfactory for audio systems

West Penn 452 or equivalent

BETWEEN

All Louroe microphones
are compatible with the IF-1

VE RIFA CT A

®

L

N

A B C

L N

BARE

A

RED

BLACK

VERIFACT A MICROPHONE SHOWN

AD-1
+12 Vdc
POWER
SUPPLY

RED

BLACK

BARE

AUDIO OUT

CONTROL

MIC INPUT

A B C

+12 Vdc

L

E

OUROE

LECTRONICS

INTERFACE ADAPTER

IF-1

MODEL IF-1

3.5mm STEREO

AUDIO OUTPUTS

3.5mm MONO

RCA

RCA
OUTPUT

RCA CONNECTOR CABLE

RCA connector cable

used with this

application

RCA PLUG

AUDIO OUT

AUDIO IN

REAR PANEL OF DVR WITH

RCA TYPE AUDIO INPUT

LOUROE ELECTRONICS 6 9 5 5 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]

®

(818)

website: www.louroe.com e-mail: [e-mail]

Page 3 of 8

IF_1_inst_5/15

one band

mono

3.5mm MONO PLUG

INSTALLATION AND OPERATING INSTRUCTIONS

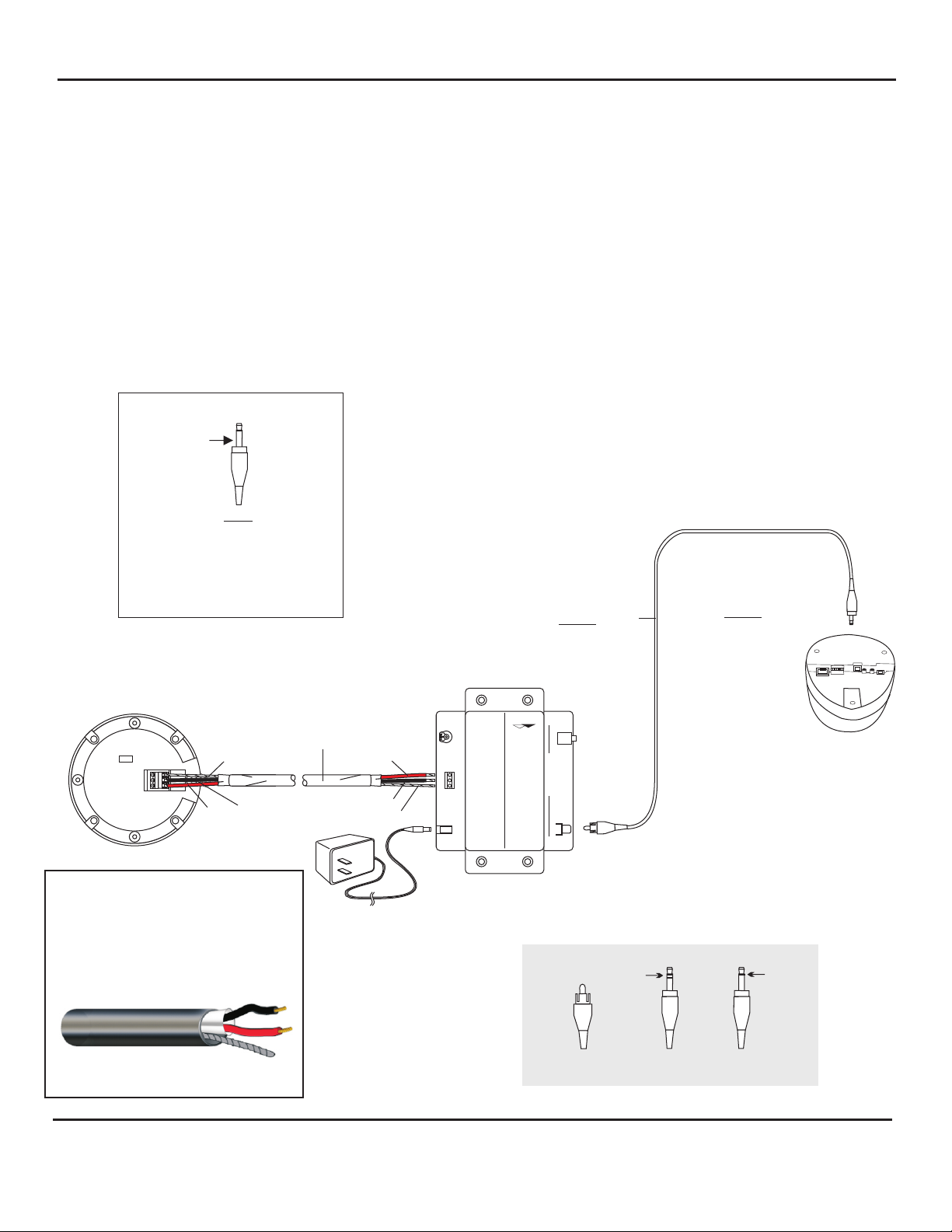

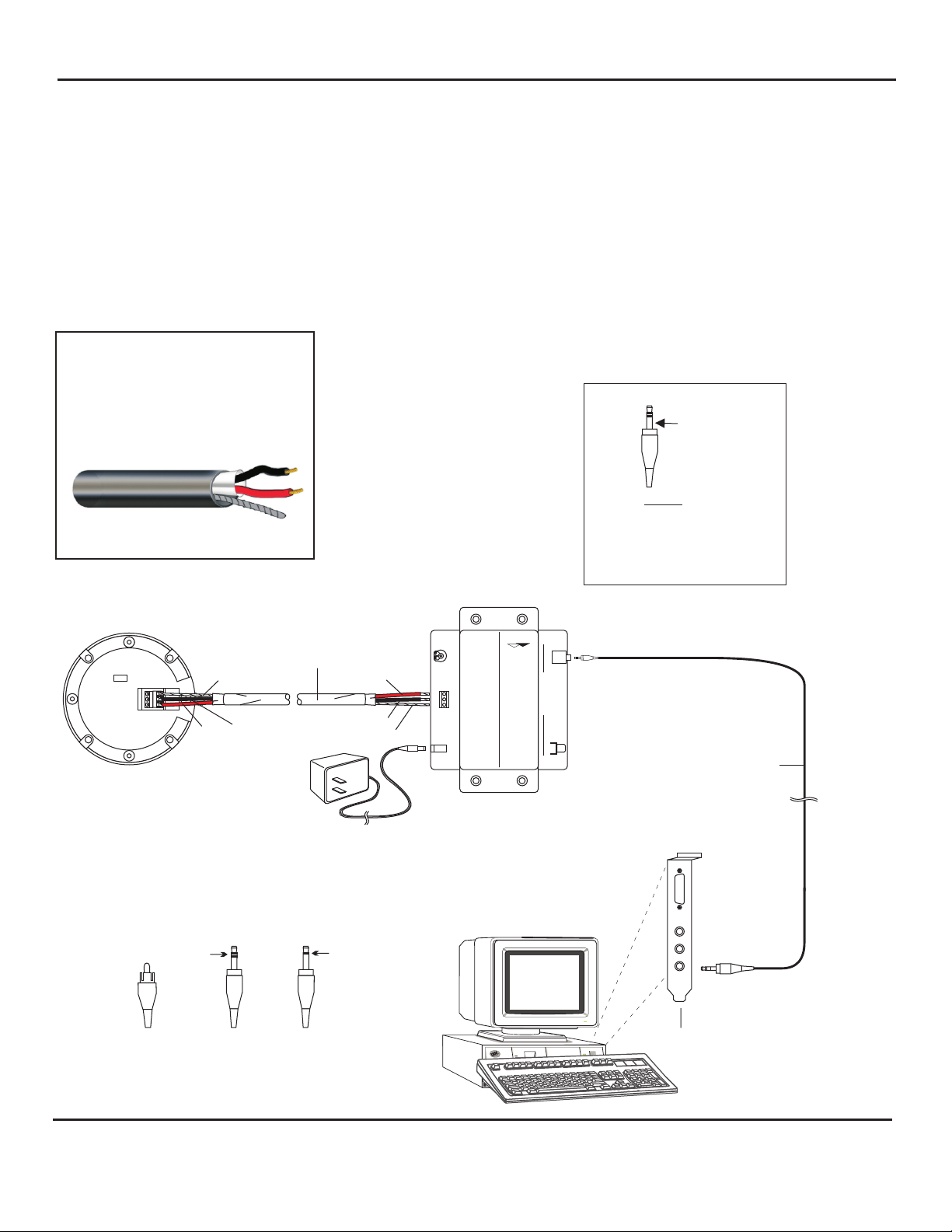

INTERCONNECTION DIAGRAM

BETWEEN

A LOUROE MICROPHONE

AND IF-1 INTERFACE ADAPTER

FOR CONNECTION TO AN IP CAMERA , ETC.

WITH 3.5 MONO INPUT

3.5mm Mono cable used
with this application

VERIFACT A MICROPHONE

®

L

N

A B C

VER IFA CT A

L N

BARE

A

RED

BLACK

WIRING REQUIREMENTS

2 Conductor shielded cable, 22
gauge with a 24 gauge drain wire

NOTE: Unshielded cable is not

satisfactory for audio systems

West Penn 452 or equivalent

2 CONDUCTOR

SHIELDED

22 GAUGE

WEST PENN

452 OR EQUIV.

AD-1
+12 Vdc
POWER
SUPPLY

RED

BLACK

BARE

RCA to 3.5mm mono cable

AUDIO OUT

CONTROL

MIC INPUT

A B C

+12 Vdc

L

E

OUROE

LECTRONICS

3.5mm STEREO

INTERFACE ADAPTER

AUDIO OUTPUTS

3.5mm MONO

IF-1

RCA

Model IF-1

RCA plug

Plug Identification

two bands

stereo

3.5mm mono plug adapter

IP NETWORK CAMERA

one band

mono

RCA PLUG

LOUROE ELECTRONICS 6 9 5 5 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]

®

(818)

3.5mm

STEREO

3.5mm
MONO

website: www.louroe.com e-mail: [e-mail]

Page 4 of 8

IF_1_inst_5/15

FOR CONNECTION TO PC SOUNDCARD DVR, ETC.

WIRING REQUIREMENTS

2 Conductor shielded cable, 22
gauge with a 24 gauge drain wire

NOTE: Unshielded cable is not

satisfactory for audio systems

West Penn 452 or equivalent

INSTALLATION AND OPERATING INSTRUCTIONS

INTERCONNECTION DIAGRAM

BETWEEN

A LOUROE MICROPHONE

AND IF-1 INTERFACE ADAPTER

WITH STEREO INPUT

two bands

3.5mm STEREO PLUG

VERIFACT A MICROPHONE

®

L

N

A B C

VE RIFA CT A

L N

A

RED

Plug Identification

two bands

stereo

BARE

BLACK

2 CONDUCTOR

SHIELDED

22 GAUGE

WEST PENN

452 OR EQUIV.

AD-1
+12 Vdc
POWER
SUPPLY

one band

mono

RED

BLACK

BARE

AUDIO OUT

CONTROL

MIC INPUT

A B C

+12 Vdc

E

LECTRONICS

INTERFACE ADAPTER

IF-1

Louroe™
Model IF-1

L

OUROE

3.5mm STEREO

AUDIO OUTPUTS

3.5mm MONO

RCA

3.5mm Stereo cable used
with this application

3.5mm Stereo
OUTPUT

3.5mm stereo cable

SPKR

MIC

LINE

RCA PLUG

LOUROE ELECTRONICS 6 9 5 5 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]

3.5mm

STEREO

®

3.5mm
MONO

PC SOUND CARD

(818)

website: www.louroe.com e-mail: [e-mail]

Page 5 of 8

IF_1_inst_5/15

INSTALLATION AND OPERATING INSTRUCTIONS

NOTES

LOUROE ELECTRONICS 6 9 5 5 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]

®

website: www.louroe.com e-mail: [e-mail]

Page 6 of 8

(818)

IF_1_inst_5/15

INSTALLATION AND OPERATING INSTRUCTIONS

SPECIFICATIONS

Input Impedance
Output Signal
Audio Output Gain
Power Supply

Dimensions

Weight

Shipping Weight

18kW
Line Level (600W @ 1kHz)
+10dB
12 Vdc, 500mA

6 1/8”L x 4 5/8”W x 1 3/8”H

5.5 oz

1 lb

IMPORTANT NOTICE

When this equipment is used as part of an
audio monitoring system, the law requires
that the public be given notice of AUDIO
MONITORING ON THE PREMISES. A
deca l notice i s i ncluded with each
microphone shipped.

Federal Law References:
Federal Regulations, US Code, Title 18.
Crime and Criminal Procedure, Sec 2510.

AUDIO

MONITORING

On

These Premises

®
