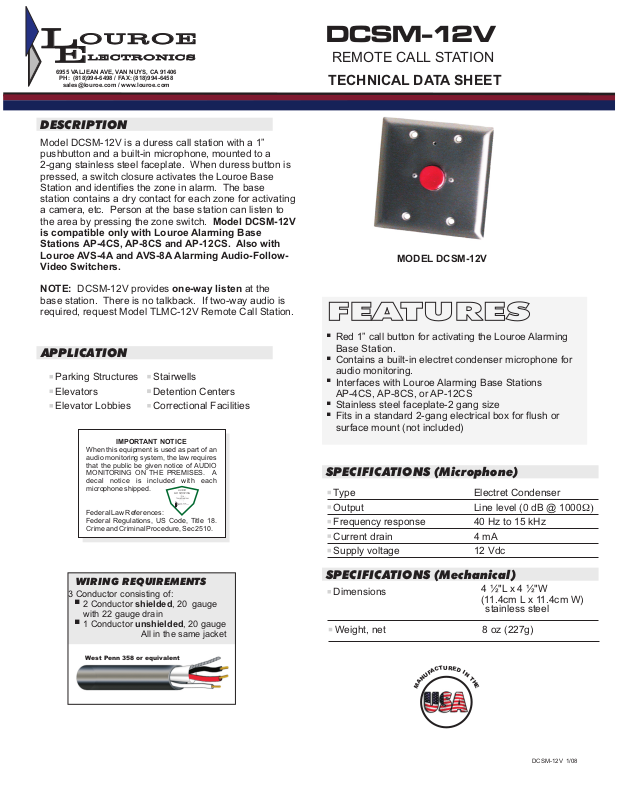

Louroe Electronics DCSM-12V Specsheet

L

OUROE

E

6955 VALJEAN AVE, VAN NUYS, CA 91406

LEC TR ON IC S

PH: [phone] / FAX: [phone]

[e-mail] / www.louroe.com

DESCRIPTION

Model DCSM-12V is a duress call station with a 1”
pushbutton and a built-in microphone, mounted to a
2-gang stainless steel faceplate. When duress button is
pressed, a switch closure activates the Louroe Base
Station and identifies the zone in alarm. The base
station contains a dry contact for each zone for activating
a camera, etc. Person at the base station can listen to
the area by pressing the zone switch. Model DCSM-12V

is compatible only with Louroe Alarming Base
Stations AP-4CS, AP-8CS and AP-12CS. Also with
Louroe AVS-4A and AVS-8A Alarming Audio-Follow­Video Switchers.

NOTE: DCSM-12V provides one-way listen at the

base station. There is no talkback. If two-way audio is
required, request Model TLMC-12V Remote Call Station.

APPLICATION

Parking Structures
Elevators
Elevator Lobbies

IMPORTANT NOTICE

When this equipment is used as part of an
audio monitoring system, the law requires
that the public be given notice of AUDIO
MONITORING ON THE PREMISES. A
deca l notice is included with each
microphone shipped.

Federal Law References:
Federal Regulations, US Code, Title 18.
Crime and Criminal Procedure, Sec 2510.

Stairwells
Detention Centers
Correctional Facilities

AUDIO

MONITORING

On

These Premises

OUROE

L

LECTRONICS

E

DCSM-12V

REMOTE CALL STATION

TECHNICAL DATA SHEET

MODEL DCSM-12V

FEATURES

+

Red 1” call button for activating the Louroe Alarming
Base Station.

+

Contains a built-in electret condenser microphone for
audio monitoring.

+

Interfaces with Louroe Alarming Base Stations
AP-4CS, AP-8CS, or AP-12CS

+

Stainless steel faceplate-2 gang size

+

Fits in a standard 2-gang electrical box for flush or
surface mount (not included)

SPECIFICATIONS (Microphone)

Type
Output
Frequency response
Current drain
Supply voltage

Electret Condenser
Line level (0 dB @ 1000W)
40 Hz to 15 kHz
4 mA
12 Vdc

WIRING REQUIREMENTS

3 Conductor consisting of:

+

2 Conductor shielded, 20 gauge
with 22 gauge drain

+

1 Conductor unshielded, 20 gauge

All in the same jacket

West Penn 358 or equivalent

SPECIFICATIONS ( )Mechanical

Dimensions

Weight, net 8 oz (227g)

R

U

T

C

A

F

U

N

A

M

4 ½"L x 4 ½"W
(11.4cm L x 11.4cm W)

stainless steel

E

D

I

N

T

H

E

DCSM-12V 1/08
