LINKSYS SPA2102 ATA User Manual

INSTALLATION GUIDE

Linksys SPA 2102 ATA Installation Guide

For analog phone or fax extensions

To congure and activate your Linksys SPA 2102 ATA, please have your phone system

administrator follow these steps:

Congure Extensions

To get started, check to see if your extension(s) need to be congured.

1. First go to the www.8x8.com website and Sign-In to My Account.

2. Enter Login and Password.

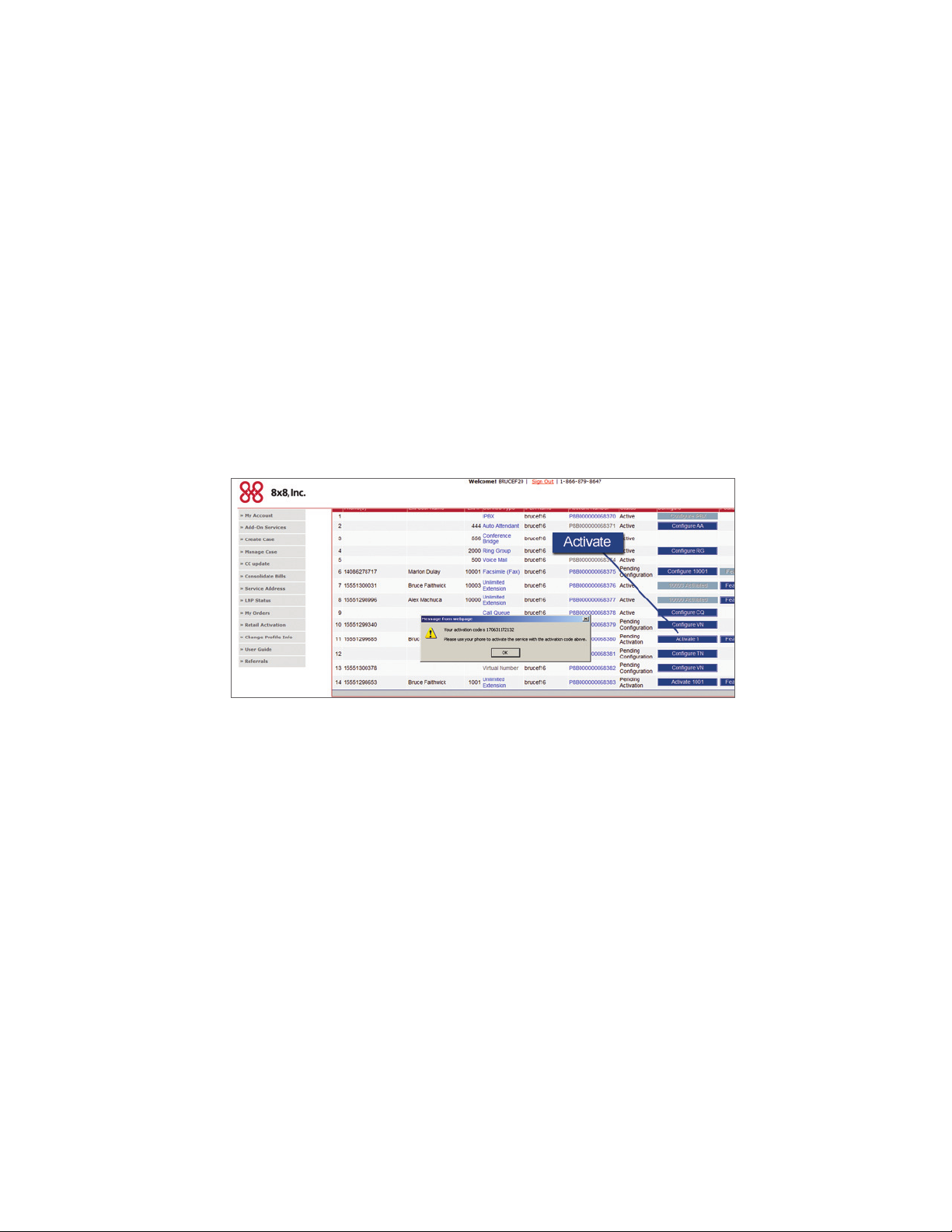

3. Click the Congure button(s) for each extension to be congured (i.e. 1014, 1015).

Note: If your extension says Activate in the blue box, it is already congured and you can go

directly to the Installing your Linskys ATA section on page 3.

For further assistance on
activating your Linksys
SPA 2102 ATA, contact
8x8 Customer Support on

1.888.898.8733

1

INSTALLATION GUIDE

Linksys SPA 2102 ATA

Congure Extension Settings

1. You can select the following features and information for the extension. Once done, click Next.

Note: You can always modify these settings later on.

2. You will need to verify or provide your E911 address, and then click Continue.

2

INSTALLATION GUIDE

Linksys SPA 2102 ATA

3. If no phone number has been selected, you can select a phone number for the extension. Then click Continue.

Installing your Linksys SPA 2102 ATA

Now that your extensions are congured, you can install and activate your device(s).

Follow the diagram below to connect your device using the ports on the back panel.

You will require either an analog phone or a fax machine with an analog phone to activate your device with 8x8 service using the

Phone 1 port.

PHONE 1 PHONE 2

Fax Machine Computer or

or Fax Machine

ETHERNET INTERNET

Laptop

DC 5V
Power

Internet Connection

(Router or

Broadband Modem)

Power AdapterAnalog Phone

• Use the PHONE 1 and PHONE 2 ports to connect an analog phone (or fax machine) with an RJ-11 telephone cable.

• The ETHERNET port connects to an individual network device, such as a PC or a Laptop.

• The INTERNET port connects to your router or if you have no router, direct to your cable or DSL Broadband Modem.

Note: If you connect directly to a broadband modem, you will rst need to congure your Linksys ATA to act as a router. Please

see the instructions in the Using your Linksys ATA as a Router section.

• The Power port is where you connect your AC power adapter.

3
