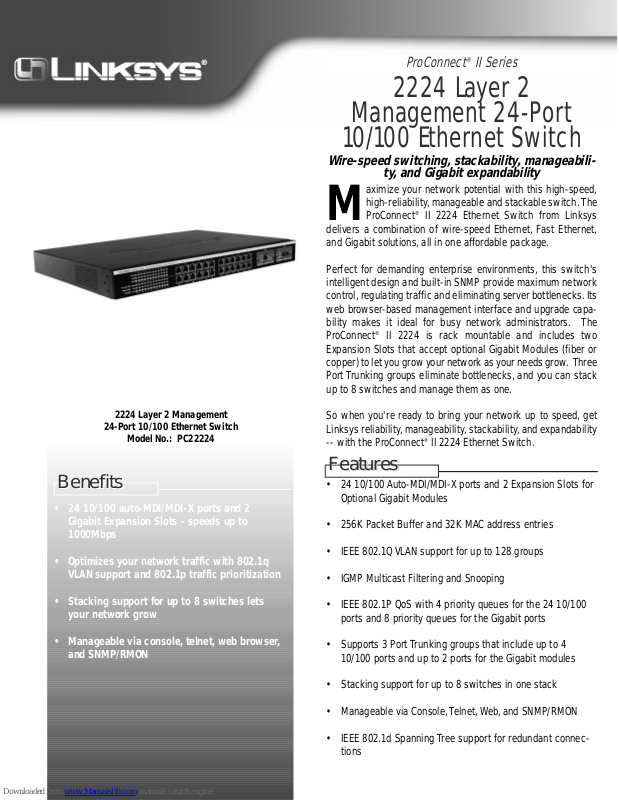

Linksys ProConnect 22224 Specifications
2224 Layer 2
Management 24-Port
10/100 Ethernet Switch
aximize your network potential with this high-speed,
high-reliability,manageable and stackable switch. The
ProConnect®II 2224 Ethernet Switch from Linksys
delivers a combination of wire-speed Ethernet, Fast Ethernet,
and Gigabit solutions, all in one affordable package.
Perfect for demanding enterprise environments, this switch's
intelligent design and built-in SNMP provide maximum network
control,regulating traffic and eliminating server bottlenecks. Its
web browser-based management interface and upgrade capability makes it ideal for busy network administrators. The
ProConnect
®
II 2224 is rack mountable and includes two
Expansion Slots that accept optional Gigabit Modules (fiber or
copper) to let you grow your network as your needs grow . Three
Port Trunking groups eliminate bottlenecks, and you can stack
up to 8 switches and manage them as one.
So when you're ready to bring your network up to speed, get
Linksys reliability, manageability,stackability,and expandability
-- with the ProConnect®II 2224 Ethernet Switch.
• 24 10/100 Auto-MDI/MDI-X ports and 2 Expansion Slots for
Optional Gigabit Modules
• 256K Packet Buffer and 32K MAC address entries
• IEEE 802.1Q VLAN support for up to 128 groups
• IGMP Multicast Filtering and Snooping
• IEEE 802.1P QoS with 4 priority queues for the 24 10/100
ports and 8 priority queues for the Gigabit ports
• Supports 3 Port Trunking groups that include up to 4
10/100 ports and up to 2 ports for the Gigabit modules
• Stacking support for up to 8 switches in one stack
• Manageable via Console,Telnet,Web, and SNMP/RMON
• IEEE 802.1d Spanning Tree support for redundant connec-
tions
2224 Layer 2 Management
24-Port 10/100 Ethernet Switch
Model No.: PC22224
Wire-speed switching, stackability, manageabili-
ty, and Gigabit expandability
Features
Features
Benefits
Benefits
• 24 10/100 auto-MDI/MDI-X ports and 2
Gigabit Expansion Slots - speeds up to
1000Mbps
• Optimizes your network traffic with 802.1q
VLAN support and 802.1p traffic prioritization
• Stacking support for up to 8 switches lets
your network grow
• Manageable via console, telnet, web browser,
and SNMP/RMON
ProConnect®II Series
M
Package ContentsSpecifications
Model Number PC22224
Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z,IEEE
802.3x, IEEE 802.1p, IEEE 802.1q, IEEE
802.3ab,IEEE 802.1d, IEEE 802.3ad
Ports 24 10/100 Auto MDI/MDIX ports,Optional
1000BaseT Module,Optional 1000BaseFX
Module
Cabling Type Cat 5 Ethernet Cable,Cat 5e Ethernet Cable
LEDs Link/Act, 10/100, FDX/COL,FAN,TEMP,
Power
Environmental
Dimensions 16.93 x 1.75 X 13.78 inches
(430 mm x 44.5 mm x 350 mm)
Unit Weight 8.82 lbs. (4 kg)
Power AC 100~240V/100W
Certifications FCC Class A,CE
Operating Temp 32ºF to 122ºF (0ºC to 50ºC)
Storage Temp -40ºF to 158ºF (-40ºC to 70ºC)
Operating Humidity 20% to 95%, Non-Condensing
Storage Humidity 20% to 95%, Non-Condensing
2224 Layer 2 Management 24-Port 10/100
Ethernet Switch
• One 2224 Layer 2 Management 24-Port 10/100
Ethernet Switch
• One Power Cable
• One set of mounting brackets
• One RS-232 null-modem cable
• One Setup CD including User Guide and SNMP
MIB file
• 200Mhz or Faster CPU
• 64MB of RAM
• CD-ROM Drive
Minimum Requirements
DS-pc22224-100102NC KL
