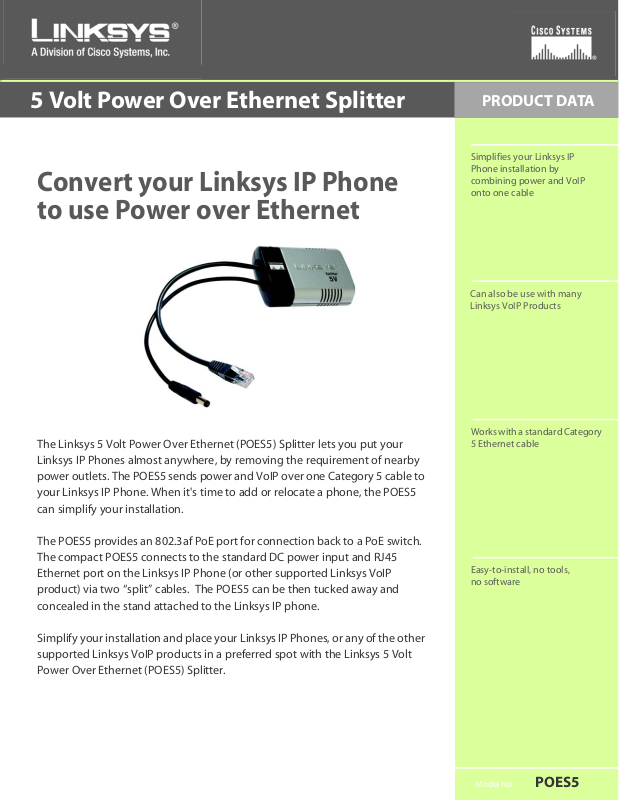

Linksys POES5 User Manual

5 Volt Power Over Ethernet Splitter

Convert your Linksys IP Phone
to use Power over Ethernet

PRODUCT DATA

Simplifies your Linksys IP
Phone installation by
combining power and VoIP
onto one cable

Can also be use with many
Linksys VoIP Products

The Linksys 5 Volt Power Over Ethernet (POES5) Splitter lets you put your
Linksys IP Phones almost anywhere, by removing the requirement of nearby
power outlets. The POES5 sends power and VoIP over one Category 5 cable to
your Linksys IP Phone. When it's time to add or relocate a phone, the POES5
can simplify your installation.

The POES5 provides an 802.3af PoE port for connection back to a PoE switch.
The compact POES5 connects to the standard DC power input and RJ45
Ethernet port on the Linksys IP Phone (or other supported Linksys VoIP
product) via two “split” cables. The POES5 can be then tucked away and
concealed in the stand attached to the Linksys IP phone.

Simplify your installation and place your Linksys IP Phones, or any of the other
supported Linksys VoIP products in a preferred spot with the Linksys 5 Volt
Power Over Ethernet (POES5) Splitter.

Works with a standard Category
5 Ethernet cable

Easy-to-install, no tools,
no software

Model No.

POES5

PRODUCT DATA

Model No.

POES5

• Complies with IEEE 802.3, 802.3u, 802.3af

• Green LED light indicating available power

• Designed to fit into the Linksys IP Phone stand (or optional mounting
bracket-MB100)

Features

• Operates with the SPA901, SPA921, and SPA941 IP Phones

• Operates with the SPA3000, SPA9000 and PAP2T

• Also operates with the SPA1001, SPA2000, SPA2002, SPA2100,
SPA2102, SPA3102

Package Contents • 5 Volt Power Over Ethernet Splitter

• Quick Installation Guide

Specifications

Model

Standards

Port

Cabling Type

LED

Connector Type

SPA2002

IEEE 802.3 10BaseT, 802.3u 100BaseTX, 802.3af

One RJ45 Ethernet Port

One combo-power/Ethernet cable attached to the device with DC power jack and RJ45 Ethernet

connector

5V Power

One combo-power/Ethernet cable attached to the device with DC Power Jack and RJ45 Ethernet

connector

Environmental

Linksys
A Division of Cisco Systems, Inc.
121 Theory
Irvine, CA 92617 USA

E-mail: [e-mail]
[e-mail]

Web: http://www.linksys.com

Linksys products are available in more than
50 countries, supported by 12 Linksys
Regional Offices throughout the world. For
a complete list of local Linksys Sales and
Technical Support contacts, visit our
Worldwide Web Site at www.linksys.com.

Specifications are subject to change
without notice. Linksys is a registered
trademark or trademark of Cisco Systems,
Inc. and/or its affiliates in the U.S. and
certain other countries. Copyright © 2006
Cisco Systems, Inc. All rights reserved.
Other brands and product names are
trademarks or registered trademarks of
their respective holders.

Dimensions

Weight

Power

Certification

Operating Temp.

Storage Temp.

Operating Humidity

Storage Humidity

3.15" x 0.87" x 2.20" (80 mm x 22 mm x 56 mm)

2.68 oz. (0.76 kg)

Output Voltage Accuracy +- 2.0% Mac
Output Max Current 5V: 2A
Output Min Current 100mA
Input Voltage 36 ~ 57 VDC

FCC, CE

0° C to 45° C (32° F to 113° F)

-20° C to 70° C (-4° F to 158° F)

10% to 85% Non-Condensing

5% to 90% Non-Condensing

POES5-SP-DS-60310NC JL
