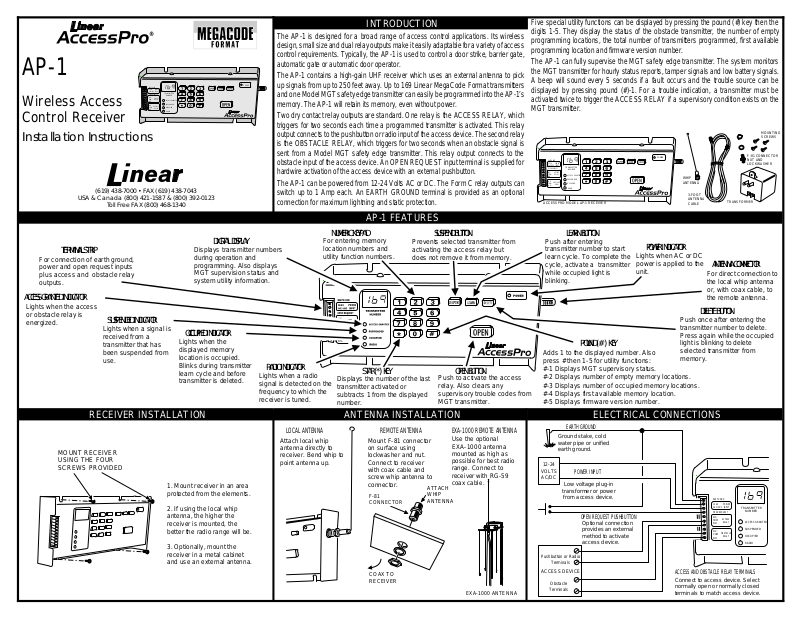

Page 1
AP-1
Wireless Access
Control Receiver
Installation Instructions
(619) 438-7000 • FAX (619) 438-7043
USA & Canada (800) 42 1- 15 87 & (800) 392-012 3
Toll Free FAX (800) 46 8- 13 40
TERMINAL STRIP
For connection of earth ground,
power and open request inputs
plus access and obstacle relay
outputs.
ACCESS GRANTED INDICATOR
Lights when the access
or obstacle relay is
energized.
MOUNT RECEIVER
USING THE FOUR
SCREWS PROVIDED
SUSPENDED INDICATOR
Lights when a signal is
received from a
transmitter that has
been suspended from
use.
RECEIVER INSTALLATION ANTENNA INSTALLATION ELECTRICAL CONNECTIONS
®
EARTH GND
12-24
POWER
VAC/VDC
INPUT
TRANSMITTER
OPEN REQUEST
NUMBER
N.C.
ACCESS
COM
RELAY
ACCESS GRANTED
N.O.
SUSPENDED
N.C.
OBSTACLE
COM
OCCUPIED
RELAY
N.O.
RADIO
Displays transmitter numbers
during operation and
programming. Also displays
MGT supervision status and
system utility information.
OCCUPIED INDICATOR
Lights when the
displayed memory
location is occupied.
Blinks during transmitter
learn cycle and before
transmitter is deleted.
1. Mount receiver in an area
protected from the elements.
2. If using the local whip
antenna, the higher the
receiver is mounted, the
better the radio range will be.
3. Optionally, mount the
receiver in a metal cabinet
and use an external antenna.
DIGITAL DISPLAY
The AP-1 is designed for a broad range of access control applications. Its wireless
design, small size and dual relay outputs make it easily adaptable for a variety of access
control requirements. Typically, the AP-1 is used to control a door strike, barrier gate,
automatic gate or automatic door operator.
POWER
The AP-1 contains a high-gain UHF receiver which uses an external antenna to pick
up signals from up to 250 feet away. Up to 169 Linear MegaCode Format transmitters
and one Model MGT safety edge transmitter can easily be programmed into the AP-1’s
memory. The AP-1 will retain its memory, even without power.
Two dry contact relay outputs are standard. One relay is the ACCESS RELAY, which
triggers for two seconds each time a programmed transmitter is activated. This relay
output connects to the pushbutton or radio input of the access device. The second relay
is the OBSTACLE RELAY, which triggers for two seconds when an obstacle signal is
sent from a Model MGT safety edge transmitter. This relay output connects to the
obstacle input of the access device. An OPEN REQUEST input terminal is supplied for
hardwire activation of the access device with an external pushbutton.
The AP-1 can be powered from 12-24 Volts AC or DC. The Form C relay outputs can
switch up to 1 Amp each. An EARTH GROUND terminal is provided as an optional
connection for maximum lightning and static protection.
RADIO INDICATOR
Lights when a radio
signal is detected on the
frequency to which the
receiver is tuned.
LOCAL ANTENNA
Attach local whip
antenna directly to
receiver. Bend whip to
point antenna up.
INTRODUCTION
AP-1 FEATURES
NUMERIC KEYPAD
For entering memory
location numbers and
utility function numbers.
STAR (*) KEY
Displays the number of the last
transmitter activated or
subtracts 1 from the displayed
number.
REMOTE ANTENNA
Mount F-81 connector
on surface using
lockwasher and nut.
Connect to receiver
with coax cable and
screw whip antenna to
connector.
F-81
CONNECTOR
COAX TO
RECEIVER
SUSPEND BUTTON
Prevents selected transmitter from
activating the access relay but
does not remove it from memory.
OPEN BUTTON
Push to activate the access
relay. Also clears any
supervisory trouble codes from
MGT transmitter.
EXA-1000 REMOTE ANTENNA
Use the optional
EXA-1000 antenna
mounted as high as
possible for best radio
range. Connect to
receiver with RG-59
coax cable.
ATTACH
WHIP
ANTENNA
EXA-1000 ANTENNA
Five special utility functions can be displayed by pressing the pound (#) key then the
digits 1-5. They display the status of the obstacle transmitter, the number of empty
programming locations, the total number of transmitters programmed, first available
programming location and firmware version number.
The AP-1 can fully supervise the MGT safety edge transmitter. The system monitors
the MGT transmitter for hourly status reports, tamper signals and low battery signals.
A beep will sound every 5 seconds if a fault occurs and the trouble source can be
displayed by pressing pound (#)-1. For a trouble indication, a transmitter must be
activated twice to trigger the ACCESS RELAY if a supervisory condition exists on the
MGT transmitter.
MOUNTING
SCREWS
TRANSFORMER
POWER
INPUT
ACCESS
RELAY
OBSTACLE
RELAY
F-81 CONNECTOR
NUT AND
LOCKWASHER
TRANSMITTER
NUMBER
ACCESS GRANTED
SUSPENDED
OCCUPIED
RADIO
EARTH GND
POWER
12-24
INPUT
VAC/VDC
TRANSMITTER
OPEN REQUEST
NUMBER
N.C.
ACCESS
COM
RELAY
ACCESS GRANTED
N.O.
SUSPENDED
N.C.
OBSTACLE
COM
OCCUPIED
RELAY
N.O.
RADIO
ACCESSPRO MODEL AP-1 RECEIVER
LEARN BUTTON
Push after entering
transmitter number to start
learn cycle. To complete the
cycle, activate a transmitter
while occupied light is
blinking.
POUND (#) KEY
Adds 1 to the displayed number. Also
press # then 1-5 for utility functions:
POWER
WHIP
ANTENNA
POWER INDICATOR
Lights when AC or DC
power is applied to the
unit.
Push once after entering the
transmitter number to delete.
Press again while the occupied
light is blinking to delete
selected transmitter from
memory.
#-1 Displays MGT supervisory status.
#-2 Displays number of empty memory locations.
#-3 Displays number of occupied memory locations.
#-4 Displays first available memory location.
#-5 Displays firmware version number.
EARTH GROUND
Ground stake, cold
water pipe or unified
earth ground.
12-24
VOLTS
AC/DC
Pushbutton or Radio
ACCESS DEVICE
POWER INPUT
Low voltage plug-in
transformer or power
from access device.
OPEN REQUEST PUSHBUTTON
Terminals
Obstacle
Terminals
Optional connection
provides an external
method to activate
access device.
ACCESS AND OBSTACLE RELAY TERMINALS
Connect to access device. Select
normally open or normally closed
terminals to match access device.
3-FOOT
ANTENNA
CABLE
ANTENNA CONNECTOR
For direct connection to
the local whip antenna
or, with coax cable, to
the remote antenna.
DELETE BUTTON
EARTH GND
12-24
VAC/VDC
OPEN REQUEST
N.C.
COM
N.O.
N.C.
COM
N.O.
Page 2
LEARNING TRANSMITTERS DELETING TRANSMITTERS SUSPENDING TRANSMITTERS
ENTER THE NUMBER (1 TO 169) OF AN
EMPTY MEMORY LOCATION
ENTER THE NUMBER (1 TO 169) OF
THE MEMORY LOCATION TO CLEAR
ENTER THE NUMBER (1 TO 169) OF AN
OCCUPIED MEMORY LOCATION
LEARN
PRESS
OCCUPIED
SECONDS IF MEMORY LOCATION IS
EMPTY
ACTIVATE THE TRANSMITTER WHILE
OCCUPIED
OCCUPIED
WHEN TRANSMITTER IS LEARNED
BUTTON
LIGHT WILL BLINK FOR 2
LIGHT IS BLINKING
LIGHT WILL LIGHT STEADY
PRESS
DELETE
BUTTON
OCCUPIED
SECONDS IF MEMORY LOCATION IS
OCCUPIED
PRESS
OCCUPIED
ERASE TRANSMITTER FROM MEMORY
OCCUPIED
TRANSMITTER HAS BEEN DELETED
LIGHT WILL BLINK FOR 2
DELETE
AGAIN WHILE
LIGHT IS BLINKING TO
LIGHT WILL GO OUT WHEN
OCCUPIED
FOR 2 SECONDS IF MEMORY
LOCATION IS OCCUPIED
PRESS
SUSPENDED
WILL LIGHT STEADY WHEN THE
TRANSMITTER HAS BEEN
SUSPENDED
NOTE: TO "UNSUSPEND" THE TRANSMITTER, ENTER
SUSPENDED TRANSMITTER NUMBER AND PRESS SUSPEND.
LIGHT WILL LIGHT STEADY
SUSPEND
AND
LEARNING MGT TRANSMITTERS MGT TRANSMITTER SUPERVISION SYSTEM TESTING
ENTER MEMORY LOCATION NUMBER
999 TO LEARN MGT TRANSMITTER
LEARN
PRESS
OCCUPIED
SECONDS IF MEMORY LOCATION IS
EMPTY
ACTIVATE THE MGT TRANSMITTER
WHILE
OCCUPIED
WHEN TRANSMITTER IS LEARNED
BUTTON
LIGHT WILL BLINK FOR 2
OCCUPIED
LIGHT IS BLINKING
LIGHT WILL LIGHT STEADY
NOTE: IF SUPERVISION SOUNDER IS NOT REQUIRED, SUSPEND
MGT TRANSMITTER (#999). SUPERVISION CODES CAN STILL BE
DISPLAYED. THIS WILL ALSO DISABLE THE REQUIREMENT OF
PRESSING A TRANSMITTER TWICE TO TRIGGER THE ACCESS RELAY
DURING A SUPERVISORY CONDITION.
IF RECEIVER IS BEEPING EVERY FIVE
SECONDS, PRESS #-1 TO DISPLAY THE
MGT SUPERVISORY CODES
(MULTIPLE CODES CAN BE DISPLAYED)
"L" INDICATES A LOW MGT
TRANSMITTER BATTERY
"F" INDICATES AN MGT TAMPER OR
LOOP FAULT CONDITION
"S" INDICATES THAT HOURLY STATUS
REPORTS HAVE NOT BEEN RECEIVED
FROM THE MGT FOR FOUR HOURS
AFTER SERVICING FAULT, PRESS
OPEN
TO SILENCE BEEPER AND
RESET THE RECEIVER DISPLAYS
ACTIVATE A LEARNED TRANSMITTER
AND VERIFY THAT THE ACCESS
DEVICE OPERATES
IF MGT OBSTACLE TRANSMITTER IS
USED, RUN ACCESS DEVICE AND
TRIGGER OBSTACLE SENSOR. VERIFY
THAT ACCESS DEVICE REVERSES
IF AN OPEN REQUEST PUSHBUTTON
IS INSTALLED, PRESS IT AND VERIFY
THAT THE ACCESS DEVICE
OPERATES
BUTTON
OCCUPIED
LIGHTS
# KEY UTILITIES SPECIFICATIONS
THESE HANDY UTILITY FUNCTIONS CAN SPEED SYSTEM
PROGRAMMING AND MAINTENANCE
DISPLAYS THE MGT SUPERVISORY
CODES
DISPLAYS THE NUMBER OF EMPTY
MEMORY LOCATIONS
DISPLAYS THE NUMBER OF
OCCUPIED MEMORY LOCATIONS
DISPLAYS THE FIRST AVAILABLE
EMPTY MEMORY LOCATION
DISPLAYS THE VERSION NUMBER OF
THE AP-1 FIRMWARE
WHEN DISPLAY IS BLANK, DISPLAYS THE NUMBER
OF THE LAST TRANSMITTER ACTIVATED, OR
SUBTRACTS 1 FROM THE DISPLAYED NUMBER
WHEN DISPLAY IS BLANK, PRESS # BEFORE
PRESSING UTILITY FUNCTION NUMBER, OR ADDS 1
TO A DISPLAYED NUMBER
Size: 10.5"W x 4.5"H x 2"D
Weight: 1.5 Lbs.
Supply Voltage: 12-24 Volts AC or DC
Operating Current: 250 Ma Maximum
Operating Temperature Range: -22° to +158° F (-30° to +70° C)
Sensitivity: -94 dBm Minimum
Bandwidth (3 db): 4 MHz Typical
Frequency: 318 MHz
Relay Contact Rating: 1 AMP @ 24 Volts AC or DC
This Linear product is warranted against defects in material and workmanship for twelve (12) months. The Warranty
Expiration Date is labeled on the product.
from Linear or th rough L inear’s n ormal distr ibution channel s.
Consumers should inquire from their selling dealer as to the nature of the dealer’s warranty, if any.
obligations or liabilities on the pa rt of Linear corp oration for con sequential damage s arising out of or in
connection with use or performance of this product or other indirect damages with respect to loss of
property, revenue, or profit, or cost of removal, installation, or reinstallation.
implied warranties for merchantability and implied warranties for fitness, are valid only until Warranty Expiration Date
as labeled on the product.
For warranty service on Linear equipment return product, at sender’s expense to:
Linear Corporation Service Department
2580 Pioneer A venue, Suite C
Vista, CA 92083
Linear radio controls provide a reliable communications link an d fill an importa nt need in portable wireless signalling.
However, there are some limitations which must be observed.
For U.S. installations only: The radios are required to comply with FCC Rules and Regulations as Part 15
✶
devices. As such, they have limited transmitter power and therefore limited range.
A receiver canno t respond to more than one transmi t ted signal at a ti m e and may be blocked by radio signals
✶
that occur on or near their operating frequencies, regardless of code settings.
Changes or modifications to the device may void FCC compliance.
✶
Infrequently us ed radio links shoul d be tested regularly to protect against undet ec ted interference or fault.
✶
A general knowledge of radio and its vagaries should be gained prior to acting as a wholesale distributor or
✶
dealer, and these facts should be communicated to the ultimate users.
Copyright © 1995 Linear Corporation 211037 B
LINEAR LIMITED WARRANTY
This warranty extends only to wholesale customers
This Linear Corporation Warranty is in lie u of all other warranties expre ss or implied.
Linear does not warrant this product to consume rs.
All implied warranties, including
IMPORTANT !!!
who buy direct
There are no
Loading...
