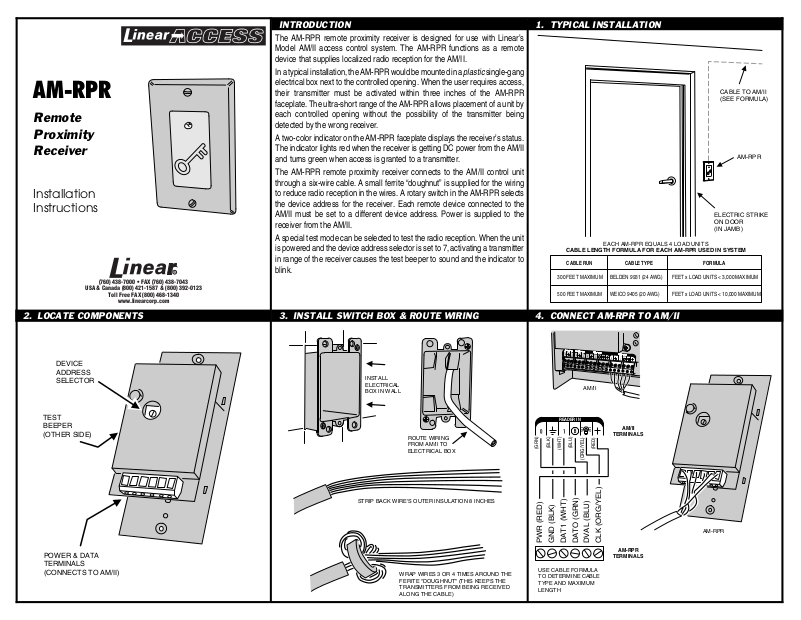

Linear AM-RPR Installation Instruction
AM-RPR
Remote
Proximity
Receiver
Installation
Instructions
INTRODUCTION
The AM-RPR remote proximity receiver is designed for use with Linear’s
Model AM/II access control system. The AM-RPR functions as a remote
device that supplies localized radio reception for the AM/II.
In a typical installation, the AM-RPR would be mounted in a
plastic
single-gang
electrical box next to the controlled opening. When the user requires access,
their transmitter must be activated within three inches of the AM-RPR
faceplate. The ultra-short range of the AM-RPR allows placement of a unit by
each controlled opening without the possibility of the transmitter being
detected by the wrong receiver.
A two-color indicator on the AM-RPR faceplate displays the receiver’s status.
The indicator lights red when the receiver is getting DC power from the AM/II
and turns green when access is granted to a transmitter.
The AM-RPR remote proximity receiver connects to the AM/II control unit
through a six-wire cable. A small ferrite “doughnut” is supplied for the wiring
to reduce radio reception in the wires. A rotary switch in the AM-RPR selects
the device address for the receiver. Each remote device connected to the
AM/II must be set to a different device address. Power is supplied to the
receiver from the AM/II.
A special test mode can be selected to test the radio reception. When the unit
is powered and the device address selector is set to 7, activating a transmitter
in range of the receiver causes the test beeper to sound and the indicator to
blink.
1. TYPICAL INSTALLATION
2. LOCATE COMPONENTS 3. INSTALL SWITCH BOX & ROUTE WIRING 4. CONNECT AM-RPR TO AM/II
(760) 438-7000 • FAX (760) 438-7043
USA & Canada (800) 421-1587 & (800) 392-0123
Toll Free FAX (800) 468-1340
www.linearcorp.com
DEVICE
ADDRESS
SELECTOR
POWER & DATA
TERMINALS
(CONNECTS TO AM/II)
TEST
BEEPER
(OTHER SIDE)
INSTALL
ELECTRICAL
BOX IN WALL
ROUTE WIRING
FROM AM/II TO
ELECTRICAL BOX
STRIP BACK WIRE'S OUTER INSULATION 8 INCHES
WRAP WIRES 3 OR 4 TIMES AROUND THE
FERITE "DOUGHNUT" (THIS KEEPS THE
TRANSMITTERS FROM BEING RECEIVED
ALONG THE CABLE)
PWR (RED)
GND (BLK)
DAT1 (WHT)
DATO (GRN)
DVAL (BLU)
CLK (ORG/YEL)
(RED)
(BLK)
(GRN)
(WHT)
(BLU)
(ORG/YEL)
READER IN
USE CABLE FORMULA
TO DETERMINE CABLE
TYPE AND MAXIMUM
LENGTH
AM/II
B
O
1
O
O
O
1
1
1
B
AM/II
TERMINALS
AM-RPR
TERMINALS
AM-RPR
EACH AM-RPR EQUALS 4 L OAD UNITS
CABLE LENGTH FORMULA FOR EACH AM- RPR USED IN SYSTEM
CABLE RUN CABLE TYPE
FORMULA
300 FEET MAXIMUM
BELDEN 9931 (24 AWG)
WEICO 9405 (20 AWG)
FEET x LOAD UNITS < 3,000 MAXIMUM
FEET x LOAD UNITS < 10,000 MAXIMUM
500 FEET MAXIMUM
CABLE TO AM/II
(SEE FORMULA)
AM-RPR
ELECTRIC STRIKE
ON DOOR
(IN JAMB)
5. PRELIMINARY RECEIVER TEST 6. SET DEVICE ADDRESS 7. INSTALL RECEIVER AND FACEPLATE
8. PROGRAM RECEIVER 9. TEST SYSTEM LINEAR LIMITED WARRANTY
This Linear product is warranted against defects in material and workmanship for twelve
(12) months. The Warranty Expiration Date is labeled on the product.
This warranty
extends only to wholesale customers
who buy direct from Linear or through Linear’s
normal distribution channels.
Linear does not warrant this product to consumers.
Consumers should inquire from their selling dealer as to the nature of the dealer’s
warranty, if any.
There are no obligations or liabilities on the part of Linear
Corporation for consequential damages arising out of or in connection with use
or performance of this product or other indirect damages with respect to loss of
property, revenue, or profit, or cost of removal, installation, or reinstallation.
All
implied warranties, including implied warranties for merchantability and implied
warranties for fitness, are valid only until Warranty Expiration Date as labeled on the
product.
This Linear Corporation Warranty is in lieu of all other warranties express
or implied.
All products returned for warranty service require a Return
Product Authorization Number (RPA#). Contact Linear Technical
Services at 1-800-421-1587 for an RPA# and other important
details.
IMPORTANT !!!
Linear radio controls provide a reliable communications link and fill an important need
in portable wireless signalling. However, there are some limitations which must be
observed.
✶
For U.S. installations only: The radios are required to comply with FCC Rules and Regulations as Part 15
devices. As such, they have limited transmitter power and therefore limited range.
✶
A receiver cannot respond to more than one transmitted signal at a time and may be blocked by radio signals
that occur on or near their operating frequencies, regardless of code settings.
✶
Changes or modifications to the device may void FCC compliance.
✶
Infrequently used radio links should be tested regularly to protect against undetected interference or fault.
✶
A general knowledge of radio and its vagaries should be gained prior to acting as a wholesale distributor or
dealer, and these facts should be communicated to the ultimate users.
Copyright © 2000 Linear Corporation 211773 B
SET DEVICE
ADDRESS
SELECTOR
TO CORRECT
DEVICE ADDRESS
SET DEVICE ADDRESS SELECTOR TO POSITION 1-6
(MUST BE SET DIFFERENT FROM ANY OTHER
REMOTE DEVICE IN THE SYSTEM)
MOUNT RECEIVER INTO
ELECTRICAL BOX USING
LONG SCREWS
ATTACH FACEPLATE
WITH SHORT SCREWS
SET DEVICE
PROGRAM THE AM/II TO CONFIGURE
THE RECEIVER DEVICE ADDRESS
AND OPTIONS
REFER TO THE AM/II
PROGRAMMING INSTRUCTIONS
FOR DETAILS
ACTIVATE TRANSMITTER
WITHIN 3" OF RECEIVER
FACEPLATE
INDICATOR WILL CHANGE
FROM RED TO GREEN IF THE
TRANSMITTER IS GRANTED
ACCESS
ADDRESS SELECTOR
TO POSITION 7
TURN AM/II POWER
SWITCH ON
ACTIVATE A
TRANSMITTER NEAR
RECEIVER
INDICATOR SHOULD
BLINK WHEN
TRANSMITTER
IS NEARBY
