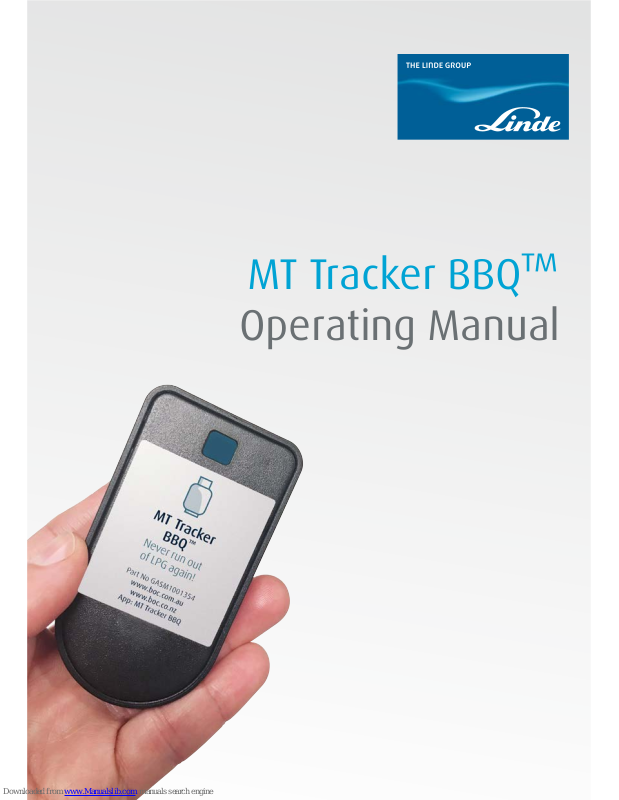

Linde MT Tracker BBQ Operating Manual

MT Tracker BBQ™

Operating Manual

Important Notice

This document has been prepared by BOC Limited ABN 95 000 029 729 (‘BOC’),
as operating instructions and has been prepared in good faith. Information in this
document has been derived from third parties, and though BOC believes it to be
reliable as at the time of printing, BOC makes no representation or warranty as to
the accuracy, reliability or completeness of information in this document and does
not assume any responsibility for updating any information or correcting any error
or omission which may become apparent after the document has been issued. The

information in this document is commercial in condence and is not to be reproduced.

The recipient acknowledges and agrees that it must make its own independent
investigation and should consider seeking appropriate professional advice in reviewing

the information. This document does not take into account the particular circumstances
of the recipient. Except insofar as liability under any statute cannot be excluded, BOC

and its a󹟾liates, directors, employees, contractors and consultants do not accept any

liability (whether arising in contract, tort or otherwise) for any error or omission in this
document or for any resulting loss or damage (whether direct, indirect, consequential

or otherwise) su󹟽ered by the recipient of this document or any other person relying

on the information contained herein. The recipient agrees that it shall not seek to sue
or hold BOC or their respective agents liable in any such respect for the provision of
this document or any other information.

MT Tracker BBQ Operating Manual02

Description 3

Smart device setup 4

Cylinder setup 6

Using the app 7

Battery replacement 10

Warranty 14

Safety guidelines 15

Specications 16

Troubleshooting tips 17

Contents.

03MT Tracker BBQ Operating Manual

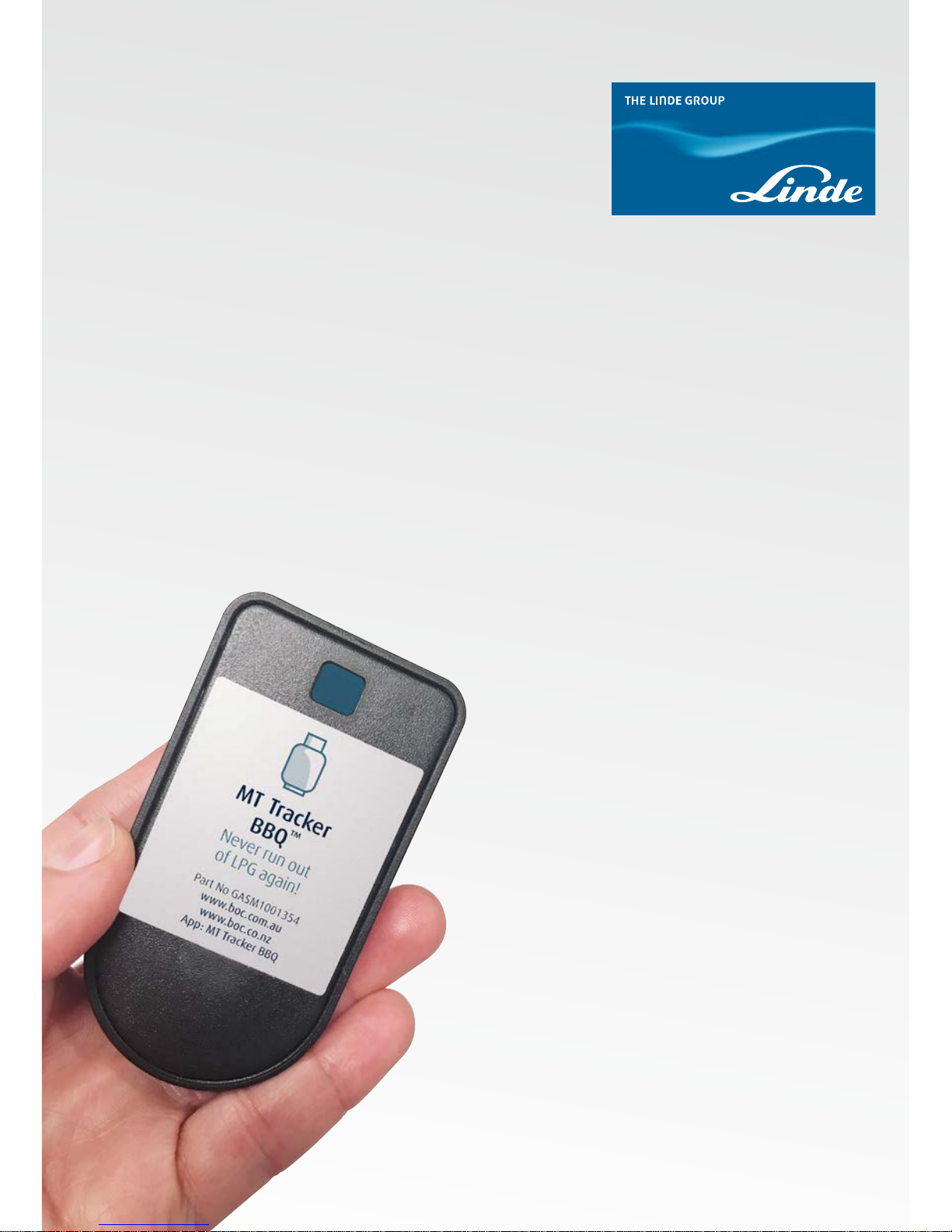

MT Tracker BBQ™ sensor accurately detects

LPG cylinder ll levels and sends the status
via Bluetooth® to our mobile app. You can also

rename sensors, set auto alerts or add multiple

sensors. Available for both iOS and Android
devices.

Outdoor use only.

Description

MT Tracker BBQ Operating Manual04

Smart device setup

Go to your app store. Search for the Mt Tracker
app and install.

Launch the app. When it starts it will
automatically start a search for sensors.

The first time you use your MT Tracker BBQ™
press the “Sync” button 5 times in a row to
initialise it. Press and hold SYNC button until
sensor appears on app. (up to 10 seconds).

No MT Tracker BBQ™ devices

have been added.

The first time you use your MT Tracker

BBQ™ press the “Sync” button 5 times in

a row to initialise it. To add new sensors

make sure the scanning icon is spinning

press and hold SYNC button on your

MT Tracker BBQ™ until it is found.

05MT Tracker BBQ Operating Manual

The sensor will then appear on your app as a
new device. Sensor is now Sync’d. You may now
proceed to installing the sensor on the cylinder.

MT Tracker BBQ Operating Manual06

Cylinder setup

The cylinder should be kept upright at all times
throughout the installation process. Clean the
bottom of the cylinder of any debris, excess paint,

and rust.

The sensor mounts to the bottom centre of the
cylinder using magnets. The rubber pad between
the magnets must make good contact with the
cylinder, with no contaminants in between and
must be aligned to the bottom centre of the

cylinder.

Check that the cylinder is on a level and at
surface or otherwise is level with ground. Even
a slight tilt can degrade the quality of the

measurement.

After a short period the LPG will settle and the
readings will stabilize.

Magnet

Magnet

Rubber pad

07MT Tracker BBQ Operating Manual

Using the app

Adding more sensors will keep adding to the sensor list. Up to 50 sensors can be added.

Selecting a sensor from the list takes you to the sensor’s info screen that shows the battery condition,
Bluetooth signal strength, and detection quality. A low quality level often indicates an installation

problem, such as poor placement, debris or excessive paint, etc. which can cause erraticreadings.

MT Tracker BBQ Operating Manual08

Selecting the pencil icon will bring up the settings page for the sensor, where you can edit the sensor
name, select your cylinder size or enter an arbitrary custom size, set LPG level alarm threshold and
level display units.

09MT Tracker BBQ Operating Manual

To remove a sensor from the app list, swipe left on the sensor in the list. A delete button will appear.
Select delete to confirm removal of the sensor from the app.

MT Tracker BBQ Operating Manual010

Battery replacement

WARNING: EXPLOSION HAZARD-BATTERIES MUST
ONLY BE CHANGED IN AN AREA FREE OF IGNITABLE
CONCENTRATIONS.

The enclosure lid is held in place by a snap t,
in 4 places. In the approximate locations shown,
insert small screwdriver between lid and base
and pry outward to release snap t. Lid can then
be lifted out of assembly. (Note: Sync button will
sometimes be slightly stuck to electronics board.
Detach sync button and board if necessary to
completely remove lid and leave electronics in
the base piece.)

Gently lift board from base such that battery
can be removed from battery holder. Insert new
battery in same orientation. (Note: Wires that

connect sensor base and electronics board remain

attached during battery change. Use care not pull
too hard on wires thus damaging the sensor.)

1

3

2

4

011MT Tracker BBQ Operating Manual

Place electronics board back into base. Pay

attention to wire routing so that wires do not get
pinched when lid is reassembled. Also check that
the enclosure seal is properly seated into the

base.

Seal

MT Tracker BBQ Operating Manual012

4. If Sync button came loose during disassembly,
assemble button back to lid. Button will stay
attached to lid once properly assembled to lid.

013MT Tracker BBQ Operating Manual

6. Place lid back into base and press down fully to
reengage all 4 snap ts.

MT Tracker BBQ Operating Manual14

Warranty

The MT Tracker BBQ™ carries a 12 month
warranty from the date of purchase. This warranty
excludes apparent misuse of thesensor and

battery.

15MT Tracker BBQ Operating Manual

Use of this device in a manner other than stated
in this manual, may result in impairment of the
designed safety protection and thus an unsafe

condition.

Safety guidelines

MT Tracker BBQ Operating Manual016

Specications

Specications

Part number GASM1001354

Measurement method Ultrasonic

Fluid LPG

Cylinder types Steel cylinders

Note: Also works with aluminum cylinders with alternate
mounting. Not intended for use on composite cylinders.

Cylinder sizes Vertical DOT Cylinders of 3.7 kg and 8.5 kg

Typically any LPG cylinder up to 500 mm (20”) uid height, on

which the sensor may be mounted on bottom.

Envelope dimensions 47.2 x 87.7 x 7.3 mm (1.85 x 3.45 x 0.29 in)

Mounting location Cylinder bottom

Suitable for these locations CLASS 1, DIVISION 2, GROUP D

CLASS 1, ZONE 2, GROUP IIA

Operating temperature range -25° TO 40°C

Temperature code T6

Battery ONE, CR2032 COIN CELL (3 V)

Humidity range 0–100%

Max. altitude 4000 m

017MT Tracker BBQ Operating Manual

Troubleshooting tips

Make sure your cylinder is level. If the cylinder is
sitting at an angle, the surface of the liquid will
also be at an angle, sometimes causing incorrect
readings.

MT Tracker BBQ™ sensor must be located
properly. The black rubber contact pad should be
placed on centre of the cylinder bottom.

If experiencing a reading that looks incorrect
or erratic, sometimes a slight reposition of the
sensor will correct the problem.

If the bottom of the cylinder is dirty or rusty it will
need to be wiped clean of any debris first. Also
the black rubber contact pad on the sensor should
be kept clean.

If the cylinder is moving or vibrating it will
degrade the quality of the signal.

Movement of the cylinder can cause the liquid
to slosh, sometimes causing erratic readings.
Readings should go back to normal after a few
minutes.

It’s typical to see the level change slightly with
changing temperature. This is a characteristic of
LPG as it boils into gas.

MT Tracker BBQ™ sensor is shipped in sleep mode
to preserve battery life. You must press the Sync
button on the sensor at least 5 times to wake it
up before it will be detected.
