"SMART" GARAGE DOOR OPENERS

(With Green "SMART" Button

and Green Indicator Light)

Model 83LM Multi-Function Remote Control

PROGRAM THE OPENER TO ACCEPT THE REMOTE CONTROL CODE

Select a remote control push button to operate the opener. The large button is recommended for use with a garage door opener.

1. Press and hold the selected remote control push button (Figure 1).

2. Then press and release the green "SMART" button on the opener panel (Figure 2). The opener light will flash once. Release the remote control push button.

Now the opener will operate when the remote push button is pressed.

NOTE: If you release the remote control push button before the opener light flashes, the receiver has not accepted the code.

To Erase All Transmitter Codes

• Press and hold the "SMART" button on the opener

panel until the indicator light turns off (about 6 seconds). ALL the codes the opener has learned

will be erased.

• To reprogram, repeat Steps 1 and 2 for each remote

control in use. Code programming instructions

are also located on the opener panel.

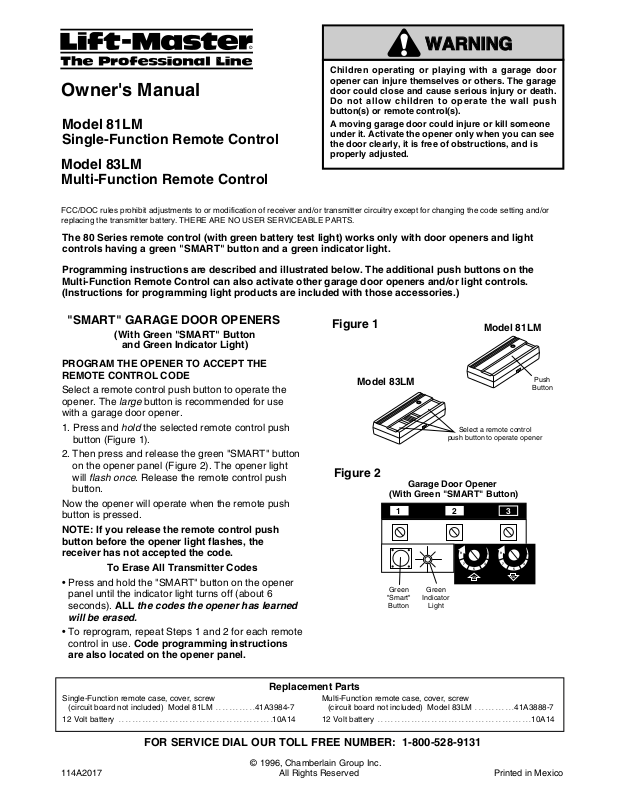

Owner's Manual

Children operating or playing with a garage door opener can injure themselves or others. The garage door could close and cause serious injury or death. Do not allow children to operate the wall push button(s) or remote control(s).

A moving garage door could injure or kill someone under it. Activate the opener only when you can see the door clearly, it is free of obstructions, and is properly adjusted.

ADVERTENCIA

PRECAUCION

ADVERTENCIA

Model 81LM Single-Function Remote Control

Single-Function remote case, cover, screw

(circuit board not included) Model 81LM . . . . . . . . . . . .41A3984-7

12 Volt battery

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10A14

Multi-Function remote case, cover, screw

(circuit board not included) Model 83LM . . . . . . . . . . . .41A3888-7

12 Volt battery

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10A14

Figure 1

Model 83LM

Model 81LM

Figure 2

Programming instructions are described and illustrated below. The additional push buttons on the Multi-Function Remote Control can also activate other garage door openers and/or light controls. (Instructions for programming light products are included with those accessories.)

FOR SERVICE DIAL OUR TOLL FREE NUMBER: 1-800-528-9131

The 80 Series remote control (with green battery test light) works only with door openers and light controls having a green "SMART" button and a green indicator light.

Replacement Parts

FCC/DOC rules prohibit adjustments to or modification of receiver and/or transmitter circuitry except for changing the code setting and/or replacing the transmitter battery. THERE ARE NO USER SERVICEABLE PARTS.

WARNING

Select a remote control

push button to operate opener

Garage Door Opener

(With Green "SMART" Button)

Green

"Smart"

Button

Green

Indicator

Light

Push

Button
