Operating instructions Page 6
Refrigerator
Read the operating instructions before switching on for the rst time
EN
7080 339-01
Disposal notes
The appliance contains reusable materials and should
be disposed of properly - not simply with unsorted
household refuse. Appliances which are no longer
needed must be disposed of in a professional and
appropriate way, in accordance with the current local
regulations and laws.
When disposing of the appliance, ensure that the refrigerant circuit
is not damaged to prevent uncontrolled escape of the refrigerant
it contains (data on type plate) and oil.
• Disable the appliance.
• Pull out the mains plug.
• Cut through the connection cable.
WARNING
Danger of suocation due to packing material and plastic lm!
Do not allow children to play with packaging material. Take the
packaging material to an ocial collection point.
Range of appliance use
Safety instructions and warnings
• To prevent injury or damage to the unit, the appliance should be unpacked and set up by two
people.
• In the event that the appliance is damaged on
delivery, contact the supplier immediately before
connecting to the mains.
• To guarantee safe operation, ensure that the ap-
pliance is set up and connected as described in
these operating instructions.
• Disconnect the appliance from the mains if any
fault occurs. Pull out the plug, switch off or remove
the fuse.
• When disconnecting the appliance, pull on the
plug, not on the cable.
The appliance is suitable solely for cooling food in
a domestic environment or similar. This includes,
for example, use
- in staff kitchenettes, bed and breakfast establishments,
- by guests in cottages, hotels, motels and other
forms of accommodation,
- in catering and similar services in the wholesale
trade.
Use the appliance solely as is customary within a domestic environment. All other types of use are inadmissible. The appliance
is not suitable for storing and cooling medicines, blood plasma,
laboratory preparations or similar substances and products covered by the 2007/47/EC Medical Devices Directive. Any misuse
of the appliance may result in damage to or spoilage of stored
goods. Furthermore, the appliance is not suitable for operation in
potentially explosive atmospheres.

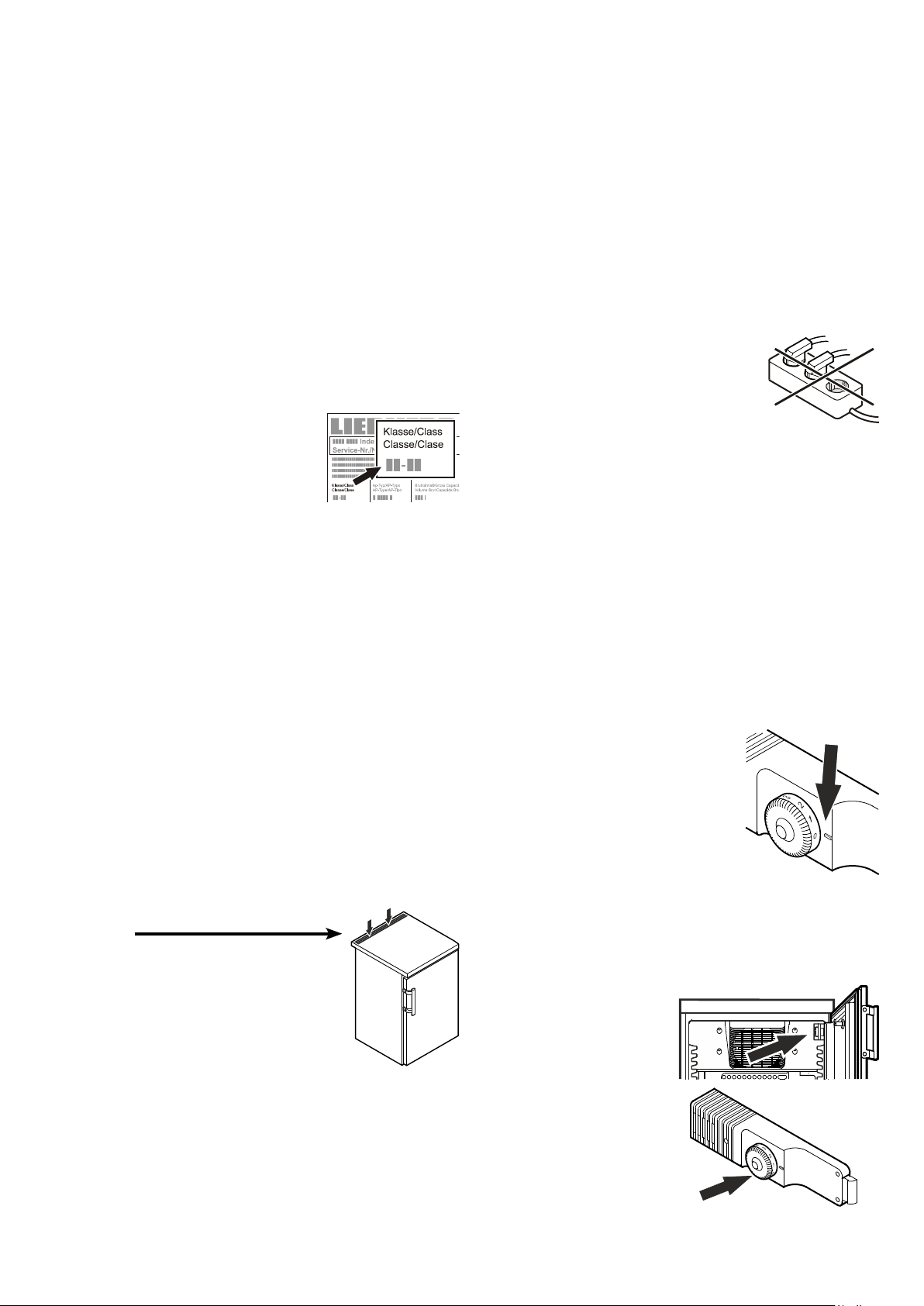

Description of the appliance
Interior light
Temperature
control
• Any repairs and work on the appliance should
only be carried out by the customer service
department, as unauthorised work could prove
highly dangerous for the user. The same applies
to changing the mains power cable.
• Do not allow naked flames or ignition sources to
enter the appliance. When transporting and clean-
ing the appliance ensure that the refrigerant circuit
is not damaged. In the event of damage, make
sure that there are no ignition sources nearby and
keep the room well ventilated.
• Do not stand on the plinth, drawers or doors or
use them to support anything else.
• This appliance can be used by children of 8 years
old and over, and also by persons with restricted
physical, sensory or mental capacity or lack of
experience and knowledge, if they are supervised
or have been instructed on safe use of the appli-
ance and understand the resulting risks. Children
must not be allowed to play with the appliance.
Cleaning and user maintenance must not be carried out by children without supervision.
• Avoid prolonged skin contact with cold surfaces or
Type plate
chilled/frozen food. This could cause pain, numbness and frostbite. In the case of prolonged skin
contact, protective measures should be taken,
e.g. gloves should be worn.
• Do not consume food which has been stored for
Grid shelves
too long, as it could cause food poisoning.
• Do not store explosives or sprays using combustible propellants such as butane, propane, pentane
Adjustable height feet
etc. in the appliance. Electrical components might
cause leaking gas to ignite. You may identify such
Important
Keep all food packed and covered.
6
sprays by the printed contents or a flame symbol.
• Do not use electrical appliances inside the ap-
pliance.
• If you have a lockable appliance, do not keep the
key near the appliance or within reach of children.
• The appliance is designed for use in enclosed
areas. Do not operate the appliance outdoors or
in areas where it is exposed to splash water or
damp conditions.
• Special-purpose lamps (incandescent lamps) in
the appliance serve to illuminate the appliance
interior and are not suited for room illumination.
Climate rating
The climate rating indicates the room temperature at which the appliance may be
operated in order to achieve full refrigeration
performance.
The climate rating is indicated on the type
plate.
The position of the type plate is shown in the section entitled
Description of the appliance.
EN
Noise emissions from the appliance
The noise level while the appliance is operating is below 70 dB(A)
(relative noise level 1 pW).
Electrical connection
Only operate the appliance with alternating current (AC).
The permissible voltage and frequency are indicated on the type
plate. The position of the type plate is shown in the section entitled
Description of the appliance.
The socket must be properly earthed and protected by a fuse.
The tripping current of the fuse must be between 10 A and 16 A.
The socket must not be situated behind the appliance and must be easily accessible.
Do not connect the appliance using an exten-
sion cable or extension socket.
Do not use stand-alone inverters (conversion
of direct current to alternating current/three-
phase current) or energy-saving plugs. Risk
of damage to the electronic control system!
Switching the appliance on and o
You are recommended to clean the interior of the appliance before
switching it on for the rst time (see Cleaning).
Climate rating Room temperature
4 (SN) +10°C to +32°C
4 (N) +16°C to +32°C
4+ (ST) +16°C to +38°C
4+ (SN-ST) +10°C to +38°C
5 (T) +16°C to +43°C
5 (SN-T) +10°C to +43°C
Do not operate the appliance outside the speci-
ed room temperature range.
Setting up
• Avoid positioning the appliance in direct sunlight or near cookers,
radiators and similar sources of heat.
• The floor on which the appliance stands should be horizontal and
level. Compensate for uneven floors with the adjustable feet.
•
Do not cover ventilation openings
or grille.
• Standard EN 378 specifies that the room in
which you install your appliance must have a
volume of 1 m
used in the appliance, so as to avoid the formation of inflammable gas/air mixtures in the room
where the appliance is located in the event of
a leak in the refrigerant circuit. The quantity of
refrigerant used in your appliance is indicated
on the type plate on the inside of the appliance.
3
per 8 g of R 600a refrigerant
Switching the appliance on
Connect the appliance to the mains - the appliance is switched on.
Important
Once the m ains plug has bee n inserted, t he refrigerat ion unit
may not come on until up to 8 minutes later. This is required
to protect the electronic controls.
Switching the appliance o
Pull out the mains plug or set the temperature control to 0.
Important
When the temperature control is
turned to "0", the refrigeration system
is switched o, but the appliance is
not completely disconnected from the
mains. Before cleaning, always disconnect the appliance from the mains.
Remove the plug.
Setting the temperature
Set the temperature inside the
appliance using the tempera-
ture control.
When the control is turned to
"7", the temperature inside the
appliance is at its lowest.
Set the control between "1" and
"7" as required.
7
Cooling
The grid shelves can be moved to accommodate dierent height
bottles or packages.
Important
The maximum load per grid
shelf is 45 kg.
UKU 1805
The ventilation slots on the
inside must not be covered!
Safety lock
The lock in the appliance
door is equipped with a safety
mechanism.
Locking the appliance:
• Insert the key as shown by
arrow 1.
• Turn the key 90°.
To unlock the appliance, the
same procedure must be repeated in the same order.
Interior light
Bulb data: 15 W (never use a
bulb rated at more than 15 W).
The voltage should agree with
the details on the type plate.
Socket: E 14.
Defrosting
The refrigerator compartment defrosts automatically. When operating at the coldest thermostat setting, the interior rear wall may,
however, ice up. In this case, the appliance must be defrosted
manually.
• Switch the appliance off to defrost. Pull out the mains plug!
• Remove the food from the appliance and store in a cool place.
• Leave the door of the appliance open while defrosting. After
defrosting mop up the remaining water and clean the appliance.
Do not use any mechanical devices or other
articial aids for defrosting other than those
recommended by the manufactur er.
Cleaning
Clean the appliance at least twice per year.
Before cleaning always switch o the appliance. Pull out the
mains plug or remove/unscrew the fuse.
• Clean the inside, equipment parts and outer walls with lukewarm
water and a little detergent. Do not use abrasive or acid cleaners
or chemical solvents.
• Ensure that no cleaning water penetrates into the elec trical components or ventilation grille.
• The dust should be removed from the refrigeration unit and heat
exchanger - metal grid at the back of the appliance - once a year.
• Clean the drain hole in the refrigerator compartment with a thin
object, e.g. cotton swab or the like.
• Do not damage or remove the type plate on the inside of the appliance. It is very important for servicing purposes.
Replacing the bulb:
Pull out the mains plug or
remove/unscrew the fuse.
Reach behind the cover, unscrew the bulb and replace.
Temperature display
The temperature display is powered by a battery which is available
from your specialist dealer.
Changing the battery
• Open the battery compartment
using a small screwdriver.
• Replace the battery.
• Close the battery compartment.
If Er or HH appears in the dis-
play, the appliance has a fault.
Consult the customer serv ice
department indicating the fault
number displayed.
Do not use steam cleaners because of the risk
of injury and damage.
Shutting your appliance down
If your appliance is to be shut down for any length of time, switch
it o and disconnect the plug or switch o or unscrew the fuse.
Clean the appliance and leave the door open in order to prevent
unpleasant smells.
The permissible room temperature for storing the appliance
after decommissioning is between -10°C and +50°C.
Storing the appliance outside this temperature range can
damage the appliance and cause it to malfunction.
The appliance complies with the relevant safety regulations and
EC directives 2004/108/EC and 2006/95/EC.
8
Malfunctions
You may be able to rectify the following faults by checking
the possible causes yourself:
• Appliance does not function:
– Is the appliance switched on?
– Is the plug correctly fitted in the mains socket?
– Is the socket fuse intact?
• Loud running noise:
– Is the appliance set up firmly on the floor?
– Does the appliance cause nearby items of furniture or objects to
vibrate? Please note that noises caused by the refrigerant circuit
cannot be avoided.
• The temperature is not low enough:
– Is the temperature setting correct (see Setting the temperature)?
– Have excessive amounts of fresh food been placed in the appli-
ance?
– Does the separately installed thermometer show the correct read-
ing?
– Is the ventilation system working properly?
– Is the appliance set up too close to a heat source?
If none of the above causes
apply and you cannot rectify
the fault yourself, contact the
nearest customer service department stating the type of
appliance ➊, service number
➋ and appliance number ➌ as
indicated on the type plate.
The position of the type plate
is shown in the section entitled
Description of the appliance.
EN
Changing over door hinges
1. Unscrew the hinge bracket.
2. Pull the door out at the bottom
and lift off.
3. Transfer handle and plugs
to the opposite side of the
door.
4. Transfer pin on hinge bracket to the opposite
side.
Appliance dimensions
Installing beneath a worktop
For continuous worktops the
refrigerator‘s tabletop can be
detached. The refrigerator
can then be pushed under the
existing worktop.
• To take off tabletop remove
screws ➊.
• A cross-section of min.
200 cm
worktop for ventilation of the
rear of the appliance.
2
is re quired in the
5. Move the pin at the top to the other side.
6. Transfer cover plate to the opposite
side.
7. Mount door on hinge pin and close.
8. Insert hinge bracket in lower door
mounting and screw into place.
9
Loading...
