Use and Care
Manual
Freezer, built-in
F1051 FI1051
020614 7084310 - 00
The appliance at a glance
Contents |
|
|
1 |
The appliance at a glance............................. |
2 |
1.1 |
Additional benefits............................................ |
2 |
1.2 |
Overview of the appliance and its equipment... |
3 |
1.3 |
Range of appliance use.................................... |
3 |
1.4 |
Conformity........................................................ |
4 |
1.5 |
Energy saving.................................................. |
4 |
2 |
General safety information........................... |
4 |
3 |
Controls and displays................................... |
5 |
3.1 |
Operating and control elements....................... |
5 |
3.2 |
Temperature display........................................ |
5 |
4 |
Start-up........................................................... |
5 |
4.1 |
Transporting the appliance............................... |
5 |
4.2 |
Setting up the appliance................................... |
5 |
4.3 |
Disposal of packaging...................................... |
6 |
4.4 |
Connecting the appliance................................. |
6 |
4.5 |
Switching on the appliance............................... |
7 |
5 |
Operation........................................................ |
7 |
5.1 |
Temperature display unit.................................. |
7 |
5.2 |
Brightness of the temperature display.............. |
7 |
5.3 |
Child-proof lock................................................ |
7 |
5.4 |
Door alarm....................................................... |
8 |
5.5 |
Temperature alarm........................................... |
8 |
5.6 |
Sabbath Mode.................................................. |
8 |
5.7 |
Freezing food................................................... |
9 |
5.8 |
Defrosting food................................................. |
9 |
5.9 |
Setting the temperature.................................... |
9 |
5.10 |
SuperFrost....................................................... |
9 |
5.11 |
Drawers............................................................ |
9 |
5.12 |
Shelves............................................................ |
10 |
5.13 |
VarioSpace...................................................... |
10 |
5.14 |
Info system....................................................... |
10 |
5.15 |
Compartment for herbs and berries.................. |
10 |
5.16 |
IceMaker.......................................................... |
10 |
6 |
Maintenance................................................... |
11 |
6.1 |
Replacing the water filter.................................. |
11 |
6.2 |
Defrosting with NoFrost.................................... |
12 |
6.3 |
Cleaning the appliance..................................... |
12 |
6.4 |
Cleaning the IceMaker..................................... |
12 |
6.5 |
Customer service............................................. |
13 |
6.6 |
Appliance Information...................................... |
13 |
7 |
Troubleshooting............................................ |
13 |
8 |
Putting appliance out of service.................. |
16 |
8.1 |
Vacation Tips................................................... |
16 |
8.2 |
Shut off the water intake................................... |
16 |
8.3 |
Switching off the appliance............................... |
16 |
8.4 |
Decommissioning ............................................ |
16 |
9 |
Disposing of the appliance........................... |
16 |
10 |
Liebherr Warranty Plan................................. |
17 |
Congratulations on the purchase of your new appliance. With this purchase, you have chosen all the advantages of the latest refrigeration technology, guaranteeing you a high-quality appliance with a long life span and high operating safety.
The equipment of your appliance gives you the highest level of day-to-day ease of operation.
Together we are making an active contribution to the conservation of our environment by purchasing this appliance which is manufactured in an environmentally friendly process with the use of recyclable materials.
We hope you enjoy your new appliance.
The manufacturer is constantly working to improve all models. Therefore please understand that we reserve the right to make design, equipment and technical modifications.
To get to know all the benefits of your new appliance, please read the information contained in these instructions carefully.
The instructions apply to several models, so there may be differences. Sections which only apply to certain appliances are indicated with an asterisk (*).
Instructions for action are marked with a
, the results of action are marked with a
.
1 The appliance at a glance
1.1Additional benefits
-CFC free
-Energy-optimized refrigerant circuit
-Energy-efficient insulation
-Low energy consumption
-User-friendly electronic controls
-Active function indicators
-Temperature can be controlled in the appliance independent of ambient conditions according to its climate rating - Temperature can be displayed as °C or °F
-The appliance defrosts automatically - no need to spend time defrosting
-Large freezing capacity
-Shelves can be removed to make space for large items.
-Freezer over-temperature alarm
-Quick-freeze feature for fresh food (SuperFrost)
-Frozen food temperature indicator
-Power failure/“frost-control” display
-All freezer drawers suitable for quick-freeze
-Bright LED interior light
-Door ajar alarm
-Handle grips on all extra-large drawers for easy transport
-Integrated transport grips on appliance housing
-Transport castors at back
-Easy to clean
-Door hinges can be reversed
-Soft stop mechanisms
2 |
* Depending on model and options |
|
The appliance at a glance
-This unit is certified as Sabbath compliant by the Star-K organization thus allowing the appliance to be used during religious holidays. For more information please visit Star-K on the web at www.star-k.org.
1.2 Overview of the appliance and its equipment
Fig. 1 |
(6) |
VarioSpace |
|
(1) |
Rear transport |
||
(2) |
handles |
(7) |
Freezer compartment |
Operating and control |
|||
(3) |
elements |
(8) |
IceMaker |
Interior light |
|||
(4) |
Compartment for |
(9) |
Rating plate |
|
herbs and berries |
|
|
(5) InfoSystem |
(10)Adustable feet, front |
|
transport handles, rear |
|
transport castors |
1.3 Range of appliance use
Normal use
The appliance is only suitable for refrigerating food in a domestic environment or an environment that is similar to a domestic one. This includes, for example, use
-in staff kitchens, bed and breakfast establishments,
-by guests in country homes, hotels, motels and other types of accommodations,
-for catering and similar wholesale services.
Use the appliance only for normal household purposes. All other types of uses are not permitted.
Foreseeable misuse
The following uses are specifically prohibited:
-Storage and cooling of medication, blood plasma, laboratory preparations or similar substances and products in accordance with the CMDCAS and FDA 510(k)
-Use in areas at risk of explosion
Incorrect appliance use can cause damage to the stored products or cause them to spoil.
Climate ratings
The appliance is set to operate within specific ambient temperature limits according to its climate rating. The climate rating for your appliance is printed on the rating plate.
Note
uCompliance with the specified ambient temperatures is required, otherwise the refrigeration performance is reduced.
Climate |
for ambient temperatures |
rating |
|
SN, N |
up to 90 °F (32 °C) |
ST |
up to 101 °F (38 °C) |
T |
up to 110 °F (43 °C) |
The appliance will function properly in ambient temperatures down to 41 °F (5 °C).
|
|
|
* Depending on model and options |
3 |
|
General safety information
1.4 Conformity
The refrigerant circuit has been tested for leaks. The appliance complies with the relevant safety regulations and the directives UL250 and CAN/CSA C22.2 No.63-93.
Instructions for testing institutes:
Tests must be carried out in accordance with the applicable standards and guidelines.
The preparation and testing of the appliance must be carried out taking account of the manufacturer's loading plans and the instructions in the operating manual .
1.5 Energy saving
-Always ensure good ventilation. Do not obstruct ventilation openings or grilles.
-Do not install the appliance in direct sunlight or next to an oven, heater, or similar heat source.
-Energy consumption depends on installation conditions such as the ambient temperature (see 1.3) .
-Avoid opening the appliance door for any longer then neccesary.
-The lower the temperature is set the higher the energy consumption.
-All food stored in the appliance should be well wrapped and covered. This prevents frost buildup.
-Only take food out for as long as necessary so that it does not get too warm.
-Storing hot food: let it cool to room temperature first.
2 General safety information
Read and follow these instructions. They contain safety advice which is important for safe and problem-free installation and operation. Always read and follow the safety advice.
Dangers for the user:
-This appliance can be operated by children 8 years and older as well as by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised or have been instructed in the safe use of the appliance and understand the associated risks. Children must not play with the appliance. Cleaning and user maintenance must not be performed by children unless they are supervised.
-When disconnecting the appliance from the outlet, always take hold of the plug. Do not pull on the cable.
-Disconnect the power plug or switch off the power if a fault occurs.
-Do not damage the mains power line. Do not operate the appliance from a defective mains power line.
-Repairs, work on the appliance and replacement of the power cord should only be carried out by the customer service department.
-The appliance should only be assembled, connected and disposed of in accordance with the instructions.
-Only install, connect and dispose of the appliance in accordance with the instructions.
-Only operate the appliance after it has been installed.
-Please keep the instructions and pass them on to any future owner.
-All repairs to or work on the IceMaker must only be carried out by the customer service department or other specialist engineers trained to do this.
-The manufacturer is not liable for damage arising from incorrect connection to the water supply.
Risk of fire:
-Do not operate the appliance near explosive gases.
-Do not store explosive materials or spray cans with flammable propellants, such as e.g. butane, propane, pentane, etc. in the appliance. You can recognize such spray cans by the printed contents or a flame symbol. Any leaking gasses can be ignited by electrical components.
-Keep burning candles, lamps and other objects with open flames away from the appliance so that they do not set it on fire.
-Alcoholic beverages or other containers holding alcohol must always be tightly sealed for storage purposes. Any leaking alcohol can be ignited by electrical components
Tipover hazard:
-Do not stand or climb on the base, drawers, doors, etc. This applies in particular to children.
Risk of food poisoning:
-Do not consume food that has passed its best before date.
Danger of frostbite, feelings of numbness and pain:
-Avoid continued skin contact with the cold surfaces or chilled/frozen food or adopt protec-
4 |
* Depending on model and options |
|
Controls and displays
tive measures, e. g. use gloves. Do not consume ice cream (especially sherbets) and ice cubes immediately when they are too cold.
Risk of injury and damage:
-Hot steam may lead to injuries. Do not use any electrical heating or steam cleaning equipment, naked flames or defrosting sprays for defrosting
-Do not remove ice with sharp objects
Risk of crushing
-Do not reach into the soft stop mechanism. Fingers may be trapped when the door is closed.
Follow the specific instructions in the other sections:
|
DANGER |
indicates a hazardous situation, |
|
|
which if not avoided, will result in |
|
|
death or serious injury. |
|
WARNING |
indicates a hazardous situation, |
|
|
which if not avoided, could result in |
|
|
death or serious injury. |
|
CAUTION |
indicates a hazardous situation, |
|
|
which if not avoided, will result in |
|
|
minor or moderate injury. |
|
NOTICE |
indicates a hazardous situation, |
|
|
which if not avoided, could result in |
|
|
damage to property. |
|
|
|
|
Note |
indicates useful advice and tips. |
3 Controls and displays
3.1 Operating and control elements
Fig. 2 |
(8) |
On/Off button |
|
(1) |
Up button |
||
(2) |
Down button |
(9) |
SuperFrost button |
(3) |
Menu symbol |
(10)Alarm button |
|
(4)Alarm symbol
(5)Filter symbol (12)Sabbath Mode symbol
(6)IceMaker symbol (13)Child safety symbol
(7)SuperFrost symbol (14)Temperature display(11)Power failure symbol
The exact contact point is between the symbol and its label
3.2 Temperature display
The following is displayed in normal operation: - the highest freezer temperature
The temperature display:is flashing:
-the temperature setting has been changed
-after switch-on the temperature is not yet cold enough
-the temperature has risen by several degrees
Dashes are shown on the display:
- the freezer temperature is above 32 °F (0 °C).
The following displays indicate malfunction. Possible causes and corrective actions: (see Troubleshooting).
-F0 through F9
-FE
-The power failure symbol
flashes.
4Start-up
4.1Transporting the appliance
CAUTION
Risk of injury or damage if incorrectly transported. u Transport the appliance in its packaging.
u Transport the appliance upright.
u Do not move the appliance on your own.
4.2 Setting up the appliance
WARNING
Risk of fire due to moisture!
If live parts or the power cord get wet, this can cause a short circuit.
u The appliance is designed for use in enclosed spaces. Do not operate the appliance in open space or in damp areas or where there is spray.
u Only operate the appliance after it has been installed.
WARNING
Risk of fire due to short circuit.
If the power cable or plug of the appliance or another appliance and the back of the appliance touch each other the power cable or plug will be damaged by the vibrations of the appliance which could lead to a short circuit.
u Install the appliance so that it does not touch any plugs or power cables.
u Do not connect the appliance or other appliances to the sockets on the back of the appliance.
|
|
|
* Depending on model and options |
5 |
|
Start-up
WARNING
Danger of fire and damage!
u Do not place devices that give off heat, e.g. microwaves, toasters, etc. on the appliance.
CAUTION
Risk of personal injury!
u Have two people move this appliance into place.
NOTICE
Risk of damage caused by condensation
Installing the appliance next to any other refrigerator or freezer can cause condensation or damage to the Liebherr appliance.
u Do not install this appliance next to any other refrigerator or freezer except another Liebherr model. Liebherr models are designed to allow side-by-side installation. They are equipped with a heating system to eliminate condensation when refrigerators or freezers are installed side-by-side.
NOTICE
Risk of damage for the finished floor surface!
u Protect the finished floor surface before you uncrate the unit.
Verify that:
q The floor under the appliance is flat and level.
q The floor can support the appliance's weight plus approximately 1200 pounds (544 kg) of food weight.
q The appliance is not placed in direct sunlight or near the stove, range top, radiators and similar heat sources.
q The kitchen cabinet that the appliance is installed in is shimmed to the floor level if the floor heights are not equal.
q Cutout dimensions are accurate.
q Electrical outlet is in correct location.
q The air flow is not restricted. Air flow must be provided for the appliance to operate properly. The factory air vents provide 31 square inches (200 cm2) of air flow per appliance. If you are replacing the air vents with an overlay, the air flow must be the same or greater than the factory air vents.
u Examine the unit and packaging for shipping damage. Contact the carrier immediately if you suspect there is any damage.

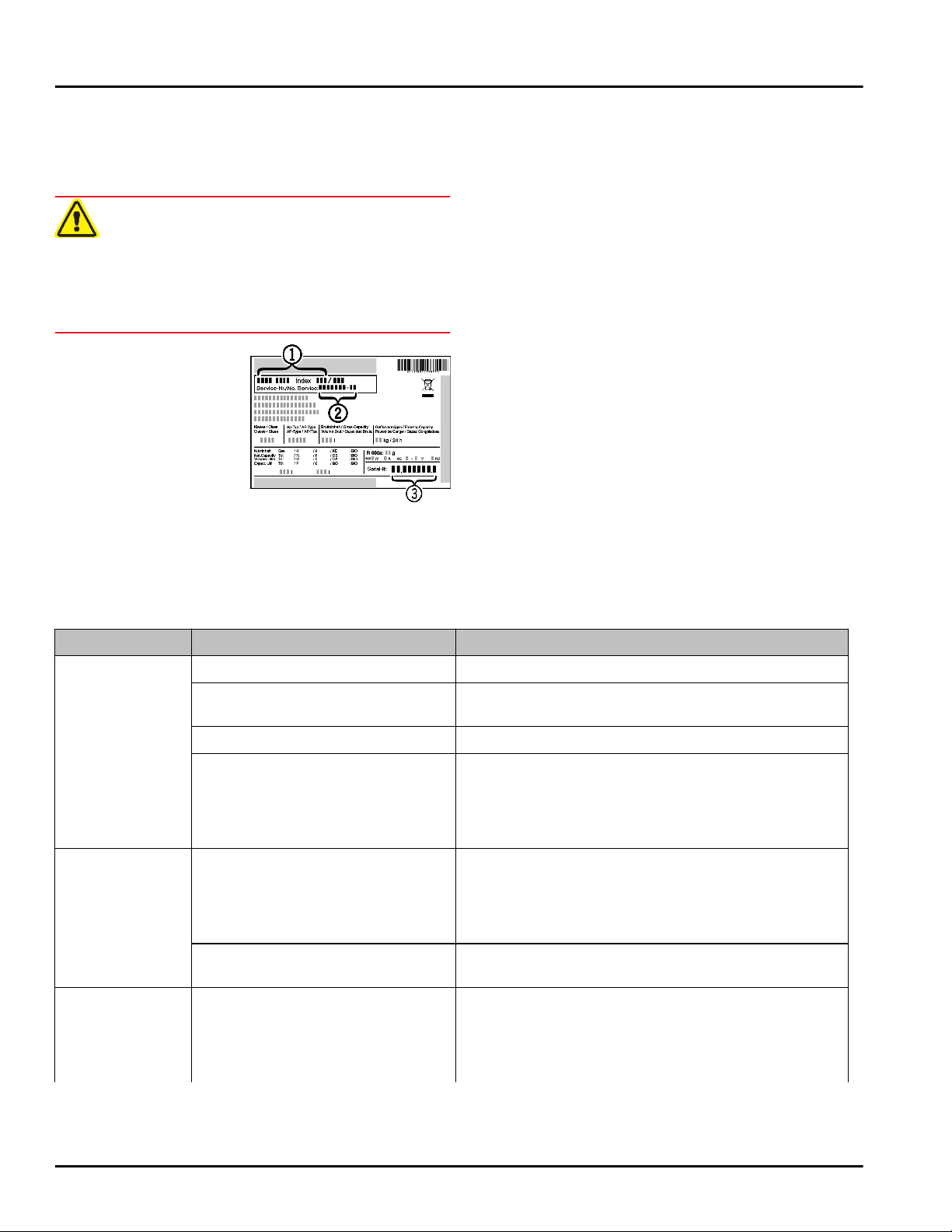

u Note the type (model, number), index, appliance/serial number, date of purchase and where purchased (see 6.6) .
u Remove anything attached to the rear or side walls of appliance that would prevent proper installation or impede proper ventilation.
u Remove the protective film from the outside of the appliance.
Note
u Clean the appliance (see 6.3) .
If the appliance is set up in humid areas, condensation may build on the outside of the appliance.
u Always ensure proper ventilation.
u Assemble appliances according to separate installation instructions.
4.3 Disposal of packaging
WARNING
Danger of suffocation from packaging materials and films! u Do not allow children to play with packaging materials.
The packaging is made from recyclable materials:
-Corrugated card/cardboard
-Parts made of foamed polystyrene
-Films and bags from polyethylene
-Packing bands from polypropylene
-Wood frame nailed together with a polyethylene window*
Take the packaging material to an official collection
point.u
4.4 Connecting the appliance
WARNING
Electrical shock hazard!
u Start-up should only take place once the appliance has been installed according to these instructions.
u Electrically ground appliance. u Do not ground to a gas pipe.
u Check with a qualified electrician if you are not sure the appliance is properly grounded.
u Do not have a fuse in the neutral or grounding circuit. u Do not use an extension cord, power bar or a multiple
socket adapter.
u Do not use a power cord that is frayed or damaged.
WARNING
Electrical shock hazard!
This appliance is equipped with a three-prong (grounding) polarized plug for your protection against possible shock hazards. Electrical Grounding Required.
u Do not remove the round grounding prong from the plug.
u Use only an grounded adapter.
-Wait 1 hour after installation before you plug in the appliance. This allows the refrigerant and system lubrication to reach equilibrium.
-Make sure incoming voltage is the same as the appliance rating. A 110-120 Volt, 60 Hz, 15 Amp electrical supply (20 Amp for side-by-side installations) circuit that is controlled by a circuit breaker or fuse is required.
6 |
* Depending on model and options |
|
Loading...
