PDP(Plasma Display Panel ) Display
1. What is Plasma?
2. What is Plasma Display Panel(PDP)?
3. LG PDP Display(MNT & STB)
4. SVC Precaution

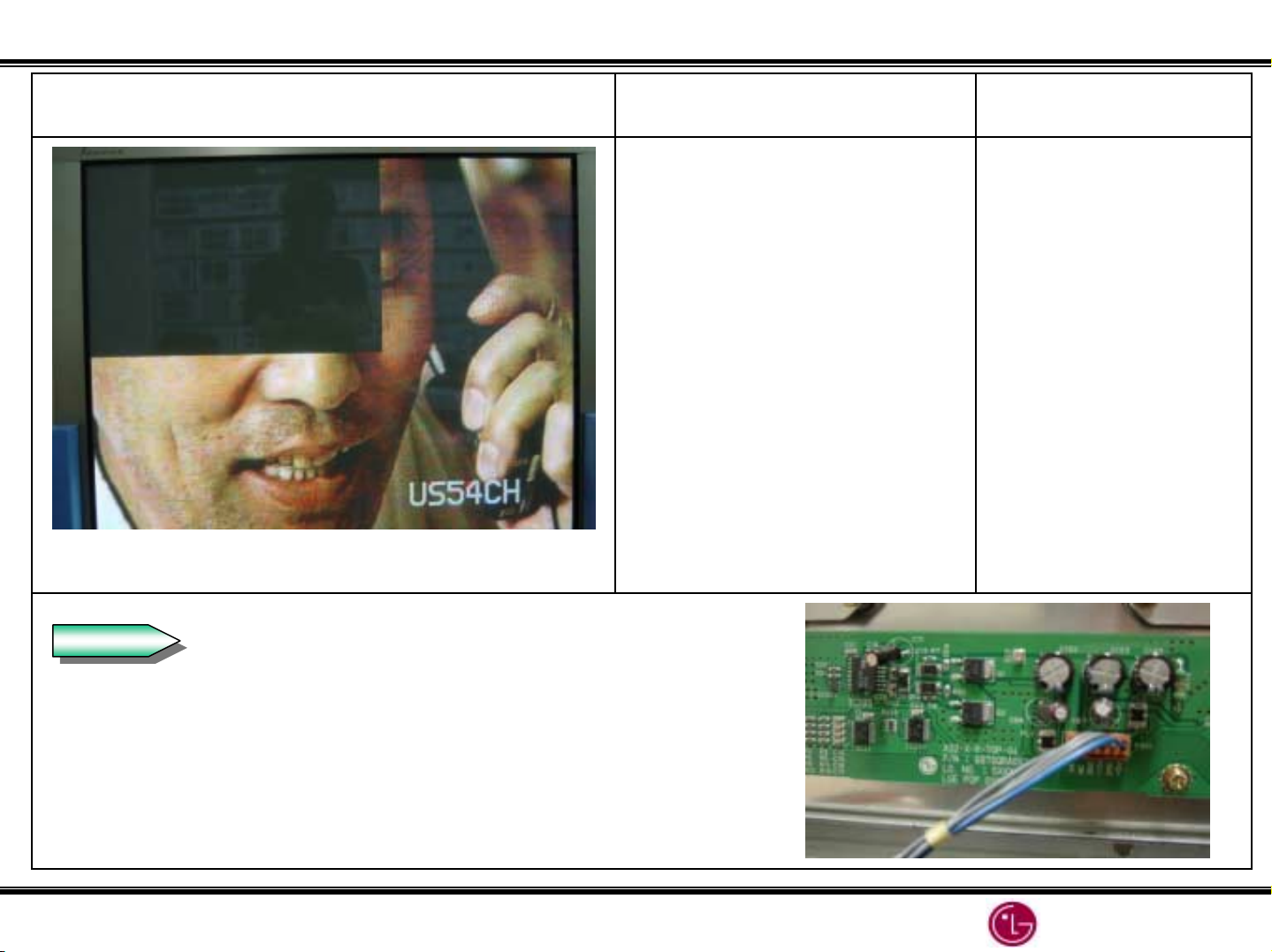

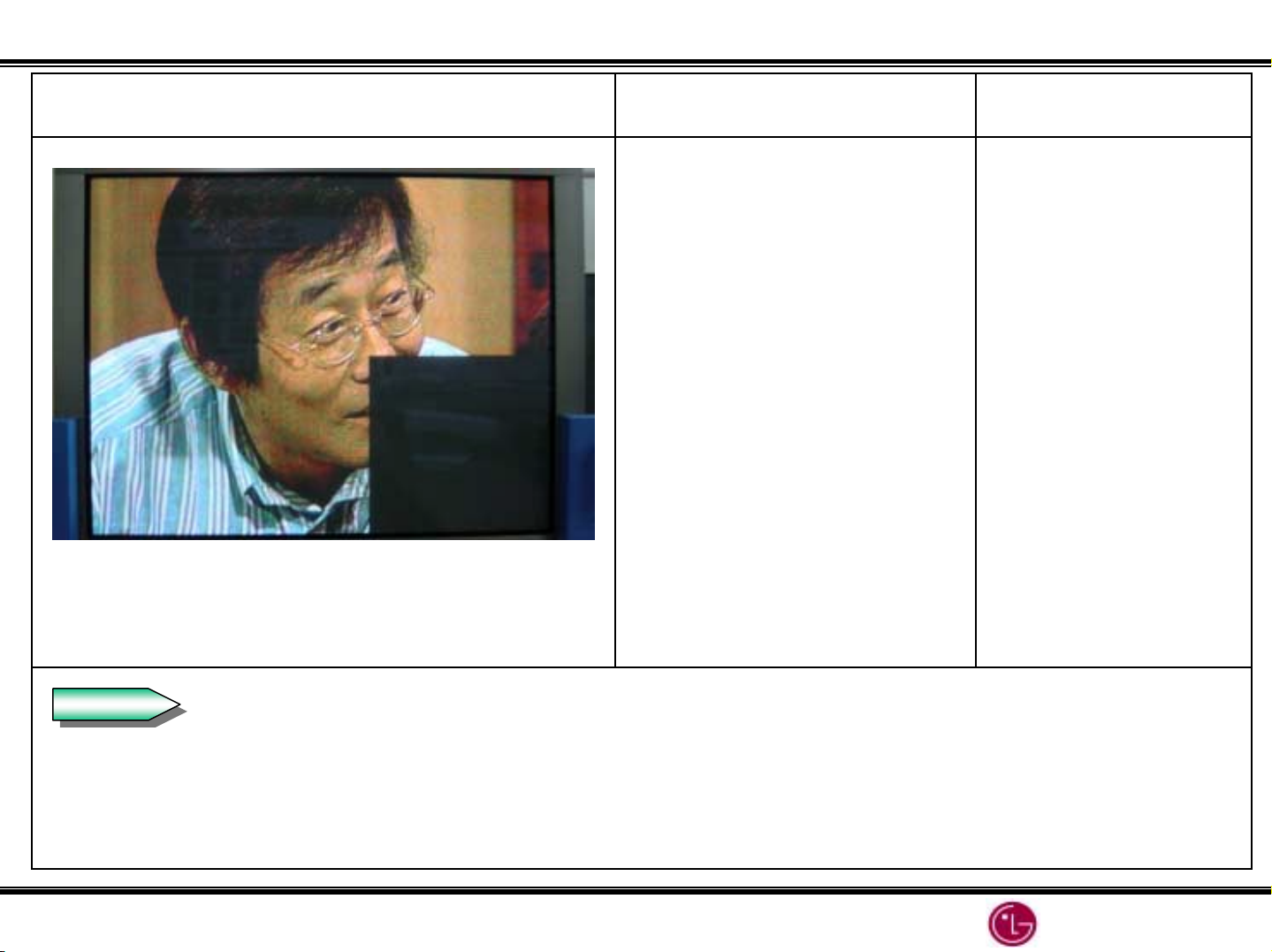

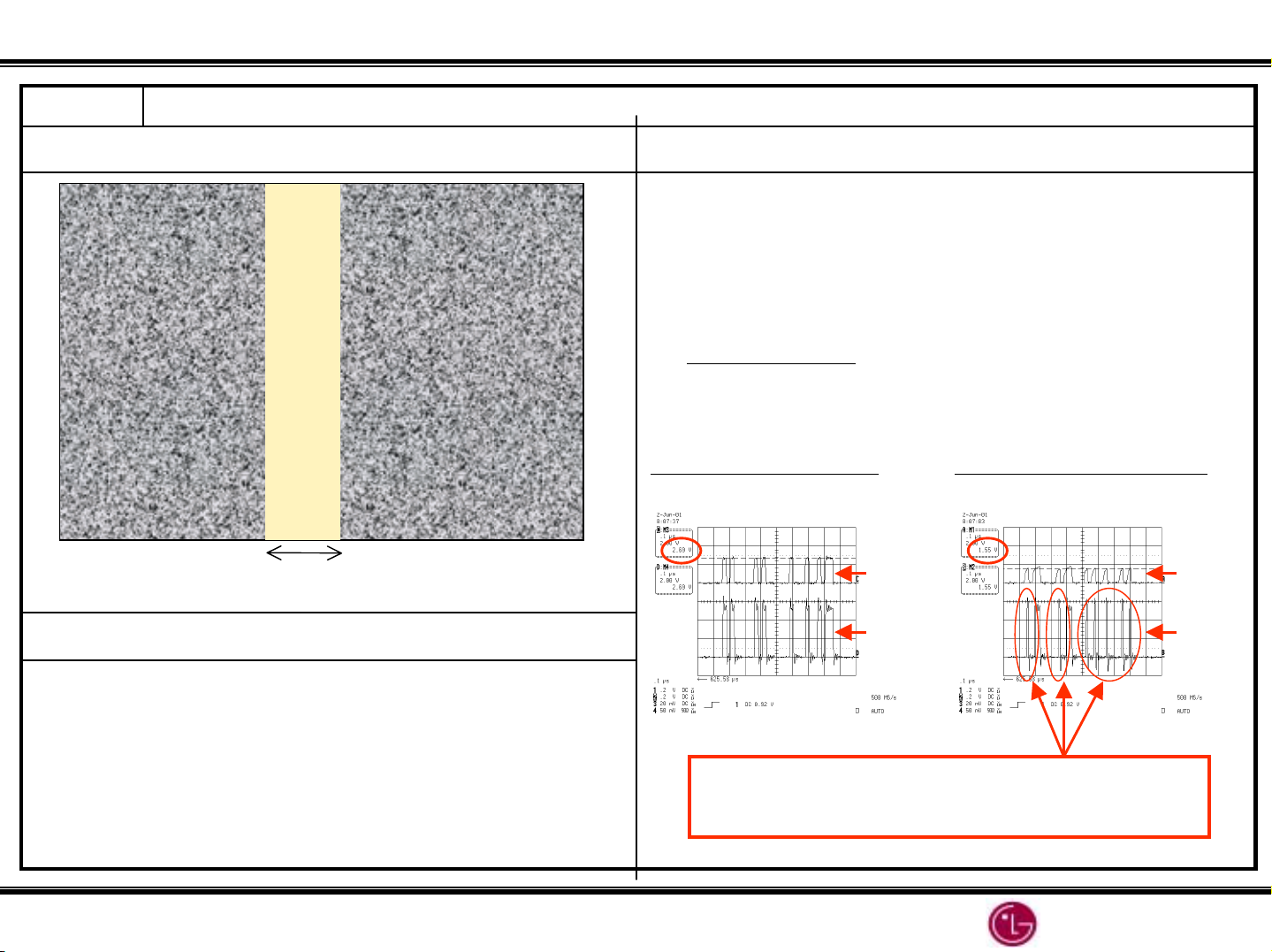

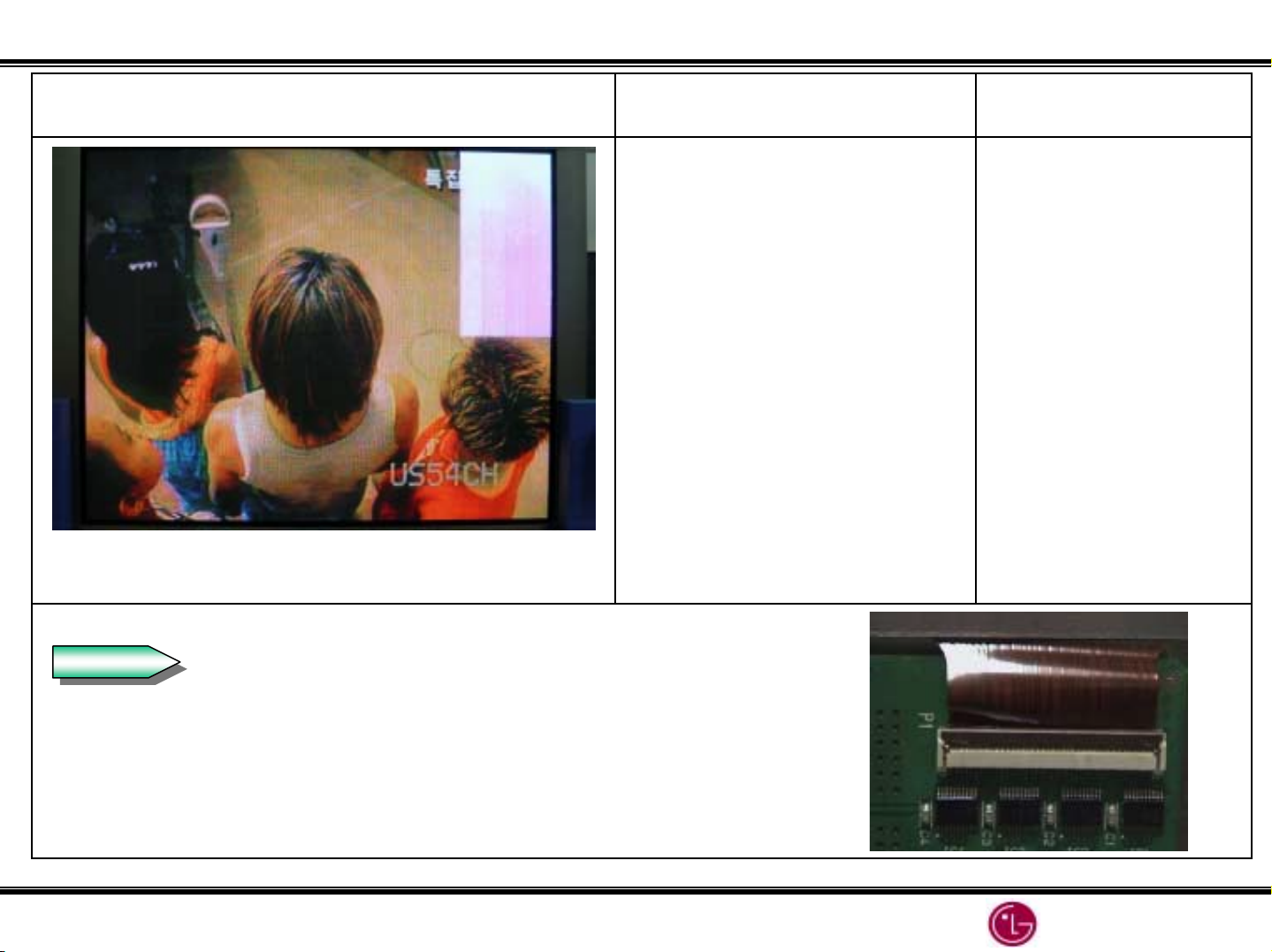

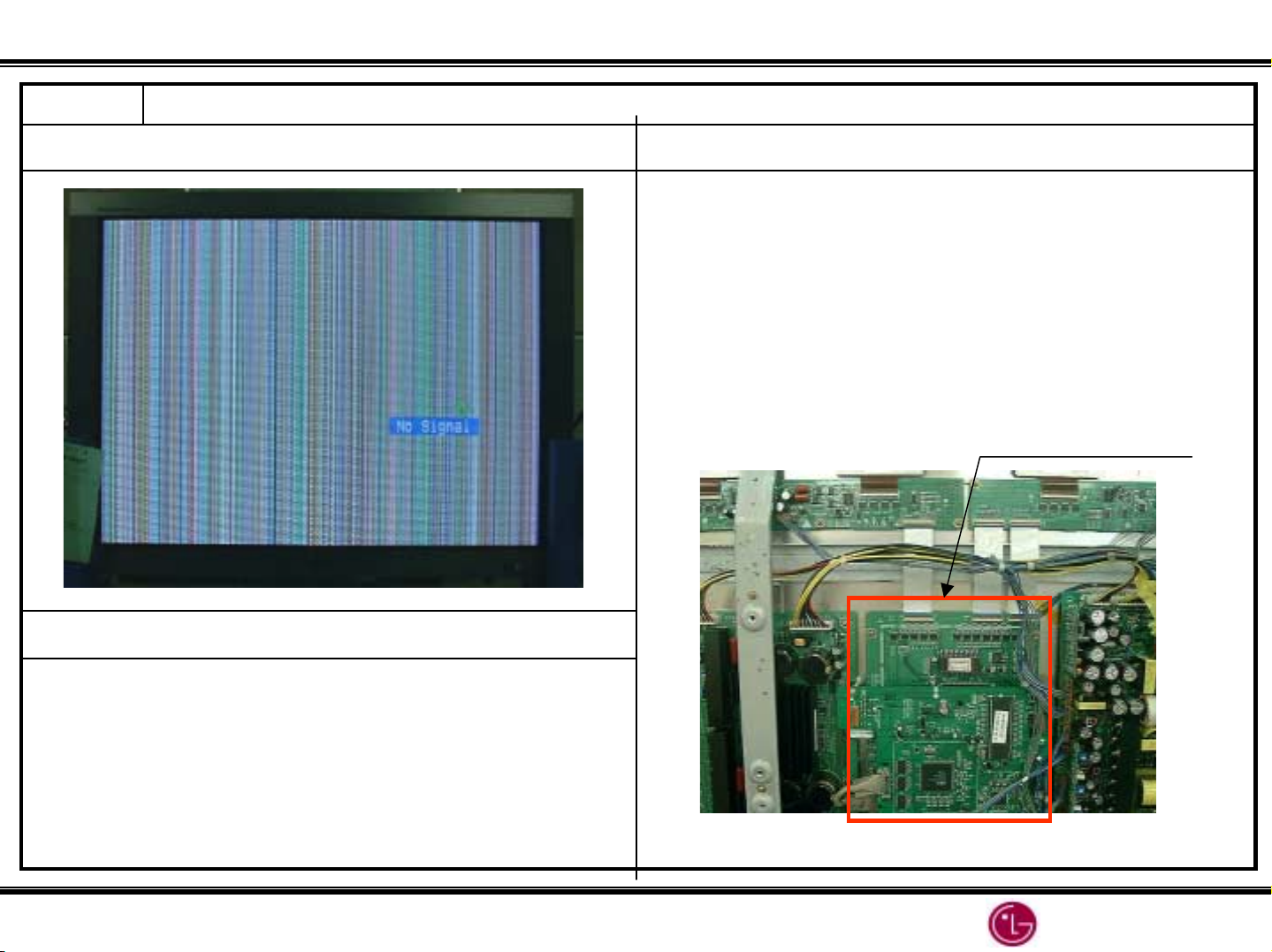

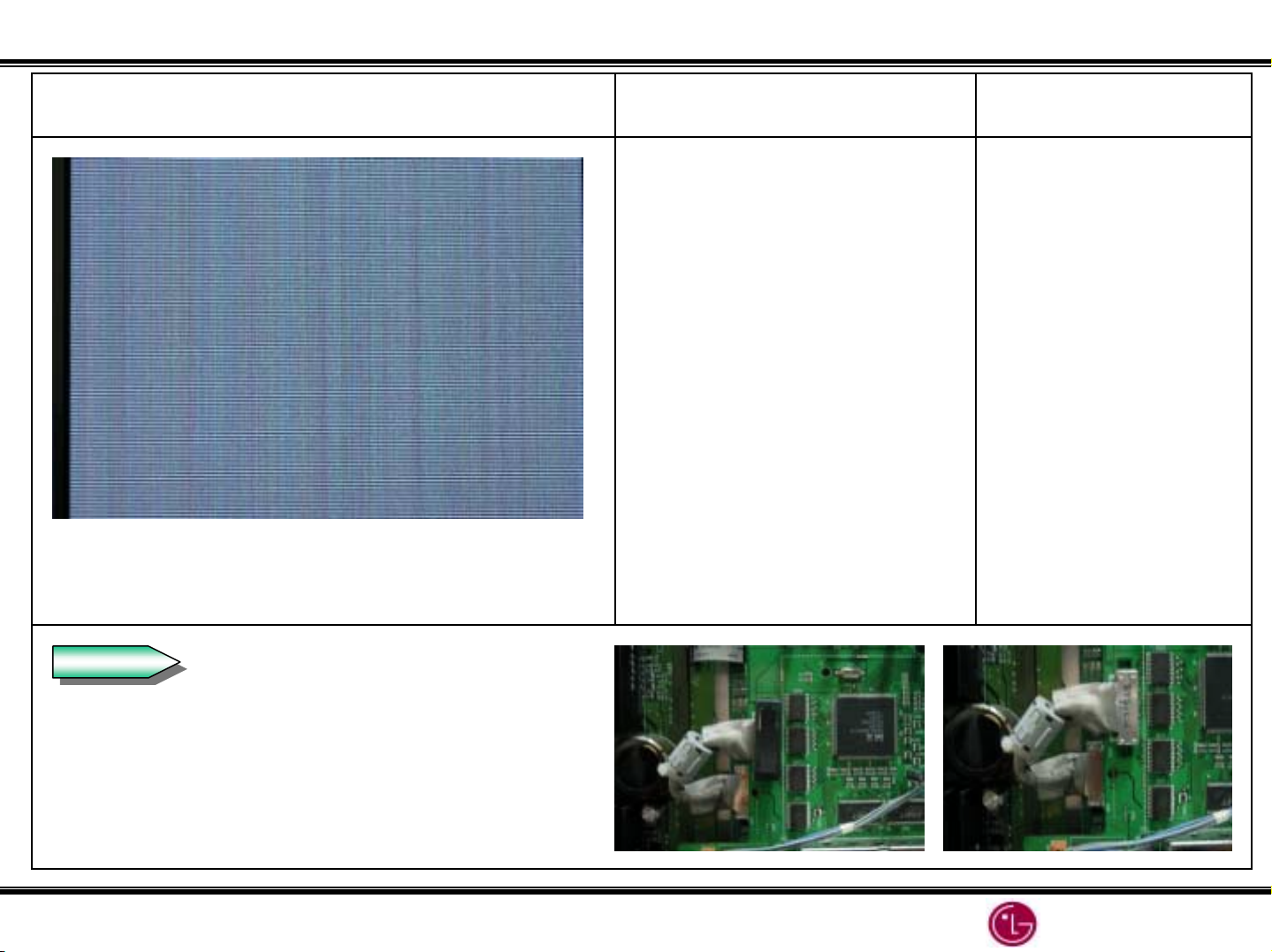

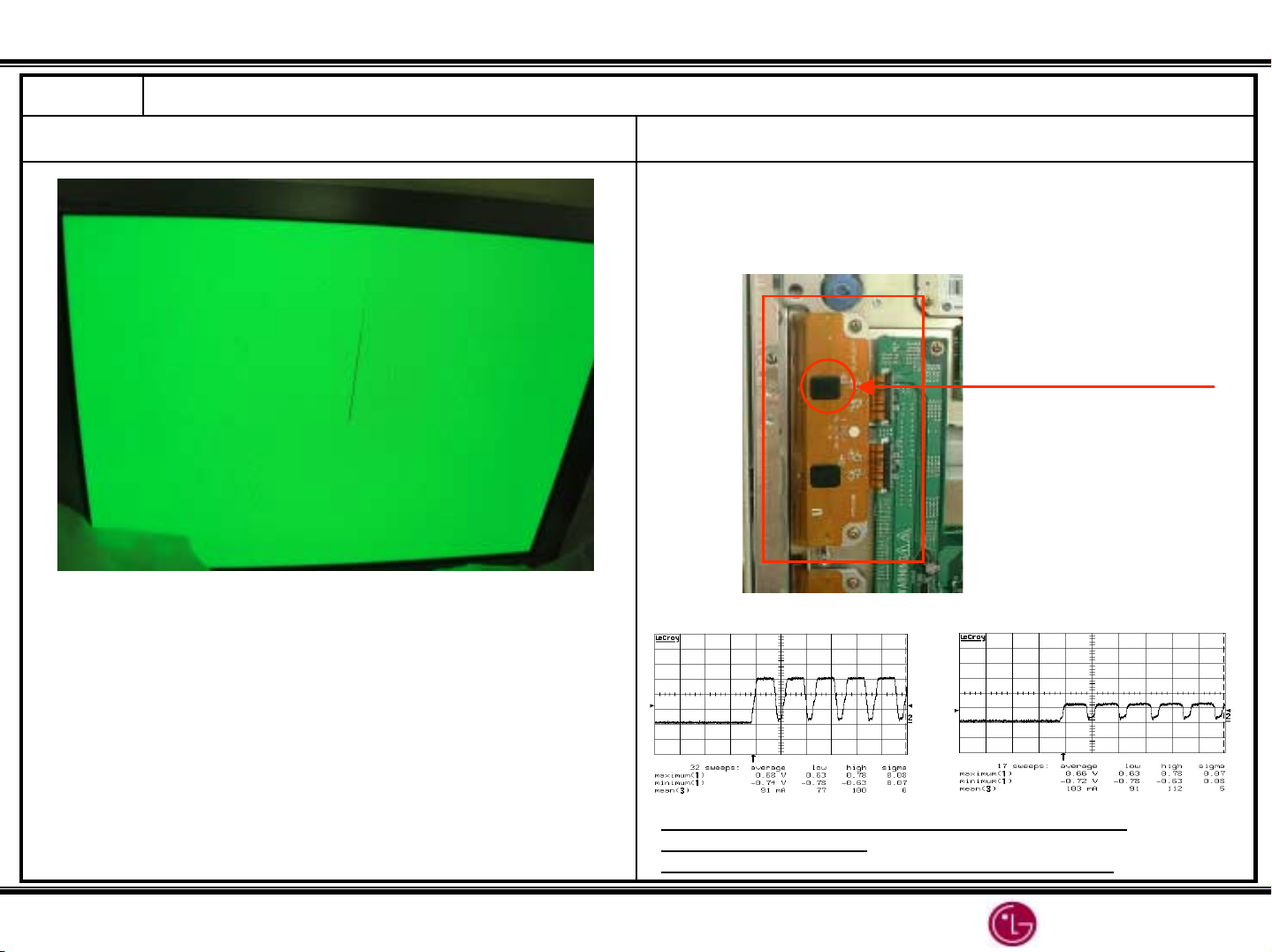

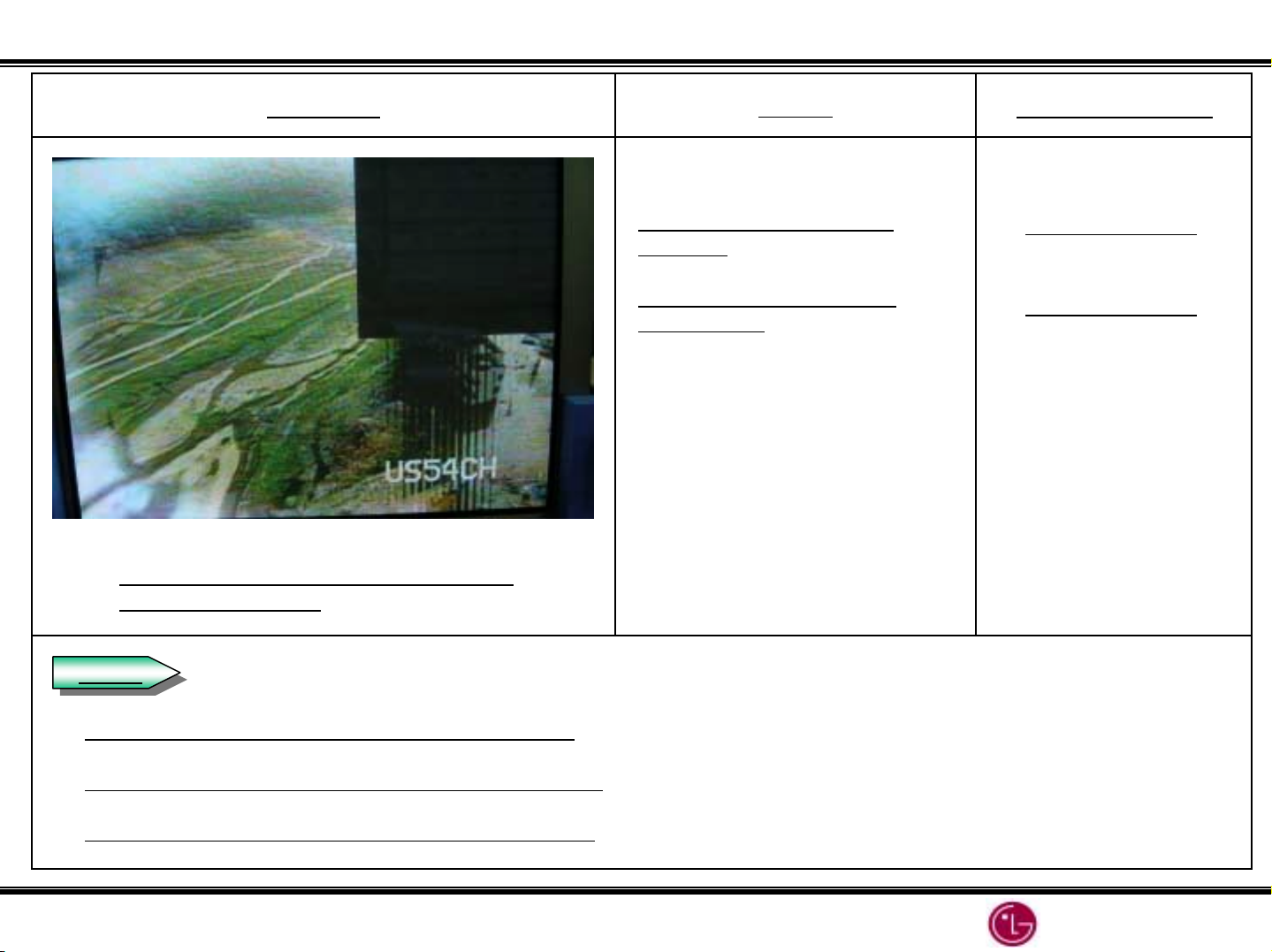

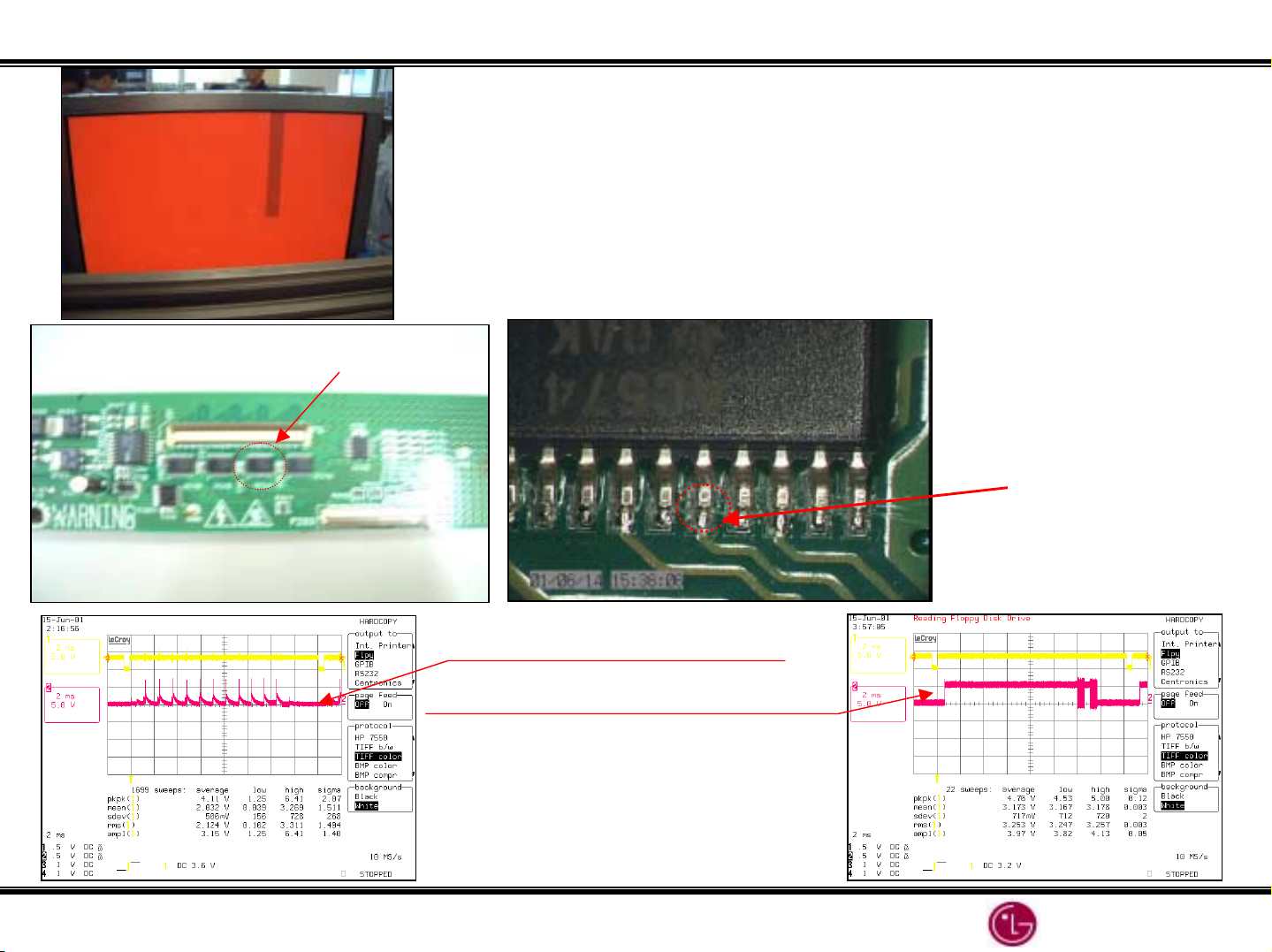

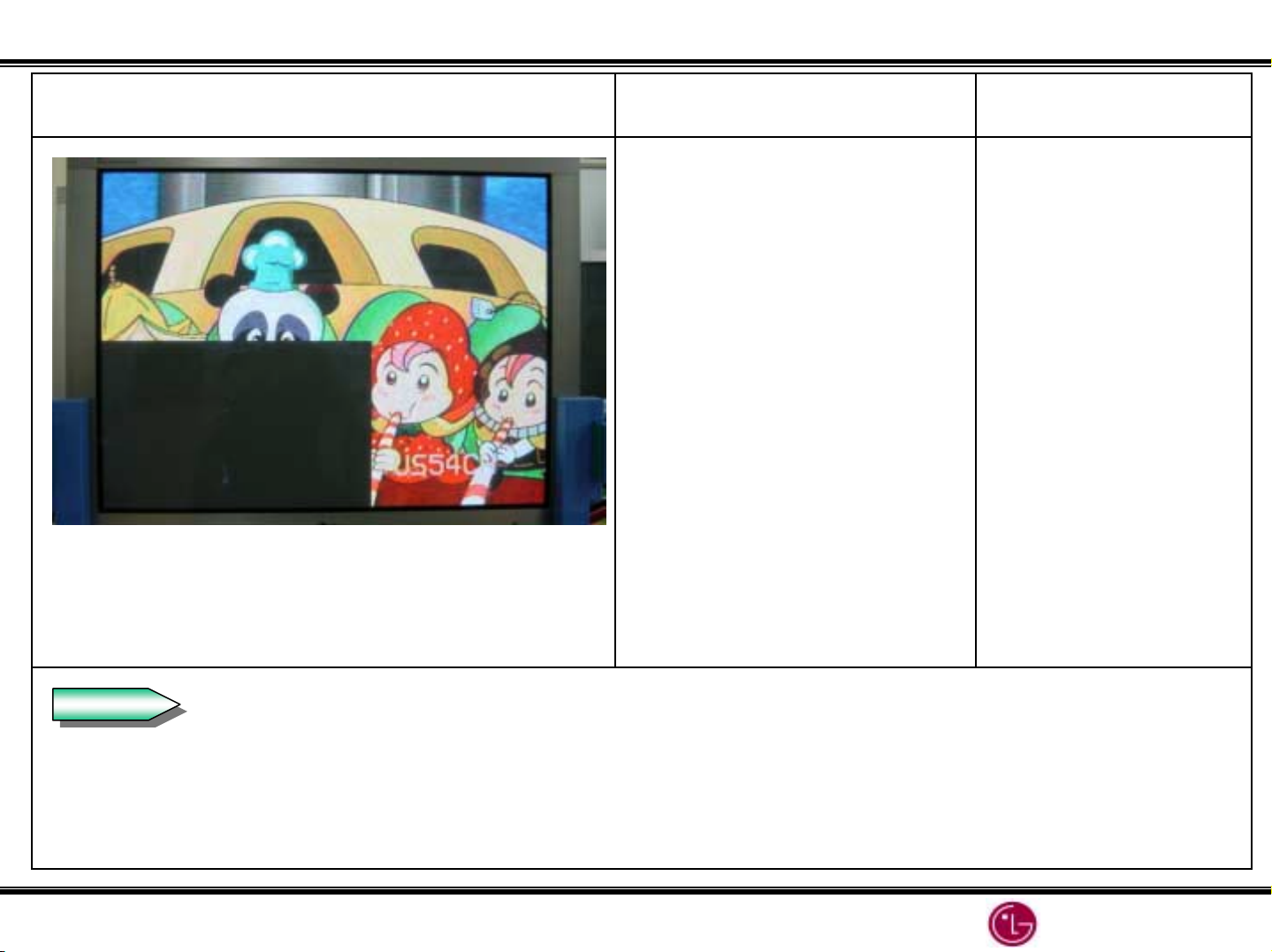

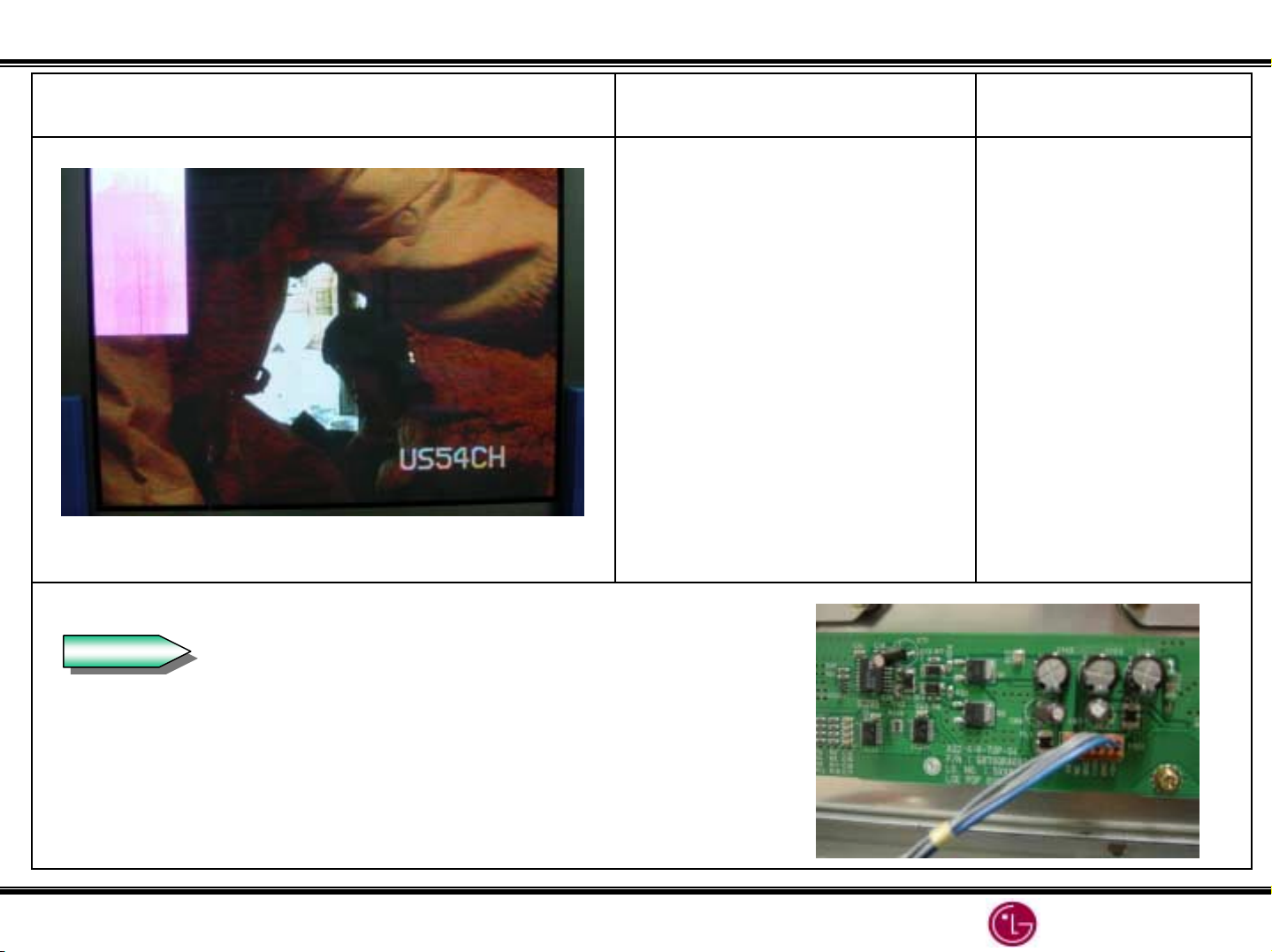

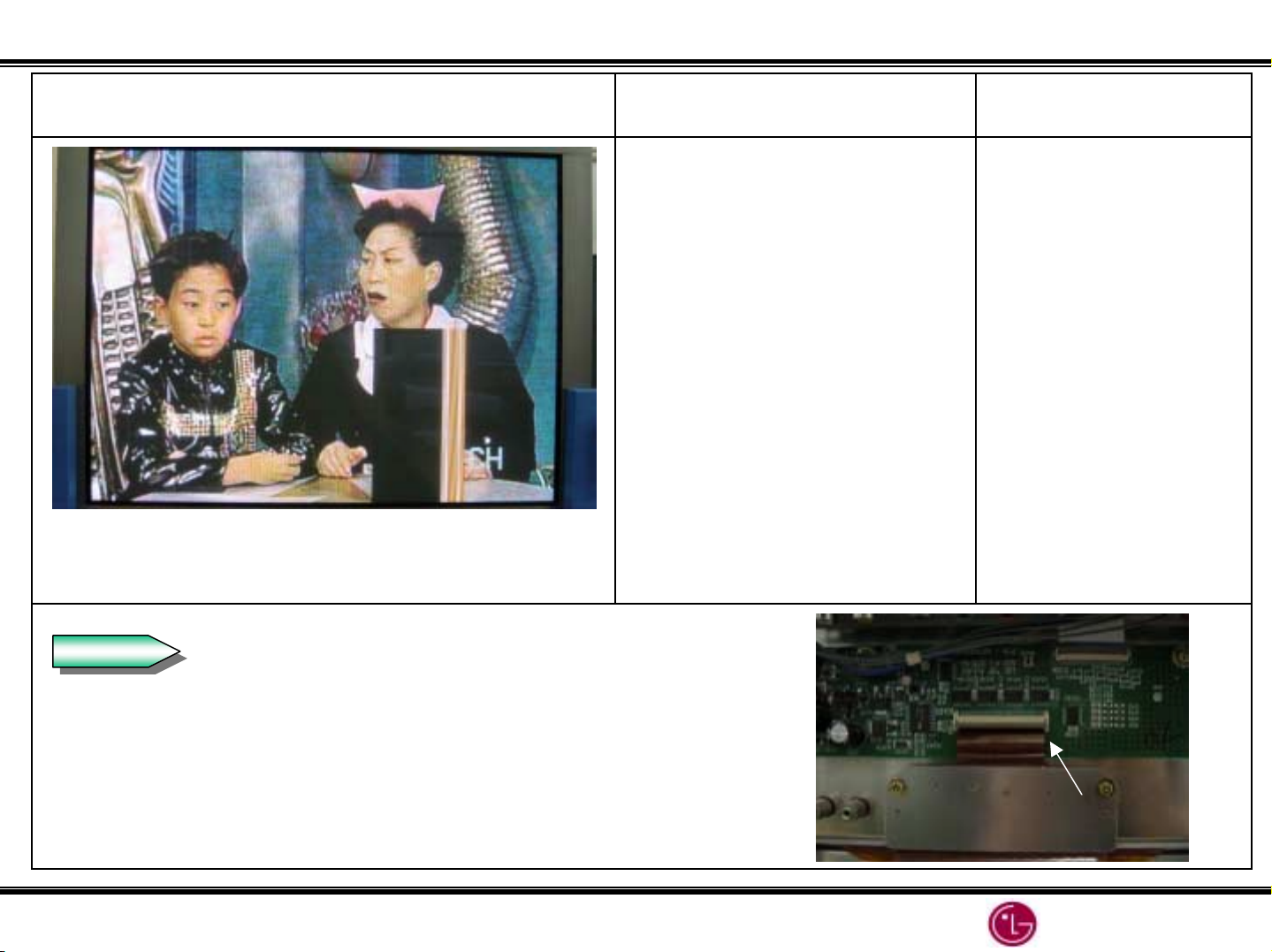

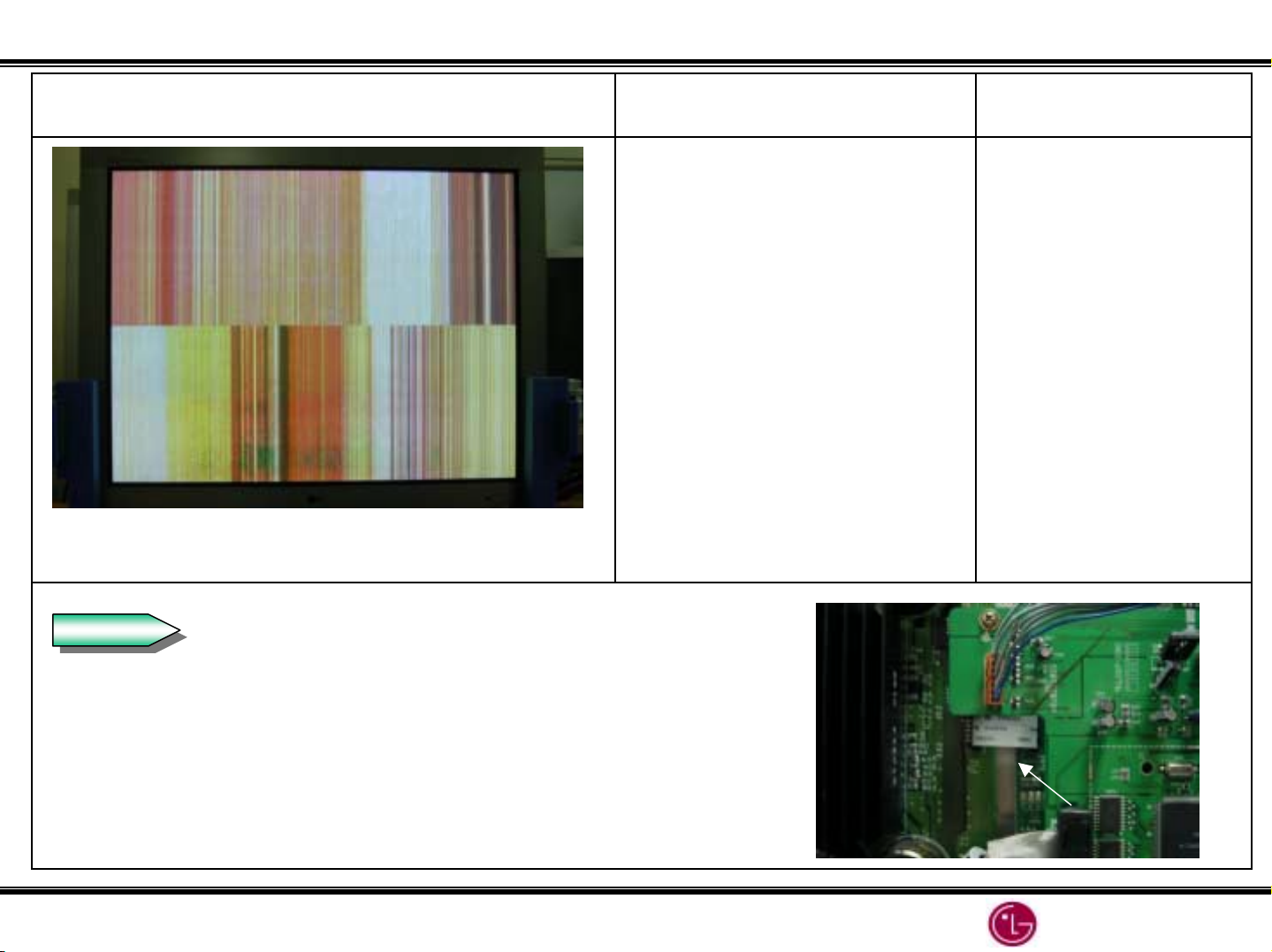

5. One Point SVC Guide
LG Electronics DND Division
What is Plasma
1.
Plasma ?
Plasma ?
Plasma is by far the most common fo rm of matter.
Plasma in the stars and in the tenuous space between them makes up over 99% of the
visible universe and perhaps most of that which is not visible.
Plasma consists of a collection of free-moving electrons and ions - atoms that have lost
electrons.
Energy is needed to strip electrons from atoms to make plasma. The energy can be of
various origins:thermal, electrical, or light (ultraviolet light or intense visible light from a laser).
With insufficient sustaining power, plasmas recombine into neutral gas.
?
Solid
Solid
Plasma can be accelerated and steered by electric and magnetic fields which allows
▶
▶
it to be controlled and applied. Plasma research is yielding a greater understanding of
the universe.
It also provides many practical uses: new manufacturing techniques, consumer products,
and the prospect of abundant energy.
Ex.) Lightning, Aurora, Nebula, Flames, Neon Sign, Solar core ……..
Ex.) Lightning, Aurora, Nebula, Flames, Neon Sign, Solar core
TOP in Digital
⇒
⇒
Liquid
⇒⇒
⇒
⇒
Liquid
⇒⇒
⇒
⇒
⇒⇒
⇒
⇒
⇒⇒
Gas
Gas
⇒
⇒
⇒⇒
⇒
⇒
⇒⇒
Ion, Electron : The 4th State of Matter
Ion, Electron : The 4th State of Matter
2
LG Electronics
Plasma ?
Plasma ?
Plasma --
Plasma
The 4th State of Matter
The 4th State of Matter
TOP in Digital
3
LG Electronics
2. What is Plasma Display Panel(PDP)?
(1) How does it work?
(2) The Structure and mechanism of PDP
(3) Flow chart of a PDP fabrication
(4) Advantage of PDP Display
(5) Comparison of Display Devices
(6) Display Product Segments
(7) Usage of PDP Display
TOP in Digital
4
LG Electronics
2.What is Plasma Display Panel(PDP)?
Plasma display panel is the latest display technology and the best way to achieve flat panel displays with
excellent image quality and large screen size that is easily viewable in any environment.
PDP is an array of cells, know n as pixels, which ar e composed of 3 sub-pixels, corresponding to the colors
Red, Green and B lue. Gas in a pl asma state is used to react with phosphors in eac h sub-pixel to produce
colored light (red, green or blue). These phosphors are the same types used in Cathode Ray Tube(CRT)
devices such as televisions and standard computer monitors. You get the rich, dynamic colors that you expect.
Each sub-pixel is individually controlled by advanced electronics to produce over 16 million different colors.
All of this means that you get perfect images that are easily viewable in a display that is less than 6 inches
thick.
Sustain(Z) Electrode
Scan(Y) Electrode
(1) How does it work?
Gas Discharge
TOP in Digital
YUV Genera te
(MgO)
Visible Illuminate
Display
5
LG Electronics
(2) The structure and mechanism of Panel
< Upper Panel > < Lower Panel >
ITO
Electrode
(MgO)
Protection
Fluorescent
(R,G,B)
ITO Electrode
Barrier Rib
BUS
Electrode
W/B
Dielectric
Electrode
Visible Light
Plasma
Plasma
UV light
Fluorescent
Bus Electrode
Barrier Rib
TOP in Digital
Address Electrode
6
Glass
LG Electronics
(3) Flow chart of a PDP fabrication
Front Glass
Sustain Electrode
Bus Electrode
Dielectric Layer
Protection Layer
(ITO)
(Ag,Cu,
Au)
(PbO)
(MgO)
Sealing
Rear Glass
Address
Electrode
Dielectric Layer
White Back
(Screen Printing)
Barrier Lib
(Sand Blasting)
Phosphor layer
(Ag, Cu)
(PbO)
(130㎛㎛㎛㎛)
(R, G, B)
TOP in Digital
Exhausting &
Filling Gas
Aging
PDP Panel
(Xe+He/Ne/Ar)
7
LG Electronics
(4) Advantages of PDP Display
TOP in Digital
8
LG Electronics
(5) Comparison of Display devices
Rear
Projection
TOP in Digital
9
LG Electronics
(6) Display Market Segments
PDA/Car Nav.
Potable TV
EL
Notebook
PC
FED
LCD
PC Monitor / TV
CRT
Public
Screen
PDP
Projection
(Rear CRT/LCD)
Jumbo
Screen
Projector
* FED : Field Emission Display
** EL : Organic Electro Luminescent Diode
TOP in Digital
10” 20” 30” 40” 50” 60” 70”
10
LG Electronics
(7) Usage of PDP Display
=> Home Theatre, A digital “poster” for the showroom, Visual guide or digital art display, Information
display in reception areas, Business presentations, Easy-to-see monitor for fitness club
Home Theatre
Commercial Shop Public Display
TOP in Digital
Information Board Conference Room
Sports Center
11
LG Electronics
3. LG PDP Display(TV & MNT)
Interface between MP-40PA10 PDP Monitor and other AV machines
MN-40PA10 & RN-BA10(Korea/USA)
RGB-PC input(VGA,SVGA)
RGB-DTV(480P/720P/1080i)

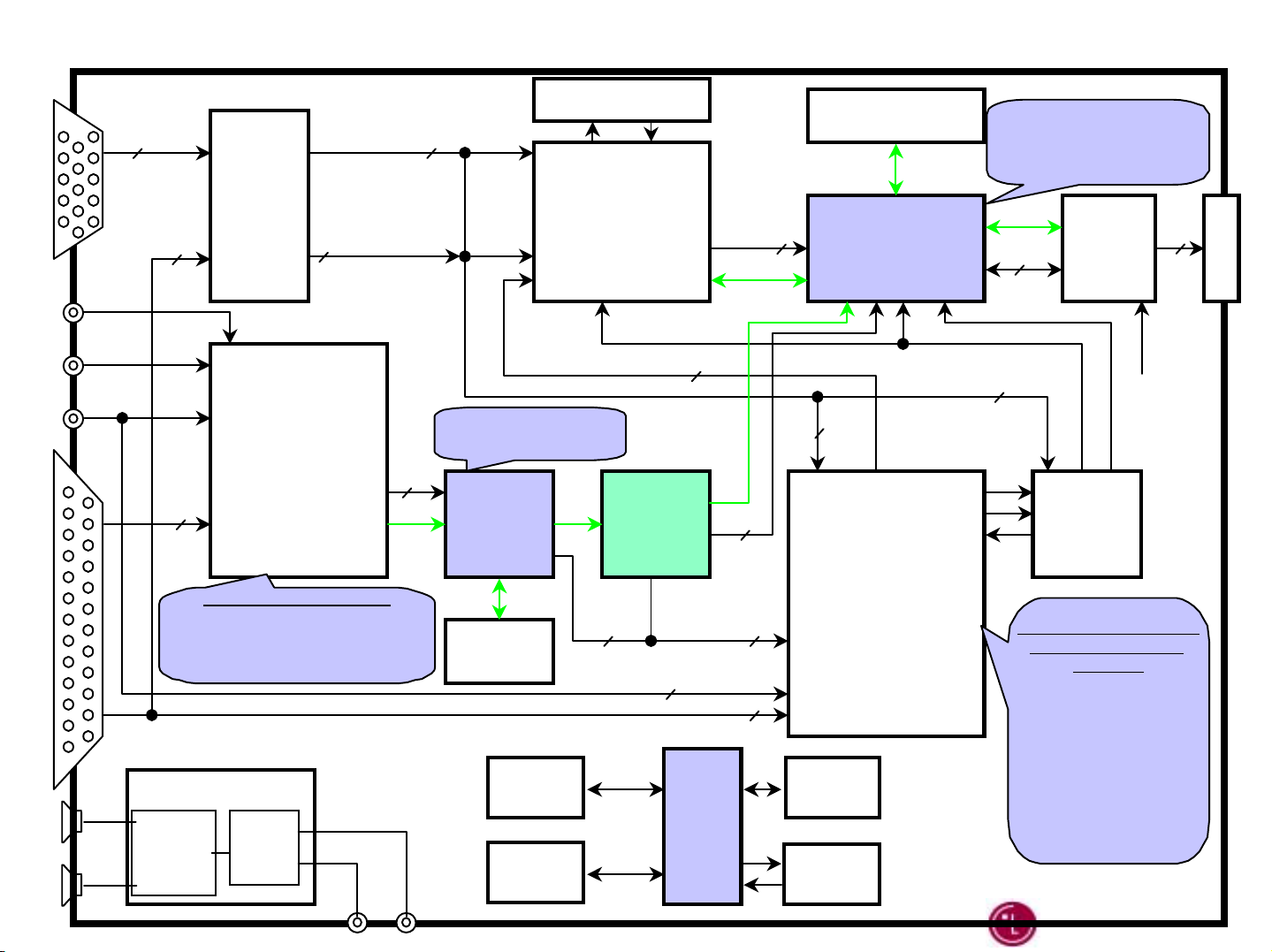

(1) PDP Display System Structure(1)
External Input
(Right-Audio Left-Video
Component Audio
TOP in Digital
Audio Input
Right - Left
RGB-PC/DTV
Y, PB, P
DVD ( 480i / 480P )
R
COMPONENT ( 480i /480P/720P/1080i )
DVD / DTV INPUT
Composite
Video
(Input output)
12
Set Top Box ( HD STB )
LG Electronics
MN-40PA10 (PDP) connection
MN-40PA10 ＋＋＋＋ RN-BA10(Analog STB)
RGB-PC input
(VGA, SVGA)
PC
RGB-DTV input
(480P/720P/1080i)
RGB INPUT/CONTROL
Audio OUTPUT Right/Left
25Pin D-Sub.
Output
(Right-Audio,Left-Video)
S Video input
TOP in Digital
ANT IN
RGB-PC
/ DTV output
COMPONENT 2
( 480P/720P
1080i )
DVD/DTV INPUT
Component 1
( 480i input )
input1,2
(R-voi ce, L-image)
13
Set Top Box ( HD STB )
DVD
VCR
LG Electronics
(2) Accessories(Option Items)
Wall Mount(Fix) (AP-40WA10) Wall Mount(Tilt)(AP-40WA20M) Desk Top Stand(AP-40DA 10)
Floor Stand(AP-40FA10)
* There are Ceiling, Pole & Rack type as well as Above accessories(Refer to Catalogue)
TOP in Digital
Floor Stand(Moving)(AP-40FA20M)
14
SPEAKER(AP-40SA10)
LG Electronics
Description Model Name
Description
Model Name
PLASMA Monito r
Desktop Stand
Wall Mounting
Bracket
Tilt
Wall Mounting
Bracket
MN-40PA10
AP-40DA10
AP-40WA10
AP-40WA20M
Ceiling
Mounting
Bracket
Speaker
Speaker Stand
Floor Type
Speaker Stand
AP-40CA10
AP-40SA10
AP-40SA10D
AP-40SA10F
TOP in Digital
Floor Type
Stand
AP-40FA10
15
PDP Tuner
RN-BA10
LG Electronics
(3) External Connection Terminals
Terminal
RGB IN/Control
External SPK
AC Input
1.40”/42”
R L
2. 60”
External Input
A Video
Cord Length
3000 mm
5000 mm
2500 mm
(+) (-) (+) (-)
R
Ext. SPK(8Ω)
Y Cb/Pb Cr/Pr
DVD In/DTV In2
L
R L
Audio IN
RGB In/Control
PC In/DTV In 1
(RGB/HV)
PC In/DTV In 1
(RGB/HV)
R L
Audio Input
RGB In/Control
A Video
R L
External Input
S Video
Y Cb/Pb Cr/Pr
DVD In/DTV In 2
(+) (-) (+) (-)
R
Ext. SPK(8Ω)
L
AC Input
AC Input
TOP in Digital
16
LG Electronics
(4) Fixing Points
4-1)MP-40PA10(40” PDP)
★
★1
★★
★
★3
★★
★
★4
★★
Wall Mount Fixing Points
- Fixing Points : Fix with M5 screws
(★★★★3,4,5,6,7,8 ; 6 points)
- SPK Fixing Points : Fix with 3 tapping screws
(★★★★1,2,9,10 (2 points each); 8 Points)
★
★9
★★
★
★6
★★
★
★7
★★
★
★2
★★
TOP in Digital
★
★5
★★
D/T,F/S Fixing Points
17
★
★8
★★
★
★10
★★
LG Electronics
4-2)MN-60PZ10(60” PDP)
★
★1
★★
★
★2
★★
★
★7
★★
★
★8
★★
★
★9
★★
★
★10
★★
Pre-Fixing Point
Fixing Points
★
★12
★★
★
★13
★★
★
★14
★★
★
★15
★★
- Fix with M8 Screw
- Total 16 fixing points
(★ ; Wall Mount Holder or
FLOOR STAND Fixing)
- ★1,★3 ★4,★6 : For SPK
★
★4
★★
★
★5
★★
★
★3
★★
TOP in Digital
★
★11
★★
D/T,F/S Fixing Points
18
★
★16
★★
★
★6
★★
LG Electronics
5-1)MONITOR PART
9
8
7
10
(5) EXPLODE VIEW
6
1
5
4
3
2
1
2
3
4
5
6
7
8
9
10
Cabinet
Filter
Supporter,Filter
Module Assy
Line Filter
PCB ASSY, VSC
PCB ASSY, POWER 3501V00027E
Supporter,Vertical
Back Cover Assy
Plate, Rear A/V
NAMENO.
Part Number
3091V00288C
3790V00266B
6348Q-A002A
3501V00028A
6871VMM602B
4980V00164B/C
3809V00212C
3301V00005A
TOP in Digital
19
LG Electronics

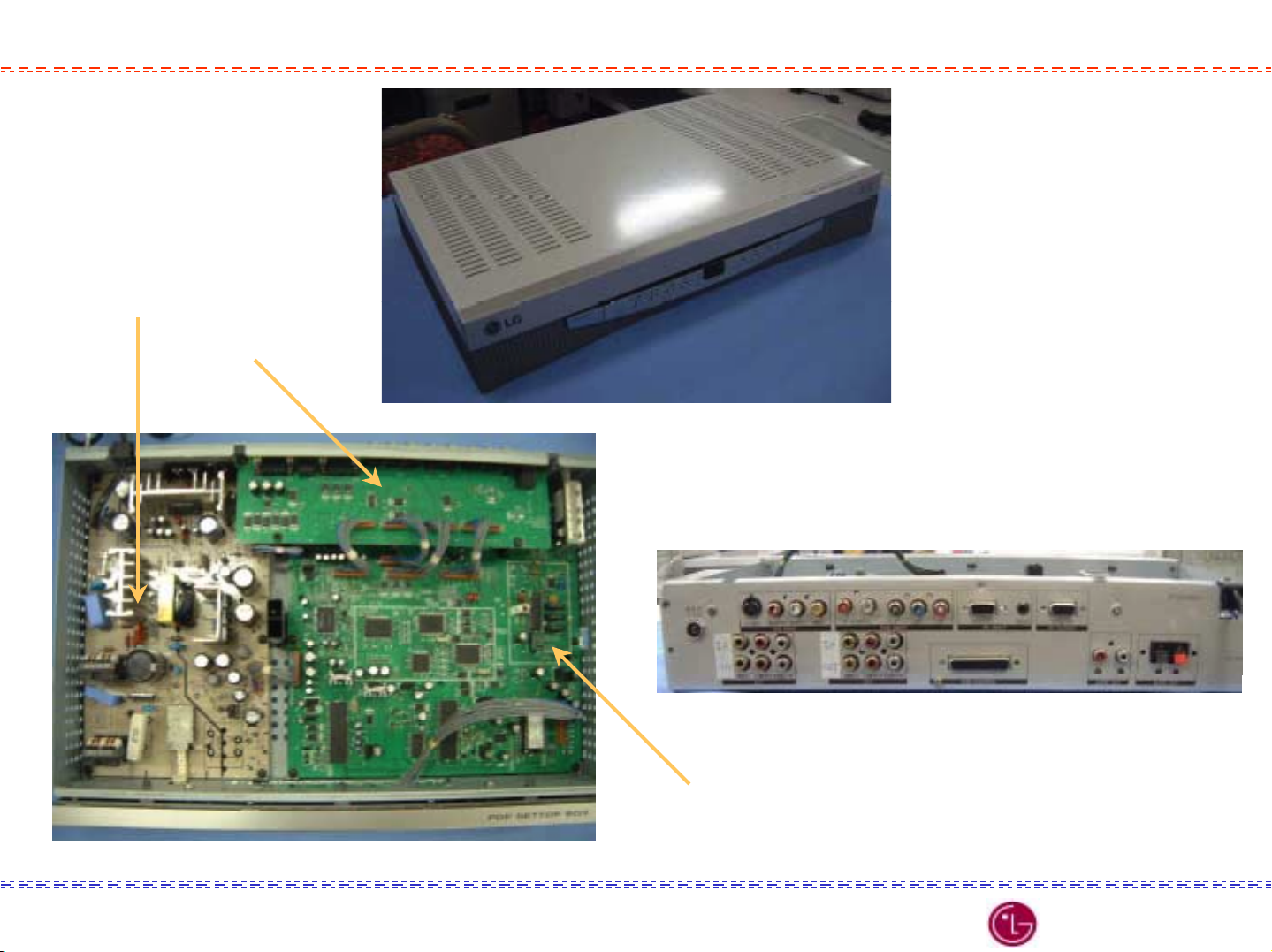

5-2)SET TOP BOX ASSY
45
3
1
2
NO.
1
2
3
4
5
NAME Material
Panel,Control ABS
Panel, Front HIPS
Case, Bottom SECC 1.0t
Case, Rear SECC 1.0t
Case, Top SECC 1.0t
Part Number
3720V00080B
3720V00079A
3110V00101B
3110V00111C
3110V00102A
TOP in Digital
20
LG Electronics

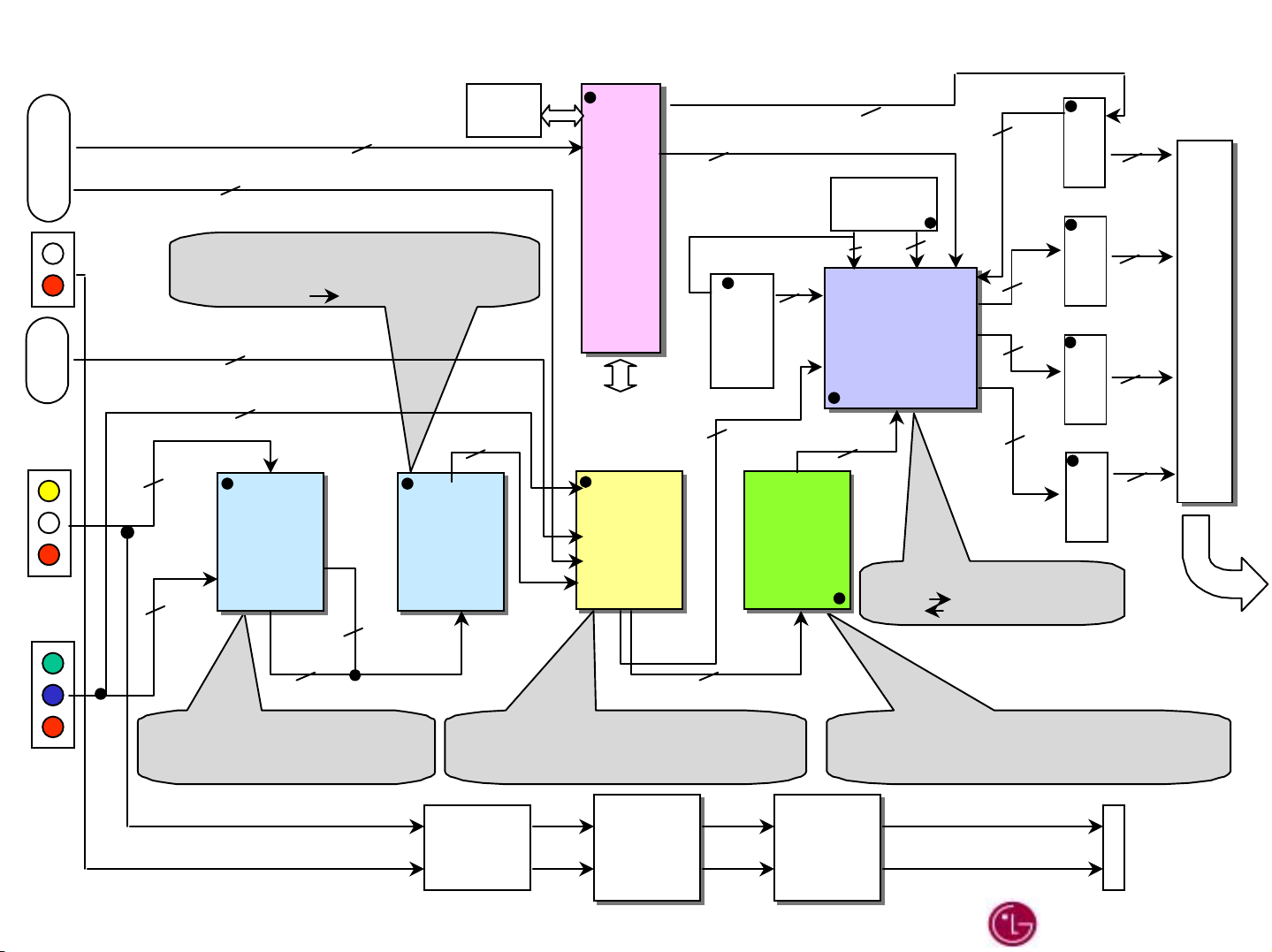

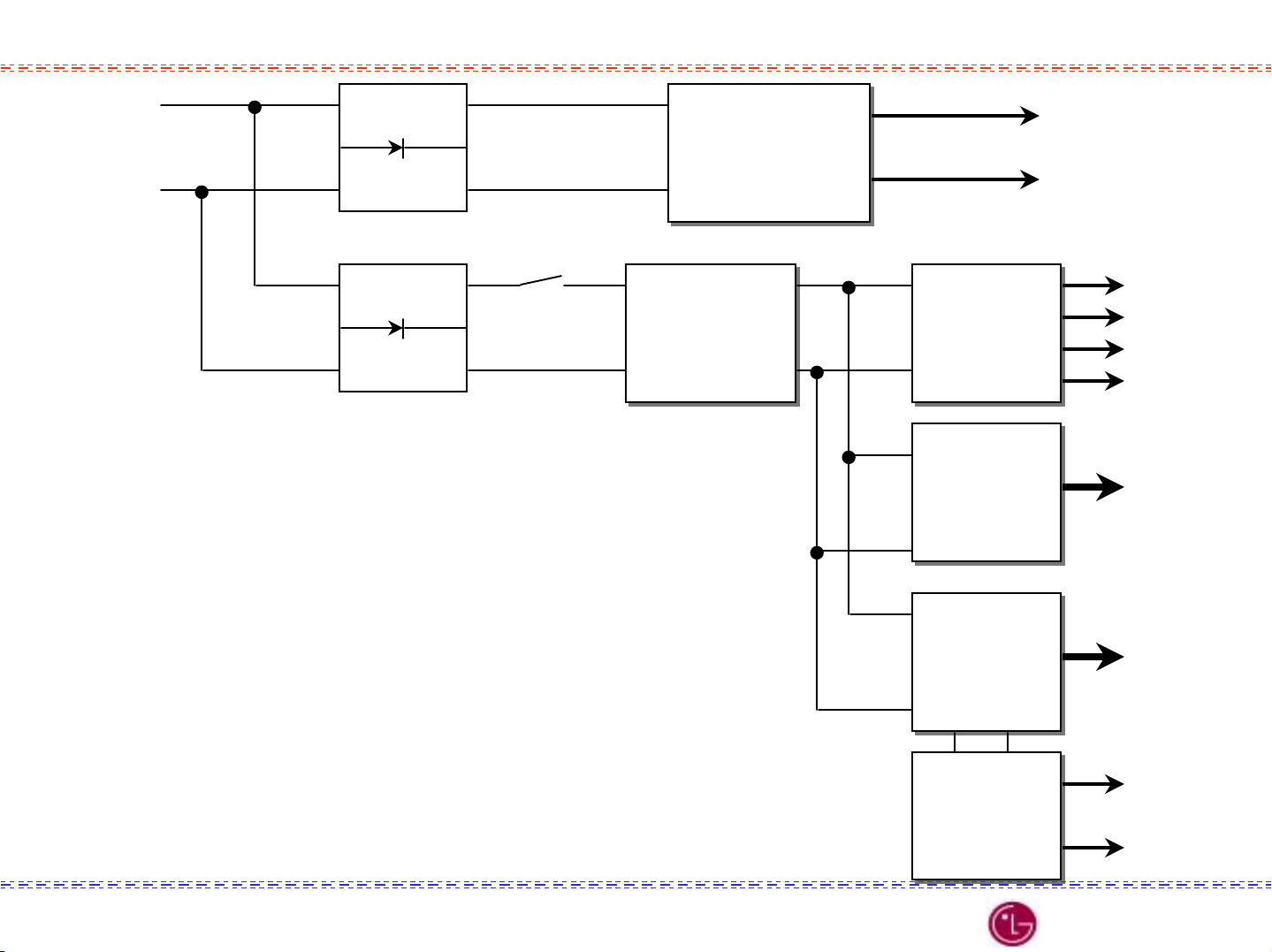

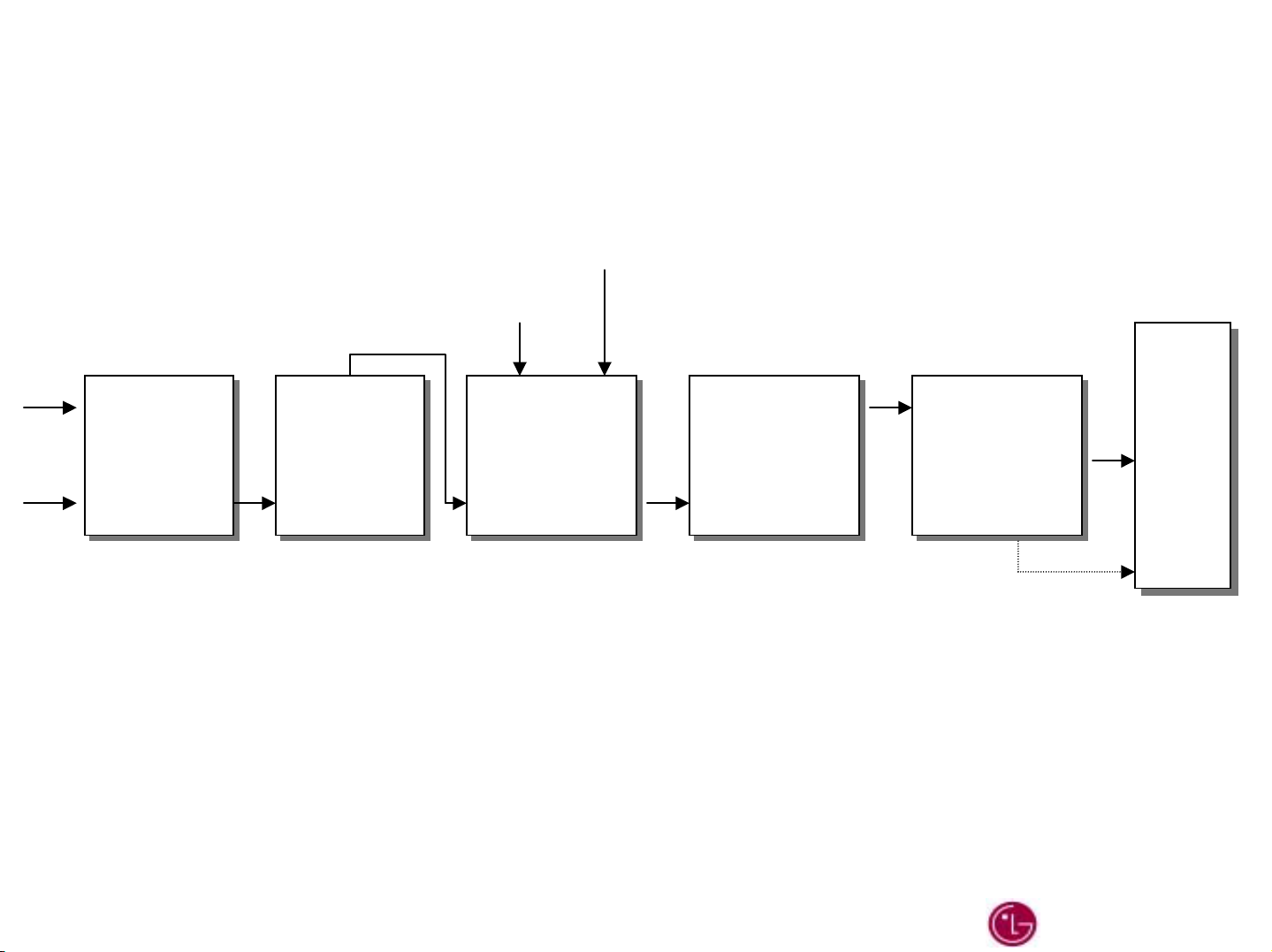

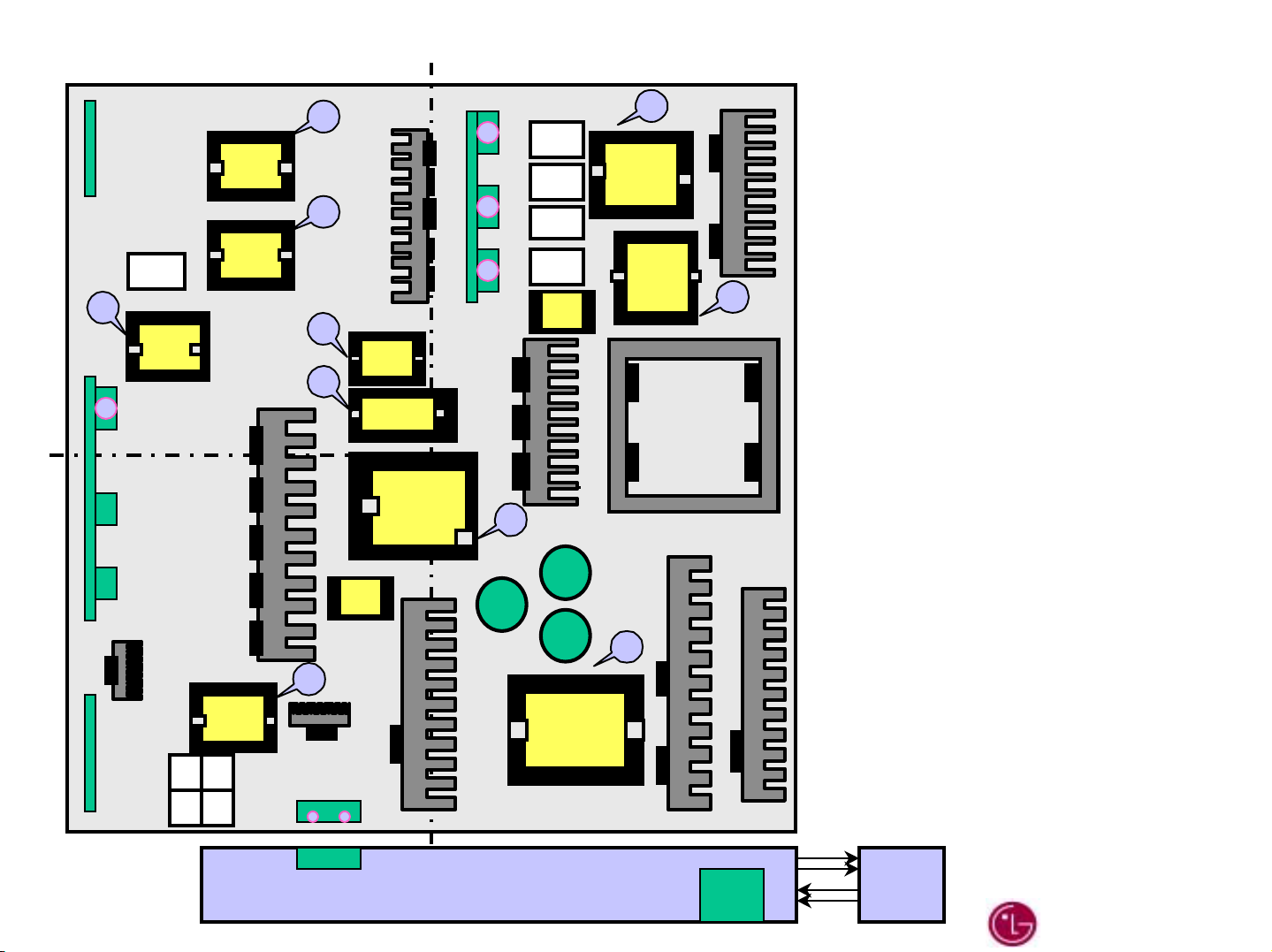

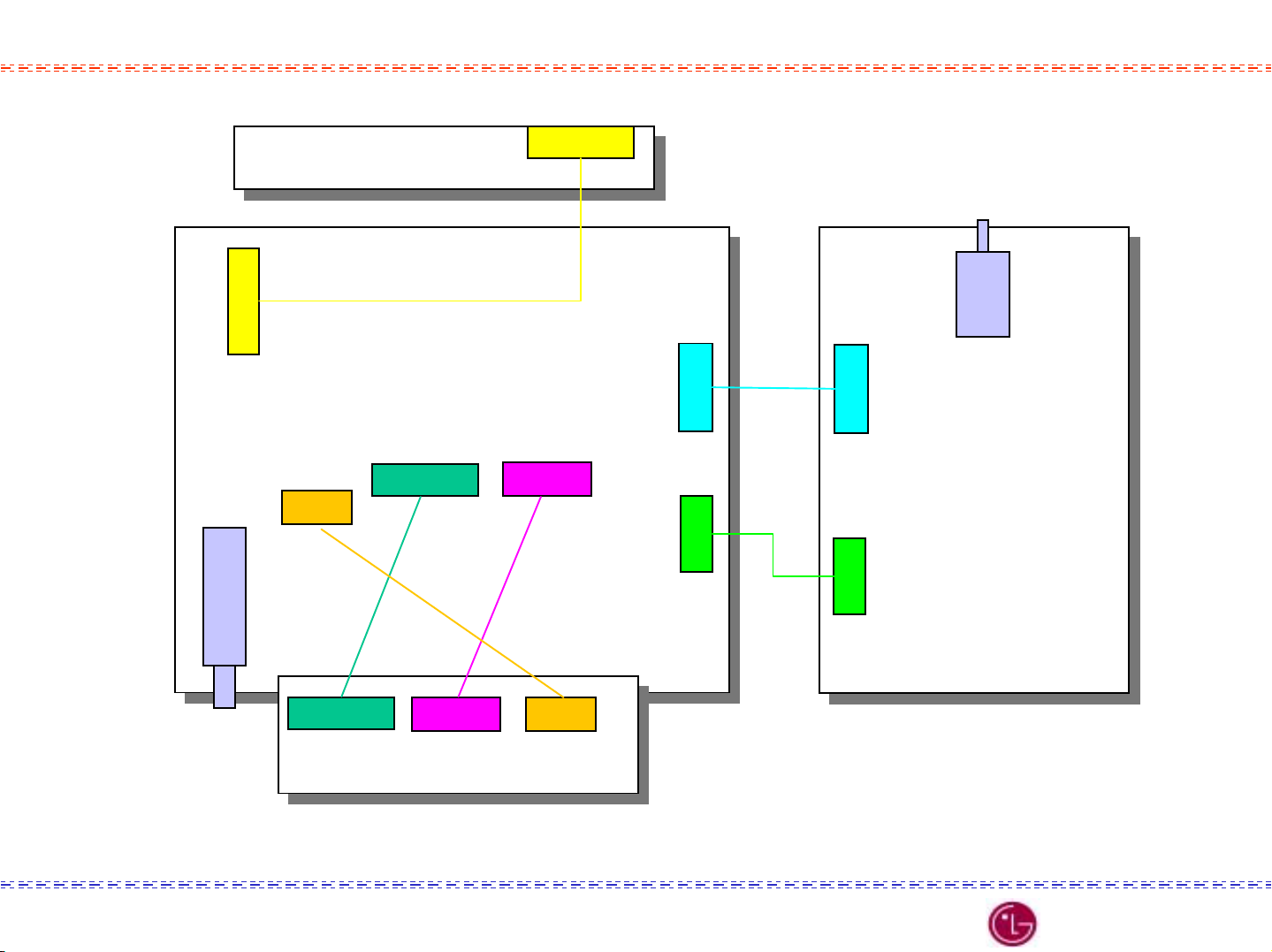

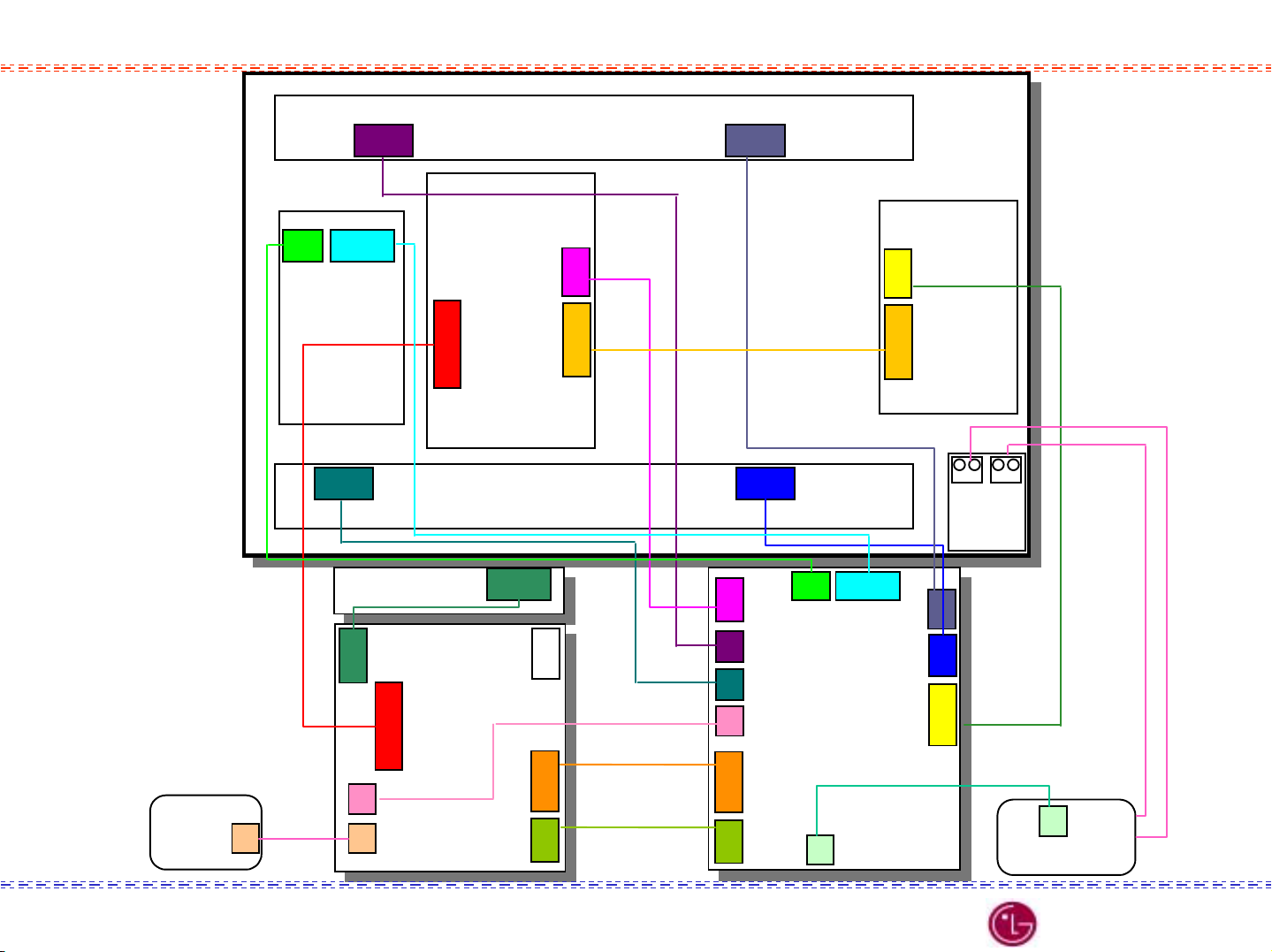

5-3) PSU & VSC Board
VSC
(Video
Scan
Converter)
PSU
(Power
Supply
Unit)
TOP in Digital
21
LG Electronics
