LG KF-P9901UBN, KF-P9901ULN, KF-P9901USN User Guide

OWNER’S MANUAL

ENGLISH

SXS REFRIGERATOR

Please read this manual carefully before operating your set and retain it for future reference.

P/N: MFL62880433_REV01

www.lg.com

Electrical Connections

Important

(In the UK Only)

The wires in this mains lead are coloured in accordance with the following code:

GREEN AND YELLOW:EARTH

BLUE:NEUTRAL

BROWN:LIVE

This appliance must be earthed

Green and Yellow (Earth)

Brown(Live)

Blue(Neutral)

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured Green and Yellow must be connected to the terminal in the plug which is marked with the letter E or by the earth symbol( ) or coloured Green or Green and Yellow.

The wire which is coloured Blue must be connected to the terminal which is marked with the letter N or coloured Black.

The wire which is coloured Brown must be connected to the terminal which is marked with the letter L or coloured Red.

If a 13 amp(BS 1363) plug is used, t a 13 amp BS 1362 fuse.

Fuse

Cord grip

ENGLISH

Table of contents

Introduction

ENGLISH

Installation

Operation

Introduction

Important safety instructions

Identication of parts

Where to install

Door removal

Door replacement

Feed water pipe installation

Height adjustment

Starting

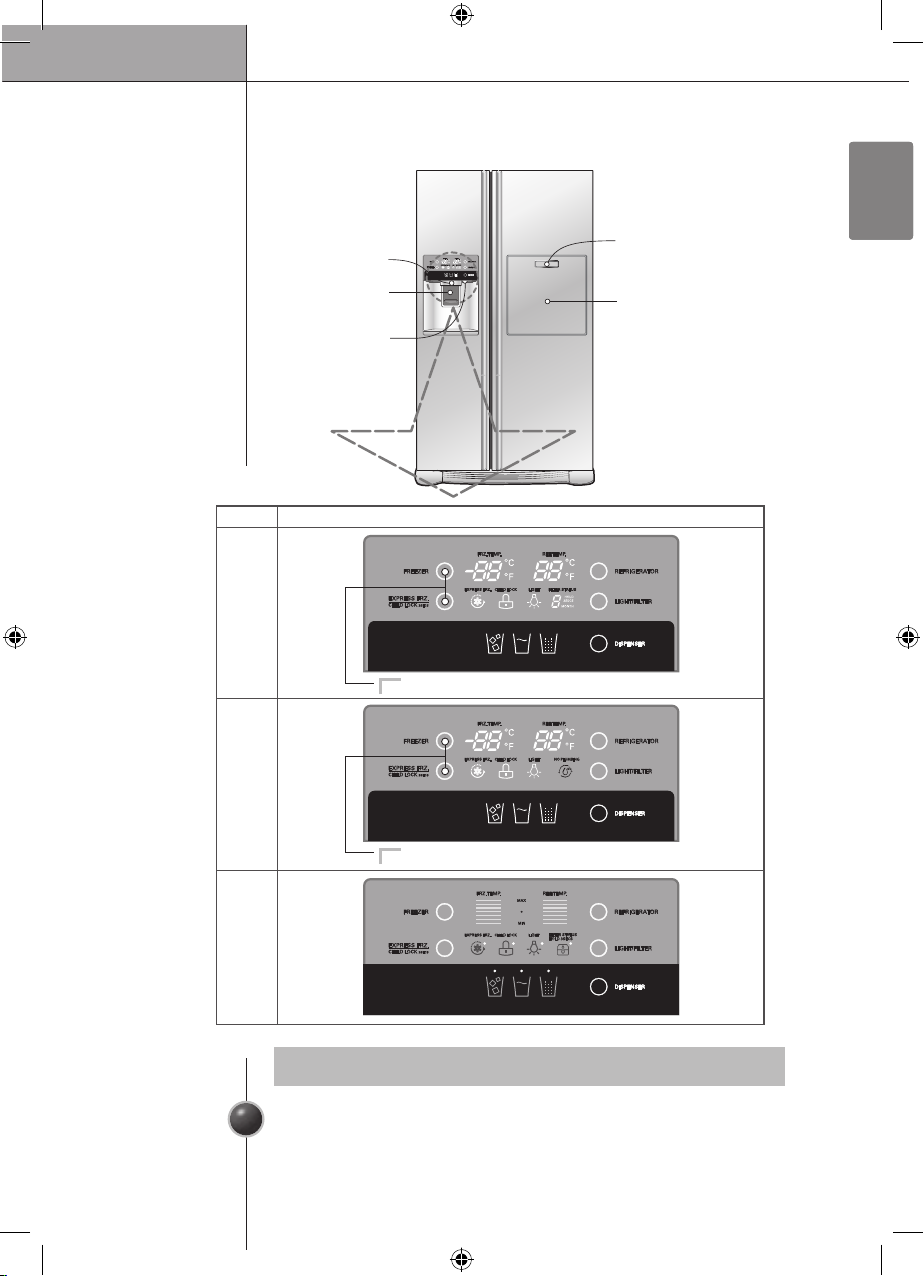

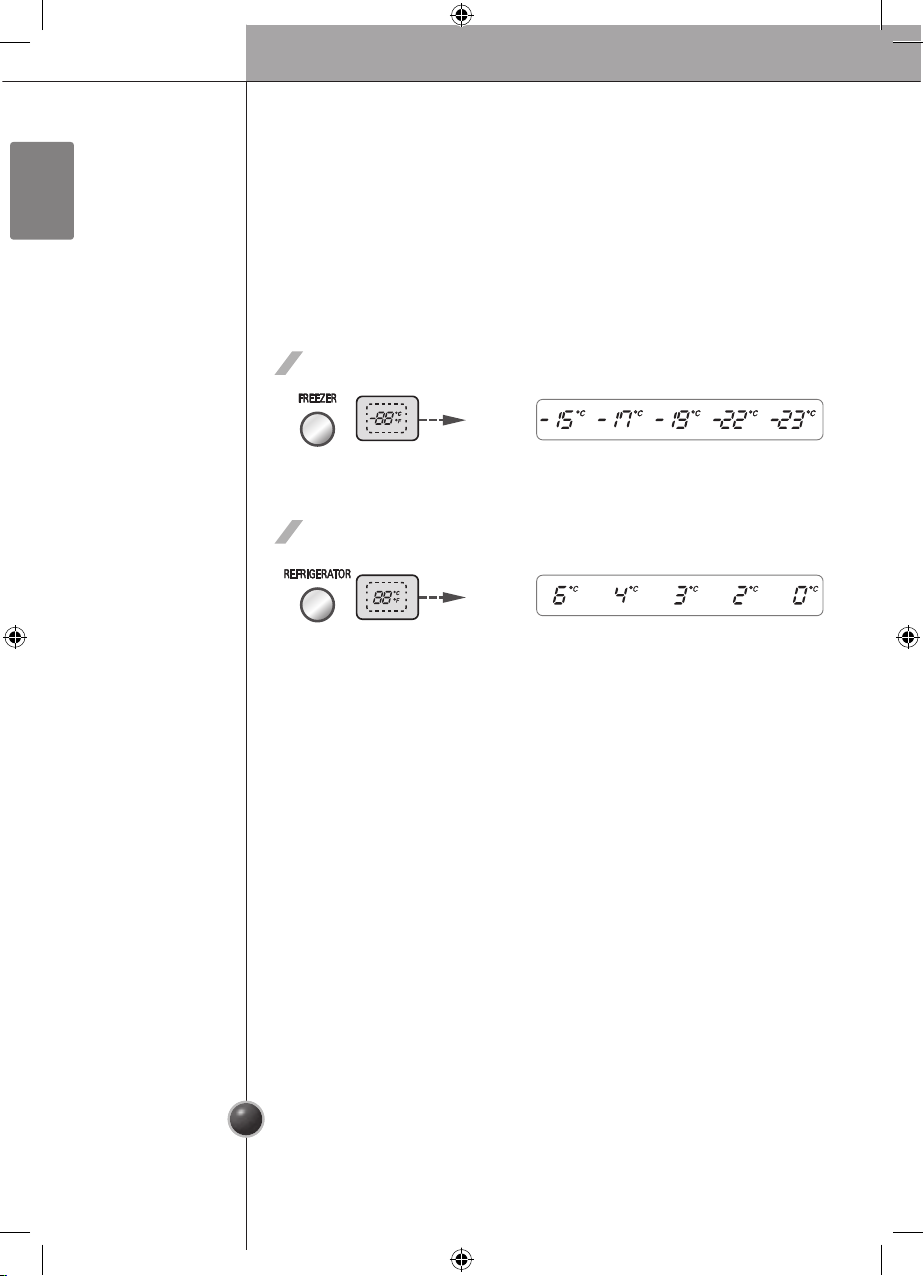

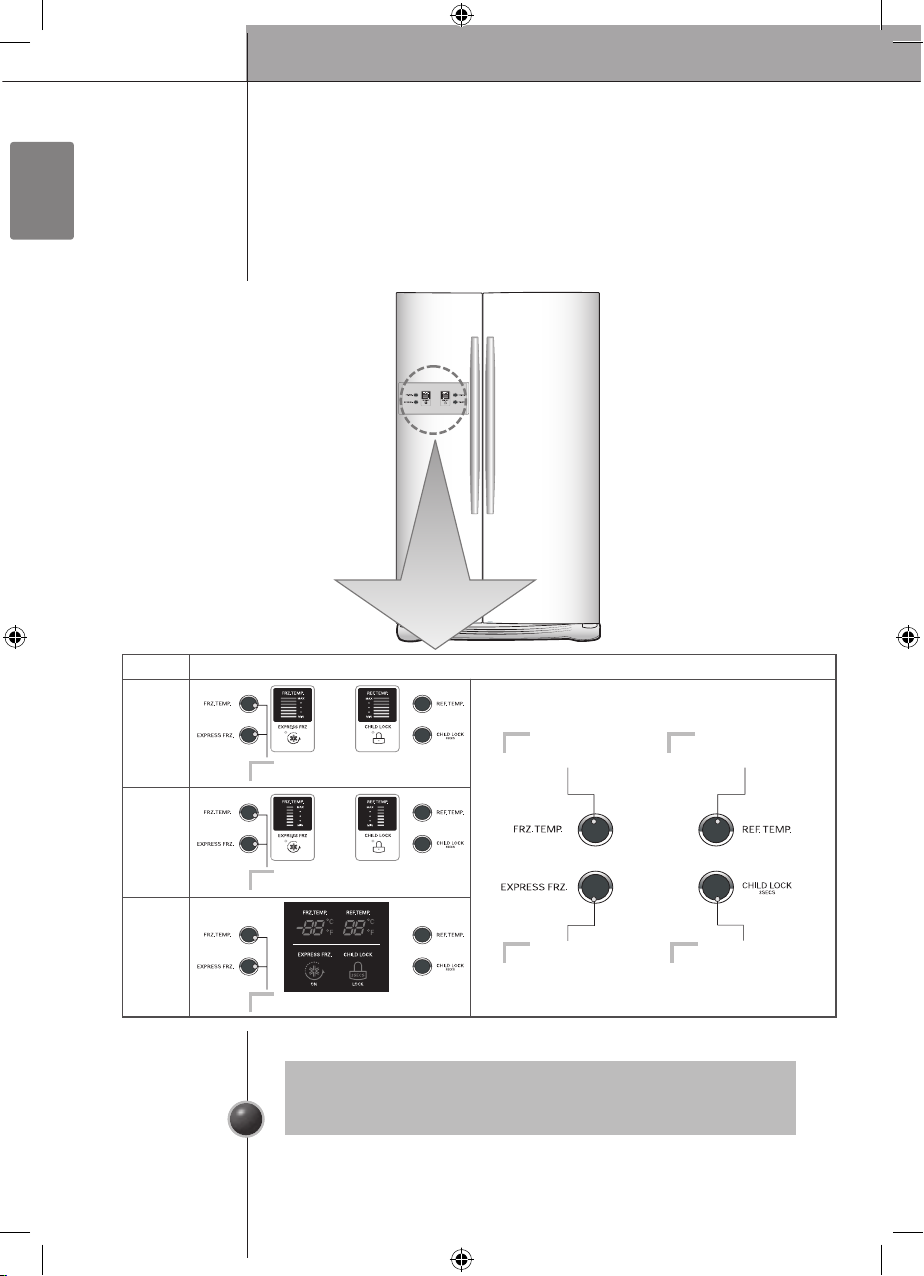

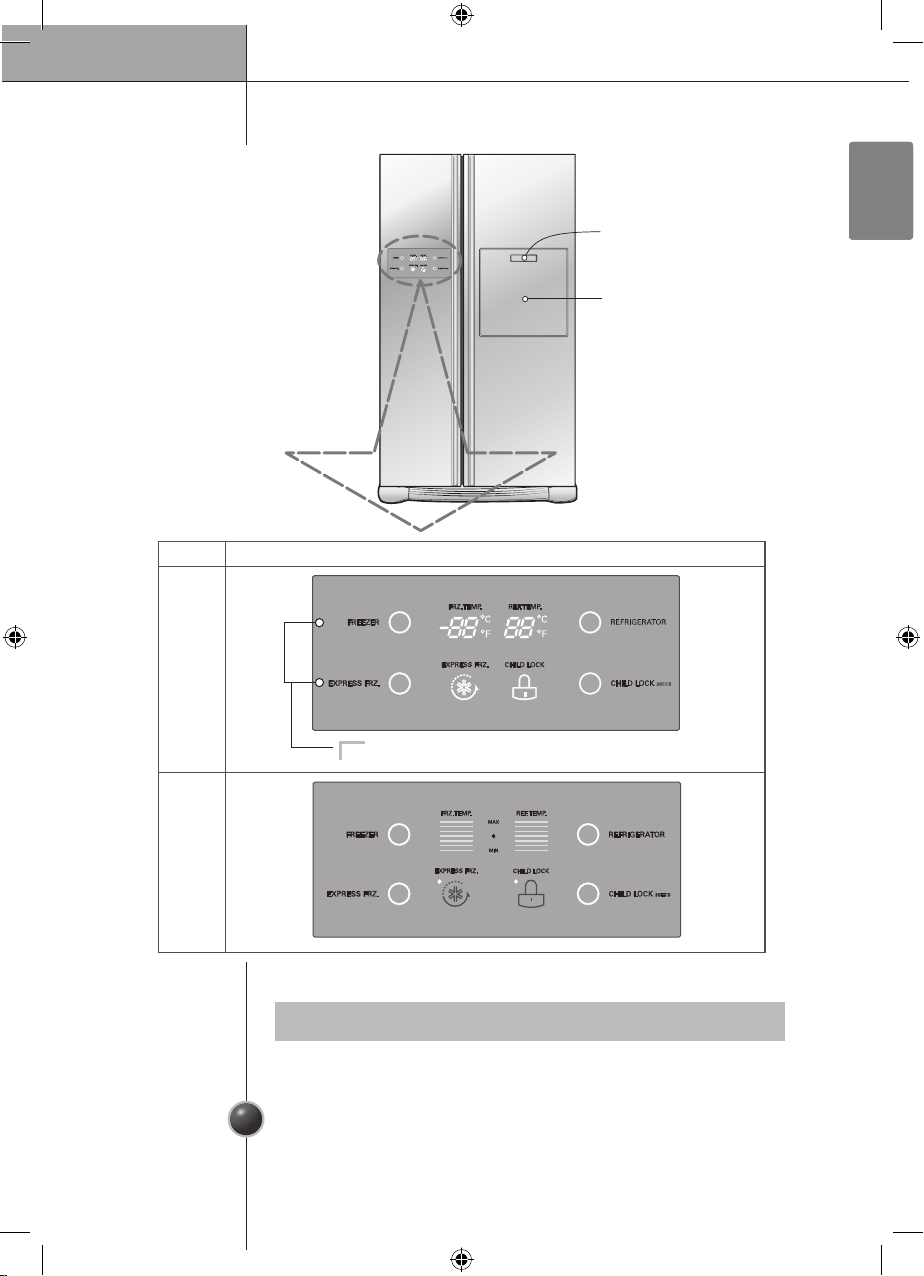

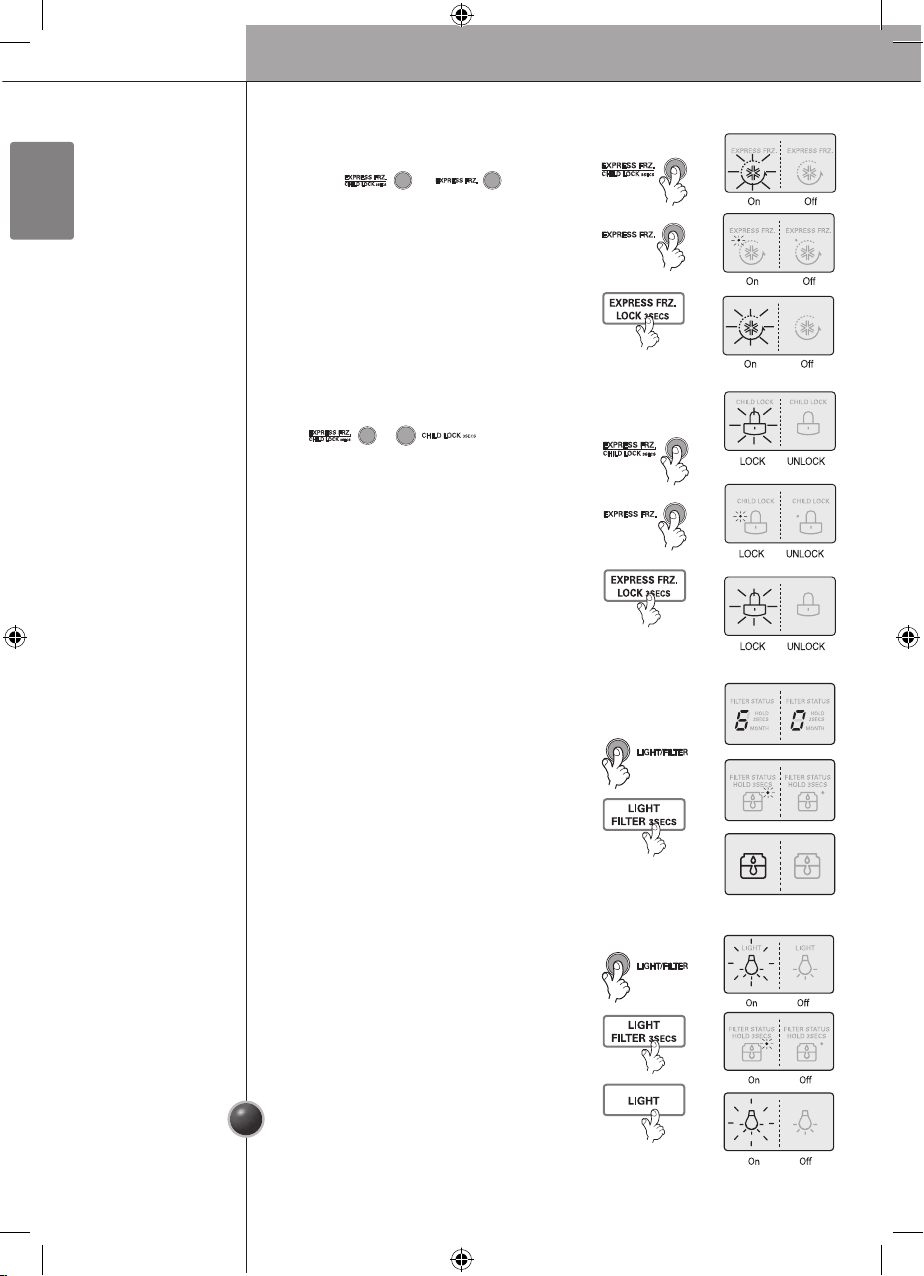

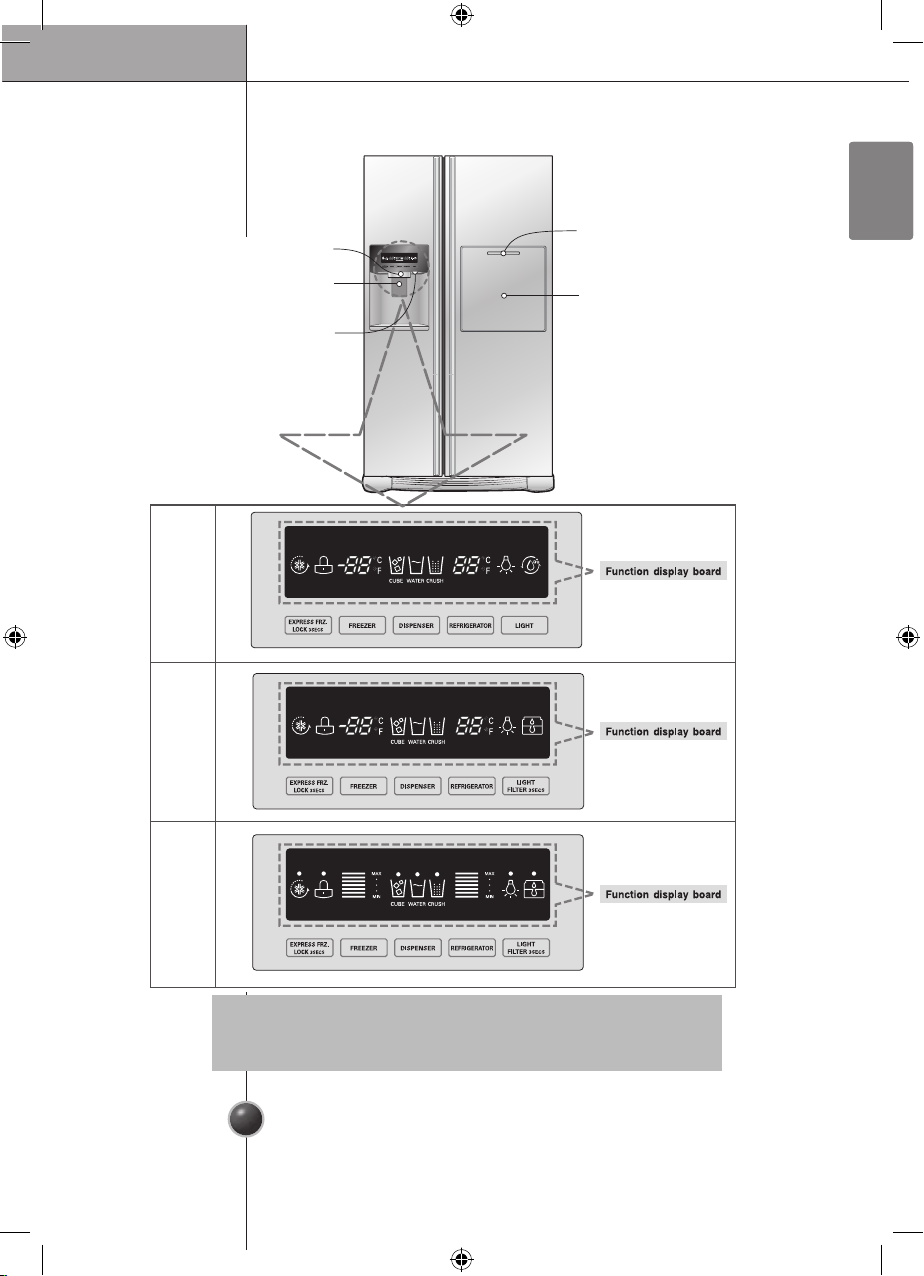

Adjusting the temperature and functions

Refreshment center (Applicable to some models only)

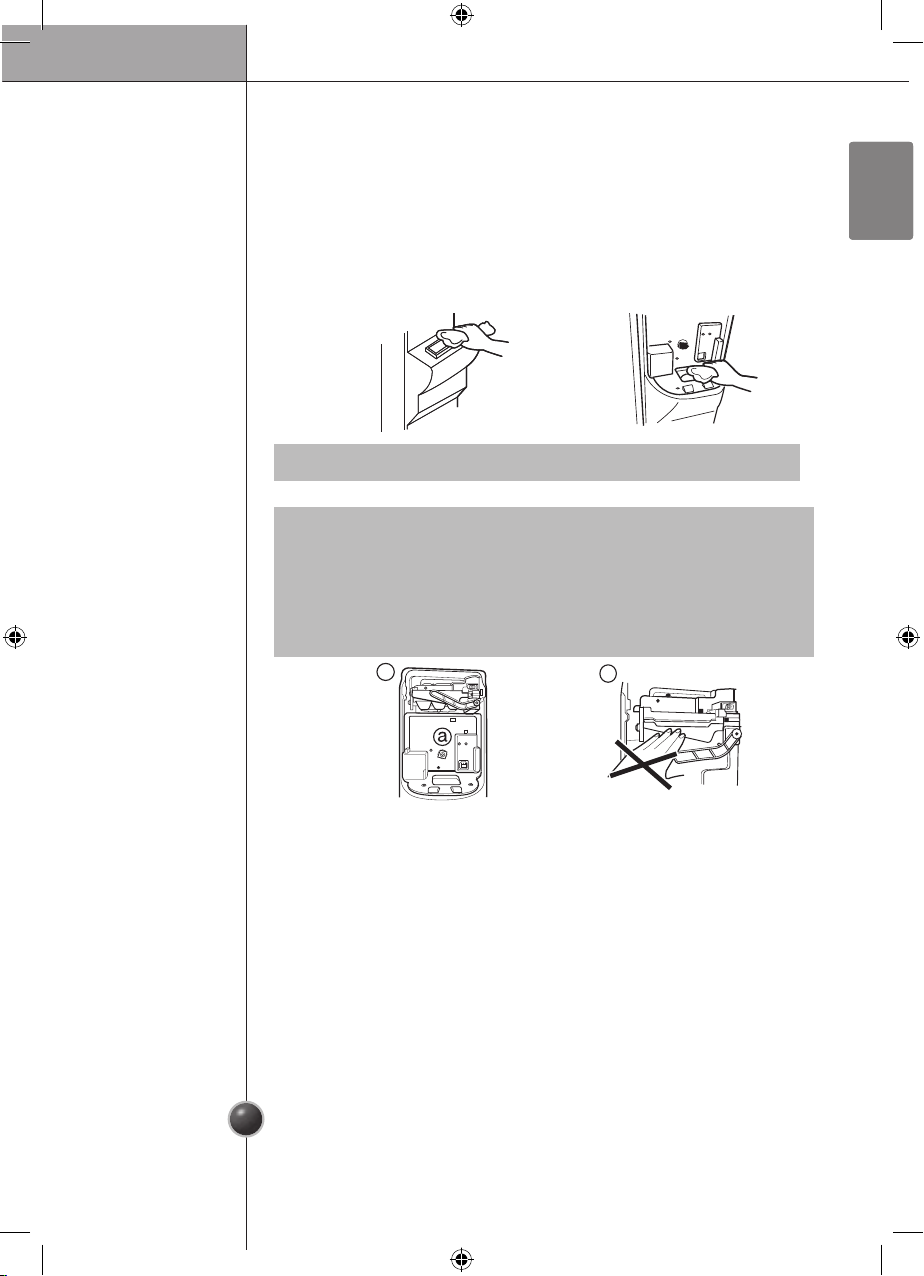

No Plumbing Ice & Water (Applicable to some models only)

Shelf (Applicable to some models only)

Wine holder (Applicable to some models only)

Egg box

Humidity control in the vegetable compartment

Convert into a vegetable or meat compartment (Applicable to some models only)

Deodorizer(Applicable to some models only)

Vacuum Fresh(Applicable to some models only)

Opti Temp Zone Temperature Transition Corner (Applicable to some models only)

Temperature Change at Opti Temp Zone (Applicable to some models only)

Opti Temp Zone (Applicable to some models only)

Suggestion on

food storage

Care and

maintenance

Location of foods

Storing foods

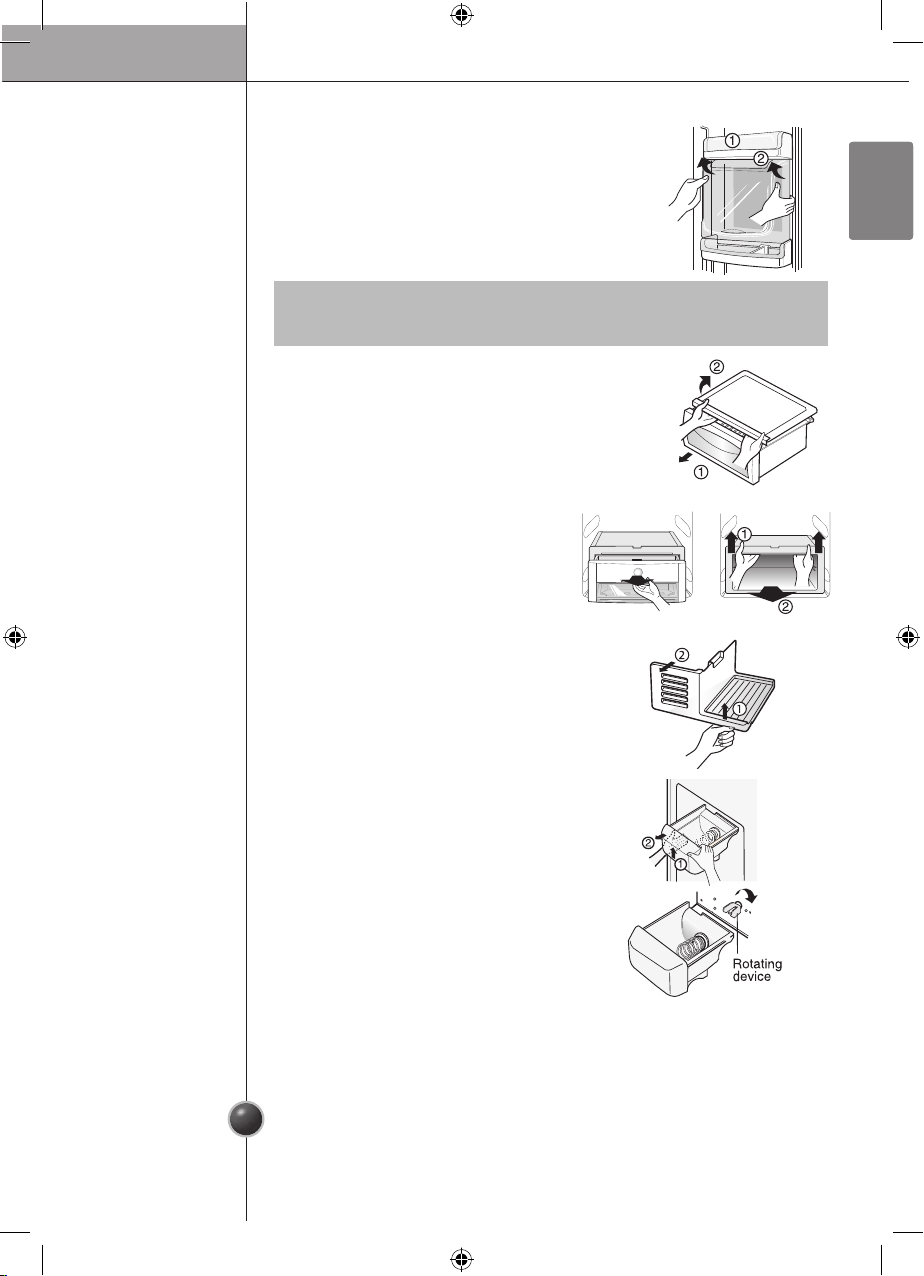

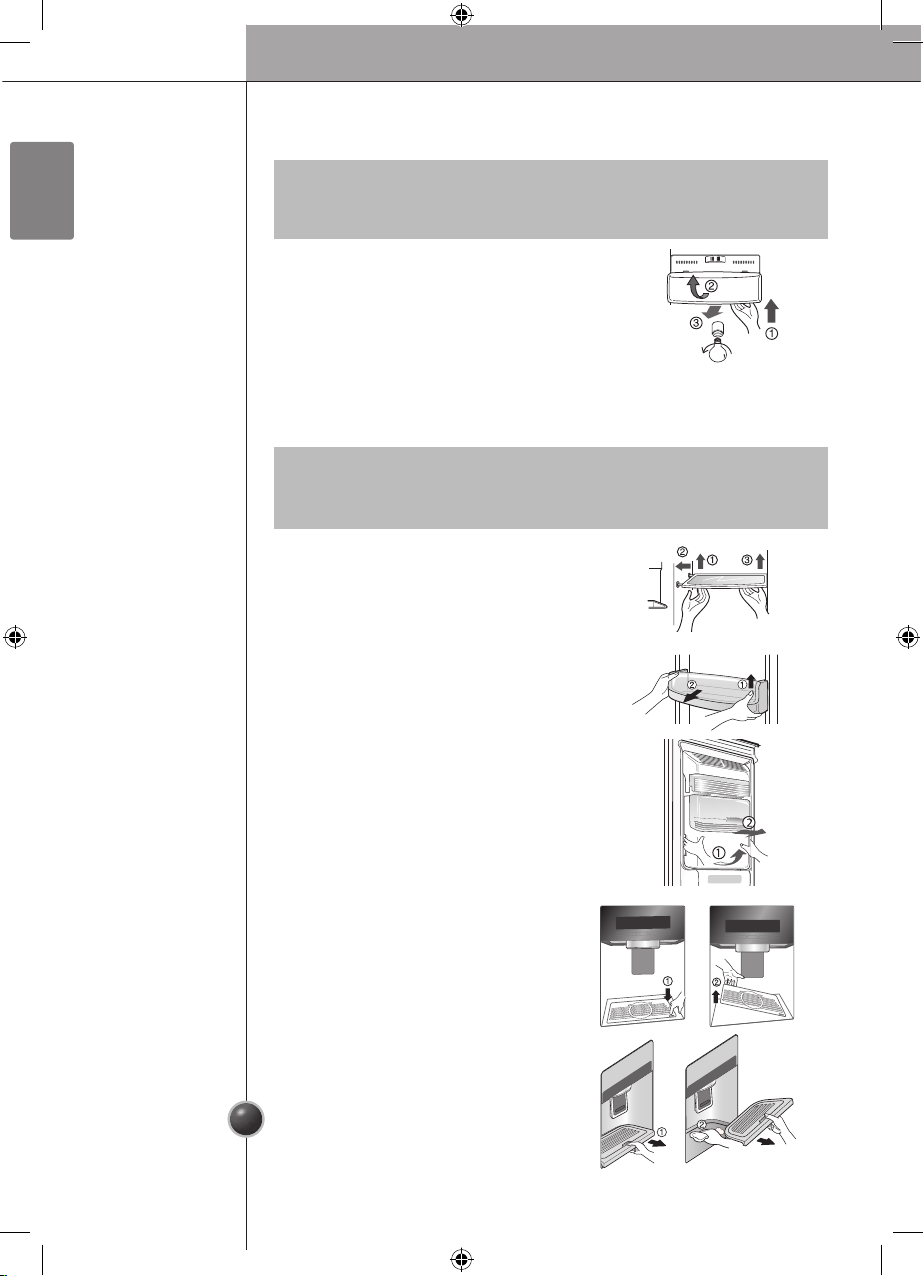

How to dismantle parts

General information

Cleaning

Trouble shooting

Introduction

Don’t use an

extension cord

Accessibility

of Supply Plug

Supply Cord

Replacement

Warning

Entry

The model and serial numbers are found on the inner case on the back

or one side of the refrigerator compartment of this unit. These numbers

are unique to this unit and are not available to others. You should record requested information here and retain this guide as a permanent record of your purchase. Staple your receipt here.

Date of purchase : Dealer purchased from : Dealer address : Dealer phone no. : Model no. : Serial no. :

Important safety instructions

Before it is used, this refrigerator must be properly installed and located in accordance with the installation instructions in this document. This Refrigerator is intended for Domestic indoor use only.

Never unplug your refrigerator by pulling on the power cord. Always grip plug rmly and pull it straight out from the outlet.

When moving your appliance away from the wall, be careful not to roll over the power cord or to damage it in any way.

After your refrigerator is in operation, do not touch the cold surfaces in the freezer compartment, particularly when your hands are damp or wet. Skin could adhere to these extremely cold surfaces.

Unplug the power cord from the power outlet for cleaning or other maintenance. Never touch the appliance with wet hands as you may receive an electric shock or injure yourself.

Never damage, press, severely bend, pull or twist the power cord as damage to the cord may cause re or electric shock. Never touch the cord if you are uncertain if the appliance is correctly earthed.

Never place glass items in the freezer as they may break due to expansion of their contents on freezing.

Never put your hands into the storage bin of the automatic ice maker as you could be injured during its operation.

The appliance is not intended for use by young children or inrm persons without supervision.

Young children should be supervised to ensure that they do not play with the appliance.

Never allow anyone to climb, sit, stand or hang on the refreshment centre door. These actions may damage the refrigerator and even tip it over, causing severe personal injury.

It is advised that this appliance should be connected through an independent power socket to prevent it and other appliances from overloading the circuit and causing a power outage.

The appliance should be positioned so that the supply plug is easily accessible for quick disconnection should an accident occur.

If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualied person in order to avoid a hazard.

Do not modify or extend the Power Cord length.

It may cause electric shock or re.

ENGLISH

Introduction

ENGLISH

Child entrapment

Warning

Don’t store

Warning

Grounding

(Earthing)

Warning

DANGER: Risk of child entrapment.

Before you dispose of your old refrigerator please remove doors but leave the shelves in place so that children cannot climb inside.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

Do not store or use gasoline or other ammable vapour and liquids in the vicinity of this or any other appliance.

In the event of an electric short circuit, grounding (earthing) reduces the risk of electric shock by providing an escape wire for the electric current.

In order to prevent possible electric shock this appliance must be earthed. Improper connection of the earthing plug can cause electric shock. Consult a qualied electrician or service engineer if the earthing instructions are not completely understood, or if you have doubts as to whether the appliance is properly earthed.

Keep ventilation openings in the room where the appliance is installed clear of obstruction.

Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

Do not damage the refrigerant circuit.

Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

Disposal procedures. If disposing of this appliance, please consult with a service agent or a similarly qualied person for more details.

This appliance may contain (Check the rating/comliance label for the refrigerant type and amount. Applicable to some models only) a small amount of isobutane refrigerant (R600a), natural gas with high environmental compatibility, but it is also combustible. When transporting and installing the appliance, care should be taken to ensure that no parts of the refrigerating circuit are damaged. Refrigerant squirting out of the pipes could ignite or cause an eye injury. If a leak is detected, avoid any naked ames or potential sources of ignition and air the room in which the appliance is standing for several minutes.

In order to avoid the creation of a ammable gas air mixture if a leak in the refrigerating circuit occurs, the size of the room in which the appliance may be sited depends on the amount of refrigerant used. The room must be 1m for every 8g of R600a refrigerant inside the appliance. The amount of refrigerant in your particular appliance is shown on the identication plate inside the appliance. Never start up an appliance showing any signs of damage. If in doubt, consult your dealer.

in size

Introduction

Space plus

Door rack

Shelf

Lamp

Shelf

Ice Maker

Door rack

Drawer

Door rack

Lower cover

Door rack

Shelf or drawer

Lamp

Shelf or drawer

Door rack

Drawer (2 or 3)

Door rack

*Non dispenser model - Type 1

Freezer Compartment

NOTE

• Parts, features, and options vary by model. Your model may not include every option.

Refrigerator Compartment

Dairy Corner

Lamp

Shelf

Door rack

Shelf

Shelf (folding or normal)

Shelf

Door rack

Vegetable drawer

Door rack

Shelf

*Non dispenser model - Type 2

Freezer Compartment

Refrigerator Compartment

Dairy Corner

Lamp

Shelf Wine rack (Plastic or wire) (Optional) Door rack (1 piece or 2 piece)

Shelf

Snack drawer (Optional) Shelf (folding or normal)

Refreshment centre (Optional)

Door rack

Egg box

Vegetable drawer

Door rack

Humidity Switch

Opti Temp Zone (Optional) Fresh compartment (Optional)

Guide pitcher (Optional)

ENGLISH

Lower cover

NOTE

• Parts, features, and options vary by model. Your model may not include every option.

*Dispenser model - Type 1

Introduction

ENGLISH

Space plus

Door rack

Automatic

ice maker

Lamp

Shelf

Door rack

Drawer

Door rack

Lower cover

Space plus

Door rack

Automatic

ice maker

Lamp

Shelf

Door rack

Drawer

Freezer Compartment

NOTE

• Parts, features, and options vary by model. Your model may not include every option.

*Dispenser model - Type 2

Freezer Compartment

Refrigerator Compartment

Dairy Corner

Lamp

Shelf

Door rack

Shelf

Shelf (folding or normal)

Shelf

Door rack

Vegetable drawer

Door rack

Shelf

Dairy Corner

Lamp

Shelf

Door rack

Shelf

Shelf (folding or normal) Guide pitcher

Shelf

Door rack

Vegetable drawer

Door rack

Lower cover

Shelf

NOTE

• Parts, features, and options vary by model. Your model may not include every option.

Introduction

Extra door

rack(option)

Automatic

Icemaker

Shelf

Lamp

Shelf or Drawer

Door rack

Drawer (2 or 3)

Door rack

Lower cover

Extra door

rack (option)

Automatic

Icemaker

Shelf

Lamp

Shelf

Door rack

Drawer (2 or 3)

Door rack

*Dispenser model - Type 3

Freezer Compartment

NOTE

• Parts, features, and options vary by model. Your model may not include every option.

Refrigerator Compartment

Dairy Corner

Lamp

Shelf

Wine rack (Plastic or wire) (Optional)

Door rack

Shelf Can Server (Optional) Snack Drawer (Optional)

Refreshment Centre (Optional)

Shelf No Plumbing Ice & Water (Optional)

Egg Box (Optional)

Vegetable drawer 1 or 2

Humidity Switch Opti Temp Zone (Optional) Fresh compartment (Optional)

Door rack

*Dispenser model - Type 4

Freezer Compartment

Refrigerator Compartment

Guide pitcher (Optional)

Dairy Corner

Lamp

Door rack

Shelf

Can Server (Optional)

Wine rack (Plastic or wire) (Optional)

Refreshment Centre (Optional)

Shelf

Egg Box (Optional)

Vegetable drawer 1 or 2

Humidity Switch

Opti Temp Zone (Optional) Fresh compartment (Optional)

Door rack

ENGLISH

Lower cover

NOTE

• Parts, features, and options vary by model. Your model may not include every option.

Select a good

ENGLISH

Disposal of the

old appliance

Remove lower

cover and then

Remove the

compartment

location

feed water

tube

freezer

door

Installation

Where to install

1. Place your appliance where it is easy to use.

2. Avoid placing the unit near heat sources, direct sunlight or moisture. Do not operate the appliance outdoors where it can be exposed directly, or indirectly to sun, wind and rain.

3. To ensure proper air circulation around the fridge -freezer, please maintain sucient space on both the sides as well as top and maintain at least 2 inches (5 cm) from the rear wall.

4. To avoid vibrations, the appliance must be levelled.

5. Do not install the appliance in temperatures of less than 5°C as the performance may be aected.

This appliance contains uid (refrigerant, lubricant) and is made of parts and materials which are reusable and/or recyclable. All the packaging materials should be sent to the collection centre for recycling. For details of your local recycling centre, please contact your local council.

Door removal

Electric Shock Hazard

Disconnect electrical supply to refrigerator before installing. Failure to do so could result in death or serious injury.

If your front door is too narrow to get the refrigerator into the house, remove the refrigerator doors and pass the appliance through laterally.

Remove the lower cover by loosening all the screws. Then push in the feed water tube while depressing the connector , as shown in the illustration on the righ

NOTE

• If a tube end is deformed or abraded, trim the end with sharp knife until perfectly round.

1) Remove the hinge cover by loosening the screws. Then separate all connection wires except for the earth.

Upper hinge

2) Remove the keeper by rotating it counter clockwise ( ) and then lifting the upper hinge up ( ).

①

②

Applicable to No Plumbing

Ice & Water Model only

Feed water tube

Hinge cover

Keeper

Connection wires

Earth line

Upper hinge

Lower cover

NOTE

• When removing the upper hinge, be careful that the door does not fall forwards .

Installation

3) Remove the freezer compartment door by lifting it upward. The door should be lifted high enough for the feed water pipe tube to be completely pulled out.

Lower cover

NOTE

• If you have removed the refrigerator compartment door to pass the appliance through an access door, lay the door down, but be careful not to damage the feed water pipe tube.

Enough for

water feed pipe tube to

be completly pulled out

ENGLISH

Remove the

refrigerator

compartment

door

Pass the

refrigerator

1) Loosen the hinge cover screws and remove the cover. Remove connection wires, if any, except for the earth line.

Connection

2) Remove keeper by rotating it clockwise ( ) and then remove the upper hinge by lifting it up ( ).

①

②

3) Remove the refrigerator compartment door by lifting it up.

Pass the refrigerator laterally through

the access door as illustrated to the right.

wires

Upper hinge

Keeper

Lower hinge

Door replacement

Once the fridge is through the access door, remount the fridge doors by following the door removal instructions in reverse.

installation

ENGLISH

If the freezer

compartment

door is lower than

the refrigerator

compartment

Before

Warning

door

Installation

Feed water pipe installation (Dispenser model only)

▪Automatic ice maker operation needs water pressure of 147~834kPa

(1.5~8.5kgf/cm2) (The pressure is correct when an instant paper cup (180cc) is filled in 3 sec.).

▪If water pressure does not reach the rating 147kPa(1.5kgf/cm2) or below, it

is necessary to purchase a separate pressure pump for normal automatic icing and cool water feed.

▪Keep the total length of the feed water pipe tube within 8m and be careful that

the tube does not bend. If the tube is 8m or longer it may cause water feed problems owing to the drain water pressure.▪Install the feed water pipe tube at a place free from heat.

▪Connect to drinking water supply only. ▪Refer to instructions with water lter kit for installation.

Height adjustment

Level the door by inserting flat( - type) driver into the groove of the left height adjusting screw and rotate it clockwise ( ).

①

Height dierence

If the freezer

compartment

door is higher than

the refrigerator

compartment

door

Left height

adjustment screw

Level the door by inserting flat( - type) driver into the groove of the left height adjusting screw and rotate it clockwise ( ).

Height dierence

①

1010

Right height

adjustment screw

Installation

After levelling

the door height

The refrigerator doors will close smoothly by adjusting the front side using the height adjustment screw. If the doors do not close correctly, performance may be affected.

1. Wipe o all dust accumulated during shipping and clean your appliance thoroughly.

2. Install accessories such as the ice cube box, cover evaporating tray, etc., in their

proper places. They are packed together to prevent possible damage during ship-

ping.

3. Connect the power supply cord (or plug) to the outlet. Don’t double up with other appliances on the same outlet.

ENGLISH

+ 28 hidden pages
