LG DH7520TW User guide

OWNER’S MANUAL

DVD Wireless Home
Theater System

Please read this manual carefully before operating
your set and retain it for future reference.

DH7520TW (DH7520TW, S72T1-S/ W, S72B1-C, W2)

PRINTED IN CHINA

DH7520TW-PB.DSAUNL1_ENG_4634.indd 1 2012-05-10  2:31:17

1 Getting Started

Getting Started2

Safety Information

1

Getting Started

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK DO NOT REMOVE COVER (OR BACK) NO

USER-SERVICEABLE PARTS INSIDE REFER SERVICING

TO QUALIFIED SERVICE PERSONNEL.

WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK
HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN
OR MOISTURE.

WARNING: Do not install this equipment in a
conned space such as a book case or similar unit.

CAUTION: Do not block any ventilation openings.
Install in accordance with the manufacturer’s
instructions.
Slots and openings in the cabinet are provided for
ventilation and to ensure reliable operation of the
product and to protect it from over heating. The
openings shall be never be blocked by placing
the product on a bed, sofa, rug or other similar
surface. This product shall not be placed in a built­in installation such as a bookcase or rack unless
proper ventilation is provided or the manufacturer’s
instruction has been adhered to.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

This lightning ash with
arrowhead symbol within an
equilateral triangle is intended to
alert the user to the presence of
uninsulated dangerous voltage
within the product’s enclosure that
may be of sucient magnitude to
constitute a risk of electric shock
to persons.

The exclamation point within an
equilateral triangle is intended
to alert the user to the presence
of important operating and
maintenance (servicing)
instructions in the literature
accompanying the product.

CAUTION: This product employs a Laser System.
To ensure proper use of this product, please read
this owner’s manual carefully and retain it for future
reference. Shall the unit require maintenance,
contact an authorized service center.
Use of controls, adjustments or the performance of
procedures other than those specied herein may
result in hazardous radiation exposure.
To prevent direct exposure to laser beam, do not
try to open the enclosure.

CAUTION concerning the Power Cord

Most appliances recommend they be placed upon
a dedicated circuit;

That is, a single outlet circuit which powers only
that appliance and has no additional outlets or
branch circuits. Check the specication page of this
owner’s manual to be certain. Do not overload wall
outlets. Overloaded wall outlets, loose or damaged
wall outlets, extension cords, frayed power cords, or
damaged or cracked wire insulation are dangerous.
Any of these conditions could result in electric
shock or re. Periodically examine the cord of your
appliance, and if its appearance indicates damage
or deterioration, unplug it, discontinue use of the
appliance, and have the cord replaced with an
exact replacement part by an authorized service
center. Protect the power cord from physical or
mechanical abuse, such as being twisted, kinked,
pinched, closed in a door, or walked upon. Pay
particular attention to plugs, wall outlets, and
the point where the cord exits the appliance. To
disconnect power from the mains, pull out the
mains cord plug. When installing the product,
ensure that the plug is easily accessible.

DH7520TW-PB.DSAUNL1_ENG_4634.indd 2 2012-05-10  2:31:18

Getting Started 3

This device is equipped with a portable battery or
accumulator.

Safety way to remove the battery or the
battery from the equipment: Remove the

old battery or battery pack, follow the steps
in reverse order than the assembly. To prevent
contamination of the environment and bring on
possible threat to human and animal health, the
old battery or the battery put it in the appropriate
container at designated collection points. Do
not dispose of batteries or battery together with
other waste. It is recommended that you use
local, free reimbursement systems batteries and
accumulators. The battery shall not be exposed to
excessive heat such as sunshine, re or the like.

CAUTION: The apparatus shall not be exposed to
water (dripping or splashing) and no objects lled
with liquids, such as vases, shall be placed on the
apparatus.

Copyrights

It is forbidden by law to copy, broadcast, show,
broadcast via cable, play in public, or rent
copyrighted material without permission. This
product features the copy protection function
developed by Macrovision. Copy protection signals
are recorded on some discs. When recording and
playing the pictures of these discs picture noise
will appear. This product incorporates copyright
protection technology that is protected by U.S.
patents and other intellectual property rights. Use
of this copyright protection technology must be
authorized by Macrovision, and is intended for
home and other limited viewing uses only unless
otherwise authorized by Macrovision. Reverse
engineering or disassembly is prohibited.

CONSUMERS SHOULD NOTE THAT NOT ALL
HIGH DEFINITION TELEVISION SETS ARE FULLY
COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE
ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN
CASE OF 525 OR 625 PROGRESSIVE SCAN PICTURE
PROBLEMS, IT IS RECOMMENDED THAT THE USER
SWITCH THE CONNECTION TO THE ‘STANDARD
DEFINITION’ OUTPUT. IF THERE ARE QUESTIONS
REGARDING OUR TV SET COMPATIBILITY WITH THIS
MODEL 525p AND 625p UNIT, PLEASE CONTACT
OUR CUSTOMER SERVICE CENTER.

You have to set the disc format option to [Mastered]
in order to make the discs compatible with the LG
players when formatting rewritable discs. When
setting the option to Live File System, you cannot
use it on LG players.

(Mastered/ Live File System : Disc format system for
Windows Vista)

IMPORTANT SAFETY NOTICE

The cord grip for the plug tted to this product is
built into the existing power cord as supplied. If,
for any reason you need to shorten the cord,

DO NOT RE-USE THE PLUG.

A new plug must be used to ensure your
continued safety by securing the plug to the
power cord in accordance with Plug & Socket
Regulations 1994.

1

Getting Started

DH7520TW-PB.DSAUNL1_ENG_4634.indd 3 2012-05-10  2:31:18

Table of Contents4

Table of Contents

1 Getting Started

2 Safety Information
6 Unique Features
6 – Portable In
6 – USB Direct Recording
6 – Full HD up-scaling
6 – Home Theater Speaker ez Setup
6 – Made for iPod
6 Accessories
7 Introduction
7 – Playable Discs
7 – About the “&” Symbol Display
7 – Symbols Used in this Manual
7 – Regional Codes
8 Playable file Requirement
9 Remote control
10 Front panel
11 Rear panel

2 Connecting

12 Assembling the speaker
14 Attaching the speakers to the unit
15 Positioning the system
16 – Wireless speakers connection
18 Connections to Your TV
18 – Component Video Connection
19 – HDMI Out Connection
20 – Video Connection
21 – Resolution Setting
21 Video Output Resolution
22 Optional Equipment Connection
22 – AUX In Connection
22 – PORT. IN (PORTABLE) Connection
22 – Listening to music from your portable

player or external device
23 – USB Connection
24 – OPTICAL In connection
24 – Home theater speaker ez setup
25 Antenna Connection

3 System Setting

26 Adjust the setup settings
26 – OSD Initial language settings -

Optional
26 – To display and exit the Setup menu
27 – Language
27 – Display
28 – Audio
29 – Lock (Parental Control)
30 – Others

4 Operating

31 Using the Home Menu
31 Basic Operations
32 Other Operations
32 – Displaying Disc Information on-screen
33 – To display the DVD Menu
33 – To display the DVD title
33 – 1.5 times speed playback
33 – Screen Saver
33 – Starting play from selected time
33 – Resume playback
33 – Changing subtitle code page
34 – Marked Playback
35 – Viewing a PHOTO file
36 – Sleep Timer Setting
36 – Dimmer
36 – Turn off the sound temporarily
36 – Last Scene Memory
36 – System Select - Optional
36 – Adjust the speaker level settings
37 Radio Operations
37 – Listening to the radio
37 – Presetting the Radio Stations
37 – Deleting all the saved stations
37 – Deleting a saved station
37 – Improving poor FM reception
38 Sound adjustment
38 – Setting the surround mode
39 Advanced Operations
39 – Recording to USB
40 Using a Bluetooth wireless technology
40 – Listening to music of a Bluetooth

device

DH7520TW-PB.DSAUNL1_ENG_4634.indd 4 2012-05-10  2:31:18

41 – Listening to music on this unit using

Bluetooth device
43 Playing the iPod
43 – Preparation
44 – Enjoying iPod on the screen
44 – Enjoying the iPod IN mode

5 Troubleshooting

46 Troubleshooting

6 Appendix

47 Maintenance
47 – Handling the Unit
47 – Notes on Discs
48 Area Code List
49 Language code List
50 Trademarks and Licenses
52 Specifications

Table of Contents 5

1

2

3

4

5

6

DH7520TW-PB.DSAUNL1_ENG_4634.indd 5 2012-05-10  2:31:18

Getting Started6

Unique Features

Portable In

1

Getting Started

Listens to music from your portable device. (MP3,
Notebook, etc)

USB Direct Recording

Records music from CD to your USB device.

Full HD up-scaling

Views Full HD picture quality with simple setup.

Home Theater Speaker ez
Setup

Listens to sounds from TV, DVD and Digital device
with vivid 5.1 (2.1 or 2.0) ch mode.

Made for iPod

Enjoys music form IPod with simple connection.

Accessories

Please check and identify the supplied accessories.

Remote control (1) Battery (1)

FM antenna (1) Speaker cables (6)

AM antenna (1) Video cable (1)

HDMI Cable (1) iPod Cradle (1)

Wireless TX (1)

DH7520TW-PB.DSAUNL1_ENG_4634.indd 6 2012-05-10  2:31:19

Getting Started 7

Introduction

Playable Discs

This unit plays DVD±R/RW and CD-R/RW that
contains audio titles, DivX, MP3, WMA and/or
JPEG les. Some DVD±RW/DVD±R or CD-RW/
CD-R cannot be played on this unit due to the
recording quality or physical condition of the disc,
or the characteristics of the recording device and
authoring software.

DVD-VIDEO (12 cm disc)

Discs such as movies that can be
purchased or rented.

DVD±R (12 cm disc)

Video mode and nalized only.

DVD-RW (12 cm disc)

Video mode and nalized only.

DVD+R: Video mode only

Supports the double layer disc also.

DVD+RW (12 cm disc)

Video mode and nalized only.

Audio CD: Music CDs or CD-R/CD­RW in music CD format that can be
purchased.

About the “&” Symbol
Display

“&” may appear on your TV display during
operation and indicates that the function explained
in this owner’s manual is not available on that
specic media.

Symbols Used in this Manual

r

t

y

u

i

Note

,

Indicates special notes and operating features.

Tip

,

Indicates tip and hints for making the task easier.

Caution

>

Indicates cautions for preventing possible damages
from abuse.

DVD-Video, DVD±R/RW in Video
mode or VR mode and nalized

Audio CDs

Video les contained in the
USB/Disc

Audio les contained in the
USB/Disc

Photo les contained in the
USB/Disc

Regional Codes

This unit has a regional code printed on the rear of
the unit. This unit can play only DVD discs labeled
same as the rear of the unit or “ALL”.

yMost DVD discs have a globe with one or more

numbers in it clearly visible on the cover. This
number must match your unit’s regional code or
the disc cannot play.

yIf you try to play a DVD with a dierent regional

code from your unit, the message “Check
Regional Code” appears on the TV screen.

1

Getting Started

DH7520TW-PB.DSAUNL1_ENG_4634.indd 7 2012-05-10  2:31:20

Getting Started8

Playable file
Requirement

1

Getting Started

MP3/ WMA music file requirement

MP3/ WMA le compatibility with this unit is limited
as follows :

ySampling frequency : within 32 to 48 kHz (MP3),

within 32 to 48 kHz (WMA)

yBit rate : within 32 to 320 kbps (MP3),

40 to 192 kbps (WMA)

ySupport Version : v2, v7, v8, v9

yMaximum les : Under 999

yFile extensions : “.mp3”/ “.wma”

yCD-ROM le format : ISO9660/ JOLIET

yWe recommend that you use Easy-CD Creator,

which creates an ISO9660 le system.

Photo file requirement

Photo le compatibility with this unit is limited as
follows :

yMax pixel in width : 2 760 x 2 048 pixel

yMaximum les : Under 999

ySome discs may not operate due to a dierent

recording format or the condition of disc.

yFile extensions: “.jpg”

yCD-ROM le format : ISO9660/ JOLIET

DivX file requirement

DivX le compatibility with this unit is limited as
follows:

yAvailable resolution: within 720 x 576 (W x H)

pixels.

yThe le name of the DivX subtitle should be

entered within 45 characters.

yIf there is impossible code to express in the

DivX le, it may be displayed as “ _ “ mark on the
display.

yFrame rate : less than 30 fps.

yIf the video and audio structure of recorded

les is not interleaved, either video or audio is
outputted.

yPlayable DivX le : “.avi”, “.mpg”, “.mpeg”, “.divx”

yPlayable Subtitle format : SubRip (*.srt/ *.txt),

SAMI (*.smi), SubStation Alpha (*.ssa/ *.txt),
MicroDVD (*.sub/ *.txt), SubViewer 2.0 (*.sub/
*.txt), Vobsub (*.sub)

yPlayable Codec format : “DIVX3.xx”, “DIVX4.xx”,

“DIVX5.xx”, “MP4V3”, “3IVX”.

yPlayable Audio format : “AC3”, “PCM”, “MP3”, “WMA”,

“DTS”.

ySampling frequency : within 32 to 48 kHz (MP3),

within 32 to 48 kHz (WMA)

yBit rate : within 32 to 320 kbps (MP3), 40 to 192

kbps (WMA)

yFor Discs formatted in Live le system, you can

not it on this unit.

yIf the name of movie le is dierent from that of

the subtitle le, during playback of a DivX le,
subtitle may not be display.

yIf you play a DivX le dier from DivXspec, it may

not operate normally.

DH7520TW-PB.DSAUNL1_ENG_4634.indd 8 2012-05-10  2:31:20

Remote control

Getting Started 9

Battery Installation

Remove the battery cover on the
rear of the Remote Control, and
insert one (size AAA) battery with

and 5 matched correctly.

4

• • • • • • a • • • • •

RADIO&INPUT: Changes

P

input sources.

MARKER: Marks play list.

POWER: Switches the unit ON

1

or OFF.

OPEN/CLOSE: Ejects or inserts

B

the disc from slot loader.

SLEEP: Sets the System to turn o
automatically at a specied time.
(Dimmer : The display window will
be darken by half.)

INFO/DISPLAY: Accesses On-

m

Screen Display.

HOME: Displays the [Home

n

Menu].

DISC MENU: Accesses the menu
on a DVD disc.

• • • • • • b • • • • •

W/S/A/D

right): Used to navigate on-screen
displays.

PRESET +/-: Selects programme
of Radio.

TUNING +/-: Tunes in the desired
radio station.

ENTER: Acknowledges menu

b

selection.
Presetting the radio stations.

RETURN: Moves backwards

x

in the menu or exits the setup
menu.

TITLE: If the current DVD title has
a menu, the title menu appears
on the screen. Otherwise, the disc
menu may not appear.

• • • • • • c • • • • •

STOP: Stops playback.

Z

PLAY, MONO/STEREO: Starts

d

playback. Selects Mono/ Stereo.

PAUSE/STEP: Pauses playback.

M
C/V

or previous chapter / track / le.

c/v

backward or forward.

(up/ down/ left/

SKIP: Goes to the next

SCAN: Searches

• • • • • • d • • • • •

SPEAKER LEVEL: Sets the sound
level of desired speaker.

SOUND EFFECT: Selects a sound
eect mode.

VOL +/- (Volume): Adjusts
speaker volume.

OPTICAL: Changes input source
to optical directly.

MUTE: Mutes the sound.

• • • • • • e • • • • •

0-9 numerical buttons: Selects
numbered options in a menu.

REPEAT: Selects a play

h

mode. (Repeat/ Random)

CLEAR: Removes a number when
setting the password.

• • • • • • f • • • • •

TV Control buttons: Controls the
TV. (LG TV only)

-You can control the sound
level, input source, and power
switching of LG TVs as well.
Hold POWER (T V) and press PR/
CH (
until the TV turns on or o.

REC: USB Direct Recording.

X

BLUETOOTH: Pairing, Connecting
and disconnecting your unit and
Bluetooth device in function other
than the Bluetooth.

) button repeatedly

W/S

1

Getting Started

DH7520TW-PB.DSAUNL1_ENG_4634.indd 9 2012-05-10  2:31:20

Getting Started10

1

2

3

4

5

6

7

8

9

10

Front panel

1

Getting Started

Disc Slot

a

Display window

b

Shows the current status of the unit.

PORT. IN

c

Connects to a portable player with audio
outputs.

USB Port

d

Connects a USB device.

(OPEN/CLOSE)

e R

Ejects or insert the disc from slot loader.

(PLAY/PAUSE)

f T

Starts playback.
Pauses playback temporarily, press again to exit
pause mode.

(STOP)

g I

Stops playback.

F (FUNCTION)

h

Changes the input source or function.

VOL(-/ +)

i

Adjusts speaker volume.

(POWER)

j 1

Switches the unit ON or OFF.

DH7520TW-PB.DSAUNL1_ENG_4634.indd 10 2012-05-10  2:31:20

Rear panel

Getting Started 11

1

Getting Started

Power cord

a

Speaker connectors

b

Connects the speaker cables.

Cooling Fan

c

Antenna Connector

d

FM- Connects the FM wired antenna
AM- Connects the AM loop antenna

iPod (24 pin)

e

WIRELESS

f

VIDEO OUT

g

Connects to a TV with video inputs.

COMPONENT VIDEO (Y PB PR)OUTPUT

h

Connects to a TV with Y PB PR inputs.

HDMI OUT

i

Connects to TV with HDMI inputs.
(Interface for digital audio and video)

OPTICAL IN

j

Connects to optical audio equipment.

AUX (L/R) INPUT

k

Connects to an external source with 2 channel
audio outputs.

DH7520TW-PB.DSAUNL1_ENG_4634.indd 11 2012-05-10  2:31:21

2 Connecting

Connecting12

Assembling the
speaker

Preparation

2

Connecting

Speaker

Speaker cables

1. Attach the base to the pole. Be careful with
the orientation of the pole and base, as in the
illustration.

Pole

Base

Screw

2. Secure the connection with a supplied screw.
When assembling, be careful that the pole and
base do not fall down.

3. Attach the speaker to the pole, then secure the
connection with a supplied screw.

DH7520TW-PB.DSAUNL1_ENG_4634.indd 12 2012-05-10  2:31:21

Connecting 13

4. Thread the speaker wire through the hole in the
bottom of the base.

Bottom of base

5. Connect the speaker wire to the connector on
the speaker.

Caution

>

Be careful that the speaker
does not fall down.
Otherwise it may result in
the speaker malfunctioning
and causing personal injury
and/ or property damage.

2

Connecting

DH7520TW-PB.DSAUNL1_ENG_4634.indd 13 2012-05-10  2:31:21

14

Connecting

Attaching the speakers
to the unit

1. Connect the wires to the unit.
Match each wire’s colored band to the same
colored connection terminal on the rear of the
unit. To connect the cable to the unit, press

2

Connecting

each plastic nger pad to open the connection
terminal. Insert the wire and release the nger
pad.

Connect the black stripe of each wire to the
terminals marked -(minus) and the other end
to the terminals marked + (plus).

2. Connect the wires to the speakers.
Connect the other end of each wire to the
correct speaker according to the color coding:

Color Speaker Position

Green Center Center

Orange Sub woofer Any front position

Red Front Front right

White Front Front left

To connect the cable to the speakers, press each
plastic nger pad to open the connection terminals
on the base of each speaker. Insert the wire and
release the nger pad.

Caution

>

yBe careful to make sure children do not put

their hands or any objects into the *speaker
duct.
*Speaker duct : A hole for plentiful bass
sound on speaker cabinet (enclosure).

yThe speakers contain magnet parts, so color

irregularity may occur on the TV screen or
PC monitor screen. Please use the speakers
far away from either TV screen or PC
monitor.

DH7520TW-PB.DSAUNL1_ENG_4634.indd 14 2012-05-10  2:31:22

Connecting 15

A

B

D

E

F

A

A

A

A

A

G

C

Positioning the system

The following illustration shows an example of
positioning the system. Note that the illustrations
in these instructions dier from the actual unit for
explanation purposes.

For the best possible surround sound, all the
speakers other than the subwoofer should be
placed at the same distance from the listening

position ( ).

Front left speaker (L)/ Front right speaker (R):

Place the front speakers to the sides of the
monitor or screen and as ush with the screen
surface as possible.

Center speaker: Place the center speaker above

or below the monitor or screen.

Surround left speaker (L)/ Surround right

speaker (R):
Place these speakers behind your listening
position, facing slightly inwards.

Subwoofer: The position of the subwoofer is

not so critical, because low bass sounds are not
highly directional. But it is better to place the
subwoofer near the front speakers. Turn it slightly
toward the center of the room to reduce the wall
reections.

Unit

2

Connecting

DH7520TW-PB.DSAUNL1_ENG_4634.indd 15 2012-05-10  2:31:22

Connecting16

Wireless speakers connection

LED indicator of wireless receiver

LED Color Operation

Blue or yellow The wireless receiver is receiving

Red The Wireless Receiver is in

2

Connecting

O (No
display)

Setting up the wireless receiver for
the first time

1. Connect the Wireless Receiver and the rear
speaker (right, left) with the speaker cables.

Color Speaker Position

Grey Rear Rear right

Blue Rear Rear left

2. Connect the power cord of the Wireless
Receiver to the outlet.

3. Turn o the unit and insert the Wireless TX into
the WIRELESS connector on the rear of the unit.

the signal of the wireless TX.

standby mode.

The power cord of wireless
receiver is disconnected.

4. Turn on the main unit: The main unit and
wireless receiver will be automatically
connected.

Caution

>

yInsert the Wireless TX with the marked

“Wireless TX" facing upwards to rear on the
unit.

yInsert the Wireless TX to the line on the

Wireless TX into the WIRELESS connector
on the rear of the unit.

yDo not insert a wireless dongle other than

the Wireless TX dongle dedicated for the
product. The product might be damaged
or it may not be removed easily.

Manually pairing wireless receiver

When your connection is not completed, you can
see the red LED on the wireless receiver and rear
speakers are not made sound. To solve the problem,
follow the below steps.

1. Press and hold I STOP button on the unit
and MUTE button on the remote control
simultaneously.

- Displays the “REMATE”.

2. Press PAIRING on back of the wireless receiver.

- The blue or yellow LED will icker

3. Turn o and on the unit.

- If you see “blue or yellow” LED, it’ s successful.

4. If you don’t see “blue or yellow” LED, try again
Step 1 - Step 3.

Line

DH7520TW-PB.DSAUNL1_ENG_4634.indd 16 2012-05-10  2:31:23

About Ferrite Core (for EMI only)

once

on

core.

Be sure to attach the ferrite core to the power cord
(for connecting to this unit and wireless receiver).
This ferrite core can reduce noises.

How to attach the ferrite core

1. Press the stopper [a] of the ferrite core to open.

2. Wind the power cord on the wireless receiver
once on the ferrite core.

3. Close the ferrite core until it clicks.
Refer to the g.3 and comment.

(g.3)

Connecting 17

Note

,

yIf there is a strong electromagnetic wave

product nearby, interference may occur.
Put the unit (Wireless Receiver and main
unit) away from there.

yIf there is no audio signal for longer than

10 minutes, the Wireless Receiver will
automatically switch to standby mode. In
power saving mode, both LEDs will turn
red. LEDs will turn blue or yellow when
there is any audio signal back.

yIf you operate main unit then wireless

speakers (rear speakers) sound within a few
seconds in standby mode.

ySet the distance between this unit and

Wireless Receiver within 10 m (32 ft.).

yOptimum performance can be

implemented only when the Wireless TX
and the Wireless Receiver within distance
of 2 m (6 ft.) to 10 m (32 ft.) is used since
communication failure may occur if longer
distance is used.

yBe sure to match the speaker cable to the

appropriate terminal on the components:
+ to + and – to –. If the cables are reversed,
the sound will be distorted and will lack
bass.

yIt takes a few seconds (and may take

longer) for the Wireless TX and Wireless
Receiver to communicate with each other.

yUse the rear speaker at least 30 cm (11 inch)

away from either TV screen or PC monitor.

2

Connecting

DH7520TW-PB.DSAUNL1_ENG_4634.indd 17 2012-05-10  2:31:23

Connecting18

Connections to Your
TV

Make one of the following connections, depending
on the capabilities of your existing equipment.

Note

,

2

Connecting

yDepending on your TV and other

equipment you wish to connect, there are
various ways you could connect the player.
Use only one of the connections described
in this manual.

yPlease refer to the manuals of your TV,

Stereo System or other devices as necessary
to make the best connections.

Caution

>

yMake sure the unit is connected directly

to the TV. Tune the TV to the correct video
input channel.

yDo not connect your player via your VCR.

The image could be distorted by the copy
protection system.

Component Video Connection

Connect the COMPONENT VIDEO OUTPUT jacks on
the unit to the corresponding input jacks on the TV
using component cables.

You can hear the sound through the system’s
speakers.

Unit

TV

Green
Blue

Red

DH7520TW-PB.DSAUNL1_ENG_4634.indd 18 2012-05-10  2:31:23

HDMI Out Connection

If you have a HDMI TV or monitor, you can connect
it to this unit using a HDMI cable (Type A, High
Speed HDMI™ Cable).
Connect the HDMI OUT jack on the unit to the
HDMI IN jack on a HDMI compatible TV or monitor.
Set the TV’s source to HDMI (refer to TV’s Owner’s
manual).

Unit

TV

Tip

,

yYou can fully enjoy digital audio and video

signals together with this HDMI connection.

yWhen you use HDMI connection, you can

change the resolution for the HDMI output.
(Refer to “Resolution Setting” on page 21.)

Connecting 19

Note

,

yIf a connected HDMI device does not accept

the audio output of the unit, the HDMI
device’s audio sound may be distorted or
may not output.

yWhen you connect a HDMI or DVI

compatible device make sure of the
following:

- Try switching o the HDMI/DVI device
and this unit. Next, switch on the HDMI/
DVI device and leave it for around 30
seconds, then switch on this unit.

- The connected device’s video input is set
correctly for this unit.

- The connected device is compatible with
720 x 480i (or 576i), 720 x 480p (or 576p),
1 280 x 720p, 1920 x 1080i or 1920 x 1080p
video input.

yNot all HDCP-compatible HDMI or DVI

devices will work with this unit.

- The picture will not be displayed properly
with non-HDCP device.

- This unit does not playback and TV screen
is changed to black or green screen or the
snow noise may occur on the screen.

yIf there is noise or lines on the screen, please

check the HDMI cable and use a higher
version cable than High Speed HDMI™
Cable.

Caution

>

yChanging the resolution when the

connection has already been established
may result in malfunctions. To solve the
problem, turn o the unit and then turn it
on again.

yWhen the HDMI connection with HDCP is

not veried, TV screen is changed to black
or green screen or the snow noise may
occur on the screen. In this case, check the
the HDMI connection, or disconnect the
HDMI cable.

2

Connecting

DH7520TW-PB.DSAUNL1_ENG_4634.indd 19 2012-05-10  2:31:24

Connecting20

Video Connection

Connect the VIDEO OUT jack on the unit to the
video in jack on the TV using a video cable.

You can hear the sound through the system’s
speakers.

2

Connecting

Unit

TV

Yellow

DH7520TW-PB.DSAUNL1_ENG_4634.indd 20 2012-05-10  2:31:24

Connecting 21

Resolution Setting

The unit provides several output resolutions for
HDMI OUT and COMPONENT VIDEO OUT jacks. You
can change the resolution using [Setup] menu.

1. Press n HOME.

2. Use
ENTER. The [Setup] menu appears.

3. Use

D

4. Use
then press D to move to the third level.

5. Use
press b ENTER to conrm your selection.

If your TV does not accept the resolution you
have set on the player, you can set resolution
to 480p (or 576p) as follows:

Press Z STOP for more than 5 seconds.

to select the [Setup] and press b

A/D

to select [Display] option then press

W/S

to move to the second level.

to select the [Resolution] option

W/S

to select the desired resolution then

W/S

Note

,

Video Output
Resolution

Displayed resolution in display window and
outputted resolution may dierent according to
connection type.

[HDMI OUT]: 1080p, 1080i, 720p and 480p (or 576p)
and 480i (or 576i)

[COMPONENT VIDEO OUT]: 480p (or 576p) and 480i
(or 576i)

[VIDEO OUT ]: 480i (or 576i)

2

Connecting

DH7520TW-PB.DSAUNL1_ENG_4634.indd 21 2012-05-10  2:31:24

Connecting22

Optional Equipment
Connection

AUX In Connection

Connect an Output of auxiliary device to the AUX
(L/R) INPUT Connector.

2

Connecting

Unit

To the audio output jacks
of your component
(TV, VCR, etc.)

Note

,

If your TV has only one output for audio
(mono), connect it to the left (white) audio jack
on the unit.

Red
White

PORT. IN (PORTABLE)
Connection

Connect an output of portable device (MP3 or PMP
etc) to the AUDIO (PORT. IN) input connector.

MP3 player, etc...

Listening to music from your
portable player or external
device

The unit can be used to play the music from many
types of portable player or external devices.

1. Connect the portable player to the
PORT. IN (PORTABLE IN) connector of the unit.

Or

Connect the external device to the AUX

connector of the unit.

2. Turn the power on by pressing 1 (POWER).

3. Select the PORTABLE or AUX (L/R) INPUT
function by pressing P RADIO&INPUT.

4. Turn on the portable player or external device
and start it playing.

DH7520TW-PB.DSAUNL1_ENG_4634.indd 22 2012-05-10  2:31:24

Connecting 23

USB Connection

Connect the USB port of USB Memory (or MP3
player, etc.) to the USB port on the front of the unit.

Removing the USB Device from the unit

1. Choose a dierent function mode or press Z
STOP twice in a row.

2. Remove the USB device from the unit.

Compatible USB Devices

yMP3 Player : Flash type MP3 player.

yUSB Flash Drive : Devices that support USB2.0 or

USB1.1.

yThe USB function of this unit does not support

some USB devices.

USB device requirement

yDevices which require additional program

installation connected to a computer, are not
supported.

yDo not extract the USB device while in operation.

yFor a large capacity USB, it may take longer than

a few minute to be searched.

yTo prevent data loss, back up all data.

yIf you use a USB extension cable or USB hub, the

USB device is not recognized.

yUsing NTFS le system is not supported. (Only

FAT(16/32) le system is supported.)

yThis unit is not supported when the total

number of les is 1 000 or more.

yExternal HDD, Card readers, Locked devices,

or hard type usb devices are not supported.

yUSB port of the unit cannot be connected to PC.

The unit can not be used as a storage device.

2

Connecting

DH7520TW-PB.DSAUNL1_ENG_4634.indd 23 2012-05-10  2:31:24

Connecting24

OPTICAL In connection

Connect an optical output of Unit (or Digital Device
etc) to the OPTICAL IN connector.

2

Connecting

To the digital
optical output jack
of your component

Home theater speaker ez
setup

Listen to sound from TV, DVD and Digital Device
with 5.1(2.1 or 2)ch mode. Even in power o
mode, if you press OPTICAL, then power is on and
automatically changed to AUX OPT mode.

1. Connect the unit’s OPTICAL IN jack to jack on
optical out of your TV (or Digital Device etc.).

2. Select the AUX OPT by using the OPTICAL.
To select the AUX OPT directly.

3. Listen sound with 5.1(2.1 or 2)ch speaker.

4. To escape from AUX OPT by using the OPTICAL.
Function is retuned to previous one.

DH7520TW-PB.DSAUNL1_ENG_4634.indd 24 2012-05-10  2:31:24

Antenna Connection

Connect the supplied FM/AM antenna for listening
to the radio.

Connect the AM Loop antenna to the AM antenna
connector.

Connect the FM Wire antenna to the FM antenna
connector.

Note

,

yTo prevent noise pickup, keep the AM Loop

antenna away from the unit and other
components.

yBe sure to fully extend the FM wire antenna.

After connecting the FM wire antenna, keep
it as horizontal as possible.

Connecting 25

2

Connecting

DH7520TW-PB.DSAUNL1_ENG_4634.indd 25 2012-05-10  2:31:25

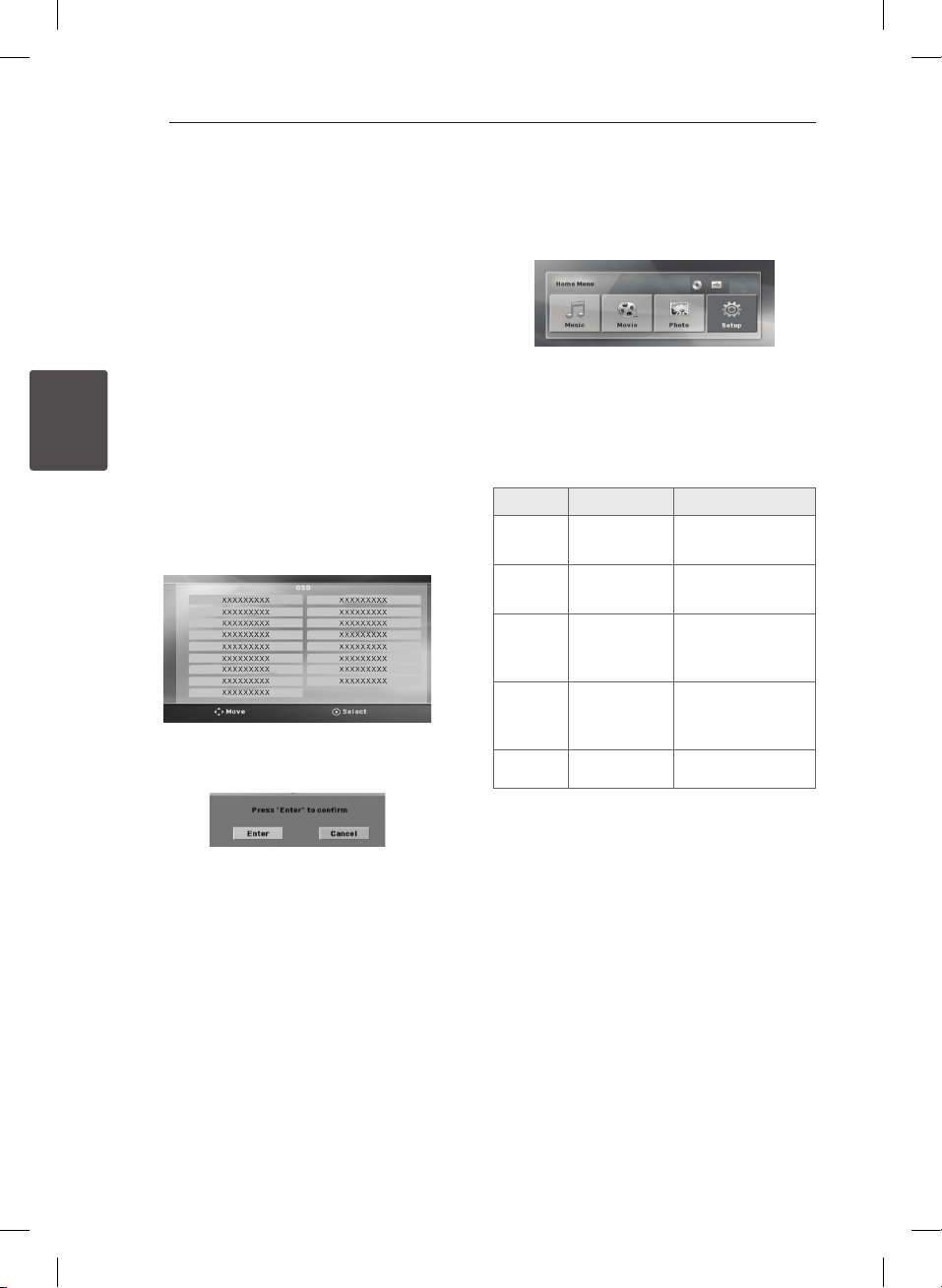

System Setting26

Adjust the setup
settings

By using the Setup menu, you can make various
adjustments to items such as picture and sound.

You can also set a language for the subtitles and
the Setup menu, among other things. For details on
each Setup menu item, see pages 26 to 30.

OSD Initial language settings

- Optional

During the rst use of this unit, the initial language

3

setup menu appears on your TV screen. You must

System Setting

complete initial language selection before using
the unit. English will be selected as the initial
language.

1. Press 1 (POWER) to turn the unit on. The
language setup menu will appear on the screen.

2. Use

WSAD

ENTER.

b

The conrm menu will appear.

to select a language then press

To display and exit the Setup
menu

1. Press n HOME.
Displays the [Home Menu].

2. Select an [Setup] by using AD.

3. Press b ENTER.
Displays the [Setup].

4. Press n HOME or x RETURN to exit in the
[Setup] Menu.

About help menu for Setup

Menu Buttons Operation

ws

Move

a

Move

d

Move

x

Close

b

Select

WS

A

D

RETURN

x

ENTER To conrm menu.

b

Moving to another
menu.

Moving to previous
level.

Moving to next
level or selecting
menu.

To exit the [Setup]
menu or [ 5.1
Speaker Setup].

3. Use AD to select the [Enter] then press b
ENTER to nish the language setup.

DH7520TW-PB.DSAUNL1_ENG_4634.indd 26 2012-05-10  2:31:25

System Setting

27

Language

Menu Language

Select a language for the Setup menu and then on
screen display.

Disc Audio/ Disc Subtitle/ Disc
Menu

Select the language you prefer for the audio track
(disc audio), subtitles, and the disc menu.

[Original]

Refers to the original language in which the
disc was recorded.

[Other]

To select another language, press numeric
buttons and then b ENTER to enter the
corresponding 4-digit number according to
the language code list on the page 49. If you
enter the wrong language code, press CLEAR.

[O (for Disc Subtitle)]

Turn o Subtitle.

Display

TV Aspect

Select which screen aspect to use based on the
shape of your TV screen.

[4:3]

Select when a standard 4:3 TV is connected.

[16:9]

Select when a 16:9 wide TV is connected.

[Panscan]

Automatically displays the wide picture on the
entire screen and cuts o the portions that do
not t. (If the disc/le is not compatible with
Pan Scan, the picture is displayed at Letterbox
ratio.)

Resolution

Sets the output resolution of the Component and
HDMI video signal. Refer to “Resolution Setting” for
details about the resolution (page 21).

[Auto]

If the HDMI OUT jack is connected to
TVs providing display information (EDID),
automatically selects the resolution best suited
to the connected TV. If the COMPONENT
VIDEO OUT is only connected, this changes the
resolution to 480i (or 576i) as default resolution.

[1080p]

Outputs 1080 lines of progressive video.

[1080i]

Outputs 1080 lines of interlaced video.

[720p]

Outputs 720 lines of progressive video.

[480p (or 576p)]

Outputs 480 (or 576) lines of progressive video.

[480i (or 576i)]

Outputs 480 (or (576) lines of interlaced video.

3

System Setting

Display Mode

The Display Mode setting works only when the TV
Aspect mode is set to 4:3.

[Letterbox]

Displays a wide picture with bands on the
upper and lower portions of the screen.

DH7520TW-PB.DSAUNL1_ENG_4634.indd 27 2012-05-10  2:31:25

System Setting28

Audio

5.1 Speaker Setup

Make the following settings for the built-in 5.1
channel surround decoder.

1. Select [5.1 Speaker Setup] on the [Audio] menu.

2. Press b ENTER.
The [5.1 SPEAKER] appears.

3

System Setting

3. Use AD to select the desired speaker.

4. Adjust options using

5. Returns to the previous menu by pressing x
RETURN.

WSAD

buttons.

[Speaker]

Select a speaker that you want to adjust.

Note

,

Certain speaker settings are prohibited by the
Dolby Digital licensing agreement.

[Size]

Since the speaker settings are xed, you cannot
change the settings.

[Volume]

Adjust the output level of each speaker.

[Distance]

Adjust the distance between each speaker and
the listening position.

[Test]

Select [Speaker Test Start] by using the WS
and press b ENTER. Press b ENTER again to
stop. Adjust the volume to match the volume
of test signals memorized in the system.

DH7520TW-PB.DSAUNL1_ENG_4634.indd 28 2012-05-10  2:31:25

System Setting 29

DRC (Dynamic Range Control)

Make the sound clear when the volume is turned
down (Dolby Digital only). Set to [On] for this eect.

Vocal

Select [On] to mix karaoke channels into normal
stereo.

This function is eective for multi-channel karaoke
DVDs only.

HD AV Sync

Sometimes Digital TV encounters a delay between
picture and sound. If this happens you can
compensate by setting a delay on the sound so
that it eectively ‘waits’ for the picture to arrive:
this is called HD AV Sync. Use WS (on the remote
control) to scroll up and down through the delay
amount, which you can set at anything between 0
and 300m sec.

Lock (Parental Control)

Initial Setting the Area Code:

When you use this unit for the rst time, you have
to set the Area Code.

1. Select the [Lock] menu and then press D.

2. Press D.
To access the [Lock] options, you must input the
password you have created. Input a password
and press b ENTER. Enter it again and press b
ENTER to verify. If you make a mistake before
pressing b ENTER, press CLEAR.

3. Select the rst character using WS buttons.

4. Press b ENTER and select the second character
using WS buttons.

5. Press b ENTER to conrm your Area code
selection.

Rating

Blocks playback of rated DVDs based on their
contents. Not all discs are rated.

1. Select [Rating] on the [Lock] menu then press

.

D

2. Input a password and press b ENTER.

3. Select a rating from 1 to 8 using the WS
buttons.

3

System Setting

[Rating 1-8]

Rating one (1) has the most restrictions and
rating eight (8) is the least restrictive.

[Unlock]

If you select unlock, parental control is not
active and the disc plays in full.

4. Press b ENTER to conrm your rating selection.

DH7520TW-PB.DSAUNL1_ENG_4634.indd 29 2012-05-10  2:31:25

System Setting30

Password

You can enter or change password.

1. Select [Password] on the [Lock] menu and then
press D.

2. Press b ENTER.

3. Input a password and press b ENTER.

To change the password, press b ENTER when

the [Change] option is highlighted. Input a
password and press b ENTER. Enter it again
and press b ENTER to verify.

4. Press n HOME to exit the menu.

Note

,

3

System Setting

If you forget your password, you can clear it
using the following steps:

1. Select the [Setup] menu on the [Home
Menu].

2. Input the 6-digit number “210499” and
press b ENTER. The password is cleared.

Area Code

Enter the code of the area whose standards were
used to rate the DVD video disc, based on the list
on page 48.

1. Select [Area Code] on the [Lock] menu then
press D.

2. Input a password and press b ENTER.

3. Select the rst character using WS buttons.

4. Press b ENTER and select the second character
using WS buttons.

5. Press b ENTER to conrm your Area code
selection.

Others

DivX VOD

ABOUT DIVX VIDEO: DivX® is a digital video
format created by DivX, LLC, a subsidiary of Rovi
Corporation. This is an ocial DivX Certied® device
that plays DivX video. Visit divx.com for more
information and software tools to convert your les
into DivX videos.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX
Certied® device must be registered in order to play
purchased DivX Video-on-Demand (VOD) movies.
To obtain your registration code, locate the DivX
VOD section in your device setup menu. Go to vod.
divx.com for more information on how to complete
your registration.

[Register]

Displays the registration code of your player.

[Deregister]

Deactivate your player and display the
deactivation code.

Note

,

All the downloaded videos from DivX VOD can
only be played back on this unit.

DH7520TW-PB.DSAUNL1_ENG_4634.indd 30 2012-05-10  2:31:25

Operating 31

Using the Home Menu

1. Press n HOME.
Displays the [Home Menu].

2. Select an option by using AD.

3. Press b ENTER then selected option menu.

[Music] – Displays [MUSIC] menu.

[Movie] – Start video media’s playback or displays

the [MOVIE] menu.

[Photo] – Displays [PHOTO] menu.

[Setup] – Displays the [Setup] menu.

Note

,

You can not select the [Music], [Movie] or
[Photo] option when the USB device is not
connected and a disc is not inserted.

Basic Operations

1. Insert the disc by using the B OPEN/CLOSE or
Connect the USB device to the USB port.

2. Press n HOME.
Displays the [Home Menu].

3.

Select an option by using AD.
If you select the [Movie], [Photo] or [Music]
option when you connect up to two devices,
it appears as belows. Select a media then press

ENTER.

b

4. Press b ENTER then selected option menu.

Note

,

yFor the most Audio CD and DVD-ROM discs,

playback starts automatically.

yThe unit plays only music le contained in

the USB storage device or disc automatically.

4

Operating

DH7520TW-PB.DSAUNL1_ENG_4634.indd 31 2012-05-10  2:31:25

Operating32

4

Operating

To Do this

Stop Press Z STOP.

Playback

Pause Press M PAUSE/STEP.

Frame-by-

Frame playback

Skipping to the

next/ previous
chapter/ track/

le

Locating a

point quickly by

playing a le in
fast forward or

fast reverse

Playing

repeatedly or

randomly

Press d PLAY, MONO/
STEREO.

Press M PAUSE/STEP
repeatedly to play title Frame­by-Frame. (DVD, DivX only)

During playback, press

SKIP to go to the next

V

chapter/ track/ le or to
return to the beginning of the
current chapter/ track/ le.

Press C SKIP twice briey
to step back to the previous
chapter/ track/ le.

During playback, press c/

SCAN repeatedly to

v

select the required scan speed.

To return to normal speed,
press d PLAY, MONO/
STEREO.

Press h REPEAT repeatedly,
and the current title/ chapter
/ track will be played back
repeatedly or randomly.

- DVD : Chapter/ Title/ O

- DivX : Title/ All/ O

- Audio CD/ MP3/ WMA : Track/
All/ Random/ O

C/

Other Operations

Displaying Disc Information
on-screen

You can display various information about the disc
loaded on-screen.

1. Press m INFO/DISPLAY to show various
playback information.
The displayed items dier depending on the
disc type or playing status.

2. You can select an item by pressing
change or select the setting by pressing AD.

Title – Current title number/ total number of titles.

Chapter – Current chapter number/ total number

Time – Elapsed playing time.

Audio – Selected audio language or channel.

Subtitle – Selected subtitle.

Angle – Selected angle/ total number of angles.

of chapters.

Note

,

If any button is not pressed for a few seconds,
the on-screen display disappears.

WS

and

Slowing down

the playing

speed

DH7520TW-PB.DSAUNL1_ENG_4634.indd 32 2012-05-10  2:31:25

In the pause mode, press
SLOW (c or v) to select
the required speed. (DVD, DivX
only) The DivX le cannot be
slow down reverse playback.

Operating 33

To display the DVD Menu

r

When you play a DVD which contains several menu,
you can select the menu you want using the Menu.

1. Press DISC MENU.
The disc’s menu appears.

2. Select the menu by using

3. Press d PLAY, MONO/STEREO to conrm.

WSAD

.

To display the DVD title

r

When you play a DVD which contains several title,
you can select the title you want using the Menu.

1. Press TITLE.
The disc’s title appears.

2. Select the menu by pressing

3. Press d PLAY, MONO/STEREO to conrm.

WSAD

.

1.5 times speed playback

r

The 1.5 speed allows you to watch the pictures and
listen to the sound quicker than playing at a normal
speed.

1. During playback, press d PLAY, MONO/
STEREO to play at 1.5 times speed. “dX1.5”
appears on the screen.

2. Press d PLAY, MONO/STEREO again to exit.

Screen Saver

The screen saver appears when you leave the unit
in Stop mode for about ve minutes.

Starting play from selected
time

ry

To start playing at any chosen time on the le or
title.

1. Press m INFO/DISPLAY during playback.

2. Press WS to select the time clock icon and
“--:--:--” appears.

3. Input the required start time in hours, minutes,
and seconds from left to right. If you enter the
wrong numbers, press CLEAR to remove the

numbers you entered. Then input the correct
numbers.
For example, to nd a scene at 1 hour, 10
minutes, and 20 seconds, enter “11020” by using
numerical buttons.

4. Press b ENTER to conrm. Playback starts from
the selected time.

Resume playback

ryut

The unit records the point where you pressed the

STOP depending on the disc.

Z

If “MZ (Resume Stop)” appears on the screen briey,
press d PLAY, MONO/STEREO to resume playback
(from the scene point).

If you press Z STOP twice or unload the disc,
“Z”(Complete Stop) appears on the screen. The
unit will clear the stopped point.

Note

,

The resume point may be cleared when a
button is pressed (for example; 1 POWER, B
OPEN/CLOSE, etc).

Changing subtitle code page

y

If the subtitle is not displayed properly, you can
change the subtitle code page to view the subtitle
le properly.

1. During playback, press m INFO/DISPLAY to
display the On-Screen display.

2. Use WS to select the [Code Page] option.

3. Use AD to select desired code option.

4. Press x RETURN to exit the On-Screen display.

4

Operating

DH7520TW-PB.DSAUNL1_ENG_4634.indd 33 2012-05-10  2:31:25

34

Operating

Marked Playback

ut

The mark function enables you to store your
favourite les from any disc or USB device in the
unit memory.

1. Select [Music] on the [Home Menu].

Returning to the upper folder.
(MP3/ WMA only)

File information will be displayed
according to the ID3TAG information
on the appropriate music le. (MP3
only)

4

Operating

Selecting all tracks/ les.

Deselecting all tracks/les.

Moving to the previous or

2. Select a desired music on the [List] by using the
then press MARKER to appears the mark on

WS

the list.

3. Press b ENTER or d PLAY, MONO/STEREO.

Displays the play mode.

4. Select the play mode by using the WS and press

ENTER.

b

next le list.

To delete a Marker

1. Use WS to select the track that you wish to erase
from the marked le.

2. Press MARKER.

To delete all Markers

Use

WSAD

ENTER in program edit mode.

The markers are also cleared when the disc or
USB device is removed, the unit is switched to
power o or the function is switched to others.

to select [Deselect All] then press b

Note

,

[Mark Play]

Marked playback.

[Current Play]

Normal playback.

Note

,

If you want to select all les on the list, select
[Select All] and press b ENTER.

DH7520TW-PB.DSAUNL1_ENG_4634.indd 34 2012-05-10  2:31:26

Operating 35

Viewing a PHOTO file

i

This unit can play discs with photo les.

1. Select [Photo] on the [Home Menu] and press
ENTER.

b

Moving to the previous or

Returning to the upper
folder.

2. Press WS to select a folder, and then press b

ENTER.

3. If you want to view a slide show, press WS

to highlight a le and press d PLAY, MONO/

STEREO.

About help menu in the [Photo] menu

Menu Buttons Operation

Slide

d

Show

wsad

Move

b

Select

x

Close

d

PLAY, MONO/

STEREO

WSAD

ENTER

b

RETURN

x

next le list.

Viewing a slide
show.

Moving to another
le or content.

Viewing a particular
le.

Returning to the
[Home Menu].

About help menu in the full screen

Menu Buttons Operation

m

Menu

a/d

Prev./ Next

x

List

INFO/

DISPLAY

A/D

x

RETURN

Displaying the Option
menu.

Moving to another le.

Returning to the
[Photo] menu.

Options while viewing a photo

You can use various options during viewing a
photo in full screen.

1. While viewing a photo in full screen, press
INFO/DISPLAY to display the option menu.

m

2. Select an option using

a

b c d e

a Current photo/ Total number of photos –

Use AD to view previous/next photo.

b

Slide Show z/M– Press  ENTER to start

or pause slide show.

c

Speed x3/ x2/ x1 – Use  ENTER to select
a delaying speed between photos in a slide
show.

d

Rotate – Press  ENTER to rotate the photo.

e

Go to list – Press  ENTER to return [Photo]
menu.

WSAD

.

4

Operating

DH7520TW-PB.DSAUNL1_ENG_4634.indd 35 2012-05-10  2:31:26

Operating36

Sleep Timer Setting

Press SLEEP one or more times to select delay time
between 10 and 180 minutes, after the unit will
turn o.

To check the remaining time, press SLEEP.

To cancel the sleep function, press SLEEP
repeatedly until “SLEEP 10” appears, and then press
SLEEP once again while “SLEEP 10” is displayed.

Note

,

You can check the remaining time before the
unit turns o.

Press SLEEP The remaining time appears in the
display window.

Dimmer

Press SLEEP once. The display window will
be darkened by half. To cancel it, press SLEEP

4

repeatedly until dim o.

Operating

Turn off the sound temporarily

Press MUTE to mute your unit.

You can mute your unit in order, for example, to
answer the telephone, appears the “MUTE” in the
display window.

System Select - Optional

You must select the appropriate system mode for
your TV system. Press and hold M PAUSE/STEP
for more than ve seconds to be able to select a
system in the [Home Menu].

Note

,

If the USB device is connected or a disc is
inserted, this function is not operated.

Adjust the speaker level
settings

You can adjust the sound level of each speaker.

1. Press SPEAKER LEVEL repeatedly to select a
desired speaker to set.

2. Press VOL -/+ to adjust the sound level of the
selected speaker while the level setting memu
is displayed on the display window.

3. Repeat and adjust the sound level of the other
speakers.

Last Scene Memory

r

This unit memorizes last scene from the last disc
that is viewed. The last scene remains in memory
even if you remove the disc from the unit or switch
o the unit. If you load a disc that has the scene
memorized, the scene is automatically recalled.

DH7520TW-PB.DSAUNL1_ENG_4634.indd 36 2012-05-10  2:31:26

Operating 37

Radio Operations

Be sure that both FM/AM aerials are connected.
(Refer to the page 25.)

Listening to the radio

1. Press P RADIO&INPUT until FM/AM appears
in the display window.
The last received station is tuned in.

2. Press and hold TUNING (-/+) for about two
seconds until the frequency indication starts to
change, then release. Scanning stops when the
unit tunes in a station.

or

Press TUNING (-/+) repeatedly.

3. Adjust the volume by pressing VOL(-/+) on
the front panel or by pressing VOL (+/-)on the
remote control repeatedly.

Presetting the Radio Stations

You can preset 50 stations for FM/AM.

Before tuning, make sure that you have turned
down the volume.

1. Press P RADIO&INPUT until FM/AM appears
in the display window.

2. Select the desired frequency by using TUNING
(-/+).

3. Press b ENTER a preset number will ash in
the display window.

4. Press PRESET (-/+) to select the preset number
you want.

5. Press b ENTER.
The station is stored.

6. Repeat the steps 2 to 5 to store other stations.

Deleting a saved station

1. Press PRESET - / + to Select a preset number
you want to delete.

2. Press CLEAR, the preset number will blink in the
display window.

3. Press CLEAR again, to delete the selectd preset
number.

Improving poor FM reception

Press d PLAY, MONO/STEREO on the remote
control. This will change the tuner from stereo to
mono and usually improve the reception.

4

Operating

Deleting all the saved stations

1. Press and hold CLEAR for two seconds.
“ERASE ALL” will ash up on the unit display.

2. Press CLEAR to erase all saved of the radio
stations.

DH7520TW-PB.DSAUNL1_ENG_4634.indd 37 2012-05-10  2:31:26

Operating38

Sound adjustment

Setting the surround mode

This system has a number of pre-set surround
sound elds. You can select a desired sound mode
by using SOUND EFFECT.

You can change the SOUND EFFECT using AD
arrow key while the sound eect information is
displayed on.

The displayed items for the equalizer maybe
dierent depending on sound sources and eects.

On Display Description

The NAT PLUS is Natural Plus
sound eect. You can enjoy
the natural sound eect same
as a 5.1-channel. (Optional)

You can enjoy comfortable
and natural sound. (Optional)

This program lends an
enthusiastic atmosphere to
the sound, giving you the
feeling you are at an actual
rock pop, jazz or classic
concert.

The BASS is Bass Blast. During
playback, reinforce the treble,
bass and surround sound
eect.

Improves the bass and treble
sound.

You can enjoy the sound
without equalizer eect.

4

Operating

NAT PLUS

NATURAL

POP

CLASSIC

JAZZ

ROCK

BASS

LOUDNESS

BYPASS

Note

,

yIn some of surround modes, some speakers,

there’s no sound or low sound. It depends
on the mode of surround and the source of
audio, it is not defective.

yYou may need to reset the surround mode,

after switching the input, sometimes even
after the sound track changed.

DH7520TW-PB.DSAUNL1_ENG_4634.indd 38 2012-05-10  2:31:26

Advanced Operations

Recording to USB

You can record music or sound source to USB
device by connecting the USB to the port on the
unit.

1. Connect the USB device to the unit.

2. Select a mode in which you want to record.
Play back a sound source rst.

3. Start the recording by pressing X REC.

4. To stop recording, press Z STOP.

[All tracks/ les recording]

Record to USB in stop or play mode.

[Program list recording]

After marking desired le(s) and you can record
it to USB (Refer to the page 34).

It’ll be stored as follows.

Audio CD

MP3/ WMA

The other
sources (Tuner,
AUX, Portable)

Operating 39

Note

,

yYou can check the recording percentage

rate for the USB record on the screen during
the recording. (Audio CD or MP3/ WMA CD
only)

yDuring recording MP3/WMA, there is no

sound.

yWhen you stop recording during playback,

the le that has been recorded at that time
will be stored. (Except MP3/ WMA les.)

yDo not remove the USB device or turn

o the unit during USB recording. If not,
an incomplete le may be made and not
deleted on PC.

yIf USB recording does not work, the

message like “NO USB”, “ERROR”, “USB FULL”
or “NO REC” is displayed on the display
window.

yMulti card reader device or external HDD

can not be used for USB recording.

yA le is recorded by 128 Mbyte (about 2

hours) when you record for a long term.
There are recorded less than 4 les.

yIn the state CD-G, DTS disc USB record is not

operated.

yThe les in the sub-folders are not recorded

during all track recording.

yYou may not record more than 999 les.

yThe numbering of the recording le is

entered from the lowest number. So if you
delete some of the recording les, the next
recording le could be the lowest number
among them.

The making of unauthorized copies of copy-

protected material, including computer programs,

les, broadcasts and sound recordings, may be
an infringement of copyrights and constitute a
criminal oense. This equipment should not be

used for such purposes.

Be responsible

Respect copyrights.

4

Operating

DH7520TW-PB.DSAUNL1_ENG_4634.indd 39 2012-05-10  2:31:26

Operating40

Using a Bluetooth
wireless technology

About Bluetooth

Bluetooth® is wireless communication technology
for short range connection.

The available range is within 10 meters.

(The sound may be interrupted when the
connection interfered by the other electronic wave
or you connect the bluetooth in the other rooms.)
Connecting individual devices under
Bluetooth® wireless technology does not incur any
charges. A mobile phone with
Bluetooth® wireless technology can be operated
via the Cascade if the connection was made via
Bluetooth® wireless technology.
Available Devices : Mobile phone, MP3, Laptop,
PDA (This units be supported the Stereo Headset.)

4

Operating

Bluetooth Profiles

In order to use Bluetooth wireless technology,
devices must be able to interpret certain proles.
This unit is compatible with following prole.

A2DP (Advanced Audio Distribution Prole)

AVRCP (Audio/ Video Distribution Remote Control
Prole)

Listening to music of a
Bluetooth device

Pairing your unit and Bluetooth device

Before you start the pairing procedure, make
sure the Bluetooth feature is turned on in to your
Bluetooth device. Refer to your Bluetooth device’s
user guide. Once a pairing operation is performed,
it does not need to be performed again.

1. Select the Bluetooth function by using the P
RADIO&INPUT.
Appears “BT” and then “BT READY” in display
window.

2. Operate the Bluetooth device and perform the
pairing operation. When searching for this unit
with the Bluetooth device, a list of the devices
found may appear in the Bluetooth device
display depending on the type of Bluetooth
device.Your unit appears as “LG Audio”.

3. Enter the PIN code.
PIN code : 0000

4. When this unit successfully paired with your
Bluetooth device, Bluetooth LED of this unit
lights up and appears “PAIRED”.

Note

,

Depending on the Bluetooth device type,
some device have a dierent pairing way.

5. Listening to music.
To play a music stored on your Bluetooth device,
refer to your Bluetooth device’s user guide.

Note

,

yIf you change the function of the unit, the

Bluetooth function is disconnected, operate
pairing again.
(Bluetooth Function other than the
Bluetooth)

yAVRCP cannot be available in this mode.

DH7520TW-PB.DSAUNL1_ENG_4634.indd 40 2012-05-10  2:31:26

Operating 41

Listening to music on this unit
using Bluetooth device

Pairing your unit and Bluetooth
device

Before you start the pairing procedure, make
sure the Bluetooth feature is turned on in to your
Bluetooth device. Refer to your Bluetooth device’s
user guide. Once a pairing operation is performed,
it does not need to be performed again.

1. Select a function other than the Bluetooth
function by using the P RADIO&INPUT.

2. Place the Bluetooth device to be connected to
this unit within 1 meter of the unit.

3. Put the Bluetooth device in pairing mode.
Refer to your Bluetooth device’s user guide.

4. Press and hold BLUETOOTH.
Appears “INQUIRY”.
If searched Bluetooth is only one, pairing the
unit. Refer the step 7.

5. Appears depending on type of Bluetooth
devices in display window .

6. Select a Bluetooth device you want to connect
by using

7. Enter the PIN code by using numberical
buttons.
PIN code : 0000

8. Press

b

When this unit successfully paired with your
Bluetooth device, Bluetooth icon of this unit
lights up and appears “BT SRC”.
You can listen to music played on this unit using
your Bluetooth device.
Sound output from the speakers is stopped.

Note

,

yYou cannot use VOL (volume), SOUND

EFFECT, SPEAKER LEVEL in this mode.

and press b ENTER.

W S

ENTER to conrm.

Operating with Bluetooth device

You can operate a unit by connecting a Bluetooth
device using AVRCP. For details about operation,
refer to the Bluetooth device’s User Guide.

Note

,

These operations may not be vailable for
certain Bluetooth device. In addition, the
actual operations may dier depending on the
connected Bluetooth device.

Connecting and disconnecting with a
Bluetooth device

This function is operated after pairing.

Press BLUETOOTH to connect or disconnect with a
Bluetooth device.

Appears belows in display window.

Connection : BT CONN
Disconnection : DISCONN

Note

,

If you change the function of the unit, the
Bluetooth function is disconnected, press
BLUETOOTH pairing again.
(Bluetooth
Bluetooth)

Function other than the

Checking the information of
connected Bluetooth device

This function is operated after pairing. You can
check the Bluetooth information.

Press and hold m INFO/DISPLAY repeatedly.
Bluetooth information is changed as follows.

Local Bluetooth Device Address Device Name

None ...

4

Operating

DH7520TW-PB.DSAUNL1_ENG_4634.indd 41 2012-05-10  2:31:26

4

Operating

Operating42

Note

,

yThis units dose not be supported the Mono

Headset Prole (Hands Free Prole)

yThe sound may be interrupted when

the connection interfered by the other
electronic wave.

yYou cannot control the Bluetooth device

with this unit.

yPairing is limited one Bluetooth device per

one unit and multi-pairing is not supported.

yAlthough the distance between your

Bluetooth and the set is less than 10m, there
are obstacles between both, your Bluetooth
device cannot be connected.

yDepending on the type of the device,

you may not be able to use the Bluetooth
function.

yYou can enjoy wireless system using phone,

MP3, Notebook, headset, etc..

yWhen not connected the Bluetooth, “BT

READY” appears on the display window.

yThe Electrical malfunction due to devices

using same frequency such as Medical
equipment, Microwaves or wireless
LAN devices, the connection will be
disconnected.

yWhen someone stands and interrupts

communication between Bluetooth device
and the player, the connection will be
disconnected.

yIf the gotten away of the distance between

Bluetooth and the unit, the sound quality
is lower and lower the connection will
disconnect when the space between the
Bluetooth and the unit gets out of the
operating range of Bluetooth.

yThe device with Bluetooth wireless

technology is disconnected, if you turn o
the main unit or put the device away from
the main unit more than 10m.

DH7520TW-PB.DSAUNL1_ENG_4634.indd 42 2012-05-10  2:31:26

Operating 43

Playing the iPod

You can enjoy the media les with your iPod. For
details about iPod, refer to the iPod’s User Guide.

Preparation

yTo view iPod’s Videos and Photos on the TV

screen.

-Be sure to use the video connection through
the VIDEO OUT jack on the rear panel of this
unit. Select the appropriate video input mode
on the TV.

-Depending on the iPod, make sure that select
Videos > Video settings, and then set TV Out
to Ask or On from your iPod.
For details about Video Settings, refer to the
iPod User Guide.

-The viewing photos is available only if this unit
is in iPod IN mode and you can view photos
only as a slide show. You have to start a slide
show on your iPod to view a photo on a TV.
For details about a slide show, refer to the iPod
User Guide.

yBefore connecting the iPod, turn this unit o and

reduce the volume of this unit to its minimum.

1. Connect the iPod cradle.

2. Connect the iPod rmly.

yIf you turn this unit on, your iPod is automatically

turned on and recharging starts.

yIf your iPod is completely discharged, charge the

battery rst.

4

Operating

DH7520TW-PB.DSAUNL1_ENG_4634.indd 43 2012-05-10  2:31:27

Operating44

Enjoying iPod on the screen

You can operate your iPod by controlling menu on
the screen.

1. Connect the iPod rmly.

2. Press n HOME.

3. Select [Music] or [Movie] using AD, and press
ENTER

b

If you connected the other device (CD or USB),
select the iPod on the menu and
If you select the [Music] option when
you connect iPod, the unit plays a music
automatically.

4. Select a content using

ENTER



File information will be displayed
according to the ID3TAG information
on the appropriate music le. (MP3
only)

4

Operating

to play.

WSAD

ENTER



, and press

Enjoying the iPod IN mode

You can operate your iPod by using the supplied
remote control and controls on your iPod.

1. Connect the iPod rmly.

2. Press P RADIO&INPUT to select iPod IN
mode.

WSAD

.

PLAY, MONO/

d

STEREO,

ENTER

b

M

c/v

C/ V

SKIP

REPEAT

h

Selects an option in the menu.

Starts playback the music or
video.

To pause while it is playing. To
resume playing, press d PLAY,
MONO/STEREO again.

Fast-forward or rewind a song

SCAN

or video

Skip the playback forward or
backward .

To select a desired repeat
mode: Track ( ), All ( ), O
(No display).

Moving to the previous or

5. Operate iPod.
Refer to basic operation section.

Note

,

yIf the iPod’s OSD language is selected to

simple chinese, the power scroll function is
not operated correctly.

yThe controls on your iPod are not

operational in this mode.

DH7520TW-PB.DSAUNL1_ENG_4634.indd 44 2012-05-10  2:31:27

next le list.

Note

,

yAn error message “CHECK IPOD” or

“Connected iPod model is not supported.”
appears when:

-your iPod is not available for the function
to be operated.

yAn error message “CHECK IPOD” or “Please

update iPod’s software.” appears when:

-your iPod has an old software version.
> Update your iPod software to latest

version.

yIf this unit displays an error message, follow

the message. An error message “CHECK
IPOD” or “Please check your iPod.” appears
when:

-the communication between this unit
and your iPod is failed.
> Undock & re-dock your iPod in this unit.

-your iPod is not connected rmly.

-this unit recognizes your iPod as
unknown device.

-your iPod is exceptionally low on power.
> The battery needs to be charged.
> If you charge the battery while iPod

is extremely low in power, it maytake
longer to charge.

yYou may use the dock adapter which should

be supplied with your iPod to the dock for
the stable use of the iPod. If you need an
adapter, consult your iPod dealer.

yCompatibility with your iPod may vary

depending on the type of your iPod.

yiPod touch and iPhone have any dierence

in operation other than iPod. You may need
any additional control to use them with this
unit. (e.g. “slide to unlock”)

yIf you use an application, make a call, or

send and receive SMS text message, etc. on
iPod touch or iPhone, disconnect it from
iPod dock of this unit and then use it.

Operating 45

yDepending on your iPod’s software version,

it may not be possible to control your iPod
from this unit. We recommend installing the
latest software version.

yThe video quality depends on the video

sources on your iPod.

yIf you have a problem with your iPod, please

visit www.apple.com/support/ipod.

yYou cannot use the microphone on the iPod

mode.

4

Operating

DH7520TW-PB.DSAUNL1_ENG_4634.indd 45 2012-05-10  2:31:27

6 Appendix

5 Troubleshooting

Troubleshooting46

Troubleshooting

There is little or no sound

PROBLEM CORRECTION

No power Plug the power cord into the wall outlet securely.

Select the appropriate video input mode on the TV so the picture

No picture

from the unit appears on the TV screen.

Connect the video cables securely to both the TV and unit.

Select the correct input mode of the unit so you can hear the sound
from the unit.

Connect the audio cables into the connection terminals correctly.

Replace with a new audio cable.

5

Troubleshooting

The DVD picture quality is poor

A DVD/CD will not play

Humming noise heard while a DVD

or CD is playing

Radio stations can’t be tuned in

properly

The remote control doesn’t work

well / at all

iPod does not work.

Clean the disc using a soft cloth with outward strokes.

Insert a disc.

Insert a playable disc (check the disc type, colour system and
regional code).

Place the disc with the label or printed side facing upwards.

Enter your password or change the rating level.

Clean the disc using a soft cloth with outward strokes.

Move unit and audio components further away from your TV.

Check the antenna connection and adjust its position.

Attach an external aerial if necessary.

Tune to the station manually.

Preset some radio stations, see page 37 for details.

The remote is not pointed directly at the unit.

Point the remote directly at the unit.

The remote is too far from the unit.

Use the remote within 23 feet (7m) of the unit.

There is an obstacle in the path between the remote control and
the unit.

Remove the obstacle.

The battery in the remote control are at.

Replace the battery with new ones.

Check whether the player is connected to the unit correctly.

Connect it to the unit correctly.

DH7520TW-PB.DSAUNL1_ENG_4634.indd 46 2012-05-10  2:31:27

Appendix 47

Maintenance

Handling the Unit

When shipping the unit

Please save the original shipping carton and
packing materials. If you need to ship the unit, for
maximum protection, re-pack the unit as it was
originally packed at the factory.

Keeping the exterior surfaces clean

yDo not use volatile liquids such as insecticide

spray near the unit.

yWiping with strong pressure may damage the

surface.

yDo not leave rubber or plastic products in

contact with the unit for a long period of time.

Cleaning the unit

To clean the player, use a soft, dry cloth. If the
surfaces are extremely dirty, use a soft cloth lightly
moistened with a mild detergent solution. Do not
use strong solvents such as alcohol, benzine, or
thinner, as these might damage the surface of the
unit.

Maintaining the Unit

The unit is a high-tech, precision device. If the
optical pick-up lens and disc drive parts are dirty
or worn, the picture quality could be diminished.
For details, please contact your nearest authorized
service center.

Notes on Discs

Handling Discs

Do not touch the playback side of the disc. Hold
the disc by the edges so that ngerprints do not
get on the surface. Never stick paper or tape on the
disc.

Storing Discs

After playing, store the disc in its case. Do not
expose the disc to direct sunlight or sources of heat
and never leave it in a parked car exposed to direct
sunlight.

Cleaning Discs

Fingerprints and dust on the disc can cause poor
picture quality and sound distortion. Before playing,
clean the disc with a clean cloth. Wipe the disc from
the center to out.

Do not use strong solvents such as alcohol,
benzine, thinner, commercially available cleaners,
or anti-static spray intended for old vinyl records.

6

Appendix

DH7520TW-PB.DSAUNL1_ENG_4634.indd 47 2012-05-10  2:31:27

Appendix48

Area Code List

Choose an area code from this list.

Area Code Area Code Area Code Area Code

Afghanistan AF

Argentina AR

Australia AU

Austria AT

Belgium BE

Bhutan BT

Bolivia BO

Brazil BR

Cambodia KH

Canada CA

Chile CL

China CN

Colombia CO

Congo CG

Costa Rica CR

Croatia HR

Czech Republic CZ

Denmark DK

Ecuador EC

Egypt EG

6

El Salvador SV

Appendix

Ethiopia ET

Fiji FJ

Finland FI

France FR

Germany DE

Great Britain GB

Greece GR

Greenland GL

Hong Kong HK

Hungary HU

India IN

Indonesia ID

Israel IL

Italy IT

Jamaica JM

Japan JP

Kenya KE

Kuwait KW

Libya LY

Luxembourg LU

Malaysia MY

Maldives MV

Mexico MX

Monaco MC

Mongolia MN

Morocco MA

Nepal NP

Netherlands NL

Antilles AN

New Zealand NZ

Nigeria NG

Norway NO

Oman OM

Pakistan PK

Panama PA

Paraguay PY

Philippines PH

Poland PL

Portugal PT

Romania RO

Russian
Federation RU

Saudi Arabia SA

Senegal SN

Singapore SG

Slovak Republic SK

Slovenia SI

South Africa ZA

South Korea KR

Spain ES

Sri Lanka LK

Sweden SE

Switzerland CH

Taiwan TW

Thailand TH

Turkey TR

Uganda UG

Ukraine UA

United States US

Uruguay UY

Uzbekistan UZ

Vietnam VN

Zimbabwe ZW

DH7520TW-PB.DSAUNL1_ENG_4634.indd 48 2012-05-10  2:31:27

Appendix 49

Language code List

Use this list to input your desired language for the following initial settings: [Disc Audio],
[Disc Subtitle] and [Disc Menu].

Language Code Language Code Language Code Language Code

Afar 6565

Afrikaans 6570

Albanian 8381

Ameharic 6577

Arabic 6582

Armenian 7289

Assamese 6583

Aymara 6588

Azerbaijani 6590

Bashkir 6665

Basque 6985

Bengali; Bangla 6678

Bhutani 6890

Bihari 6672

Breton 6682

Bulgarian 6671

Burmese 7789

Byelorussian 6669

Chinese 9072

Croatian 7282

Czech 6783

Danish 6865

Dutch 7876

English 6978

Esperanto 6979

Estonian 6984

Faroese 7079

Fiji 7074

Finnish 7073

French 7082

Frisian 7089

Galician 7176

Georgian 7565

German 6869

Greek 6976

Greenlandic 7576

Guarani 7178

Gujarati 7185

Hausa 7265

Hebrew 7387

Hindi 7273

Hungarian 7285

Icelandic 7383

Indonesian 7378

Interlingua 7365

Irish 7165

Italian 7384

Japanese 7465

Kannada 7578

Kashmiri 7583

Kazakh 7575

Kirghiz 7589

Korean 7579

Kurdish 7585

Laothian 7679

Latin 7665

Latvian, Lettish 7686

Lingala 7678

Lithuanian 7684

Macedonian 7775

Malagasy 7771

Malay 7783

Malayalam 7776

Maori 7773

Marathi 7782

Moldavian 7779

Mongolian 7778

Nauru 7865

Nepali 7869

Norwegian 7879

Oriya 7982

Panjabi 8065

Pashto, Pushto 8083

Persian 7065

Polish 8076

Portuguese 8084

Quechua 8185

Rhaeto-Romance 8277

Rumanian 8279

Russian 8285

Samoan 8377

Sanskrit 8365

Scots Gaelic 7168

Serbian 8382

Serbo-Croatian 8372

Shona 8378

Sindhi 8368

Singhalese 8373

Slovak 8375

Slovenian 8376

Spanish 6983

Sudanese 8385

Swahili 8387

Swedish 8386

Tagalog 8476

Tajik 8471

Tamil 8465

Telugu 8469

Thai 8472

Tonga 8479

Turkish 8482

Turkmen 8475

Twi 8487

Ukrainian 8575

Urdu 8582

Uzbek 8590

Vietnamese 8673

Volapük 8679

Welsh 6789

Wolof 8779

Xhosa 8872

Yiddish 7473

Yoruba 8979

Zulu 9085

6

Appendix

DH7520TW-PB.DSAUNL1_ENG_4634.indd 49 2012-05-10  2:31:27

Appendix50

Trademarks and

6

Appendix

Licenses

Manufactured under license from Dolby
Laboratories. Dolby and the double-D symbol
are trademarks of Dolby Laboratories.

HDMI, the HDMI logo and High-Denition
Multimedia Interface are trademarks or registered
trademarks of HDMI licensing LLC.

“DVD Logo” is a trademark of DVD Format/Logo
Licensing Corporation.

DivX®, DivX Certied® and associated logos are
trademarks of Rovi Corporation or its subsidiaries
and are used under license.

Bluetooth® wireless technology is a system which
allows radio contact between electronic devices
within a max. range of 10 meters.
Connecting individual devices under Bluetooth®
wireless technology does not incur any charges.
A mobile phone with Bluetooth® wireless
technology can be operated via the Cascade if
the connection was made via Bluetooth® wireless
technology.
The Bluetooth® word mark and logos are owned
by the Bluetooth® SIG, Inc. and any use of such
marks by LG Electronics is under license.
Other trademarks and trade names are those of
their respective owners.

iPod is a trademark of Apple Inc., registered in
the U.S. and other countries.

iPhone is a trademark of Apple Inc.

“Made for iPod” and “Made for iPhone” mean that
an electronic accessory has been designed to
connect specically to iPod, or iPhone respec­tively, and has been certied by the developer to
meet Apple performance standards. Apple is not
responsible for the operation of this device or its
compliance with safety and regulatory standards.
Please note that the use of this accessory with
iPod, iPhone may aect wireless performance.

Manufactured under license under U.S. Patent
Nos: 5,956,674; 5,974,380; 6,487,535 & other U.S.
and worldwide patents issued & pending. DTS,
the Symbol, & DTS and the Symbol together are
registered trademarks & DTS Digital Surround
and the DTS logos are trademarks of DTS, Inc.
Product includes software. © DTS, Inc. All Rights
Reserved.

DH7520TW-PB.DSAUNL1_ENG_4634.indd 50 2012-05-10  2:31:28

What is SIMPLINK?

Some functions of this unit are controlled by
TV’s remote control when this unit and LG TV
with SIMPLINK are connected through HDMI
connection. Controllable functions by LG TV’s
remote control; Play, Pause, Scan, Skip, Stop,
Power O, etc.

yRefer to the TV owner’s manual for the details

of SIMPLINK function.

yLG TV with SIMPLINK function has the logo as

shown above.

yUse a higher version cable than High Speed

HDMI™ Cable.

Appendix 51

6

Appendix

DH7520TW-PB.DSAUNL1_ENG_4634.indd 51 2012-05-10  2:31:28

Appendix52

Specifications

General

Power requirements Refer to main label.

Power consumption Refer to main label.

Dimensions (W x H x D) 440 X 65 X 297 mm without foot

Net Weight (Approx.) 3.3 kg

Operating temperature 41 °F to 95 °F (5 °C to 35 °C)

Operating humidity 5 % to 90 %

Bus Power Supply

Inputs/ Outputs

VIDEO OUT 1.0 V (p-p), 75 Ω, sync negative, RCA jack x 1

COMPONENT VIDEO OUT

HDMI OUT (video/audio) 19 pin (Type A, HDMI™ Connector )

ANALOG AUDIO IN 2.0 Vrms (1 kHz, 0 dB), 600 Ω, RCA jack (L, R) x 1

DIGITAL IN (OPTICAL) 3 V (p-p), Optical jack x 1

PORT. IN 0.5Vrms (3.5 mm stereo jack)

DC 5 V 0 500 mA

iPod DC 5 V 0 1 A

(Y ) 1.0 V (p-p), 75 Ω, sync negative, RCA jack x 1

(Pb)/(Pr) 0.7 V (p-p), 75 Ω, RCA jack x 2

Amplier

Stereo mode 180 W + 180 W (4 Ω at 1kHz)

6

Appendix

DH7520TW-PB.DSAUNL1_ENG_4634.indd 52 2012-05-10  2:31:28

Surround mode

Tuner

FM Tuning Range 87.5 to 108.0 MHz or 87.50 to 108.00 MHz

AM Tuning Range 522 to 1 620 kHz, 520 to 1 710 kHz or 522 to 1 710 kHz

Wireless receiver

Power requirements Refer to main label on the wireless receiver

Power consumption Refer to main label on the wireless receiver

External dimensions (WxHxD) 60 X 220 X 175 mm

Net Weight 0.9 kg

Front 180 W + 180 W (4 Ω at 1 kHz)

Center 180 W (4 Ω at 1 kHz)

Surround 180 W + 180 W (4 Ω at 1 kHz)

Subwoofer 200 W (3 Ω at 60 Hz)

Front Speaker

Type 2 Way 3 speaker

Impedance Rated 4 Ω

Input Power 180 W

Max. Input Power 360 W

Net Dimensions (W x H x D) 250 x 1200 x 250 mm

Net Weight 4.1 kg

Rear Speaker

Type 2 Way 3 speaker

Impedance Rated 4 Ω

Input Power 180 W

Max. Input Power 360 W

Net Dimensions (W x H x D) 250 x 1200 x 250 mm

Net Weight 4.1 kg

Centre Speaker

Type 2 Way 3 speaker

Impedance Rated 4 Ω

Input Power 180 W

Max. Input Power 360 W

Net Dimensions (W x H x D) 330 x 93 x 74 mm

Net Weight 1.3 kg

Appendix 53

Passive Subwoofer

Type 1 Way 1 Speaker

Impedance Rated 3 Ω

Input Power 200 W

Max. Input Power 400 W

Net Dimensions (W x H x D) 251 x 336 x 347 mm

Net Weight 6.3 kg

Design and specications are subject to change without notice.

DH7520TW-PB.DSAUNL1_ENG_4634.indd 53 2012-05-10  2:31:28

6

Appendix

•

DH7520TW-PB.DSAUNL1_ENG_4634.indd 54 2012-05-10  2:31:28

DH7520TW-PB.DSAUNL1_ENG_4634.indd 55 2012-05-10  2:31:28
