Lexmark P350 User Guide

Download

Lexmark 350 Series

User Guide

2006 www.lexmark.com

Using the printer................................................................................5

Loading paper.........................................................................................................................................................................5

Using supported paper types............................................................................................................................................5

Working with photos using the control panel............................................................................................................6

Working with photos using the computer.................................................................................................................21

Understanding the printer.............................................................25

Checking the box contents..............................................................................................................................................25

Understanding the parts of the printer.......................................................................................................................26

Using the control panel buttons....................................................................................................................................28

Using the control panel menus......................................................................................................................................29

Understanding the software...........................................................................................................................................33

Maintaining the printer...................................................................42

Aligning the print cartridge.............................................................................................................................................42

Checking the cable connections....................................................................................................................................42

Cleaning the print cartridge nozzles............................................................................................................................43

Contacting Customer Support.......................................................................................................................................43

Finding information about the printer........................................................................................................................44

Improving print quality.....................................................................................................................................................46

Installing the print cartridge............................................................................................................................................47

Ordering supplies................................................................................................................................................................48

Preserving the print cartridge.........................................................................................................................................48

Printing a test page.............................................................................................................................................................49

Recycling Lexmark products...........................................................................................................................................49

Refilling a print cartridge..................................................................................................................................................49

Removing a used print cartridge...................................................................................................................................49

Using genuine Lexmark print cartridges.....................................................................................................................50

Viewing the ink level..........................................................................................................................................................50

Wiping the print cartridge nozzles and contacts.....................................................................................................51

Troubleshooting...............................................................................52

Cannot print from a digital camera using PictBridge.............................................................................................52

Incorrect language appears on the display...............................................................................................................52

Ink level...................................................................................................................................................................................52

Contents

Device cannot be inserted...............................................................................................................................................53

Nothing happens when a device is inserted.............................................................................................................53

Partial photo prints.............................................................................................................................................................53

Photo does not print..........................................................................................................................................................54

Power button is not lit.......................................................................................................................................................55

Print speed is slow...............................................................................................................................................................55

Software does not install..................................................................................................................................................55

Jams and misfeeds troubleshooting............................................................................................................................56

Error messages.....................................................................................................................................................................57

Notices and safety information....................................................60

Glossary..............................................................................................67

Contents

Using the printer

This printer can be used as a stand-alone product, or with a connection to a computer.

Loading paper

Notes:

• Load photo paper with the glossy or printable side facing you. (If you are not sure which side is the printable

side, see the instructions that came with the paper.)

• Make sure the paper is not used or damaged.

• Do not force paper into the printer.

1 Move the paper guide to the left edge of the paper support.

2 Load the paper vertically against the right side of the paper support, and gently release the paper guide.

Related topics:

• “Using supported paper types” on page 5

Using supported paper types

You can use the following paper types with your printer:

• Lexmark Perfectfinish Photo Paper

• Lexmark Photo Paper

• Photo/glossy paper

Notes:

• For best results, use Lexmark Perfectfinish Photo Paper or Lexmark Photo Paper.

• Do not use Lexmark Premium Photo Paper. Your print cartridge is not compatible with this type of paper.

Your printer supports the following paper sizes:

• A6 card: 4.1 x 5.8 inches (105 x 148 mm)

• Hagaki postcard: 3.9 x 5.8 inches (100 x 148 mm)

• 3.5 x 5 inches (8.89 x 12.7 cm)

• 4 x 6 inches

• 4 x 8 inches

• 10 x 15 cm

Using the printer

• 10 x 20 cm

• L photo (89 x 127 mm)

Note: Do not load more than 25 sheets into the paper support.

Working with photos using the control panel

Connecting photo storage devices

Connecting a PictBridge-enabled digital camera

PictBridge is a technology available in most digital cameras that lets you print directly from your digital camera without using a computer. You can connect a PictBridge-enabled digital camera to the printer, and use either the printer or the camera to control printing photos.

1 Insert one end of the USB cable into the camera.

Note: Use only the USB cable that came with the camera.

2 Insert the other end of the cable into the PictBridge port on the front of the printer.

Notes:

• Make sure the PictBridge-enabled digital camera is set to the correct USB mode. For more information, see

the camera documentation.

• The printer reads only one media device at a time.

3 If the PictBridge connection is successful, the following appears on the display: Camera connected. Refer

to Camera display or Camera User Manual for further information. If you want to use

the camera to control printing photos, refer to the instructions in the camera documentation.

4 If no selections were specified on your digital camera beforehand, you can use the printer to control printing

photos. Press “Using the PictBridge menu” on page 33.

to make the PictBridge menu appear on the control panel display. For more information, see

Using the printer

Related topics:

• “Printing photos from a digital camera using DPOF” on page 18

• “Printing photos from a digital camera using the PictBridge menu” on page 19

Inserting a flash drive

A flash drive can be used to store photos taken using a digital camera or camera phone. The printer lets you view, edit, and print photos stored on a flash drive. For more information, see “Printing photos” on page 0 or “Editing photos” on page 0 .

The printer also lets you transfer photos:

• From a flash drive to a computer. For more information, see “Using iPhoto” on page 23.

• From a memory card to a flash drive. For more information, see “Transferring photos from a memory card to a

flash drive” on page 21.

1 Insert a flash drive into the PictBridge port on the front of the printer.

Notes:

• An adapter may be necessary if your flash drive does not fit directly into the port.

• The printer reads only one media device at a time. If you insert more than one media device, you will be asked

to select which one you wish to use and remove the other one.

2 Wait for the printer to read the flash drive.

Related topics:

• “Connecting photo storage devices” on page 0

Inserting a memory card

A memory card can be used to store photos taken using a digital camera or camera phone. The printer lets you view, edit, and print photos stored on a memory card. For more information, see “Printing photos” on page 0 or “Editing photos” on page 0 .

The printer also lets you transfer photos:

• From a memory card to a computer. For more information, see “Using iPhoto” on page 23.

• From a memory card to a flash drive. For more information, see “Transferring photos from a memory card to a

flash drive” on page 21.

Using the printer

1 Insert a memory card.

• Insert the card with brand name label facing up.

• If there is an arrow on the card, make sure it points toward the printer.

Slot Memory card

Top slot

• xD Picture Card

• SD (Secure Digital)

• miniSD (with adapter) *

• microSD (with adapter) *

• RS-MMC (with adapter) *

• MultiMedia Card

• Memory Stick

• Memory Stick PRO

• Memory Stick Duo (with adapter) or Memory Stick PRO Duo (with adapter) *

• TransFlash (with adapter) *

Bottom slot CompactFlash Type I and Type II

* Make sure you connect the memory card to the adapter that came with it before inserting it in the slot.

2 Wait for the light on the printer to come on. The light blinks to indicate the memory card is being read or is

transmitting data.

Warning—Potential Damage: Do not remove the memory card or touch the printer in the area of the memory card while the light is blinking.

Using the printer

If the printer does not read the memory card, remove and reinsert it.

Note: The printer reads only one media device at a time. If you insert more than one memory card, you will be asked to select which one you wish to use and remove the other one.

Related topics:

• “Connecting photo storage devices” on page 0

Viewing photos

Replacing screen saver photos on the control panel display

You can select up to four photos to use as screen savers on the printer.

1 Insert a memory card or flash drive. For more information, see “Inserting a memory card” on page 7 or “Inserting

a flash drive” on page 7.

2 Press or repeatedly until Tools appears on the display.

3 Press .

4 Press or repeatedly until Customize is selected.

5 Press .

6 Press or to select After 30 Sec or After 1 Min.

7 Press to select Replace Screen Saver Photos.

8 Press .

9 Follow the instructions on the display.

Related topics:

• “Viewing photos” on page 0

Viewing a photo slideshow on the control panel display

If you want to see a slideshow of the photos on a memory card or flash drive, see “Using the Slideshow menu” on page 30.

Related topics:

• “Viewing photos” on page 0

Editing photos

You can use the following paper types with your printer:

• Lexmark Perfectfinish Photo Paper

• Lexmark Photo Paper

• Photo/glossy paper

Notes:

• For best results, use Lexmark Perfectfinish Photo Paper or Lexmark Photo Paper.

• Do not use Lexmark Premium Photo Paper. Your print cartridge is not compatible with this type of paper.

Using the printer

Adding frames to photos

You can select a frame style and color as a border for your photo.

1 Load photo paper, with the glossy or printable side facing you. (If you are not sure which side is the printable side,

see the instructions that came with the paper.) For more information, see “Loading paper” on page 5.

2 Insert a memory card or flash drive. For more information, see “Inserting a memory card” on page 7 or “Inserting

a flash drive” on page 7.

3 Press or repeatedly until View and Select appears on the display.

4 Press .

5 Press to continue.

6 Press or to navigate through the photos.

7 Press to select a photo for printing.

8 Press .

The Photo Edit Mode menu appears.

9 Press or repeatedly until Frames appears on the display.

10 Press .

11 Press or to select a frame style.

12 Press .

13 Press or to select a frame color.

14 Press .

15 Press to save your selections and go back to the photo selection screen.

An icon appears on the bottom of the display to indicate that the photo will have a frame when printed.

16 Press or to select the number of copies to print.

Note: Pressing

not selected will select the image.

when the number of copies is set to 1 will deselect the image. Pressing when the image is

17 You can select more photos for printing and editing by repeating step 6 through step 16.

18 Press to go to the Print Preview screen.

19 If you want to adjust the print settings:

a Press .

b Make your selections.

c Press to save your selections, and then go back to the Print Preview screen.

20 Press to print.

Note: To prevent smudging or scratching, avoid touching the printed surface with your fingers or sharp objects.

For best results, remove each printed sheet individually from the paper exit tray, and allow the prints to dry at least 24 hours before stacking, displaying, or storing.

Related topics:

• “Using the Photo Edit Mode menu” on page 32

Using the printer

Adjusting the brightness of photos

1 Load photo paper with the glossy or printable side facing you. (If you are not sure which side is the printable side,

see the instructions that came with the paper.) For more information, see “Loading paper” on page 5.

2 Insert a memory card or flash drive. For more information, see “Inserting a memory card” on page 7 or “Inserting

a flash drive” on page 7.

3 Press or repeatedly until View and Select appears on the display.

4 Press .

5 Press to continue.

6 Press or to navigate through the photos.

7 Press to select a photo for printing.

8 Press .

The Photo Edit Mode menu appears.

9 Press or repeatedly until Brightness appears on the display.

10 Press or to adjust the brightness of the photo.

Note: The image on the display does not accurately reflect the image when printed.

11 Press to save your changes and go back to the photo selection screen.

12 Press or to select the number of copies to print.

Note: Pressing

not selected will select the image.

when the number of copies is set to 1 will deselect the image. Pressing when the image is

13 You can select more photos for printing and editing by repeating step 6 through step 12.

14 Press to go to the Print Preview screen.

15 If you want to adjust the print settings:

a Press .

b Make your selections.

c Press to save your selections, and then go back to the Print Preview screen.

16 Press to print.

Note: To prevent smudging or scratching, avoid touching the printed surface with your fingers or sharp objects.

For best results, remove each printed sheet individually from the paper exit tray, and allow the prints to dry at least 24 hours before stacking, displaying, or storing.

Related topics:

• “Using the Photo Edit Mode menu” on page 32

Cropping photos

1 Load photo paper with the glossy or printable side facing you. (If you are not sure which side is the printable side,

see the instructions that came with the paper.) For more information, see “Loading paper” on page 5.

2 Insert a memory card or flash drive. For more information, see “Inserting a memory card” on page 7 or “Inserting

a flash drive” on page 7.

Using the printer

3 Press or repeatedly until View and Select appears on the display.

4 Press .

5 Press to continue.

6 Press or to navigate through the photos.

7 Press to select a photo for printing.

8 Press .

The Photo Edit Mode menu appears.

9 Press or repeatedly until Crop appears at the bottom of the display, and the crop icon is highlighted.

10 Press .

11 Use the cropping tools shown on the display. Press or to select the tool and or to use the selected

tool.

12 Press to save your changes and go back to the Photo Edit Mode menu.

13 Press to go back to the photo selection screen.

14 Press or to select the number of copies to print.

Note: Pressing

not selected will select the image.

when the number of copies is set to 1 will deselect the image. Pressing when the image is

15 You can select more photos for printing and editing by repeating step 6 through step 14.

16 Press to go to the Print Preview screen.

17 If you want to adjust the print settings:

a Press .

b Make your selections.

c Press to save your selections, and then go back to the Print Preview screen.

18 Press to print.

Note: To prevent smudging or scratching, avoid touching the printed surface with your fingers or sharp objects.

For best results, remove each printed sheet individually from the paper exit tray, and allow the prints to dry at least 24 hours before stacking, displaying, or storing.

Related topics:

• “Using the Photo Edit Mode menu” on page 32

Enhancing photos automatically

1 Load photo paper with the glossy or printable side facing you. (If you are not sure which side is the printable side,

see the instructions that came with the paper.) For more information, see “Loading paper” on page 5.

2 Insert a memory card or flash drive. For more information, see “Inserting a memory card” on page 7 or “Inserting

a flash drive” on page 7.

3 Press or repeatedly until View and Select appears on the display.

4 Press .

Using the printer

5 Press to continue.

6 Press or to navigate through the photos.

7 Press to select a photo for printing.

8 Press .

The Photo Edit Mode menu appears.

9 Press or repeatedly until Auto Enhance appears on the display.

10 Press or to select On.

Note: The image on the display does not accurately reflect the image when printed.

11 Press to save your selection and go back to the photo selection screen.

An icon appears on the bottom of the display to indicate that the photo will be auto enhanced when printed.

12 Press or to select the number of copies to print.

Note: Pressing

not selected will select the image.

when the number of copies is set to 1 will deselect the image. Pressing when the image is

13 You can select more photos for printing and editing by repeating step 6 through step 12.

14 Press to go to the Print Preview screen.

15 If you want to adjust the print settings:

a Press .

b Make your selections.

c Press to save your selections, and then go back to the Print Preview screen.

16 Press to print.

Note: To prevent smudging or scratching, avoid touching the printed surface with your fingers or sharp objects.

For best results, remove each printed sheet individually from the paper exit tray, and allow the prints to dry at least 24 hours before stacking, displaying, or storing.

Related topics:

• “Using the Photo Edit Mode menu” on page 32

Using color effects on photos

The Colorized Effect feature lets you print a photo in Black & White, Sepia, Antique Brown, or Antique Gray.

1 Load photo paper with the glossy or printable side facing you. (If you are not sure which side is the printable side,

see the instructions that came with the paper.) For more information, see “Loading paper” on page 5.

2 Insert a memory card or flash drive. For more information, see “Inserting a memory card” on page 7 or “Inserting

a flash drive” on page 7.

3 Press or repeatedly until View and Select appears on the display.

4 Press .

5 Press to continue.

6 Press or to navigate through the photos.

Using the printer

7 Press to select a photo for printing.

8 Press .

The Photo Edit Mode menu appears.

9 Press or until Colorized Effect appears on the display.

10 Press or to select a color effect option.

11 Press to save your selection and go back to the photo selection screen.

12 Press or to select the number of copies to print.

Note: Pressing

not selected will select the image.

when the number of copies is set to 1 will deselect the image. Pressing when the image is

13 You can select more photos for printing and editing by repeating step 6 through step 12.

14 Press to go to the Print Preview screen.

15 If you want to adjust the print settings:

a Press .

b Make your selections.

c Press to save your selections, and then go back to the Print Preview screen.

16 Press to print.

Note: To prevent smudging or scratching, avoid touching the printed surface with your fingers or sharp objects.

For best results, remove each printed sheet individually from the paper exit tray, and allow the prints to dry at least 24 hours before stacking, displaying, or storing.

Related topics:

• “Using the Photo Edit Mode menu” on page 32

Printing photos

You can use the following paper types with your printer:

• Lexmark Perfectfinish Photo Paper

• Lexmark Photo Paper

• Photo/glossy paper

Notes:

• For best results, use Lexmark Perfectfinish Photo Paper or Lexmark Photo Paper.

• Do not use Lexmark Premium Photo Paper. Your print cartridge is not compatible with this type of paper.

Printing a photo or selected photos

Use these instructions to view photos, and select one or more photos for editing and printing.

1 Load photo paper with the glossy or printable side facing you. (If you are not sure which side is the printable side,

see the instructions that came with the paper.) For more information, see “Loading paper” on page 5.

2 Insert a memory card or flash drive. For more information, see “Inserting a memory card” on page 7 or “Inserting

a flash drive” on page 7.

Using the printer

3 Press or repeatedly until View and Select appears on the display.

4 Press .

5 Press to continue.

6 Press or to navigate through the photos.

7 Press to select a photo for printing.

8 If you want to edit the photo:

a Press . For more information, see “Using the Photo Edit Mode menu” on page 32.

b Make your changes.

c Press to save your changes, and then go back to the photo selection screen.

9 Press or to select the number of copies to print.

Note: Pressing

not selected will select the image.

when the number of copies is set to 1 will deselect the image. Pressing when the image is

10 You can select more photos for printing and editing by repeating step 6 through step 9.

11 Press to go to the Print Preview screen.

12 If you want to adjust the print settings:

a Press .

b Make your selections.

c Press to save your selections, and then go back to the Print Preview screen.

13 Press to print.

Note: To prevent smudging or scratching, avoid touching the printed surface with your fingers or sharp objects.

For best results, remove each printed sheet individually from the paper exit tray, and allow the prints to dry at least 24 hours before stacking, displaying, or storing.

Related topics:

• “Printing photos” on page 0

Printing all photos

Use these instructions to print all photos stored on your memory card or flash drive.

1 Load photo paper with the glossy or printable side facing you. (If you are not sure which side is the printable side,

see the instructions that came with the paper.) For more information, see “Loading paper” on page 5.

2 Insert a memory card or flash drive. For more information, see “Inserting a memory card” on page 7 or “Inserting

a flash drive” on page 7.

3 Press or repeatedly until Print Photos appears on the display.

4 Press .

5 Press or repeatedly until Print All N Photos is selected. (N is the total number of images that will

be printed.)

6 Press .

7 Press or to select a photo size, paper size, and the number of copies to print per photo.

Using the printer

8 Press .

9 If you want to adjust the print settings:

a Press .

b Make your selections.

c Press to save your selections, and then go back to the Print Preview screen.

10 Press to print.

Note: To prevent smudging or scratching, avoid touching the printed surface with your fingers or sharp objects.

For best results, remove each printed sheet individually from the paper exit tray, and allow the prints to dry at least 24 hours before stacking, displaying, or storing.

Related topics:

• “Printing photos” on page 0

Printing an index page of photos

Use these instructions to print thumbnail images of all photos stored on your memory card or flash drive.

1 Load photo paper with the glossy or printable side facing you. (If you are not sure which side is the printable side,

see the instructions that came with the paper.) For more information, see “Loading paper” on page 5.

2 Insert a memory card or flash drive. For more information, see “Inserting a memory card” on page 7 or “Inserting

a flash drive” on page 7.

3 Press or repeatedly until Print Photos appears on the display.

4 Press .

5 Press or repeatedly until Print All N Photos is selected. (N is the total number of images that will

be printed.)

6 Press .

7 Press or repeatedly until Index Print is selected.

8 Press .

An index page of images appears on the display.

9 Press to print.

Note: To prevent smudging or scratching, avoid touching the printed surface with your fingers or sharp objects.

For best results, remove each printed sheet individually from the paper exit tray, and allow the prints to dry at least 24 hours before stacking, displaying, or storing.

Related topics:

• “Printing photos” on page 0

Using the printer

Printing photos by date

Use these instructions to print photos taken within certain dates.

1 Load photo paper with the glossy or printable side facing you. (If you are not sure which side is the printable side,

see the instructions that came with the paper.) For more information, see “Loading paper” on page 5.

2 Insert a memory card or flash drive. For more information, see “Inserting a memory card” on page 7 or “Inserting

a flash drive” on page 7.

3 Press or repeatedly until Print Photos appears on the display.

4 Press .

5 Press or repeatedly until Print Photos by Date is selected.

6 Press .

7 Press or to select an earlier or later start date.

8 Press or to select an earlier or later end date.

9 Press to save the date range you selected.

10 Press or to select a photo size and paper size, and the number of copies to print per photo.

11 Press .

12 If you want to adjust the print settings:

a Press .

b Make your selections.

c Press to save your selections, and then go back to the Print Preview screen.

13 Press to print.

Note: To prevent smudging or scratching, avoid touching the printed surface with your fingers or sharp objects.

For best results, remove each printed sheet individually from the paper exit tray, and allow the prints to dry at least 24 hours before stacking, displaying, or storing.

Related topics:

• “Printing photos” on page 0

Printing photos by range

Use these instructions to select the first and last photos in a range to be printed.

1 Load photo paper with the glossy or printable side facing you. (If you are not sure which side is the printable side,

see the instructions that came with the paper.) For more information, see “Loading paper” on page 5.

2 Insert a memory card or flash drive. For more information, see “Inserting a memory card” on page 7 or “Inserting

a flash drive” on page 7.

3 Press or repeatedly until Print Photos appears on the display.

4 Press .

5 Press or repeatedly until Print Photo Range is selected.

6 Press .

Using the printer

7 Press to continue.

8 Press or to navigate to the first photo in the range to be printed.

9 Press .

10 Press or to navigate to the last photo in the range to be printed.

11 Press .

12 Press or to select a photo size and paper size, and the number of copies to print per photo.

13 Press .

14 If you want to adjust the print settings:

a Press .

b Make your selections.

c Press to save your selections, and then go back to the Print Preview screen.

15 Press to print.

Note: To prevent smudging or scratching, avoid touching the printed surface with your fingers or sharp objects.

For best results, remove each printed sheet individually from the paper exit tray, and allow the prints to dry at least 24 hours before stacking, displaying, or storing.

Related topics:

• “Printing photos” on page 0

Printing photos from a digital camera using DPOF

Digital Print Order Format (DPOF) is a feature available on some digital cameras. If your camera supports DPOF, you can specify which photos to print, and how many of each, while the memory card is still in the camera. The printer recognizes these settings when you insert the memory card into the printer.

Note: If you specified a photo size while the memory card is still in the camera, make sure the size of the paper loaded in the printer is not smaller than the size you specified in the DPOF selection.

1 Load photo paper, with the glossy or printable side facing you. (If you are not sure which side is the printable side,

see the instructions that came with the paper.) For more information, see “Loading paper” on page 5.

2 Insert a memory card. For more information, see “Inserting a memory card” on page 7.

3 Press or repeatedly until Print Photos appears on the display.

4 Press .

5 Press or repeatedly until Print Camera Selections is selected. This option appears only when there

is a valid DPOF file on your memory card.

6 Press .

7 Press to print.

Note: To prevent smudging or scratching, avoid touching the printed surface with your fingers or sharp objects.

For best results, remove each printed sheet individually from the paper exit tray, and allow the prints to dry at least 24 hours before stacking, displaying, or storing.

Using the printer

Related topics:

• “Connecting a PictBridge-enabled digital camera” on page 6

Printing photos from a digital camera using the PictBridge menu

PictBridge is a technology available in most digital cameras that lets you print directly from your digital camera without using a computer. You can connect a PictBridge-enabled digital camera to the printer, and use the PictBridge menu on the printer to print photos.

1 Load photo paper, with the glossy or printable side facing you. (If you are not sure which side is the printable side,

see the instructions that came with the paper.) For more information, see “Loading paper” on page 5.

2 Connect a PictBridge-enabled digital camera. For more information, see “Connecting a PictBridge-enabled digital

camera” on page 6.

3 If no selections were specified on your digital camera beforehand, press to access the PictBridge menu on the

printer. For more information, see “Using the PictBridge menu” on page 33.

4 After making your selections, press to print.

Note: To prevent smudging or scratching, avoid touching the printed surface with your fingers or sharp objects.

For best results, remove each printed sheet individually from the paper exit tray, and allow the prints to dry at least 24 hours before stacking, displaying, or storing.

Related topics:

• “Connecting a PictBridge-enabled digital camera” on page 6

Using Bluetooth technology

Bluetooth is a wireless technology that lets compatible products send and receive communication. The printer communicates with Bluetooth-enabled devices through a Universal Serial Bus (USB) Bluetooth adapter, which is sold separately.

Printing using Bluetooth

You can print photos from a Bluetooth-enabled device such as a camera phone using a USB Bluetooth adapter.

1 Load photo paper with the glossy or printable side facing you. (If you are not sure which side is the printable side,

see the instructions that came with the paper.) For more information, see “Loading paper” on page 5.

2 Make sure that the Bluetooth Enable and Discovery Mode selections on your printer are set to On. For

more information, see “Setting the Bluetooth mode” on page 20.

Using the printer

3 Insert a USB Bluetooth adapter into the PictBridge port on the front of the printer.

Note: Bluetooth adapter sold separately.

4 Once the printer detects the Bluetooth adapter, the following message appears on the printer display for five

seconds: Bluetooth Dongle Connected.

5 To print photos from your Bluetooth-enabled device, see the documentation that came with the product.

Note: To prevent smudging or scratching, avoid touching the printed surface with your fingers or sharp objects.

For best results, remove each printed sheet individually from the paper exit tray, and allow the prints to dry at least 24 hours before stacking, displaying, or storing.

Related topics:

• “Setting the Bluetooth mode” on page 20

Setting the Bluetooth mode

1 Press or repeatedly until Tools appears on the display.

2 Press .

3 Press or repeatedly until Bluetooth appears.

4 Press .

5 Press or repeatedly until Bluetooth Enable is selected.

6 Press or to select either On or Off.

7 Press or repeatedly until Discovery Mode is selected.

8 Press or to select either On or Off.

9 Press to save your selection.

Related topics:

• “Printing using Bluetooth” on page 19

Using the printer

Transferring photos

Transferring photos from a memory card to a flash drive

You can transfer photos from a memory card to a flash drive. The photos on the memory card are retained.

1 Insert a memory card. For more information, see “Inserting a memory card” on page 7.

2 Press or repeatedly until Transfer appears on the display.

3 Press .

4 Insert a flash drive. For more information, see “Inserting a flash drive” on page 7.

5 Press or to select USB Flash Drive.

6 Press .

7 Press or to navigate through the following options:

• All Images to transfer all photos

• Selected Photos to transfer selected photos

• Image Range to transfer photos by range

• Date Range to transfer photos taken within certain dates

8 Press to select an option.

9 Follow the instructions on the display.

Related topics:

• “Connecting photo storage devices” on page 0

Working with photos using the computer

Choosing a paper size

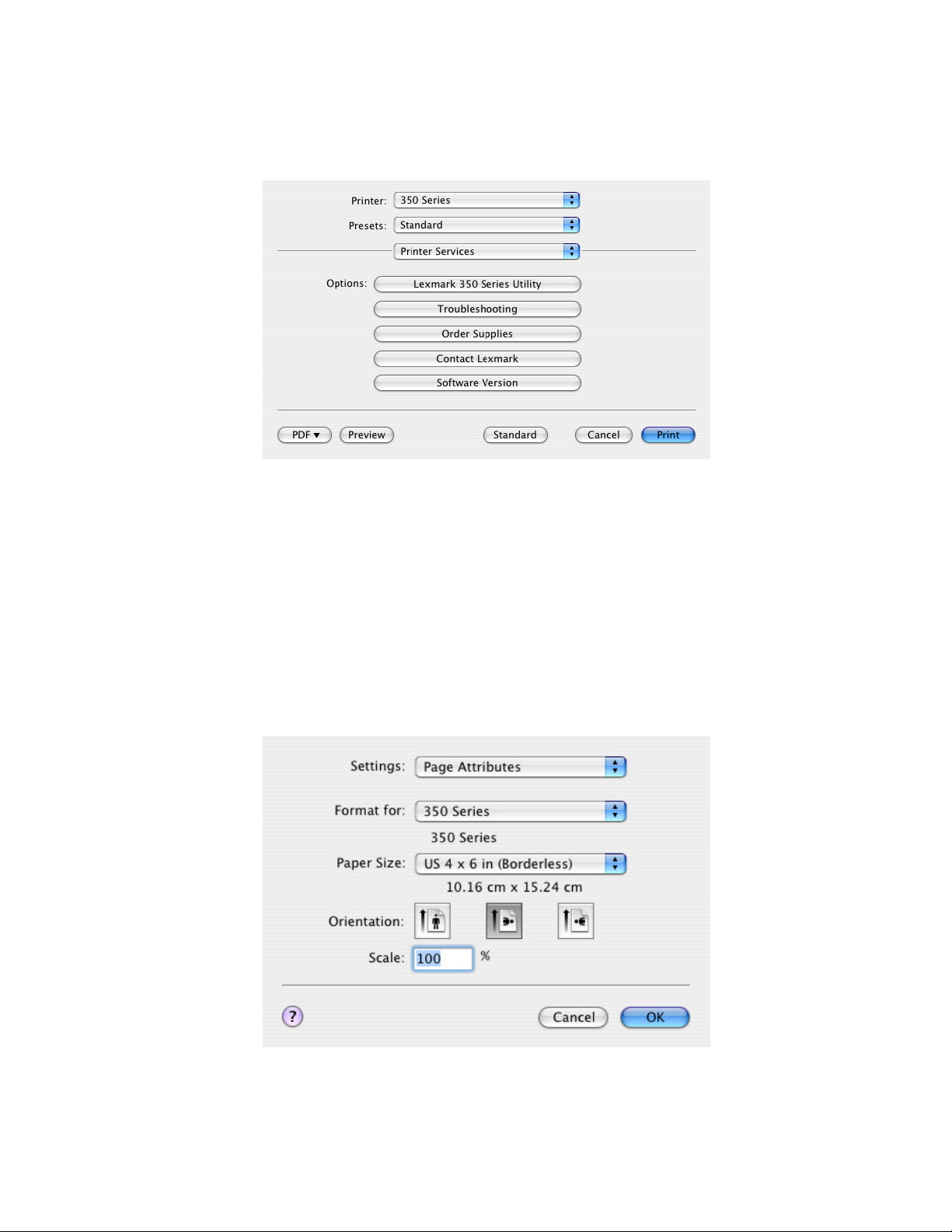

1 With a photo open, click File  Page Setup.

2 From the “Format for” pop-up menu, choose 350 Series.

3 From the Paper Size pop-up menu, choose a paper size.

4 Click OK.

Related topics:

• “Choosing a paper type” on page 21

Choosing a paper type

For Mac OS X version 10.3 or later:

1 With a photo open, click File  Print.

2 From the Copies & Pages pop-up menu, choose Quality & Media.

Using the printer

3 From the Paper Type pop-up menu, choose a paper type.

4 Click Print.

For Mac OS X version 10.4 or later:

1 With a photo open, click File  Print.

2 Click Advanced.

3 From the Copies & Pages pop-up menu, choose Quality & Media.

4 From the Paper Type pop-up menu, choose a paper type.

5 Click Print.

Note: To prevent smudging or scratching, avoid touching the printed surface with your fingers or sharp objects. For

best results, remove each printed sheet individually from the paper exit tray, and allow the prints to dry at least 24 hours before stacking, displaying, or storing.

Related topics:

• “Choosing a paper size” on page 21

Printing photos using the computer

1 Load photo paper, with the glossy or printable side facing you. (If you are not sure which side is the printable side,

see the instructions that came with the paper.) For more information, see “Loading paper” on page 5.

2 Customize the settings as needed in the Page Setup dialog.

a With a photo open, choose File  Page Setup.

b From the “Format for” pop-up menu, choose 350 Series.

c From the Paper Size pop-up menu, choose the paper size loaded.

d Choose an orientation.

e Click OK.

3 Customize the settings as needed in the Print dialog.

a With a photo open, choose File  Print.

b From the Printer pop-up menu, choose 350 Series.

c If you're using Mac OS X version 10.4 or later, click Advanced. Otherwise, proceed to the next step.

d From the Copies & Pages pop-up menu, type the number of copies to be printed.

e From the same pop-up menu, choose Quality & Media.

• From the Paper Type pop-up menu, choose Lexmark Perfectfinish Photo Paper, Lexmark Photo

Paper or Standard Glossy/Photo.

• From the Print Quality area, choose Photo.

f Click Print.

Note: To prevent smudging or scratching, avoid touching the printed surface with your fingers or sharp objects. For

best results, remove each printed sheet individually from the paper exit tray, and allow the prints to dry at least 24 hours before stacking, displaying, or storing.

Using the printer

Related topics:

• “Installing the printer software” on page 33

Resizing photos using the computer

1 Load photo paper, with the glossy or printable side facing you. (If you are not sure which side is the printable side,

see the instructions that came with the paper.) For more information, see “Loading paper” on page 5.

2 With a photo open, choose File  Page Setup.

3 Enter a Scale value greater than 100% to enlarge the image, or less than 100% to reduce the image.

4 Click OK.

Note: To prevent smudging or scratching, avoid touching the printed surface with your fingers or sharp objects. For

best results, remove each printed sheet individually from the paper exit tray, and allow the prints to dry at least 24 hours before stacking, displaying, or storing.

Related topics:

• “Using the Page Setup dialog” on page 35

Using iPhoto

1 Load photo paper, with the glossy or printable side facing you. (If you are not sure which side is the printable side,

see the instructions that came with the paper.) For more information, see “Loading paper” on page 5.

2 Insert a memory card or flash drive, or connect a PictBridge-enabled camera. For more information, see

“Connecting photo storage devices” on page 0 .

iPhoto launches automatically on your computer. If it doesn't launch automatically, go to Applications and double-click iPhoto.

3 If necessary, drag the images from the location of your photos (such as your hard drive or mounted device) to the

main iPhoto window. This will let you transfer photos to your computer.

4 If you want to edit the photos, click the Edit button below the main image window.

5 Use any of the following tools:

• Rotate (Mac OS X, version 10.4.3)

• Constrain

• Crop

• Enhance

• Red-eye

• Retouch

• Black/White

• Brightness/Contrast

• Sepia (Mac OS X, version 10.4.3)

• Adjust (Mac OS X, version 10.4.3)

Using the printer

6 iPhoto automatically saves changes as you work. To undo your most recent change, go to Edit  Undo. To go

back to the original version of the photo:

• Choose File  Revert to Original (for Mac OS X, version 10.3 or later).

• Choose Photos  Revert to Original (for Mac OS X, version 10.4.3).

7 Customize the settings as needed in the Page Setup dialog.

a With a photo selected, choose File  Page Setup.

b From the “Format for” pop-up menu, choose 350 Series.

c From the Paper Size pop-up menu, choose a paper size.

d Choose an orientation.

e Click OK.

8 Customize the settings as needed in the Print dialog.

a With a photo selected, choose File  Print.

b From the Printer pop-up menu, choose 350 Series.

c From the Style pop-up menu, choose Full Page.

d Click Print.

Note: To prevent smudging or scratching, avoid touching the printed surface with your fingers or sharp objects. For

best results, remove each printed sheet individually from the paper exit tray, and allow the prints to dry at least 24 hours before stacking, displaying, or storing.

Related topics:

• “Using the Print dialog” on page 36

Using the printer

Understanding the printer

Checking the box contents

Name Description

Color print cartridge Cartridge to be installed in the printer

Power supply Attaches to the power supply port located at the back of the

printer

Installation software CD

Getting Started or Setup Solutions booklet Printed booklet that serves as a guide

Note: The complete User's Guide can be found on the installation

software CD that shipped with the printer.

Setup Instructions sheet Instructions on setting up printer hardware and software, and

information on setup troubleshooting

4 x 6 in. (10 x 15 cm) photo paper Paper for the printer

Note: USB cable sold separately

Related topics:

• “Understanding the parts of the printer” on page 26

• Installation software for the printer

• Help

• User's Guide in electronic format

Understanding the printer

Understanding the parts of the printer

Use the To

Paper guide Keep paper straight when feeding.

Paper support Load paper.

Handle Carry the printer.

Access cover Access the print cartridge.

Paper exit tray Hold paper as it exits.

PictBridge port Connect a PictBridge-enabled digital camera, a flash drive, or a Bluetooth adapter to

the printer.

Note: Bluetooth adapter sold separately.

Memory card slots Insert memory cards.

Light Determine if the printer is reading a memory card. The light blinks while reading the

device.

Control panel Operate the printer.

Display View photos or menus, or check the status of the printer.

The display tilts for easy viewing.

Understanding the printer

Use the To

Power supply port Connect the printer to a power source using the power supply.

USB port Connect the printer to a computer using a USB cable.

Related topics:

• “Checking the box contents” on page 25

Understanding the printer

Using the control panel buttons

Press To

Turn the printer on and off.

Apply red-eye reduction to the photo on the display when it is printed. An icon ap pears on the bottom of the display to indicate that red-eye reduction will be performed. Press

correction.

Start a color print job using the current settings.

again to cancel the

• Navigate through menu selections of the main menu.

• Navigate through selections of a submenu.

• When viewing photos, navigate from one photo to another.

• In a menu, enter submenus and perform actions.

• Select a photo being viewed on the display. Press again to deselect the photo.

• Eject paper. (Press for three seconds.)

• Navigate through submenus of a menu.

• When previewing a photo, decrease the number of copies to be printed.

• Navigate through menu selections of the main menu.

• Navigate through selections of a submenu.

• When viewing photos, navigate from one photo to another.

• In a submenu, save the current selection, and return to the previous display.

• When viewing a photo slideshow, pause or stop the slideshow.

• When printing a photo or an alignment page, stop and cancel the job, and eject the paper.

• In the photo selection screen, bring up the Photo Edit Mode menu.

• In the Print Preview screen, bring up the Print Settings menu.

• Navigate through submenus of a menu.

• When previewing a photo, increase the number of copies to be printed.

Understanding the printer

Related topics:

• “Using the control panel menus” on page 29

Using the control panel menus

Using the View and Select menu

1 Insert a memory card or flash drive. For more information, see “Inserting a memory card” on page 7 or “Inserting

a flash drive” on page 7.

2 Press or repeatedly until View and Select appears on the display.

3 Press .

4 Follow the instructions on the display.

From here You can

View and Select

Print Preview See a preview of the photo/s to be printed.

Related topics:

• “Printing photos” on page 0

• Select one or more photos for viewing and/or printing

• Select the number of copies to print.

Press

You can also press quality, paper type, and passport photo print settings.

to go to the Print Preview screen.

to adjust the print settings, including paper size, photo size, layout, print

Using the Print Photos menu

This menu allows you to select a group of photos for printing.

1 Insert a memory card or flash drive. For more information, see “Inserting a memory card” on page 7 or “Inserting

a flash drive” on page 7.

2 Press or repeatedly until Print Photos appears on the display.

3 Press .

Understanding the printer

From here You can

Print Camera Selections Print Digital Print Order Format (DPOF) selections. This option appears only when there

is a valid DPOF file on your memory card. For more information, see “Printing photos from a digital camera using DPOF” on page 18.

Print All N Photos Print all the photos on a memory device. N is the total number of images that will be

printed. You can select:

• Photo/s on Paper to view available paper sizes.

• Index Print to print an index page of photos. For more information, see “Printing an

index page of photos” on page 16.

• Copies Per Photo to select the number of copies to print per photo.

• Other Print Settings to choose a paper size, photo size, layout, print quality, and paper

type.

Print Photos by Date Print photos taken within certain dates. For more information, see “Printing photos by

date” on page 17.

Print Photo Range Select the first and last photos in a range to be printed. For more information, see “Printing

photos by range” on page 17.

Related topics:

• “Printing photos” on page 0

Using the Transfer menu

You can transfer photos from a memory card to a flash drive or a computer (if the printer is attached to a computer). The photos on the memory card are retained.

1 Insert a memory card. For more information, see “Inserting a memory card” on page 7.

2 Press or repeatedly until Transfer appears on the display.

3 Press .

4 If you wish to transfer photos to a USB flash drive, insert the drive.

5 Press or to select either USB Flash Drive or Computer (if the printer is attached to a computer).

6 Press .

7 Follow the instructions on the printer display.

Related topics:

• “Transferring photos from a memory card to a flash drive” on page 21

Using the Slideshow menu

The Slideshow menu lets you view the images stored on a memory card or flash drive.

1 Insert a memory card or flash drive. For more information, see “Inserting a memory card” on page 7 or “Inserting

a flash drive” on page 7.

2 Press or repeatedly until Slideshow appears on the display.

Understanding the printer

3 Press .

4 Press to continue.

Each photo is displayed for a few seconds.

5 If you want to move to the previous or next photo manually, press or .

6 Use any of the following buttons:

• Press to select a photo or photos to print after the slideshow.

• Press to pause the slideshow. Press again to stop the slideshow.

• Press to rotate the photo on the display.

When the slideshow is stopped, the photo or photos you selected for printing during the slideshow are displayed by pressing

Related topics:

• “Viewing photos” on page 0

Using the Tools menu

1 Press or repeatedly until Tools appears on the display.

2 Press .

From here You can

Device Defaults Select:

• Language to change the language setting.

• Country to set the default blank paper size and date format being used in your location.

• Power Save to set the length of time before the printer, if left unused, enters a low power

state. During Power Save, the display and backlight will be turned off. Press any button to restore power to the printer.

Print Settings Select a paper size, photo size, layout, print quality, and paper type.

Maintenance Select:

• View Ink Level to view a graphic representing the ink level in the print cartridge. For more

information, see “Viewing the ink level” on page 50.

• Clean Cartridge to clean the print cartridge nozzles. For more information, see “Cleaning the

print cartridge nozzles” on page 43.

• Align Cartridge to align the cartridge. For more information, see “Aligning the print cartridge”

on page 42.

• Print Test Page to print a test page. For more information, see “Printing a test page” on

page 49.

• Reset Defaults to reset default settings to factory settings.

Understanding the printer

From here You can

Bluetooth Select:

• Bluetooth Enable to enable or disable Bluetooth communication. For more information, see

“Using Bluetooth technology” on page 0 .

• Discovery Mode to turn the Discovery mode on or off. For more information, see “Using

Bluetooth technology” on page 0 .

• Device Name to view the Device Name and the Universally Administered Address (UAA)

number automatically assigned to your Bluetooth-enabled device.

• Device Address to view the 48-bit address of your Bluetooth-enabled device.

Customize Select:

• Screen Saver to turn the screen saver function on after 30 seconds, on after one minute, or

off.

• Replace Screen Saver Photos to select up to four photos to use as screen savers.

• Hinting to turn hints on or off. Hints are messages on the control panel display that give more

information on the current selection.

Related topics:

• “Maintaining the printer” on page 42

Using the Photo Edit Mode menu

When you are viewing a photo, press to access the Photo Edit Mode menu.

From here You can

Brightness Adjust the brightness of a photo. For more information, see “Adjusting the brightness of

photos” on page 11.

Crop Crop a photo. For more information, see “Cropping photos” on page 11.

Auto Enhance Enhance a photo automatically. For more information, see “Enhancing photos automatically”

on page 12.

Red Eye Reduction Reduce the red-eye effect caused by light reflection.

Colorized Effect Select whether to print a photo in Black & White, Sepia, Antique Brown, or Antique Gray. For

more information, see “Using color effects on photos” on page 13.

Rotate Rotate a photo in 90-degree increments clockwise or counter-clockwise.

Frames Select a style and color to frame a photo. For more information, see “Adding frames to photos”

on page 10.

Related topics:

• “Using the control panel menus” on page 29

Understanding the printer

Using the PictBridge menu

The PictBridge default settings menu allows the selection of printer settings if no selections were specified on your digital camera beforehand. To make camera selections, see the camera documentation.

1 Connect a PictBridge-enabled digital camera. For more information, see “Connecting a PictBridge-enabled digital

camera” on page 6.

2 Press to access the PictBridge menu.

3 Press or to navigate through the following options:

From here You can

Paper Size Select a paper size.

Photo Size Select a photo size.

Layout Select a photo layout.

Print Quality Select a print quality.

Paper Type Select a paper type. For more information, see “Using supported paper types” on page 5.

4 Press or to make a selection.

5 Press to print.

Related topics:

• “Using the control panel menus” on page 29

• “Connecting a PictBridge-enabled digital camera” on page 6

• “Printing photos” on page 0

Understanding the software

Installing the printer software

Using the CD that came with the printer:

1 Close all open software applications.

2 Insert the printer software CD.

3 From the Finder desktop, double-click the printer CD icon that automatically appears.

4 Double-click the Install icon.

5 Follow the instructions on the computer screen.

Using the World Wide Web:

1 Go to the Lexmark Web site at www.lexmark.com.

2 From the home page, navigate through the menu selection, and then click Drivers & Downloads.

3 Choose the printer and the printer driver for your operating system.

4 Follow the instructions on the computer screen to download the driver and install the printer software.

Understanding the printer

Related topics:

• “Removing the printer software” on page 34

Removing the printer software

If the printer software is not installed properly, a communication error message appears when you try to print. Remove the printer software, and then reinstall it.

1 From the Finder desktop, double-click the Lexmark 350 Series folder.

If the folder for the printer is not found on the desktop or was accidentally deleted:

a Go to the Mac OS X drive where the printer software was installed.

b Choose Library  Printers  Lexmark  2006  Lexmark 350 Series folder.

2 Double-click the Uninstaller icon for your printer.

3 Complete the user authentication notice, and then click OK.

Note: For help on passwords, click

4 Click Uninstall.

5 Click OK.

Related topics:

• “Installing the printer software” on page 33

to go to the Help Center.

Using Printer Services

Printer Services provides helpful Web links and information. From here you can:

• Access the Utility.

• Access Troubleshooting.

• Order supplies.

• Contact Customer Support.

• Obtain software version information.

Understanding the printer

To access Printer Services:

1 With a photo open, click File  Print.

2 From the third pop-up menu from the top, choose Printer Services.

Note: For Mac OS X version 10.4 or later, click Advanced. From the third pop-up menu from the top, choose Printer Services.

Related topics:

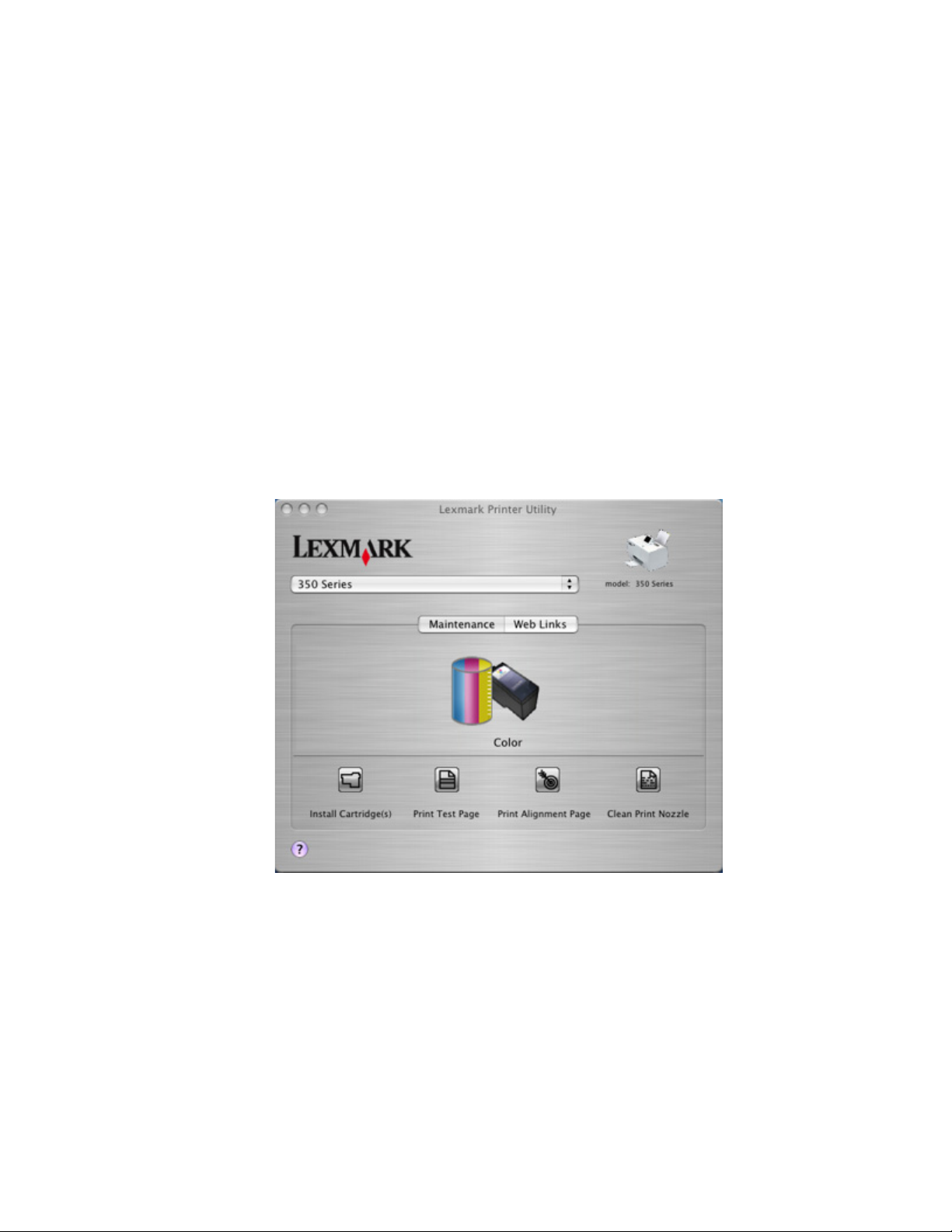

• “Using the Utility” on page 39

Using the Page Setup dialog

You can open the Page Setup dialog from almost any application:

1 With a photo open, choose File  Page Setup.

The Page Setup dialog appears.

Understanding the printer

2 Adjust the settings.

From here Choose To

Settings Page Attributes Choose a paper size, orientation, or scaling value for a

photo.

Save as Default Save customized settings as the default settings.

Format for The name of your printer Format a page for printing with the printer.

Paper Size Choose a paper size from the list.

Orientation Choose an orientation.

Scale Reduce or enlarge a photo to a percentage of its

original size.

Note: Recommended values are between 25% and 400% of the original size.

These buttons are at the bottom of the Page Setup dialog:

Click To

Go to the Help Center for more information.

Cancel Exit the Page Setup dialog without making any changes to the settings.

OK Save settings and exit the Page Setup dialog.

Related topics:

• “Printing photos using the computer” on page 22

Using the Print dialog

You can open the Print dialog from almost any application:

1 With a photo open, choose File  Print.

The Print dialog appears.

• For Mac OS X version 10.3 or later:

Understanding the printer

• For Mac OS X version 10.4 or later:

2 From the Printer pop-up menu, choose 350 Series.

Note: For Mac OS X version 10.4 or later, click Advanced.

3 Change the settings as needed.

From here Choose To

Copies & Pages Copies Specify the number of copies you want to print.

Collated Sort multiple copy jobs.

Pages

• Print all the photos.

• Print a range of photos.

• Print the current photo.

Layout Pages per Sheet Print multiple photos on a single sheet of paper.

Layout Direction Print the photos in a specified order.

Border Print a border around each photo.

Output Options Save the print job as a file.

Note: Format is activated when Save as File option is selected.

Scheduler Print Document Schedule a print job. You can choose to print a photo

immediately, put it on hold, or specify a time for the printer to print.

Priority Specify a priority for printing.

Understanding the printer

From here Choose To

Paper Handling Page Order Choose any of these options:

• Automatic

• Normal

• Reverse

Print Choose any of these print options:

• All pages

• Odd numbered pages

• Even numbered pages

Destination Paper Size Choose any of these options:

• Use documents paper size

• Scale to fit paper size

Note: Scale down is activated only when Scale to fit paper size option is selected.

ColorSync Color Conversion

Quartz Filter Choose a filtering option.

Cover Page Printer Cover Page Choose any of these options:

Select Standard.

• None

• Before document

• After document

Cover Page Type Choose any of these options:

• Standard

• Classified

• Confidential

• Secret

• Top Secret

• Unclassified

Billing Info Enter billing information.

Quality & Media Paper Type Specify the type of paper loaded.

Print Quality Choose a print quality.

Printer Services Lexmark 350 Series Utility Go to the Utility.

Troubleshooting Open the Help Center.

Order Supplies Visit our Web site to order printer supplies.

Contact Lexmark Visit our Web site.

Software Version View the software version on installed files.

Understanding the printer

From here Choose To

Preview Rotate Choose the orientation of the photo.

Quartz Filter Choose any of these options:

• Black and White

• Blue Tone

• Gray Tone

• Lightness Decrease

• Lightness Increase

• Reduce File Size

• Sepia Tone

Summary View a summary of the current print settings.

These buttons are at the bottom of the Print dialog:

Click To

Go to the Help Center to find more information.

Preview Get a full view of a photo, and see additional options for viewing or reviewing

it prior to printing.

Save as PDF Print a photo to file and create a PDF.

Advanced (Mac OS X version 10.4 or later)

Cancel Exit the Print dialog without making any changes to the settings.

Print Print a photo.

Go to the Print dialog.

Related topics:

• “Printing photos using the computer” on page 22

Using the Utility

The Utility is the central source for printer maintenance and helpful Web links. From here you can:

• Install the print cartridge.

• Print a test page.

• Print an alignment page.

• Clean the print cartridge nozzles.

• Order ink or supplies.

• Register your printer.

• Contact Customer Support.

• Check for special offers.

Understanding the printer

There are two ways to open the Utility:

• From the Finder desktop, double-click the Lexmark 350 Series folder.

Double-click the Lexmark 350 Series Utility icon.

• From an application:

For Mac OS X version 10.3 or later:

1 With a photo open, click File  Print.

2 From the third pop-up menu from the top, choose Printer Services.

3 Click Lexmark 350 Series Utility.

For Mac OS X version 10.4 or later:

1 With a photo open, click File  Print.

2 Click Advanced.

3 From the third pop-up menu from the top, choose Printer Services.

4 Click Lexmark 350 Series Utility.

The Utility has two tabs with different links under each tab.

– Maintenance Tab

Understanding the printer

– Web Links Tab

Related topics:

• “Using Printer Services” on page 34

Understanding the printer

Maintaining the printer

Aligning the print cartridge

1 Load photo paper, with the glossy or printable side facing you. (If you are not sure which side is the printable side,

see the instructions that came with the paper.) For more information, see “Loading paper” on page 5.

Note: For best results, use the photo paper you intend to use for printing.

2 Press or repeatedly until Tools appears on the display.

3 Press .

4 Press or repeatedly until Maintenance appears.

5 Press .

6 Press or repeatedly until Align Cartridge appears.

7 Press .

An alignment page prints.

If you aligned the cartridge to improve print quality, print your photo again. If print quality has not improved, clean the print cartridge nozzles.

Related topics:

• “Cleaning the print cartridge nozzles” on page 43

Checking the cable connections

Verify the following items, and then send your photo to print again.

• Did you connect the power supply cord to a known working electrical outlet?

– Do the following:

1 Attach the power supply firmly to the power supply port at the back of the printer. 2 Attach the power supply firmly to a known working electrical outlet.

– Check for loose connections. – Make sure the light is on.

Maintaining the printer

• Is the USB cable properly connected?

– Make sure you plug the smaller, more square end of the USB cable into the back of the printer. – Make sure the long, flat end of the USB cable is connected to the USB port of your computer. The USB port

is marked with the

USB symbol.

– Make sure the USB cable is not damaged or loose.

Cleaning the print cartridge nozzles

1 Load photo paper, with the glossy or printable side facing you. (If you are not sure which side is the printable side,

see the instructions that came with the paper.) For more information, see “Loading paper” on page 5.

2 Press or repeatedly until Tools appears on the display.

3 Press .

4 Press or repeatedly until Maintenance appears.

5 Press .

6 Press or repeatedly until Clean Cartridge appears.

7 Press .

A page prints, forcing ink through the print cartridge nozzles to clean them.

8 Print the photo again to verify that the print quality has improved.

9 If print quality has not improved, try cleaning the nozzles up to two more times.

Related topics:

• “Wiping the print cartridge nozzles and contacts” on page 51

Contacting Customer Support

How do I contact Lexmark Customer Support?

Call us at:

• US: 1–800-332-4120

Monday–Friday (8:00 AM–11:00 PM EST)

Saturday (Noon–6:00 PM EST)

• Canada: 1-800-539-6275

Monday–Friday (9:00 AM–9:00 PM EST)

Saturday (Noon–6:00 PM EST)

• Mexico: 001-888-377-0063

Monday–Friday (8:00 AM–8:00 PM EST)

Note: Phone numbers and support times may change without notice.

Is contact information available online?

Yes. You can access the Lexmark home page on the World Wide Web at http://www.lexmark.com.

Maintaining the printer

Finding information about the printer

Setup

Description Where to find

The Setup sheet gives you instructions for setting up hardware and software.

Getting Started

Description Where to find

The Getting Started booklet gives you instructions for setting up hardware and software and some basic instructions for using the printer.

The Setup Solutions booklet tells you how to solve printer setup problems.

Note: These documents do not ship with all printers. If you did not receive a Getting Started booklet or a Setup Solutions booklet, see your printer's Help instead.

sheet

Setup Solutions

You can find this document in the printer box or on the Lexmark Web site at www.lexmark.com.

booklet

You can find this document in the printer box or on the Lexmark Web site at www.lexmark.com.

Utility and Printer Services

Description Where to find

The Utility and Printer Services provide information on general maintenance and other related tasks.

You can access these in the Print dialog from any software application. For more information, see “Using the Utility” on page 39.

Help

Description Where to find

If your printer connects to a computer, the Help gives you instructions for using the printer and other information such as:

• Using the software

• Loading paper

When you install the printer software, your printer's Help will be installed.

1 From the Finder desktop, double-click the

Lexmark 350 Series folder.

2 Double-click the printer Help icon.

• Printing

• Working with photos

• Scanning (if supported by your printer)

• Making copies (if supported by your printer)

• Faxing (if supported by your printer)

• Maintaining the printer

• Connecting the printer to a network (if supported by your

printer)

• Troubleshooting problems with printing, copying,

scanning, faxing, paper jams, and misfeeds

Maintaining the printer

Customer support

Description Where to find (North America) Where to find (rest of world)

Telephone support

E-mail support

Call us at

• US: 1-800-332-4120

Monday–Friday (8:00 AM–11:00 PM EST)

Saturday (Noon–6:00 PM EST)

• Canada: 1-800-539-6275

Monday–Friday (9:00 AM–9:00 PM EST)

Saturday (Noon–6:00 PM EST)

• Mexico: 001-888-377-0063

Monday–Friday (8:00 AM–8:00 PM EST)

Note: For the most recent phone numbers available, see the printed warranty statement that shipped with your printer.

For e-mail support, visit our Web site:

www.lexmark.com.

1 Click customer support. 2 Click Technical Support. 3 Select your printer family. 4 Select your printer model. 5 From the Support Tools section, click e-

Mail Support.

6 Complete the form, and then click Submit

Request.

Telephone numbers and support hours vary by country or region.

Visit our Web site at www.lexmark.com. Select a country or region, and then select the Customer Support link.

Note: For additional information about contacting Lexmark, see the printed warranty that shipped with your printer.

E-mail support varies by country or region, and may not be available in some instances.

Visit our Web site at www.lexmark.com. Select a country or region, and then select the Customer Support link.

Note: For additional information about contacting Lexmark, see the printed warranty that shipped with your printer.

Limited Warranty

Description Where to find (US) Where to find (rest of world)

Limited Warranty Information

Lexmark International, Inc. furnishes a limited warranty that this printer will be free of defects in materials and workmanship for a period of 12 months after the original date of purchase.

To view the limitations and conditions of this limited warranty, see the Statement of Limited Warranty included with this printer, or set forth at

www.lexmark.com.

1 Click customer support. 2 Click Warranty Information.

Warranty information varies by country or region. See the printed warranty that shipped with your printer.

3 From the Statement of Limited

Warranty section, click Inkjet & All-In-One Printers.

4 Scroll through the Web page to view

the warranty.

Maintaining the printer

Record the following information (located on the store receipt and the back of the printer), and have it ready when you contact us so that we may serve you faster:

• Machine Type number

• Serial number

• Date purchased

• Store where purchased

Improving print quality

If you are not satisfied with the print quality of a photo, make sure you:

• Use the appropriate paper for the photo. For best results, use Lexmark Perfectfinish Photo Paper or Lexmark Photo

Paper.

Note: Do not use Lexmark Premium Photo Paper. Your print cartridge is not compatible with this type of paper.

• Load the paper with the glossy or printable side facing you. (If you are not sure which side is the printable side,

see the instructions that came with the paper.)

• Select Photo as the print quality.

Note: To prevent smudging or scratching, avoid touching the printed surface with your fingers or sharp objects. For

best results, remove each printed sheet individually from the paper exit tray, and allow the prints to dry at least 24 hours before stacking, displaying, or storing.

If the photo still does not have the print quality you want, follow these steps:

1 Align the print cartridge. For more information, see “Aligning the print cartridge” on page 42.

If print quality has not improved, continue to step 2.

2 Clean the print cartridge nozzles. For more information, see “Cleaning the print cartridge nozzles” on page 43.

If print quality has not improved, continue to step 3.

3 Remove and reinsert the print cartridge. For more information, see “Removing a used print cartridge” on

page 49 and “Installing the print cartridge” on page 47.

If print quality has not improved, continue to step 4.

4 Wipe the print cartridge nozzles and contacts. For more information, see “Wiping the print cartridge nozzles and

contacts” on page 51.

If print quality is still not satisfactory, replace the print cartridge. For more information, see “Ordering supplies” on page 48.

Related topics:

• “Aligning the print cartridge” on page 42

• “Cleaning the print cartridge nozzles” on page 43

• “Removing a used print cartridge” on page 49

• “Ordering supplies” on page 48

• “Wiping the print cartridge nozzles and contacts” on page 51

Maintaining the printer

Installing the print cartridge

1 If you are installing a new print cartridge, remove the sticker and tape from the back and bottom of the cartridge.

Warning—Potential Damage: Do not touch the gold contact area on the back or the metal nozzles on the

bottom of the cartridge.

2 Open the access cover.

The print cartridge carrier moves and stops at the loading position, unless the printer is busy.

3 Press down on the cartridge carrier lid to open the cartridge carrier.

Note: If a cartridge is present, remove it.

4 Insert the cartridge.

5 Close the cartridge carrier.

6 Close the access cover.

7 Load paper into the paper support.

8 When prompted on the display, press to print the cartridge alignment page.

Maintaining the printer

Related topics:

• “Removing a used print cartridge” on page 49

• “Aligning the print cartridge” on page 42

• “Preserving the print cartridge” on page 48

Ordering supplies

To order supplies or to locate a dealer near you, visit the Lexmark Web site at www.lexmark.com.

Item Part number

Color cartridge 45

USB cable 1021294

Notes:

• For best results, use Lexmark Perfectfinish Photo Paper or Lexmark Photo Paper.

• Do not use Lexmark Premium Photo Paper. Your print cartridge is not compatible with this type of paper.

Paper Paper size

Lexmark Perfectfinish Photo Paper

• 4 x 6 in.

• 10 x 15 cm

• L

Lexmark Photo Paper

• 4 x 6 in.

• 10 x 15 cm

Note: Availability may vary by country or region.

For information on how to purchase Lexmark Perfectfinish Photo Paper or Lexmark Photo Paper in your country or region, go to www.lexmark.com.

Related topics:

• “Contacting Customer Support” on page 43

• “Using the Utility” on page 39

• “Using the Print dialog” on page 36

Preserving the print cartridge

• Keep a new print cartridge in its packaging until you are ready to install it.

• Do not remove a cartridge from the printer except to replace, clean, or store it in an airtight container. The cartridge

does not print correctly if left exposed for an extended period of time.

Related topics:

• “Cleaning the print cartridge nozzles” on page 43

• “Wiping the print cartridge nozzles and contacts” on page 51

Maintaining the printer

Printing a test page

1 Load photo paper, with the glossy or printable side facing you. (If you are not sure which side is the printable side,

see the instructions that came with the paper.) For more information, see “Loading paper” on page 5.

2 Press or repeatedly until Tools appears on the display.

3 Press .

4 Press or repeatedly until Maintenance appears.

5 Press .

6 Press or repeatedly until Print Test Page appears.

7 Press .

Related topics:

• “Improving print quality” on page 46

Recycling Lexmark products

To return Lexmark products to Lexmark for recycling:

1 Visit our Web site at www.lexmark.com/recycle.

2 Follow the instructions on the computer screen.

Refilling a print cartridge

The warranty does not cover repair of failures or damage caused by a refilled cartridge. Lexmark does not recommend use of a refilled cartridge. Refilling a cartridge can affect print quality and may cause damage to the printer. For best results, use Lexmark supplies.

Removing a used print cartridge

1 Make sure the printer is on.

2 Open the access cover. The print cartridge carrier moves and stops at the loading position, unless the printer is

busy.

3 Press down on the cartridge carrier lid to open the cartridge carrier.

Maintaining the printer

4 Remove the used print cartridge.

If the cartridge you removed is not empty and you want to use it later, see “Preserving the print cartridge” on page 48.

5 Close the cartridge carrier.

6 Close the access cover.

Related topics:

• “Installing the print cartridge” on page 47

• “Preserving the print cartridge” on page 48

Using genuine Lexmark print cartridges

Lexmark printers, print cartridges, and photo paper are designed to perform together for superior print quality.

If you receive an Out of Original Lexmark Ink message, the original Lexmark ink in the indicated cartridge (s) has been depleted.

If you believe you purchased a new, genuine Lexmark print cartridge, but the Out of Original Lexmark Ink message appears:

1 Click Learn More on the message.

2 Click Report a non-Lexmark print cartridge.

To prevent the message from appearing again for the indicated cartridge(s):

• Replace your cartridge(s) with new Lexmark print cartridge(s).

• If you are printing from a computer, click Learn more on the message, select the check box, and click Close.

• If you are using the printer without a computer, press .

Lexmark's warranty does not cover damage caused by non-Lexmark ink or print cartridges.

Viewing the ink level

1 Press or repeatedly until Tools appears on the display.

2 Press .

3 Press or repeatedly until Maintenance appears.

4 Press .

5 Press again to select View Ink Level.

Related topics:

• “Ordering supplies” on page 48

• “Installing the print cartridge” on page 47

Maintaining the printer

Wiping the print cartridge nozzles and contacts

1 Remove the print cartridge.

2 Dampen a clean, lint-free cloth with water.

3 Gently hold the cloth against the print cartridge nozzles for about three seconds, and then wipe in the direction

shown.

4 Using another clean section of the cloth, gently hold the cloth against the contacts for about three seconds, and

then wipe in the direction shown.

5 With another clean section of the cloth, repeat step 3 and step 4.

6 Let the nozzles and contacts dry completely.

7 Reinsert the print cartridge.

8 Print the photo again.

9 If print quality does not improve, clean the print nozzles. For more information, see “Cleaning the print cartridge

nozzles” on page 43.

10 Repeat “Cleaning the print cartridge nozzles” on page 43 up to two more times.

11 If print quality is still not satisfactory, replace the print cartridge.

Related topics:

• “Cleaning the print cartridge nozzles” on page 43

• “Preserving the print cartridge” on page 48

Maintaining the printer

Troubleshooting

Cannot print from a digital camera using PictBridge

OLUTION 1

Enable PictBridge printing on the camera by selecting the correct USB mode. For more information, see the digital camera documentation.

SOLUTION 2

1 Disconnect the camera.

2 Connect a PictBridge-enabled digital camera to the PictBridge port. See the digital camera documentation to

determine whether it is PictBridge-enabled.

SOLUTION 3

Use only the USB cable that came with the camera.

Incorrect language appears on the display

1 Press to turn the printer off.

2 Press to turn the printer back on.

3 Press .

4 Press .

5 Press to continue.

6 Press or repeatedly until the language you want appears on the display.

7 Press to save your selection.

Ink level

Message Ink level

Your Color Cartridge will need to be replaced soon.

Your Color Cartridge will need to be replaced very soon.

Note: These messages and percentages may not apply to the starter cartridge that shipped with your printer.

25% full

15% full

5% full

Troubleshooting

1 Install a new print cartridge if necessary. For more information, see “Installing the print cartridge” on page 47.

To order supplies, see “Ordering supplies” on page 48.

2 Press to continue.

Device cannot be inserted

Make sure that the type of memory card, flash drive, PictBridge camera, or Bluetooth adapter you are using can be used in the printer. For more information, see “Connecting photo storage devices” on page 0 .

Nothing happens when a device is inserted

OLUTION 1

Remove and reinsert the memory card, flash drive, PictBridge-enabled camera, or Bluetooth adapter quickly.

SOLUTION 2

For more information, see “Connecting photo storage devices” on page 0 .

SOLUTION 3

Check that there is no obvious damage to the memory card, flash drive, PictBridge-enabled camera, or Bluetooth adapter.

SOLUTION 4

Insert only one device at a time.

SOLUTION 5

Check the cable connections.

1 Check the USB cable for any obvious damage.

2 Firmly plug the square end of the USB cable into the back of the printer.

3 Firmly plug the rectangular end of the USB cable into the USB port of the computer.

The USB port is marked with the

USB symbol.

Partial photo prints

The memory card, flash drive, or Pictbridge-enabled camera you inserted is empty or contains files that cannot be read by the printer.

SOLUTION 1

Use another memory card, flash drive, or Pictbridge-enabled camera.

Troubleshooting

SOLUTION 2

Make sure the paper size being used matches the size you selected.

Photo does not print

OLUTION 1

If an error message is displayed, see “Error messages” on page 57.

SOLUTION 2

If the light is not on, see “Power button is not lit” on page 55.

SOLUTION 3

Remove and then reload paper. For more information, see “Loading paper” on page 5.

SOLUTION 4

Check the ink level, and install a new print cartridge if necessary. For more information, see “Installing the print cartridge” on page 47.

SOLUTION 5

If the printer is connected to the computer through another device:

1 Disconnect the USB cable from any other device, such as a USB hub or switch box.

2 Directly connect the cable to the printer and the computer.

SOLUTION 6

1 Press to turn the printer off.

2 Disconnect the power supply cord from the wall outlet.

3 Disconnect the other end of the power supply cord from the printer.

4 Reconnect the power supply cord to the printer.

5 Plug the power supply cord into the wall outlet.

6 Press to turn the printer back on.

Troubleshooting

Power button is not lit

Make sure you have disconnected the power supply cord from the printer and then from the wall outlet.

1 Plug the cord all the way into the power supply port on the printer.

2 Plug the cord into an electrical outlet that other electrical devices have been using.

3 If the light is not on, press .

Print speed is slow

OLUTION 1

Close all programs on the computer.

SOLUTION 2

Consider purchasing more Random Access Memory (RAM) for your computer.

SOLUTION 3

1 From the software application, click File  Print.

2 From the Copies & Pages pop-up menu, choose Quality and Media.

3 From the Print Quality area, select Normal.

Software does not install

Your printer supports Mac OS X version 10.3 or later.

SOLUTION 1

1 Close all open software applications.

2 Disable any anti-virus programs.

3 Remove the printer software CD from the CD-ROM drive.

4 Restart the computer.

Troubleshooting

5 When the desktop appears, reinsert the printer software CD. The CD icon is created on the desktop.

6 Follow the instructions on the computer screen to install the software.

SOLUTION 2

1 Remove the printer software CD.

2 Restart the computer.

3 When the desktop appears, cancel all Found New Hardware windows.

4 Reinsert the printer software CD.

5 Follow the instructions on the computer screen.

SOLUTION 3

1 Check the USB cable for any obvious damage.

2 Firmly plug the square end of the USB cable into the back of the printer.

3 Firmly plug the rectangular end of the USB cable into the USB port of the computer.

The USB port is marked with the

USB symbol.

SOLUTION 4

1 Disconnect the USB cable from any other device, such as a USB hub or switch box.

2 Directly connect the cable to the printer and the computer.

Jams and misfeeds troubleshooting

Paper jam in the paper support

1 Press to turn off the printer.

2 Firmly grasp the paper, and gently pull it out.

3 Press to turn the printer back on.

Paper jam in the printer

1 Press to turn off the printer.

2 Firmly grasp the paper, and gently pull it out.

3 Press to turn the printer back on.

Troubleshooting

Error messages

Alignment Error

OLUTION 1

1 Remove the print cartridge.

2 Make sure the sticker and tape have been completely removed.

3 Reinsert the print cartridge.

4 Press to align the cartridge.

SOLUTION 2

Load photo paper, with the glossy or printable side facing you. (If you are not sure which side is the printable side, see the instructions that came with the paper.)

Load new paper only. The printer will read any markings on used paper, which could cause the alignment error message to appear.

Carrier Jam

1 Open the access cover.

2 Remove any objects blocking the path of the print cartridge carrier.

3 Make sure the cartridge carrier lid is closed.

4 Close the access cover.

5 Press .

Troubleshooting

Cartridge Error

1 Remove the print cartridge.

2 Disconnect the power supply cord from the electrical outlet.

3 Reconnect the power supply cord to the electrical outlet.

4 If the button is not lit, press .

5 Reinsert the cartridge.

6 If the cartridge error returns, install a new cartridge. For more information, see “Installing the print cartridge” on

page 47.

Cartridge missing

The print cartridge is missing or is not installed properly. For more information, see “Installing the print cartridge” on page 47.

Cover open

Make sure that the access cover is closed.

Invalid Device

The camera you connected to the printer is not communicating using PictBridge.

1 Disconnect the camera from the printer.

2 Check to see if the camera is PictBridge-enabled. For more information, see the camera documentation.

Invalid Image File

The memory card or flash drive you inserted is empty or contains files that cannot be read by the printer.

Use another memory card or flash drive. For more information, see “Inserting a memory card” on page 7 or “Inserting a flash drive” on page 7.

Lexmark recommends using genuine cartridges

You have installed a refilled cartridge.

Install a genuine Lexmark cartridge for best results. Lexmark's warranty does not cover damage caused by non-Lexmark cartridges.

For more information, see “Installing the print cartridge” on page 47.

Non-Lexmark cartridge detected

You have installed a counterfeit cartridge.

Install a genuine Lexmark cartridge for best results. Lexmark's warranty does not cover damage caused by non-Lexmark cartridges.

For more information, see “Installing the print cartridge” on page 47.

Troubleshooting

Paper Jam

See “Jams and misfeeds troubleshooting” on page 56.

Paper Out

1 Load photo paper, with the glossy or printable side facing you. (If you are not sure which side is the printable side,

see the instructions that came with the paper.) For more information, see “Loading paper” on page 5.

2 Press .

PictBridge Error

OLUTION 1

Make sure your PictBridge-enabled digital camera is properly connected to the printer. For more information, see “Connecting a PictBridge-enabled digital camera” on page 6.

SOLUTION 2

The camera you connected is not in PictBridge mode. For more information, see the camera documentation.

Troubleshooting

Notices and safety information

Edition notice

July 2006

The following paragraph does not apply to any country where such provisions are inconsistent with local law: LEXMARK INTERNATIONAL, INC., PROVIDES THIS PUBLICATION “AS IS” WITHOUT WARRANTY OF ANY KIND,

EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some states do not allow disclaimer of express or implied warranties in certain transactions; therefore, this statement may not apply to you.

This publication could include technical inaccuracies or typographical errors. Changes are periodically made to the information herein; these changes will be incorporated in later editions. Improvements or changes in the products or the programs described may be made at any time.

Comments about this publication may be addressed to Lexmark International, Inc., Department F95/032-2, 740 West New Circle Road, Lexington, Kentucky 40550, U.S.A. In the United Kingdom and Eire, send to Lexmark International Ltd., Marketing and Services Department, Westhorpe House, Westhorpe, Marlow Bucks SL7 3RQ. Lexmark may use or distribute any of the information you supply in any way it believes appropriate without incurring any obligation to you. To obtain additional copies of publications related to this product, visit the Lexmark Web site at www.lexmark.com.

References in this publication to products, programs, or services do not imply that the manufacturer intends to make these available in all countries in which it operates. Any reference to a product, program, or service is not intended to state or imply that only that product, program, or service may be used. Any functionally equivalent product, program, or service that does not infringe any existing intellectual property right may be used instead. Evaluation and verification of operation in conjunction with other products, programs, or services, except those expressly designated by the manufacturer, are the user’s responsibility.

UNITED STATES GOVERNMENT RIGHTS

This software and any accompanying documentation provided under this agreement are commercial computer software and documentation developed exclusively at private expense.

Product name

Machine type 4303-001

Lexmark 350 Series

Trademarks

Lexmark and Lexmark with diamond design are trademarks of Lexmark International, Inc., registered in the United States and/or other countries.

All other trademarks are the property of their respective owners.

Notices and safety information

Conventions

Note: A note identifies something that could help you.

Warning—Potential Damage: A warning identifies something that could damage your product hardware or

software.

CAUTION—POTENTIAL INJURY: A caution identifies something that could cause you harm.

CAUTION—DO NOT TOUCH: This type of caution indicates that you should not touch the marked area.

CAUTION—HOT SURFACE: This type of caution indicates a hot surface.

CAUTION—SHOCK HAZARD: This type of caution indicates a shock hazard.

CAUTION—TIPPING HAZARD: This type of caution indicates a tipping hazard.

Federal Communications Commission (FCC) compliance information statement

This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

The FCC Class B limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult your point of purchase or service representative for additional suggestions.

The manufacturer is not responsible for radio or television interference caused by using other than recommended cables or by unauthorized changes or modifications to this equipment. Unauthorized changes or modifications could void the user's authority to operate this equipment.

Note: To assure compliance with FCC regulations on electromagnetic interference for a Class B computing device, use a properly shielded and grounded cable such as Lexmark part number 1021294 for USB attach. Use of a substitute cable not properly shielded and grounded may result in a violation of FCC regulations.

Any questions regarding this compliance information statement should be directed to:

Director of Lexmark Technology & Services Lexmark International, Inc. 740 West New Circle Road Lexington, KY 40550 (859) 232–3000

Notices and safety information

Industry Canada compliance statement

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Standard ICES-003.

Avis de conformité aux normes de l’industrie du Canada

Cet appareil numérique de classe B est conforme aux exigences de la norme canadienne relative aux équipements pouvant causer des interférences NMB-003.

European Community (EC) directives conformity

This product is in conformity with the protection requirements of EC Council directives 89/336/EEC and 73/23/EEC on the approximation and harmonization of the laws of the Member States relating to electromagnetic compatibility and safety of electrical equipmentdesigned for use within certain voltage limits.

A declaration of conformity with the requirements of the directives has been signed by the Director of Manufacturing and Technical Support, Lexmark International, Inc., S.A., Boigny, France.

This product satisfies the Class B limits of EN 55022 and safety requirements of EN 60950.

Japanese VCCI notice

Korean MIC statement

Noise emission levels

The following measurements were made in accordance with ISO 7779 and reported in conformance with ISO 9296.

Note: Some modes may not apply to your product.

Notices and safety information

1-meter average sound pressure, dBA

Printing 37

Scanning not applicable

Copying not applicable

Ready Inaudible

Values are subject to change. See www.lexmark.com for current values.

Waste from Electrical and Electronic Equipment (WEEE) directive

The WEEE logo signifies specific recycling programs and procedures for electronic products in countries of the European Union. We encourage the recycling of our products. If you have further questions about recycling options, visit the Lexmark Web site at www.lexmark.com for your local sales office phone number.

ENERGY STAR

Safety information

Connect the power supply cord to an electrical outlet that is near the product and easily accessible.

This product is designed, tested, and approved to meet strict global safety standards with the use of specific Lexmark components. The safety features of some parts may not always be obvious. Lexmark is not responsible for the use of other replacement parts.

CAUTION—SHOCK HAZARD: Do not set up this product or make any electrical or cabling connections, such as the power supply cord or telephone, during a lightning storm.

Notices and safety information

Power consumption

Product power consumption

The following table documents the power consumption characteristics of the product.

Note: Some modes may not apply to your product.

Mode Description Power consumption (Watts)

Printing The product is generating hard-copy output from electronic

inputs.

Copying The product is generating hard-copy output from hard-copy

original documents.

Scanning The product is scanning hard-copy documents. not applicable

Ready The product is waiting for a print job. 5.7

Power Saver The product is in energy-saving mode. 5.32

High Off The product is plugged into a wall outlet, but the power switch

is turned off.

Low Off (<1 W Off) The product is plugged into a wall outlet, the power switch is

turned off, and the product is in the lowest possible power consumption mode.

Off The product is plugged into a wall outlet, but the power switch

is turned off.

The power consumption levels listed in the previous table represent time-averaged measurements. Instantaneous power draws may be substantially higher than the average. Values are subject to change. See www.lexmark.com for current values.

9.7

not applicable

0.56

Four-hour Off mode

This product is designed with an energy-saving four-hour Off mode. This mode is automatically engaged after this product is not used for four hours.

Off mode

If this product has an off mode which still consumes a small am ou nt of po we r, th en to completely stop product power consumption, disconnect the power supply cord from the wall outlet.

Total energy usage

It is sometimes helpful to calculate the total product energy usage. Since power consumption claims are provided in power units of Watts, the power consumption should be multiplied by the time the product spends in each mode in order to calculate energy usage. The total product energy usage is the sum of each mode's energy usage.

Notices and safety information

Statement of Limited Warranty

Lexmark International, Inc., Lexington, KY

This limited warranty applies to the United States. For customers outside the U.S., see the country-specific warranty information that came with your product.

This limited warranty applies to this product only if it was originally purchased for your use, and not for resale, from Lexmark or a Lexmark remarketer, referred to in this statement as “Remarketer.”

Limited warranty

Lexmark warrants that this product:

—Is manufactured from new parts, or new and serviceable used parts, which perform like new parts

—Is, during normal use, free from defects in material and workmanship

If this product does not function as warranted during the warranty period, contact a Remarketer or Lexmark for repair or replacement (at Lexmark's option).

If this product is a feature or option, this statement applies only when that feature or option is used with the product for which it was designed. To obtain warranty service, you may be required to present the feature or option with the product.

If you transfer this product to another user, warranty service under the terms of this statement is available to that user for the remainder of the warranty period. You should transfer proof of original purchase and this statement to that user.

Limited warranty service

The warranty period starts on the date of original purchase as shown on the purchase receipt. The warranty period ends 12 months later.

To obtain warranty service you may be required to present proof of original purchase. You may be required to deliver your product to the Remarketer or Lexmark, or ship it prepaid and suitably packaged to a Lexmark designated location. You are responsible for loss of, or damage to, a product in transit to the Remarketer or the designated location.

When warranty service involves the exchange of a product or part, the item replaced becomes the property of the Remarketer or Lexmark. The replacement may be a new or repaired item. The replacement item assumes the remaining warranty period of the original product.

Replacement is not available to you if the product you present for exchange is defaced, altered, in need of a repair not included in warranty service, damaged beyond repair, or if the product is not free of all legal obligations, restrictions, liens, and encumbrances.

Before you present this product for warranty service, remove all print cartridges, programs, data, and removable storage media (unless directed otherwise by Lexmark).

For further explanation of your warranty alternatives and the nearest Lexmark authorized servicer in your area, contact Lexmark at (800) 332-4120, or on the World Wide Web at support.lexmark.com.

Remote technical support is provided for this product throughout its warranty period. For products no longer covered by a Lexmark warranty, technical support may not be available or only be available for a fee.

Notices and safety information

Extent of limited warranty

We do not warrant uninterrupted or error-free operation of any product.

Warranty service does not include repair of failures caused by:

—Modification or attachments

—Accidents or misuse

—Unsuitable physical or operating environment

—Maintenance by anyone other than Lexmark or a Lexmark authorized servicer

—Operation of a product beyond the limit of its duty cycle

—Use of printing media outside of Lexmark specifications

—Supplies (such as ink) not furnished by Lexmark

—Products, components, parts, materials, software, or interfaces not furnished by Lexmark

TO THE EXTENT PERMITTED BY APPLICABLE LAW, NEITHER LEXMARK NOR ITS THIRD PARTY SUPPLIERS OR REMARKETERS MAKE ANY OTHER WARRANTY OR CONDITION OF ANY KIND, WHETHER EXPRESS OR IMPLIED, WITH RESPECT TO THIS PRODUCT, AND SPECIFICALLY DISCLAIM THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, AND SATISFACTORY QUALITY. ANY WARRANTIES THAT MAY NOT BE DISCLAIMED UNDER APPLICABLE LAW ARE LIMITED IN DURATION TO THE WARRANTY PERIOD. NO WARRANTIES, EXPRESS OR IMPLIED, WILL APPLY AFTER THIS PERIOD. ALL INFORMATION, SPECIFICATIONS, PRICES, AND SERVICES ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE.

Limitation of liability

Your sole remedy under this limited warranty is set forth in this document. For any claim concerning performance or nonperformance of Lexmark or a Remarketer for this product under this limited warranty, you may recover actual damages up to the limit set forth in the following paragraph.

Lexmark's liability for actual damages from any cause whatsoever will be limited to the amount you paid for the product that caused the damages. This limitation of liability will not apply to claims by you for bodily injury or damage to real property or tangible personal property for which Lexmark is legally liable. IN NO EVENT WILL LEXMARK BE LIABLE FOR ANY LOST PROFITS, LOST SAVINGS, INCIDENTAL DAMAGE, OR OTHER ECONOMIC OR CONSEQUENTIAL DAMAGES. This is true even if you advise Lexmark or a Remarketer of the possibility of such damages. Lexmark is not liable for any claim by you based on a third party claim.

This limitation of remedies also applies to claims against any Suppliers and Remarketers of Lexmark. Lexmark's and its Suppliers' and Remarketers' limitations of remedies are not cumulative. Such Suppliers and Remarketers are intended beneficiaries of this limitation.

Additional rights

Some states do not allow limitations on how long an implied warranty lasts, or do not allow the exclusion or limitation of incidental or consequential damages, so the limitations or exclusions contained above may not apply to you.

This limited warranty gives you specific legal rights. You may also have other rights that vary from state to state.

Notices and safety information

Glossary

alignment page

application

Auto Enhancement

black and white

Bluetooth

Bluetooth card

borderless

card reader

carrier

collate

control panel

crop

default printer settings

dialog

DPOF

flash drive

glossy paper

gold contact area

iPhoto

memory card

memory card slots

nozzles

photo paper

PictBridge

PictBridge port

Print All / Index

resize

A page with printed alignment patterns that ejects from the printer during cartridge alignment.

Any software loaded on your computer that lets you perform a specific task, such as word processing or photo editing.

A feature that optimizes the quality of a photo.

Non-color printing.

A wireless technology used by compatible products.

A memory storage device.

A feature that prints photos without borders around them.

A mechanical device that reads the files on memory cards.

A mechanical device inside the printer that holds print cartridges.

A printer software option that lets you automatically print one complete set of copies of a multiple-page document before the next set of copies begins, and so on.

A group of buttons on the printer that lets you print without using the computer keyboard or mouse.

A printer software option that lets you select a portion of the image to print.

Printer software settings defined when the printer is manufactured.

A software screen used to convey information to users.

Digital Print Order Format. A feature in some digital cameras that lets the user specify, while the memory card is in the camera, which photos to print and the number of copies of each photo to be printed.

A memory storage device which can be purchased separately from the printer. The printer has a port to which flash drives can be connected.

Paper with one or two glossy sides designed for photos.

The area on a print cartridge or a digital camera memory card through which data is transmitted.

A Mac software application used to retrieve, edit, and print photos stored on a computer, memory card, flash drive, or digital camera.

A small storage medium used to save digital data such as text, pictures, audio, and video; sometimes called a flash memory card.

Slots on the printer control panel into which memory cards can be inserted.

The area of the print cartridge through which ink flows before it is applied to paper during printing.

Treated paper designed for printing photos.

A feature in some digital cameras that enables the user to print images without using a computer or image-editing software.

A port on the printer used with a USB cable to connect to a PictBridge-enabled digital camera to the printer.

A printer menu that alllows the user to print all the photos selected as thumbnails on an index page, or to print one photo per index page.

A software option that reduces or enlarges the final image size of a photo while maintaining the image proportions.

Glossary

USB cable

USB port

A lightweight, flexible cable that lets the printer communicate with the computer at much higher speeds than parallel cables.

A small, rectangular port on the back of a printer or a computer that connects peripheral devices using a USB cable.

Glossary

Lexmark P350 User Guide

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

Using the printer

Loading paper

Using supported paper types

Working with photos using the control panel

Connecting photo storage devices

Viewing photos

Editing photos

Printing photos

Using Bluetooth technology

Transferring photos

Working with photos using the computer

Choosing a paper size

Choosing a paper type

Printing photos using the computer

Resizing photos using the computer

Using iPhoto

Understanding the printer

Checking the box contents

Understanding the parts of the printer

Using the control panel buttons

Using the control panel menus

Using the View and Select menu

Using the Print Photos menu

Using the Transfer menu

Using the Slideshow menu

Using the Tools menu

Using the Photo Edit Mode menu

Using the PictBridge menu

Understanding the software

Installing the printer software

Removing the printer software

Using Printer Services

Using the Page Setup dialog

Using the Print dialog

Using the Utility

Maintaining the printer

Aligning the print cartridge

Checking the cable connections

Cleaning the print cartridge nozzles

Contacting Customer Support

Finding information about the printer

Improving print quality

Installing the print cartridge

Ordering supplies

Preserving the print cartridge

Printing a test page

Recycling Lexmark products

Refilling a print cartridge

Removing a used print cartridge

Using genuine Lexmark print cartridges

Viewing the ink level

Wiping the print cartridge nozzles and contacts

Troubleshooting

Cannot print from a digital camera using PictBridge

SOLUTION 2

SOLUTION 3

Incorrect language appears on the display

Ink level

Device cannot be inserted

Nothing happens when a device is inserted

SOLUTION 2

SOLUTION 3

SOLUTION 4

SOLUTION 5

Partial photo prints

SOLUTION 1

SOLUTION 2

Photo does not print

SOLUTION 2

SOLUTION 3

SOLUTION 4

SOLUTION 5

SOLUTION 6

Power button is not lit

Print speed is slow
