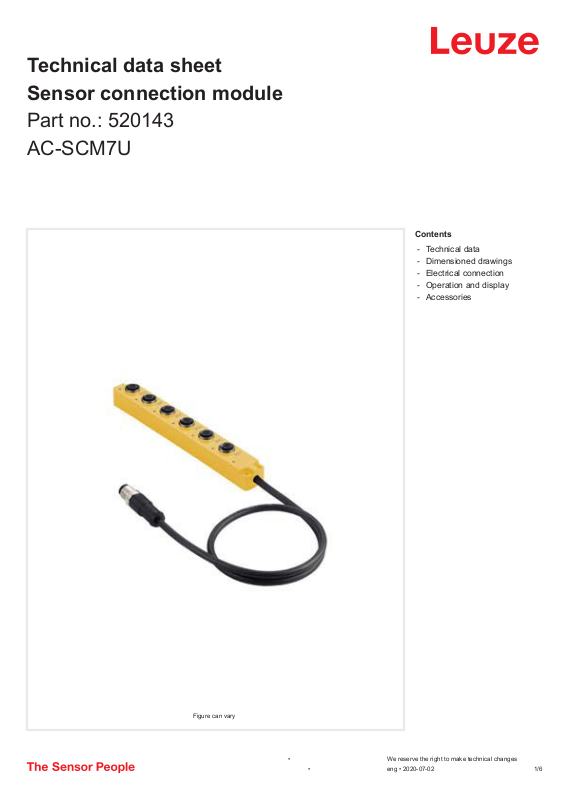

Technical data sheet
Sensor connection module

Part no.: 520143
AC-SCM7U

Contents

-

Technical data

-

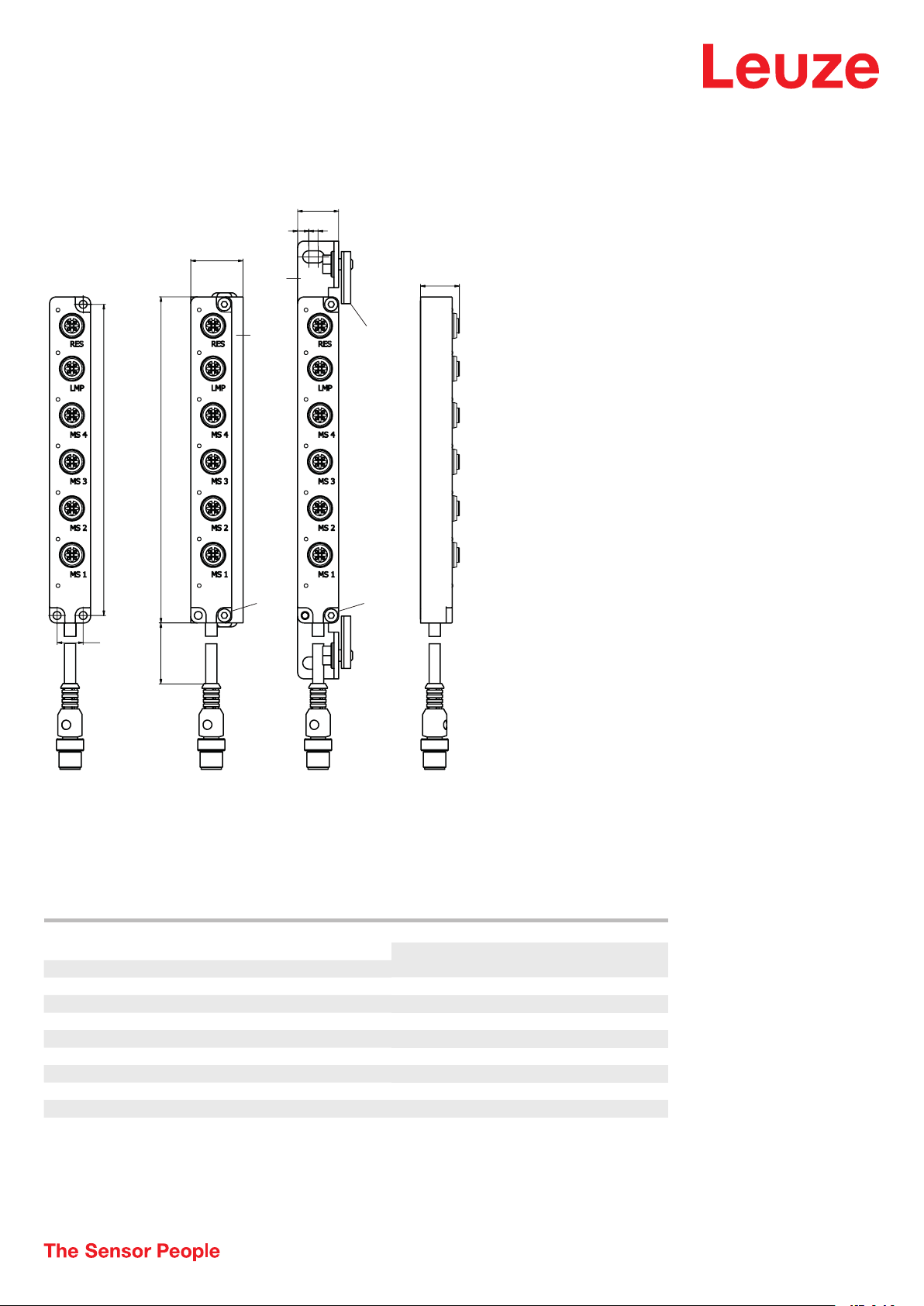

Dimensioned drawings

-

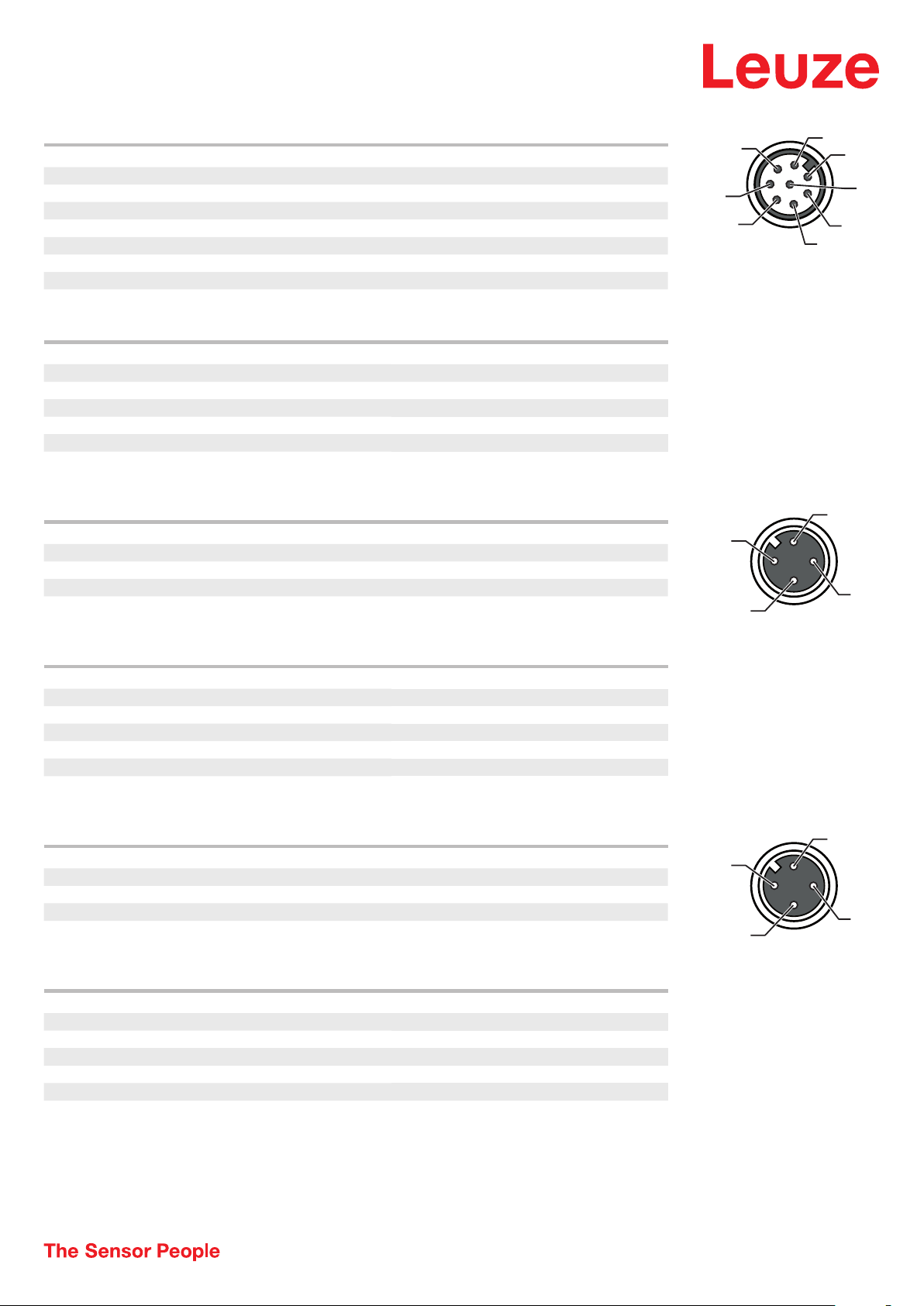

Electrical connection

-

Operation and display

-

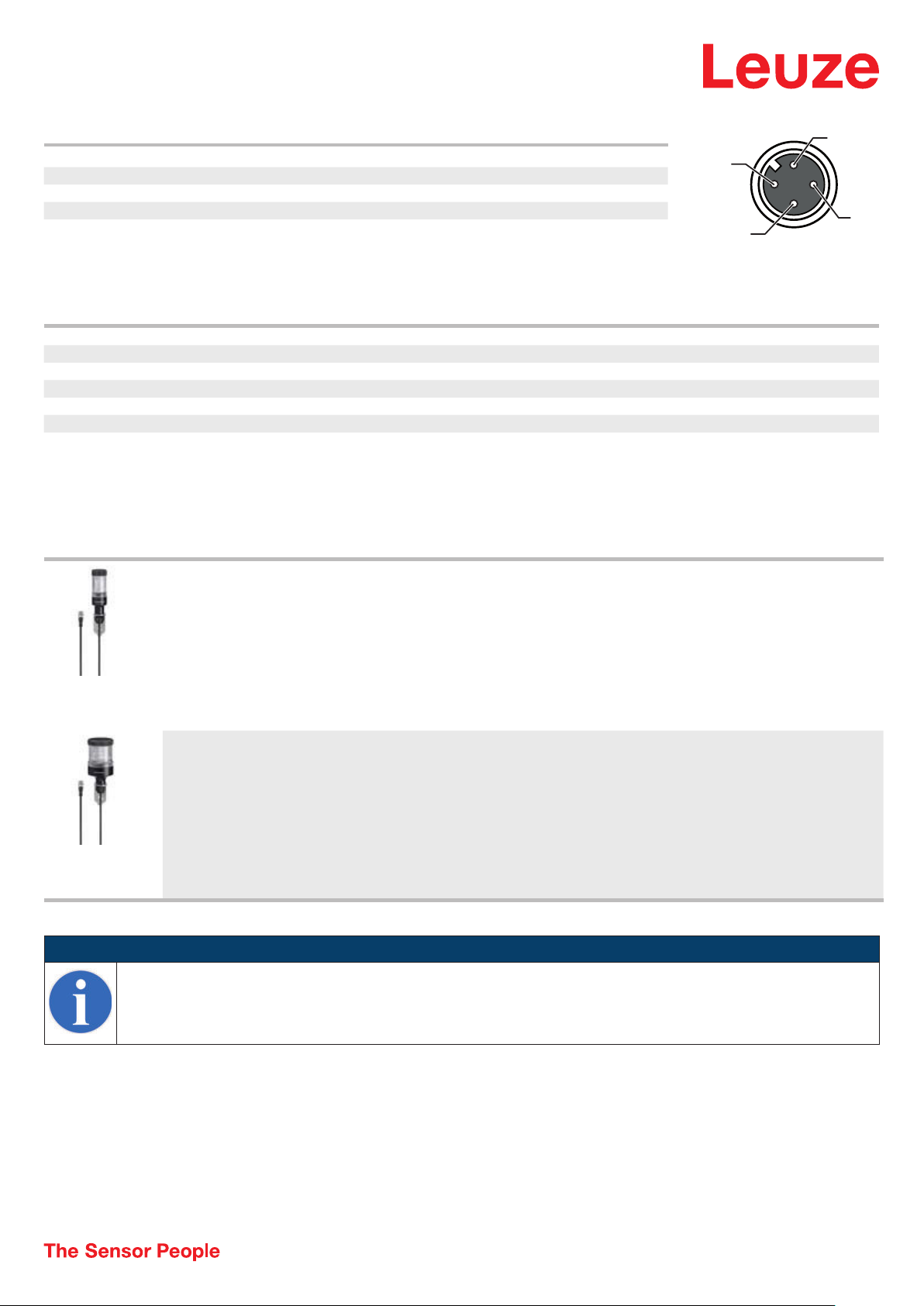

Accessories

Figure can vary

• We reserve the right to make technical changes

• eng • 2020-07-02

1 /6

Sensor connection module • Part no.: 520143 • AC-SCM7U

Technical data

Basic data

Suitable for MLD 335, MLD 535 multiple light beam

safety devices

Electrical data

Insulation resistance, min. 10,000,000,000 Ω

Current load, max. 1 A

Performance data

Supply voltage U

B

24 V, DC, -20 ... 20 %

Connection

Number of connections 7 Piece(s)

Connection 1

Function Connection to device

Local interface

Type of connection Cable with connector

Cable length 500 mm

Sheathing material PUR

Thread size M12

Type Male

Material Metal

No. of pins

Encoding A-coded

8 -pin

Connection 2

Function Local input, muting sensor 1

Type of connection Connector

Designation on device

Thread size M12

Type Female

Material Metal

No. of pins 5 -pin

Encoding A-coded

MS1

Connection 3

Function Local input, muting sensor 2

Type of connection Connector

Designation on device MS2

Thread size M12

Type Female

Material Metal

No. of pins 5 -pin

Encoding

A-coded

Connection 4

Function Local input, muting sensor 3

Type of connection Connector

Designation on device MS3

Thread size M12

Type

Material

No. of pins

Encoding A-coded

Female

Metal

5 -pin

Connection 5

Function Local input, muting sensor 4

Type of connection Connector

Designation on device MS4

Thread size M12

Type

Material

No. of pins

Encoding A-coded

Female

Metal

5 -pin

Connection 6

Function

Type of connection

Designation on device

Thread size

Type Female

Material Metal

No. of pins 5 -pin

Encoding A-coded

Connection - external muting indicator

Connector

LMP

M12

Connection 7

Function Connection - start/muting restart button

Type of connection Connector

Designation on device RES

Thread size M12

Type Female

Material Metal

No. of pins 5 -pin

Encoding A-coded

Mechanical data

Design Cubic

Dimension (W x H x L) 30 mm x 23.9 mm x 196 mm

Housing material Plastic, PA 6

Net weight 180 g

Housing color Black

Type of fastening Groove mounting

Through-hole mounting

Operation and display

Type of display LED

Number of LEDs 6 Piece(s)

Environmental data

Ambient temperature, operation -30 ... 80 °C

Classification

Customs tariff number 85369010

eCl@ss 8.0 27279219

eCl@ss 9.0 27440108

ETIM 5.0 EC002585

ETIM 6.0 EC002585
