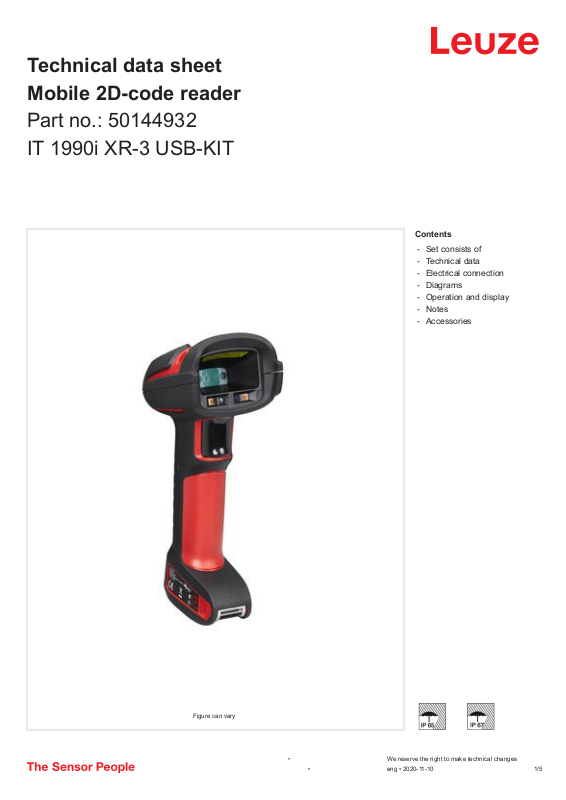

Technical data sheet
Mobile 2D-code reader
Part no.: 50144932
IT 1990i XR-3 USB-KIT
Contents
-
Set consists of
-
Technical data
-
Electrical connection
-
Diagrams
-
Operation and display
-
Notes
-
Accessories
Figure can vary
• We reserve the right to make technical changes
• eng • 2020-11-10
1 /5
Mobile 2D-code reader • Part no.: 50144932 • IT 1990i XR-3 USB-KIT
Set consists of
Quantity Part no. Designation Article Description
1 50114521 KB USB-1 IT190x Interconnection cable Suitable for interface: USB
Technical data
Basic data
Series IT19xx
Read data
Code types, readable 2/5 Interleaved
Aztec
Codabar
Codablock
Code 128
Code 39
Code 49
Code 93
Data Matrix Code
EAN/UPC
GS1 Databar
Maxicode
Micro PDF
Others on request
PDF417
QR code
UPC
Optical data
Reading distance 0 ... 2,236 mm
Camera resolution, horizontal 1,280 px
Camera resolution, vertical 800 px
Electrical data
Performance data
Supply voltage U
Power consumption, max. 2.35 W
B
Interface
Type PS/2, RS 232, USB
4 ... 5.5 V, DC
Connection 1: USB
Connection 2: RJ41
Shielded: Yes
Cable length: 3,000 mm
Sheathing material: PVC
RS 232
Function Process
USB
Function
Process
Connection
Connection 1
Type of connection RJ41
Mechanical data
Dimension (W x H x L) 76 mm x 100 mm x 192 mm
Housing material Plastic
Plastic housing UL 94-V0
Net weight 320 g
Environmental data
Ambient temperature, operation -30 ... 50 °C
Ambient temperature, storage -40 ... 70 °C
Relative humidity (non-condensing) 0 ... 95 %
Drop height 3 m
Measurements relative to Concrete floor
Certifications
Degree of protection IP 65
IP 67
Classification
Customs tariff number 84719000
eCl@ss 8.0 27280103
eCl@ss 9.0 27280103
eCl@ss 10.0 27280103
eCl@ss 11.0 27280103
ETIM 5.0 EC002999
ETIM 6.0 EC002999
Electrical connection
Connection 1
Function Configuration interface
Data interface
Type of connection RJ41
• We reserve the right to make technical changes
• eng • 2020-11-10
2 /5
Mobile 2D-code reader • Part no.: 50144932 • IT 1990i XR-3 USB-KIT
6
5
B [mm] C [mm] D [mm]
A [mil]

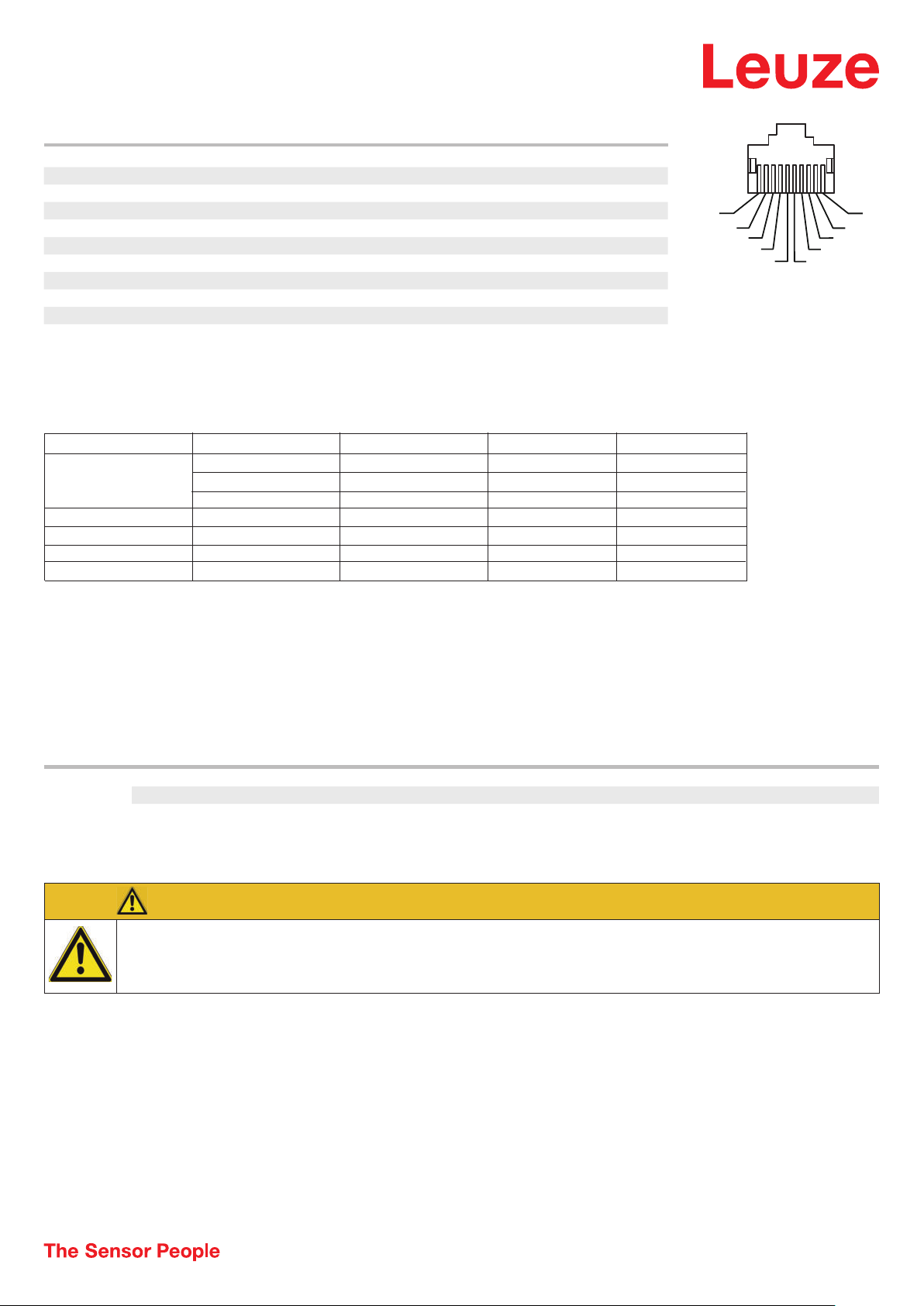

Electrical connection
Pin Pin assignment
1 Shield
2 Cable ID
3 GND
4 TxD RS 232 / n.c. USB
5 RxD RS 232 / n.c. USB
6 CTS RS 232 / n.c. USB
7 +5 V DC
8 R
9 n.c. RS 232 / Data + USB
10 n.c. RS 232 / Data - USB
TS RS 232 / n.c. USB
Diagrams
Typical reading behavior
1
2
3
4
10
9
8
7
Code 39
UPC/EAN 13
PDF 417
Data Matrix Code
QR Code
A Module size [mil]
B Modulus size [mm]
C From [mm]
5
20
100
13
6,7
10
20
721,0
805,0
45,2
33,0
961,0
452,0
805,0
D To [mm]
ATTENTION !Please observe the note below
regarding the reading distances.
2
0
50
0
0
02
03
33
Operation and display
LED Display Meaning
1 Normal
operation
Green, 1x flashing Reading successful
Red, continuous light Communication error
Notes
Observe intended use!
220
2236
10000
1520
209
220
484
ª This product is not a safety sensor and is not intended as personnel protection.
ª The product may only be put into operation by competent persons.
ª Only use the product in accordance with its intended use.
• We reserve the right to make technical changes
• eng • 2020-11-10
3 /5
Mobile 2D-code reader • Part no.: 50144932 • IT 1990i XR-3 USB-KIT
Notes
WARNING! LASER RADIATION – CLASS 2 LASER PRODUCT
Do not stare into beam!
The device satisfies the requirements of IEC 60825-1:2007 (EN 60825-1:2007) safety regulations for a product of laser class 2 as well as the
U.S. 21 CFR 1040.10 regulations with deviations corresponding to "Laser Notice No. 50" from June 24, 2007.
ª Never look directly into the laser beam or in the direction of reflected laser beams! If you look into the beam path over a longer time period, there is a risk
of injury to the retina.
ª Do not point the laser beam of the device at persons!
ª Interrupt the laser beam using a non-transparent, non-reflective object if the laser beam is accidentally directed towards a person.
ª When mounting and aligning the device, avoid reflections of the laser beam of
ª CAUTION! Use of controls or adjustments or performance of procedures other than specified herein may result in hazardous light exposure.
ª Observe the applicable statutory and local laser protection regulations.
ª The device must not be tampered with and must not be changed in any way.
There are no user-serviceable parts inside the device.
Repairs must only be performed by
NOTE
Affix laser information and warning signs!
Laser information and warning signs are affixed to the device. In addition, self-adhesive laser information and warning signs (stick-on labels) are
supplied in several languages.
ª Affix the laser information sheet to the device in the language appropriate for the place of use. When using the device in the US, use the stick-on label
with the "Complies with 21 CFR 1040.10" note.
ª Affix the laser information and warning signs near the device if no signs are attached to the device (e.g. because the device is too small) or if the attached
laser information and warning signs are concealed due to the installation position.
ª Affix the laser information and warning signs so that they are legible without exposing the reader to the laser radiation of the device or other optical
radiation.
f reflective surfaces!
NOTE
ª Please notice that the real reading distances are also influenced by factors such as labeling material, printing quality, reading angle, printing contrast etc.,
and may thus deviate from the reading distances specified here.
Accessories
Connection technology - Connection unit
Part no. Designation Article Description
50112891 MA 248i Profinet
Gateway
Modular connection
unit
Supply voltage: 18 ... 30 V
Current consumption, max.: 300 mA
Interface: PROFINET, RS 232
Connections: 6 Piece(s)
Degree of protection: IP 65
• We reserve the right to make technical changes
• eng • 2020-11-10
4 /5
Mobile 2D-code reader • Part no.: 50144932 • IT 1990i XR-3 USB-KIT

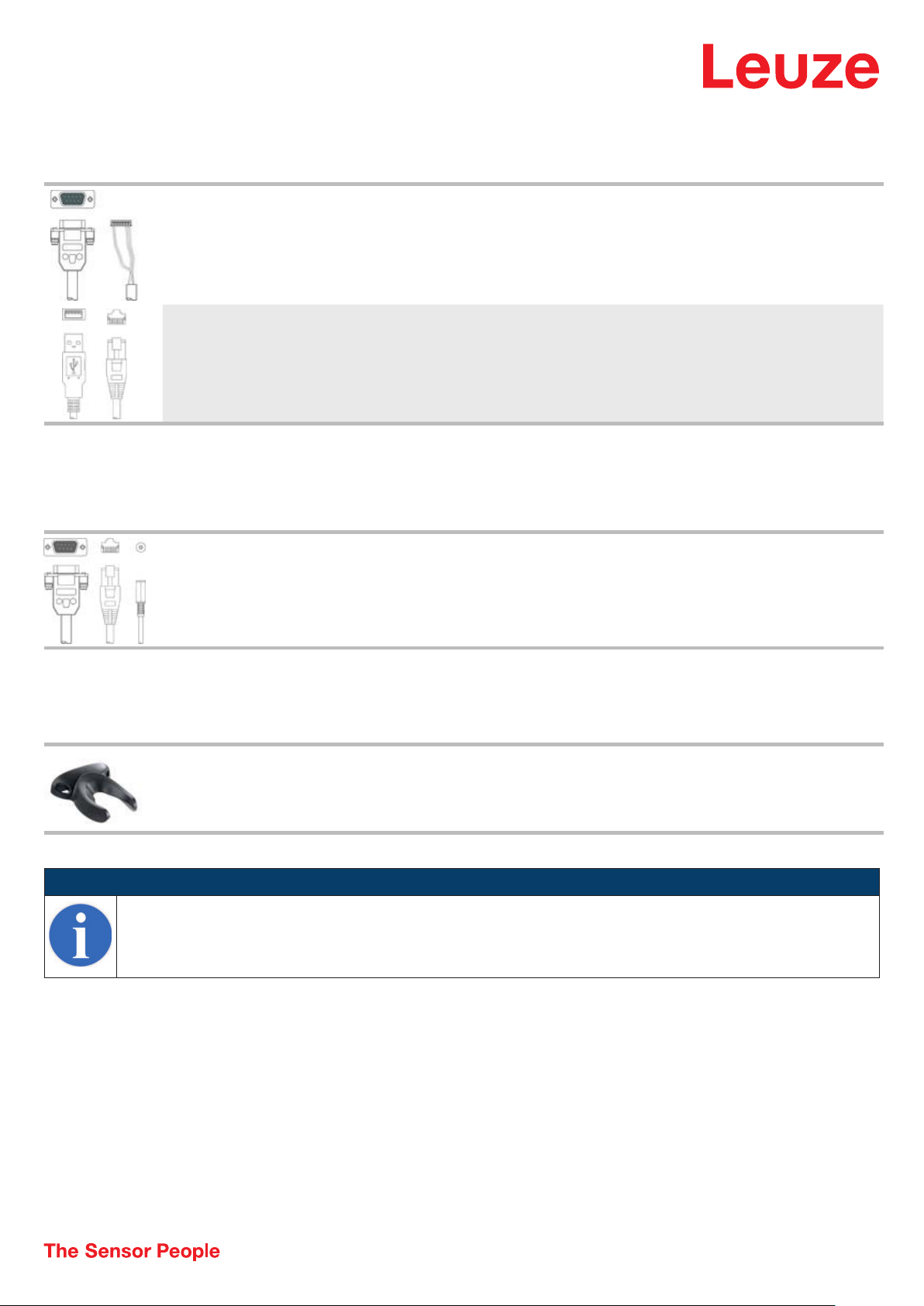

Accessories
Connection technology - Interconnection cables
Part no. Designation Article Description
50113397 KB JST-HS-300 Connection cable Suitable for interface: RS 232
50114521 ** KB USB-1 IT190x Interconnection cable Suitable for interface: USB
** Included in delivery contents
Connection technology - Y distribution cables
Part no. Designation Article Description
50114517 KB 232-1 IT190x Interconnection cable Suitable for interface: RS 232, TTL
Connection 1: JST ZHR
Connection 2: Sub-D, Axial, Male, 9 -pin
Shielded: Yes
Cable length: 300 mm
Sheathing material: PUR
Connection 1: USB
Connection 2: RJ41
Shielded: Yes
Cable length: 3,000 mm
Sheathing material: PVC
Connection 1: Sub-D, Axial, Female, 9 -pin
Connection 2: RJ41
Connection 3: Connector, Pluggable, Axial, Female, 2 -pin
Shielded: Yes
Cable length: 3,000 mm
Sheathing material: PVC
Mounting technology - Other
Part no. Designation Article Description
50120444 BT Wallholder
HS65x8
Note
ª A list with all available accessories can be found on the Leuze website in the Download tab of the article detailed page.
Wall mount Design of mounting device: Wall mounting
Fastening, at system: Through-hole mounting
Mounting bracket, at device: insertable
Material: Plastic
