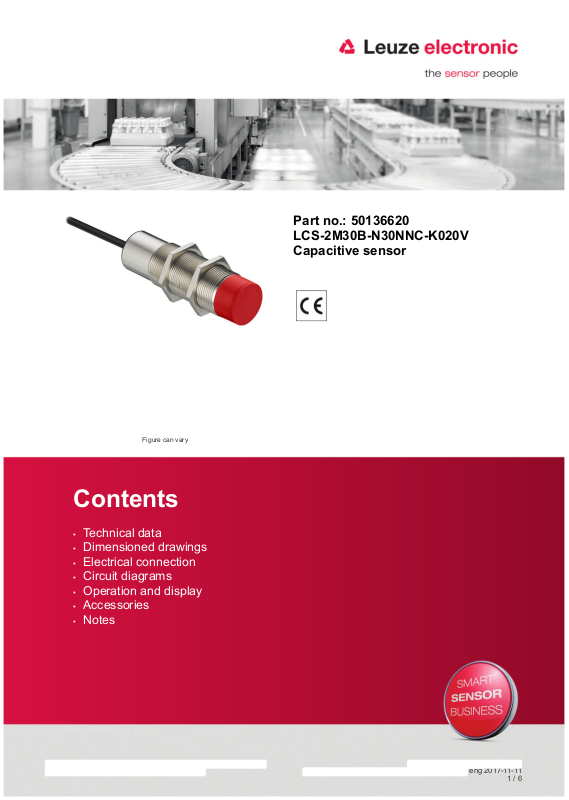

Figure can vary
Part no.: 50136620
LCS-2M30B-N30NNC-K020V
Capacitive sensor
Contents
▪ Technical data
▪ Dimensioned drawings
▪ Electrical connection
▪ Circuit diagrams
▪ Operation and display
▪ Accessories
▪ Notes
Part no.: 50136620 – LCS-2M30B-N30NNC-K020V – Capacitive sensor
Technical data
Basic data
Series LCS-2
Switching distance S
Assured switching distance 24.3 mm
Electrical data
Protective circuit Short circuit protected
Performance data
Supply voltage 10 ... 30 V, DC
Residual ripple 0 ... 10 %
Open-circuit current 10 mA
Rated operating current 300 mA
Outputs
Number of digital switching outputs 1 Piece(s)
Switching outputs
Type Digital switching output
Voltage type DC
Switching output 1
Assignment Connection 1, conductor 2
Switching element Transistor, NPN
Switching principle NC (normally closed)
n
2 ... 30 mm
Polarity reversal protection
Timing
Switching frequency 100 Hz
Connection
Number of connections 1 Piece(s)
Connection 1
Type of connection Cable
Cable length 2,000 mm
Sheathing material PVC
Number of conductors 3 -wire
Wire cross section 0.35 mm²
Mechanical data
Design Cylindrical
Thread size M30 x 1.5 mm
Dimension (Ø x L) 30 mm x 85 mm
Type of installation Non-embedded
Housing material Metal
Sensing face material Plastic, Polybutylene (PBT)
Cover material Plastic, Polybutylene (PBT)
Operation and display
Type of display LED
Number of LEDs 1 Piece(s)
Switching distance, adjustable Yes
eng 2017-11-11
2 / 6
Part no.: 50136620 – LCS-2M30B-N30NNC-K020V – Capacitive sensor
Environmental data
Ambient temperature, operation -25 ... 70 °C
Certifications
Degree of protection IP 67
Protection class III
Standards applied IEC 60947-5-2
Correction factors
Acetone 0.75
Acrylic resin 0.1 ... 0.25
Alcohol 0.85
Ammonia 0.7 ... 0.85
Aniline 0.4
Gasoline 0.1
Celluloid 0.15
Liquid chlorine 0.1
Ebonite 0.15
Epoxy resin 0.15 ... 0.35
Crude oil 0.05
Ethanol 0.85
Ethylene glycol 0.93
Freon R22 and 502 (liquid) 0.35
Grain 0.15 ... 0.3
Glass 0.2 ... 0.55
Glycerin 0.98
Rubber 0.15 ... 0.9
Wood, wet 0.6 ... 0.85
Wood, dry 0.1 ... 0.4
Marble 0.5
Flour 0.05
Melamine resin 0.25 ... 0.55
Milk powder 0.2
Nylon 0.2 ... 0.3
Oil-containing paper 0.25
Paper 0.1
Polyamide 0.3
Polyester resin 0.15 ... 0.5
Pressboard 0.1 ... 0.3
PTFE 0.1
Quartz glass 0.2
Salt 0.35
Sand 0.15 ... 0.3
Water 1
Cement dust 0.25
Sugar 0.15
Classification
eCl@ss 8.0 27270102
eCl@ss 9.0 27270102
eng 2017-11-11
3 / 6
Part no.: 50136620 – LCS-2M30B-N30NNC-K020V – Capacitive sensor
ETIM 5.0 EC002715
Dimensioned drawings
All dimensions in millimeters
A Active surface
B Yellow LED
C Potentiometer
Electrical connection
Connection 1
Type of connection Cable
Function
Cable length 2,000 mm
Sheathing material PVC
Cable color
eng 2017-11-11
4 / 6
Part no.: 50136620 – LCS-2M30B-N30NNC-K020V – Capacitive sensor
Connection 1
Number of conductors 3 -wire
Wire cross section 0.35 mm²
Conductor color Conductor assignment
Brown 10 - 30 V DC
Black OUT
Blue GND
Circuit diagrams
Operation and display
LEDs
LED Display Meaning
1 Yellow, continuous light Switching output/switching state
Accessories
Mounting technology - Other
Part no. Designation Article Description
50132730 AC D30M-CS Clamp Contains: 2x M36 mounting nut
50111503 MC 030K Clamp Diameter, inner: 30 mm
Diameter, inner: 30 mm
Design of mounting device: Mounting clamp
Mounting bracket, at system: Screw type, Through-hole
mounting
Mounting bracket, at device: Insertable, Clampable with limit
stop
Type of mounting device: Clampable, With limit stop
Material: Metal
Design of mounting device: Mounting clamp
Mounting bracket, at system: Through-hole mounting
Mounting bracket, at device: Clampable
Type of mounting device: Rigid
Material: Plastic
eng 2017-11-11
5 / 6
Part no.: 50136620 – LCS-2M30B-N30NNC-K020V – Capacitive sensor
Part no. Designation Article Description
50111504 MC 030K-LS Clamp Diameter, inner: 30 mm
Design of mounting device: Mounting clamp
Mounting bracket, at system: Through-hole mounting
Mounting bracket, at device: Clampable with limit stop
Type of mounting device: Rigid
Material: Plastic
Notes
Observe intended use!
• This product is not a safety sensor and is not intended as personnel protection.
• The product may only be put into operation by competent persons.
• Only use the product in accordance with its intended use.
eng 2017-11-11
6 / 6
