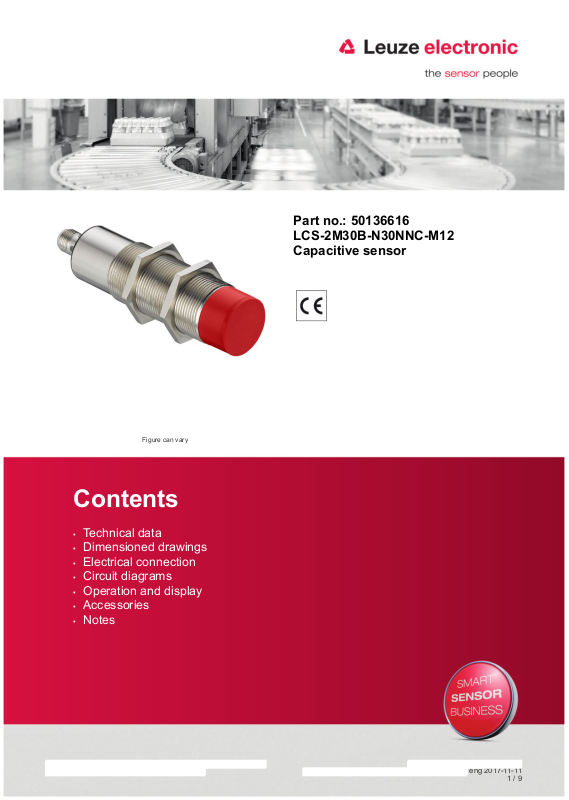

Figure can vary
Part no.: 50136616
LCS-2M30B-N30NNC-M12
Capacitive sensor
Contents
▪ Technical data
▪ Dimensioned drawings
▪ Electrical connection
▪ Circuit diagrams
▪ Operation and display
▪ Accessories
▪ Notes
Part no.: 50136616 – LCS-2M30B-N30NNC-M12 – Capacitive sensor
Technical data
Basic data
Series LCS-2
Switching distance S
Assured switching distance 24.3 mm
Electrical data
Protective circuit Short circuit protected
Performance data
Supply voltage 10 ... 30 V, DC
Residual ripple 0 ... 10 %
Open-circuit current 10 mA
Rated operating current 300 mA
Outputs
Number of digital switching outputs 1 Piece(s)
Switching outputs
Type Digital switching output
Voltage type DC
Switching output 1
Assignment Connection 1, pin 2
Switching element Transistor, NPN
Switching principle NC (normally closed)
n
2 ... 30 mm
Polarity reversal protection
Timing
Switching frequency 100 Hz
Connection
Number of connections 1 Piece(s)
Connection 1
Type of connection Connector
Thread size M12
Type Male
Material Metal
No. of pins 4 -pin
Encoding A-coded
Mechanical data
Design Cylindrical
Thread size M30 x 1.5 mm
Dimension (Ø x L) 30 mm x 98 mm
Type of installation Non-embedded
Housing material Metal
Sensing face material Plastic, Polybutylene (PBT)
Cover material Plastic, Polybutylene (PBT)
Operation and display
Type of display LED
Number of LEDs 1 Piece(s)
eng 2017-11-11
2 / 9
Part no.: 50136616 – LCS-2M30B-N30NNC-M12 – Capacitive sensor
Switching distance, adjustable Yes
Environmental data
Ambient temperature, operation -25 ... 70 °C
Certifications
Degree of protection IP 67
Protection class III
Standards applied IEC 60947-5-2
Correction factors
Acetone 0.75
Acrylic resin 0.1 ... 0.25
Alcohol 0.85
Ammonia 0.7 ... 0.85
Aniline 0.4
Gasoline 0.1
Celluloid 0.15
Liquid chlorine 0.1
Ebonite 0.15
Epoxy resin 0.15 ... 0.35
Crude oil 0.05
Ethanol 0.85
Ethylene glycol 0.93
Freon R22 and 502 (liquid) 0.35
Grain 0.15 ... 0.3
Glass 0.2 ... 0.55
Glycerin 0.98
Rubber 0.15 ... 0.9
Wood, wet 0.6 ... 0.85
Wood, dry 0.1 ... 0.4
Marble 0.5
Flour 0.05
Melamine resin 0.25 ... 0.55
Milk powder 0.2
Nylon 0.2 ... 0.3
Oil-containing paper 0.25
Paper 0.1
Polyamide 0.3
Polyester resin 0.15 ... 0.5
Pressboard 0.1 ... 0.3
PTFE 0.1
Quartz glass 0.2
Salt 0.35
Sand 0.15 ... 0.3
Water 1
Cement dust 0.25
Sugar 0.15
eng 2017-11-11
3 / 9
Part no.: 50136616 – LCS-2M30B-N30NNC-M12 – Capacitive sensor
Classification
eCl@ss 8.0 27270102
eCl@ss 9.0 27270102
ETIM 5.0 EC002715
Dimensioned drawings
All dimensions in millimeters
A Active surface
B Yellow LED
C Potentiometer
Electrical connection
Connection 1
Type of connection Connector
Function
eng 2017-11-11
4 / 9
Part no.: 50136616 – LCS-2M30B-N30NNC-M12 – Capacitive sensor
Connection 1
Thread size M12
Type Male
Material Metal
No. of pins 4 -pin
Encoding A-coded
Pin Pin assignment Conductor color
1 +10...30 V DC Brown
2 n.c. -
3 GND Blue
4 OUT Black
Circuit diagrams
Operation and display
LEDs
LED Display Meaning
1 Yellow, continuous light Switching output/switching state
Accessories
Connection technology - Connection cables
Part no. Designation Article Description
50112960 K-D
M12A-4P-10mFAB
Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 4 -pin
Connection 2: Open end
Shielded: No
Cable length: 10,000 mm
Sheathing material: FAB
eng 2017-11-11
5 / 9
Part no.: 50136616 – LCS-2M30B-N30NNC-M12 – Capacitive sensor
Part no. Designation Article Description
50104570 K-D M12A-4P-2m-
FAB
50104572 K-D M12A-4P-5m-
FAB
50112961 K-D
M12W-4P-10mFAB
50104571 K-D
M12W-4P-2mFAB
50104573 K-D
M12W-4P-5mFAB
Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 4 -pin
Connection 2: Open end
Shielded: No
Cable length: 2,000 mm
Sheathing material: FAB
Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 4 -pin
Connection 2: Open end
Shielded: No
Cable length: 5,000 mm
Sheathing material: FAB
Connection cable Connection 1: Connector, M12, Angled, Female, A-coded, 4 -pin
Connection 2: Open end
Shielded: No
Cable length: 10,000 mm
Sheathing material: FAB
Connection cable Connection 1: Connector, M12, Angled, Female, A-coded, 4 -pin
Connection 2: Open end
Shielded: No
Cable length: 2,000 mm
Sheathing material: FAB
Connection cable Connection 1: Connector, M12, Angled, Female, A-coded, 4 -pin
Connection 2: Open end
Shielded: No
Cable length: 5,000 mm
Sheathing material: FAB
50130654 KD U-M12-4A-
P1-020
50130672 KD U-M12-4A-
P1-020-DP
50130657 KD U-M12-4A-
P1-050
50130675 KD U-M12-4A-
P1-050-DP
50130658 KD U-M12-4A-
P1-100
Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 4 -pin
Connection 2: Open end
Shielded: No
Cable length: 2,000 mm
Sheathing material: PUR
Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 4 -pin
Connector, LED: Yes, 1 Piece(s)
Connection 2: Open end
Shielded: No
Cable length: 2,000 mm
Sheathing material: PUR
Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 4 -pin
Connection 2: Open end
Shielded: No
Cable length: 5,000 mm
Sheathing material: PUR
Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 4 -pin
Connector, LED: Yes, 1 Piece(s)
Connection 2: Open end
Shielded: No
Cable length: 5,000 mm
Sheathing material: PUR
Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 4 -pin
Connection 2: Open end
Shielded: No
Cable length: 10,000 mm
Sheathing material: PUR
eng 2017-11-11
6 / 9
Part no.: 50136616 – LCS-2M30B-N30NNC-M12 – Capacitive sensor
Part no. Designation Article Description
50130676 KD U-M12-4A-
P1-100-DP
50130648 KD U-M12-4A-
V1-020
50130652 KD U-M12-4A-
V1-050
50130653 KD U-M12-4A-
V1-100
50132431 KD U-M12-4A-
V1-200
Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 4 -pin
Connector, LED: Yes, 1 Piece(s)
Connection 2: Open end
Shielded: No
Cable length: 10,000 mm
Sheathing material: PUR
Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 4 -pin
Connection 2: Open end
Shielded: No
Cable length: 2,000 mm
Sheathing material: PVC
Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 4 -pin
Connection 2: Open end
Shielded: No
Cable length: 5,000 mm
Sheathing material: PVC
Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 4 -pin
Connection 2: Open end
Shielded: No
Cable length: 10,000 mm
Sheathing material: PVC
Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 4 -pin
Connection 2: Open end
Shielded: No
Cable length: 20,000 mm
Sheathing material: PVC
50132430 KD U-M12-4A-
V1-300
50130692 KD U-M12-4W-
P1-020
50130718 KD U-M12-4W-
P1-020-DP
50130694 KD U-M12-4W-
P1-050
50130720 KD U-M12-4W-
P1-050-DP
Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 4 -pin
Connection 2: Open end
Shielded: No
Cable length: 30,000 mm
Sheathing material: PVC
Connection cable Connection 1: Connector, M12, Angled, Female, A-coded, 4 -pin
Connection 2: Open end
Shielded: No
Cable length: 2,000 mm
Sheathing material: PUR
Connection cable Connection 1: Connector, M12, Angled, Female, A-coded, 4 -pin
Connector, LED: Yes, 1 Piece(s)
Connection 2: Open end
Shielded: No
Cable length: 2,000 mm
Sheathing material: PUR
Connection cable Connection 1: Connector, M12, Angled, Female, A-coded, 4 -pin
Connection 2: Open end
Shielded: No
Cable length: 5,000 mm
Sheathing material: PUR
Connection cable Connection 1: Connector, M12, Angled, Female, A-coded, 4 -pin
Connector, LED: Yes, 1 Piece(s)
Connection 2: Open end
Shielded: No
Cable length: 5,000 mm
Sheathing material: PUR
eng 2017-11-11
7 / 9
Part no.: 50136616 – LCS-2M30B-N30NNC-M12 – Capacitive sensor
Part no. Designation Article Description
50130695 KD U-M12-4W-
P1-100
50130721 KD U-M12-4W-
P1-100-DP
50130688 KD U-M12-4W-
V1-020
50130690 KD U-M12-4W-
V1-050
50130691 KD U-M12-4W-
V1-100
Connection cable Connection 1: Connector, M12, Angled, Female, A-coded, 4 -pin
Connection 2: Open end
Shielded: No
Cable length: 10,000 mm
Sheathing material: PUR
Connection cable Connection 1: Connector, M12, Angled, Female, A-coded, 4 -pin
Connector, LED: Yes, 1 Piece(s)
Connection 2: Open end
Shielded: No
Cable length: 10,000 mm
Sheathing material: PUR
Connection cable Connection 1: Connector, M12, Angled, Female, A-coded, 4 -pin
Connection 2: Open end
Shielded: No
Cable length: 2,000 mm
Sheathing material: PVC
Connection cable Connection 1: Connector, M12, Angled, Female, A-coded, 4 -pin
Connection 2: Open end
Shielded: No
Cable length: 5,000 mm
Sheathing material: PVC
Connection cable Connection 1: Connector, M12, Angled, Female, A-coded, 4 -pin
Connection 2: Open end
Shielded: No
Cable length: 10,000 mm
Sheathing material: PVC
50132641 KD U-M12-4W-
V1-200
Mounting technology - Other
Part no. Designation Article Description
50132730 AC D30M-CS Clamp Contains: 2x M36 mounting nut
50111503 MC 030K Clamp Diameter, inner: 30 mm
50111504 MC 030K-LS Clamp Diameter, inner: 30 mm
Connection cable Connection 1: Connector, M12, Angled, Female, A-coded, 4 -pin
Connection 2: Open end
Shielded: No
Cable length: 20,000 mm
Sheathing material: PVC
Diameter, inner: 30 mm
Design of mounting device: Mounting clamp
Mounting bracket, at system: Screw type, Through-hole
mounting
Mounting bracket, at device: Insertable, Clampable with limit
stop
Type of mounting device: Clampable, With limit stop
Material: Metal
Design of mounting device: Mounting clamp
Mounting bracket, at system: Through-hole mounting
Mounting bracket, at device: Clampable
Type of mounting device: Rigid
Material: Plastic
Design of mounting device: Mounting clamp
Mounting bracket, at system: Through-hole mounting
Mounting bracket, at device: Clampable with limit stop
Type of mounting device: Rigid
Material: Plastic
eng 2017-11-11
8 / 9
Part no.: 50136616 – LCS-2M30B-N30NNC-M12 – Capacitive sensor
Notes
Observe intended use!
• This product is not a safety sensor and is not intended as personnel protection.
• The product may only be put into operation by competent persons.
• Only use the product in accordance with its intended use.
eng 2017-11-11
9 / 9
