User Manual
LEICA R7
Not For Resale
–
Free Download at
http://homepage.ntl
world.com/joechan/
manuals
II
We wish you a great deal of pleasure
Leica Akademie.
and many years of successful photography
with your new LEICA R7.
To enable you to fully enjoy and take advantage
of the wide range of possibilities offered by this
high-quality, precision camera, we recommend
that you first read this manual carefully.
Leica not only develops and manufactures high-
performance products for photography,
projection, observation and photographic
reproduction - an additional service available to
you is the Leica Akademie. For many years, this
internationally famous school has been teaching
photographic know-how in application-oriented
seminars and training courses. It meets the needs
of photo enthusiasts, both beginners and
advanced students, for special training in
demanding areas of 35mm photography,
projection, and enlargement.
Up-to-date, well-equipped classrooms at our
Solms headquarters are available for courses,
which are held by experienced instructors, with
syllabuses ranging from general photography to
specialized fields of interest. They provide a
This user manual was printed on paper bleached
without chlorine - a process which protects our
natural water resources and the environment.
wealth of practical suggestions, help, and advice.
Further information and details of seminars are
available from:
Leica Camera GmbH, Leica Akademie
Oskar-Barnack-Strasse 11,
D-35606 Solms, Germany
Telephone +49 (06442) 208-421
Not For Resale
–
Free Download at
http://homepage.ntl
world.com/joechan/
manuals
III
Brief description
1 Window for display and
illumination of aperture scale
2 Self-timer LED
3 Coaxial flash-cable contact
4 Eyelet for carrying strap
5 Depth of field lever
6 Bayonet lock
7 Electronic self-timer
8 Connection for independent mirror
release
9 Switch for aperture scale illumination
10 Focusing ring
11 Depth of field scale
12 Red dot for alignment of
interchangeable lenses
13 Aperture setting ring
14 Release button for override lock
15 Window for override setting display
16 Override setting lever
17 Hinged rewind crank
18 Film speed setting ring
19 ISO film speed control window
20 Release button for setting film speed
21 LED (light diode)
22 Accessory shoe with central hot-shoe
and control contacts
Not For Resale
–
Free Download at
http://homepage.ntl
world.com/joechan/
manuals
1
Contents Page
Brief description III, VI
Attaching the carrying strap 2
Changing the lens 3
Inserting the batteries 4
Compatible batteries 4
Automatic battery check 5
Exposure release without batteries 5
Quick-wind lever 5
Inserting the film 6
Automatic DX-code film speed setting 8
Manually setting film speed 9
Rewinding and removing the film 9
Exposure metering modes 10
Full-field integral metering 11
Selective metering 11
Working diagram of exposure meter 12
Switching on the exposure meter 14
Using the exposure meter at full aperture 14
Using the exposure meter at working aperture 15
Low-light warning 15
Manual override control 16
Shutter speed setting dial 17
Viewfinder image 18
Mode selection 20
Manual setting of shutter speed, selective mode
Aperture priority,
full-field integral metering
Aperture priority, selective metering A 24
Exposure metering memory 24
Aperture priority,
full-field integral metering T 26
Automatic program mode,
full-field integral metering
A
P
m 21
22
28
Program functioning in different shutter speed
Settings 29
Characteristics, tendencies and application of the
variable automatic program mode 32
Supplementary light for aperture scale 33
Eyepiece adjustment 33
Focusing with the universal focusing screen 34
Eyepiece shutter 35
Using flash equipment 36
TTL flash-exposure control in manual mode m 37
TTL flash-exposure control in aperture
priority mode
TTL fill-in flash control in shutter
priority mode T 38
Variable TTL flash-exposure control in automatic
program mode
Overview of flash exposure programs 40
Flash readiness display 41
Flash control display 41
Self timer 42
Independent mirror release 42
Multiple exposures 44
Depth of field lever 45
Depth of field scale on lens 45
Holding the camera 46
Using filters 47
Using existing LEICA Lenses and accessories 47
LEICA M-Lenses on the LEICA R7 48
Tips on care 48

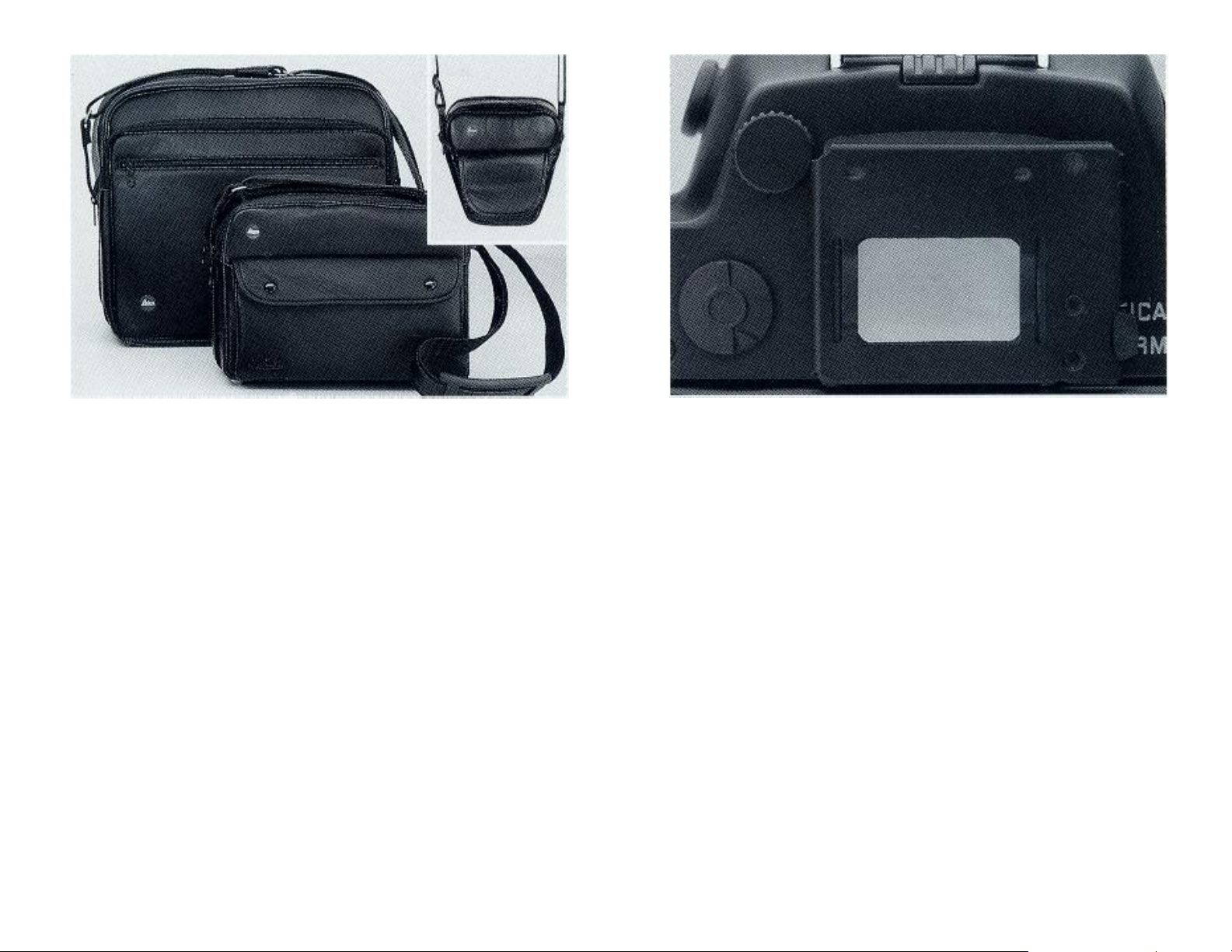

Accessories 49
Camera spare parts 54
Enlarger, Projectors 54
Customer Service 55
Technical Data 57
Reference index VII
A , A 38
P 39
Not For Resale
–
Free Download at
http://homepage.ntl
world.com/joechan/
manuals
2
1
Attaching the carrying
strap
2
3
4
Not For Resale
–
Free Download at
http://homepage.ntl
world.com/joechan/
manuals
3

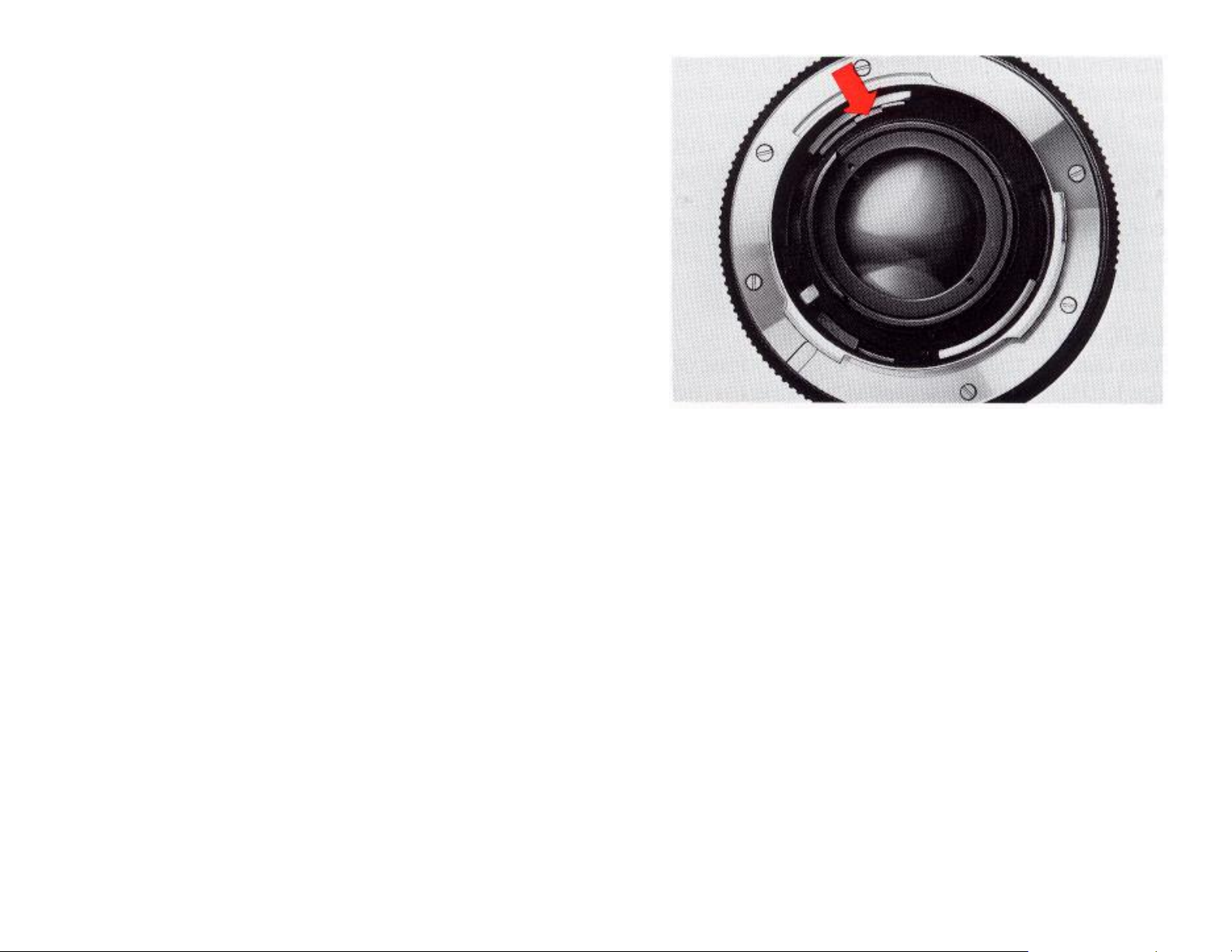

Changing the lens
Removing the lens:
To avoid damage to your LEICA R7, do not
attempt to fit any lens that does not have a
control cam for a LEICA R Camera (see page
47).
To insert a LEICA R-Lens regardless of the
focus and aperture settings, proceed as follows:
Hold the lens by the fixed ring [11]. Position the
red dot[12]on the lens mount opposite the dot
on the bayonet lock[6]on the camera body.
Insert the lens in this position. A slight clockwise
turn locks the lens into position audibly.
Hold the lens by the fixed ring [11]. Press in the
bayonet lock [6] on the camera body. Turn the
lens anticlockwise and remove.
Always change lenses in the shade or in your
body's shadow.
Not For Resale
–
Free Download at
http://homepage.ntl
world.com/joechan/
manuals
4
Inserting the batteries
Notes on battery care and use:
Store battery cells in a cool, dry place. Keep
away from children. Never use old and new
battery cells together. Do not mix battery cells of
different makes. These battery cells are not
rechargeable.
Batteries contain toxic and environmentally
damaging substances. Do not discard used
battery cells, but return them to your camera
dealer for recycling or dispose of them at special
waste collection points.
Compatible batteries
Silver oxide button cells suitable for the LEICA
R7 (valid Spring 1992):
The exposure meter and shutter release of the
LEICA R7 require a 6V power supply, either
four silver oxide button cells (1.5V) or two
lithium cells (3V).
Open the battery compartment cap [37] by
pressing the locking button [36] and push the cap
in the direction of the camera front. Use a clean
cloth to wipe off any oxidization on the surface
of the battery cells and insert the batteries in the
battery cap; position them as marked by symbols
in the battery cap. Close battery compartment
cap and push it toward the camera back until it
clicks shut.
Duracell D 357 (10 L 14)
EverReady EPX 76
Kodak KS76
Maxell SR44
National SR44
Panasonic SR44
Philips 357
Ray-o-vac 357
Sony SR44
Ucar EPX 76
Varta V 76 PX
Not For Resale
–
Free Download at
http://homepage.ntl
world.com/joechan/
manuals
5
Lithium cells
(valid Spring 1992):
Duracell DL J N
Kodak K 58 L
Philips CR J N
Ucar 2 L 76
Varta CR J N
Automatic Battery Check
If battery power is low, the symbol "BC" lights
up in the lower right corner of the viewfinder.
This indicates sufficient power for the camera to
operate, but the batteries should be replaced as
soon as possible. If battery power is too low for
camera functioning, the exposure release is
blocked and all displays, except the "BC" symbol
extinguish. If the battery is completely flat, the
"BC" symbol no longer lights up.
Quick-wind lever
The quick-wind lever
[27]
the shutter, and turns the frame counter
winds the film, cocks
[28]
When hinged out in the stand-by position, there
is room to slide your thumb behind it and firmly
support the camera. After each exposure, the film
.
Shutter release without batteries
You can still use the camera when the battery
cells are flat or have been removed. To do so, set
the shutter speed to "B" or "100
should be advanced immediately to the next
frame to ensure instant readiness for the next
photograph.
".
Not For Resale
–
Free Download at
http://homepage.ntl
world.com/joechan/
manuals
6
Inserting the film
Pull up the rewind crank [17] and knob past the
spring resistance to release and open the camera
back. The frame counter resets to “S” (start).
Not For Resale
–
Free Download at
http://homepage.ntl
world.com/joechan/
manuals
7
Incorrect Correct
Pick up the film cartridge as shown above, with
the emulsion side facing up. Slide the end of the
film obliquely from above into one of the slots of
the take-up spool, making sure that the film is
gripped by at least one of the retaining clips and
projects under the next clip.
Pull up the rewind crank as far as it will go and
insert the film cartridge in the empty cartridge
chamber, then push in the rewind crank. The
edge of the film must be parallel with the film
guide. As you move the quick-wind lever, the
sprockets of the transport drum must engage in
the edge perforations of the film.
Use the quick-wind lever to wind the film one
frame forward, to ensure that it lies tensioned in
the film guide and that the mouth of the cartridge
does not project too far. You may occasionally
wish to take out a partly exposed film and later
insert it again.
Not For Resale
–
Free Download at
http://homepage.ntl
world.com/joechan/
manuals
8
To ensure that the film is always inserted under
the same conditions, use the quick-wind lever to
cock the shutter, then release the shutter before
you insert the film.
Snap shut the camera back to close the camera.
Release the shutter. Wind the film one frame
forward, release the shutter again, then wind on
one more frame. The camera is now ready for
use. The frame counter
counts up to "36".
Important: Bright light may enter through the
mouth of the cartridge and damage your film.
Always insert film in your body's shadow;
never in bright light.
Normally, the film speed setting ring
left in the "DX" position, other film speeds can
be manually set (see following section). The
camera is now ready for exposure.
[28]
stands at "1". It
[18]
can be
Automatic DX-Setting
If DX-coded films are used, push the locking
button
"DX" position, as displayed in the window. It
appears at the end of the ASA scale, i.e. next to
the ASA setting "12800". "Reading" and setting
the film speed occurs automatically for all speeds
from ISO 25/15° to ISO 5000/38°.
If, in this setting, a non DX-coded film is
inserted, or if there is no film in the camera at all,
the symbol "ASA" blinks in the viewfinder
display. The outer LED [21] also blinks.
[20]
to switch the setting ring
[18]
to the
Not For Resale
–
Free Download at
http://homepage.ntl
world.com/joechan/
manuals
9
The setting range covers all values from ISO 6/9°
to ISO 12800/42° inclusive.
(However, only the ASA-value is displayed,
i.e. "6" to "12800")
Rewinding and removing the exposed film
Exposure of the last frame blocks the action of
the quick-wind lever. Rewind the film into its
cartridge before removing it from the camera.
If exposure is nevertheless released, the selected
aperture and shutter speed settings are activated,
regardless of the camera mode chosen.
In the case of discrepancy between the manually
set film speed and the DX-code, the manually set
value becomes operative. The warning symbol
lights up at right in the viewfinder display.
Setting the film speed manually
To set the film speed in ISO units, press the
release button
[20]
at the same time until the window
and turn the setting ring
[19]
displays
[18]
Press the rewind release button
[39]
in the
camera's baseplate, hinge out the rewind crank
[17]
and turn it clockwise in the direction
indicated by the arrow until you feel a slight
resistance as the film is pulled out of the take-up
spool. Pull up the rewind crank and knob to open
the camera back, and remove the cartridge with
the exposed film.
the required film speed in ASA.
Not For Resale
–
Free Download at
http://homepage.ntl
world.com/joechan/
manuals
10
Full-field integral metering
Selective metering
Exposure metering modes
The LEICA R7 has an exposure-meter system
that provides two alternative metering modes:
Full-field integral metering
Selective metering
The exposure metering modes are linked to the
camera mode chosen, i.e. they form independent
programs.
The exposure meter measures the light that
passes through the lens (TTL exposure metering
system). It uses a silicon photodiode, placed in
the base of the camera to protect it from stray
light. When you use any LEICA R-Lens with an
automatic spring-back diaphragm, the exposure
meter works at full aperture. The symbol
displayed in the window
selector
[26]
and at the lower left of the
[23]
next to the mode
viewfinder indicates the program (mode)
selected.
Not For Resale
–
Free Download at
http://homepage.ntl
world.com/joechan/
manuals
11
Full-field integral mode
Most photographic subjects contain details
of varied brightness. The light reflected by
this type of subject has a mean grey value of
18%, i.e. it is the same as that of a standard
grey area that reflects 18% of the light it
receives. This is the calibration value for all
exposure meters.
The full-field integral mode is suitable for all
subjects in normal light, with no extremes of
light or color, and where the light and dark
areas are fairly evenly distributed over the
entire visual field. For this type of subject,
choose one of the programs that use the
full-field integral mode
A,T
or
P
.
Selective mode
This is the method of choice with highcontrast subjects that have a wide brightness range and correct exposure of a
certain detail is particularly important.
The large central circle in the viewfinder
indicates the field covered in this mode, in
which the exposure meter measures only
the light reflected by the exact area of the
subject that you want determine the exposure. The field is the same size on all focusing screens and for all lenses, whatever
their focal length, and is clearly marked in
the viewfinder. For selective mode, choose
programs
A
and
m
.
Not For Resale
–
Free Download at
http://homepage.ntl
world.com/joechan/
manuals
12
Working diagram of the exposure meter
For correct exposure, the points of inter-
The diagram shows the relationship
between film speed Sv (speed value) and
brightness Bv (brightness value) on the one
hand, and between shutter speed Tv (time
value) and aperture Av (aperture value) on
the other, together with the resulting
exposure value Ev. The diagram is in two
parts connected by diagonal lines that
represent the exposure values Ev. A typical
example, marked in red, shows how these
values correlate. Assuming a film speed of
ISO 400/27°, follow the vertical line to the
point where it intersects with the horizontal
2
line for brightness, in this case 0.5 cd/m
typical for night-time photography.
A diagonal which passes through this point
section of the vertical Av and the horizontal
Tv lines must always lie exactly on a
diagonal Ev line. In the example, three such
combinations are shown: A = stop 2 at ¼s;
B = stop 8 at 4s; and C = stop 16 at 15s.
Each corresponds to the correct exposure
value.
In the modes shutter priority and aperture
priority, one of these values is preset, the
corresponding value is set automatically; in
automatic program mode, the camera automatically sets both.
,
of intersection leads to the relevant
exposure value, in this case Ev 4. Various
combinations of aperture and shutter speed
can produce this value, i.e. transfer to the
camera's working range.
Not For Resale
–
Free Download at
http://homepage.ntl
world.com/joechan/
manuals
13
Not For Resale
–
Free Download at
http://homepage.ntl
world.com/joechan/
manuals
14
Exposure metering at full aperture
Most LEICA R-Lenses feature an automatic
spring-back diaphragm. This means that, when
you take an exposure meter reading, a spring
opens the diaphragm to full aperture regardless
of the preset stop and then closes it again to the
required aperture setting for the exposure. When
using the following lenses, exposure metering
takes place at working aperture:
• PC-SUPER-ANGULON-R
f/2,8/28 mm,
• PA-CURTAGON-R
Switching on the exposure meter
Turn the shutter speed setting dial to any value
between 1/2000 s and 4 s. Press lightly on the
shutter-release button [25] as far as the first
pressure point or press the locking button on the
selector switch [29]. When the LEICA R7's
exposure meter is switched on, the LED display
in the viewfinder lights up. If the shutter is
cocked when you release the button you have
used to activate the system, the LEDs continue to
light for about 12s. If the shutter is not cocked,
they extinguish at once.
f/4/35 mm,
• TELYT-R f/6,8/400 mm,
• TELYT-R f/6,8/560 mm und
• TELYT-S f/6,3/800 mm
Not For Resale
–
Free Download at
http://homepage.ntl
world.com/joechan/
manuals
15
Exposure metering at working aperture
Some lenses and accessories do not have an
automatic spring back diaphragm or lack the
linkage mechanism for it. In these cases, you
have to obtain the exposure-meter reading at
working aperture, stopping up or down to adjust
the amount of light reaching the exposure meter's
photocell.
With lenses and accessories not equipped with
automatic springback diaphragm, the modes
A and m can be used.
A ,
Low-light warning
The given measuring range of the LEICA R7 has
a linear characteristic. If the light intensity level
is below the minimum requirement, this
characteristic is no longer guaranteed due to the
insufficient photocell current. This can lead to
incorrect measurements.
Not For Resale
–
Free Download at
http://homepage.ntl
world.com/joechan/
manuals
16
Example for "plus" (+) override correction
For a very brightly lit subject, such as snow,
sand, or water, the high reflectivity causes the
exposure meter to indicate too short an exposure.
The snow itself is likely to appear grey, people
much too dark: underexposure. To correct this,
the time of exposure must be increased, i.e. set
the override control to +2.
Example for "minus" (-) override correction
For a very dark subject that reflects only a small
amount of light, the exposure meter indicates too
long an exposure. A black car appears grey:
Manual override control
(exposure correction)
Exposure meters are calibrated to a standard grey
(18% reflection) value for an average
photographic subject. If the subject does not
conform to this standard, manual override
correction of the exposure-meter reading
becomes necessary.
Manual override is more often necessary with
full-field integral exposure metering. In selective
mode, the more limited metering field makes it
possible to measure a representative detail with
an average grey value, thus ensuring accurate
measurement.
overexposure. The exposure time must be
reduced i.e. set the override control to -1.
To set the override control, press the locking
button
required value by lever
[14]
the override control is at 0, the lever
snugly into the camera body. The override
control can be set in steps of one-half of an
exposure value, from Ev +3 to Ev -3. When
override is active, the symbol
bottom left in the viewfinder.
[14]
, press it in and turn it anticlockwise. When
and turn the setting scale
. To lock the button
[16]
[15]
to the
[16]
flashes at
fits
Not For Resale
–
Free Download at
http://homepage.ntl
world.com/joechan/
manuals
17
Shutter speed setting dial
The shutter speed setting dial should be set to
"OFF" when the camera is not in use. In this
setting, the exposure meter is switched off and
the electronic shutter release blocked, preventing
unnecessary battery drain.
In the program modes
T and m the shutter
speed between 1/2000 s and 4s must be set
manually by turning the setting dial
[26]
. Half
values can also be set.
In the
P program mode, the shutter speed setting
influences the tendency of the automatic program
mode.
In program modes
A and A , the shutter speed
setting dial can be engaged at any value except
"B" or "100 ". The shutter speed is
automatically computed to values between
1/2000 s and 16s.
When using non-system flash units, the shutter
speed must be set to "100
". In the "B" setting,
the shutter remains open for a long as the
exposure release button is pressed down. The
symbol "bulb" is displayed in the viewfinder.
In "B" and "100
", the shutter can be released
without battery power. In these settings, no
exposure metering occurs (except TTL-flash
exposure metering), even if batteries have been
inserted.
Not For Resale
–
Free Download at
http://homepage.ntl
world.com/joechan/
manuals
18
The viewfinder image
The illustration opposite shows all the
The viewfinder of the LEICA R7 acts as
composition and control center for all important
information:
It lets you assess focus, perspective, and picture
frame; the measuring field for selective exposure
metering is clearly marked (the larger circle in
the viewfinder center). The viewfinder area is
92% of the frame size; with the eyepiece at 0
diopters and a standard 50mm lens fitted and
focused to infinity, it has an 0.8x magnification.
The viewfinder displays all essential data for the
program you have set. The LEDs light up when
the release button on the program selector is
activated or when the shutter release button is
pressed. With the shutter cocked, the LEDs light
for about 12 s. The LED brightness automatically
available displays:
a. low-light warning - out of exposure metering
range
b. program mode symbols
c. set aperture (reflected display)
d. symbol for fill-in flash
e. set or computed shutter speed
f. light balance for manual setting
g. computed aperture
h. warning "override activated" (blinks);
warning for discrepancy between manual film
speed setting and DX-code (lights up)
i. low battery warning
j. flash ready and flash control symbol
k. measuring circle for selective exposure
metering.
adjusts to the subject in view, ensuring easy
reading of all display data. To avoid confusion,
the viewfinder displays only the essential data
in each program mode.
Not For Resale
–
Free Download at
http://homepage.ntl
world.com/joechan/
manuals
19
Not For Resale
–
Free Download at
http://homepage.ntl
world.com/joechan/
manuals
20
Mode selection
To choose a mode, press the release button and at
You can choose between the following
programs:
m Manual setting of shutter speed and lens
aperture, selective mode.
A Aperture priority, selective mode.
A Aperture priority, full-field integral mode.
P Variable automatic program mode with full-
field integral metering.
T Shutter priority with full-field integral
metering.
the same time slide the mode selector
required position. By pressing the release button,
the camera is switched on. The viewfinder
displays the mode you have selected in the lower
left-hand corner. The window
shutter speed setting ring also displays the mode
setting. Check that the mode selector engages
properly. To change the setting, the release
button must be pushed first.
[23]
[29]
to the
next to the
Not For Resale
–
Free Download at
http://homepage.ntl
world.com/joechan/
manuals
21
Manual setting with
selective mode
lights up. For deviations in the -1.5 to +1.5
range, this can be read in ½ Ev. Aperture or
For many interesting photographic motifs, it is
preferable to switch off the automatic exposure
control and to set both the shutter speed and
aperture by hand.
For combining the correct shutter speed and
aperture values, a light balance, at right in the
viewfinder, shows the deviation between the
aperture/shutter speed combination set and the
correct exposure value: if the set aperture and
shutter speed deviate by 2 or more Ev (exposure
values) from the correct value, the symbol
Set the required shutter speed
and aperture by hand
or
shutter speed must be adjusted until the symbol S
- i.e. correct exposure-lights up.
Program
m works with any LEICA R-Lens and
such accessories as adapters, the universal
Focusing Bellows R-BR 2, etc (see page 46).
Viewfinder display:
The viewfinder displays the mode setting m in
the lower left-hand corner, with the preset
aperture at bottom center and the preset shutter
speed at bottom right.
Not For Resale
–
Free Download at
http://homepage.ntl
world.com/joechan/
manuals
22
To the right of the viewfinder, a vertical
light balance shows the deviation between
set and the correct exposure value.
Aperture Priority,
full-field integral mode
Preset the required aperture, shutter
speed set automatically.
This mode is particularly suitable for normal
light conditions and when depth of field is an
important creative element. Choose this mode for
applications such as landscape and architectural
photography. Set the depth of field with the
aperture setting ring [13].
Not For Resale
–
Free Download at
http://homepage.ntl
world.com/joechan/
manuals
23
The camera automatically computes the shutter
speed from 1/2000 s and 16 s, depending on the
available light. The shutter speed setting dial
In extreme brightness, the shutter speed range
may not be sufficient for correct exposure,
indicated by "2000" flashing. Simply set a
smaller aperture. Conversely, if, in poor light, the
"16"", symbol flashes, a larger aperture should
be set to prevent under-exposure.
may be set to any shutter speed from 1/2000 s to
4s, except "B", or "100
Viewfinder display:
Below the viewfinder image, the display shows
the following information at a glance: the mode
chosen (in this case
automatic, corresponding shutter speed (in ½ or
full shutter speed values).
".
A , the set aperture and the
Not For Resale
–
Free Download at
http://homepage.ntl
world.com/joechan/
manuals
24
Exposure-metering memory
Only in aperture priority mode with selective
metering!
In selective mode, the exposure meter covers
only the field within the large central circle of
the viewfinder. This allows you to determine the
light reflected by a limited area of the subject. To
store this value, press the shutter release beyond
the first pressure point to the second pressure
point and keep your finger in position. The
exposure meter reading is stored as long as you
keep the shutter release pressed down in this
position. To indicate this, the program mode
Aperture priority,
selective mode
Preset the required aperture, shutter
speed is computed automatically.
This mode is indicated where spot readings are
necessary, for example in contre-jour portraiture
and for spotlighted stage subjects. This program
functions like aperture priority with full-field
integral metering, in addition the exposure value
can be stored for easy picture composition.
symbol
A in the viewfinder is extinguished. Still
keeping your finger on the shutter release, you
can now pan the camera to compose the
photograph, then press the shutter release fully
home. As long as the exposure value remains in
the memory, the viewfinder continues to display
the stored shutter speed. If during this time you
alter the aperture, the shutter speed changes
automatically and the viewfinder displays the
new shutter speed. As soon as you take your
finger from the shutter release, the stored value is
erased.
Not For Resale
–
Free Download at
http://homepage.ntl
world.com/joechan/
manuals
25
Viewfinder display:
Below the viewfinder image, the display shows
In extreme brightness, the shutter speed range
may not be sufficient for correct exposure,
indicated by "2000" flashing. Simply set a
smaller aperture. Conversely, if, in poor light, the
"16"" symbol flashes, a larger aperture should be
set to prevent underexposure.
the following information at a glance: the mode
chosen (in this case
automatic, corresponding shutter speed (to the
nearest 1/2 or full shutter speed value).
A , the set aperture and the
Not For Resale
–
Free Download at
http://homepage.ntl
world.com/joechan/
manuals
26
Shutter priority with
full-field integral metering
With a high shutter speed, rapid movements can
be frozen with pin-sharp contours. A slower
shutter speed produces deliberate movement
blur, which may enhance the dynamic effect.
The desired shutter speed between 1/2000 s and
4s is preselected on the shutter speed dial; the
lens aperture is automatically set depending on
ambient light.
Important:
The lens must be stopped down to its smallest
aperture (f/16 or f/22 respectively) so that the
entire aperture range is available for the
automatic control.
The desired shutter speed is
preselected; the corresponding
aperture is set automatically.
This mode is used above all for quickly moving
subjects, where the shutter speed is the element
of composition. This applies particularly to
movement sequences, such as sports
photography, exposures from an unsteady
support or with long-focal-length lenses.
Using the FISHEYE-ELMARIT-R f/2.8/ 16mm
or the former ELMARIT-R f/2.8/ 19mm (11225)
lens with a minimum aperture f/16, the display
T flashes and the aperture scale at right in the
viewfinder extinguishes even if the lens has been
stopped down completely. Nevertheless, the
correct aperture is determined automatically.
The
T mode functions with all LEICA R-Lenses
with fully automatic spring-back diaphragm.
Not For Resale
–
Free Download at
http://homepage.ntl
world.com/joechan/
manuals
27
If exposure occurs in this setting, the automatic
program correctly combines aperture and shutter
speed; however, the automatically computed lens
aperture is restricted to the range between
maximum aperture and the smallest aperture set
on the lens itself.
The aperture scale is visible at the right in the
viewfinder frame, showing what aperture setting
has been computed. The apertures are produced
continuously, two adjacent LEDs light up in case
of intermediate values.
In extreme brightness or with very little light the
Viewfinder display:
The mode setting is displayed in the bottom lefthand corner of the viewfinder, the preselected
shutter speed at bottom right. The smallest
aperture set on the lens is displayed at bottom
center. If the lens has not been fully stopped
down, the program display
T flashes and the
aperture values at right in the viewfinder frame
are not displayed.
aperture range may no longer be adequate for the
preselected shutter speed. This is indicated by the
aperture setting display flashing. In this case, the
shutter speed is automatically corrected and the
newly computed speed shown in the viewfinder.
Should both aperture and shutter speed display
flash simultaneously, the camera's working range
has been exceeded.
Not For Resale
–
Free Download at
http://homepage.ntl
world.com/joechan/
manuals
28
entire aperture range is available for the
automatic control.
Variable automatic program mode
with full-field integral metering
Aperture and shutter speed are
set automatically
This is the right program for quick-action
photography; the camera takes over exposure
control for optimum ease of operation. Set a
tendency for the automatic program by
preselecting a shutter speed setting (normal
program: "30s" shutter speed setting, next to "P"symbol).
Important!
The lens must be stopped down to its smallest
The
P program functions with all LEICA R
Lenses with fully automatic diaphragm.
Viewfinder display:
The program symbol
P is visible at bottom left-
hand in the viewfinder; the smallest aperture set
is displayed at bottom center. At bottom right,
the automatic shutter speed appears while the
aperture computed by the camera is displayed in
the aperture scale to the right of the viewfinder.
If the lens has not been completely stopped
down, the program display
P flashes and the
aperture scale extinguishes. Using FISHEYEELMARIT-R f/2.8/16mm or the former
ELMARIT-R f/2.8/19mm lens with the
minimum aperture 16, the
P symbol flashes
even if the lens has been stopped down
completely. Nevertheless, the correct shutter
speed/lens aperture combination will be
computed. In extreme brightness or very poor
light, the automatically controlled shutter
speed/aperture range may no longer be sufficient.
This is indicated by the respective
aperture/shutter speed display flashing.
aperture (f/16 or f/22 respectively) so that the
Not For Resale
–
Free Download at
http://homepage.ntl
world.com/joechan/
manuals
29
Automatic program tendencies at different
shutter speed setting
continuous scale, with increasing brightness,
until this set value is reached, whereas the lens
remains at full aperture. From this preselected
shutter speed setting onwards, the automatic
program reduces shutter speed and aperture
simultaneously.
If the automatic program mode shuts the lens to
smallest aperture, only the shutter speed is
increased with increasing brightness, up to
1/2000 s. However, if 1/2000 s is computed
before the smallest aperture is reached, the
program closes only the aperture at 1/2000 s.
The LEICA R7's variable automatic program
mode can be influenced by presetting the
exposure time. If you want to work
predominantly with shorter exposure times
(higher shutter speeds), a higher shutter speed
setting can be set - e.g. for sports photography; if
depth of field is more important (e.g. for
landscapes), a longer shutter speed should be set.
Generally, the automatic program functions as
follows:
Beginning with a low-light situation, only the
shutter speed is reduced automatically on a
Not For Resale
–
Free Download at
http://homepage.ntl
world.com/joechan/
manuals
30
Example A: normal program
Example B: program for depth of field
A lens with f/2.8 as the largest aperture is used;
the shutter speed dial is set at "30" (next to the
symbol "P"). In poor light, the camera always
works with full aperture and shutter speeds
between 16 s and 1/30 s. If the Ev value
increases (more available light), the aperture is
stopped down and the shutter speed is increased
continuously, until the combination f/22 and
1/2000 s is reached (line A). If, for instance, the
Ev reads 14, the program mode produces
exposure at 1/250 s at f-stop 8. This universal
program is suitable for most subjects
photographed with 35mm to 90mm lenses under
normal lighting conditions.
If a smaller shutter speed is given, e.g. by setting
"2" = 1/2 s the automatic program functions as
shown by line B. This is the method of choice for
better depth of field and is ideally suited to
shorter focal lengths, stationary subjects and
good lighting conditions.
Taking the same Ev value of 14, the automatic
program now computes 1/60 s at f-stop 16.
Example C: program for action shots:
If the shutter speed is set to a shorter exposure
time (higher shutter speed) - e.g. "500" = 1/500 s,
line C applies. This program "prefers" higher
shutter speeds (shorter times), ideal for freezing
moving subjects or when using longer focal
lengths. Again taking an Ev of 14, the automatic
program now computes I/1000s at f-stop 4.
Not For Resale
–
Free Download at
http://homepage.ntl
world.com/joechan/
manuals
31
Not For Resale
–
Free Download at
http://homepage.ntl
world.com/joechan/
manuals
32
Characteristics, tendencies and application of
Rule of thumb: to avoid camera shake with hand-
variable automatic program mode
a) Preset shutter speeds between 4s and 1/15 s:
Program for depth of field
S tendency toward stopping down the lens
while keeping shutter speeds low
S especially suitable for: good lighting
conditions, short focal lengths, stationary
subjects
S caution: beware of increased danger of
camera shake in poor light.
b) Preset shutter speed 1/30 s:
normal program
S especially suited for normal scenes and light
conditions
held exposures as much as possible, set a shutter
speed that numerically at least equals the 1/fvalue (f= focal length in mm), i.e. the lens's focal
length. For instance, when using a 180mm lens,
choose shutter speeds faster than 1/180 s, e.g. set
the shutter speed to dial to "250" (1/250 s).
S focal lengths between 35mm and 90mm
c) Preset shutter speed 1/60 s to 1/2000 s:
program for action shots
S tendency towards higher shutter speeds
(shorter exposure times) with larger
apertures - less depth of field
S especially suitable in poor light, longer focal
lengths and moving subjects
S caution: less depth of field
Not For Resale
–
Free Download at
http://homepage.ntl
world.com/joechan/
manuals
33
Supplementary light for aperture scale
Eyepiece adjustment
In order to read the viewfinder's aperture scale in
the dark, supplementary light can be switched on
by activating the switch
located at left on the
[9]
mirror housing. When switched on, the symbol
" lights up, otherwise "o" appears. The
"
supplementary light is activated only when the
camera's power supply is on; it extinguishes like
all LED-displays after 12s with shutter cocked.
Caution:
The supplementary light for the aperture
scale should not remained switched on
unnecessarily, as it uses additional battery
power.
A sharply defined viewfinder image is essential
to fully take advantage of the LEICA R7 and the
high-performance LEICA R-lenses. The
eyepiece lens is therefore adjustable to your
eyesight, within the range from +2 to -2 diopters.
To adjust the eyepiece, pull out the small setting
wheel
[31]
at its left and turn this to the required
setting. To do so, set the lens out of focus, e.g. at
the shortest focusing distance, point the camera
at the sky, look through the viewfinder, and turn
the setting wheel until the circle that indicates the
edge of the field for selective exposure metering
is sharply defined and in good contrast. Press the
Not For Resale
–
Free Download at
http://homepage.ntl
world.com/joechan/
manuals
34
wheel back into its normal position to lock the
setting obtained.
In its normal position, the setting wheel turns
readily, but without altering the eyepiece setting.
When the wheel is pulled out, you feel distinct
click stops as you turn it.
If the standard eyepiece adjustment from +2 to -2
diopters is inadequate for your eyesight,
additional correction lenses are available (see
page 51).
Focusing with the universal screen
The LEICA R7 includes a universal focusing
screen as standard feature. This produces a
bright, high-contrast image and is suitable for
photography in most of the situations that are
normally encountered. When the image is out of
focus, the edges and lines of the subject are
discontinuous in the upper and lower semicircles
of the split-image focusing screen (i.e. the
smaller circle).
A ring formed by a screen of rectangular
microprisms surrounds the central split wedge.
When the image is out of focus, this screen
appears to flicker. The outer circumference of
this ring also marks the outline of the field
for selective exposure metering.
Not For Resale
–
Free Download at
http://homepage.ntl
world.com/joechan/
manuals
35
The remainder of the screen looks like a groundglass screen and is ideal for focusing telephoto
lenses and for close-range photography.
Caution: Before focusing, the eyepiece must
be set to the user's diopter value (see p. 33).
Eyepiece shutter
The silicon photodiode of the exposure meter is
located in the base of the LEICA R7, where it is
protected from stray light. Normally, therefore,
there is little likelihood of light entering the
viewfinder eyepiece and affecting exposure
Additional focusing screens are available as
accessories. They offer optimum focusing for
different conditions and can be changed easily
(see p. 53).
meter readings, except when your are not using
the viewfinder, e.g. for taking photographs from
a tripod, when direct sunlight or bright artificial
light may enter through the eyepiece. To prevent
this, turn the knob of the eyepiece shutter [30] at
the left to the eyepiece in the direction of the
arrow. When the shutter is in place, a white
triangle appears in the eyepiece.
Not For Resale
–
Free Download at
http://homepage.ntl
world.com/joechan/
manuals
36
Using flash equipment
Caution:
for all flash applications, the working
The LEICA R7 is designed for through-the- lens
flash-exposure control in conjunction with SCAcompatible (System Camera Adaption) electronic
flash units fitted with an SCA 351 or 551
adapter. TTL-flash exposure metering offers
many advantages in various fields of application
and is essential for correctly exposed
photographs with flash, e.g. in macrophotography, when using zoom lenses or long
focal length lenses for portrait shots. Depending
on the camera mode selected, it is possible to
dosage flash intensity as fill-in flash to lighten up
individual subjects (see below).
TTL-flash exposure metering occurs in the fullfield integral mode and uses a separate silicon
photodiode, well protected from stray light, in
range of the respective flash unit must be taken
into consideration. This may affect the range of
apertures that can be set.
When using electronic flash units fitted with an
SCA 350 or SCA 550 adapter, the flash light
intensity is controlled via the flash unit's
metering cell (in the case of computerized flash
units), and not through the lens. In the modes
A , A and P , a flash synchronization speed of
1/100 s is automatically set. Flash readiness and
flash control symbols appear in the viewfinder.
Lighting up subjects per dosaged flash does not
occur, even though the symbol "" (see below)
appears in conjunction with the respective
camera mode.
the base of the camera next to the photocell for
selective/integral exposure metering.
In the modes
nization speed of 1/100 s is set automatically.
Flash readiness and flash control symbols appear
in the viewfinder of the LEICA R7 (see below).
Via suitable adapters (available in specialty
stores), it is also possible to control and activate
several flash units simultaneously.
A , A and P , a flash synchro-
In addition, all commercially available flash
units with standard coaxial or central hotshoe
contacts, but without SCA adapters, can be used.
However, if the flash unit is activated only via
the central contact, or if a studio flash is attached
to the contact
, the viewfinder display does
[3]
not change, there is no automatic flash
synchronization and no TTL-flash control.
Not For Resale
–
Free Download at
http://homepage.ntl
world.com/joechan/
manuals
37
Simultaneously connecting flash units to both
through the lens. However, no exposure metering
flash contacts is not recommended, as
malfunctioning may occur. Using multiple
connecting sockets, commercially available,
enables you to connect more than one flash unit
to the X-contact.
TTL-Flash exposure control
in manual mode
m
When using the manual mode m , all aperture
values and shutter speeds between 4 s and 1/90 s
can be set; the flash is controlled as primary light
source. By using flash in conjunction with longer
shutter speeds, many creative effects can be
explored, e.g. underlaying frozen movements
against a blurred background.
for ambient or surrounding light is effected. The
"B" setting enables you to combine long-time
exposures (e.g. exploding fireworks or a well-lit
building in the background) with flash exposures
(e.g. a group of people in the dark foreground).
When shorter shutter speeds are set, the camera
automatically activates flash synchronization at
1/100 s. Should this lead to overexposure
because of sufficient ambient light, the shutter
speed display "100" flashes. In this case, set a
smaller aperture if possible and if the flash
equipment's working range permits this.
If shutter speed is set at "100
regardless of the camera mode, the flash is
activated as primary light source and controlled
" or "B",
Not For Resale
–
Free Download at
http://homepage.ntl
world.com/joechan/
manuals
38
TTL-Flash exposure control in aperture
priority modes
A , A
Any aperture values can be set; the camera sets
flash synchronization at 1/100 s automatically,
when the flash unit is ready. Flash is activated as
primary light source.
Should the preset aperture in combination with
the automatically set 1/100 s shutter speed lead
to overexposure on account of sufficient ambient
light, the shutter speed display "100" flashes. In
this case, choose a smaller aperture if the flash's
working range permits this.
TTL-fill in flash (to lighten up parts of the
subject) in shutter priority
T
Any shutter speed between 4s and 1/90 s can be
used. If faster speeds are set, the camera
Here, flash control occurs through the lens, but
the camera deliberately moderates flash intensity.
This means that parts of the subject that are in
the shade are lightened without affecting ambient
light.
automatically switches to 1/100 s flash
synchronization. The aperture is set
automatically so as to produce correct exposure
in relation to ambient light, even if no flash were
used.
In this case, when flash intensity is dosaged to
lighten up parts of subject, the symbol V appears
in the viewfinder.
Should the shortest possible flash
synchronization time (fastest shutter speed) of
1/100 s lead to overexposure on account of
strong ambient light, the "100" symbol in the
viewfinder flashes. Exposure despite this
warning could lead to overexposure.
Not For Resale
–
Free Download at
http://homepage.ntl
world.com/joechan/
manuals
39
Variable TTL-flash control in automatic
fill-in flash V appears in front of the shutter
program mode
The automatic program mode
P
P
offers the
possibility of automatically balancing flash light
intensity and ambient light. This makes for
particularly carefree flash photography in many
situations. Remember to set the smallest
aperture, as always in automatic program mode.
Flash exposures in poor light, e. g. dark interiors
(flash as primary light source):
The camera automatically selects flash synchronization at 1/100 s and f-stop 5.6. The flash
acts as primary light source to lighten the subject
and is controlled via the camera's TTL-flash
exposure control.
speed display ("100").
Flash exposures in bright light (flash
unnecessary):
If ambient light is so bright, that flash
synchronization at 1/100 s and smallest aperture
would lead to overexposure, the camera
automatically sets to 1/2000 s and displays the
new shutter speed in the viewfinder. The
corresponding aperture is regulated automatically
to ensure correct exposure. The flash unit is
nevertheless activated, but, due to the extremely
high shutter speed (1/2000 s), it has no effect on
the exposure result.
Fill-in flash in normal light (flash lightens up
darker parts of the subject):
The camera sets to flash synchronization at 1/100
s; the aperture is automatically regulated
depending on ambient light. This would produce
correct aggregate exposure even without flash.
Now the camera moderates flash intensity to
lighten up shaded parts of the subject (e.g. in
backlighting situations) while not affecting the
ambient light. To indicate this, the symbol for
Not For Resale
–
Free Download at
http://homepage.ntl
world.com/joechan/
manuals
40
Flash Control with the LEICA R7
Flash control Shutter speed
setting
Primary light
“100 ” or “B” manual
manual
1
4 s to 1/90 s
automatic
1/100 s
Automatic
primary light
automatic
1/100 s
automatic
or fill-in flash
2
1/100 s
Aperture
setting
1.4 to 32
manual
1.4 to 32
manual
1.4 bis 32
automatic
5.6
automatic
1.4 bis 22
Program
mode
any
m
A or A
P
Fill-in flash manual
1
Automatic switchover to 1/100 s when shutter speed is set to 1/125 s and shorter.
2
Fill-in flash, if provided that ambient light is sufficient for correct exposure at 1/100s and automatic
aperture setting.
When the aperture range is underlimit (underexposure), the flash is automatically switched to
primary light (full intensity).
When the aperture range is overlimit (overexposure), shutter speed is set to 1/2000s and the corresponding
aperture (depending on ambient light) is set automatically. The flash remains inactive.
1
4 s to 1/90 s
automatic
1.4 to 22
T
Not For Resale
–
Free Download at
http://homepage.ntl
world.com/joechan/
manuals
41
Flash readiness display
Flash control display
The flash symbol "
" at bottom right in the
viewfinder flashes about 2x/s (2 Hz) when the
flash unit (in conjunction with SCA adapters
350, 351, 550 and 551) is ready - regardless of
the camera mode set and in the "100
' and "B"
setting.
Caution:
with some flash units, flash readiness
and switchover to 1/100 s occurs as soon as
approx. 70% flash intensity is available. In these
cases, it is advisable to wait a few seconds before
repeating flash exposure, especially to avoid
underexposure, e.g. with very small apertures or
great subject-to-camera distance.
With finger kept on the exposure release button,
the flash symbol "
" shows whether flash
intensity (in conjunction with SCA adapters 351
and 551) was sufficient for correct exposure:
a) symbol flashes at 2 Hz:
flash intensity was sufficient, immediate flash
readiness for next exposure.
b) symbol flashes for 2s at approx. 8 Hz: flash
intensity was sufficient; condenser drained.
Await renewed flash readiness before next
exposure.
c) no display:
flash intensity was insufficient.
Try repeating the exposure with larger aperture;
await renewed flash readiness before next
exposure.
Not For Resale
–
Free Download at
http://homepage.ntl
world.com/joechan/
manuals
42
Throughout the countdown you can stop the selftimer at any time by turning back the self-timer
Self-timer
To set the self-timer, cock the shutter and turn
the self-timer button
through 30° clockwise
[7]
in the direction indicated by the arrow. To start
the self-timer, gently press the shutter release or
button
to its original position; to prolong it by
[7]
restarting, simply press the release button again
lightly.
the locking button for the mode selector; the
camera remains switched on and the shutter is
released after a delay of about 10s. To indicate
that the self- timer is activated, the LED
flashes; about 2 s before the self-timer releases
the shutter, the flashing changes to continuous
light.
[2]
Not For Resale
–
Free Download at
http://homepage.ntl
world.com/joechan/
manuals
43
By means of the mirror lock-up release R*, the
swing mirror of the LEICA R7 can be raised
before exposure, and the spring diaphragm can
be closed to the selected stop.
The mirror lock-up release R is screwed into the
special socket underneath the bayonet lock. The
described functions can be triggered simply by
pressing the release pin.
To release the shutter, press the shutter release
button either manually or by cable release. The
mirror and automatic diaphragm are reset
automatically when the shutter is released, but
cannot be reset manually. The mirror lock-up
release R must be activated each time you wish
to hinge up the mirror.
When the mirror lock-up release is used, the
electromagnetic shutter release becomes
inoperative. This applies also to the self-timer,
shutter release with motorized film transport, and
electric cable release.
Attention:
The correct aperture/shutter speed balance must
be set manually, before the mirror has been
hinged!
To avoid inadvertently releasing the shutter, do
not press the depth of field lever at the same time
as the mirror lock-up release.
* Accessory, order-no. 14087
Not For Resale
–
Free Download at
http://homepage.ntl
world.com/joechan/
manuals
44
Multiple exposures
Take the first exposure, press the rewind release
The MOTOR-WINDER R and MOTORDRIVE R also permit multiple exposures. For
details, see the manuals supplied with these
accessories.
button
, and move the quick-wind lever. The
[39]
same frame is now ready for a further exposure.
At the end of its travel, the quick-wind lever
automatically resets the rewind button. To
expose the same frame yet again, simply press
the rewind release button
you move the quick-wind lever.
[39]
each time before
Not For Resale
–
Free Download at
http://homepage.ntl
world.com/joechan/
manuals
45
Depth of field lever
Depth of field scale on lens
When you use a lens with an automatic
diaphragm, the exposure meter of the LEICA R7
works at full lens aperture. Press the depth of
field lever
[5]
preset value; when it is in this position, you can
visually check the depth of field. This is
particularly useful for close-ups.
Caution:
To avoid misleading exposure meter
readings, do not press the depth of field lever
while taking a reading.
to close the lens diaphragm to the
The depth of field scale
[11]
on the lens indicates
the depth of field available for the focusing
distance at the aperture you have set.
For example, when focusing a SUMMICRON-R
f/2/50mm lens at 5m, the depth of field at f-stop
11 is from 3 m to about 20m. At f-stop 4, the
field is in focus from about 4m to 8m. The Leica
depth of field table (Order no. 920003) contains
full details of the depth of field available at any
focal length.
Not For Resale
–
Free Download at
http://homepage.ntl
world.com/joechan/
manuals
46
Holding the camera correctly
To give the camera steady three-point support,
hold the camera with the right hand, the index
finger resting on the release button and the
thumb inserted behind the hinged-out quick-wind
lever, while the left hand supports the lens from
below.
For upright (portrait) exposures, simply turn the
camera through 90°, with your hands in the same
position as before, ready to transport the film and
focus the lens.
Not For Resale
–
Free Download at
http://homepage.ntl
world.com/joechan/
manuals
47
Filters and their use
In TTL systems, the exposure meter automatically takes into account the light absorbed
by the filter in use, but sensitivity in various parts
of the spectrum may vary according to the type
of film emulsion used. Extreme and dense filters
may therefore cause deviant readings. For
example, an orange filter as a rule needs about
one extra f-stop and a red filter an average of
about two stops more than the exposure meter
reading obtained. However, the red sensitivity of
black-and-white film can vary widely, and no
generally applicable values can be given.
In the case of the circular polarizing filter we
supply for LEICA lenses, determine the exposure
as you would do with any other filter, in either
integral or selective mode. The high-efficiency
multiple coating on the semi-transparent swing
mirror of the LEICA R7 acts as a powerful
polarizing surface. As a result, the use of linear
polarizing filters is not advisable, because their
positioning to inhibit and transmit light may
seriously affect the accuracy of the exposure
meter.
Using existing lenses and accessories
The entire range of LEICA R-System Lenses and
accessories can be used without modification on
the LEICA R7.
The ELMARIT-R f/2.8/180 mm (to serial no
2939700) and TELYT-R f/4/250mm lenses (to
serial no 3050 600) as well as some accessories
can only be used with aperture priority and
manual mode.
Not For Resale
–
Free Download at
http://homepage.ntl
world.com/joechan/
manuals
48
To avoid damaging your LEICA R7, do not
Hints on care
attempt to use it with lenses and accessories for
LEICAFLEX' models without a control cam. To
use your LEICAFLEX lenses with the LEICA R
exposure meter system, they must be fitted with
a control cam. You can continue to use such
modified lenses and accessories without
restriction on all LEICAFLEX models.
LEICA M Lenses on the LEICA R7
You can use the LEICA R7 with any lens of the
LEICA M range which is suitable for the
VISOFLEX R adapter. The operating conditions,
such as focusing distance and object field
obtainable, are the same as those that apply to the
use of these LEICA M Lenses with the
VISOFLEX. A special adapter (order No. 14167)
ensures compatibility of these two LEICA 35mm
Carefully remove dust and fluff on the mirror by
means of a soft, dry sable brush from which you
repeatedly remove any grease with ether before
and during cleaning. For cleaning, the brush
must be perfectly dry. Avoid mechanical damage
to the focusing screen: do not allow the metal
ferrule of the brush to touch the screen. To avoid
forcing dust into the camera's interior, do not
blow into the mirror chamber.
When pointed at the sun, a camera lens acts as a
burning glass. To protect your camera, always
use a lens cap, keep the camera in its bag, and
place it in the shade.
In addition to its designation by type and model,
each lens has a serial number. Make a note of the
camera systems, but because these lenses have
no automatic diaphragm, the exposure meter has
to use the working aperture.
serial numbers of all your lenses and of your
camera (on the camera baseplate) e.g. in your
"Leica pass"; this information may be important
in case of loss.
Not For Resale
–
Free Download at
http://homepage.ntl
world.com/joechan/
manuals
49
Motor film advance and handgrip
A MOTOR-WINDER R (order No. 14208) or
MOTOR-DRIVE-R (order No 14310) fitted to
the LEICA R7 automatically transports the film
and cocks the shutter after each exposure. The
motor winder transports the film at up to 2
frames per second. The motor drive can be set
for single exposures, 2 fps, or 4 fps. Either unit is
suitable for all shutter speeds available on the
camera. The winder is powered by six standard
NiCd rechargeable batteries or non-rechargeable
alkaline batteries; the drive requires ten such
batteries.
The handgrip (order No 14317) with its
adjustable leather loop lets you hold the LEICA
R7 with motor winder or drive more securely and
more comfortably.
Caution: Even when using a MOTOR-DRIVE
R and MOTOR-WINDER R on the LEICA
R7, the camera draws power only from the
camera batteries.
Not For Resale
–
Free Download at
http://homepage.ntl
world.com/joechan/
manuals
50
DB-2 LEICA R Databack
The DB-2 LEICA R databack (order No. 14216)
is a quartz- and microprocessor-controlled
The following data can be imprinted:
•
Day, month, year in various sequences
•
Automatic calendar to 31 December 2099
•
Day, hour, minute
• Any fixed number up to 999999
• Automatic numbering of exposures, in
ascending or descending order
The data are projected into the lower right
hand corner of the frame (horizontal format).
camera back for projecting data on the film
during exposure. It is interchangeable with the
standard LEICA R7 camera back supplied. No
cable link is necessary between camera and
databack.
Not For Resale
–
Free Download at
http://homepage.ntl
world.com/joechan/
manuals
51
Camera bags
Correction eyepiece lenses
Several LEICA ever ready camera bags are
offered for the LEICA R7, with different sized
front compartments. In addition, there are a
number of larger combi-bags for holding camera
equipment, several lenses as well as accessories.
To change the eyepiece diopter beyond the ±2
range, correction lenses are available for
plus/minus 0.5/1.0/1.5/2.0/3.0 diopters. These
correction lenses are held in position by the
eyecup or a special attachment that is mounted
on the eyepiece. Both are locked into position
securely.
Not For Resale
–
Free Download at
http://homepage.ntl
world.com/joechan/
manuals
52
Eyecup
Angle finder
A flexible eyecup (order no. 14215) is available
to shield the eye from stray light. This makes the
viewfinder image still more brilliant and permits
more accurate focusing. The eyecup can also be
used for fitting a correction lens.
On the repro stand or for shots with a bird's eye
view, the angle finder (order no. 14 300) makes
scrutinizing the viewfinder easy. By simple
switchover, a 2x magnifier can be activated.
Not For Resale
–
Free Download at
http://homepage.ntl
world.com/joechan/
manuals
53
Interchangeable focusing screens
• the microprism screen (order no. 14305) for
Special tasks require focusing screens tailormade for fast, accurate focusing. Each of these is
supplied in a case, complete with a pair of
tweezers and a lens brush. Four further focusing
screens are available for the LEICA R7:
• the plain ground-glass (order no. 14304)
screen for extreme close-range photography
and very long focal lengths;
maximum ease of composition;
• the full-field ground-glass (order no. 14306)
screen with a grid for architectural
photography and the reproduction of
documents, including marks for making slides
for TV projection;
• the clear-glass focusing screen (order no.
14307) with crosslines for scientific
photography, such as photomicrography and
astrophotography.
Not For Resale
–
Free Download at
http://homepage.ntl
world.com/joechan/
manuals
54
Interchangeable lenses
Enlargers
The LEICA R-System is optimally designed to
meet any photographic challenge. A large family
of more than 30 high-performance lenses ranging
from fisheye to lenses with perspective
correction; from the distortion-free 15mm ultra
wide-angle to the 800mm super telephoto, and
including many zoom lenses.
Spare parts for your LEICA R7
Protective bayonet cap Order No. 14103
Carrying strap Order No. 14253
Flash-contact cap Order No. 14315
Universal focusing screen Order No. 14303
When you use a superb camera like the LEICA
R7, the reproduction equipment should match the
camera's quality and performance. The LEICA
V35 enlarger with autofocus is the perfect
complement to your LEICA R7.
Projectors
For your LEICA R7 slides there is a
comprehensive range of versatile, easy-to-use
projectors, with a large choice of lenses. Superb
optical performance in combination with
traditional LEICA precision mechanics are the
common denominator of all LEICA projectors.
Not For Resale
–
Free Download at
http://homepage.ntl
world.com/joechan/
manuals
55
Technical service
Any authorized Leica agent's Technical Service
(see warranty card) is available for servicing
your camera and carrying out repairs in case of
damage. Please contact your authorized Leica
dealer or any national Leica Camera agency.
Not For Resale
–
Free Download at
http://homepage.ntl
world.com/joechan/
manuals
56
Not For Resale
–
Free Download at
http://homepage.ntl
world.com/joechan/
manuals
57
Technical Data on the LEICA R7
Camera type: microprocessor-controlled 35 mm singlelens reflex camera with electronic multi-blade focal
plane shutter and multi-mode automatic functions.
A Aperture Priority, full-field integral metering.
Shutter Priority, full-field integral metering
T
P Variable automatic program mode with full-field
integral metering.
Lens mount:
LEICA R-Bayonet.
Lenses: more than thirty LEICA R-Lenses with focal
lengths from 15mm to 800mm.
Switching on the camera:
Turn shutter speed dial
from "OFF" position and either slightly press shutter
release button or mode selector button. With shutter
cocked, the viewfinder LED's remain lit for about 12s
after you release whatever button had been pressed to
switch on the camera.
Exposure meter: Selective and integral through-thelens, combined with camera modes to form programs.
Exposure meter works at full aperture with LEICA
R-Lenses with automatic spring-back diaphragm, and
at working aperture with lenses and accessories without
automatic diaphragm.
Selective exposure metering:
Measuring field 7mm
diameter (approx. 4.5 % of 35 mm format), marked in
viewfinder.
Integral exposure metering: center-weighted full-
field integral metering.
Program modes: set via program selector:
Exposure metering memory:
in aperture priority
mode with selective metering, by pressing shutterrelease button to pressure point, memory active as long
as finger is held in position.
Exposure override: From +3 to -3 exposure values,
with half value click stops.
Film speed range:
manual setting: from ISO 6/9° to ISO 12800/42°;
DX code: from ISO 25/15° to ISO 5000/38°
Photocell: Silicon photodiode, protected from stray
light in lower part of camera. In selective mode, the
program selector automatically places a condenser lens
in front of the photodiode.
Metering range of exposure meter: selective
2
metering from 0.5 cd/m
to 125000 cd/m2at f/1.4, i.e.
from Ev +2 to +20 for ISO 100/21° film or from 1/2 s
at f/1.4 to 1/2000 s at f/22.
Integral metering from 0.125 cd/m2 to 125 000 cd/m2
at f/1.4, i.e. from Ev 0 to + 20 for ISO 100/21° film, or
from 2s at f/1.4 to l/2000s atf/22.
Power supply:
6 volt. 2 lithium cells (Ø 11.6mm x
10.8mm) á 3V or four silver oxide button cells (Ø
11.6mm x 5.4mm) á 1.5V.
m Manual setting of shutter speed and aperture,
selective metering.
Aperture Priority, selective metering.
A
Battery check: automatic display in viewfinder.
Not For Resale
–
Free Download at
http://homepage.ntl
world.com/joechan/
manuals
58
Viewfinder system: Built-in pentaprism. 5 inter-
changeable focusing screens.
Viewfinder eyepiece: Setting ring for adjustment from
+2 to -2 diopters. Built-in eyepiece shutter. Eyepiece
mount with mount for supplementary correction lenses,
eyecup, and 90° angle finder attachment.
Viewfinder field: 23 x 34,6mm, i.e. 92% of frame
size.
Viewfinder magnification: 0,8x at 0 diopter with
50mm lens.
LED displays in viewfinder:
- program symbol,
- automatic shutter speed (7 digit display) resp. set
shutter speed,
- flash readiness and flash-exposure control, with
system-compatible flash equipment;
- dosaged flash (lightening up parts of a subject)
- exposure metering memory active, in aperture
priority mode with selective metering. The symbol
goes out, the metered value continues to be
displayed.
Automatic brightness adjustment:
displays.
Data displayed in viewfinder: lens aperture set
of all LED
LED warning indicators in viewfinder:
- plus/minus correction (override),
- low-light warning;
- over- or underexposure;
- limited aperture range in automatic program and
shutter priority (lens aperture not set to smallest
value)
- correction of preset time in shutter priority
- discrepancy between manually set and DX-coded
film speed
- in DX-setting, with non-DX coded films or no film
(additional warning symbol via external LED next to
film speed dial
- low battery
Flash connection: standard X coaxial contact socket
adjacent to prism housing, for bulb and electronic flash
units. Central X hot-shoe contact.
TTL flash-exposure metering control: with system
SCA 300 or 500 dedicated flash units and SCA 351 or
551 adapters.
Flash control: primary (full intensity) light source: in
manual setting: all shutter speeds from 4s to 1/90 s, in
faster shutter speed settings automatic switchover to
1/100s, in aperture priority mode: automatic switchover
to 1/100s in "B" and "100
" settings.
Supplementary viewfinder light:
aperture display (aperture scale on lens)
for illuminating lens
Not For Resale
–
Free Download at
http://homepage.ntl
world.com/joechan/
manuals
59
Flash as fill-in: In shutter priority: all shutter speeds
from 4s to 1/90 s, with faster shutter speed settings
automatic switchover to 1/100 s.
Automatic switchover between flash as main light
source and fill-in flash:
In automatic program mode: automatic switchover to
1/100s. Flash intensity dosaged via TTL-control
metering, depending on ambient light (flash as main
light source, fill-in flash or no flash effect).
Flash exposure metering: center-weighted, integral.
Photocell for TTL-flash exposure control: Silicon
photodiode, next to photocell of exposure meter,
protected from stray light in lower part of camera.
Film speed range for TTL flash-exposure control:
ISO 12/12° to ISO 3200/36°.
Mechanical shutter-speed settings:
"100
battery failure. "B" for time exposures of any length.
(Exposures in "B"-setting electronically controlled
when using drive in 4 fps setting)
Mirror system: Semi-transparent, vacuum coated
swing mirror, coated with 17 layers, reflects 70% and
transmits 30% light, backed by Fresnel reflector (1345
micro-reflectors) to concentrate light on exposure
meter's photocell.
Film transport: Single-movement quick-wind lever
(130° movement), optional MOTOR-W1NDER-R (2
fps) or MOTOR-DRIVE-R (single frame, 2fps, 4fps).
Frame counter at top of camera: frame count in
ascen-ding values. Automatic reset to "0" when camera
back is opened. Built-in reading magnifier.
" = 1/100s flash synchronization, or in case of
Exposure override for flash exposure metering:
plus/minus 3 Ev in half-values.
Shutter: Electronically controlled focal-plane blade
shutter, vertical action.
Shutter speed setting dial: easy-reach 6.5mm height;
centrally positioned exposure release button.
Electronically computed shutter speeds: For
automatic programs continuous from 16s to 1/2000 s.
Manual settings from 4s to 1/2000 s in half values.
Multiple exposures:
Auto- matic reset when shutter is cocked; exposure
counter does not move forward. Any number of
exposures possible. Multiple exposures also possible
with motorized film advance units.
Film rewind:
camera.
Shutter release: Shutter-release button with standard
thread for cable release. Press down 0.3mm to first
pressure point to switch on (viewfinder LEDs light,
exposure meter switched on). Press down approx. 0.9
mm to second pressure point to activate memory for
exposure metering value. Press down approx. 1.35mm
for electromagnetic shutter release for electronically
computed exposures. Press down approx. 2mm for
mechanical release ("B" and "100
via hinged crank lever at top left of
Press rewind locking button.
").
Not For Resale
–
Free Download at
http://homepage.ntl
world.com/joechan/
manuals
60
Independent mirror release: via separate cable-
release connection
Electromagnetic self-timer: approx. 9s countdown;
flashing red LED on front of camera indicates that selftimer is set. Repeat countdown by pressing exposure
release button again; cancel by turning self-timer dial.
Film plane: Mark at top of camera.
Camera body:
Body: Die-cast aluminium,
Camera top: 1mm die-cast-zinc,
Base plate: 0.8mm brass,
Black or silver chromium finish.
Camera back: with right-hand thumbhold and film
cartridge window with built-in magnifier;
interchangeable with Data Back.
Tripod thread: A 1/4 (1/4" according to DIN 4503).
Normed thread for cable release connection: for
cable release and independent mirror release.
Dimension and weight (camera body only, without
lens):
Maße und Gewicht (ohne Objektiv):
Height: 94,8 mm (3.7")
Length: 138.5 mm (5.5")
Depth: 62.2 mm (2.4")
Weight: 670 g (lib 7 oz).
Not For Resale
–
Free Download at
http://homepage.ntl
world.com/joechan/
manuals
VI
23 Display window for mode selected
24 Film-plane mark
25 Shutter release, with screw socket for cable
release.
Shutter speed setting dial
26
27 Quick-wind lever to wind film and cock
shutter
28 Automatic frame counter with magnifier-
window
Mode selector with locking window
29
30 Eyepiece shutter
31 Eyepiece adjustment setting ring
32 Viewfinder eyepiece
33 Attachment for angle magnifier, viewfinder
eyepiece and holder for correction lenses
34 Film-cartridge window
35 Contacts for motorized film advance units
Unlocking button for battery compartment
36
cap
37 Battery compartment cap
38 ¼" A type socket thread for tripod
39 Rewind release and double-exposure
button
Not For Resale
–
Free Download at
http://homepage.ntl
world.com/joechan/
manuals
VII
Alphabetical
Accessories 49 ff
Aperture priority with full-field integral metering 22
Aperture priority with selective metering 24
Aperture scale illumination 33
Automatic program mode 28
Automatic time correction 27
Batteries 4
Brief description III, VI
Bulb 17
Care, tips on 48
Carrying strap 2
Correction lenses 51
Customer Service 55
Databack DB-2 50
Depth of field lever 45
Diaphragm, spring-back 14
Diopter setting 33, 51
Double exposure 44
DX-Coding 8
Exposure metering memory 24
Exposure metering methods 10
Exposure metering system, switching on 14
Exposure metering, with full aperture 14
Exposure override 16
Exposure release, mechanical 5, 17
Eyecup 52
Eyepiece diopter setting 33
Eyepiece shutter 35
Film rewind and taking out 9
Film speed 8
Filters, use of 47
Flash control 41
Flash programs, overview 40
Flash readiness 41
Flash units 36
Page
Page
Flash with shutter priority 38
Flash, fill-in 38, 39
Flash, use in manual setting 37
Flash, use of in aperture priority 38
Flash, use of in automatic program mode 39
Focusing 34
Focusing screens 34, 53
Frame counter 5, 6
Handgrip for Motor-Drive/Motor-Winder 49
Holding the camera 46
Independent mirror release 42
Inserting the film 6
Integral metering 11
Lens change 3
Lenses, interchangeable 54
Manual setting 21
Metering range, fall short of 15
Mode selector 20
Motor-Drive, Motor-Winder 49
Multiple exposures 44
Override 16
Quick-wind lever 5
Selective exposure metering 11, 24
Self-timer 42
Shutter priority 26
Shutter speed setting dial 17
Spare parts 54
Technical data 57
TTL-flash exposure metering 36
Universal focusing screen 34
Viewfinder illumination 33
Viewfinder image 18
Viewfinder light, supplementary 33
Working aperture, exposure metering with 15
Working diagram of exposure meter 12
Not For Resale
–
Free Download at
http://homepage.ntl
world.com/joechan/
manuals
® = Registered trademark
Illustrations, specifications, descriptions and technical data are
not binding and may be changed without notice.
Trademark of
The Leica Camera Group
Leica Camera GmbH, Oskar-Barnack-Strasse 11, D-35606 Solms, Germany
Telephone +49 (06442) 208-0, Fax +49 (06442) 208-333, Telex 482610 leica d
dt. 930476 / engl. 930477 / frz. 930478 Printed in Germany VI/95/ALW/B.
Loading...
