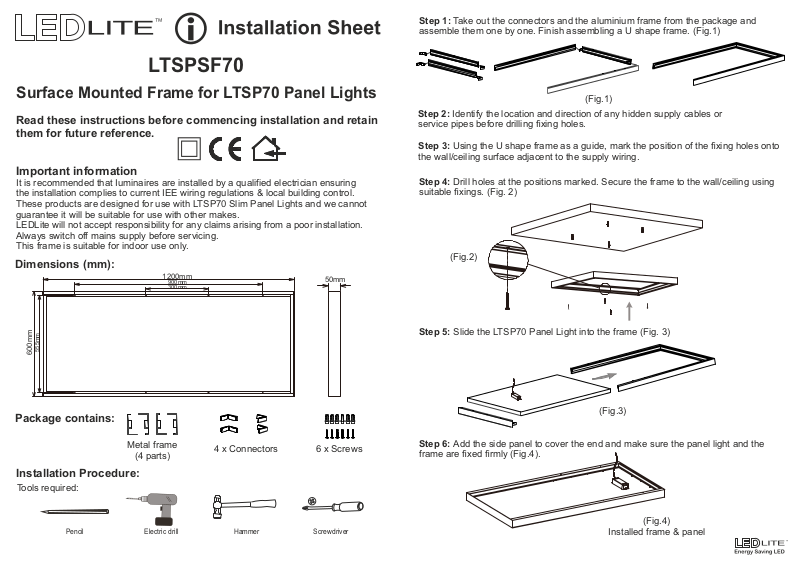

LTSPSF70

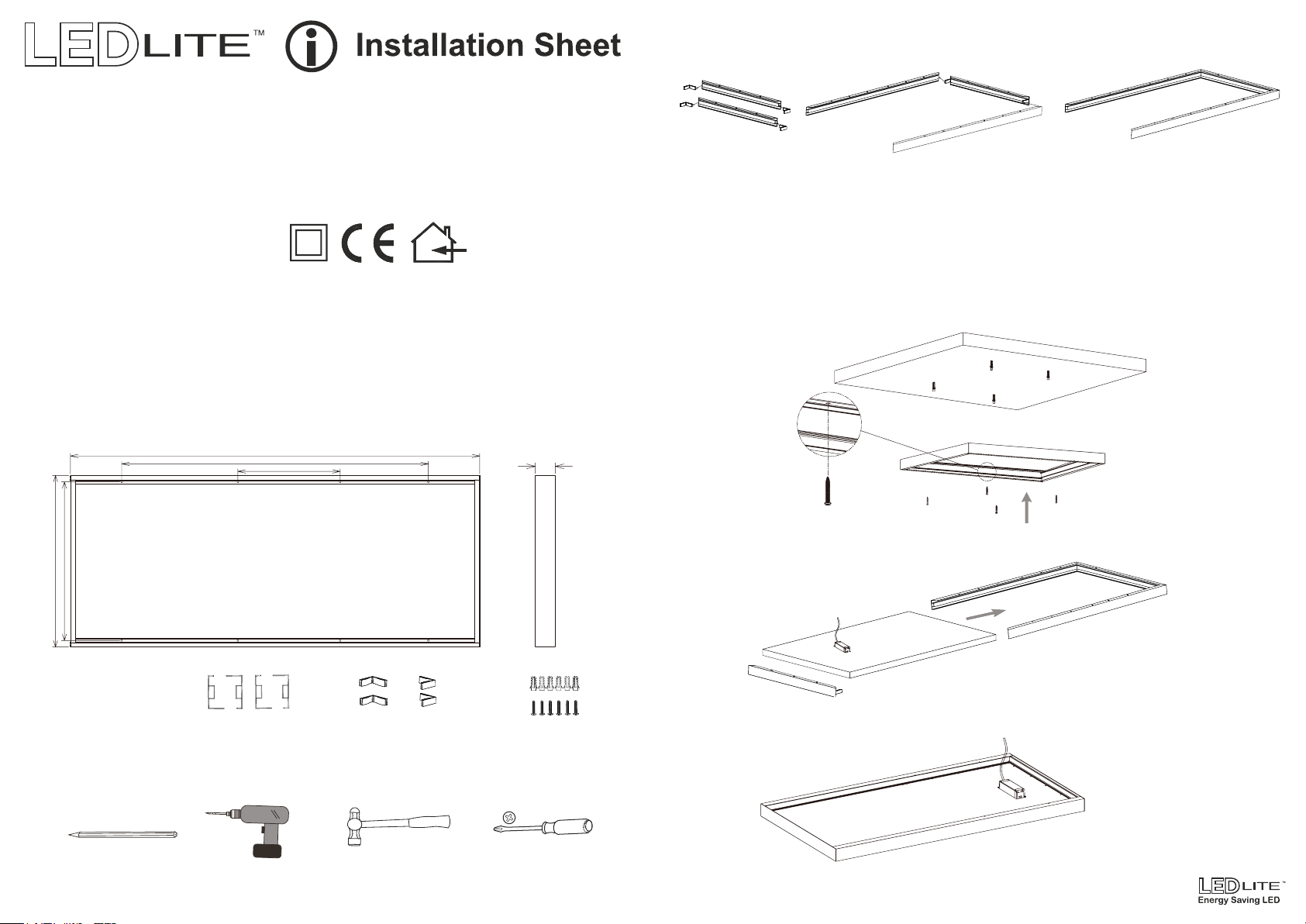

Step 1: Take out the connectors and the aluminium frame from the package and
assemble them one by one. Finish assembling a U shape frame. (Fig.1)
Surface Mounted Frame for LTSP70 Panel Lights
Read these instructions before commencing installation and retain
them for future reference.
Important information
It is recommended that Iuminaires are installed by a qualified electrician ensuring
the installation complies to current IEE wiring regulations & local building control.
These products are designed for use with LTSP70 Slim Panel Lights and we cannot
guarantee it will be suitable for use with other makes.
LEDLite will not accept responsibility for any claims arising from a poor installation.
Always switch off mains supply before servicing.
This frame is suitable for indoor use only.
Dimensions (mm):
555mm
600mm
1200mm
900mm
300mm
50mm
(Fig.1)
Step 2: Identify the location and direction of any hidden supply cables or
service pipes before drilling fixing holes.
Step 3: Using the U shape frame as a guide, mark the position of the fixing holes onto
the wall/ceiling surface adjacent to the supply wiring.
Step 4: Drill holes at the positions marked. Secure the frame to the wall/ceiling using
suitable fixings. (Fig. 2)
(Fig.2)
Step 5: Slide the LTSP70 Panel Light into the frame (Fig. 3)
Package contains:
Metal frame
Installation Procedure:
Tools required:
Pencil Electric drill Hammer
(4 parts)
4 x Connectors 6 x Screws
Screwdriver
(Fig.3)
Step 6: Add the side panel to cover the end and make sure the panel light and the
frame are fixed firmly (Fig.4).
(Fig.4)
Installed frame & panel
