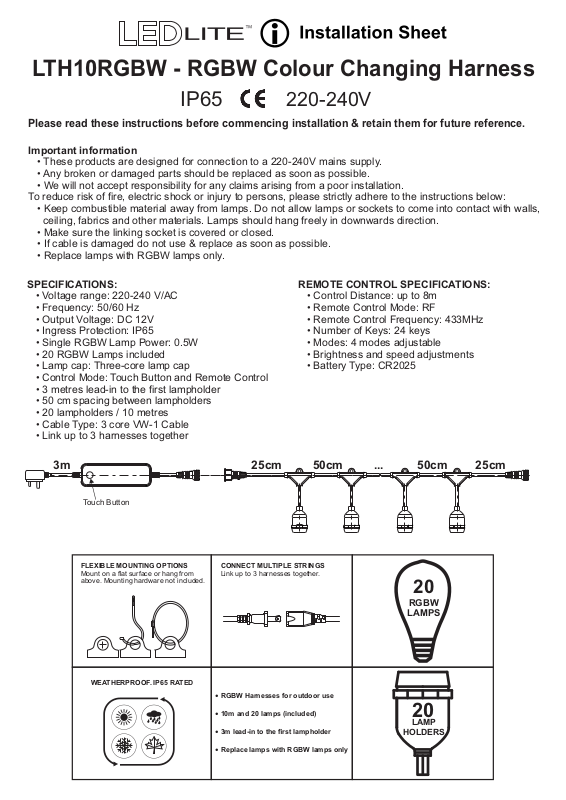

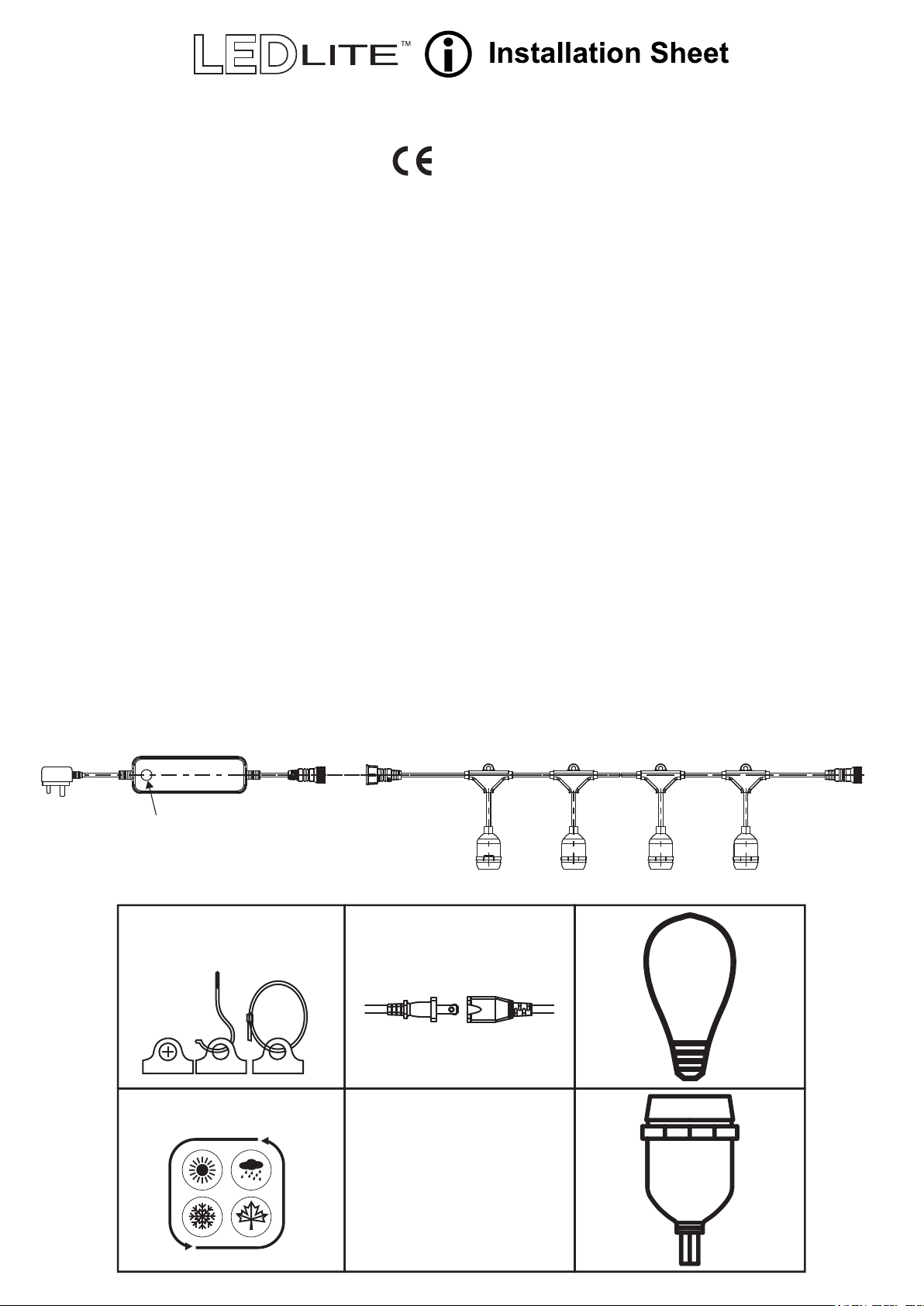

LTH10RGBW - RGBW Colour Changing Harness
IP65
220-240V
Please read these instructions before commencing installation & retain them for future reference.
Important information
• These products are designed for connection to a 220-240V mains supply.
• Any broken or damaged parts should be replaced as soon as possible.
• We will not accept responsibility for any claims arising from a poor installation.
To reduce risk of fire, electric shock or injury to persons, please strictly adhere to the instructions below:
• Keep combustible material away from lamps. Do not allow lamps or sockets to come into contact with walls,
ceiling, fabrics and other materials. Lamps should hang freely in downwards direction.
• Make sure the linking socket is covered or closed.
• If cable is damaged do not use & replace as soon as possible.
• Replace lamps with RGBW lamps only.
SPECIFICATIONS:
• Voltage range: 220-240 V/AC
• Frequency: 50/60 Hz
• Output Voltage: DC 12V
• Ingress Protection: IP65
• Single RGBW Lamp Power: 0.5W
• 20 RGBW Lamps included
• Lamp cap: Three-core lamp cap
• Control Mode: Touch Button and Remote Control
• 3 metres lead-in to the first lampholder
• 50 cm spacing between lampholders
• 20 lampholders / 10 metres
• Cable Type: 3 core VW-1 Cable
• Link up to 3 harnesses together
REMOTE CONTROL SPECIFICATIONS:
• Control Distance: up to 8m
• Remote Control Mode: RF
• Remote Control Frequency: 433MHz
• Number of Keys: 24 keys
• Modes: 4 modes adjustable
• Brightness and speed adjustments
• Battery Type: CR2025
3m 25cm 25cm50cm 50cm
Touch Button
FLEXIBLE MOUNTING OPTIONS
Mount on a flat surface or hang from
above. Mounting hardware not included.
CONNECT MULTIPLE STRINGS
Link up to 3 harnesses together.
...
20
RGBW
LAMPS
WEATHERPROOF. IP65 RATED
• RGBW Harnesses for outdoor use
• 10m and 20 lamps (included)
• 3m lead-in to the first lampholder
20
LAMP
HOLDERS
• Replace lamps with RGBW lamps only
Page 2

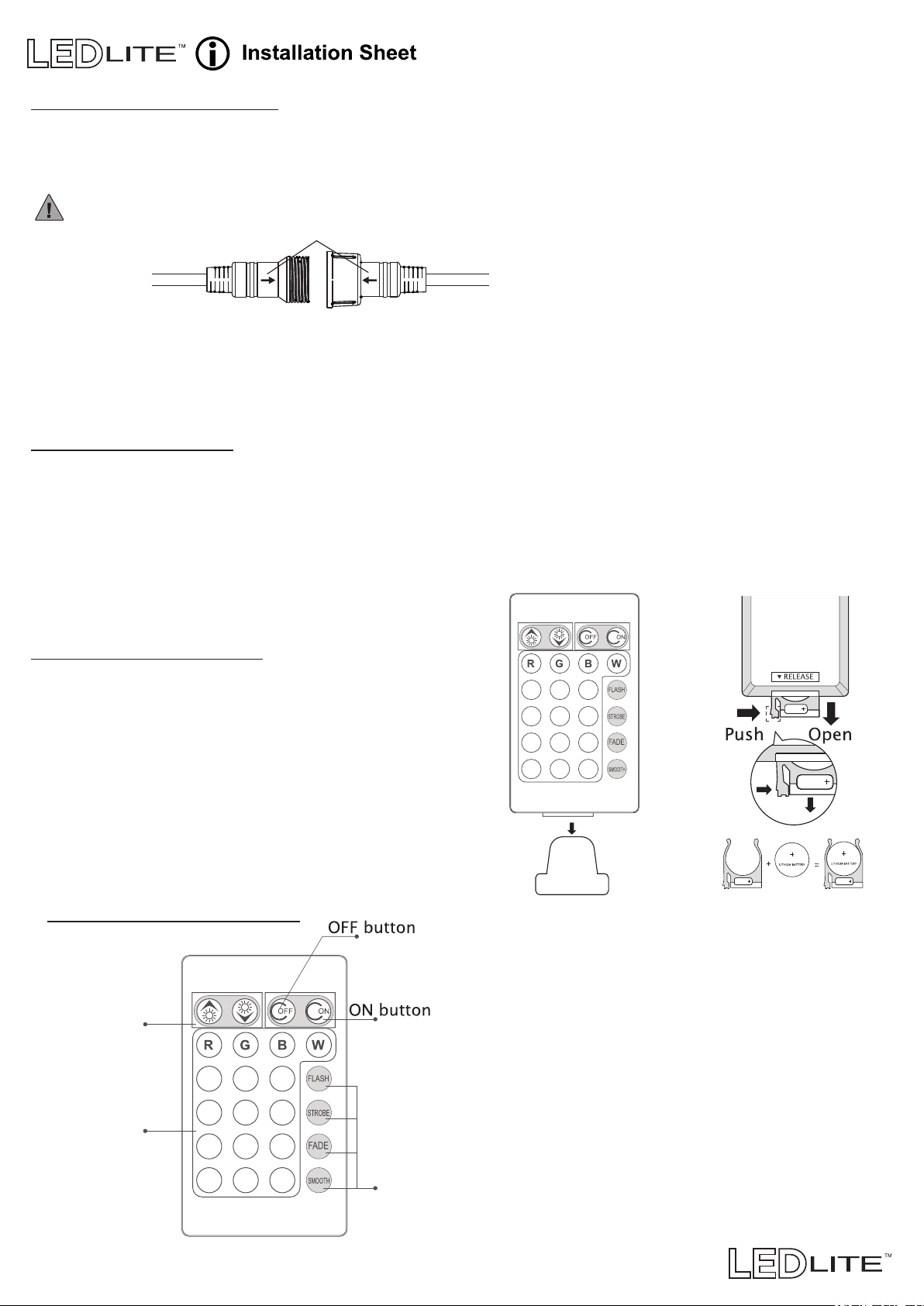

LTH10RGBW - RGBW Colour Changing Harness
Installation Instructions:
● Install each lamp into the lamp holders by rotating them clockwise. Make sure the lamp is installed tight
into the lamp holder.
● Rotate the lamp anti-clockwise if you want to replace it.
● Plug the controller cable to the festoon using the weatherproof connection
Please be aware that the 2 arrows on the plugs must line up! (Fig. 1)
Fig. 1 Arrows on connector plugs
● You can link up to 3 harnesses using the IP65 connectors at each end.
● Plug the harness in to 220-240V socket and turn the light on to test the lights.
● Use the remote control provided to control the light (see below remote control functions)
● All buttons on the remote control have a memory function; after setting the harness will remember the
last mode it was set.
Pair Code Function:
In order to prevent a remote control from controlling two or more products, the pair code function can
be used:
● Turn the power ON and then press the TOUCH button on the harness controller for 5 seconds.
● The lamps will flash red to indicate the harness is in pairing mode.
● Press the Red button (R) on the remote control and the light will stop flashing.
● The remote control is now paired successfully with the harness controller.
Remote Control Functions
Remote Control Setup:
● Pull plastic protection from battery compartment to
activate remote control (see Fig.2).
● The harness is controlled by the RF remote control.
Please ensure the remote control aims at the
controller when changing colours or modes.
● If the RF remote control becomes insensitive after a
period of time or the control distance becomes much
shorter please replace the battery (see Fig.3).
Remote Control Buttons:
Dimming button
Static monochrome
shortcut button
(16 colour choices)
Mode selector
buttons
Toggle ON/OFF
(4 modes)
CR2025 CR2025
Fig.2
Fig.3
ON/OFF Button - Switch the unit on or off.
Dimming - When in static monochrome mode
(R, G, B and W) use it to adjusts the
brightness of the light.
Static Monochrome - Use the buttons to directly
select the desired colour (16 choices)
FLASH - Automatic change of colours (fast)
STROBE - Automatic jumping change of colours
(slow)
FADE - Fast automatic change of colours with
blending effect
SMOOTH - Slow automatic change of colours
with blending effect
