LEDlite EMBL3ST User guide

Download

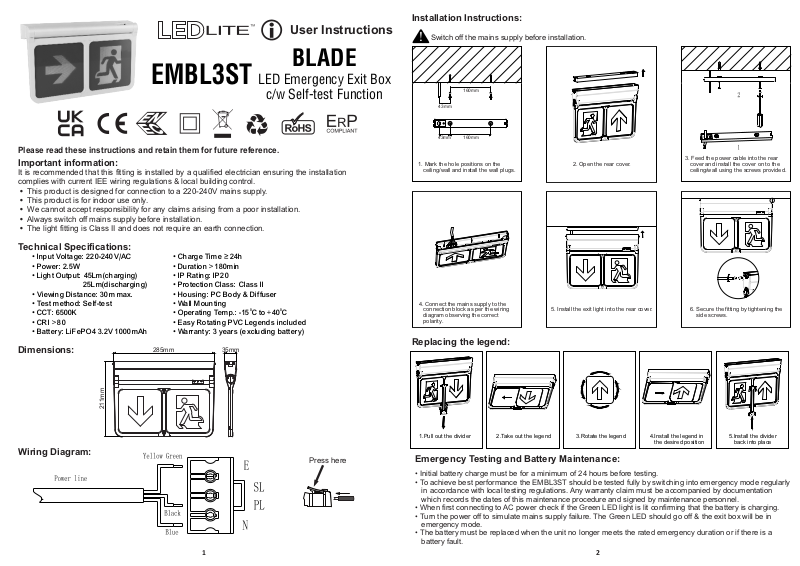

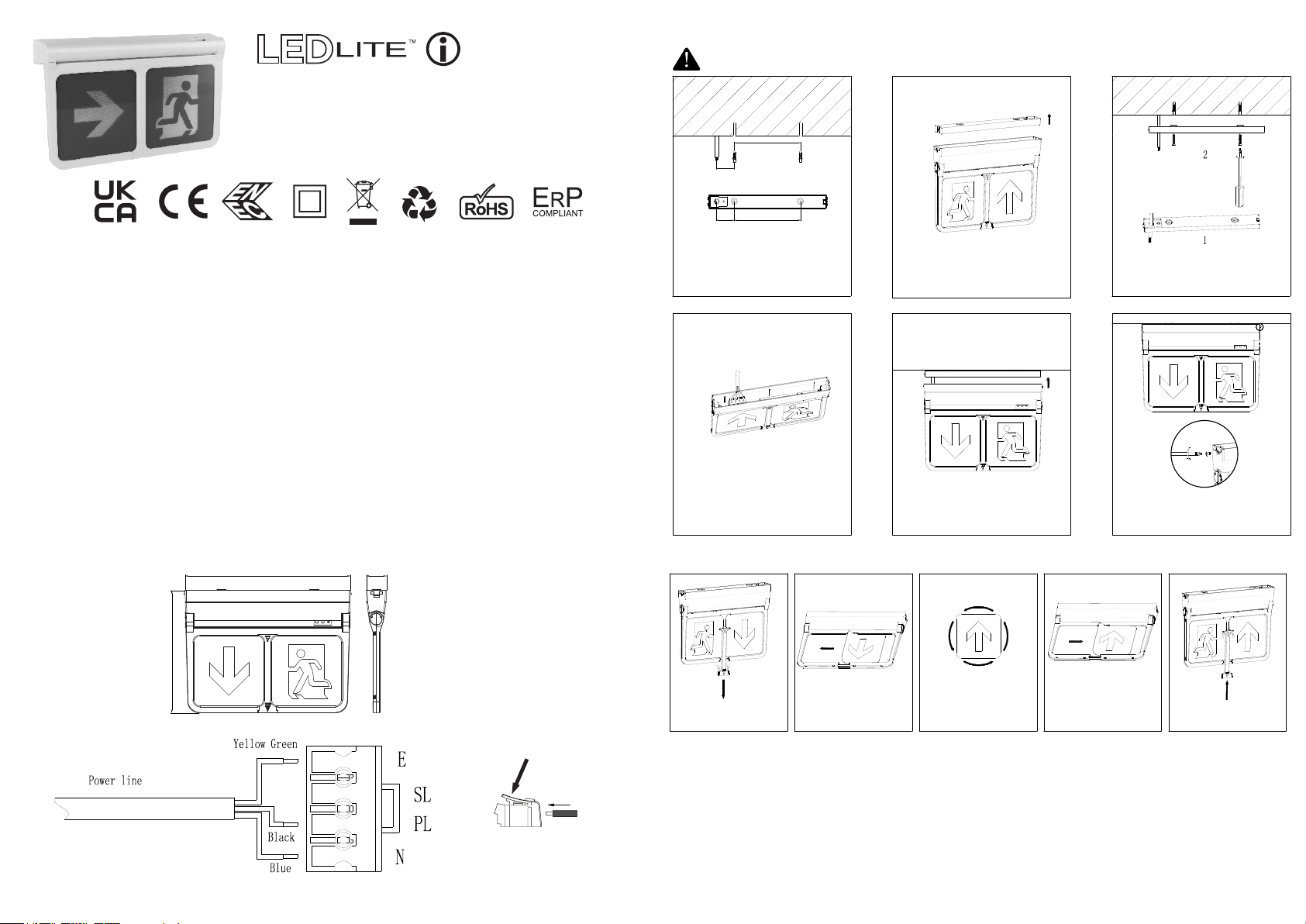

Page 1

User Instructions

BLADE

Installation Instructions:

Switch off the mains supply before installation.

EMBL3ST

LED Emergency Exit Box

c/w Self-test Function

Please read these instructions and retain them for future reference.

Important information:

It is recommended that this fitting is installed by a qualified electrician ensuring the installation complies with current IEE wiring regulations & local building control.

• This product is designed for connection to a 220-240V mains supply.

• This product is for indoor use only.

• We cannot accept responsibility for any claims arising from a poor installation.

• Always switch off mains supply before installation.

• The light fitting is Class II and does not require an earth connection.

Technical Specifications:

• Input Voltage: 220-240V/AC

• Power: 2.5W

• Light Output: 45Lm(charging)

25Lm(discharging)

• Viewing Distance: 30m max.

• Test method: Self-test

• CCT: 6500K

• CRI > 80

• Battery: LiFePO4 3.2V 1000mAh

Dimensions:

• Charge Time ≥ 24h

• Duration > 180min

• IP Rating: IP20

• Protection Class: Class II

• Housing: PC Body & Diffuser

• Wall Mounting

• Operating Temp.: -15 C to +40 C

0 0

• Easy Rotating PVC Legends included

• Warranty: 3 years (excluding battery)

285mm

35mm

160mm

43mm

160mm

43mm

1. Mark the hole positions on the ceiling/wall and install the wall plugs.

4. Connect the mains supply to the connection block as per the wiring diagram observing the correct polarity.

Replacing the legend:

2. Open the rear cover.

5. Install the exit light into the rear cover.

3. Feed the power cable into the rear cover and install the cover on to the ceiling/wall using the screws provided.

6. Secure the fitting by tightening the side screws.

Wiring Diagram:

211mm

1.Pull out the divider 2.Take out the legend 3.Rotate the legend

Press here

Emergency Testing and Battery Maintenance:

• Initial battery charge must be for a minimum of 24 hours before testing.

• To achieve best performance the EMBL3ST should be tested fully by switching into emergency mode regularly in accordance with local testing regulations. Any warranty claim must be accompanied by documentation which records the dates of this maintenance procedure and signed by maintenance personnel.

• When first connecting to AC power check if the Green LED light is lit confirming that the battery is charging.

• Turn the power off to simulate mains supply failure. The Green LED should go off & the exit box will be in emergency mode.

• The battery must be replaced when the unit no longer meets the rated emergency duration or if there is a battery fault.

4.Install the legend in the desired position

5.Install the divider back into place

Page 2

Self Test Function:

• Monthly inspection: The system simulates a power outage every 30 days for 10 seconds. It will quit and return to the mains power state automatically if there is no fault.

• Annual inspection: The system simulates a power outage every 360 days and for 3 hours or until the battery power is dissipated. It will quit and return to the mains power state automatically if there is no fault.

Self Test Switch Function:

• Monthly Test: Hold the test button for 3 seconds until you hear 2 beeps. The system simulates a power outage for 10 seconds. It will quit and return to the mains power state automatically if there is no fault.

• Full test: Hold the test button for 6 seconds until you hear 3 beeps. The system simulates a power outage for 3 hours or until the battery power is dissipated. It will quit and return to the mains power state automatically if there is no fault.

MODE

Mains ON

Monthly self test battery discharge

(discharge time

10 seconds)

METHOD IF LED INDICATOR STATUS

No action needed

Monthly test mode: Hold test button for

3 seconds,

2 beeps

Battery OK

Battery Fault

LED Fault

Battery OK

Battery Fault

LED Fault

Green

(permanently on)

Red

(Flashes every 1 second)

Amber

(Flashes every 1 second)

All indicators OFF

Red

(Flashes every 1 second)

Amber

(Flashes every 1 second)

BEEP

SOUND

OFF

Beep every 45 seconds

OFF

Beep every 45 seconds

Tel:

Lamp Type - LED

Year 4 Year 5

Date Signed Date Signed Date

OFF

Beep every 45 seconds

Yearly self test

battery discharge

(discharge time

3 hours)

Mains Failure

Yearly test mode:

Hold test button for

6 seconds,

3 beeps

No action needed

Exit Box enters 3 hour

emergency mode

Battery OK

Battery Fault

LED Fault

All indicators OFF

Red

(Flashes every 1 second)

Amber

(Flashes every 1 second)

All indicators OFF OFF

Notes:

• To turn off emergency mode (when mains failure occurs) press the test button for 10 seconds

• If the battery and LED board fail simultaneously, the red LED will flash.

• Any beep sound will stop once the fault is fixed.

• After repair connect the exit box to mains. Press the test button within 1 second for function confirmation.

• Manual test will not affect the monthly and yearly test schedule.

Troubleshooting:

Most failures experienced are not due to the EMAB3ST itself and are caused by improper installation or connection of the unit. Please check that:

• Wires are properly clamped into terminals.

• Installation is done according to the wiring diagram.

• Proper polarities are observed.

Keep a record of maintenance and maintain the emergency pack and LED lamp regularly. Check regularly to ensure its lifespan and usage.

3 4

ROUTINE TEST RECORD

Year 1 Year 2 Year 3

Full Recharge Time 24 Hours Duration 3 Hours

Luminaire Ref/Location In Case of diﬃculty, contact the Installation Engineer:

Functional

Monthly Test Signed Date Signed Date Signed

Functional

Three Hour
