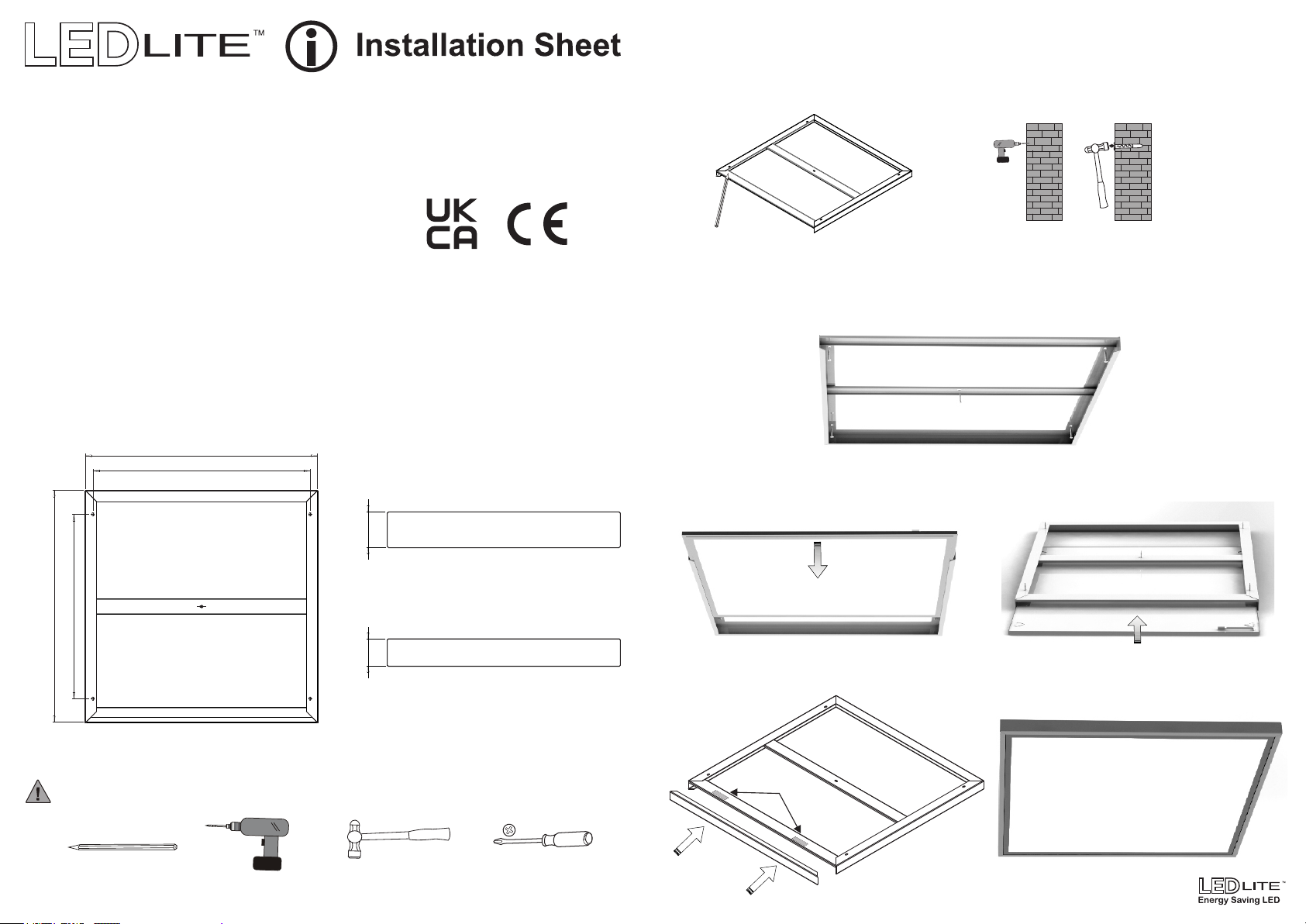

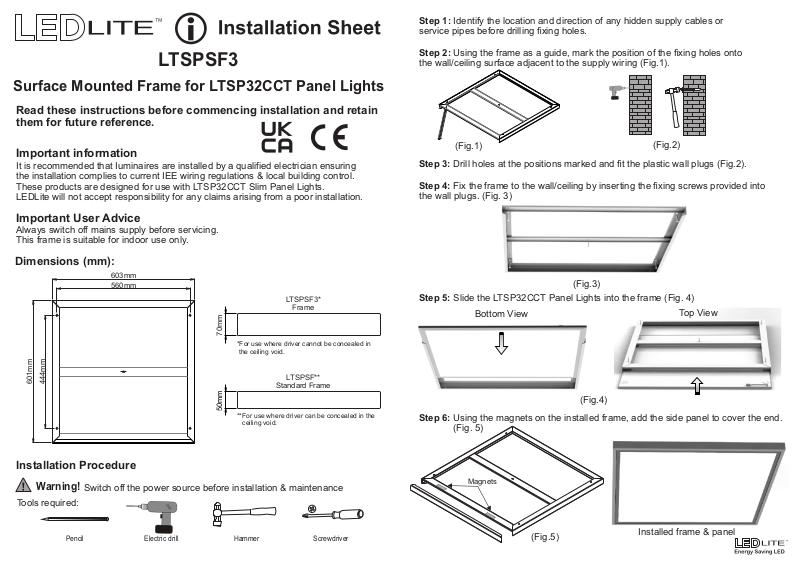

LTSPSF3
Surface Mounted Frame for LTSP32CCT Panel Lights
Read these instructions before commencing installation and retain
them for future reference.
Step 1: Identify the location and direction of any hidden supply cables or
service pipes before drilling fixing holes.
Step 2: Using the frame as a guide, mark the position of the fixing holes onto
the wall/ceiling surface adjacent to the supply wiring (Fig.1).
Important information
It is recommended that Iuminaires are installed by a qualified electrician ensuring
the installation complies to current IEE wiring regulations & local building control.
These products are designed for use with LTSP32CCT Slim Panel Lights.
LEDLite will not accept responsibility for any claims arising from a poor installation.
Important User Advice
Always switch off mains supply before servicing.
This frame is suitable for indoor use only.
Dimensions (mm):
603mm
560mm
LTSPSF3*
Frame
70mm
*For use where driver cannot be concealed in
the ceiling void.
444mm
601mm
50mm
**For use where driver can be concealed in the
ceiling void.
LTSPSF**
Standard Frame
(Fig.1)
(Fig.2)
Step 3: Drill holes at the positions marked and fit the plastic wall plugs (Fig.2).
Step 4: Fix the frame to the wall/ceiling by inserting the fixing screws provided into
the wall plugs. (Fig. 3)
(Fig.3)
Step 5: Slide the LTSP32CCT Panel Lights into the frame (Fig. 4)
Bottom View
Top View
(Fig.4)
Step 6: Using the magnets on the installed frame, add the side panel to cover the end.
(Fig. 5)
Installation Procedure
Warning!
Tools required:
Switch off the power source before installation & maintenance
Pencil Electric drill Hammer
Screwdriver
Magnets
(Fig.5)
Installed frame & panel
