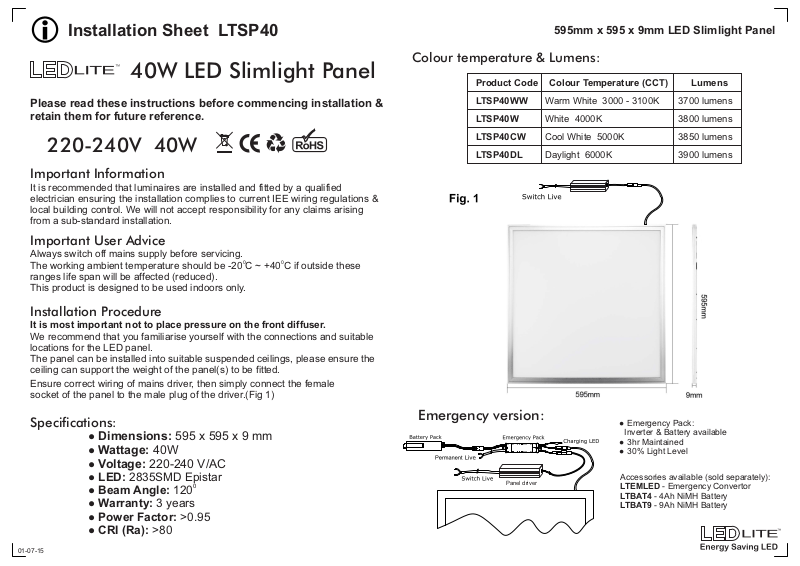

Installation Sheet LTSP40
595mm x 595 x 9mm LED Slimlight Panel
Colour temperature & Lumens:
40W LED Slimlight Panel
Please read these instructions before commencing installation &
retain them for future reference.
220-240V 40W
Important Information
It is recommended that luminaires are installed and fitted by a qualified
electrician ensuring the installation complies to current IEE wiring regulations &
local building control. We will not accept responsibility for any claims arising
from a sub-standard installation.
Important User Advice
Always switch off mains supply before servicing.
The working ambient temperature should be -20 C ~ +40 C if outside these
ranges life span will be affected (reduced).
This product is designed to be used indoors only.
Installation Procedure
It is most important not to place pressure on the front diffuser.
We recommend that you familiarise yourself with the connections and suitable
locations for the LED panel.
The panel can be installed into suitable suspended ceilings, please ensure the
ceiling can support the weight of the panel(s) to be fitted.
Ensure correct wiring of mains driver, then simply connect the female

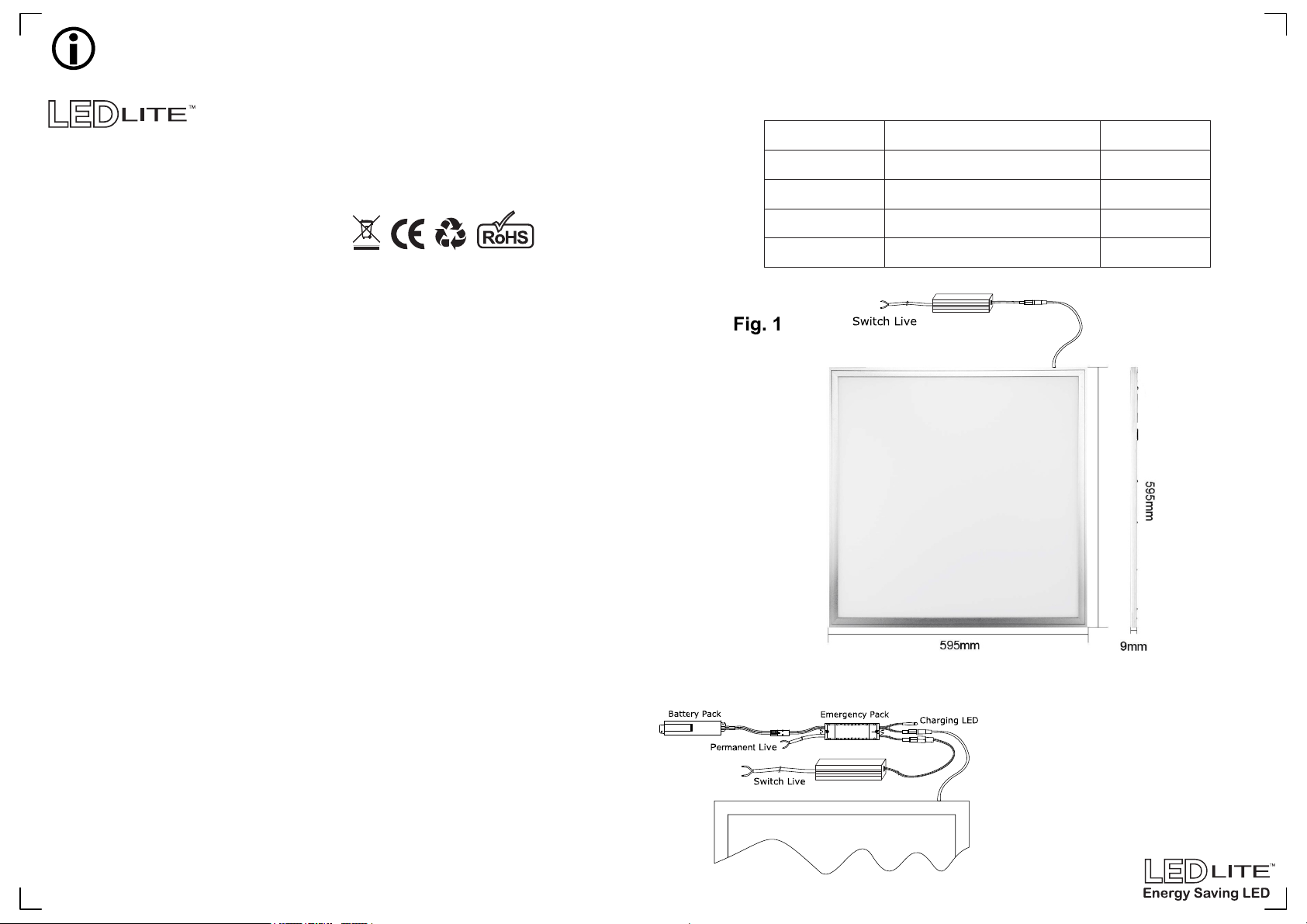

socket of the panel to the male plug of the driver.(Fig 1)
0 0
Product Code
LTSP40WW
LTSP40W
LTSP40CW
LTSP40DL
Colour Temperature (CCT)
Warm White 3000 - 3100K
White 4000K
Cool White 5000K
Daylight 6000K
Lumens
3700 lumens
3800 lumens
3850 lumens
3900 lumens
Specifications:
01-07-15
● Dimensions: 595 x 595 x 9 mm
Wattage: 40W●
Voltage: 220-240 V/AC●
● LED: 2835SMD Epistar
● Beam Angle: 120
0
● Warranty: 3 years
● Power Factor: >0.95
● CRI (Ra): >80
Emergency version:
Panel driver
● Emergency Pack:
Inverter & Battery available
3hr Maintained●
30% Light Level●
Accessories available (sold separately):
LTEMLED - Emergency Convertor
LTBAT4 - 4Ah NiMH Battery
LTBAT9 - 9Ah NiMH Battery
