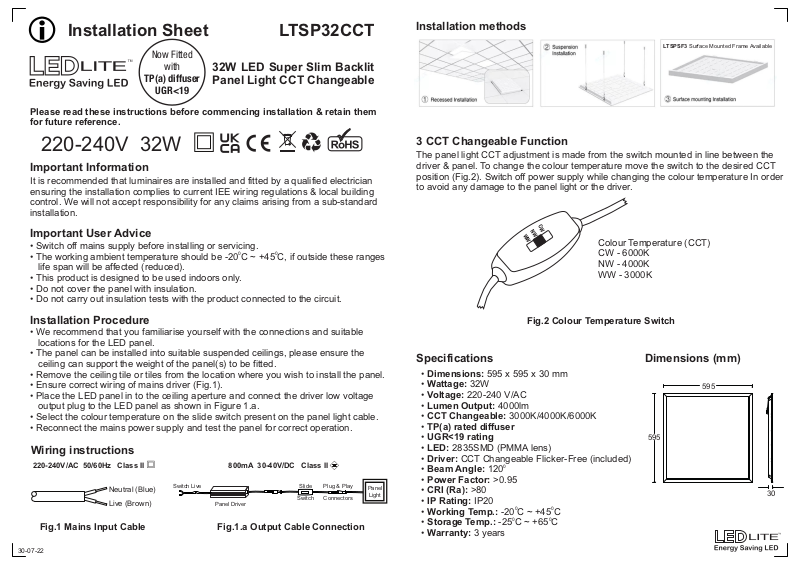

Installation Sheet LTSP32CCT
Now Fitted
with
TP(a) diffuser
UGR<19
Please read these instructions before commencing installation & retain them
for future reference.
32W LED Super Slim Backlit
Panel Light CCT Changeable

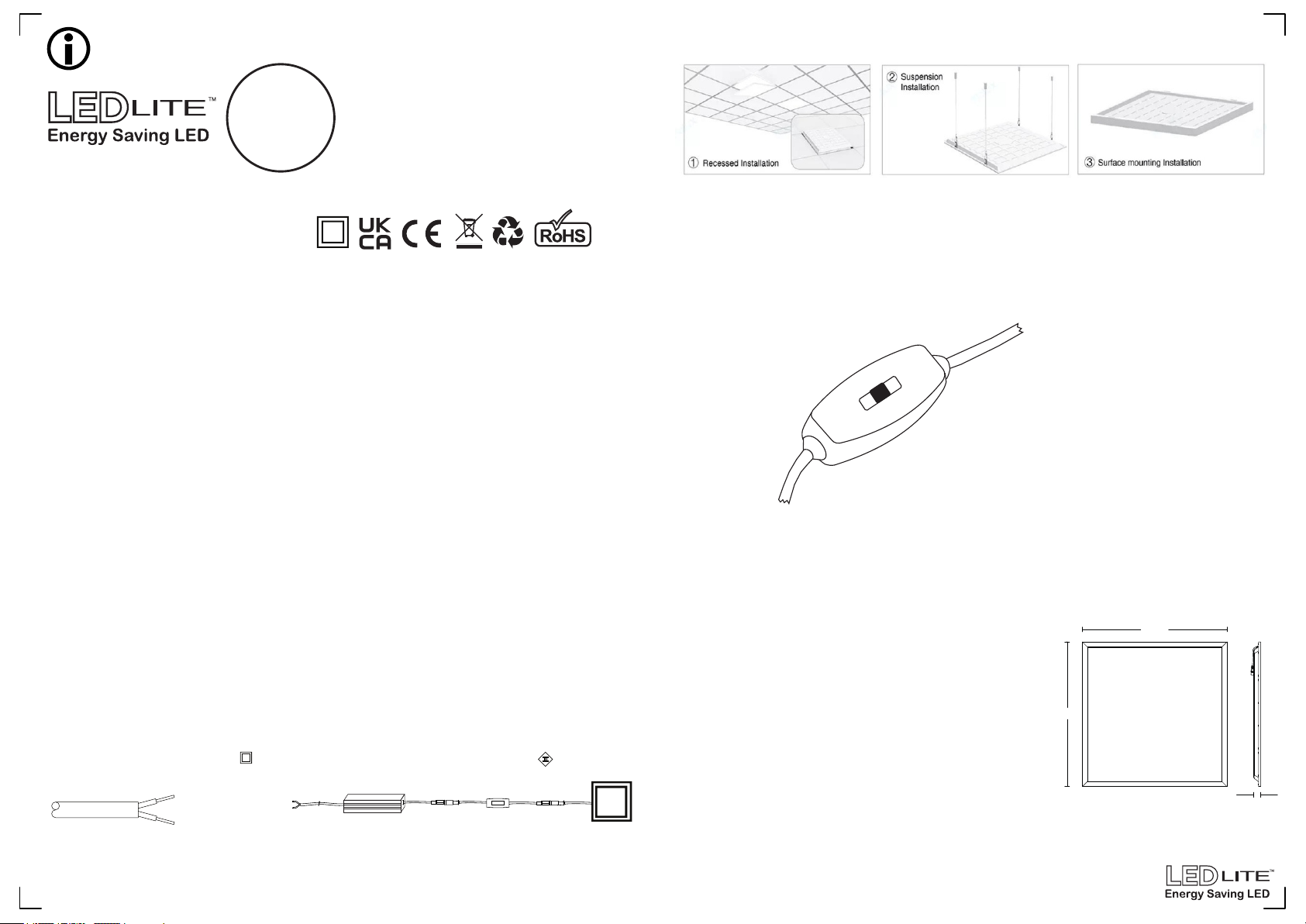

Installation methods
LTSPSF3 Surface Mounted Frame Available
220-240V 32W
Important Information
It is recommended that luminaires are installed and fitted by a qualified electrician
ensuring the installation complies to current IEE wiring regulations & local building
control. We will not accept responsibility for any claims arising from a sub-standard
installation.
Important User Advice
• Switch off mains supply before installing or servicing.
• The working ambient temperature should be -20 C ~ +45 C, if outside these ranges
life span will be affected (reduced).
• This product is designed to be used indoors only.
• Do not cover the panel with insulation.
• Do not carry out insulation tests with the product connected to the circuit.
Installation Procedure
• We recommend that you familiarise yourself with the connections and suitable
locations for the LED panel.
• The panel can be installed into suitable suspended ceilings, please ensure the
ceiling can support the weight of the panel(s) to be fitted.
• Remove the ceiling tile or tiles from the location where you wish to install the panel.
• Ensure correct wiring of mains driver (Fig.1).
• Place the LED panel in to the ceiling aperture and connect the driver low voltage
output plug to the LED panel as shown in Figure 1.a.
• Select the colour temperature on the slide switch present on the panel light cable.
• Reconnect the mains power supply and test the panel for correct operation.
Wiring instructions
220-240V/AC 50/60Hz Class II
Neutral (Blue)
Live (Brown)
Fig.1 Mains Input Cable Fig.1.a Output Cable Connection
Switch Live
0 0
800mA 30-40V/DC Class II
Panel Driver
Slide
Switch
Plug & Play
Connectors
Panel
Light
3 CCT Changeable Function
The panel light CCT adjustment is made from the switch mounted in line between the
driver & panel. To change the colour temperature move the switch to the desired CCT
position (Fig.2). Switch off power supply while changing the colour temperature In order
to avoid any damage to the panel light or the driver.
CW
NW
WW
Colour Temperature (CCT)
CW - 6000K
NW - 4000K
WW - 3000K
Fig.2 Colour Temperature Switch
Specifications
• Dimensions: 595 x 595 x 30 mm
• Wattage: 32W
• Voltage: 220-240 V/AC
• Lumen Output: 4000lm
CCT Changeable: 3000K/4000K/6000K•
TP(a) rated diffuser•
UGR<19 rating•
LED: 2835SMD (PMMA lens)•
Driver: CCT Changeable Flicker-Free (included) •
Beam Angle: 120 •
Power Factor: >0.95•
CRI (Ra): >80•
IP Rating: IP20•
Working Temp.: -20 C ~ +45 C•
Storage Temp.: -25 C ~ +65 C•
Warranty: 3 years•
0
0 0
0 0
Dimensions (mm)
595
595
30
30-07-22
