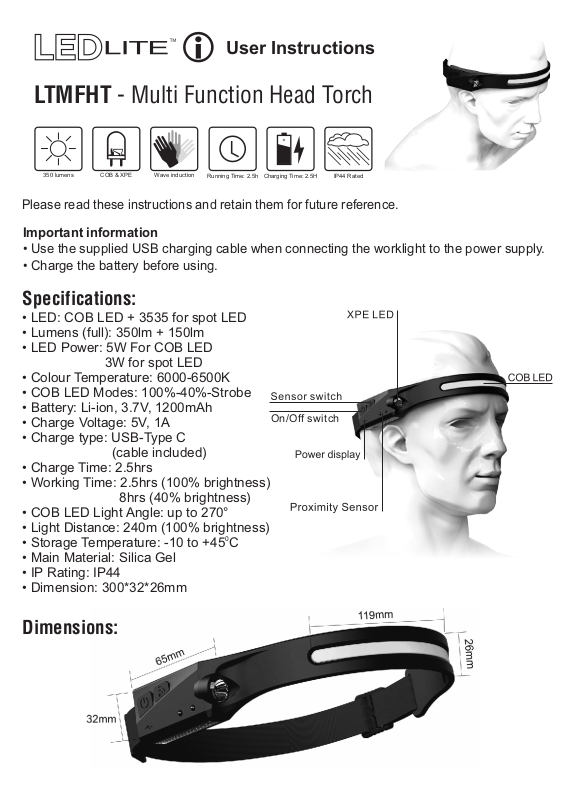

Page 1
User Instructions
LTMFHT - Multi Function Head Torch
350 lumens
COB & XPE
Wave induction
Running Time: 2.5h
Charging Time: 2.5H
IP44 Rated
Please read these instructions and retain them for future reference.
Important information
• Use the supplied USB charging cable when connecting the worklight to the power supply.
• Charge the battery before using.
Specifications:
• LED: COB LED + 3535 for spot LED
• Lumens (full): 350lm + 150lm
• LED Power: 5W For COB LED
3W for spot LED
• Colour Temperature: 6000-6500K
• COB LED Modes: 100%-40%-Strobe
• Battery: Li-ion, 3.7V, 1200mAh
• Charge Voltage: 5V, 1A
• Charge type: USB-Type C
(cable included)
• Charge Time: 2.5hrs
• Working Time: 2.5hrs (100% brightness)
8hrs (40% brightness)
• COB LED Light Angle: up to 270°
• Light Distance: 240m (100% brightness)
• Storage Temperature: -10 to +45 C
0
• Main Material: Silica Gel
• IP Rating: IP44
• Dimension: 300*32*26mm
On/Off switch
Dimensions:
Page 2
Operation:
• The LED head torch is switched on/off using the power on/off switch.
• Press the power on/off switch to change the modes of the COB LED lighting and
spot lighting.
• With the power on, press the sensor switch to change the mode (wave induction
type, wave your hand in front of the sensor).
• Long press the on/off switch at any mode to change the strobe mode.
Charging:
Follow the steps below when charging the LED head torch:
1. Ensure the head torch is off when charging.
2. Connect the charging lead to a 5V 1A supply & the port on the torch.
3. Charging to full may take up to 2.5 hours. Once fully charged disconnect from
the power supply..
Safety:
• The LED lights are very bright and can cause serious injury to the eyes.
• Do not stare directly into the LED beam.
• Do not shine the light directly into someone’s eyes.
• Do not allow children to play with this product.
• Use only the input voltage specified.
• Do not leave on a flammable surface when charging.
• This head torch is rated at IP44 (splashproof), do not immerse in water.
• Do not expose the battery to flames or excessive heat.
Cleaning and Disposal:
Do not use any cleaning chemicals, wipe with a soft damp cloth when necessary.
This product should be disposed of in accordance with local regulations.
For further information visit www.tlc-direct.co.uk
