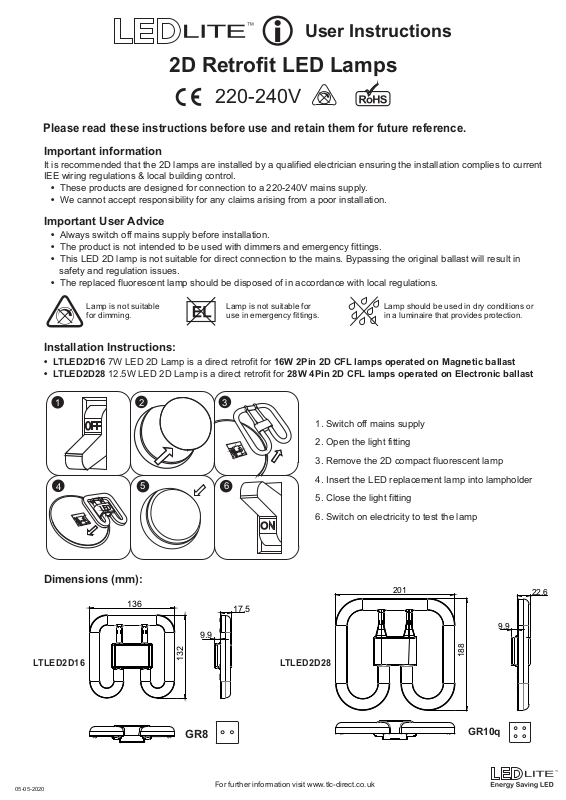

User Instructions
2D Retrofit LED Lamps
220-240V
Please read these instructions before use and retain them for future reference.
Important information
It is recommended that the 2D lamps are installed by a qualified electrician ensuring the installation complies to current
IEE wiring regulations & local building control.
• These products are designed for connection to a 220-240V mains supply.
• We cannot accept responsibility for any claims arising from a poor installation.
Important User Advice
• Always switch off mains supply before installation.
• The product is not intended to be used with dimmers and emergency fittings.
• This LED 2D lamp is not suitable for direct connection to the mains. Bypassing the original ballast will result in
safety and regulation issues.
• The replaced fluorescent lamp should be disposed of in accordance with local regulations.
Lamp is not suitable
for dimming.
Lamp is not suitable for
use in emergency fittings.
Lamp should be used in dry conditions or
in a luminaire that provides protection.
Installation Instructions:
• LTLED2D16 7W LED 2D Lamp is a direct retrofit for 16W 2Pin 2D CFL lamps operated on Magnetic ballast
LTLED2D28 12.5W LED 2D Lamp is a direct retrofit for 28W 4Pin 2D CFL lamps operated on Electronic ballast •
1 2 3
1. Switch off mains supply
2. Open the light fitting
3. Remove the 2D compact fluorescent lamp
4
5 6
4. Insert the LED replacement lamp into lampholder
5. Close the light fitting
6. Switch on electricity to test the lamp
Dimensions (mm):
201
136
17.5
22.6
9.9
LTLED2D16 LTLED2D28
132
GR8
05-05-2020
For further information visit www.tlc-direct.co.uk
9.9
188
GR10q
