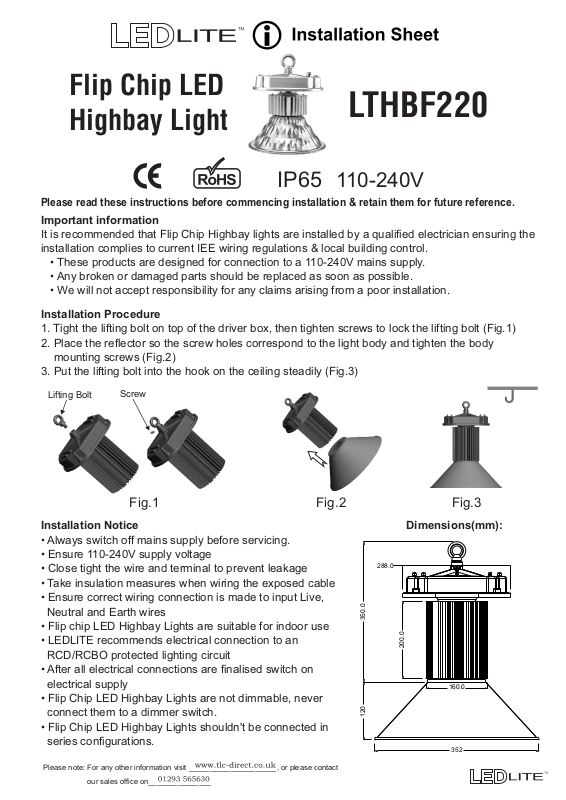

Page 1
Flip Chip LED
Highbay Light
LTHBF220
IP65
Please read these instructions before commencing installation & retain them for future reference.
Important information
It is recommended that Flip Chip Highbay lights are installed by a qualified electrician ensuring the
installation complies to current IEE wiring regulations & local building control.
• These products are designed for connection to a 110-240V mains supply.
• Any broken or damaged parts should be replaced as soon as possible.
• We will not accept responsibility for any claims arising from a poor installation.

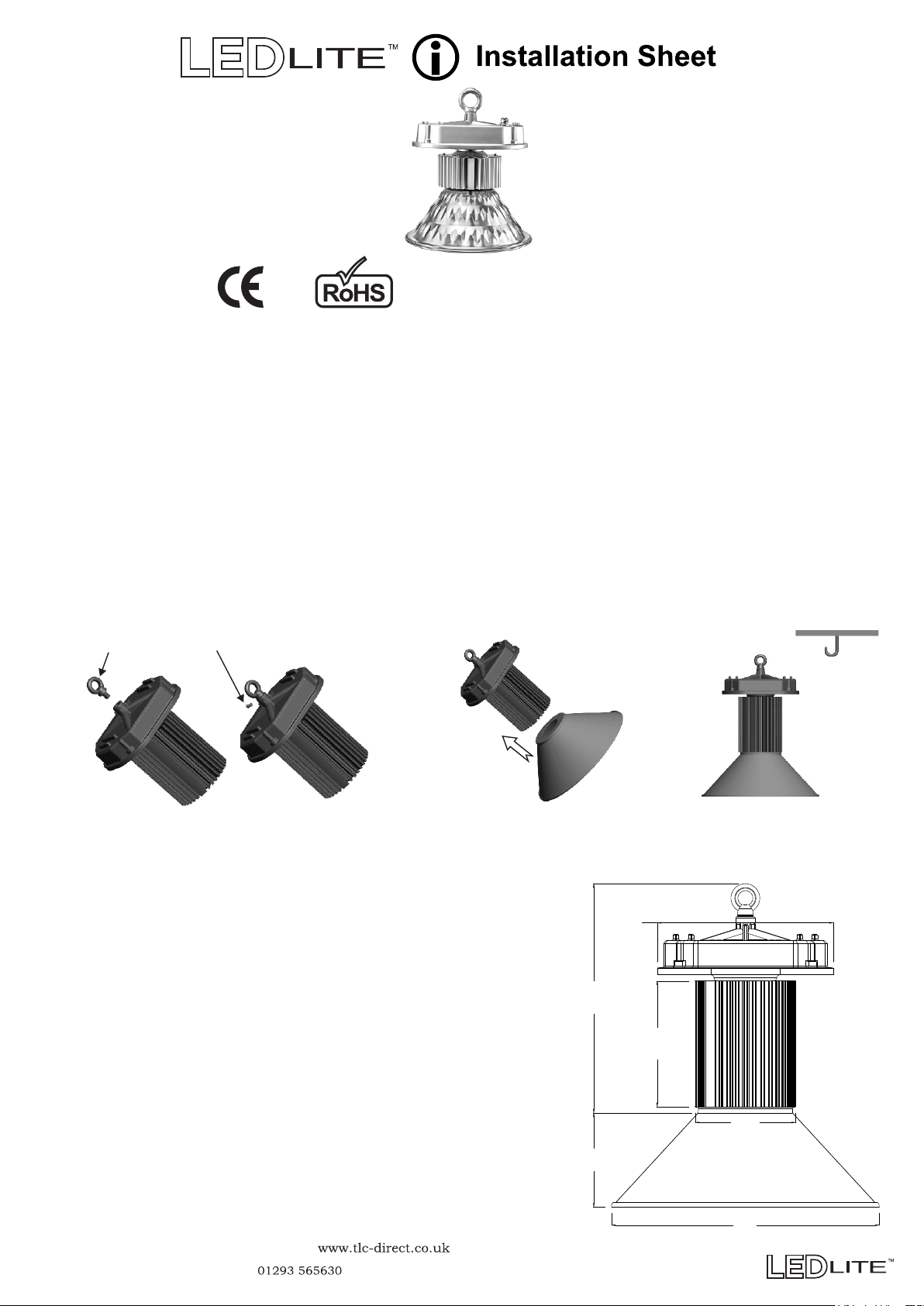

Installation Procedure
1. Tight the lifting bolt on top of the driver box, then tighten screws to lock the lifting bolt (Fig.1)
2. Place the reflector so the screw holes correspond to the light body and tighten the body
mounting screws (Fig.2)
3. Put the lifting bolt into the hook on the ceiling steadily (Fig.3)
Lifting Bolt
Screw
110-240V
Fig.1 Fig.2 Fig.3
Installation Notice
• Always switch off mains supply before servicing.
• Ensure 110-240V supply voltage
• Close tight the wire and terminal to prevent leakage
• Take insulation measures when wiring the exposed cable
• Ensure correct wiring connection is made to input Live,
Neutral and Earth wires
• Flip chip LED Highbay Lights are suitable for indoor use
• LEDLITE recommends electrical connection to an
RCD/RCBO protected lighting circuit
• After all electrical connections are finalised switch on
electrical supply
• Flip Chip LED Highbay Lights are not dimmable, never
connect them to a dimmer switch.
• Flip Chip LED Highbay Lights shouldn't be connected in
series configurations.
Please note: For any other information visit _____________________, or please contact
our sales office on_______________
Dimensions(mm):
288.0
350.0
200.0
160.0
120
352
