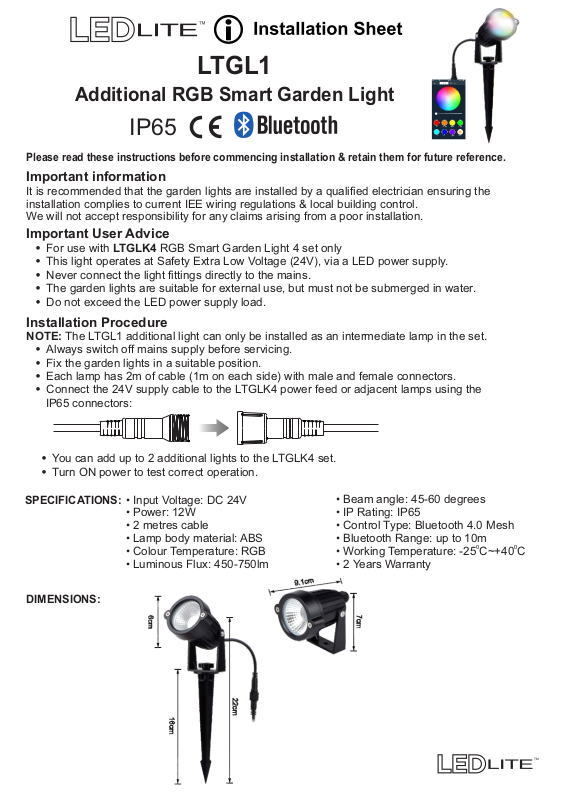

LTGL1
Additional RGB Smart Garden Light
IP65
Please read these instructions before commencing installation & retain them for future reference.
Important information
It is recommended that the garden lights are installed by a qualified electrician ensuring the
installation complies to current IEE wiring regulations & local building control.
We will not accept responsibility for any claims arising from a poor installation.
Important User Advice
• For use with LTGLK4 RGB Smart Garden Light 4 set only
• This light operates at Safety Extra Low Voltage (24V), via a LED power supply.
• Never connect the light fittings directly to the mains.
• The garden lights are suitable for external use, but must not be submerged in water.
• Do not exceed the LED power supply load.
Installation Procedure
NOTE: The LTGL1 additional light can only be installed as an intermediate lamp in the set.
• Always switch off mains supply before servicing.
• Fix the garden lights in a suitable position.
• Each lamp has 2m of cable (1m on each side) with male and female connectors.
• Connect the 24V supply cable to the LTGLK4 power feed or adjacent lamps using the
IP65 connectors:
• You can add up to 2 additional lights to the LTGLK4 set.
• Turn ON power to test correct operation.
SPECIFICATIONS:
DIMENSIONS:
• Input Voltage: DC 24V
• Power: 12W
• 2 metres cable
• Lamp body material: ABS
• Colour Temperature: RGB
• Luminous Flux: 450-750lm
• Beam angle: 45-60 degrees
• IP Rating: IP65
• Control Type: Bluetooth 4.0 Mesh
• Bluetooth Range: up to 10m
• Working Temperature: -25 C~+40 C
• 2 Years Warranty
