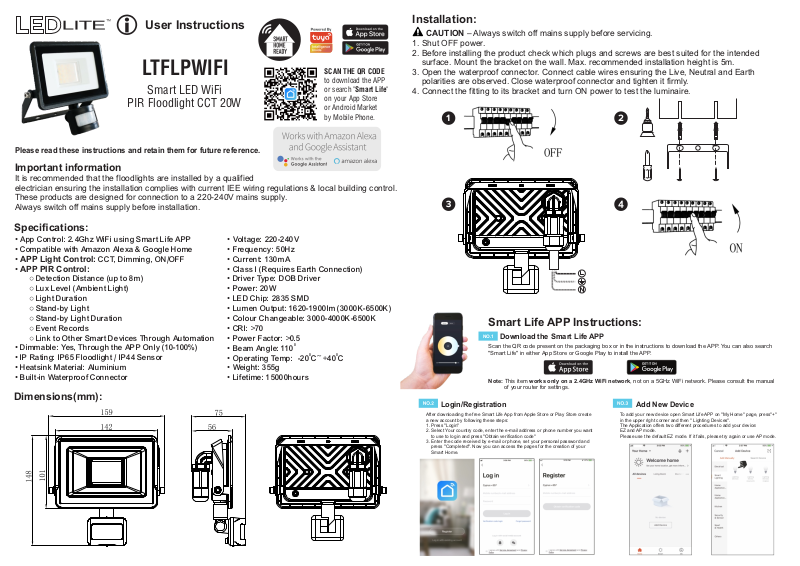

Page 1
User Instructions
LTFLPWIFI
Smart LED WiFi
PIR Floodlight CCT 20W
Please read these instructions and retain them for future reference.
Important information
It is recommended that the floodlights are installed by a qualified
electrician ensuring the installation complies with current IEE wiring regulations & local building control.
These products are designed for connection to a 220-240V mains supply.
Always switch off mains supply before installation.
Specifications:
• App Control: 2.4Ghz WiFi using Smart Life APP
• Compatible with Amazon Alexa & Google Home
• APP Light Control: CCT, Dimming, ON/OFF
• APP PIR Control:
○ Detection Distance (up to 8m)
○ Lux Level (Ambient Light)
○ Light Duration
○ Stand-by Light
○ Stand-by Light Duration
○ Event Records
○ Link to Other Smart Devices Through Automation
• Dimmable: Yes, Through the APP Only (10-100%)
• IP Rating: IP65 Floodlight / IP44 Sensor
• Heatsink Material: Aluminium
• Built-in Waterproof Connector
Dimensions(mm):
• Voltage: 220-240V
• Frequency: 50Hz
• Current: 130mA
• Class I (Requires Earth Connection)
• Driver Type: DOB Driver
• Power: 20W
• LED Chip: 2835 SMD
• Lumen Output: 1620-1900lm (3000K-6500K)
• Colour Changeable: 3000-4000K-6500K
• CRI: >70
• Power Factor: >0.5
• Beam Angle: 110
0
• Operating Temp: -20 C~ +40 C
• Weight: 355g
• Lifetime: 15000hours
SCAN THE QR CODE
to download the APP
or search "Smart Life"
on your App Store
or Android Market
by Mobile Phone.
0 0
Installation:
CAUTION – Always switch off mains supply before servicing.
1. Shut OFF power.
2. Before installing the product check which plugs and screws are best suited for the intended
surface. Mount the bracket on the wall. Max. recommended installation height is 5m.
3. Open the waterproof connector. Connect cable wires ensuring the Live, Neutral and Earth
polarities are observed. Close waterproof connector and tighten it firmly.
4. Connect the fitting to its bracket and turn ON power to test the luminaire.
Smart Life APP Instructions:
NO.1
Download the Smart Life APP
Scan the QR code present on the packaging box or in the instructions to download the APP. You can also search
"Smart Life" in either App Store or Google Play to install the APP.
Note: This item works only on a 2.4GHz WiFi network, not on a 5GHz WiFi network. Please consult the manual
of your router for settings.
Login/Registration Add New Device
After downloading the free Smart Life App from Apple Store or Play Store create
a new account by following these steps:
1. Press "Login"
2. Select Your country code, enter the e-mail address or phone number you want
to use to login and press "Obtain verification code"
3. Enter the code received by e-mail or phone, set your personal password and
press "Completed". Now you can access the pages for the creation of your
Smart Home.
To add your new device open Smart Life APP on "My Home" page, press"+"
in the upper right corner and then " Lighting Devices".
The Application offers two different procedures to add your device:
EZ and AP mode.
Please use the default EZ mode. If it fails, please try again or use AP mode.
Page 2
Add New Device - EZ Procedure
Make sure your new device is in EZ mode, otherwise reset it by switching on
light and, after 10 seconds, switching it off then on 3 times. The light will start
blinking quickly (about 3 times per second).
After resetting the device:
1. Press "Confirm light blinks rapidly" (Pic.1). A new page will open (Pic.2).
2. Enter the password of the WiFi network you are connected to and press
"OK" to connect. The WiFi network supported is 2.4Ghz (disable the 5Ghz
WiFi network).
LTTFLPWIFI - Smart LED WiFi PIR Floodlight CCT 20W Instructions
Add New Device - EZ Procedure
When connecting the device, you can see the connection status as shown in
Picture 3. Once connected, a page will open as shown in Picture 4.
Select the location of the device in your smart home and press "Completed"
to access the control page of your new device.
Now your new light is ready to be controlled via the APP, even remotely.
PIR Sensor Control PIR Sensor Stand-By Light
On the Sensor control page you can do the following:
• Turn the sensor on or off.
• Change the detection distance (Motion Distance).
• Change Lux level by moving the " Ambient Light Sensor" slider.
• Change the Light duration after the sensor detects movement.
• Turn on or off the stand-by light (Slight Bright).
When the "Slight Bright" light is activated, the
floodlight will enter in stand-by light mode after
the completion of the full light.
Here you can change the followings:
• Turn the stand-by light on or off.
• Change stand-by light brightness
• Change stand-by light duration
Connection Failed
If the Application shows the page as in Picture 5, it means that the light connection
has failed.
By pressing "Got it" you can try to connect it again in EZ mode or select the AP Mode
by pressing on the top right as shown in Picture 6.
Device Control
After connecting the device, the control page
will be opened automatically.
Here you can do the following:
• Turn the light on or off.
• Change the colour of the white, from warm white
to cool white.
• Dim the light.
Add New Device - AP Procedure
To connect the device in AP mode switch the light on and, after 10 seconds, switch it
off then on 3 times until it flashes quickly (about 3 times per second). Continue
switching the light off then on 3 times and it will start flashing slowly (about once every
3 seconds). At this point press "Confirm light slowly blink" (Pic.7), enter the password
of the WiFi network you are connected to, press "OK" (Pic.8) and you will open the
page as shown in Picture 9. By pressing "Go connect" your mobile phone will take
you to the WiFi Setting page. Select the "Smartlife-XXX" network, go back to the
Smart Life APP and your new device will connect correctly.
Device Menu
By pressing on the menu symbol at the top right
you can:
• Change the name of your device.
• Select the location of the device in your home.
• Check how to connect it to your voice control
device (Google Home or Amazon Alexa).
• Share control of the device with other family
members or friends.
• Create a group of multiple devices so that you
can control them together.
• Update the device firmware.
• Remove the device.
NO.12
Linking Smart Devices
You can link other Tuya WiFi Smart Devices with the PIR Sensor creating different
scenarios with lights interactions.
By pressing the "Linked Devices" at the bottom left corner of the page and then "+"
at the bottom right on the next page, you can add tasks to turn ON or OFF additional
devices based on the condition of the PIR sensor.
You can change the task working time by pressing "Effective Period" at the bottom
of the page.
NO.14
Creation of Scenarios and Automations
You can create an infinite number of Scenarios and Automations enabling other devices
to interact with each other.
By pressing "Smart" at the bottom centre of the home page and then "+" in the upper
right corner, you can choose whether to add a new scenario or a new automation.
• A Scenario is a set of commands assigned to the various devices that will be
activated simultaneously whenever you click on the created scenario or in the days
and hours programmed.
• An Automation is the execution of a specific command given to a device when a
specific condition has been activated.
NO.16
Sharing Devices
You can share your devices with your family and friends who downloaded the Smart Live APP and have a registered account. The people you share your devices with
will be able to control them, but they will not be able to add new devices to your home or delete any devices shared with them.
You have two different ways to share your devices:
A. Enter the page of your profile, press "Home Management" and "Share Devices" to enter the page where you can select the devices you want to share.
Enter the e-mail address used in the Smart Life APP by the user you want to share the devices with.
If you want to delete sharing with a user, place your finger on the user's name, drag to the left and then press "Delete".
B. Enter the menu of the device you want to add, press "Shared Devices" and enter the e-mai address used in the Smart Life APP by the user you want to share the devices with.
If you want to delete sharing with a user, place your finger on the user's name, drag to the left and then press "Delete".
NO.13
Event records
Press the "Events Records" at the bottom right of the page to access the sensor
records showing when someone triggers the PIR sensor or when they leave the
area.
NO.15
Profile
"Me" is the page where you can change your
settings:
1. Your Profile.
2. Home Management.
3. Message Centre.
4. Additional services, such as the list of devices
that can be associated with the application
(Google Home, Amazon Alexa) in order to
control your home via voice commands.
5. Settings to activate push notifications and
other features.
