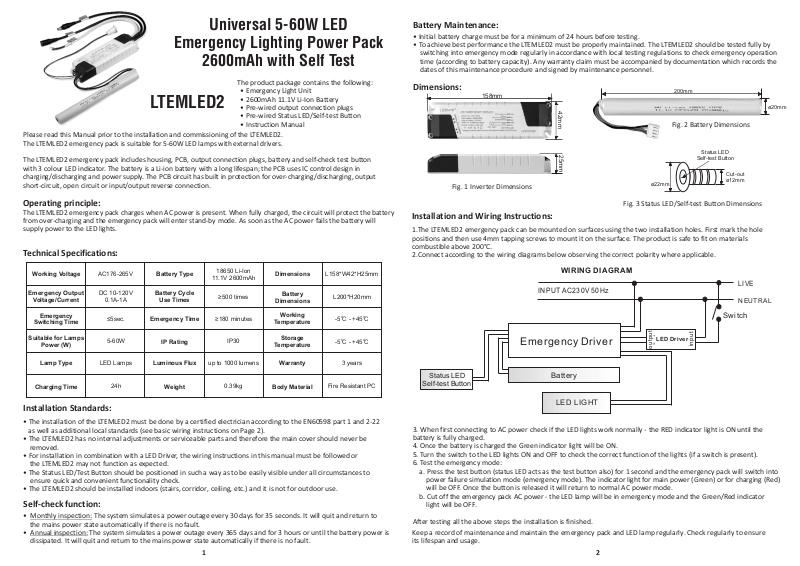

Page 1

Universal 5-60W LED

Emergency Lighting Power Pack

2600mAh with Self Test

The product package contains the following:

• Emergency Light Unit

LTEMLED2

Please read this Manual prior to the installation and commissioning of the LTEMLED2. The LTEMLED2 emergency pack is suitable for 5-60W LED lamps with external drivers.

The LTEMLED2 emergency pack includes housing, PCB, output connection plugs, battery and self-check test button with 3 colour LED indicator. The battery is a Li-ion battery with a long lifespan; the PCB uses IC control design in charging/discharging and power supply. The PCB circuit has built in protection for over-charging/discharging, output short-circuit, open circuit or input/output reverse connection.

• 2600mAh 11.1V Li-Ion Battery

• Pre-wired output connection plugs

• Pre-wired Status LED/Self-test Button

• Instruction Manual

Battery Maintenance:

• Initial battery charge must be for a minimum of 24 hours before testing.

• To achieve best performance the LTEMLED2 must be properly maintained. The LTEMLED2 should be tested fully by switching into emergency mode regularly in accordance with local testing regulations to check emergency operation time (according to battery capacity). Any warranty claim must be accompanied by documentation which records the dates of this maintenance procedure and signed by maintenance personnel.

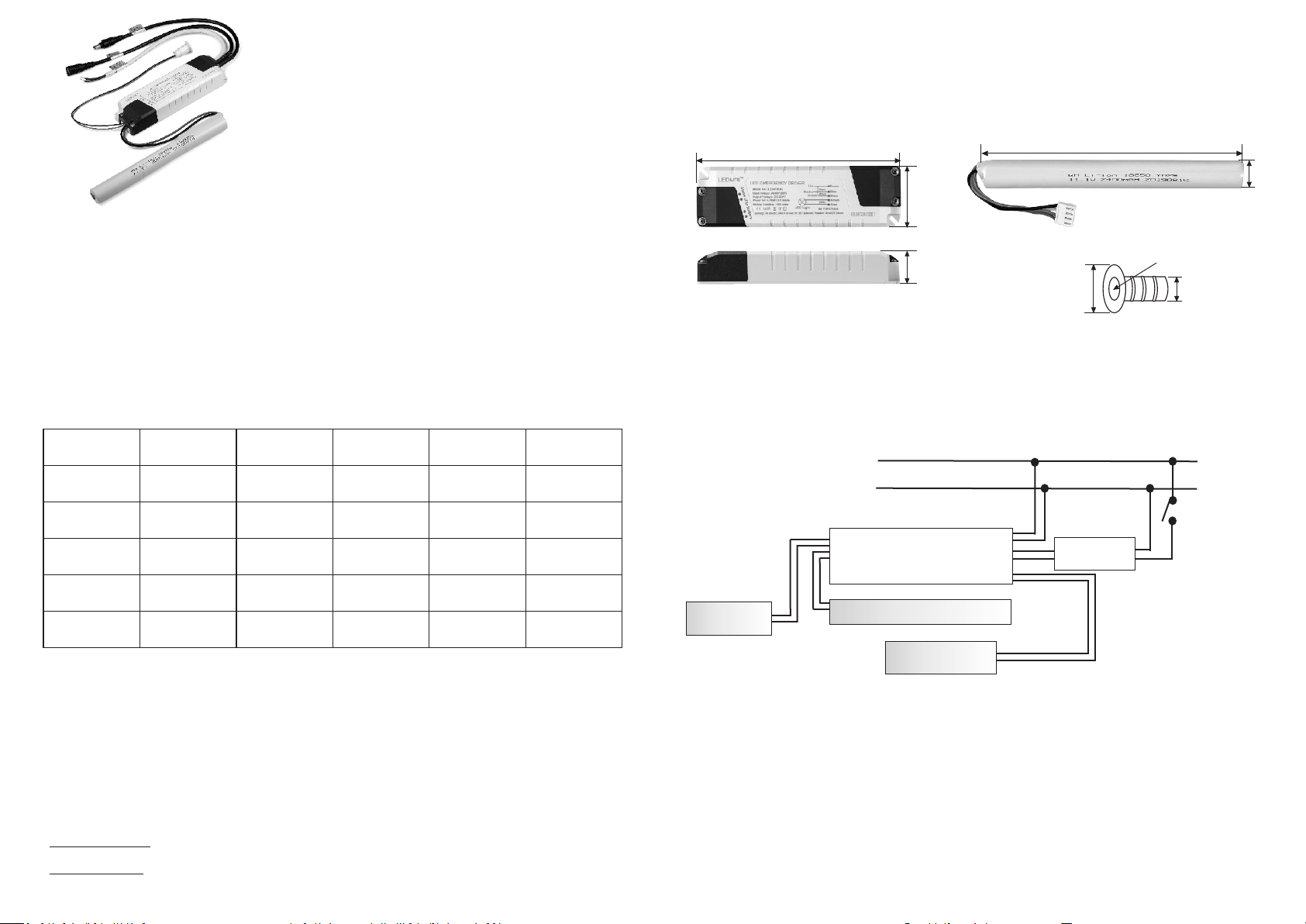

Dimensions:

158mm

42mm

25mm

Fig. 1 Inverter Dimensions

200mm

Fig. 2 Battery Dimensions

Self-test Button

ø22mm

Status LED

Cut-out ø12mm

ø20mm

Operating principle:

The LTEMLED2 emergency pack charges when AC power is present. When fully charged, the circuit will protect the battery from over-charging and the emergency pack will enter stand-by mode. As soon as the AC power fails the battery will supply power to the LED lights.

Technical Specifications:

Working Voltage

Emergency Output

Voltage/Current

Emergency

Switching Time

Suitable for Lamps

Power (W)

Lamp Type

Charging Time

AC176-265V

DC 10-120V

0.1A-1A

≤5sec.

5-60W

LED Lamps

24h

Battery Type

Battery Cycle

Use Times

Emergency Time

IP Rating

Luminous Flux

Weight

18650 Li-Ion

11.1V 2600mAh

≥500 times

≥180 minutes

IP30

up to 1000 lumens

0.39kg

Dimensions

Battery

Dimensions

Working

Temperature

Storage

Temperature

Warranty

Body Material

L158*W42*H25mm

L200*H20mm

0 0

-5 C - +45 C

0 0

-5 C - +45 C

3 years

Fire Resistant PC

Installation Standards:

• The installation of the LTEMLED2 must be done by a certified electrician according to the EN60598 part 1 and 2-22 as well as additional local standards (see basic wiring instructions on Page 2).

• The LTEMLED2 has no internal adjustments or serviceable parts and therefore the main cover should never be removed.

• For installation in combination with a LED Driver, the wiring instructions in this manual must be followed or the LTEMLED2 may not function as expected.

• The Status LED/Test Button should be positioned in such a way as to be easily visible under all circumstances to ensure quick and convenient functionality check.

• The LTEMLED2 should be installed indoors (stairs, corridor, ceiling, etc.) and it is not for outdoor use.

Self-check function:

• Monthly inspection: The system simulates a power outage every 30 days for 35 seconds. It will quit and return to the mains power state automatically if there is no fault.

• Annual inspection: The system simulates a power outage every 365 days and for 3 hours or until the battery power is dissipated. It will quit and return to the mains power state automatically if there is no fault.

Fig. 3 Status LED/Self-test Button Dimensions

Installation and Wiring Instructions:

1. The LTEMLED2 emergency pack can be mounted on surfaces using the two installation holes. First mark the hole positions and then use 4mm tapping screws to mount it on the surface. The product is safe to fit on materials combustible above 200°C.

2.C onnect according to the wiring diagrams below observing the correct polarity where applicable.

WIRING DIAGRAM

INPUT AC230V 50Hz

LED Dri ver

outpu t

input

Status LED

Self-test Button

Emergency Driver

Battery

LED LIGHT

3. When first connecting to AC power check if the LED lights work normally - the RED indicator light is ON until the battery is fully charged.

4. Once the battery is charged the Green indicator light will be ON.

5. Turn the switch to the LED lights ON and OFF to check the correct function of the lights (if a switch is present).

6. Test the emergency mode: a. Press the test button (status LED acts as the test button also) for 1 second and the emergency pack will switch into power failure simulation mode (emergency mode). The indicator light for main power (Green) or for charging (Red) will be OFF. Once the button is released it will return to normal AC power mode. b. Cut off the emergency pack AC power - the LED lamp will be in emergency mode and the Green/Red indicator light will be OFF.

After testing all the above steps the installation is finished.

Keep a record of maintenance and maintain the emergency pack and LED lamp regularly. Check regularly to ensure its lifespan and usage.

LIVE

NEUTR AL

Switch

Page 2

Indicator Light and Test Button Functions:

RED

Indicator Light Function

Test Button Function

Self-Test Function

Fault Detection

If the indicator lights are not working as expected or if the LED light does not work after turning the switch ON, the AC power should be cut off immediately and the emergency driver should be checked.

GREEN

RED & GREEN

Manual Test

Manual Monthly

Inspection

Manual Annual

Inspection

Emergency Shutdown

Fault Removal

Monthly Inspection

Annual Inspection

Battery

Disconnected

Short-circuit of charging circuit

Light Source

Disconnected

Light Source Short-circuit

Insufficient

Discharge Time

When battery is charging: LED ON. Full charged or emergency status: LED OFF.

Main power: LED ON; emergency status: LED OFF. Monthly inspection status: fast flashing. Annual inspection status: slowly flashing.

Battery fault: fast flashing. Light source fault: slowly flashing. Self-test status if battery not charged: long bright flashing.

Press the button for 1 second and release. The buzzer will ring simulating emergency status. Long press the button for 3-5 seconds. At the short buzzer ring release the button to start monthly inspection; press once again to quit monthly inspection.

Long press the button for 5-7 seconds. At the long buzzer ring release the button to start annual inspection; press once again to quit annual inspection.

In emergency state long press for more than 7 seconds or quickly press 2 times for emergency shutdown.

After a fault is removed press the button once and the system enters normal state.

Every 30 days after installation the system will automatically switch to the monthly inspection state. The duration is 35 seconds. If there is no fault it will automatically exit and return to AC mains state.

Every 365 days after installation the system will automatically switch to the annual inspection state. The duration is 3 hours . If there is no fault it will automatically exit and return to AC mains state.

1. Battery open-circuit in Mains power status: Red and Green light fast flashing, buzzer does not report failure. Will be auto restored after troubleshooting.

2. Battery open-circuit in Self-test status: Red and Green light fast flashing, buzzer reported fault. Press test button to recover after troubleshooting.

1. Short-circuit in Mains power status: Red and Green light fast flashing, buzzer does not report failure. Will be auto restored after troubleshooting.

2. Short-circuit in Self-test status: Red and Green light fast flashing, buzzer reported fault. Press test button to recover after troubleshooting.

1. Light source open-circuit in Mains power status: no failure reported.

2. Light source open-circuit in Self-test status: Red and Green light slowly flashing, buzzer reported fault. Press test button to recover after troubleshooting.

1. Light source short-circuit in Mains power status: no failure reported.

2. Light source short-circuit in Self-test status: Red and Green light slowly flashing, buzzer reported fault. Press test button to recover after troubleshooting.

1. Monthly inspection status discharge time less than 35 seconds: Red and Green light long bright flashing, buzzer reported fault.

2. The discharge time is less than 3 hours in the annual inspection status: Red and Green light long bright flashing, buzzer reported fault.

Troubleshooting:

Most failures experienced are not due to the LTEMLED2 itself and are caused by improper installation or connection of the unit. Please check that:

• Wires are properly clamped into terminals.

• Installation is done according to the wiring diagram.

• Proper polarities are observed.

• Proper LED load maximums are observed.

Tel:

Lamp Type - LED

Year 4 Year 5

Date Signed Date Signed Date

ROUTINE TEST RECORD

Year 1 Year 2 Year 3

In case of electromagnetic interference:

• Do not cross-wire the power input line and the light connection output line.

• When parallel wiring, a distance between 5 and 10 cm should be observed.

• Shorten the distance between the power supply input line and the device.

• When running in parallel, the connection between the power input line and the lamp should be as short as possible.

3 4

Full Recharge Time 24 Hours Duration 3 Hours

Luminaire Ref/Location In Case of difﬁculty, contact the Installation Engineer:

Functional

Monthly Test Signed Date Signed Date Signed

Functional

Three Hour
