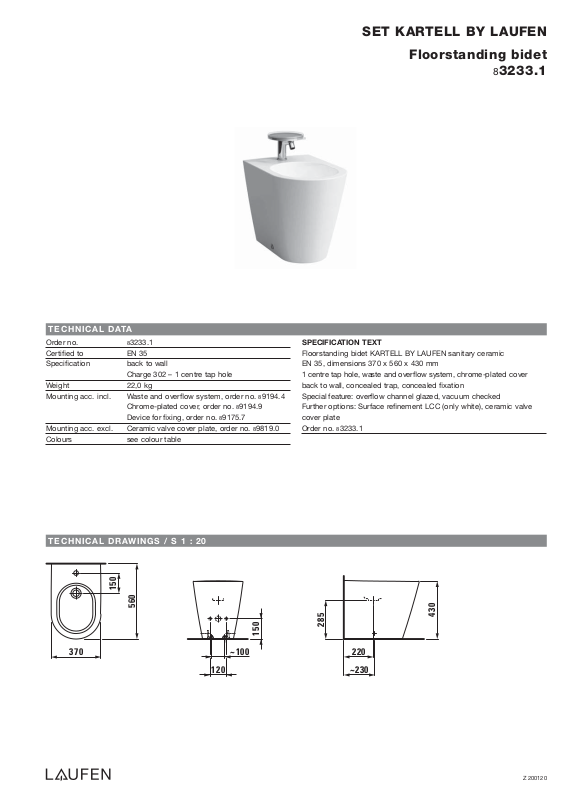

SET KARTELL BY LAUFEN

Floorstanding bidet

83233.1

TECHNICAL DATA

Order no. 83233.1
Certified to EN 35
Specification back to wall
Charge 302 – 1 centre tap hole
Weight 22,0 kg
Mounting acc. incl. Waste and overflow system, order no.
Chrome-plated cover, order no.
Device for fixing, order no. 89175.7
Mounting acc. excl. Ceramic valve cover plate, order no. 89819.0
Colours see colour table

89194.4

89194.9

TECHNICAL DRAWINGS / S 1 : 20

150

SPECIFICATION TEXT
Floorstanding bidet KARTELL BY LAUFEN sanitary ceramic
EN 35, dimensions 370 x 560 x 430 mm
1 centre tap hole, waste and overflow system, chrome-plated cover
back to wall, concealed trap, concealed fixation
Special feature: overflow channel glazed, vacuum checked
Further options: Surface refinement LCC (only white), ceramic valve
cover plate
Order no. 83233.1

370

560

120

~100

430

285

150

220

~230

Z 200120
