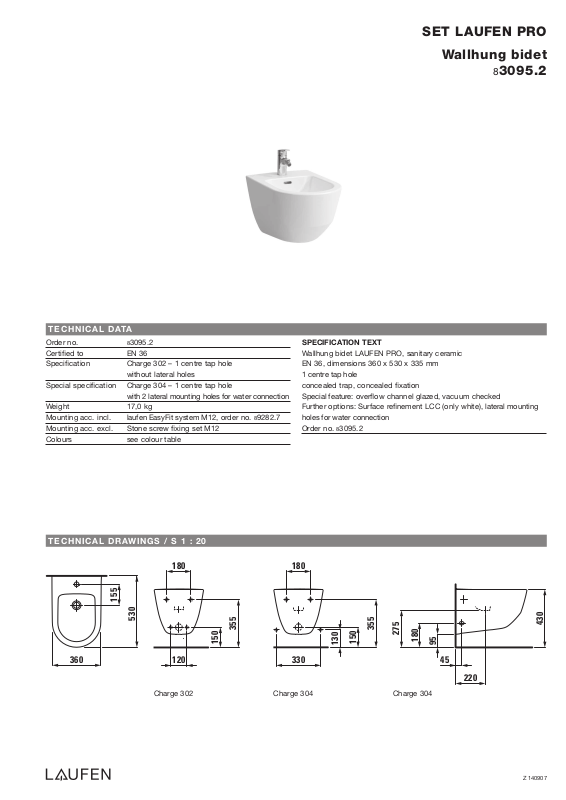

Laufen 8.3095.2 Datasheet

SET LAUFEN PRO

Wallhung bidet

83095.2

TECHNICAL DATA

Order no. 83095.2
Certified to EN 36
Specification Charge 302 – 1 centre tap hole

without lateral holes

Special specification Charge 304 – 1 centre tap hole

with 2 lateral mounting holes for water connection
Weight 17,0 kg
Mounting acc. incl. laufen EasyFit system M12, order no. 89282.7
Mounting acc. excl. Stone screw fixing set M12
Colours see colour table

TECHNICAL DRAWINGS / S 1 : 20

180

155

SPECIFICATION TEXT

Wallhung bidet LAUFEN PRO, sanitary ceramic
EN 36, dimensions 360 x 530 x 335 mm
1 centre tap hole
concealed trap, concealed fixation
Special feature: overflow channel glazed, vacuum checked
Further options: Surface refinement LCC (only white), lateral mounting
holes for water connection
Order no. 83095.2

180

360

530

120

150

355

430

330

130

150

355

275

180

95

45

220

Charge 304 Charge 304Charge 302

Z 140907
