Lanner HLM-1001, HLM-1001B, HLM-1001A User Manual

HLM-1001
User Manual

Version: 1.0

Date of Release: 2018-09-26

Telecom Datacenter Appliances

HLM-1001 User Manual

The icons are used in the manual to serve as an indication of interest topics or important messages. Below
is a description of these icons:

Note: This check mark indicates that there is a note of interest and is something that you should
pay special attention to while using the product.

Warning: This exclamation point indicates that there is a caution or warning and it is something
that could damage your property or product.

The listed websites are links to the on-line product information and technical support.

Resources

URL

Lanner

http://www.lannerinc.com

Product Resource

http://www.lannerinc.com/download-center

RMA

http://eRMA.lannerinc.com

This document is copyrighted © 2017. All rights are reserved. The original manufacturer reserves the right
to make improvements to the products described in this manual at any time without notice.
No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means
without the prior written permission of the original manufacturer. Information provided in this manual is
intended to be accurate and reliable. However, the original manufacturer assumes no responsibility for its
use, nor for any infringements upon the rights of third parties that may result from such use.

Intel® , Intel logo and Intel® Xeon® are trademarks or registered trademarks of Intel Corporation or its
subsidiaries in the U.S. and/or other countries.
Microsoft Windows and MS-DOS are registered trademarks of Microsoft Corp.
All other product names or trademarks are properties of their respective owners.

This product has passed the CE test for environmental specifications. Test conditions for passing included
the equipment being operated within an industrial enclosure. In order to protect the product from being
damaged by ESD (Electrostatic Discharge) and EMI leakage, we strongly recommend the use of
CE-compliant industrial enclosure products.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the

instruction manual, may cause harmful interference to radio communications. The operation of this
equipment in a residential area is likely to cause harmful interference in which case the user will be required
to correct the interference at his own expense.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. The operation of this
equipment in a residential area is likely to cause harmful interference in which case users will be required to
correct the interference at their own expense.

Follow these guidelines to ensure general safety:

Keep the chassis area clear and dust-free during and after installation.
Do not wear loose clothing or jewelry that could get caught in the chassis. Fasten your tie or scarf and

roll up your sleeves.

Wear safety glasses if you are working under any conditions that might be hazardous to your eyes.
Do not perform any action that creates a potential hazard to people or makes the equipment unsafe.
Disconnect all power by turning off the power and unplugging the power cord before installing or

removing a chassis or working near power supplies

Do not work alone if potentially hazardous conditions exist.
Never assume that power is disconnected from a circuit; always check the circuit.

Risk of Explosion if Battery is replaced by an incorrect type. Dispose of used batteries according to the

instructions.

Installation only by a trained electrician or only by an electrically trained person who knows all English

Installation and Device Specifications which are to be applied.

Do not carry the handle of power supplies when moving to another place.
The machine can only be used in a fixed location such as labs or computer facilities.

Electrical equipment generates heat. Ambient air temperature may not be adequate to cool equipment

to acceptable operating temperatures without adequate circulation. Be sure that the room in which you
choose to operate your system has adequate air circulation.

Ensure that the chassis cover is secure. The chassis design allows cooling air to circulate effectively. An

open chassis permits air leaks, which may interrupt and redirect the flow of cooling air from internal
components.

Electrostatic discharge (ESD) can damage equipment and impair electrical circuitry. ESD damage occurs

when electronic components are improperly handled and can result in complete or intermittent failures.
Be sure to follow ESD-prevention procedures when removing and replacing components to avoid these
problems.

Wear an ESD-preventive wrist strap, ensuring that it makes good skin contact. If no wrist strap is

available, ground yourself by touching the metal part of the chassis.

Periodically check the resistance value of the antistatic strap, which should be between 1 and 10

megohms (Mohms).

HLM-1001 User Manual

Suivez ces consignes pour assurer la sécurité générale :

Laissez la zone du châssis propre et sans poussière pendant et après l’installation.
Ne portez pas de vêtements amples ou de bijoux qui pourraient être pris dans le châssis. Attachez votre

cravate ou écharpe et remontez vos manches.

Portez des lunettes de sécurité pour protéger vos yeux.
N’effectuez aucune action qui pourrait créer un danger pour d’autres ou rendre l’équipement

dangereux.

Coupez complètement l’alimentation en éteignant l’alimentation et en débranchant le cordon

d’alimentation avant d’installer ou de retirer un châssis ou de travailler à proximité de sources
d’alimentation.

Ne travaillez pas seul si des conditions dangereuses sont présentes.
Ne considérez jamais que l’alimentation est coupée d’un circuit, vérifiez toujours le circuit. Cet appareil

génère, utilise et émet une énergie radiofréquence et, s’il n’est pas installé et utilisé conformément aux
instructions des fournisseurs de composants sans fil, il risque de provoquer des interférences dans les
communications radio.

Risque d’explosion si la pile est remplacée par une autre d’un mauvais type.
Jetez les piles usagées conformément aux instructions.
L’installation doit être effectuée par un électricien formé ou une personne formée à l’électricité

connaissant toutes les spécifications d’installation et d’appareil du produit.

Ne transportez pas l’unité en la tenant par le câble d’alimentation lorsque vous déplacez l’appareil.
La machine ne peut être utilisée qu’à un lieu fixe comme en laboratoire, salle d’ordinateurs ou salle de

classe.

L’équipement électrique génère de la chaleur. La température ambiante peut ne pas être adéquate pour
refroidir l’équipement à une température de fonctionnement acceptable sans circulation adaptée. Vérifiez
que votre site propose une circulation d’air adéquate.

Vérifiez que le couvercle du châssis est bien fixé. La conception du châssis permet à l’air de

refroidissement de bien circuler. Un châssis ouvert laisse l’air s’échapper, ce qui peut interrompre et
rediriger le flux d’air frais destiné aux composants internes.

Les décharges électrostatiques (ESD) peuvent endommager l’équipement et gêner les circuits

électriques. Des dégâts d’ESD surviennent lorsque des composants électroniques sont mal manipulés et

peuvent causer des pannes totales ou intermittentes. Suivez les procédures de prévention d’ESD lors du
retrait et du remplacement de composants.

Portez un bracelet anti-ESD et veillez à ce qu’il soit bien au contact de la peau. Si aucun bracelet n’est

disponible, reliez votre corps à la terre en touchant la partie métallique du châssis.

Vérifiez régulièrement la valeur de résistance du bracelet antistatique, qui doit être comprise entre 1 et

10 mégohms (Mohms).

Avant d’allumer l’appareil, reliez le câble de mise à la terre de l’équipement à la terre.
Une bonne mise à la terre (connexion à la terre) est très importante pour protéger l’équipement contre

les effets néfastes du bruit externe et réduire les risques d’électrocution en cas de foudre.

Pour désinstaller l’équipement, débranchez le câble de mise à la terre après avoir éteint l’appareil.
Un câble de mise à la terre est requis et la zone reliant les sections du conducteur doit faire plus de 4

mm2 ou 10 AWG.

Version

Date

Descriptions

1.0

2018/09/26

Official Release

HLM-1001 User Manual

Ordering Information ................................................................................................................... 7

System Specifications ................................................................................................................... 7

I/O Overview................................................................................................................................. 8

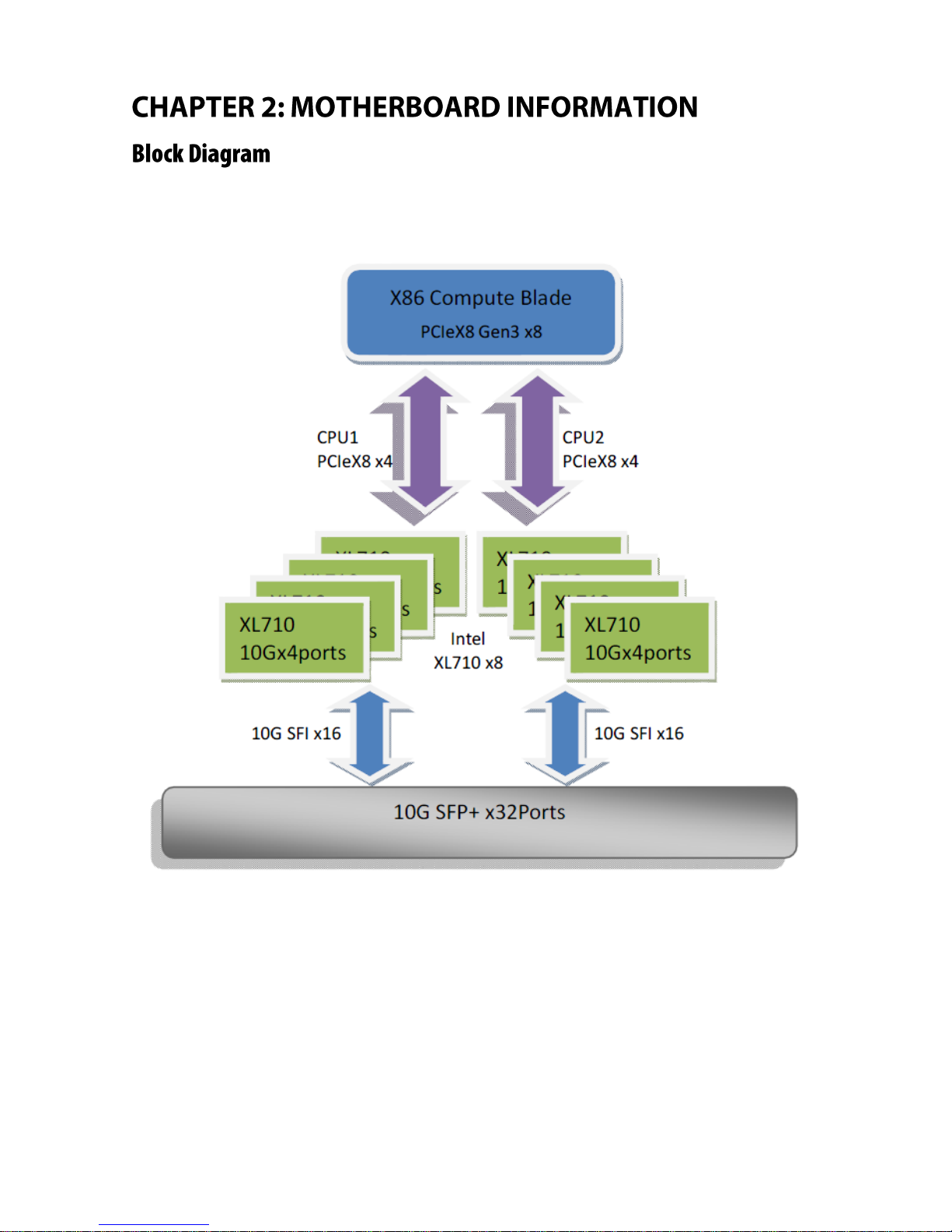

Block Diagram ............................................................................................................................... 9

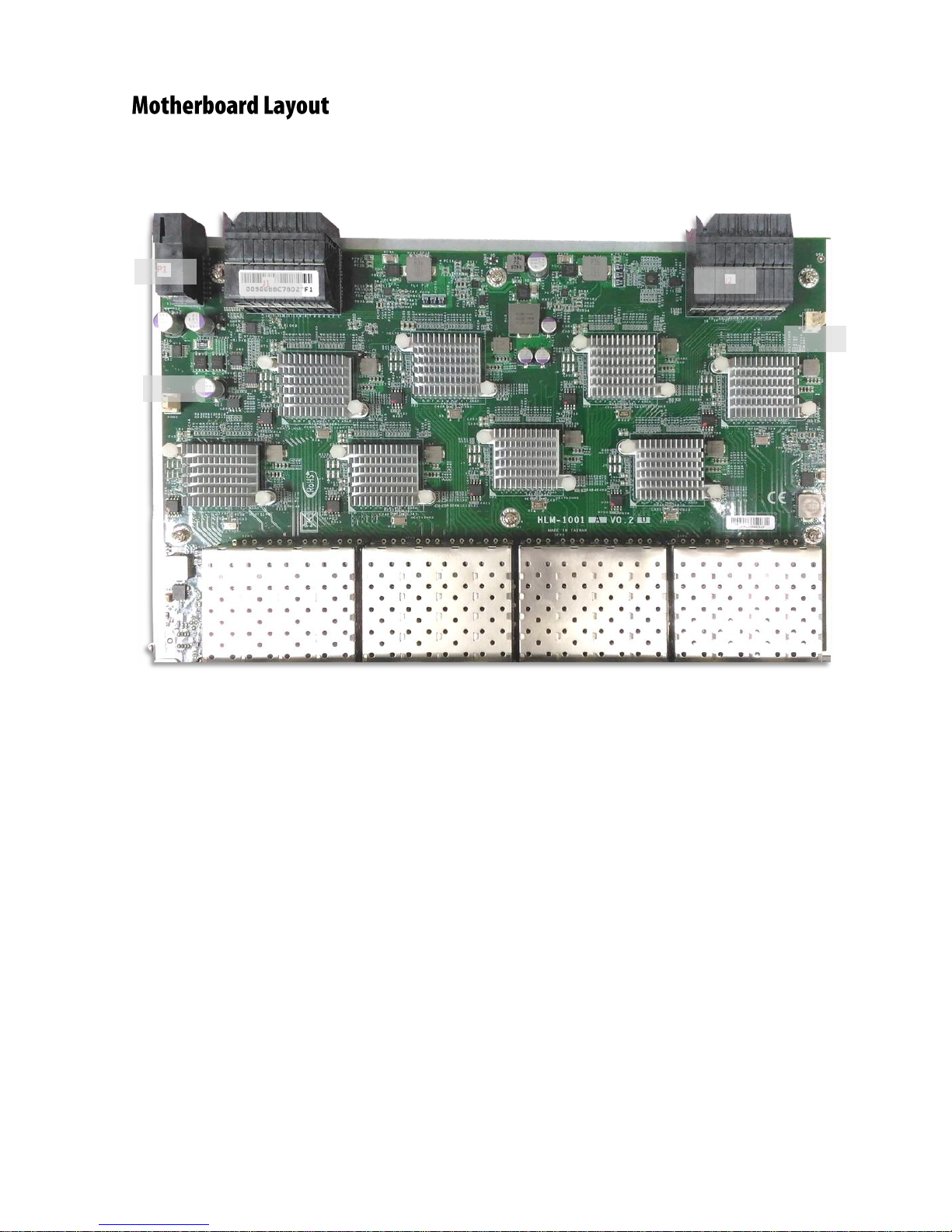

Motherboard Layout .................................................................................................................. 10

Internal Jumper & Connectors ................................................................................................... 11

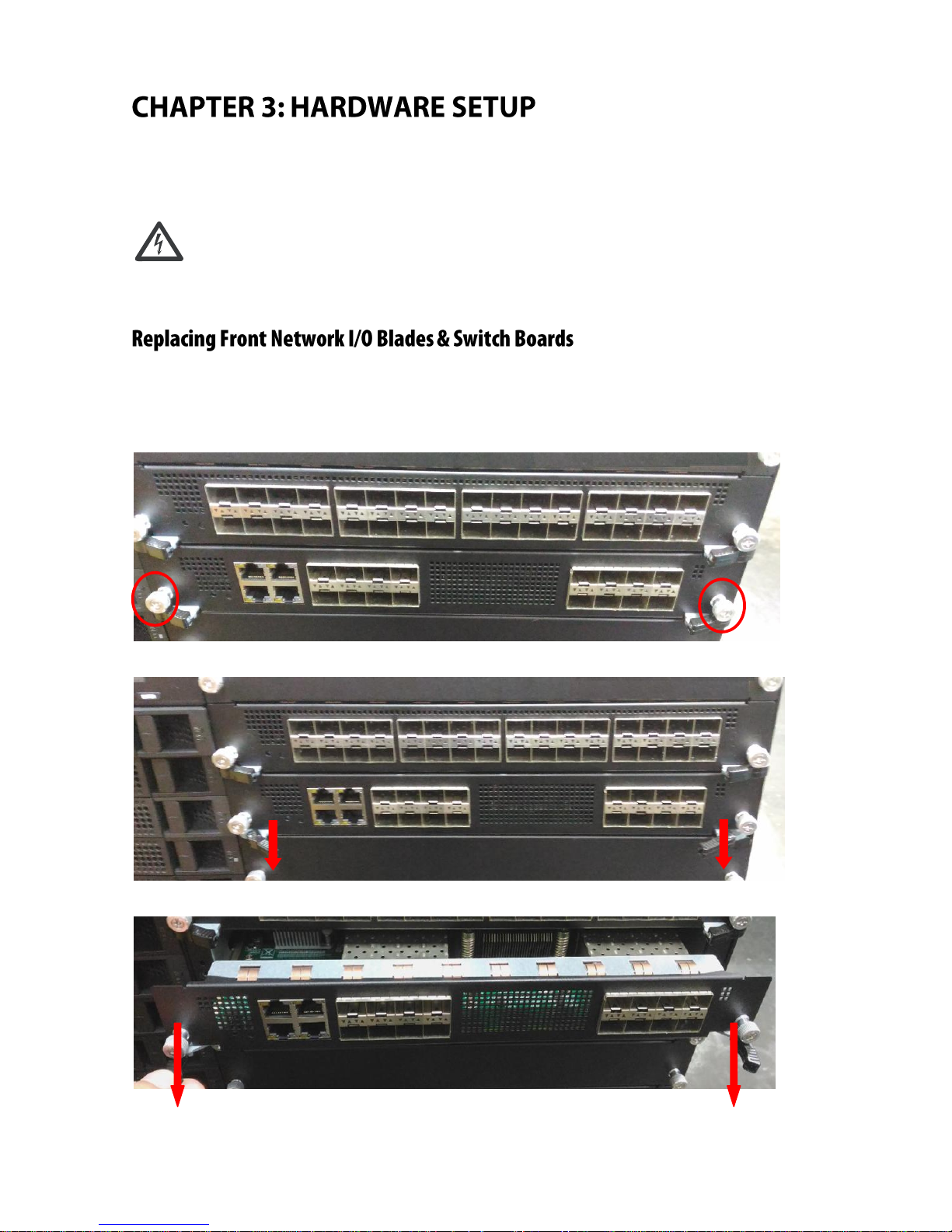

Replacing Front Network I/O Blades & Switch Boards .............................................................. 15

Warranty Policy .......................................................................................................................... 16

RMA Service ................................................................................................................................ 16

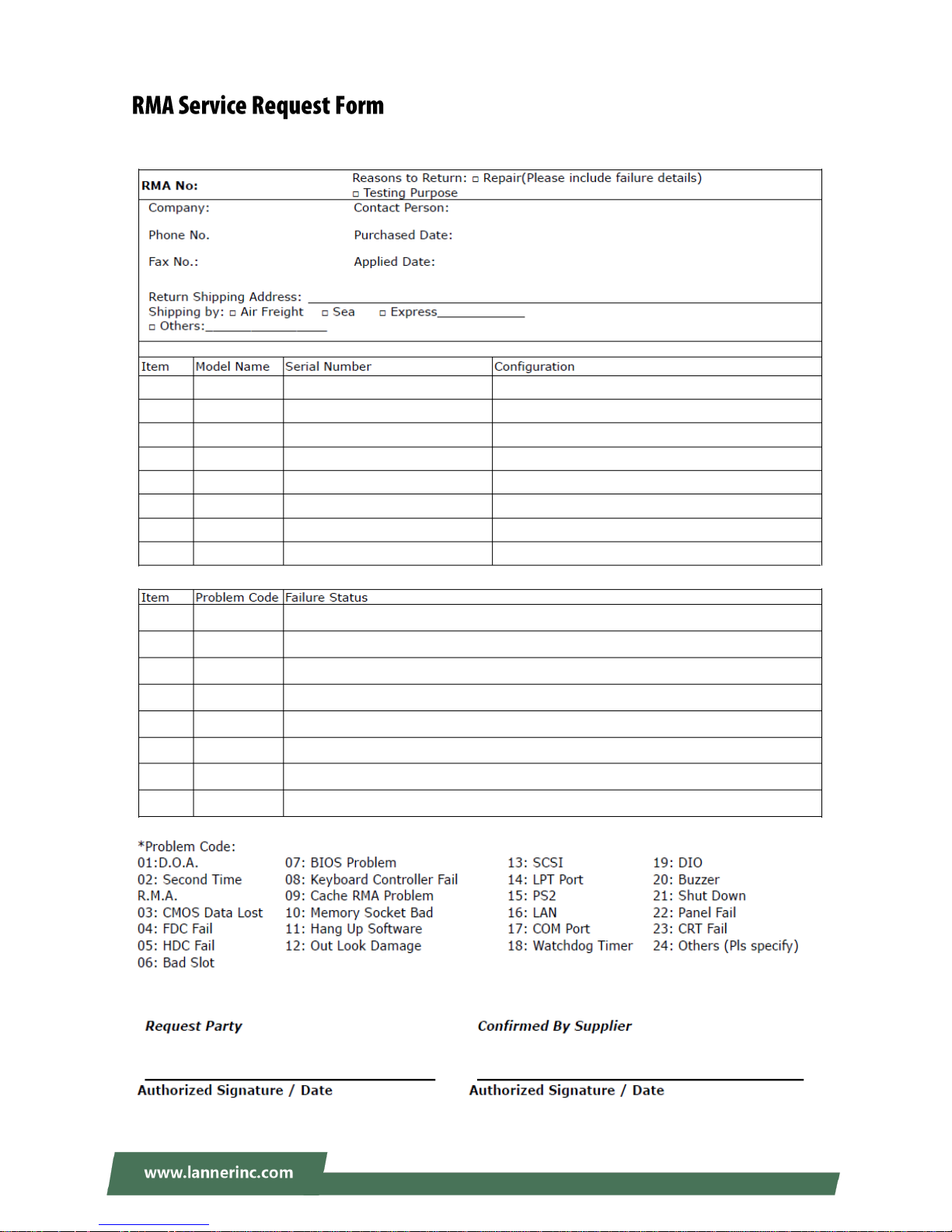

RMA Service Request Form ........................................................................................................ 17
