Page 1
Chapter 1: Product Overview
1
FX-3810
User Manual
Version: 1.0
Date of Release: 2018-08-30
Network
Computing
Page 2
NCA-3810 User Manual
2
The icons are used in the manual to serve as an indication of interest topics or important messages. Below
is a description of these icons:
Note: This mark indicates that there is a note of interest and is something that you should pay
special attention to while using the product.
Warning: This icon indicates that there is a caution or warning and it is something that could
damage your property or product.
The listed websites are links to the on-line product information and technical support.
Resources
URL
Lanner
http://www.lannerinc.com
Product Resource
http://www.lannerinc.com/download-center
RMA
http://eRMA.lannerinc.com
This document is copyrighted © 2018. All rights are reserved. The original manufacturer reserves the right
to make improvements to the products described in this manual at any time without notice.
No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means
without the prior written permission of the original manufacturer. Information provided in this manual is
intended to be accurate and reliable. However, the original manufacturer assumes no responsibility for its
use, nor for any infringements upon the rights of third parties that may result from such use.
Intel® and Intel® Xeon® are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other
countries.
Intel® is a trademark of Intel Corporation or its subsidiaries in the U.S. and/or other countries.
Microsoft Windows and MS-DOS are registered trademarks of Microsoft Corp.
All other product names or trademarks are properties of their respective owners.
Page 3
Chapter 1: Product Overview
3
This product has passed the CE test for environmental specifications. Test conditions for passing included
the equipment being operated within an industrial enclosure. In order to protect the product from being
damaged by ESD (Electrostatic Discharge) and EMI leakage, we strongly recommend the use of
CE-compliant industrial enclosure products.
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. The operation of this
equipment in a residential area is likely to cause harmful interference in which case the user will be required
to correct the interference at his own expense.
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. The operation of this
equipment in a residential area is likely to cause harmful interference in which case users will be required to
correct the interference at their own expense. SS
Follow these guidelines to ensure general safety:
Keep the chassis area clear and dust-free during and after installation.
Do not wear loose clothing or jewelry that could get caught in the chassis. Fasten your tie or scarf and
roll up your sleeves.
Wear safety glasses if you are working under any conditions that might be hazardous to your eyes.
Do not perform any action that creates a potential hazard to people or makes the equipment unsafe.
Disconnect all power by turning off the power and unplugging the power cord before installing or
removing a chassis or working near power supplies
Do not work alone if potentially hazardous conditions exist.
Never assume that power is disconnected from a circuit; always check the circuit.
The machine can only be used in a restricted access location, such as labs or computer facilities with the
proper authorization.
Page 4
NCA-3810 User Manual
4
Risk of Explosion if Battery is replaced by an incorrect type. Dispose of used batteries according to the
instructions.
Installation only by a trained electrician or only by an electrically trained person who knows all English
Installation and Device Specifications which are to be applied.
Do not carry the handle of power supplies when moving to another place.
Electrical equipment generates heat. Ambient air temperature may not be adequate to cool equipment
to acceptable operating temperatures without adequate circulation. Be sure that the room in which you
choose to operate your system has adequate air circulation.
Ensure that the chassis cover is secure. The chassis design allows cooling air to circulate effectively. An
open chassis permits air leaks, which may interrupt and redirect the flow of cooling air from internal
components.
Electrostatic discharge (ESD) can damage equipment and impair electrical circuitry. ESD damage occurs
when electronic components are improperly handled and can result in complete or intermittent failures.
Be sure to follow ESD-prevention procedures when removing and replacing components to avoid these
problems.
Wear an ESD-preventive wrist strap, ensuring that it makes good skin contact. If no wrist strap is
available, ground yourself by touching the metal part of the chassis.
Periodically check the resistance value of the antistatic strap, which should be between 1 and 10
megohms (Mohms).
Environment:
Do not install and/or operate this unit in any place that flammable objects are stored or used in.
If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack
environment may be greater than room ambient. Therefore, consideration should be given to installing
the equipment in an environment compatible with the maximum ambient temperature (Tma) specified
by the manufacturer.
Installation of the equipment (especially in a rack) should consider the ventilation of the system’s intake
(for taking chilled air) and exhaust (for emitting hot air) openings so that the amount of air flow required
for safe operation of the equipment is not compromised.
To avoid a hazardous load condition, be sure the mechanical loading is even when mounting.
Consideration should be given to the connection of the equipment to the supply circuit and the effect
that overloading of the circuits might have on over-current protection and supply wiring. Appropriate
consideration of equipment nameplate ratings should be used when addressing this concern.
Reliable earthing should be maintained. Particular attention should be given to supply connections
other than direct connections to the branch circuit (e.g. use of power strips).
Page 5
Chapter 1: Product Overview
5
Installation & Operation:
The installation of this product must be performed by trained specialists; otherwise, a non-specialist
might create the risk of the system’s falling to the ground or other damages.
Lanner Electronics Inc. shall not be held liable for any losses resulting from insufficient strength for
supporting the system or use of inappropriate installation components.
Suivez ces consignes pour assurer la sécurité générale :
Laissez la zone du châssis propre et sans poussière pendant et après l’installation.
Ne portez pas de vêtements amples ou de bijoux qui pourraient être pris dans le châssis. Attachez votre
cravate ou écharpe et remontez vos manches.
Portez des lunettes de sécurité pour protéger vos yeux.
N’effectuez aucune action qui pourrait créer un danger pour d’autres ou rendre l’équipement
dangereux.
Coupez complètement l’alimentation en éteignant l’alimentation et en débranchant le cordon
d’alimentation avant d’installer ou de retirer un châssis ou de travailler à proximité de sources
d’alimentation.
Ne travaillez pas seul si des conditions dangereuses sont présentes.
Ne considérez jamais que l’alimentation est coupée d’un circuit, vérifiez toujours le circuit. Cet appareil
génère, utilise et émet une énergie radiofréquence et, s’il n’est pas installé et utilisé conformément aux
instructions des fournisseurs de composants sans fil, il risque de provoquer des interférences dans les
communications radio.
Risque d’explosion si la pile est remplacée par une autre d’un mauvais type.
Jetez les piles usagées conformément aux instructions.
L’installation doit être effectuée par un électricien formé ou une personne formée à l’électricité
connaissant toutes les spécifications d’installation et d’appareil du produit.
Ne transportez pas l’unité en la tenant par le câble d’alimentation lorsque vous déplacez l’appareil.
La machine ne peut être utilisée qu’à un lieu fixe comme en laboratoire, salle d’ordinateurs ou salle de
classe.
L’équipement électrique génère de la chaleur. La température ambiante peut ne pas être adéquate pour
refroidir l’équipement à une température de fonctionnement acceptable sans circulation adaptée. Vérifiez
que votre site propose une circulation d’air adéquate.
Vérifiez que le couvercle du châssis est bien fixé. La conception du châssis permet à l’air de
refroidissement de bien circuler. Un châssis ouvert laisse l’air s’échapper, ce qui peut interrompre et
rediriger le flux d’air frais destiné aux composants internes.
Page 6
NCA-3810 User Manual
6
Les décharges électrostatiques (ESD) peuvent endommager l’équipement et gêner les circuits
électriques. Des dégâts d’ESD surviennent lorsque des composants électroniques sont mal manipulés et
peuvent causer des pannes totales ou intermittentes. Suivez les procédures de prévention d’ESD lors du
retrait et du remplacement de composants.
Portez un bracelet anti-ESD et veillez à ce qu’il soit bien au contact de la peau. Si aucun bracelet n’est
disponible, reliez votre corps à la terre en touchant la partie métallique du châssis.
Vérifiez régulièrement la valeur de résistance du bracelet antistatique, qui doit être comprise entre 1 et
10 mégohms (Mohms).

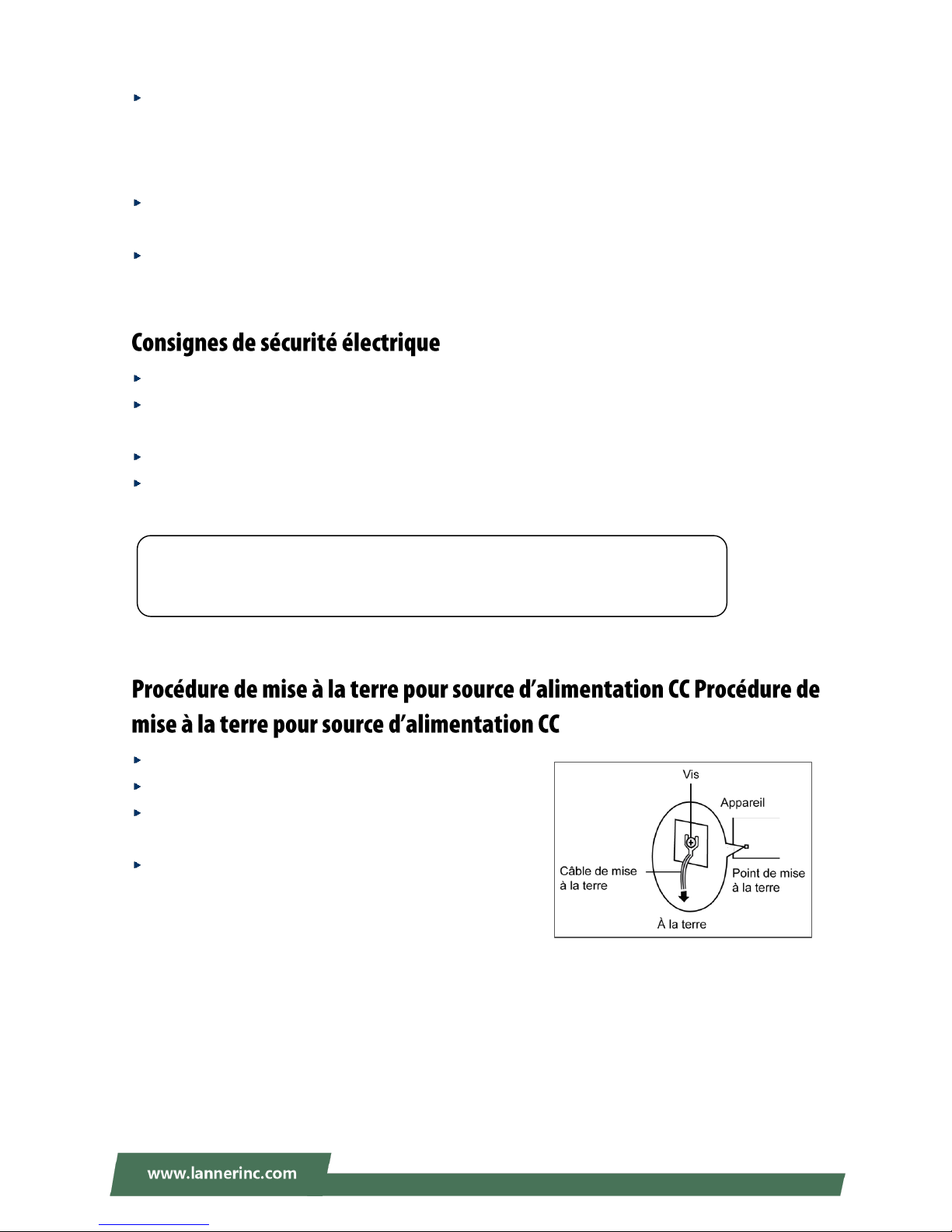

Avant d’allumer l’appareil, reliez le câble de mise à la terre de l’équipement à la terre.
Une bonne mise à la terre (connexion à la terre) est très importante pour protéger l’équipement contre
les effets néfastes du bruit externe et réduire les risques d’électrocution en cas de foudre.
Pour désinstaller l’équipement, débranchez le câble de mise à la terre après avoir éteint l’appareil.
Un câble de mise à la terre est requis et la zone reliant les sections du conducteur doit faire plus de 4
mm2 ou 10 AWG.
Desserrez la vis du terminal de mise à la terre.
Branchez le câble de mise à la terre à la terre.
L’appareil de protection pour la source d’alimentation CC
doit fournir 30 A de courant.
Cet appareil de protection doit être branché à la source
d’alimentation avant l’alimentation CC.
This equipment must be grounded. The power cord for product should be connected to a
socket-outlet with earthing connection.
Page 7
Chapter 1: Product Overview
7

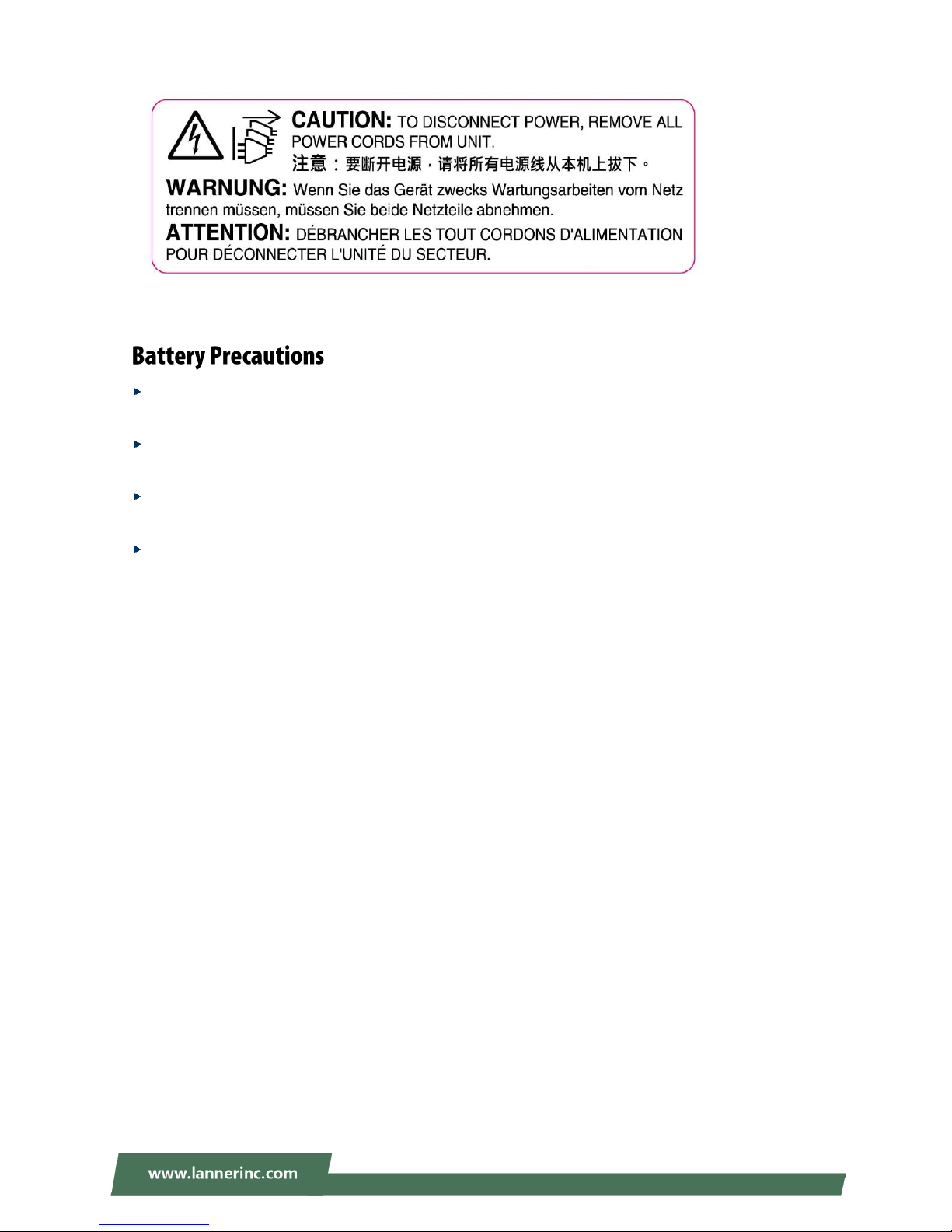

Lithium Battery Caution: There is danger of explosion if battery is incorrectly replaced. Replace only with
the same or equivalent type. Dispose batteries according to manufacturer's instructions.
Disposal of a BATTERY into fire or a hot oven, or mechanically crushing or cutting of a BATTERY can
result in an EXPLOSION.
Leaving a BATTERY in an extremely high temperature surrounding environment can result in an
EXPLOSION or the leakage of flammable liquid or gas.
A BATTERY subjected to extremely low air pressure may result in an EXPLOSION or the leakage of
flammable liquid or gas.
Page 8
NCA-3810 User Manual
8
Version
Date
Descriptions
1.0
2018/08/30
Official Release
Page 9
Chapter 1: Product Overview
9
Package Content ......................................................................................................................... 11
Ordering Information ................................................................................................................. 12
System Specifications ................................................................................................................. 12

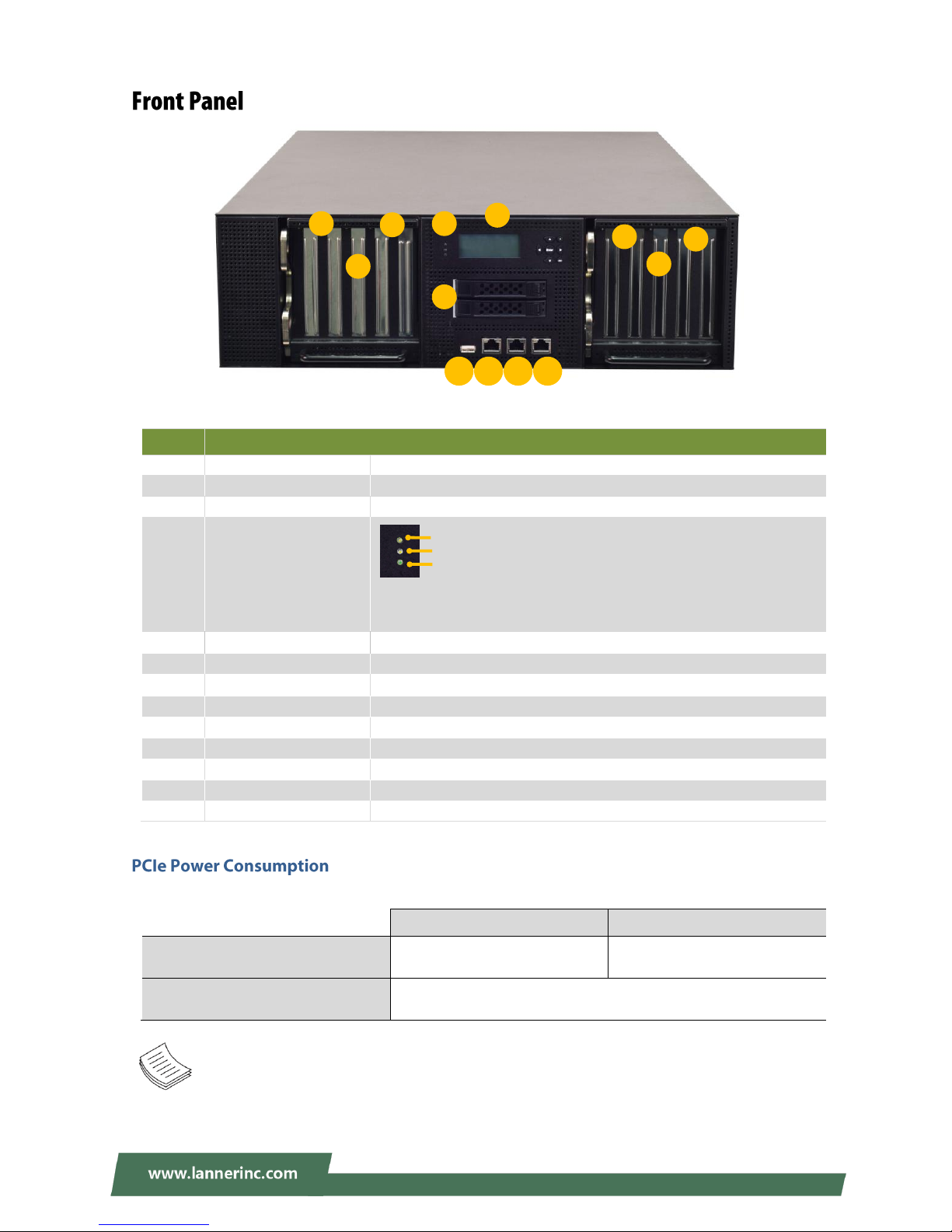

Front Panel ................................................................................................................................. 13

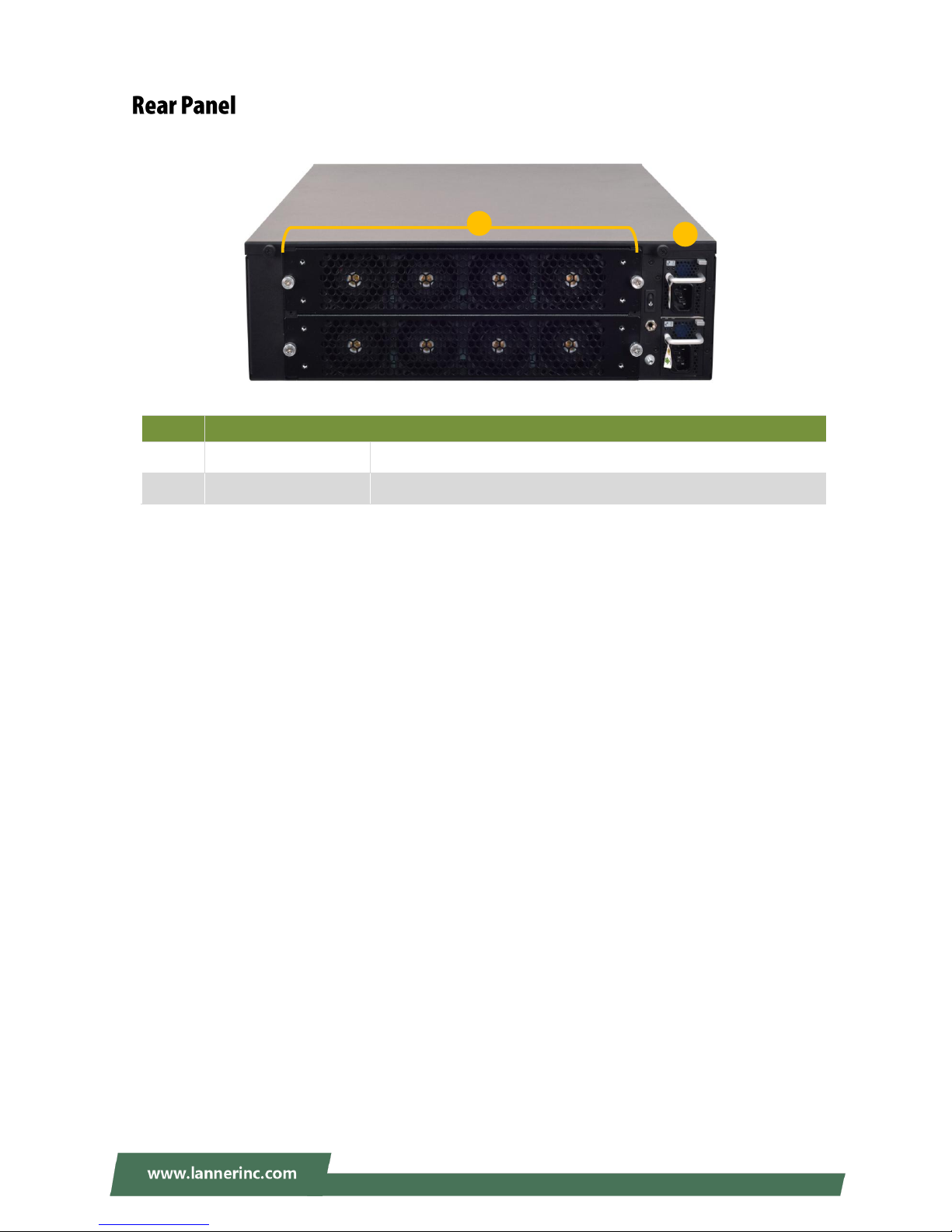

Rear Panel ................................................................................................................................... 14

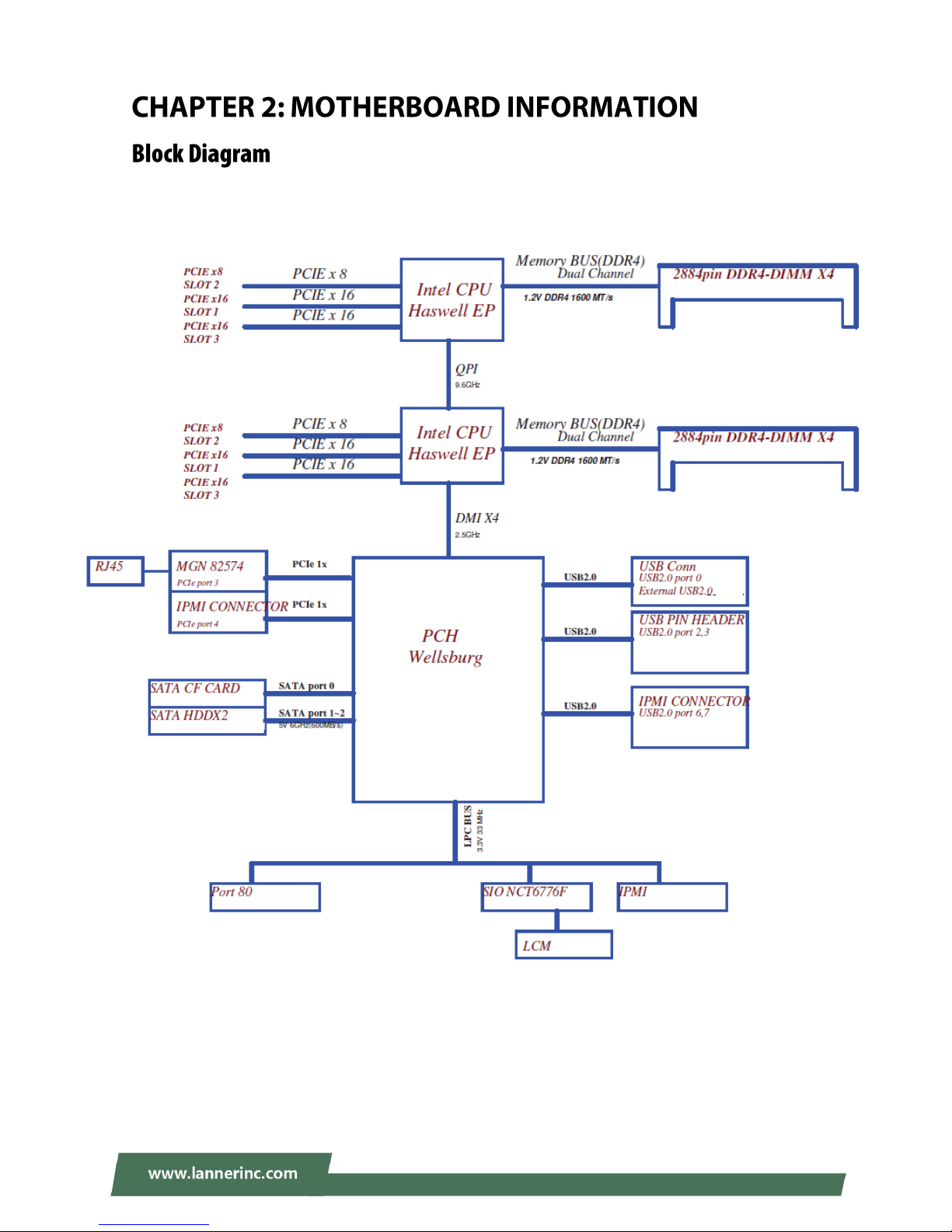

Block Diagram ............................................................................................................................. 15

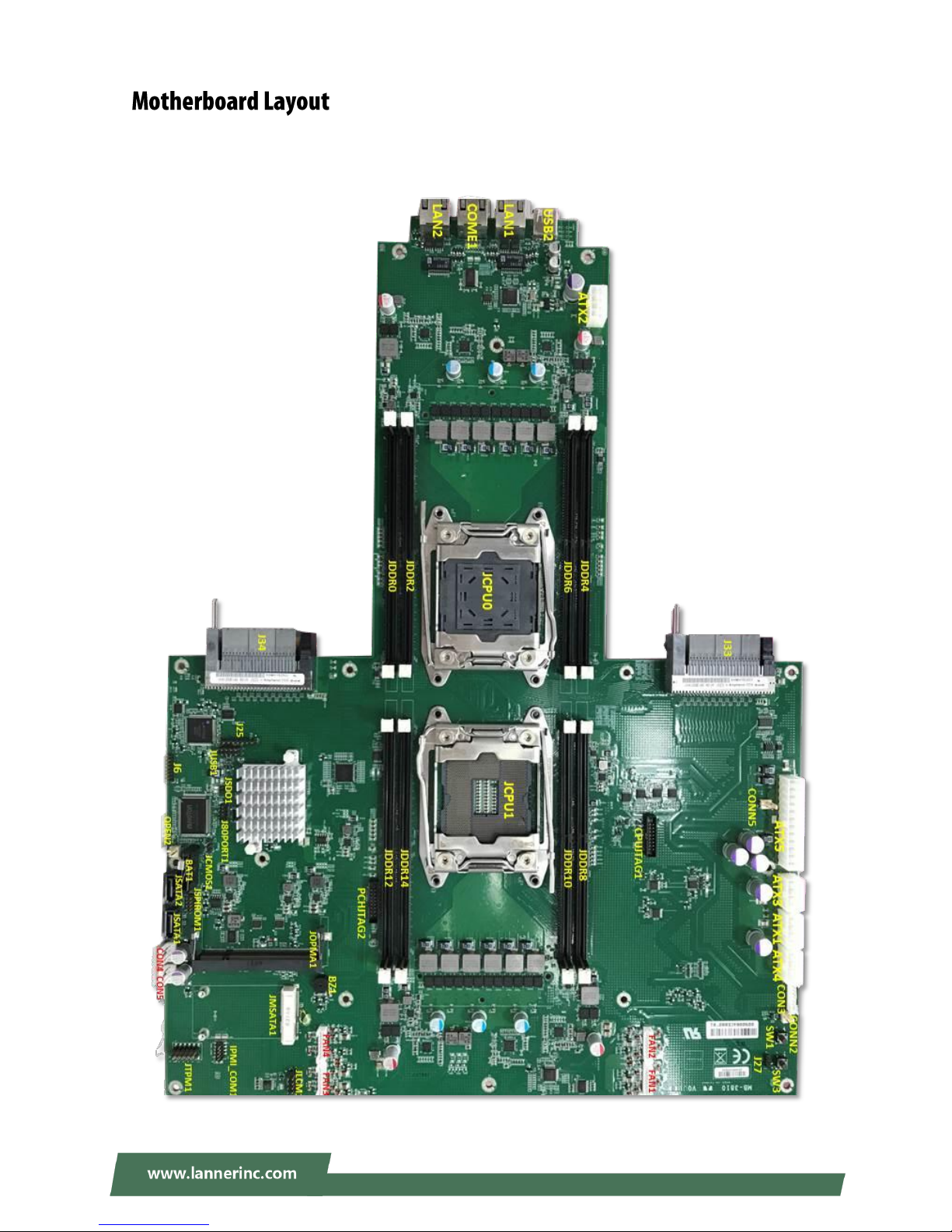

Motherboard Layout .................................................................................................................. 16
Internal Jumpers & Connectors .................................................................................................. 17

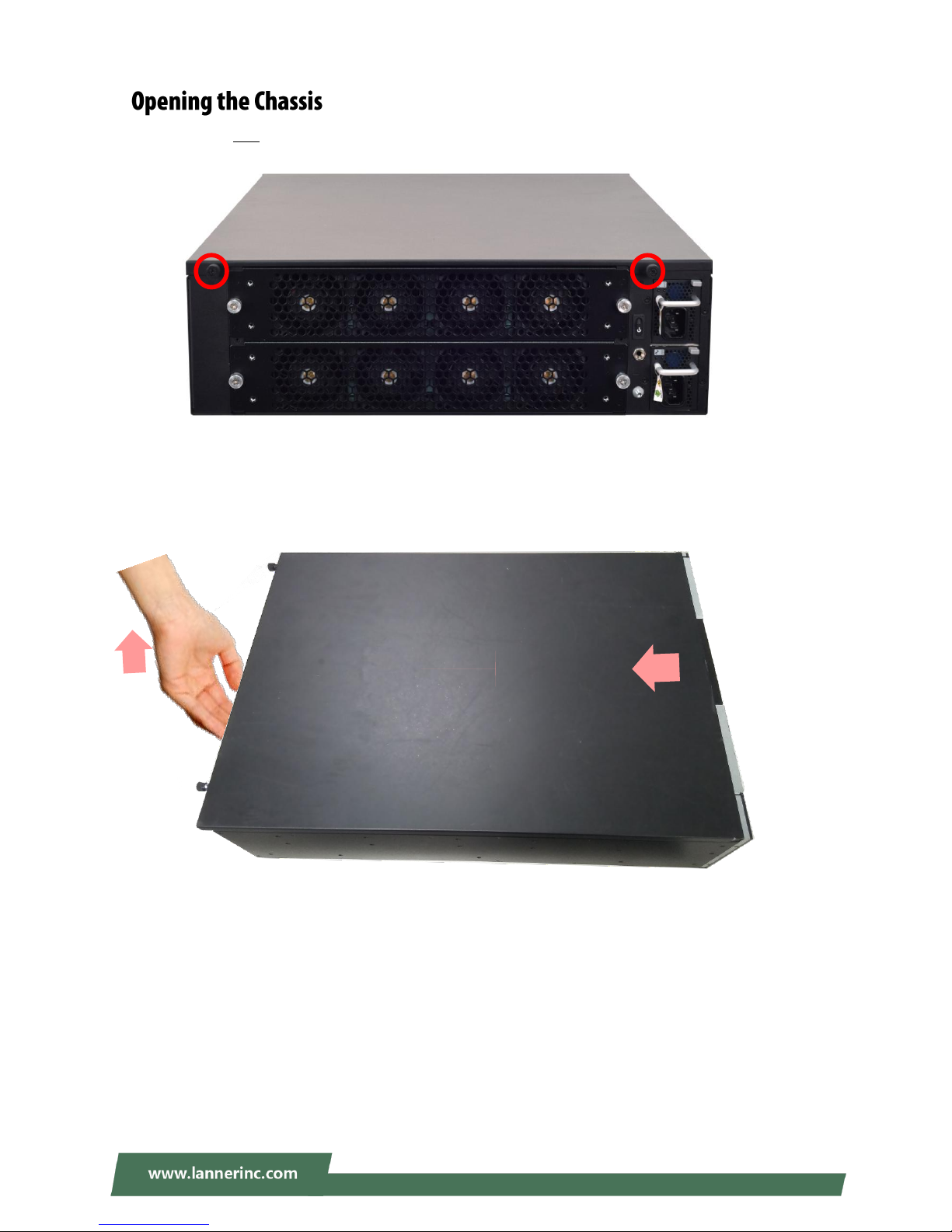

Opening the Chassis ................................................................................................................... 25

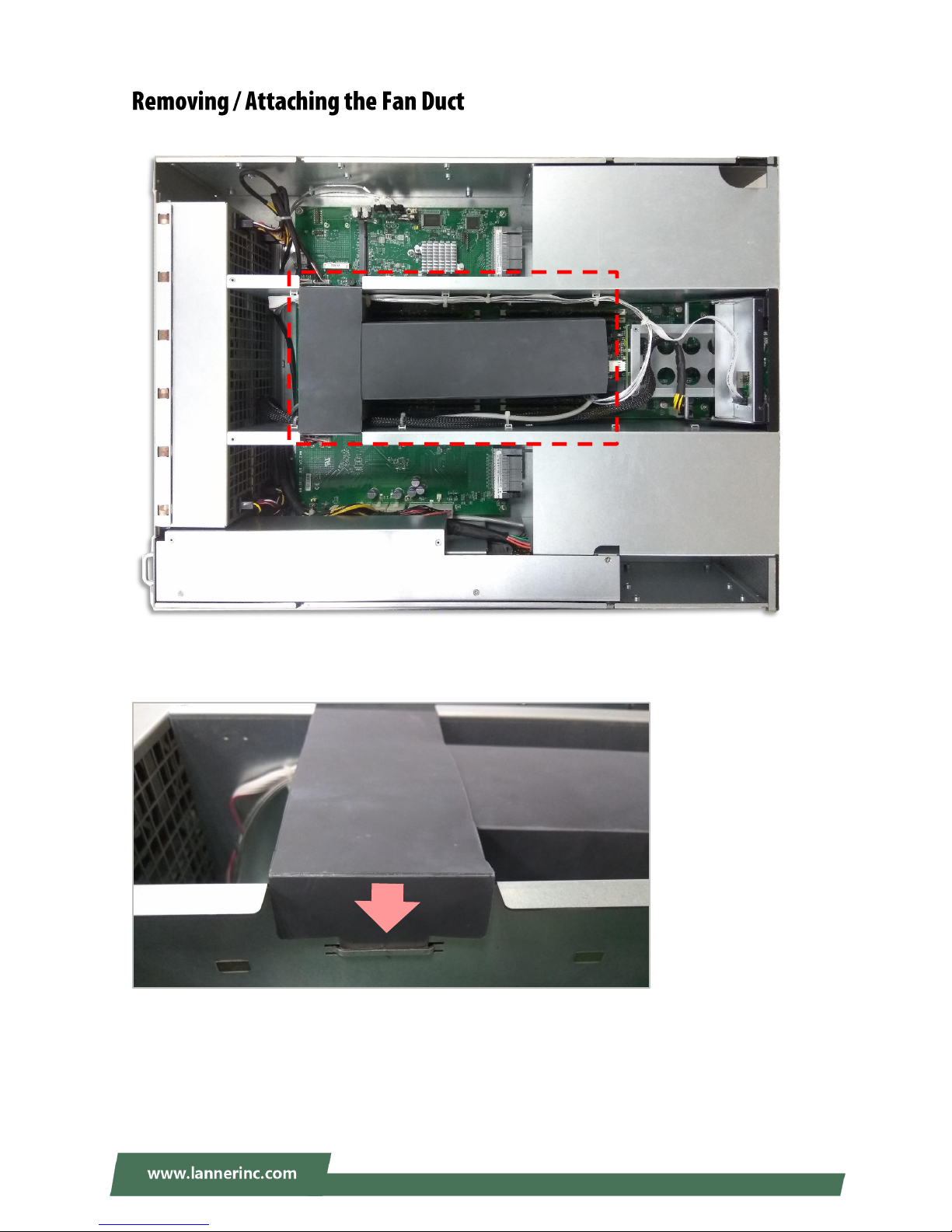

Removing / Attaching the Fan Duct ........................................................................................... 26

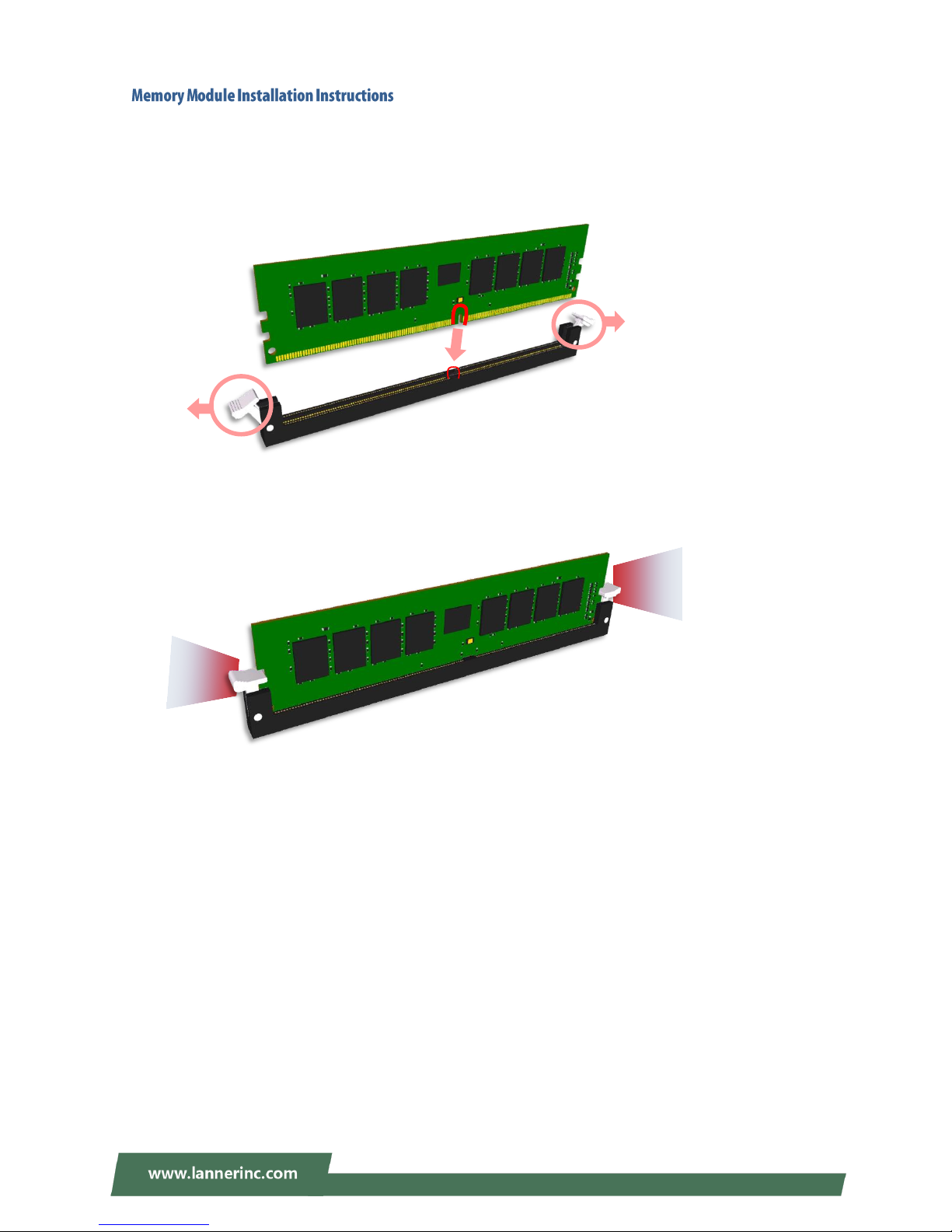

Installing System Memory .......................................................................................................... 27

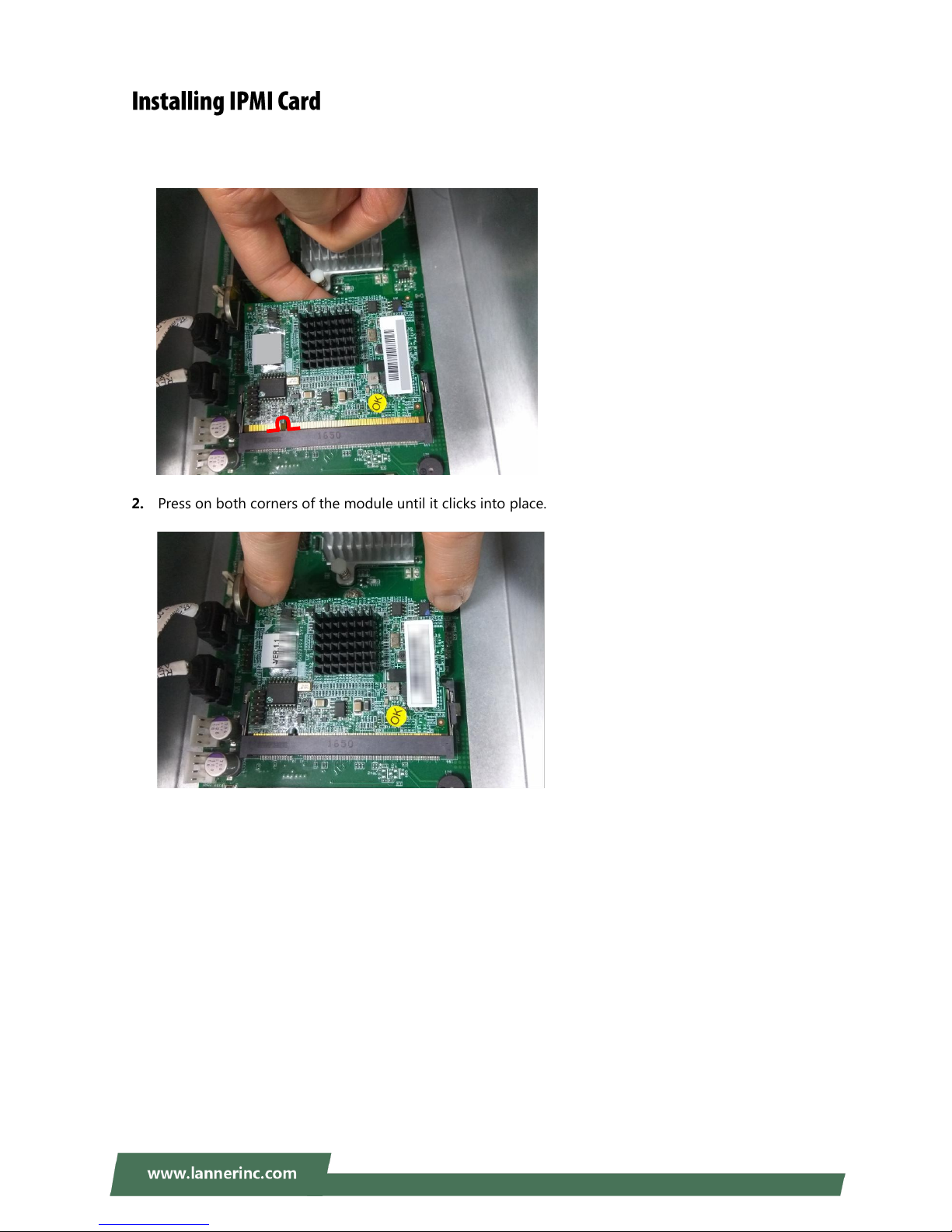

Installing IPMI Card..................................................................................................................... 30

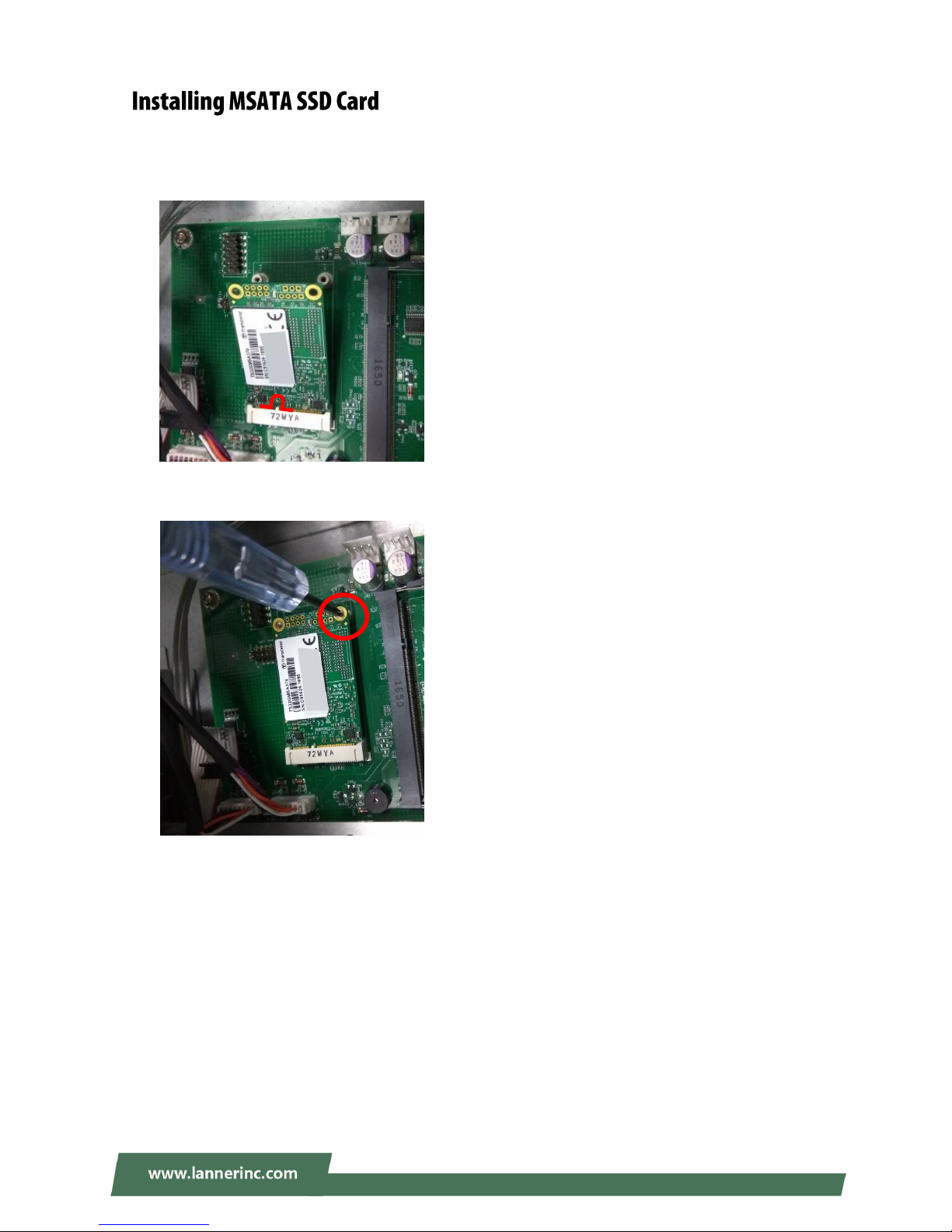

Installing MSATA SSD Card ......................................................................................................... 31

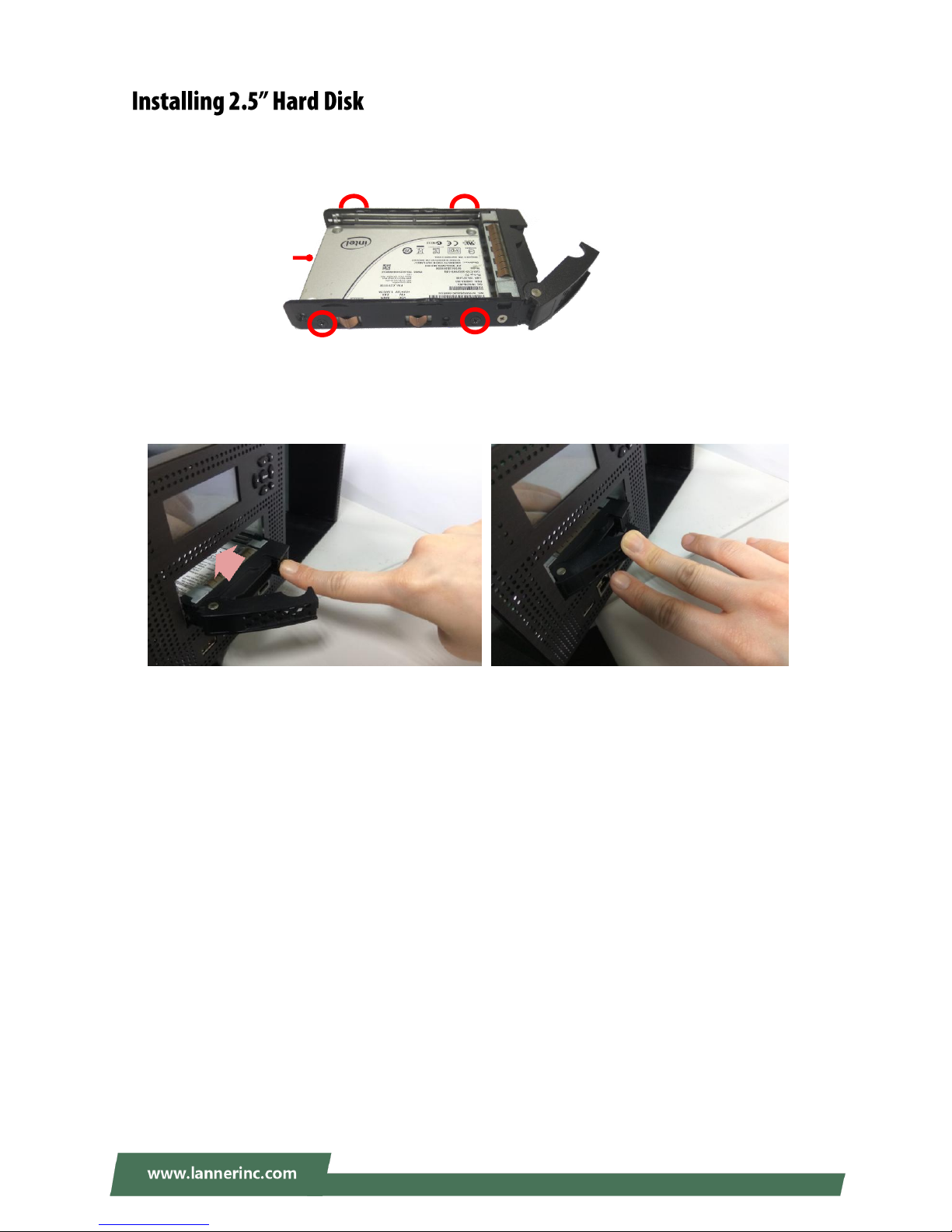

Installing 2.5” Hard Disk ............................................................................................................. 32

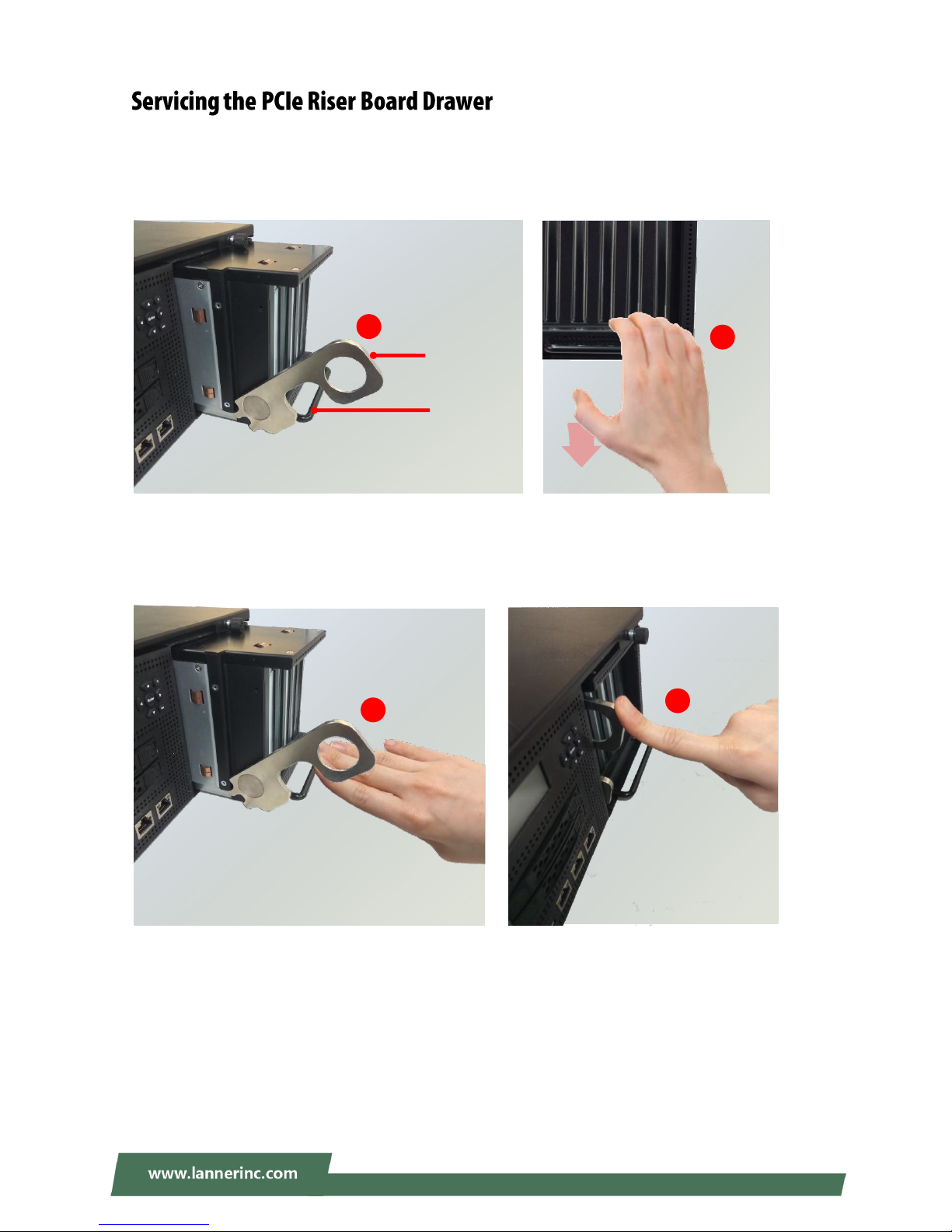

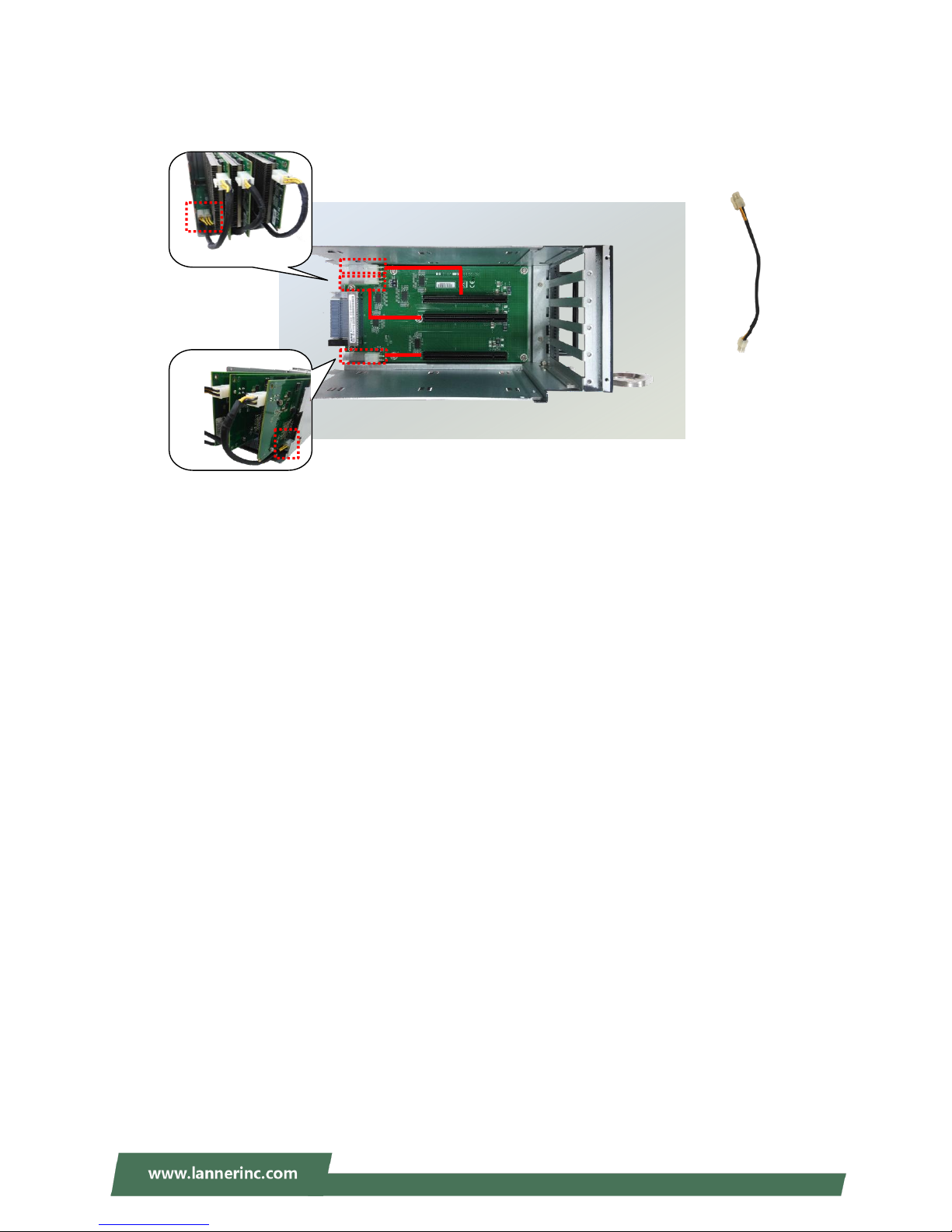

Servicing the PCIe Riser Board.................................................................................................... 33

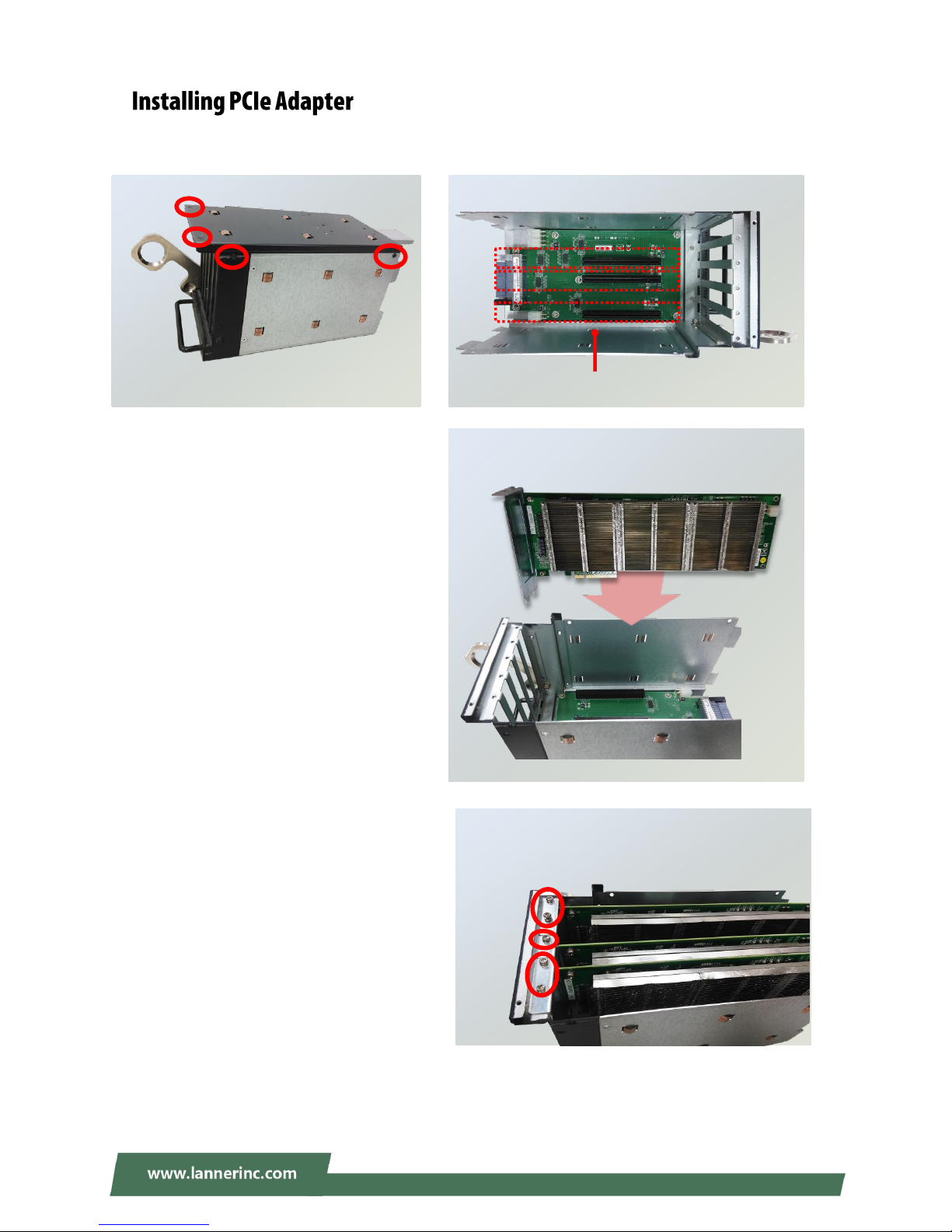

Installing PCIe Adapter ............................................................................................................... 34

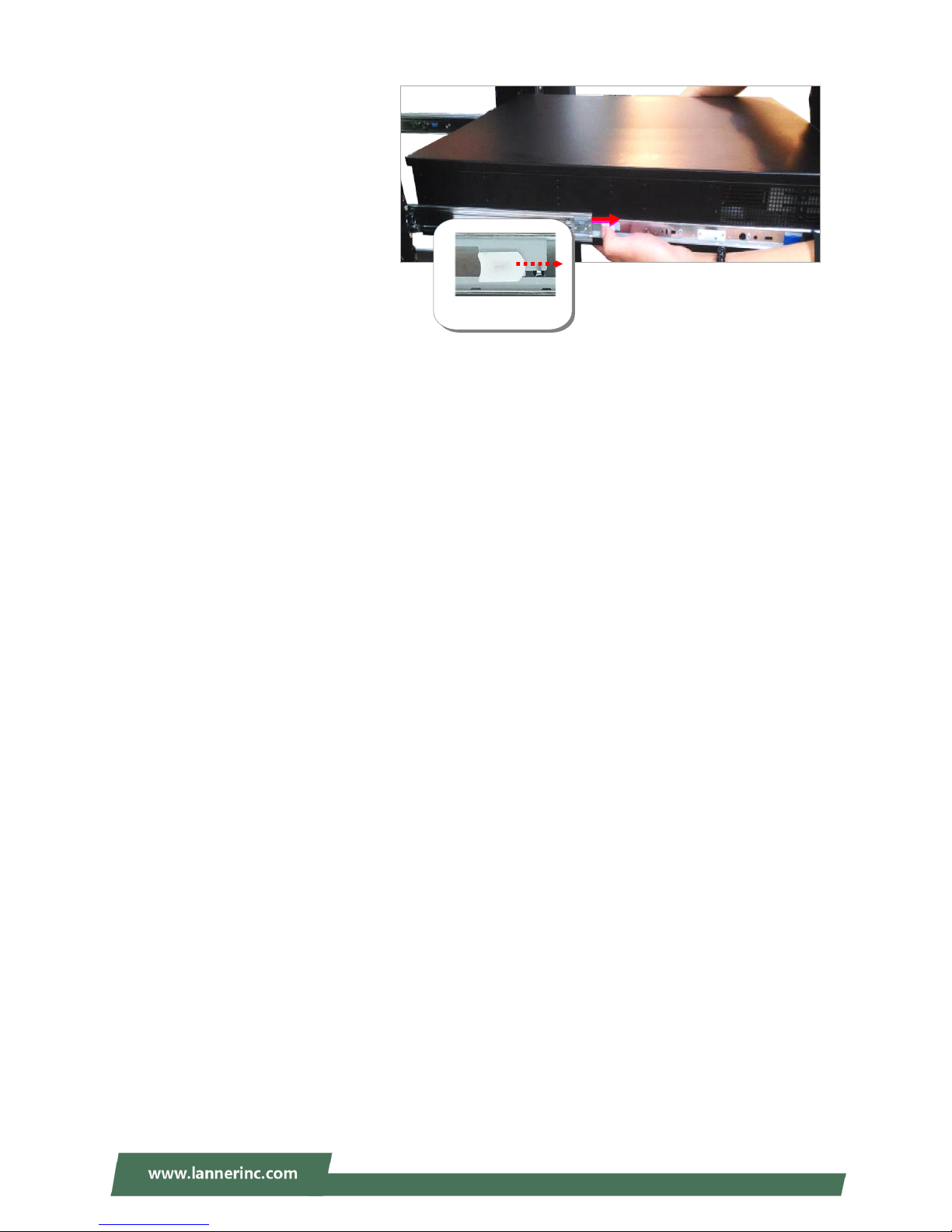

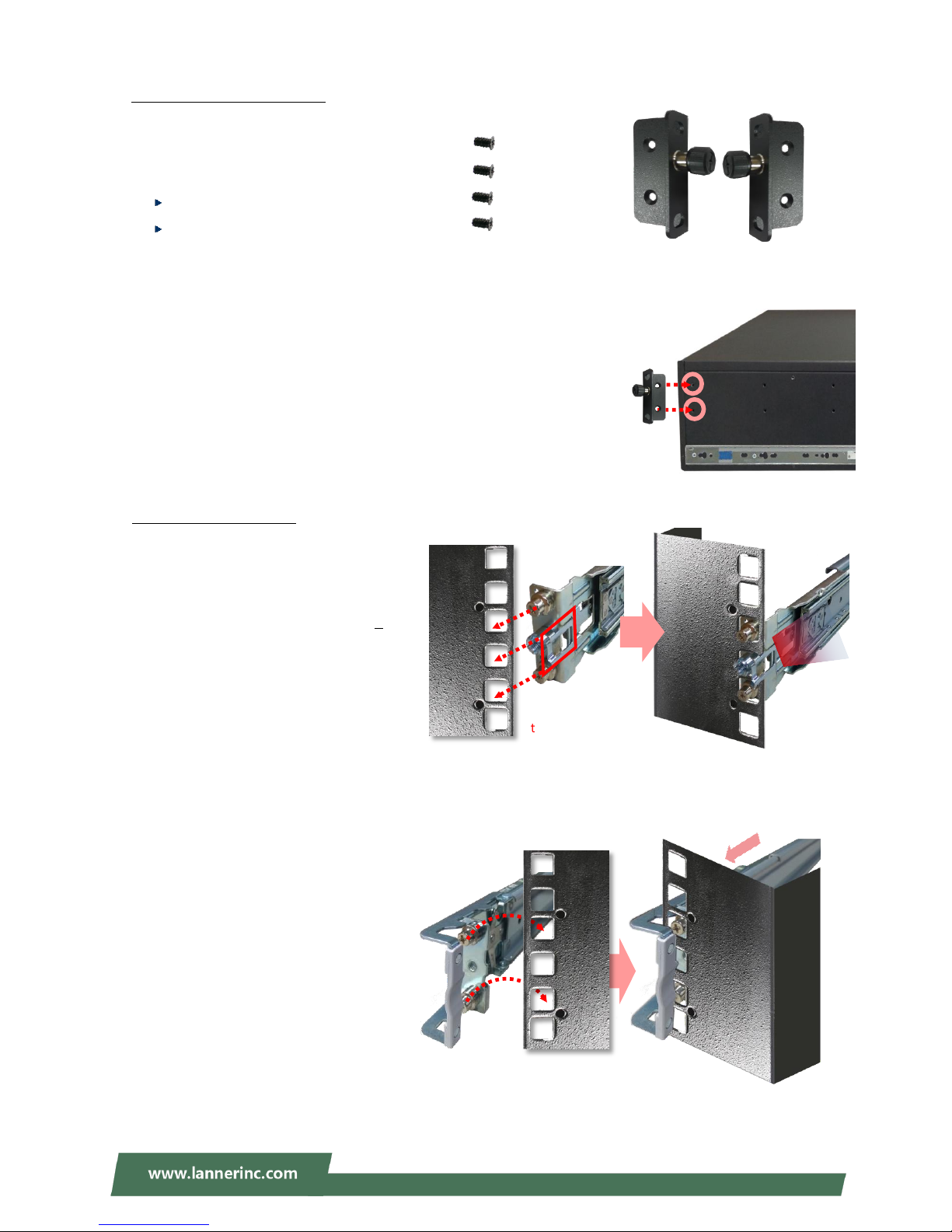

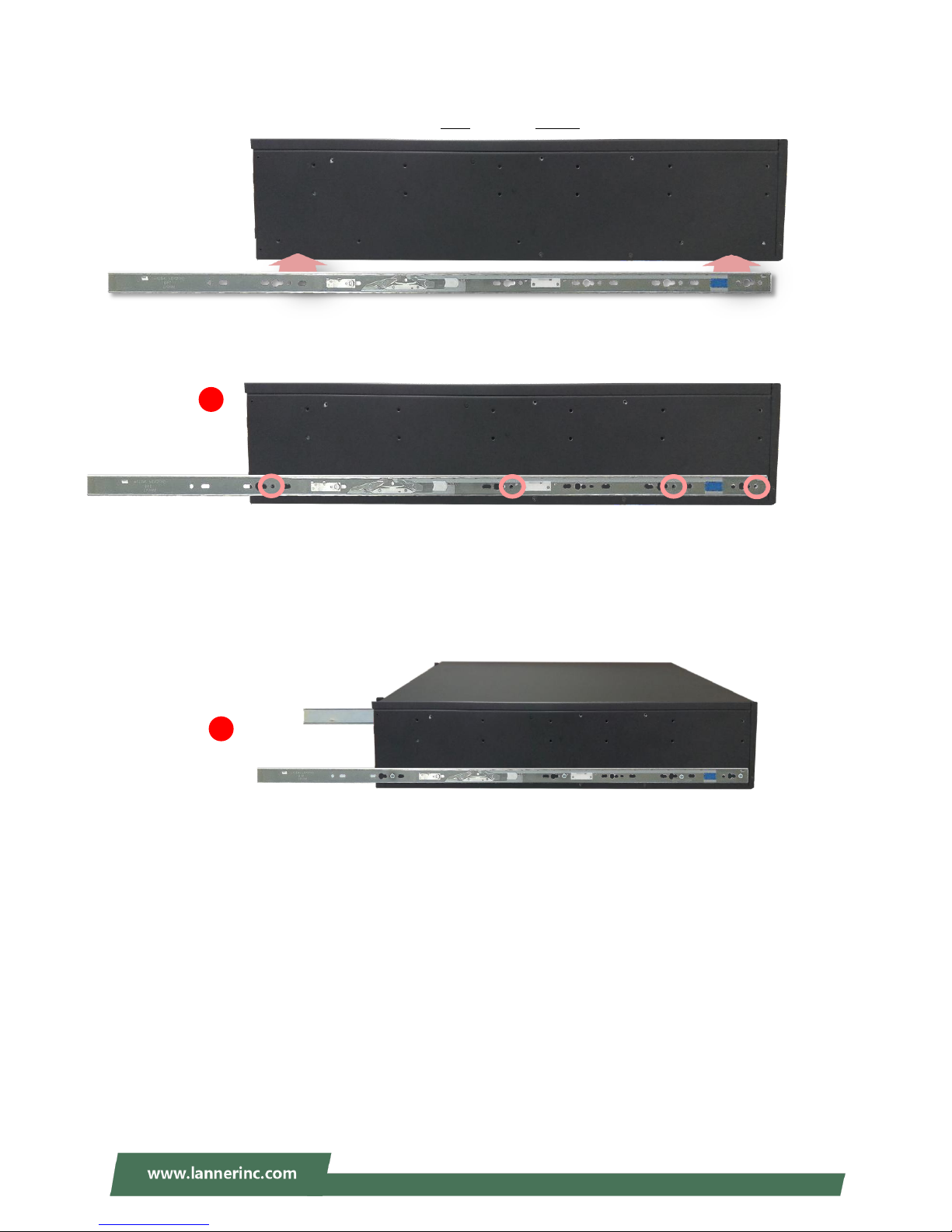

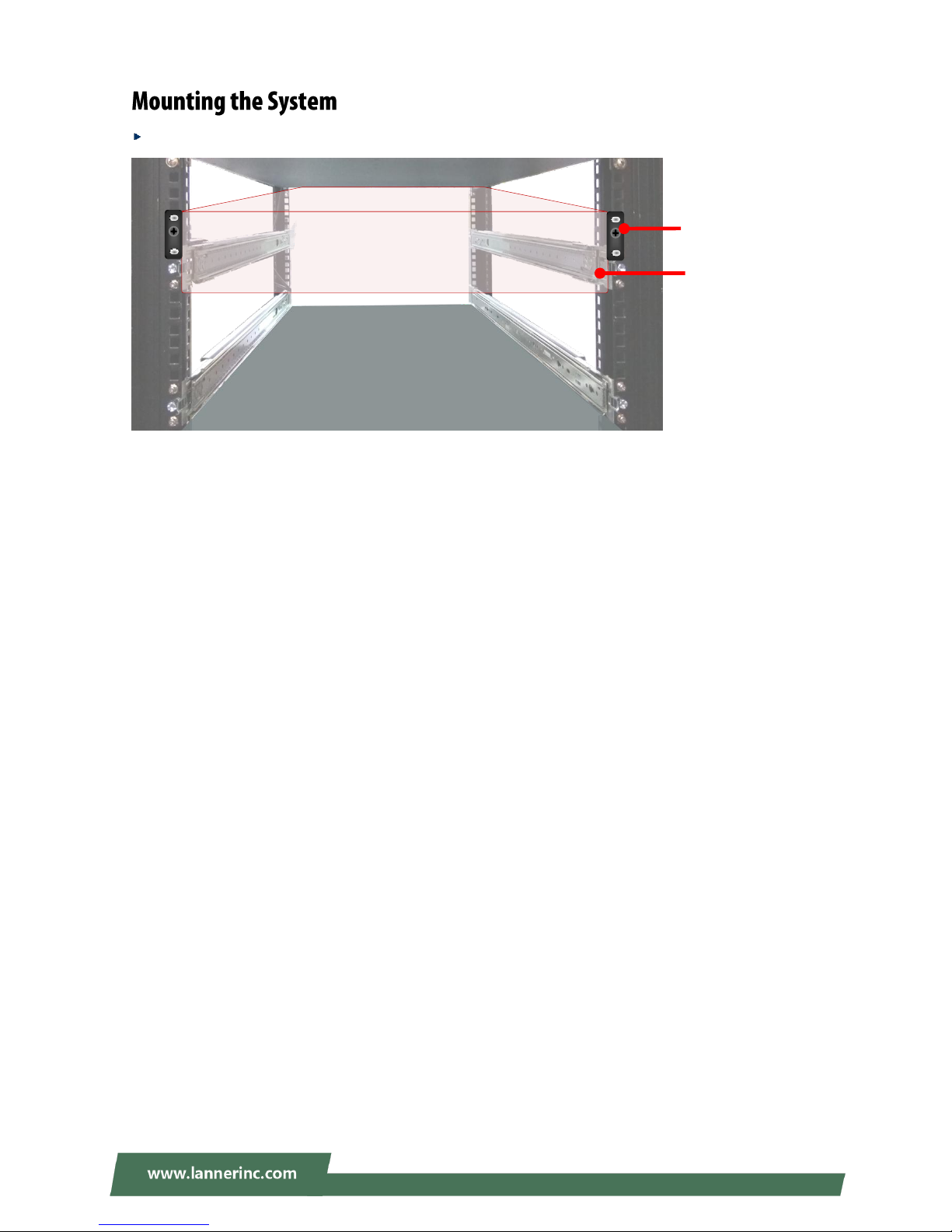

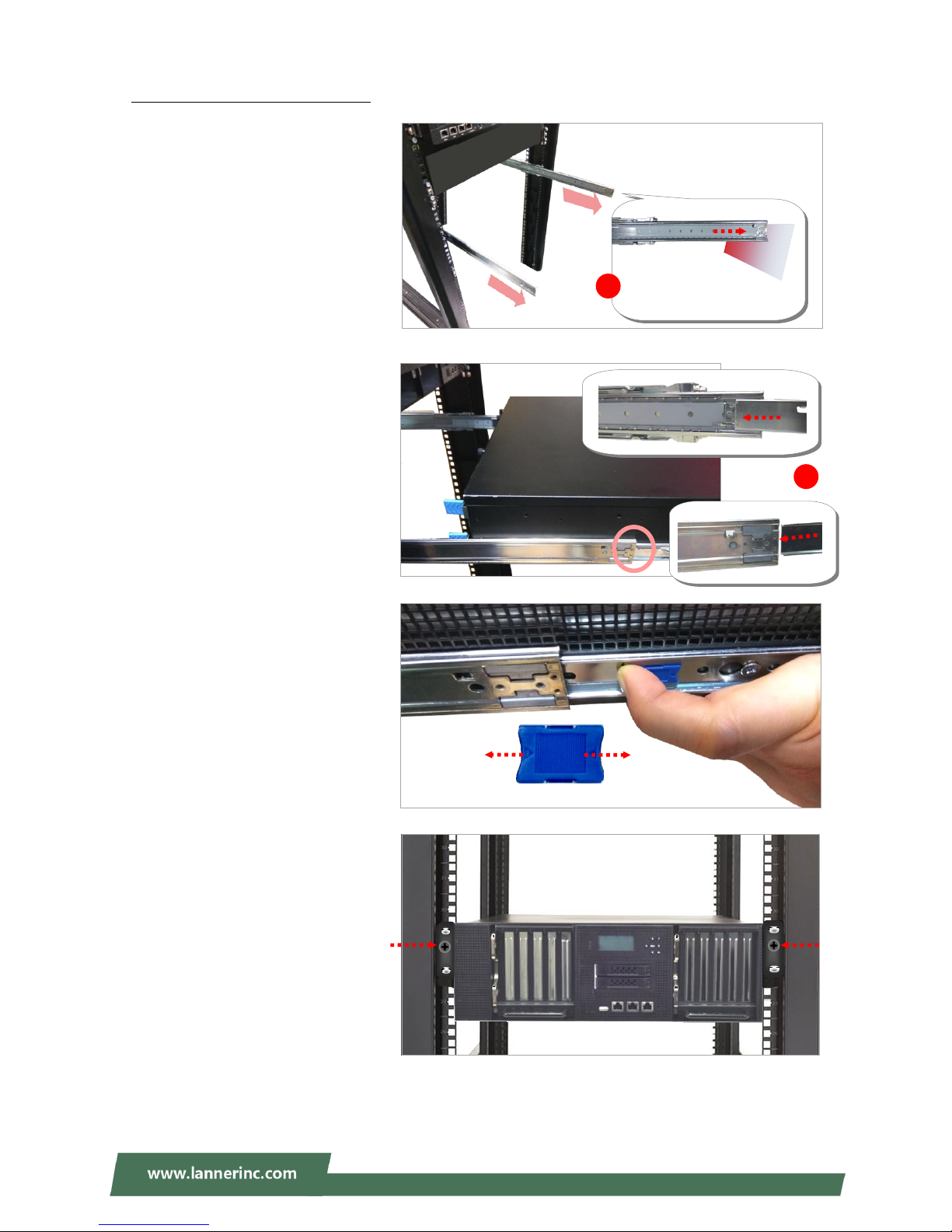

Mounting the System ................................................................................................................. 36
Enter BIOS Setup ........................................................................................................................ 42
Main Page ................................................................................................................................... 43

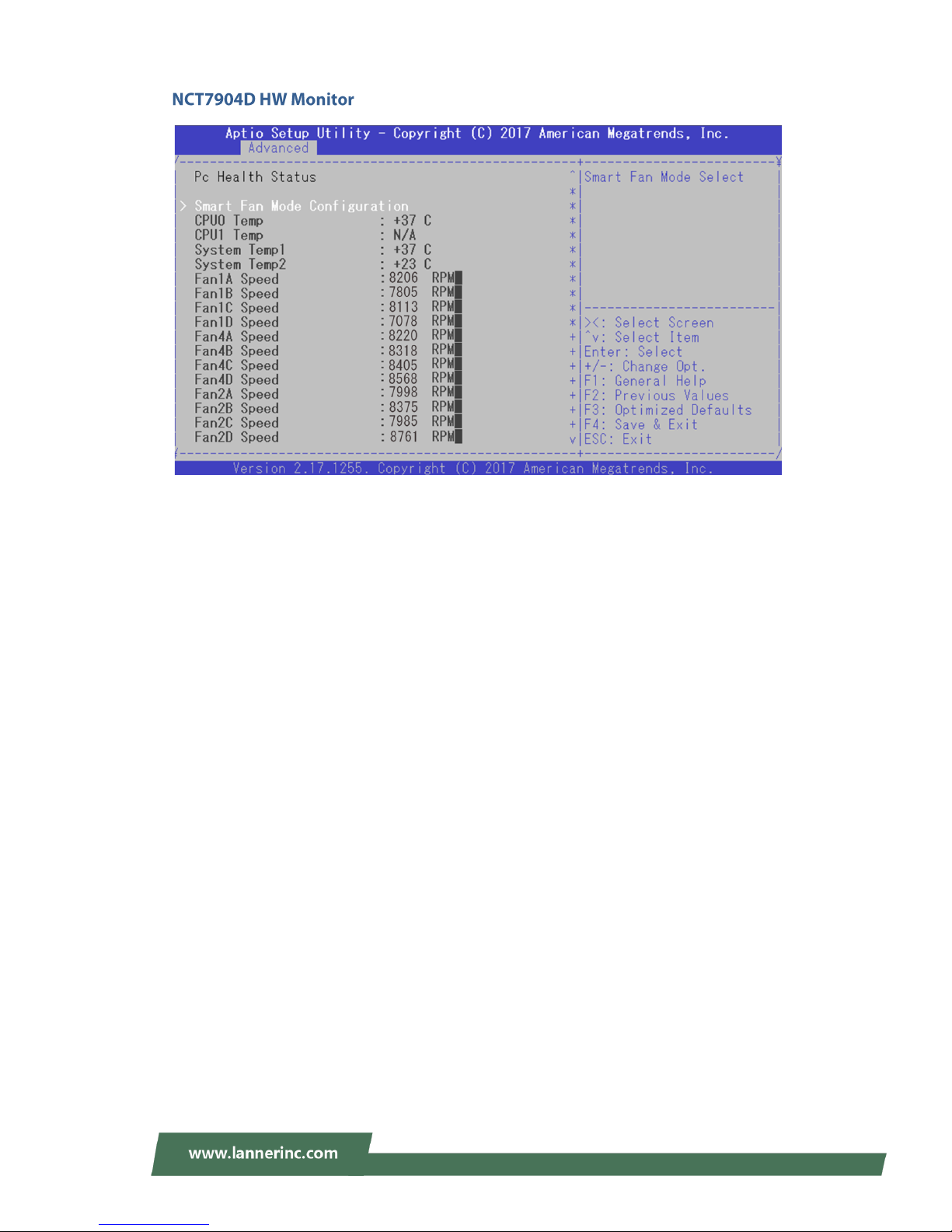

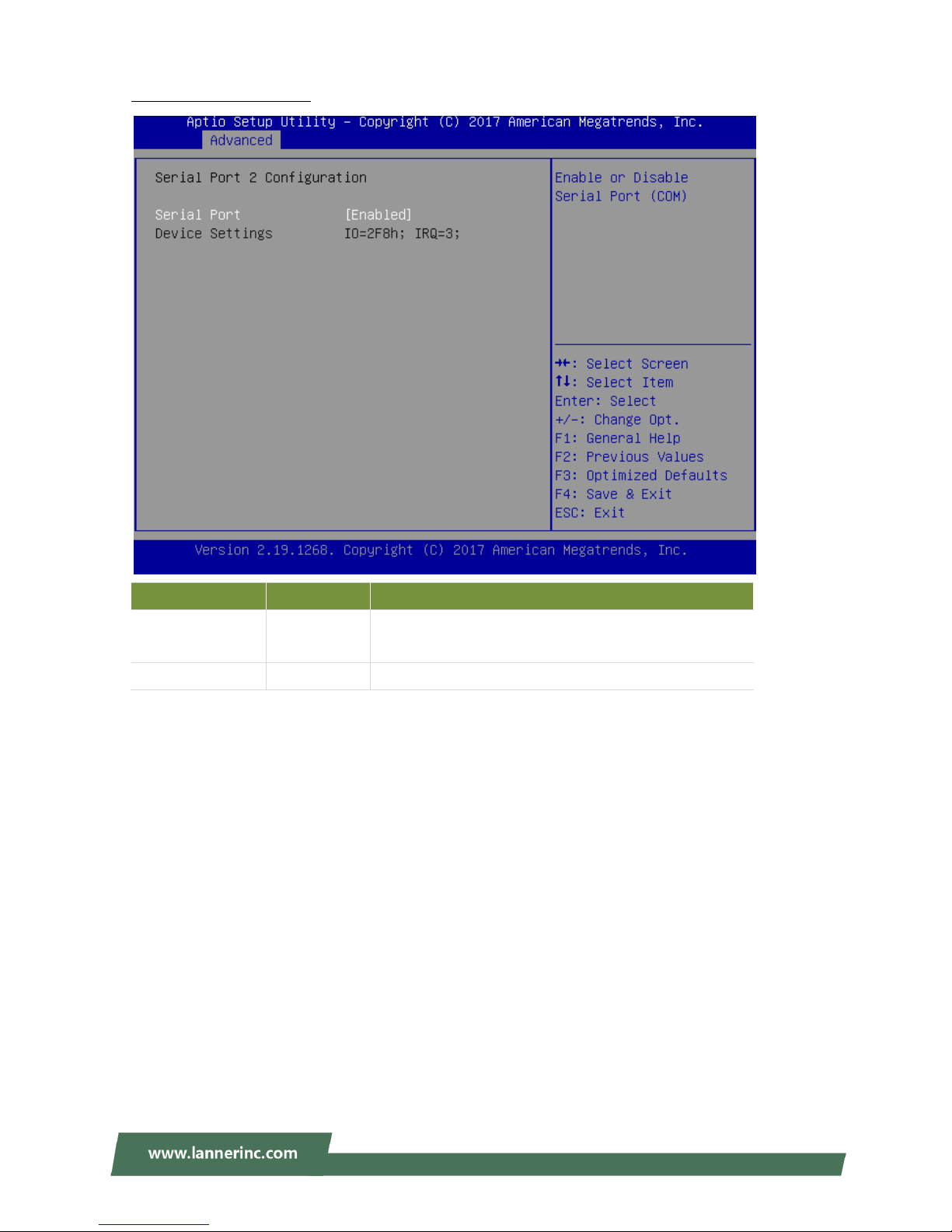

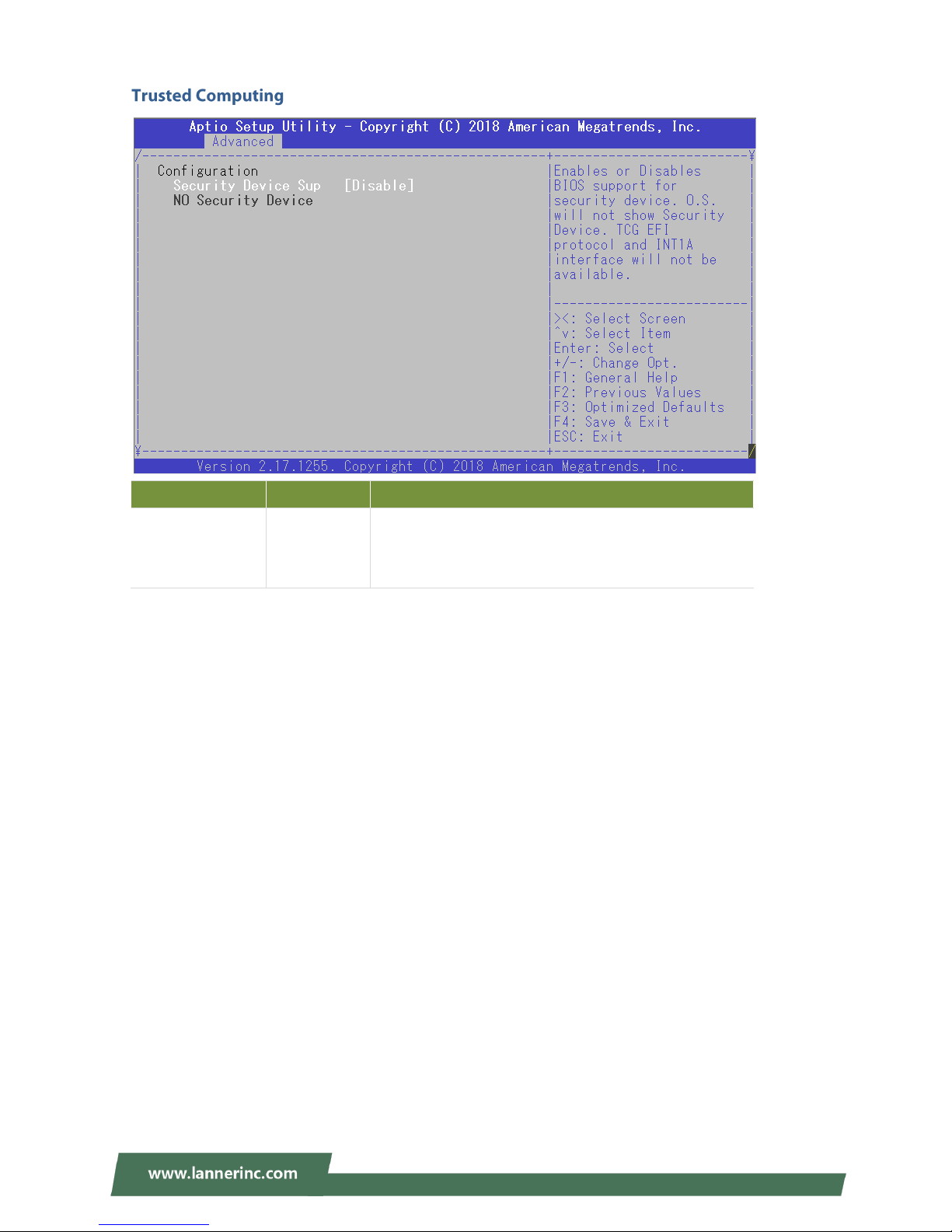

Advanced Page ........................................................................................................................... 44
Page 10
NCA-3810 User Manual
10

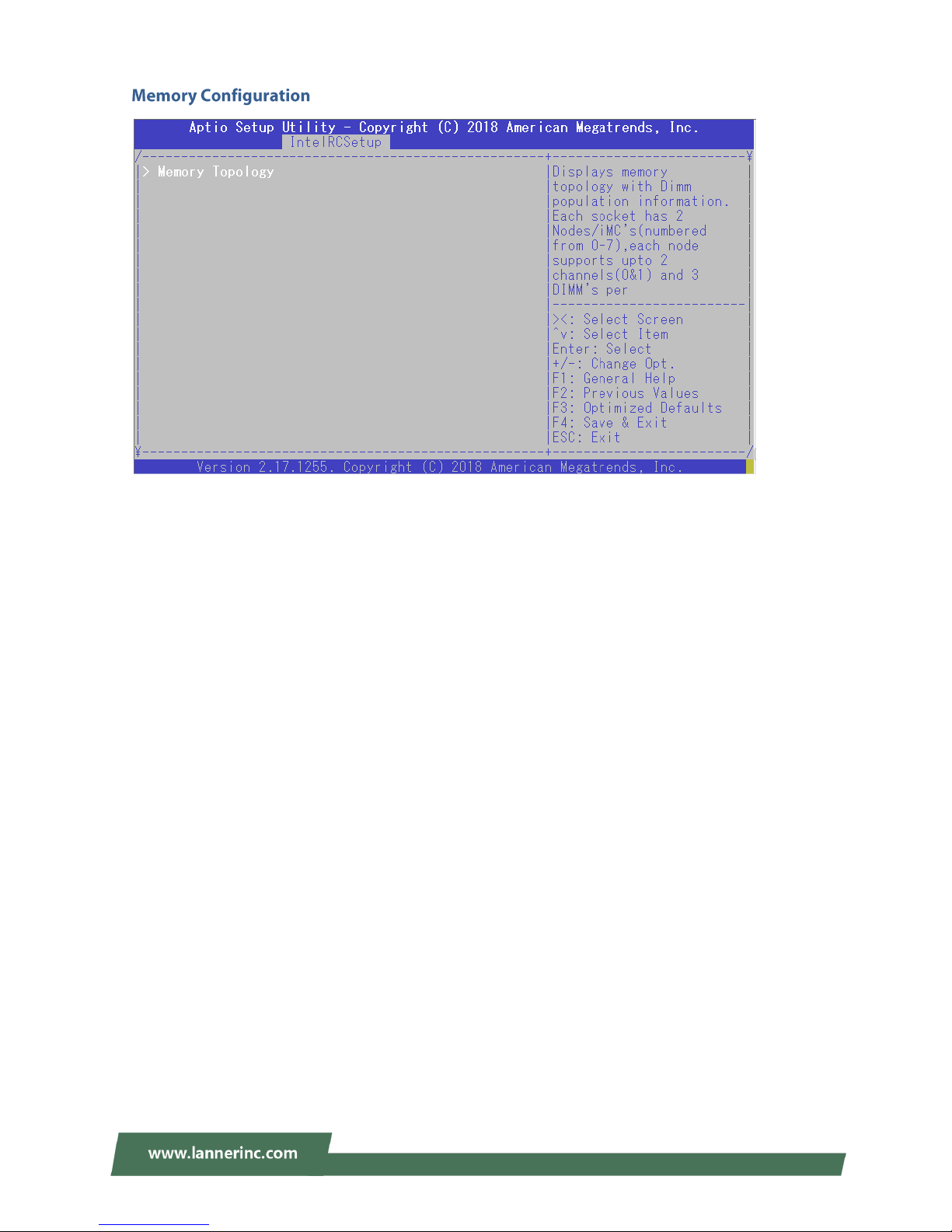

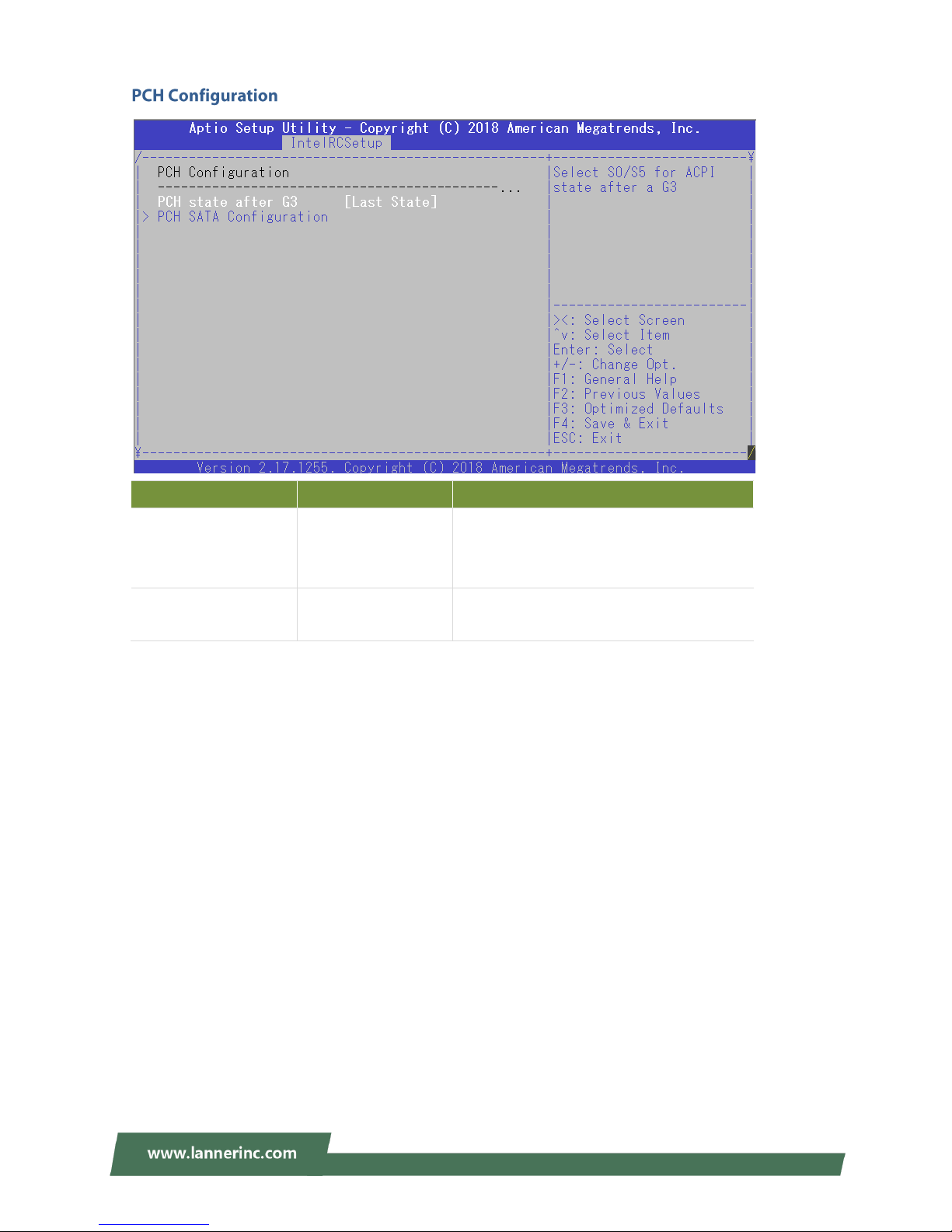

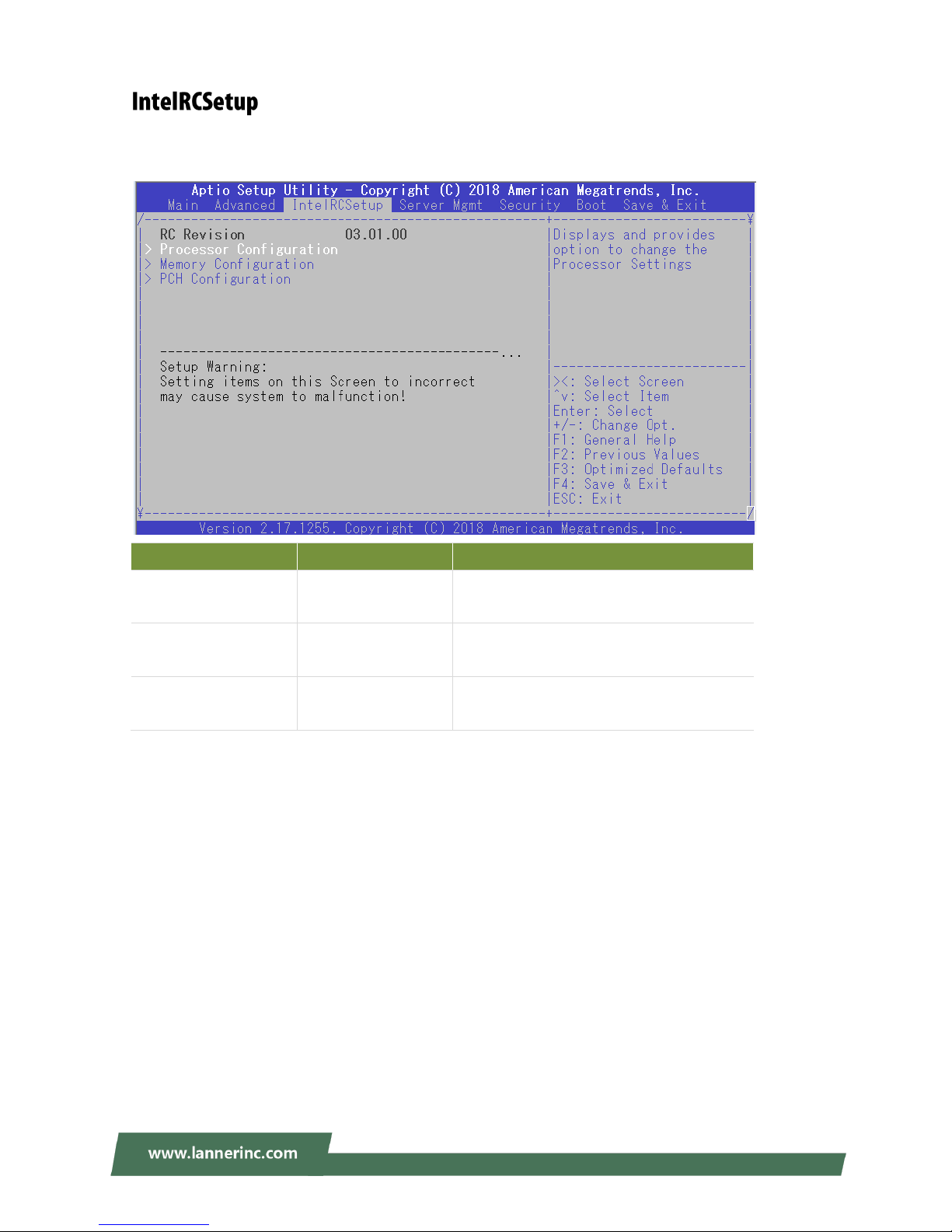

IntelRCSetup ............................................................................................................................... 55

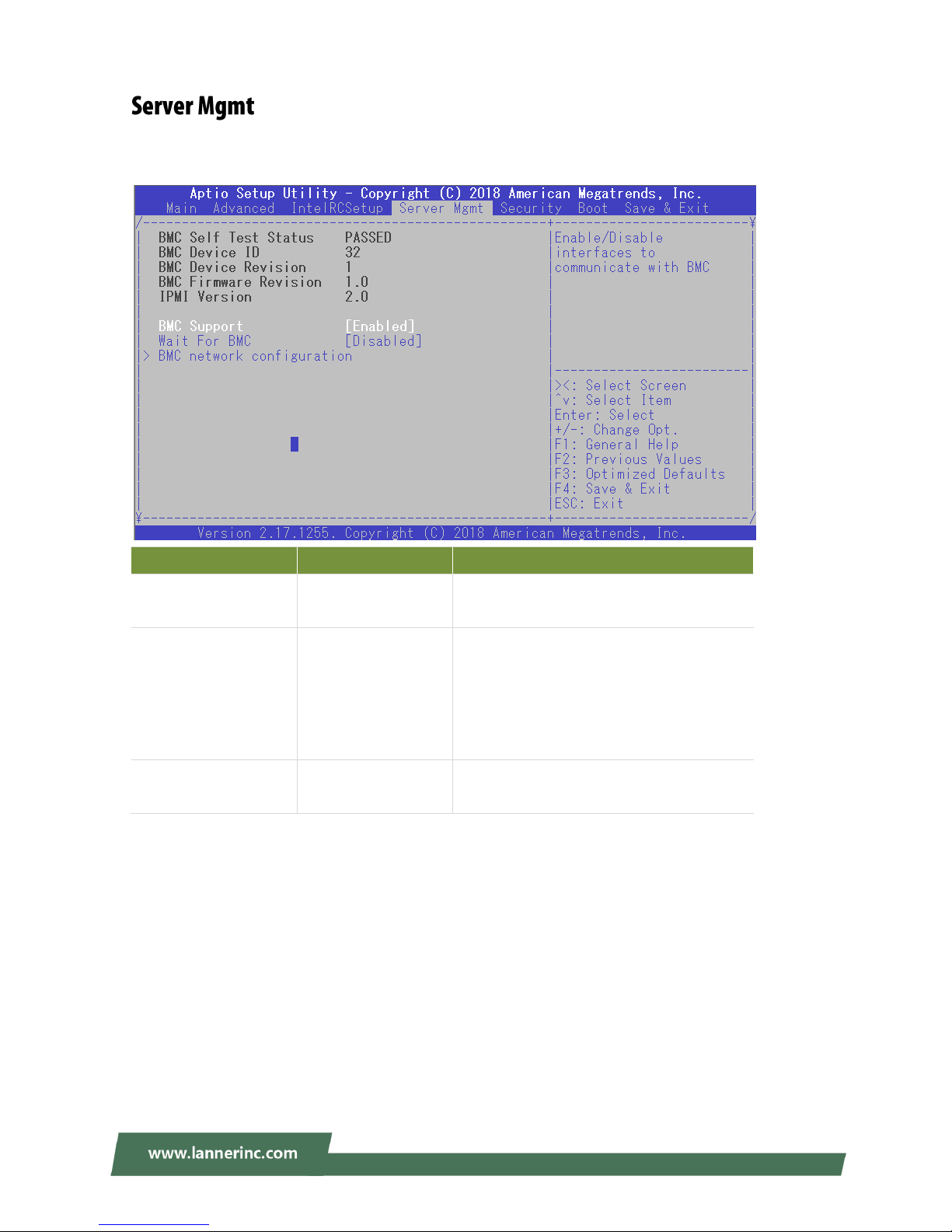

Server Mgmt ............................................................................................................................... 63

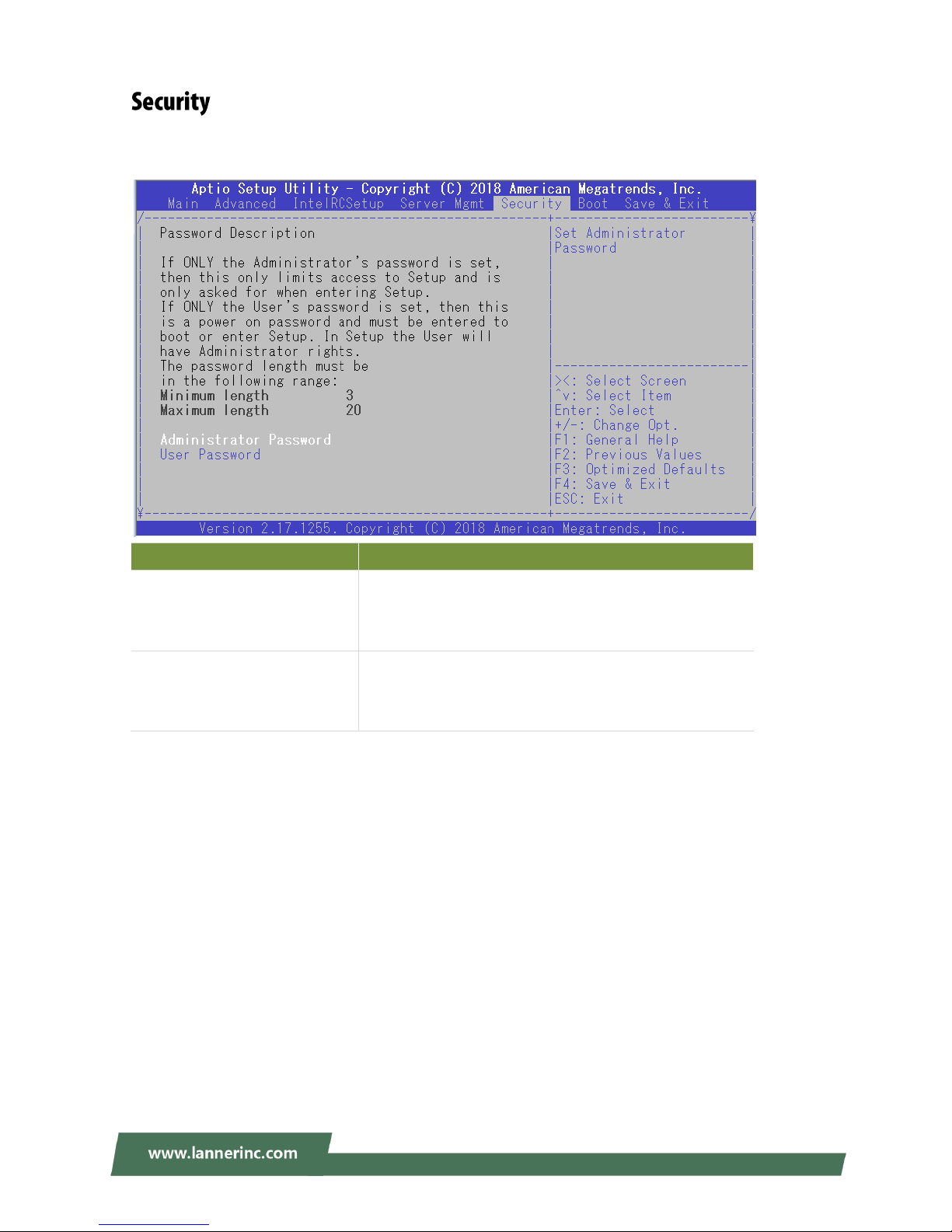

Security ....................................................................................................................................... 65
Boot ............................................................................................................................................ 66

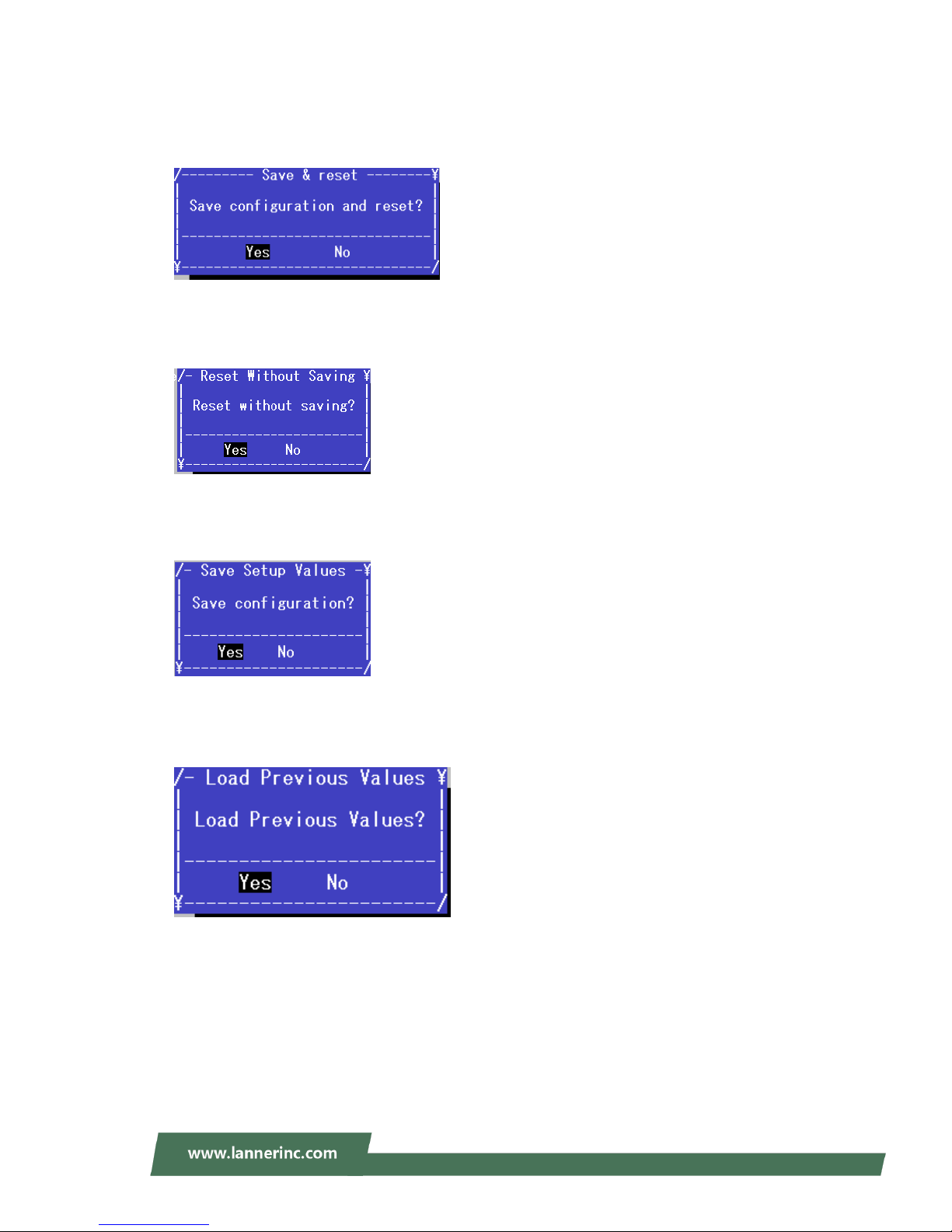

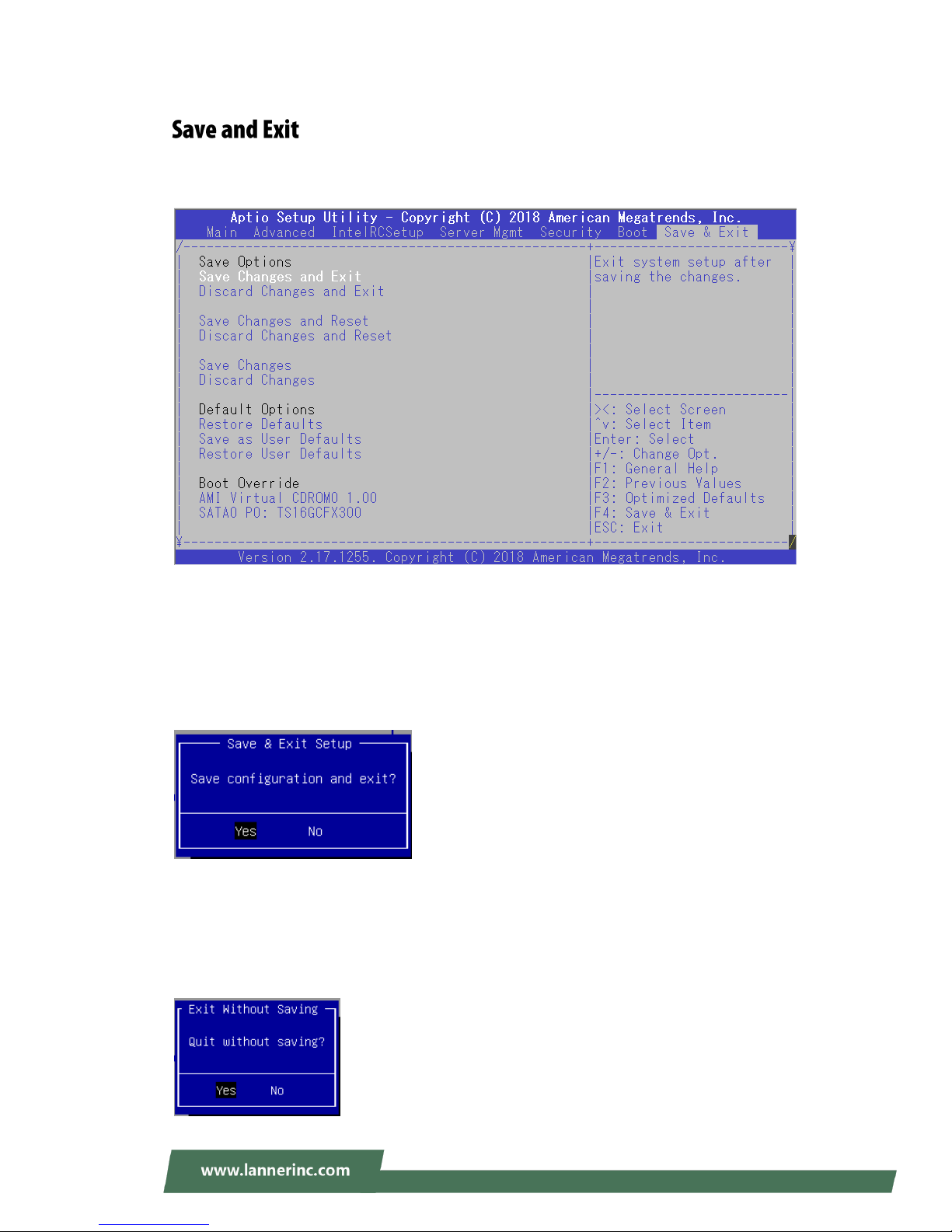

Save and Exit ............................................................................................................................... 67
Warranty Policy .......................................................................................................................... 73

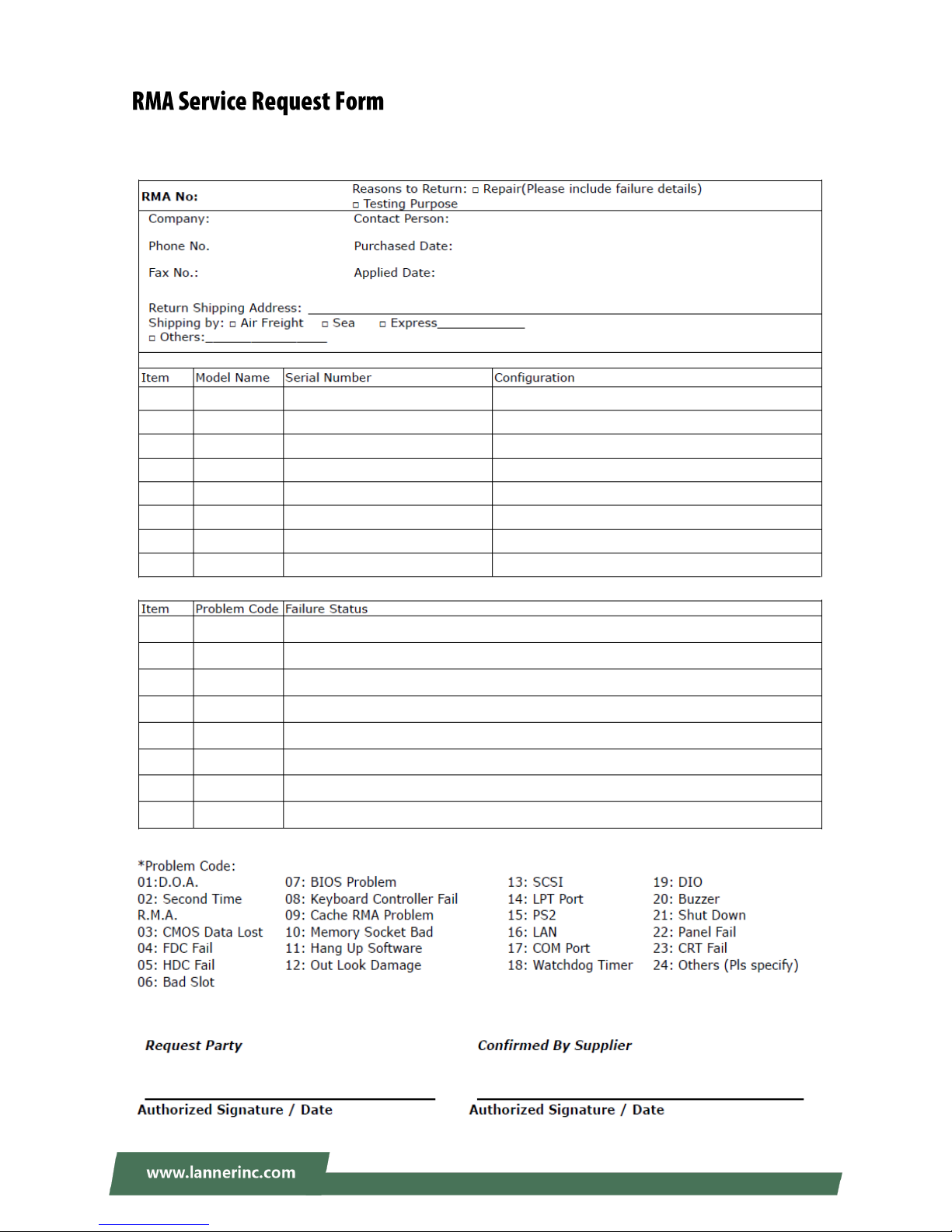

RMA Service ................................................................................................................................ 73
RMA Service Request Form ........................................................................................................ 74
Page 11
Chapter 1: Product Overview
11
The FX-3810 is a high-performance and Open Compute appliance for today’s telecommunication and data
center deployment scenarios.
The FX-3810 is powered by dual Intel® Xeon® E5-2600 v3/v4 processors and can be configured with up to
128GB of DDR4 2133/2400 MHz REG DIMM; it comes with 1x GbE RJ45 LAN port, 1x RJ45 IO interface port,
1x OPMA slot and 1x RJ45 console port.
As an Open Compute appliance, the FX-3810’s 4x PCI-E*16 FH/HL and 2x PCI-E*8 FH/HL can be leveraged
for enabling network capabilities intended for various applications, most notably storage for hybrid or
hot/cold data, data crypto/compression, video encoding/transcoding, and network acceleration.
Your package contains the following items, if any component is missing or damaged, please contact your
dealer immediately for assistance.
1x FX-3810 Network Appliance
1x Accessory Pack
2x Slide Rail
2x Heat Sink
Heat Sink
Accessory Pack
Power Cable
Power cable
for PCI-e card
Screw Packs
Ethernet
Cable
Console
Cable
Short Ear
Brackets
Heat Sink
Slide Rail
Slide Rail
Page 12
NCA-3810 User Manual
12
SKU No.
Specification
FX-3810
1x GbE, 4x PCI-E*16 FH/HL, 2x PCI-E*8 FH/HL, 6x NIC Slots, 2x 2.5” HDD/SSD Bays
Form Factor
3U 19” Rackmount
Platform
Processor Options
Intel® Xeon® E5-2600 v3/v4 (Haswell/Broadwell-EP)
CPU Socket
2x LGA2011-R3
Chipset
Intel® C612
Security Acceleration
N/A
BIOS
AMI SPI Flash BIOS
System Memory
Technology
DDR4 2133/2400MHz REG DIMM
Max. Capacity
512 GB
Socket
8x 288pin DIMM
Networking
Ethernet Ports
1x GbE RJ45 Intel® 82574L
Bypass
N/A
NIC Module Slot
N/A
LOM
IO Interface
1x RJ45
OPMA slot
Yes
I/O Interface
Reset Button
1
LED
Power/Status/Storage
Power Button
1x ATX Power Switch
Console
1x RJ45
USB
1x USB 2.0
LCD Module
128x64 LCM with 7x Keypads
Display
From OPMA Slot (Optional)
Power input
AC Power Inlet on PSU
Storage
HDD/SSD Support
2x 2.5” External Bay
Onboard Slots
1x mSATA
Expansion
PCIe
4x PCI-E*16 FH/HL, 2x PCI-E*8 FH/HL
mini-PCIe
N/A
Miscellaneous
Watchdog
Yes
Internal RTC with Li Battery
Yes
TPM
Yes (Optional)
Cooling
Processor
Passive CPU heatsink
System
8x Hot-swappable Cooling Fans
Environmental Parameters
Temperature
0 to 40ºC Operating
-20 to 70ºC Non-Operating
Humidity (RH)
5 to 90% Operating
5 to 95% Non-Operating
System Dimensions
(WxDxH)
438 x 609 x 132 mm
Weight
35 kg
Package Dimensions
(WxDxH)
936 x 588 x 300 mm
Weight
37 kg
Power (PMbus signal)
Type/Watts
1100W 1+1 ATX Redundant PSUs
(As the deviation value is 0.125A, the current value might
read zero (0) when its actual value is smaller than 0.125A.)
Input
AC 100V~240V @47~63 Hz
Approvals and Compliance
RoHS, CE/FCC Class A
Page 13
Chapter 1: Product Overview
13
No.
Description
F1
PCI Riser Board Slot
PCI-E*16 FH/HL
F2
PCI Riser Board Slot
PCI-E*8 FH/HL
F3
PCI Riser Board Slot
PCI-E*16 FH/HL
F4
LED Indicators
(System)

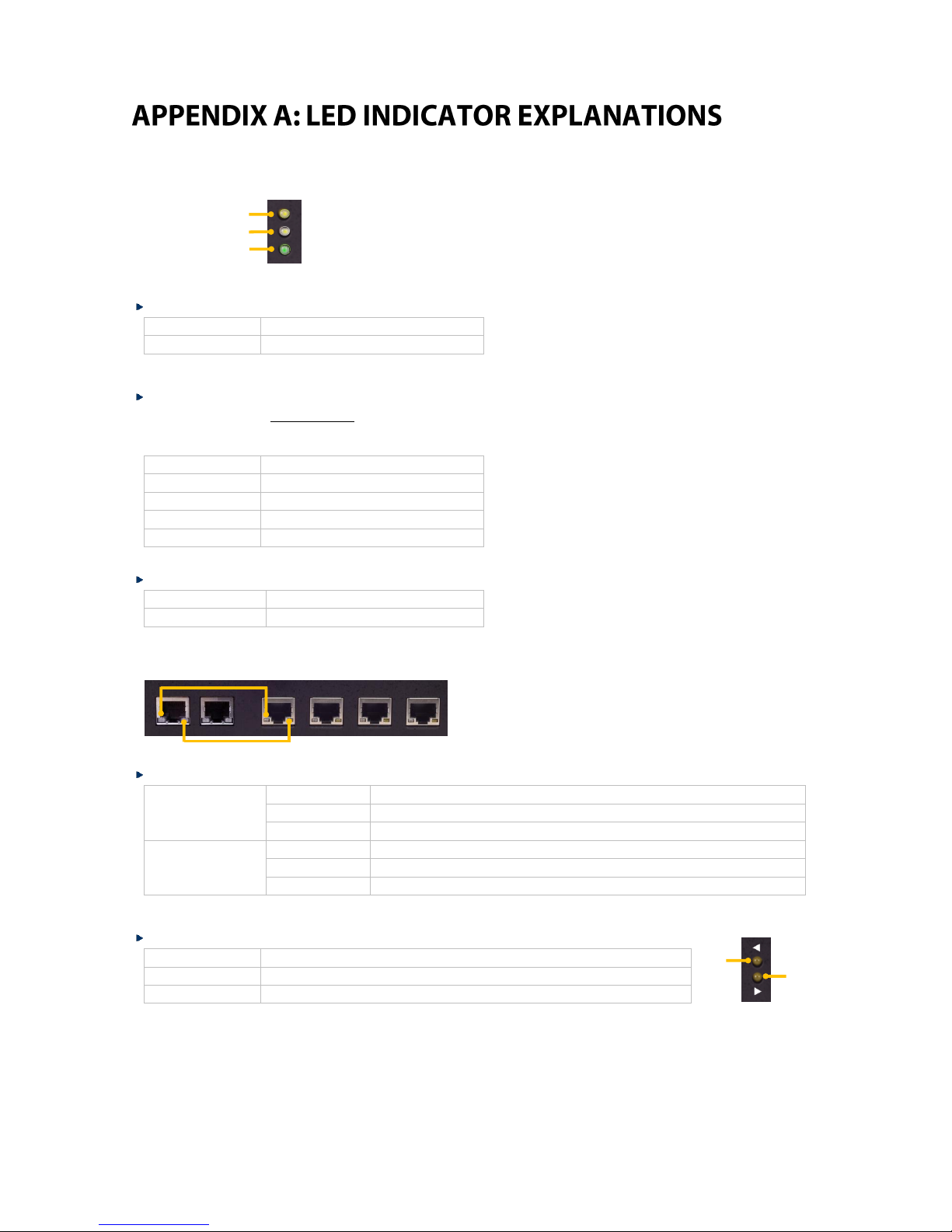

Please refer to Appendix A: LED Indicator Explanations for the
description of the LED Indicators.
F5
LCM
With 7 control keys
F6
PCI Riser Board Slot
PCI-E*16 FH/HL
F7
PCI Riser Board Slot
PCI-E*8 FH/HL
F8
PCI Riser Board Slot
PCI-E*16 FH/HL
F9
HDD/SDD Slot
2x 2.5” HDD/SSD Bay
F10
USB Port
1x USB 2.0
F11
LAN Port
1x RJ45 Port
F12
RJ45 Console Port
RJ-45 Console Port
F13
LOM Port
1x dedicated management channel for device maintenance.
With 6 PCIe Card installed
With 1~5 PCIe Card installed
Maximum power consumption
per PCIe slot
≦100W
≦120W
Maximum total power consumption
of all six PCIe slots
<600W
Note: Please supply power to the PCIe adapter which consumes over 75W via a power cable.
F1
F13
F11
F12
F9
F10
F5
F2
F3
F6
F7
F8
F4
HDD Activity
System Status
System Power
Page 14
NCA-3810 User Manual
14
No.
Description
R1
Fans
8x Hot-swappable Fans
R2
Redundant PSUs
2x AC Power Inlet on PSU
R2
R1
Page 15
Chapter 2: Motherboard Information
15
The block diagram indicates how data flows among components on the motherboard. Please refer to the
following figure for your motherboard’s layout design.
Page 16
NCA-3810 User Manual
16
The motherboard layout shows the connectors and jumpers on the board. Refer to the following picture as
a reference of the pin assignments and the internal connectors.
Page 17
Chapter 2: Motherboard Information
17
▲ATX1: ATX Power Connector 8P
Pin No.
Description
Pin No.
Description
1
P12V 2 GND
3
P12V 4 GND
5
P12V 6 GND
7
P12V 8 GND
▲ATX2: ATX Power Connector 8P
Pin No.
Description
Pin No.
Description
1
P12V 2 GND
3
P12V 4 GND
5
P12V 6 GND
7
P12V 8 GND
▲ATX3: ATX Power Connector 8P
Pin No.
Description
Pin No.
Description
1
P12V 2 GND
3
P12V 4 GND
5
P12V 6 GND
7
P12V 8 GND
▲ATX4: ATX Power Connector 8P
Pin No.
Description
Pin No.
Description
1
P12V 2 GND
3
P12V 4 GND
5
P12V 6 GND
7
P12V 8 GND
Page 18
NCA-3810 User Manual
18
▲ATX5: ATX Power Connector 24P
Pin No.
Description
Pin No.
Description
1
P3V3 2 P3V3
3
P3V3 4 -12V
5
GND 6 GND
7
P5V
8
ATX_PSON#
9
GND
10
GND
11
P5V
12
GND
13
GND
14
GND
15
ATXPWGD
16
-5V
17
P5V_SB
18
P5V
19
P12V
20
P5V
21
P12V
22
P5V
23
P3V3
24
GND
▲CPUJTAG1: JTAG Debug Port
Pin No.
Description
Pin No.
Description
1
XDP_TRST#
2
GND
3
XDP_CPU_TDI
4
GND
5
XDP_CPU_TDO
6
GND
7
XDP_TMS
8
GND
9
XDP_CPU01_TCK
10
GND
11
XDP_PREQ#
12
GND
13
P3V3
14
GND
15
XDP_PRDY#
16
GND
▲FAN1: FAN Connector 8P
Pin No.
Description
1
FANT1_PWM
2
FAN1A_RPM
3
FAN1B_RPM
4
GND
5
GND
6
FAN2A_RPM
7
FAN2B_RPM
8
FANT2_PWM
Page 19
Chapter 2: Motherboard Information
19
▲FAN2: FAN Connector 8P
Pin No.
Description
1
FANT3_PWM
2
FAN3A_RPM
3
FAN3B_RPM
4
GND
5
GND
6
FAN4A_RPM
7
FAN4B_RPM
8
FANT4_PWM
▲FAN3: FAN Connector 8P
Pin No.
Description
1
FANB1_PWM
2
FAN5A_RPM
3
FAN5B_RPM
4
GND
5
GND
6
FAN6A_RPM
7
FAN6B_RPM
8
FANB2_PWM
▲FAN4: FAN Connector 8P
Pin No.
Description
1
FANB3_PWM
2
FAN7A_RPM
3
FAN7B_RPM
4
GND
5
GND
6
FAN8A_RPM
7
FAN8B_RPM
8
FANB4_PWM
Page 20
NCA-3810 User Manual
20
▲J27: Front Panel Reset Pin Header 3P
Pin No.
Description
1
PCH_SYS_RESET#
2
GND
3
SW_RST_GP34#
▲Front Panel Jumper Setting
Jumper
Description
1-2
Hardware Reset
2-3
Software Reset (Default)
▲CON3: SMBUS Connector 8P
Pin No.
Description
1
NC 2 NC 3 NC 4 GND 5 NC
6
SMB_PS_CLK01
7
SMB_PS_DATA01
8
PMBUS_ALERT#
▲CONN2: PWRON Pin Header 2P
Pin No.
Description
1
PWRON#
2
GND
▲JLCM1: LCM Pin Header 2x5P
Pin No.
Description
Pin No.
Description
1
XDP_TRST#
2
GND
3
XDP_CPU_TDI
4
GND
5
XDP_CPU_TDO
6
GND
7
XDP_TMS
8
GND
9
XDP_CPU01_TCK
10
GND
Page 21
Chapter 2: Motherboard Information
21
▲CONN5: PSON Pin Header 2P
Pin No.
Description
1
ATX_PSON#
2
GND
▲IPMI_COM1: COM Pin Header 2x5P
Pin No.
Description
Pin No.
Description
1
NDCD2-
2
NDSR2-
3
NSIN2
4
NRTS2-
5
NSOUT2
6
NCTS2-
7
NDTR2-
8
NRI2-
9
COMGND2
▲JTPM1: TPM Pin Header 2x6P
Pin No.
Description
Pin No.
Description
1
IRQ_SERIAL
2
LPC_FRAME#
3
LPC_LAD0
4
CLK_33M_PCI
5
LPC_LAD1
6
P3V3_AUX
7
LPC_LAD2
8
NC
9
LPC_LAD3
10
P3V3
11
PLT_RST#
12
GND
▲CON4: SATA POWER Connector 4P
Pin No.
Description
1
P12V
2
GND
3
GND
4
P5V
▲CON5: SATA POWER Connector 4P
Pin No.
Description
1
P12V
2
GND
3
GND
4
P5V
Page 22
NCA-3810 User Manual
22
▲JSPIROM1: SPI FLASH Pin Header 2x5P
Pin No.
Description
Pin No.
Description
1
SPI_HD1#
2
SPI_CS1#
3
SPI_CS0#
4
P3V3_SPI_ME
5
SPI_MISO
6
HOLD#
7
NC 8 SPI_CLK
9
GND
10
SPI_MOSI
▲CPEN2: CASE OPEN Pin Header 2P
Pin No.
Description
1
CSOPEN#
2
GND
▲J80PORT1: 80PORT Pin Header 2x5P
Pin No.
Description
Pin No.
Description
1
CLK_33M_PORT80
2
LPC_LAD1
3
80PORT_RST#
4
LPC_LAD0
5
LPC_FRAME#
6
P3V3
7
LPC_LAD3
8
NC
9
LPC_LAD2
10
GND
▲JSDO1: SECURITY OVERRIDE Pin Header 2P
Pin No.
Description
1
P3V3_AUX
2
HDA_SDO
▲J25: JTAG Pin Header 8P
Pin No.
Description
1
P3V3_AUX
2
JTAG_PLD_TDO
3
JTAG_PLD_TDI
4
NC 5 NC
6
JTAG_PLD_TMS
7
GND
8
JTAG_PLD_TCK
Page 23
Chapter 2: Motherboard Information
23
▲JUSB1: Front Panel USB2.0 Pin Header 2x5P
Pin No.
Description
Pin No.
Description
1
P5V_USB1
2
P5V_USB1
3
USB20_L_N2
4
USB20_L_N3
5
USB20_L_P2
6
USB20_L_P3
7
GND 8 GND
9
GND
10
GND
▲J6: JTAG Pin Header 8P
Pin No.
Description
1
P3V3_AUX
2
JTAG_PLD_TDO_1
3
JTAG_PLD_TDI_1
4
NC 5 NC
6
JTAG_PLD_TMS_1
7
GND
8
JTAG_PLD_TCK_1
Page 24
NCA-3810 User Manual
24

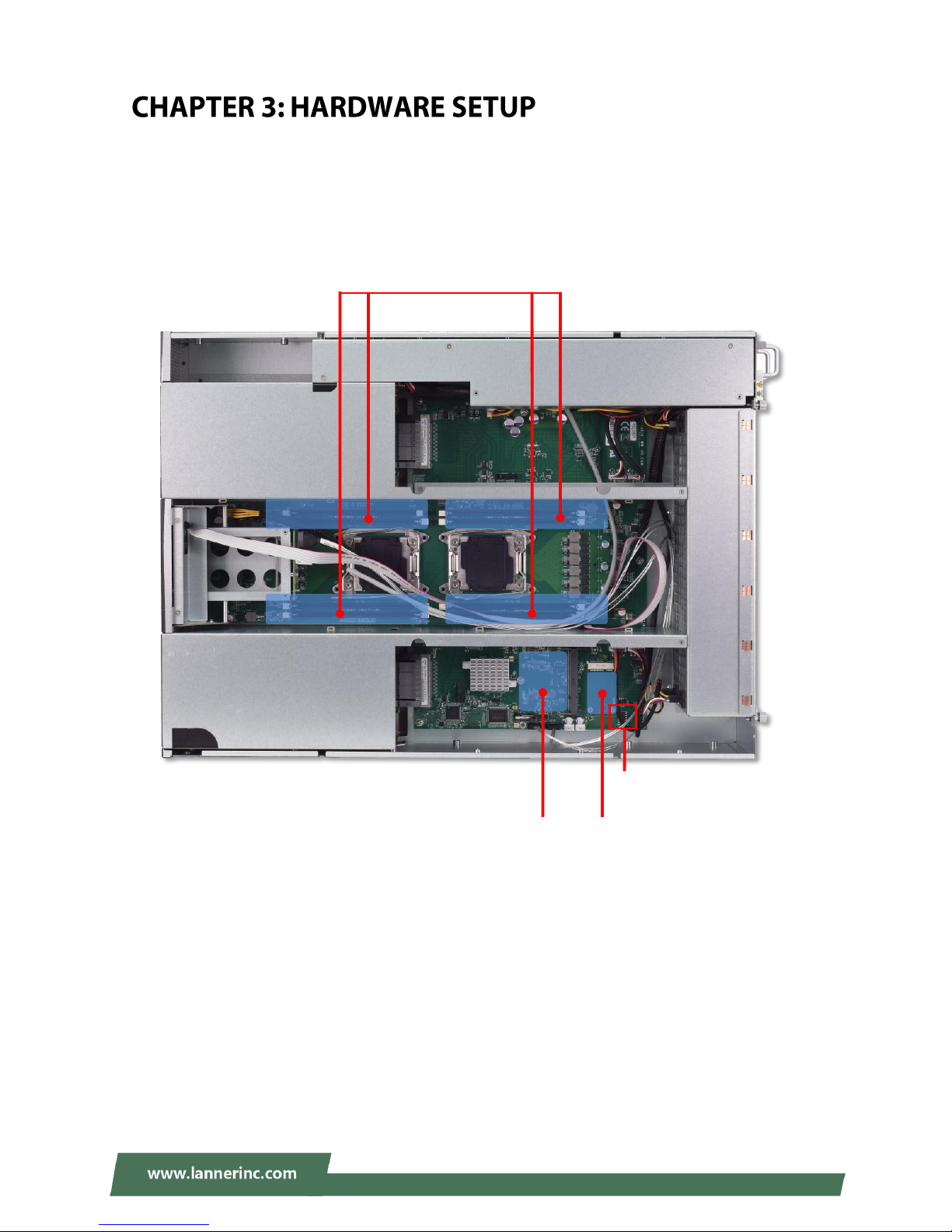

To reduce the risk of personal injury, electric shock, or damage to the equipment, please remove all power
connections to completely shut down the device. Also, please wear ESD protection gloves when conducting
the steps described hereafter.
OPMA Slot mSATA Slot
support TPM V1.2 module
DIMM Slot x8
Page 25
Chapter 3: Hardware Setup
25
1. Loosen the two screws (indicated in the photos) that fix this unit’s cover.
2. Pull the cover open horizontally, and then lit it up remove it.
Page 26
NCA-3810 User Manual
26
Before you can access the motherboard, remove the fan duct by lifting it up.
To install it after you finish servicing the components, simply place it back into the original position, and
make sure the tabs on both duct sides are properly inserted into the slots shown in the picture below.
Page 27
Chapter 3: Hardware Setup
27
The motherboard supports 8 memory slots for DDR4 registered DIMM, organized in 4 pairs. Each CPU
requires at least 1 memory module to boot and run from.
Supported Capacities: 8/16/32/64 GB
Maximum RAM: 512 GB (64GB per slot)
A B D
C
DIMM slots in Pair A and B are
assigned to CPU0.
DIMM slots in Pair C and D are
assigned to CPU1.
Page 28
NCA-3810 User Manual
28
Please do follow the memory module installation instructions to install the DIMM, and make sure the DIMM
population guidelines are met:
Populate at least one DIMM for each CPU.
Try to split the DIMMs evenly across the CPU channels(A~D); this is to maximize the system
performance by balancing the total memory capacity between both installed processors and utilizing
as many channels as possible.
When installing the DIMMs, in each channel, always start with the socket with smaller number (e.g.
JDDR0JDDR2, JDDR8JDDR10).
Please use memory modules of the same capacity, speed and from the same manufacturer to avoid
compatibility issues.
The table shows the recommended order (the numbers in red) of DIMM population that conforms to the
general DIMM population guidelines.
<DIMM Population Order Example>
Channel A
Channel B
Channel C
Channel D
Number of DIMMs
JDDR0
JDDR 2
JDDR 4
JDDR R
JDDR8
JDDR10
JDDR12
JDDR14
2
1 2
3 1 3 2
4 1 3 2 4
5 1 5 3 2 4
6 1 5 3 2 6 4
7 1 5 3 7 2 6 4
8 1 5 3 7 2 6 4
8
Page 29
Chapter 3: Hardware Setup
29
Please follow the steps below to install the DIMM memory modules.
1. Pull open the DIMM slot latches.
2. Align the notch of the module with the socket key in the slot and carefully insert the card into the slot.
3. Push the module down into the slot until it is firmly seated. Press vertically on both corners of the card
until it clicks into place.
Click
1
Notch
Socket Key
Click
Page 30
NCA-3810 User Manual
30
1. Align the IPMI card and make sure the notch of the card aligns with the socket key in the OPMA slot.
Tilt the end of gold fingers down while carefully inserting the card into the slot.
2. Press on both corners of the module until it clicks into place.
Page 31
Chapter 3: Hardware Setup
31
1. Align the notch of the mSATA card with the socket key in the slot. Tilt the end of the gold fingers down
while carefully inserting the card into the slot.
2. Fix the card with the dedicated screw provided in the accessory pack.
Page 32
NCA-3810 User Manual
32
1. Pull out a hard disk tray, and mount the disk onto the empty tray with four disk screws. Please mind the
direction of the SATA port, which should be facing outward.
2. To install the mounted disk tray, push the tray into position in the chassis. Press on the hinge tab to
close it.
SATA Contact
Disk Screws
Page 33
Chapter 3: Hardware Setup
33
To service the riser board drawer:
1. Pull open the Hinge Lock.
2. Drag out the entire drawer by the Handle.
To install the board drawer:
1. Push it back into the chassis by the Handle.
2. Close the Hinge Lock.
Hinge Lock
Handle
1
2
1
2
Page 34
NCA-3810 User Manual
34
1. Remove the screws that fix the top cover of the riser board module to reveal the slots.
2. Vertically insert the PCIe adapter into the
slot. Make sure the gold-plated
connector sits well in the slot.
3. Fix the adapter on the riser board with
screws.
Slots
Page 35
Chapter 3: Hardware Setup
35
4. If this PCIe adapter draws more than 75W, connect the PCIe adapter power cable to the connector on
the riser board as well as to the PCIe adapter.
Power
Connectors
PCIe card
power cable
Page 36
NCA-3810 User Manual
36
With Slide Rail Kit + Short Mounting Ear Brackets
The Slide Rails can secure
the system while providing
sufficient weight support
for the device.
The Ear Brackets fix the
system onto the front rack
posts.
Page 37
Chapter 3: Hardware Setup
37

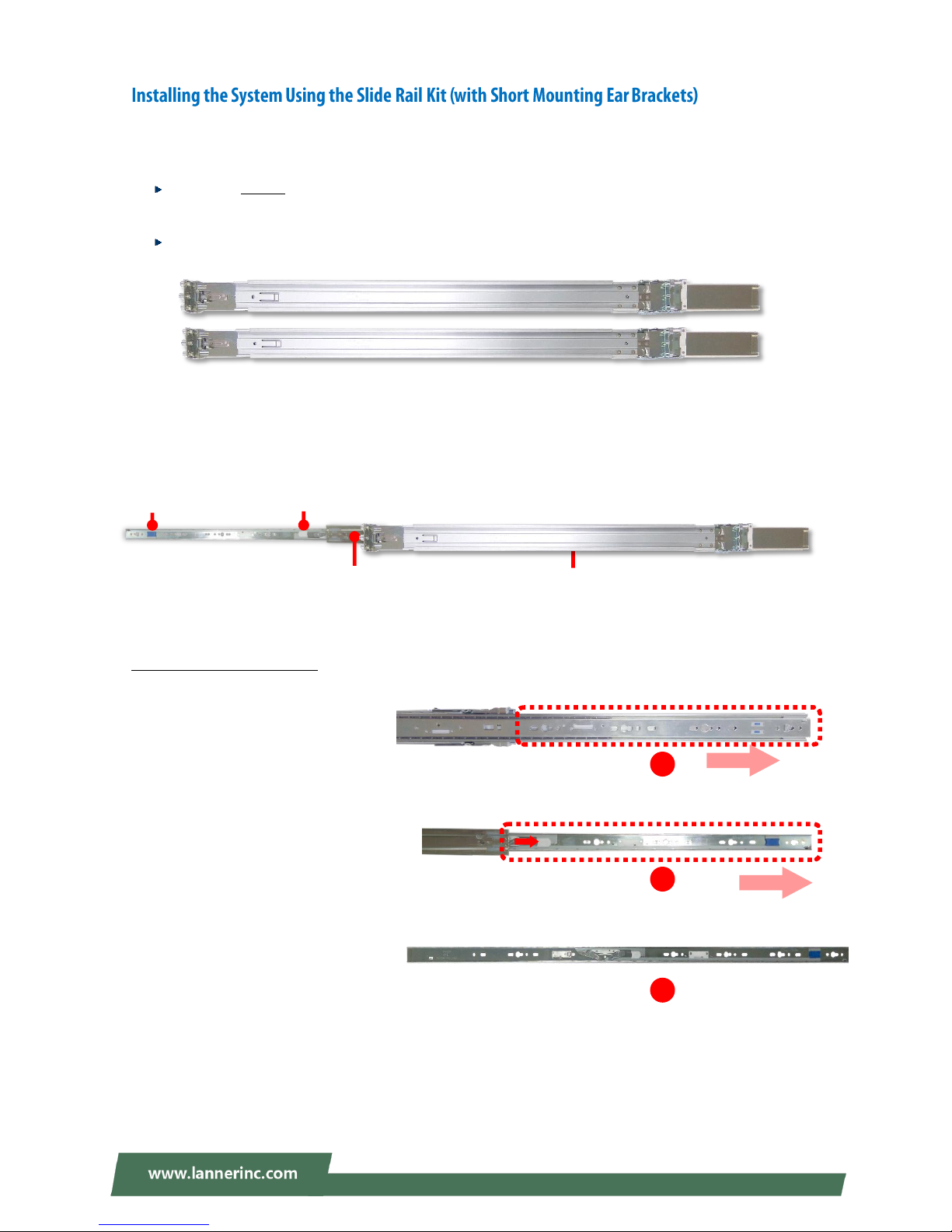

1. Check the package contents of the Slide Rail Kit. The kit shall include the following items:
1x pack of M4X4L screws (for securing the sliding rail on the system)
2 x Slide Rails
A rail consists of the following parts:
Attaching the Rail Brackets
2. Unpack a slide rail and slide the
Inner Channel all the way to the
end.
3. Stretch the Rail Bracket to the
fullest.
4. Remove the Rail Bracket from the
Inner Channel by pushing the
Release Tab on the Rail Bracket
outwards while sliding it out.
3
2
Outer Channel
Inner Channel
Rail Bracket
Release Tab
Rail Lock
4
Release Tab
Page 38
NCA-3810 User Manual
38
5. Align the Rail Bracket to the side of the chassis and make sure the screw-holes are matched, and then
secure the Rail Bracket onto the chassis with four provided M4X4L screws.
6. Repeat Steps 2~5 to attach the Rail Bracket to the other side of the chassis.
6
Right Bracket
5
Front
Rear
Left Bracket
Page 39
Chapter 3: Hardware Setup
39
Assembling the Ear Brackets
7. Check the package contents. The
supplied mounting kit shall include
the items below:
1x pack of screws
2x Ear Brackets
8. Install the Ear Brackets on both
sides of the system using the
provided screws.
Installing the Slide Rails
Now, you shall install the slide rail
assemblies onto the rack.
9. This slide-rail kit does NOT require
screw-fixing. Simply aim at 3
available screw holes on the rack
front and snap the rail front into
the rack post as shown in the
image. You should hear a “click”
sound once it is firmly attached.
10. For the rear rack installation, slide
the rail to aim and engage the
bolts on the rail’s rear end with the
2 available holes on the post, and
the rail assembly will click into
place.
For securing the
Ear Brackets on
the unit
Right Ear
Left Ear
Left Ear
Right Ear
Use this clamp
to fix the front
end of the rail
onto the post.
Click
Click
Page 40
NCA-3810 User Manual
40
Installing the System into the Rack
1. Stretch both of the Inner Channels
out to their fullest extent. You will
hear a click sound when they are
fully stretched and stop.
2. Hold the system with its front
facing you, lift the chassis and
gently engage the Rail Brackets on
the model while aligning them with
the slide-rail assemblies as shown
in the image, and then push the
system into the cabinet.
While pushing in the system, please
also push and hold the Rail Lock
tab on both Rail Brackets.
3. Fix the lock-screws on the Ear
Brackets to both front posts.
Click
The inner rail will click
when it is fully stretched.
Rail Lock
1
2
Page 41
Chapter 3: Hardware Setup
41
4. To remove the system from the
rack, gently pull the system
outwards towards you while
pushing the Release Tab on both
sides of the Rail Brackets.
Release Tab
Page 42
NCA-3810 User Manual
42
To enter the BIOS setup utility, simply follow the steps below:
1. Boot up the system.
2. Press <Delete> during the boot-up if you connect a keyboard to this unit. But if you connect a PC to this
unit through console USB/Serial connection, then press <Tab>. Your system should be running POST
(Power-On-Self-Test) upon booting up.
3. Then you will be directed to the BIOS main screen.
4. Instructions for BIOS navigations:
Control Keys
Description
select a setup screen, for instance, [Main], [Advanced], [IntelRCSetup], [Server
Mgmt], [Security], [Boot], and [Save & Exit]
select an item/option on a setup screen
<Enter>
select an item/option or enter a sub-menu
+/-
to adjust values for the selected setup item/option
F1
to display General Help screen
F2
to retrieve previous values, such as the parameters configured the last time you
had entered BIOS.
F3
to load optimized default values
F4
to save configurations and exit BIOS
<Esc>
to exit the current screen
Page 43
Chapter 4: BIOS Setup
43
Setup main page is description BIOS information and project version information.
Feature
Description
System Language
Choose the system default language
System Date
Set the Date. Use Tab to switch between Date elements. Default Ranges:
Year: 2005-2099 Months: 1-12
Days: dependent on month.
System Time
Set the Time. Use Tab to switch between Time elements.
Page 44
NCA-3810 User Manual
44
Select the Advanced menu item from the BIOS setup screen to enter the “Advanced”
setup screen. Users can select any of the items in the left frame of the screen.
Page 45
Chapter 4: BIOS Setup
45
Feature
Options
Description
Security Device
Support
Enabled
Disabled
Enables or Disables BIOS support for security device. O.S.
will not show Security Device. TCG EFI protocol and
INT1A interface will not be available.
Page 46
NCA-3810 User Manual
46

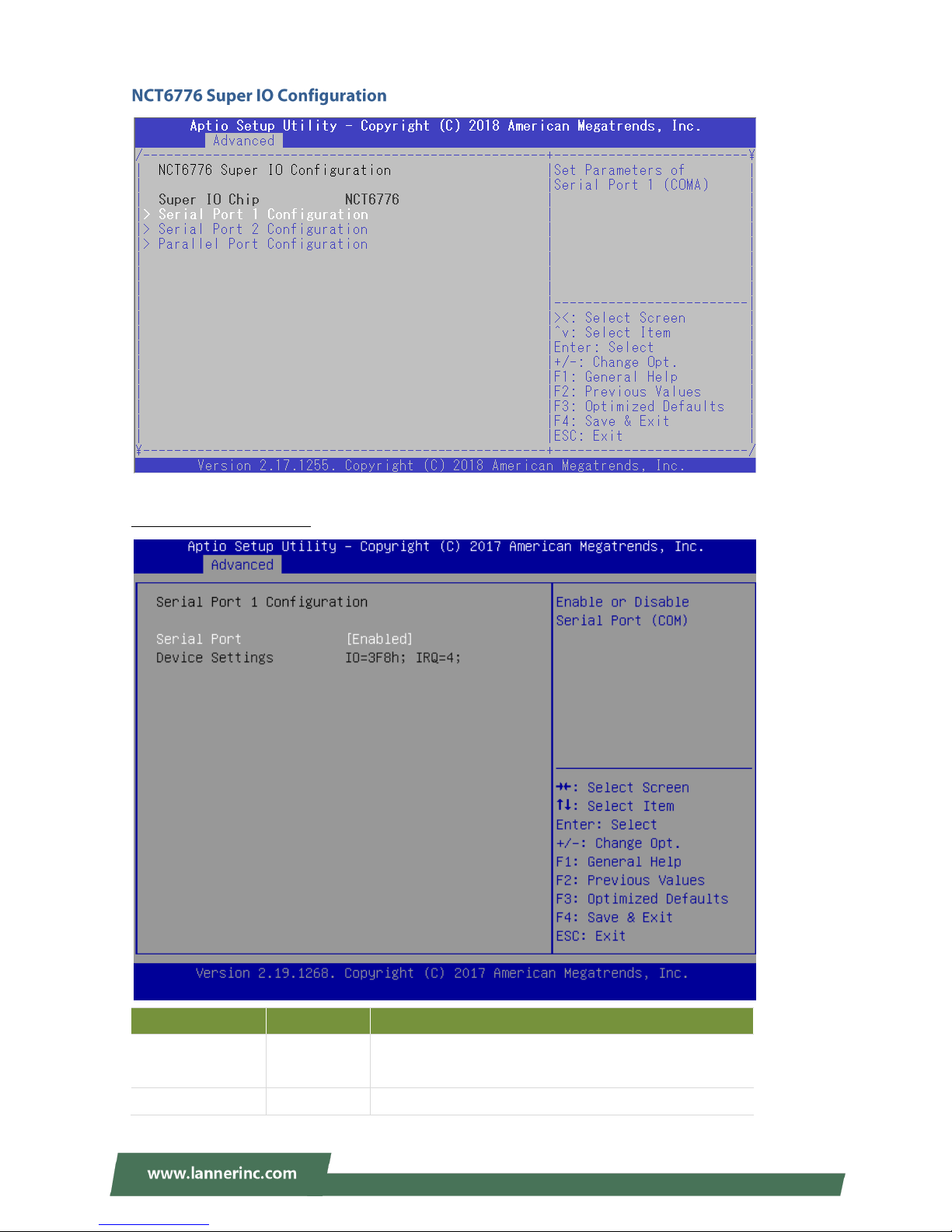

Serial port 1 Configuration
Feature
Options
Description
Serial Port
Enabled
Disabled
Enable or Disable Serial Port 1.
Device Settings
NA
IO=3F8h; IRQ = 4
Page 47
Chapter 4: BIOS Setup
47
Serial port 2 Configuration
Feature
Options
Description
Serial Port
Enabled
Disabled
Enable or Disable Serial Port 2.
Device Settings
NA
IO=2F8h; IRQ = 3
Page 48
NCA-3810 User Manual
48

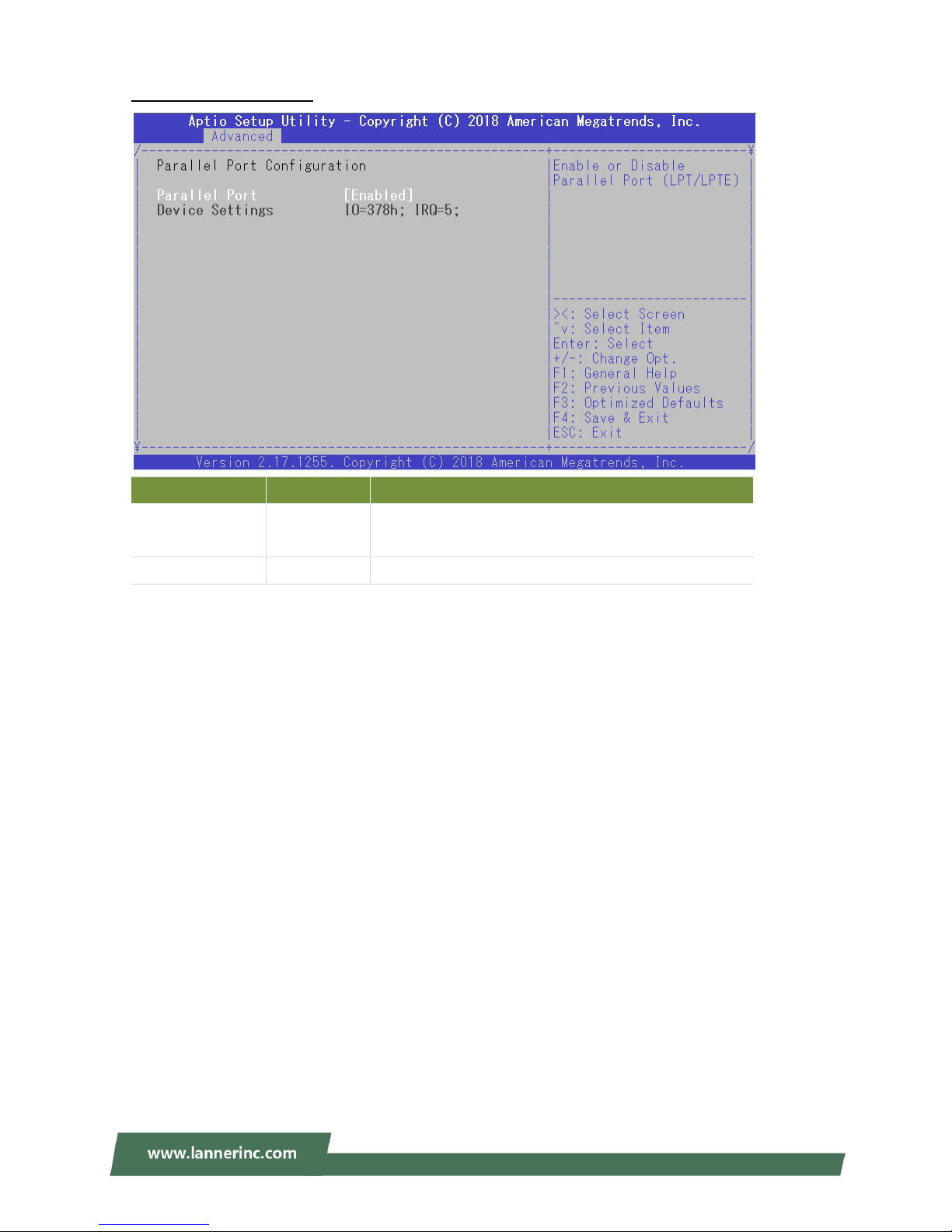

Parallel Port Configuration
Feature
Options
Description
Parallel Port
Enabled
Disabled
Enable or Disable Serial Port 2.
Device Settings
NA
IO=378h; IRQ = 5
Page 49
Chapter 4: BIOS Setup
49
Page 50
NCA-3810 User Manual
50
Feature
Options
Description

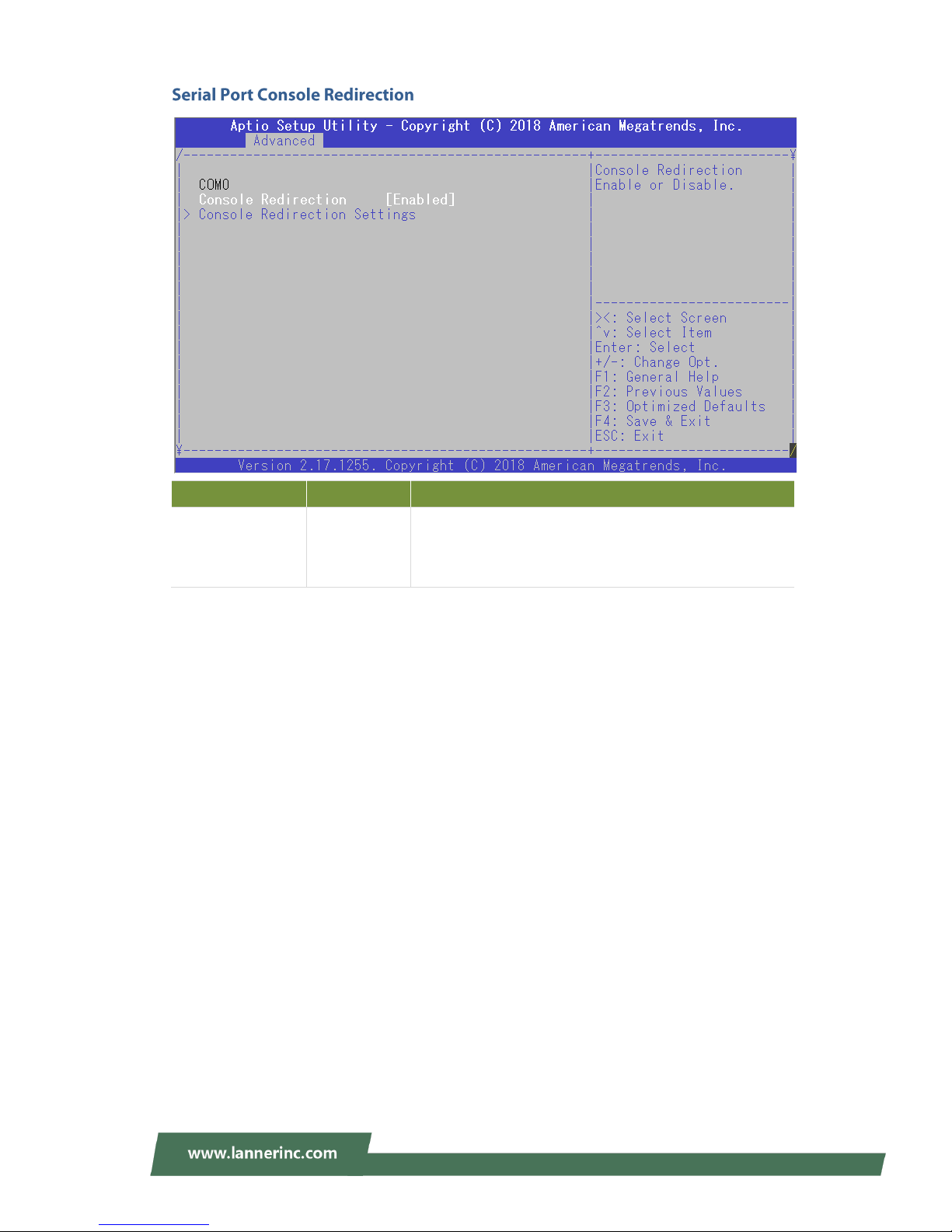

COM0
Console
Redirection
Enabled
Disabled
Console Redirection Enable or Disable.
Page 51
Chapter 4: BIOS Setup
51

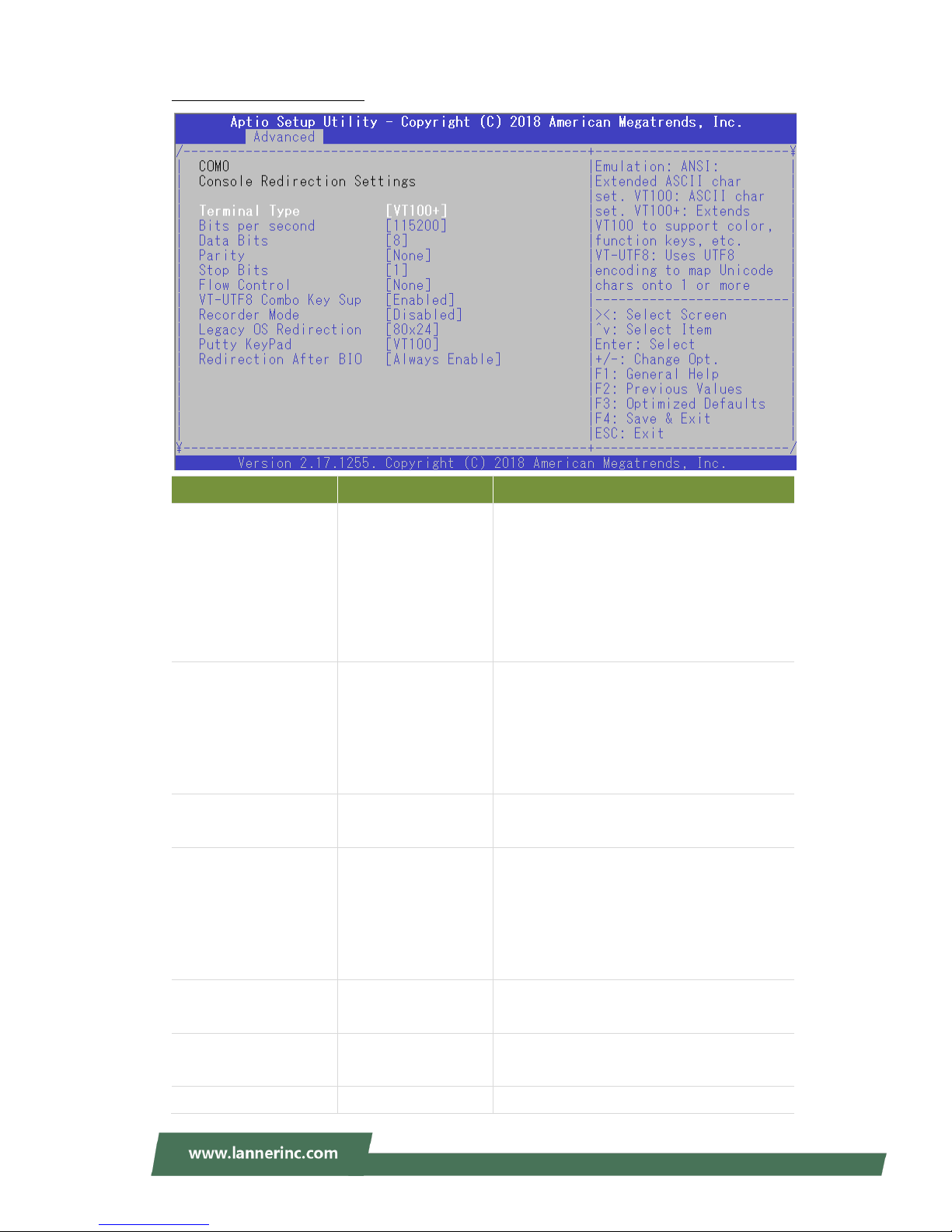

Console Redirection Settings
Feature
Options
Description
Terminal Type
VT100
VT100+
VT-UTF8
ANSI
ANSI: Extended ASCII char set.
VT100: ASCII char set.
VT100+: Extends VT100 to support color,
function keys, etc.
VT-UTF8: Uses UTF8 encoding to map
Unicode chars onto 1 or more bytes.
Bits per second
9600
19200
38400
57600
115200
Selects serial port transmission speed. The
speed must be matched on the other side.
Long or noisy lines may require lower
speeds.
Data Bits
7
8
Data Bits
Parity
None
Even
Odd
Mark
Space
A parity bit can be sent with the data bits to
detect some transmission errors.
Stop Bits
1
2
Stop bits indicate the end of a serial data
packet.
Flow Control
None
Hardware RTS/CTS
Flow control can prevent data loss from
buffer overflow.
VT-UTF8 Combo Key
Disabled
Enable VT-UTF8 Combination Key Support
Page 52
NCA-3810 User Manual
52
Support
Enabled
for ANSI/VT100 terminals
Recorder Mode
Disabled
Enabled
With this mode enabled only text will be
sent. This is to capture Terminal data.
Resolution 100x31
Disabled
Enabled
Enables or disables extended terminal
resolution.
Legacy OS Redirection
Resolution
80x24
80x25
On Legacy OS, the Number of Rows and
Columns supported redirection.
Putty KeyPad
VT100
LINUX
XTERM86
SCO
ESCN
VT400
Select FunctionKey and KeyPad on Putty.
Redirection After BIOS
POST
Always Enable
BootLoader
When Bootloader is selected, then Legacy
Console Redirection is disabled before
booting to legacy OS. When Always Enable
is selected, then Legacy Console Redirection
is enabled for legacy OS. Default setting for
this option is set to Always Enable.
Page 53
Chapter 4: BIOS Setup
53
Feature
Options
Description

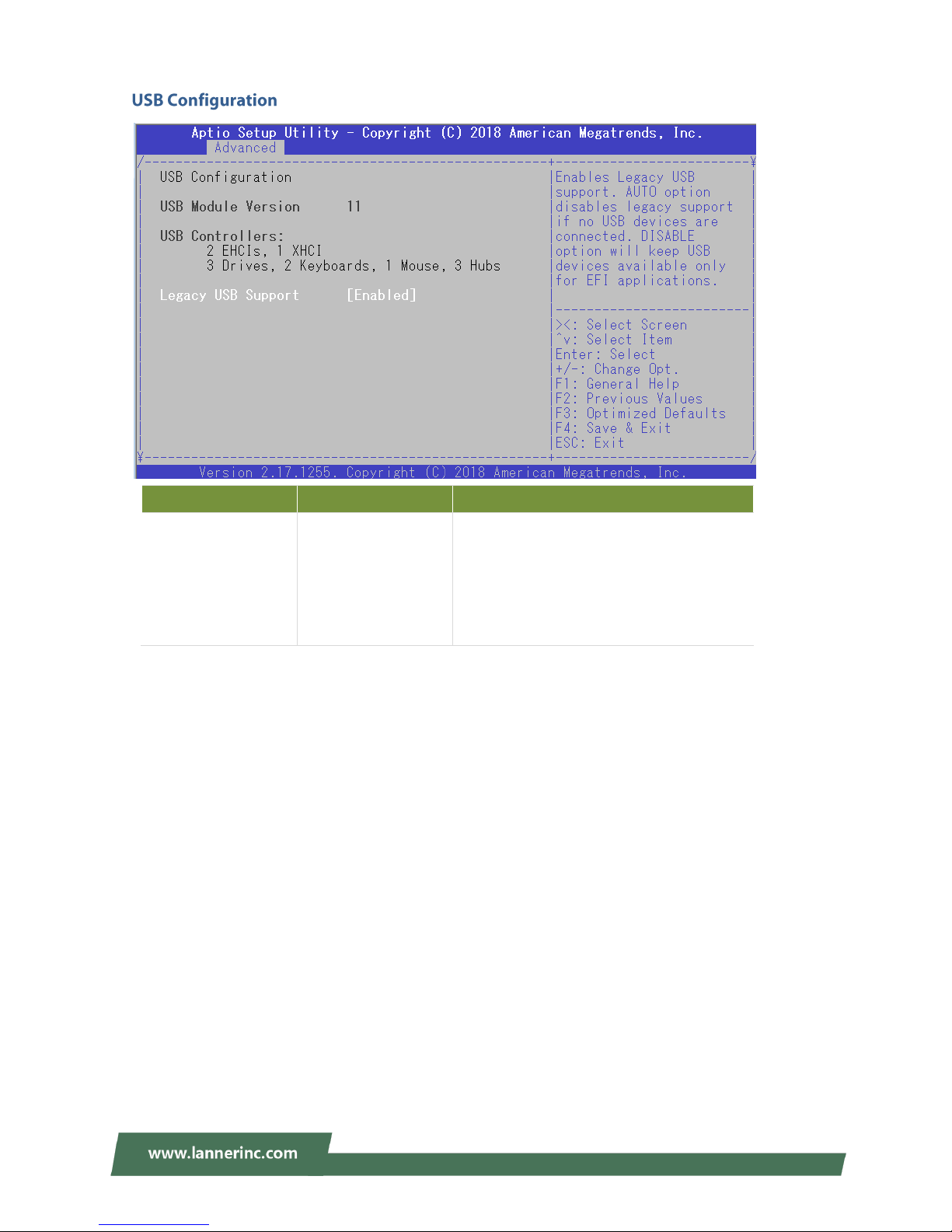

Legacy USB Support
Enabled
Disabled
Auto
Enables Legacy USB support.
AUTO option disables legacy support if no
USB devices are connected.
DISABLE option will keep USB devices
available only for EFI applications.
Page 54
NCA-3810 User Manual
54
Feature
Options
Description

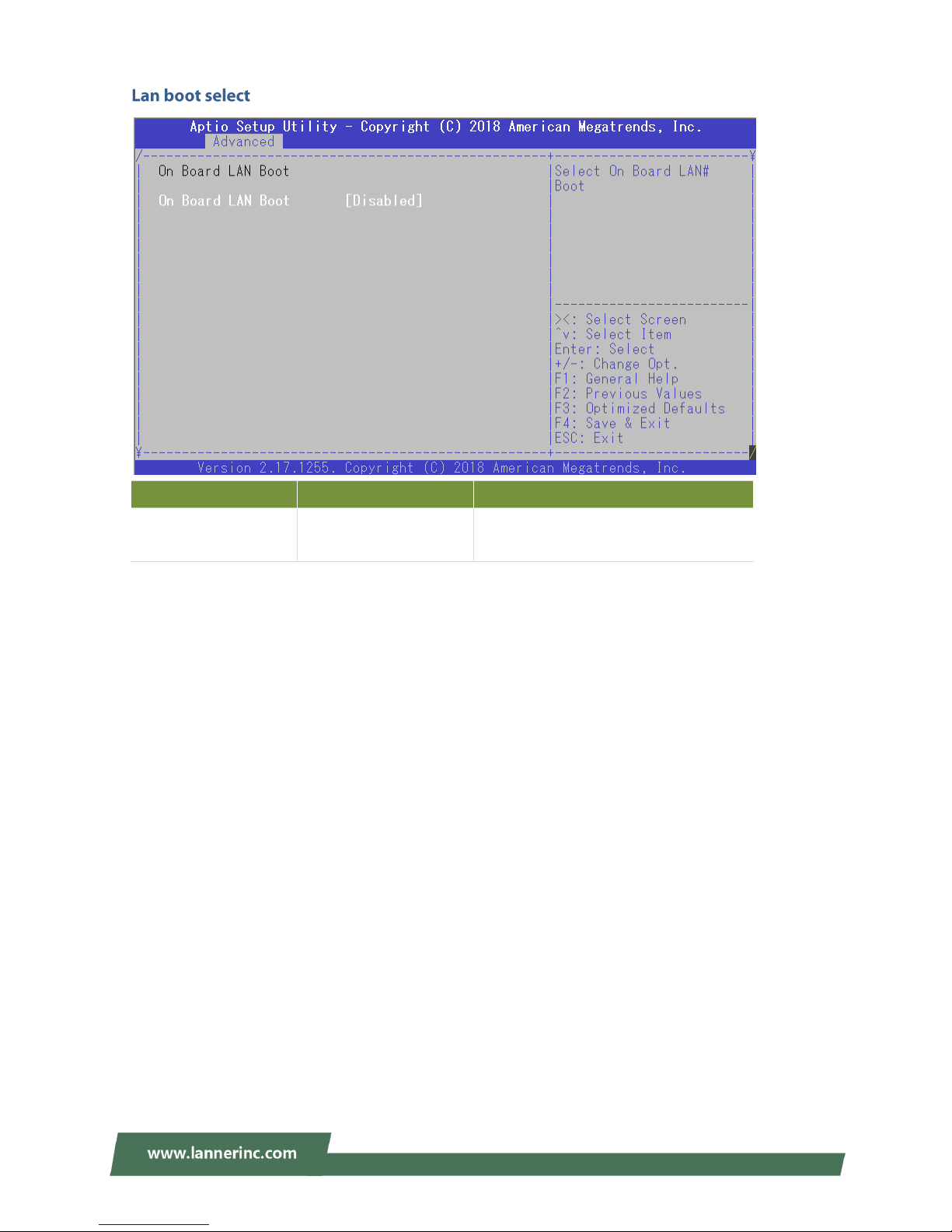

On Board LAN Boot
Disabled
MGT2
Select On Board LAN# Boot
Page 55
Chapter 4: BIOS Setup
55
Select the IntelRCSetup menu item from the BIOS setup screen to enter the IntelRCSetup
screen. Users can select any of the items in the left frame of the screen.
Feature
Options
Description
Processor
Configuration
None
Displays and provides option to change the
Processor Settings
Memory Configuration
None
Displays and provides option to change the
Memory Settings
PCH Configuration
None
Displays and provides option to change the
PCH Settings
Page 56
NCA-3810 User Manual
56
Feature
Options
Description

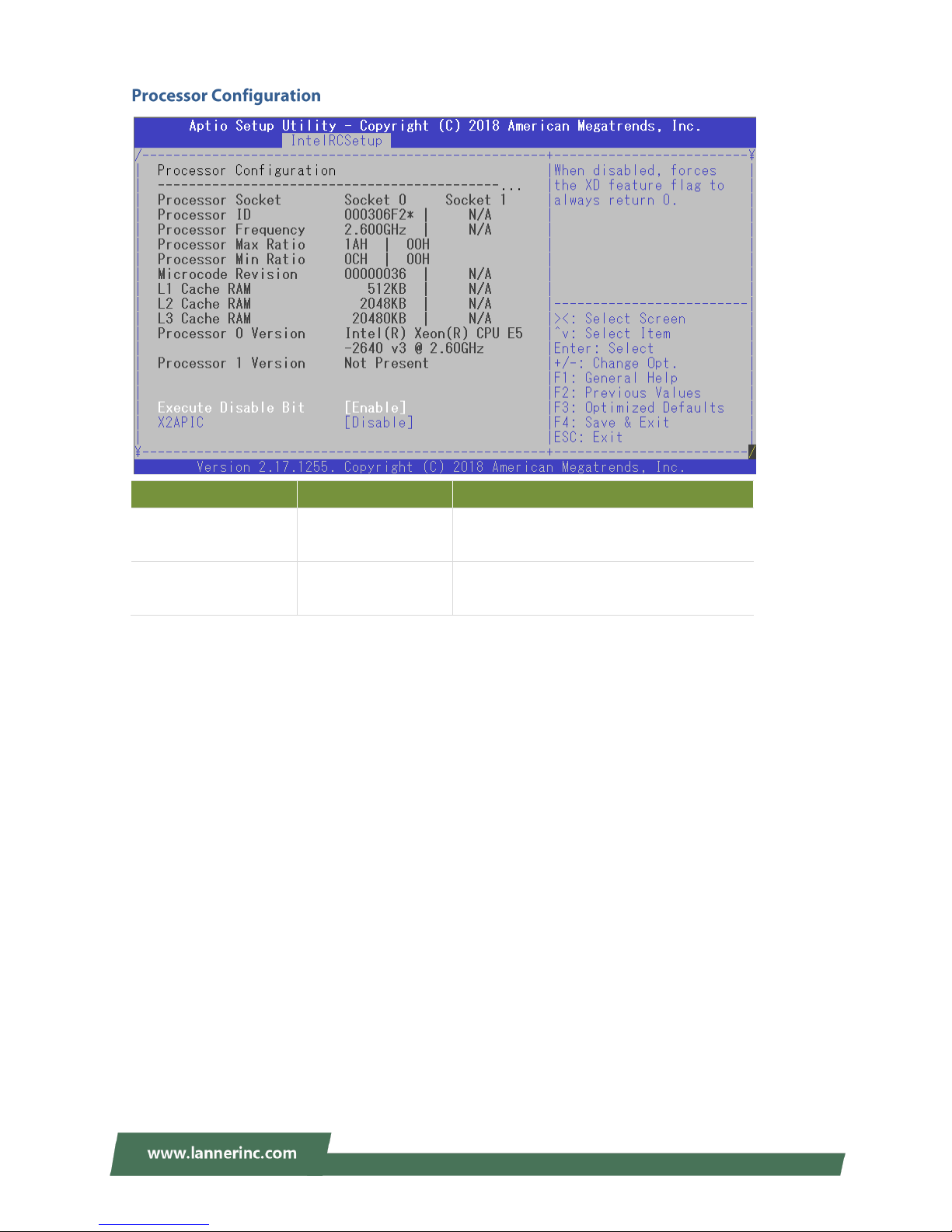

Execute Disable Bit
Enabled
Disabled
When disabled, forces the XD feature flag to
always return 0.
X2APIC
Enabled
Disabled
Enable/disable extended APIC support.
Page 57
Chapter 4: BIOS Setup
57
Page 58
NCA-3810 User Manual
58
Feature
Options
Description
PCH state after G3
S0
S5
Last State
Select S0/S5 for ACPI state after a G3
PCH SATA
Configuration
None
SATA devices and settings
Page 59
Chapter 4: BIOS Setup
59

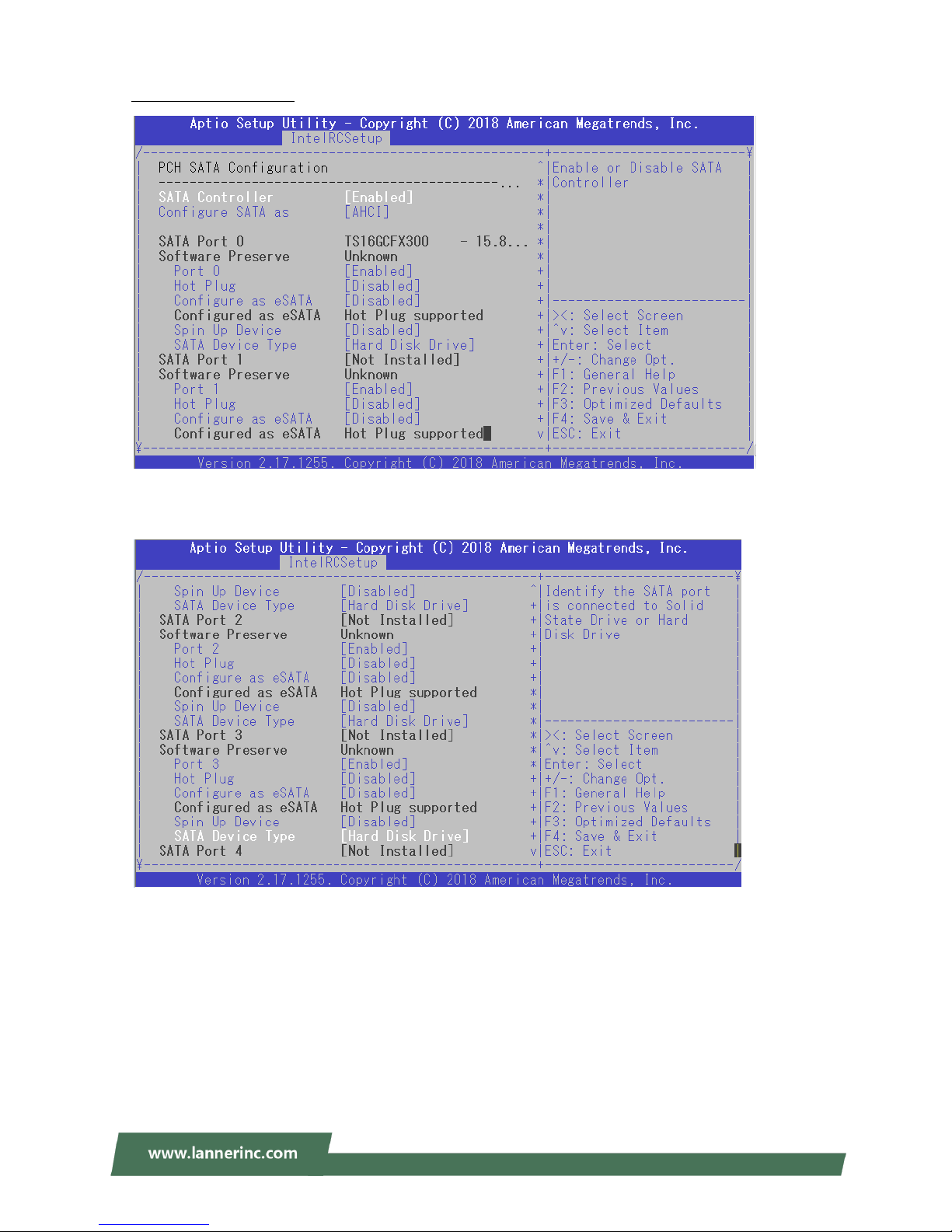

PCH SATA Configuration
Page 60
NCA-3810 User Manual
60
Feature
Options
Description
SATA Controller
Disabled
Enabled
Enable or Disable SATA Controller
Configure SATA as
AHCI
RAID
Identify the SATA port is connected to Solid
State Drive or Hard Disk Drive.
Port 0
Disabled
Enabled
Enable or Disable SATA Port
Hot Plug
Disabled
Enabled
Designates this port as Hot Pluggable.
Configure as eSATA
Disabled
Enabled
Configures port as External SATA (eSATA)
Spin Up Device
Disabled
Enabled
If enabled for any of ports Staggered Spin
Up will be performed and only the drives
which have this option enabled will spin up
at boot. Otherwise all drives spin up at boot.
SATA Device Type
Hard Disk Drive Solid
State Drive
Identify the SATA port is connected to Solid
State Drive or Hard Disk Drive.
Port 1
Disabled
Enabled
Enable or Disable SATA Port
Hot Plug
Disabled
Enabled
Designates this port as Hot Pluggable.
Configure as eSATA
Disabled
Enabled
Configures port as External SATA (eSATA)
Spin Up Device
Disabled
Enabled
If enabled for any of ports Staggered Spin
Up will be performed and only the drives
Page 61
Chapter 4: BIOS Setup
61
which have this option enabled will spin up
at boot. Otherwise all drives spin up at boot.
SATA Device Type
Hard Disk Drive Solid
State Drive
Identify the SATA port is connected to Solid
State Drive or Hard Disk Drive.
Port 2
Disabled
Enabled
Enable or Disable SATA Port
Hot Plug
Disabled
Enabled
Designates this port as Hot Pluggable.
Configure as eSATA
Disabled
Enabled
Configures port as External SATA (eSATA)
Spin Up Device
Disabled
Enabled
If enabled for any of ports Staggered Spin
Up will be performed and only the drives
which have this option enabled will spin up
at boot. Otherwise all drives spin up at boot.
SATA Device Type
Hard Disk Drive Solid
State Drive
Identify the SATA port is connected to Solid
State Drive or Hard Disk Drive.
Port 3
Disabled
Enabled
Enable or Disable SATA Port
Hot Plug
Disabled
Enabled
Designates this port as Hot Pluggable.
Configure as eSATA
Disabled
Enabled
Configures port as External SATA (eSATA)
Spin Up Device
Disabled
Enabled
If enabled for any of ports Staggered Spin
Up will be performed and only the drives
which have this option enabled will spin up
at boot. Otherwise all drives spin up at boot.
SATA Device Type
Hard Disk Drive Solid
State Drive
Identify the SATA port is connected to Solid
State Drive or Hard Disk Drive.
Port 4
Disabled
Enabled
Enable or Disable SATA Port
Hot Plug
Disabled
Enabled
Designates this port as Hot Pluggable.
Configure as eSATA
Disabled
Enabled
Configures port as External SATA (eSATA)
Spin Up Device
Disabled
Enabled
If enabled for any of ports Staggered Spin
Up will be performed and only the drives
which have this option enabled will spin up
at boot. Otherwise all drives spin up at boot.
Page 62
NCA-3810 User Manual
62
SATA Device Type
Hard Disk Drive Solid
State Drive
Identify the SATA port is connected to Solid
State Drive or Hard Disk Drive.

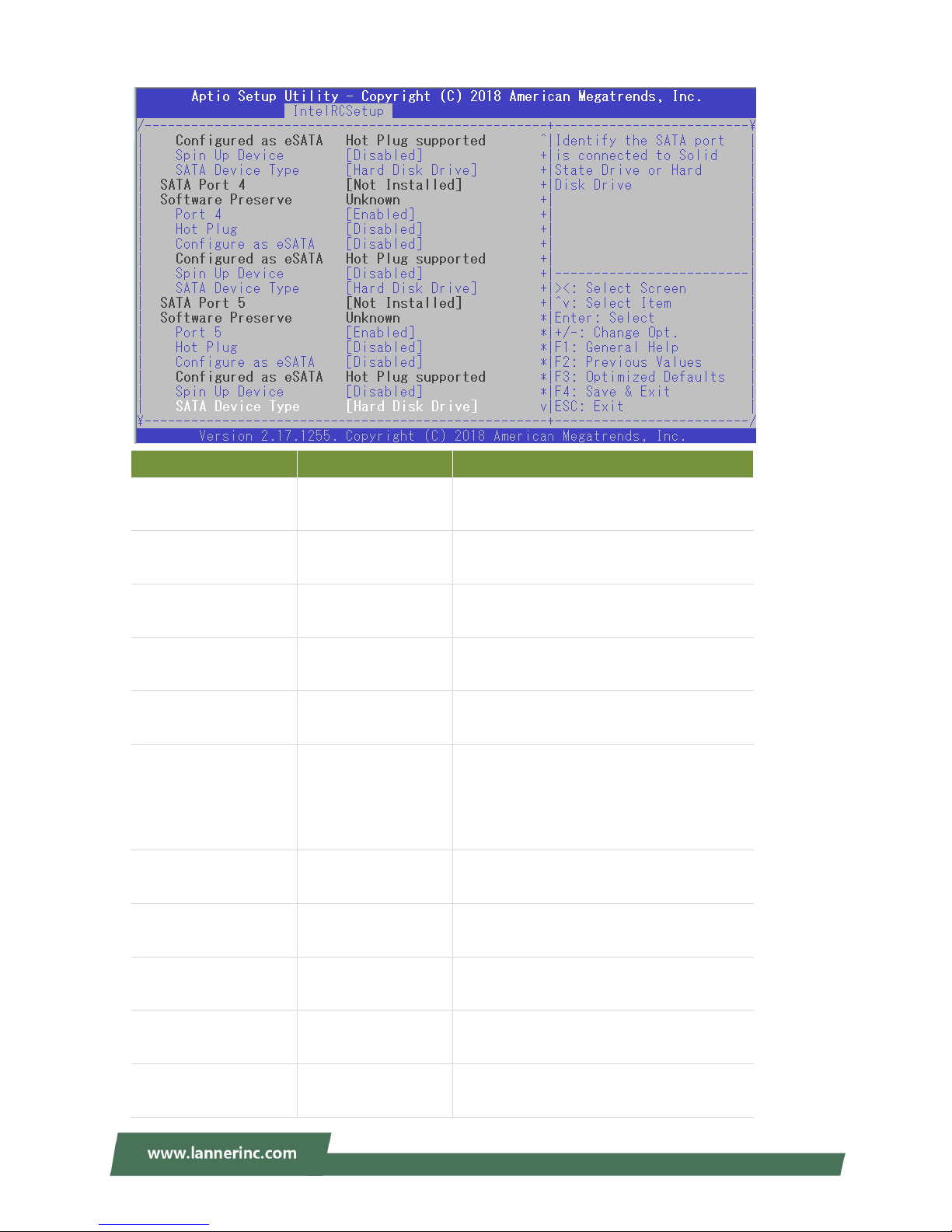

Port 5
Disabled
Enabled
Enable or Disable SATA Port
Hot Plug
Disabled
Enabled
Designates this port as Hot Pluggable.
Configure as eSATA
Disabled
Enabled
Configures port as External SATA (eSATA)
Spin Up Device
Disabled
Enabled
If enabled for any of ports Staggered Spin
Up will be performed and only the drives
which have this option enabled will spin up
at boot. Otherwise all drives spin up at boot.
SATA Device Type
Hard Disk Drive Solid
State Drive
Identify the SATA port is connected to Solid
State Drive or Hard Disk Drive.
Page 63
Chapter 4: BIOS Setup
63
Select the Server Mgmt menu item from the BIOS setup screen to enter the Server Mgmt
Setup screen. Users can select any of the items in the left frame of the screen.
Feature
Options
Description
BMC Support
Disabled
Enabled
Enable/Disable interfaces to communicate
with BMC
Wait For BMC
Disabled
Enabled
Wait For BMC response for specified time
out. In PILOTII, BMC starts at the same time
when BIOS starts during AC power ON. It
takes around 30 seconds to initialize Host to
BMC interfaces.
BMC network
configuration
None
Configure BMC network parameters
Page 64
NCA-3810 User Manual
64
Feature
Options
Description
Configuration
Address
Unspecified
Static
DynamicBmcDhcp
DynamicBmcNonDhcp
Select to configure LAN channel
parameters statically or dynamically(by
BIOS or BMC). Unspecified option will not
modify any BMC network parameters
during BIOS phase.
Page 65
Chapter 4: BIOS Setup
65
Select the Security menu item from the BIOS setup screen to enter the Security Setup screen. Users can
select any of the items in the left frame of the screen.
Feature
Description
Administrator Password
If ONLY the Administrator's password is set, then this only
limits access to Setup and is only asked for when entering
Setup.
User Password
If ONLY the User's password is set, then this is a power on
password and must be entered to boot or enter Setup. In
Setup the User will have Administrator rights.
Page 66
NCA-3810 User Manual
66
Select the Boot menu item from the BIOS setup screen to enter the Boot Setup
screen. Users can select any of the items in the left frame of the screen.
Feature
Options
Description
Setup Prompt Timeout
1
Number of seconds to wait for setup
activation key.
65535 means indefinite waiting.
Bootup NumLock State
On
Off
Select the keyboard NumLock state
Quiet Boot
Disabled
Enabled
Enables or disables Quiet Boot option.
■ Choose boot priority from boot option group.
■ Choose specifies boot device priority sequence from available Group device.
Page 67
Chapter 4: BIOS Setup
Select the Save and Exit menu item from the BIOS setup screen to enter the Save and Exit
Setup screen. Users can select any of the items in the left frame of the screen.
■Save Changes and Exit
When Users have completed the system configuration changes, select this option to save the
changes and Exit from BIOS Setup, so the new system configuration parameters can take effect.
The following window will appear after selecting the ‘Save Changes and Exit’ option selected.
Select YES to Save Changes and Exit Setup.
■Discard Changes and Exit
Select this option to quit Setup without saving any modifications to the system configuration.
The following window will appear after selecting the ‘Discard Changes and Exit’ option
selected. Select YES to Discard changes and Exit Setup.
Page 68
NCA-3810 User Manual
68
■Save Changes and Reset
Reset the system after saving the changes.
■Discard Changes and Reset
Reset system setup without saving any changes.
■Save Changes
Save Changes done so far to any of the setup options.
■Discard Changes
Discard Changes done so far to any of the setup options.

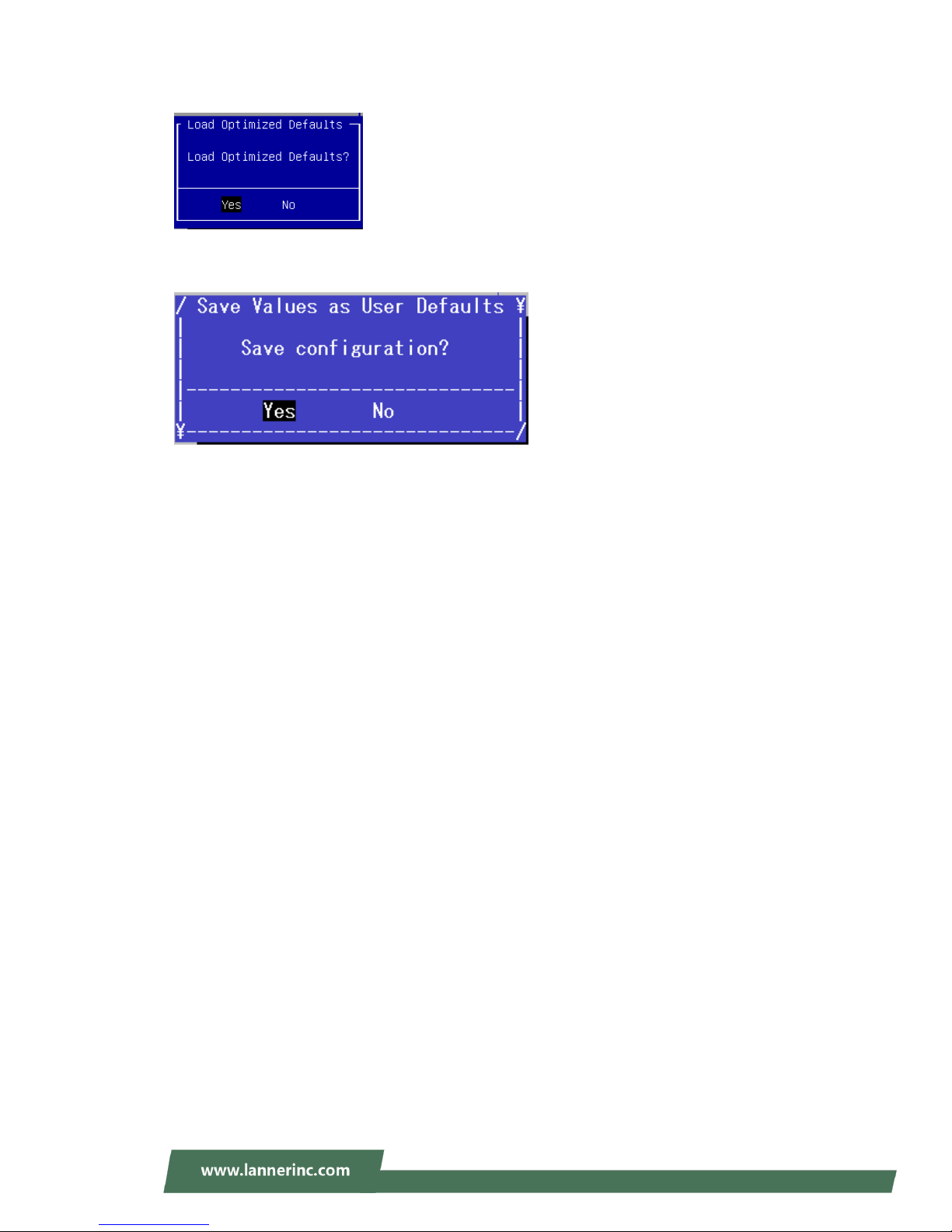

■Restore Defaults
Restore default values for all setup options. Select YES to load Optimized defaults.
Page 69
Chapter 4: BIOS Setup
■Save as User Defaults
Save the changes done so far as User Defaults.
■Restore User Defaults
Restore the User Defaults to all the setup options.
Page 70
Appendix A: LED Indicator Explanations
The status explanations of LED indicators on Front Panel are as follows:
HDD Activity Status
Blinking Amber
Data access activities
Off
No data access activities
System Status
This LED indicator is programmable. You could program it to display the operating status with the behaviors described
below:
Solid Green
Controlled by GPIO
Blinking Green
Controlled by GPIO
Solid Amber
Controlled by GPIO
Blinking Amber
Controlled by GPIO
Off
Controlled by GPIO
System Power
Solid Green
The system is powered on
Off
The system is powered off
RJ45 LAN Status
Left LED
(Link Status)
Solid Amber
Link has been established and there is no activity on this port
Blinking Amber
Link has been established and there is activity on this port
Off
No link has been established
Right LED
(Speed)
Solid Green
Operating as a 100 Mbps connection
Solid Amber
Operating as a Gigabit connection (1000 Mbps)
Off
No link has been established
SFP Port
Solid Amber
Link has been established and there is no activity on this port
Blinking Amber
Link has been established and there is activity on this port
Off
No link has been established
HDD Activity
System Status
System Power
Speed
Link Activity
SFP1
SFP2
Page 71
Appendix B: Setting up Console Redirections
71
Console redirection lets you monitor and configure a system from a remote terminal computer by
re-directing keyboard input and text output through the serial port. The following steps illustrate how to
use this feature. The BIOS of the system allows the redirection of the console I/O to a serial port. With this
configured, you can remotely access the entire boot sequence through a console port.
1. Connect one end of the console cable to console port of the system and the other end to the serial port
of the Remote Client System.
2. Configure the following settings in the BIOS Setup menu:
BIOS > Advanced > Serial Port Console Redirection > Console Redirection Settings, select 115200
for the Baud Rate, None. for Flow control, 8 for the Data Bit, None for Parity Check, and 1 for the Stop
Bit.
3. Configure console redirection related settings on the client system. You can use a terminal emulation
program that features communication with serial COM ports such as TeraTerm or Putty. Make sure the
serial connection properties of the client conform to those for the server.
Page 72
NCA-3810 User Manual
72
The bypass function is used to link two independent Ethernet ports when the system crashes or powers off.
This means if your system is equipped with a LAN Bypass function, a condition in your system will not
interrupt your network traffic. Different from the previous two generations (Gen1 and Gen2), the Lanner
Bypass Gen 3 employs a programming method to control the bypass function by software. There are
typically two types of communication status for the bypass function, one is “Normal“ and another is
“Bypass “ status. Furthermore, the Lanner Bypass software is capable of controlling the bypass status in the
following 3 instances.
When the system powers off, it can be forced to enable the LAN Bypass function.
When the system is in the just-on state which is a brief moment when it powers up.
The Lanner bypass possesses the following features:
1. Communication through SMBUS (I2C)
2. Independent bypass status control for each pair up to a total of 4 pairs
3. Lanner Bypass Modules can bypass systems Ethernet ports on a host system during three instances:
Just-on (Just-on is the brief moment when the internal power supply turns on and booting process
starts), system off, or upon software request (during run-time).
4. Software programmable bypass or normal mode
5. Software programmable timer interval:
- JUST-ON watchdog timer, used during JUST-ON, has timer setting of 5~1275 seconds of timer
interval.
- Run-Time watchdog timer, used during run-time, with of 1~255 seconds of timer interval.
6. Multiple Watchdog Timers:
-Two for run-time: It is designed to give you a more variety of controls of the bypass on port basis.
By using dedicated watchdogs for different pairs of the bypass, you have the flexibility to manage
the bypass status for them differently.
-One for just-on: It is designed to give you the precise control of the bypass during this phase. You
can use this timer to delay enabling the bypass in just-on state.
For a reference utility that contains sample code for LAN Bypass function programming, please visit
http://www.lannerinc.com/support/download-center/drivers, enter the product category and download
the utility package.
Page 73
Appendix D: Terms and Conditions
73
1. All products are under warranty against defects in materials and workmanship for a period of one year
from the date of purchase.
2. The buyer will bear the return freight charges for goods returned for repair within the warranty period;
whereas the manufacturer will bear the after service freight charges for goods returned to the user.
3. The buyer will pay for the repair (for replaced components plus service time) and transportation charges
(both ways) for items after the expiration of the warranty period.
4. If the RMA Service Request Form does not meet the stated requirement as listed on “RMA Service”, RMA
goods will be returned at customer’s expense.
5. The following conditions are excluded from this warranty:
Improper or inadequate maintenance by the customer
Unauthorized modification, misuse, or reversed engineering of the product
Operation outside of the environmental specifications for the product.
1. To obtain an RMA number, simply fill out and fax the “RMA Request Form“ to your supplier.
2. The customer is required to fill out the problem code as listed. If your problem is not among the codes
listed, please write the symptom description in the remarks box.
3. Ship the defective unit(s) on freight prepaid terms. Use the original packing materials when possible.
4. Mark the RMA# clearly on the box.
Note: Customer is responsible for shipping damage(s) resulting from inadequate/loose packing
of the defective unit(s). All RMA# are valid for 30 days only; RMA goods received after the
effective RMA# period will be rejected.
Page 74
NCA-3810 User Manual
74
When requesting RMA service, please fill out the following form. Without this form enclosed, your RMA
cannot be processed.
