V2.2
swift eps
b
catalog
parts
V2.2 - swift eps
b
Please consider the environment before printing
V2.2 - swift eps
b
Grinder and Accessories Grinder e Accessori 10 2.2
Tower Section Esploso torre 8 2.2
Swift EPS Swift EPS 6 2.2
Specications Caratteristiche Tecniche 4 2.2
INDEX
Pag. Vers.
SPECIFICATIONS
350 mm
13,8 in
360 mm
14 in
655 mm
25,8 in
V2.2 - swift eps
285 mm
11,2 in
b
4
SPECIFICATIONS
Caratteristiche Tecniche
Width
mm 350
in 13,78
mm 655
Height
in 25,78
mm 360
Depth
in 14
Kg 31
Machine weight
lb 68
Kg 32,5
Shipping weight
lb 71,65
Kg 1,8 x 2
Hopper
lb 4 x 2
110VAC Single Phase
Electrical Voltage VAC
220VAC Single Phase
Total Wattage W 780 Watts
Operation Type Automatic
Burr Type Ceramic Flat
V2.2 - swift eps
b
5
SWIFT EPS ASSEMBLY
V2.2 - swift eps
b
6
SWIFT EPS ASSEMBLY
1 5.373
2 5.116
3a 5.114
3b 5.506
4 5.120
5 5.V001
6 5.306
7 5.343
8 5.342
9 5.341.1
10 5.336
11 5.333
Swift Eps
12 5.369
13 5.367
14 5.332
15 5.315
16 5.319
17 5.V013
Item Part number/Codice Description Item Part number/Codice Description
RESETTABLE BREAKER 10A
ON/OFF SWITCH W/LIGHT
POWER CORD W/LIGHT, 110V
POWER CORD EURO 14/3, 220V
FOOT. 3/4 DIA RUBBER
#10-32 UNF X 1/2 TRUSS HEAD
BOTTOM PLATE
FOOT RUBBER
FOOT PLATE
FOOT PLATE ASSY (5.342+5.343)
DRIP TRAY
HOPPER LEFT
HOPPER LID LEFT NSF PLASTIC
HOPPER LID RIGHT NSF PLASTIC
HOPPER RIGHT
BEAN GATE
HOPPER MOUNT
#8-32 UNF X1/4'' PAN HEAD
18 5.310
19 5.305.1
20 5.309
21 5.V024
22 5.V023
23 5.V025
24 5.339.1
25 5.339.2
26 5.V021
27 5.361
28 5.368
29 5.313
30 5.V009
31 5.V008
32 5.V003
33 5.V004
34 5.376
TRANSFORMER MOUNT SS
TRANSFORMER BOARD. TYPE G
BACK COVER. ALUMINUM (indicate colour)
#8-32 X 3/4 PAN HEAD SLOTTED
#8-32 UNF X 5/8 PAN HEAD
#8 SPLIT RING LOCK WASHER S/S
CLOCKWISE SLOW POUR DECAL
CTRCLOCKWISE SLOW POUR DECAL
1/4''-20 UNC X 3/4 FLAT HEAD
HOPPER SLEEVE
GRINDER COVER W/FRONT KNOBS
BOLT RINGS
S/S #6-32 UNF HEX NUTS
#6 EXTERNAL TOOTH LOCK WASHER
#10 EXTERNAL TOOTH LOCK WASHER
FASTON 1/4'' NON INSULATED
#6-32UNF X1/4 X 1/4 ROUND
V2.2 - swift eps
b
7

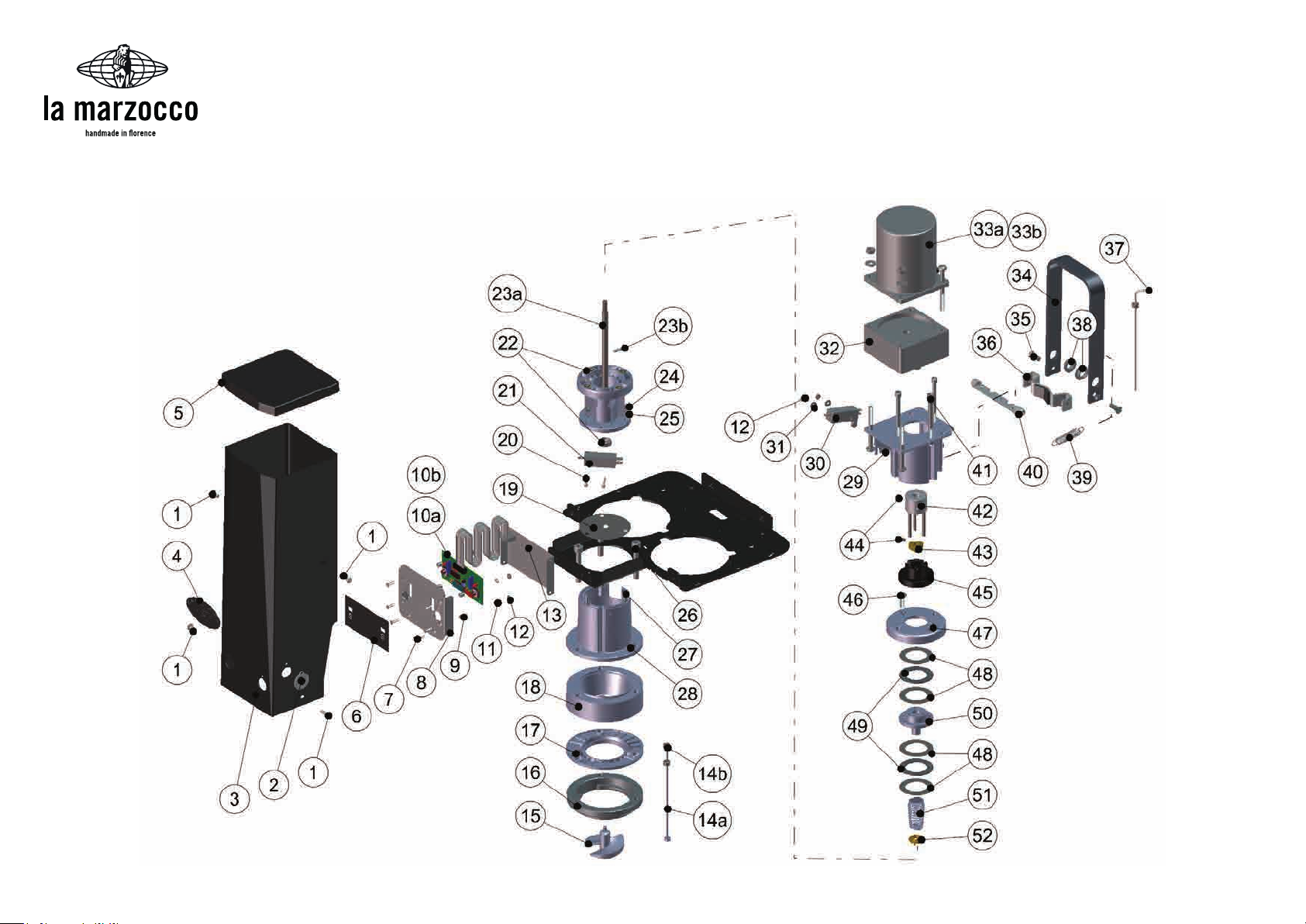

TOWER SECTION ASSEMBLY
V2.2 - swift eps
b
8
TOWER SECTION ASSEMBLY
1 5.V001
2 5.314
3 5.311
4 5.340
5 5.337
6 5.303
7 5.V012
8 5.312
9 5.376
10a 5.304.1
10b 5.304.2
11 5.V008
12 5.V009
13 5.316
14a 5.372
14b 5.372.3
15 5.331
16 L109.01
Sezione Torre
17 5.353
18 5.354
19 5.371
20 5.V016
21 5.117.1
22 5.358
23a 5.328.01
23b 5.109
24 5.V003
25 5.V005
Item Part number/Codice Description Item Part number/Codice Description
#10-32 UNF X 1/2 TRUSS HEAD
MEDAL SWIFT TOWER
TAMPER COVER. ALUMINUM (indicate colour)
DECAL. OVAL. LM LOGO
TAMPER COVER LID
BUTTON COVER OVERLAY
#6-32 UNF X 1/2 FLAT HEAD
ELECTRONICS MOUNT PLATE
#6-32UNF X1/4 X 1/4 ROUND (ALUMINUM)
CONTROL. 2 BUTTON. TYPE G
CONTROL. 2 BUTTON. TYPE G S/D DOSE SWIFT
#6 EXTERNAL TOOTH LOCK WASHER
S/S #6-32 UNF HEX NUTS
ELECTRONIC MOUNT PLATE COVER
SWITCH PIN ASSEMBLY
1/8 SHAFT COLLAR ZINC (ONLY)
TAMPER IMPELLER
BAYONET RING
PORTAFILTER SPACER
COFFEE CHUTE SPACER
GASKET. STAINLESS STEEL
#6 X7/8'' PAN HEAD PHILLIPS
PIN SWITCH WITHOUT LEVER
THRUST BEARING RETAINER. PLAST (includes lip seal 5.110)
TAMPER SHAFT (ASSEMBLED WITH 5.109)
ROLL PIN 3/16 X 7/8 420SS
#10 EXTERNAL TOOTH LOCK WASHER
S/S #10-32 UNF HEX NUT
26 L110.01
27 5.V017
28 5.356
29 5.V018
30 5.117
31 5.V020
32 5.300.R
33a 5.300/110
33b 5.300
34 5.347
35 5.V021
36 5.348
37 5.372.5
38 5.345
39 5.122
40 5.370
41 5.V022
42 5.130
43 5.131
44 5.V014
45 5.132
46 5.V015
47 5.355
48 5.106
49 5.105
50 5.360
51 5.111
52 5.359
M8X52 S/S ALLEN BOLT (THR 8,5)
#10-32 UNF X 1 STUD TFL (SS)
COFFEE CHUTE
#6-32 X 1-1/4 S/S PAN HEAD PHILLIPS M/S
ROLLER SWITCH WITH LEVER
S/S #6 FLAT WASHER
REDUCTION GEAR MOTOR 230V 50/60HZ S/D
115V 50/60HZ SWIFT TAMPER MOTOR
230V 50/60HZ SWIFT TAMPER MOTOR
SHAFT LOCK LEVER
1/4''-20 UNC X 3/4 FLAT HEAD
SHAFT LOCK SHOE
CLEAN OUT TOOL
BEARING PLAIN FLANGED
SPRING FY
SHAFT LOCK MOUNT
1/4’’-20 UNC X 3-1/4’’ SOCKET HEAD ALLEN SCREW
MOTOR SHAFT COUPLING
TAMPER SHAFT COLLAR
S/S #10-32 X 3/8” SOCKET SET SCREW
TAMPER SHAFT COUPLING
1/4’’-20 UNC X 5/8’’ HEX HEAD SCREW
THRUST BEARING RETAINER TOP
THRUST BEARING WASHER
THRUST BEARING
BEARING SPINDLE
SPRING IMPELLER SHAFT
SPRING RETAINER
V2.2 - swift eps
b
9
GRINDER & ACCESSORIES ASSEMBLY
V2.2 - swift eps
b
10
GRINDER & ACCESSORIES ASSEMBLY
1a 5.200
1b 5.201
2a 5.200.51
2b 5.200.53
2c 5.200.52
2d 5.200.54
3 5.V007
4 5.125
5 5.200.27
6 5.200.28
7 5.V006
8 5.200.10
9 5.200.15
10 5.200.11
11 5.200.8
Grinder e Accessori
12 5.200.19
13 5.200.14
14a 5.200.30
Item Part number/Codice Description Item Part number/Codice Description
GRINDER MOTOR ASSY 110V
GRINDER MOTOR ASSY 220V
CAPACITOR-EMV-64LM 120/60/1 SOLD WITH
CAPACITOR-EMV-64LM 230/30/1
CAPACITOR CAP-EMV-64LM,110V
CAPACITOR CAP-EMV-64LM, 220V
M8 X 1.25 NYLON INSERT LOCK NUT
GROMMET
CLAMP RING FOR FAN
FAN BLADE
1/4-20 UNC X 1'' SOCKET HEAD
DISCHARGE
M4x0.7x10 CHEESE HEAD SLOTTED MACHINE SCREW
DISCHARGE COVER (LAMINATED SPRING)
ROTATING GRINDING BURR MOUNT
CONICAL WASHER
M8X1.25X18MM MACHINE SCREW
CERAMIC BURR. (PAIR) STANDARD
14b 5.200.301
15 5.200.16
16 5.200.55
17 5.200.26
18 5.200.7
19 5.339.3
20 5.338.R
21a 5.200.31.R
21b 5.200.36.R
22 5.128
23 5.127
24 5.118
25 5.124
26 5.123
27 5.129
28 5.364
29 5.363
30 5.200.5
CERAMIC BURR (PAIR) HIGH SPEED
SCREW M4X8 A2
O-RING BURR MOUNT
ADJUSTOR CLAMP
STATIONARY GRINDING BURR MOUNT
KNOB LOCATION INDICATOR DECAL
GRIND ADJUSTOR KNOB. 5.338.1 INCLUDED
RGT GRIND ADJUSTOR GEAR W/ROLL PINS
ADJUSTMENT GEAR ASSEMBLY, LEFT W/ROLL PINS
19MM SWIFT FILTER BASKET (FOR 14 TO 15 GRAMS)
22MM SWIFT FILTER BASKET (FOR 16 TO 17 GRAMS)
CLEANING BRUSH
STUB SCREWDRIVER
FUSE PULLER
LONG ARM L-KEY. 3/32 HEX SIZE
FUSE. 1A-SLO
FUSE. 125MA
HOUSING EMV-64LM
